Design Studio 4 Portfolio
Rania Sayed Ahmed Hussein July - Nov 2022Introduce
AboutME
I'm Rania, an Architecture student in UCSI University school of architecture and built environment , year 2 semester 4
I like simple and neat things, and as an Architecture student, I tend to start designing by considering the function of the space.
The topic i'm covering in all my projects for this Sem is Sustainability, which is something new to me
Page04of12
A R C H D E S I G N E R R A N I A S A Y E D
Good Architecture Lets Nature in Mario Pei
Page04of12
BACHELOR ( HONS) IN ARCHITECTURE AR415 - SCHOOL OF ARCHITECTURE & BUILT ENVIRONMENT RANIA SAYED AHMED HUSSIEN SAYED AHMED 1002060159
1 2 34 5 PROJECT 1A PlanterSpace PreliminarySite Study&Research (Groupwork) SiteStudy& Analysis(Group work) SiteResponsesand Massing AGRITECTURE: CULTIVATING GREENSAND DESIGN TABLE OF CONTENT PROJECT 2A PROJECT 3 PROJECT 1B PROJECT 2B
PROJECT
Preliminary Site Study & Research
1A TOUCHING VISUAL
1
PHENOMENOLOGY IN ARCHITECTURE
our project discusses phenomenology in architecture, by studying buildings that represent phenomenology for the four senses( visual hearing smelling touching ) in four different case studies.
The first case study is the sound of wind by Ryuichi Ashizawa Architects & Assn, this building uses the Hearing sense.

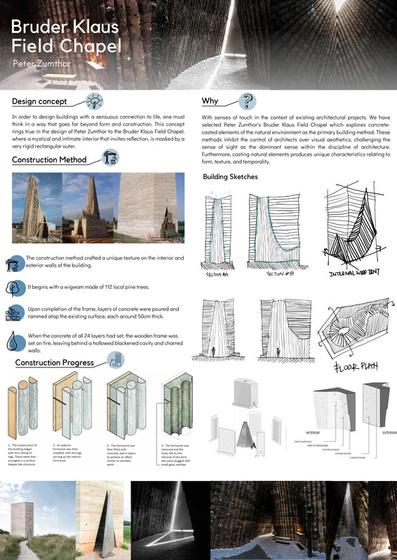

The second case study is Bruder Klaus Field Chapel by Peter Zumthor, this building use Touching sense.
PROJECT 1A
Sound of wind Bruder Klaus Field Chapel
2
PHENOMENOLOGY IN ARCHITECTURE

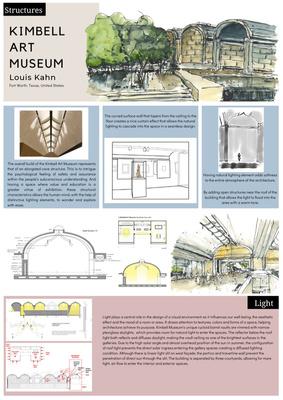

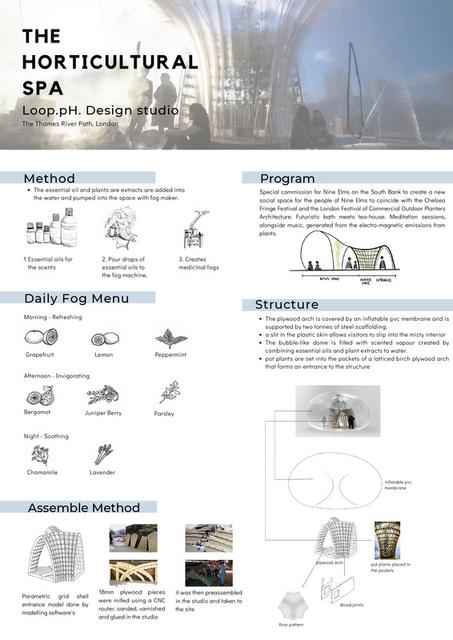

The first case study is The horticultural spa by Loop.pH. Design studio, this building uses the Smelling sense. The second case study is Kimbell Art Museum by Louis Kahn , this building use visual .
PROJECT 1A
The
horticultural
spa Kimbell Art Museum
3
PROJECT 1B
Planter Space
4

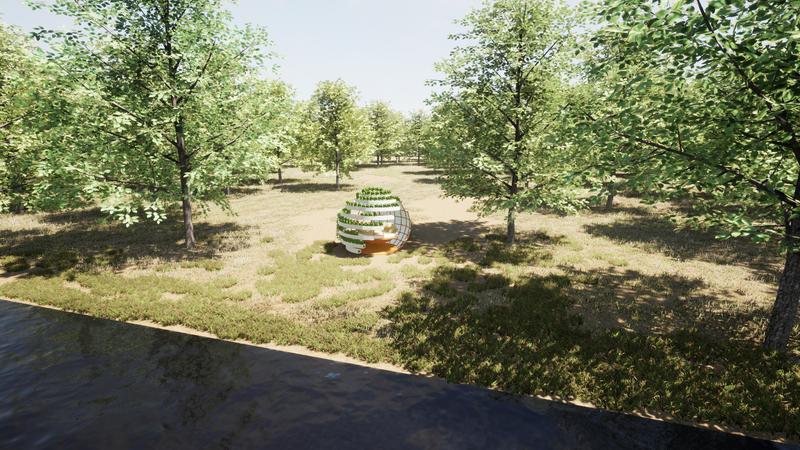

I designed sleeping capsule for for public as a planter space , where people can sleep, lay down read, or even enjoy weather and plants
PROJECT 1B 5

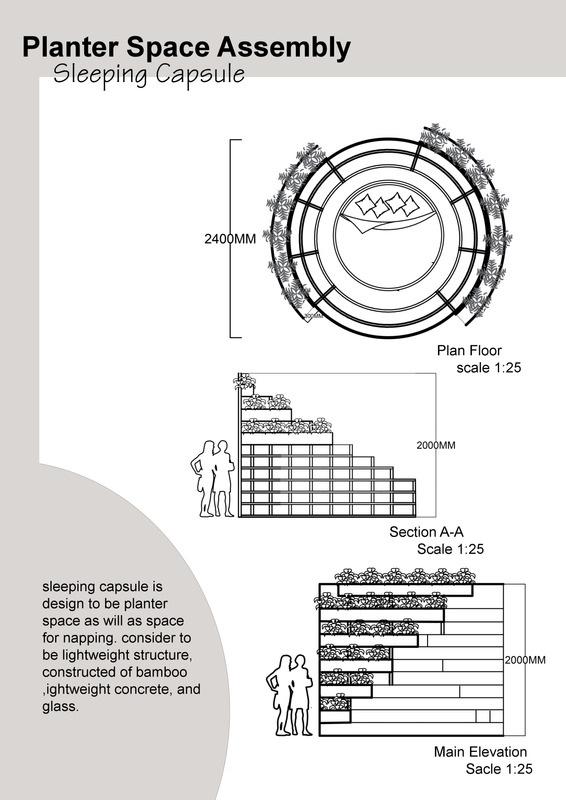

Floor Plan Section A-A Main Elevation 6
TOP VIEW RIGHT SIDE VIEW LIFT SIDE VIEW MAIN VIEW 7
PROJECT 2A Site Study & Analysis
AB 8
SITE STUDY & ANALYSIS

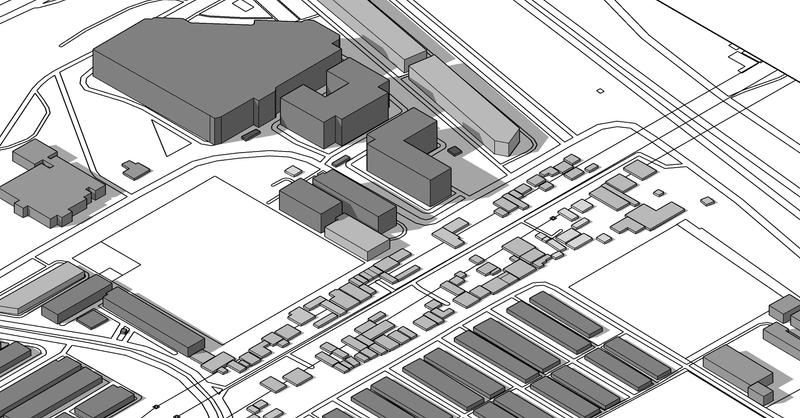

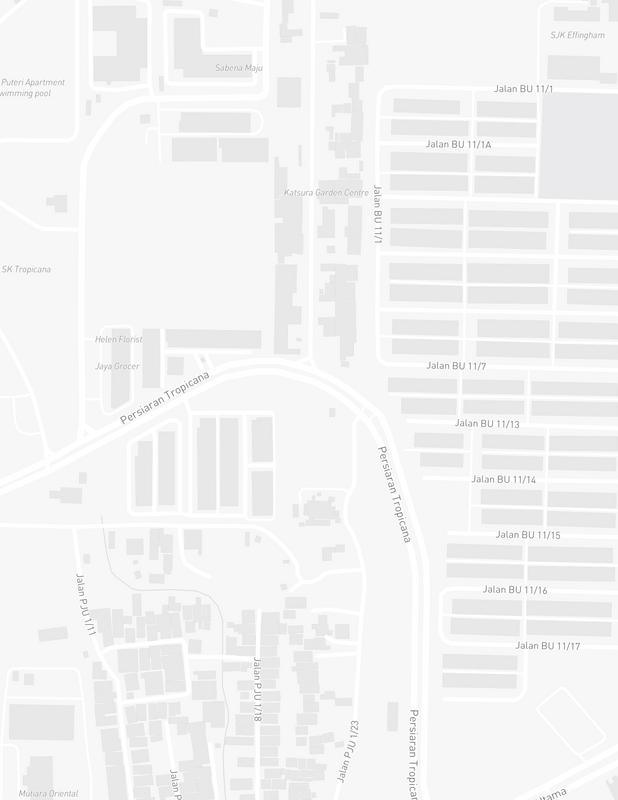

Our site, Katsura Gardan cantor, is located at Porsioran trapicano, Putaling Jaya, Salangor, Tho site attracts various different buildings and is surrounded with extensive collection of plants and vegetation. With the base of accessibility and other existing services. At the center of the locarion plan are the two site we're looking at, Site A and Site B.
PROJECT 2A
AB9
PROJECT 2A 10
SITE STUDY & ANALYSIS

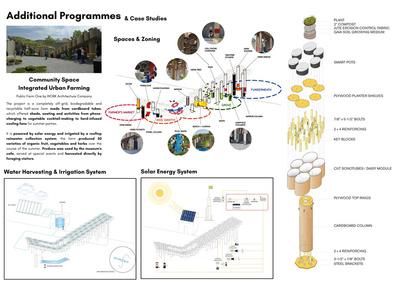

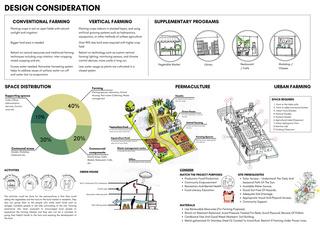

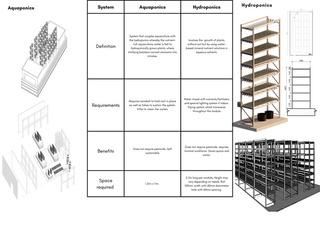

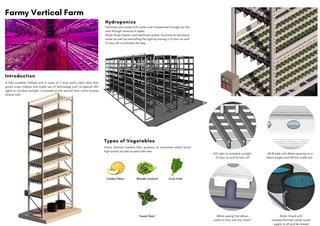

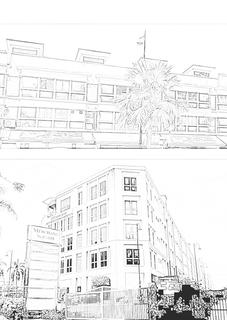

Project 2A is group work, we studied and visited Urban Farming to know more about our project and to recommend Programs and analyze the farming spaces, furthermore, to know the efficiency of urban farming
The Farms that we visited are:

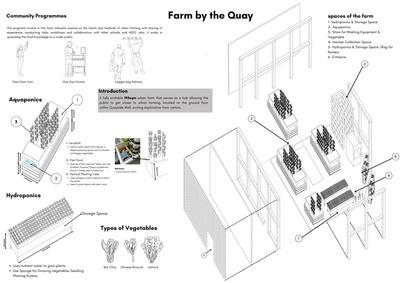

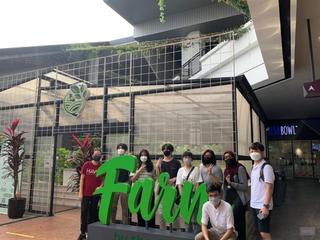

PROJECT 2A FARM BY THE QUAY THE VIRTICAL FARM 11
Site Responses
PR
12

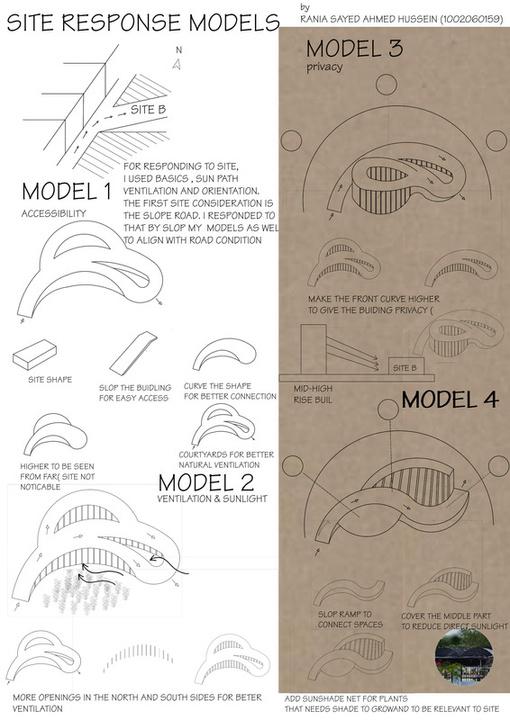

Based on the data analysis of the site i responded to

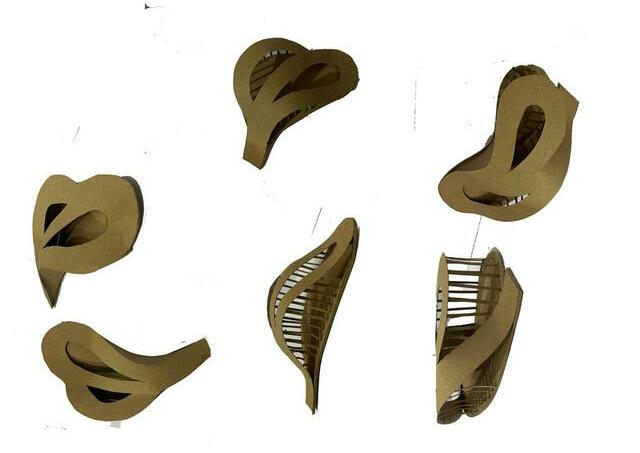

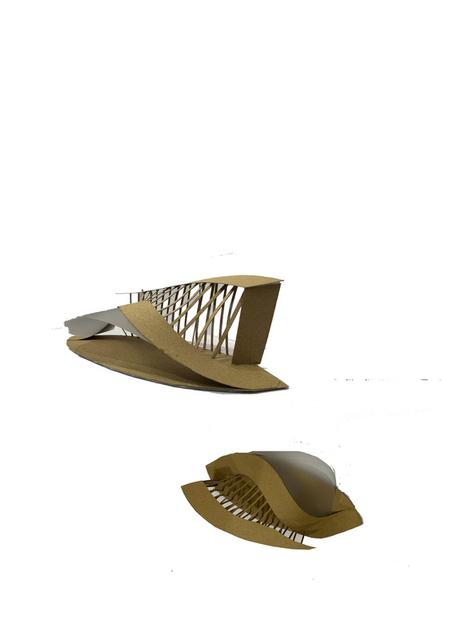

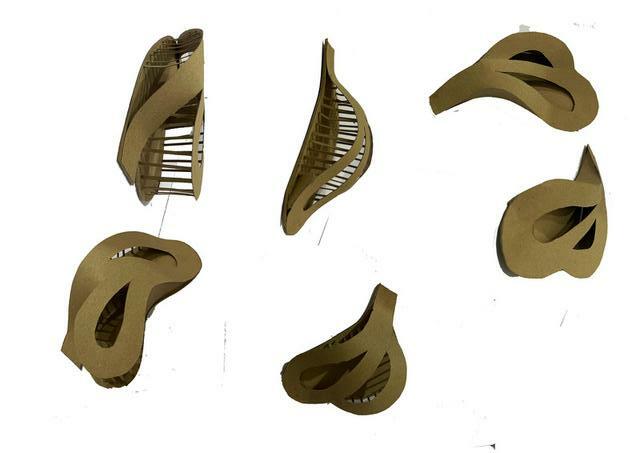

site issue and condition by creating massing models
SITE R AND M
the
1 2 3 4 PROJECT 2B 13
PROJECT 3

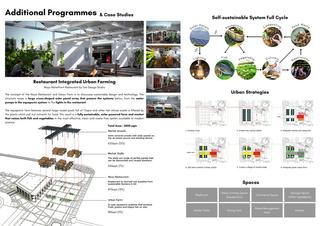

AGRITECTURE: CULTIVATING GREENS AND DESIGN
14

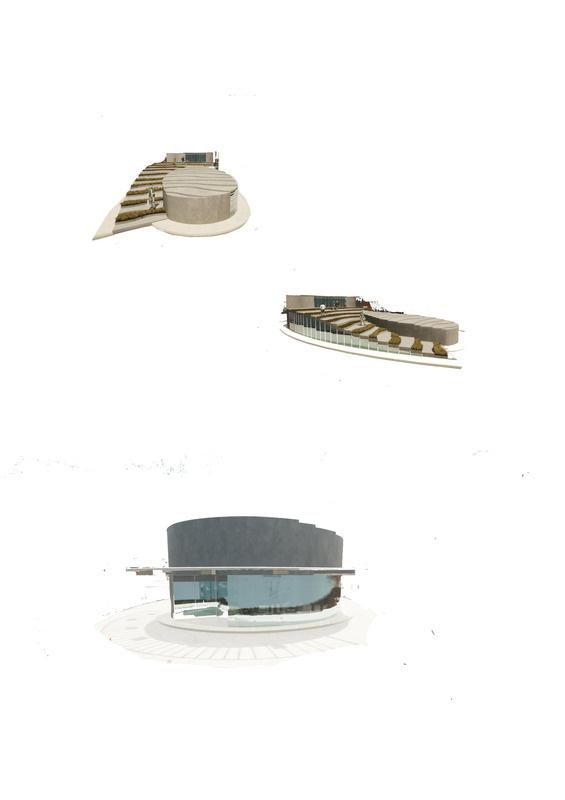

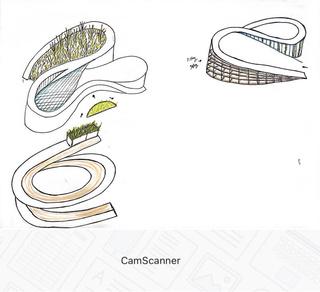

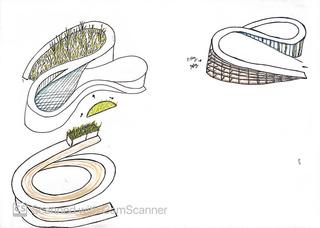

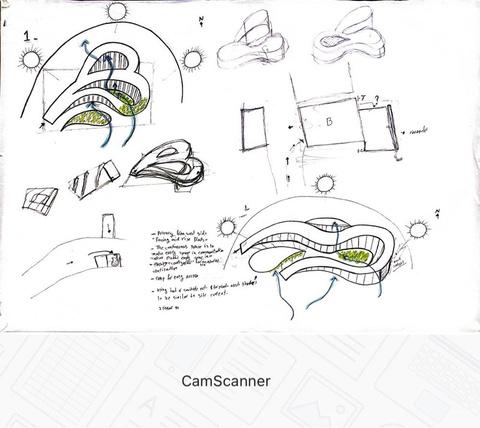

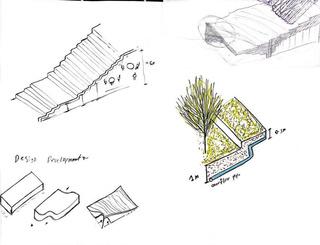

DESIGN PROCESS FOR PROJECT 3 P3 15
BUILDING 16
PRESPECTIVE P3 17
FROM SOIL TO SOUL

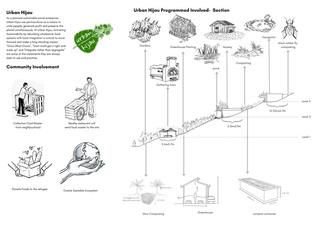

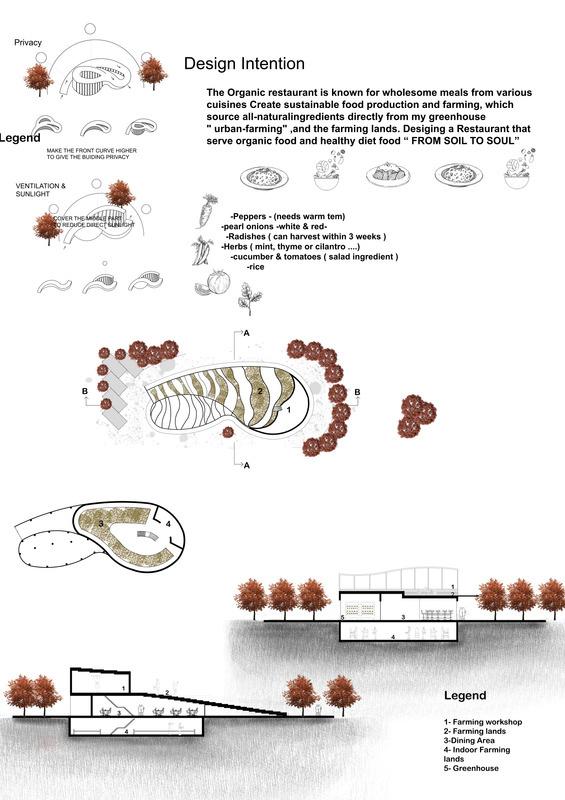

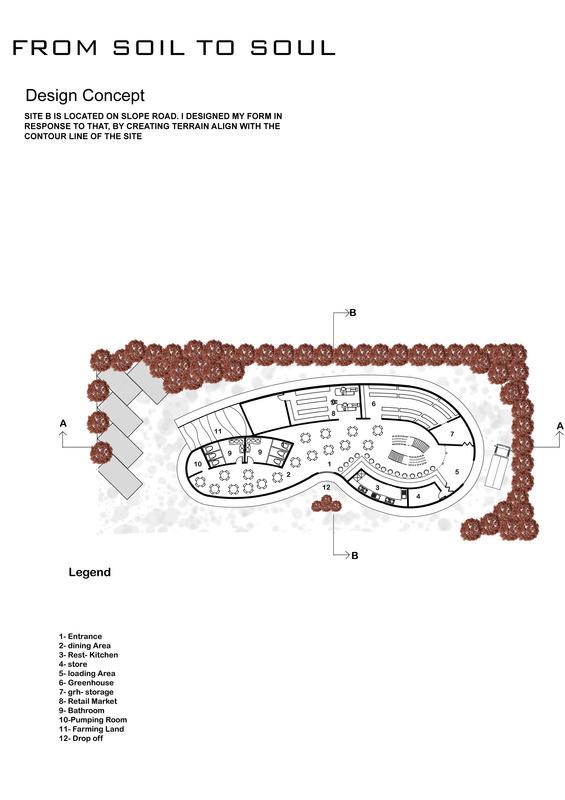

I designed Organic restaurant which is known for wholesome meals from various cuisines Create sustainable food , and it source allnatural ingredients directly from the greenhouse " urban farming" that i designed. 1- Entrance 2- dining Area 3 Rest Kitchen 4 store 5- loading Area 6- Greenhouse 7 grh storage 8 Retail Market 9- Bathroom 10-Pumping Room 11 Farming Land 12 Drop off LEGEND GROUND FLOOR PLAN SITE PLAN 18
BASMENT FLOOR PLAN FIRST FLOOR PLAN 1 Farming workshop 2- Farming lands 3 Indoor Farming lands 4- Farming Tools room P3 19
BACK RSIDE IGHT SIDE 20

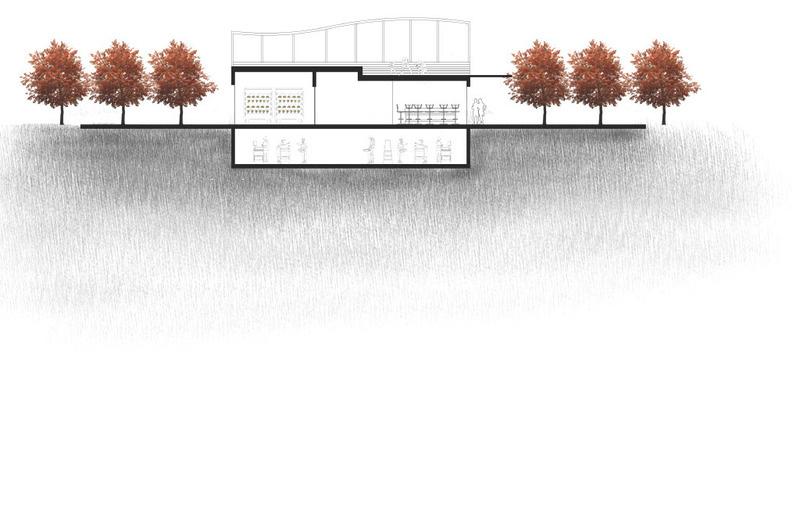

SECTION B - B LEFT SIDE 21

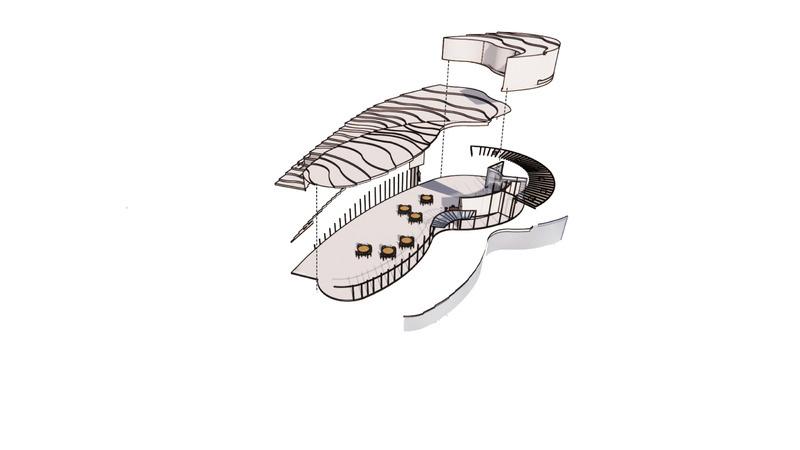

EXPLODED AXONOMETRIC 22

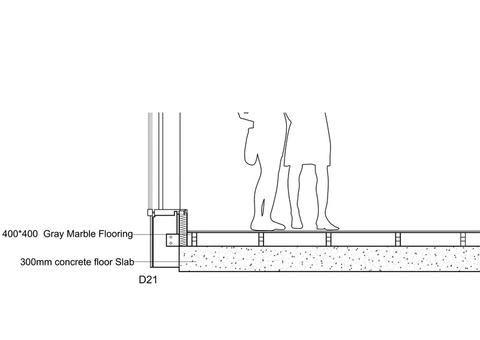

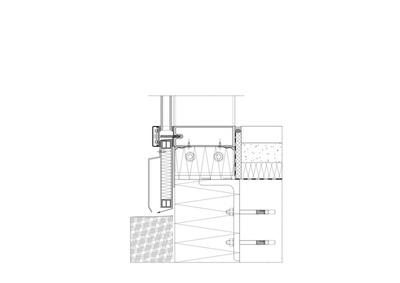

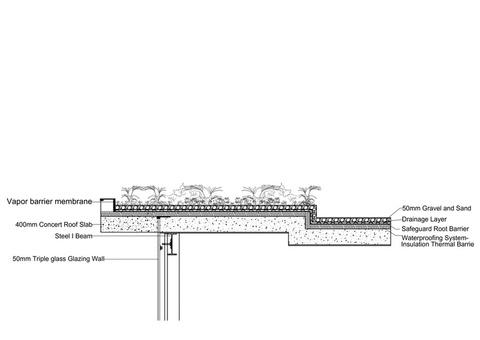

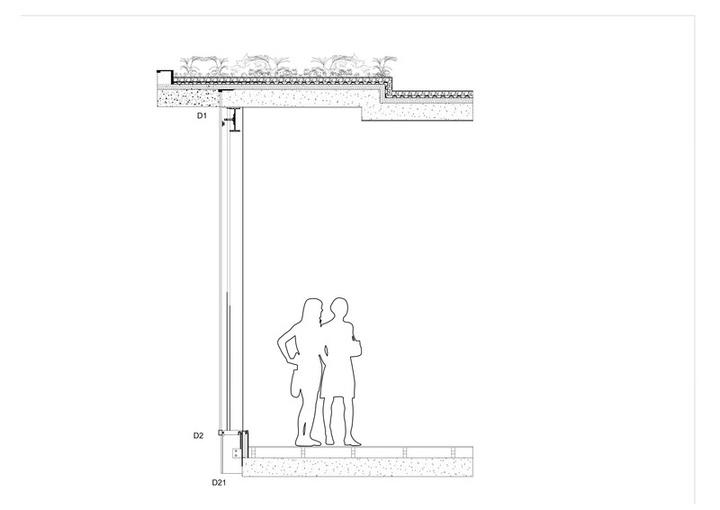

P3 DETAILED SECTION D21 D1 D2 23

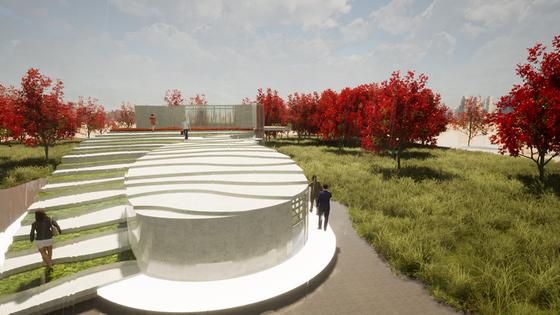

DAY EXTERIOR PERSPECTIVES 24

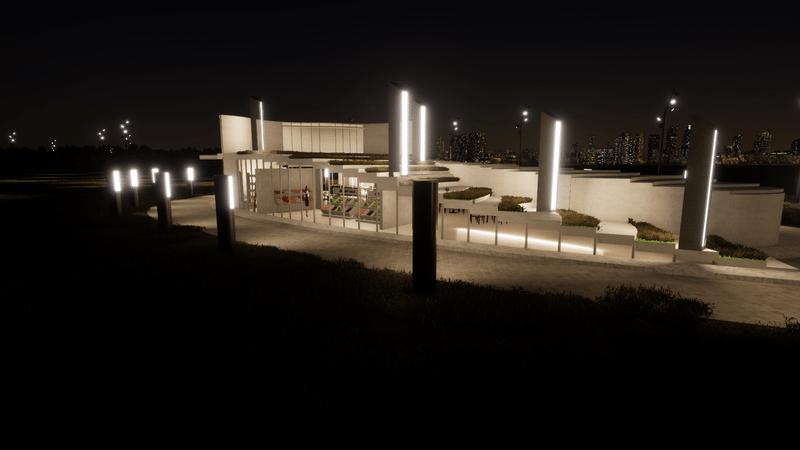

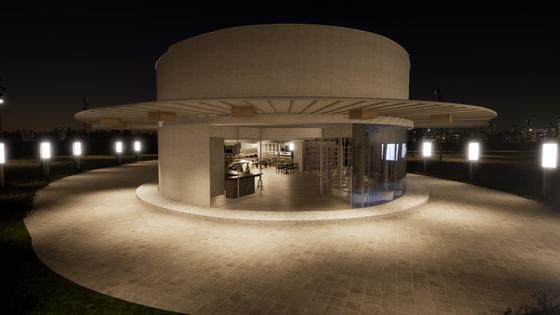

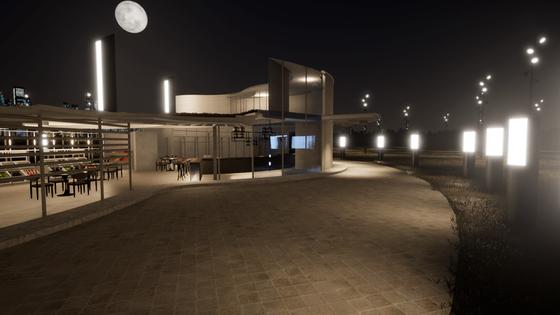

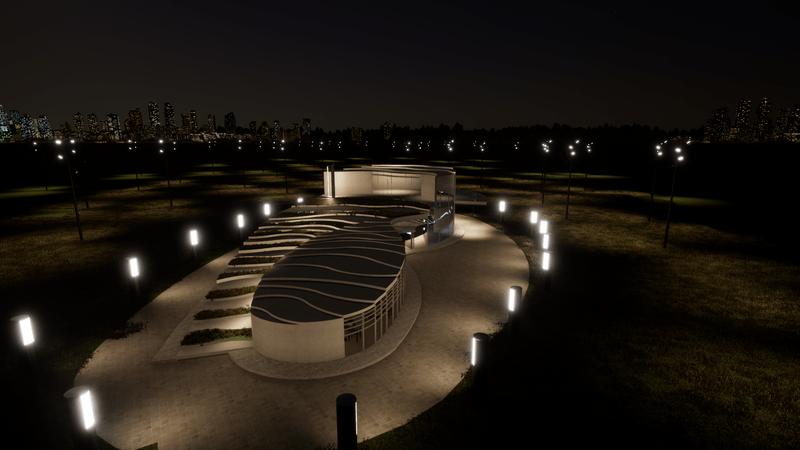

NIGHT EXTERIOR PERSPECTIVES P3 25

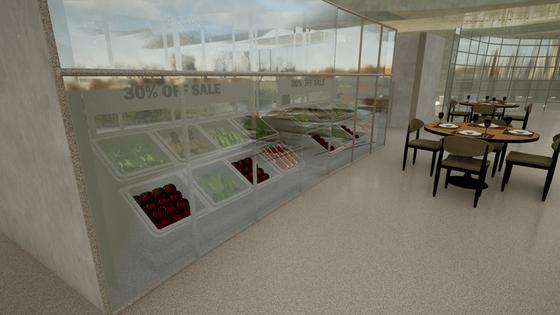

DAY INTERIOR PERSPECTIVES RTAIL MARKET DINING AREA26

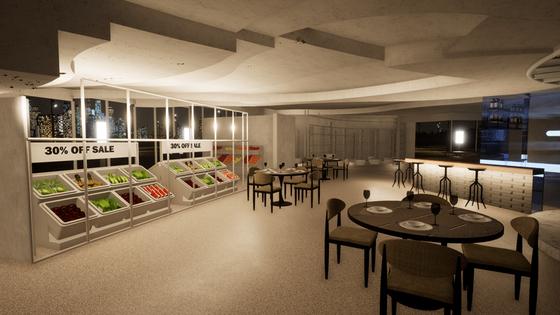

NIGHT INTERIOR PERSPECTIVES P3 DINING AREA 27
28
VIEW OF THE BUILDIBG BACK
P3 29
FROM THE ROOF
VIEW
30
31 P3
HYDROPONIC GREENHOUSE 32
33 P3
KITCHEN BAR
34
35
