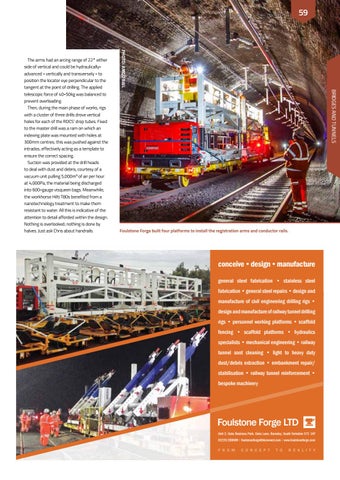

BRIDGES AND TUNNELS
The arms had an arcing range of 22° either side of vertical and could be hydraulicallyadvanced - vertically and transversely - to position the locator eye perpendicular to the tangent at the point of drilling. The applied telescopic force of 40-50kg was balanced to prevent overloading. Then, during the main phase of works, rigs with a cluster of three drills drove vertical holes for each of the ROCS’ drop tubes. Fixed to the master drill was a ram on which an indexing plate was mounted with holes at 300mm centres; this was pushed against the intrados, effectively acting as a template to ensure the correct spacing. Suction was provided at the drill heads to deal with dust and debris, courtesy of a vacuum unit pulling 5,000m3 of air per hour at 4,000Pa, the material being discharged into 600-gauge visqueen bags. Meanwhile, the workhorse Hilti T80s benefited from a nanotechnology treatment to make them resistant to water. All this is indicative of the attention to detail afforded within the design. Nothing is overlooked; nothing is done by halves. Just ask Chris about handrails.
Foulstone Forge built four platforms to install the registration arms and conductor rails.
