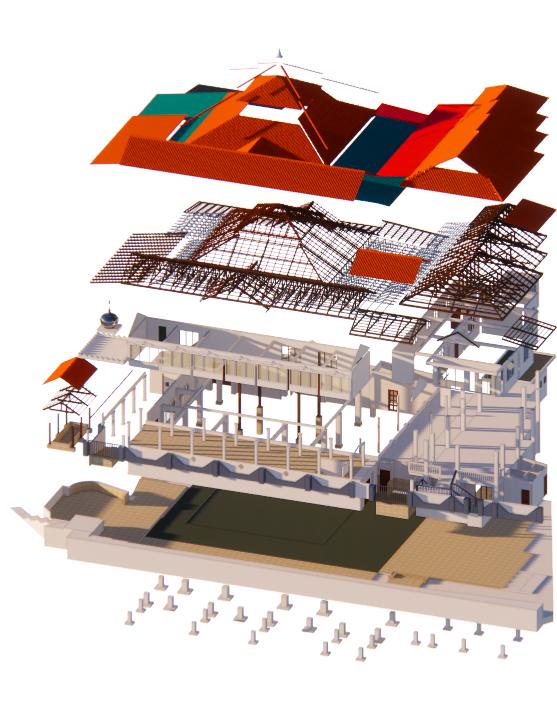

Exploded construction isometric view of Masjid Lama Batu 6 (1931)

Exploded construction of Masjid Lama Batu 6 (2021)

Current (2021) doors and windows in Masjid Lama Batu 6

Door (1931)

Window (1931)

Decorative wall panelling of mihrab and qiblat wall

Sketch of Mihrab wall with colourful ceramic tiles Minbar

Stained glass windows that penetrate lights into the masjid thus generate colourful reflections

27

Chandelier which is one of the artificial lighting and an artefacts fan from 1954 in the main prayer hall

28

Cross ventilation that allows the airflow through the stack effect to the upper opening between the two tiered roof in 1931

Sketch of the exterior of Masjid Lama Batu 6

BACKGROUND

BATU 6, GOMBAK

Figure 1: Sketch of Masjid Lama Batu 6 and its surrounding context.

Batu 6 is a town under the sub district of Setapak, located in the District of Gombak It consists of clusters of time honoured village settlements, each with their own communal facilities and Masjids Initially, Gombak was a town before it changed to a District in 1974.

The settlements in this area were established by Minangkabau emigrants from West Sumatera, with the free consent of Sultan Selangor up until 1974. Originally, the land was a dense jungle with streams and rivers, cleared to make way for rice water cultivation and many other plantations.

The soil in the centre region is mostly composed of lowlands. The dominant river in this area is the Gombak river The main route connecting Batu 6 to the city center is Jalan Gombak

The Minang people came in different clans called suku, hence built different communities in neighboring areas according to their origin or culture The history, journey and livelihood of the first settlers can still be seen in the remnants of the old papan (wooden) houses, narrow streets, and the unique dialects of the inhabitants

SUNGAI GOMBAK

Sungai Gombak, or Gombak river, was recognized as a major natural resource, which was relied upon for domestic use, agricultural use, river transport, mining and recreational activities. The river begins from the hill streams from the central range of Peninsula Malaysia, and continues down to join the Klang River Other streams and rivers, such as Sungai Batu and Sungai Pusu also connects with the Gombak river.

Having a fresh flowing water source is always essential for a community to set roots

In the past, Minang settlers in Batu 6 utilized the river for their paddy field irrigation system and erected the first Masjid

along the river banks for ease of ablution

Make shift timber bridges were built by the communities to connect the kampungs on opposite sides of the river bank.

Over the years, due to many rapid residential and commercial developments, along with the construction of the Karak Highway has led to higher levels of pollution in the river. Water level has also declined slowly, however heavy tropical rains can still induce flash flooding. Ultimately, the curves and bends of Sungai Gombak plays an important geological role in Batu 6, Gombak.

Figure 2: Sketch of Sungai Gombak aerial view and its surrounding context.

Figure 3: Illustrator impression of Masjid Lama Batu 6 and its surrounding in 1931

riginally, the first masjid in Batu 6 was built next to the Gombak River. Due to reasons of flooding, and the need for larger space, the masjid was reconstructed on lot 3347, a portion of land endowed by a resourceful community member called Ahmad bin Ali.

By the year 1931, a new masjid was constructed by the efforts of the local residents. The timber roof structure and the four soko guru from the original masjid was relocated to the current masjid that we see today The new masjid is easily spotted from the main route Jalan Gombak.

Masjid Lama Batu 6 was initially known as Masjid Batu 6 In 1984, it was

converted to Surau Batu 6 due to the construction of Masjid Al Syakirin, built to cater to the growing community It took the people of Batu 6 around 25 years to change their beloved surau into Masjid Lama Batu 6.

Even though the masjid has undergone a number of major renovations in the past decade, the building still cherishes a few identities and features of Nusantara traditional vernacular architecture, with its two tiered roof paying homage to the Sumatran craftsmanship in Batu 6, Gombak.

Jemaah performing congregation prayer.

ADMINISTRATIVE DIVISION

MASJID LAMA BATU 6

Figure 4: Current organization chart of Masjid Lama Batu 6 administration

Masjid Lama Batu 6 is under the supervision of the Islamic Religious Department of Gombak District. Masjid Lama Batu 6, there is a supervisor or Penasihat, who is Orang Besar Daerah Gombak as shown in Figure 4. Since DYMM Sultan Selangor is the Head of State Religion for the state of Selangor. MAIS shall assist and advise DYMM Sultan on all matters relating to Islam in the State of Selangor.

In Selangor, the election of the masjid administrative committee is held during special annual state meeting or Mesyuarat Agung Khas every 3 years. The names chosen by Jemaah or Anak Kariah are submitted to JAIS through PAIDG. JAIS will present the names to MAIS to make the decision

Sungai

SOCIO-CULTURE

The original settlers of Batu 6 were invested in agriculture Two prominent villages of Batu 6 are Kampung Changkat and Kampung Kerdas Kampung Changkat used to be a hilly orchard full of fruit trees such as mangosteen, durian and banana bushes

Kampung Kerdas on the other hand used to be a low lying paddy field. Agriculture was the dominant activity of the community, and mining and merchandising was common too. The community's involvement in agriculture may still be evident today, since numerous Kebun Komuniti can be found in Kampung Changkat

Figure 6: Community service in Batu 6 from Pahang

SGombak river, various river activities were common back then such as fishing, swimming, water rafting, and many more. In comparison, the Gombak river used to be larger and cleaner before the development of roads and housing. The only activity that remains until now is fishing.

As for now, the majority of Batu 6’s community are involved in business since Batu 6 has been developed into a commercial and residential area. Despite being busy with daily businesses, they always join the community services in Masjid Lama Batu 6 especially during Eid Fitri and Eid Adha.

from Kuala Lumpur

Figure 7: Current location of Masjid Lama Batu 6

current (2021)

Batu

NEIGHBOURHOOD CONTEXT

Masjid Lama Batu 6 is situated in the middle of a commercial and residential area along Jalan Gombak. In the mid 1900's, this area appeared to be low lying lands and covered with paddy fields. The area is now packed with residential houses, warehouse factories, workshops and shop lots. There are even a number of houses

that have been renovated to become shophouses. Many masjids and suraus can be seen being built to cater the increasing number of residents in Batu 6 According to En Yaakob (2021), many suraus are established since different suraus were built by different tribes of Minangkabau in Batu 6. The pathways along the neighbourhood are still narrow like the past

Figure 9: Aerial view of Batu 6, Jalan Gombak

Figure 11: The interior perspective of the main prayer hall with the four central timber soko guru

Figure 10: The exterior perspective of the Masjid Lama Batu 6 (2021)

ARCHITECTURE

The architectural style and influence behind the masjid is best represented by Nusantara Traditional Vernacular architecture with Javanese Sumatran influence. The masjid's tiered roof system is designed to accommodate the tropical climate as the roof tier openings allow hot air to ventilate out from the prayer hall beneath it.

The square based plan and four central timber columns are prominent in traditional vernacular timber structures As Islam was a core part of Minang lifestyle, the simplicity and functionality of the masjids were upheld to enrich the culture of the people who built this masjid.

Although a ceiling was installed soon after its first renovation, the structures of the roof are still striking and the timber used to achieve such a magnificent piece of heritage is withstanding the test of time. According to En Kamarudin (2021), originally, the masjid bore little ornamentation, and simple wooden doors and windows. Its prayer halls have been extended throughout the years, and now has an additional spillover area and a dewan or hall to accommodate community needs.

Masjid

CHRONOLOGY

1980'S RAPID DEVELOPMENT OF BATU 6

Relocation of the Masjid to Lot 3347 near Jalan Gombak due to flooding issues. Timber structures were reused, with terracotta roof tiles and brick and timber walls.

1931 1961

1970'S LAST SEEN PADDY FIELD

Masjid changed to a Surau: 'SURAU LAMA BATU 6'

1984

1990'S

Reopening of the Masjid after first major renovation with gutter, brick arches and galvanized sheet roof extension

1920's

According to Encik Malek Sohod (2021), The first Masjid was built near the Sungai Gombak, out of timber, bamboo and palm thatched roof.

Timber structures, kolah and well behind Masjid demolished to construct Sekolah Kafa Integrasi Masjid Lama Batu 6 Gombak

Addition Imams

extension of female prayer area towards Jalan Gombak Further refurbishments include the ce i tile decorations of the front w the prayer hall

Last major renovation of construction of

Pandemic,

adhere

Procedure

Masjid Lama Batu

SPATIAL ORGANIZATION

MAIN PRAYER HALL

Figure 15: Main prayer hall

Masjid Lama Batu 6 initial main prayer hall was a symmetrical square shaped plan, which was typical in order to maximize the usage of space by expanding the prayer halls to the sides and back The factor in boosting the thermal comfort in the Masjid Lama Batu 6 design in 1931 was enhanced due to the apertures of doors, windows, and wiring mesh openings at the top of the four walls.

Because the roof did not have a large overhang, these eight windows span the half height of the panel and allowed more

natural light deeper into the prayer hall. Eventually, arched corridors were constructed to allow more space for prayer or community gatherings. Since its establishment, Masjid Lama Batu 6 has been entirely reliant on natural ventilation. The masjid has good cross ventilation due to the eight vertical windows and wire mesh openings above the windows that are repeated around the main prayer hall perimeter.

Currently, Masjid Lama Batu 6 main prayer hall is designed in a square shape with a big spillover area on both side of the main prayer hall to maximise space and allow for a high number of rows or saf for congregational prayer especially during Eid and Friday prayer.

The main prayer hall has some windows that allow natural light to penetrate during the day The windows on top of the main prayer hall's front walls are coloured stained glass panels that allow light to pass through

and create vibrant reflections as well as reducing the usage of artificial lighting

The masjid's qiblat wall and mihrab are additionally adorned with ornamental tiles depicting calligraphy of Quranic verses

When the Jemaah are in the masjid, it gives them a spiritual aspect. For the masjid's aesthetic value, the design has lavish embellishments and extravagant decorative tiles

Figure 16: Ornamental tiles on the masjid's qiblat wall and mihrab wall

SPILLOVER AREA

Masjid Lama Batu 6 spillover serves as an additional place for serving Jemaah in prayers, particularly on Fridays and Eids, as well as other socio religious practises.

Initially, the spillover of Masjid Lama Batu 6 (1931) was only 2 3m distance on both sides of the masjid and no walls were built for these spillover areas

In 2011, they chose to widen the spillover space on the right side of the main prayer hall, making the prayer hall larger. It is currently 6.3 metres and more to the right of the main prayer hall and 7 8 metres to the back of the main prayer hall.

Aside from that, the female prayer area was positioned near the left door of the masjid in the spillover area towards the back of the masjid Curtains were used to divide the space from the male prayer hall.

Figure 17: Spillover area

CONSTRUCTION SYSTEM

Mustoko

Ridge cap

Fascia board

Roof structure

Terracotta roof tiles

Gable roof

Wire mesh fenestrations

Wood panels

Brick wall with concrete plaster

Concrete column

The original soko guru

Concrete floor slab

Pad foundation

Mustoko

Ridge cap

Zinc roof

Terracotta roof tiles

Stainless steel roof structure

Roof structure

Stainless steel dome

Soko guru

Kolah

Concrete column

Concrete floor slab finished with tiles

Pad foundation

Masjid

FOUNDATION SYSTEM

The structural system of Masjid Lama Batu 6 was supported by columns which were positioned on the pad foundation According to En. Kamarudin (2021), the masjid most likely used pad foundation; this was due to the masjid’s soil type which is located near Gombak river. This validity and authenticity of it is further to verify

FLOOR SYSTEM

The Masjid Lama Batu 6 still has the original floor that was installed at the start of the building. It has a rectangular floor layout with colored floor tiles in the praying areas but only the main prayer hall is covered with carpets The spillover floor slab is 70mm (2.8") from the main prayer hall floor, whereas the main prayer hall floor slab is 110mm (4 3") from the ground level The thickness of both floors is the same at 110mm (4 3")

COLUMN SYSTEM

Concrete and timber columns are the two types of columns that may be found at Masjid Lama Batu 6. On the ground floor level of Masjid Lama Batu 6, the supporting columns were built above the pad foundation. The original chengal columns from 1931, which supported the ground floor until the roof structure, are still in use to support the main prayer hall

BEAM SYSTEM

Masjid Lama Batu 6 was built with timber beams in 1931. Concrete beams and columns were used after the masjid was renovated and extended, but the primary roof structure remained the same.

WALL SYSTEM

The mosque was renovated in 1931, and most of the original walls were demolished The walls were most likely be brick walls plastered with cement that ran up to the waist length below the wooden frame windows and were then followed with vertical wooden wall panels Currently (2021), most of the walls at Masjid Lama Batu 6 are concrete walls with a thickness of 110mm and 20mm thick cement plastering on both sides.

ROOF SYSTEM

Masjid Lama Batu 6 features a two tiered pyramidal roof with a timber original structure that has been retained to this day. The roof tiles are made of French Marseilles roof tiles, often known as Terracotta tiles Aside from the original roof from 1931, the green zinc roof was built as a result of numerous extensions and modifications throughout the years.

CONSTRUCTION SYSTEM

NON-STRUCTURAL SYSTEM

DOOR

In 1931, there were three (3) wooden doors, one at the back as the main entrance and the other two on both sidewalls. The door has a simple design with a wall panel and a timber frame. Unfortunately, with the extension of the walls on both sides and the female prayer, these three (3) doors were no longer available. In 2021, the majority of the new doors of Masjid Lama Batu 6 are made of wood and painted in a dark brown colour.

Figure 21: Door (1931)

WINDOWS

In 1931, the winodws were a double leaf panelled window made of timber framing. Currently, there are (5) types of windows that can be seen in Masjid Lama Gombak Batu 6, which are louvre windows, sliding windows, timber windows, casement windows and glass panels.

Figure 22: Window (1931)

Figure 23: Decorative wall panelling of mihrab and qiblat wall

CONSTRUCTION SYSTEM SPECIAL ELEMENTS

MIHRAB

The masjid's mihrab wall is decorated with colourful ceramic tiles that complement the wall decorations Geometric, vegetal, and calligraphic designs are examples of common Islamic ornamentation that can be found

MINBAR

The minbar has never been replaced and it was the original minbar from the year of 1931. The minbar is made of timber and the steps are covered with carpet The repetition of the same design of ornamentation can be seen at the elevated platform of the minbar.

Figure 25: Minbar

Figure 24: Sketch of Mihrab wall with colourful ceramic tiles

Figure 27: Chandelier which is one of the artificial lighting and an artefacts fan from 1954 in the main prayer hall

Figure 26: Stained glass windows that penetrate lights into the masjid thus generate colourful reflections.

PASSIVE DESIGN

Masjid Lama Batu 6 relied on natural light through its windows and doors until the late 1950s Furthermore, the wire mesh ventilation opening above the window space between the roof levels allowed air and natural lighting in the masjid.

In 2021, for the comfort of the masjid's users, some of the masjid's users donated air conditioners and fans to the main prayer hall

Currently, natural light does not reach the main prayer hall as much as it did in 1931. Thus, artificial lights were also being used during the day and night to provide adequate lighting. A large chandelier has also been installed at the central domed ceiling of the main prayer hall to provide a nice ambience as well as good lighting at night.

Figure 28: Cross ventilation that allows the airflow through the stack effect to the upper opening between the two tiered roof in 1931

Figure

Sketch of the exterior of Masjid Lama Batu 6.

CONCLUSION

The history of Masjid Lama Batu 6 has never been thoroughly recorded. Therefore, Masjid Lama Batu 6 was studied through a series of interviews and case studies of other buildings of similar typology and architecture. A thorough investigation of the existing building for evidence of previous structures also assisted in establishing Masjid Lama Batu 6's chronological changes since 1931

From our research, it can be observed that the architecture of Masjid Lama Batu 6 symbolises the importance of Islam and the development of society in the early years of Selangor, when the Sumatran people migrated to Tanah Melayu the Malay Peninsula The founder and the area's pioneering community erected the masjid in the style of Traditional Nusantara Vernacular Architecture based on Javanese Sumatran influence, which still exists today. Despite the Masjid’s age and the numerous developments surrounding it, the significant adaptation of the materials has resulted in amazing architecture preserved. The masjid’s design has evolved considerably from having a simple square shaped design and simple functions to more extended layouts for the community in line with the development of the surrounding environment The renovations of Masjid Lama Batu 6 Gombak

GLOSSARY

A Adat

Anak Kariah C Conserve

Custom

Villager group sharing mosque

Care and protection of these resources so that they can persist for future generations

D Dewan DYMM G Gotong royong

H Hukm

J

JAIS

A hall

Duli Yang Maha Mulia

Minang Minbar Mustoko P PAIDG Penasihat

An ethnic group native of West Sumatra, Indonesia

A platform by the imam while delivering a sermon

Pinnacle

Jemaah

Communal work

Shari'ah ruling

M MAIS Mihrab

Jabatan Agama Islam Selangor

Group of people worshipping

S Saf Siak Suku Sultan Sungai

T Terracotta

Pejabat Agama Islam Daerah Gombak

Advisor Row in prayer

Masjid's caretaker Tribe/clan

A king

River

clay based unglazed or glazed ceramic

Majlis Agama Islam Selangor

Imam’s chamber
