SITTA Magazine- A Design Proposal

Delve into the garden of Knowledge and Virtue of IIUM

LITTLE PIECE OF PARADISE

AL GHAZALI WALK I I UM 2020

I NTEGRATEDMULTI DI SCI PLI NARY PROJ ECT AQS1 3 0 1 SI TTAGROUP AUTHORS Re s e a r c hDi v i s i o n RAHNOMASI DDI QUA NURAMI RAH SI TIF ATI MAH NORAZLI N 2 0 1 9 / 2 0 2 0

KNOWLEDGE EXISTS POTENTIALLY A L G H A Z A L I W A L KIN THE HUMAN SOUL LIKE THE SEED IN THE SOIL;

BY LEARNING THE POTENTIAL BECOMES ACTUAL IMAM AL GHAZALI

CONTENTS 05

INTRODUCTION -ABSTRACT -PROJECT BRI EF -AIMS AND OBJECTI VE -METHODOLOGY -SDGs

15

LITERATURE REVIEW -I MAM AL GHAZALI -EDUCATI ONAL FACI LI TY -COURTYARDS -PATHWAYS

27

SITE STUDIES - LOCATI ON & CIRCULATI ON -SENSORY -MICROCLI MATE -UTI LI TI ES -SI TE SYNTHESI S

34

DESIGN CONCEPT -CONCEPT DERIVATI ON -CONCEPT STATEMENT -CONCEPT

41

DESIGN FINALIZATION -DESI GN DEVELOPMENT -PLANS -SECTI ONS -ELEVATI ONS -3D VI EWS

CONTENTS 56

COST PLAN -OVERALL ESTI MATI ON -ROAD ELEMENTS -COURTYARD ELEMENTS -LOADI NG AREA ELEMENTS

49

SYSTEMS FI RE ELECTRICAL SEWERAGE WATER

52

SPECIAL STUDIES MATERI AL CONSI DERATI ONS ERGONOMI CS POTENTI AL REVENUE

61

CONCLUSION FI NAL REVI EW

70

APPENDIX & REFERENCE BOARDS MODELS

ABSTRACT PAGE 5

ABSTRACT

The main goal of the project is to push forward a design that is in relation to fulfill this project of revitalisation of Al-Ghazali Road.

It involves the designing of façade, flood mitigation and SHAHS Mosque lower courtyard. The concept idea is Little Piece of Paradise. The concept refers to the design that will relate the users about the journey to paradise based on Imam Al-Ghazali quotes.

Architecture and landscape architecture students then play an important role in providing and designing a space that betters the quality of users life and helps to improve their day to day activities. Apply Art and Design students do their task by inserting the best suitable material for every design in order to make the design sustainable while Quantity Surveyor student do their costing to find the most affordable cost related to design.

In the context of IIUM, to relate the users about the journey to paradise is to create islamic design.The issue of over flooding along the Al-Ghazali road affects the society in a way that the local community no longer has any sense of attachment to the buildings there.This project therefore aims to restore the sense of place within the community using the design that related to the road name itself.

INTRODUCTION PAGE 6

INTRODUCTION PROJECT BRIEF

The si te for thi s proposed proj ect i s the Al -Ghazal i Road whi ch i s l ocated i n the I nternati onal I sl ami c Uni versi ty Mal aysi a (I IUM), Gombak. Speci fi cal l y, the road i s si tuated besi de the mai n rectory bui l di ng of I I UM. Thi s area compri ses Al Ghazal i road i n between the two boom gates starti ng from the Automated Tel l er Machi ne (ATM) area to the Human Sci ences (HS) café area. I t al so i ncl udes the l ower courtyard i n front of Sul tan Haj i Ahmad Shah (SHAS) Mosque of I I UM Gombak and the parki ng area i n front of the SMART Center.

The ul ti mate goal i s to renovate and revi tal i ze the space to strengthen the I I UM communi ty.

TARGET

USERS

STUDENTS

VISITORS

STAFF

OBJECTIVES AND AIMS PAGE 7

OBJECTIVES & AIMS THESE ARE THE MAIN OBJECTIVES OF THIS COURSE : 1. TO INTRODUCE THE STUDENTS TO OTHER DIFFERENT BUILT ENVIRONMENT FIELDS. 2. TO BROADEN THE UNDERSTANDING AND SKILLS OF THE STUDENTS

BY GETTING HANDS-ON AND REAL EXPERIENCE IN THIS FIELD 3. TO STRENGTHEN THE LEADERSHIP AND COMMUNICATION SKILLS AND ALSO THE TEAM COLLABORATION OF STUDENTS WORKING WITHIN THE ISLAMIC VALUES CONTEXT 4. TO GAIN FAMILIARITY IN PARTICIPATING IN A BUILDING TEAM WITH OTHER RELATED PROFESSIONS THIS PROJECT IS ALSO BELIEVED TO AT LEAST QUALIFY THE STUDENTS TO BE ABLE TO WORK TOGETHER AS A PROJECT TEAM IN CREATING DESIGN SOLUTIONS WHICH MEET THE REQUIREMENTS FOR THE SPECIFIC PROJECT. IN ADDITION TO IT, STUDENTS ARE ALSO EXPECTED TO UTILIZE THE ICT / AUDIO VISUAL AIDS TO CONVEY THEIR IDEA IN PROPOSING THEIR DESIGNS. ALSO NOT TO DISREGARD THE NEED OF THE INTEGRATED REPORT.

METHODOLOGY

METHODOLOGY SITE ANALYSIS

PAGE 8

SITE & CASE STUDIES

SYNTHESIS

CONSULTATION & REVISION

AMENDMENTS & APPROVAL

FINAL MODEL CONSTRUCTION

REPORT PRODUCTION

ON FI

COST ESTIMATING

SDG PAGE 9

SUSTAINABLE DEVELOPMENT GOALS

4

QUALITY EDUCATION

As the main building typology is an education facility, the goal of Quality Education is one of the focal Sustainable goals whereby the end result should provide equal access to an educational platform to all students, staff and users. This goal is targeted to the users of the facility thus designing a solution around it.

7

AFFORDABLE & CLEAN ENERGY

6

CLEAN WATER & SANITATION

Clean water and sanitation Goal ensures that the provision of good quality/grade of pipes/connections/covers etc are prioritized in the design. Furthermore as flooding is a key issue in the project, the strategies used to

1) INTEGRATION 2) ISLAMIZATION 3) INTERNATIONALIZATION 4) COMPREHENSIVE EXCELLENCE

overcome it will be through sustainable measures and ensure the health and safety of the users and the environment.

11 SUSTAINABLE CITIES & COMMUNITIES

In general, transportation is used for the

For short distances or in places without

movement of people, animals, and other

runways, helicopters can be practical.

things. Each mode of transport has a

Other types of aircraft, like autogyros

fundamentally different technological

and airships, are not a significant

solution, and some require a separate

portion of air transport.)

environment.

IIUM IIICE

IIUM MISSIONS & VISIONS

Abiding by the IIUM 7 Missions of actualizing the university's vision that inspire for change; inspire and produce better Muslim individuals who foster the ethics of character and knowledge of Muslim academic.

LITERATURE REVIEW 10 | LITERATURE REVIEWS

IMAM AL GHAZALI PAGE 11

AL GHAZALI

ABU HAMID MUHAMMAD B MUHAMMAD BORN IN KHURASAN KNOWN AS THE PROOF OF ISLAM, THE ORNAMENT OF RELIGION, THE GUIDE OF THE TRUE FAITH (SULLIVAN, 1994) IN THE ASPECT OF SOCIAL UTILITY, HE DISTINGUISHED THE 1. NECESSITIES 2. COMFORT 3. LUXURIES

GREEN SPACES PAGE 12

THE FINDINGS INDICATE THAT "GREENING" MIGHT HAVE BEEN A POSSIBLE MENTAL HEALTH ENHANCEMENT TECHNIQUE FOR THE COMMUNITY. GREEN SPACE CAN HAVE IMMEDIATE PROTECTIVE EFFECTS AGAINST HEALTH RISKS ASSOCIATED WITH AIR POLLUTION, EXCESSIVE HEAT AND NOISE POLLUTION, INCREASED BEHAVIOURS PROMOTING HEALTH SUCH AS PHYSICAL ACTIVITY, AND HAS BEEN CORRELATED WITH GREATER LEVELS OF SOCIAL SUPPORT AND GROUP.

Drake University, Des Moines lowa

MAXIMIZING EXPOSURE TO GREEN SPACE IN THE COMMUNITY MAY BE A COSTEFFECTIVE STRATEGY TO ENHANCE HEALTH AND MINIMISE HEALTH INEQUALITIES, AS STUDENTS IN CAMPUS HAVE A MORE RESTRICTED CAPACITY TO MOVE OUTSIDE DURING TIME OF LOCKDOWN CRISIS OR DURING EXAM SEASON, RESULTING IN INCREASED RELIANCE ON ITS ENVIRONMENTS FOR HEALTHIER LIFESTYLES AND ACCESSIBILITY.

University of Birmingham, England

REVITALIZATION STUDY PAGE 13

CENTENARY PARK Bangkok is a town with 15 million residents and workers on the top of a muddy river delta. It sinks more than a centimetre per year which is four times faster than the expected increase in sea level and may be below sea level by 2030.

Bangkok is a flat area, so by inclining the entire park to catch every drop of rain, the construction specialist teams engineered the power of gravity. From the highest point, the gravity force brings down the runoff to its lowest point.

A system with 3 key components : 1. The green roof With its rainwater tanks and museum underneath, this is the largest green roof in Thailand. The accumulated rain can be used to water the park for up to a month in the dry season.

2. The wetland With the native water plants, the runoff from the green roof then falls into wetland to help filter and clean the water.

3. The retention pond The pond collects all of the water at the end. The pond also has water bikes so that people can paddle and help clean the water. Their exercise is an active part of the park water system.

Centenary Park offers people room and space for water, which is just what the city of Bangkok needs. As it can carry and store a million gallons of water, this is an amphibious design and not a single drop of rain is wasted in this park.

LANSCAPE STUDY

1

SOLVING ISSUES RELATING TO “CONCRETE JUNGLE” BY USING LANDSCAPE ARCHITECTURE SIAM GREEN SKY

PAGE 14

2

3

CHAO PHRAYA SKY PARK

THAMMASAT UNIVERSITY

SITE STUDIES

15 | SITE ANALYSIS

LOCATION ANALYSIS PAGE 16

CIRCULATION

ANALYSIS PAGE 17

NEIGHBORHOOD CONTEXT

RECREATI ONAL SPACE EDUCATI ONAL SPACE OFFI CE SPACE COMMERCI AL SPACE

ZONING

MANMADE FEATURES ANALYSIS PAGE 18

ANALYSIS PAGE 19

NATURAL FEATURES The study on the exi sti ng natural features i ncl ude al ong the Al Ghazal i road and courtyard .

AL GHAZALI ROAD Erosi on al ong the road can be control by reduci ng the effect of erosi ve forces usi ng thei r root systems and fol i age. Vegetati on there al so functi on as noi se barri er by absorbi ng or defl ecti ng the sound of the vehi cl es mai nl y WEAKNESS: Not enough vegetati ons to work as softener to l essen the ri gi di ty of the surroundi ng archi tecture

COURTYARD There are good amount of pl ant materi al s there to compi ment . However , they are not grow enough to compl ement the surroundi ng hardscape and al so cannot gi ve shades there.

WEAKNESS: Do not provi de shades

SENSORY ANALYSIS

BAD SENSORY

PAGE 20

SOIL EROSION

SENSORY MAPPING

GOOD SENSORY-SHAHS MOSQUE

SMELLY DRAIN

SERVICE

ANALYSIS PAGE 21

MICROCLIMATE

SHADOW CASTING

UTILITIES

The drai n faci l i ti es observed at si te i ncl ude 4 storm drai n i nl ets whi ch are rai sed above surface l evel and are i neffecti ve to the fl ash fl oods at the exi sti ng road. The surface drai ns are French Drai n and the curb i nl ets are 60mm hi gh whi ch i s i nsuffi ci ent to fl ush water qui ckl y and get cl ogged up by debri s easi l y.

WEAKNESS: Weatheri ng of manmade features THREAT: Water-borne di seases

ELECTRICAL SUPPLY The el ectri cal faci l i ty on the si te i ncl udes 4 l ampposts i n the courtyard, 3 l i ght-sensor bri dge l i ghts and 8 bol l ards. Thi s i s not suffi ci ent to l i ght up the road and pathway for users.

The di stri buti on board was l ocated at the entrance of Al Ghazal i road.

Some underground el ectri c connecti ons are found i n the courtyard to connect to food trucks and other el ectri ci ty powered mechani cs as shown bel ow.

OPPORTUNITY: Change ambi ence by i ntroduci ng di fferent l i ghti ng techni ques

PAGE 22

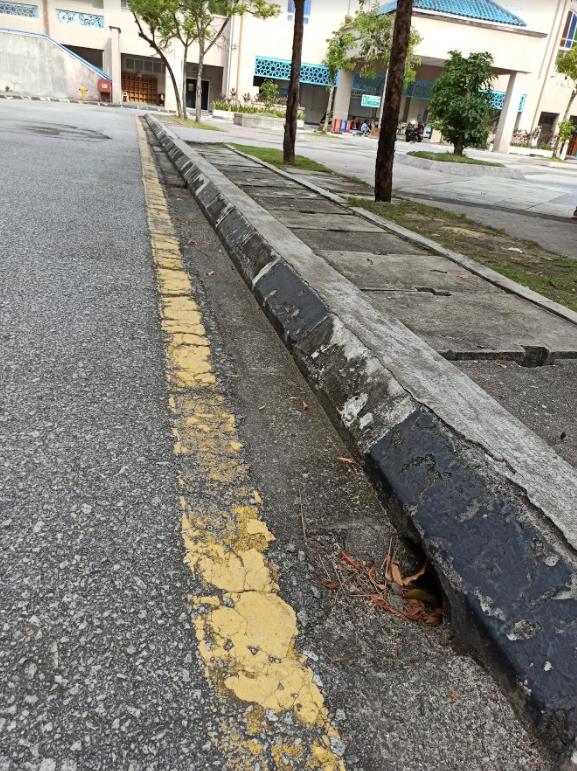

DRAINAGE SYSTEM

ANALYSIS

The study on the exi sti ng uti l i ty systems of the Al Ghazal i road and courtyard i ncl udes the drai nage system, el ectri cal suppl y system, and water di stri buti on system.

ANALYSIS PAGE 23

HUMAN & CULTURE AGE CLASS OF USERS

USERS' ACTIVITY

31-40

GENDER OF USERS

WEAKNESS OF THE ROAD & COURTYARD

USERS' OPINION ON THE USUAL TIME COMING TO ALSTRATEGICITY OF THE ROAD & GHAZALI TROAD & COURTYARD COURTYARD

RESURFACE ROAD TO TRANSFORM INTO PEDESTRIAN WALKWAY

PAGE 25

SITE SYNTHESIS

SITE SYNTHESIS

UNDERGROUND RAINWATER HARVESTING SYSTEMFOR SUSTAINABLE WATER SUPPLY

EXISTING DRAIN INLET

STORM DRAINS

PROVIDE ADDITIONAL STORM DRAINS TO REMOVE POOLING OF WATER FROM ROAD SURFACE

SITE SYNTHESIS PAG 26

TENSILE OVERHANG AWNING FOR SHADING

INTRODUCE MORE TREES AND WATER FEATURES TO PROVIDE ADEQUATE SHADING AND PASSIVE COOLING

PROVIDE ADEQUATE LIGHTGHTING FACILITIES FOR SAFETY AND PROLONGED USAGE

CASE STUDIES 25 | CASE STUDIES

SHADING CASE STUDY

ISSUE:

SHADING Shading area is very important to any outdoor area. Unfortunately , courtyard area which is in the center does have enough

PAGE 28

shading area or structure for users there.

study area

LOCATION: Jeddah TYPOLOGY: Shading/shade structure FUNCTION: to create a bioclimatic space using shading devices

BRIEF: The objective of this project was to design bioclimatic space at the Hajj terminal.It was substantially improved, at a smaller scale indeed, the oculus was substituted with an improved ventilation topping cone and to decrease the temperature of the fiberglass fabric under the Andalusian sun hundreds of watering nozzles were installed around the cones.

VEGETATION CASE STUDY

ISSUE:

EXISTING VEGETATION There is not enough vegetation to work as

PAGE 29

softener to lessen the rigidity along the AlGhazali road and not welcoming enough especially in terms of colors and shapes .

study area

study area

BRIEF:

The objective of this project was to beautify the yard and attract birds and butterflies by providing flowery and fruity tree. Trees also planted in a row so that the canopy tree continued to make a path for birds to fly around.With a colorful array of edible and ornamental plants, a bird bath and bird feeder, the garden provides food, water, cover and places for wildlife to raise their young.

LOCATION: Evanston, Illinois TYPOLOGY: Existing Vegetation FUNCTION: to create landscape design to attract birds and butterfly as their path and habitat

DRAINAGE CASE STUDY FACADE CASE STUDY

ISSUE:

FACADE There are some areas at the Al-Ghazali walk that will give the glare effect in a certain time that

PAGE PAGE 30 34

shows the lack of facade. Other than that, the facade also is dull and unattractive. There are ialso inadequate amount of green environment in the site.

LOCATION: University of Leicester TYPOLOGY: Facade FUNCTION: Refresh the existing site with green environment.

BRIEF: The addition of green facades or living wall increase the green environment that gives a refreshing looks on the site. The green facades or living wall also helps in decreasing the temperature and acts as insulator for heat and noise. Lastly, it improves the buildings energy efficiency and produces ecological benefits for a more sustainable urban environment. The green envelope also reduces the quantity of UV light and causes a positive effect on building durability.

LIGHTING CASE STUDY

ISSUE:

LIGHTING The courtyard has no sufficient lighting during night . Poor lighting at public space

PAGE 31

will cause inconvenience to the user in terms of safety. For example the user might trip or fall while walking at night. Poor lighting also leads to crime and unusual activities which is very opposite with Islamic environment in IIUM. In terms of design, the user will not be able to enjoy a night view at the courtyard so it will waste the effort of designers.

LOCATION: Masjid AL Bukhary Alor Setar TYPOLOGY: Lighting FUNCTION: To provide proper lighting for safety

BRIEF: The purpose of providing sufficient lighting during night is to make sure the safety of the user is secured. lighting can do a lot to alleviate the fear of crime, and therefore encourage greater use of them, making them truly open for all.It also can make spaces more inviting and help create visual experiences. Hence, the proper lighting will be provided with bollard lights and wall lights.

FLOODING CASE STUDY

ISSUE:

FLOODING There is one main drain running parallel on both sides of the road which collects water

PAGE 32

from the inner and outer courtyards, the gutter, and the discharge points from the road.

The Al Ghazali road accumulates water during heavy rainfall due to several factors such as: -Inadequate/ blocked discharge outlets -High water level in river causing backflow -Capacity of drainage system

FLOODING AT AL GHAZALI ROAD

In order to understand the integrity of the problem and cater to its solution, two studies on the following have been made:Urban storm water systemRainwater harvesting system

LOCATION: Kuching, Malaysia TYPOLOGY: Drainage/Flood Infrastructure FUNCTION: Mitigate pooling of water on urban surface

BRIEF: The objective of this project was to design an alternative solution of using a roundabout as a Storm Water Detention Pond. The study also resolves the aesthetic purposes of drainage system by using softscapes of landscape elements are deemed to represent local heritage or identity. In this research, the concept of utilising roundabout as a component of the urban stormwater system is explored.

SEATING CASE STUDY

ISSUE:

SEATING The current Al-Ghazali walk and courtyard has inadequate seating for

PAGE 33

public users such as benches and chairs which resulted to lack of visitation either from student or visitors at both sites.

BRIEF: The addition of seating or seating area such as amphitheater seating wall, layering ground or benches helps in creating an educational environment for the students. Other than educational purposes, the seating also can be used for social activities and nature appreciation that allows people to socialize and observe the surroundings while forming a gratitude towards the God for the blessings. Lastly, the seating area can function as waiting spots for people to perform congregational prayers or the shop in neighbourhood context

LOCATION: University of Toronto Scarborough TYPOLOGY: Seating FUNCTION: Increase visitation from students and visitors.

Promotes educational and relax environment.

DESIGN CONCEPT 29 | Steam

CONCEPT PAGE 35

CONCEPT INSPIRATION

The inspiration of the concept is derived from the Philosophies of Imam Al Ghazali. As the site name is after one of the Greatest Islamic Scholars, it is only fitting to tribute to the Imam by spreading awareness of his works; especially Hujjatul Islam.This shares the beauty of life delivered by Islam.

LITTLE PIECE OF

HEAVEN CONCEPT STATEMENT

The beauty of life is captured by the cascading stream, luscious vegetation and green shady trees.

The soundscapes of trickling water, chirps of birds and buzzing bees along with the visual attractiveness reminds one of the bountiful blessings of life on Earth and remember God.

CONCEPT

PAGE 36

PLANTING CONCEPT

“SEEDS OF BLESSING” refers to the interpretation and scientific findings of plants specifically mentioned in the qur’an. The plants in the quran are generally said to be more beneficial than other plants based on analysis of the scholars interpretation of the quran, such as in treating many types of disease, releasing a natural scent to the surrounding,and producing food to the users.

The plants that are being proposed to the designated site are plants that resembles those in the al quran, but are suitable in malaysia’s tropical climate. These plants produce sweet fruits such as grape (vitis vinifera), strawberry (fragaria x ananassa), ciku (manilkara zapota), and black mulberry (morus nigra). while there are also scented vegetations such as cape jasmine (gardenia jasminoides), mint (mentha x piperita), and kenanga (cananga odorata).

Trees that provide shades and blooming flowers, african tulip tree (spathodea campanulata), golden shower (cassia fistula), pink poui (tabebuia rosea), and kerukup siam (muntingia calabura).

PAGE 38

CONCEPT STATEMENT

SEEDS OF BLESSING

SEEDS OF BLESSING

PLANTING PALETTE MORUS NIGRA

THUNBERGIA ERECTA

VERNONIA ELLIPTICA

SPATHODEA CAMPANULATA

VITIS VINICERA GRAPE

MUNTINGIA

TABEBUIA ROSEA

PSIDIUM CATTLEIANUM

SOLANUM LYCOPERSICUM VAR. CERASIFORME CHERRY TOMATO

PLANTING PALETTE MANILKARA ZAPOTA

MENTHA

JASMINUM REX

GARDENIA JASMINOIDES

CASSIA FISTULA

COW GRASS

ALTERNANTHERA SISSOO

FRAGARARIA X ANANASSA STRAWBERRY

CANANGA ODORATA

DESIGN FINALIZATION 29 | Steam

SPACE PLANNING

SPATIAL ORGANIZATION

PAGE 42

The current courtyard lacks the presence of an organized space.

Open seating's exposed to the unpredictable weather are unfavorable to the users. Other than holding booths every now and then, the mass space remains barren which students cut through without any notice. The existing courtyard does not break the monotonous blocks of sandblasted building.

Courtyards can be a space for gathering, events, as well as relaxing spots which are not catered for in the existing space. By understanding and creating functional spaces in the courtyard will increase its value and uses.

A green zone can revitalize the central focus of the area.

There is no designated loading area for the commercial spaces.

Loading service hours are usually earlier in the morning but occasionally these services are seen done openly in public.

This concerns the unaesthetic view of truck goods unloading openly as well as the safety of pedestrians in the court space from moving vehicles.

DESIGN DEVELOPMENT PAGE 43

DESIGN DEVELOPMENT ALLOCATE SPACES AND THEIR FUNCTIONS

DESIGNATE HARDSCAPES ACCORDING TO USES

INTRODUCE SOFTCAPES TO ACHIEVE PASSIVE DESIGN STRATEGIES SUCH AS COOLING AND SHADING

MASTER PLAN

PAGE 44

MASTER PLAN

GROUND PLANS PAGE 45

COURTYARD PLAN

ROADSIDE PLAN

LOADING AREA PLAN

PAGE 46

E L E V A T I O N

ELEVATION

S I D E

SECTION PAGE 47

AL-GHAZALI WALK

COURTYARD

TRANSVERSE SECTION

LONGITUDINAL SECTION

VIEWS

PAGE 48

VIEWS

SERVICE SYSTEMS 29 | Steam

WATER AND SEWERAGE SYSTEM SERVICES

FIRE ALARM SYSTEM

PAGE 50

FIRE EXTINGUISHING SYSTEM

DRAINAGE SYSTEM ELECTRICAL DISTRIBUTION BOARD

WATER HARVESTING SYSTEM PAGE 51

THE WATER HARVESTING SYSTEM One of the sustainable approaches in this design is to collect, store and recycle rainwater runoff.

For this facility, two underground water harvesting tanks along with additional 20 storm drains with filtration system and submersible pumps are used to distribute water to the water features

SPECIAL STUDIES 29 | Steam

ERGONOMICS PAGE 53

ERGONOMICS Ergonomics is the process of designing or arranging workplaces, products and systems so that they fit the people who use them.

Ergonomics are important in understanding of human movement and cognitive functioning. Hence ,its aspects also be considered in all spaces like al ghazali road, courtyard and parking area design since the target users included all society for example PWD, elderly and kids. The ergonomic element will be implemented in the hardscape which is the furniture on the site.

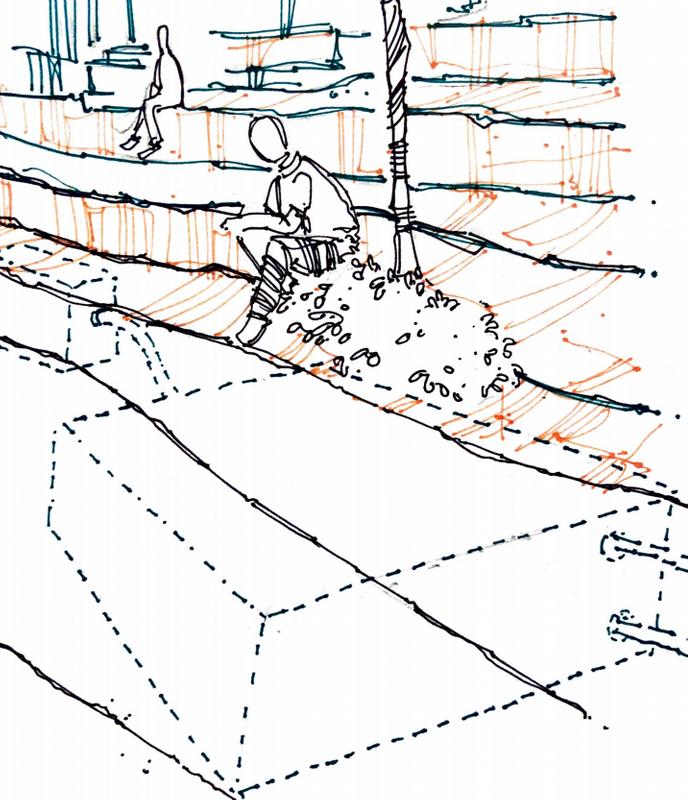

COURTYARD SEATING

LOADING AREA

MATERIALS

MATERIAL CONSIDERATION

PAGE 54

Materi al s pl ay an i mportant rol e i n everyday l i fe. I t encourages the usage, or creates an ambi ence to a space or an obj ect. Hence consi deri ng a sustai nabl e and attai nabl e materi al i nto the desi gn wi l l promote i ts benefi ts to the space and users.

The current manmade features of the si te i ncl ude sand-bl asted pl anter boxes whi ch mul ti -functi on as the onl y seati ng space of the open courtyard. The exi sti ng ground i s al so a mi xture of cl ay ti l e and cracked sandbl asted fl oori ng.

There i s sparse natural el ement to compl ement and cool the hardscape. Thi s creates a l ack of wel comi ng el ements as they are constantl y exposed to the abrupt weather changes of a tropi cal cl i mate maki ng i t unsui tabl e for users to fi nd comfort i n the courtyard.

The ti mber stri p seati ngs al l ow for a more wel comi ng space. I t al so provi des comfort and cool ness to the users.

Resurfaci ng the road wi th a pedestri an pathway i ncreases the comfortabi l i ty and aestheti c val ue of the space.

Usi ng gl ass wal l i s durabl e and not affected by weatheri ng from heavy/aci d rai n.

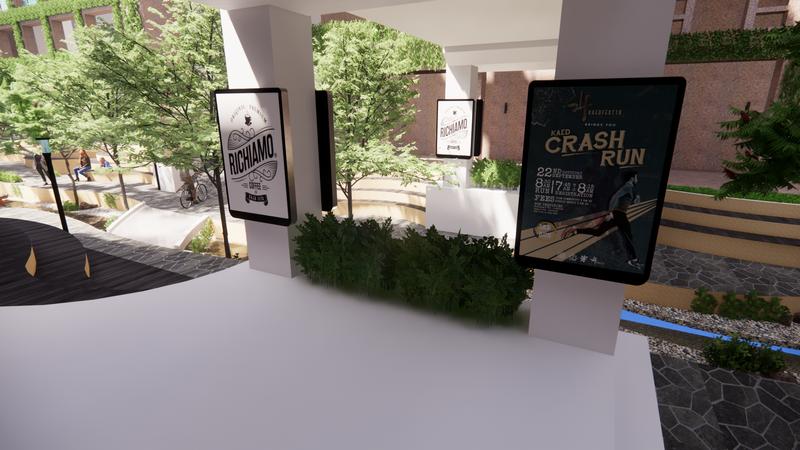

LCD screens i n the pl ace of Bul l eti n boards el i mi nates the use of pri nti ng papers for temporary announcements.

REVENUE PAGE 55

REVENUE GENERATING PROPOSAL

ACTIVITY SPACE

EVENT SPACE RENTAL

The newl y desi gned space i s open to publ i c users but can al so mul ti -functi on as a space to generate some i ncome for the Uni versi ty.

Here are some proposal s as to how the space can be uti l i zed and benefi ci al to many.

By el i mi nati ng the vehi cl e pass from the Al Ghazal i Wal k, i t has now become a mi ni botani cal garden i n the center of the Uni versi ty.

Further devel opments such as a Butterfl y Farm and many more attracti ons can be i ncorporated i nto thi s desi gn theme to chal l enge the boundari es of a typi cal educati on faci l i ty.

BERRY PICKING

COSTING CATALOG 29 | Steam

COSTING PAGE 57

RM 6,024,102.00

TABLE OF CONTENTS

TOTAL ESTIMATED COST :

PAGE 34

AL-GHAZALI ROAD

COURTYARD

FACADE

COSTING

SOFTSCAPES TREES, SHRUB, TURFING

PAGE 58

RECTRACTABLE AWNING

HARDSCAPES LAMP POST, BOLLARD, STEP LIGHT, WAVY SEATING

GALVANISED AWNING WITH AREA EXCEEDING 5M2 INCLUDING 25MM THICK FRAMING

DRAINAGE WATER HARVESTING SYSTEM INCLUDING BRICK SUMP, FULLY SUBMERSIBLE PUMP, ROOFWASHER FILTER

DECKING SEATING 90MM THICK "WPC ROSEWOOD" TIMBER STRIP FIXED WITH APPROVED WOOD ADHESIVE TO FLOOR LEVEL

SCULPTURE 2.50M HEIGHT STEEL CALLIGRAPHY SCULPTURE PLACED ON CONCRETE BASE GRADE 25

RUBBLE WALL RIVER STONE RUBBLE WALL

TABLE OF CONTENTS

FLOWER COLUMN PAGE

STAINLESS STEEL ROUND TUBE GRADE 304

SOFTSCAPE TREES, SHRUBS, CLIMBERS, TURFING, STEPPING STONE

HARDSCAPE LAMP POST, BOLLARD, SPOTLIGHT, STEP LIGHT, WAVY SEATING

HARDSCAPE CURVE SEATING 180L X 60W X 46H CM MODEL BC 2003B SEATING

COSTING PAGE 60

WALL LIGHT CLIMBERS

ROUND EXTRUSION ALUMINIUM AA 6063-T5 OLE OMA WL UP & DOWN 30W WITH EPOXY POWDER COATED FINISHES

THUNBERGIA ERECTA (BUSH CLOCKVINE) VERNONIA ELIPTICA GREEN CURTAIN PLANT) VITIS VINIFERA GRAPE)

LIGHT CRYSTAL DISPLAY (LCD) OUTDOOR 43” (16:9) DIGITAL SIGNAGE - WALL-MOUNTED TYPE WITH 1920 X 1080 RESOLUTION

PLANTER BOX PINEWOOD PLANTER BOX 3FT LONG X 8INCHES WIDE X 8INCHES HEIGHT

CONCLUSION

A FINAL REVIEW

PAGE 61

This concept brings about a journey t h a t b e g i n s w i t h t h e t w i s t s a n d tu r n s o f a s t r e a m w a l k w a y t o r e m i n d u s th a t the flow of life comes with ups and d o w n s ; a n d l e a d s u s t o a c e n tr a l “p i e c e o f P a r a d i s e ” i n I I U M . E v e r y p a th w e t a k e w i l l c o m e t o a r e s o l u t io n , a n d when we reach that end goal is where we can reflect upon our journey.The u n d e r s t a n d i n g o f s p e c i a l s p a c e s to th e needs of the facility users are t h o r o u g h l y e x p l o r e d a l o n g w i th th e care for flora and fauna.

CONCLUSION The project of renewing and revitalizing the Al Ghazali walk and Courtyard in IIUM aims to uplift the space and its functionality for the local users and public visitors. The strategies are fully aimed to resolve the current lack of assets of the courtyard and other maintenance features for the health and safety of the space using sustainable measures and as well as addressing its ergonomic and economic concerns.

The elements of design that s t r e n g t h e n t h e a m b i e n c e o f th e existing space and strive to achieve a passive solution to current issues are observed and reflected in the final p r o p o s a l . B y e n h a n c i n g t h e p o te n ti a l use of the courtyard, it will give students, staff and guests of IIUM a s p e c i a l p l a c e t o d e v e l o p c o n n e c ti o n s with the surrounding nature, socialize and create new bonds, as well as a space to unwind and relax.

F i n a l l y , t h e c o n c e p t a n d o r g a n i z a ti o n of the design hopes to successfully t r a n s l a t e a n d t r u l y r e f l e c t u p o n th e A l G h a z a l i i n s p i r a t i o n o f t h e s p a c e ; th u s b e i n g a n e d u c a t i o n a l g u i d e to th e s i te explorers.

APPENDIX

PAGE 62

PAGE 70

M A K I N G

MODEL

M O D E L

O R G A N I S A T I O N

REFERENCES PAGE 73

REFERENCES 1. Landezine Newsletter. (2020, May 06). University of Toronto Scarborough Valley Land Trail. Retrieved September 29, 2020, from http://landezine.com/index.php/2020/05/university-oftoronto-scarborough-valley-land-trail-by-schollen-and-company/ 2. Ansglobal. (2019, May 07). University of Leicester. Retrieved September 29, 2020, from https://www.ansgroupglobal.com/living-wall/casestudies/university-leicester 3. Abdulkareem, H.A. Thermal Comfort through the Microclimates of the Courtyard. A Critical Review of 4. the Middle-eastern Courtyard House as a Climatic Response.

Procedia Soc Behav Sci. 2016, 216, 662–674, 5. Why is lighting important for parks and public spaces? Retrieved from https://www.altitudeservices.co.uk/news-andarticles/2019/february/why-is-lighting-important-for-parks-andpublic-spaces/ 6. FLOOD MITIGATION http://www.feng.unimas.my/JCEST/images/article/volume8issue1 2017/JCEST_812_WW_galleyproof.pdf
