01 Chicago Historic Greystone

CHIEF ARCHITECT, AUTODESK AUTOCAD, ADOBE PHOTOSHOP

PROJECT INFORMATION

while maintaining the historic elements of the home

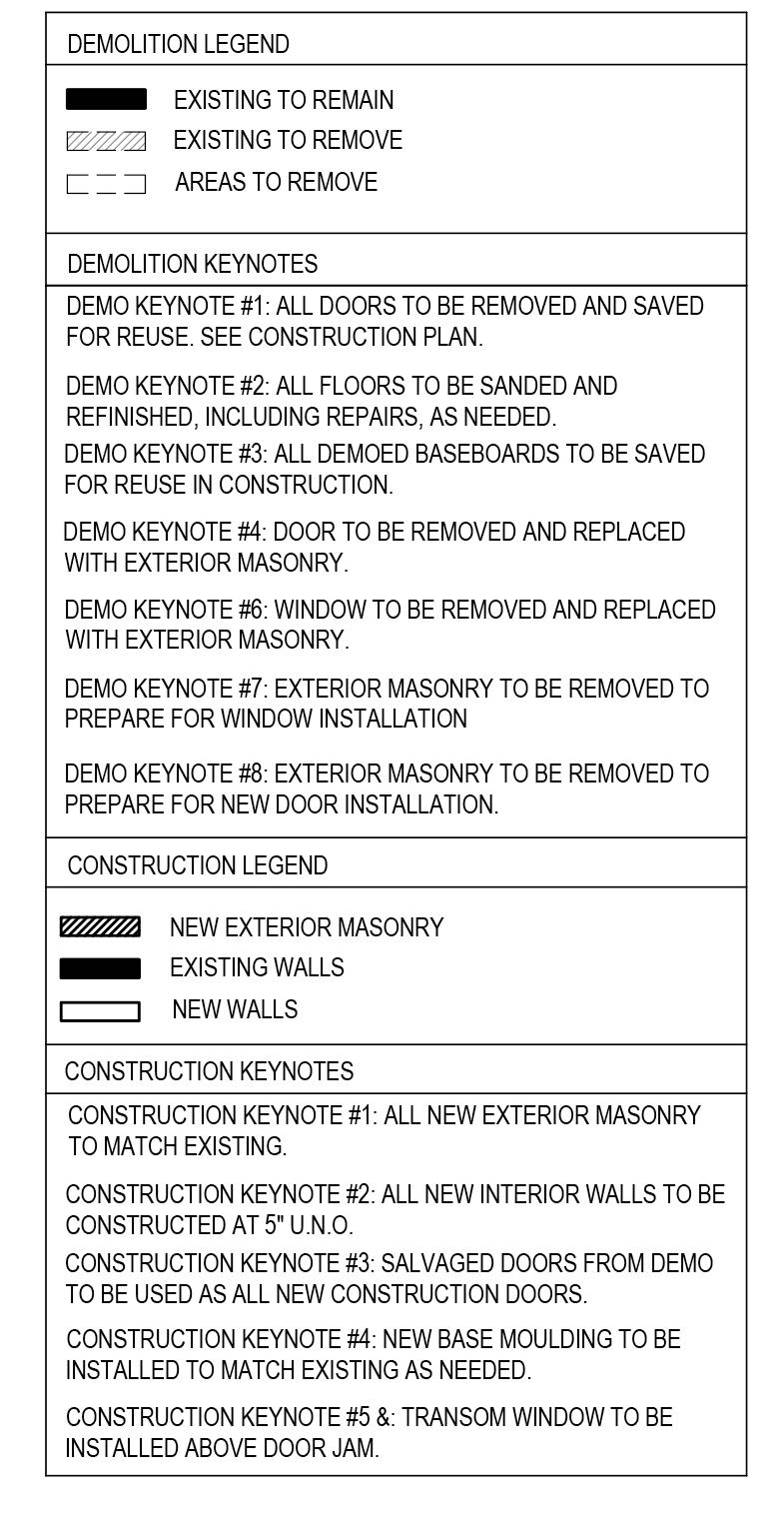

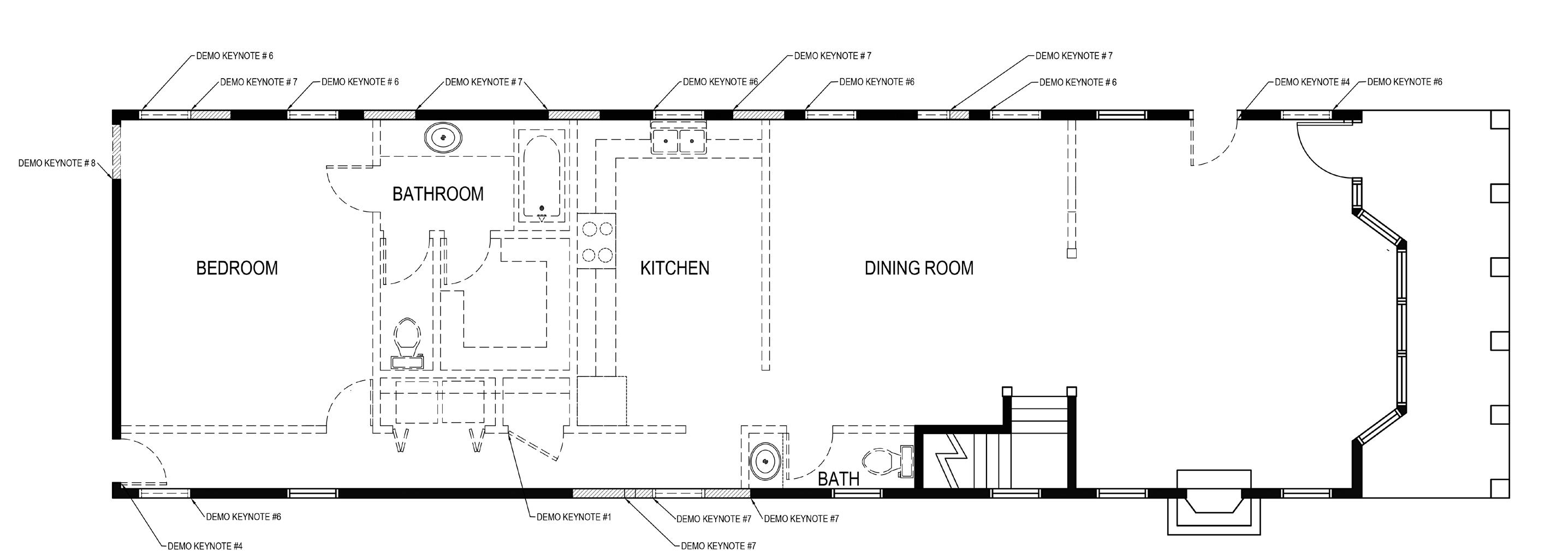

DEMOLITION PLAN

Design Concept: Poised Craftsmanship. This is achieved through use of specific materials, detailed craftsmanship and an intentional historic space plan

SCALE: 1/4”= 1’-0”

N

Above: Demolition and construction plan produced in Autodesk AutoCAD

Key Elements: • • • •

Maintaining string of pearls floor plan Detailed craftmanship with molding and paneling Retaining rich wood tones and brass elements gives a nod to historic color schemes Classic, solid wood furniture specified with durable fabric textiles that would be suitable for a residential space housing many guests over time

REFLECTED CEILING PLAN SCALE: 1/4”= 1’-0” Above: Reflected ceiling plan produced in Autodesk AutoCAD

N

The goal of the Chicago Greystone project was to bring this historic building into the present while maintaining the traditional characteristics known for this style of home. In order to create greater functionality for the overall space, a “string of pearls” floor plan was implemented, creating one corridor from which rooms branched off. The front section of the plan houses the public spaces such as living room, dining and kitchen while the back of the plan contains the more private spaces such as the bathroom and office.

All drawings are produced in Autodesk AutoCAD. NTS- all scales to industry standards

RESIDENTIAL

Purpose: To bring this Chicago Greystone into the present

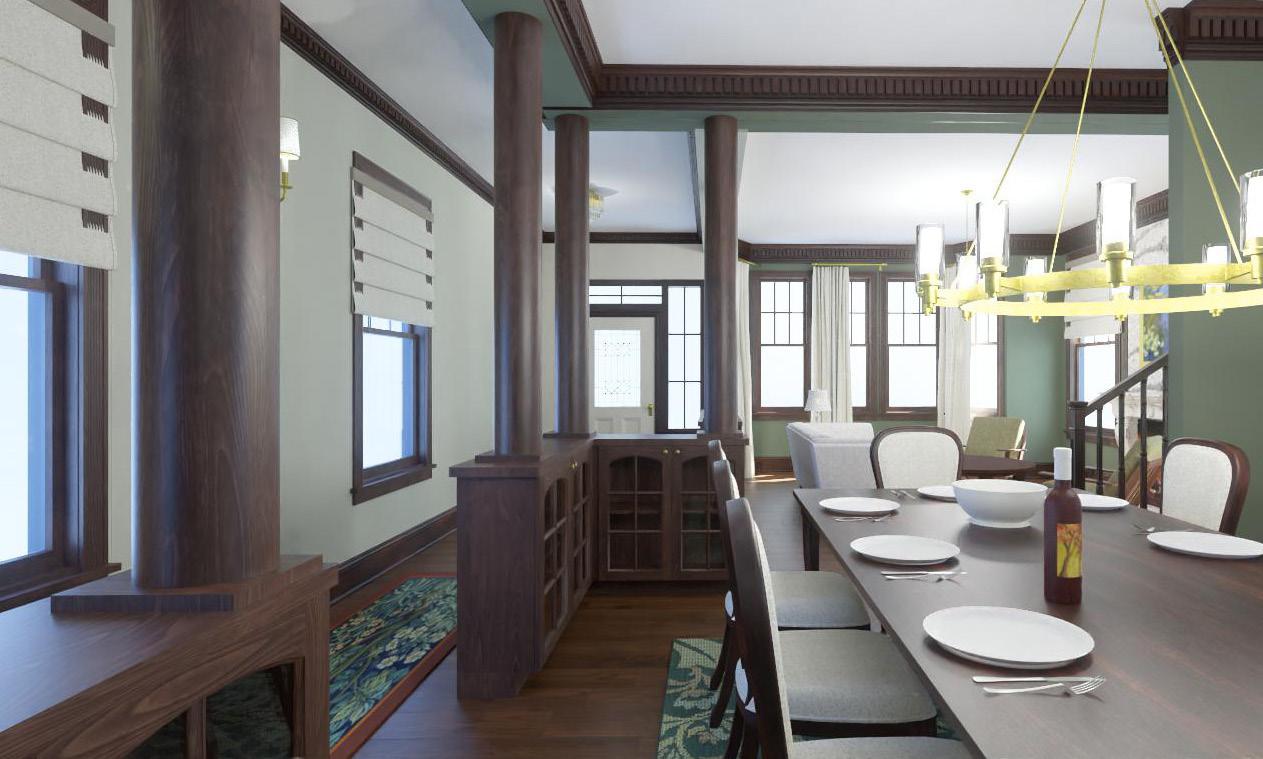

SOUTH KITCHEN ELEVATION SCALE: 1/2”= 1’-0” Above: South kitchen elevation produced in Autodesk AutoCAD Above: View from dining room into living room and foyer produced and rendered in Chief Architect

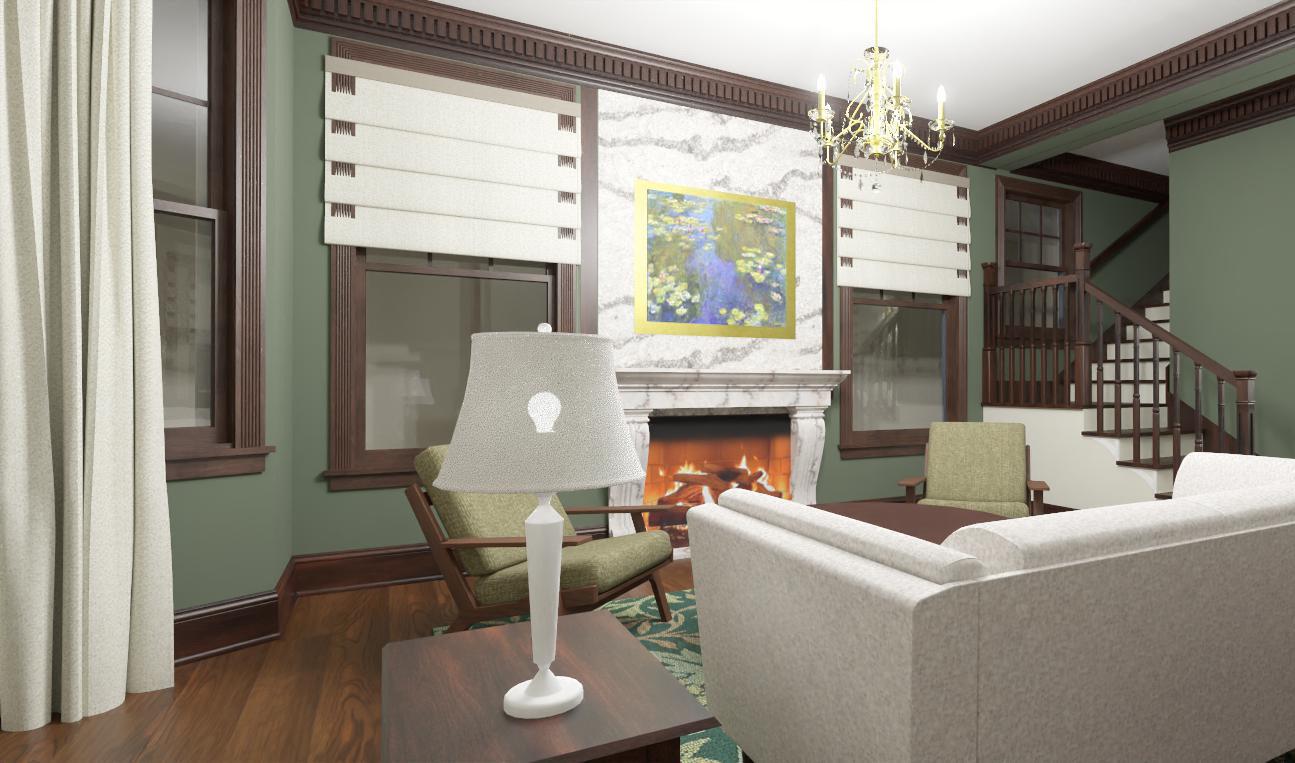

Below: View from foyer to fireplace and stairs produced and rendered in Chief Architect

01Chicago Historic Greystone

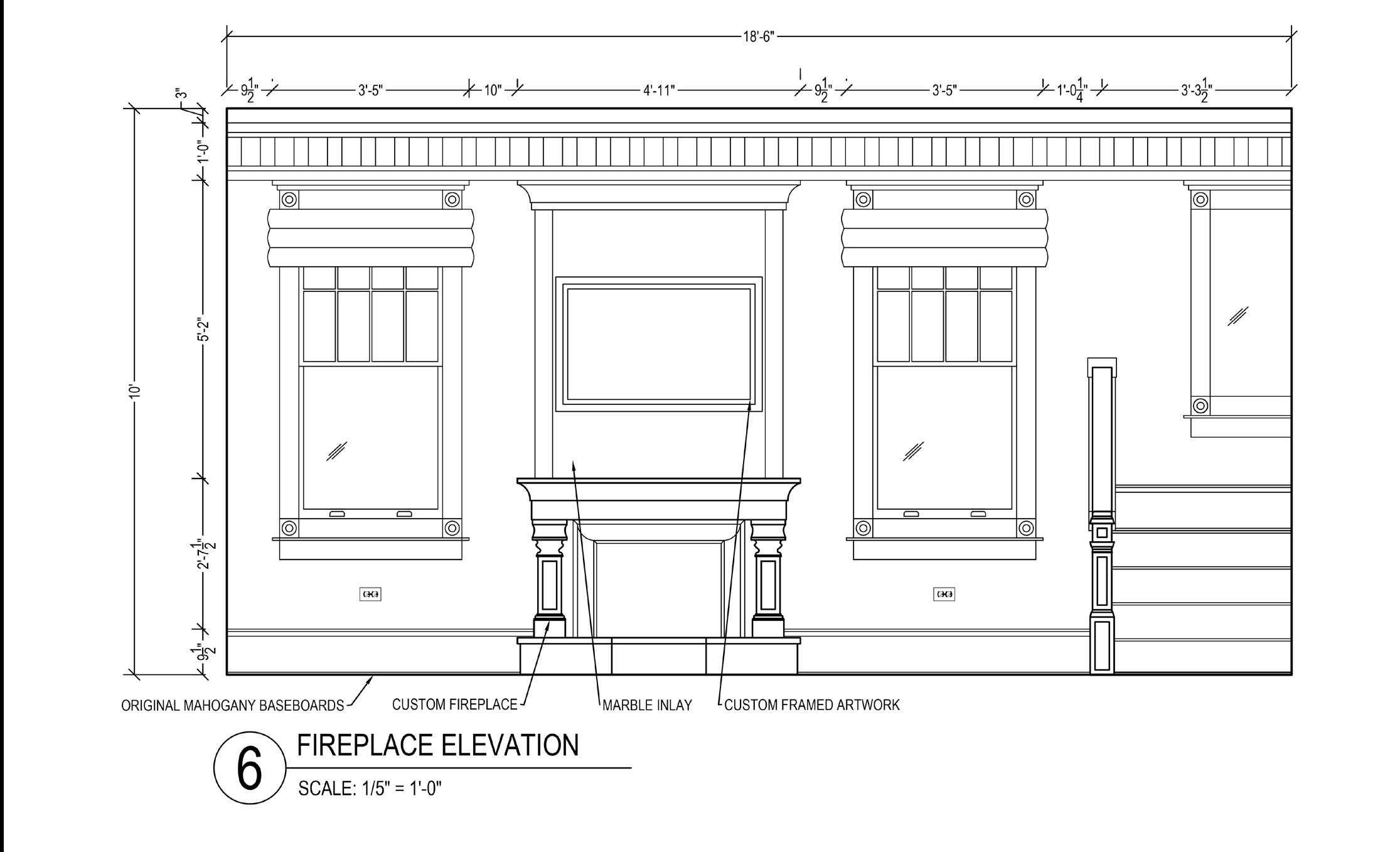

FIREPLACE ELEVATION SCALE: 1/2”= 1’-0” Above: Fireplace elevation produced in Autodesk AutoCAD

WEST KITCHEN ELEVATION

SCALE: 1/2”= 1’-0”

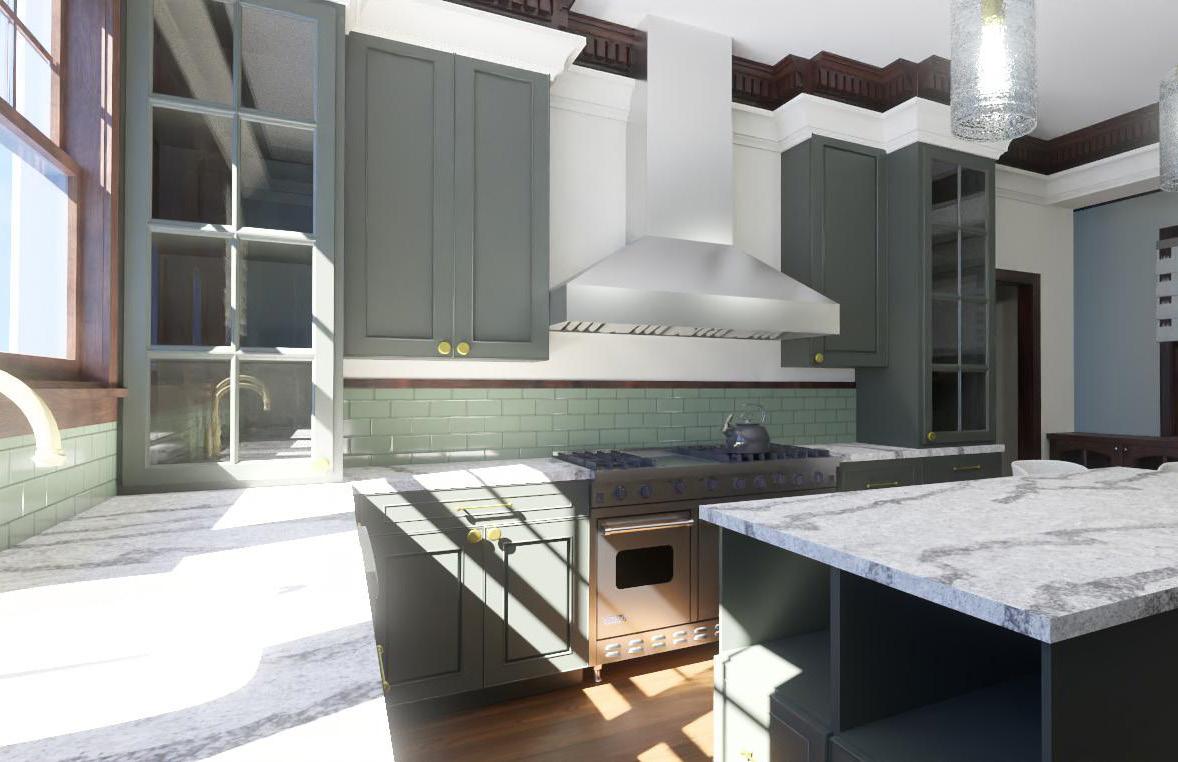

SCALE: 1/2”= 1’-0” Above: West kitchen elevation produced in Autodesk AutoCAD and rendered in Adobe Photoshop

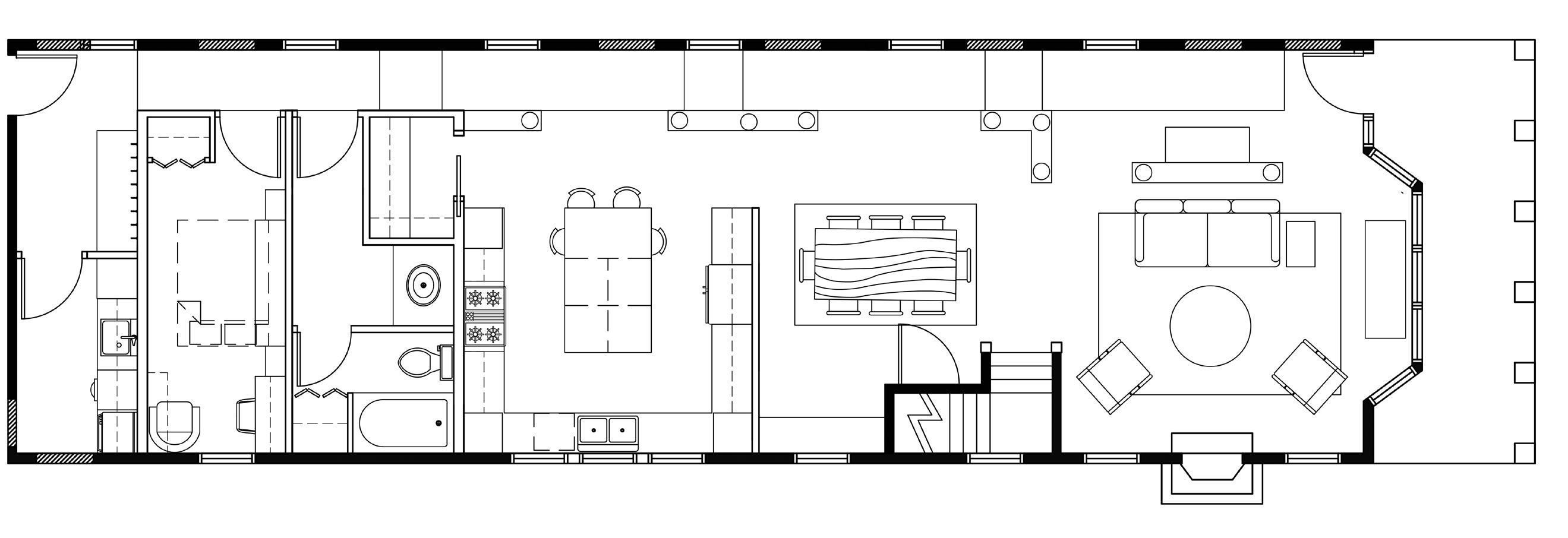

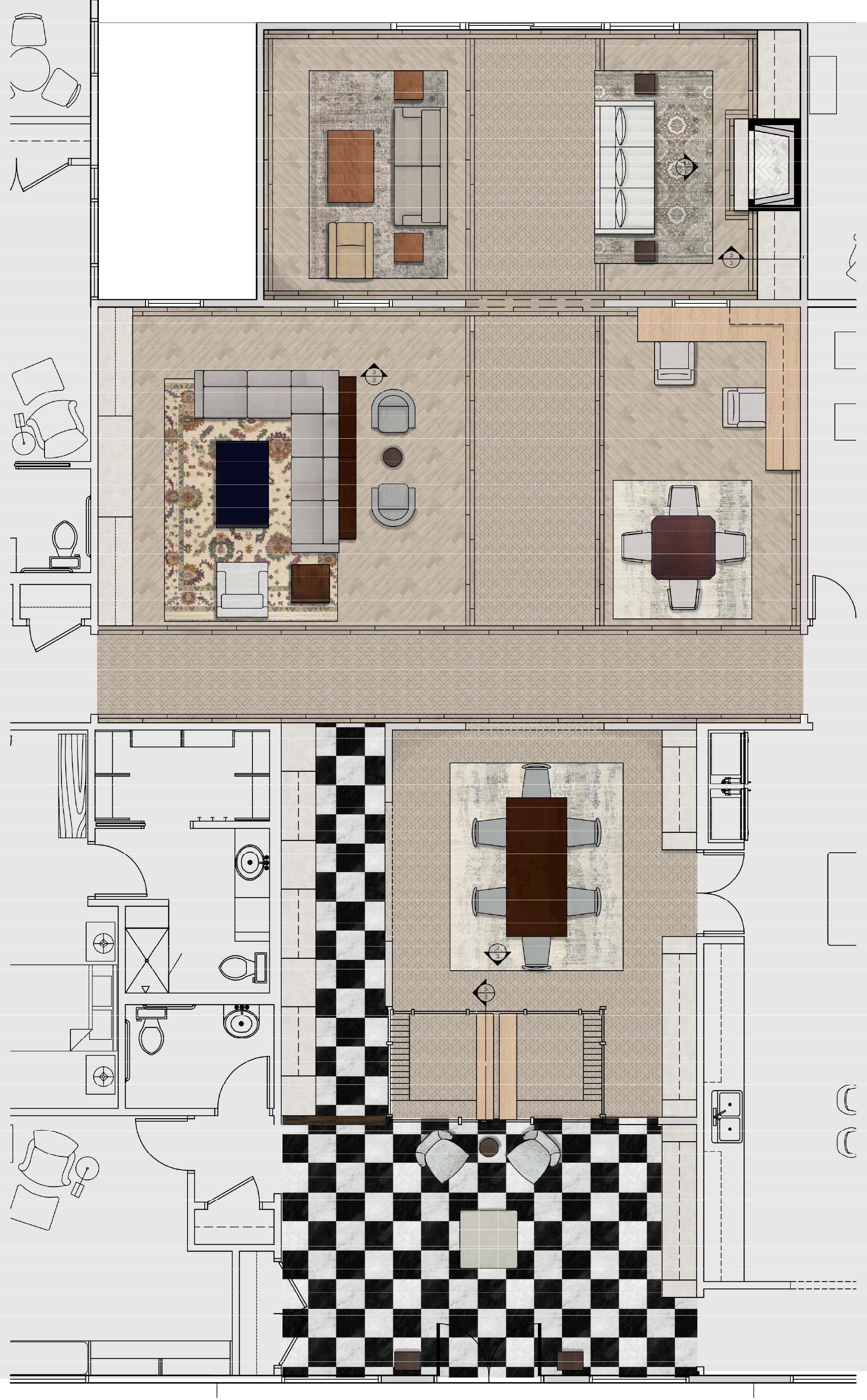

FURNITURE PLAN SCALE: 1/4”= 1’-0” Above: Furniture plan produced in Autodesk AutoCAD

N

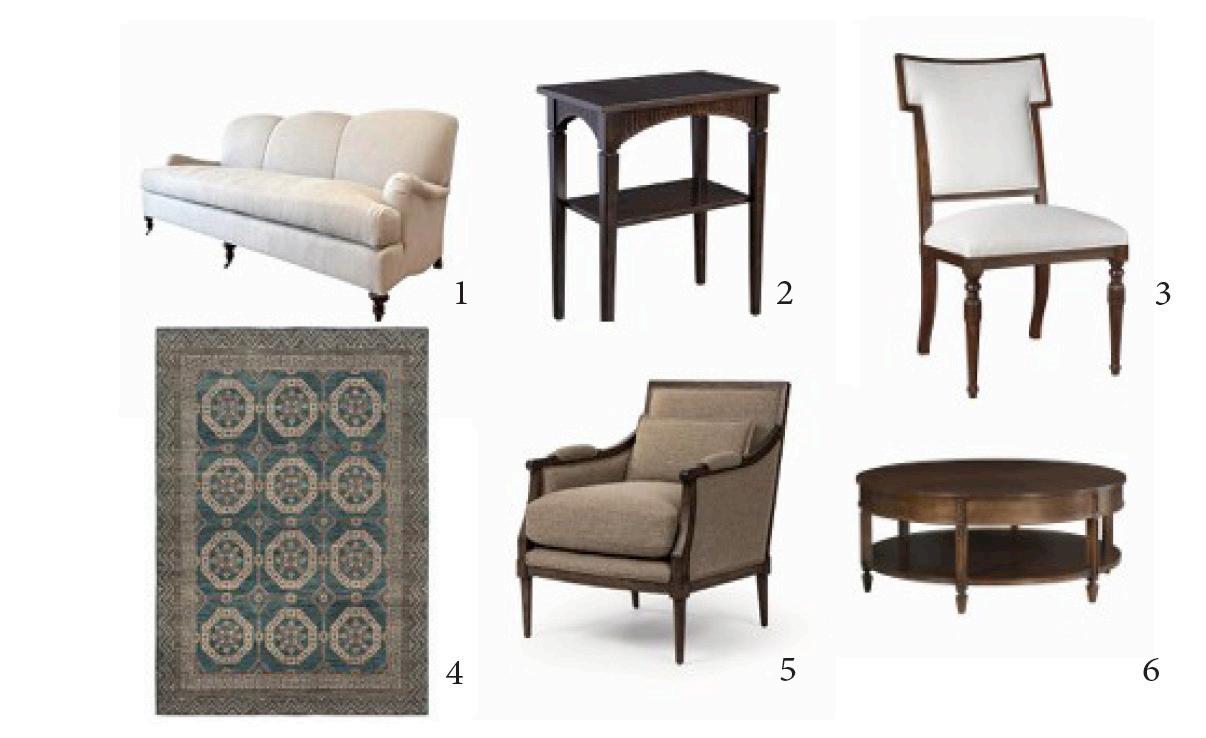

FF&E SELECTIONS 1. Belgian Linen English Armchair Sofa 2. Evalina Writing Table 3. Eva Side Chair 4. 9’X12’ Jaipur Rug- Rhapsody 5. Newman Chair 6. Sampson Round Cocktail Table

All drawings are produced in Autodesk AutoCAD and rendered in Adobe Photoshop. NTS- all scales to industry standards

RESIDENTIAL

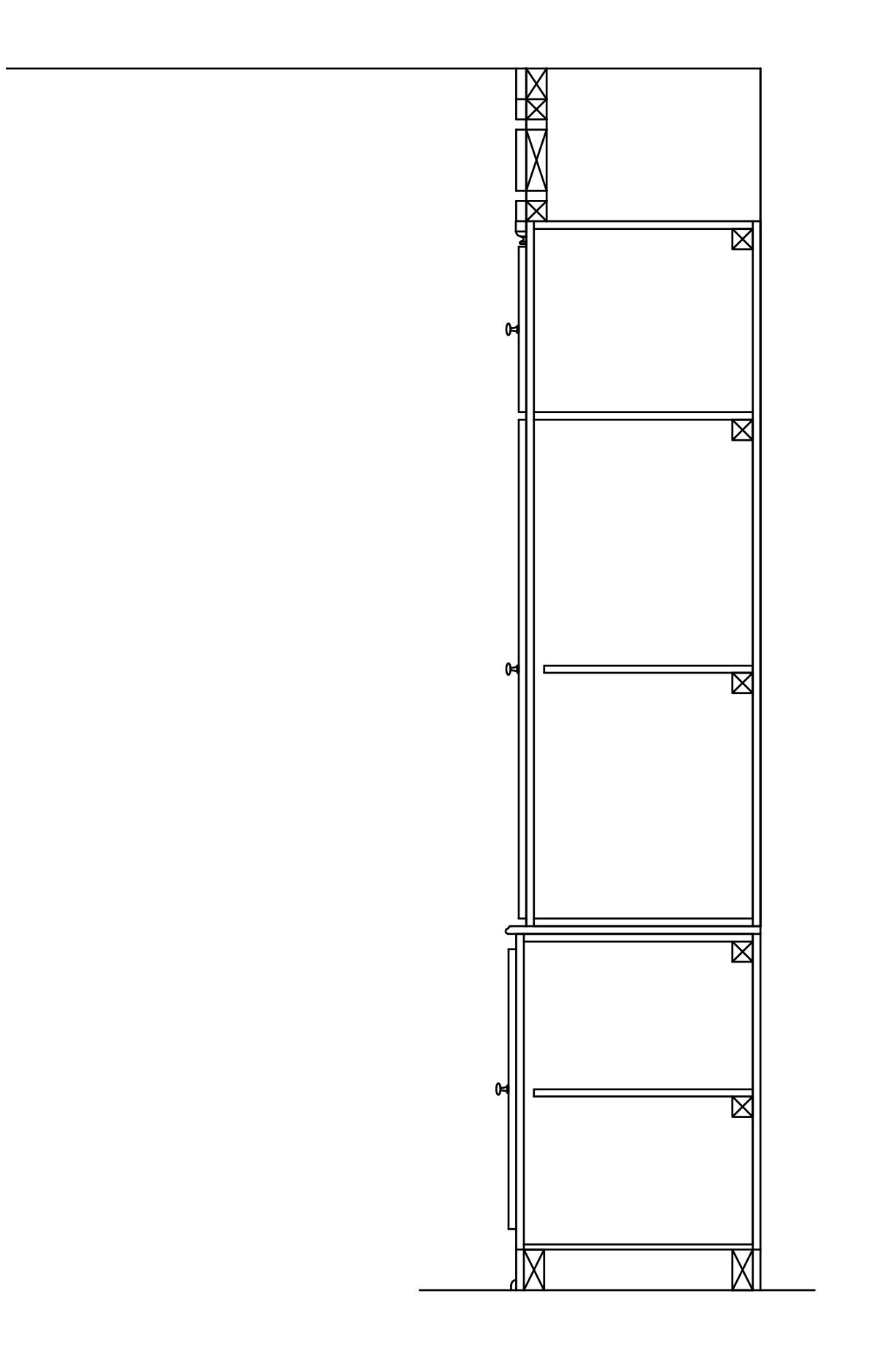

CABINET DETAIL

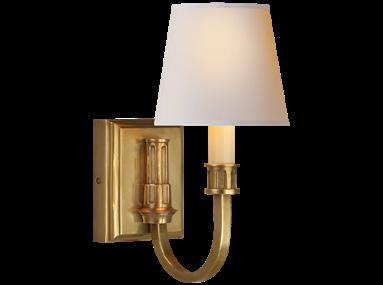

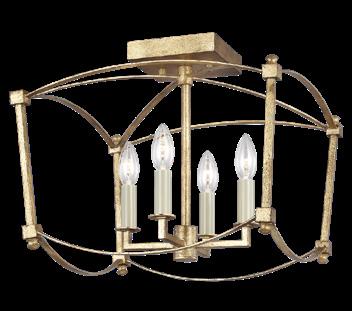

LIGHTING LEGEND DEVON WALL SCONCE GOLIGHTLY PENDANT WALL WASHER CAN RECESSED LED CAN

LED TRACK LIGHTING

A

B

C

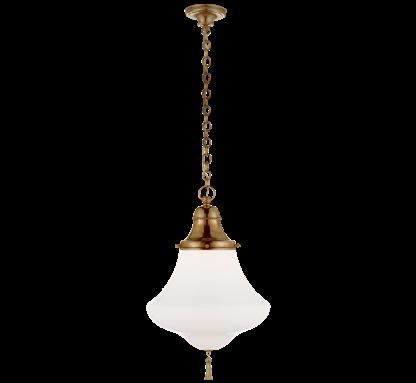

GABRIELLA PENDANT

COHEN PENDANT

ARABESQUE PENDANT

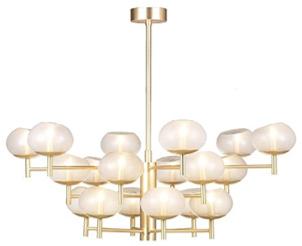

RENALDO 18 ARM CHANDELIER

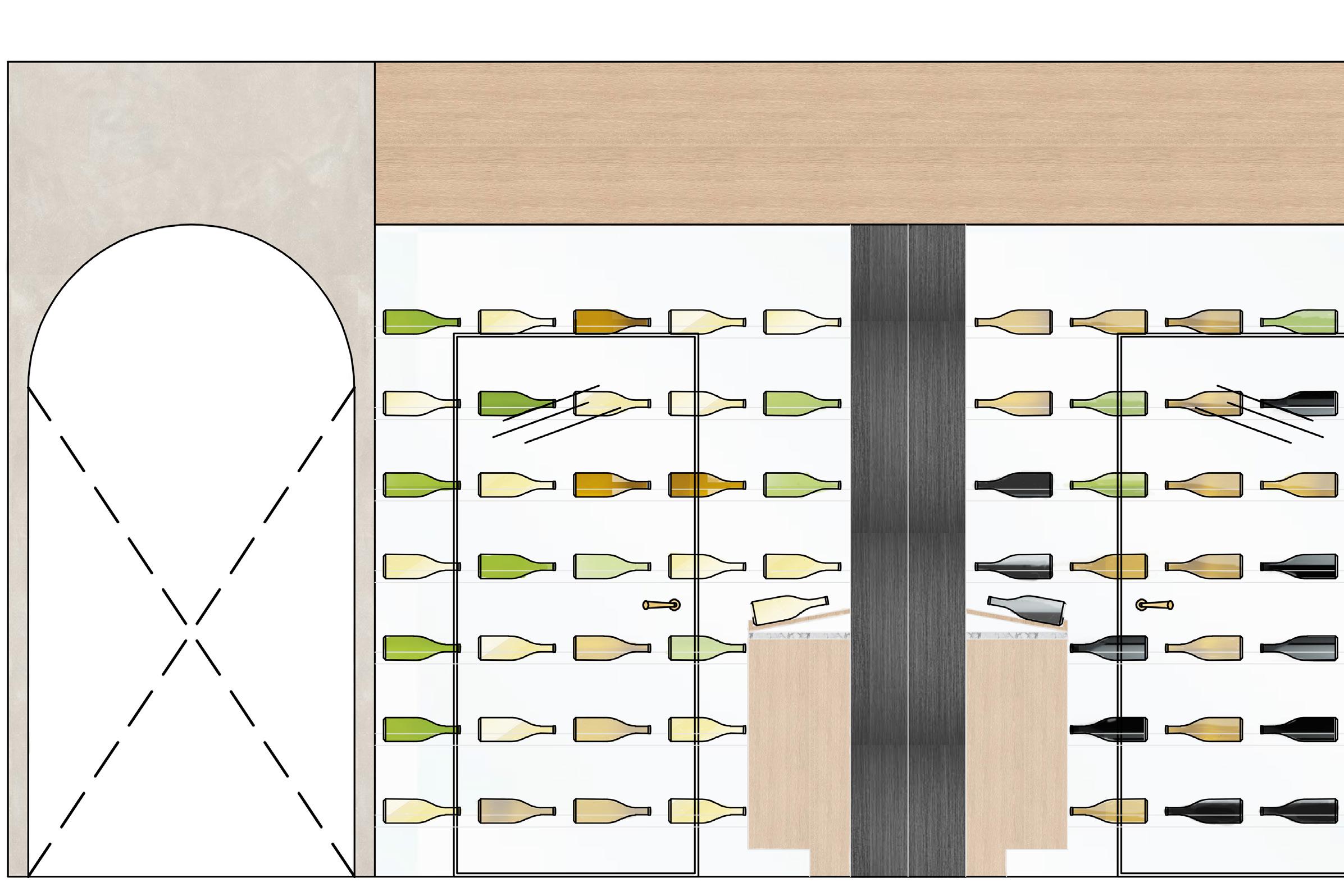

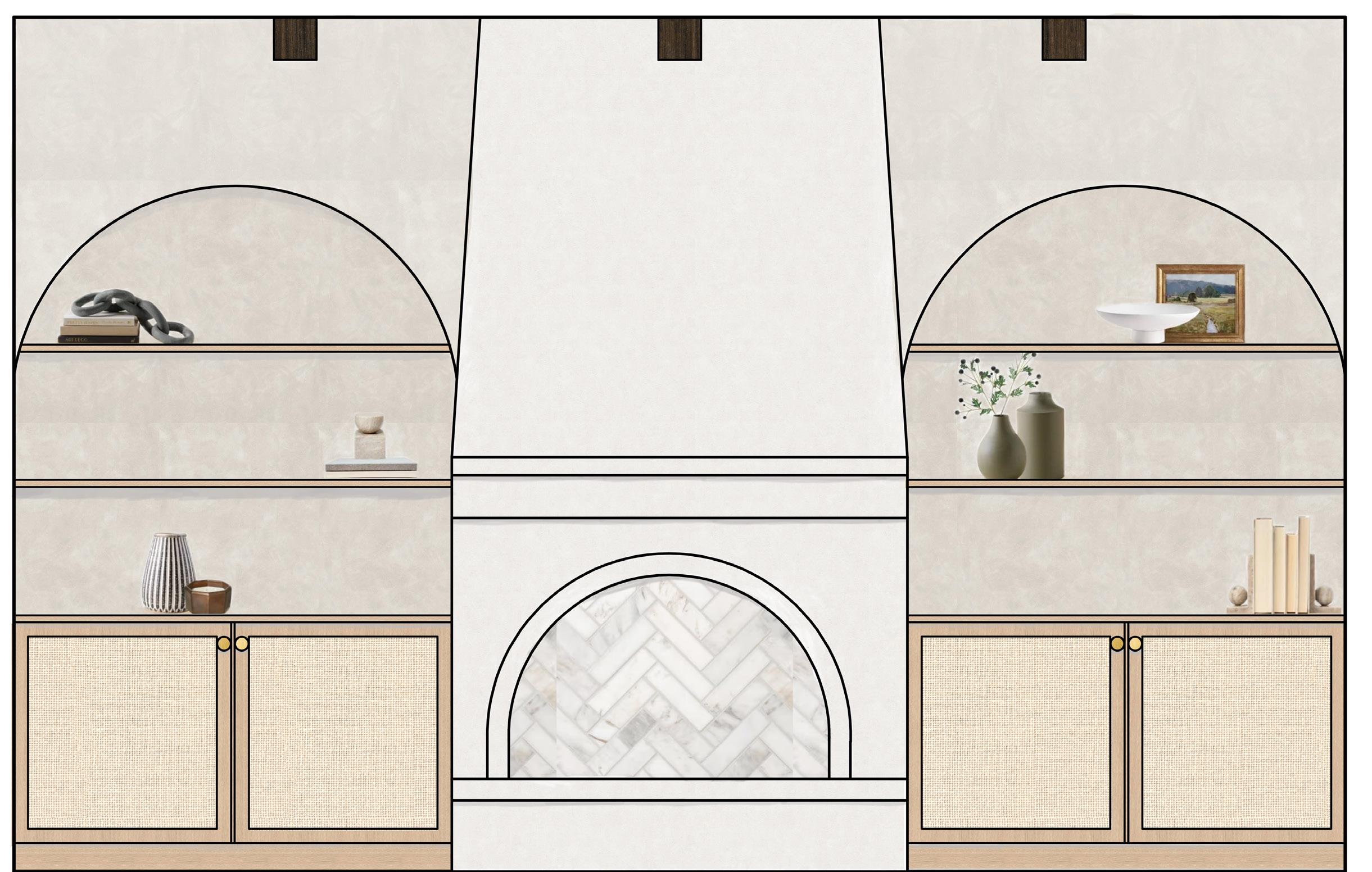

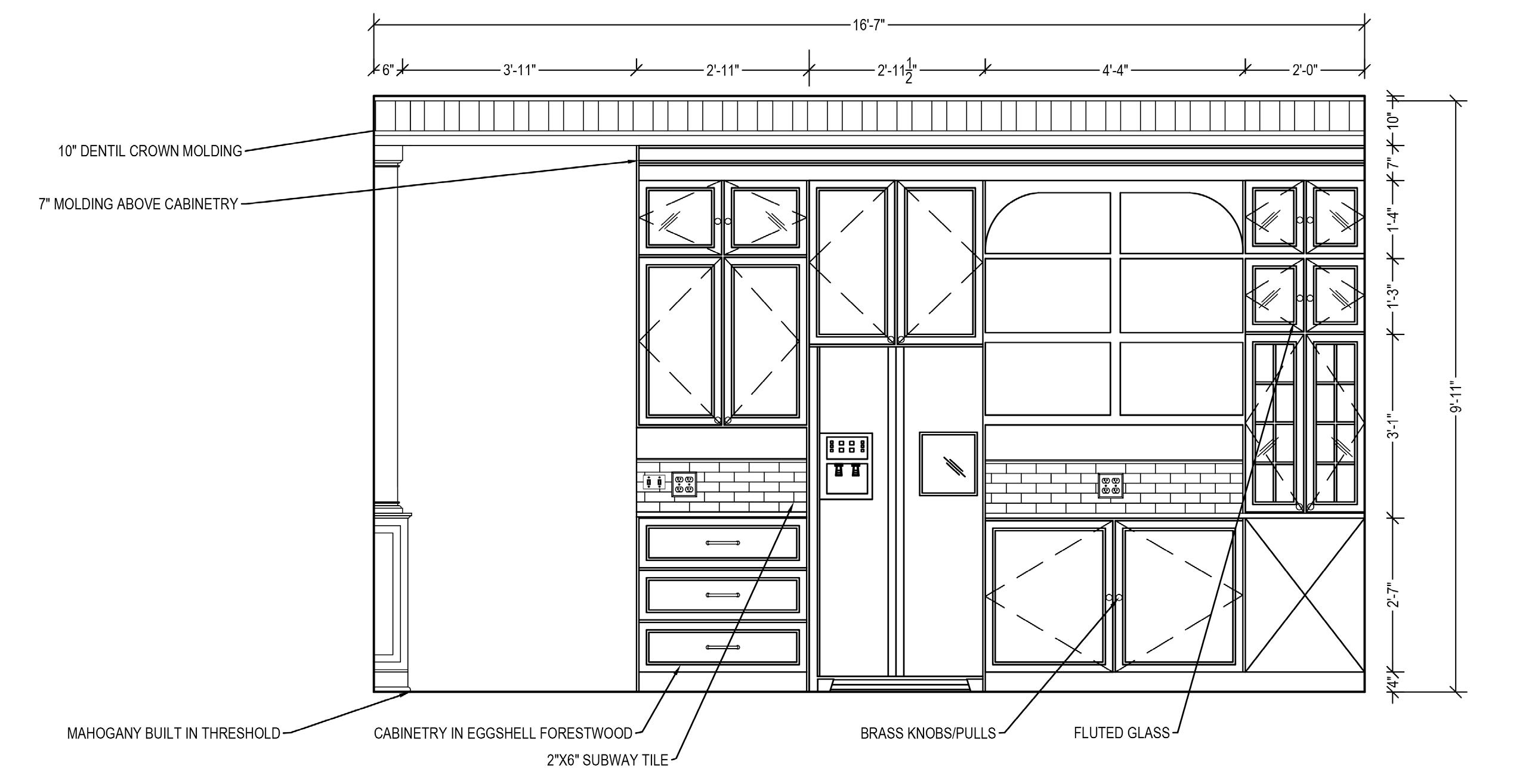

Above: Fireplace elevation produced in Autodesk AutoCAD and rendered in Adobe Photoshop Below: Wine cooler elevation produced in Autodesk AutoCAD and rendered in Adobe Photoshop

A

C

02 Maxwell Residence

AUTODESK AUTOCAD, ADOBE PHOTOSHOP

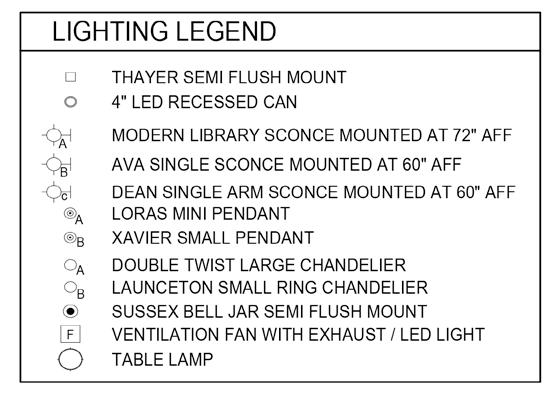

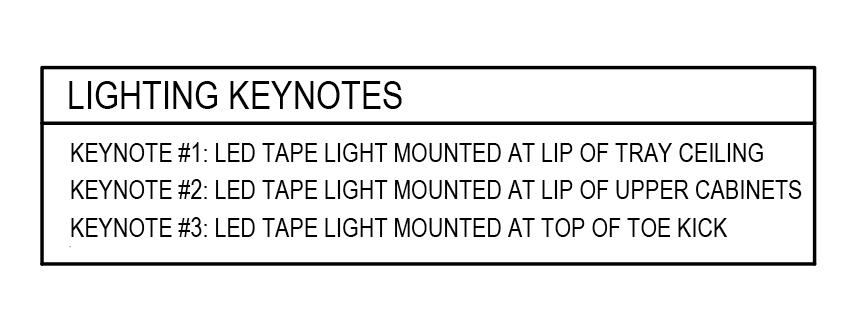

REFLECTED CEILING PLAN SCALE: 1/4”= 1’-0” N

Above: Reflected ceiling plan produced in Autodesk AutoCAD

B

PROJECT INFORMATION

RESIDENTIAL

Purpose: To create a cohesive floor plan for multiple spaces in the Maxwell’s residence while utilizing Kravet LLC’s resources to source all furniture, textiles and lighting as part of a student competition

Design Concept: Sunkissed Oasis. This is achieved by creating an oasis destination in the private section of the house, ample natural light in every zone, and materials that evoke a tactile response

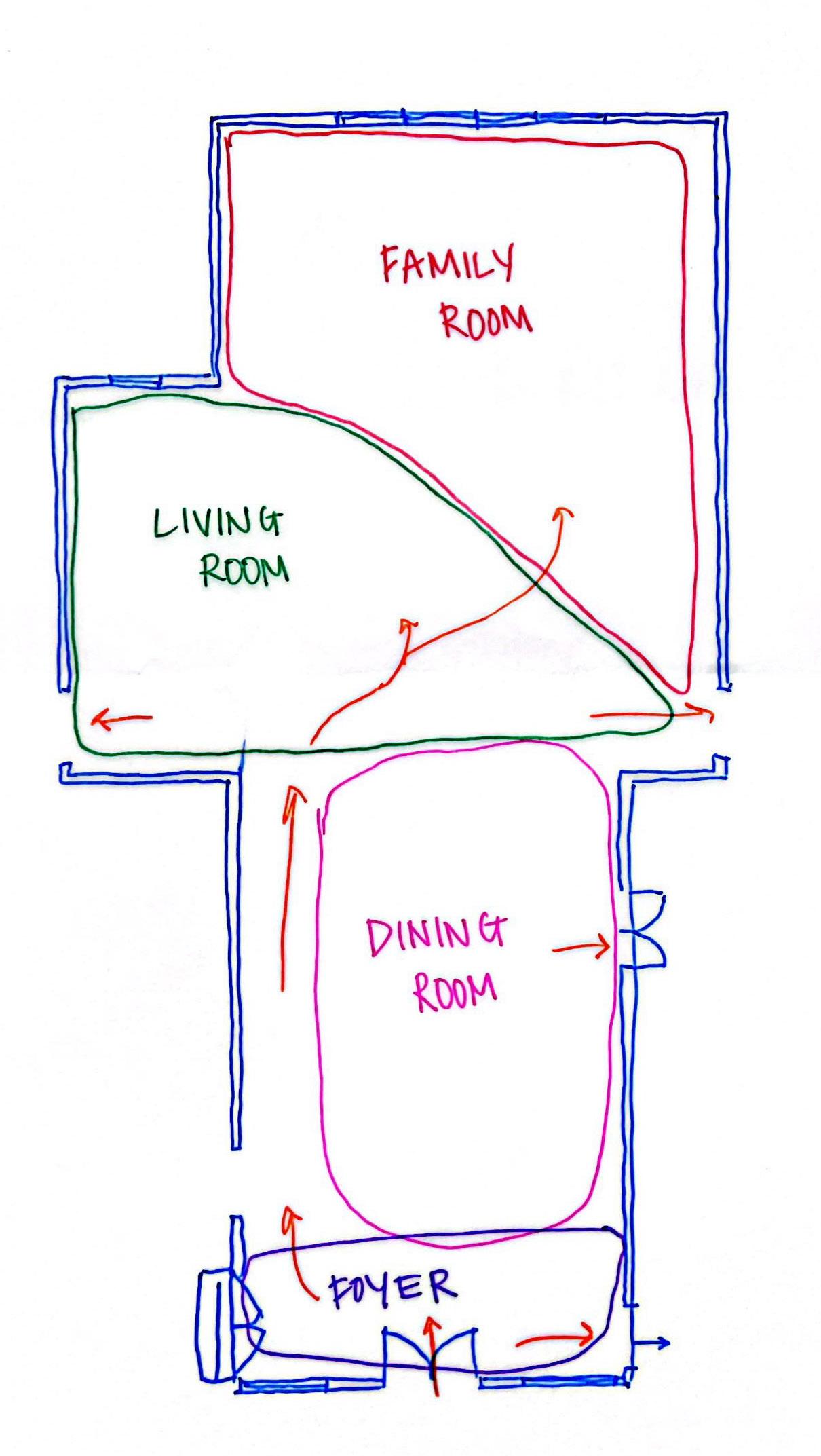

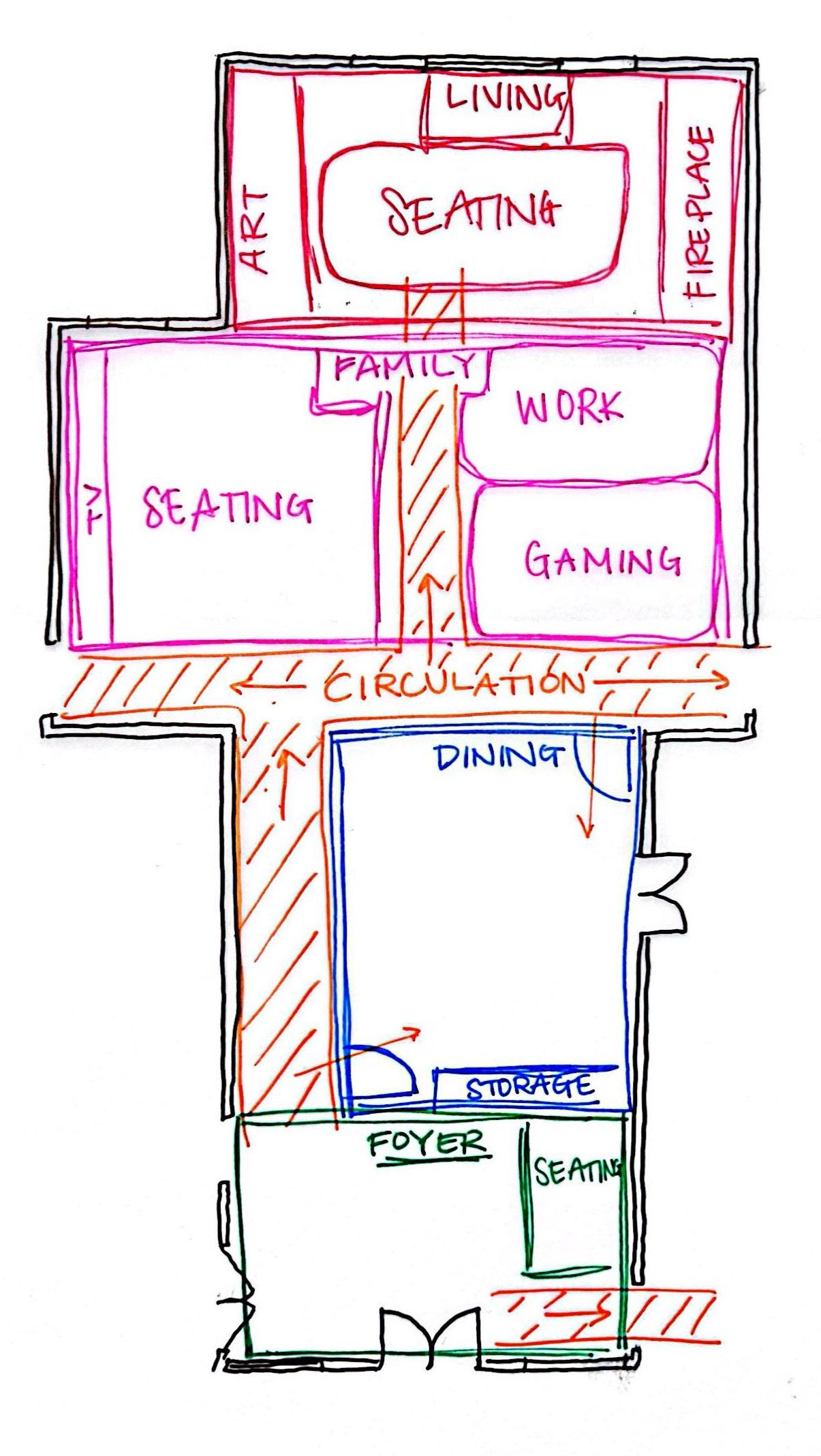

Above: Bubble and Block Diagram

1

2

3

4

Key Elements: • • • • • •

Welcoming foyer with ample natural sunlight Implementation of skylights to increase natural light Tranquil space at back of home Limewashed walls Warm wood tones Large, plastered fireplace

5

6

7

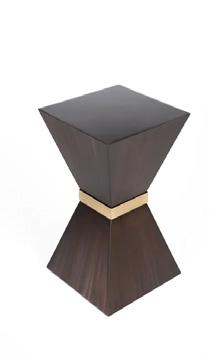

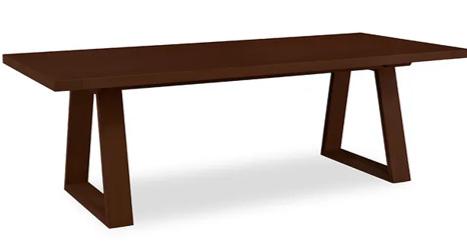

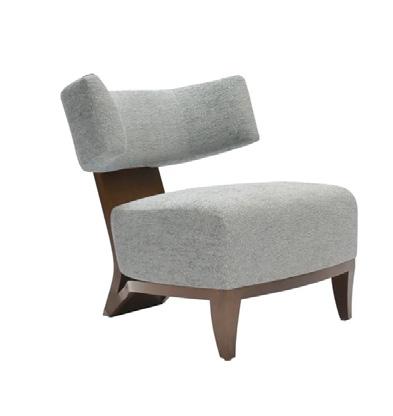

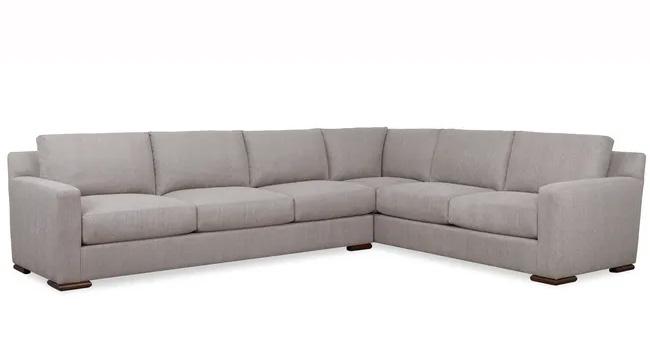

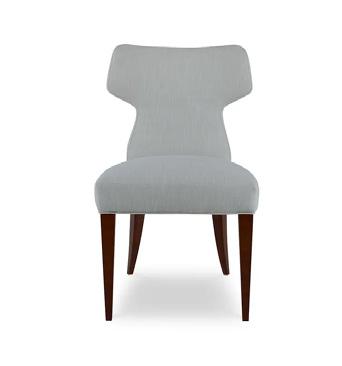

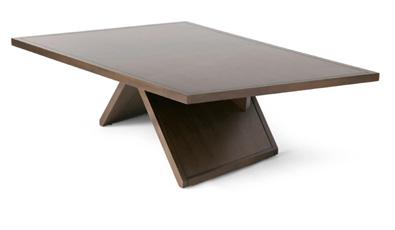

FF&E SELECTIONS 1. Jazz Sectional Sofa 2. Pendance Walnut Cocktail Table 3. Trios Maple Dining Table 4. Rondelle Side Chair 5. Egos Lounge Chair 6. Maddox Rectangle Side Table 8 7. Windham Chair 8. Z Table

One of the design challenges of this project was the lack of natural light in all spaces. In order to combat this in the central zones, glass partitions were utilized in the dining room to allow natural light in from the foyer. Additionally, none of the rooms were completely enclosed so that light could be shared in different spaces. And finally multiple skylights were implemented in the most central area of the plan that did not allow for natural light N otherwise.

RENDERED FLOOR PLAN SCALE: 1/4”= 1’-0”

Above: Rendered floor plan produced in Autodesk AutoCAD, rendered in Adobe Photoshop All drawings are produced in Autodesk AutoCAD and rendered in Adobe Photoshop. NTS- all scales to industry standards

03 Chief Plateau CHIEF ARCHITECT

PROJECT INFORMATION

Design Concept: Mountain Retreat. This is achieved by angular features of the home’s architecture, a multitude of windows to allow natural light and views of the surrounding vistas and implementation of natural materials throughout the home

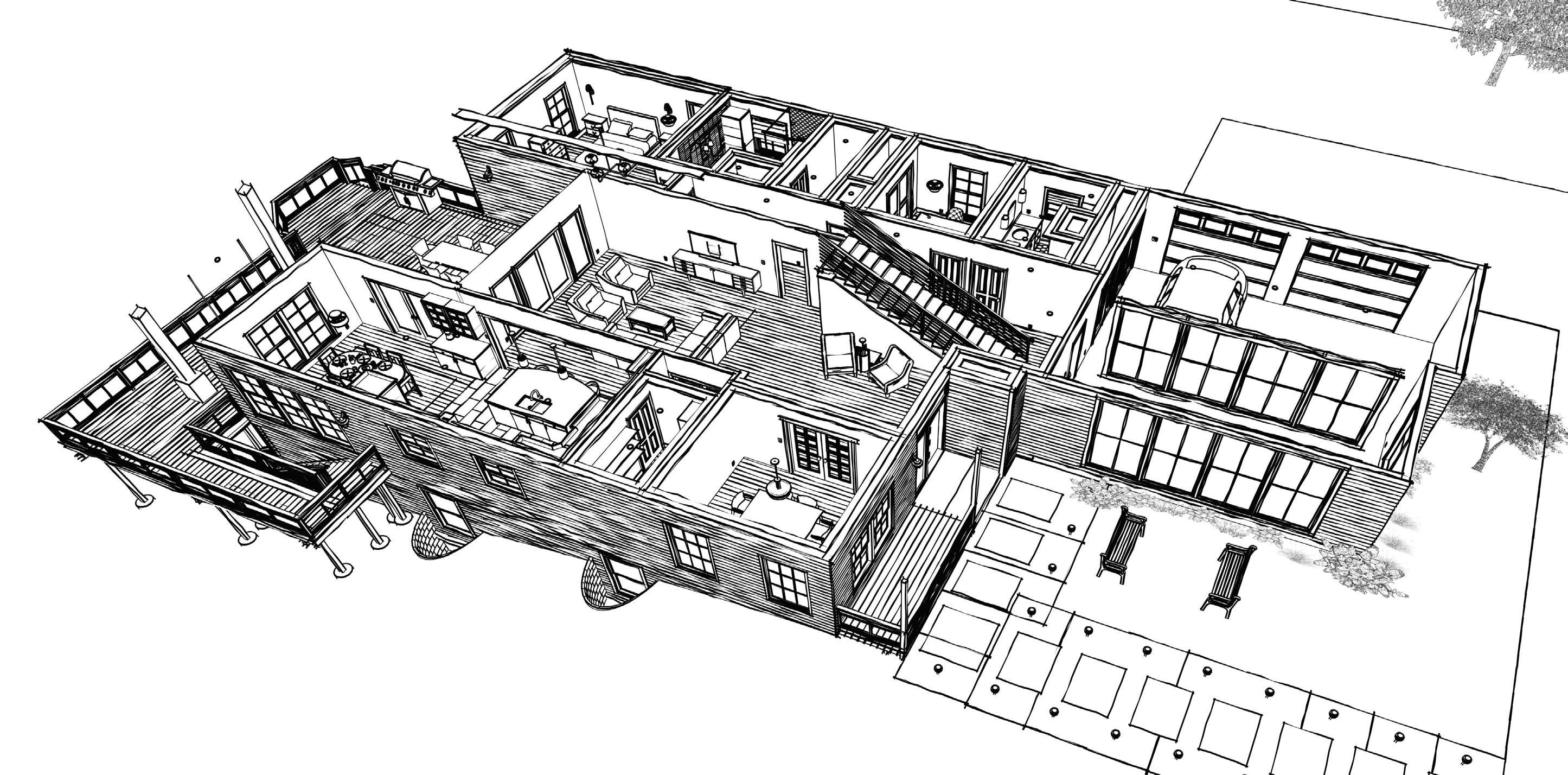

Above: Axonometric floor plan produced in Chief Architect

N

Key Elements: Thoughtful floor plan that includes centralized social spaces, multiple private bedrooms, finished basement and a beautiful outdoor patio

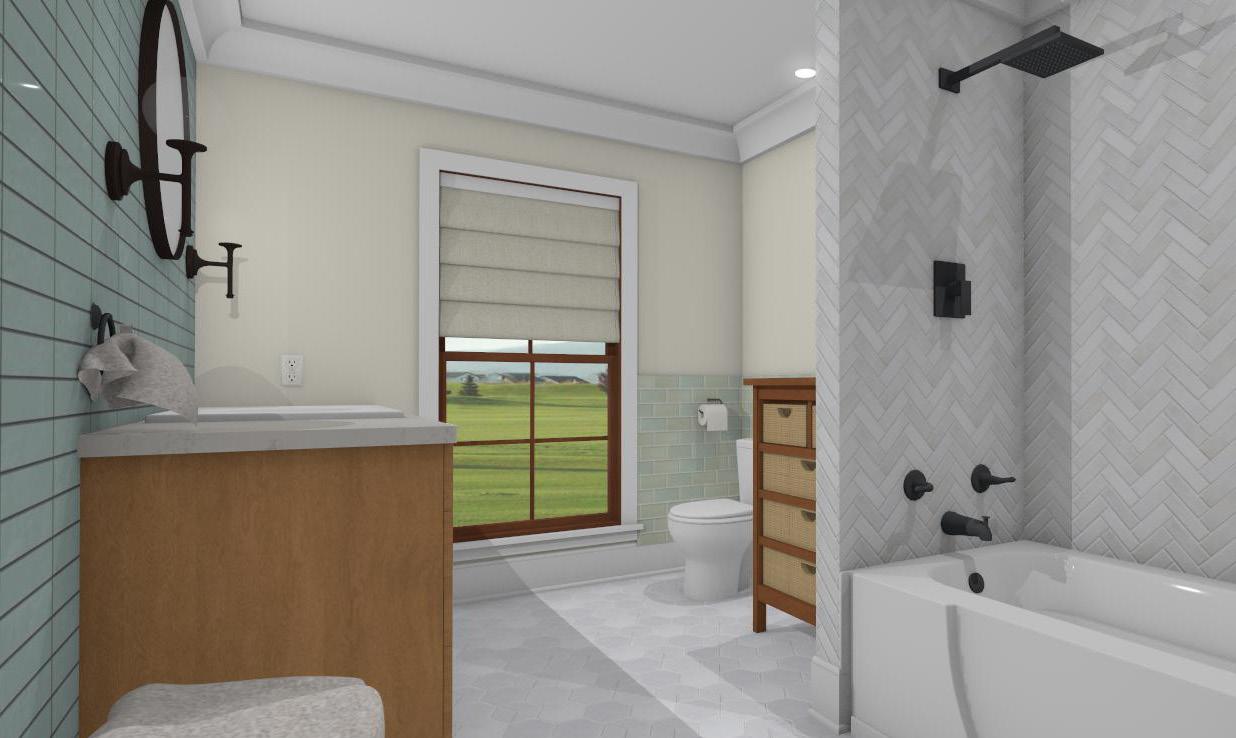

Above: Rendered bathroom perspective produced in Chief Architect

Above: Rendered bedroom perspective produced in Chief Architect

All drawings are produced and rendered in Chief Architect. NTS- all scales to industry standards

RESIDENTIAL

Purpose: To utilize the Chief Architect software program to design a multilevel residential space and produce a complete construction document package

N

Below: Exterior front elevation produced in Chief Architect

Below: Exterior back elevation produced in Chief Architect

All drawings are produced and rendered in Chief Architect. NTS- all scales to industry standards

RESIDENTIAL

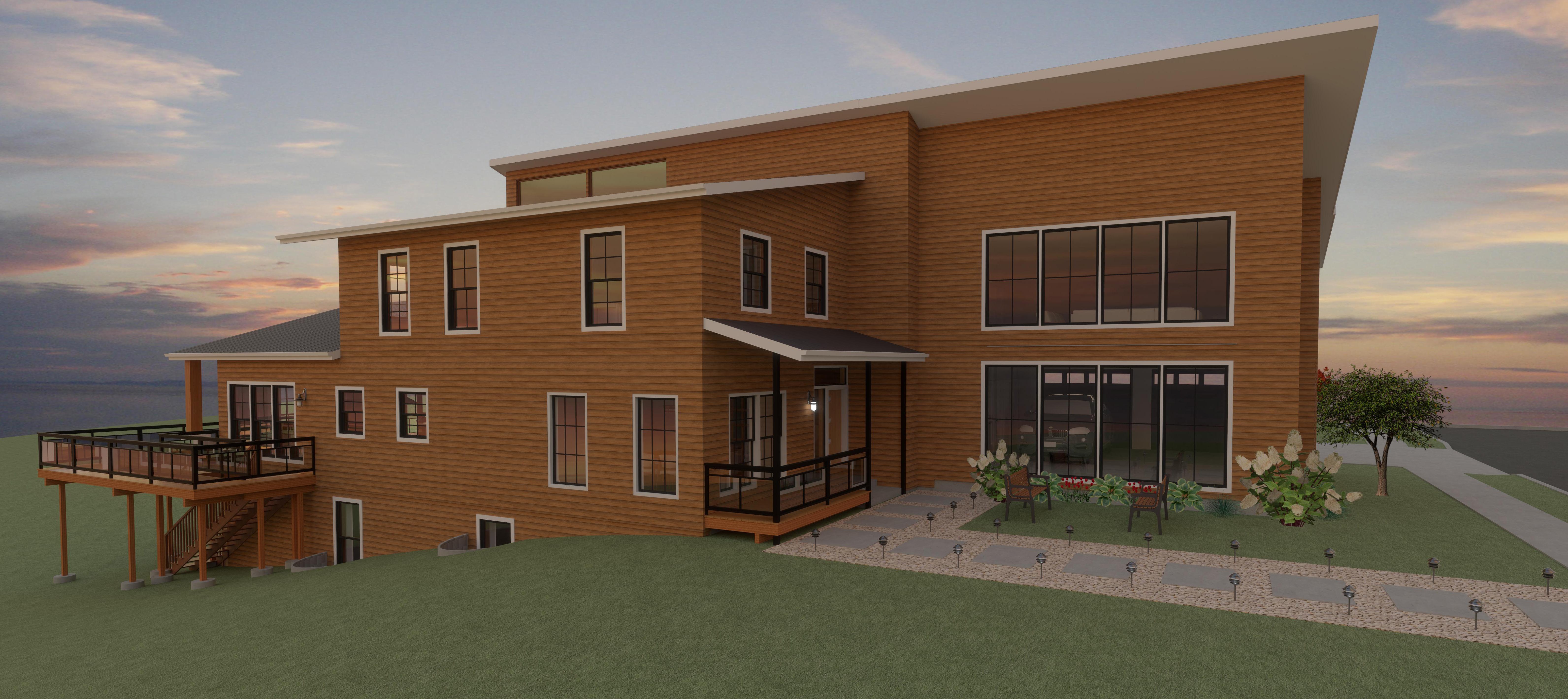

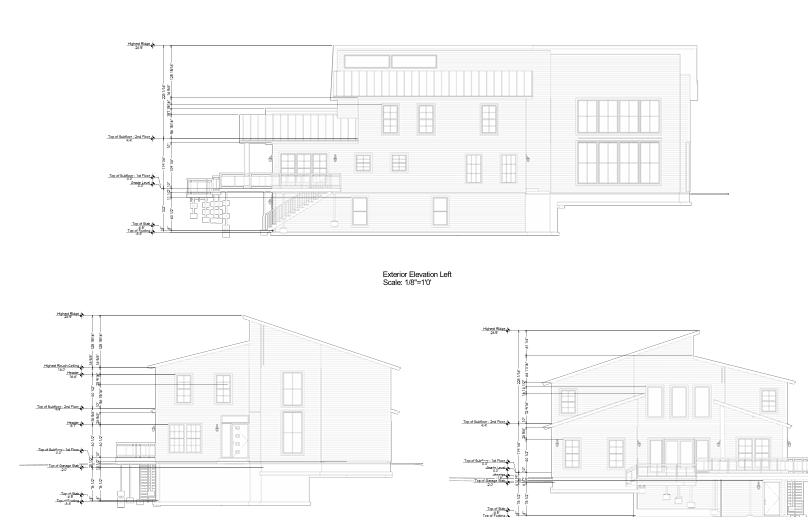

Above: Exterior elevation left produced in Chief Architect
