Commercial

04 COD Library

AUTODESK AUTOCAD, CHIEF ARCHITECT

PROJECT INFORMATION

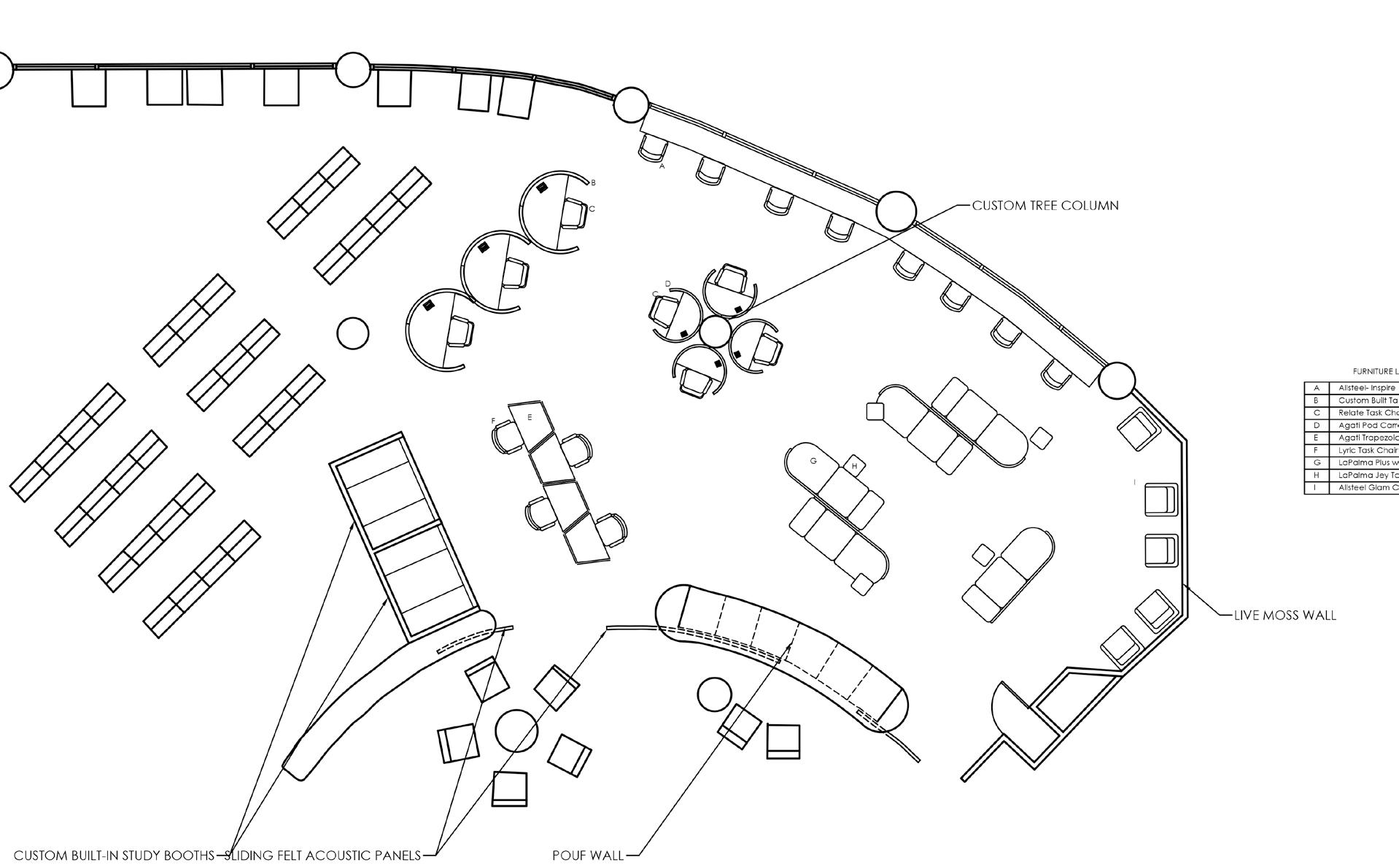

Below: Furniture plan produced in Autodesk AutoCAD

G

I

H

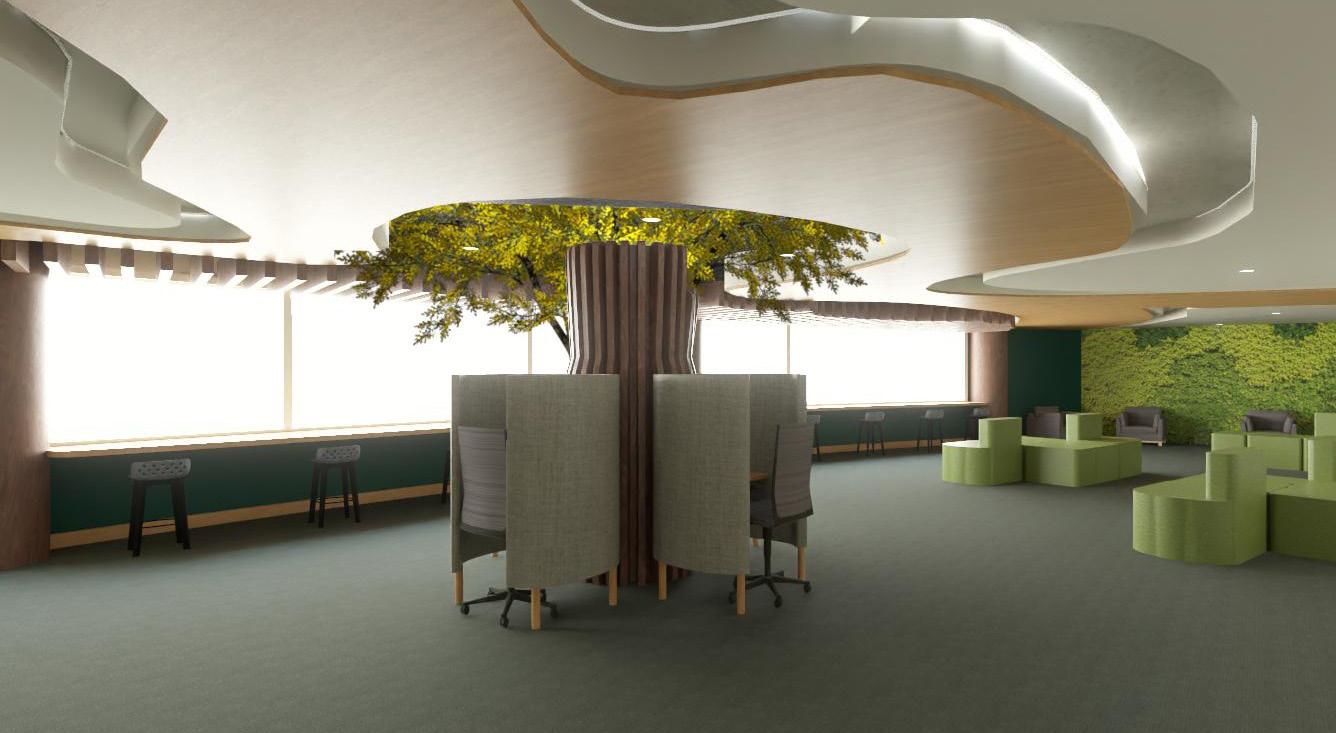

Vibrant Foliage. This is achieved through the lighting and ceiling design, incorporation of greenery and chosen textiles

Key Elements: • •

• •

• •

Visual interest in ceiling design Faux Tree to incorporate foliage and functional space planning for integrated column Screening to enclose space for large scale events Modular furniture that can be easily moved or stored for individual, group or large scale purposes Integrated drop down screen technology for presentations Built in booths for focused study

A

D

E

N

Design Concept:

C

FURNITURE PLAN SCALE: 1/4”= 1’-0”

Ceiling, Trim, Desk Laminart- Golden Oak

Benjamin MooreCrisp Romaine

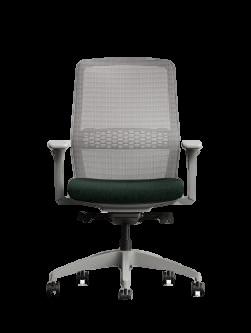

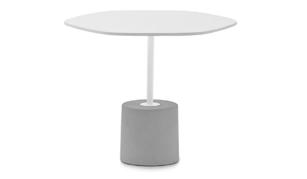

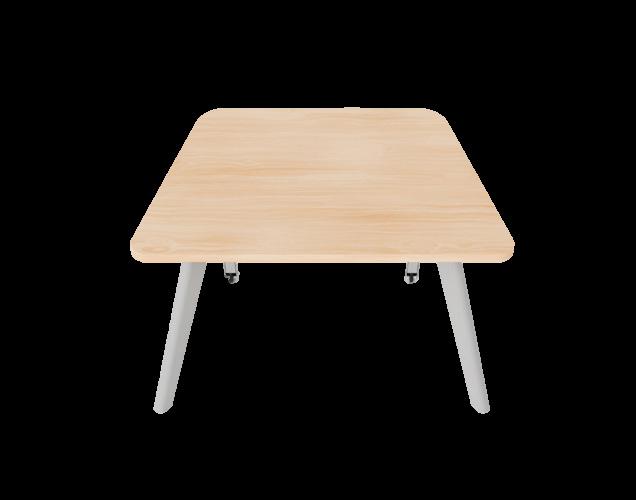

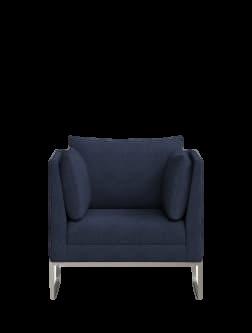

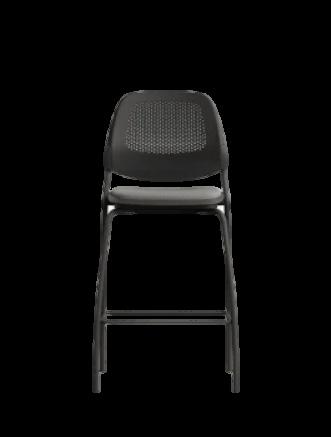

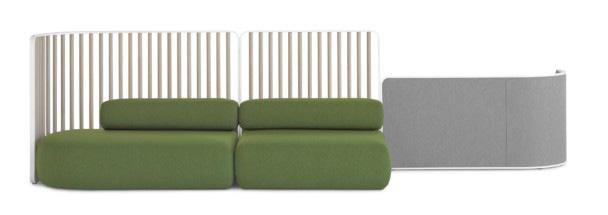

FF&E SELECTIONS A. Allsteel Inspire Stool | C. Allsteel Restate Task Chair D. Agati POD Carrel | E. Agati Trapezoid Table . G. LaPalma Plus Partitions | H. LaPalma Jey Side Table I. Allsteel Glam Club Chair

Dunn EdwardsWishful White

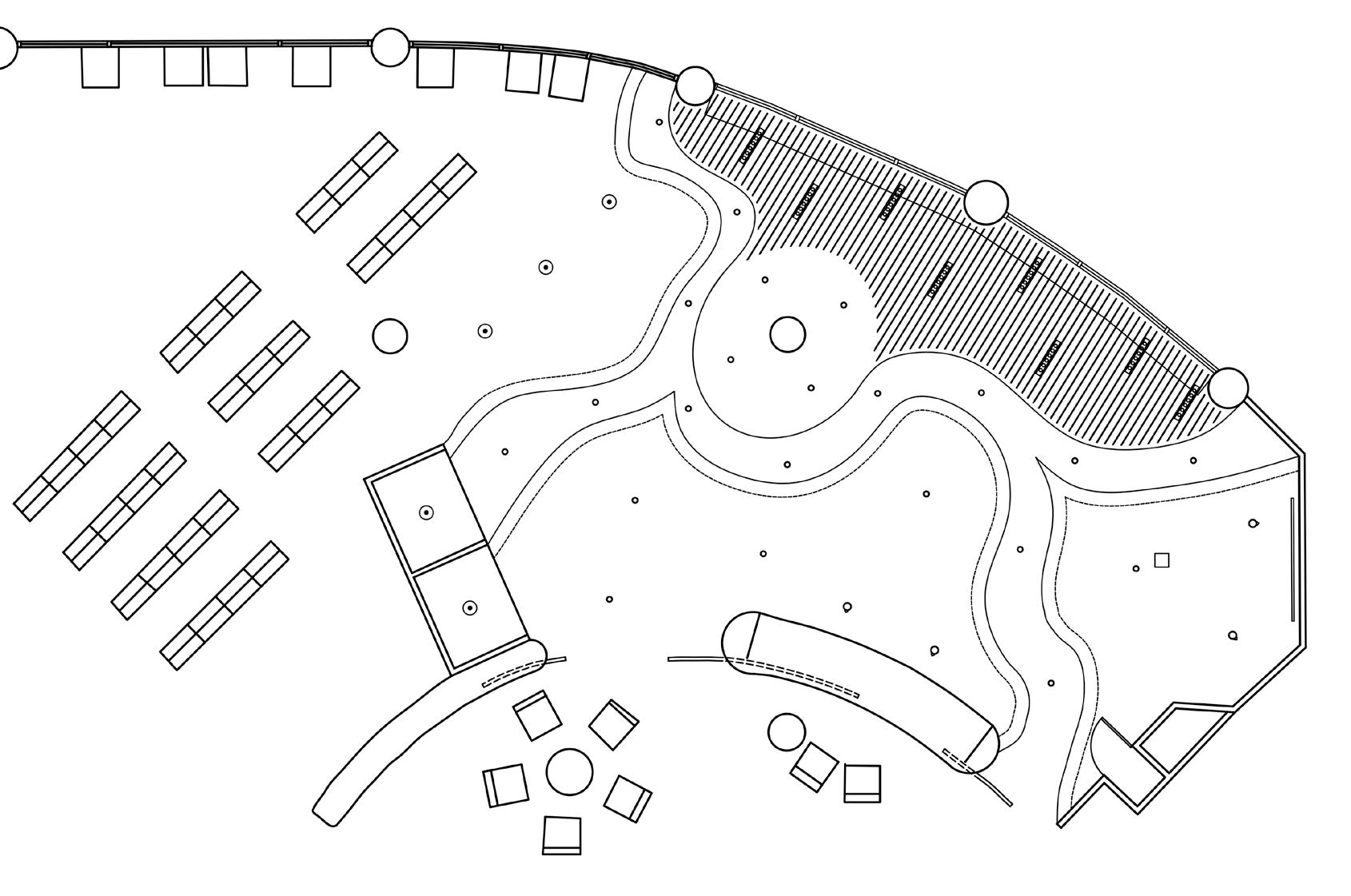

REFLECTED CEILING PLAN SCALE: 1/4”= 1’-0”

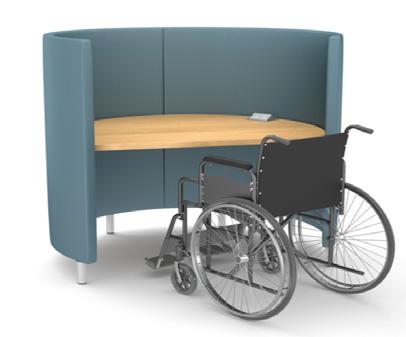

Pod Carrel- Justin David Minerva

Booth- CF Stinson Apprentice

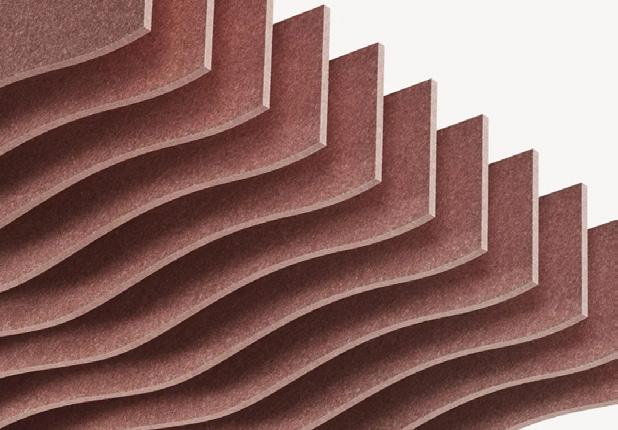

Turf- Timber Acoustic Baffle

Carpet- J+J Flooring Naturalist Modular

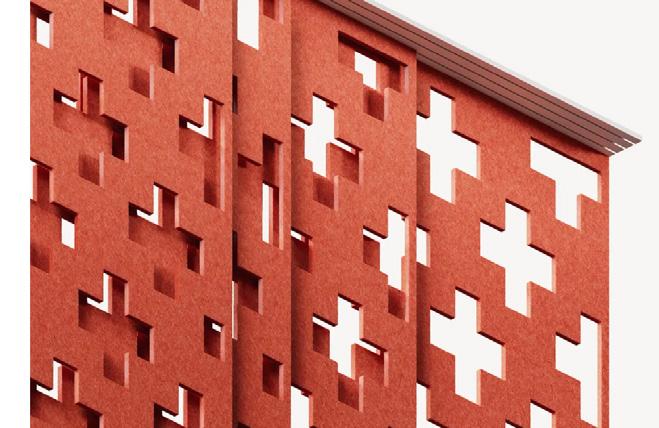

Turf- Flow Sliding Partition

N

Above: Reflected ceiling plan produced in Autodesk AutoCAD

All drawings are produced in Autodesk AutoCAD. NTS- all scales to industry standards

COMMERCIAL

Purpose: To create a peaceful environment for College of DuPage Students to study individually or as groups. This space would also be used as an event space such as the Student Research Symposium

Manager’s Office selections contributed by Lisa Trousdale

SKU: VIN-V-DPO

Cortina Leathers Mist- Pecan

Camira Individuo Olivia

Cork Walls -Zandur

Sweet Honey

Carpet TilesAvalon

Scuffmaster BR005

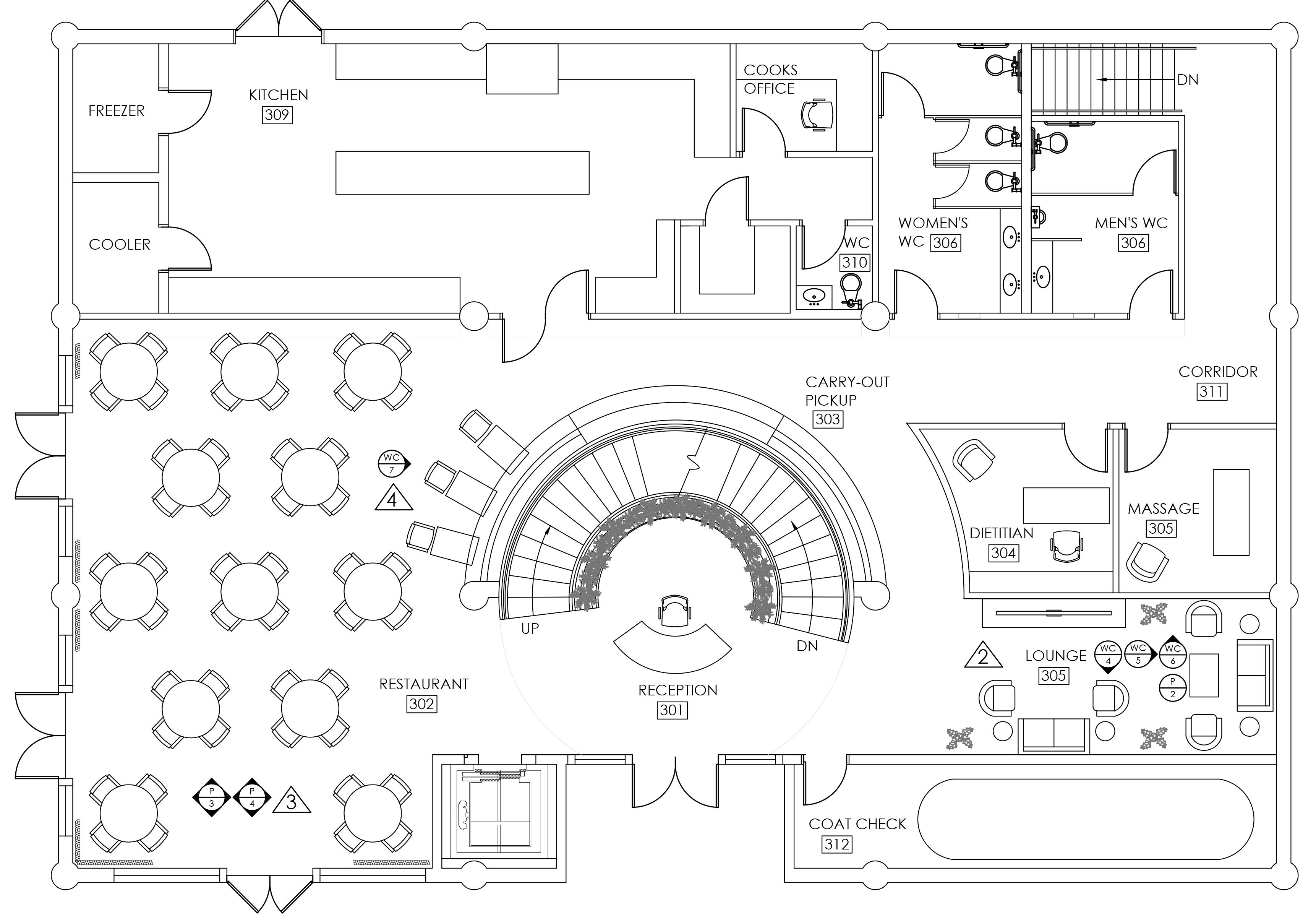

FOURTH FLOOR PLAN Above: Re-Fit 3rd Floor Plan produced in Autodesk AutoCAD THIRD FLOOR PLAN

SCALE: 1/4”= 1’-0”

Buechel Stone-Black Frost Castle Rock

Keim, Interior Limewash, R90

Impact Acoustic: Linea

Tile Bar: Arc Linear Soul

P/Kauffman Precision, Persimmon

Keim, Interior Limewash, R90

Green Hides, Ranch, Tobacco

Nydree Flooring Reclaimed Oak

05 Re-Fit

AUTODESK AUTOCAD

N

Restaurant selections contributed by Elizabeth Fears

SCALE: 1/4”= 1’-0” Below: Re-Fit 4th Floor Plan produced in Autodesk AutoCAD

Conference Room selections contributed by Dani Ariello

Group Collaborative Design

PROJECT INFORMATION

Re-Build | Re-Define | Re-New Wall Coverings

Buechel Stone- Kohler Heritage Blend

Wolf Gordon Paperweave - 4001

Olivia + Poppy Collide-O-Scope: Fall

Design Concept: Re-Build, Re- Define, Re-New. Established in Oak Park, Illinois, Re-Fit is a community wellness center that was designed with a nod to the area’s architectural heritage, Prairie Style, made famous by architect, Frank Lloyd Wright

Key Elements: • • •

Environmentally friendly material selection Prairie Style inspiration Unique textiles and wall coverings in each zone that contribute to an overall cohesive design

Textiles

Re-Fit is a wellness center located in the heart of Oak Park, Illinois. This facility is more than just a workout space, it is meant to be the thriving heart of the community in which it is nestled. Within the confines of Re-Fit members can find access to a spa, fitness equipment, group classes, book a massage, consult with a dietician or even have a fine dining experience.

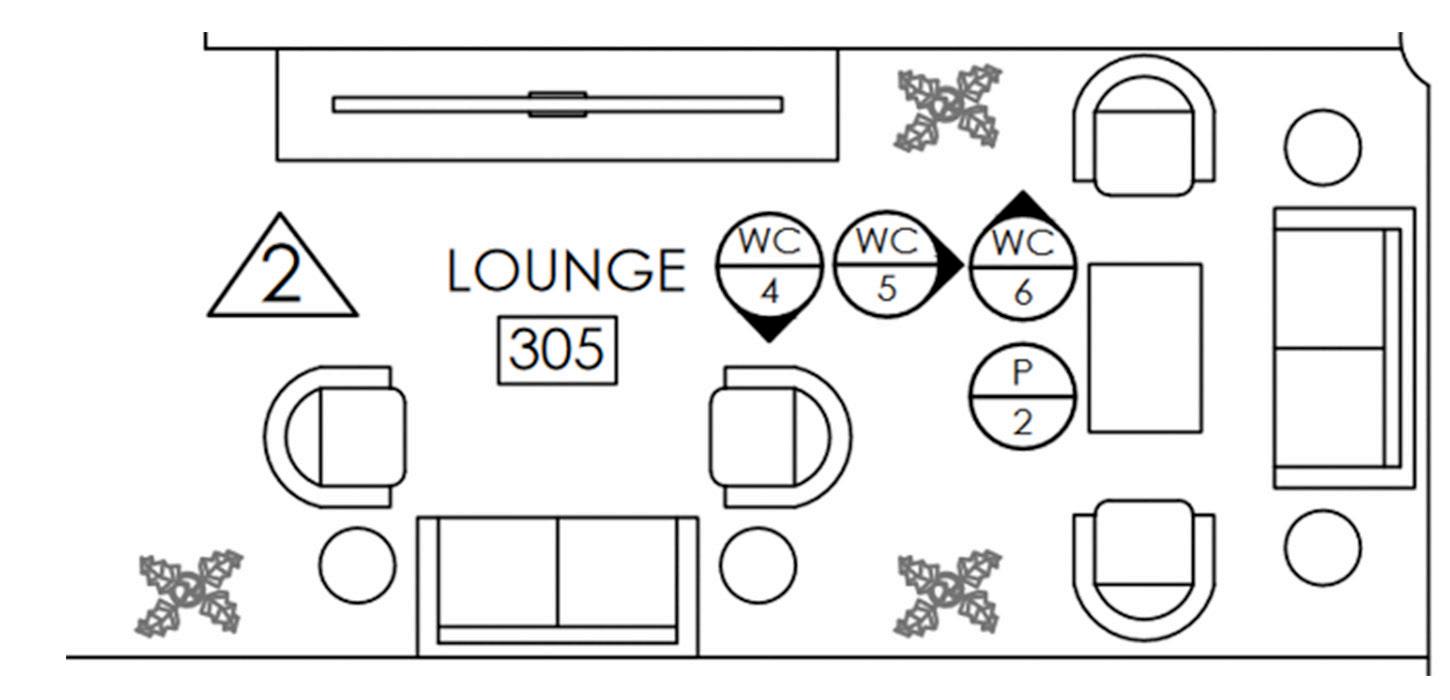

Because Oak Park has a rich architectural history, the design concept wanted to give a nod to the Prairie Style design that was inspired by Frank Lloyd Wright. While each zone of the multistory plan is unique, the design team chose a cohesive color palette of vibrant greens, rich leathers, wood flooring with additional pops of color. In the lounge specifically, the team chose multiple opportunities for visual interest with a textured stone wall and an Olivia + Poppy wallcovering that mimics an art geometric window common in the Prairie Style.

As a cornerstone of the community, this design also focuses on sourcing materials and textiles that are sustainable and environmentally friendly.

Flooring choices are LEED Compliant and being engineered hardwood will be a very durable option. Wall coverings and paint were chosen as low VOC options. Finally, textiles were chosen because of their durability in addition to their aesthetics.

Gancedo Inle

Camira Individuo Olivia

Optima Leathers Hampton- Brandy

Flooring

Ceiling

Nydree-TXTURE Plainsawn White Oak

Sherwin-Williams Olivetone

All drawings are produced in Autodesk AutoCAD. NTS- all scales to industry standards

COMMERCIAL

Purpose: To collaborate with other students to create a cohesive design for a community wellness center that focuses on sustainable sourcing of textiles and wall coverings

Re-Fit

06 DeskShare

AUTODESK AUTOCAD, CHIEF ARCHITECT, ADOBE PHOTOSHOP

PROJECT INFORMATION

COMMERCIAL

Purpose: To create a coworking space plan that included multi-functional spaces in addition to producing a full construction document set

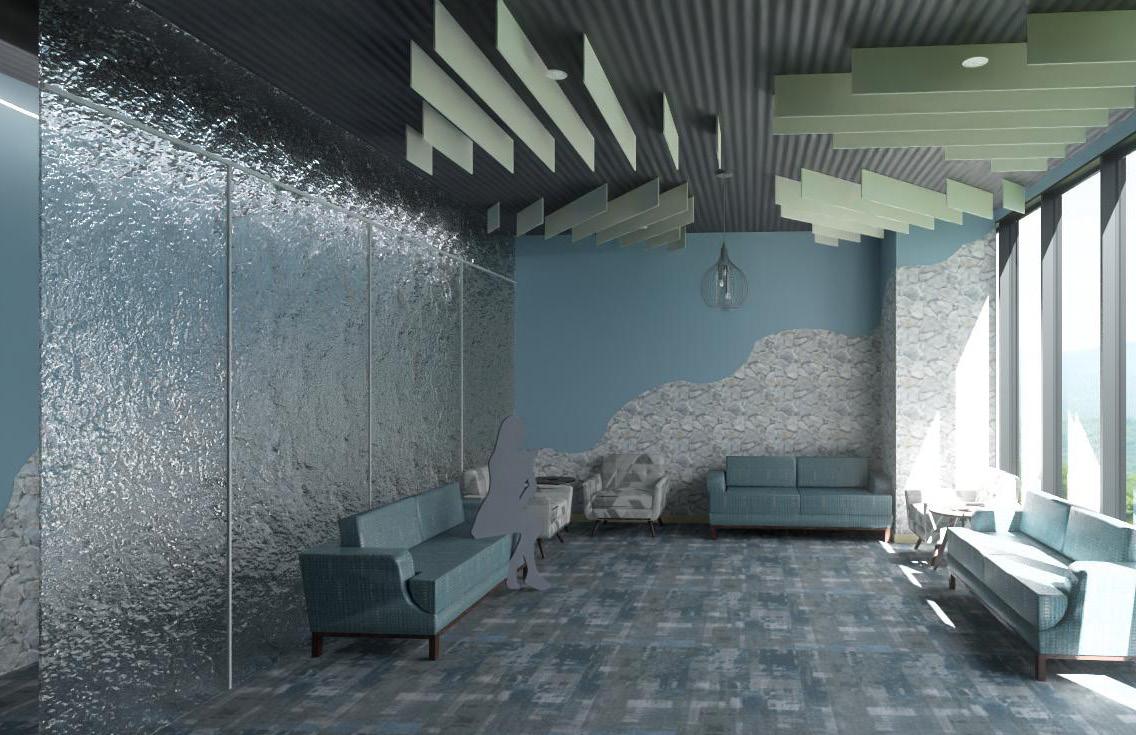

Design Concept: Zones of Adventure. DeskShare’s design concept is one that will inspire all who step into this space to be transported through a variety of environments and adventures including a Jungle Path, the Mountains and Alpine Lakes and finally a Bazaar in the Moroccan Desert

Key Elements: • • • • • •

Interesting way-finding options Multiple open and enclosed working spaces Varied ceiling materials and height for both visual interest and wayfinding Acoustic panels and ceilingscapes throughout Bold yet durable fabrics and textiles throughout 3D wall coverings that evoke a tactile response

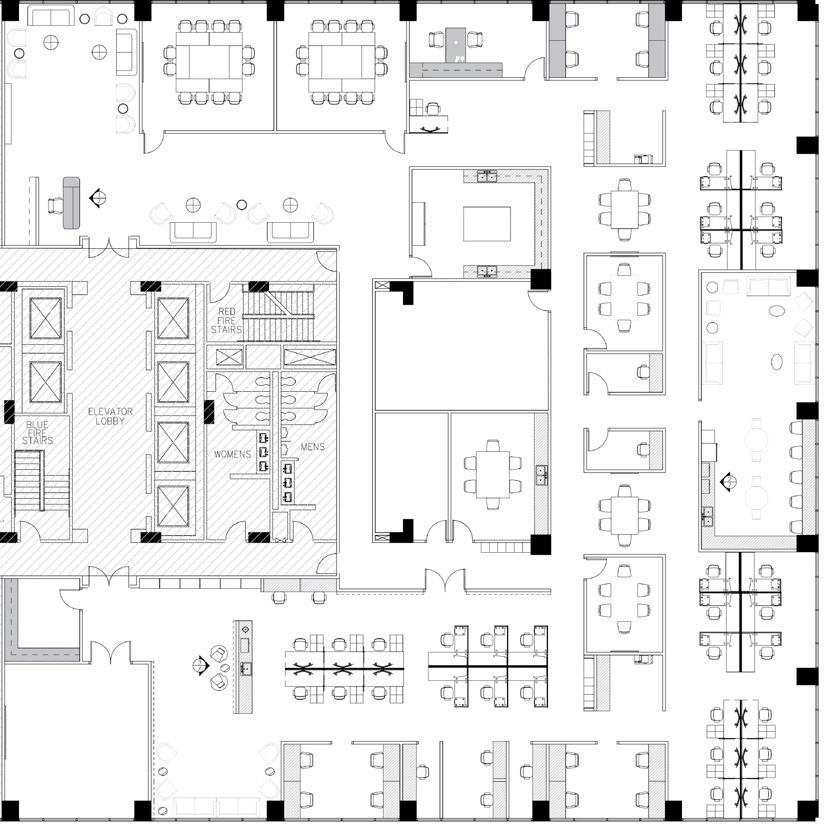

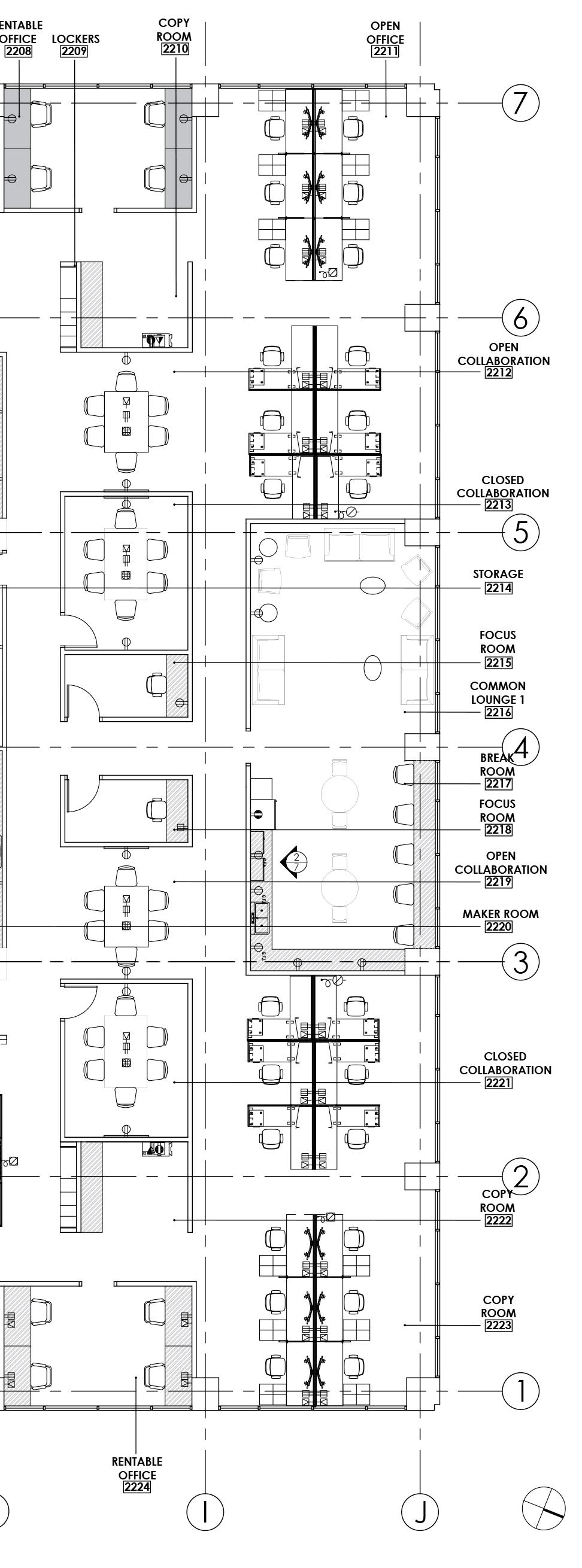

FURNITURE PLAN SCALE: 1/8”= 1’-0”

All drawings are produced in Autodesk AutoCAD and rendered in Adobe Photoshop or Chief Architect. NTS- all scales to industry standards

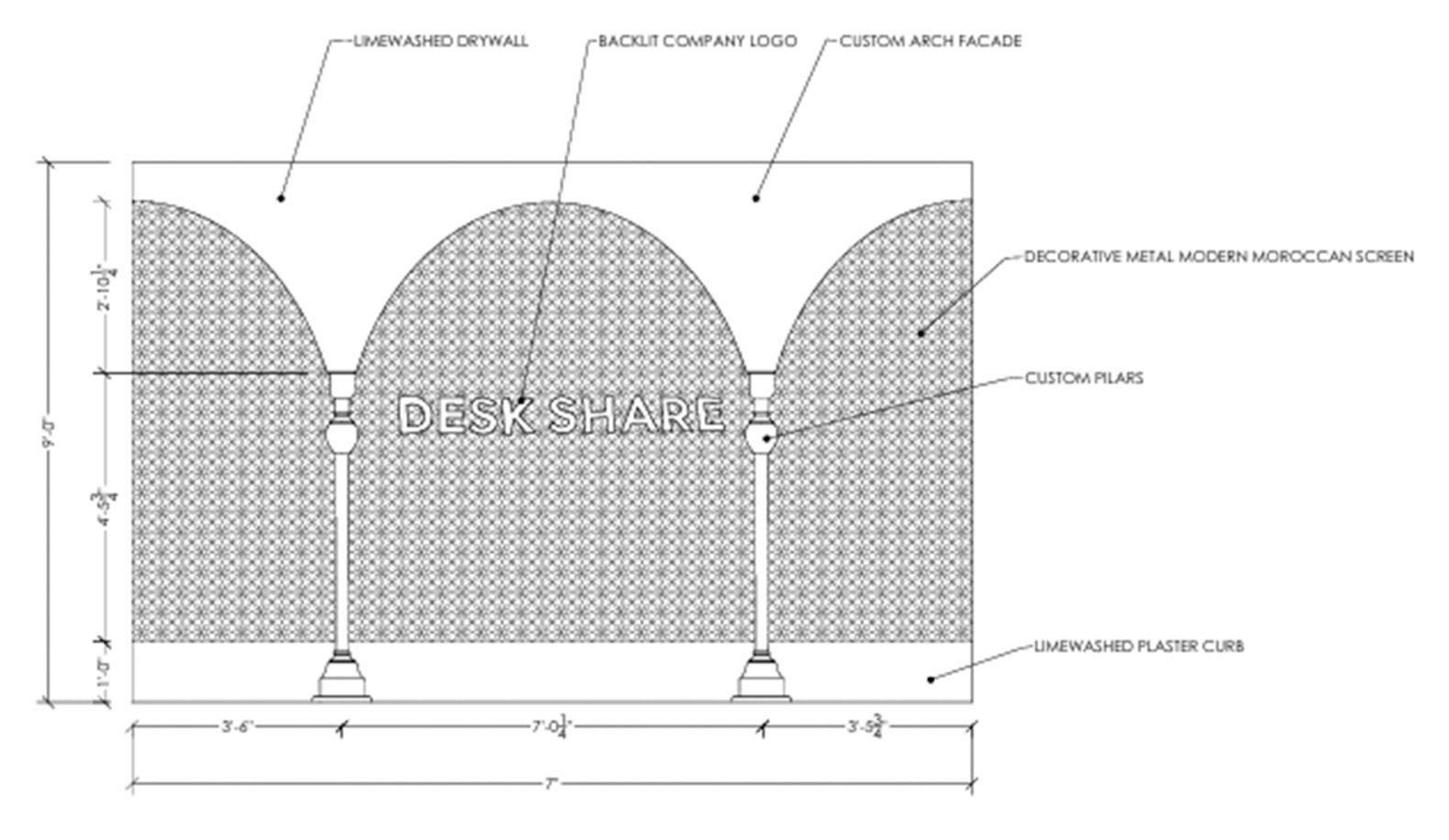

ARCHES ELEVATION SCALE: 1/2”= 1’-0” Above: Arched Logo Wall elevation produced in Autodesk AutoCAD

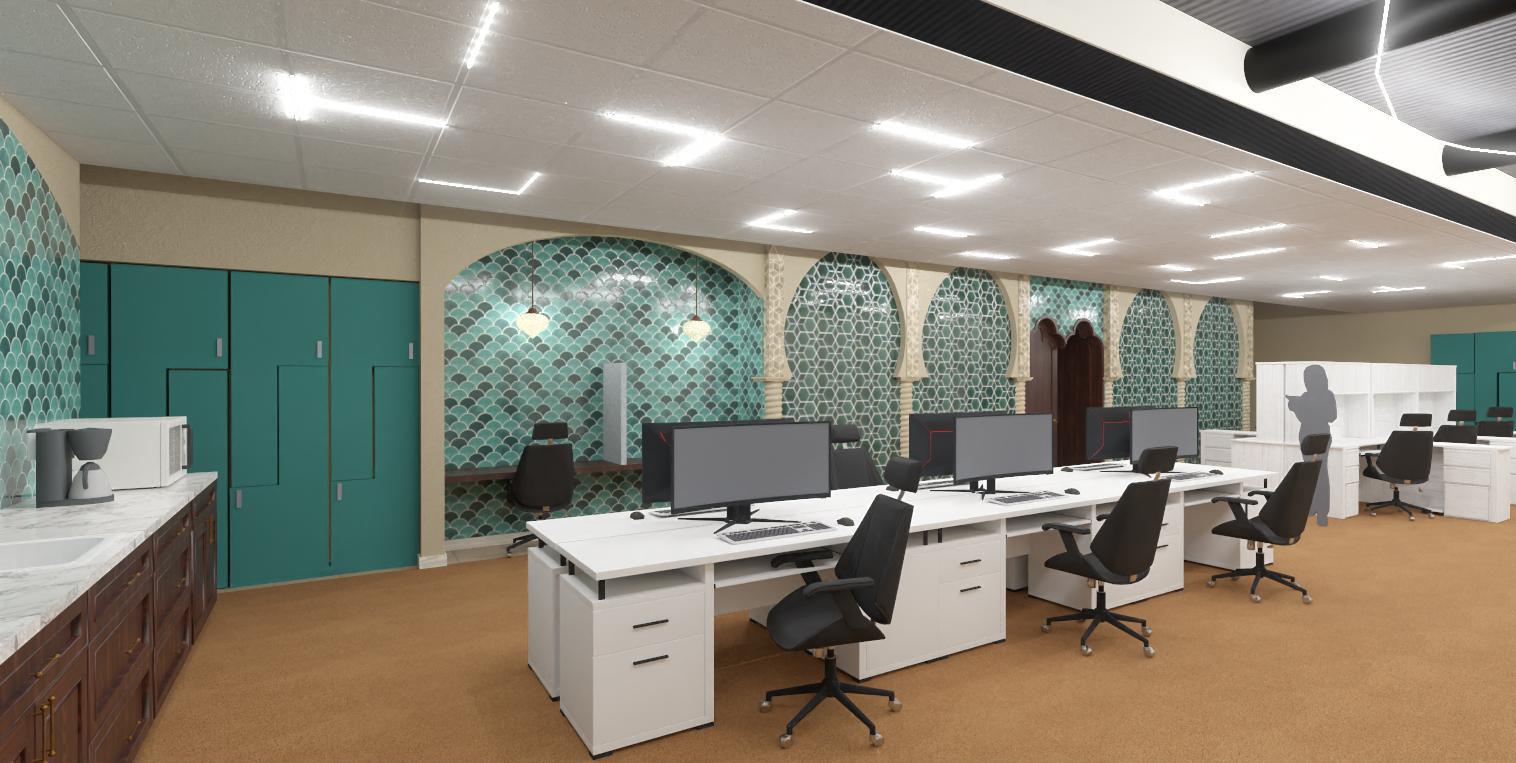

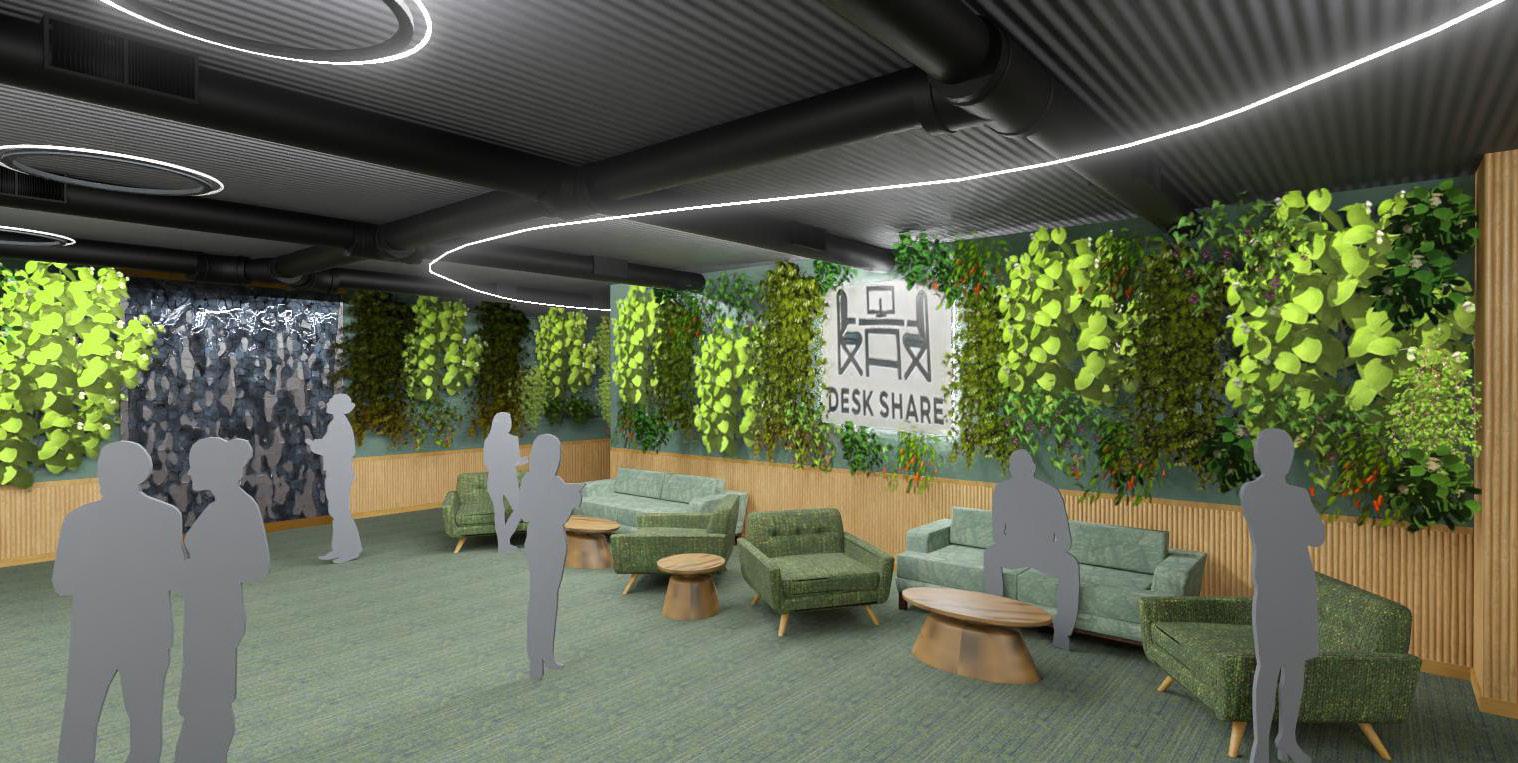

Above: Desert Zone work space produced in Chief Architect Below: Break Out Space Furniture plan produced in Chief Architect

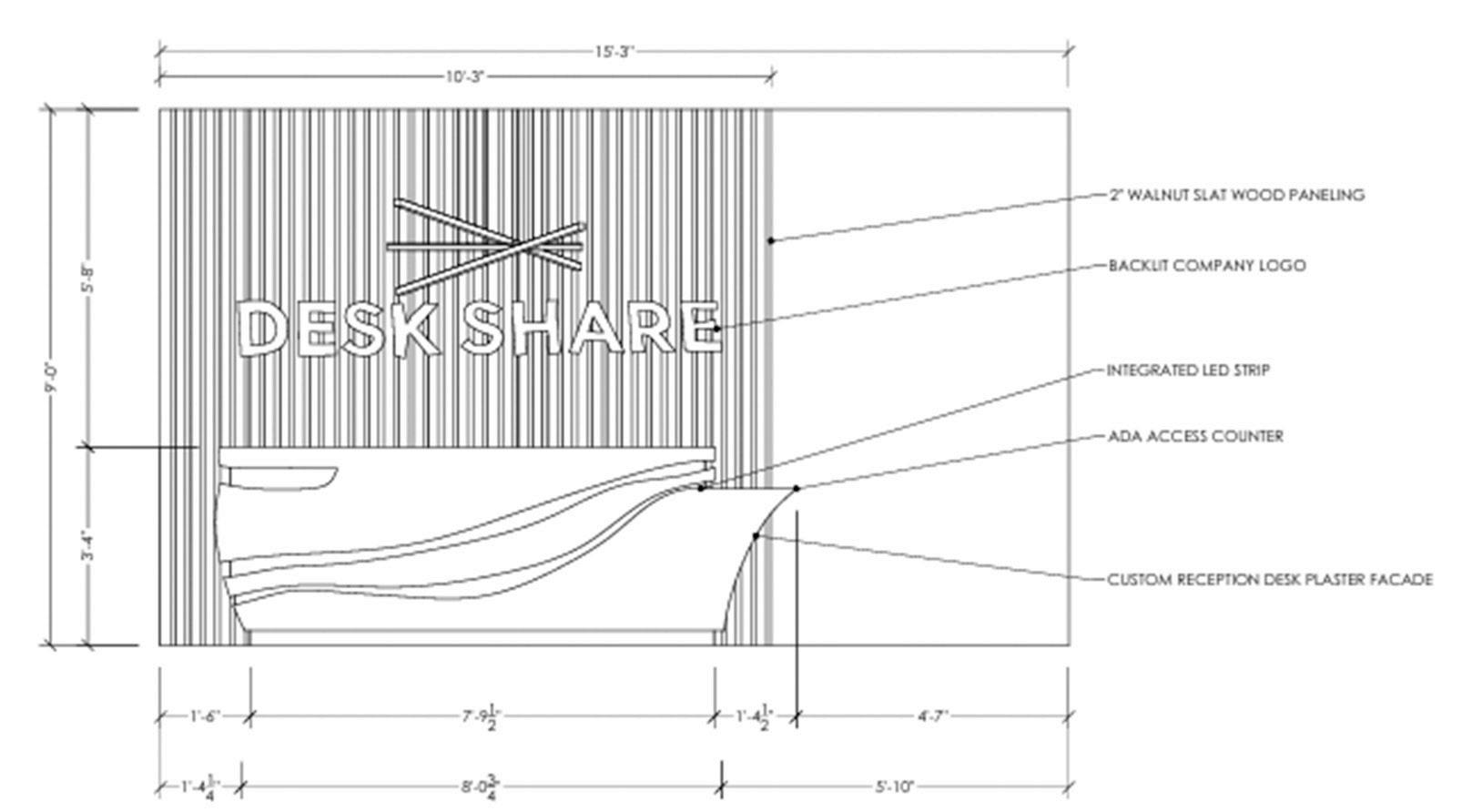

RECEPTION ELEVATION

06 DeskShare

ORTHOGRAPHIC VIEW

SCALE: 1/2”= 1’-0” Above: Reception elevation produced in Autodesk AutoCAD

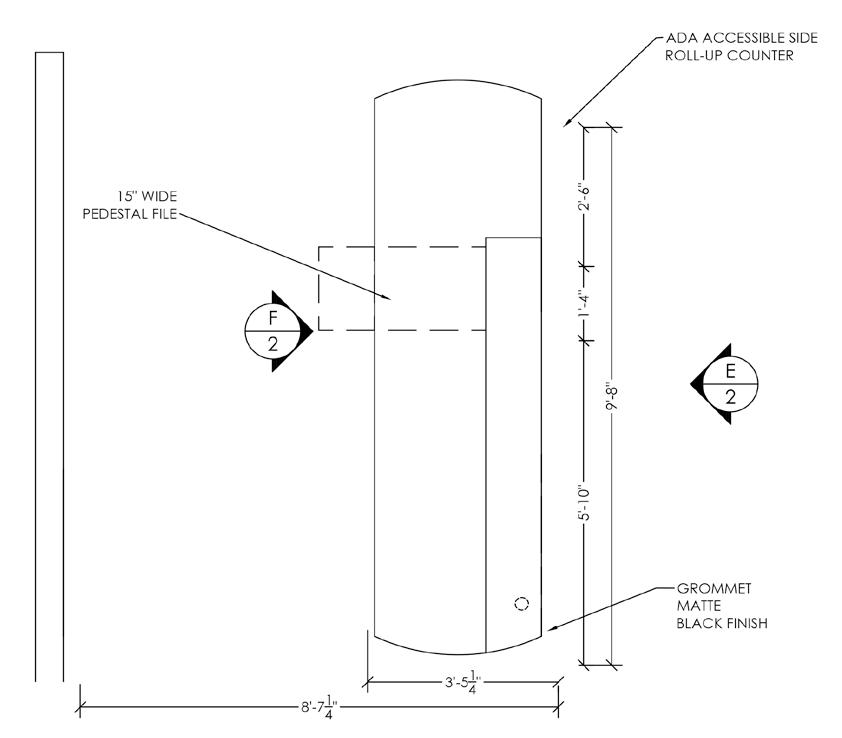

RECEPTION PLAN VIEW

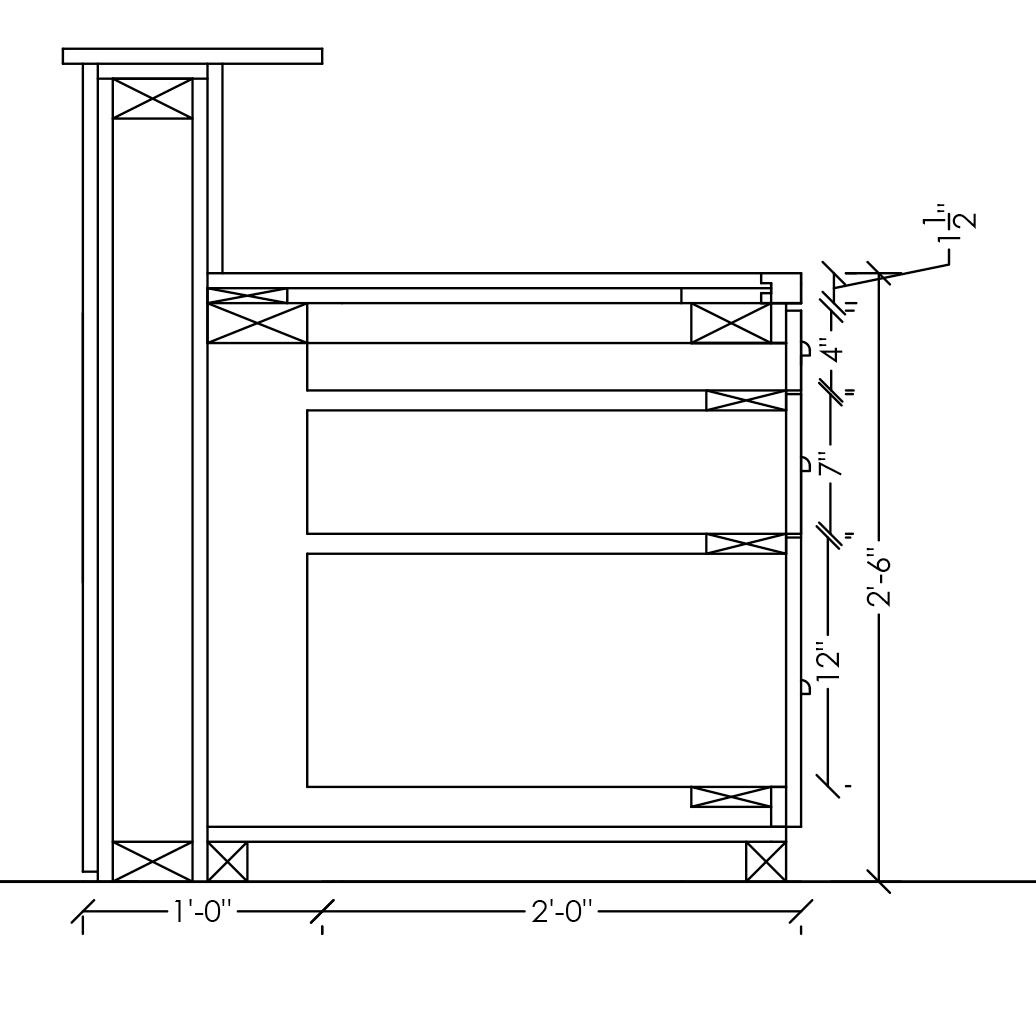

RECEPTION SECTION

SCALE: 1/2”= 1’-0”

SCALE: 1”= 1’-0”

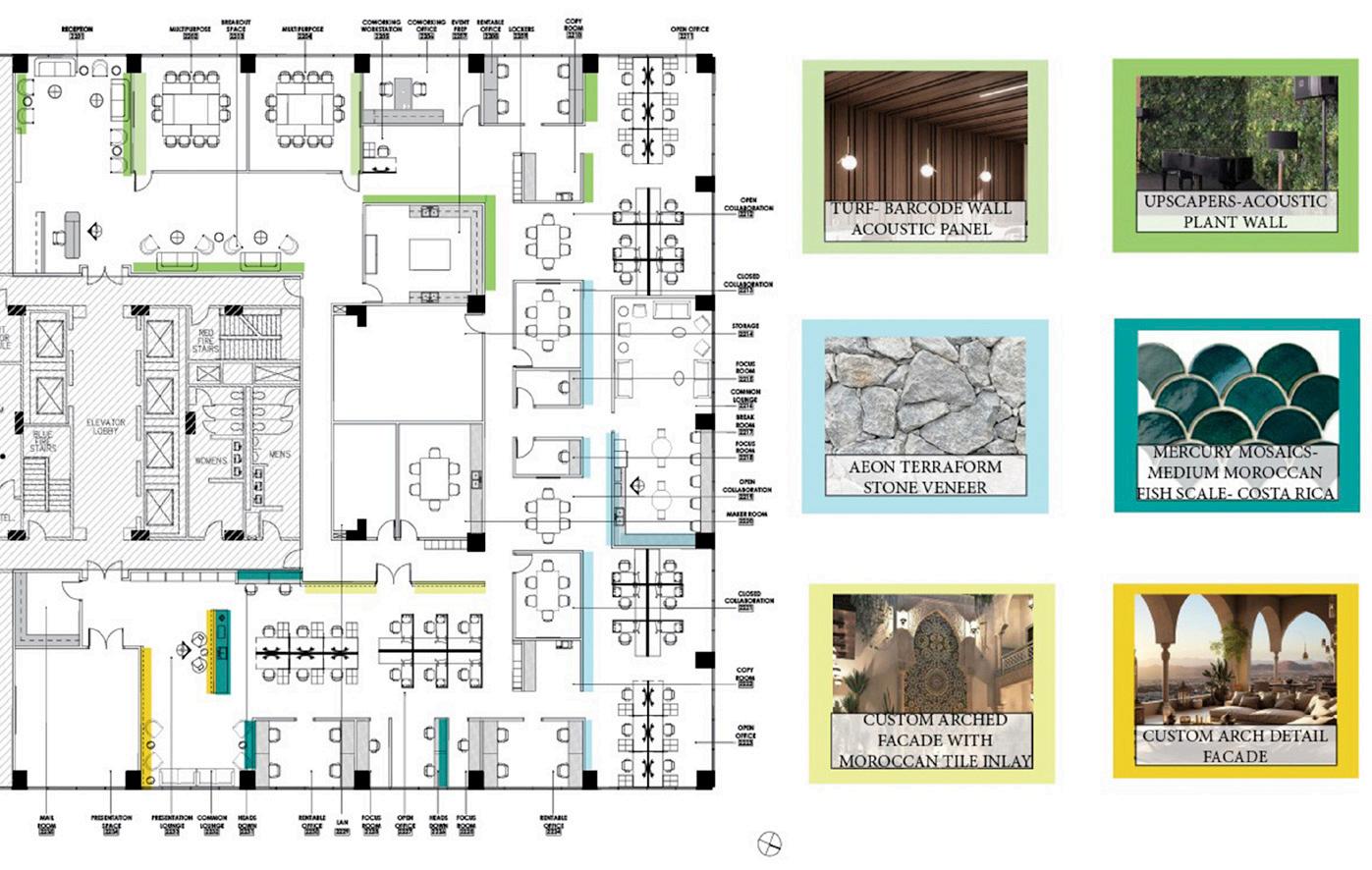

FINISH PLAN SCALE: 1/8”= 1’-0”

SCALE: 1/8”= 1’-0”

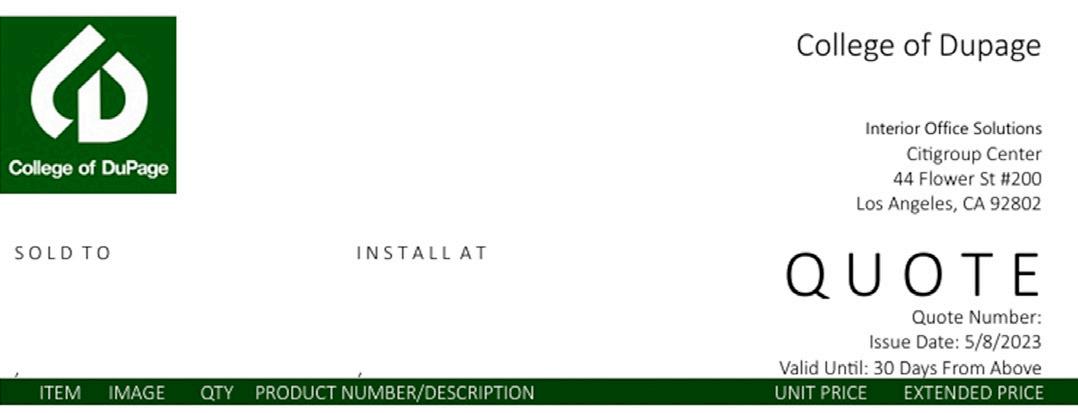

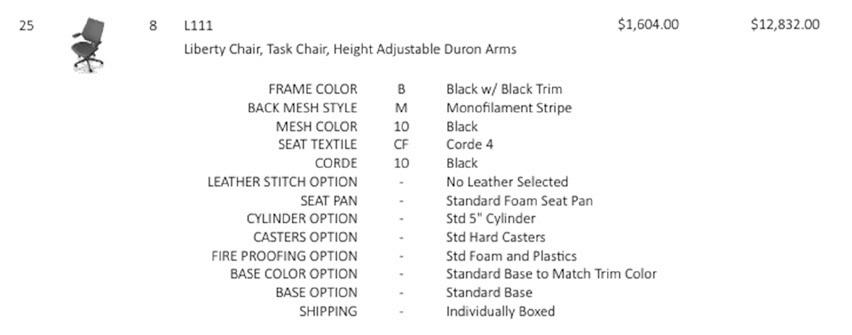

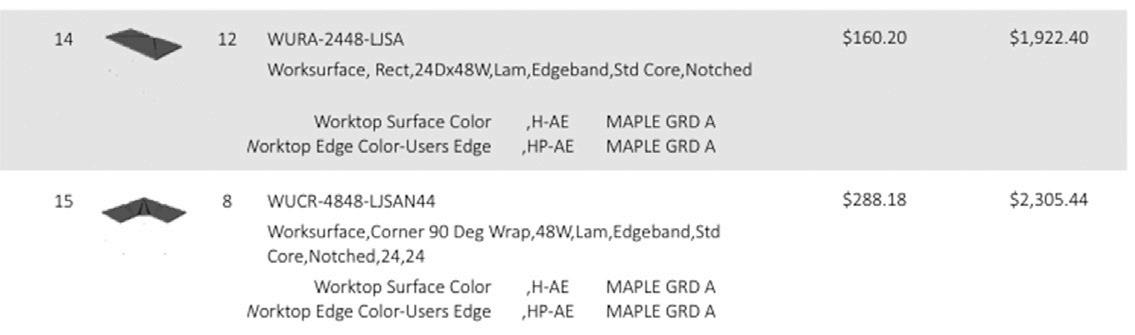

FURNITURE BUDGET

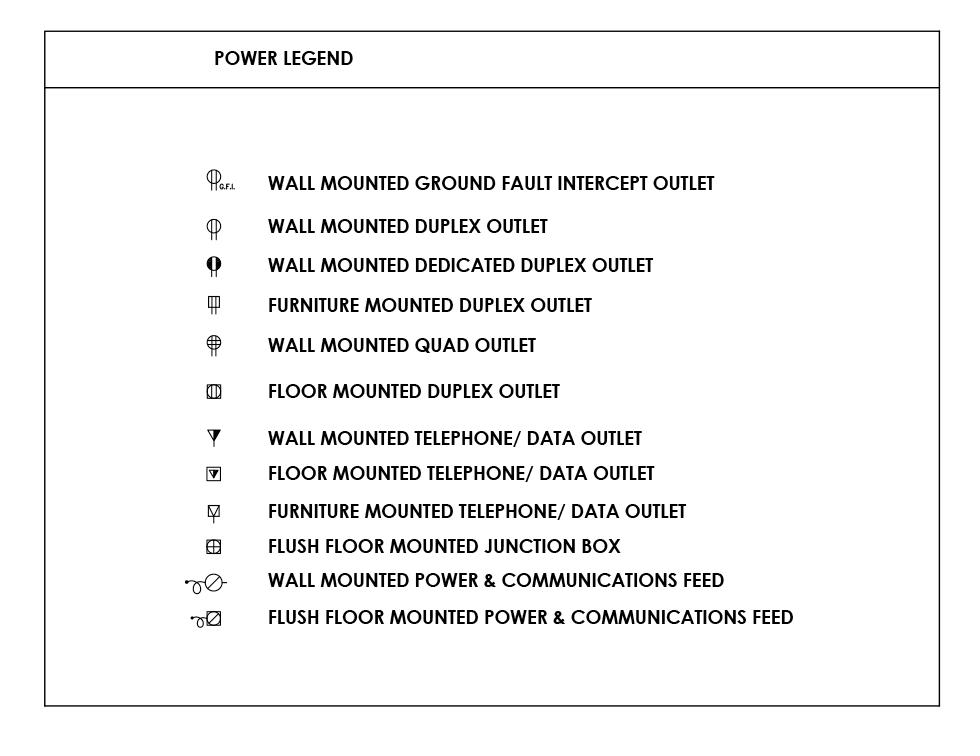

PARTIAL DATA AND POWER PLAN

One of the design challenges for this project was the location of the building envelope. Because it is centrally located to the whole floor, it created a unique shape for space planning for the space the client occupied. Although initially a challenge, this became a beneficial element of the final floor plan so that “back of house” rooms including storage, mail room and event prep could all be located at the center of the plan, closest to the elevators. Additionally, the shape of the client space allowed for a linear alignment of the various rooms and zones. This linear space plan, according to ADA clearance guidelines, would allow for easy-to-follow egress in the event of an emergency evacuation.

All drawings are produced in Autodesk AutoCAD and rendered in Adobe Photoshop or Chief Architect. Full set available upon request. NTS- all scales to industry standards

COMMERCIAL

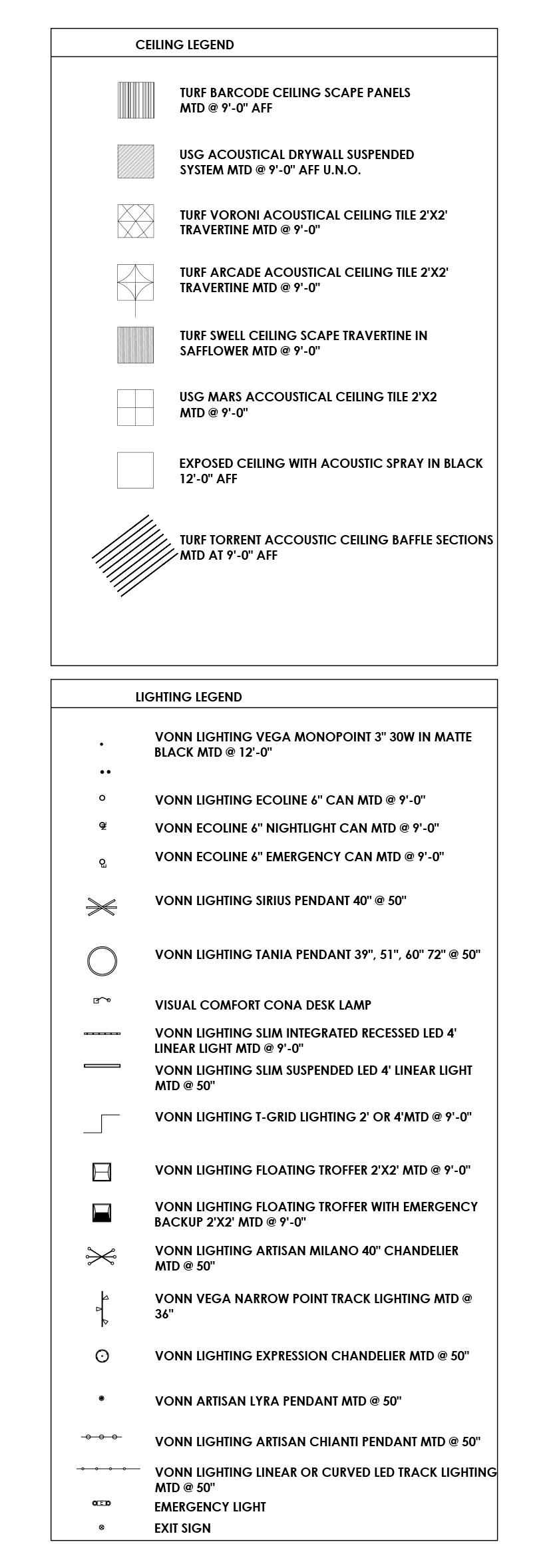

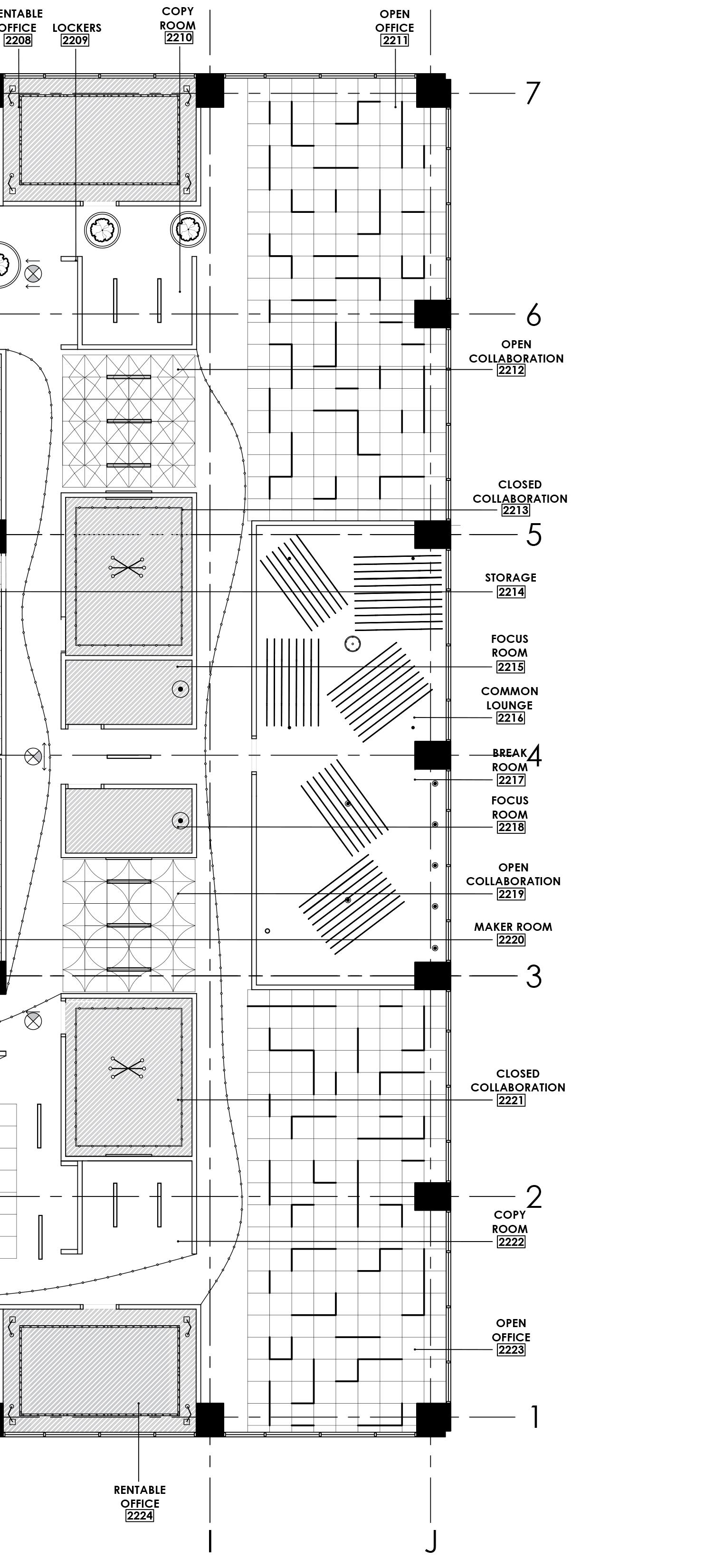

PARTIAL REFLECTED CEILING PLAN
