PURPOSE BUILT GEAR FOR THE SMART ADVENTURER
2023 PRODUCT LIST V2.7
WE ARE R3Di
Thank you for purchasing a R3Di product!
We design products for smart adventurers that deliver quality experiences while upholding the promise of safety and protection.
Our purpose is to empower those seeking adventure by challenging them to gear up, load up, and embrace their limits.
SILENT. SLEEK. POWERFUL.
Have questions? Contact support@r3di.com. Check out r3di.com for more information.
FOLLOW WARRANTY
WE POWER WHAT MOVES YOU
So you can keep everything charged and ready no matter where you go—from camera gear and camping essentials to laptops and important medical devices.
CLEAN ENERGY WITH SOLAR PANELS
In recent years, the third-generation energy revolution, which replaces nonrenewable energy with renewable energy and high-carbon energy with lowcarbon energy, has begun to accelerate. This is due to global energy shortages and frequent extreme climates.
Energy storage is a core component of the new energy industry. Driven by technological innovation, user demand has surged, and the market will usher in an unprecedented explosion.
KC10R POWER BANK
37 watt hour lithium battery
18 watts
.51 lbs
HC-135
130 Lumens
120 mAh
8.5 oz
R3Di CHARGING CABLES
90° Degree angle plug-in
Fast charge and data transmission
Aluminum alloy body
Micro to USB Type-A
USB Type-C to Type-C
Lightning to USB Type-C
RS600 PORTABLE POWER STATION
448 watt hour lithium LiFe PO4 battery
600 watts
12 lbs
RS1200 PORTABLE POWER STATION
1008 watt hour lithium LiFe PO4 battery
1200 watts
24 lbs
RS3600
PORTABLE POWER STATION
2304 watt hour lithium LiFe PO4 battery
3600 watts
76 lbs
RS3600 SPECIFICATIONS
3 BOLD COLORWAYS
POWER STATION PACKAGING
RS200
FOLDABLE POWER STATION
Max power current 10.16 Amps Max power voltage 20.2 Volts 15 lbs
R3Di ACCESSORIES GUIDE
KC10R
POWER BANK
FEATURES
HC-135
R3Di
CHARGING CABLES
ADVENTURE KITS GUIDE
ADVENTURE KIT BLACK
2-Way charge in/out on all 3 ports USB Type-A, Type-C & Micro 18W / 3A Fast Charge
Over Temperature Protection
Over Current Protection
Over Voltage Protection
Super Fast Recharge with USB Type-C port
ADVENTURE KIT WHITE
2-Way charge in/out on all 3 ports USB Type-A, Type-C & Micro 18W / 3A Fast Charge
Over Temperature Protection
Over Current Protection
Over Voltage Protection
Super Fast Recharge with USB Type-C port
POWER STATION GUIDE
RS600
PORTABLE POWER STATION
Power: 600W 448Wh, 96% Electricity
Highest Constant Output, 600W
Instantaneous Peak Output
Inverter: Pure sine wave
DC Output: 12 ~ 16.8V / 7~10A
Wireless Charger: 10W
AC Output: 110V / 60Hz, 220V / 50Hz 600W
Type-C Output: 5V~20V – 3.25A MAX PD65W
LED Light: SOS, lighting (3 levels), warning
RS1200
PORTABLE POWER STATION
Power: 1200W 1008Wh, 96% Electricity
Highest Constant Output, 1200W
Instantaneous Peak Output
Inverter: Pure sine wave
DC Output: 12 ~ 16.8V/7~10A
Wireless charger: 10W x2
AC Output: 220V/50Hz (110V/60Hz 1200W (Max)
Type-C Output: 5V~20V – 3.25A MAX PD65W
LED Light: SOS, lighting (3 levels), warning
RS3600
LARGEST PORTABLE POWER STATION
Power: 3600W 2304Wh, 96% Electricity
Highest Constant Output, 3600W
Instantaneous Peak Output
Inverter: Pure Sine Wave
DC Output: 240W Max
Wireless Charger: (1) 15W
AC Output: 2400W Max
Type-C Output: PD 100W Fast Charging
LED Light: Ambient Light

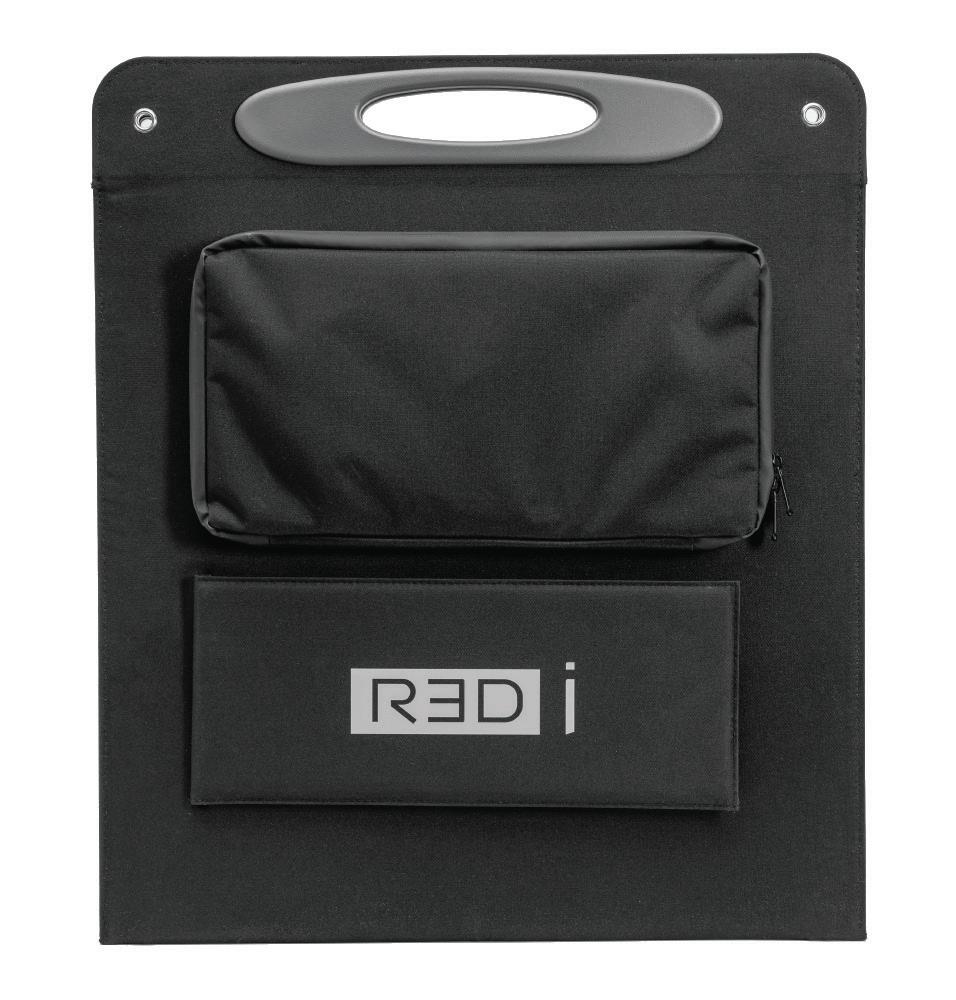

RS200
FOLDABLE SOLAR PANEL
Max Power: 200W per panel x 4 panels for 800 total Watts
Max Power Current: 10.16A
Max Power Voltage: 20.2V
Short Circuit Current: 11.13A
Open Circuit Voltage: 26.2V
TIPS FOR USING YOUR R3Di PRODUCTS
Whether you are running essential devices in an outage, powering campsites or off-grid events, there are numerous ways to use your R3Di units. These tips will help you keep your products charged up and operating in prime condition!
KEEP IT CHARGED
We recommend using your R3Di on a consistent basis, even if you don’t necessarily need a constant source of power. This will keep the battery in its best working condition.
THE STADIUM EFFECT
beginning and it slows down towards the end. This is open seats available. Eventually, only a few seats remain, when you’re charging your R3Di.
COLD WEATHER USAGE
When power stations are too cold (32ºF), they will stop accepting a charge, and if they’re even colder (-4ºF), they’ll stop outputting power. A simple solution: keep your power station in a cooler. The extra layer of insulation and natural heat will help keep it working well in sub-freezing temperatures.
HOT WEATHER USAGE
On the other end of the spectrum, it’s important to make sure your power station is properly ventilated under hot conditions. The power stations will stop accepting a charge at around 113ºF and stop outputting power at around 149ºF.
DC Lamp 40W iPhone 13 12W Macbook Air 13 Inch Camera 7.7W Smart Speaker 12W TV 110-180W Refrigerator 40-120W CPAP Ventilator 40W AC/Heat/Fan 735W Mavic Air 40W RS600 KC10R RS1200 RS3600 Microwave 600-1700W Oven 2400W EV 1920W Construction Site 2500-3000W Industrial Equipment
RUN TIMES
THANK YOU FOR CHOOSING R3Di
We are on a larger mission beyond building quality products. We are in the service of personal safety, heightened security, and renewable energy solutions. We are researching, developing, and building advanced technology to expand your adventures.
