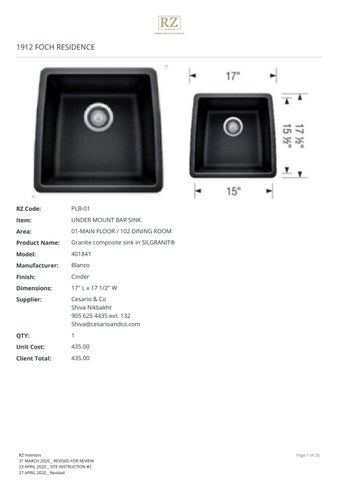

1912 FOCH RESIDENCE

RZ Code:

PLB-01

Item:

UNDER MOUNT BAR SINK

Area:

01-MAIN FLOOR / 102 DINING ROOM

Product Name:

Granite composite sink in SILGRANIT®

Model:

401841

Manufacturer:

Blanco

Finish:

Cinder

Dimensions:

17" L x 17 1/2" W

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

435.00

Client Total:

435.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 1 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-02

Item:

BAR FAUCET

Area:

01-MAIN FLOOR / 106 KITCHEN 01-MAIN FLOOR / 102 DINING ROOM

Product Name:

Solna Single Handle Pull-Down Prep Faucet

Model:

63920LF-BL

Manufacturer:

Brizo

Finish:

Matte Black

Dimensions:

12 7/16" H x 7 1/16" D

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

2

Unit Cost:

408.00

Client Total:

816.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 2 of 26

KITCHEN FAUCETS With Optional Escutcheon RP71451▲

63020LF▲

■ Solna® Collection ■ Single Handle Deck Mount ■ 2-Function Pull-Down Sprayer ■ Single or 3 Hole Sink Applications ■ Centermount or 8" (203 mm) Centers w/ Optional 10 1/2 (267 mm) Escutcheon ■ MagneDock® Magnetic Docking

63920LF▲

Submitted Model No.:________________________________________________ Specific Features:___________________________________________________ 63020LF

4 7/8" (124 mm)

9 3/32" (231 mm)

Min. 2 1/2" (64 mm) Clearance To Back Splash

STANDARD SPECIFICATIONS:­ • Single handle, 2-function pull-down kitchen faucets for exposed mounting on single or three hole sinks.

• 15 11/16" (399 mm) high, 9 3/32" (231 mm) long, spout swings 360˚.

• Lever handle. Control mechanism shall be full-motion valve cartridge.

• Quick connect hoses.

• Pull-down wand operates in an aerated or spray mode via ergonomic button.

• MagneDock® magnetic docking.

• Dual integral check valves in sprayer.

• Hose travels inside mounting shank so it will not interfere with deck edges.

• Keyed 10 1/2" (267 mm) escutcheon to help alignment and aid installation.

• Maximum 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa

15 11/16" (399 mm) 8 29/32" (226 mm)

2 1/2" (64 mm)

2 13/32" (61 mm)

3X 1 1/4" to 1 1/2" (32 mm to 38 mm) Hole Size

8" (203 mm) Centers 10 1/2" (267 mm)

2 1/2" (64 mm) Max. w/ 10 1/2" Escutcheon 3" (76 mm) Max. w/o 10 1/2" Escutchen

WARRANTY • Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.

• 5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase.

No warranty is provided on batteries.

35 21/32" (906 mm)

37 1/8" (943 mm)

3/8" Compression Fitting

63920LF

4 7/8" (124 mm)

9 13/16" (249 mm)

7 1/16" (179 mm)

Min. 2 1/2" (64 mm) Clearance To Back Splash

COMPLIES WITH: • ASME A112.18.1 / CSA B125.1 • ASME A112.18.6 7 1/16" (179 mm)

2 13/32" (61 mm)

Indicates compliance to ICC/ANSI A117.1 • Verified compliant with .25% weighted average Pb content regulations.

12 7/16" (316 mm) 2 1/2" (64 mm)

8" (203 mm) Centers

2 1/2" (64 mm) Max. w/ 10 1/2" Escutcheon 3" (76 mm) Max. w/o 10 1/2" Escutchen

9 13/16" (249 mm) 35 21/32" (906 mm)

37 1/8" (943 mm)

3/8" Compression Fitting 10 1/2" (267 mm)

▲ Designate proper finish suffix

Brizo Kitchen & Bath Company reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.brizo.com for finish options and product availability.

BSP-K-63020LF Rev. D

0

69

138

207

276

345

414

483

552

621 17.0

3.75

14.2

3.00

11.4

2.25

8.5

1.50

5.7

.75

2.8 0

0 0

10

20

30

40

50

60

Pressão (PSI)

Brizo Kitchen & Bath Company Indianapolis, Indiana 46280 A Division of Masco Corporation of Indiana © 2015 Brizo Kitchen & Bath Company

70

80

90

Vazão (Litros por minuto)

3X 1 1/4" to 1 1/2" (32 mm to 38 mm) Hole Size

Vazão (U.S. galões por minuto)

Pressão (kPa) 4.50

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-03

Item:

UNDER-MOUNT BAR SINK

Area:

01-MAIN FLOOR / 106 KITCHEN

Product Name:

Andano U Small Single

Model:

401331

Manufacturer:

Blanco

Finish:

Stainless Stee

Dimensions:

17 3/8" L x 17 3/8" W

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

459.00

Client Total:

459.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 3 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-04

Item:

UNDER-MOUNT KITCHEN SINK

Area:

01-MAIN FLOOR / 106 KITCHEN

Product Name:

Andano U 2

Model:

401334

Manufacturer:

Blanco

Finish:

Stainless SteeL

Dimensions:

34" L x 17 3/8" W

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

979.00

Client Total:

979.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 4 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-05

Item:

KITCHEN FAUCET

Area:

01-MAIN FLOOR / 106 KITCHEN

Product Name:

Solna Single Handle Pull-Down Kitchen Faucet

Model:

63020LF

Manufacturer:

Brizo

Finish:

Matte Black

Dimensions:

15 11/16" H x 9 3/32" D

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

448.00

Client Total:

448.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 5 of 26

KITCHEN FAUCETS With Optional Escutcheon RP71451▲

63020LF▲

■ Solna® Collection ■ Single Handle Deck Mount ■ 2-Function Pull-Down Sprayer ■ Single or 3 Hole Sink Applications ■ Centermount or 8" (203 mm) Centers w/ Optional 10 1/2 (267 mm) Escutcheon ■ MagneDock® Magnetic Docking

63920LF▲

Submitted Model No.:________________________________________________ Specific Features:___________________________________________________ 63020LF

4 7/8" (124 mm)

9 3/32" (231 mm)

Min. 2 1/2" (64 mm) Clearance To Back Splash

STANDARD SPECIFICATIONS:­ • Single handle, 2-function pull-down kitchen faucets for exposed mounting on single or three hole sinks.

• 15 11/16" (399 mm) high, 9 3/32" (231 mm) long, spout swings 360˚.

• Lever handle. Control mechanism shall be full-motion valve cartridge.

• Quick connect hoses.

• Pull-down wand operates in an aerated or spray mode via ergonomic button.

• MagneDock® magnetic docking.

• Dual integral check valves in sprayer.

• Hose travels inside mounting shank so it will not interfere with deck edges.

• Keyed 10 1/2" (267 mm) escutcheon to help alignment and aid installation.

• Maximum 1.80 gpm @ 60 psi, 6.8 L/min @ 414 kPa

15 11/16" (399 mm) 8 29/32" (226 mm)

2 1/2" (64 mm)

2 13/32" (61 mm)

3X 1 1/4" to 1 1/2" (32 mm to 38 mm) Hole Size

8" (203 mm) Centers 10 1/2" (267 mm)

2 1/2" (64 mm) Max. w/ 10 1/2" Escutcheon 3" (76 mm) Max. w/o 10 1/2" Escutchen

WARRANTY • Lifetime limited warranty on parts (other than electronic parts and batteries) and finishes: or, for commercial users, for 5 years from date of purchase.

• 5 year limited warranty on electronic parts (other than batteries); or, for commercial users, for 1 year from the date of purchase.

No warranty is provided on batteries.

35 21/32" (906 mm)

37 1/8" (943 mm)

3/8" Compression Fitting

63920LF

4 7/8" (124 mm)

9 13/16" (249 mm)

7 1/16" (179 mm)

Min. 2 1/2" (64 mm) Clearance To Back Splash

COMPLIES WITH: • ASME A112.18.1 / CSA B125.1 • ASME A112.18.6 7 1/16" (179 mm)

2 13/32" (61 mm)

Indicates compliance to ICC/ANSI A117.1 • Verified compliant with .25% weighted average Pb content regulations.

12 7/16" (316 mm) 2 1/2" (64 mm)

8" (203 mm) Centers

2 1/2" (64 mm) Max. w/ 10 1/2" Escutcheon 3" (76 mm) Max. w/o 10 1/2" Escutchen

9 13/16" (249 mm) 35 21/32" (906 mm)

37 1/8" (943 mm)

3/8" Compression Fitting 10 1/2" (267 mm)

▲ Designate proper finish suffix

Brizo Kitchen & Bath Company reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.brizo.com for finish options and product availability.

BSP-K-63020LF Rev. D

0

69

138

207

276

345

414

483

552

621 17.0

3.75

14.2

3.00

11.4

2.25

8.5

1.50

5.7

.75

2.8 0

0 0

10

20

30

40

50

60

Pressão (PSI)

Brizo Kitchen & Bath Company Indianapolis, Indiana 46280 A Division of Masco Corporation of Indiana © 2015 Brizo Kitchen & Bath Company

70

80

90

Vazão (Litros por minuto)

3X 1 1/4" to 1 1/2" (32 mm to 38 mm) Hole Size

Vazão (U.S. galões por minuto)

Pressão (kPa) 4.50

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-06

Item:

UNDER MOUNT LAVATORY SINK

Area:

01-MAIN FLOOR / 104 POWDER ROOM

Product Name:

Verticyl - Rectangle

Model:

K-2882-58

Manufacturer:

Kohler

Finish:

Thunder Grey

Dimensions:

19 13/16"L x 15 5/8" W

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

325.00

Client Total:

325.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 6 of 26

Verticyl® Rectangle Under-mount Bathroom Sink K-2882 Features

• • •

Geometric rectangular basin with vertical sides.

Overflow drain.

No faucet holes; requires wall- or counter-mount faucet.

Material

•

Vitreous china.

Installation

•

Under-mount.

Recommended Products/Accessories K-8998 P-Trap

Included Components Additional Components: 1193643 Basin clamps

Codes/Standards ASME A112.19.2/CSA B45.1 ADA ICC/ANSI A117.1

KOHLER® One-Year Limited Warranty See website for detailed warranty information.

Available Colors/Finishes Color tiles intended for reference only.

Color

Code Description 0 HW1

White Honed White

96

Biscuit

47

Almond

NY

Dune

95

Ice™ Grey

G9

Sandbar

33

Mexican Sand™

K4

Cashmere

58

Thunder™ Grey

7

Black Black™

1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

12-24-2019 11:46 - US/CA/MX

VerticylÂŽ Rectangle Under-mount Bathroom Sink K-2882 19-13/16" (503 mm) 9-15/16" (252 mm)

7-3/4" (197 mm)

3-1/2" (89 mm)

24" (610 mm)

34" 8" (864 mm) (203 mm) Min 27" (686 mm) 11" (279 mm) Min 9" (229 mm) Min Recommended ADA Installation

15-5/8" (397 mm)

1/2" (13 mm)

6-3/4" (171 mm)

12-3/8" 14" (356 mm) (314 mm) 1 1/4" OD 3/8" Hot

3/8" Cold 4" (102 mm)

Technical Information All product dimensions are nominal.

Bowl configuration: Single Installation: Under-mount Bowl area (Only): Length: 17-1/4" (438 mm) Width: 13" (330 mm) Water depth: 3-1/8" (79 mm) Drain hole: 1-3/4" (44 mm) Template: 1109226-7, required, not included

Notes Install this product according to the installation instructions.

NOTICE: Countertop manufacturer or cutter must use the current product template available at www.kohler.com, or by calling 1-800-4KOHLER. Kohler Co. is not responsible for cutout errors when the incorrect cutout template is used.

ADA compliant when installed to the specific requirements of these regulations.

1-800-4KOHLER (1-800-456-4537) Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

12-24-2019 11:46 - US/CA/MX

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-07

Item:

LAVATORY FAUCET

Area:

01-MAIN FLOOR / 104 POWDER ROOM

Product Name:

Widespread basin faucet

Model:

82108D

Manufacturer:

Ca Bano House of Baths

Finish:

Montreal black

Dimensions:

8" H x 6" D

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

835.00

Client Total:

835.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 7 of 26

Last revision: 12/11/18

Program 1 #82108D Widespread basin faucet

Includes push drain 1.5 GPM (5.7 L/min.)

Finishes: C hrome (#99) Montreal Black (#375) Brushed Gold (#515)

Cabano cannot be held responsible for any technical or typographical errors or omissions contained within this document and reserves the right to make changes without prior notice.

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-08

Item:

GENERAL TOILET

Area:

03-BASEMENT / 005 GUEST BATH 02-SECOND FLOOR / 210 RM #3 ENSUITE 02-SECOND FLOOR / 206 SHARED ENSUITE

Product Name:

DXV by American Standard Toilet Lyndon Two-Piece Elongated Dual Flush

Model:

DXV8

Manufacturer:

DXV

Finish:

White

Dimensions:

30-3/16" x 15-1/8" x 31-9/16"

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

3

Unit Cost:

503.00

Client Total:

1509.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 8 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-09

Item:

FLOOR MOUNTED TUB FILLER

Area:

02-SECOND FLOOR / 203 MASTER ENSUITE

Product Name:

Floor mount tub filler with hand shower- FA 02011-MB

Model:

66311

Manufacturer:

veneto bath

Finish:

Matte Black

Dimensions:

10" projection x 40" H x 6" Base width

Supplier:

Contractor's Choice

QTY:

1

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 9 of 26

1 1/2" 1 1/2"

3"

5 1/4"

6 1/2"

9 3/4"

1 1/4"

3'-4"

2'-8 1/4"

8"

9 3/4"

3'-4"

1 1/2"

1"

2"

1/2"

6"

FA 02011

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-10

Item:

FREESTANDING TUB

Area:

02-SECOND FLOOR / 203 MASTER ENSUITE

Product Name:

Acrylic Freestanding Bathtub - BT 609

Model:

LI65

Manufacturer:

Veneto Bath

Finish:

White

Dimensions:

66 7/8" L x 23 5/8" h x 31" W

Supplier:

Client's Choice

QTY:

1

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 10 of 26

66 7/8"

33 1/2"

19 1/2"

31"

23 5/8"

18"

15 1/2"

66 7/8"

56 1/2"

PRODUCT BT609

SIZE 66 7/8" x 31" x 23 5/8"

*ALSO AVAILABLE IN BT609-1500 59 1/16" X 29 1/2" X 23 5/8"

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-11

Item:

SHOWER SET

Area:

02-SECOND FLOOR / 203 MASTER ENSUITE

Product Name:

01. AQUA PIAZZA 12" RAIN SHOWER HEAD | SKU#: ARS300BLACK 02. AQUA PIAZZA WALL MOUNT SHOWER ARM | SKU#: ASA17WBLACK 03. AQUA PIAZZA 3 WAY VALVE | SKU#: ASV143BLACK 04. AQUA PIAZZA HANDHELD KIT | SKU#: AHHS1423BLACK 05. AQUA BODY JETS X 4PC | SKU#: ABBS01BLACK

Model:

See Description

Manufacturer:

Aqua Plazza

Finish:

Aqua Piazza Black Shower Set w/ 12" Square Rain Shower, Handheld and 4 Body Jets

Dimensions:

See Attached Spec

Supplier:

Client's Choice

QTY:

1

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 11 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-12

Item:

LAVATORY FAUCET

Area:

02-SECOND FLOOR / 203 MASTER ENSUITE

Product Name:

Wall-mounted Faucet

Model:

66108D

Manufacturer:

Client's supplier _ Veneto Bath

Finish:

Matte Black

Dimensions:

7.87" H x 8" Projection

Supplier:

Client's Choice

QTY:

2

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 12 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-13

Item:

VANITY SINK

Area:

02-SECOND FLOOR / 203 MASTER ENSUITE

Product Name:

Pop Grande Rectangle Under Counter Bathroom Sink

Model:

D20140000

Manufacturer:

DXV

Finish:

Canvas White

Dimensions:

23-5/8" x 16-5/8" x 7-1/2"

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

2

Unit Cost:

293.00

Client Total:

586.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 13 of 26

POP®

GRANDE RECTANGLE UNDER COUNTER LAVATORY

D20140000.415 FEATURES

• Vitreous china with front overflow • Design that combines diamond like facets and precise symmetry • Designed for smaller or standard size countertops • Under counter mounting kit included • EverClean® surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface • Drain sold separately DIMENSIONS NOMINAL DIMENSIONS

23-5/8" x 16-5/8" x 7-1/2" (600 x 422 x 191 mm) BOWL INSIDE DIMENSIONS

20-1/2" (520 mm) wide 13-1/2" (342 mm) front to back 5-1/2” (140 mm) depth COLORS/FINISHES

Canvas White (415) COMPLIANCE CERTIFICATIONS

Meets or Exceeds ASME A112.19.2/CSA B45.1

Meets the Americans with Disabilities Act Guidelines and ANSI A117.1 Requirements for Accessible and Usable Building Facilities-Check Local Codes.

ROUGH-IN DIAGRAM SHOWN ON NEXT PAGE

©2017 AS America Inc.

Revised 3/17

www.dxv.com

POP®

GRANDE RECTANGLE UNDER COUNTER LAVATORY

A-Fitting Dia.

B-Fitting Spread

A

B

1-3/8" (35 mm)

4" (102 mm)

1-3/8" (35 mm)

8" (203 mm)

FINISHED WALL OR SPLASHBACK

24" (610 mm) 4" (102 mm)

COUNTERTOP (BY OTHERS)

5/8" (15 mm) B A

2" MIN. (51 mm)

13-3/4" 7-1/2" (349 mm) (191 mm) 11-1/4" (286 mm)

2-5/8" (66 mm) 8-5/16" (211 mm)

13-1/2" (342 mm)

16-5/8" (422 mm)

34" (864 mm)

5-1/2" (140 mm) 8" (203 mm)

1-1/4" O.D. WASTE

8" MIN. (203 mm)

SUPPLIES AS REQ'D.

34" (864 mm) 27" MIN. (686 mm)

20-1/2" (520 mm) 23-5/8" (600 mm)

6" MAX. (152 mm) BARRIER FREE CLEARANCE

FINISHED FLOOR

9" MIN. (229 mm)

NOTES: Dimensions shown for location supplies and “P” trap are suggested. Provide suitable reinforcement for all wall supports.

Slab/pedestal anchors amd mounting features to be furnished by others.

Fittings not included with fixture and must be ordered separately.

Installation Instructions supplied with lavatory.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance established by ANSI standards.

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

©2017 AS America Inc.

Revised 3/17

www.dxv.com

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-14

Item:

SHOWER DRAIN - LINEAR

Area:

02-SECOND FLOOR / 203 MASTER ENSUITE 02-SECOND FLOOR / 206 SHARED ENSUITE

Product Name:

3'-6" in length - Low Profile linear floor drain Schluter®-KERDI-LINE with tile insert.

Model:

Kerdi-Line

Manufacturer:

Schluter

Finish:

Chrome trim with tile insert

Dimensions:

3'-6" in length

Supplier:

Contractor's Choice

QTY:

2

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 14 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-15

Item:

LAUNDRY SINK

Area:

02-SECOND FLOOR / 204 LAUNDRY

Product Name:

Quatrus R15 Laundry Stainless Steel Sink

Model:

401802

Manufacturer:

Blanco

Finish:

Stainless Steel

Dimensions:

23" L x 17" W x 12" D

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

565.00

Client Total:

565.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 15 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-16

Item:

FAUCET

Area:

02-SECOND FLOOR / 204 LAUNDRY

Product Name:

Bettola single-control pull-down

Model:

40875

Manufacturer:

Bettola

Finish:

Polished Chrome

Dimensions:

16 7/8" H x 9 7/8" D

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

230.00

Client Total:

230.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 16 of 26

BE T TOLA #4 0 875 single-control pull-down kitchen faucet

FEATURES Ceramic cartridge Retractable dual function pull-down spray 3/8" connections Reduced water-efficient flow: 1.75 gpm (6.6 L/min) Spout rotation: 150°

FINISH Polished chrome (pc)

WARRANTY limited lifetime warranty on all cartridges and also on the polished chrome finish. All other components and parts carry a limited five-year warranty.

CODE & COMPLIANCE SPECS AT LARGE Total spout projection: 9 7/8” CC spout projection: 8 5/32” Total spout height: 16 7/8”

Flow rate: 1.75 gpm (6.6 L/min) Mounting hole: 1 3/8” Counter depth: 1 1/2” max [252.00] 9 7/8” ø[30.00] 1 3/16”

[84.00] 3 5/16” [430.00] 16 7/8”

[226.00] 8 7/8” [140.00] 5 1/2”

[57.00] 2 1/4”

Products and specifications shown are subject to change without notice. Please contact our technical support at tech@alt-aqua.com for any further queries, replacement part requests etc.

last revision : 11/08/2017

[207.00] 8 5/32”

alt-aqua.com

BE T TO LA # 4 0 875 single-control pull-down kitchen faucet

FAUCET COMPONENTS

1 2 3 4 5 6 7

Products and specifications shown are subject to change without notice. Please contact our technical support at tech@alt-aqua.com for any further queries, replacement part requests etc.

last revision : 11/08/2017

EXPLOSION PARTS

alt-aqua.com

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-17

Item:

LAVATORY FAUCET

Area:

02-SECOND FLOOR / 210 RM #3 ENSUITE 02-SECOND FLOOR / 206 SHARED ENSUITE

Product Name:

Blog Single-hole vanity faucet

Model:

66109D

Manufacturer:

Veneto Bath

Finish:

Polished chrome

Dimensions:

TBD

Supplier:

Client's Choice

QTY:

3

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 17 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-18

Item:

VANITY SINK

Area:

02-SECOND FLOOR / 206 SHARED ENSUITE 02-SECOND FLOOR / 210 RM #3 ENSUITE

Product Name:

Pop Rectangle Under Counter Bathroom Sink

Model:

D20050000

Manufacturer:

DXV

Finish:

Canvas White

Dimensions:

20-7/8" x 14-5/8" x 7-1/2"

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

3

Unit Cost:

265.00

Client Total:

795.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 18 of 26

POP®

RECTANGLE UNDER COUNTER LAVATORY

D20050000.XXX FEATURES

• Vitreous china with front overflow • Design that combines diamond like facets and precise symmetry • Designed to fit standard size countertops • Under counter mounting kit included • EverClean® surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface • Drain sold separately DIMENSIONS NOMINAL DIMENSIONS

20-7/8" x 14-5/8" x 7-1/2" (531 x 371 x 191 mm) BOWL INSIDE DIMENSIONS

17-3/4" (451 mm) wide 11-1/2" (292 mm) front to back 5-1/2" (140 mm) depth COLORS/FINISHES

Canvas White (415), Biscuit (071), Black (178) COMPLIANCE CERTIFICATIONS

Meets or Exceeds ASME A112.19.2-2008/CSA B45.1-8

Meets the Americans with Disabilities Act Guidelines and ANSI A117.1 Requirements for Accessible and Usable Building Facilities-Check Local Codes.

ROUGH-IN DIAGRAM SHOWN ON NEXT PAGE

©2017 AS America Inc.

Revised 3/17

www.dxv.com

POP®

RECTANGLE UNDER COUNTER LAVATORY

A-Fitting Dia.

B-Fitting Spread

A

B

1-3/8" (35 mm)

4" (102 mm)

1-3/8" (35 mm)

8" (203 mm)

FINISHED WALL OR SPLASHBACK

B

2" MIN. (51 mm)

A 13-3/4" 7-1/2" (349 mm) (191 mm) 11-1/4" (286 mm)

2-5/8" (66 mm) 7-5/16" (186 mm)

11-1/2" (292 mm)

14-5/8" (371 mm)

24" (610 mm) 4" (102 mm)

COUNTERTOP (BY OTHERS)

5/8" (15 mm)

34" (864 mm)

17-3/4" (451 mm) 20-7/8" (531 mm)

5-1/2" (140 mm) 8" (203mm)

1-1/4" O.D. WASTE

8" MIN. (203 mm)

SUPPLIES AS REQ'D.

34" (864 mm) 27" MIN. (686 mm)

6" MAX. (152 mm) BARRIER FREE CLEARANCE

FINISHED FLOOR

9" MIN. (229 mm)

NOTES: Dimensions shown for location supplies and “P” trap are suggested. Provide suitable reinforcement for all wall supports.

Slab/pedestal anchors amd mounting features to be furnished by others.

Fittings not included with fixture and must be ordered separately.

Installation Instructions supplied with lavatory.

IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerance established by ANSI standards.

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

©2017 AS America Inc.

Revised 3/17

www.dxv.com

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-19

Item:

SHOWER SET

Area:

02-SECOND FLOOR / 210 RM #3 ENSUITE

Product Name:

VEN Set 6 VEN-DPG2512 - 300x300 Stainless steel shower head square VEN-3LG - Square shower arm 375mm VEN-3CZ - Brass holder square VEN-2HS - Brass square hand shower VEN-2HSL - Stainless steel shower hose VEN-LTA-1002-03 - THM Mixer w/ diverter 2-3 function SQ VEN-CST-1003 - Brass spout 140mm square

Model:

66SD32

Manufacturer:

VENETO BATH

Finish:

Polished chrome

Dimensions:

See Attached Spec

Supplier:

Client's Choice

QTY:

1

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 19 of 26

2 1/4"

3"

2 1/4"

" 14 1/2

11 3/4 " 5"

" 3/4 11

1 3/4" 1"

8"

1 3/4"

7 3/4"

1"

2"

2"

2 1/4"

2 1/4"

2 1/2"

VEN - SET 6

1"

1"

1/ 2" 5"

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-20

Item:

APRON TUB

Area:

02-SECOND FLOOR / 210 RM #3 ENSUITE

Product Name:

Pure 6030_Alcove Right Hand Drain Bathtub

Model:

PX60R

Manufacturer:

Oceania

Finish:

White

Dimensions:

60" x 31" x 16"

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

1

Unit Cost:

707.00

Client Total:

707.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 20 of 26

TECHNICAL SPECIFICATIONS - BATH

Plex 60 (right hand drain)

Product code : PX60R

Draft revision : 20171030161500

External dimensions : 60'' x 31'' x 16'' [152,4 cm x 78,7 cm x 40,6 cm] Seats : 1 Lumbar support : no

Arm rests : no

Series :

Alcove

Low-profile available : no

Draft and specs Specifications Capacity : 28,5 IMP Gal. / 37,2 US Gal. / 129,6 liters TM AeroMassage : unavailable Super AeroMassageTM : unavailable Dynamic TurboTM : unavailable TM Comfort Air : unavailable Characteristics : Integrated front skirt

Remarks

image non-disponible

*all measures have a precision of Âą 1/4'' (0,63cm) *internal dimensions taken at 4'' (10cm) from bath bottom *capacity is measured by filling the soaker to 1-1/2'' under the overflow

image non-disponible

Options and installation Legend Blower Chromatherapy light Pump Grab bar Recommended faucets drilling location*

Keypad

Deck cut-out line

Available models image non-disponible

Model Soaker alone TM Comfort Air AeroMassageTM Super AeroMassageTM Dynamic TurboTM (not available in the U.S.) Dynamic TurboTM + AeroMassageTM Dynamic TurboTM + Super AeroMassageTM

Availability ďƒź

Available recommended options

Additional(s) note(s) :

Front skirt : Integrated acrylic tile flanges. Available in white only. Only one handle can be factory installed.

Recommended drain : WOCO14 (chrome finish) Tile flanges : integrated Floating remote control: unavailable Integrated linear overflow : OCE114 (chrome finish)

*It is possible to install the faucets elsewhere on the product. The installer must verify that there are no piping or wires before drilling.

IMPORTANT NOTE : Specifications, dimensions and models are subject to change.

Visit our website http://www.oceania-attitude.com to access up-to-date dimensions and informations. In all cases, information on the website is the most up-to-date.

Dimensions may vary slightly. To ensure proper fit, mesurements must be taken on the product directly.

Head office

591, avenue des Entreprises Thetford Mines, Quebec CANADA G6H 4B2

Phone numbers No-charge : 1-877-332-4224 Fax : 1-866-460-4334

Internet Web : http://www.oceania-attitude.com Email : info@oceaniabaths.com

TECHNICAL SPECIFICATIONS - BATH

Plex 60 (left hand drain)

Product code : PX60L

Draft revision : 20171030161500

External dimensions : 60'' x 31'' x 16'' [152,4 cm x 78,7 cm x 40,6 cm] Seats : 1 Lumbar support : no

Arm rests : no

Series :

Alcove

Low-profile available : no

Draft and specs Specifications Capacity : 28,5 IMP Gal. / 37,2 US Gal. / 129,6 liters TM AeroMassage : unavailable Super AeroMassageTM : unavailable Dynamic TurboTM : unavailable TM Comfort Air : unavailable Characteristics : Integrated front skirt

Remarks

image non-disponible

*all measures have a precision of Âą 1/4'' (0,63cm) *internal dimensions taken at 4'' (10cm) from bath bottom *capacity is measured by filling the soaker to 1-1/2'' under the overflow

image non-disponible

Options and installation Legend Blower Chromatherapy light Pump Grab bar Recommended faucets drilling location*

Keypad

Deck cut-out line

Available models image non-disponible

Model Soaker alone TM Comfort Air AeroMassageTM Super AeroMassageTM Dynamic TurboTM (not available in the U.S.) Dynamic TurboTM + AeroMassageTM Dynamic TurboTM + Super AeroMassageTM

Availability ďƒź

Available recommended options

Additional(s) note(s) :

Front skirt : Integrated acrylic tile flanges. Available in white only. Only one handle can be factory installed.

Recommended drain : WOCO14 (chrome finish) Tile flanges : integrated Floating remote control: unavailable Integrated linear overflow : OCE114 (chrome finish)

*It is possible to install the faucets elsewhere on the product. The installer must verify that there are no piping or wires before drilling.

IMPORTANT NOTE : Specifications, dimensions and models are subject to change.

Visit our website http://www.oceania-attitude.com to access up-to-date dimensions and informations. In all cases, information on the website is the most up-to-date.

Dimensions may vary slightly. To ensure proper fit, mesurements must be taken on the product directly.

Head office

591, avenue des Entreprises Thetford Mines, Quebec CANADA G6H 4B2

Phone numbers No-charge : 1-877-332-4224 Fax : 1-866-460-4334

Internet Web : http://www.oceania-attitude.com Email : info@oceaniabaths.com

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-21

Item:

SHOWER SET

Area:

02-SECOND FLOOR / 206 SHARED ENSUITE

Product Name:

VEN SET 4 VEN-DPG2511 - 250X250 Stainless steel shower head square VEN-3LG - Square shower arm 375mm VEN-3CZ - Brass holder Square VEN-2HS - Brass square hand shower VEN-2HSL - Stainless steel shower hose VEN-LTA010-M - 2 function mixer, PBV, square handle

Model:

See Description

Manufacturer:

Veneto Bath

Finish:

Polished chrome

Dimensions:

See Attached Spec

Supplier:

Client's Choice

QTY:

1

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 21 of 26

2 1/4"

3"

2 1/4"

" 14 1/2

93 /4"

/4" 93

5 1/2"

1" 1"

1 3/4"

6 1/2"

8"

2 1/4"

2"

4 1/4"

2"

VEN - SET 4

2 1/2" 2"

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-23

Item:

SHOWER DRAIN

Area:

03-BASEMENT / 005 GUEST BATH

Product Name:

Square Shower Drain Stainless Steel Floor Drain 4 Inch Center Drains with Removable Quadrate Pattern Cover

Manufacturer:

Rubinet

Finish:

Polished Chrome

Dimensions:

N/A

Supplier:

Canaroma Gino Giordano 905 856 7979 X 225 Gino@canaroma.com

QTY:

1

Client Total:

0.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 22 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-24

Item:

SHOWER SET

Area:

03-BASEMENT / 005 GUEST BATH

Product Name:

VEN SET 1 VEN-LTA-002-M - Single mixer, PBV, round handle VEN-2HSL - Stainless steel shower hose VEN S3015 - ABS hand shower 5 function VEN-SLB-001 - Brass slide bar

Model:

CS - KIT#323CSTM

Manufacturer:

VENETO BATH

Finish:

Polished Chrome

Dimensions:

See Attached Spec

Supplier:

Client's Choice

QTY:

1

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 23 of 26

" 4 1/2

31 1/2"

9"

2 1/2"

4 1/2" 5 1/2 "

" /4 23

VEN - SET 1

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-25

Item:

LAVATORY FAUCET

Area:

03-BASEMENT / 005 GUEST BATH

Product Name:

Jabil 25 Single-hole vanity faucet

Model:

CS01

Manufacturer:

Veneto Bath

Finish:

Chrome

Dimensions:

TBD

Supplier:

Client's Choice

QTY:

1

Unit Cost:

N/A

Client Total:

N/A

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 24 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-26

Item:

STORE BOUGHT VANITY

Area:

03-BASEMENT / 005 GUEST BATH

Product Name:

Bliss 36" Black Floor Mount Modern Bathroom Vanity | In Stock

Model:

FMB36-BK

Manufacturer:

KubeBath

Finish:

Marine Wood Veneer

Dimensions:

35.5”W x 35”H x 18.75” D

Supplier:

Toronto Vanity 416 274 3244 sales@torontovanity.com

QTY:

1

Unit Cost:

599.00

Client Total:

599.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 25 of 26

START_PAGE

1912 FOCH RESIDENCE

RZ Code:

PLB-27

Item:

GENERAL TOILET

Area:

01-MAIN FLOOR / 104 POWDER ROOM 02-SECOND FLOOR / 203 MASTER ENSUITE

Product Name:

DXV Modulus Monolith Elongated One-Piece Toilet

Model:

DXV Modulus

Manufacturer:

DXV

Finish:

Canvas White

Dimensions:

28-5/8" L x 15-1/2" W x 31" H

Supplier:

Cesario & Co Shiva Nikbakht 905 625 4435 ext. 132 Shiva@cesarioandco.com

QTY:

2

Unit Cost:

±650.00

Client Total:

1006.00

RZ Interiors 31 MARCH 2020 _ REVISED FOR REVIEW 23 APRIL 2020 _ SITE INSTRUCTION #2 27 APRIL 2020 _ Revised

Page 26 of 26

DXV MODULUS™ MONOLITH ELONGATED TOILET

D22020A100.415 FEATURES

• Modern elongated bowl design • Slim high back tank • Right Height® rim at 16-1/2" (419 mm) for accessible application • High efficiency 1.28 gpf / 4.8 Lpf single flush with actuator • 12" (305 mm) rough-in • Made of vitreous china • Duroplast™ slow-close seat included • Removable panels for concealed install DIMENSIONS NOMINAL DIMENSIONS

28-5/8" x 15-1/2" x 31" (727 x 395 x 785 mm) WATER SPOT

7-7/8" (200 mm) wide 9-1/4" (235 mm) length 5-1/2" (140 mm) distance to rim COLORS/FINISHES

Canvas White (415) COMPONENTS 5026A15G.415 Elongated Toilet Seat 735217-400.415 Tank Cover 7381903-200.XXX0A S ingle Flush Actuator

Polished Chrome (0020A) Polished Nickel (0080A) Brushed Nickel (2950A) Matte Black (2430A) COMPLIANCE CERTIFICATIONS

Meets or Exceeds ASME A112.19.2/CSA B45.1 EPA WaterSense® Certified

CEC and CALGreen® Compliant

ROUGH IN DIAGRAM SHOWN ON NEXT PAGE

©2018 AS America Inc.

CALGreen® is a registered trademark of California Building Standards Commission.

12/18

www.dxv.com

DXV MODULUS™ MONOLITH ELONGATED TOILET

15-9/16" (396 mm)

28-1/4" (717 mm) 13/16" (20 mm)

6-1/8" (155 mm)

18-1/2" (470 mm)

14-3/8" (365 mm)

31" (785 mm)

16-1/2" (419 mm)

11-1/4" (285 mm)

10-15/16" (277 mm)

12" (305 mm)

FINISHED FLOOR

10-1/2" (267 mm)

IMPORTANT: Water supply on the wall is required at 3-3/4" or 9" from centerline of the toilet (see rough-in).

First suggested position is hidden behind the toilet. The geometry of the toilet gives space for this installation.

NOTES: This toilet is designed to rough-in at a minimum dimension of 12" (305 mm) from finished wall to C/L of outlet.

Supply not included with fixture and must be ordered separately. * Dimensions shown for location of supply is suggested.

Dimensions of fixtures are nominal and may vary within the range of tolerance established by ANSI Standard A112.19.2.

These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

Š2018 AS America Inc.

12/18

www.dxv.com
