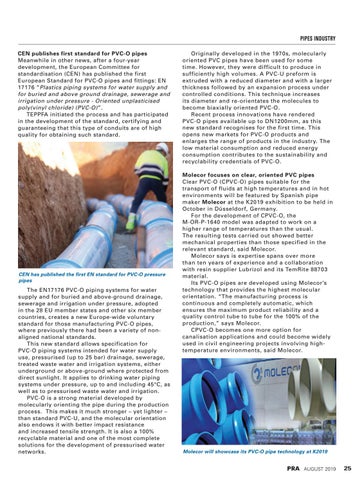

Pipes Industry CEN publishes first standard for PVC-O pipes Meanwhile in other news, after a four-year development, the European Committee for standardisation (CEN) has published the first European Standard for PVC-O pipes and fittings: EN 17176 “Plastics piping systems for water supply and for buried and above ground drainage, sewerage and irrigation under pressure - Oriented unplasticised poly(vinyl chloride) (PVC-O)”. TEPPFA initiated the process and has participated in the development of the standard, certifying and guaranteeing that this type of conduits are of high quality for obtaining such standard.
CEN has published the first EN standard for PVC-O pressure pipes
The EN17176 PVC-O piping systems for water supply and for buried and above-ground drainage, sewerage and irrigation under pressure, adopted in the 28 EU member states and other six member countries, creates a new Europe-wide voluntary standard for those manufacturing PVC-O pipes, where previously there had been a variety of nonaligned national standards. This new standard allows specification for PVC-O piping systems intended for water supply use, pressurised (up to 25 bar) drainage, sewerage, treated waste water and irrigation systems, either underground or above-ground where protected from direct sunlight. It applies to drinking water piping systems under pressure, up to and including 45°C, as well as to pressurised waste water and irrigation. PVC-O is a strong material developed by molecularly orienting the pipe during the production process. This makes it much stronger – yet lighter – than standard PVC-U, and the molecular orientation also endows it with better impact resistance and increased tensile strength. It is also a 100% recyclable material and one of the most complete solutions for the development of pressurised water networks.
Originally developed in the 1970s, molecularly oriented PVC pipes have been used for some time. However, they were difficult to produce in sufficiently high volumes. A PVC-U preform is extruded with a reduced diameter and with a larger thickness followed by an expansion process under controlled conditions. This technique increases its diameter and re-orientates the molecules to become biaxially oriented PVC-O. Recent process innovations have rendered PVC-O pipes available up to DN1200mm, as this new standard recognises for the first time. This opens new markets for PVC-O products and enlarges the range of products in the industry. The low material consumption and reduced energy consumption contributes to the sustainability and recyclability credentials of PVC-O. Molecor focuses on clear, oriented PVC pipes Clear PVC-O (CPVC-O) pipes suitable for the transport of fluids at high temperatures and in hot environments will be featured by Spanish pipe maker Molecor at the K2019 exhibition to be held in October in Düsseldorf, Germany. For the development of CPVC-O, the M-OR-P-1640 model was adapted to work on a higher range of temperatures than the usual. The resulting tests carried out showed better mechanical properties than those specified in the relevant standard, said Molecor. Molecor says is expertise spans over more than ten years of experience and a collaboration with resin supplier Lubrizol and its TemRite 88703 material. Its PVC-O pipes are developed using Molecor’s technology that provides the highest molecular orientation. “The manufacturing process is continuous and completely automatic, which ensures the maximum product reliability and a quality control tube to tube for the 100% of the production,” says Molecor. CPVC-O becomes one more option for canalisation applications and could become widely used in civil engineering projects involving hightemperature environments, said Molecor.
Molecor will showcase its PVC-O pipe technology at K2019 AUGUST 2019
