Harrod Sport All Products Catalogue

Often imitated never surpassed A select range of products from the Harrod Sport collection. To see the full range visit

harrodsport.com

Contents 4 6 6 12 16 18 22 30 82 82 82 82 110 112 114 124 134 148 156 156 166 172 173

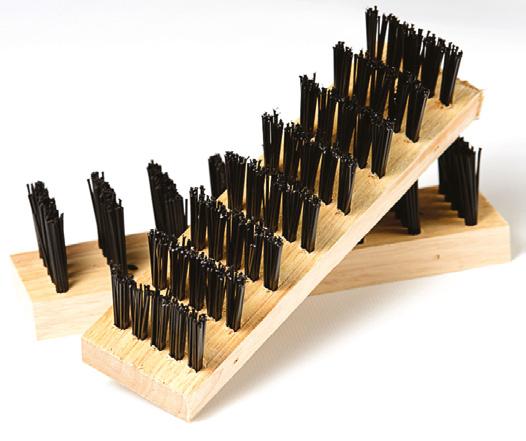

Anchors American Football Athletics Badminton Basketball Boot Wipers Cricket Football Hockey Handball Line Markers La Crosse Mat Trolleys Storage Trolleys Netball Rugby Shelters Tennis Volleyball Synthetic Pitch Equip.

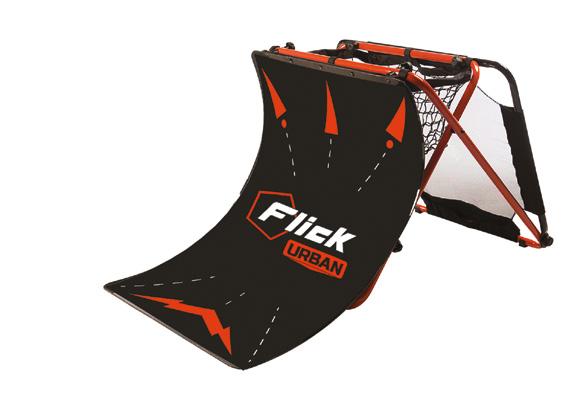

Finesse Blazepod Football Flick Urban Trainer 174 TEQBALL

Whatever it takes...

The board of Directors’ philosophy has always been to invest in the business to ensure careful and controlled growth. Our continual investment in recruitment, staff training, additional manufacturing, warehousing facilities, and expertise in areas such as product development will ensure we remain at the forefront of the industry, delivering the very ‘Best of British’.

Over the years, Harrod Sport equipment has been specified wherever performance is required. From the London to Toyko Olympic Games, several Commonwealth Games, Twickenham, The National Badminton Centre, Hockey Centres of Excellence, England World Cup training venues, Premier League and professional football clubs to the iconic Wembley Stadium, Harrod Sport goals and nets are the showpiece of the venue. Within our range you will find a product to meet your needs and they are all built for quality, strength, safety, durability and performance.

Harrod Sport offers the largest, most innovative range of products for all the popular sports, our excellent quality and value make Harrod Sport products first choice for clubs, schools and organisations of all sizes.

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

Conformity by sport All Harrod Sport Football Goals conform to BS EN 748 or BS EN 16579.

Badminton BS EN 1509.

Hockey BS EN 750.

Handball BS EN 749.

setting the standard - leading the field

3

Sportshall Anchors

Anchors

U Peg Anchors A risk assessment is required to evaluate suitability of soil conditions before using U Peg Anchors to secure equipment.

10mm x 450mm

Specification: • Suitable for grass surfaces • Heavy duty steel peg, 10mm diameter solid bar • 450mm long and fits over maximum bar diameter of 70mm • Easy to install.

Setof 4 - 2.3kg per set

PEG-021

Ideal for pegging down goal nets or discus netting.

6mm x 200mm

Specification: • 6mm x 200mm long.

Pack of 10 - 2.3kg per set

PEG-025

Counterbalance Weight Anchor

Fence Anchor Chain

The Counterbalance Anchor is suitable for the safe anchorage of freestanding sports equipment on grass, artificial and 3G surfaces.

Designed for attachment to a surround fence.

Specification: • Fits on to backbars up to 43mm diameter • 17kg Handbag style weight complete with 3 link galvanised chain, carbine clip and ‘U’ type bracket • Nut and bolt included for use with aluminium goals.

Specification: • For attaching to surround fence • Complete with eyebolt, 2 x carbine clips and 3m length of chain • Extra lengths of chain can be ordered per metre.

Unlocked

Locked

Portagoal Permanent Ground Anchor Complies with french anchorage requirements .

Specification: • Socket is manufactured from 69.85 x 3.25mm aluminium tube.

ANC-600

All 17kg

Sportshall Socket Anchor Kit

For use with floor fixed Badminton, Netball and Volleyball.

Specification: • Requires professional installation into Sportshall flooring • SH2 socket complete with eyebolt, 300 mm plastic covered chain, carbine clip and ‘U’ type bracket • Fits on to backbars up to 43mm diameter • Recommended minimum use of 2 anchors per goal.

Specification: • Requires professional installation into Sportshall flooring • SH2 socket complete with ‘T’ bar fixing bolts.

160mm - 0.50kg each SHP-001 - Solid floors

2.20kg each

ANC-022

210mm - 0.50kg each SHP-100 - Suspended floors

Requirements (per goal): • Hockey = 10 • Full Size Football = 6 • 9v9/futsal/7v7 = 6 • Traditional 5-a-side = 4

ANC-005 ANC-006 - Classic 5-a-side

Sportshall Sockets

Spirafix Kit for FBL-900 Test Device 5.79kg per set

160mm - 0.51kg each ANC-001 - Solid floors 210mm - 0.68kg each ANC-002 - Suspended floors

Sportshall Wall Anchors Specification: • Complete with 100mm Rambolt, covered chain, carbine clip and ‘U’ type bracket • Fits on to backbars up to 43mm diameter • Recommended minimum use of 2 anchors per goal.

0.27kg each ANC-003 - Solid floors

Counterbalance Weight Anchor The Counterbalance Anchor is suitable for the safe anchorage of freestanding sports equipment on grass, artificial and 3G surfaces.

Specification: • Fits on to backbars up to 43mm diameter • 17kg Handbag style weight complete with 3 link galvanised chain, carbine clip and ‘U’ type bracket • Nut and bolt included for use with aluminium goals.

Requirements (per goal): • Hockey = 10 • Full Size Football = 6 • 9v9/futsal/7v7 = 6 • Traditional 5-a-side = 4 All 17kg

ANC-009 - Sportshall

ANC-011 4

Discover the full range at harrodsport.com

setting the standard - leading the field

5

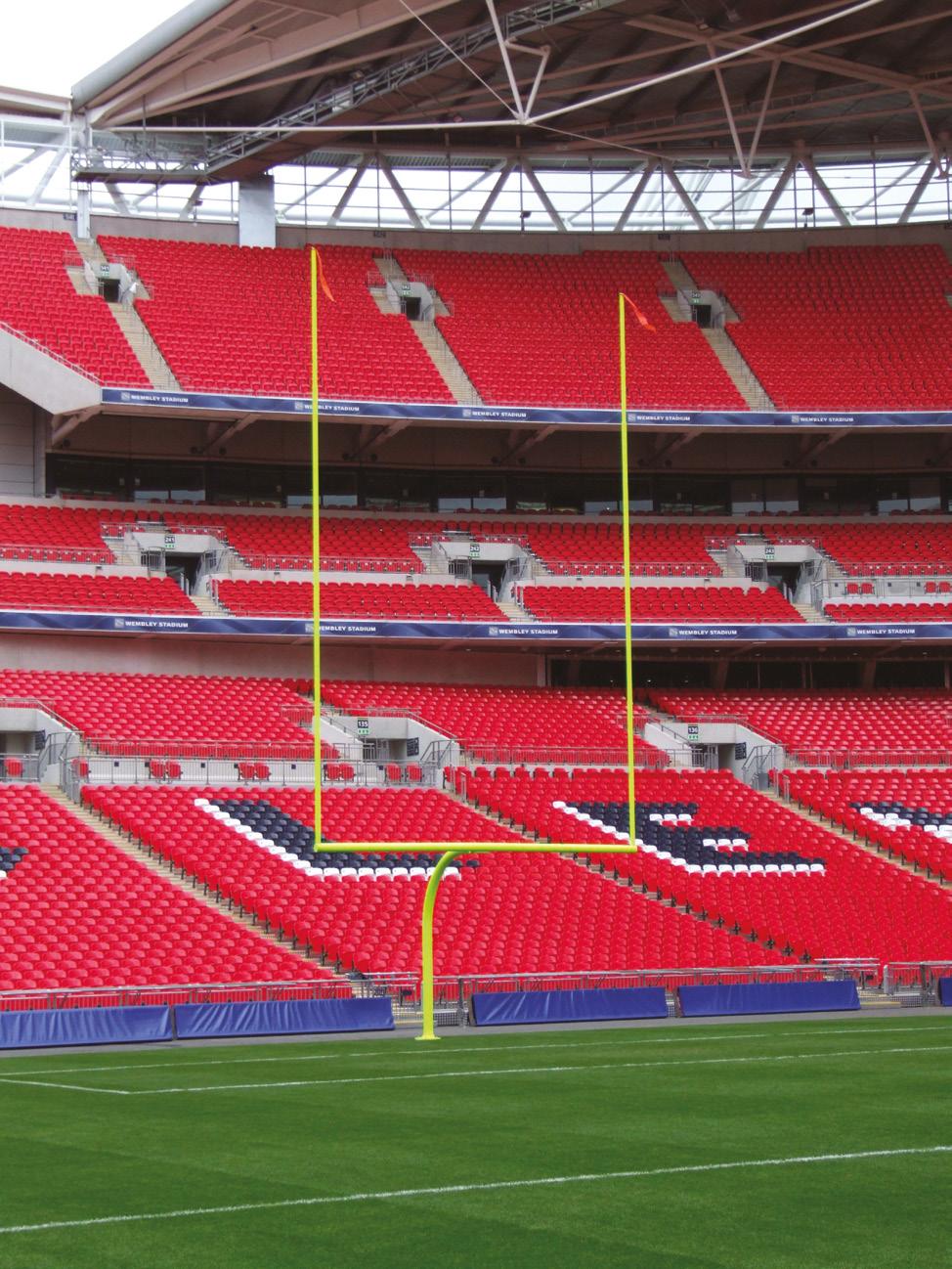

American Football Stadium NFL Posts Designed to NFL (National Football League) and BAFA (British American Football Association) standards and regulations, these goals have hosted top NFL matches.

Specification: • 89mm diameter steel gooseneck with 1.8m projection • Hinged socket assembly • Aluminum 6.1m top uprights • 9.1m overall goal height • 3m crossbar height and 5.6m wide • Polyester powder coated yellow.

Specification: • 150mm diameter steel gooseneck with 1.8m projection • Heavy duty hinged socket assembly • Aluminum 9.1m top uprights • 12.2m overall goal height • 3m crossbar height and 5.6m wide • Painted official NFL luminous yellow.

AMF-001 - NFL Spec AMF-002 - NCAA Spec

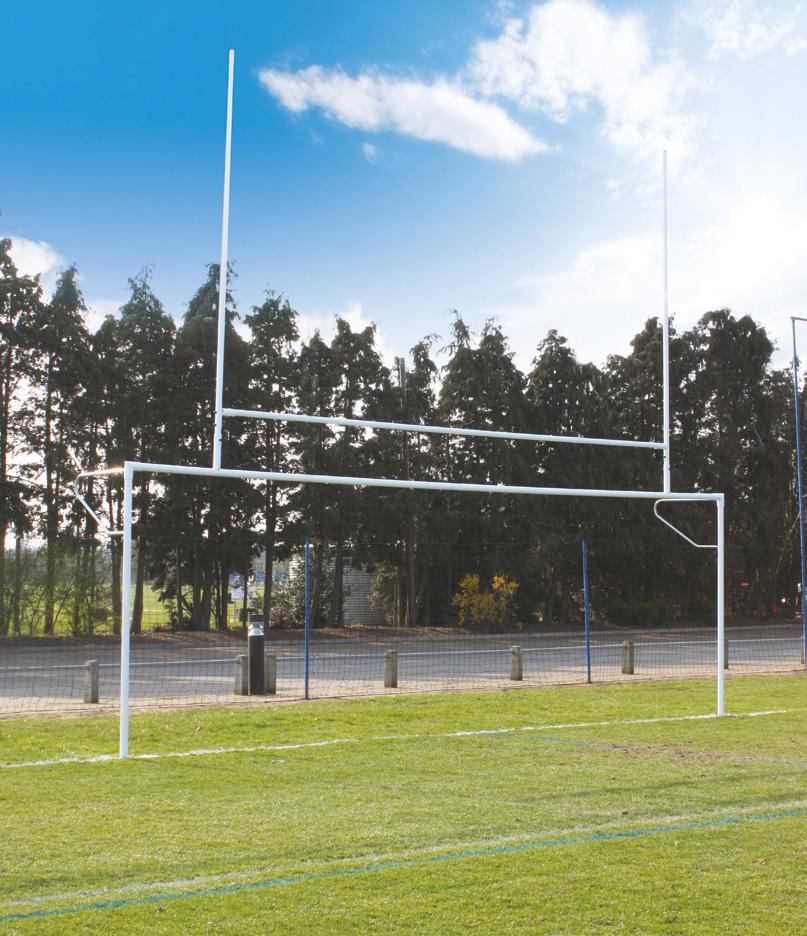

Club American Football Posts Designed to NCAA (National Collegiate Athletics Association) and BAFA (British American Football Association) standards and regulations.

AMF-005

American Football Post Protection Pads These American Football Post Protection Pads are from PVC with a foam centre, and come in a variety of colours to compliment team colours.

AMF-001 International posts

As used at Wembley, Twickenham Croke Park & Tottenham Hotspurs Stadiums

Specification: • 1500mm high.

• Made from 2 parts.

• First part - 1390mm long with 90mm square hole in the centre.

• Second part - 110mm high with cut out to accomodate for the hinge plate and gussets on post.

Attached by 50mm velcro.

AMF-010 2 colour.

AMF-011 AMF-005 Club American Football & AMF-010 American Football Post Protection Pads

6

Discover the full range at harrodsport.com

AMF-011 2 Colour American Football Post Protection Pads

setting the standard - leading the field

7

Athletics

American Football Post Assembly Lifter A device designed specifically for raising and lowering American Football posts.

Specification: • Manufactured from 60mm box section steel for strength and durability • Heavy duty winch with 5mm galvanised wire • 4 x 260mm cellular wheels for smooth operation and portability • Polyester powder coated matt black.

Practice Discus Cage

Foundation Equipment

An ideal cage for schools practice use only.

Long Jump Trough

Specification: • Size 19.2m x 3.3m.

8 galvanised steel 42mm uprights.

• 8 x 450mm deep ground sockets.

• Netting not included.

• We recommend that the netting on cages should be at least 300mm deeper than the frame.

LFT-001

134kg per set

ATH-005

Practice Discus Cage Net

ATH-001

U Peg Anchors

PEG-025

A HARROD SPORT

INNOVATION This product is protected by Registered Design no. #4042809.

American Football Post Assembly Lifter

1210mm long x 355mm wide x 90mm deep galvanised steel.

ATH-200

Blanking Board

1210mm long x 300mm wide x 50mm deep galvanised steel.

ATH-201

Take off Board

19mm thick wood, complete with blanking board.

ATH-203

No Jump Indicator Board

100mm wide x 19mm wood, painted black.

ATH-212

Lifting Handles

Cast Iron Shot

ATH-207

Practice use only.

Weights are approximate.

Wood painted white.

2.72kg 3.25kg 4kg 5kg 6.25kg

SHT-001 SHT-002 SHT-003 SHT-004 SHT-005

Practice Discus Cage & Netting

Detachable lifting handles for Harrod UK Athletics foundation equipment

Shot Board

ATH-202

Foundation Equipment

8

Discover the full range at harrodsport.com

setting the standard - leading the field

9

Athletics

Practice High Jump Stands

Regulation Glassfibre Lath

Specification: • Stands manufactured from 25mm square steel uprights.

Solid steel base fitted with rubber caps for floor protection.

• Complete with heavy duty 55cm to 215cm calibrated strip label.

• Polyester powder coated green.

Specification: • 4.0m long regulation 30mm diameter lath.

• Yellow with plastic square end caps.

• Glassfibre laths are strong and flexible but may shatter in some circumstances.

HJ1 - Senior

HJU-001

HJ2 - Junior

HJU-002

Same specification as HJU-001 with shorter uprights.

H6 Competition Hurdle

Competition standard hurdle, conforms to I.A.A.F. and UK Athletics height and toppling force regulations.

H7 Schools Practice Hurdle

Practice style hurdles are the ideal option for school and club use, available in senior and junior sizes.

Specification: • Tubular zinc plated steel base construction • Complete with 75mm x 25mm thick PVC lath • Fully enclosed adjustable weights in hurdle feet • Height adjustable aluminium uprights from 685mm to 1067mm in set increments.

Specification: • Tubular galvanised steel construction • Complete with 75mm x 25mm thick PVC lath • Height adjustable aluminium uprights from 685mm to 1067mm in set increments • No additional weights supplied.

H6 Hurdle

H7 Hurdle

HUR-006 10

HUR-007

Discover the full range at harrodsport.com

H8 Junior Practice Hurdle

Practice style hurdles are the ideal option for school and club use, available in junior sizes.

Specification: • Tubular galvanised steel construction • Complete with 75mm x 25mm thick PVC lath • Height adjustable aluminium uprights from 460mm to 762mm in 76mm increments.

• No additional weights supplied.

H8 Hurdle

HUR-008

PVC Hurdle Lath

Regulation Glassfibre Lath

HJU-005

Regulation Glassfibre Lath Specification: • 4.0m long x 30mm diameter lath.

• Red with plastic square end caps.

Schools Aluminium Lath

HJU-007

Spare PVC Lath for use with all Harrod Sport hurdles.

Specification: • 75mm x 25mm thick laths.

PVC Hurdle Lath

HUR-004

WAVENEY AC

Hurdle Lath screen printing service available.

Please contact sales office for details. setting the standard - leading the field

11

Competition Badminton Posts

Recommended by BADMINTON England for use in their centres of excellence and the ideal option for International tournaments.

1

Official post and net suppliers to BADMINTON England, our posts are used in top venues such as the National Badminton Centre and the National Institute of Sport.

Post Specification: • 1.55m high uprights made from 40mm diameter x 5mm thick steel • Individual velcro net ties ensure net is held firmly to the uprights • Polyester powder coated.

Features:

1

Easy to use quick release clam cleats allow exact net height to be achieved for competition use

2

Uprights and base do not protrude into the court area

3

Heavy duty post will not flex under tension.

Badminton Nets • Red heavy nylon 19mm regulation mesh • Double the thickness of the No.1 net • White headband with cotton eyeletted ends • Fitted with top and bottom cord.

6.1m in length

BAD-015

1

Premier Freestanding Competition The ultimate freestanding badminton posts, designed to achieve regulation net tension, ideal for sports halls where ground sockets are not possible.

1

1

Socketed Competition

Floor Fixed Competition

Socketed Competition

Floor Fixed Competition

BAD-023

Premier Freestanding Competition

BAD-021

Badminton Floor Fixing Sockets Stainless Steel Socket

Premier Freestanding Competition

SH 2 210mm

SHP-100

Socketed Competition Floor Fixed Competition

BAD-031 12

Discover the full range at harrodsport.com

SH 2 160mm

SHP-001

BAD-021 BAD-023

BAD-031

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

125mm diameter rubber wheels will not mark or damage the floor

©Copyright 2009

©Copyright 2009

All sockets and floor plugs require professional installation.

setting the standard - leading the field

13

Badminton Wheelaway Training Posts Specification • 1.55m high uprights made from 40mm diameter steel • Uprights have a grooved top for the net headline and welded cleats • Weighted base means netting can be drawn tight without movement of the upright • Polyester powder coated • BAD-036*/038* Same design as above but with sellock pin sleeve located at 86cm for Mini Tennis.

Recommended Net BAD-003 • No.1 net – for club use • Red nylon regulation 19mm mesh • White head band with cotton eyeletted ends • Fitted with top and bottom cord BAD-003 6.1m in length BAD-004 6.7m in length BAD-005 7.3m in length

School

Club

shown at badminton height

shown at combination height

School Badminton Post

Club Badminton Post

School Combination Post

Club Combination Post

BAD-034

School

BAD-032

BAD-038*

BAD-036*

Optional Extra: BAD-060 Velcro Net Ties

Features:

1

Uprights do not protrude into court area conforming to required safety standard

2

The ‘H’ shaped bases have built-in weight and are fitted with rubber pads for floor protection

3

Posts are attached to the base with a spring clip mechanism and can be easily detached for storage.

1 2 2

14

Discover the full range at harrodsport.com

3

3

12KG BASE

19KG BASE

©Copyright 2009

setting the standard - leading the field

15

Basketball Heavy Duty Basketball Goals

Cantilever Basketball Goals

Mini Basketball Goals

Robust Heavy Duty goals are designed to be left in situ all year round. Mechanical lifting equipment must be used when assembling goals.

The Cantilever basketball goals are adjustable at installation stage for junior and senior heights. Mechanical lifting equipment is required when assembling goals.

Mini Basketball is a game for 8-12 year old children with a regulation size ring at a height of 2.6m from the ground, and is played with a smaller ball.

Specification: • Made from 100mm square heavy duty steel.

• Regulation BB4 ring is bolted directly through to the steel arm for added strength.

• 914mm deep sockets with a 103mm square internal measurement.

• Ground sockets require a minimum 1m cube of concrete.

• Polyester powder coated blue with orange rings.

Features: • Cantilever extension arm provides 120cm projection and can be set at the required height • Designed to be concreted 914mm directly into ground.

BAS-031

Specification: • Made from 100mm square heavy duty steel.

• Regulation BB4 ring is bolted directly through to the steel arm for added strength.

• Can also be used with sockets - requires 2 x BAS-045.

• Polyester powder coated blue with orange rings.

1.22m x 0.9m steel backboard

1.22m x 0.9m MDF backboard

1.22m x 0.9m MDF backboard

BAS-030

1.8m x 1.05m MDF backboard

BAS-029

Spare Steel Board

BAS-038

BAS-041

Heavy Duty Basketball Goals

Features: • 120cm projection • MDF backboards.

Specification: • Made from 100mm square heavy duty steel • Regulation BB4 ring is bolted directly through to the steel arm for added strength • Polyester powder coated blue with orange rings.

Socketed

BAS-080

Permanent

BAS-082

BAS-001

Cantilever Basketball Goals

Mini Basketball Goals

Basketball Nets White/Tri colour

MDF Backboards

BB4 Regulation Basketball Rings

Wall Mounted Brackets

Basketball Post Protectors

White No.1 Basketball Net to fit Regulation Basketball Ring.

White 18mm moisture resistant bonded wooden backboards drilled to take Harrod Sport basketball rings.

Specification: • Provides 0.6m projection.

• Polyester powder coated blue • Complete with fixings to attach backboards • Sold as pair of brackets which is sufficient for a single backboard.

• Wall fixings not included.

Steel backboards designed for use with Heavy Duty & Cantilever Basketball Goals.

1.22m x 0.9m

Specification: • 20mm solid steel, welded net hooks, polyester powder coated orange.

• Extra heavy duty retaining back plates with welded diagonal braces and backboard fixing bolts.

1.8m x 1.05m

BAS-008

Specification: • 2mm White Braided Net • Net has extended loops at the top to attache to ring

BAS-001

Tricolour Basketball Nets - Red/White/Blue.

Specification: • Sold as a pair • 4mm Braided Twine

1.06m x 0.76m

BAS-010 BAS-011

BAS-017

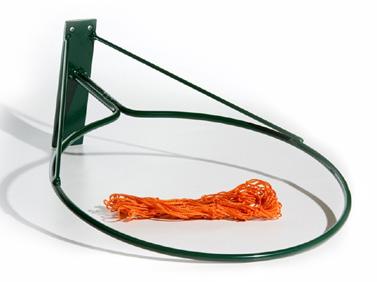

BB4 Regulation Rings

Wall Mounted Brackets

BAS-020

Specification: • Supplied as a flat pad 1.8m high x 560mm wide x 50mm thick to fit posts to a maximum 100mm square.

• Made with 50mm thick foam and reinforced polyester PVC covers.

BAS-016

1.22m x 0.9m steel backboard

BAS-046

Spare Basketball Socket

BAS-045

Single Coloured BAS-092

Drop-in Lid

BAS-039 16

Discover the full range at harrodsport.com

Features: • For easy attachment pads are supplied complete with 4 adjustable straps.

• Colours available: Royal Blue, Navy, White, Black, Red, Yellow & Green.

White BAS-090 BAS-016

BAS-020

Multi Coloured BAS-091

setting the standard - leading the field

17

Boot Wipers Designed for use outside communal changing areas and pitches.

Premier Boot Wiper Specification: • 1m high unit with bottom and side brushes • Two or four individual 610mm long x 73mm wide bottom brushes • Two individual 152mm long x 73mm wide side brushes • Brushes have 65mm long black bristles.

• 2 internal shoe scraping plates for added safety feature • Manufactured from 50.8mm diameter steel • Polyester powder coated matt black.

Sockets available separately - see website for full details Fixed Fixed

Permanent

Features: • Available as a fixed, freestanding or socketed boot wiper • Available in 2 sizes 1.1m & 1.75m long.

Socketed Premier

1.1m BWP-013 • 1.75m BWP-017 Fixed Premier

1.1m BWP-010 • 1.75m BWP-015 Freestanding Premier

1.1m BWP-011 • 1.75m BWP-016 18

Discover the full range at harrodsport.com

Socketed

Freestanding

Freestanding

Standard Boot Wiper

Multi Boot Wiper

Angled Boot Wipers

Specification: • Two individual 265mm long x 65mm wide bottom brushes with 47mm long black bristles • Two individual 265mm long x 65mm wide side brushes with 65mm long black bristles • Rubber gripped handles • Polyester powder coated matt black

Specification: • Made from 31.8mm diameter steel • Two 152mm x 73mm side brushes • 1 x 610mm bottom brushes • Polyester powder coated matt black.

Specification: • Individual 265mm long x 65mm wide brushes with 47mm long black bristles • Manufactured from 50.8mm diameter steel • Polyester powder coated matt black.

Fixed

Features: • Fully freestanding and 1m high • Two recessed shoe scraping plates.

Permanent 1 boot 0.8m 2 boot 1.3m

Fixed 1 boot 0.8m 2 boot 1.3m

Standard Boot Wiper

3 boot 1.9m 4 boot 2.6m

3 boot 1.9m 4 boot 2.6m

1m BWP-001

BWP-003 BWP-004 BWP-005 BWP-006

BWP-043 BWP-044 BWP-045 BWP-046

Features: • Angled brushes to prevent excessive wear.

Freestanding: 2 person BWP-047 3 person BWP-050 Fixed: 2 person BWP-048 3 person BWP-051 Socketed: 2 person BWP-049 3 person BWP-052

setting the standard - leading the field

19

Boot Wiper Spares

Bins Spare Brush Kits

Spare Brush kit for 1.9m Multi Boot Wiper.

Suitable for use with the 1m standard boot wiper.

Specification: • Two 152mm x 73mm side brushes • Three 610mm bottom brush.

Specification: • Two individual 265mm long x 65mm wide bottom brushes with 47mm long black bristles • Two individual 265mm long x 65mm wide side brushes with 65mm long black bristles.

1m Standard Boot Wiper

BWP-023 Spare Brush kit for 2.6m Multi Boot Wiper

Spare Brush kit for 0.8m Multi Boot Wiper Specification: • Two 152mm x 73mm side brushes • One 610mm bottom brush.

0.8m Multi Boot Wiper

This Spare premier brush kit can be used with all 1.75m Freestanding, Socketed and Fixed boot wipers.

BWP-021 Spare Brush kit for 1.3m Multi Boot Wiper Specification: • Two 152mm x 73mm side brushes • Two 610mm bottom brushes.

1.3m Multi Boot Wiper

BWP-022

Features: • Freestanding hooded outdoor bin.

• An optional galvanised liner can be purchased separately for this product.

1.9m Multi Boot Wiper

Specification: • Two 152mm x 73mm side brushes • Four 610mm bottom brushes.

2.6m Multi Boot Wiper

BWP-020

Hooded Outdoor Bin

Specification: • Made from PVC. 965mm high x 457mm diameter.

• Capacity 84 Litres.

• Bins colour -black.

Hooded Outdoor Bin

BIN-010 black BIN-011 green

BWP-024

Specification: • Two or four individual 610mm long x 73mm wide bottom brushes.

• Two individual 152mm long x 73mm wide side brushes.

Brushes have 65mm long black bristles.

Premier Brush Kit 1.75m

BWP-026

Sockets for Multi Boot Wipers 0.8m & 1.3m Socket Set for 0.8m (1 Person) and 1.3m (2 person) Multi Boot Wipers.

BWP-008

Premier Boot Wiper Socket 300mm

Galvanised Bin Liner Specification: • The diameter of the liner is 390mm.

• Please take into account a small allowance for the handles too.

Galvanised Bin Liner

BIN-012

Steel socket to suit 50mm diameter barrier upright.

BAR-007 20

Discover the full range at harrodsport.com

setting the standard - leading the field

21

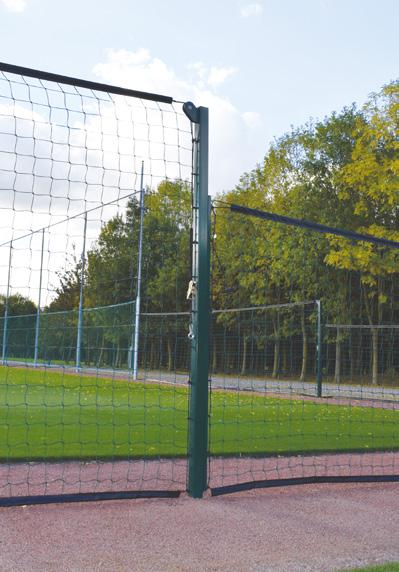

The Winch Cricket System Ideal for groundsmen and venues that wish to fully cut, roll and maintain natural grass batting areas. Any configuration of bays can be achieved.

Specification: • Made from 76mm square galvanised steel uprights • Heavy duty ratchet winch • Polyester powder coated green.

Features: Available in 2.7m and 3m high systems

1

CRK-201

2.7m High Winch System Winch Post Anchor Post

CRK-203

CRK-204

Optional extras:

Black netting supplied as standard

Can span a distance between posts of up to a maximum of 30m

4

Roof netting can be fitted to a maximum length of 7m

5

Can be concreted directly in or used with optional socket.

For full details on cricket netting and accessories please visit harrodsport.com

Discover the full range at harrodsport.com

CRK-200

Netting can be drawn back so access can be gained for mowing without obstruction from uprights

2

3

22

3m High Winch System Winch Post Anchor Post

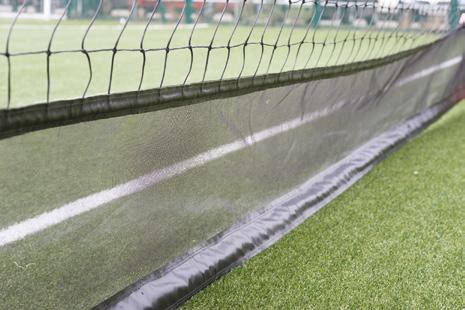

Net Protection Vermin Skirt Designed to help prevent vermin damage to the bottom of netting. 500mm high skirt is stitched to netting and made from black mesh with a 18mm bottom rope.

50mm Black Bottom Band Fitted with 18mm Rope Designed to be stitched to the bottom of netting to help prevent billowing in windy conditions. Brass eyelets at both ends.

©Copyright 2009

setting the standard - leading the field

23

Premier Portable Cricket Cage

County Cricket Practice Net

1

The freestanding cage can be wheeled by 2 people after attaching the front lifting handle. It is recommended that the lightweight aluminium option is securely anchored using the supplied pegs at all times.

Specification: • 3.2m H x 3.6m W x 7.2m D (internal dimensions) • 50mm diameter uprights and toprods in aluminium or steel • Heavy duty 60mm steel fixing joints • Supplied complete with 2mm thick black polypropylene netting • Complete with 4 ‘U’ Peg anchors.

Designed as a professional training system which can be easily dismantled before cricket matches. Ideal where permanent sockets are not an option.

2

Features:

1

Surround and roof netting joined for ease of installation and safety

2

Diagonal supports for added stability

3

Cellular wheels.

3

6 Wheel cage: Steel Aluminium

CRK-151

Features:

CRK-156

2 Wheel cage: Steel Aluminium

For full details on cricket netting and accessories please visit harrodsport.com

CRK-150

Specification: • Uprights are manufactured from 50mm diameter by 3.2mm thick aluminium and polyester powder coated black • Each pole measures 2.7m in height out of the ground • No headline rope is required with this system • 2mm x 50mm twisted black polypropylene net.

CRK-155

1

Uprights installed at 10m intervals.

2

Netting complete with interval sleeves so they can be easily installed onto uprights.

3

Turf screw ground sockets included.

With plastic socket cap.

(Insertion tool must be ordered separately see BAR-031).

Sizes available: CRK-275 – 10m CRK-276 – 20m CRK-277 – 30m CRK-278 – 40m CRK-279 – 50m CRK-280 – 60m CRK-281 – 70m CRK-282 – 80m CRK-283 – 90m CRK-284 – 100m

3

Turf Screw Insertion Tool BAR-031

County Cricket Net System Designed as a professional system which can be easily dismantled once the cricket season is over.

Ideal where permanent sockets are not an option.

For full details please visit harrodsport.com

CRK-150 2 wheel option 24

Discover the full range at harrodsport.com

setting the standard - leading the field

25

Heavy Duty Cage

Our sturdy and robust heavy duty and parks cages are made from galvanised steel and are designed for use in areas prone to vandalism.

Specification: • 42.4mm diameter x 3mm galvanised steel uprights and toprods • 3.66m long toprods complete with 11 net hanging hooks • 450mm deep steel sockets fitted with stabilising base plates • A heavy duty tube clamp is supplied with each upright.

26

3.6m Uprights

CRK-187

Heavy Duty Cage - Toprods

CRK-190

Heavy Duty Cage - Sockets

CRK-179

Cricket Cage Socket Lids

CRK-122

Discover the full range at harrodsport.com

Parks Cage

The ideal choice for use in most parks and schools.

Specification: • 38mm x 1.6mm galvanised steel with reduced ends • 3.66mm long toprods complete with 11 net hooks • 450mm deep steel sockets fitted with stabilising base plates • A heavy duty tube clamp is supplied with each upright.

3.6m Uprights

CRK-087

3.66m Toprods

CRK-090 Sockets

CRK-079 Socket Lids

CRK-122

Cricket Bays

Accessories

Standard Wooden Cricket Bay Systems

Wooden Cricket Poles

Cricket Throw Down System

Spare Guylines

Boundary Rope

7.3m guyline used to support and secure 2.4m and 2.7m wooden cricket poles.

White polypropylene rope, supplied in 220m long coils with sealed ends.

Standard wooden cricket bay with 4/6 poles to support surround netting.

Wooden Cricket Poles designed to create temporary batting practice bays.

Specification: • 50mm round poles • Ferruled tops • Spiked ends • Powder coated green • Includes guy ropes and pegs.

Specification: • One double polyethylene guyline is required per pole.

• Complete with iron pegs.

24mm Thick

Specification: • Complete with 2.7m high poles, guylines and surround netting only • 2.7m high 5.5m long x 4.6m wide (4 pole system).

11m Cricket Throw Down System to allow batsmen to knock up without having to retrieve lots of stray balls

7.3m

6 Pole System

3m

CRK-097

CRK-029

Specification: • Perfect for pre match warm up and practice • Wooden 50mm diameter cricket poles with guylines and pegs • 2mm netting x 50mm sq. mesh.

3.6m

2 Pole System - 11m

CRK-031

CRK-210

CRK-050 10m

CRK-051

CRK-360 3 Pole System - 21m

CRK-361 setting the standard - leading the field

27

Cricket Stumps

Cricket Netting

3mm

3mm Twisted

No.16 2mm Netting

3m high twisted 3mm cricket netting designed to surround and separate each bay.

Designed to surround and separate each bay.

Specification: • UV Resistant • 50mm square mesh.

• 3mm thick heavy duty black twisted polypropylene netting with selvedged edges.

3m High Surround

CRK-023 3m High Surround c/w 50mm band

CRK-323 3m High Surround c/w Vermin Skirt

Pro Flex Cricket Stumps

CP1 Cricket Stumps

CP2 Cricket Stumps

CP3 Cricket Stumps

Specification: • Strong moulded rubber base with integral steel counter weight • Regulation 711mm x 37mm dia. stumps with bails • Complete with carry bag.

Specification: • Strong cast iron base powder coated green.

• 711mm x 30mm dia. ash stumps and bails.

• Zinc plated retaining springs.

Specification: • Steel throughout to overcome broken stumps.

• 305mm x 250mm fabricated base, complete with 690mm x 25mm dia. galvanised stumps with plastic caps.

Specification: • Polyester powder coated steel lower section gives added protection to stumps Strong cast iron base powder coated green • 711mm x 30mm dia. ash stumps and bails • Zinc plated retaining springs.

CRK-265

CRK-053

Without bails

CRK-041 With bails

CRK-109 28

Discover the full range at harrodsport.com

CRK-255

CRK-328 3.6m High Surround

CRK-025 3.6m High Surround c/w 50mm band

CRK-325 3.6m High Surround c/w Vermin Skirt

CRK-330 Twisted Cricket Roof Netting

CRK-112

Specification: • UV Resistant • 50mm square mesh.

• 2mm thick black polypropylene netting with selvedged edges.

2.7m High Surround

2.5mm

Cricket Sundries

3.6m High Surround

CRK-011

CRK-014

2.7m High Surround c/w 50mm band

3.6m High Surround c/w 50mm band

CRK-311

CRK-314

2.7m High Surround c/w Vermin Skirt

3.6m High Surround c/w Vermin Skirt

180mm Steel Pegs - Pack 10

FBL-016 250mm Heavy Duty Pegs Pack 10

FBL-116

CRK-316

CRK-318

3m High Surround

No16 3mm Thick Roof Netting

CRK-012

CRK-112

3m High Surround c/w 50mm band

Roof netting is only available for sizes over 3.6m x 3.6m.

Non-standard surround heights under 2.7m or netting orders under 30 sqm will be subject to an additional charge.

CRK-312 3m High Surround c/w Vermin Skirt

CRK-317

6mm x 200mm U Pegs - Pack 10

PEG-025 300mm Iron Peg - Each

CRK-041 6mm Polyethylene Rope

CRK-039 Hanging Hooks - Pack 100

TEN-059

3.3m High Surround

CRK-013

Heavy duty 3mm black twisted net with selvedged edges.

setting the standard - leading the field

29

AGE

FORMAT

SIZE

Goal Sizes

18+

11v11

7.32 x 2.44m

U18

11v11

7.32 x 2.44m

U17

11v11

7.32 x 2.44m

Throughout this catalogue you will notice the varying goal sizes for the vast range of football goals offered.

To enable you to determine the size you require please follow the format outlined by the FA.

U16

9v9 or 11v11

7.32 x 2.44m

U15

9v9 or 11v11

7.32 x 2.44m

U14

9v9 or 11v11

6.40 x 2.13m to 7.32 x 2.44m

U13

9v9 or 11v11

6.40 x 2.13m to 7.32 x 2.44m

U12

9v9 or 11v11

4.88 x 2.13m to 6.40 x 2.13m

U11

9v9 or 11v11 7v7

4.88 x 2.13m to 6.40 x 2.13m 3.66 x 1.83m

U10

7v7

3.66 x 1.83m

U9

7v7

3.66 x 1.83m

U8

5v5

3.66 x 1.83m

U7

5v5

3.66 x 1.83m

SENIOR/JUNIOR

SENIOR 7.32 x 2.44m

JUNIOR 6.40 x 2.13m

SMALL SIDED

Official FA sizes are Senior, Junior, 9v9 and 7v7/5v5.

Also listed in this catalogue are two other sizes: • Euro 5m x 2m goals, this is the european format for small sided football • 16’x6’ 4.88m x 1.83m goals, commonly used in Scotland and Ireland for small sided football.

Traditional 5-a-side goals are also listed and available in three sizes.

For more details on goal and pitch sizes for your age group please contact your local county FA.

9v9 4.88 x 2.13m

Discover the full range at harrodsport.com

16’x6’ 4.88 x 1.83m

7v7/5v5 3.66 x 1.83m

TRADITIONAL 5-A-SIDE*

Senior 4.88 x 1.22m 30

Euro 5.00 x 2.00m

Junior 3.66 x 1.22m

Mini 2.44 x 1.22m

*Not recognised as an official small sided FA size.

setting the standard - leading the field

31

Stadium Pro Goals The new patent pending technology, which allows for precision height adjustment, is a development in design and manufacturing that will greatly aid grounds professionals.

WATCH A PRODUCT VIDEO ON OUR WEBSITE

To be used at all 8 stadiums at the Qatar 2022 FIFA World Cup

Goal Specification: • Goal Size 7.32m x 2.44m.

• Uprights & crossbars made from 102mm x 112mm reinforced aluminium with double recess for flush fitting fixings.

• Polyester powder coated white.

Set consists of • 1 Set = 2 goals.

• 4 uprights • 2 crossbars.

• 4 sockets • 4 socket wedges.

• 4 drop in lids.

• 210 net hooks.

• All bolts & fixings.

Features:

1

The Stadium Pro precision height adjustment system allows for the goal to be accurately adjusted by up to 100mm whilst the goal remains in situ.

2

Reinforced welded aluminium corner joints for improved aesthetics and superior strength, with laser cut internal fixing for exceptionally accurate joints.

3

Injection moulded toughened nylon net clips that won’t deteriorate over time.

4

Lock-in T-bar to allow for easy storage of the bottom net bar against upright for pitch maintenance.

5

Reinforced net support system prevents bowing under intense tension.

New, heavy duty ratchet winch and webbing strap allows for highclass net shape with the inclusion of a failsafe wire providing 100% security during matches.

Senior 7.32m x 2.44m

Goal FBL-848

Freehanging Net Supports 4 Pole FBL-849 6 Pole FBL-850 Hinged Bottom Net Supports FBL-851 4mm Braided Net FBL-308 4mm Hexagonal Box Net FBL-303 UEFA Net Support Pads Set of 4 FBL-540

As used by world leading clubs & stadiums Patent Pending GB1612870.4

32

Discover the full range at harrodsport.com

Real Madrid, PSG, Roma, Juventus, Arsenal, Leeds United, Leicester City, Liverpool, Manchester City, Manchester United, Norwich City, Southampton, Tottenham, Watford & West Ham United plus many more all over world.

6

Lock-in bottom net bar 38mm diameter aluminium bar with ground secure key lock mechanism complete with 4 sockets and lids per goal.

3

A HARROD SPORT

INNOVATION Stadium Pro Goal CONFORMS TO

5

4

2

Freehanging Net Supports can be manufactured in a choice of colours (supplied black as standard)

1

6

BRITISH & EUROPEAN SAFETY STANDARDS

setting the standard - leading the field

33

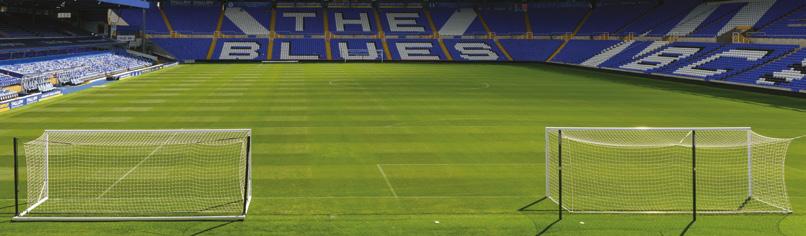

4G Stadium Goals

Our uniquely design 4G Stadium Goal is used at top level venues including St George’s Park, Championship and League Clubs. The goals have also played host to Olympic, UEFA Championships and Champions League finals prior to the launch of the Stadium Pro Goal.

6

Goal Specification: • Uprights and crossbars made from 102mm x 112m reinforced aluminium.

• Zinc plated internal steel fixing plate incorporating corner net clamp.

• Stainless steel bolts throughout.

• Polyester powder coated white.

Set consists of • 1 Set = 2 goals.

• 4 x 460mm deep sockets, wedges & drop-in lids.

• 210 x lock-on synthetic net hooks.

Features: Senior 7.32m x 2.44m

1

Goal FBL-548

4mm Braided Euro Net FBL-308 4mm Hexagonal Box Net FBL-303 Freehanging Net Supports FBL-539 4G Hinged Bottom Net Supports Senior FBL-190 UEFA Net Support Pads Set of 4 FBL-540

2

Micro adjustable foot on each upright allows exact upright height.

3

Socket wedges ensure posts are held firm in the socket with no movement.

4

Elbow Net Supports Senior FBL-505

4G Stadium Goals can be used with elbow net supports

5

for pitches that cannot accomodate the freehanging football box system - see harrodsport.com for full details.

The 4G Stadium Club Goal with elbow brackets

To be used at all 41 training grounds at the Qatar 2022 FIFA World Cup 34

As used by many clubs all over the world...

Discover the full range at harrodsport.com

from the Premier League, Championship, Ligue 1, Serie A and La Liga.

Fully welded corner joints provide superior strength and added safety.

6

4

1

Freehanging net supports designed to suspend the net and eliminate rebounds.

Complete with rachet winch and webbing straps.

Hinged bottom net supports fold to enable ground maintenance.

Optional elbow net support system can be used.

5 CONFORMS TO BRITISH & EUROPEAN ©Copyright 1996 SAFETY STANDARDS

2

3 3

©Copyright 1996

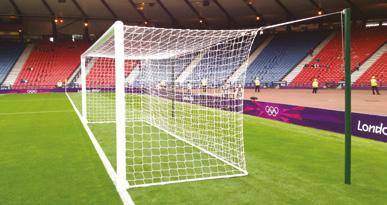

Harrod Sport’s Stadium Goal is the perfect compliment to any stadium pitch and provides exactly what is needed at elite professional level football. setting the standard - leading the field

35

4G Portaball Pro Harrod Sport’s new patented and innovative goal has been specifically designed to meet the exacting standards and requirements of the world’s best clubs and coaches.

With clubs now producing training pitches as exceptional as some of the best stadium pitches in the world, we were tasked with producing a goal that would be both sympathetic to natural turf but also work just as effortlessly on 3G surfaces.

The 4G Portaball Pro is a goal that no longer relies on wheels. The system uses a unique and patented spherical ball system which moves smoothly and effortlessly in any direction, something wheels just cannot do.

This unique training goal is manufactured from the latest Harrod Sport 4G aluminium football goal section, with a side frame that neatly houses the patented spherical ball system.

The double pivot handle allows the goal to be raised and lowered without the need of excessive or heavy force.

36

Senior 7.32m x 2.44m

Goal FBL-855

Goal Specification: • Goals and frame are polyester powder coated white.

• Sold complete with tailored 4mm net.

• Net Supports are manufactured from Ø80mm diameter reinforced aluminium.

Features:

1

Spherical wheel system with unique cover and dual pivot handle for easy manoeuvrability on natural grass or artificial turf pitches.

Goal sits flush to the ground when not in use to help prevent any movement in play.

Discover the full range at harrodsport.com

1 A HARROD SPORT

INNOVATION Portaball CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

Portaball is protected by Registered Design, Patent Pending 2015662.6

setting the standard - leading the field

37

Swivel Portagoals

Harrod Sport’s new Swivel Portagoal range has been developed in conjunction with Premier League football coaches.

Goal Specification: • The main goal frame is manufactured from the latest Harrod Sport 4G Aluminium football goal section with a unique side frame that contours up and over the wheels mounted in the side frame. Sold complete with bespoke net.

• Polyester powder coated white.

Features:

1

2 Swivel Portagoal*

Swivel Weighted Portagoal*

Senior 7.32m x 2.44m

Senior 7.32m x 2.44m

Goal FBL-860

Junior 6.4m x 2.13m

Junior 6.4m x 2.13m

9v9 4.88m x 2.13m

9v9 4.88m x 2.13m

7v7/5v5 3.66m x 1.83m

7v7/5v5 3.66m x 1.83m

Goal FBL-861

Patent Pending GB1909105.7

Goal FBL-862

Goal FBL-863

16’x6’ 4.88m x 1.83m

Goal FBL-864

*Other sizes on request.

Easily moved

38

Discover the full range at harrodsport.com

Goal FBL-865

3

Goal FBL-866

Goal FBL-867

Goal FBL-868

16’x6’ 4.88m x 1.83m

Goal FBL-869

Wheel Protection Pads

4

The wheels are large Ø260 cellular swivel wheels suited for easy manoeuvrability on natural grass or artificial turf pitches.

The rear wheels are fitted with brakes to prevent any movement in play.

2

4

Net supports are manufactured from Ø31.8 pre-galvanised steel and then powder coated white for extra corrosion resistance and attractive appearance.

Optional Wheel Protection Pads are available and are manufactured from 25mm Chip Foam covered with hard wearing PU coated nylon and hook & loop securing straps. The pad (Harrod Sport code: FBL-920) covers the wheel and side frame within immediate vicinity of wheel and sits 25mm above the playing surface. Wheels still move freely with the pads fitted.

Complete with FPX style 4mm thick 100mm mesh bespoke shaped nets.

1

A HARROD SPORT

INNOVATION Swivel Portagoal

3

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

FBL-920

setting the standard - leading the field

39

4G Foldaway Euro Portagoals As used at stadiums including Wembley, Aviva, Emirates and the Santiago Bernabeu. The ultimate pre-match warm up solution for national stadiums and professional football clubs. Each goal can be demounted and folded into a bag in less than 3 minutes, ready to be transported away from the pitch.

Goal Specification: • Uprights, crossbars, sidebars & backbars made from 102mm x 112mm reinforced aluminium.

• Net supports made from Ø80mm reinforced aluminium.

• Zinc plated internal corner joints.

• Polyester powder coated white with black net supports.

Features:

1

2

3

Each goal can be assembled and disassembled in less than 3 minutes by four people using the integrated folding mechanisms.

2

Entire goal uniquely folds into one piece without removing any parts into carry bag.

Integral net support posts allow for free hanging net to match Harrod Sport stadium goal set up.

1

Senior 7.32m x 2.44m

Goal FBL-682

Set consists of • 1 set = 2 goals.

• 200 lock-on synthetic net hooks.

• 4 ‘u’ peg grass anchors.

• Complete with net and bag.

Options, extras and spares Transporter trolley set of 4 FBL-679

To be used at all 8 stadiums at the Qatar 2022 FIFA World Cup 40

As used by many clubs all over the world...

Discover the full range at harrodsport.com

from the Premier League, Championship, La Liga, Serie A, Ligue 1, the MLS and by 5 venues at Euro 2020.

FPX 4mm Senior Replacement Box Net FBL-684

3

©Copyright 2005.

This product is protected by design right.

Allows for quick set up… the perfect partner for the Stadium Goal range

WATCH A PRODUCT VIDEO ON OUR WEBSITE

A HARROD SPORT

INNOVATION 4G Foldaway Euro Portagoal

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

setting the standard - leading the field

41

4G ‘Original’ Integral Weighted Goal Harrod Sport was the first company in the UK to design and manufacture a unique range of integral weighted goals for football.

This market leading concept has now been widely adopted as the industry preferred method for all aluminium freestanding goals.

Completely safe to use at all times, eliminating the users responsibility of attaching separate anchorage.

Goal Specification: • Uprights, Crossbars & Sidebars made from 102mm x 112mm reinforced aluminium.

• Full length net supports made from 31.8mm diameter galvanised steel.

• Full length bottom net retaining bar.

• Puncture proof front cellular rubber tyres • Polyester powder coated white (excluding rollers).

Features:

1

2

The unique roller system with Hi-Raise wheels allows easy manoeuvrability on synthetic and 3G surfaces Fully welded corner joints provide superior strength and added safety.

Set consists of • 1 set = 2 goals (with rollers) • 100 Net Hooks • All Bolts & Fixings Options, extras and spares Synthetic Net Hooks FBL-229

2

Senior 7.32m x 2.44m

Goal FBL-635

4mm Senior Nets FBL-636

Junior 6.4m x 2.13m

Goal FBL-637

4mm Junior Nets FBL-660

9v9 4.88m x 2.13m

Goal FBL-545

4mm Junior Nets FBL-216

7v7/5v5 3.66m x 1.83m

Goal FBL-655

4mm Junior Nets FBL-661

Euro Size 5m x 2m

Goal FBL-652

4mm Junior Nets FBL-361 New

16’x6’ 4.88m x 1.83m

1

improved

Goal FBL-654

design

4mm Junior Nets FBL-664 A HARROD SPORT 5-a-side various x 1.22m

Easily moved

4.88m Goal FBL-644* 3.66m Goal FBL-645** 2.44m Goal FBL-646***

Nets FBL-662*/663**/666*** 42

Discover the full range at harrodsport.com

INNOVATION 4G ‘Original’ Integral Weighted Portagoals

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

©Copyright 2012

setting the standard - leading the field

43

4G UEFA Portagoals and Weighted Portagoals The UEFA Weighted Portagoal has been designed to meet the UEFA specification and will predominantly be used by academies for European matches at the lower age groups.

Goal Specification: • Uprights, crossbars, sidebars & backbars made from 102mm x 112mm reinforced aluminium.

• Net support made from Ø80mm reinforced aluminium.

• Zinc plated internal corner joints.

• Polyester powder coated white with black net supports.

• Aluminium profile backbar with integral weight insert and ballast.

• Internal reinforced upright connections which remove the requirement for braces.

Features:

1

2

3

Integral net support posts for freehanging net to match Stadium Goal set up.

Hi-Raise wheels lift the goals up to 100mm above the surface allowing for manoeuvrability on both grass and synthetic surfaces.

3

Fully welded corner joints provide superior strength and added safety.

Set consists of • 1 set = 2 goals.

• 4 net support brackets.

• 2 net supports.

• 2 fittings.

• Internal ballast.

• CAM & high raise wheels.

Weighted Portagoal

Portagoal

Senior 7.32m x 2.44m

Senior 7.32m x 2.44m

Goal FBL-699

Goal FBL-693

4mm Senior Box Net with Tail FBL-689

4mm Senior Box Net with Tail FBL-689

Optional Hinged Net Support FBL-698

Optional Hinged Net Support FBL-698

4mm Net for use with Hinged Net Support FBL-684

4mm Net for use with Hinged Net Support FBL-684

1

2 CONFORMS TO

Image is shown with FBL-689 Net

44

Discover the full range at harrodsport.com

Image shown is FBL-693 with FBL-698 & FBL-684

BRITISH & EUROPEAN SAFETY STANDARDS

setting the standard - leading the field

45

4G Portagoals

The preferred choice of portable goals for Professional Club training facilities. As used at St George‘s Park, Premier League Academies and Independant Schools across the country.

Goal Specification: • Uprights, crossbars, sidebars & backbars made from 102mm x 112mm reinforced aluminium • Full length net tubes made from 31.8mm diameter galvanised steel • Polyester powder coated white • 6 counterbalance weights are required per goal.

Senior 7.32m x 2.44m

Goal FBL-600

4mm Senior Nets FBL-017

Junior 6.4m x 2.13m

Goal FBL-084

4mm Junior Nets FBL-019

1

Features:

1

2

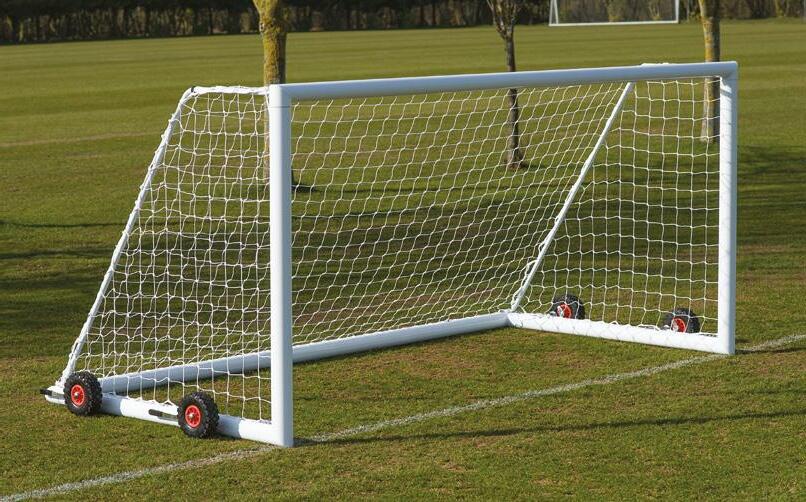

When used with optional Hi-Raise Wheels the portagoal is extremely manoeuvrable on both grass and synthetic surfaces, Hi-Raise Wheels lift the goal up to 100mm above the surface Fully welded corner joints provide superior strength and added safety.

Set consists of • 1 set = 2 goals • 200 lock-on synthetic net hooks • 4 ‘u’ peg grass anchors

2

9v9 4.88m x 2.13m

Goal FBL-207

4mm Junior Nets FBL-360

7v7/5v5 3.66m x 1.83m

Goal FBL-210

4mm Junior Nets FBL-359

3

Euro Size 5m x 2m

Goal FBL-208

4mm Junior Nets FBL-361

©Copyright 1996

1 16’x6’ 4.88m x 1.83m

Hi-Raise Portagoal Wheel - set of 8 FBL-559

Goal FBL-215

4mm Junior Nets FBL-358 CONFORMS TO

(Please note wheels are optional on Portagoal version).

Hi-Raise wheels

46

‘U’ Peg Anchor (supplied)

Discover the full range at harrodsport.com

6 weights required per goal

BRITISH & EUROPEAN SAFETY STANDARDS

©Copyright 2002

setting the standard - leading the field

47

4G Euro Portagoals

Designed as the ultimate training ground portable goal, allowing clubs to mirror the Harrod Sport 4G Stadium Goal but with a goal that can be easily transported utilising the optional Hi-Raise Wheels.

Goal Specification: • Uprights, crossbars, sidebars & backbars made from 102mm x 112mm reinforced aluminium • Net supports made from 80mm diameter reinforced aluminium • Zinc plated internal corner joints • Polyester powder coated white with black net supports Set consists of • 1 set = 2 goals • 200 lock-on synthetic net hooks • 4 ‘u’ peg grass anchors • Weighted Portagoal version complete with wheels (Optional extra with standard portagoal)

Junior Portagoal

Features:

1

2

3

4

Integral net support posts allow freehanging box net set up When used with Hi Raise Wheels the portagoal is manoeuvrable on most surfaces. New improved rear wheel design with full side and rear support

1

Available in a weighted portagoal or a standard portagoal Fully welded corner joints provide superior strength and added safety

Weighted Portagoal

Portagoal

Senior 7.32m x 2.44m

Senior 7.32m x 2.44m

4mm Senior Box Net FBL-684

4mm Senior Box Net FBL-684

Goal FBL-674

4

Goal FBL-683

1 1996 ©Copyright

3

3

Junior 6.4m x 2.13m

Goal FBL-690

2

4mm Junior box net FBL-691 A HARROD SPORT

INNOVATION

Front wheel

9v9 Portagoal

48

Discover the full range at harrodsport.com

Hi-Raise Euro Portagoal Wheel - set of 8 FBL-561

9v9 4.88m x 2.13m

(Please note wheels are optional on Portagoal version).

4mm Junior Nets FBL-696

Goal FBL-695

4G Euro Portagoals

Available in weighted and standard Portagoals

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

©Copyright 2007

setting the standard - leading the field

49

4G Demountable Portagoal Uniquely designed demountable portagoal is the perfect pre-match warm up solution for professional clubs.

Goal Specification: • Uprights, crossbars, sidebars & backbars made from 102mm x 112mm reinforced aluminium • Full length back tubes made from galvanised steel • Fully welded corner joints provide superior strength and added safety • Zinc plated internal corner joints • Quick and secure rope clamps for top and bottom headlines • Polyester powder coated white.

Features:

1

2 2

2 3 CONFORMS TO ©Copyright 2006. This product is protected by design right.

BRITISH & EUROPEAN SAFETY STANDARDS

Each goal can be assembled in less than 5 minutes by two people Detachable crossbar and backbar with quick release latch mechanism means the goal can be assembled without tools

Senior 7.32m x 2.44m

Goal FBL-680

FPX 4mm senior goal nets FBL-636

4G Hinged Portagoals A pre-match warm up solution for clubs with accessible storage space.

Junior 6.4m x 2.13m

Goal FBL-681

FPX 4mm Junior goal net FBL-660

Goal Specification: • Uprights, crossbars, sidebars & backbars made from 102mm x 112mm reinforced aluminium.

• Full length net tubes made from Ø31.8mm galvanised steel.

• Hinged sidebars to allow backbar to be folded up for storage.

• Zinc plated internal corner joints.

• Polyester powder coated white.

Features:

1

2

Goals can be wheeled in and out fully assembled utilising the optional Portagoal Trolleys (Please Note: FBL-554 Trolleys need to be ordered separately).

Hinged backbar allows goal to be transported and stored with only a 1.22m runback.

Senior 7.32m x 2.44m

Goal FBL-605

FPX 4mm Senior Portagoal nets FBL-017 Set consists of • 1 set = 2 goals.

• 200 lock-on synthetic net hooks.

• 4 ‘u’ peg grass anchors.

Options, extras and spares Synthetic net hooks pack of 24 FBL-229 Replacement trolleys set of 4 FBL-554

Set consists of • 1 set = 2 goals • 200 lock-on synthetic net hooks • 4 ‘u’ peg grass anchors Options, extras and spares Synthetic net hooks pack of 24 FBL-229

Designed in four sections for easy storage.

1 2 3

CONFORMS TO ©Copyright 2002.

50

Discover the full range at harrodsport.com

1

BRITISH & EUROPEAN SAFETY STANDARDS

setting the standard - leading the field

51

4G Fence Folding Goals Ideal for synthetic surfaces and multi-use games areas. Designed to fold flush against surrounding fence. Hinged supports allow this goal to fold effortlessly by two people when not in use, allowing space and freedom for other sports.

2.3m to 3.5m projection

3.5m to 5m projection

Senior 7.32m x 2.44m

9v9 4.88m x 2.13m

3mm senior box net FBL-310

3mm 9v9 box net FBL-307

Goal FBL-613

9v9 4.88m x 2.13m Goal Specification: • Uprights, crossbars, sideboards and backbars made from 102mm x 112mm reinforced aluminium • Anchor posts made from 100mm x 100mm zinc plated steel.

• Adjustable telescoping side bars and vertical support bar made from 60mm x 60mm zinc plated steel.

• Zinc plated internal steel fixing plate.

• Goal frame polyester powder coated white.

• Support frame polyester powder green.

Features:

1

2

2 3

Fully welded corner joints provide superior strength and added safety Fully zinc plated support posts and side supports Solid roller wheel provides easy maneuverability.

Set consists of 1 Set = 2 Goals (with projections) • 4 Sockets • 100 Net Hooks What is Included 4 Uprights 2 Crossbars 4 Top Sidebars (2 Left, 2 Right) 4 Bottom Sidebars (2 Left, 2 Right) 4 Support Braces 4 Rollers 4 Projection Adjusters 4 Through Fence Arms 4 Projection Sockets 100 Net Hooks All Bolts & Fixings

Goal FBL-592

3mm 9v9 box net FBL-307

7v7/5v5 3.66m x 1.83m

Goal FBL-587

3mm 7v7/5v5 net FBL-371

16’x6’ 4.88m x 1.83m

Goal FBL-586

3mm 16’x6’ net FBL-370

Inside perimeter Fence Folding options available - for full details please visit harrod.uk.com

Goal FBL-593

7v7/5v5 3.66m x 1.83m

1

Goal FBL-589

2

3mm 7v7/5v5 net FBL-371

16’x6’ 4.88m x 1.83m

Goal FBL-588

3mm 16’x6’ net FBL-370

5-a-side various x 1.22m

4.88m Goal FBL-583* 3.66m Goal FBL-584** Nets FBL-031*/032**

5-a-side various x 1.22m

4.88m Goal FBL-580* 3.66m Goal FBL-581** Nets FBL-031*/032**

Box profile goal with full length support posts

3 Standard profile goal with short support posts

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS 7v7/5v5

52

©Copyright 2002.

Discover the full range at harrodsport.com

setting the standard - leading the field ©Copyright 2002.

53

Aluminium Folding Goal

Super Heavyweight Goal

Freestanding portable aluminium goals for use on grass or synthetic surfaces.

Manufactured from heavy gauge material, these posts are designed for durability.

Goal Specification: • Uprights & crossbars made from 80mm diameter reinforced aluminium • Full length net supports are manufactured from zinc plated 32mm diameter steel • Steel bottom backbar manufactured from zinc plated 42.4mm diameter steel • Goal frame polyester powder coated white.

Features:

1

2

2 3 54

Fully welded corner joints provide superior strength and added safety Unique sprung loaded foot operated folding side frame ease of use and storage Side frames lock in play and folded positions for added safety.

9v9 4.88m x 2.13m

Goal FBL-240

2 1

7v7/5v5 3.66m x 1.83m

Goal FBL-181

3mm Nets FBL-371

Goal FBL-180

3mm Nets FBL-370

Goal FBL-185

3mm Nets FBL-031

1 Traditional 5-a-side Junior 3.66m x 1.22m

Goal FBL-187

Fully welded crossbar corner joint provides superior strength and added safety. Unique hexagonal rivet fixing provides 12mm of thread to prevent cross threading and gives a secure safe fixing.

This goal utilises the Bayonet Twist locking socket mechanism for added security ensuring the goals cannot be easily removed by unauthorised personnel.

Futsal size goals available online

Bayonet Twist Lock The bayonet twist lock is a type of securing system.

The mechanism utilises hooks on each upright that fit onto a welded bar in each socket. Once inserted and rotated, the two parts are securely joined and locked into place when the crossbar is fitted. The join can only be reversed by removing the crossbar, which means the goals cannot be easily removed by unauthorised personnel.

Senior 7.32m x 2.44m with Locking Sockets

Goal FBL-058

without Locking Sockets

Goal FBL-046

Solid Steel Continental Net Supports

FBL-053

2.5mm Poly FP1 Net

FBL-017

Junior 6.4m x 2.13m with Locking Sockets

Goal FBL-059

without Locking Sockets

Goal FBL-049

Options, extras and spares Synthetic net hooks pack of 24 FBL-222 Anti Tamper Security Bolts FBL-120 Heavy Duty Ground Peg FBL-116 Steel Drop-in Lids for 76mm Goals FBL-171 Plastic Lids - 81mm/83mm Round Sockets LID-002

Traditional 5-a-side Senior 4.88m x 1.22m

Mini 2.44m x 1.22m

1

Set consists of • 1 set = 2 goals • 24 Arrow Net Hooks • 4 Sockets • All Bolts & Fixings

16’x6’ 4.88m x 1.83m

4mm Braided Nets FBL-032

Features:

2

3mm Nets FBL-245

Goal FBL-186

Goal Specification: • Uprights & crossbars made from 76mm diameter steel • 80.9mm internal diameter sockets with internal bar allowing uprights to sit 313mm deep into socket • Polyester powder coated white.

Solid Steel Continental Net Supports

FBL-053

2.5mm Poly FP1 Net

FBL-090

9v9 4.88m x 2.13m with Locking Sockets

Goal FBL-252

Solid Steel Continental Net Supports

FBL-083

3mm Poly Stadium Net

2

FBL-246

4mm Braided Nets FBL-035

Discover the full range at harrodsport.com

setting the standard - leading the field

55

Heavyweight Goal

Goal Specification: • Uprights & crossbars made from 60mm diameter steel • 66mm internal diameter sockets designed to allow uprights to sit 310mm deep into socket • Polyester powder coated white.

Entry level socketed steel football goals ideally suited for school and junior club use.

Senior 7.32m x 2.44m -

Goal FBL-047

Continental Tubular Steel Net Supports - Full Size

FBL-081

2.5mm Poly FP1 Net

FBL-006

Features:

1

1

2 2

Fully welded crossbar corner joint provides strength and added safety.

Unique hexagonal rivet fixing provides 12mm of thread to prevent cross threading and gives a secure fixing.

Set consists of • 1 set = 2 goals • 24 Arrow Net Hooks • 4 Sockets • All Bolts & Fixings Options, extras and spares Synthetic net hooks pack of 24 FBL-222 Anti Tamper Security Bolts FBL-120 Heavy Duty Ground Peg FBL-116 Steel Drop-in Lids for 60mm Goals FBL-170 Plastic Lids - 66mm Round Sockets LID-004

Junior 6.4m x 2.13m -

Goal FBL-051

Continental Tubular Steel Net Supports - Full Size

1

2.5mm Poly FP1 Net

FBL-090

2

9v9 4.88m x 2.13m

Goal FBL-250

Continental Tubular Steel Net Supports - Full Size

FBL-082

2.5mm Poly FP1 Net

FBL-248

7v7/5v5 3.66m x 1.83m

Goal FBL-139

Continental Tubular Steel Net Supports - Full Size 2.5mm Poly Net

FBL-362 Discover the full range at harrodsport.com

Features:

FBL-081

FBL-082

56

Heavyweight Freestanding Goal

Goal Specification: • Uprights & crossbars made from 60mm diameter x 4mm stee, siderails and backbar 50mm square steel • Polyester powder coated white • Net supports are manufactured from zinc plated 32mm diameter steel • Complete with four ‘U’ peg PEG-021 anchors, for pegging on grass (risk assessment required prior to use).

2 3

Senior 7.32m x 2.44m -

Goal FBL-054

2.5mm Poly FP1 Net

FBL-006

Flip-over Wheels for Freestanding Steel Goals

FBL-556

Junior 6.4m x 2.13m -

Goal FBL-057

Fully welded crossbar corner joint provides strength and added safety.

The uprights have round plates on the bottom to prevent posts from marking artificial surfaces.

Unique hexagonal rivet fixing provides 12mm of thread to prevent cross threading and gives a secure fixing.

2.5mm Poly FP1 Net

FBL-090

Flip-over Wheels for Freestanding Steel Goals

FBL-556

9v9 4.88m x 2.13m

Goal FBL-060

2.5mm Poly JP1A

FBL-096

Flip-over Wheels for Freestanding Steel Goals

FBL-556

Set consists of • 1 set = 2 goals • 24 Arrow Net Hooks • 4 Sockets • All Bolts & Fixings Options, extras and spares Synthetic Arrow Net Hooks FBL-222 Anti Tamper Security Bolts FBL-120 Plastic Net Clips FBL-225

setting the standard - leading the field

57

Heavy Duty Galvanised Goals

Classic Goal

Preferred option for football specific venues that have high usage. These heavy duty football goals have fully welded side frames for added strength.

Heavy duty goalpost designed for venues that have constant heavy usage.

Goal Specification: • Uprights and crossbars made 60mm diameter galvanised steel • Polyester powder coated white.

Features • Fully welded side frame with bolt on crossbar and backbar • Unique hexagonal rivet fixing provides 12mm of thread to prevent cross threading and gives a secure fixing • M10 security bolts • Galvanised frames for durability.

9v9 4.88m x 2.13m

Goal FBL-509

4mm Braided Nets FBL-519

2

1

1

7v7/5v5 3.66m x 1.83m

Goal FBL-511

4mm Braided Nets FBL-521

2 16’x6’ 4.88m x 1.83m

Goal FBL-510

9v9

©Copyright 2011.

4mm Braided Nets FBL-520

Fully welded crossbar corner joint provides strength and added safety.

Unique hexagonal rivet fixing provides 12mm of thread to prevent cross threading and gives a secure fixing.

Set consists of • 1 set = 2 goals • 4 ‘U’ Peg Anchors • All Bolts & Fixings

Traditional 5-a-side Senior 4.88m x 1.22m 4mm Braided Nets FBL-522

Goal FBL-640 3mm Poly Net

FBL-640

7v7/5v5 3.66m x 1.83m

Goal FBL-641 FBL-641

9v9 4.88m x 2.13m

Goal FBL-140

3mm Poly FX5 Net

FBL-031

5-a-side various x 1.22m

4.88m Goal FBL-140 3mm Poly FX5 Net

Options, extras and spares Plastic Net Clips FBL-225

Goal FBL-512

16’x6’ 4.88m x 1.83m

3mm Poly Net

Features:

FBL-031

3.66m Goal FBL-141 3mm Poly FX5 Net

FBL-032 Traditional 5-a-side Junior 3.66m x 1.22m

As used

Goal FBL-513

at 5-a-side and

4mm Braided Nets FBL-523

Set Consists Of 1 Set = 2 Goals 58

Goal Specification: • 50.8mm diameter steel uprights & crossbars • Zinc plated 32mm diameter steel full length net supports • Zinc plated 42.4mm diameter steel • Steel bottom backbar • Uprights and crossbar polyester powder coated white • ‘U’ peg anchors are used on grass surfaces.

Discover the full range at harrodsport.com

soccer centres across the UK 5v5

setting the standard - leading the field

59

Freestanding Goal Freestanding steel goals for outdoor youth football.

1

Goal Specification: • 50.8mm diameter steel uprights & crossbars • Zinc plated 32mm diameter steel full length net supports • Zinc plated 42.4mm diameter steel • Steel bottom backbar • Uprights and crossbar polyester powder coated white • ‘U’ peg anchors are used on grass surfaces.

Features:

1

2

Fully welded crossbar corner joint provides strength and added safety.

Unique hexagonal rivet fixing provides 12mm of thread to prevent cross threading and gives a secure fixing.

Set consists of • 1 set = 2 goals • 4 ‘U’ Peg Anchors • All Bolts & Fixings Options, extras and spares Plastic Net Clips FBL-225

Folding Net Supports

16’x6’ 4.88m x 1.83m

Goal FBL-142

2.5mm Poly Net

FBL-363

7v7/5v5 3.66m x 1.83m

Goal FBL-143

2.5mm Poly Net

FBL-362

Fixed Net Supports

16’x6’ 4.88m x 1.83m

Goal FBL-138

2.5mm Poly Net

FBL-363

Polygoal PVC freestanding goal easily assembled/ dismantled, for ease of transportation to and from the pitch.

Goal Specification: • Manufactured from 68mm diameter heavy duty white PVC. • Complete with a 2.5mm net, ‘U’ peg anchors, net retaining clips and carry bag with zip.

• Joins together using PVC button clips to ensure stability.

• Bag is complete with central carry straps.

• Sold as a single goal.

Features: • Freestanding goal is lightweight that can be easily assembled and dismantled.

7v7/5v5 3.66m x 1.83m

Goal FBL-160

Spare Polygoal Bag

Goal FBL-161

Set consists of • 1 Goal, 1 Net, • 2 ‘U’ peg Anchors • 1 Carry Bag • All Bolts & Fixings

7v7/5v5 3.66m x 1.83m

Goal FBL-137 3mm Poly Net

FBL-362

60

Discover the full range at harrodsport.com

setting the standard - leading the field

61

Premier Head Tennis

Height adjustable professional standard head tennis unit

Easily wheeled to the training pitch, this is the ideal training aid for clubs.

Specification: • Adjustable net height from 1m to 1.85m • 100mm diameter aluminium uprights complete with slider mechanism • Heavy duty steel base ensures constant net tension • Blue polyester powder coating • Two large cellular rubber wheels • 6m x 1m net with PVC headband.

Football Header Trainer The perfect training unit for specialised heading practice.

Other colours available

Specification: • Overall height 4.4m • Wing span 3.8m • Complete with 2 x teathered footballs • Polyester powder coated white • Manufactured from 76mm square aluminium • Complete with 2 support braces and sockets.

FBL-710

FBL-650

Bespoke indoor options available - POA

62

Discover the full range at harrodsport.com

setting the standard - leading the field

63

Folding Wheelaway Goal Heavy duty indoor wheel away goal designed for sportshall use.

Goal Specification: • 50.8mm diameter steel uprights & crossbars • Zinc plated 32mm diameter steel full length net supports • Zinc plated 42.4mm diameter steel • Steel bottom backbar • Uprights and crossbar polyester powder coated white • ‘U’ peg anchors are used on grass surfaces.

Features:

1

2

Unique sprung loaded foot operated folding side frame for ease of use and storage.

Side frames lock in the play and folded positions for added safety.

Set consists of • 1 set = 2 goals • All Bolts & Fixings

64

Discover the full range at harrodsport.com

5-a-side various x 1.22m

4.88m Goal FBL-125 3mm Poly FX5 Net

FBL-032

3.66m Goal FBL-126 2.5mm Poly FP15A Net

FBL-029

2.44m Goal FBL-127

FS1 Fold-away Goal Folding goal designed specifically for sports halls.

2.5mm Poly FP15B Net

FBL-030

Specification: • 50mm diameter steel uprights & crossbars • 25mm diameter steel side frames • Large rubber pads protect and grip floors • Polyester powder coated white.

5-a-side various x 1.22m

4.88m Goal FBL-036* 3.66m Goal FBL-037** 2.44m Goal FBL-038***

Nets FBL-028*/029**/030***

Set consists of • 1 set = 2 goals • All Bolts & Fixings Features: • Button clip mechanism allows net supports to fold away for easy storage • Side frames lock in the play and folded positions for added safety • Detachable steel bottom backbar and plastic pads to prevent floor damage.

setting the standard - leading the field

65

Pro Flex 50mm Poles

Springback Poles

Material

FBL-308 FBL-309 FBL-303 FBL-311 FBL-310 FBL-002 FBL-284 FBL-636 FBL-017 FBL-684 FBL-003 FBL-018 FBL-006 FBL-008 FBL-080 FBL-098

White poles FBL-410

Corner flags for 50mm poles • 34cm x 34cm • Available in the following colours: black, green, maroon, navy, orange, red, royal blue, white and yellow.

1 Colour FLG-321 2 Colour FLG-332

FBL-660 FBL-019 FBL-691 FBL-357 FBL-090 FBL-618 FBL-011

Bespoke options avaialble - POA

Bottom R/B

4mm Braided 4mm Poly 3mm Braided 4mm Poly 4mm Poly 4mm Poly 4mm Poly 4mm Poly 4mm Poly 4mm Poly 3mm Poly 3mm Poly 2.5mm Poly 2.5mm Poly 2.5mm Poly 2mm Poly

White Black White White White White White White White White White White White White Black White

4mm Poly 4mm Poly 4mm Poly 3mm Poly 2.5mm Poly 2.5mm Poly 2mm Poly

White Black White White White White White

FBL-659 FBL-360 FBL-519 FBL-307 FBL-245 FBL-096 FBL-562 FBL-246 FBL-248

4mm Poly 4mm Poly 4mm Braided 3mm Poly 3mm Braided 2.5mm Poly 2.5mm Poly 3mm Poly 2.5mm Poly

White Black White White White White White White White

Box Box Box-Hex Box Box Standard Standard Standard Standard Standard Standard Standard Standard St Back Standard Standard

1.80m 1.80m 2.00m 1.80m 1.80m 3.0m 1.80m 2.13m 2.44m 1.60m 3.0m 2.40m 3.0m 2.44m 3.0m 3.0m

Standard Standard Standard Box Standard St Back Standard

2.13m 2.44m 1.60m 1.80m 2.70m 2.40m 2.70m

Standard Standard Standard Box Standard Standard St Back Standard Standard

2.20m 2.13m 1.89m 1.80m 2.20m 2.70m 2.18m 2.10m 2.10m

9v9 - 4.88m x 2.13m FBL-674 4mm Poly FBL-361 4mm Poly

Material

Colour

Profile

Bottom R/B

Standard Standard Standard Standard Standard Standard

1.83m 1.75m 1.89m 1.80m 1.50m 1.50m

Standard Standard Standard Standard Standard Standard

1.83m 1.80m 1.89m 1.50m 1.90m 1.50m

16’ x 6’ - 4.88m x 1.83m

9v9 - 4.88m x 2.13m

• Flexible rubber connector.

32mm PVC pole FBL-399

Discover the full range at harrodsport.com

Profile

JUNIOR - 6.40m x 2.44m

Bespoke printed corner flag available upon request

66

Colour

SENIOR - 7.33m x 2.44m

• Single complete PVC spring back pole, orange/ yellow flag, socket and lid.

• As used by top professional clubs.

• Designed to reduce the risk of injury caused by fixed poles, the connectors spring back after contact.

Yellow poles FBL-412 Proflex Corner Base (Steel) FBL-418 Proflex Corner Base (Rubber) FBL-069

Nets

White Standard 1.83m White Standard 1.85m

FBL-664 FBL-358 FBL-520 FBL-642 FBL-370 FBL-363

4mm Poly 4mm Poly 4mm Braided 3mm Poly 3mm Poly 3mm Poly

White White White White White White

7v7/5v5 - 3.66m x 1.83m FBL-661 FBL-359 FBL-521 FBL-371 FBL-643 FBL-362

4mm Poly 4mm Poly 4mm Braided 3mm Poly 3mm Poly 2.5mm Poly

White Black White White White White

FUTSAL - 3.00m x 2.00m FBL-665 FBL-676 FBL-052 FBL-169

4mm Braided 4mm Poly 2.5mm Poly 2.5mm Poly

White White White White

Standard Standard Standard Standard

1.85m 1.85m 2.00m 1.00m

Standard Standard Standard Standard

1.32m 1.28m 1.20m 1.20m

Standard Standard Standard Standard

1.28m 1.28m 1.20m 1.20m

Our specialised netting factory and warehouse, enables our team of highly trained net technicians to produce every net listed within this catalogue.

Euro Net 4mm Braided

FPX 4mm Polypropylene

FP14 3mm Polypropylene

FP1 2.5mm Polypropylene

We can also cater for bespoke netting requirements.

For our full range of nets visit our website.

5-A-SIDE - 4.88m x 1.22m FBL-662 FBL-522 FBL-031 FBL-028

4mm Poly 4mm Braided 3mm Poly 2.5mm Poly

White White White White

5-A-SIDE - 3.66m x 1.22m FBL-662 FBL-522 FBL-031 FBL-028

4mm Poly 4mm Braided 3mm Poly 2.5mm Poly

White White White White

5-A-SIDE - 3.66m x 1.22m FBL-666 4mm Poly FBL-035 3mm Poly FBL-030 2.5mm Poly

White Standard 1.20m White Standard 1.20m White Standard 1.20m

All nets are listed within the catalogue with the goal they are designed to fit, please therefore utilise this reference to ensure the net you order is suitable for your goal.

Poly - Polyethylene twisted twine.

Braided - Braided Twine.

Hex - Hexagonal Mesh.

All nets are listed within this catalogue with the goals they are designed to fit, please therefore utilise the reference codes to ensure the net you order is suitable for your goal choice.

Box Profile Net Standard Profile Net

Straight Back Profile Net setting the standard - leading the field

67

Mini Training Goal

Mini Target Goal

Lightweight and portable, the perfect training aid for target practice and small sided games.

Lightweight and easily portable - the perfect training aid for Football and Hockey.

Specification: • 80mm diameter x 2.5mm thick aluminium • Polyester powder coated white • Full length international style net supports • Complete with 4mm thick polyethylene net • Easy to use synthetic net hooks.

FBL-606

FBL-607

FBL-608

1.5m x 1.0m FBL-606 2.0m X 1.0m FBL-607 3.0m X 1.0m FBL-608 7.0m X 1.0m FBL-609

Harrod Sport Folding Target Goal The Folding Target Goal is designed to be easily transported, either for a kick about with kids or a portable training aid for professional football training. The goal can easily be set up in 10 seconds and can be used on multiple surfaces.

Goal Specification: • 50.8mm aluminium crossbar and uprights with 32mm aluminium net supports.

• Polyester powder coated matte black.

• Size: 1.5m W x 0.9m H. • Supplied with Velcro fastening elasticated net.

• Sold as a single goal c/w net.

• Goalframe arrives assembled with net partly assembled to goalframe.

Features: • Quick and easy set up for play.

• Spring mechanism in the crossbar hinge allows the goal to lock in ‘play’ and ‘storage’ positions.

3ft x 5ft FNS-037 4ft x 6ft FNS-038 FBL-606

Specification: • Manufactured from 65mm x 50mm aluminium • Powder coated white

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

68

Discover the full range at harrodsport.com

FBL-609

• Complete with 3mm braided polyethylene nets and synthetic net clips • Net colour may vary.

2.44m x 0.6m

HOC-055

setting the standard - leading the field

69

Rebound Boards

Analysts Shelter

Combination Posts

This product was designed specially for use during the London 2012 Paralympic Games as a boundary for the 5-a-side Blind Football.

Technical dugout designed to the highest standards for competition use.

The ideal solution for sports grounds where limited space is a primary concern.

Specification: • Football goal uprights manufactured from 60.3mm diameter x 3mm thick steel • Football goal crossbar manufactured from 60.3mm diamter x 4mm thick steel • Complete with 24 synthetic net hooks • Rugby post uprights and crossbar manufactured from 50.8mm diameter x 3.25mm thick aluminium • Rugby post uprights stand 3.5m high from football crossbar • Rugby crossbar is 5.6m long Polyester powder coated white • Complete with four 460mm deep sockets

Bespoke options available - POA

As used for Euro 2017 IBSA Blind Football Tournament, Belgium

Specification: • 2m long and 1.2m high with a 10 degree angle • Boards manufactured from aluminium • Boards are mounted on a foldable galvanised Steel support frame, all powder coated white • Boards with bevelled top edges for added safety • 42 boards are required to make a set.

Rebound Boards

Features: • 2.0m high allowing full standing access • Fitted floor made from timber decking • Clear polycarbonate front and sides to allow for complete match viewing • Water tight when closed fully • Curved profile • Door access from one side only • Internal bench top fitted for judges • Protective front panel made from white composite aluminium • Requires separate anchorage.

Set consists of • 1 set = 2 goals • 4 Sockets • All Bolts & Fixings Senior 7.32m x 2.44m -

Goal FBL-235

2.5mm Poly FP1 Net

FBL-006

Junior 6.4m x 2.13m -

Goal FBL-236

2.5mm Poly Net

FBL-006

Specification: • Made from 50mm square aluminium with bespoke internal extrusions • Aluminium composite front and side panels • Clear polycarbonate front, back and side sheets • Overall width of 2.5m and depth of 1.5m • Fully freestanding • Polyester powder coated white.

SHE-158

FBL-255 70

Discover the full range at harrodsport.com

setting the standard - leading the field

71

Turf Screw

The Harrod Turf Screw works in conjunction with…

Designed where concrete is not possible or as a preferred method of installation, the turf screw provides a strong socket style solution.

Complete with caps to take 50mm, 42mm and 38mm poles.

P.21

Specification: • Made from galvanised steel • 1 socket with 3 collars to take 50mm, 42mm and 38mm uprights • Socket caps.

Spectator Barrier System

Pitch Protection Barrier

Suitable for Clubs, Schools and Universities. The system is the ideal way to protect pitches or walk ways and is designed specifically for use with the unique Harrod Sport turf screw (see left).

Spectator Barrier Sponsorship Kit Converts Standard Spectator Barrier to take sponsorship board.

Kit includes bottom rail and key clamps. Price on application.

P.21

BAR-030

Turf Screw Insertion Tool Reusable device designed to drive turf screws securely into the ground.

P.49

BAR-031

See website for full details and full quotation on application.

P.49 ©Copyright 2011.

©Copyright 2011.

WATCH A PRODUCT VIDEO ON OUR WEBSITE 72

Discover the full range at harrodsport.com

P.50

Specification: • 0.95m high out of ground uprights with 2.1m top rails • Manufactured from 42mm diameter galvanised steel and complete with key clamp fixings

• Upright and top rails are polyester powder coated white • Turf screw or sockets must be ordered separately.

Bespoke options available - POA Designed to create a barrier between the pitch and all other areas.

1m high upright

Specification: • Made from 50mm aluminium • Designed to be used with either a turf screw or standard socket • Turf screw or sockets must be ordered separately • Polyester powder coated white.

25m White plastic chain

BAR-029 BAR-028

Turf Screw each

BAR-030

Spectator barrier socket

BAR-035

setting the standard - leading the field

73

Stadium Crowd Protection System

Training Ground Pitch Divider System

Demountable netting system for pre-match stadium warm-ups.

Features • Semi permanent netting system utilising the unique Harrod Sport Turf Screw.

Features • 5m high system available in various lengths from 20m to 60m • Pulley system allows netting to be raised • Sockets and lids included.

Specification: • 80mm diameter aluminium poles 2.5mm x 120mm mesh netting.

20m system BAR-009 30m system BAR-010 40m system BAR-011 50m system BAR-012 60m system BAR-013 Options, Extras & Spares BAR-020 Ground socket

Bespoke Pro Club System

Ideal for training ground environments and shared pitches which require a ball stop boundary.

Rachet winch and wire headline for superior tension

Features • Semi permanent netting system utilising the unique Harrod Sport Turf Screw.

Specification: • Uprights manufactured from 50mm aluminium • 120mm square mesh sleeved netting with bottom band for easy installation • Polyester powder coated black • Turf Screw Sockets included • Any length can be ordered in 10m increments.

Per 10m run available up to 100m 100m System

BAR-048

Available in 10m increments - see website for full details

Perimeter Pole System

Turf Screw details see page 48

Specification: • Uprights 7.3m high x 76mm diameter steel • Complete with 15m haulage rope, eye and cleat • For use with lightweight surround netting only • Maximum distance between posts must be no more than 5.5m • The design makes lowering the netting an easy operation. When strong winds are forecast we recommend that nets are lowered for precautionary measure.

• Polyester powder coated green (other colours available POA).

6.4m High

FBL-101

Perimeter Pole Socket

FBL-100

2.5mm Surround netting black 120mm mesh

6.4m out of ground height

Bespoke steel & aluminium systems - POA

FBL-013

74

Discover the full range at harrodsport.com

setting the standard - leading the field

75

Turf Screw Ball Stop System Ideal for training ground environments which require a ball stop boundary. The ball stop systems are designed to be used with heavy duty ground screws, supplied and installed by professional machinery.

Features • Nets are raised and lowered using a haulage rope system.

Specification: • BAS-060 - Single 76.2mm steel uprights.

• BAS-065 - Single 88.9mm steel uprights and 76.2mm top upright.

• Polyester powder coated green (other colours available POA).

• Maximum distance between posts must be 5m.

• The design makes lowering the netting an easy operation. When strong winds are forecast we recommend that nets are lowered for precautionary measure.

76

6.4m High

Ground Screw Features • Heavy duty ground screw, used for ball stop systems, which are installed by professional machinery.

140 x 1300mm

BAR-061

140 x 1600mm

BAR-066

BAR-060

Recommended for use with: Ground Screw 140 x 1300mm

BAR-061

2.5mm Poly Black Net

FBL-013 8m High

BAR-065

Recommended for use with: Ground Screw 140 x 1600mm

BAR-066

3mm Black Braided Poly Net

FBL-033

Discover the full range at harrodsport.com

No concrete required

setting the standard - leading the field

77

Pro Club Academy Pitch Perimeter System

ATLETICO MADRID Wanda Metropolitano

ST GEORGE’S PARK England National Football Centre

REAL MADRID Santiago Bernabéu Stadium

WEMBLEY STADIUM National Football Stadium HAMPDEN PARK Scotland National Stadium

PARIS SAINT GERMAIN Parc des Princes OLYMPIQUE DE MARSEILLE Orange Vélodrome

AVIVA STADIUM Republic of Ireland National Stadium

LILLE OSC Stade Pierre-Mauroy

WINDSOR PARK Northern Ireland National Stadium

AS SAINT-ÉTIENNE Stade Geoffroy-Guichard

Designed to fully enclose training pitches and work as a full standalone system. Can be designed as a bespoke system and work with existing ball stop netting or pitch fencing.

STADE RENNAIS Roazhon Park FC NANTES Stade de la Beaujoire CLAIREFONTAINE French National Football Centre

System can be manufactured between 2.7m and 3.0m high with retractable end sections or central door access.

LUZHNIKI STADIUM Russia National Stadium OLIMPIYSKIY STADIUM Ukraine National Stadium

Please ask your distributor for further details and a full tailored quotation

SHANGHAI SIPG Shanghai Training Centre KING ABDULLAH SPORTS CITY STADIUM Saudi Arabia

©Copyright 2017.

78

Discover the full range at harrodsport.com

PRINCIPALITY STADIUM Wales National Stadium

Worldwide

prestigious

venues

ARSENAL Emirates Stadium BRIGHTON Amex Stadium CELTIC Celtic Park EVERTON Goodison Park RANGERS FC Ibrox Stadium LEICESTER CITY King Power Stadium LIVERPOOL Anfield MANCHESTER CITY Eithad Stadium MANCHESTER UNITED Old Trafford NEWCASTLE St James Park

DUBAI SPORTS CITY Dubai

SOUTHAMPTON St Mary’s Stadium

JABER AL-AHMAD INTERNATIONAL STADIUM Kuwait National Stadium

STOKE CITY Bet365 Stadium

EITHAD STADIUM Melbourne, Australia

TOTTENHAM White Hart Lane WEST HAM The London Stadium

setting the standard - leading the field

79

Gaelic Posts

Mini Gaelic Post

Senior Gaelic Posts - Aluminium

Senior Gaelic Posts - Steel

Senior Gaelic Posts - Steel

Junior Gaelic Posts - Steel

Junior Gaelic Posts - Aluminium

Lightweight and easy to handle.

Ideal for clubs and schools.

The ideal junior gaelic post.

Freestanding & portable.

Self weighted & portable.

Features: • 10.67m out of ground height.

• Uprights supplied in two pieces.

Features: • 10.67m out of ground height.

• Uprights supplied in two pieces.

Features: • Upright height 6.2m out of ground.

Features: • Can be used with optional flip over wheels in order to be portable.

Specification: • Bottom uprights 7m x 76mm diameter • Top uprights 5.5m x 63.5mm diameter • Crossbar 6.49m x 76mm diameter • 32mm diameter galvanised steel nets supports • 1m deep sockets, 79mm inside diameter with base plates, posts are fitted with a pin so they drop 940mm below ground level • Polyester powder coated white

Specification: • Bottom uprights 7.3m x 60mm diameter • Top uprights 5.1m x 50.8mm diameter • Crossbar 6.49m x 60mm diameter • 32mm diameter galvanised steel nets supports • 1m deep sockets, 66mm inside diameter with base plates, sockets are fitted with a pin so posts drop 940mm below ground level • Polyester powder coated white

Features: • Self weighted portable aluminium Gaelic goal, comes complete with a back bar of individual galvanised steel rollers.

GAL-001

GAL-004

2.5mm Goal Net GAL-006

2.5mm Goal Net GAL-006

80

Discover the full range at harrodsport.com

Specification: • Uprights 7.3m x 60mm diameter • Crossbar 4.5m x 60mm diameter • 32mm diameter galvanised steel nets supports • 1m deep sockets, 66mm inside diameter with base plates, sockets are fitted with a pin so posts drop 940mm below ground level • Polyester powder coated white.

GAL-002 2.5mm Goal Net GAL-007

Specification: • Upright height 4.5m out of ground.

• Uprights 4.5m x 60mm diameter • Crossbar 3.0m x 60mm diameter • Side rails and back bar are made from 50mm square steel, distributing the weight more evenly • Net supports are made from galvanised 32mm diameter • Complete with four ‘U’ Peg PEG-021 anchors • Polyester powder coated white.

GAL-003 2.5mm Goal Net GAL-008

Specification: • Upright height 4.5m out of ground.

• Aluminium uprights, crossbars and sidebars • 31.8mm diameter International galvanised steel net supports and diagonal braces • Full length bottom net retaining bar • Polyester powder coated white (excluding rollers) • Complete with lock-on synthetic net hooks.

GAL-016 4mm Goal Net GAL-017

setting the standard - leading the field

81

Handball - Aluminium

Handball - Steel

This regulation aluminium handball goal is the ideal choice for top level matches with its angled side frame and freehanging net.

Steel handball goals with folding side frames and wheels to aid movement.

Specification: • Made from 80mm square reinforced aluminium • 31.8mm steel folding net supports with a 1.1m top and a 1.3m bottom runback angled out to facilitate free hanging net • Overall goal size 3520mm Wide x 2080mm High x 1352mm Deep • Polyester powder coated red with white vinyl markings.

Specification: • Made from 80mm square steel • 28.6mm steel folding net supports • Polyester powder coated red with white vinyl markings • 3m x 2m x 1.98m Features: • Folding net supports with flip up non -marking rubber wheels.

• Detachable backbar for ease of use and storage.

Features: • Fully welded corner joints provide superior strength and added safety • Plunger mechanism allows net supports to fold easily • Detachable backbar for ease of use and storage.

Steel Folding Handball Goal

HAN-003 Nets

HAN-001

Competition Aluminium Handball Goal

HAN-010 Nets

HAN-005

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

82

Discover the full range at harrodsport.com

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

setting the standard - leading the field

83

Harrod Sport FIH Hockey Goal Harrod Sport was the first company in the UK to design and manufacture a unique range of integral self weighted goals for Hockey. The market leading concept has now been widely adopted as the industry preferred method for all aluminium freestanding goals. Completely safe to use at all times, eliminating the users responsibility of attaching separate anchors.

As used at the 2012 & 2016 Olympic Games

Goal Specification: • Uprights & crossbars made from 75mm x 50mm reinforced aluminium • Fully welded corner joints provide superior strength and added safety • 460mm high reinforced aluminium backboard panels with extra thick impact absorbent noise reducing carpet on all inside faces • Polyester powder coated white excluding net supports and backboards which are coloured.

1

3

Backbar consists of a single weighted tube with 2 puncture proof cellular rubber wheels allowing for ease of manoeuvrability Uprights and crossbars have a 7mm thick reinforced front wall to prevent hockey ball damage.

Specially designed 50.8mm diameter back tubes allow the net to hang freely to meet FIH specifications and eliminate ball rebound.

Integral net retaining system holds the net firmly in place without the use of net clips.

See page 56 for colour options Discover the full range at harrodsport.com

2

Features:

2

84

3

3mm braided net

FIH Accredited

1

A HARROD SPORT

INNOVATION Integral Weighted Hockey Goal

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

©Copyright 2012.

setting the standard - leading the field

85

Bespoke Hockey Goals

Integral Weighted Standard Colour Options The Harrod Sport Integral Weighted hockey goals are available in a range of stock colours. We can also match your own specified RAL colour at an additional cost - please call for details of our bespoke service.

Black Goal 3.66m x 2.14m

HOC-160 86

Black 3mm braided net

HOC-157

Discover the full range at harrodsport.com

As the first company in the UK to design and manufacture a unique range of integral self weighted hockey goals we have continued to lead the way developing a service that allows Universities, Schools and Clubs across the country to bespoke our Integral Weighted hockey goal.

Blue Goal 3.66m x 2.14m

HOC-151

Red Goal 3.66m x 2.14m

Blue 3mm braided net

HOC-156

Black 3mm braided net

HOC-152 HOC-157

Green Goal 3.66m x 2.14m

HOC-159

Rio Goal 3.66m x 2.14m

Green 3mm braided net

HOC-158

Rio 3mm braided net

/2017 out 1 11/10

RGS_Lay

1 12:21 Page

th School Ba Royal High hted Hockey Goal eig HOC-151 W

Expertly crafted from the initial visual to the application of branding

We supply a bespoke range of hockey goals which can be personalised with your club logo and colours.

What the Harrod Sport bespoke hockey goal service offers: • Bespoke outer graphics • Bespoke laser cut carpet • Choice of net colour (green, black and blue) • Choice of standard framework colours (red, blue, black and green)

Bespoke RAL colours available - POA

HOC-170 HOC-158

setting the standard - leading the field

87

Euro League Competition Weighted Hockey Goal

2

3

3mm braided net

The UK’s best-selling weighted hockey goal, now available in yellow.

Goal Specification: • Uprights & crossbars made from 75mm x 50mm reinforced aluminium • Fully welded corner joints provide superior strength and added safety • 460mm high reinforced aluminium backboard panels with extra thick impact absorbent noise reducing carpet on all inside faces • Polyester powder coated white excluding net supports and backboards which are coloured.

Features:

1

2

3

Backbar consists of a single weighted tube with 2 puncture proof cellular rubber wheels allowing for ease of manoeuvrability Uprights and crossbars have a 7mm thick reinforced front wall to prevent hockey ball damage.

Specially designed 50.8mm diameter back tubes allow the net to hang freely to meet FIH specifications and eliminate ball rebound.

Integral net retaining system holds the net firmly in place without the use of net clips.

88

Discover the full range at harrodsport.com

1

A HARROD SPORT

INNOVATION Euro League Competition Weighted Hockey Goal

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

©Copyright 2012.

setting the standard - leading the field

89

Fence Folding Hockey Goal Designed and ideally suited for synthetic surfaces, unique pivot joints allow the goal to fold back safely and easily against surround fence without detaching the backboard. Often imitated, never surpassed.

Goal Specification: • Uprights & crossbars made from 75mm x 50mm reinforced aluminium • Anchor posts made from 100mm x 100mm zinc plated steel • Adjustable telescoping side bars and vertical support bar made from 60mm x 60mm zinc plated steel • 460mm high reinforced aluminium backboard panels with green noise reducing carpet on all inside faces • Polyester powder coated white, excluding backboards and support posts which are green.

Features:

1

Uprights and crossbars have a 7mm thick reinforced front wall to prevent hockey ball damage

2

Telescopic side supports allow for exact projection

3

Goal locks in place when extended for play and when fully folded

4

Fully welded corner joints provide superior strength and added safety

5

Solid roller wheel provides easy maneuverability.

1 4

2

3.3m to 4.8m Projection

HOC-132

2.5m to 3.3m Projection

HOC-131

2.1m to 2.5m Projection

HOC-130

3

Bespoke colour options and branding available - POA 90

Discover the full range at harrodsport.com

5

Inside Fence Folding options available - see website for full details

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

©Copyright 2012. This product is protected by design right.

setting the standard - leading the field

91

Premier Aluminium Hockey Goal

Goal Specification: • Uprights & Crossbars made from 65mm x 50mm reinforced aluminium • Net supports and top backbar manufactured from 32mm diameter aluminium • 460mm high reinforced aluminium backboard panels with green noise reducing carpet on all inside faces • Polyester powder coated white.

An excellent option specifically suited to both water and sand based synthetic surfaces. The goals can be easily moved using our cellular rubber wheel kit preventing damage to the surface.

Features:

1

2

1

2

Side frames complete with fully welded back tubes and lifting handles for added strength.

Premier Steel Hockey Goal A great option for all synthetic surfaces, available with either durable PVC or standard backboards.

Goal Specification: • 50mm square steel uprights & crossbars • Lifting handles designed for use with optional flip over wheel kit • Net supports, lifting handles and top backbar made from 25mm square pre-galvanised steel.

• 460mm high backboards in PVC • Uprights and crossbars polyester powder coated white.

Features:

1

Uprights and crossbars feature stainless steel retaining rods to ensure net is held firmly in position.

3.66m x 2.14m

HOC-104

HP14 3mm Nets

HOC-003

2

The reconstituted PVC backboards are extremely durable against high impact hockey balls and are extremely weather resistant. Will not crack or warp when exposed to the elements.

Uprights and crossbars feature aluminium retaining rods to ensure net is held firmly in position.

3.66m x 2.14m with PVC Backboards

HOC-017

3.66m x 2.14m with Wooden Backboards

HOC-016

HP14 3mm Nets

HOC-003

92

Discover the full range at harrodsport.com

setting the standard - leading the field

93

Folding Wheelaway Hockey Goal Folding hockey goal with integral wheels. Simply lift out the backboard, engage the wheels and the goal is ready to be moved by two adults.

Goal Specification: • 50mm square steel uprights & crossbars • 25mm square steel hinged folding side frame • 460mm high x 18mm regulation wooden backboards • Polyester powder coated white, excluding side frame which is green.

Features:

1

2

Heavy duty hinged folding side frame with large rubber wheels and robust handle.

Uprights and crossbars feature aluminium retaining rods to ensure net is held firmly in position.

3.66m x 2.14m

HOC-030

HP14 3mm Nets

Freestanding Steel Hockey Goal Designed for junior club and school use.

Goal Specification: • 50mm square steel uprights & crossbars • 25mm diameter steel net supports • 152mm x 18mm wooden practice backboards • Uprights and crossbars polyester powder coated white.

Features:

1

Available with 152mm practice backboards.

2

Can be used with optional wheel kit.

with Regulation Wooden Backboards

HOC-015

HP14 3mm Nets

HOC-003

Flip Over Wheel Kit

HOC-140

HOC-003

94

Discover the full range at harrodsport.com

setting the standard - leading the field

95

Heavy Duty Aluminium Indoor Hockey Goal

Goal Specification: • Uprights & crossbars made from 80mm square reinforced aluminium • Net supports and top backbar manufactured from 32mm diameter aluminium • 460mm high reinforced aluminium backboard panels with green noise reducing carpet on all inside faces • Polyester powder coated white.

The ideal indoor regulation hockey goals as used at the England Hockey Super Sixes Indoor Finals.

Indoor Steel Folding Hockey Goal

Goal Specification: • Uprights & Crossbars made from 50mm square steel • 460mm high x 18mm wooden backboards • Polyester powder coated white • 460mm/152mm backboards painted green.

Folding wheelaway goal, simply lift out the backboard, fold the net supports and the goal is ready to be moved by two adults.

Features: • Available with regulation 460mm backboards • Folding wheelaway sideframe with wheels.

460mm Backboard 3m x 2m with 1m R/B

Features: • Side frames complete with fully welded back tubes and lifting handles for added strength • Fully welded corner joints provide superior strength and added safety • Uprights & crossbars feature stainless steel retaining rods.

HOC-026

HP16 2mm Nets

HOC-019

3m x 2m with 1m R/B

HOC-106

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

96

Discover the full range at harrodsport.com

CONFORMS TO BRITISH & EUROPEAN SAFETY STANDARDS

setting the standard - leading the field

97

Hockey Backboard Protection System

Hockey PVC Branding Triangles

Freestanding Hockey 5s Surround Hockey 5s is an official short form of 11-a-side Hockey. It is played by 5 players per side rather than 11 and is designed as a complementary format of the game.

Designed as a board protection pad for hockey training session. During a session the hockey goal can sustain more use than it would in match situations for a whole season.

Specification: • 50mm diameter steel uprights & crossbars • 25mm diameter steel side frames • Large rubber pads protect and grip floors • Polyester powder coated white.

Features: • Added protection to the backboards improves the overall lifespan of the goal • Significantly aids noise reduction.

Hockey Backboard Protection System

98

Set consists of • 1 set = Protection for 2 Goals • 8 Pads - 4 Pads (1800mm x 480mm) • 4 Pads (1200mm x 480mm)

HOC-048

Discover the full range at harrodsport.com

These Branding Triangles will be placed against the crossbar and upright, secured into place with Velcro strips.

Specification: • Right hand width - 492 mm • Left hand width - 495 mm Features: • Integrally Weighted Hockey PVC Branding Triangles. This product is made from White PVC and will be branded with a Sponsor or customer logo.

Goal Specification: • The boards are manufactured from 3mm laser cut and folded galvanised steel • Polyester powder coated white • The rebound face of the board is covered with black 25mm thick closed cell HDPE foam, held in place by the self-adhesive backing • Grip tape is applied to the bottom face of the boards in order to prevent movement during play • Set of boards, creates 48m x 31.76m hockey pitch.

It is recommended that the boards are weighed down with one handbag weight every other board.

ANC-240 and ANC-240-S have also been structured to facilitate this requirement, 38 of which are required as ballast for one set of HOC-240.

ANC-240 will be sprayed Matt Black as standard.

Features: • 250mm high perimeter boards • The foam is also available in green, red, blue and yellow at an additional cost. The boards are joined with plated and powder coated matt black steel brackets.

HOC-240 ©Copyright 2017.

setting the standard - leading the field

99

Hockey Pitch Divider Pad

Hockey Storage Trolley

Folding Hockey Target Boards

As used at the 2014 Youth Olympic Games, China for Hockey 5’s, Olympic and Commonwealth games for practice.

Designed to transport Hockey Pitch Divider Pads and Indoor Hockey Pitch Sideboards.

Folding Hockey Target Board is the perfect training aid for Schools, Clubs and Universities.

Board Specification: • 16 pads will divide the full width of a hockey pitch • Made from white PVC (as standard) covered high density foam with an internal strip of wood to provide pad stability • Pads are 3.66m long x 120mm high x 160mm wide • Each pad can be joined to the next via a secure velcro fastening.

Hockey 5’s Pads

Specification as per HOC-046, but with higher density foam.

Sold as a set of 50 x 3.66m & 4 x 0.85m pads.

HOC-047

3.66m sold singularly

(16 pads required to divide a pitch)

HOC-046

Bespoke options available - POA

100

Discover the full range at harrodsport.com

• Manufatured from steel with detachable side handle for ease of loading • 6 x castor wheels • Polyester powder coated red.

STO-030

Board Specification: • Consists of 25mm reinforced extruded aluminium, powder coated yellow, protected by black matchwinner velour carpet • Boards connected with black aluminium, adjustable friction hinges • Friction hinges allow sideboards to be set at different angles to make a larger/smaller target as required • Easily folded for storage, recessed carry handle on the rear of the backboard allows ease of transportation.

• Size: 992mm x 266mm.

HOC-058

setting the standard - leading the field

101

FIH Accredited Aluminium Indoor Hockey Pitch Sideboards Board Specification: • Bespoke 100mm square aluminium extrusion sideboards with an angled front face • Polyester powder coated red • Black PVC on the angled front face protects the aluminium and increases product lifespan • Rubber feet on the underside helps to grip and protect the playing surface • Sideboards comply with FIH regulations and offer a tougher and more durable alternative to traditional wooden sideboards • A set consists of 44 two metre sideboards, including specific end boards • Electroplated steel joining plates • Use product code HOC-251 for 1m length.

102

Bespoke options available - POA

Features: • The 44 sideboards form the sidelines of an indoor hockey pitch • The sideboards reflect true rebound on impact • The sideboards allow continuous game play.

HOC-250

Please note: HOC-250 (88m) is regarded as competition pitch size but for other sizes please use product codes HOC-251, HOC-252 and HOC-253.

Left and right end boards (2m each = 4m in total)

HOC-251

Mid-section board (2m each)

HOC-252

Mid-section board (1m each)

HOC-253

Discover the full range at harrodsport.com

This product is protected by registered design no. 6004417

setting the standard - leading the field

103

Event Equipment Hockey Bag Trolley

Hockey Stick Rack

Designed for International tournaments to store large hockey bags.

Trolley that holds 16 sticks with retractable lid to provide rain protection to stick handle.

Specification: • Aluminium frame with 2 rear swivel wheels & 2 front swivel brake wheels • 2mm clear polycarbonate back, sides and roof • Individual compartments with securing straps and front retaining bar • Each trolley holds 5 bags • Polyester powder coated white.

• Size 1590mm H x 1671mm W x 538mm D Bag Trolley HOC-071

Specification: • Aluminium frame with 2 rear swivel wheels & 2 front swivel brake wheels • 2mm clear polycarbonate back, sides and roof • Polyester powder coated white.

• Size 1272mm H x 1254mm W x 509mm D Hockey Stick Rack

Target Goals

Proflex Corner Pole Top of the range corner pole solution specifically designed for hockey.

Specification: • 1.5m high x 50mm proflex pole complete with steel base plate • Base made from laser profiled zinc plated steel • Flags and base pad not included • 500mm H x 494mm (W) x 344mm (D).

Hockey Target Goal • The fully welded frame is constructed from 65 x 50mm aluminium hockey section powder coated white • The net supports and back bar are 31.8mm galvanised steel, powder coated blue • The bracketry is electroplated steel and is also powder coated blue • Sold as a single goal complete with a blue 3mm braided net • Size: 900mm x 600mm.

Hockey Corner Pole

HOC-060

300mm x 300mm PVC foam flags

HOC-062 White HOC-063 2 colour diagonal HOC-064 2 colour horizontal

HOC-070

Options, Extras & Spares 50mm thick white base pad HOC-061

Bag Trolley Squad Number Set HOC-087

HOC-056

Hockey Sin Bin Seats Specification: • 50mm square freestanding aluminium frame • 3 blue injection moulded polypropylene seats • Polyester powder coated white • 836mm H x 1451mm W x 708mm D. Hockey Sin Bin

Mini Target Goal

HOC-055 ©Copyright 2012.

HOC-071 Hockey Bag Trolley

HOC-074

HOC-074 Hockey Sin Bin Seats

104

Lightweight and easily portable, mini training goals are the perfect training aid for small sided games or target practice.

HOC-070 Hockey Sin Stick Rack

See page 45 for full details

Discover the full range at harrodsport.com

HOC-062 Single Colour PVC flag

HOC-063 2 Colour PVC flag (diagonal)

setting the standard - leading the field

105

FIH Accredited Hockey Technical Shelters Technical Dugouts designed to the highest standards for Olympic and FIH competition use.

Olympic SHE-150

Commonwealth SHE-151

Shelter Specification: • Ranging between 2.0m-2.5m high allowing full standing access • Water tight when window is closed fully • Fully Freestanding • Polyester powder coated • Clear sections to allow for open air viewing of matches.

Requires professional assembly - POA

Olympic • 2.5m high allowing for full standing access • Overall 4.2m width and 3m depth • Complete with internal counter tops and units.

SHE-150

Commonwealth • 2.4m high allowing for full standing access • Overall 3m width and 2.5m depth.

SHE-151

European • 2.1m high allowing for full standing access • Overall 3m width and 1.75m depth

SHE-152

Club • 2m high allowing for full standing access • Overall 2.5m width and 1.5m depth.

SHE-153

European SHE-152

106

Discover the full range at harrodsport.com

As used at: London 2012 Olympic Games Commonwealth 2014 FIH Champions Trophy FIH World League

Club SHE-153

setting the standard - leading the field

107

Line Markers

Lacrosse Goals

WM1 Waveney Line Markers

The goals have been designed to conform to FIL regulations.

Specification: • Manufactured from steel and polyester powder coated blue • Knurled transfer wheel for improved fluid distribution • Marking wheels on 50mm and 76mm models are interchangeable • Complete with large rigid handle and heavy duty 305mm diameter rubber wheels • Front wheel marking for improved cornering • 18 litre tank enables up to 2 football pitches to be marked in one filling • Tank wheel lifts out for easy cleaning.

Specification: • Goal Size: 1.83m x 1.83m The product is manufactured in one piece from 48.3mm diameter round steel tube • The base frame is made from 50mm x 12mm flat steel with a 2.2m runback • The goals come complete with integral stainless steel net tie rods for secure net fixing • All steel is polyester powder coated orange to meet regulation standard • No anchoring is required.

76mm MRK-001 100mm MRK-010 Spare Marking & Transfer Wheels

Features: • Designed to conform to FIL regulations.

76mm MRK-003 Line Marking Paint by Fieldmaster (20 litres)

Freestanding Competition Lacrosse Goals

MRK-006

LAC-010 Nets

LAC-016 76mm 108

Discover the full range at harrodsport.com

Practice Lacrosse Goals

100mm

Specification: • Regulation size 1.8m high x 1.8m wide • Uprights, crossbars and base frame manufactured from 50mm sq. x 2mm thick steel • Polyester powder coated white • 32mm diameter zinc plated central net supports

• With four ‘U’ Peg anchors • When using optional counterbalance weights 3 per goal are recommended.

Freestanding Steel Lacrosse Goals

LAC-004 Nets

LAC-001

setting the standard - leading the field

109

0.6m wide 0.9m wide 0.9m wide 1.2m wide 2m long x 0.94m highlong x 0.92m hi 1.2m high long x 0.94m high 1.2m long x 0.94m 2m

0.6m wide 2m long x 0.94m high

Mat Trolleys

MAT-011

MAT-011 MAT-020

MAT-020 MAT-050 MAT-012

MAT-040 MAT-012

MAT-010

MAT-012

MAT-0

0.6m wide 2m long x 0.94m high

0.9m wide 1.2m long x 0.94m high

1.2m wide 0.42m 0.42m wide 0.56mwide wide 2m long x 1.2m 1.93m longhigh x 1.38m high 1.93m 2.1mlong longx x1.38m 1.4m high

1.2m wide 2m long x 1.2m high

MAT-040

Super Heavy Duty Trolley Specification: • Heavy duty 50mm x 50mm steel frame • Polyester powder coated white • 12mm thick wood platform for carrying mats • 300mm dia. pneumatic rubber tyred wheels • Hinged handle and axle steering for carrying greater weight • Front steering ‘trailer’ action for ease of manoeuvre • Maximum loading capacity 750kg.

Suitable for 2m x 1m, 1.8m x 1.22m and 1.22m x 0.9m rigid mats • Max number of 25.4mm mats: 45 • 1.2m W x 2m L Super Heavy Duty Trolley

MAT-012

Heavy Duty Flat Trolley Specification: • 50mm x 25mm steel frame • Polyester powder coated white • 12mm thick wood platform for carrying mats • Six non-marking 100mm castors, four swivel and two fixed wheels for stability • Two front swivel wheels fitted with foot brake • Two piece design allows half of the trolley to be used separately for transporting smaller size mats • Removable handle for storage • Maximum loading capacity 250kg • Suitable for 2m x 1m, 1.8m x 1.22m and 1.22m x 0.9m rigid mats Max number of 25.4mm mats: 33 Heavy Duty Flat Trolley • 0.6m W x 2m L x 0.9m H

MAT-040

110

Discover the full range at harrodsport.com

Vertical Trolley

Inclined Vertical Trolley

Specification: • Polyester powder coated white • Tubular steel construction with folding main frame and detachable handle for easier storage • Central divider section provides extra support for larger mats • 12mm thick wood platform for carrying mats • Four non-marking 100mm swivel casters, foot brakes on two wheels on alternate sides.

• Requires some assembly.

• Suitable for 2m x 1m, 1.8m x 1.22m and 1.22m x 0.9m rigid mats.

• Max number of 25.4mm mats: 13 • 0.42m W x 1.93m L x 1.38m H

Specification: • Polyester powder coated white • Tubular steel construction with folding handle holds mats firmly in place against 12mm thick wooden back support.

• Base and back supports angled for extra support to prevent mats collapsing • Four non-marking 100mm swivel casters, foot brakes on two wheels on alternate sides • Suitable for 2m x 1m, 1.8m x 1.22m and 1.22m x 0.9m rigid mats • Max number of 25.4mm mats: 13 • 0.56m W x 2.1m L x 1.4m H

Vertical Trolley

MAT-011

MAT-020

Aerobics Mat Trolley Specification: • Tubular steel frame • Polyester powder coated blue • 12mm thick wood platform for carrying mats • Four non-marking 100mm swivel castors, foot brakes on two wheels on alternate sides.

• Supplied flat packed • Suitable for 980mm x 720mm aerobics mats • Max number of 8mm mats: 150 • 1.1m L x 0.85m W x 1.2m H Aerobics Mat Trolley

MAT-020

MAT-050 MAT-012 MAT-040

Heavy Duty Carpet Trolley

1.2m wide 2m long x 0.92m high

0.56m 0.7m wide w 2.1m long 1.4mxhig 1.4mxlong 0

MAT-011 MAT-010

MAT-050

MAT-010

MAT-030

Specification: • Tubular steel frame • Polyester powder coated white • Four non-marking 100mm 0.6m wide swivel castors, foot brakes on

2m long x 0.94m high two wheels.

• Suitable for one 11m cricket mat or one short mat bowls carpet • 0.7m W x 1.4m L x 0.32m HMAT-040 MAT-012 Heavy Duty Carpet Trolley

MAT-030

0.9m wide 1.2m long x 0.94m high 1.2m0.6m widewide long x 0.94m 2m2m long x 1.2m high high MAT-020

1.2m wide 2m long x 0.92m high

0.42m wide0.9m wide 0.56m wide long x 0.94m high MAT-011 1.93m long 1.2m x 1.38m high 2.1m long x 1.4m high

MAT-050

MAT-010 MAT-020

MAT-012

1.2m0.7m widewide 2m1.4m longlong x 0.92m hig x 0.32m

MAT-011

MAT-030

MAT-100

MAT-03

Inclined Vertical Trolley 0.6m wide 2m long x 0.94m high 1.2m wide 2m long x 1.2m high

MAT-012

0.9m wide 1.2m long x 0.94m high 0.42m wide 1.93m long x 1.38m high

MAT-020

1.2m wide 2m long x 1.2m high

1.2m wide 2m long x 0.92m high

0.56m wide 2.1m long x 1.4m high

MAT-011

0.42m wide 1.93m long x 1.38m high

0.7m wide 1.4m long x 0.32m high 0.56m wide 2.1m long x 1.4m high

setting the standard - leading the field

0.7m wid 1.4m long x 0.

111

Storage Trolleys

Aerobic Storage Trolley Specification: • Four non-marking 100mm casters • Bottom containers slide out for ease of use and are supported for heavier items • Loading capacity 200kg (max) Aerobic Storage Trolley

STO-017

Large Storage Trolley c/w Bins

Standard Storage Trolley c/w Bins

Storage Containers

Ball Storage Shelf Unit

Heavy Duty Storage Brackets

Hockey Rebound Storage Trolley

Specification: • Features integral wire basket storage area • Supplied with four storage containers, but can hold up to a maximum of six • Loading capacity 120kg (max)

Specification: • Features hoop storage rack and space for storing sticks or poles • Supplied with four storage containers, but can hold up to a maximum of six • Loading capacity 120kg (max)

Specification: • 280mm D x 385mm W x 560mm L • 54 litre capacity and will fit all Harrod Sport equipment trolleys.

Specification: • Frame manufactured from 25mm diameter x 1.5mm thick steel • Polyester powder coated white • Four adjustable shelves to suit varying ball sizes from tennis to basketball

Specification: • Ideal for storing goals and posts • Suitability of the wall must be assessed • Fixing bolts not included • Supplied in pairs • Loading capacity 400kg (max)

Large Storage Trolley

Standard Storage Trolley

Ball Storage Shelf

Heavy Duty Storage Brackets

Specification: • Manufactured from steel with detachable side handle for ease of loading.

• Complete with four heavy duty castor wheels • Polyester Powder Coated Red

STO-050

STO-025

STO-014

112

Discover the full range at harrodsport.com

STO-010

Red

Yellow

STO-040

STO-041

Clear

Blue

STO-042

STO-043

Hockey Rebound Storage Trolley

STO-030

setting the standard - leading the field

113

International Netball Posts

Aluminium Netball Posts

Official Suppliers of Nets, Posts and Post Protectors to England Netball.

Post Specification: • Uprights made from 80mm diameter reinforced aluminium.

• Regulation solid 16mm diameter steel rings • Polyester powder coated white.

Bespoke branded padding available - see page 71

Post Specification: • Uprights made from 80mm diameter reinforced aluminium • Regulation solid 16mm diameter steel rings • Polyester powder coated white.

Features:

1 2

Ring height is fully adjustable to 2.5m, 2.75m and 3.05m heights.

Specially designed plated steel floor sockets and blanking cap (please note sockets require professional installation).

1

Ring height is fully adjustable to 2.5m, 2.75m and 3.05m heights

2

Freestanding - Solid steel base with extra heavy middle and rear sections for extra stability and so they will not be blown over under normal weather conditions.

Rubber pads for floor protection

2

Floor Fixed - Profiled base plate and floor fixings, floor plugs are not included and should be ordered separately (SHP001/100) Must be installed professionally.

NBL-040

Floor Fixed Posts

NBL-032

Indoor Posts

NBL-030 NBL-031

Outdoor Posts

NBL-038

1

Features:

Freestanding Posts

Indoor Sprung Floor Posts

1

2

2 ©Copyright 2006.

Competition net

114

Discover the full range at harrodsport.com

©Copyright 2005.

Floor Fixed Base Plate

Freestanding

Floor Fixed

setting the standard - leading the field

115

Telescopic Netball Posts Post Specification: • Includes 10mm solid ring • Triangular base which does not protrude into the playing area • Adjustable to four heights; 1.88m, 2.44m, 2.75 & 3.05m • Comes complete with powder coated pink triangular base and ring • Polyester powder coated white.

Features:

1

Includes spring clip to allow for height adjustments.

2

Double nylon wheels and rubber pads for floor protection.

1

Adjustable upright allows easy transportation and compact storage

3.05m

2.75m

2.44m

Telescopic Posts

NBL-103

Netball Post Protectors

H A R R O D U K

Competition Post Protectors: • Designed to fit 80mm diameter posts • Covered with hard wearing extra strong vinyl coated nylon cloth and foam filled • 2.9m H x 340mm W x 25mm thick.

Single Panel NBL-055 Two Panel NBL-056 Three Panel NBL-057

# N S L 2 0 U 1 K 5

H A R R O D

Standard Post Protectors: • Designed to fit 50mm diameter posts • Covered with hard wearing extra strong vinyl coated nylon cloth and foam filled • 2.34m H x 315mm W x 25mm thick.

Single Panel NBL-050 Two Panel NBL-051 Three Panel NBL-052

Bespoke branded padding available - POA

2

H A R R O D

Please note: image illustrates ring heights - only one ring supplied.

116

Discover the full range at harrodsport.com

U K

setting the standard - leading the field

117

H A R R O D

# N S L 2 0

U K 5

Pink Steel Netball Posts Post Specification: • Uprights made from 50mm diameter plated steel with punched ring holes • All posts complete with 10mm or 16mm rings.

Freestanding Posts

NBL-060 16mm Regulation NBL-061 10mm Practise

1

Steel Netball Posts

1

Features:

1

Ring height is fully adjustable to 2.5m, 2.75m and 3.05m heights

2

Freestanding Triangular base which does not protrude into the playing court complete with double nylon wheels and rubber pads for floor protection. Bases manufactured from solid steel bar and constructed so they will not be blown over under normal weather conditions. Polyester powder coated green.

Socketed Posts

NBL-062 16mm Regulation NBL-063 10mm Practise

3

Post Specification: • Uprights made from 50mm diameter plated steel with punched ring holes • All posts complete with 10mm or 16mm rings.

Freestanding Posts

NBL-003 16mm Regulation NBL-014 10mm Practise

1

Ring height is fully adjustable to 2.5m, 2.75m and 3.05m heights

2

Freestanding Triangular base which does not protrude into the playing court complete with double nylon wheels and rubber pads for floor protection. Bases manufactured from solid steel bar and constructed so they will not be blown over under normal weather conditions. Polyester powder coated green.

NBL-005 16mm Regulation NBL-015 10mm Practise

Socketed Posts with Lock-in Socket Lids

NBL-106 16mm Regulation NBL-107 10mm Practise

3 Single Freestanding Posts 10mm Practise

NBL-023 NBL-024

16mm Regulation

1

Features:

Socketed Posts

Socketed - 300mm deep ground sockets with integral flush fitting lids. Polyester powder coated green.

1

Socketed - 300mm deep ground sockets with integral flush fitting lids. Polyester powder coated green.

2

2 3

2 Freestanding

118

Discover the full range at harrodsport.com

Socketed

Freestanding

Socketed

setting the standard - leading the field

119

Combination Posts

Netball Rings & Nets

Post Specification: • Uprights manufactured from 50mm steel, with reinforced holes and welded cleats to allow badminton and mini tennis nets to be easily fitted • Base is manufactured from solid steel bar and polyester powder coated green complete with nylon wheels Complete with one 17kg counterweight per base for added stability • Weight per base 36kg • Complete with NB4 netball rings and netball nets.

International Netball Rings & Nets Specification: • International regulation solid 16mm diameter steel rings.

• 3.5mm White Braided Nylon

NBL-006

Regulation Netball Rings - 16mm Specification: • Manufactured from 16mm diameter x 2mm tubular steel with safety collar and nets.

• Polyester powder coated green.

Image above shows product with net. Nets are not included.

Combination Posts

COM-004

NBL-006

NBL-007

NBL-018

NBL-012

Wall Fixed Ring Specification: • Manufactured from 10mm diameter solid steel complete with welded plate, net and fixings.

NBL-012

Netball nets Competition Netball Nets • 3.5mm White Braided Nylon

NBL-035 Practice Nets • green/orange - per pair

NBL-NBL-001 • white - per pair

NBL-NBL-009

NBL-048

NBL-018 • Polyester powder coated pink.

NBL-048

NB4 Netball Rings Specification: • Manufactured from 10mm diameter solid steel with safety collar and nets.

NBL-007 Netball/Badminton

120

Discover the full range at harrodsport.com

Mini Tennis

setting the standard - leading the field

121

Netball Technical Shelters Technical Dugouts designed to the highest standards for Olympic and FIH competition use.

Olympic SHE-150

Commonwealth SHE-151

Shelter Specification: • Ranging between 2.0m-2.5m high allowing full standing access • Water tight when window is closed fully • Fully Freestanding • Polyester powder coated • Clear sections to allow for open air viewing of matches.

Requires professional assembly - POA

Olympic • 2.5m high allowing for full standing access • Overall 4.2m width and 3m depth • Complete with internal counter tops and units.

SHE-150

Commonwealth • 2.4m high allowing for full standing access • Overall 3m width and 2.5m depth.

SHE-151

European • 2.1m high allowing for full standing access • Overall 3m width and 1.75m depth

SHE-152

Club • 2m high allowing for full standing access • Overall 2.5m width and 1.5m depth.

SHE-153

122

Discover the full range at harrodsport.com

setting the standard - leading the field

123

Millennium Rugby Posts

Rugby Storage Trolley

2

International specification design.

Official suppliers to Twickenham, Murryfield, Aviva & Principality stadiums.

Post Specification: • Made from heavy duty aluminium • Bottom upright 7.3m long x 140mm diameter • Middle upright 7.3m long x 130mm diameter • Top right 4.16m long x 120mm diameter (17m posts only) • Crossbar 5.6m long, 88.9mm diameter x 3.25mm thick • Sockets made from 146mm diameter x 6.5m thick galvanised steel • Heights quoted are out of ground height • Polyester powder coated white.

Post Specification: • Steel frame manufactured from 50mm box section • Polyester powder coated matt black • Orange rubber chocks for secure storage of hinges • Post arms with black rubber buffer to not damage paintwork • Able to store a full set of Millennium Rugby Posts.

Features:

1

2

Complete with internal fitting hinged adaptors and high tensile stainless-steel bolts which make erection of the posts safer Pennant fixing on top uprights.

RUG-028

Dunedin, New Zealand

Set consists of • 1 Set = 2 Goals • 4 x 1.5m deep sockets • 4 x drop in socket lids • 1 x rugby roller

1

17m Hinged Millennium (Three Piece upright)

Rugby World Cup

TOKYO 2019 During the scoping process in preparation for 2019 RWC, the organising committee looked for suppliers that had a proven track record for supplying world class events. Our experience over the years proved a key factor in making Harrod Sport their post supplier for such a prestigious event.

The Shizuoka Ecopa Stadium in Fukuroi is the first stadium to install a new set of Harrod Sport’s, 17m Millennium rugby posts. When quality equipment is required for major events, the UK’s leading sports post manufacturer were once again, the first port of call.

“We have a very proud history of supplying and more importantly, delivering to many major sporting events across the UK and around the world. Overseeing the installation of this first set of rugby posts into the Ecopa Stadium was a special moment, especially when I was invited to kick the first goal through their new posts.

It was an invitation I couldn’t refuse despite having a half dozen film crews zooming in on my technique!”

John Robinson 2017

RUG-020

13.5m Hinged Millennium (Two Piece upright)

RUG-021

Suppliers to the Rugby World Cup in 2011, 2015 & 2019 124

Millennium Rugby Socket

RUG-110

Millennium Rugby Turf Tray

RUG-029

Discover the full range at harrodsport.com

©Copyright 2000.

Turf Tray

Twickenham, UK

Ecopa Stadium, Japan

setting the standard - leading the field

125

Hinged Post Assembly Roller

Hinged Rugby Post Lifter

The Hinged Post Assembly Roller allows users to safely erect and dismantle a set of hinged posts in a controlled manner.

A unique system designed to enable the safe installation and dismantling of our hinged rugby posts.

Specification: • Manufactured in two main parts; The horizontal support bar is manufactured from 60mm square steel and houses the reversible 3 point linkage • 100mm square steel upright is fitted with two solid rubber rollers • All steel zinc plated and polyester powder coated matt black • 3 point linkage fixing bolts and lynch pins are included.

Features: • This device can be fitted to either side of a tractor using the 3-point linkage arm • The device is reversible to suit both Category one and two 3 point linkage arms • The device is offset so that the post safely rolls up the side of the tractor cab

LFT-002 This device should be used with an appropriate tractor to allow the upright to move along the rollers in a controlled manner.

We would recommend the tractor speed never exceeds walking pace; moving no faster than 3mph.

WATCH A PRODUCT VIDEO ON OUR WEBSITE 126

A minimum of two people should oversee the process.

Discover the full range at harrodsport.com

©Copyright 2015.

• Designed to be mounted onto an appropriate tractor roll bar using two heavy duty ‘U’ bolt brackets • The upright rolls along the device allowing easy installation and dismantling in a controlled manner before being lifted off by a suitable number of persons (the tractor must ideally be fitted with an angled or adjustable roll bar, brackets will fit up to a 76mm square bar) • A minimum of two people should always oversee the safe erection or dismantling of the rugby posts • We would recommend the tractor speed never exceeds walking pace; moving no faster than 3mph • The device is designed for use with hinged uprights only, we do not recommend the use of the hinged post assembly roller on socketed uprights.

Specification: • The hinged post assembly roller is manufactured from zinc plated steel • Fitted with a rubber roller, a quick release webbed safety strap and two ‘U’ bolt brackets.

RUG-002 setting the standard - leading the field

127

Winched Rugby Post Lifter

Aluminium Rugby Posts

This winched rugby post lifter system is designed to enable safe installation and dismantling of our hinged rugby posts.

These posts are lightweight and easier to handle, with uprights supplied in sections for ease of transportation and storage.

This winched rugby post lifter system is designed to enable safe installation and dismantling of our hinged rugby posts. This device is used primarily for hinged Millenium Rugby and Aluminium Rugby Posts.

This new design allows for groundsmen to raise their hinged rugby posts without the need for a tractor or other motorised vehicle. The post is raised using a 650kg winch and 6mm galavanised wire rope, working in conjunction with a pulley system.

A minimum of two people are required for this assembly.

Features: • For use with our hinged Millenium Rugby and Aluminium Rugby Posts.

• Designed so that the use of a tractor or motorised vehicle is not needed.

• A-Frame dsign consists of 60mm steel box section.

Powder coated matte black.

Post Specification: • 1m deep sockets with 80mm inside diameter complete with base plates • Heights quoted are out of ground height • Polyester powder coated white.

Specifications: • Dimensions (post raised) H 1.79 x W 0.67 x D 1.44 m Dimensions (post lowered) H 0.62 x W 0.67 x D 3.75 m

RUG-210

Please note: This rugby post lifter is for use with hinged rugby posts only.

LFT-003

Features:

1

Hinged adaptors with high tensile bolts make erection of posts easier and safer

2

Socketed option designed so that posts drop directly into the sockets

2 3

Manufactured from aluminium tube making the post lightweight and very durable

Hinged Rugby Posts 13m (Two piece uprights)

11m (Two piece uprights)

RUG-211

Socketed Rugby Posts 12m (Two piece uprights)

RUG-201

10m (Two piece uprights)

RUG-200

Mini Rugby Posts 5m (One piece uprights)

RUG-213

1

128

Discover the full range at harrodsport.com

Rugby post protectors available - see page 76

setting the standard - leading the field

129

Aluminium Rugby Posts Designed primarily to be used on synthetic surfaces the Demountable Aluminium Rugby Posts can be assembled quickly and without the use of any tools.

Post Specification: • Polyester powder coated white.

• Main structure is manufactured from 76mm diameter aluminium.

• Hinges and brackets manufactured from plated steel.

Demountable Aluminium Rugby Posts 10.6m Hinged (Two piece upright)

RUG-250

6.6m Hinged (One piece upright)

RUG-251

Features:

1

Designed primarily to be used on synthetic surfaces.

2

The quick assembly allows for groundsmen to swap between Football and Rugby with minimal fuss in a short time scale.

2 3

Minimum 4 people to erect and dismount.

4 2

The new design fits into our current aluminium Rugby sockets.

Steel Rugby Posts No. 1 Steel Rugby Posts

No. 2 Steel Rugby Posts

Specification: • Manufactured from 3mm thick steel tube • Bottom uprights 7.3m long x 89mm diameter • Top uprights 6.5m long x 76mm diameter • Crossbar 5.6m long x 76mm diameter • 1200mm deep sockets with 91mm inside diameter complete with stabilising fins and base plates • Heights quoted are out of ground height • Polyester powder coated white • Crossbar height 3.0m from ground to top of crossbar.

Specification: • Manufactured from 2mm thick steel tube • Bottom uprights 6m long x 70mm diameter • Top uprights 5m long x 63.5mm diameter • Crossbar 5.6m long x 63.5mm diameter • 917mm deep sockets with 73mm inside diameter complete with stabilising fins and base plates • Heights quoted are out of ground height • Polyester powder coated white • Crossbar height 3.0m from ground to top of crossbar.

11m Hinged (Two piece upright)

10m Hinged (Two piece upright)

Drop in Lids

9m Socketed (Two piece upright)

RUG-019

RUG-025

RUG-011

RUG-007

Spare No.2A Socket

RUG-107

Drop in Lids

RUG-026

No.1 Rugby

130

Discover the full range at harrodsport.com

No.2 Rugby

setting the standard - leading the field

131

Rugby Post Protectors

Steel Rugby Posts No. 3 Steel Rugby Posts

rotector Rugby Post p

Specification: • Manufactured from 2mm thick steel tube • Uprights 7m long x 63.5mm diameter • Crossbar 5.6m long x 63.5mm diameter • 910mm deep sockets with 70mm inside diameter complete with stabilising fins and base plates • Heights quoted are out of ground height • Polyester powder coated white • Crossbar height 3.0m from ground to top of crossbar.

Millenium Rugby

Club Rugby

• Flame retardant reinforced polyester PVC cover filled with 75mm thick high density foam • Covers are double stitched for strength with integral Velcro fastening edges • Set of 4.

7m Hinged (One piece upright)

RUG-009

6m Socketed (One piece upright)

Millennium Rugby 1.8m x 450mm Wide Face: Single Panel RUG-050 Two Panel RUG-059 Three Panel RUG-060 Four Panel RUG-061

RUG-008

Club Rugby Post Protectors (1.8m H) 254mm Face: Multi 4 Panel RUG-084 Multi 3 Panel RUG-080 Multi 2 Panel RUG-042 Single Panel RUG-039 305mm Face: Multi 4 Panel RUG-085 Multi 3 Panel RUG-081 Multi 2 Panel RUG-043 Single Panel RUG-040 355m Face: Multi Panel RUG-086 Multi 3 Panel RUG-082 Multi 2 Panel RUG-044 Single Panel RUG-041

Rugby Post protector

SCHOOL

132

Discover the full range at harrodsport.com

No.2 Rugby

BRISTOL BRIS GRAM TOLSCHO MAR GRAMMAR OL SCHOOL

BRISTOL GRAMMAR

No.1 Rugby

Bespoke branding available - call for further details. setting the standard - leading the field

133

Elite Team Shelters

Superior Team Shelters

Top of the range shelter designed for professional clubs and top level venues.

As used at St George’s Park.

Top of the range shelter designed with superior bucket seats.

Specification: • Made from 50mm square aluminium with bespoke internal extrusions.

• 4mm thick clear copolyester side and back sheets.

• Aluminium lower side panels for added strength.

• Rubber extrusion strips prevent water leakage.

• External depth of 2.4m and an internal depth of 2.1m.

• Floor Fixed Shelter with welded lugs for securely bolting down.

• Polyester powder coated white. Shelters must be anchored at all times.

Bespoke options available

Features:

1

2.1m high allowing full standing access.

2

Two tier 15 seat shelter with raised back tier.

3

Injection moulded blue polypropylene superior bucket seats.

5.0m Blue Seats

All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options

SHE-080

5.0m Red Seats

SHE-081 134

Superior bucket seats

Discover the full range at harrodsport.com

Specification: • Made from 50mm square aluminium with bespoke internal extrusions.

• 4mm thick clear copolyester side and back sheets.

• Aluminium composite lower side panels for added strength.

• Rubber extrusion strips ensure a secure waterproof seal.

• Polyester powder coated white (as standard).

• Height: 2.69m (ground to top of crossbar).

• External depth of 1.57m (front of crossbar to rear of shelter).

• Shelters must be anchored at all times.

• Floor Fixed Shelters have welded lugs for bolting down.

All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options

Features:

1

Injection moulded blue polypropylene superior bucket seats.

2

2.05 metres high allowing full standing access.

4m Blue 7 Seats Fixed

SHE-060

4m Blue 7 Seats Socketed

SHE-062

6m Blue 10 Seats Fixed

SHE-066

6m Blue 10 Seats Socketed

SHE-067

Bespoke options available

12 Seater bespoke shelter setting the standard - leading the field

135

Portable Team Shelters

Portable Team Shelters 1m 2 seat capacity

SHE-121

2.5m 4 seat capacity

SHE-122

Harrod Sport’s new Portable Team Shelters are perfect for multisport facilities such as clubs, universities and schools. For ease of transportation and manoeuvrability the shelter features five heavyduty swivel wheels. Available in a variety of colours and can include a sports team logo.

Specification: • Made from 80mm aluminium with bespoke internal extrusions.

• 3mm thick clear copolyester side and back sheets.

• Aluminium composite lower side panels for added strength.

• Ballast integrated into shelter side-frame (larger ballast options are available) • Polyester powder coated grey (as standard).

• Other colours are available.

• Height: 2m (ground to top of crossbar).

• Width: 4.15m (outside of anchor plates).

• External depth of 1.55 metres (front of crossbar to rear of shelter).

136

• Bolt on quick release anchor for securing in non-permanent ground screw or permanent fixing.

• Further bolt on ballast available to ground socket/ fixings.

• Shelters must be anchored at all times.

• Bespoke options available.

Features:

1

Injection moulded polypropylene superior bucket seats.

2

5 heavy duty cellular wheels for multidirectional movement.

Discover the full range at harrodsport.com

4m 7 seat capacity

SHE-124

6m 10 seat capacity

1

SHE-126

Bespoke options available

Portable Team Shelter ATP Socket Designed for securing Portable Team Shelters in ATP pitches utilising the Shelter’s Quick Release Hook-Bolt and Bracket (supplied with Shelter), but can also be concreted into Natural Turf if desired.

2 All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options

ANC-124

Portable Team Shelter Turfscrews Designed for securing Portable Team Shelters in Natural Turf pitches utilising the Shelter’s Quick Release Hook-Bolt and Bracket (supplied with Shelter).

ANC-125

Portable Team Shelter ATP Socket

Portable Team Shelter Turfscrews

setting the standard - leading the field

137

Premier Team Shelters

Aluminium Team Shelters

Top quality shelter designed with seats available in a variety of colours.

Shelter Specification: • Made from 50mm square aluminium with bespoke internal extrusions.

• 4mm thick clear copolyester side and back sheets.

• Polyester powder coated white (as standard) 2.05 metres high allowing full standing access.

• External depth of 1.57 metres.

Injection moulded polypropylene seats.

• Shelters must be anchored at all times.

• Floor Fixed Shelters have welded lugs for bolting down.

1m Floor Fixed

Blue Seats SHE-045 Red Seats SHE-040

Black Seats SHE-047 4m Floor Fixed

Blue Seats SHE-015 Red Seats SHE-010

Black Seats SHE-017 5m Floor Fixed

Blue Seats SHE-025 Red Seats SHE-020

Black Seats SHE-027 6m Floor Fixed

Blue Seats SHE-035 Red Seats SHE-030

Black Seats SHE-037 Features:

1

2

138

Designed and manufactured in one piece from advanced materials. Extremely strong, durable and impact resistant to hockey balls and footballs.

Injection moulded blue/red/black polypropylene premier seats.

2.05 metres high allowing full standing access.

Discover the full range at harrodsport.com

All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options

Bespoke options available

Shelter Specification: • Made from 50mm square and 75mm x 25mm aluminium section.

• 10mm thick multi-wall ribbed polycarbonate top and back panels.

• 3mm thick clear polycarbonate sides.

• Aluminium flashing provides a neat finish.

• Bottom bars are 100mm off the ground to aid ventilation.

• 1.9m high with external depth of 0.9 metres.

• Polyester powder coated white with bespoke colours available.

• Shelters must be anchored at all times.

• Floor Fixed Shelters have welded lugs for bolting down.

2.5m - Fixed

SHE-002 4m - Fixed

SHE-003 Bespoke options available, comes in white as standard

All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options

setting the standard - leading the field

139

Panoramic Team Shelters A spacious shelter with curved sideframes designed to improve players’ views of the pitch. Ideal for use by clubs and schools.

All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options.

Shelter Specification: • Manufactured from 50.8mm aluminium box section powder coated matt black.

• 3mm clear polycarbonate top sheet and side sheets.

• Black aluminium composite panel surrounding the lower section.

• External depth of 1.43m.

• Floor fixed and must be anchored at all times.

Features: • 2.0m high allowing full standing access.

• Extruded high-density polyethylene (HDPE) seats • Curved profile.

2m

SHE-102

4m

SHE-104

6m

SHE-106

Bespoke colour & branding solutions - POA 140

Discover the full range at harrod.uk.com

setting the standard - leading the field

141

Fibretech Pro Team Shelters Designed as a sleek, contemporary alternative to the ‘Standard’ Fibretech, the extremely strong and impact resistant ‘Pro’ features a large curved canopy ideal for keeping players dry.

Shelter Specification: • 3, 5, 8 & 10 seats.

• Composite fibreglass and polyester resin with a smooth gel coat gloss finish.

• Fixing holes are located along the base every 500mm for anchoring.

• Reinforced bottom side section for fixings.

• UV stabilised polypropylene seat/bench.

• Shelters must be anchored at all times.

• The shelters arrive on a flat bed lorry. Ideally a forklift is required on site to enable a safe offload, or at least 6 capable people to man handle.

Bespoke Options: • Optional screen printing available for logos and wording.

• Choice of seat style – Bench or Fixed.

• Choice of seat/bench colours: available in black, blue, green, yellow, red, orange, white and grey.

All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options 142

Discover the full range at harrodsport.com

2m - 3 Seater

SHE-154-S

3m - 5 Seater

SHE-155-S

4.3m - 8 Seater

SHE-156-S

5.3m - 10 Seater

SHE-157-S

Shelters also available with benches instead of seats

Bespoke colour & branding solutions - POA

2.0m high allowing full standing access

setting the standard - leading the field

143

Fibretech Standard Team Shelters Designed and manufactured in one piece from advanced materials. Extremely strong, durable and impact resistant to hockey balls and footballs.

Bespoke colour & branding solutions - POA All team shelters require appropriate anchorage - visit harrodsport.com for our full range of options

144

Discover the full range at harrodsport.com

Shelter Specification: • 3, 5, 7 & 10 seats.

• Composite fibreglass and polyester resin with a smooth gel coat gloss finish.

• Fixing holes are located along the base every 500mm for anchoring.

• Reinforced bottom side section for fixings.

• UV stabilised polypropylene seat/bench.

• Shelters must be anchored at all times.

• The shelters arrive on a flat bed lorry. Ideally a forklift is required on site to enable a safe offload, or at least 6 capable people to man handle.

Bespoke Options: • Optional screen printing available for logos and wording.

• Choice of seat style – Bench or Fixed.

• Choice of seat/bench colours: available in black, blue, green, yellow, red, orange, white and grey.

1.5m - 3 Seater

SHE-054-S

2.5m - 5 Seater

SHE-055-S

3.5m - 7 Seater

SHE-056-S

5m - 10 Seater

SHE-057-S

Shelters also available with benches instead of seats

setting the standard - leading the field

145

Team Shelter Anchors ANC-016

Panoramic - see p.140

Specification: • Designed to Anchor SHE-102, SHE-104, SHE-106.

Manufactured with an electroplated steel box section.

• Powder coated matte black.

Complete with two 460mm deep sockets, 100mm sq Support Posts.

58kg per set

ANC-016

ANC-030

ANC-025

Fibretech ‘PRO’ Shelter - see p.142 Specification: • Designed to anchor SHE-154, SHE-155, SHE-156, SHE-157 • Manufactured from mld steel then electroplated before being finished in a green polyester powder coat.

• Complete with two 460mm deep sockets, 100mm sq support posts.

Chem Bolt Anchors

72kg per set

ANC-019

ANC-018

ANC-017

Standard Fibretech Shelter - see p.144

Specification: • Complete with two 460mm deep sockets, 100mm square galvanised steel support posts and anchorage arms • The anchor arms come as standard in green but other colours are available on request.

'Curved' Team Shelter - see p.138

58kg per set

ANC-018 146

Specification: • Manufactured from mild steel, which is plated and finished powder coat white.

Please note: We recommend all teams helters require anchors

Discover the full range at harrodsport.com

470kg per set

ANC-030

ANC-019

Standard Shelters - see p.139

Specification: • Suitable for pitches where concrete base pad can’t be installed.

• Two 460mm deep sockets, 100mm sq galvanised steel support posts and anchorage arms to secure one shelter of any length.

55kg per set

ANC-015

Premier Shelters - see p.138

Specification: • Two 460mm deep sockets, 100mm sq galvanised steel support posts and anchorage arms to secure one shelter of any length.

58kg per set

ANC-017

Specification: • Ground fixing system ideally suited to team shelters • Designed to be installed into a concrete pad • PVC casing for use in tarmac • Hole brush, dust blower and chemical anchoring resin • 1 set will anchor one shelter • Complete with 7 pvc casings & 7 M12 x 250mm bolts.

Spirafix Anchor Kit for Team Shelters Easy to install, the Spirafix ground anchor penetrates most ground conditions, dealing with obstructions such as tree roots, small bricks and stones.

Set of 4 - 1.5kg per set

Specification: • Easily removed and re-used (removal tool included) • Complete with locating pegs to ensure accurate installation

Expanding Anchor Bolt Set

For 3m to 6m Set of 5 anchors 4.40kg per set

ANC-025

Specification: • Ground fixing system ideally suited to team shelters • Designed to be installed into a concrete pad • 1 set will anchor one shelter • Complete with 7 122mm bolts Set of 7 - 2kg per set

ANC-012

ANC-010

setting the standard - leading the field

147

Integral Weighted Wheelaway Tennis This revolutionary tennis post design with Ski Plate, encompasses the unique Harrod Sport integral weighted roller system, as a single solution for all court surfaces.

Full regulation net height can be achieved without sockets

Post Specification: • Detachable uprights manufactured from 80mm square aluminium • The 1.18m widebase frame is manufactured from 76mm square aluminium • The rear ballast is electroplated steel with an aluminium tube external housing • The two cellular wheels improve maneuverability • The product is powder coated matt black • Overall depth of base (front of ski plate to rear of the wheels) 1503mm • Front of upright to rear of base (rear of the wheels) 854mm.

Features:

1

The Ski Plate and rubber bottoms provides grip and protection, spreading the weight of each posts thus reducing pressure on the playing surface

2

Full regulation net height can be achieved

3

The net attaches to the upright via synthetic net hooks

4

See our website for full list of accessories

2

3

4

Heavy duty brass winder and brass pulley wheel.

Integral Weighted

TEN-170

3.5mm Net

TEN-155

1

A HARROD SPORT

INNOVATION Integral Weighted Wheelaway Tennis ©Copyright 2015.

148

Discover the full range at harrodsport.com

setting the standard - leading the field

149

Freestanding Tennis Posts

Black & green colour as standard - bespoke options also available

Post Specification: • Uprights made from 76mm diameter steel • The steel posts are joined with pre-galvanised steel box section, polyester powder coated matt Black • The use of pre-galvanised material gives the connecting bars an extra level of protection • The powder coated steel channel connections are plated and come complete with M10 rivnuts • The updated connecting method also means the diagonal braces are no longer required.

P17 Tournament Net

Features: • A new improved design • Full regulation net height can be achieved • Heavy duty brass winder and pulley wheel • Rubber pads protect each surface type.

Freestanding Tennis Posts Black TEN-100 Green TEN-101 P17 Tournament Net

TEN-002

150

Wheelaway Freestanding Tennis Posts Post Specification: • Uprights made from 76mm diameter steel.

• The steel posts are joined with 50mm pre-galvanised Steel box section • The use of pre-galvanised material gives the connecting bars an extra level of protection • Plated and powder coated steel channel connections • The updated connecting method also means the diagonal braces are no longer required • 1.07m H x 12.81m W x 1.06m D • Polyester powder coated black.

TEN-109

Tennis Trolley Black TEN-096 Green TEN-095

Discover the full range at harrodsport.com

setting the standard - leading the field

151

Square Indoor Tennis Posts Post Specification: • 76mm square steel • Heavy duty brass winder and brass pulley wheel • Floor plugs not included and should be ordered separately as required (SHP-001/100) • Steel reinforced base with nylon wheels and rubber pads to protect floor • Stainless steel net retaining rod ensures net is held firm to posts • Polyester powder coated blue.

SHP-005

Tennis Torque Limiter The Tennis Torque Limiter is designed to be used in conjunction with Harrod Sport Tennis Posts.

Features: • The adjustable limiter will replace the handle supplied with the winder and will ‘slip’ at a pre-determined tension, preventing net over tension and/or damage to posts and courts.

• A hex key is used to adjust the spring within the handle, raising or lowering the maximum allowed net tension.

• The net tension is set and controlled by the groundsman and cannot be adjusted by the players.

TEN-300

Mini Tennis

Socketed Mini Tennis Posts Specification: • 76mm x 3.2mm steel • Heavy duty brass winder and brass pullet wheel • 359mm deep galvanised steel sockets with 79mm square internal face • Sockets have a welded pin, allowing uprights to sit 160mm from the base, complete with flush fitting hinged lids • Stainless steel net retaining rod ensures net is held firm to posts • Polyester powder coated blue.

TEN-560 Mini Tennis Adjuster Set

TEN-580

Freestanding Practice Mini Tennis Posts Specification: • 25mm square steel • Four section centre brace to achieve good net tension.

• Complete with TEN-077 mini tennis net • Polyester powder coated white.

TEN-220

TS1 Wheelaway Mini Tennis Posts Specification: • 40mm diameter solid steel base, complete with nylon wheels and rubber floor pads. 25mm diameter steel 0.86m uprights • Polyester powder coated blue.

Wheelaway Mini Tennis Posts

Foldaway Mini Tennis

Specification: • 50mm x 50mm steel • Easily adjustable upright mechanism for three height settings of 86cm, 73cm & 60cm • Rope cleat net tensioner • Complete with 6m long, 2.5mm thick net, with fluorescent yellow band and 12mm rope headline • Net sideband has printed mini tennis graphics • Fully portable complete with 5 swivel casters, 2 with brake • Polyester powder coated red.

Specification: • 2.9m wide x 860mm high • PVC Frame • Fine Mesh Net • Drawstring Carry Bag.

TEN-575

T4 Mini Tennis Adjuster Set Specification: • Woven polyester band fully adjustable to eliminate problems caused by various types of base.

Complete with swivel and hook for use with ‘M’ peg, ground socket or ground base.

TEN-081

TEN-571

TEN-083 152

Discover the full range at harrodsport.com

setting the standard - leading the field

153

Premium Square Tennis Posts Premium Aluminium 80mm Square Tennis Posts Post Specification: • Made from 80mm reinforced aluminium • Sockets are complete with flush fitting hinged lids 312mm deep galvanised steel sockets with 82mm square internal face • Sockets have a welded pin, allowing uprights to sit 160mm from the base • Stainless steel net retaining rod ensures net is held firm to posts • Polyester powder coated green.

Aluminium Posts

TEN-028

P17 Tournament Net

TEN-002

Aluminium Posts c/w Locking Sockets

TEN-233

Tennis Accessories

S8 Square Steel Tennis Posts Post Specification: • Made from 76mm square steel • Heavy duty brass winder • 359mm deep sockets with a 79mm square internal face • Polyester powder coated green Features: • Sockets are complete with flush fitting hinged lids • Stainless steel net retaining rod ensures net is held firm to posts • Brass pulley wheel.

TEN-028

Tennis Trainer Specification: • 31.8mm diameter galvanised steel frame • Sturdy back support frame with adjustable settings to vary the angle the ball is returned • 2mm thick polypropylene net & elastic cord.

Wooden Umpire Chair

TEN-017

P17 Tournament Net

TEN-002

Specification: • 1.5m high chair painted green • Complete with seat, arm rest and desk • Overall height 1.95m.

Steel Posts c/w Locking Sockets

TEN-232

Spare Sockets

TEN-026

Specification: • Reinforced Black PVC cover, filled with high density foam • 2 Hook-and-loop Fastening Straps on each pad.

TEN-517

TEN-171

Spare Tennis Headline

Solid Brass Swivel Adjuster

Specification: • 13.7m long x 4mm thick covered galvanised steel headline • Complete with a ferrule at one end and loop at the other.

Specification: • For use with Harrod Sport tennis nets.

TEN-010

Steel Posts

Weighted Wheelaway Tennis Base Pad

TEN-033

Metal Ground Base

T2 Adjuster Set Specification: • Vinyl coated nylon centre tape with brass swivel adjuster and heavy round metal base.

Specification: • Can be used on hard or grass tennis courts (height adjuster) Powder Coated Green.

TEN-031

TEN-035

Vinyl Coated Net Centre Tape Specification: • For use with Harrod Sport tennis nets.

TEN-036

Woven Polyester Centre Tape Specification: • Fitted with brass eyelets • For Harrod Sport tennis nets.

TEN-091

T3 Adjuster Set Specification: • Vinyl coated nylon centre tape with brass swivel adjuster & zinc plated ground socket • For use with Harrod Sport tennis nets.

TEN-032

T4 Adjuster Set Specification: • Woven polyester band fully adjustable to eliminate problems caused by various types of base • Complete with swivel and hook for use with ground base • For use with Harrod Sport tennis nets.

TEN-081

TEN-149

TEN-017

154

Discover the full range at harrodsport.com

setting the standard - leading the field

155

Telescopic Volleyball Posts

Optional Stainless Steel Winch Available on all aluminium volleyball posts.

Designed to competition standard, these posts have a safe net tensioning system which allows simple transitions between heights with a further unique fine adjustment mechanism.

Specification: • 102mm diameter aluminium uprights allow internal mechanisms to move in harmony • 60mm x 40mm steel telescopic top upright, mounted on internal slider with an integral plunger mechanism for smooth transition to men’s, women’s or junior heights • Floor fixed version has a 8mm thick steel base with floor fixings and plastic wheels • Socketed version has 367mm deep sockets • Polyester powder coated red • Floor plugs not included.

SHP-001 or SHP-100 are required for this product.

Features:

1

Easily adjustable to men’s (2.43m), women’s (2.24m) and junior (2.13m) heights.

2

Winder and dummy posts include a unique easy to use fine adjustment screw mechanism that can be operated whilst the net is under full tension.

Socketed Competition Volleyball Posts

VOL-060

Supermatch net

VOL-030 156

Discover the full range at harrodsport.com

Specification: • Made from steel with nonslip platform • Complete with 2 nylon wheels & safety chain.

• Polyester powder coated red.

Specification: • 2 Post Protectors • 2 Base Protectors • Red. Competition Volleyball Post & Base Protector

VOL-065

VOL-013

1 Competition Floor Fixed Volleyball Posts c/w Stainless Steel Winch

VOL-080

VOL-055

VOL-056

Competition Volleyball Post & Base Protector

Volleyball Referee Stand

Floor Fixed Competition Volleyball Posts Floor Fixed Competition Volleyball Posts, Whitworth

Steel Volleyball Referee Stand

1

Competition Floor Socketed Volleyball Posts c/w Stainless Steel Winch

VOL-081

Wall Mounted Volleyball Posts c/w Stainless Steel Winch

VOL-078

Matchplay Volleyball Posts c/w Stainless Steel Winch

VOL-079

setting the standard - leading the field

157

Wall Mounted Volleyball

Match Play Volleyball Posts

Volleyball Nets & Antennaes

Specification: • Made from 83mm x 43mm aluminium • Upright has an adjustable slider and ratchet winch • Floor plate and 2 solid wall fixings included per upright (all fixings require installation) • Complete with full length upright protection pad.

Specification: • Uprights made from 75mm x 50mm heavy duty aluminium • Sliding net retainer complete with hand wheel, ratchet tensioner and brass pulley wheels • Upright brace for added stability • Polyester powder coated blue.

Harrod Sport volleyball nets are 9.5m long x 1.0m high and made from 100mm square mesh.

Features: • Net height can be adjusted to all volleyball positions including sitting volleyball • Posts can also be used for badminton • Posts can be easily removed from the bolt on wall bracket.

Features: • Adjustable to men’s, women’s and junior play without removing the net • Wheelaway steel base does not protrude into the court.

Wall Mounted Volleyball

Options, Extras & Spares VOL-053 Post and base protector SHP-001 SH2 160mm SHP-100 SH2 210mm

VOL-075

Options, Extras & Spares VOL-077 Intermediate support VOL-048 Intermediate base pad VOL-015 No2 per metre net 4 Mesh Training Net per m

VOL-017

Match Play Volleyball Posts

VOL-050

3mm No.30 Net

VOL-001

No. 30 Regulation Volleyball Net

No. 25 Match Volleyball Net

Sitting Volleyball Net

Antennae in Sheaths

Specification: • 3mm braided black polyethylene net.

• Regulation net made from 3mm braided black polyethylene.

• Vinyl coated nylon headband complete with PVC covered galvanised steel wire headline.

• Vinyl coated sidebands with enclosed wood dowels.

• Vinyl coated bottom band.

Specification: • 3mm braided black polyethylene net.

• Vinyl coated nylon headband complete with • PVC covered galvanised steel wire.

Specification: • Size: 6.5m x 0.8m • 3mm braided net (100mm x 100mm mesh) • 50mm bottom black band • 50mm side bands with 19mm wooden dowels • 75mm white top band • 3mm Galvanised wire headline.

Specification: • Red and white fibreglass antennae enclosed in sheaths.

• For use with Supermatch, No.30 & No.25 nets.

VOL-002

VOL-031

VOL-031

VOL-001 158

Discover the full range at harrodsport.com

setting the standard - leading the field

159

Socketed Volleyball Posts

Floor Fixed Volleyball Posts

Sitting Volleyball Posts

Designed for indoor or outdoor use, this socketed post is ideal for practice of all levels.

Designed for club level use.

Designed for both practice and play.

Specification: • 50mm uprights • Supplied with ground sockets complete with flush fitting hinged lids • Polyester powder coated blue.

Specification: Uprights are attached to the base with a spring clip and can be easily detached for storage • Low profile curved floor fixed base • 2 floor sockets required per base • Polyester powder coated blue.

Specification: • Uprights manufactured from 100mm diameter Aluminium with Steel height adjuster made from 38.1mm x 4.8mm flat bar • Sitting Volleyball base is made from 31.8mm square box section and 40mm x 60mm mild steel box section • Brace is made from 31.8mm tubing flattened at both ends • The Strap length for the winch is 600mm • All parts polyester powder coated matt black.

VB5 Socketed Volleyball Posts

VOL-011

50mm Volleyball Posts

VOL-047

38mm Volleyball Posts

VOL-047

50mm Volleyball Posts

VOL-033

160

Discover the full range at harrodsport.com

setting the standard - leading the field

161

Portable Volleyball Posts

Water Polo Netting

Both systems suitable for grass

Turf Screw details see page 48

WATCH A PRODUCT VIDEO ON OUR WEBSITE

Sportset Beach Volleyball Posts

Portable Volleyball Posts

Features: • This lightweight tournament design utilises the unique Harrod Sport turf screw to enable a fast, safe and easy set up and dismantle (Insertion tool must be ordered separately see BAR-031) • The posts can be easily assembled by two people and dismantled to a packed length of less than 1.2m • Adjustable to both men’s and women’s heights.

Features: • Can be completely assembled by two people in less than ten minutes • Simply drive in four pegs, roll out the net, snap together the posts, hook up the guy ropes to support the net and the final net headline tension is achieved by pulling on the tension handle.

Sportset Beach Volleyball Posts

VOL-175 162

Specification: • Aluminium uprights are polyester powder coated yellow • Built in net tensioner. Tensioning is achieved using an adjustable pull down clamp system and ratchet winch • The 10 metre 2.0mm polyethylene net is supplied with heavyweight fluorescent head and side bands for twilight visibility • Black rope side straps come with crimped loop ends for additional net stability • Turf screw ground sockets included.

Discover the full range at harrodsport.com

Portable Volleyball

VOL-150

Junior Height Conversion

VOL-154

Specification: • Built in net tensioner.

• 10 metre 2.0mm polyethylene net • Packed length less than 1.2m • Fluorescent banding for twilight visibility. Adjusts to men’s and ladies’ height • Aluminium poles polyester powder coated black • Complete with carry bag, steel handled rubber mallet & steel ground pegs • Alloy guy tensioners • Black rope with crimped loop ends.

Regulation Water Polo Net

Regulation Water Polo Net

Specification: • Regulation size • 2.5mm thick • White polyethylene net with 120mm mesh • Deep end net 3.05m x 0.91m x 0.91m • Shallow end net 3.05m x 1.52m x 0.91m

Specification: • Regulation size • 4mm thick • Black polyethylene net with 120mm mesh • Deep end net 3.05m x 0.91m x 0.91m • Shallow end net 3.05m x 1.52m x 0.91m

WPO-001

WPO-002

setting the standard - leading the field

163

Synthetic Pitch Equipment Heavy Duty Winch Posts

Economy Winch Posts

Net Storage Pouch

Specification: • 100mm square galvanised steel posts • Polyester powder coated green - other colours available POA • Winch post is fitted with a high specification brake winch and top pulley wheel • Anchor post complete with pulley wheel and cleat • Winch has enclosed gears for added safety, detachable handle and a maximum load rating restricted to 100kg.

Specification: • 100mm square galvanised steel posts • Polyester powder coated green • Winch post is fitted with an economy winch and top pulley wheel • Dummy post complete with pulley wheel and cleat • Winch has exposed mechanism.

Specification: • One 1020mm high x 1440mm wide Black PVC pouch complete with 2 fixing plates and antiluce fasteners for ease of use.

4 drainage holes along bottom edge to eliminate water build up • Pouch designed to take up to 65 linear metres.

2.7m High

FBL-105

2.7m High

FBL-107 3m High

FBL-111

3m High

3m High

FBL-112 3.6m High

FBL-113

FBL-108 3.6m High

FBL-109

164

Discover the full range at harrodsport.com

setting the standard - leading the field

165

Finesse Finesse by Harrod Sport is our brand new sports performance equipment brand - from cones and hurdles to pop up goals - ideal for club and home use.

Finesse Sports Marker Cone

Finesse Hexagonal Marker

Finesse Agility Cone

Finesse Agility Pole

Finesse Agility Hurdle

An essential piece of training equipment for sports coaches. Ideal for grass, playgrounds or sports halls.

The cones can be used to mark out pitch boundaries, small sided games, skill drills and fitness practice.

Finesse Flat Hexagonal Markers are the ideal solution to the problems that sports coaches face when marking out training drills. The strong grip is perfect for slippery surfaces, preventing them from moving in training.

The lightweight agility cones can be used for an assortment of outdoor and indoor activities. Cones stack on top of each other for easy storage and transportation.

Designed to be used on any surface.

An essential piece of training equipment for sports coaches.

Lightweight and curved design for added safety.

Perfect for improving agility, speed and co-ordination.

Specification: • Set of 20 complete with stand.

• Colours - Green, White, Black and Grey.

• Made from ultra-strong plastic material.

• Dimensions: 19cm diameter x 4.5cm high.

Specification: • Set of 10 complete with carry bag.

• Colours - Green and White.

• Made from durable rubber.

• Dimensions: 23cm diameter.

Specification: • Set of 8.

• Colour - Green.

• Manufactured from high-strength plastic.

• Dimensions: 25cm high.

The 1.75m slalom poles are the ideal piece of training equipment to work on speed and agility. Designed to suit any sport, the poles are perfect for use on grass and come complete with a metal spike to easily place in the ground.

Set of 10

Set of 8

FNS-002

Set of 20

FNS-001

166

Discover the full range at harrodsport.com

FNS-003

Specification: • Set of 6.

• Colour - Green.

• Made from ultra-strong plastic material.

• Fitted with a metal spike.

• Dimensions: 25mm diameter x 1.75m high Set of 6

FNS-004

Specification: • Set of 6.

• Colour - Green.

• Made from ultra-strong plastic material.

• Dimensions: 12, 9 or 6 inches high.

12” - Set of 6

FNS-011

9” - Set of 6

FNS-010

6” - Set of 6

FNS-009

Finesse Flat Agility Hurdle

Rubber Flexibase

Finesse 4m Speed Ladder

An essential piece of training equipment for sports coaches. Lightweight and flexible design for added safety, will revert back to shape after being put under pressure. Perfect for improving agility, speed and co-ordination.

Rubber Flexibase designed to take 22mm and 50mm Flexible PVC Poles

An essential piece of training equipment for sports coaches. Suitable for all surfaces and designed for a wide range of drills including single foot hops, in and out hops, lateral runs and multiple other quick feet drills.

Specification: • Weighted solid black rubber base.

FBL-023

Specification: • Set of 6.

• Colour - Green.

• Made from ultra-strong flexible material to revert back to shape if stood on.

• Dimensions: 9 or 6 inches high.

Specification: • 4m speed ladder.

• Colours - Black material ladder with green rungs.

• Outer material - Nylon.

• Rungs material - Anti-slip ultra-strong plastic.

• Folds up to fit in carry bag for easy transportation.

9” - Set of 6

FNS-014

FNS-013

6” - Set of 6

FNS-012

setting the standard - leading the field

167

Finesse

Finesse Pro Rebounder

Finesse Pop Up Target Goals

Finesse Pro Mannequin

Finesse Club Mannequin

Finesse Mannequin Base

Finesse Goal Target Trainer

Finesse Sports Water Bottle

The must-have double-sided rebounder that allows players to work on their passing and touch both on the floor and in the air. Perfect for multiple sports. Suitable for both club and home use to add an edge to your training. Lightweight, easy to carry and can be folded flat for storage.

Take your shooting and passing accuracy to new heights with our Finesse Pop Up Target Goals. The pop-up football goals can be used by players of all ages and abilities. Ideal for club or home use. Supplied with a carry bag for easy transportation.

Our unique ‘pop up’ mannequin is the perfect freekick training aid.

Manufactured with durable mesh to absorb the impact of the football. Easily attachable to pole with velcro strips and folds down into a convenient portable size (pole not included).

Enables Finesse Mannequins to be used indoors, on artificial or hard surfaces.

Excellent training tool for perfecting shooting skills. Easily assembled with adjustable straps on top & sides.

An essential part of match day and training equipment. The Finesse Sports Water Bottle is designed to fit in the Finesse Sports Water Bottle Carrier for easy transportation.

Specification: • Made from premium 32mm powder-coated steel tube.

• Colours - Black frame & black net.

• Adjustable fitting to alter the angle of the rebound • Easy to carry and store due to its folding design.

• Dimensions: 100cm x 100cm.

Specification: • Colours - Black edging with green net.

• Made from ultra-strong plastic material with a sleeve net.

• Supplied with a carry bag for transportation.

• Sold as a pair.

Our unique ‘pop up’ mannequin is the perfect freekick training aid.

Manufactured with durable mesh to absorb the impact of the football. Supplied with a strong plastic pole, the mannequin is easy to attach with velcro strips and folds down into a convenient portable size.

FNS-016

FNS-023

Medium 110x90cm

Specification: • Individual 3 mesh mannequin body.

• Colours - Green • Dimensions: 1.7m high x 60cm wide.

• Supplied with a pole and fixing with two spikes to easily place into ground.

Specification: • Individual 3 mesh mannequin body.

• Colours - Green.

• Dimensions: 1.5m high x 48cm wide.

• Folds into a convenient size for transportation.

Specification: • Manufactured from heavy duty reinforced black rubber.

• Colour - Black.

• Can be used in all weather.

• Single base only mannequins sold separately.

FNS-008

Specification: • Steel chain at the bottom for stability.

• Made of durable heavyduty mesh and nylon fabric.

• Comes with own carry bag.

• Colours - Green outer with black mesh net.

• Designed to fit 24ft x 8ft goal.

FNS-015

Specification: • Capacity of 750ml.

• Manufactured with a soft squeeze design.

• Easy pull soft mouth piece.

• No-seal watertight screw top lid and wide mouth piece for quick refills and a more hygenic water bottle.

750ml

FNS-018

Finesse Sports Water Bottle Carrier Lightweight and foldable water bottle carrier, with fist grip handle to prevent strain on hands. Made from strong plastic, the carrier is designed to hold up to 8 water bottle.

Perfect to keep sports teams hydrated.

Specification: • Holds up to 8 bottles.

• Colour - Black.

• Made from ultra-strong plastic material.

• Compact foldaway design for easy storage.

FNS-019

FNS-007

FNS-006

Large 170x110cm

FNS-024

168

Discover the full range at harrodsport.com

setting the standard - leading the field

169

Finesse

Finesse Folding Target Goal Harrod Sport Mini Aluminium Folding Goal is designed to be easily transported, it is ideal as a portable training aid for professional football academies.

The goal can be easily set up in less than 10 seconds and can be used on multiple surfaces.

Sideframes fold flat and are held in place by a two piece folding, hinged backbar.

Folding Target Goal

Specification: • 5ft x 3ft (1.5m x 0.9m) • Manufactured from heavy duty 50mm aluminium, powder coated black.

• High quality fluorescent green micromesh football goal net with hook and loop straps for secure attachment.

• The foldable goal takes 10 seconds to set up and can fit into a car boot when collapsed. Folded Size Medium 130cm x 100cm x 12cm & Small 100cm x 75cm x 12cm.

• Sold as a single goal c/w net.

• Goalframe arrives assembled c/w net attached in the box.

• Freestanding design allows the goal to be used on all surfaces without anchors.

Finesse PVC Standard Training Goal

Finesse 12 x 6ft Match Goal c/w Bag

Freestanding goal is lightweight and can be easily assembled and dismantled.

Our Finesse PVC freestanding goal is a lightweight football goal that can be easily assembled and dismantled, for ease of transportation to and from the pitch complete with a carry bag.

Specification: • Sizes available 3.66m x 1.83m (12’ x 6’), 2.44m x 1.22m (8’ x 4’) and 1.83m x 1.22 (6’ x 4’) • Manufactured from 68mm diameter heavy duty white PVC. • Complete with a 2.5mm net, ‘U’ peg anchors, net retaining clips.

• Joins together using PVC button clips to ensure stability.

• Bag is complete with central carry straps.

• Sold as a single goal.

12’ x 6’

FNS-027 8’ x 4’

FNS-028

Specification: • Size 3.66m x 1.83m • Manufactured from 68mm diameter heavy duty white PVC. • Complete with a 2.5mm net, ‘U’ peg anchors, net retaining clips and carry bag with zip.

• Joins together using PVC button clips to ensure stability.

• Bag is complete with central carry straps.

• Sold as a single goal.

12’ x 6’

FNS-026

6’ x 4’

FNS-029

6’ x 4’ Medium

FNS-036

5’ x 3’ Small

FNS-035 170

Discover the full range at harrodsport.com

Match Goal

setting the standard - leading the field

171

Blazepod

Football Flick Urban Skills Trainer

For professional sports coaches, therapists and fitness trainers. Blazepod triggers your body’s natural response to sensory stimulations, enabling superior, fast and coordinated movement.

Specification: • Powerful RGB LEDs with 8 color options.

• Durable: Water resistant (IP65), UV Protected.

• Simple and intuitive: No power button, no moving parts.

• Portable: small and lightweight.

• Sticks to any surface with specialty harnesses.

• Rechargeable Li-ion battery with up to 12 hours of operation on a single charge.

• Space saving Smart Stack & Charge Bluetooth Low Energy (BLE) communication with immediate smartphone pairing and up to 40 meter device-to-pod range.

172

Great for testing the player’s skill, precision, and accuracy in passing, ball control, touch, and volleying.

Trainer Kit Set

Standard Kit Set

Includes 6 pods, charging cable & base for creating the most challenging activities, drills, competitions and tests.

Includes 6 pods, charging cable & base for creating the most challenging activities, drills, competitions and tests.

Set of 6

Set of 4

Trainer Kit Deluxe

Standard Kit Deluxe

ISP-021

As per Trainer Kit but with 4 functional adapters, straps, suction cups and cone adapters.

Set of 6

ISP-024

Discover the full range at harrodsport.com

The first trainer to be scientifically validated to improve players’ core skills by up to 73%. Improves skills such as control, passing, touch, volleying and technique by using any of the front curved ramp, rear rebounder or central target net. Great for improving player’s crucial core skills.

It allows single or multiple players to pass footballs to

any surface and receive the ball back at different heights, speeds and angles. Football Flick is easily assembled and collapses into supplied carry bag for storage and transporting. Used in many professional coaching academies all over the world.

Size: • 72cm H x 74cm W x 137cm D.

FNS-032

ISP-022

As per Standard Kit but with 4 functional adapters, straps, suction cups and cone adapters.

Set of 4

ISP-023 setting the standard - leading the field

173

TEQBALL TEQ™ ONE

TEQ™ LITE

TEQ™ SMART

TEQ ONE is a new and revolutionary sports equipment that took over two years’ testing and research to eventually develop the final innovative and sophisticated shape.

Thanks to its lighter structure, the third edition of the innovative TEQ table family is a real game-changer. TEQ LITE is attracting more and more people around the world to try their TEQ-skills.

The TEQ LITE maintains key features of the TEQ SMART table in that it can be folded for storage, taking up minimal space, and transported easily thanks to its lockable wheels.

TEQ SMART, as an innovative piece of sport equipment, is the fantastic foldable version of TEQ ONE. TEQ tables are made to meet our exacting standards of quality and durability, with TEQ SMART having the added advantage of being mobile, indoor or outdoor.

The net is solid and thus the ball bounces back from it, so this way the concept of uninterrupted games is no longer a dream. The structure of the TEQ table, aligned with the rules, does not allow luck or chance to interfere with the game; players can only rely on their skills and abilities.

• Suitable for indoor and outdoor use • Weatherproof • Waterproof • UV proof • Fixed structure • Easy to assemble • Can be fixed to the ground • Transparent net

• Used for everyday practice • Individual training • Suitable for indoor and outdoor use • Weatherproof • Waterproof • UV proof • Mobile • Easy to move • Foldable

TEQ™ X By adding TEQ X to our product line-up we are offering access to the TEQ experience at even more price points. TEQ X is intended to grow our TEQ family even further, adding more energy and connectivity.

TEQBALL TEQ ONE

• Suitable for indoor and outdoor use • Weatherproof • Waterproof • UV proof • Mobile • Foldable • Individual training • Transparent net

FNS-033 TEQBALL TEQ LITE

The Teqball table was revealed by the famous Brazilian football player Ronaldinho at the 2019 Teqball World Championships.

This newly added table follows the same formula as the original TEQ ONE, with the same iconic shape, fixed structure and easy assemblability, but at a more accessible price.

For every TEQ X table, a specially designed fixing kit is included, allowing you to give your table a permanent home. It includes all the essential tools for securing the table into a new space.

Quick and easy to use, you will soon have your own TEQSPORTS sanctuary! The TEQ X fixing kit includes: fixing centre plate, fixing corner plate (left and right), screws, nuts, washers, dowels, dowel installing tool, allen key.

• • • • • • • •

Use for everyday practice Suitable for indoor and outdoor use Weatherproof Waterproof UV proof Fixed structure Easy to assemble Can be fixed to the ground

FNS-054

FNS-030

FNS-031

TEQBALL TEQ SMART

174

Discover the full range at harrodsport.com

TEQBALL TEQ™ X

setting the standard - leading the field

175

Innovation Centre – investing in the future At the start of 2017 Harrod Sport was proud to open their Centre for Innovation in both design and research & development.

This new 75 square metre building consists of offices and our specialist research & design workshops. It enables all our design engineers to be housed under one roof instead of in numerous offices across the site which results in fresh innovation and thinking, as all design engineers are able to consult and assist across all projects with multiple disciplines.

The new building houses the latest state of the art 3D printer for rapid prototyping alongside a whole range of design technology.

Our research and development team are also sited alongside our design engineers – a first in our 60 year history – enabling new products to be brought to market sooner as the design, research, development, prototyping and testing procedures are now streamlined. With today’s fast moving trading environment this has proved critical - allowing the continual expansion of the business and securing jobs and our future.

176

Discover the full range at harrodsport.com

setting the standard - leading the field

177

UK design, manufacturing

UK based since 1954 In Suffolk we have over 11,500 square metres of factory, offices and warehouses which means that everything from product design, manufacturing, administration and operations all happens under one roof to ensure we have total quality control in everything that we do.

178

Investors in People We are part of an elite 2% of companies in the UK to be awarded the prestigious Investors in People Gold Award. It recognises world class business practice across key facets of our business that ensures we deliver the very highest of standards with our products and services.

Discover the full range at harrodsport.com

Design Studio As part of our new Innovation Centre our designers now operate in a new purpose built large design office with the latest CAD packages and range of other design technology such as a 3D printer for rapid prototyping.

UK Design Our 14 strong research and development team incorporates 11 full time design engineers and 3 research & development engineers. Our passion for innovative design and game changing ranges means we are constantly striving to improve and develop our products.

UK Fabrication As metal fabricators we offer CNC (Computer Numerically Controlled) rolling and precision engineered structures alongside traditional metal fabrication services to meet industry trends and needs – all from our site in Suffolk.

& innovation since 1954...

Degreasing plant All steel products are zinc phosphated and aluminium products iron phosphated giving them a tough protective corrosion resistant coating.

Market leading finishes

Highly skilled net making

Our in house powder coating plant is one of the largest and most technically advanced in the UK to ensure the very best finish for all products.

Utilising skills honed from over 60 years of net making, we offer the widest range of netting with the ability to adapt products to suit bespoke customer requirements.

Stock holding

Delivery fleet

Our commitment to the UK’s largest stock holding of goal posts and nets ensures our customers receive a world class service.

With a fleet of six delivery vehicles and a dedicated team of drivers and installation engineers, we are able to meet time and site specific deliveries.

setting the standard - leading the field

179

Major Event CV 96 99 02 07 09 10 11 Euro 96 European Football Championship Finals, UK

Rugby World Cup, Millennium Stadium, Cardiff

XVII Commonwealth Games, Manchester, UK

Euro Hockey Nations Championships, UK

FIFA U17 World Cup Finals, Africa

XIX Commonwealth Games, Delhi, India

UEFA Champions League Final, Wembley Stadium Rugby Union World Cup Finals, New Zealand AFC Asian Cup, Qatar

180

Discover the full range at harrodsport.com

12

13

The London 2012 Olympic Games, UK

Rugby World Cup Sevens, Moscow

The London 2012 Paralympic Games, UK

UEFA Champions League Final, Wembley Stadium

UEFA European Championships Final, Ukraine

14 15 16 17 18 19 20 XX Commonwealth Games, Glasgow, UK

Rugby World Cup, UK

Rio 2016 Olympic Games, Brazil

EuroHockey Championships, London, UK

Hockey Champions Trophy, London, UK

AFC Asian Cup, Australia

NFL, Twickenham, UK

FIH World League, London, UK

Vitality Hockey World Cup, UK

Rugby World Cup, Japan

The 2020 UEFA European Football Championship Finals, UK Tokyo 2020 Olympic Games, Japan

The FIFA U20 World Cup, New Zealand

setting the standard - leading the field

181

Materials

Harrod Sport only use the best materials and have the largest selection of bespoke extrusions in the UK.

Football

Rugby

Netball

At Harrod Sport, we produce numerous specialist extrusions to exacting requirements for a wide variety of sports. From the 140mm tube that allows us to achieve a 17m Millennium Rugby Posts to our industry leading 4G Football section designed to house internal joints and external bolts, plates and net clips, they are tried and tested to highest standards.

Assembly service To meet an ever increasing demand, our assembly department is regularly being expanded and our teams of highly skilled fitters provide a first class service delivering and erecting items from our range of freestanding equipment. They are continually adding additional equipment into their portfolio.

Each extrusion is designed for the exacting purpose of the post or goal it is designed for and we use only the best materials.

Badminton

Our teams are also continually put to the test at prestigious venues and events from the London to the Tokyo Olympics, to Rugby World Cups.

The commitment shown during these events is typical of our teams, who will certainly always go the extra mile to ensure you will be totally satisfied with the finished product.

The team can also offer invaluable operational, anchorage and maintenance advice whilst on site.

Hockey

182

Discover the full range at harrodsport.com

Shelters

Service available on freestanding equipment - POA from all distributors setting the standard - leading the field

183

Tel: 01502 583515

@HarrodSport

Harrod UK Limited Pinbush Road, Lowestoft Suffolk NR33 7NL

HarrodSport

harrodsport.com

Harrod Sport

Harrod Sport
