Campus Life +++

Phone Min Khant-65120500021

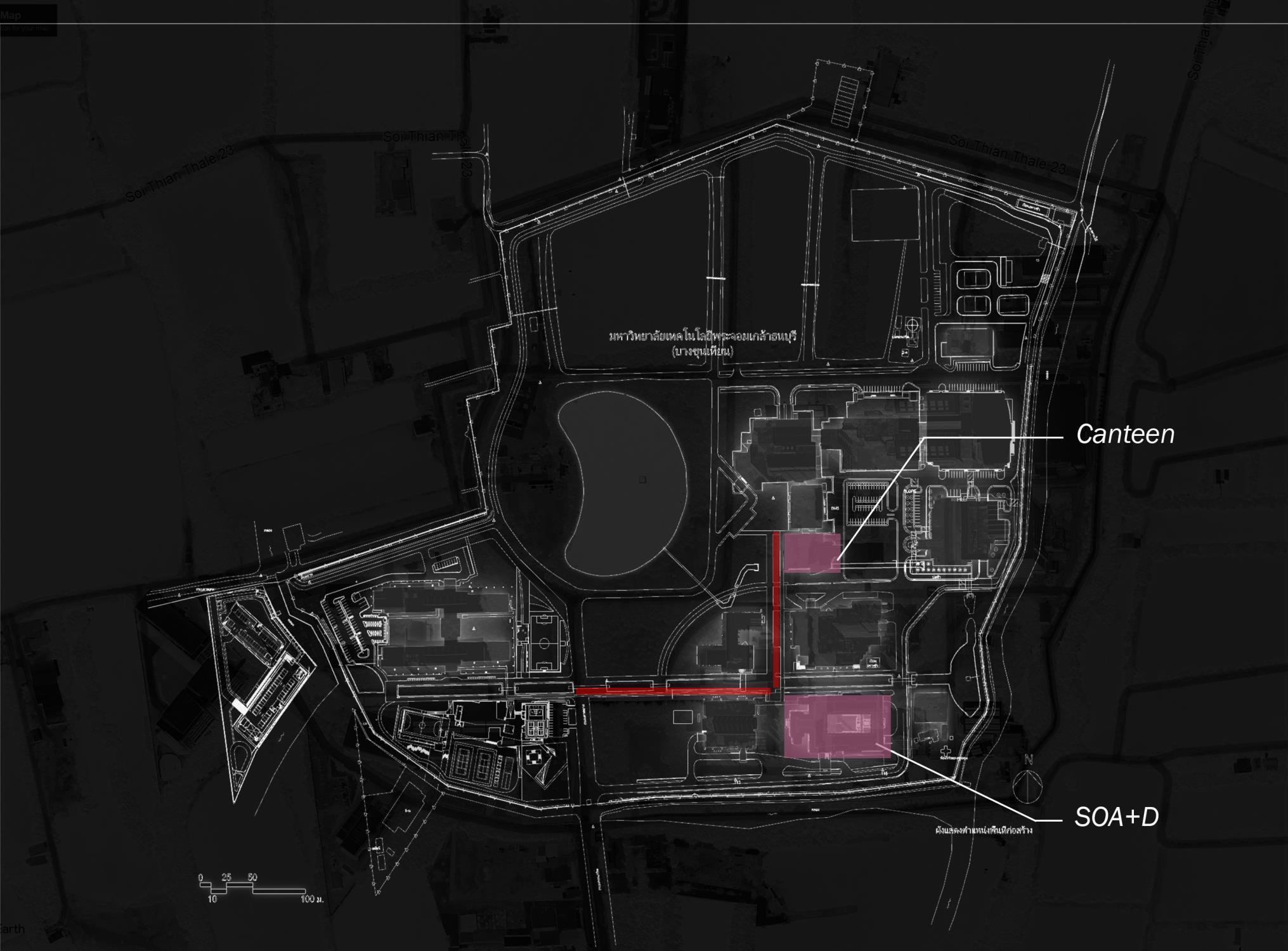

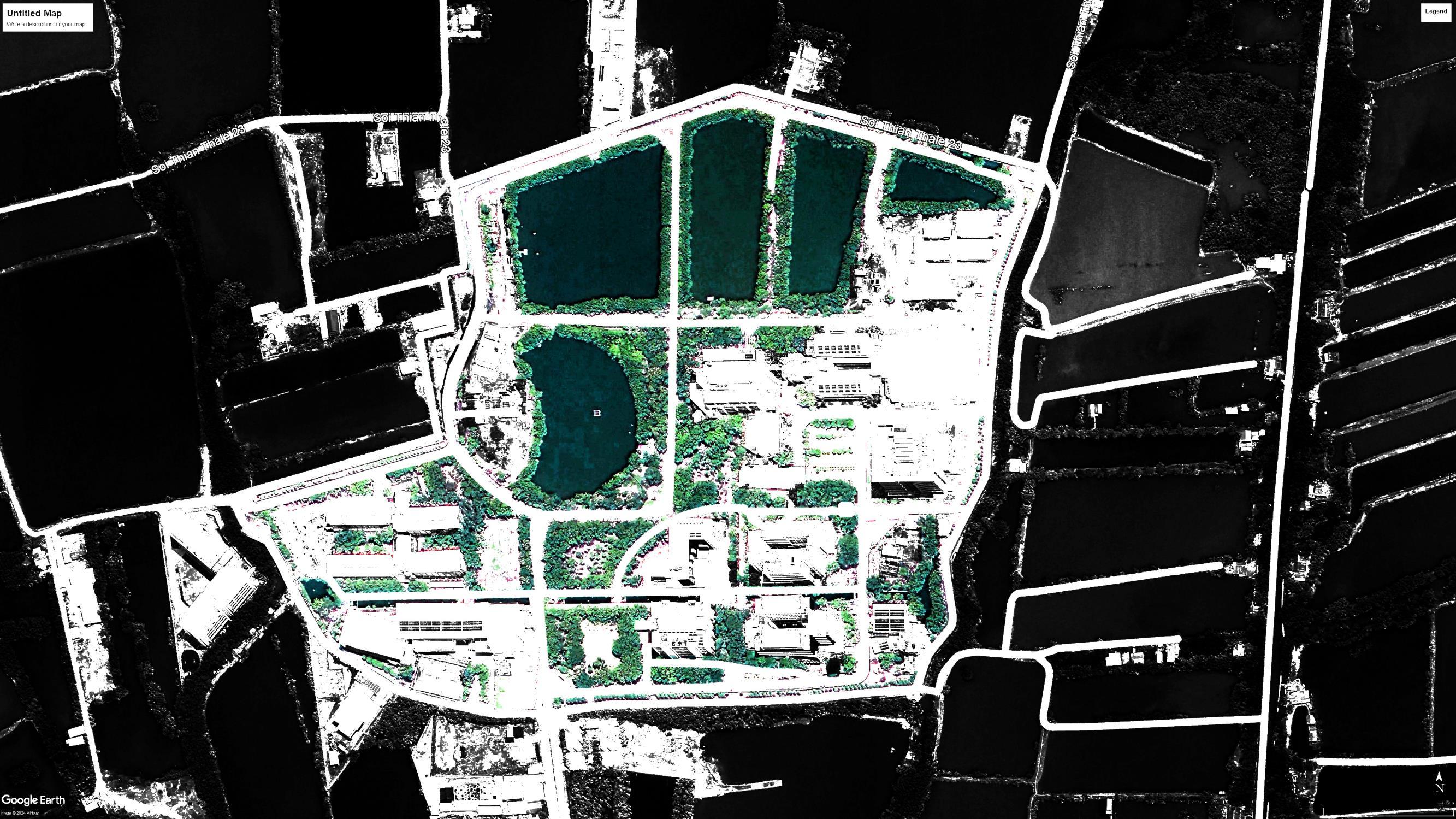

Site Analysis

Issue-1

• Lots of green space

• Not utilizable

• Sit & enjoy the green lawn

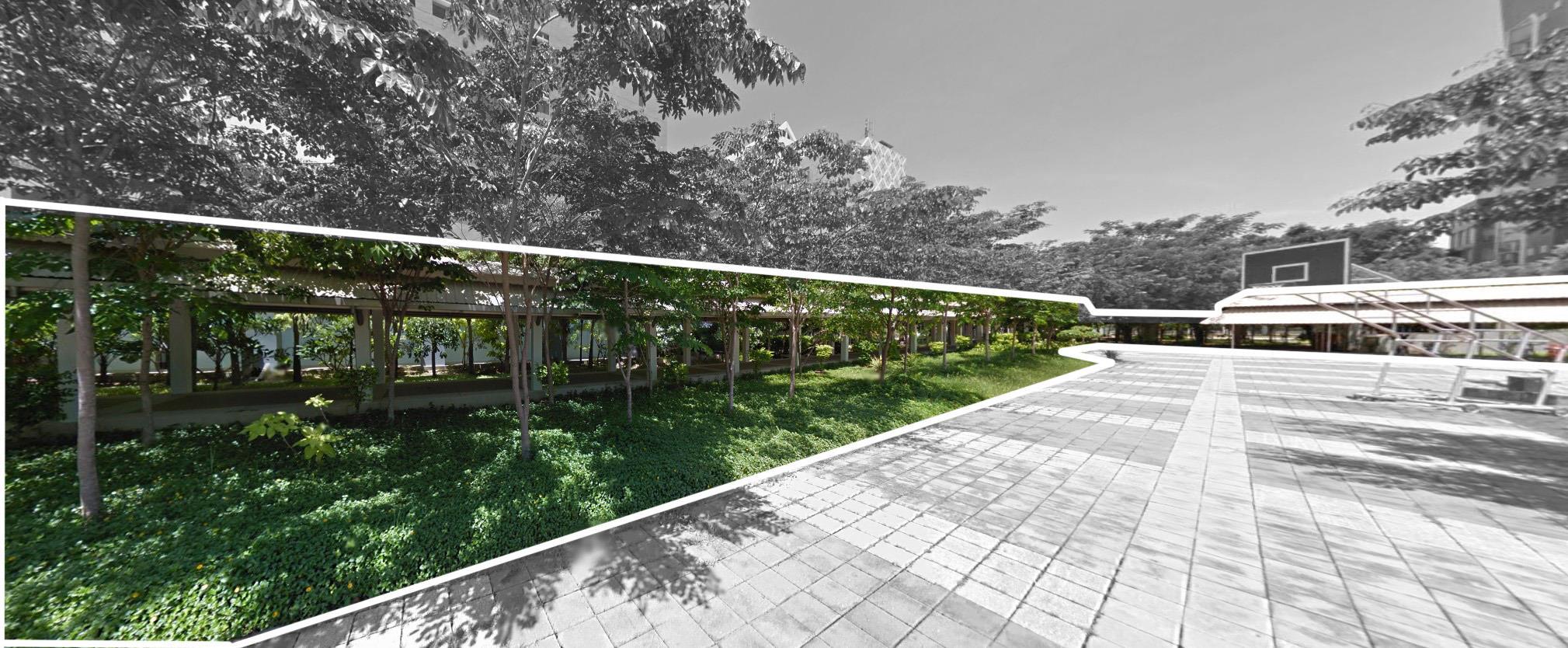

Issue-2

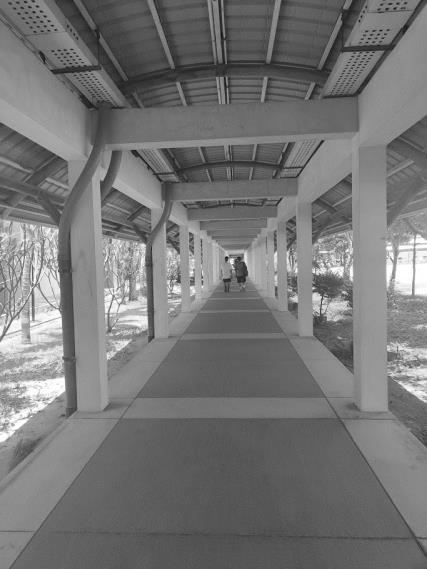

Lack of shaded walkway

• places where exchange of information & socialization occurs

• meet people from different faculties

• feel a sense of university

• rigid,perpendicular and industrial

• forced to do it

• only from point A to point b

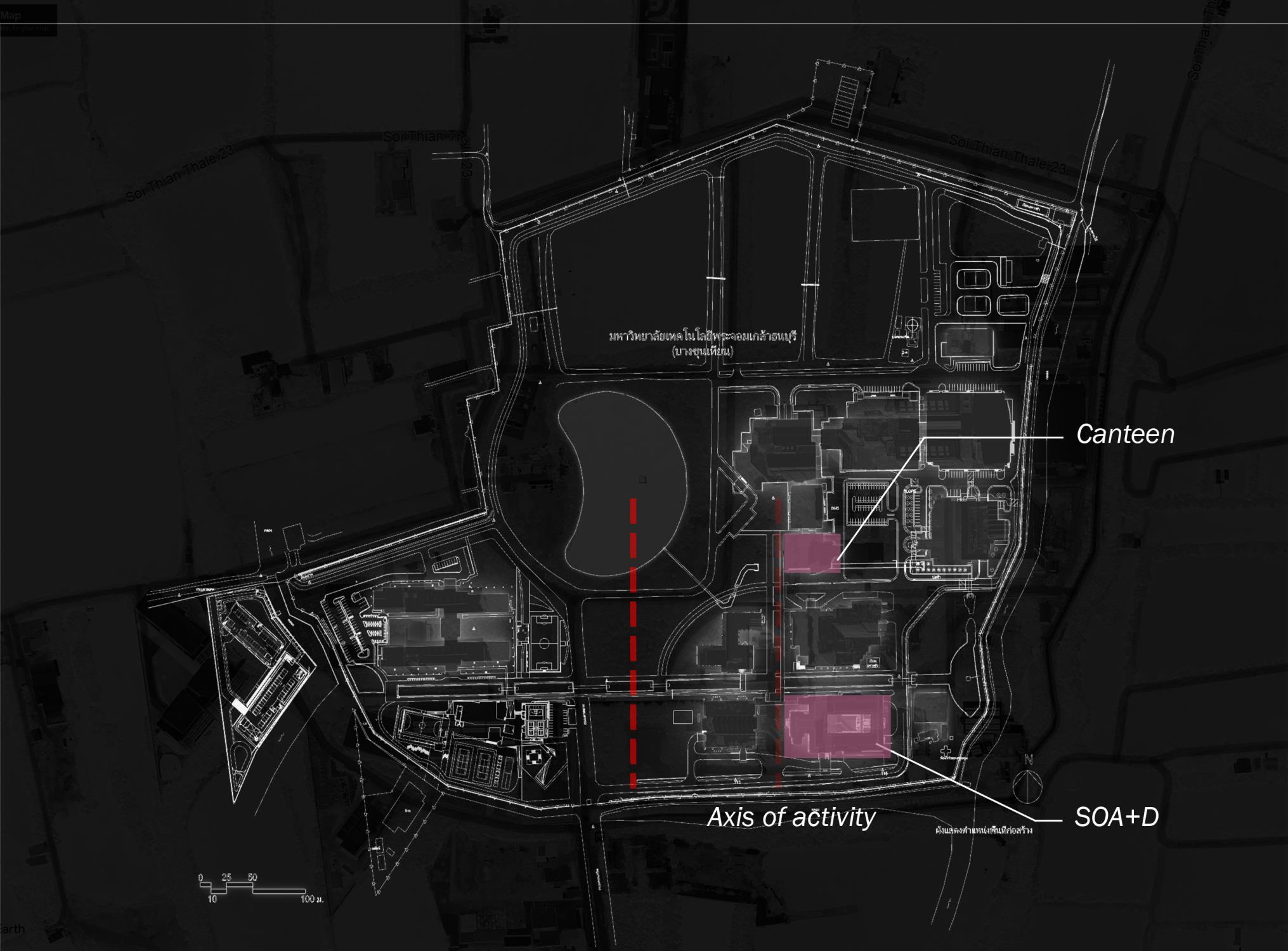

Issue-3

Deep axis of activity

• Canteen-only other place you can go

• Except your own institution

• Point A to Point B

• Deep axis of activity

Issue-3

Deep axis of activity

Objective

Concept

Re-centering the axis of activity

• More central

• Green space can be utilized

• Closer to dormitory ( density )

• Lake & view

• Aligned with most used footpath

• (shaded walkway )

Program

Student center Canteen Park Community center

For students

For outsiders

• Student center – relaxation & socialization space for students

• Community center – serves as a hub for local surrounding community

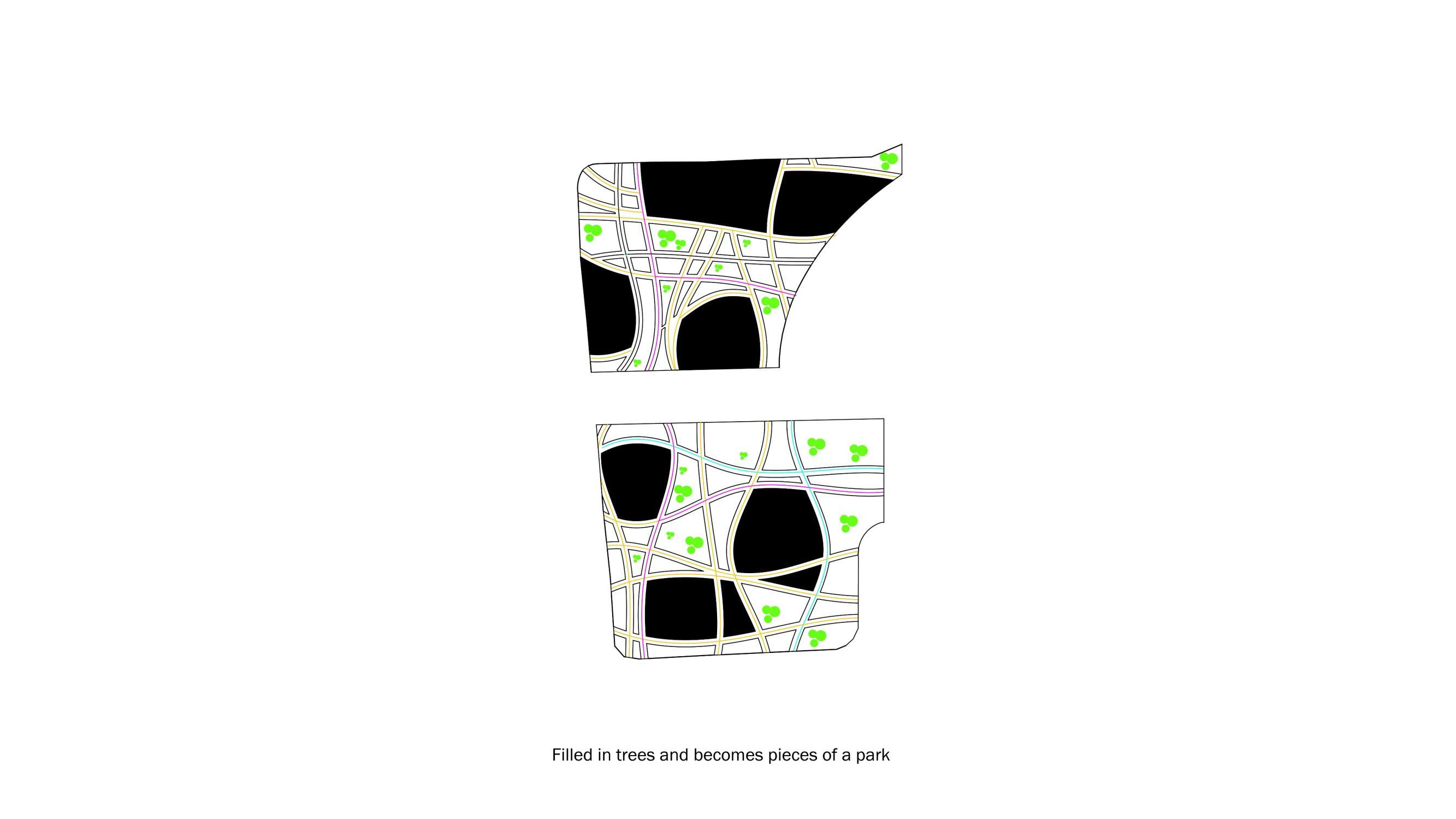

• Park – utilizing the strength of our campus & to bring in outside people

• Canteen - ???

Computational strategy

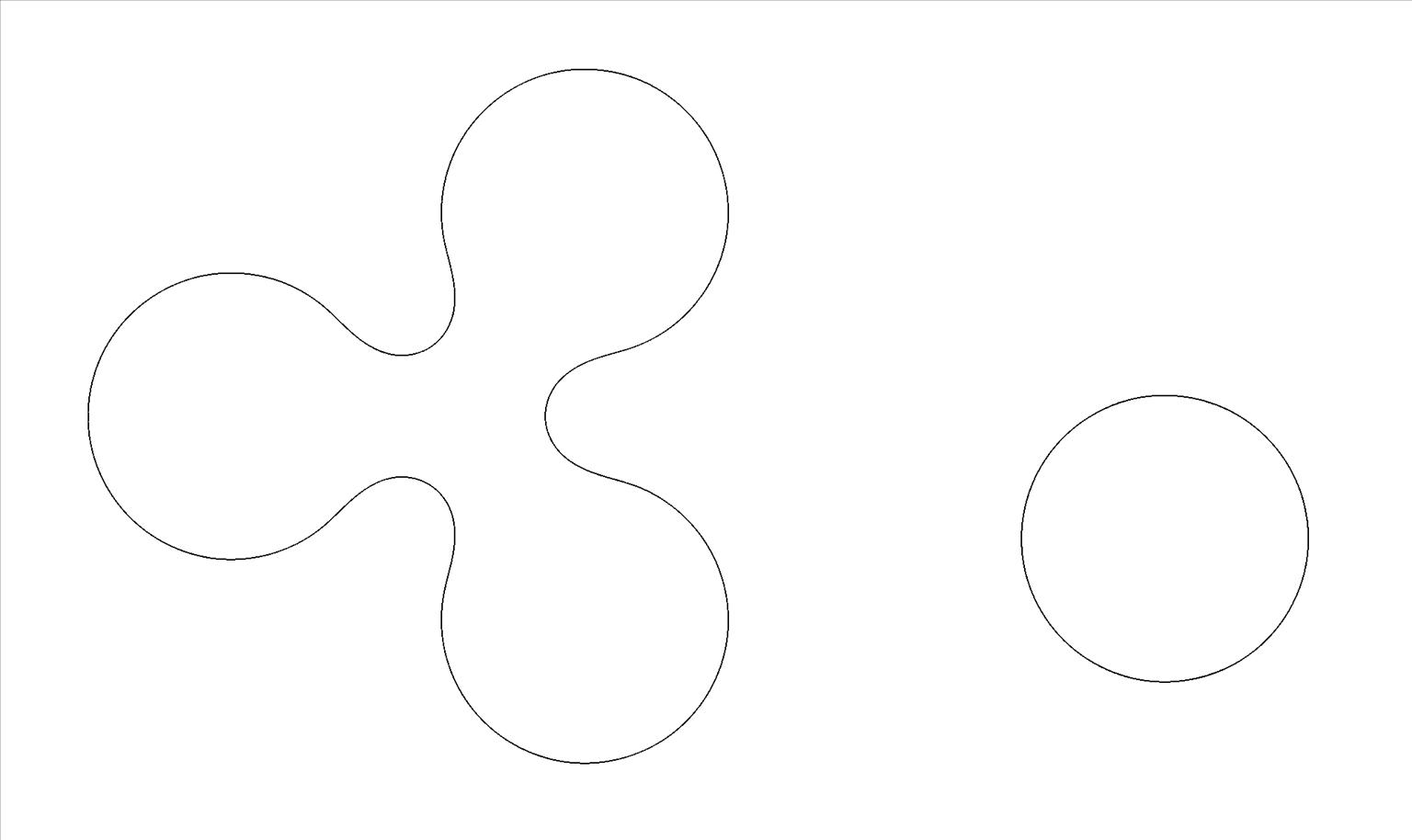

• For individual building , starts with a module that is not rigid , industrial and can be modified.

Computational strategy

• One circle is 29 sqm in area

• An average size of a small classroom

• Radius is 3m

Computational strategy

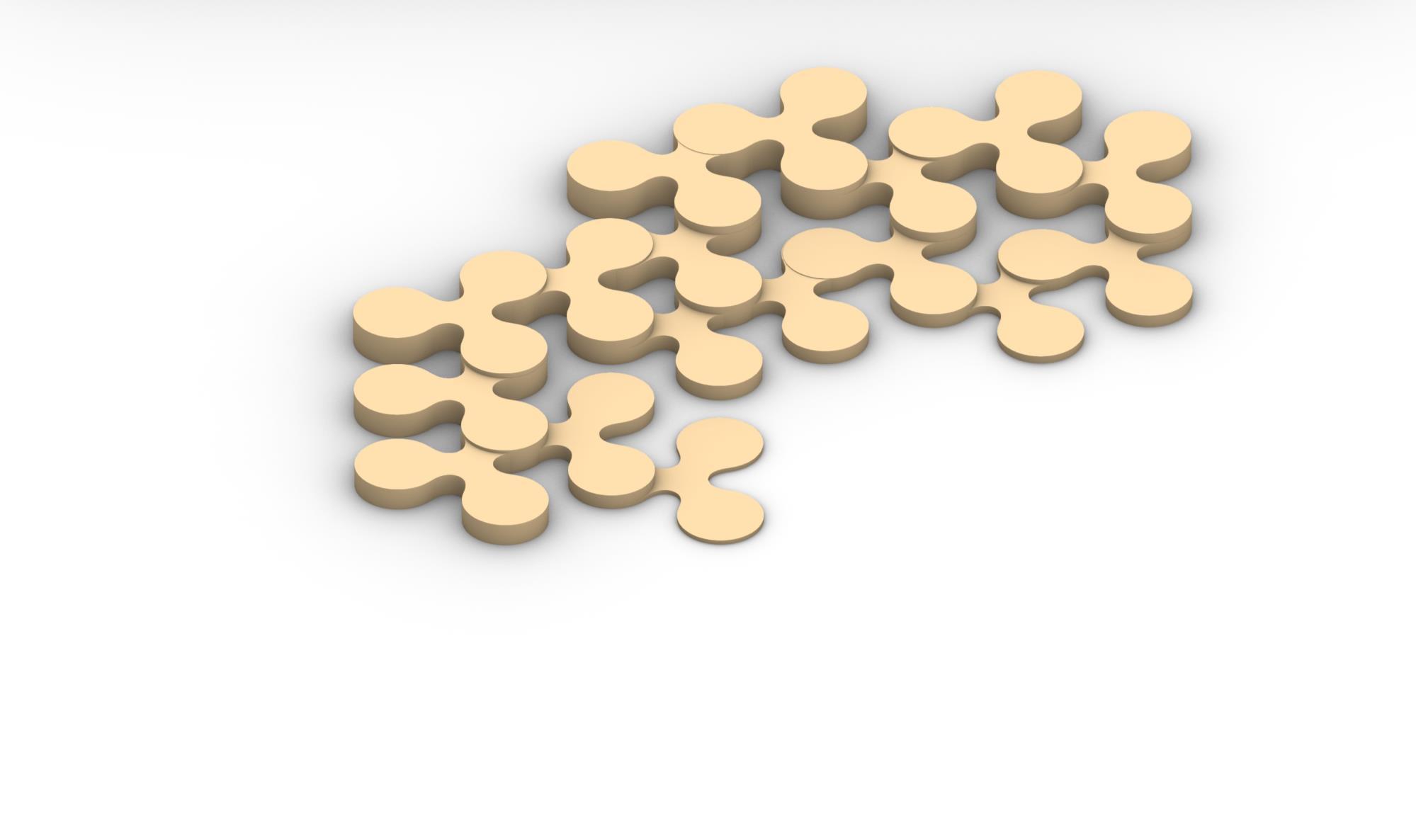

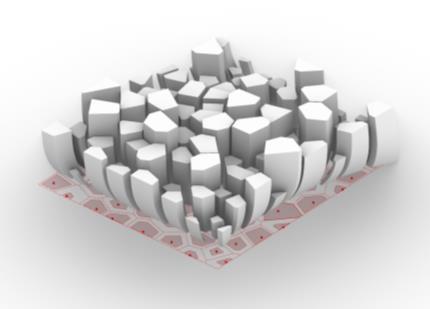

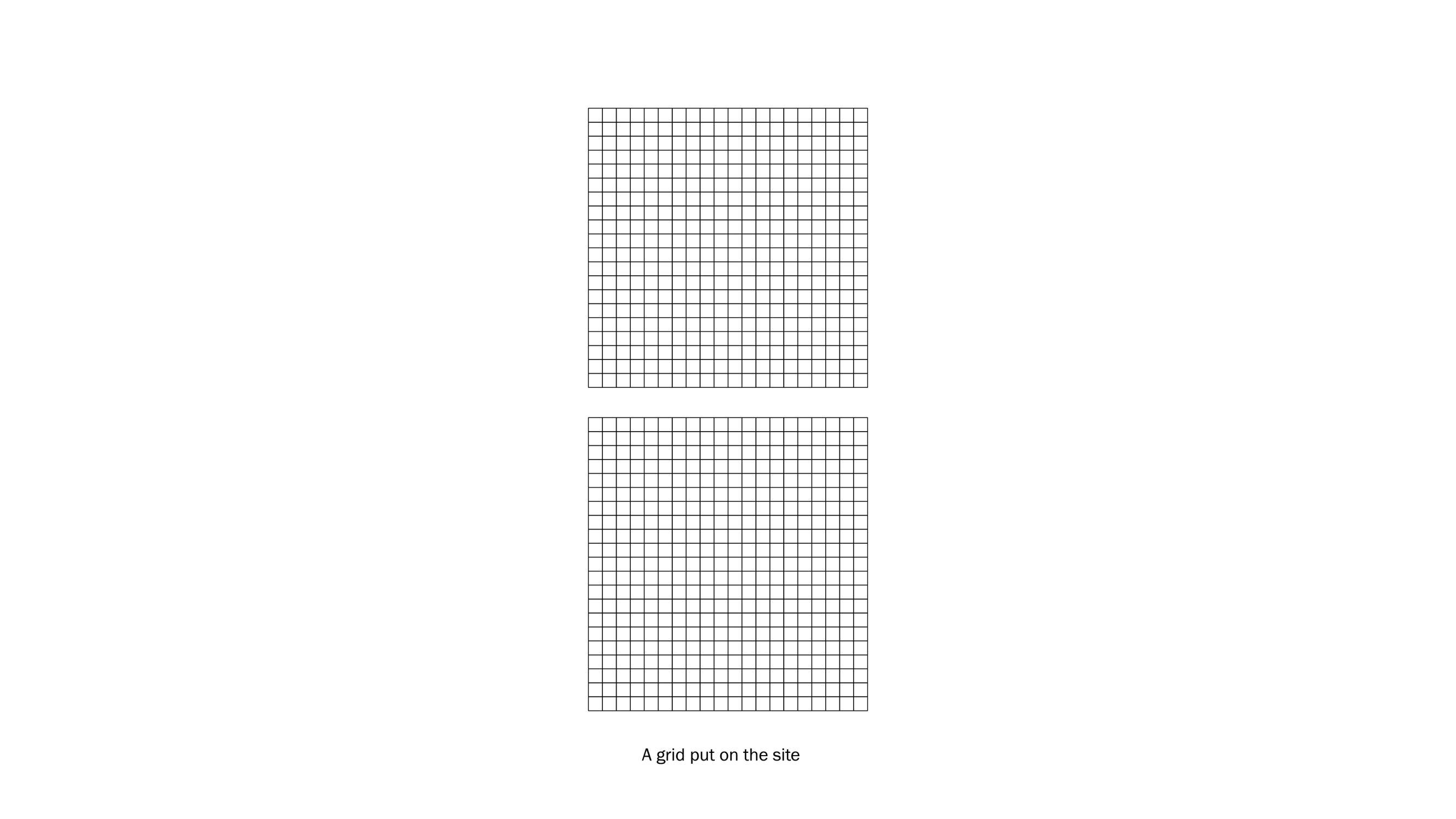

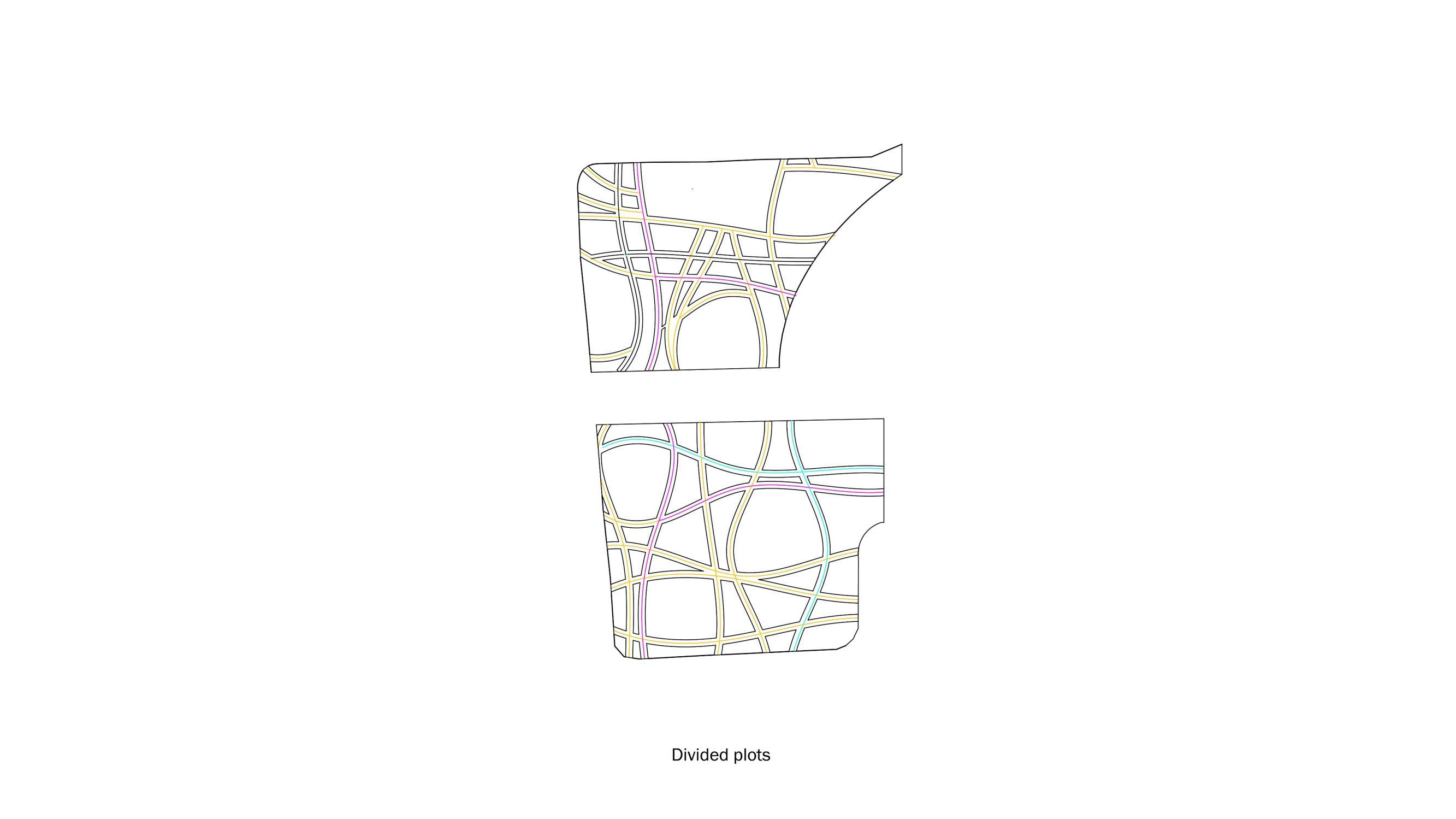

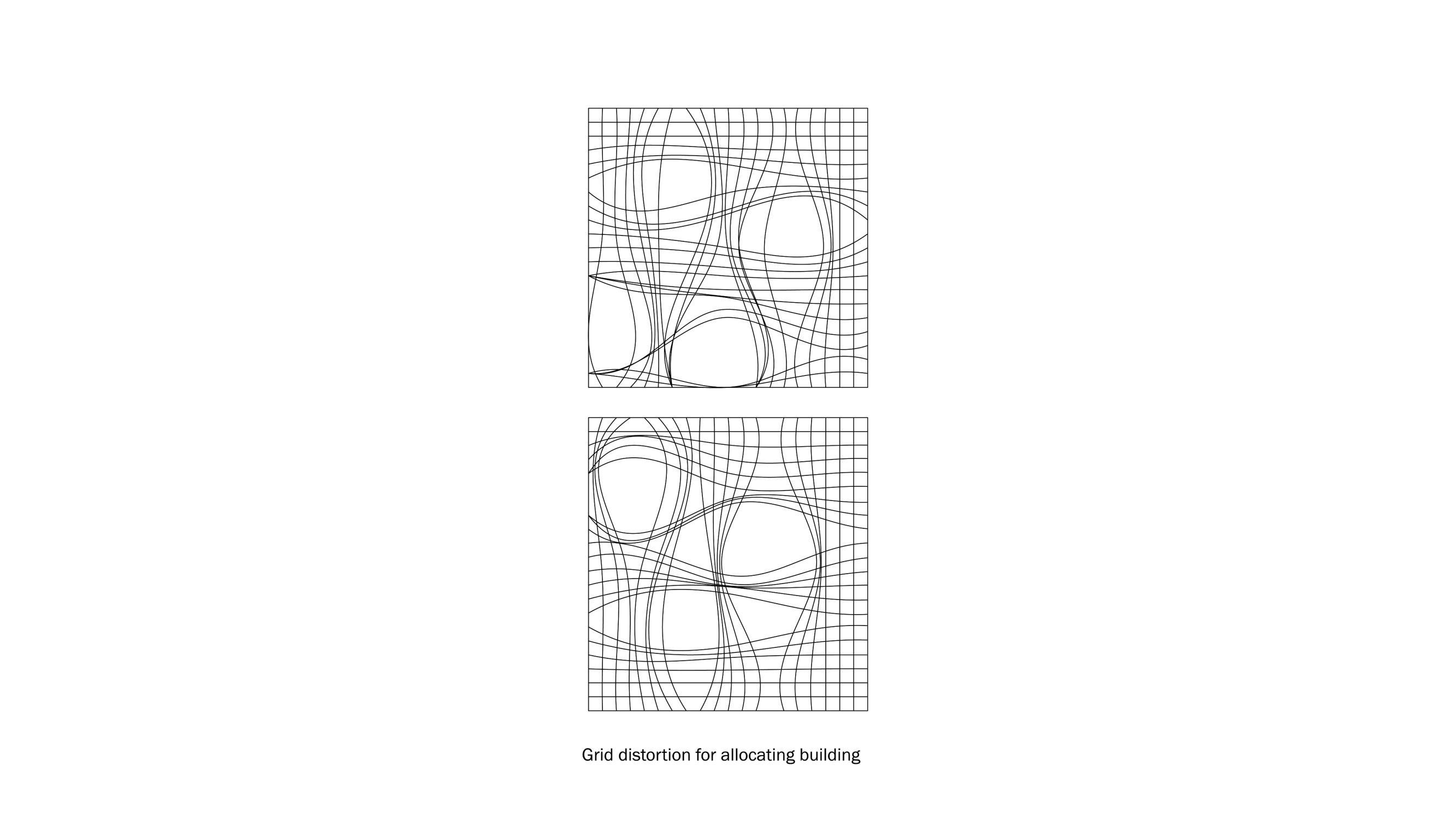

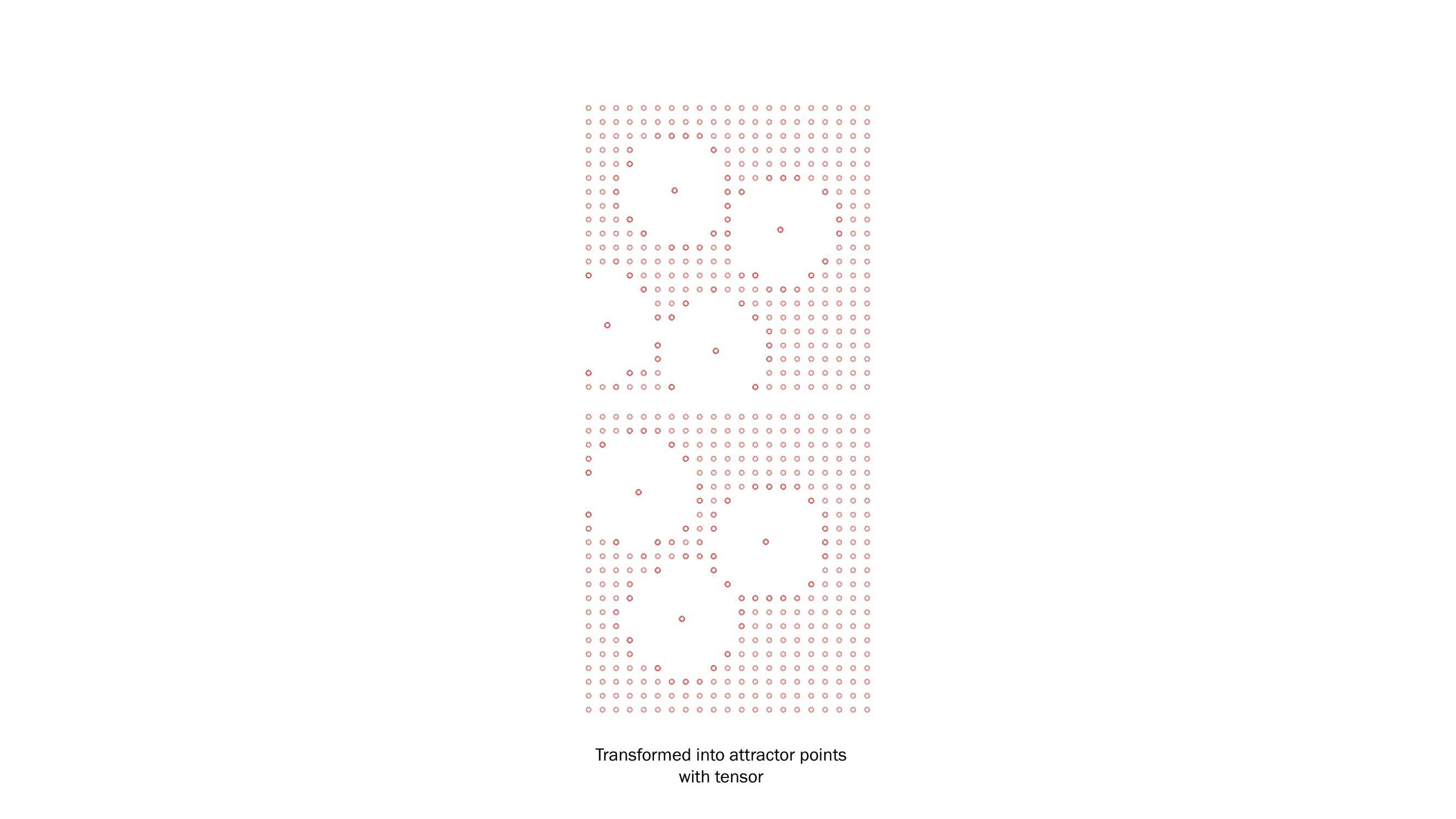

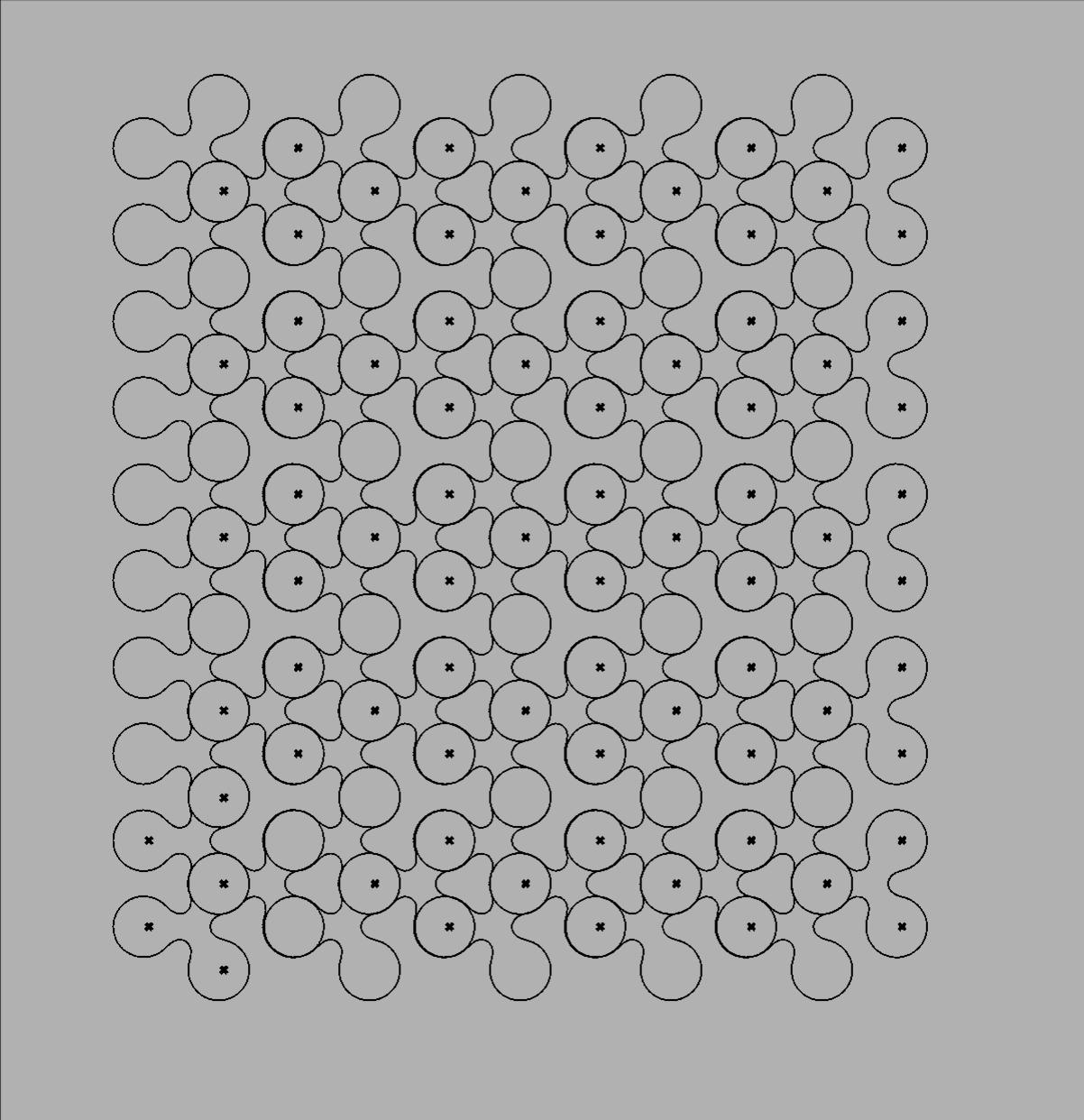

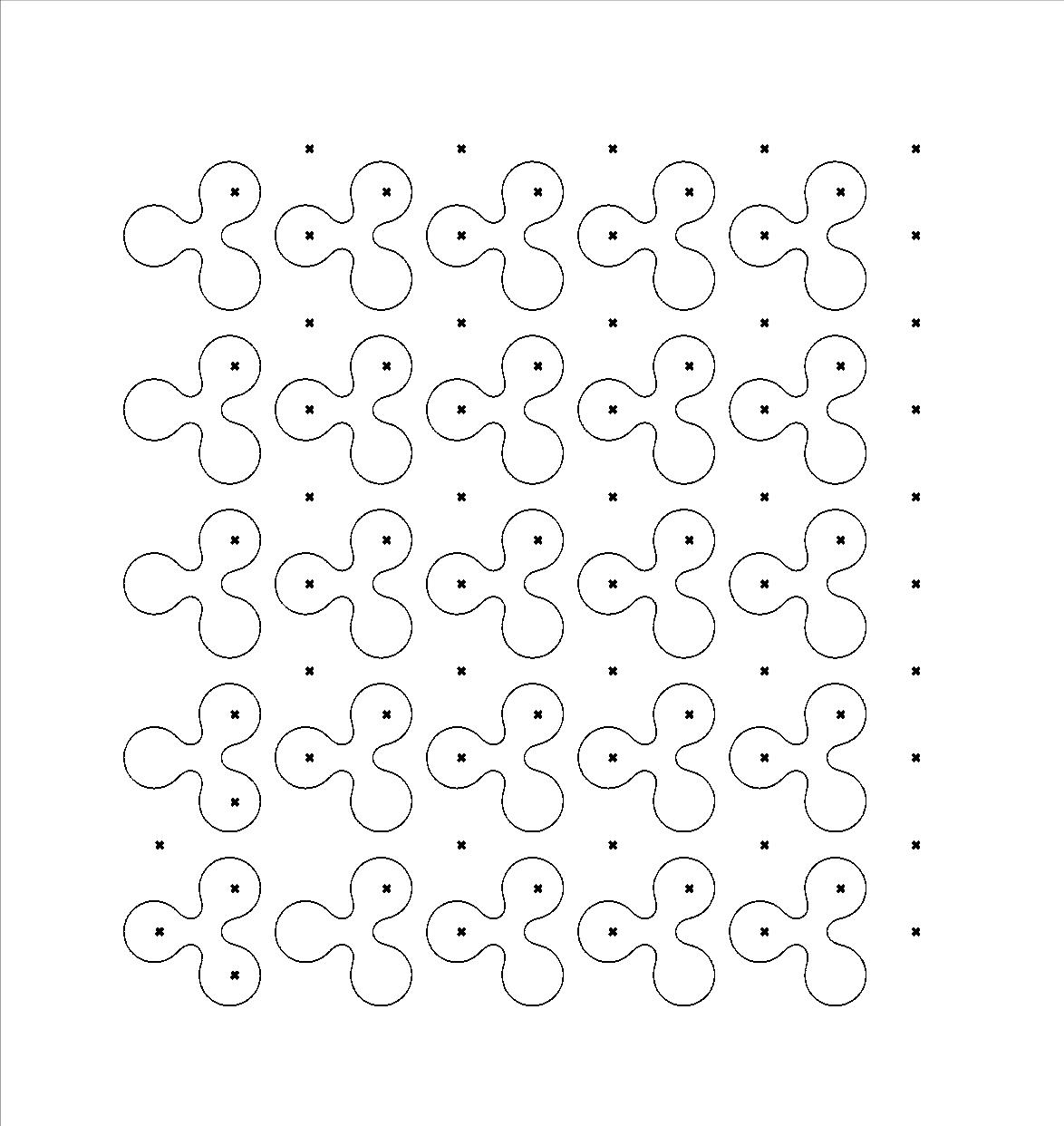

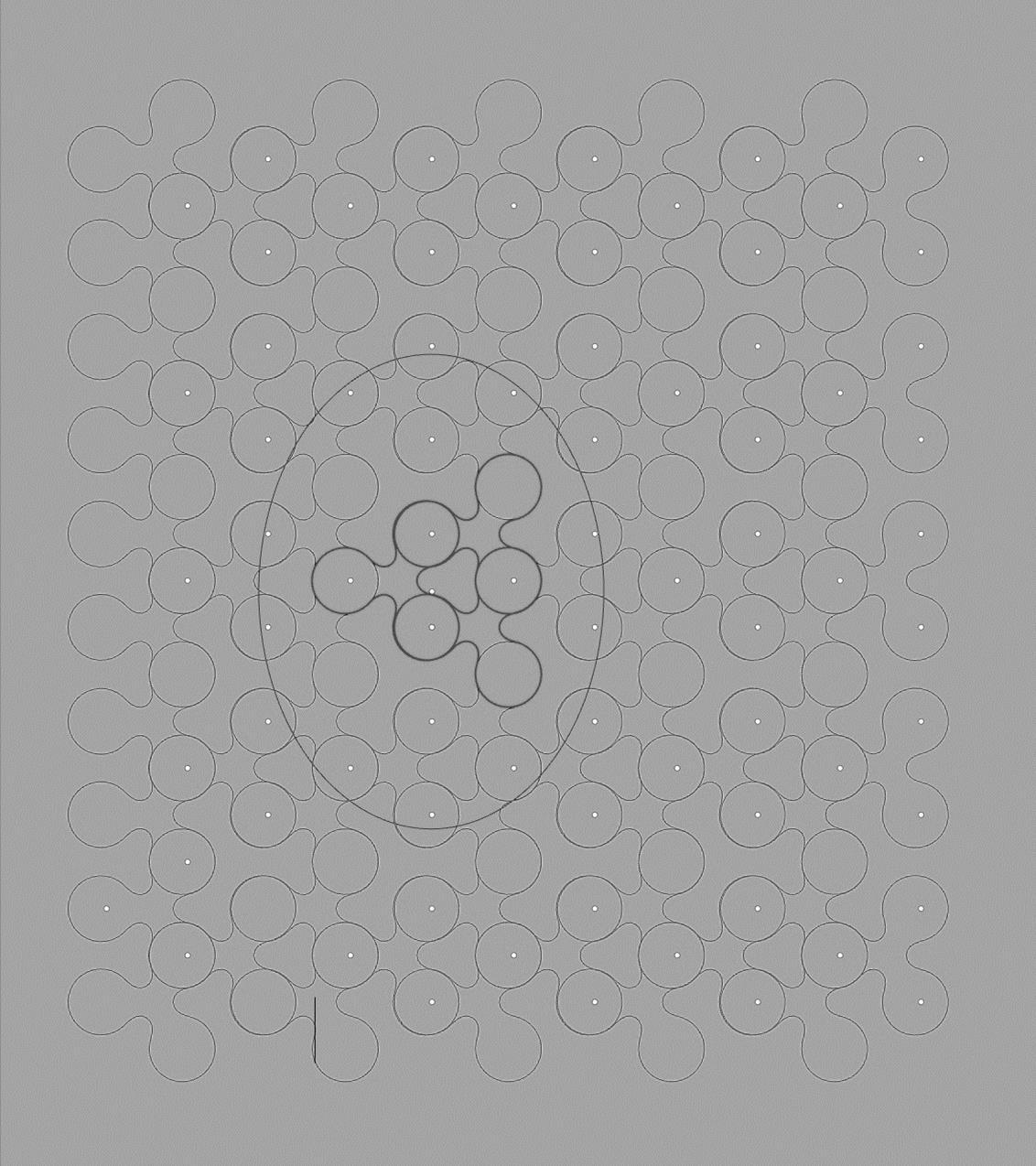

Modules are distributed based on a grid system that can grow according to different needs

Computational strategy

• Second grid is placed on a factor that each module will have a

• co-centric center.

Computational strategy

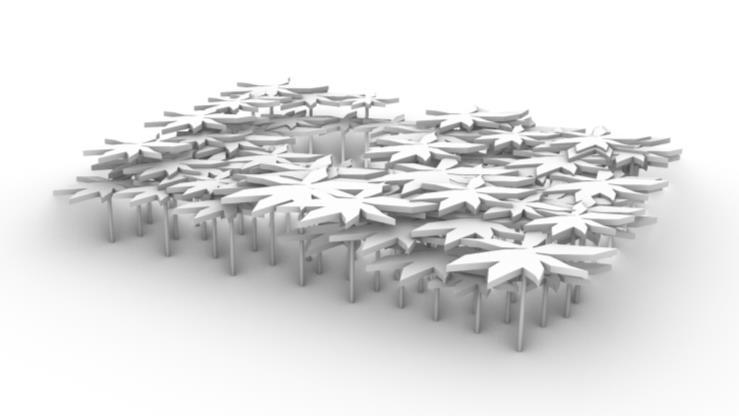

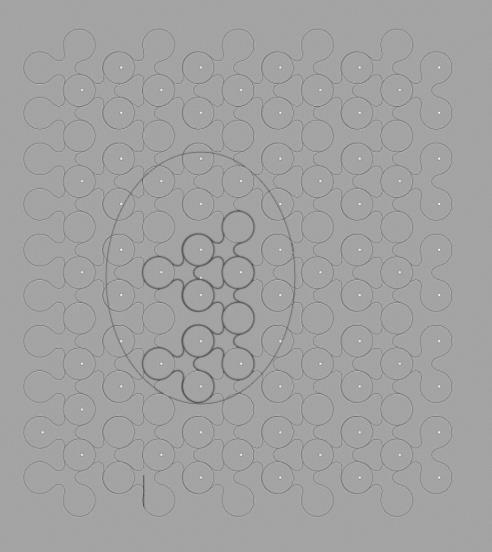

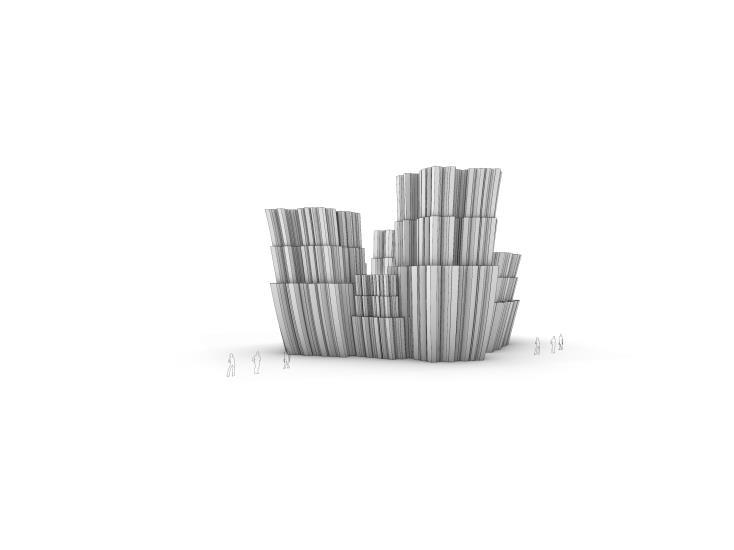

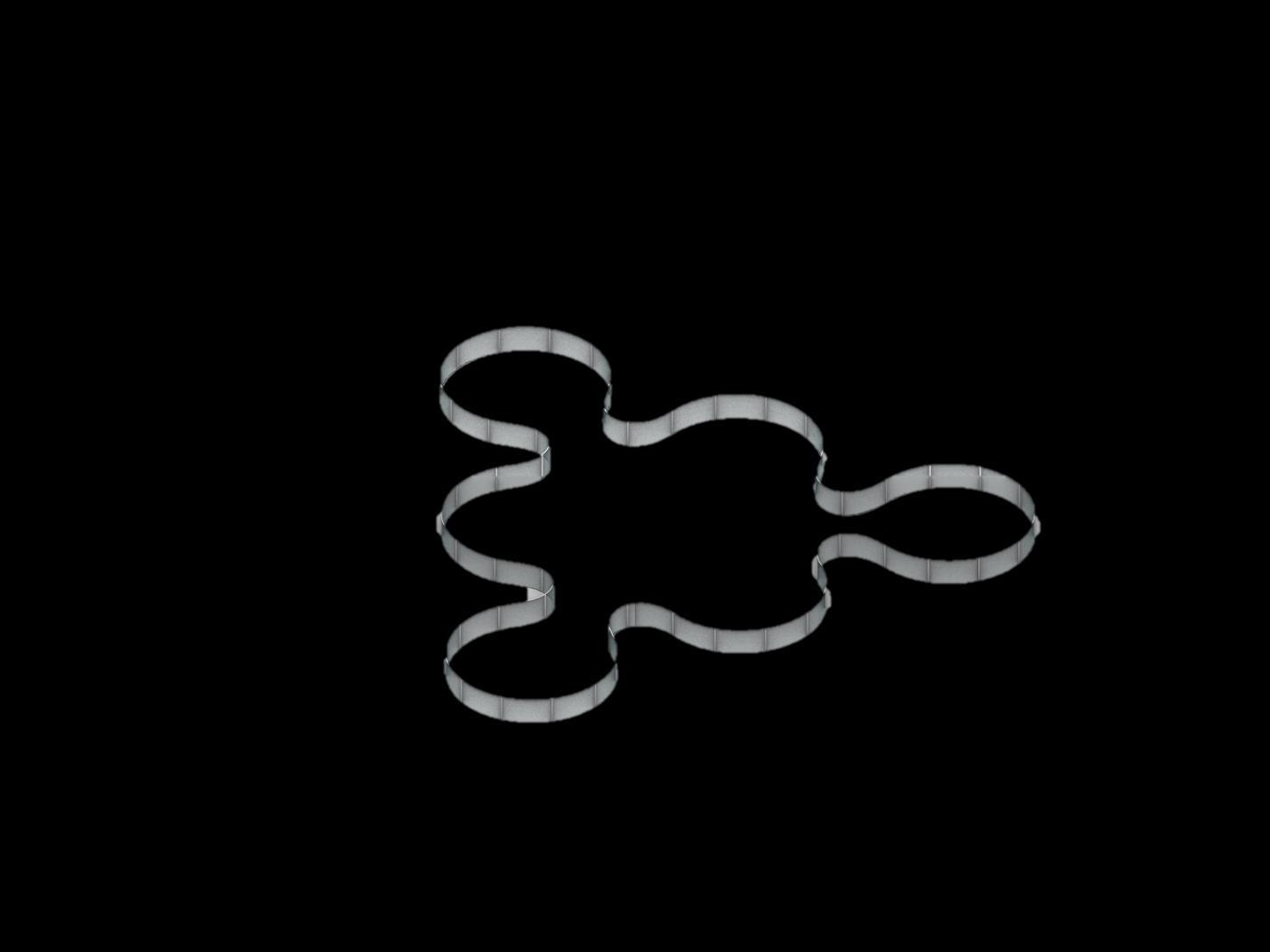

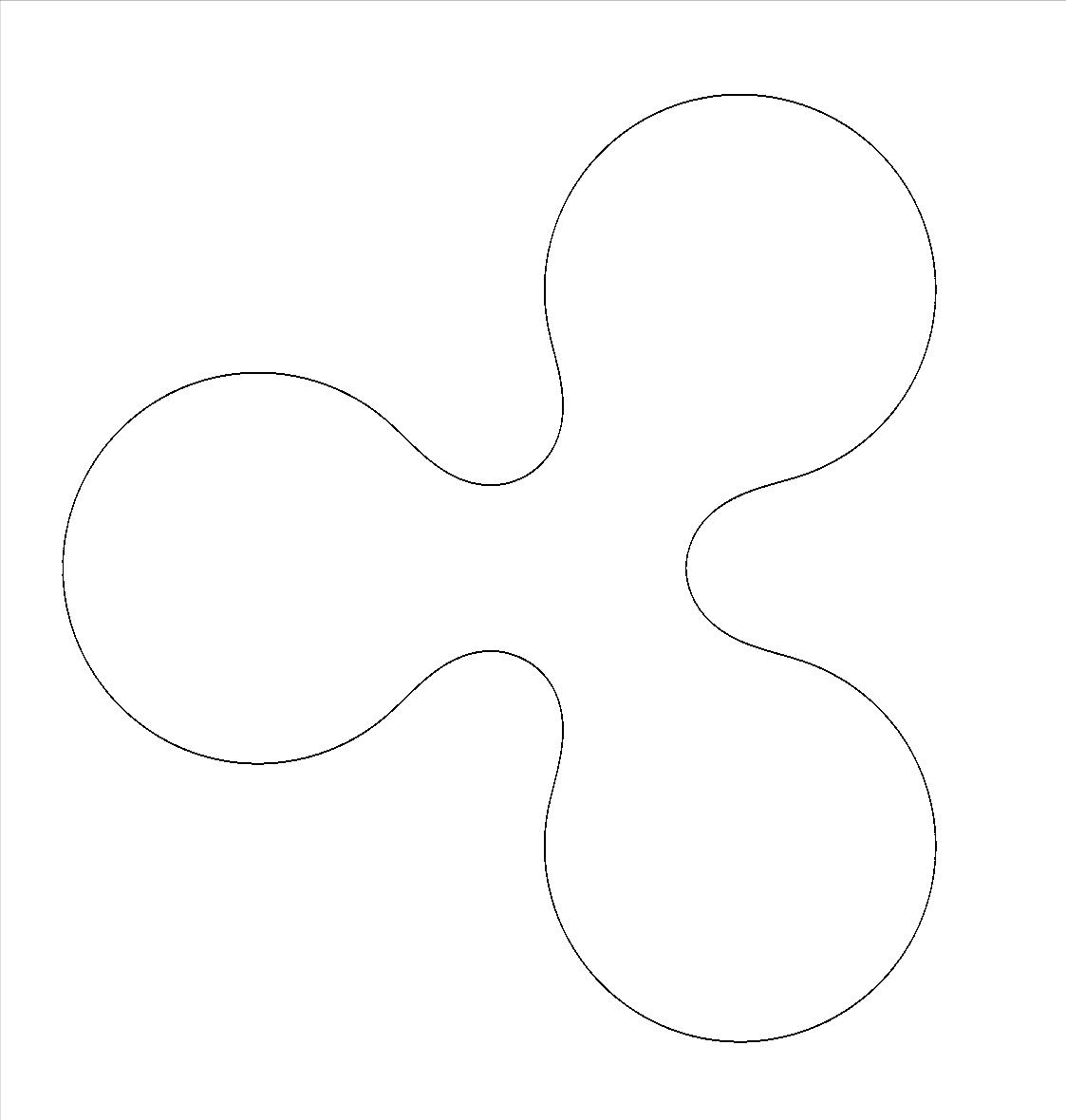

• Suitable shape is determined for different functions by using a sample curve which can be changed

Computational strategy

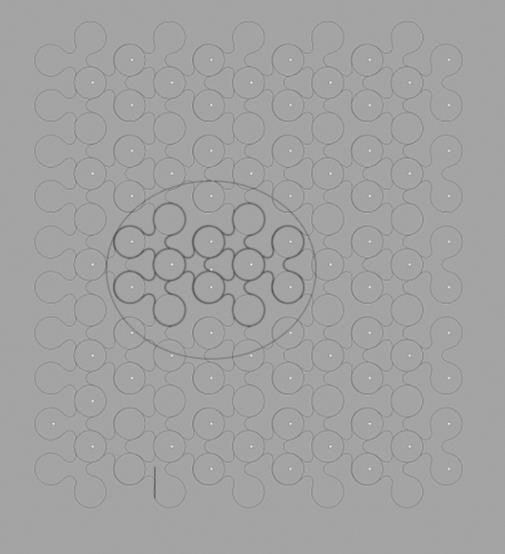

• Suitable shape is determined for different functions by using a sample curve which can be changed

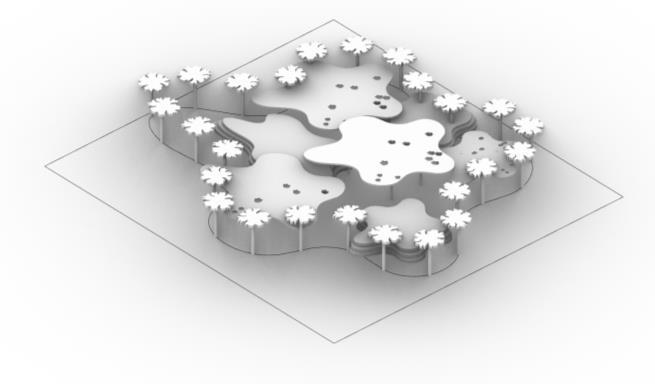

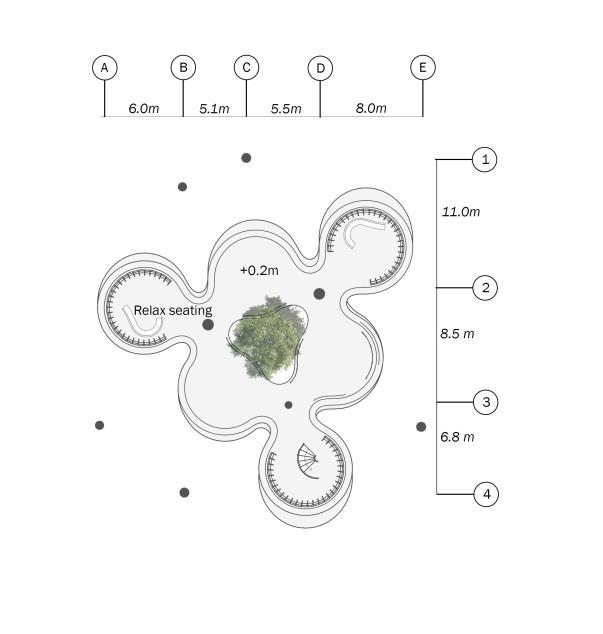

Computational strategy

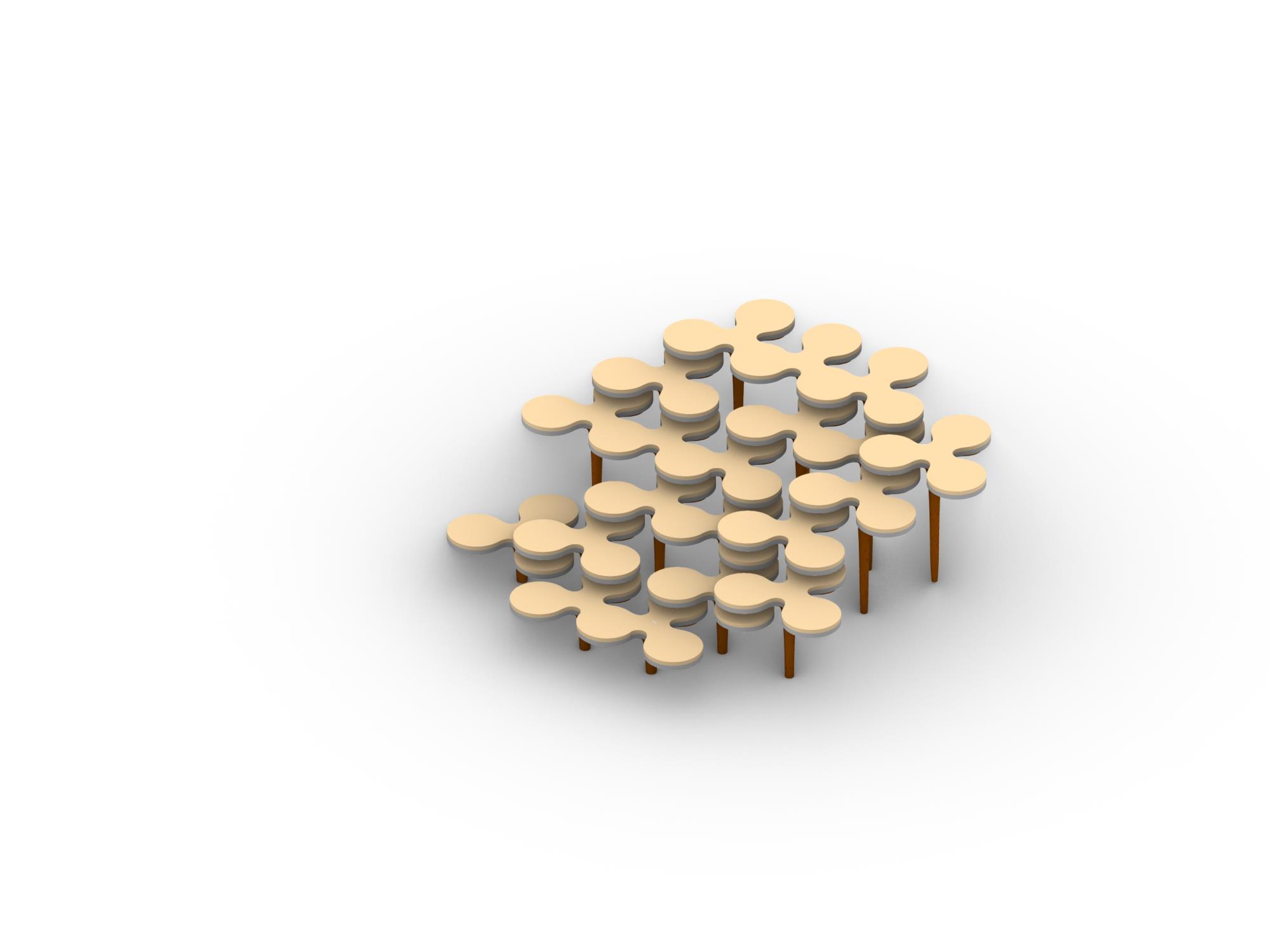

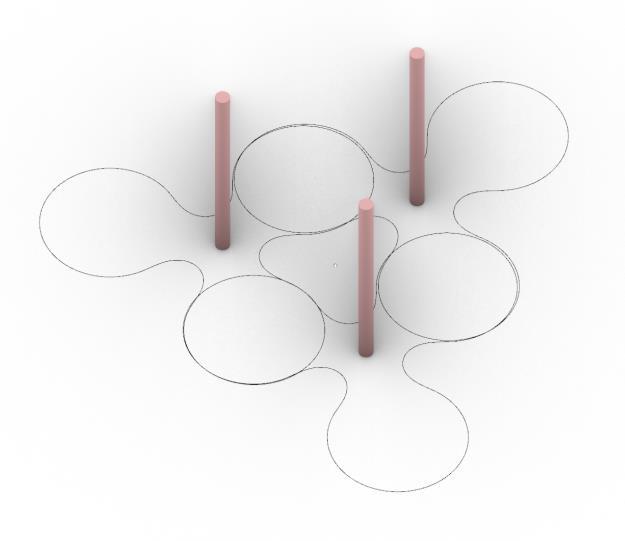

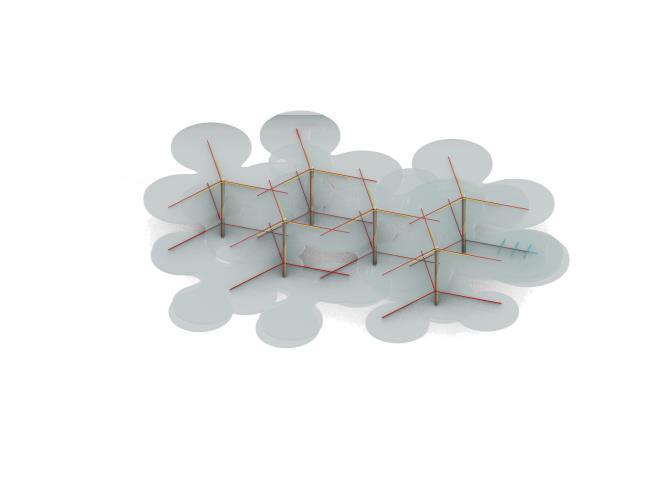

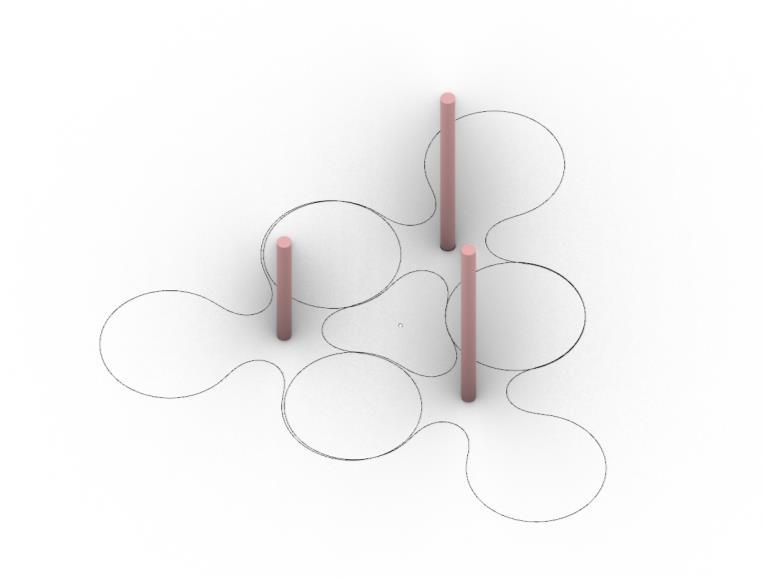

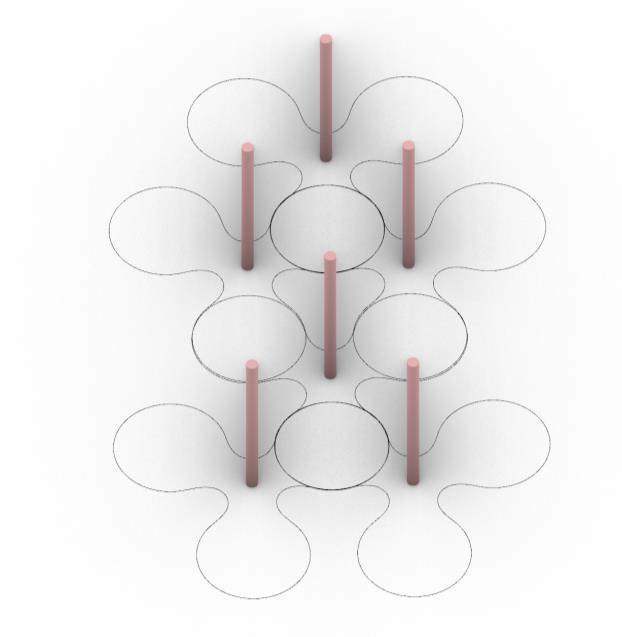

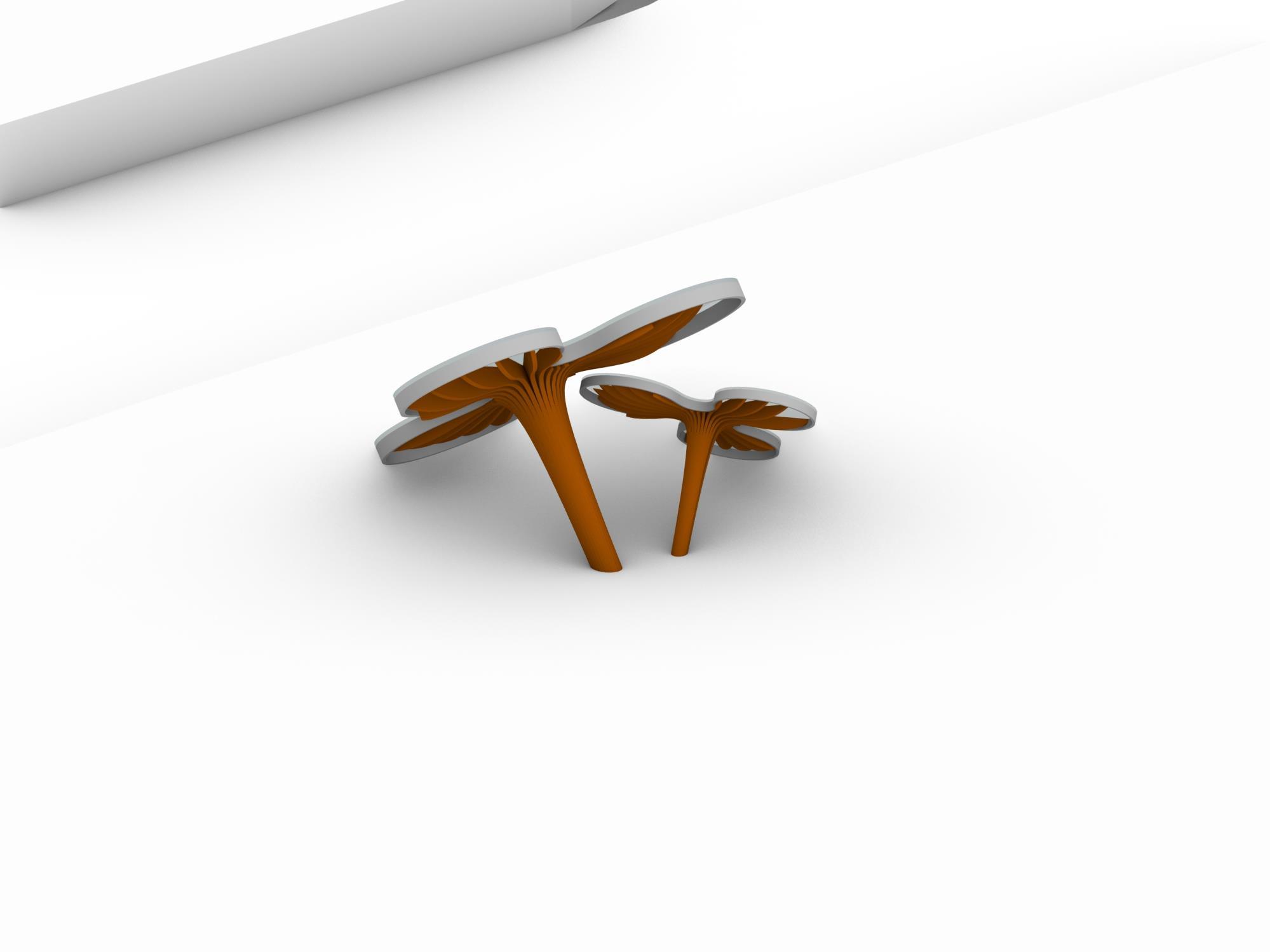

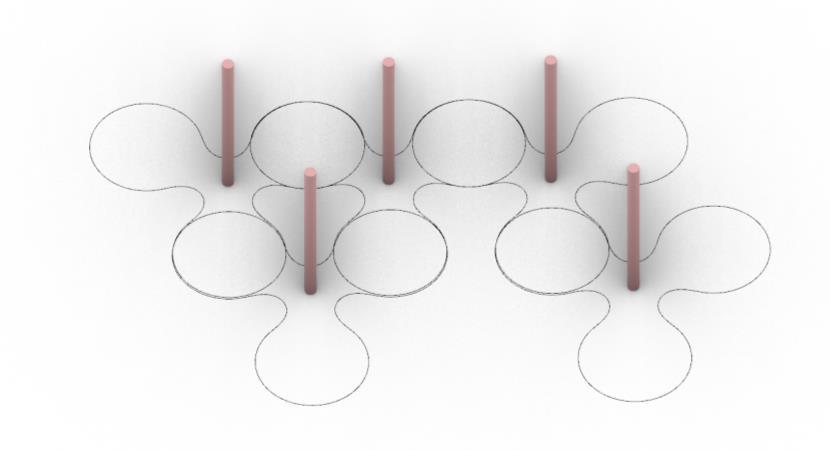

Placement of columns at center of each modules

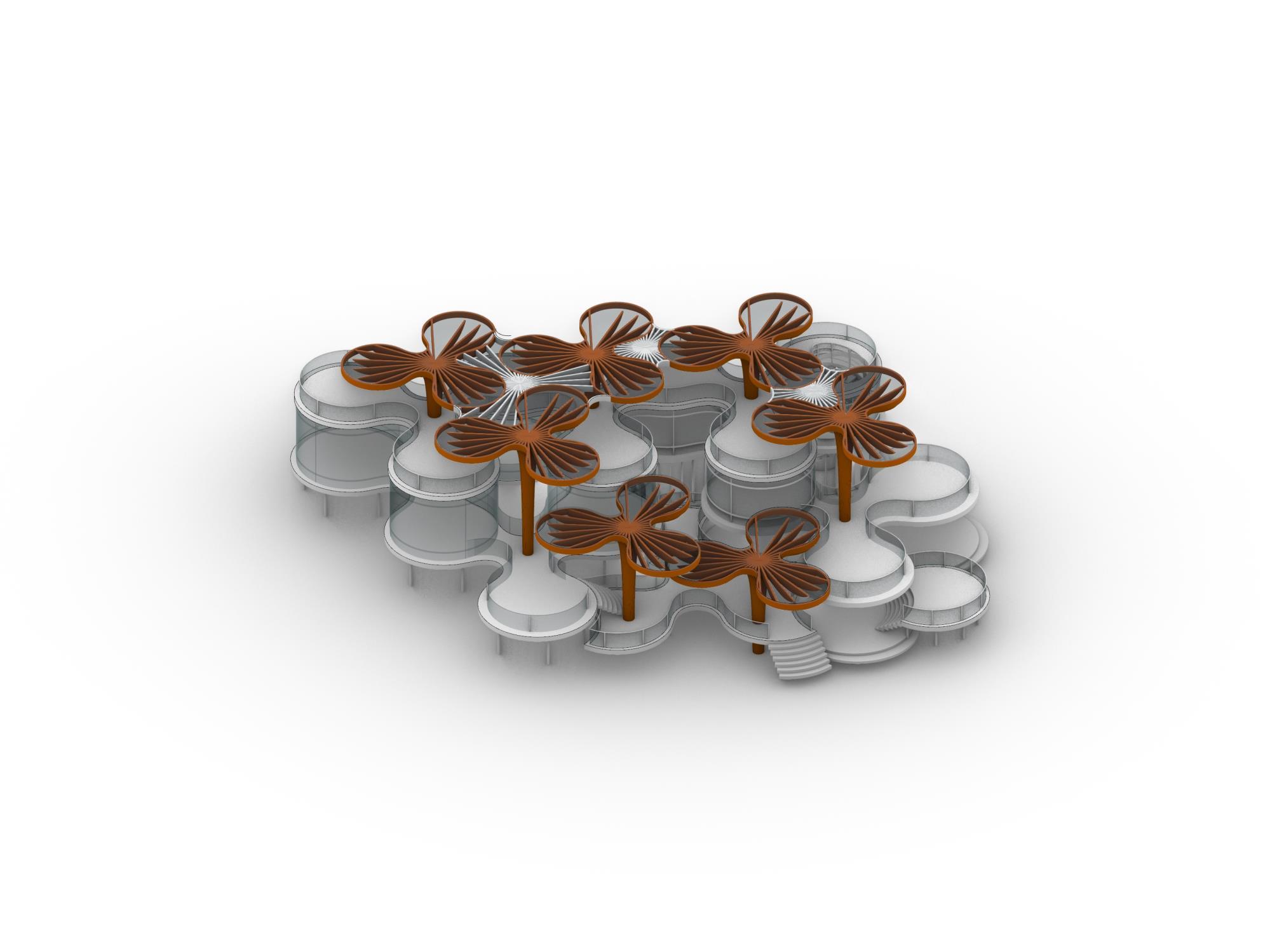

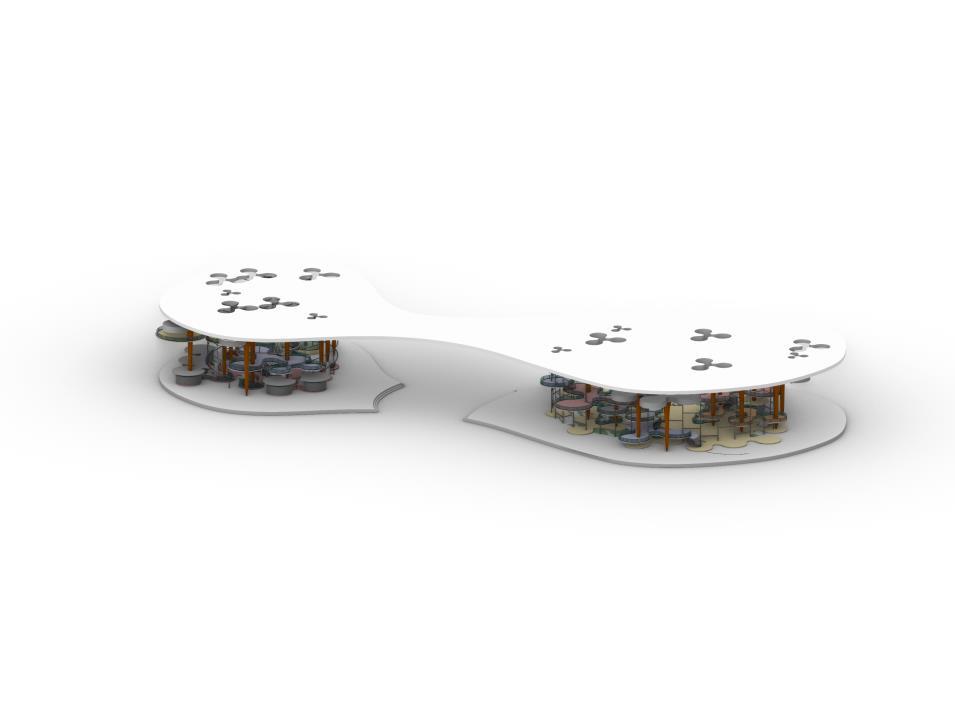

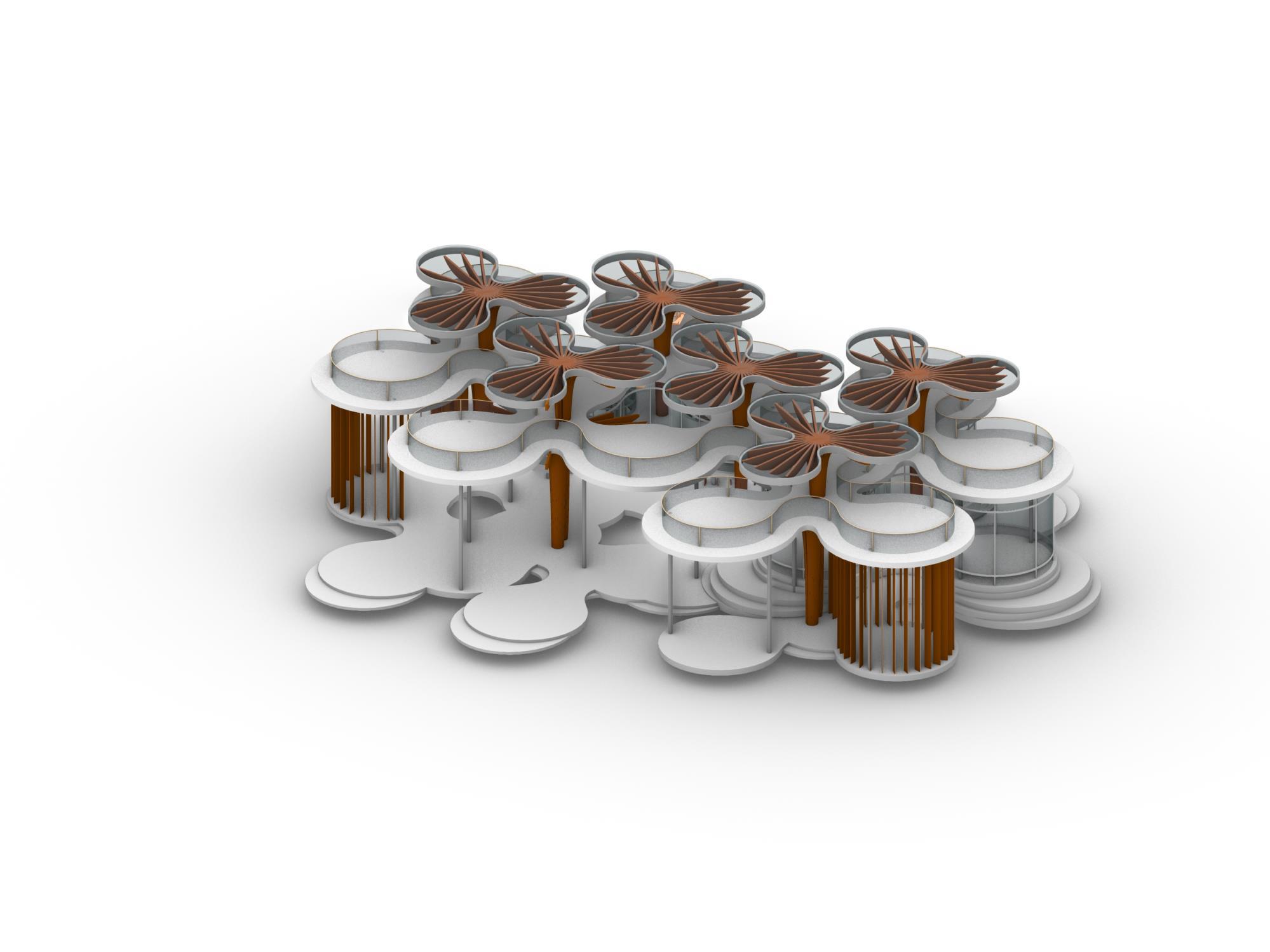

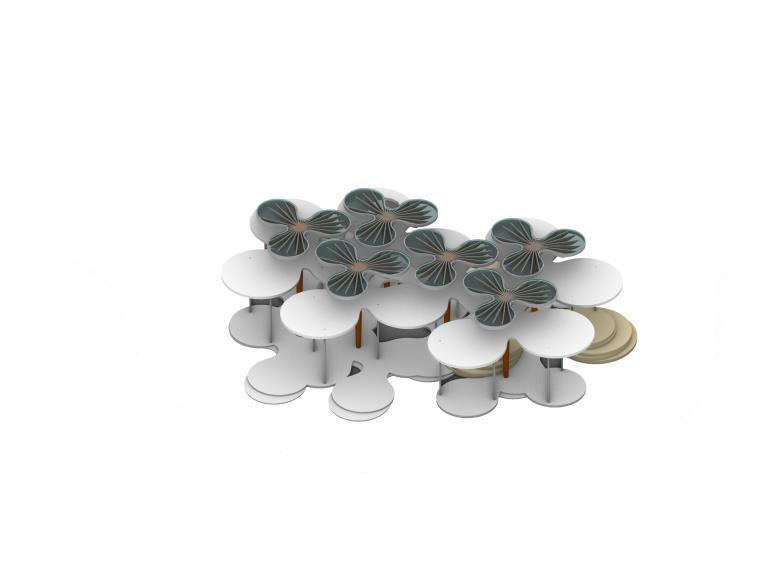

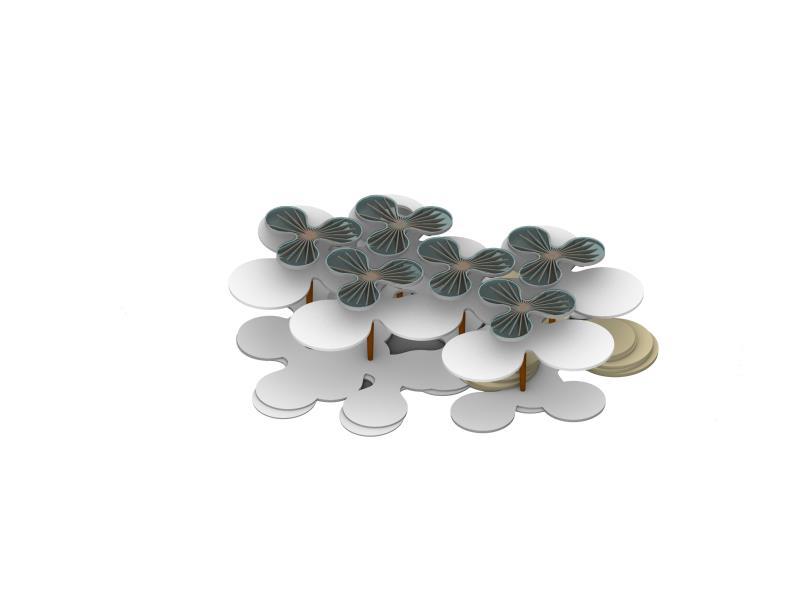

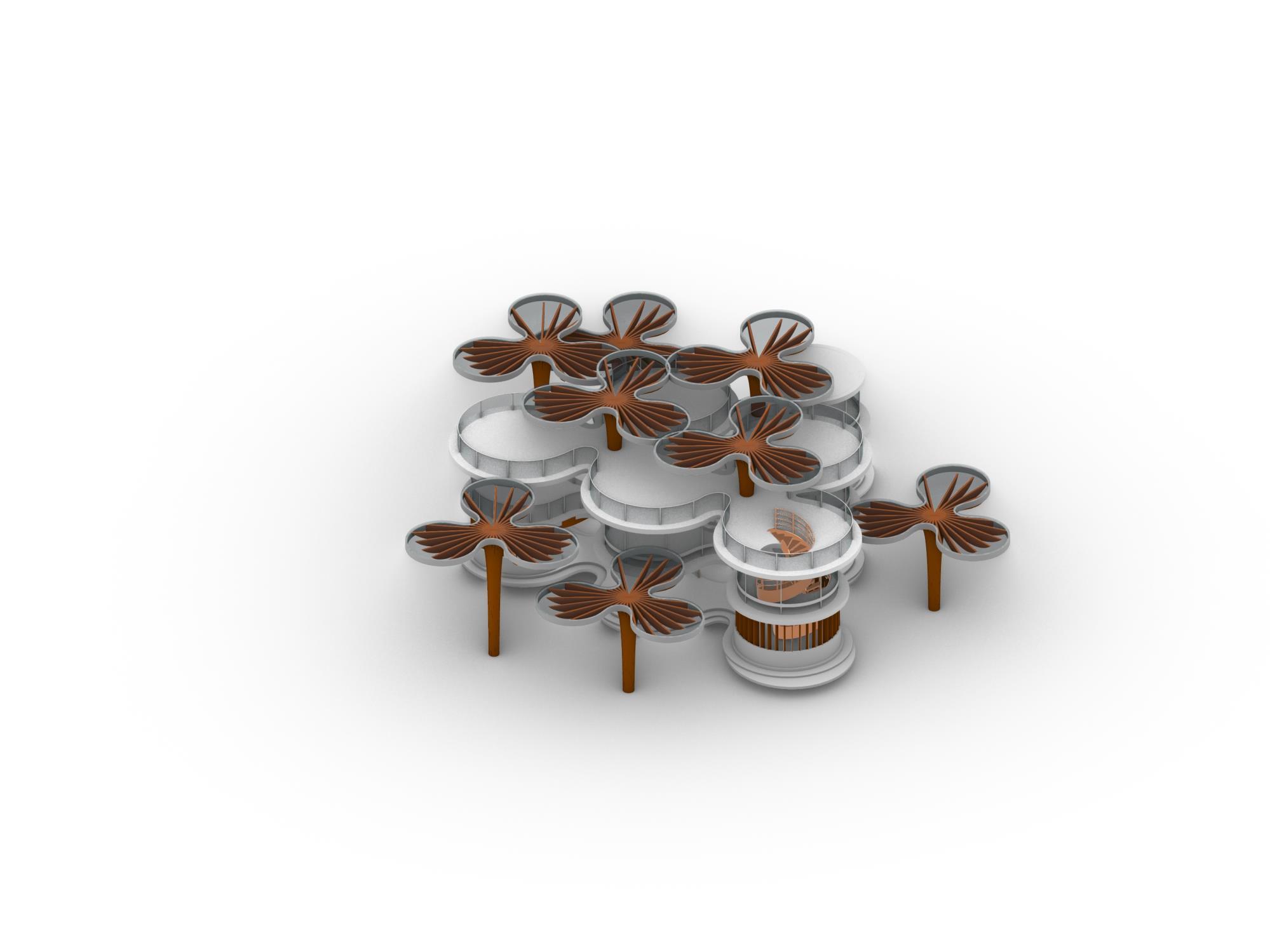

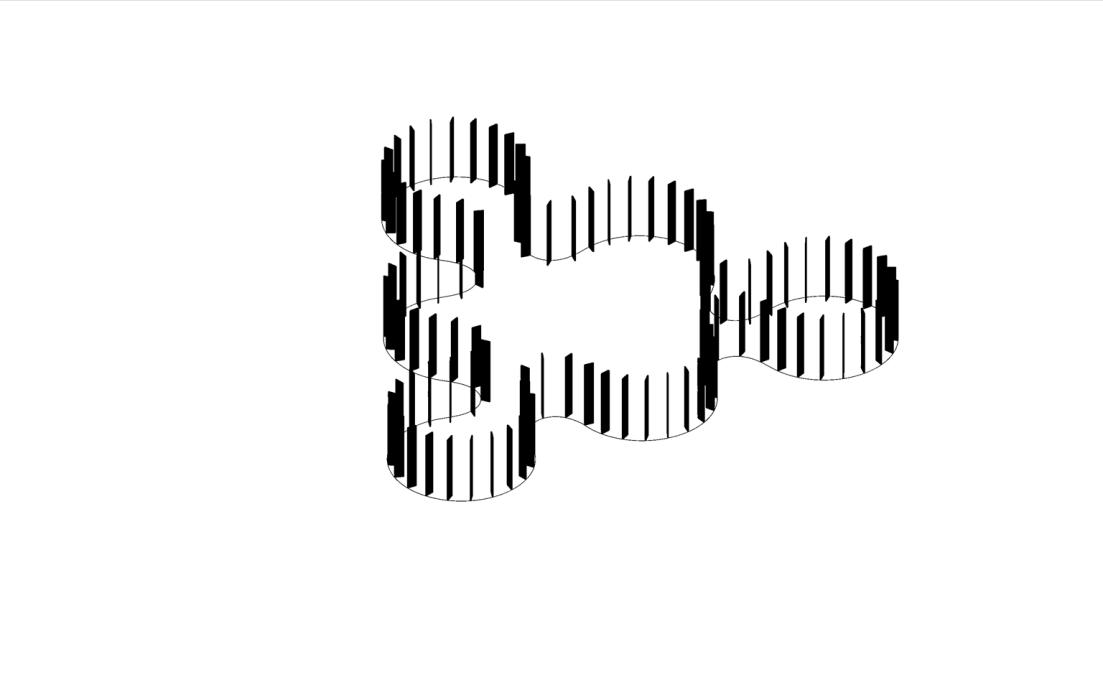

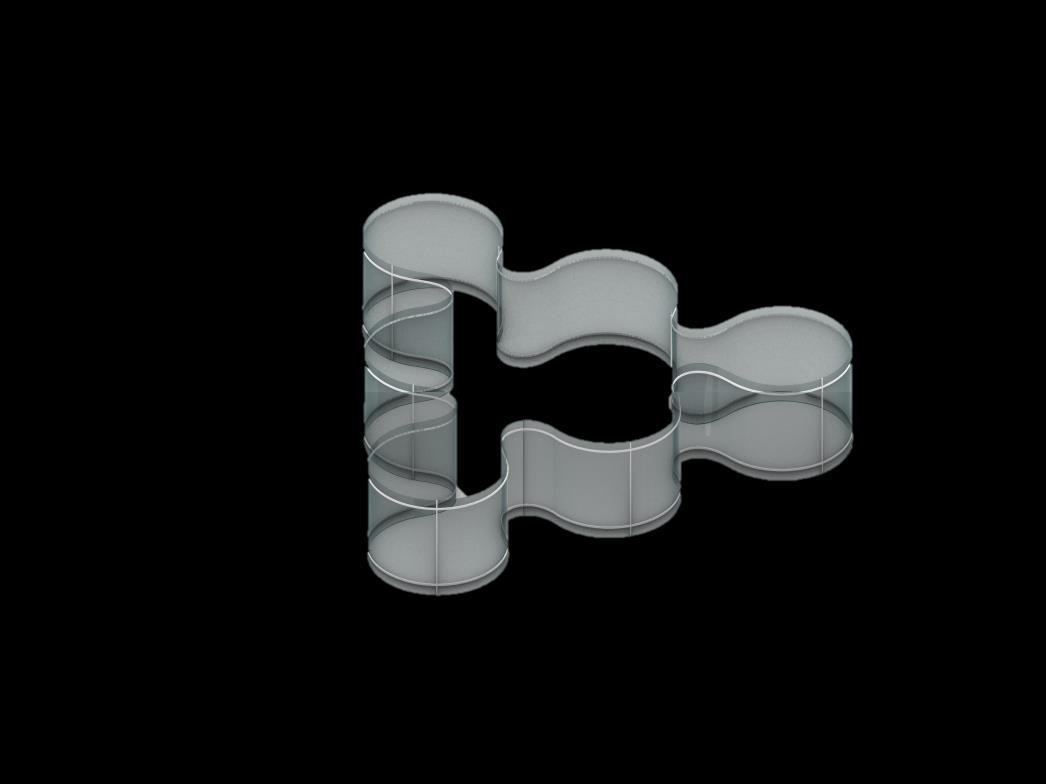

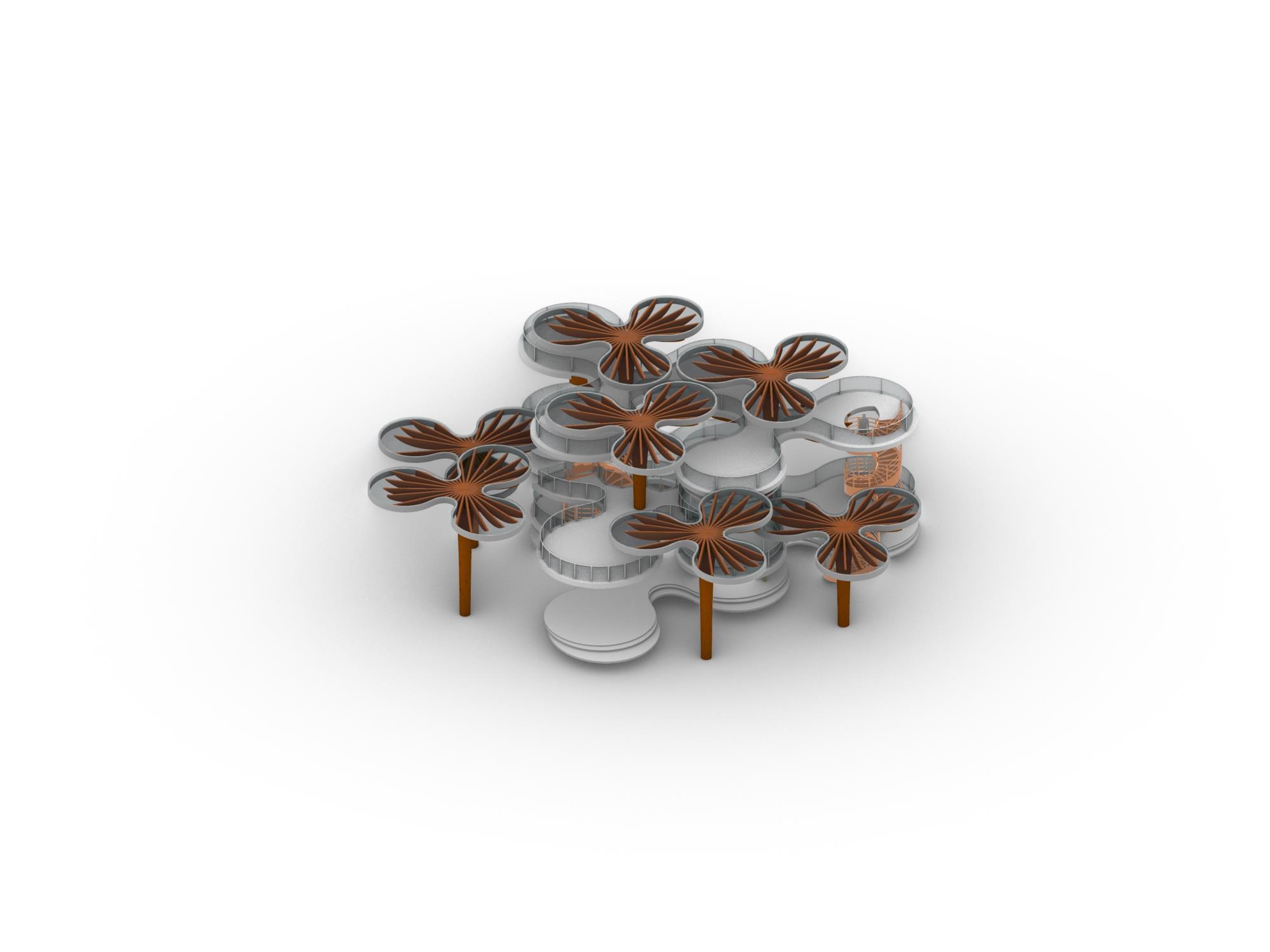

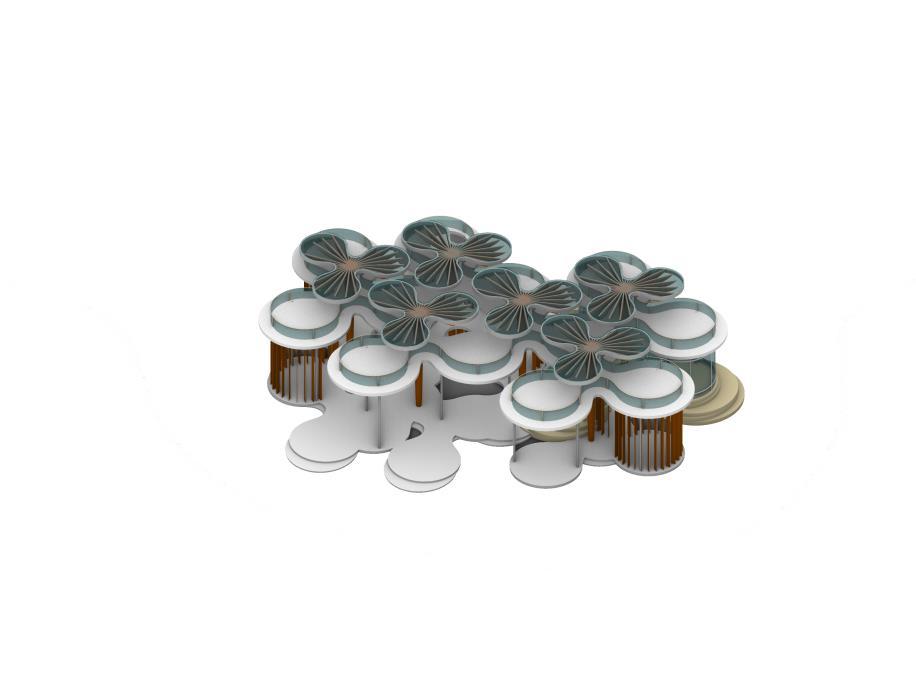

Transformed into buildings (3 levels of degree of enclosure

Indoor Semi-outdoor Outdoor

Canteen Block-1

Canteen Block-2

Student Center

Community Center

Amphitheater

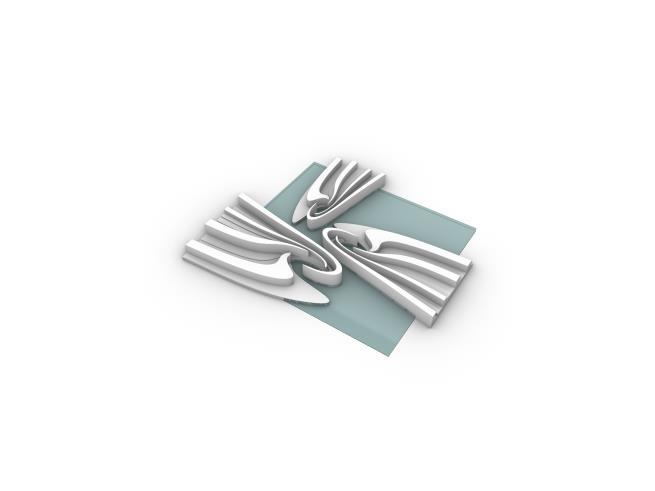

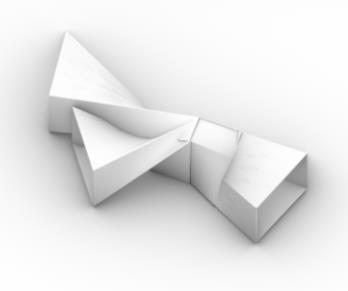

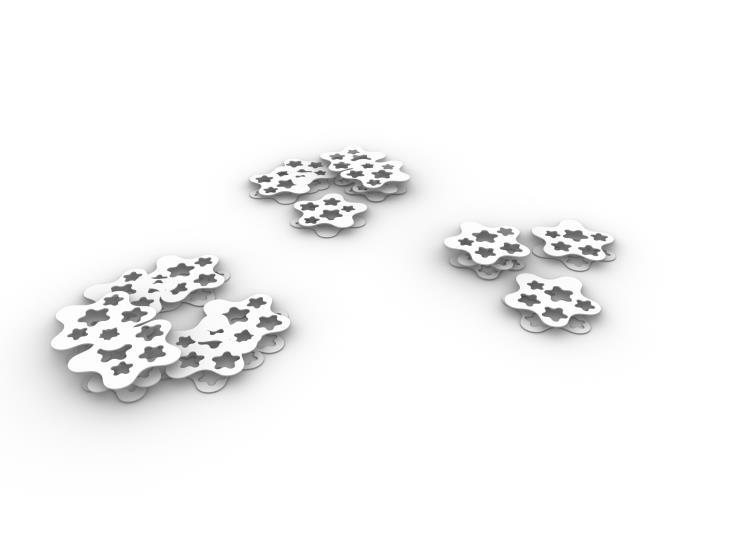

Artwork

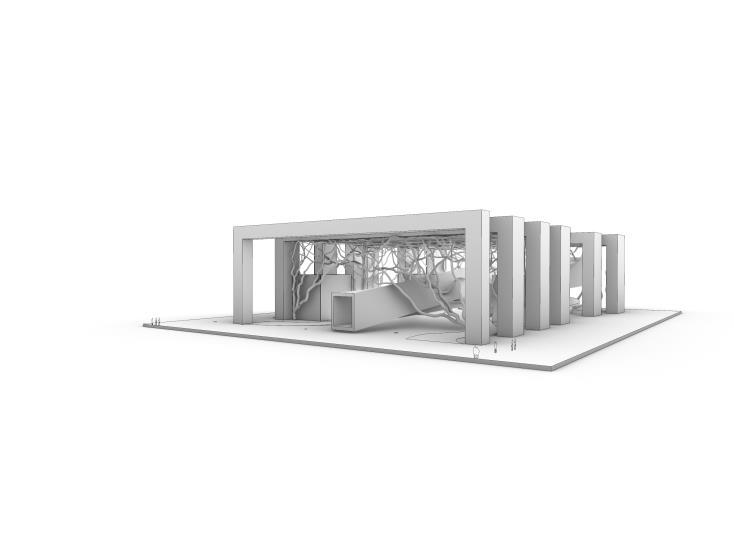

Pavillion

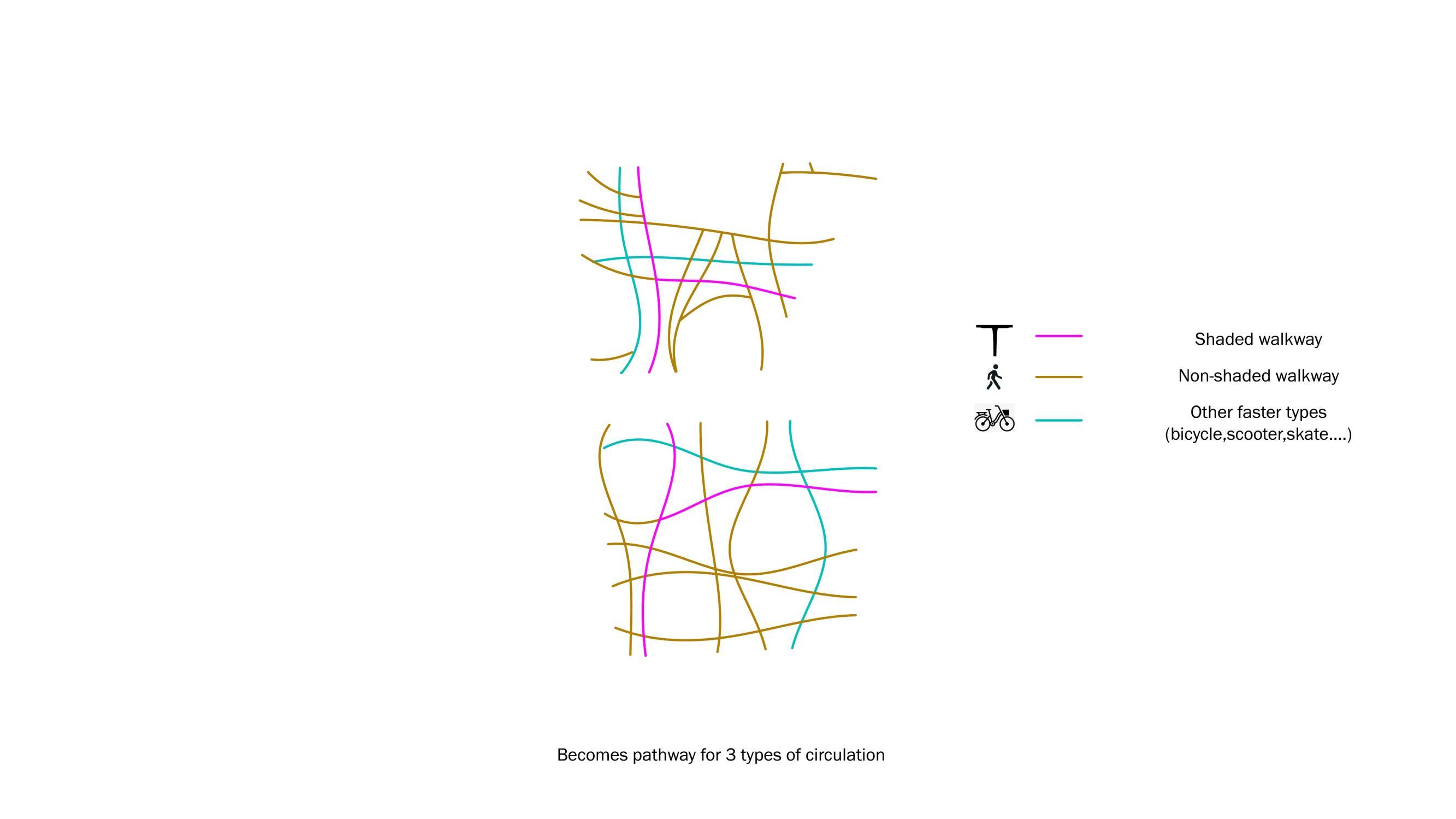

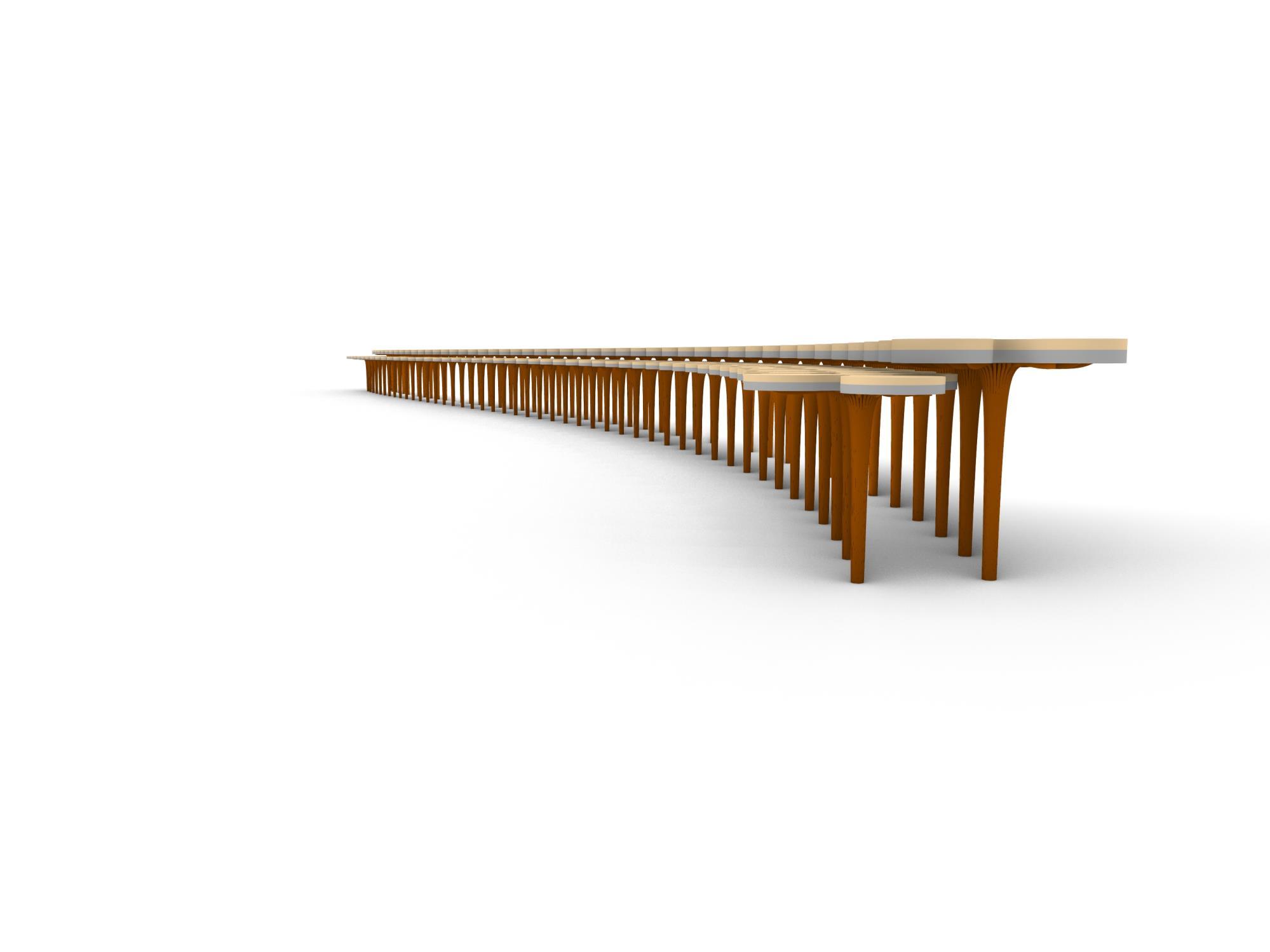

Shaded walkway

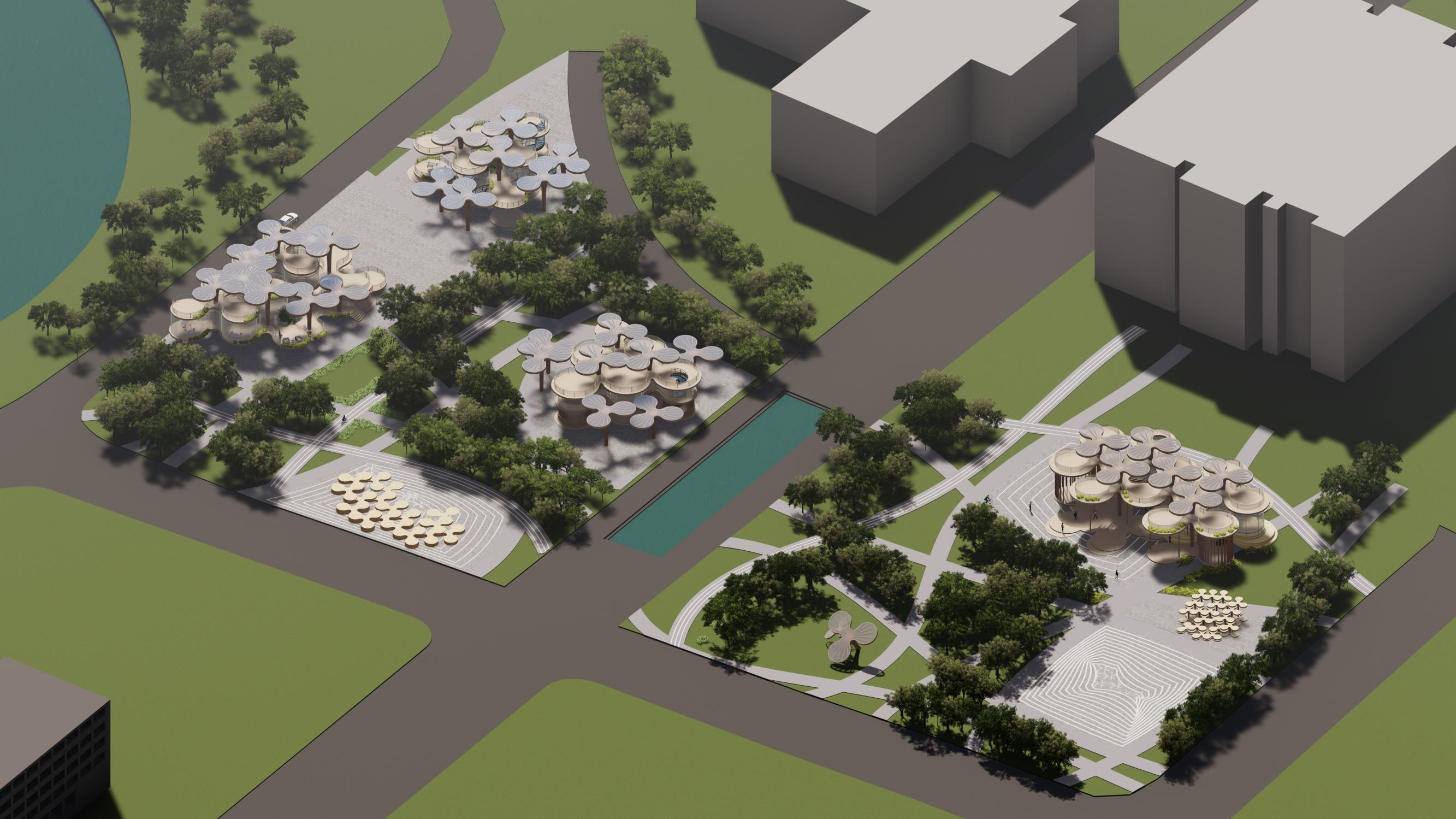

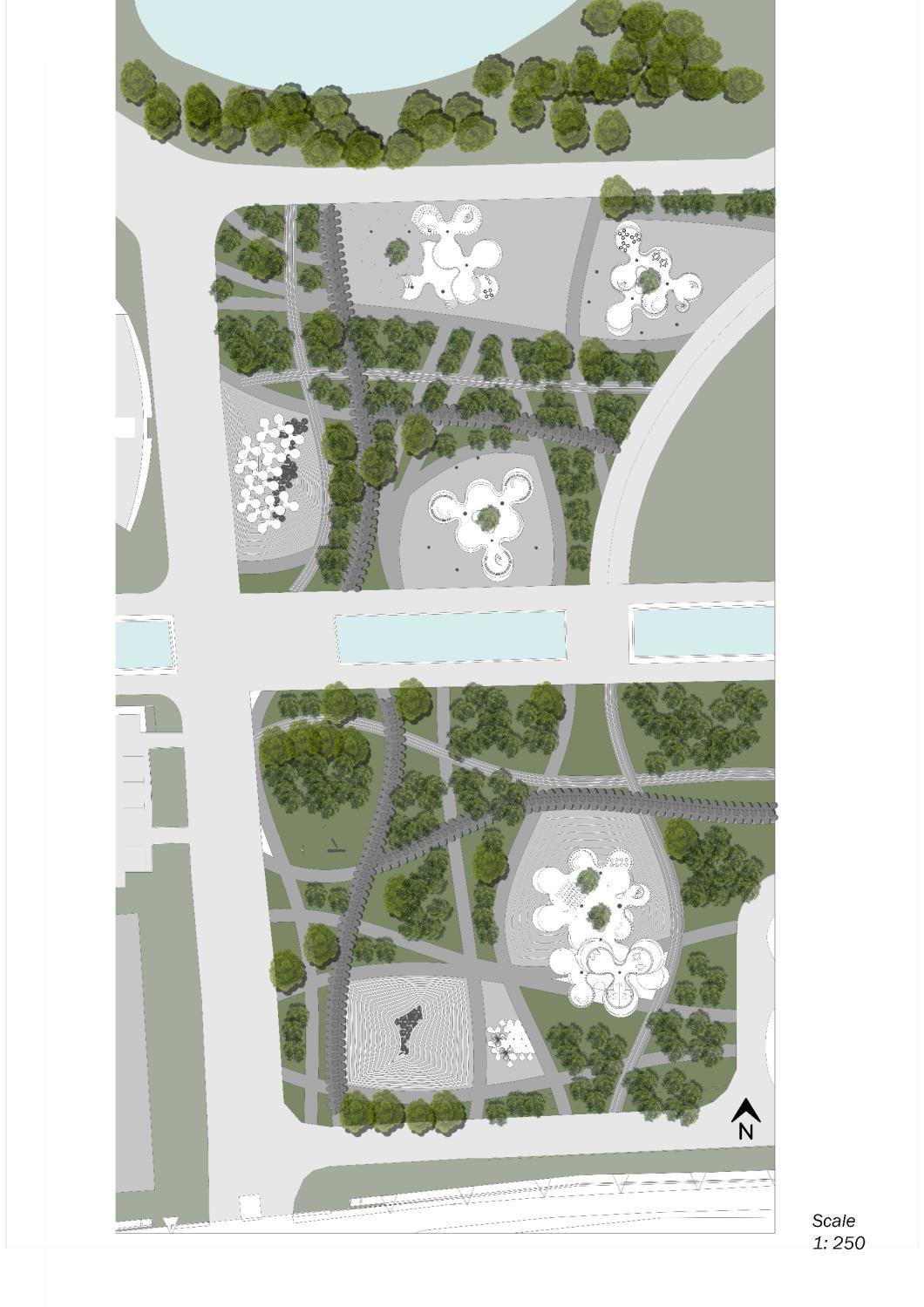

Site Plan

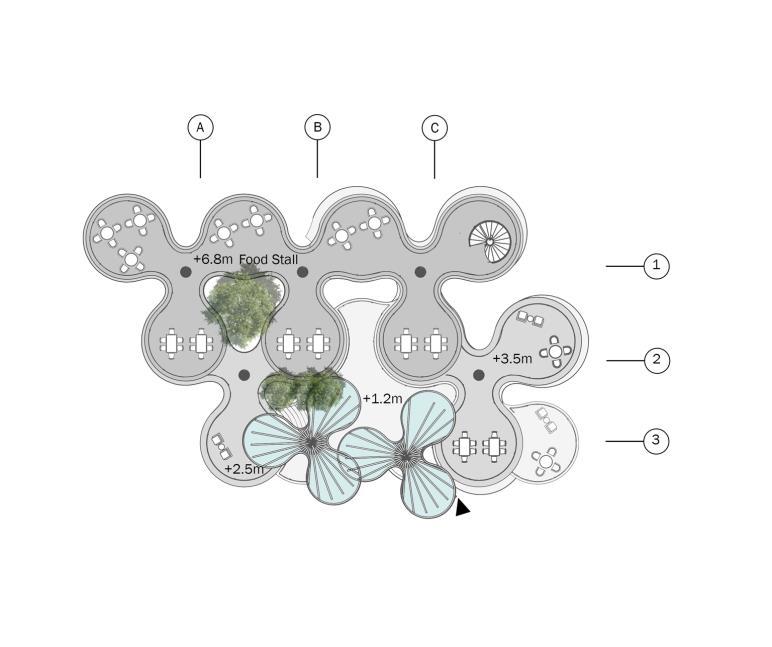

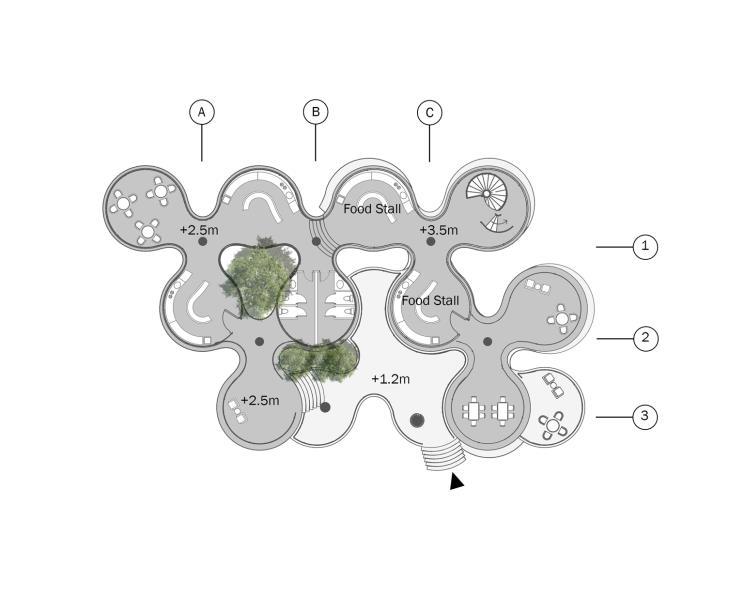

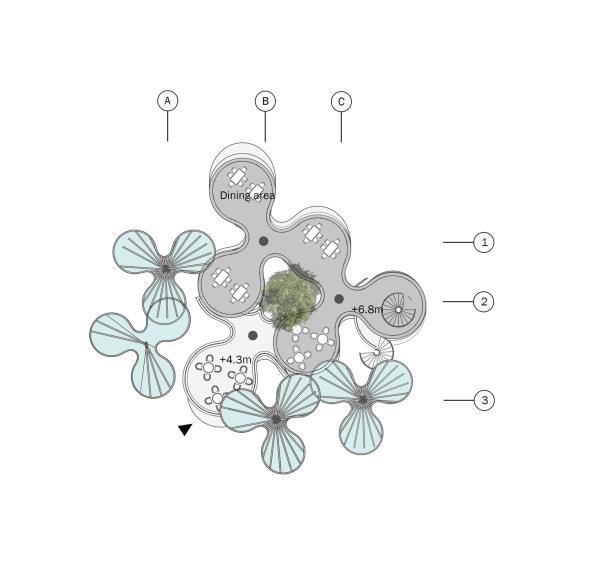

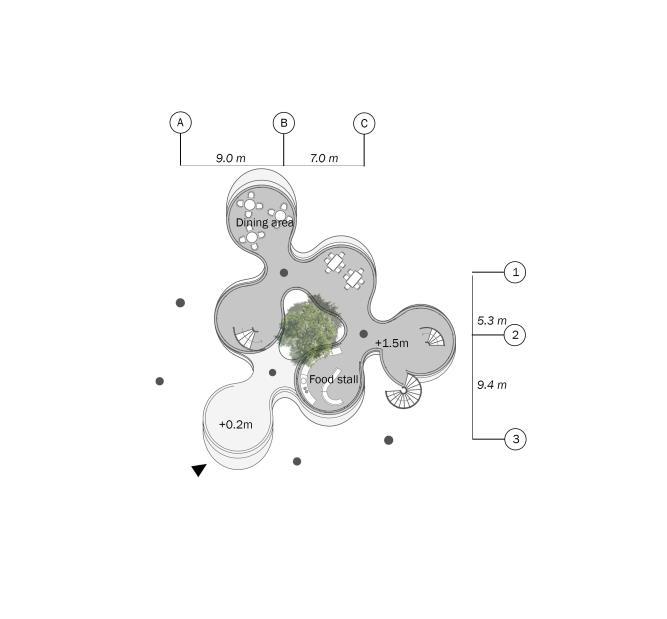

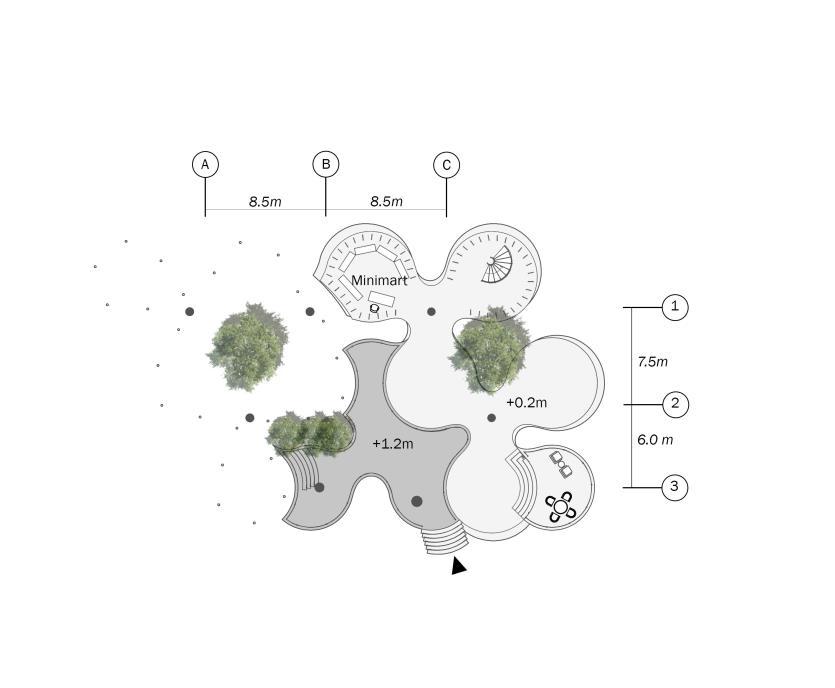

Canteen-1

Ground floor 1st floor 2nd floor

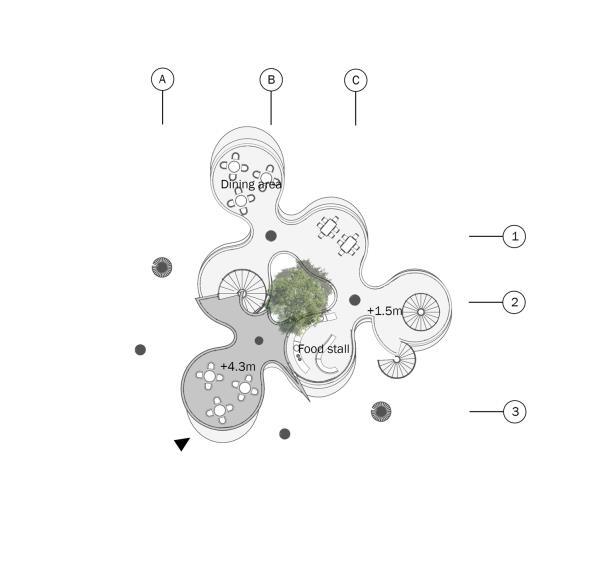

Canteen-2

Ground floor 1st floor 2nd floor

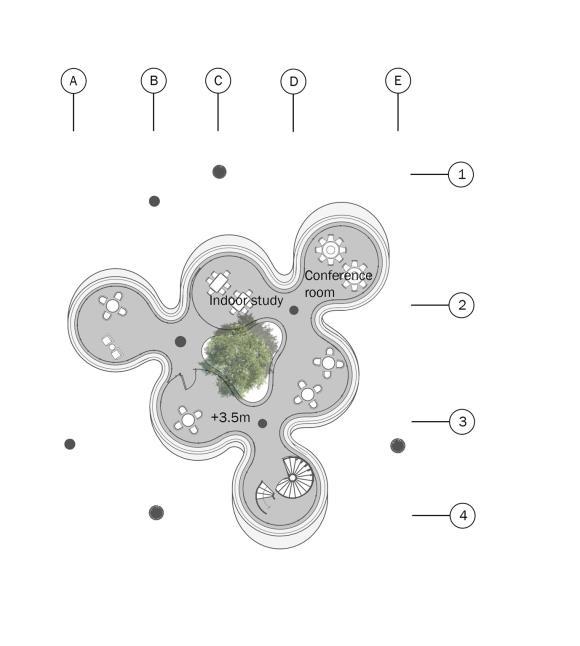

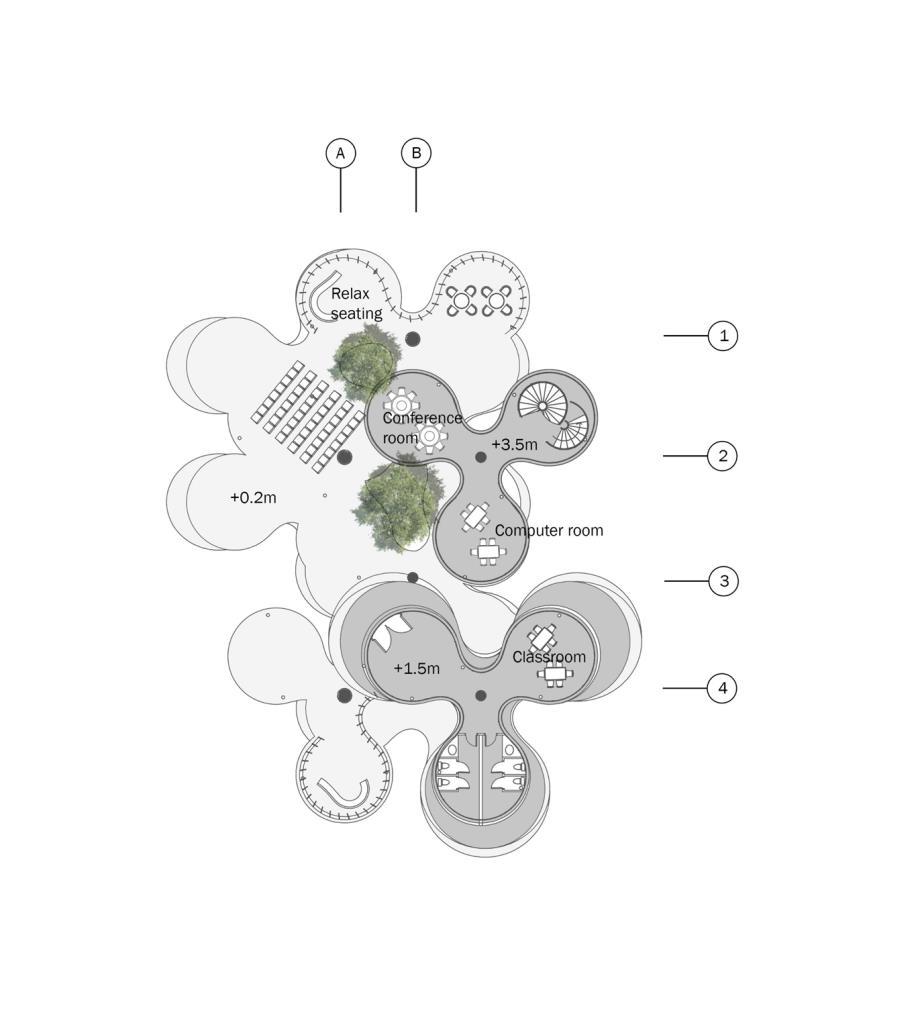

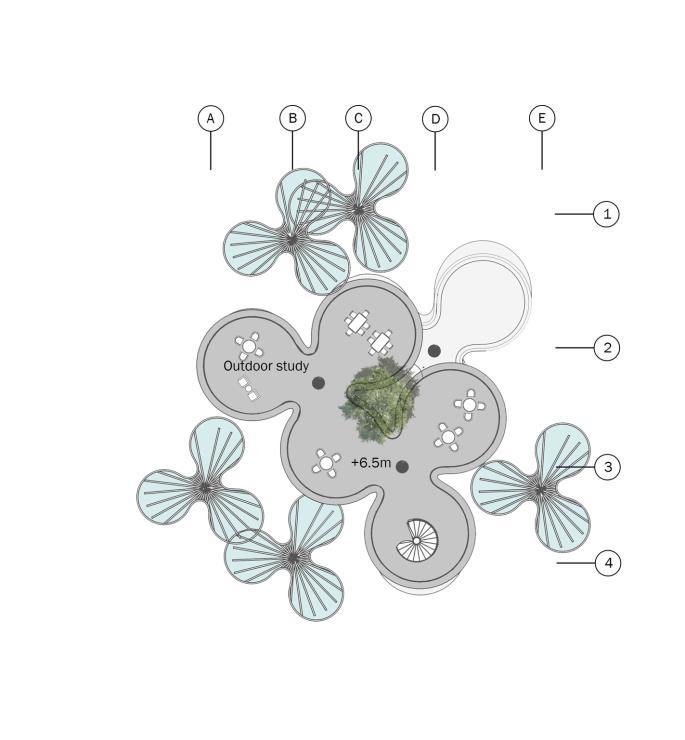

Student Center

Ground floor 1st floor 2nd floor

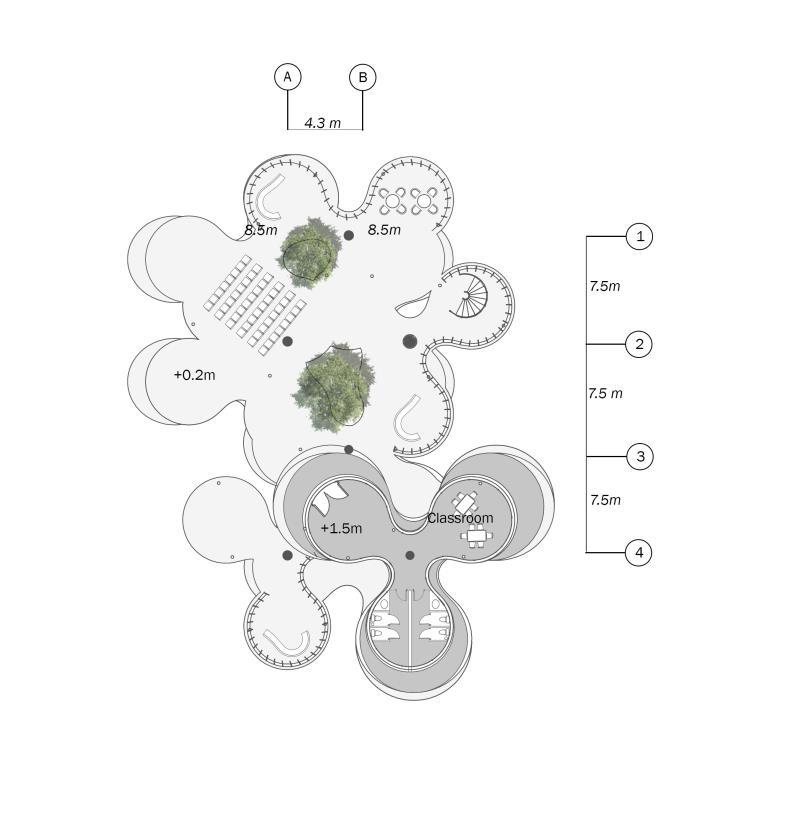

Community Center

Ground floor 1st floor 2nd floor

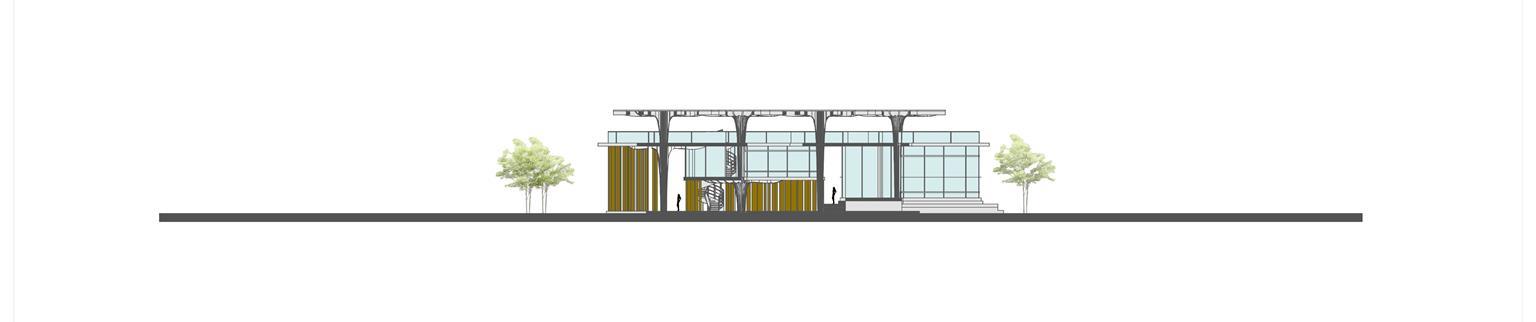

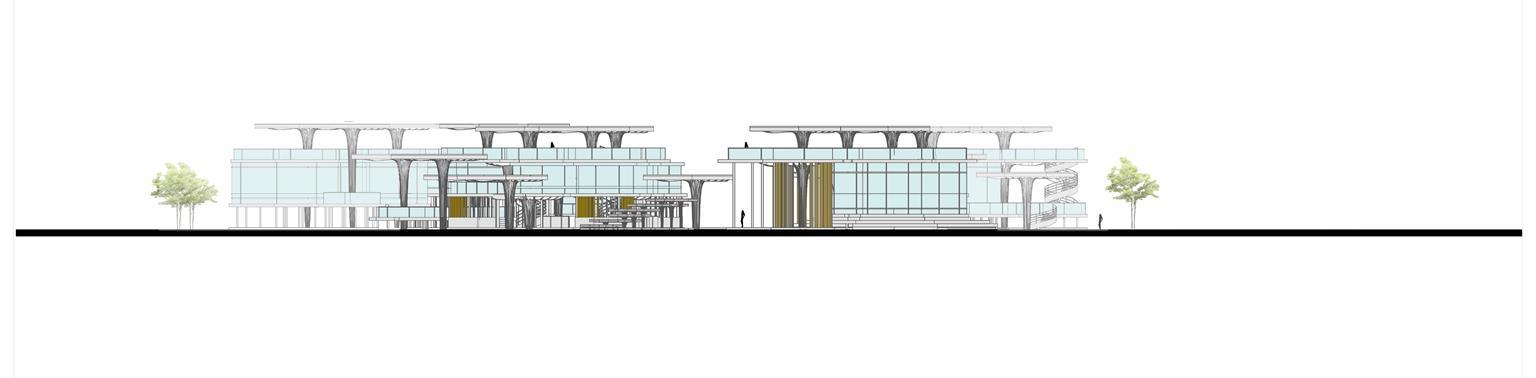

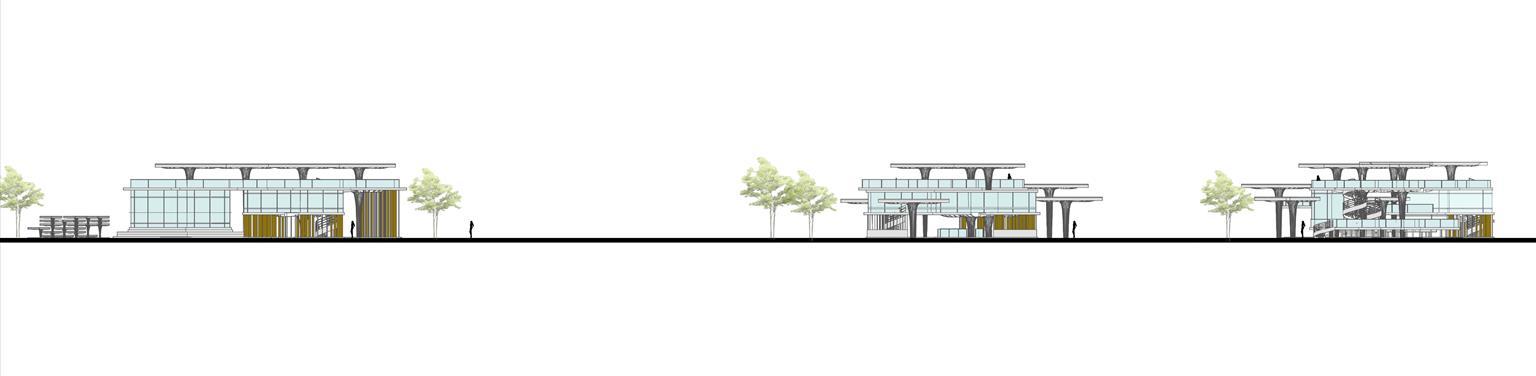

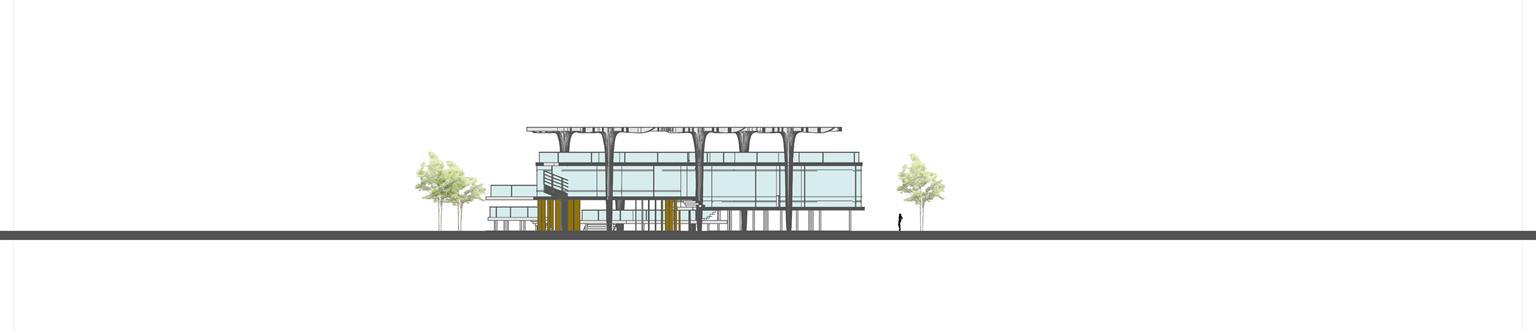

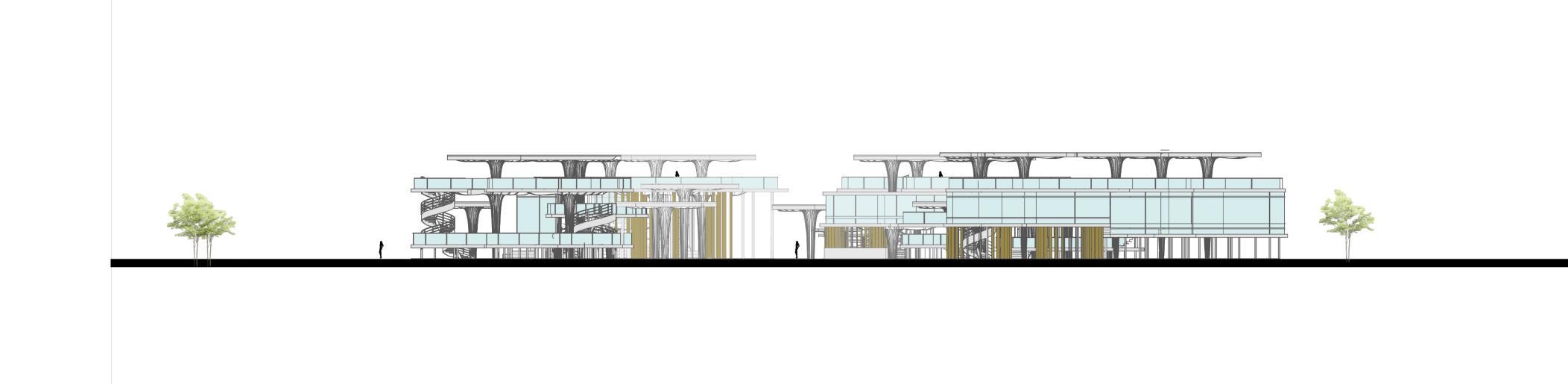

Elevations

South elevation

North elevation

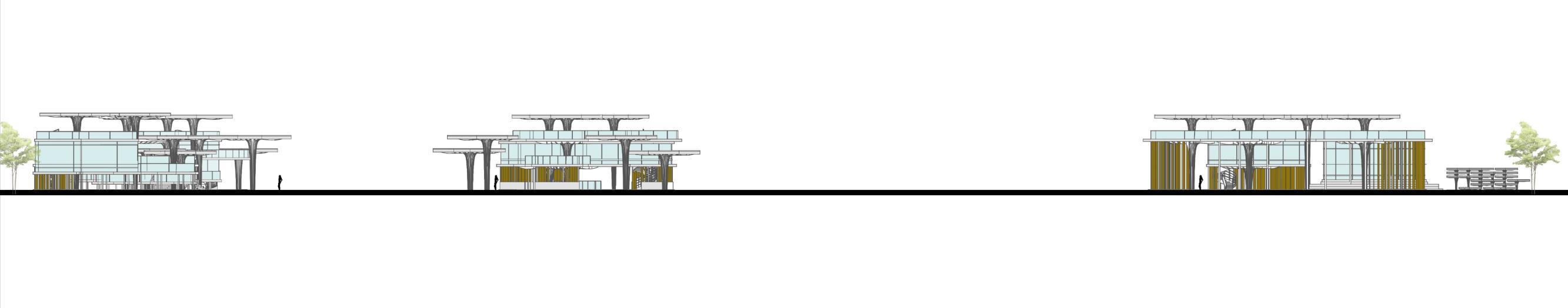

Elevations

East elevation

West elevation

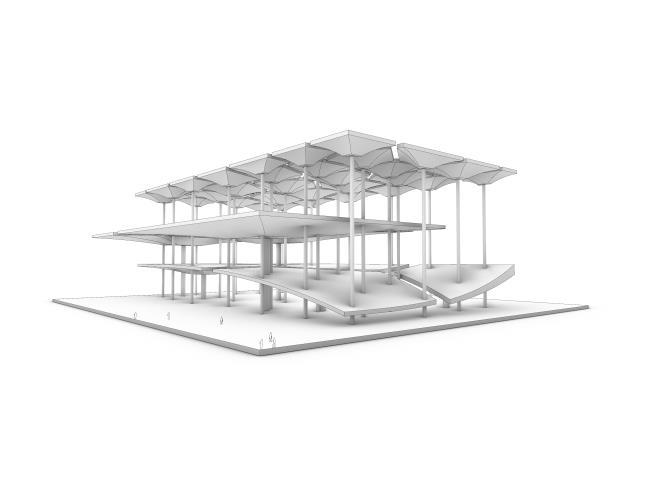

Sections

Canteen-1 section

Community center section

Sections

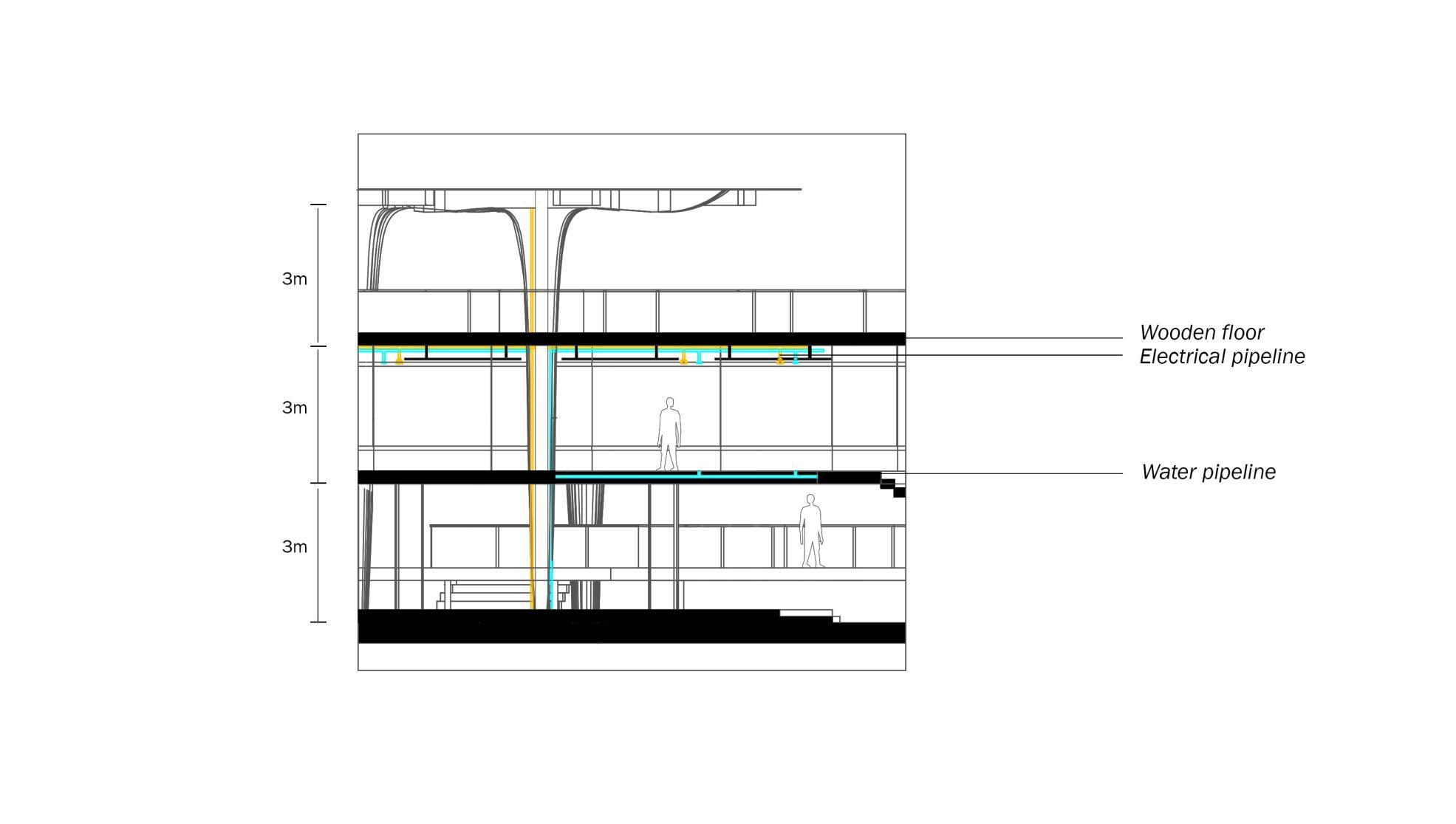

Detail section

Programs

sqm)

Total area- 2160 sqm

sqm)

Canteen

(300

(420

(800

Canteen Block-1 Block-2

Student Center Community Center (640 sqm)

Programs

N o Program unit Area ( sqm ) Total area (sqm ) 1 Food stall & back kitchen 4 24 sqm 96 sqm 2 Minimart 1 33 sqm 33 sqm 3 WC ( male & female ) 1 33 sqm 33 sqm 4 Dining area - 300 sqm 300 sqm 5 Relax Seating - 180 sqm 180 sqm Total area ( sqm ) 640 sqm N o Program unit Area ( sqm ) Total area (sqm ) 1 Food stall & back kitchen 2 16 sqm 32 sqm 2 Dining area - 210 sqm 210 sqm 3 Relax Seating - 60 sqm 60 sqm Total area ( sqm ) 300 sqm

Canteen block-1 Canteen Block-2

Programs

Student Center

N o Program unit Area ( sqm ) Total area (sqm ) 1 Outdoor Study area - 150 sqm 150 sqm 2 Indoor Study area - 90 sqm 90 sqm 3 Conference room 1 30 sqm 30 sqm 4 Relax Seating - 150 sqm 150 sqm Total area ( sqm ) 420 sqm N o Program unit Area ( sqm ) Total area (sqm ) Cafeteria 1 33 sqm 33 sqm Computer room 1 33 sqm 33 sqm Classroom 1 33 sqm 33 sqm Conference room 1 33 sqm 33 sqm WC ( male & female ) 1 33 sqm 33 sqm Performance space 1 70 sqm 70 sqm Relax Seating - 240 sqm 240 sqm Outdoor Learning area 270 sqm 270 sqm Pavillion 1 67 sqm 60 sqm Total area ( sqm ) 800 sqm
