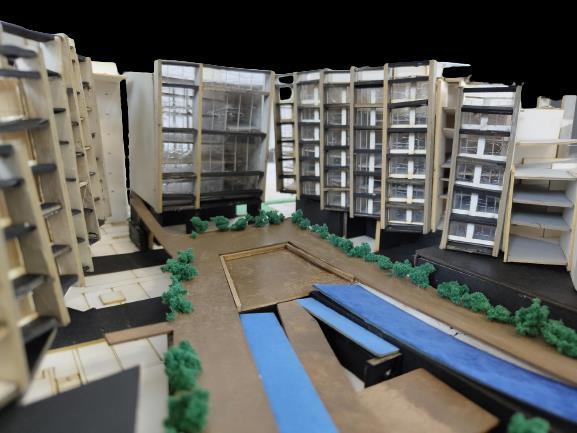

Vertical living- Amphicascade
Student name- Phone Min Khant, 65120500021
ARC 343 Architecture Design Studio III
Semester 1/2023
Instructor- Seadhar Jirawattnotai
School of Architecture and Design -KMUTT
(of water) pour downward rapidly and in large quantities.
"water was cascading down the stairs

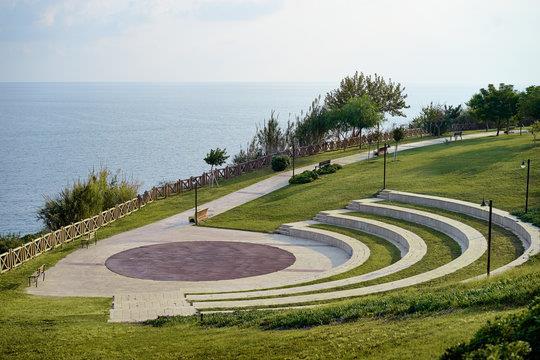

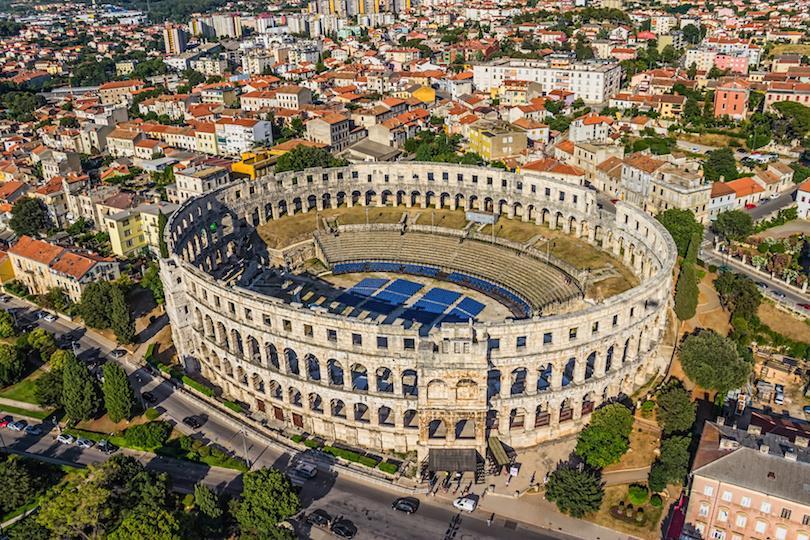

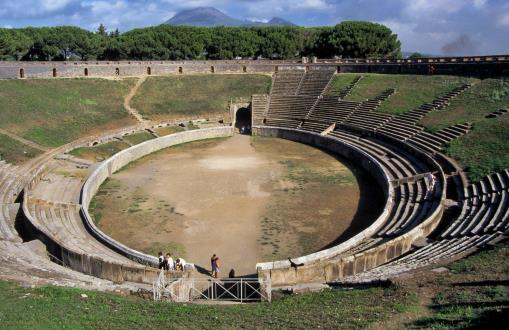

an open-air venue used for entertainment, performances, and sports
Tha Din Daeng Road, Khlong San, Bangkok
-lively neighbourhood

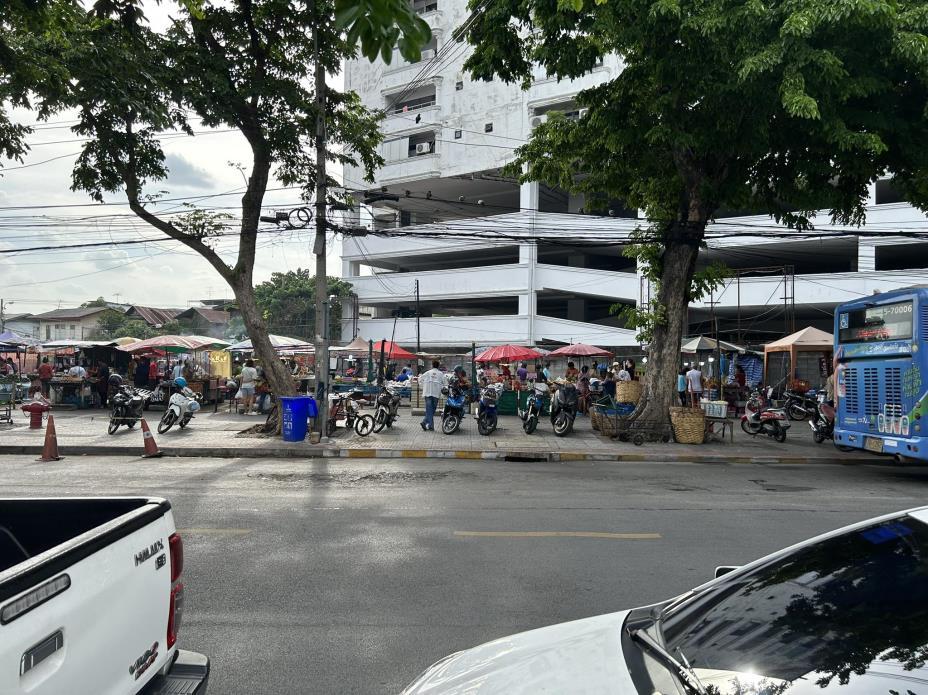

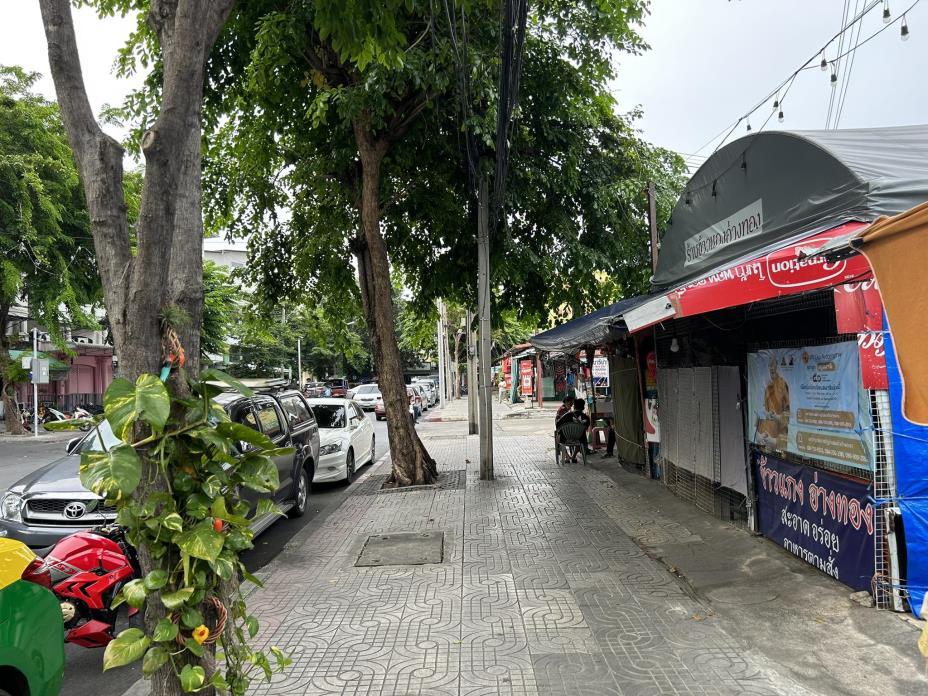

-lots of foot traffic ( pesdestrians )
-street food stalls
Pushed to the side
To bring people into my site

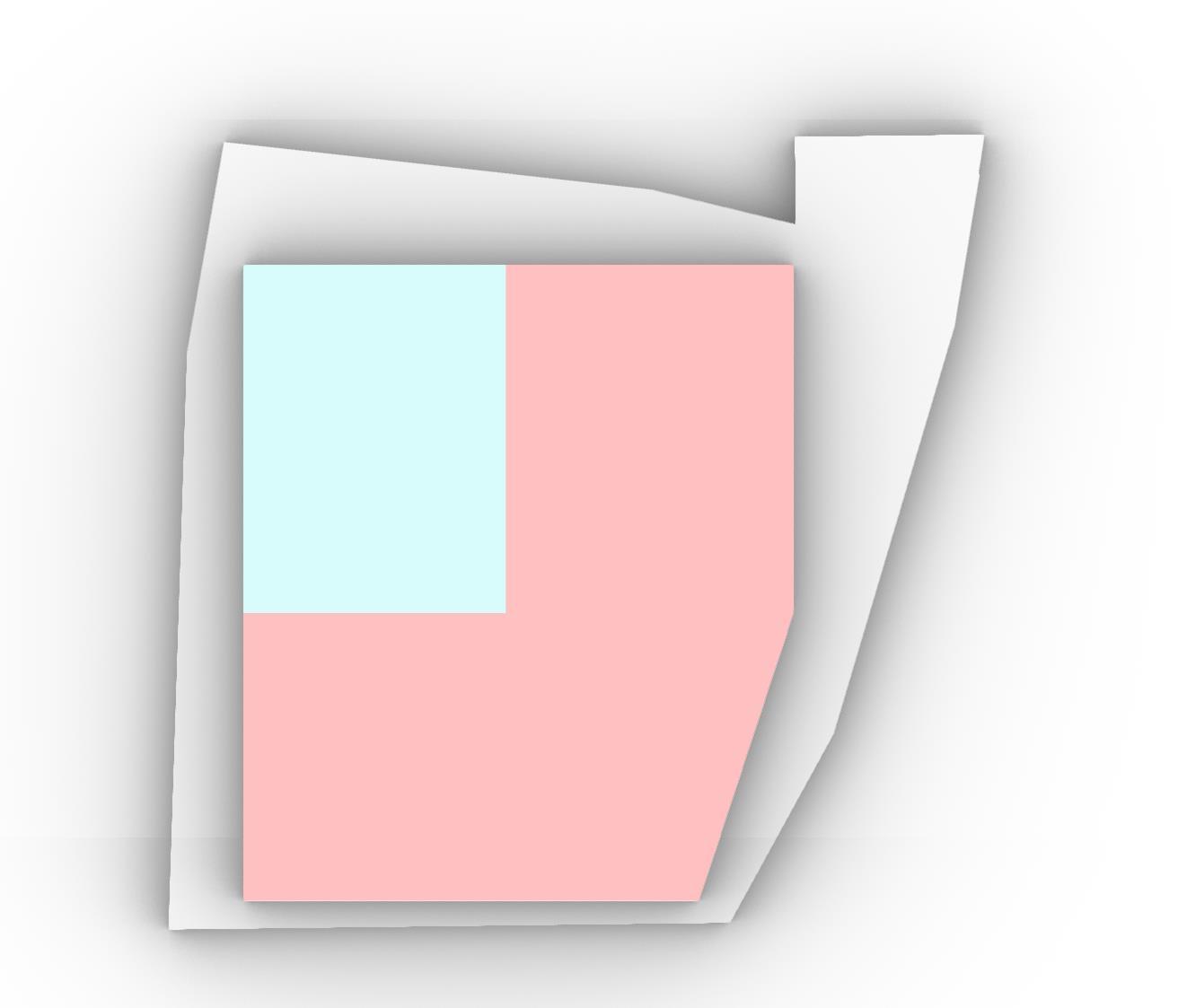

• Divide private and public zone
To solve the problem of zoning and
security issue

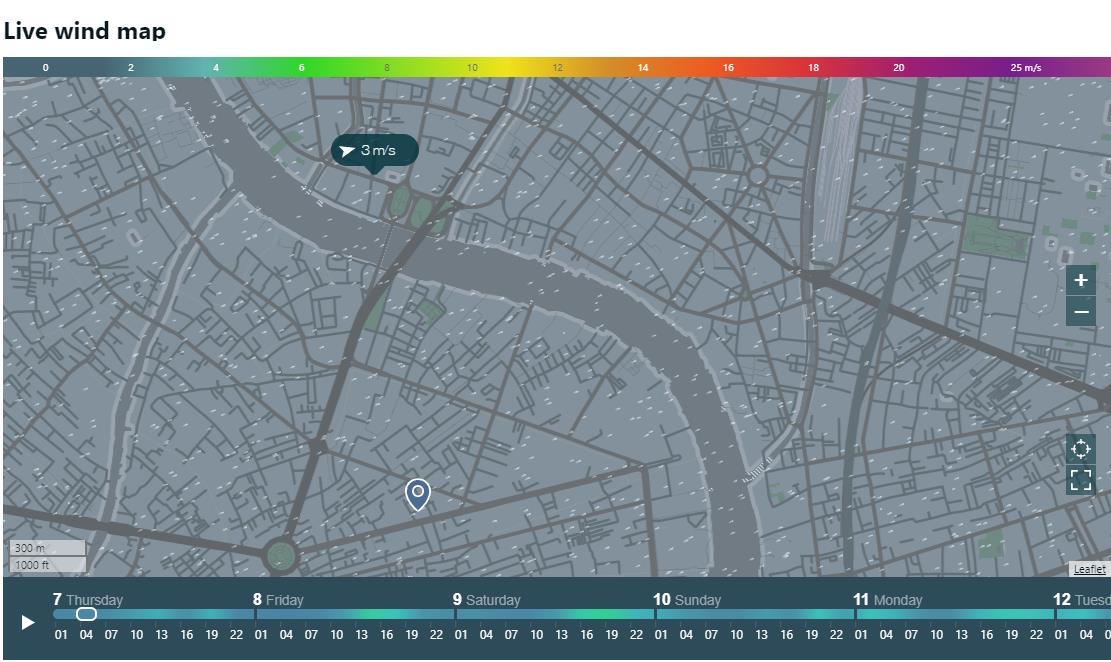

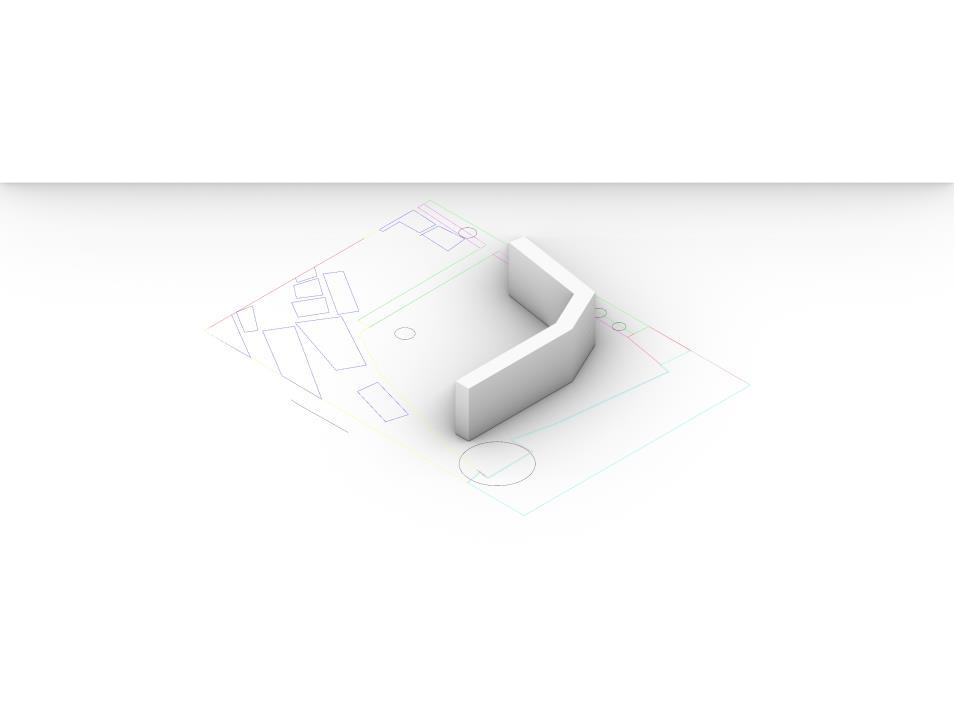

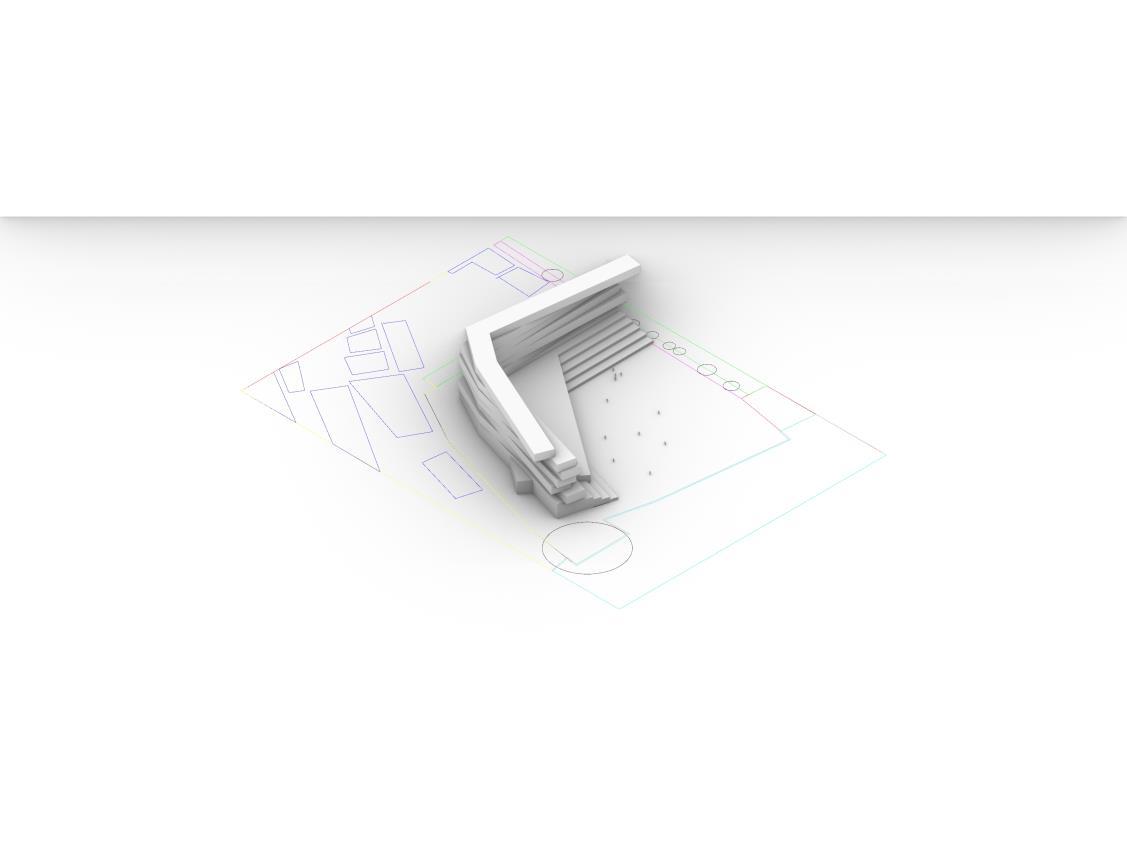

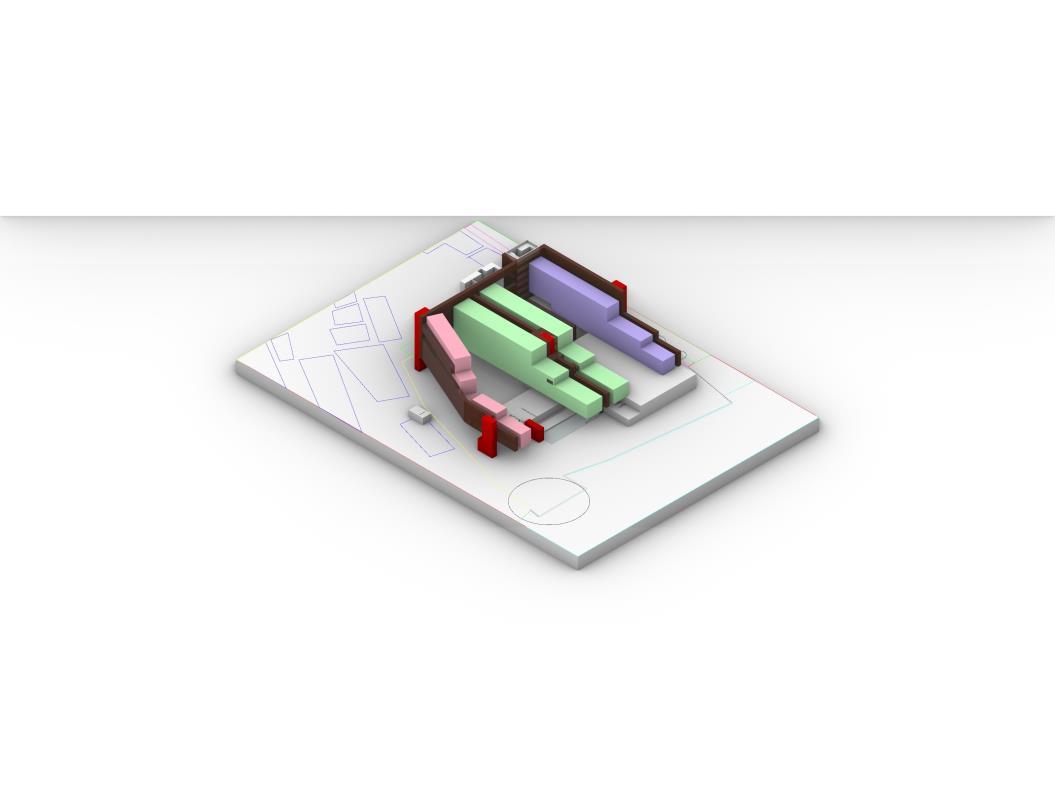

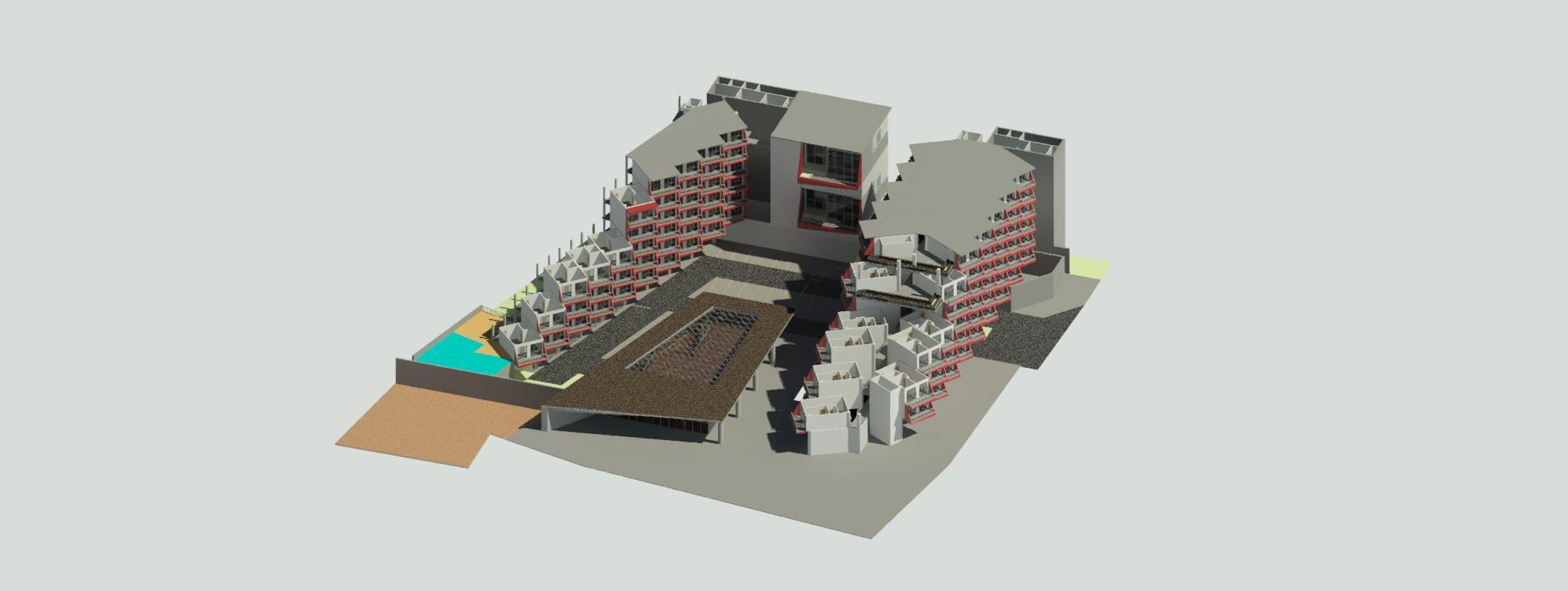

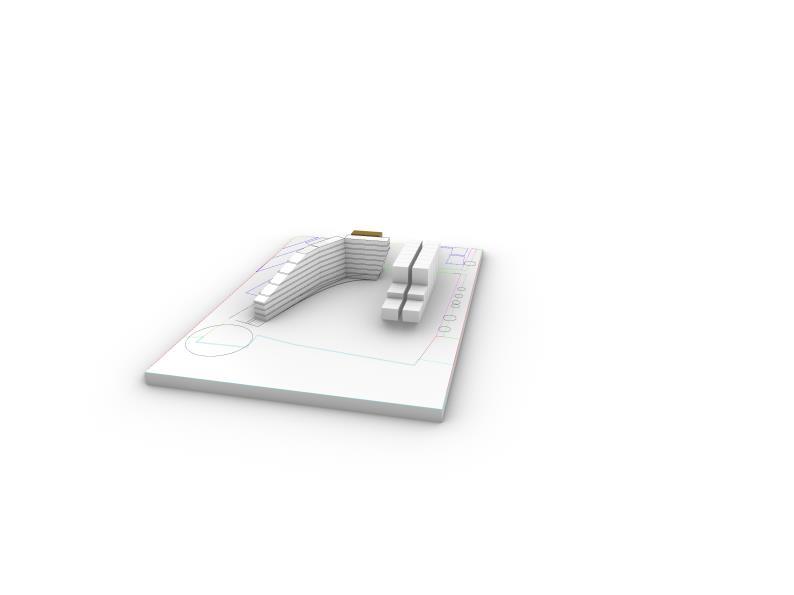

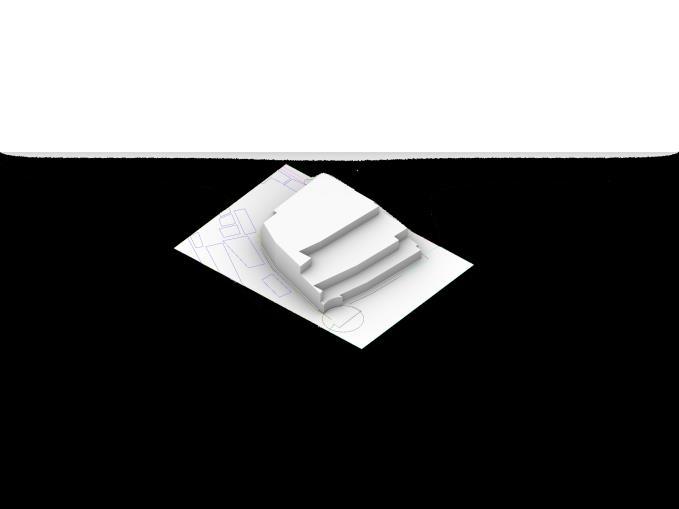

Form Finding (After code and setback rules )
Form Finding (After code and setback rules )

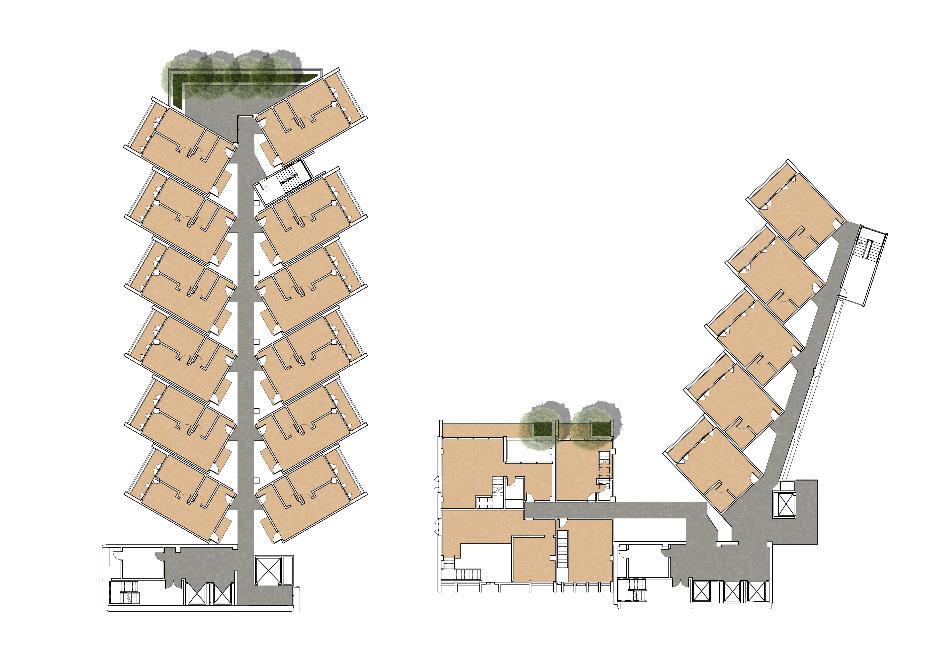

• Advantages
• View for every unit
• Natural cross ventilation also possible
• Disadvantages
• Long corridors
• Inefficient

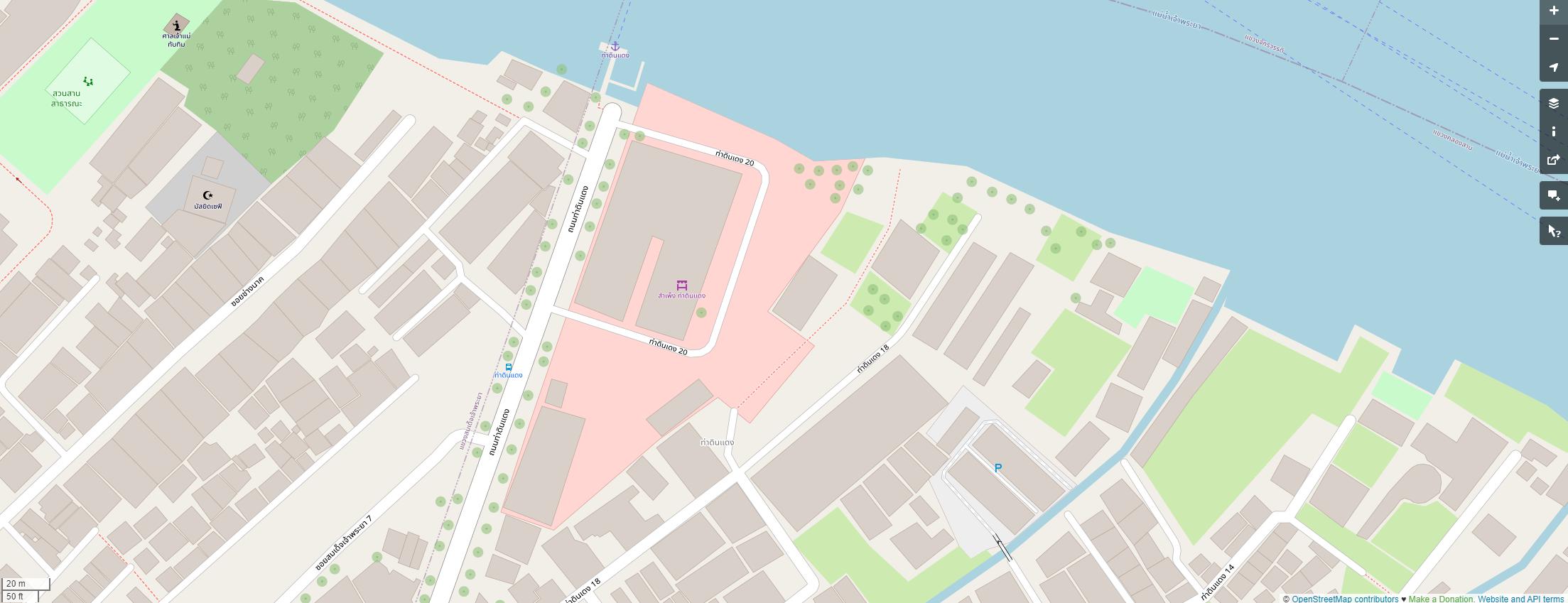

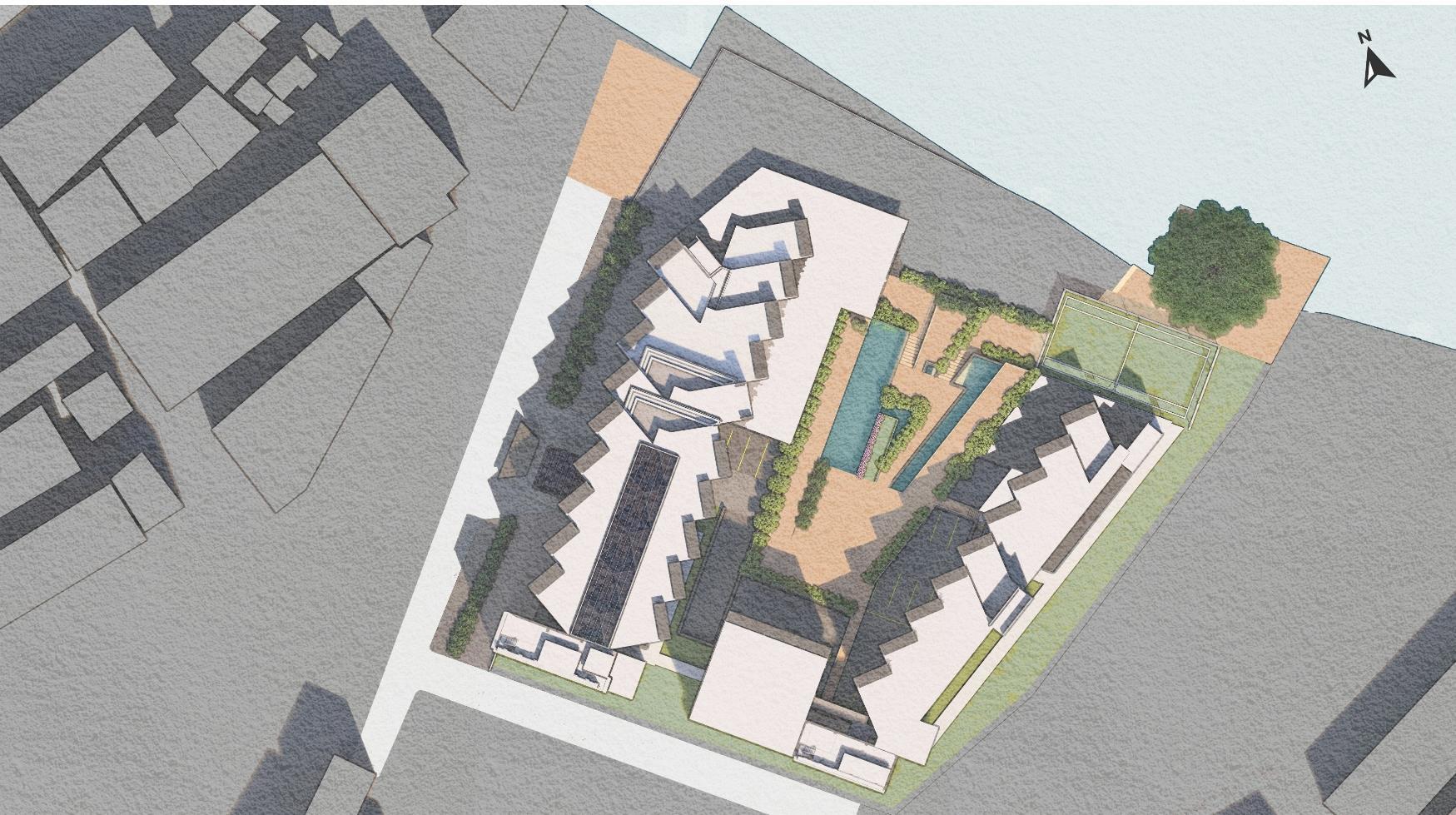

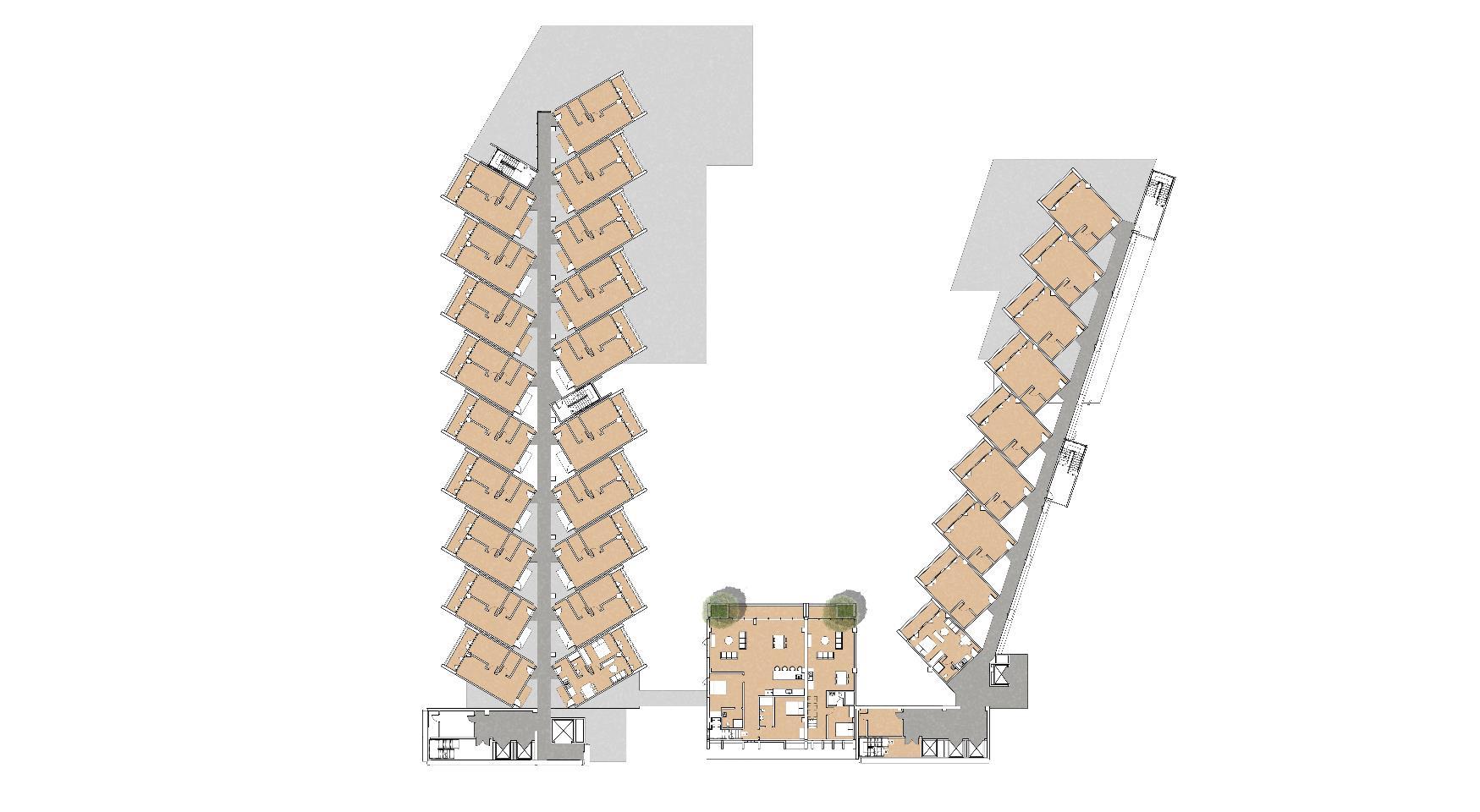

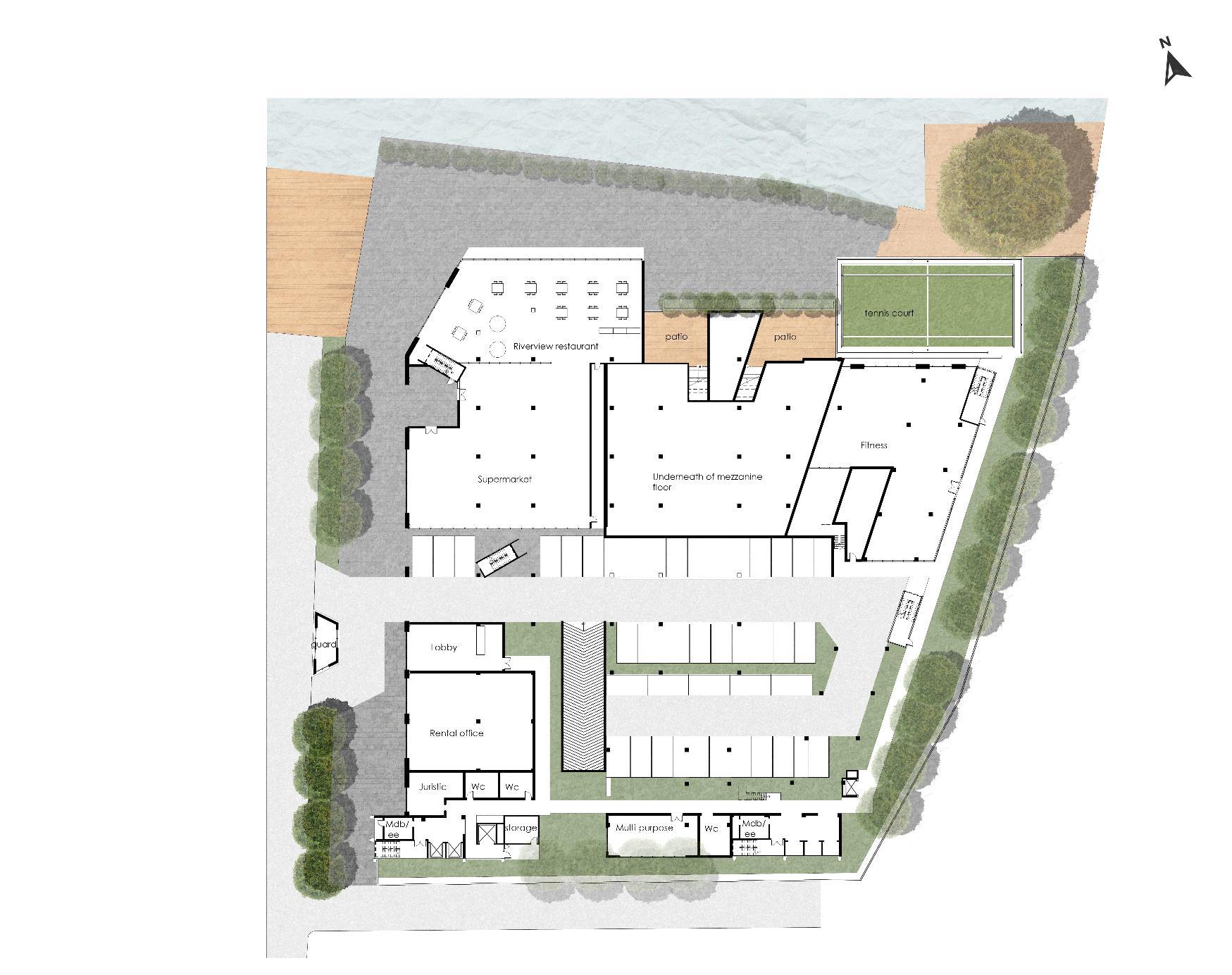

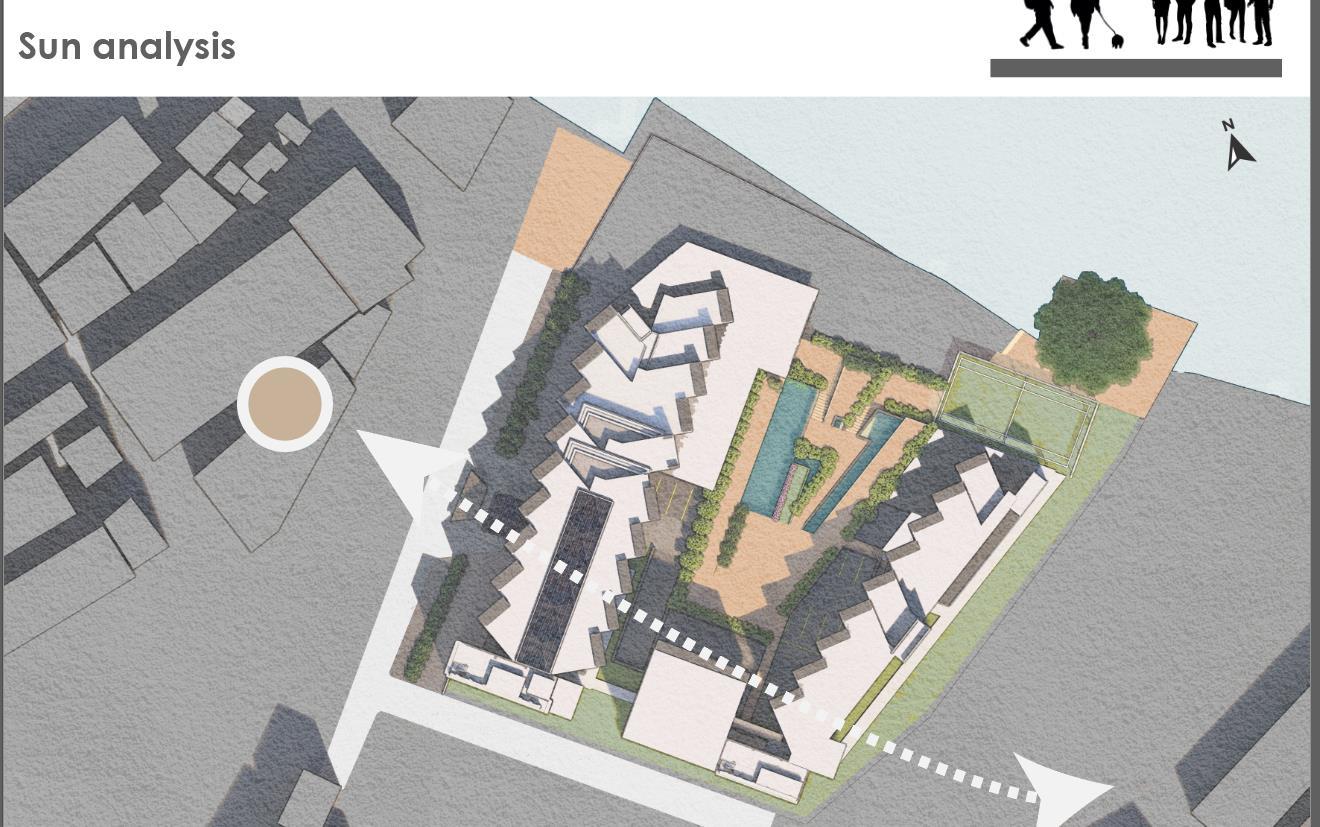

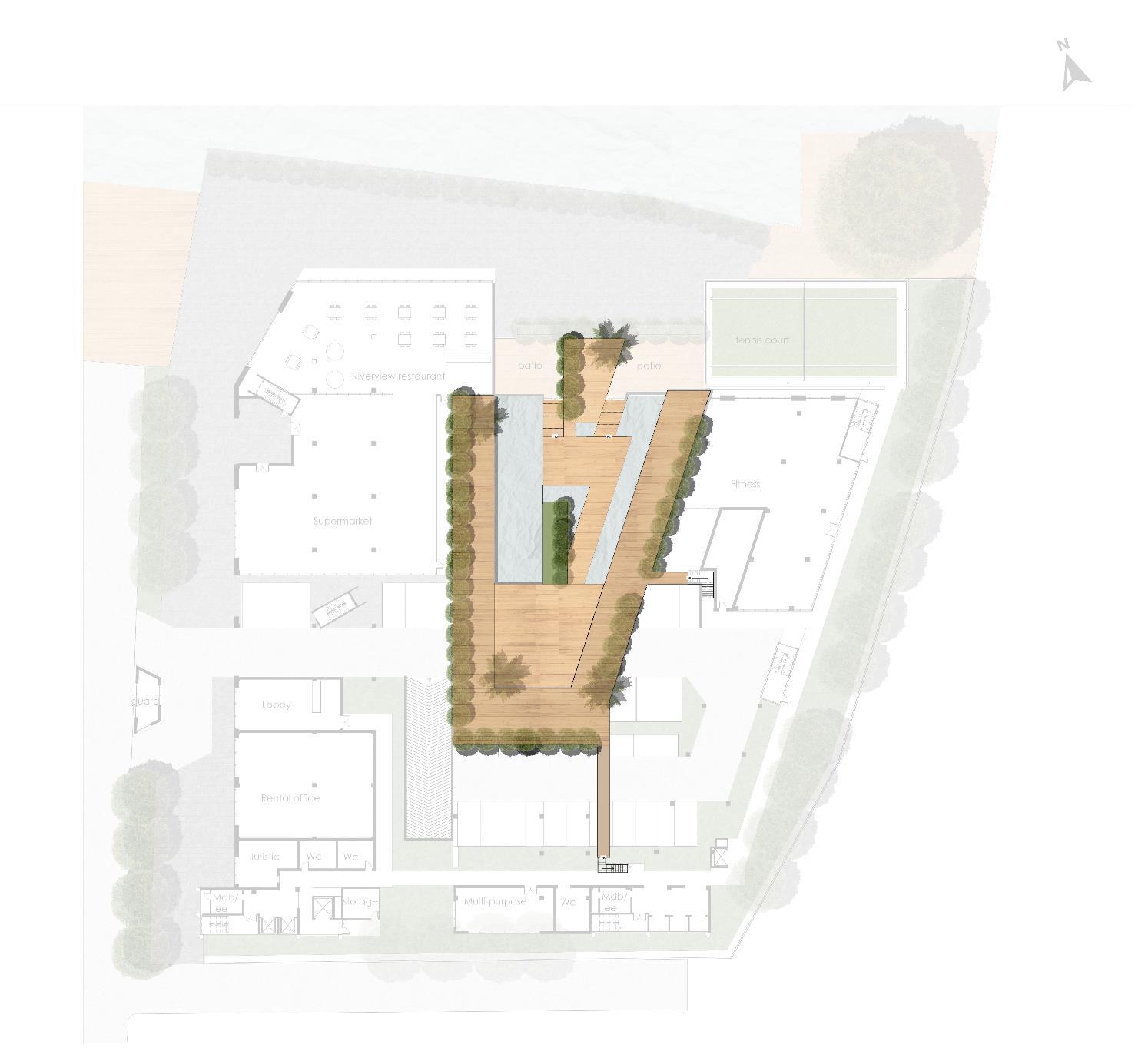

• Site plan (zoning )

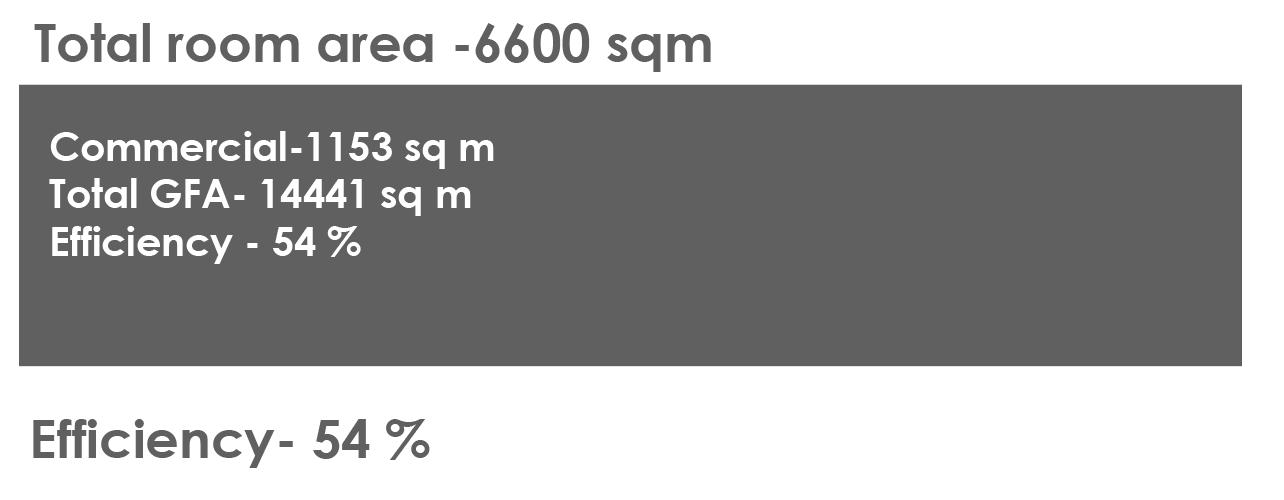

• Over 10000 sqm
1-straightforward design
2-too simple layout

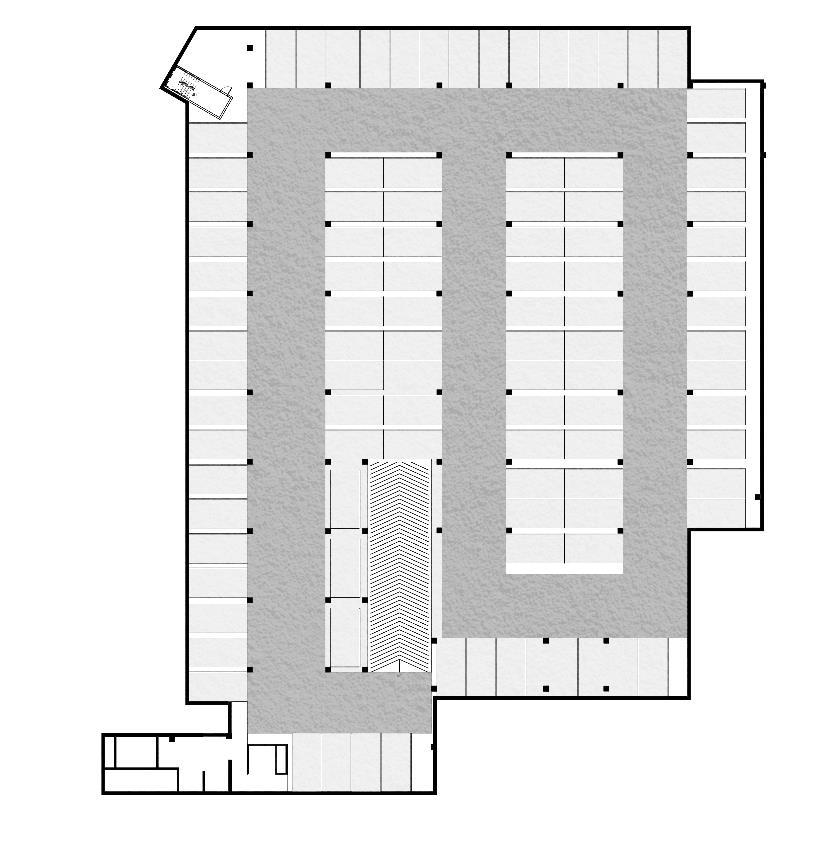

3-car parking at front
4-engineering solution

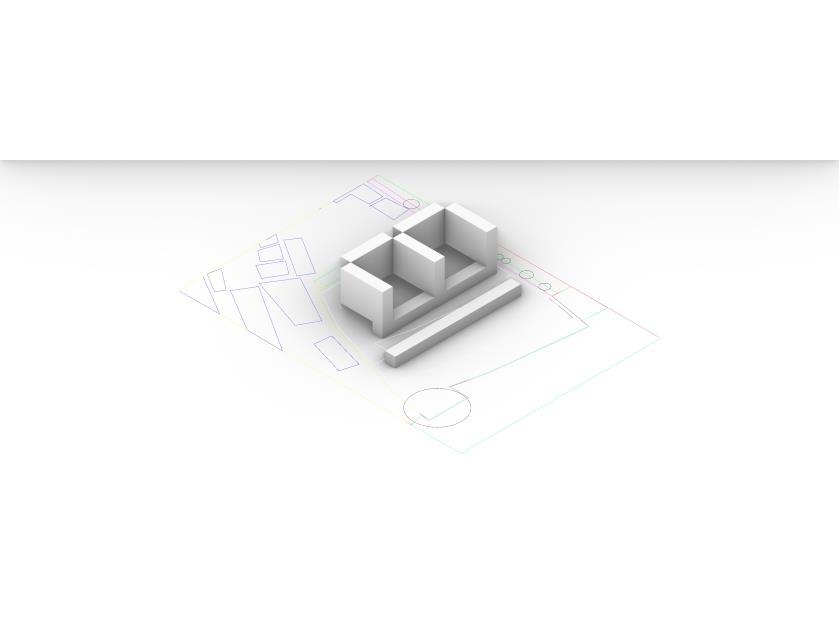

5- Change from three blocks to two blocks to allow more space in the middle
6-connected car parking makes one building

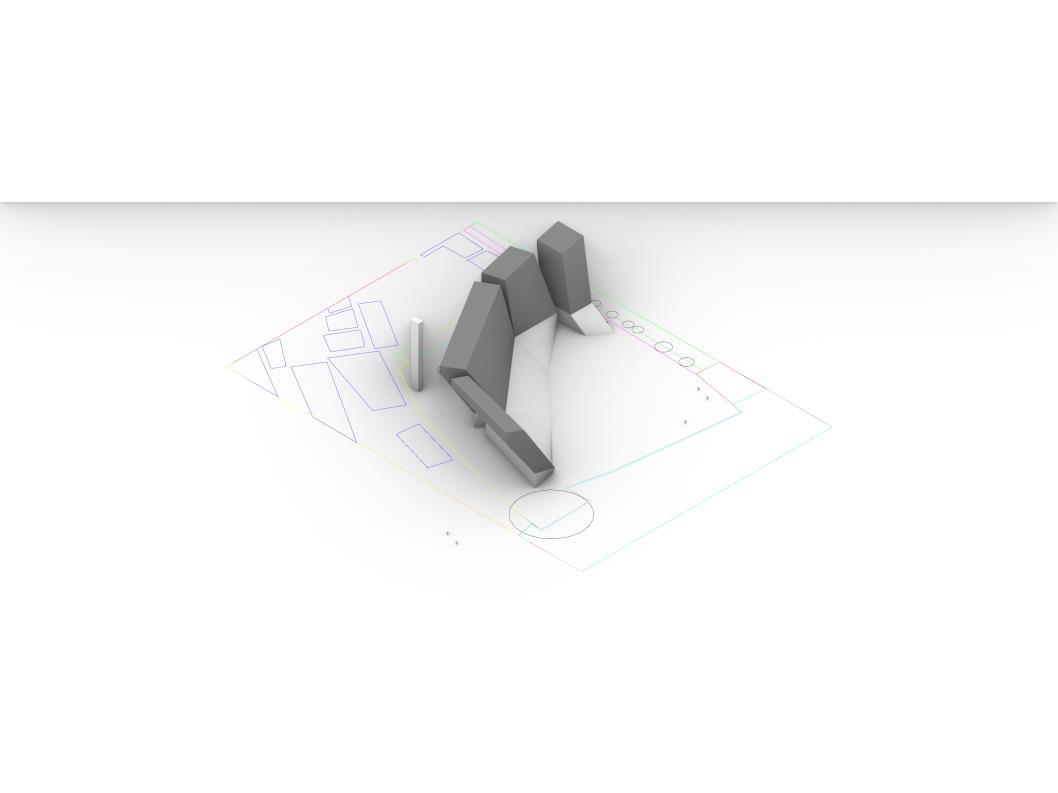

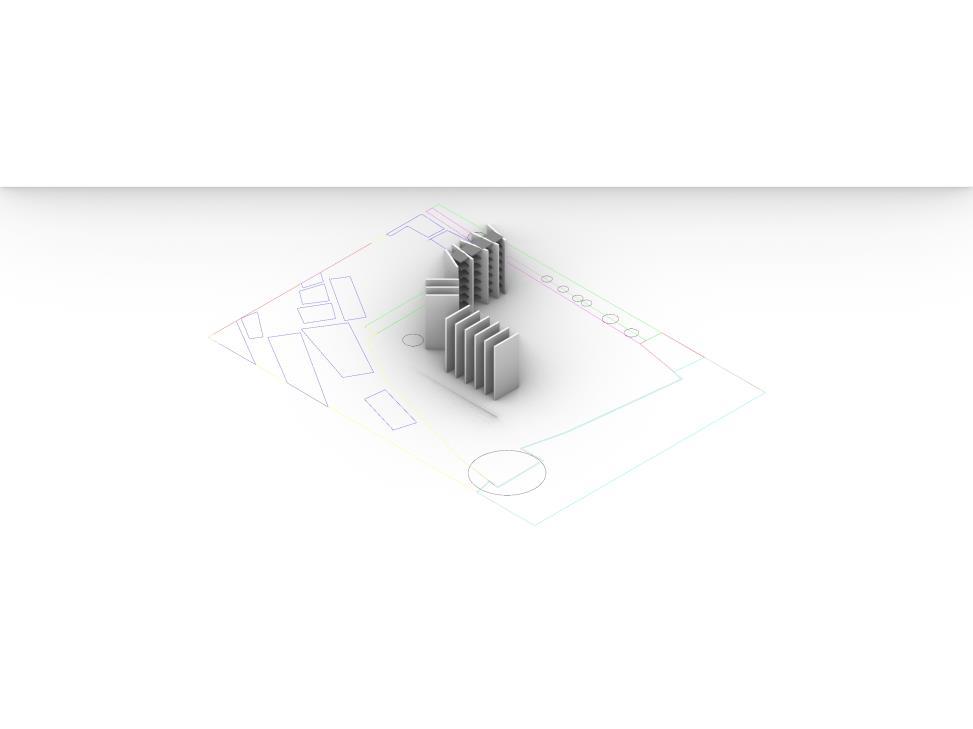

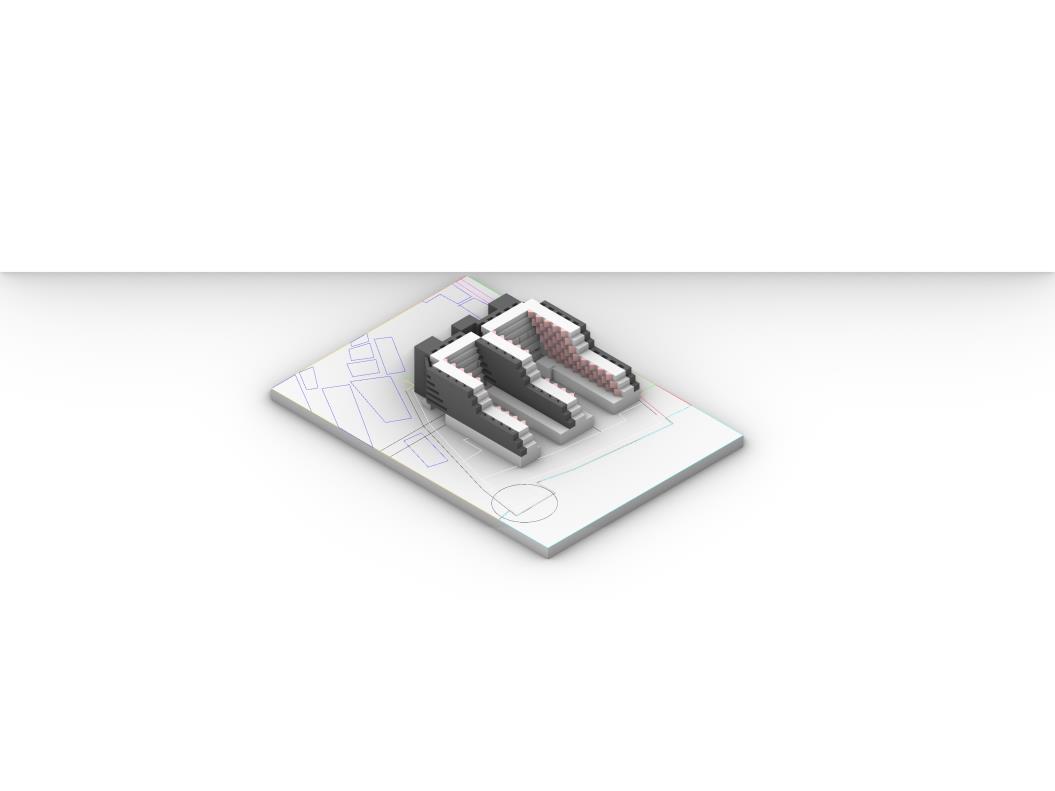

1-two blocks

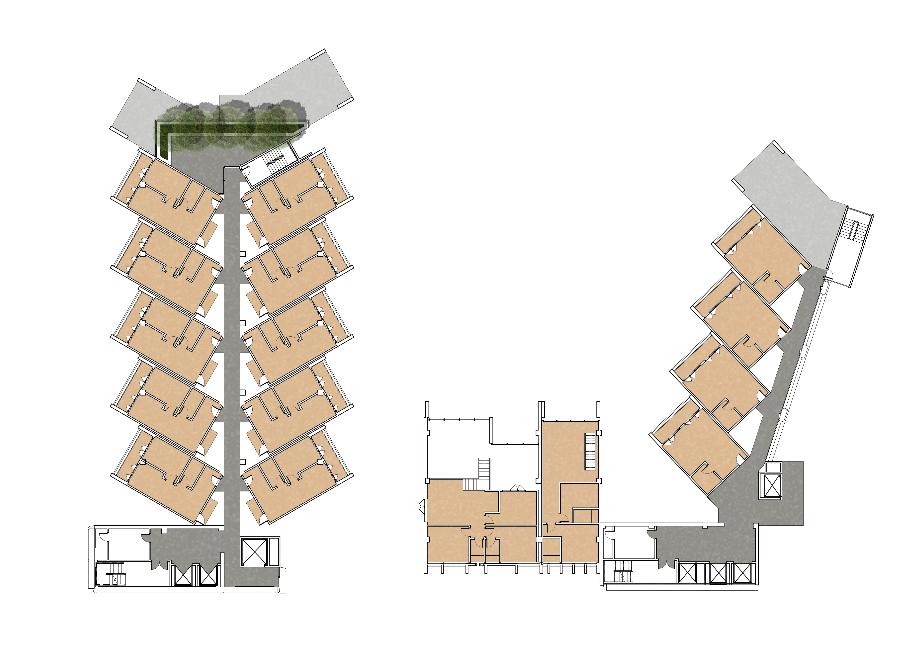

2-haft-shifted rooms

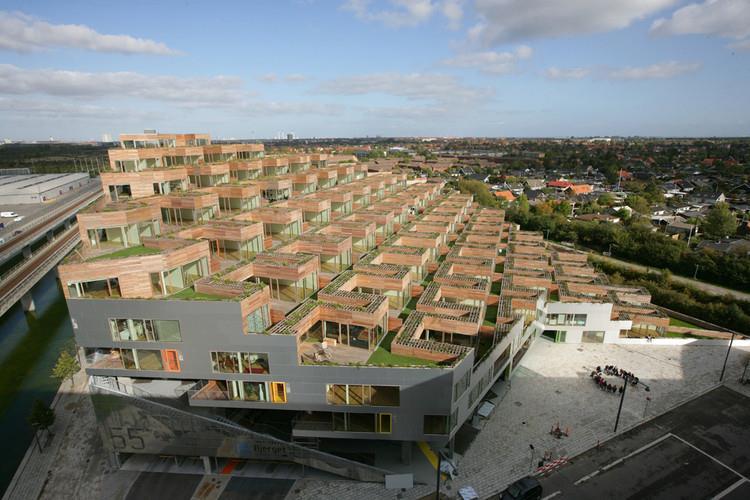

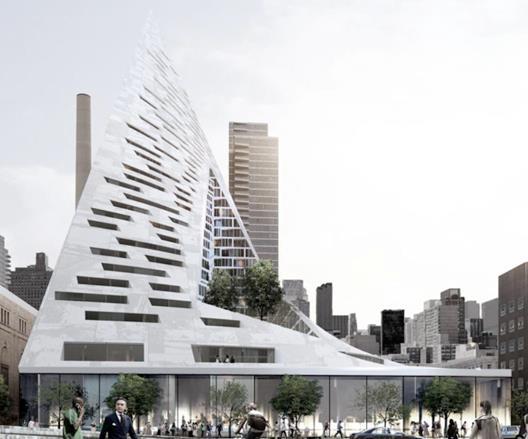

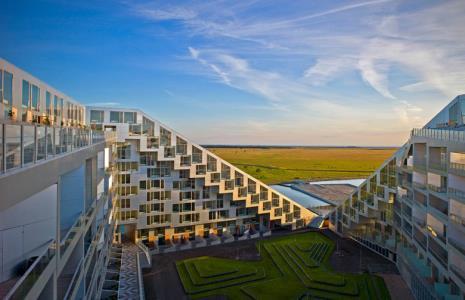

3-mountain inspired

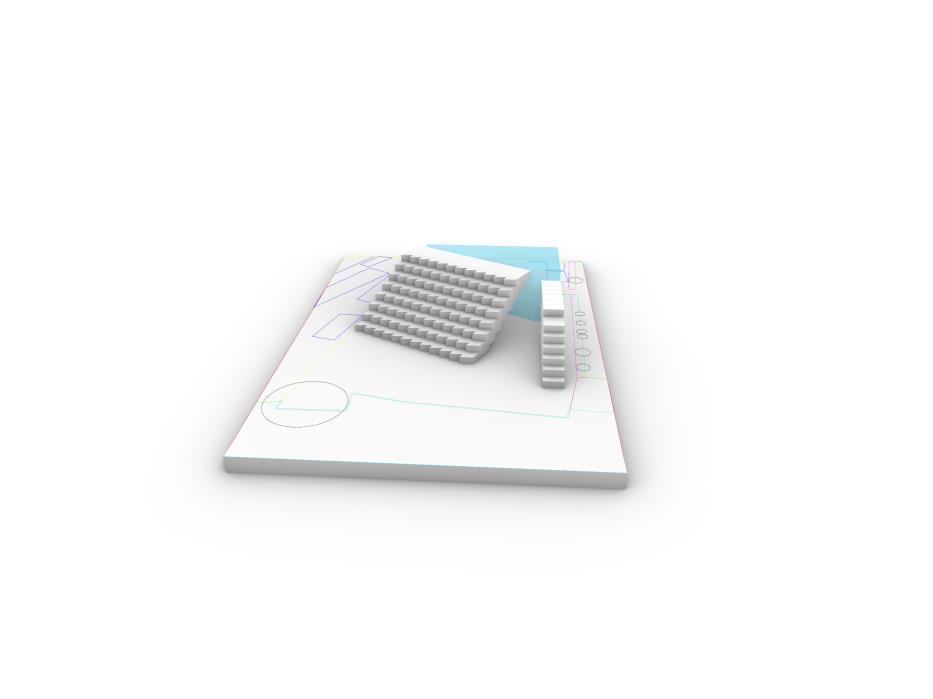

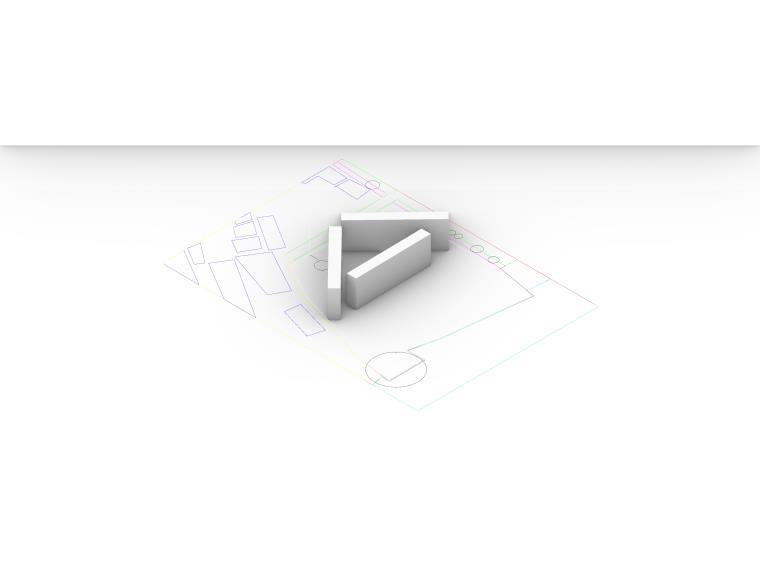

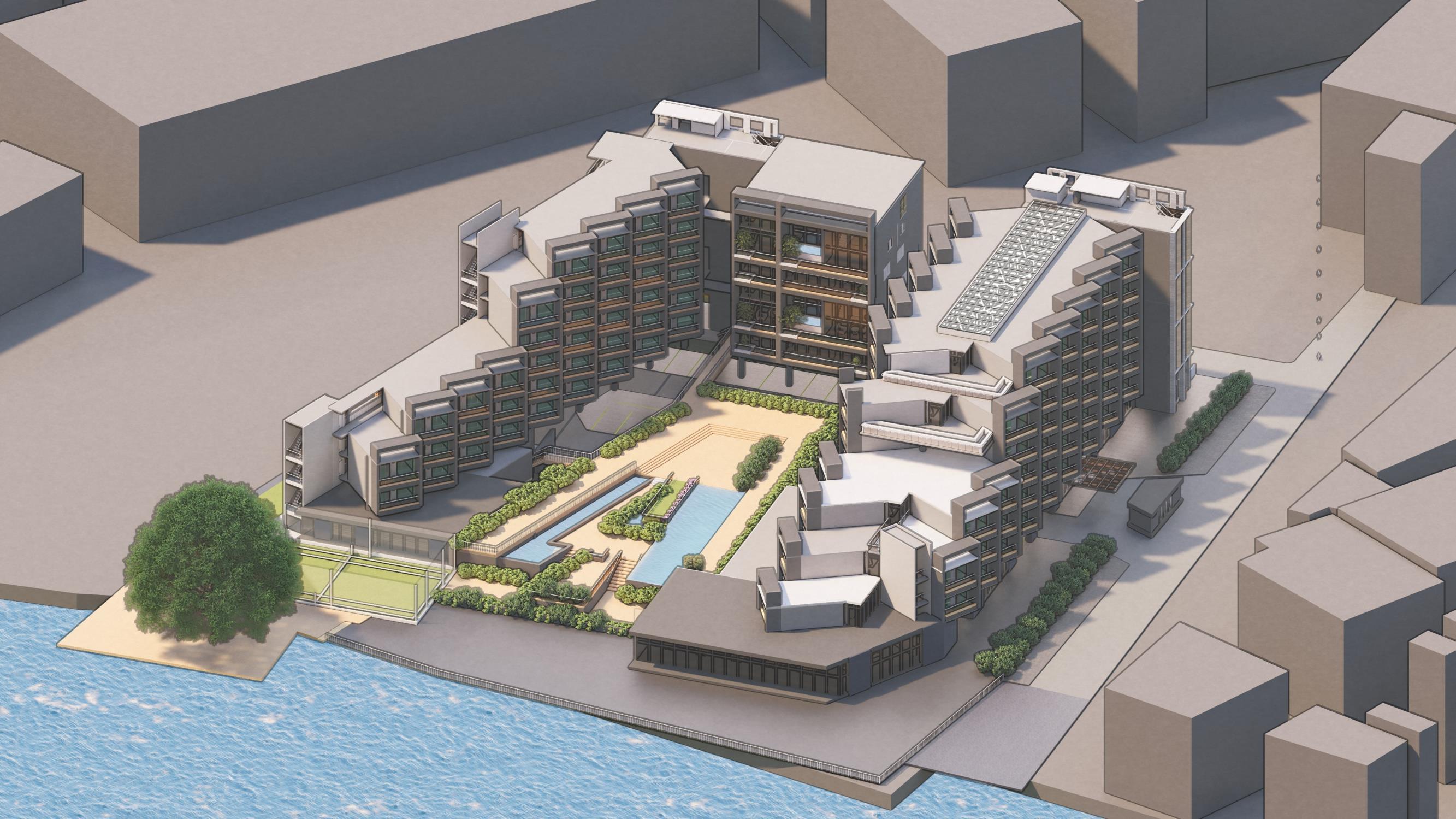

1-two blocks
2-horizontal lines
3-Middle outdoor space

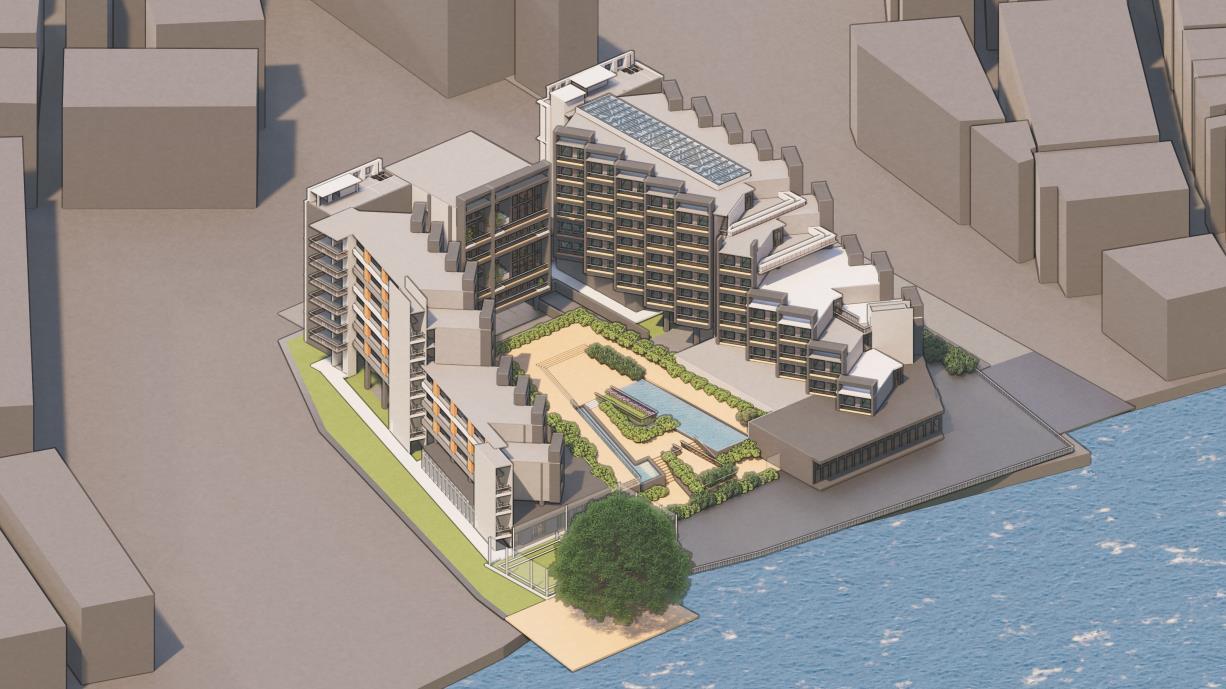

1-two blocks
2-horizontal lines ( curves )
3-Middle outdoor space

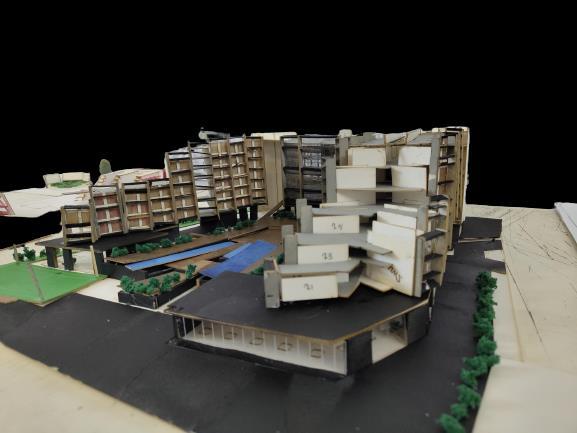

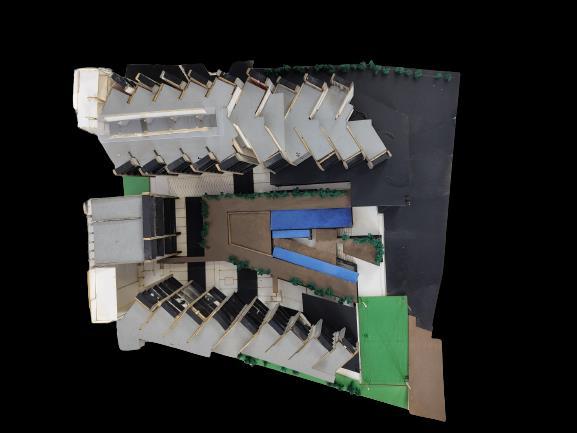

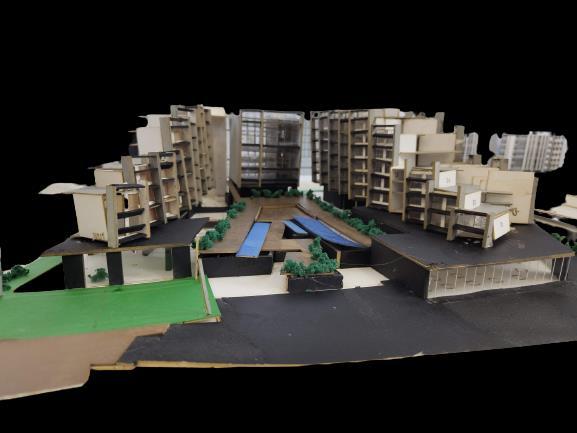

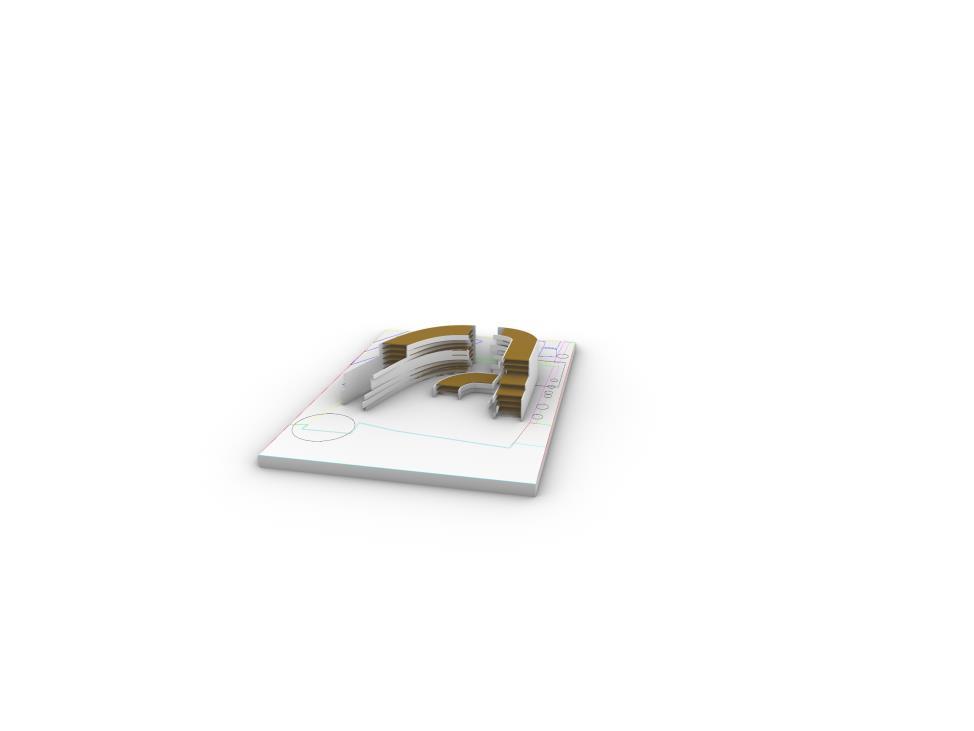

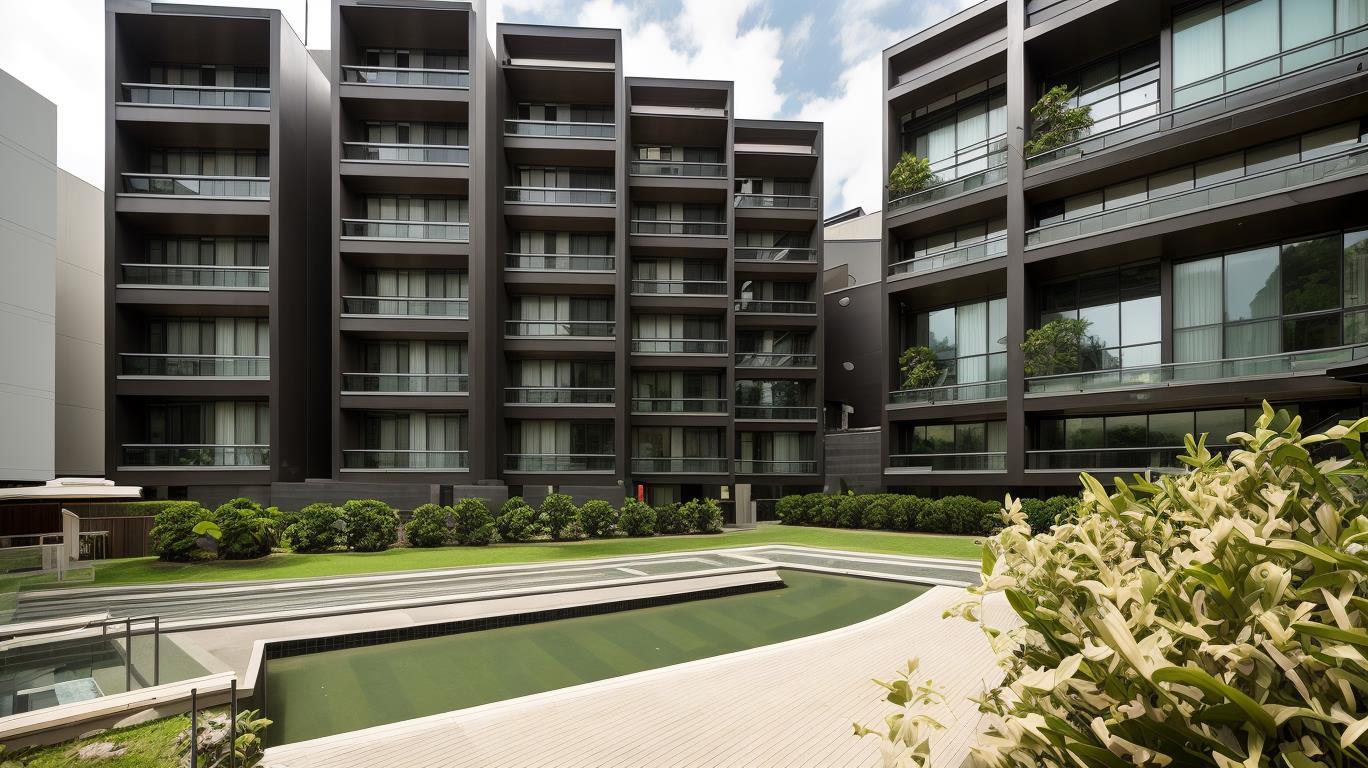

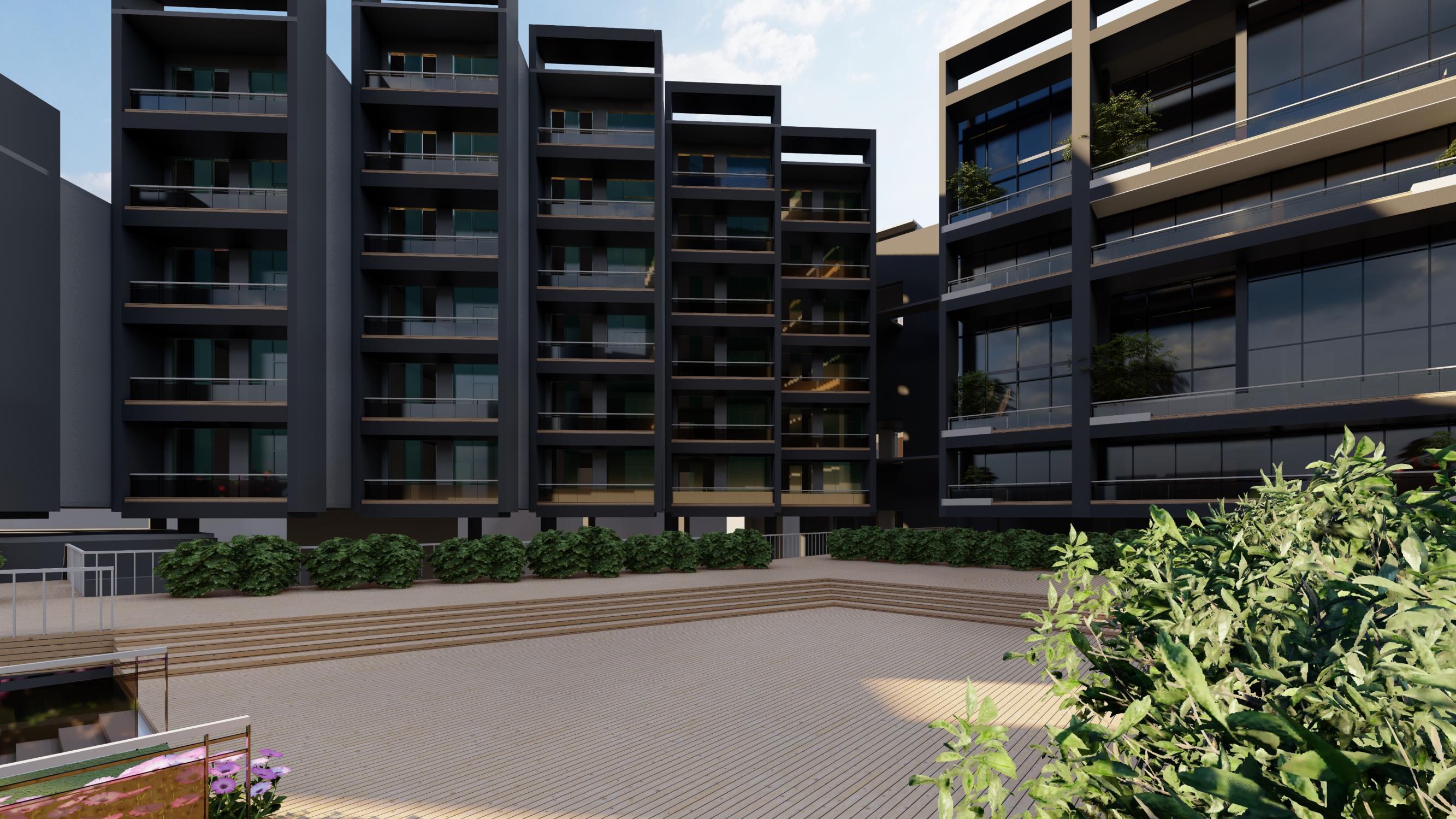

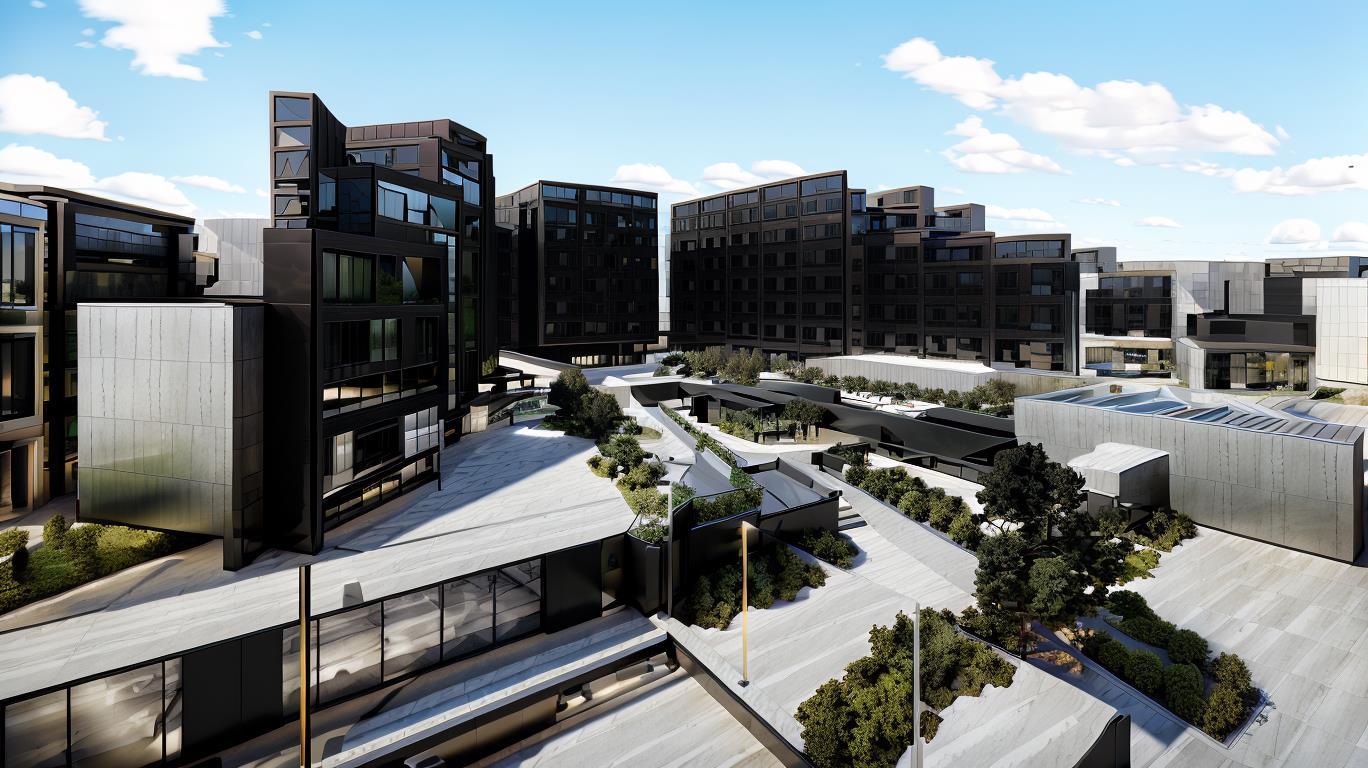

▪ Amphitheater

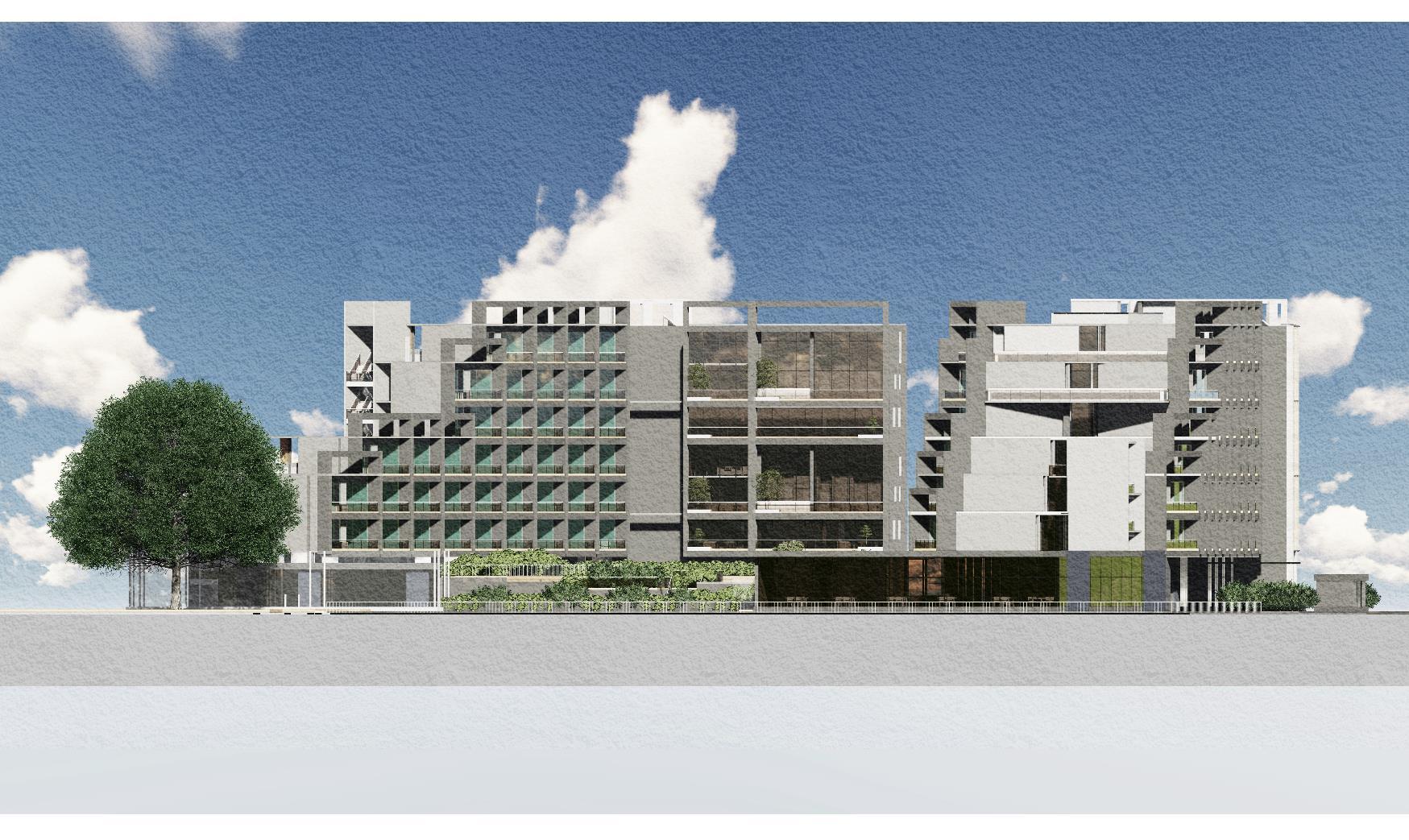

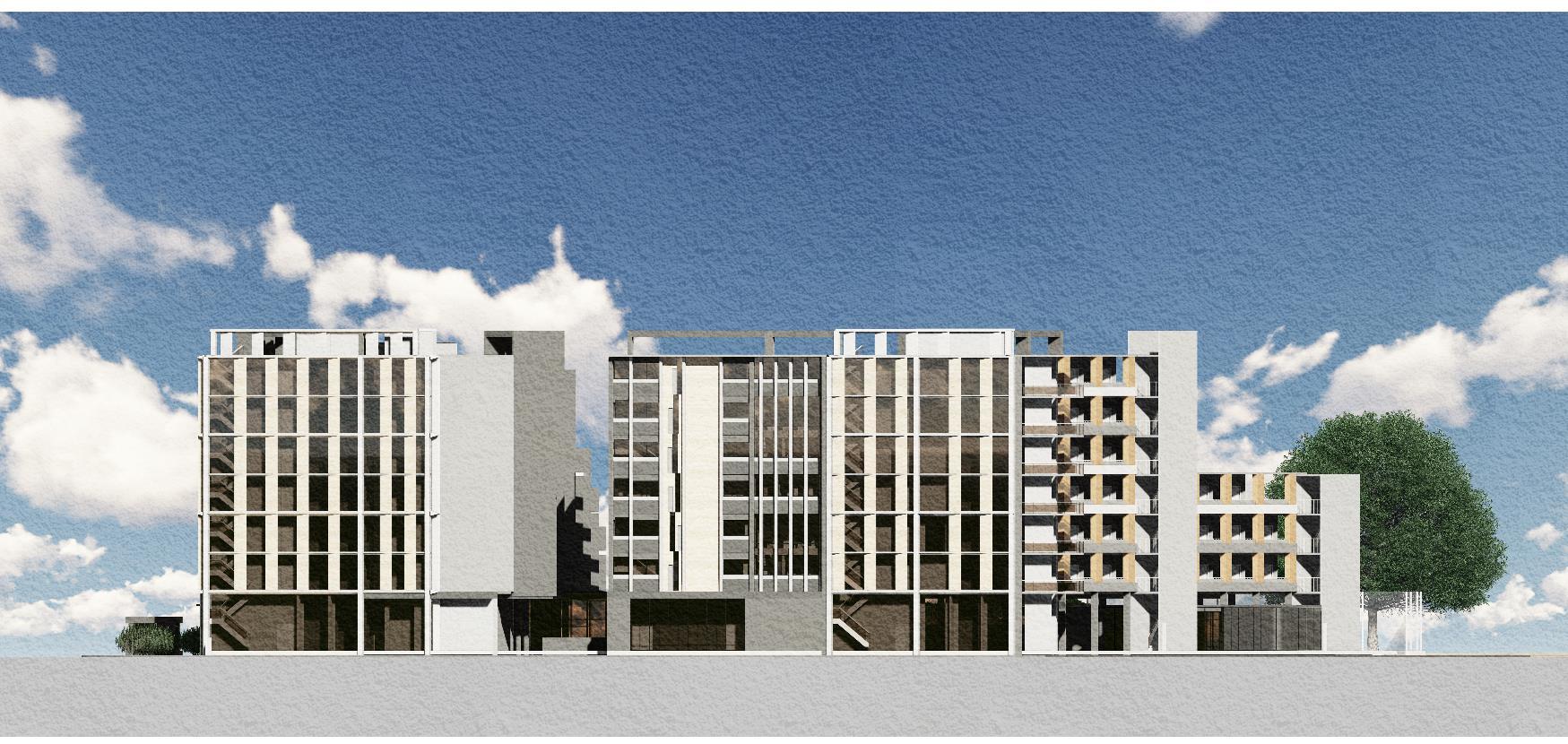

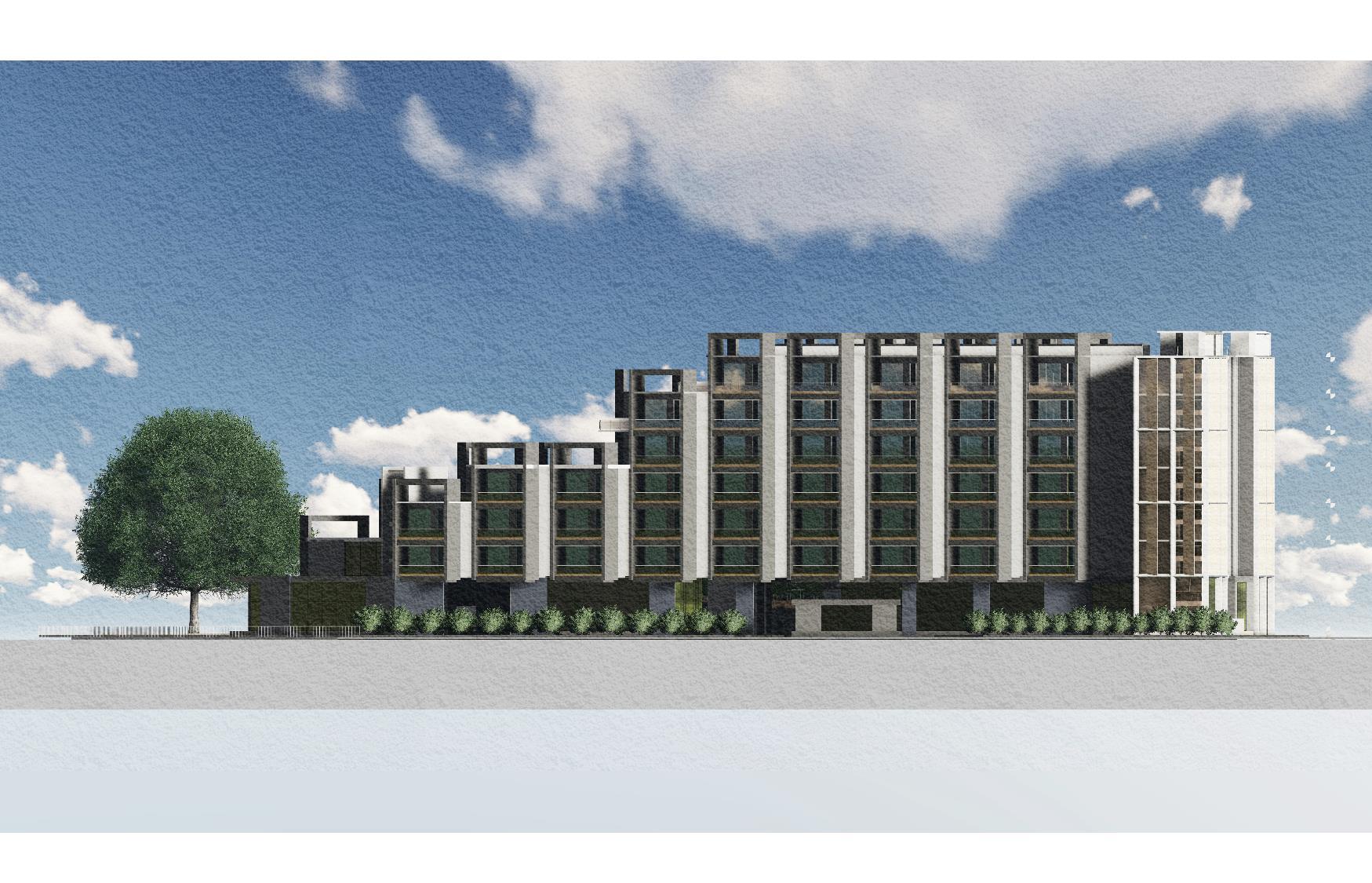

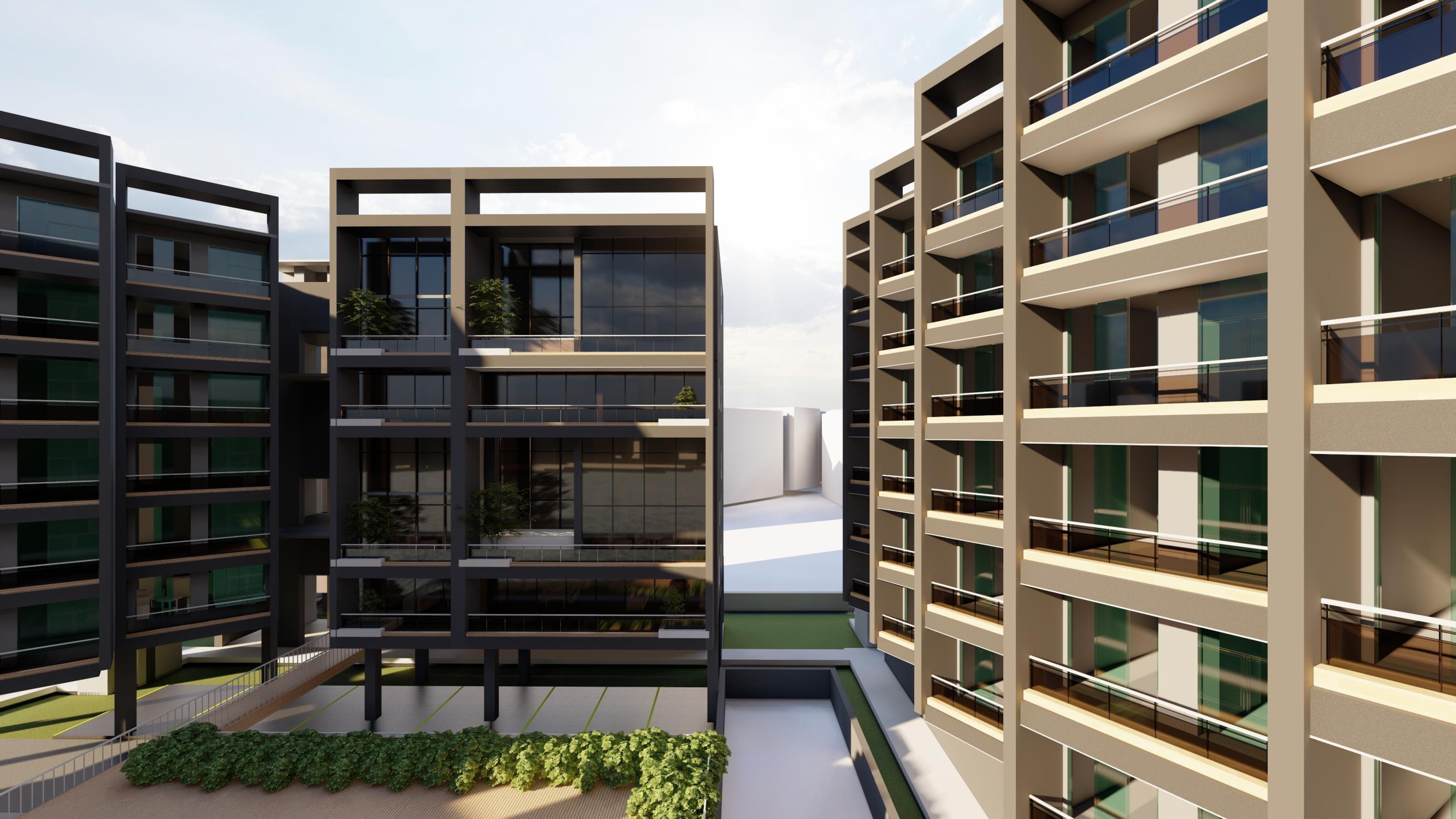

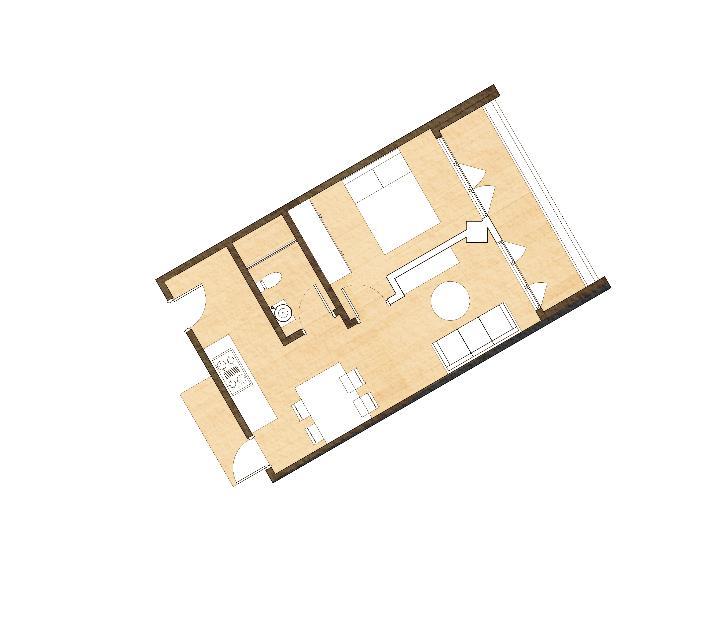

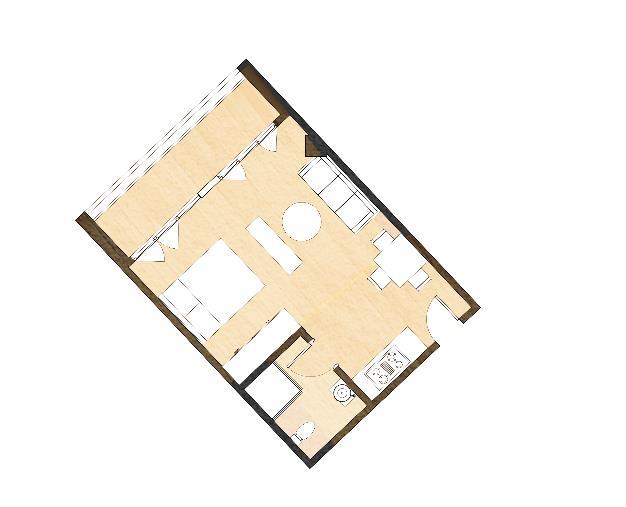

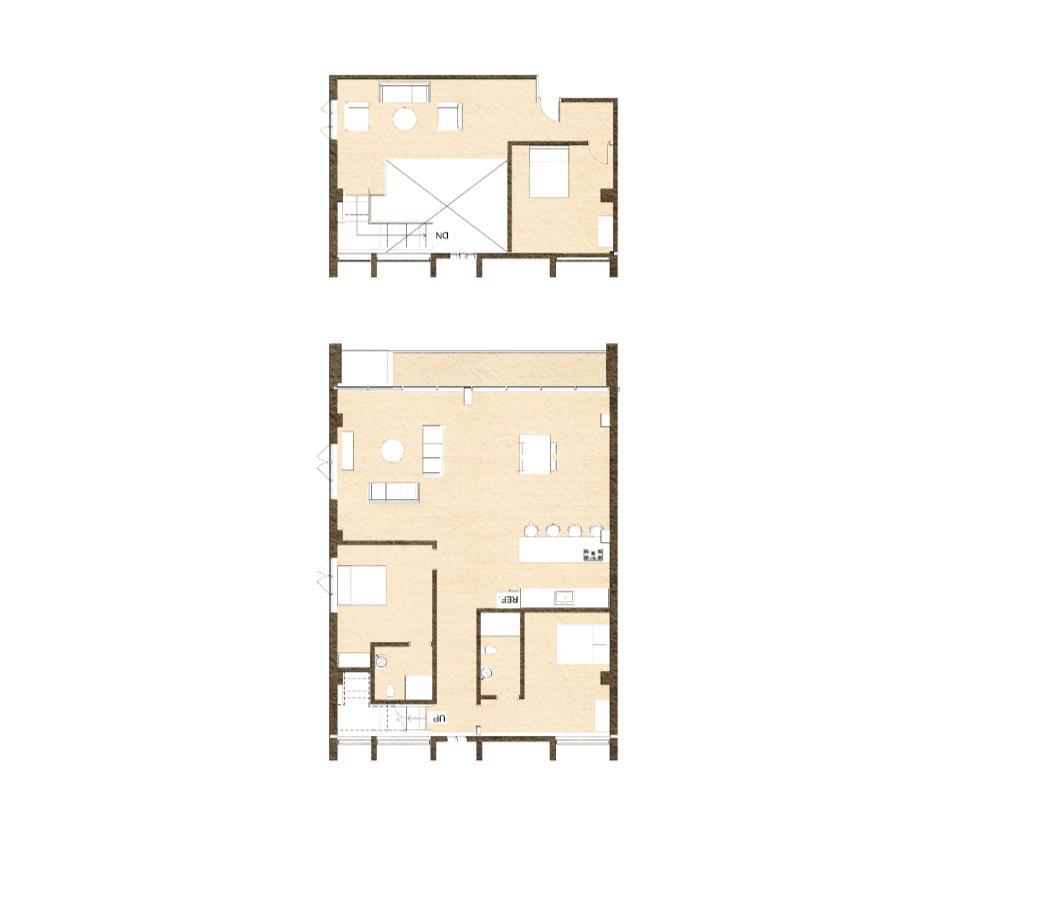

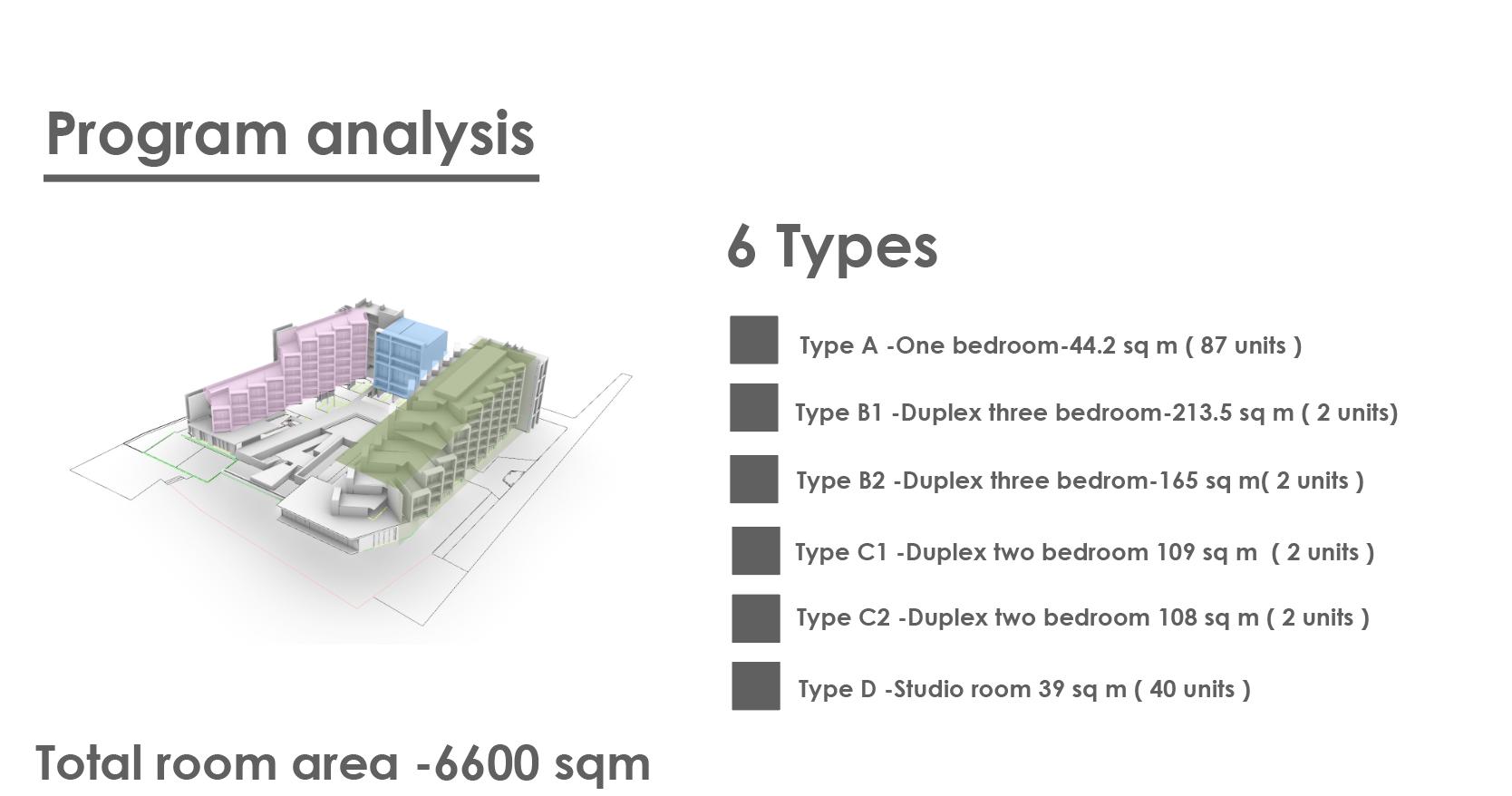

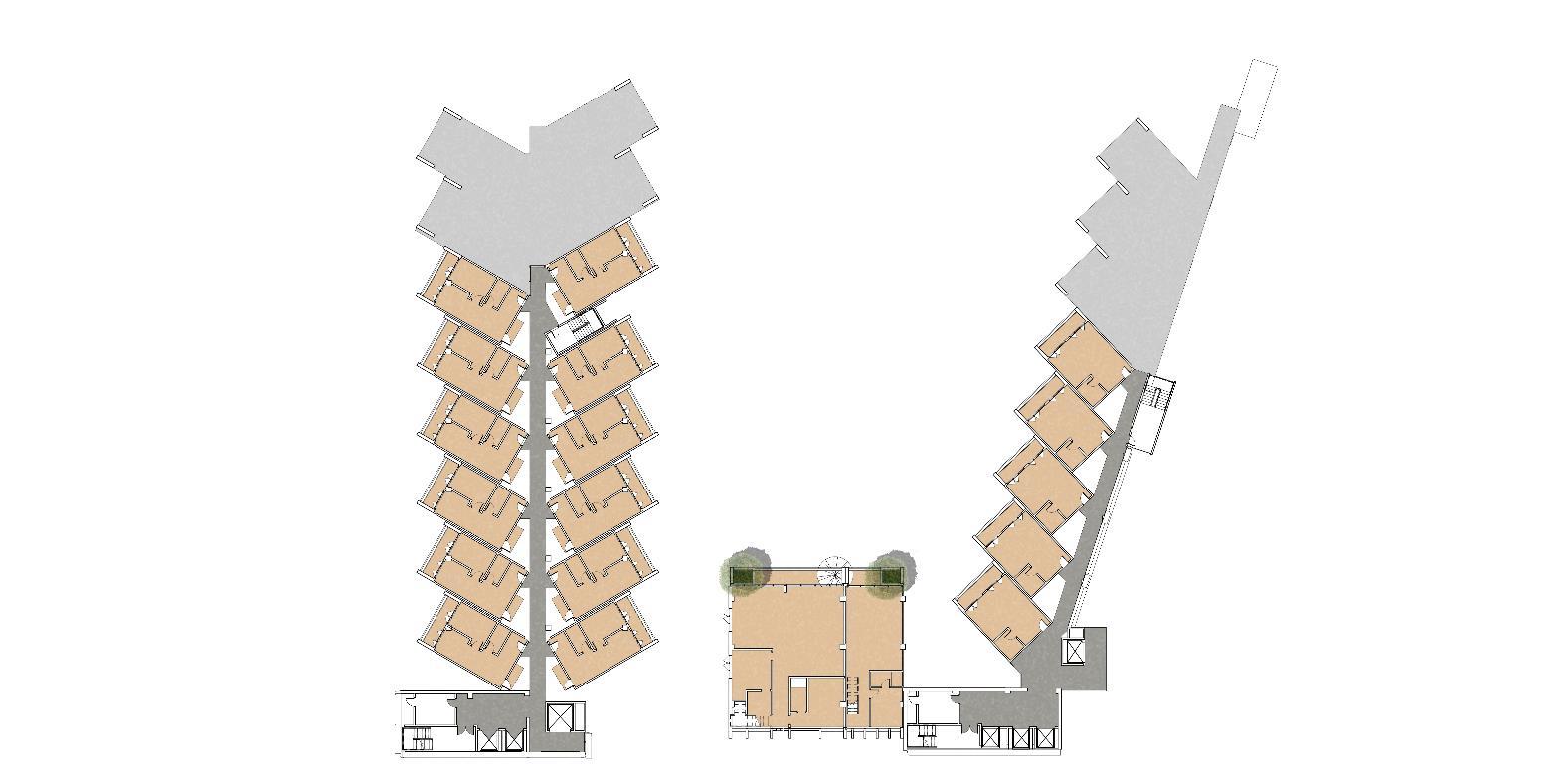

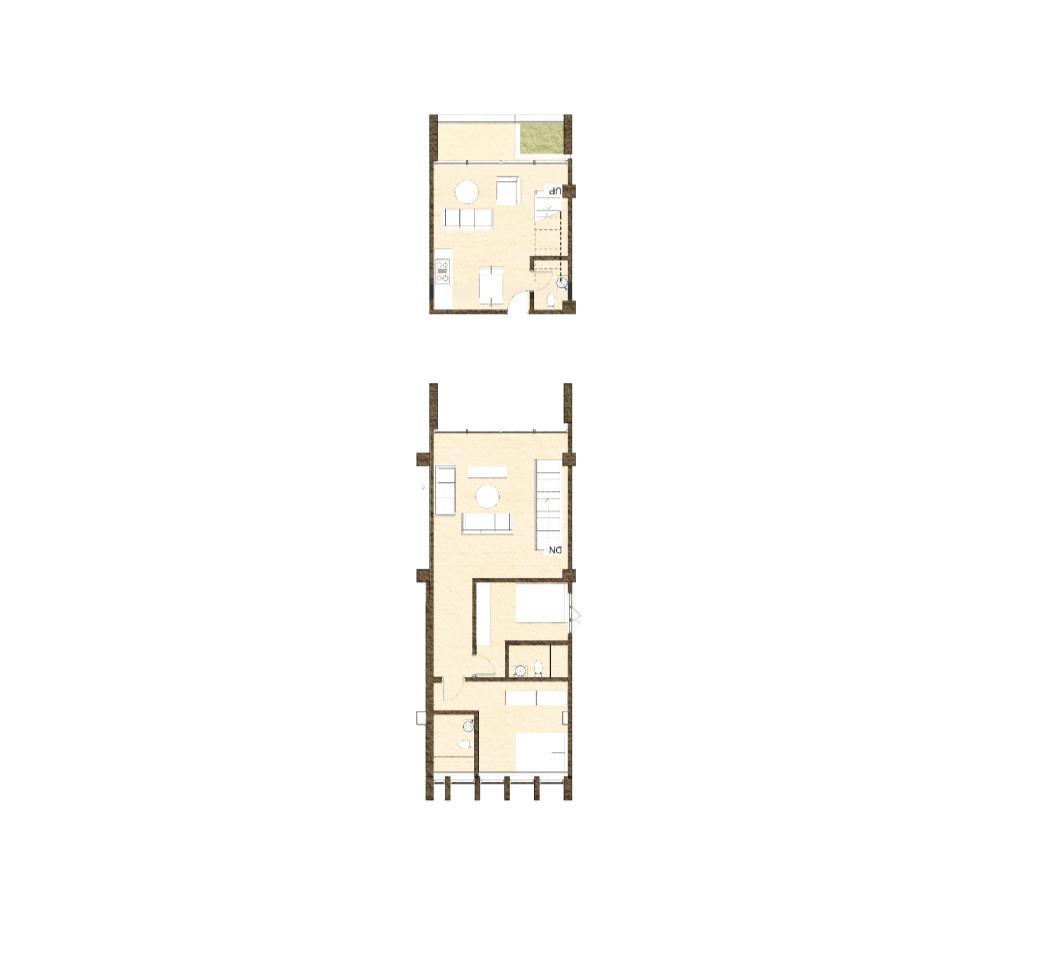

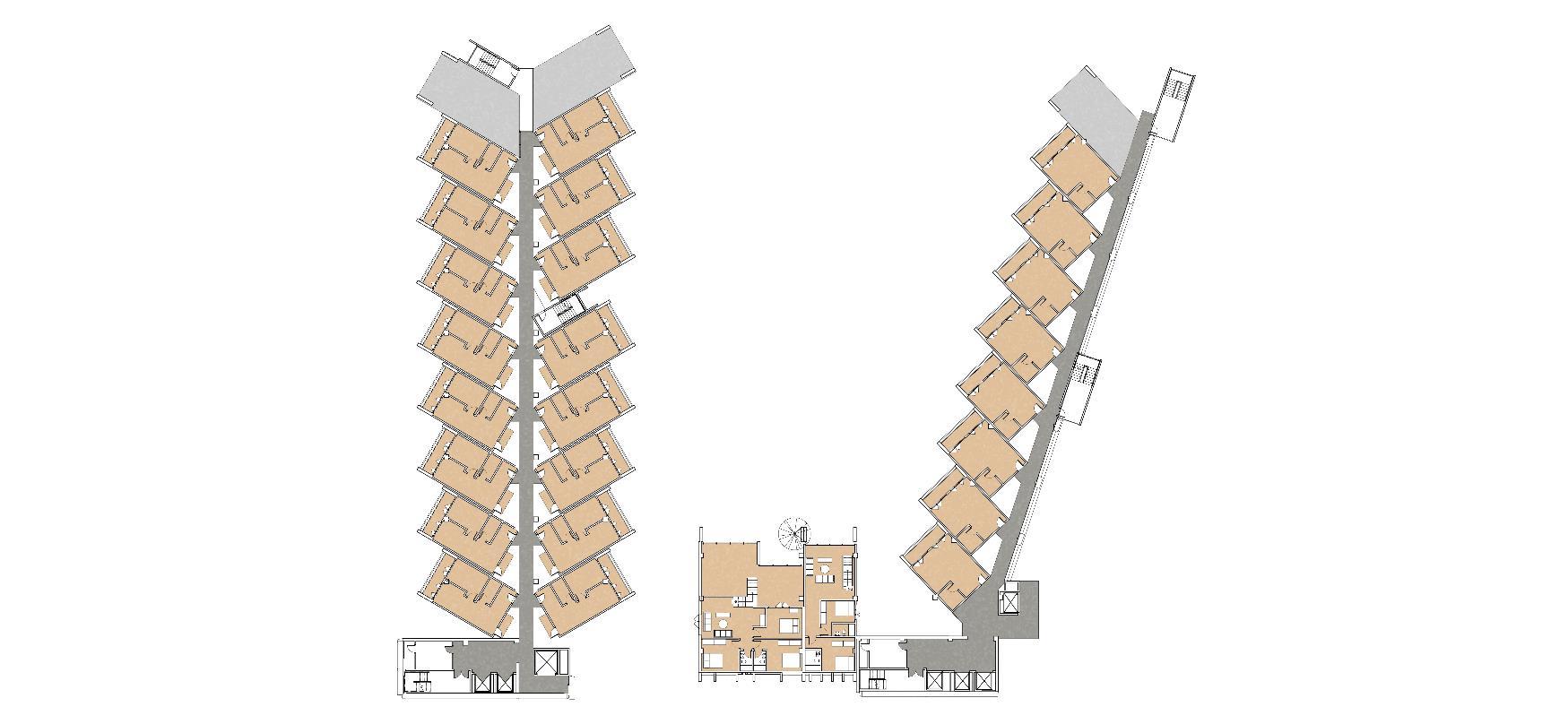

8.5 X 5.2 M=44.2 SQM

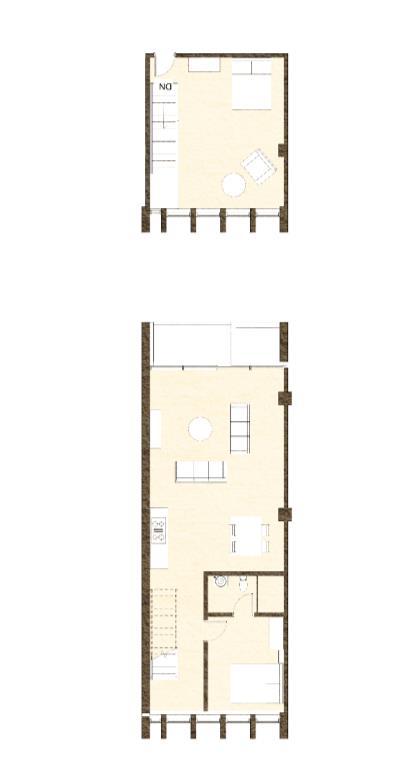

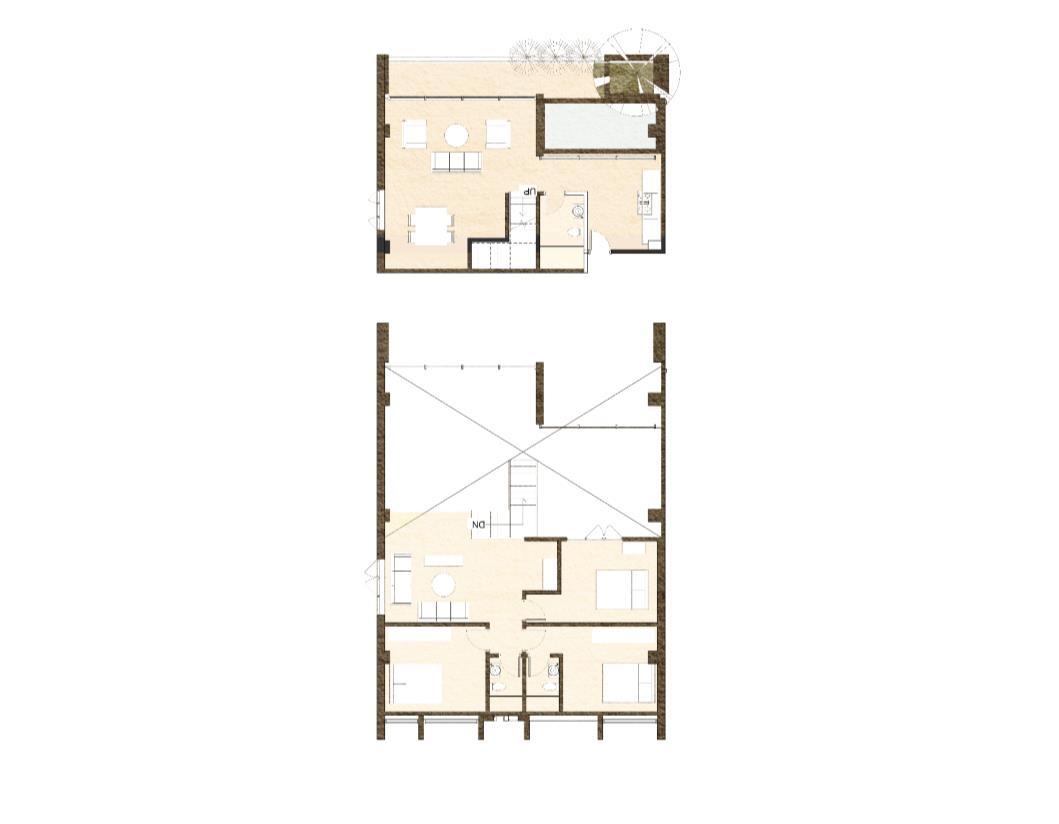

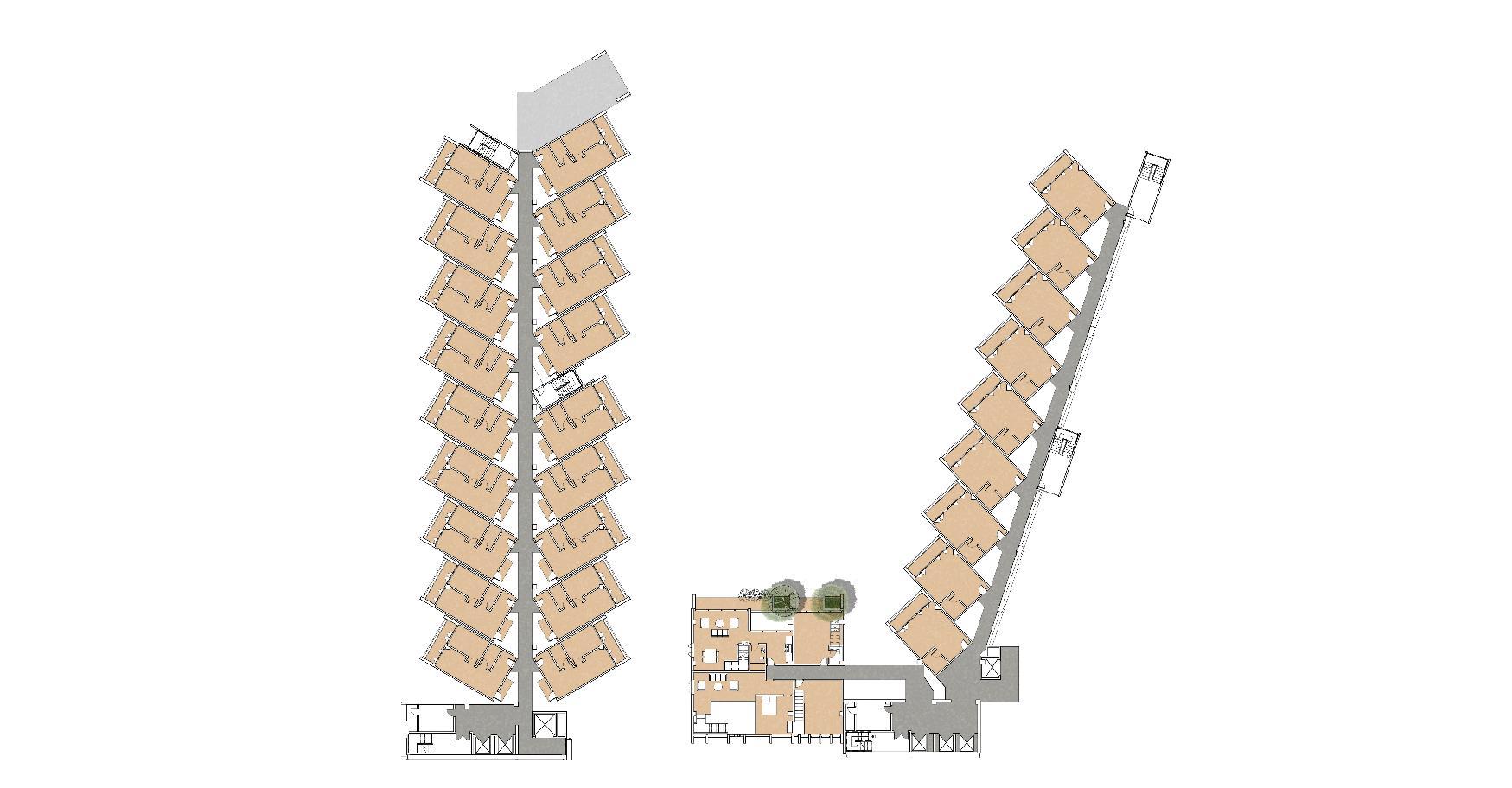

7.5 X 5.2M=39 SQM

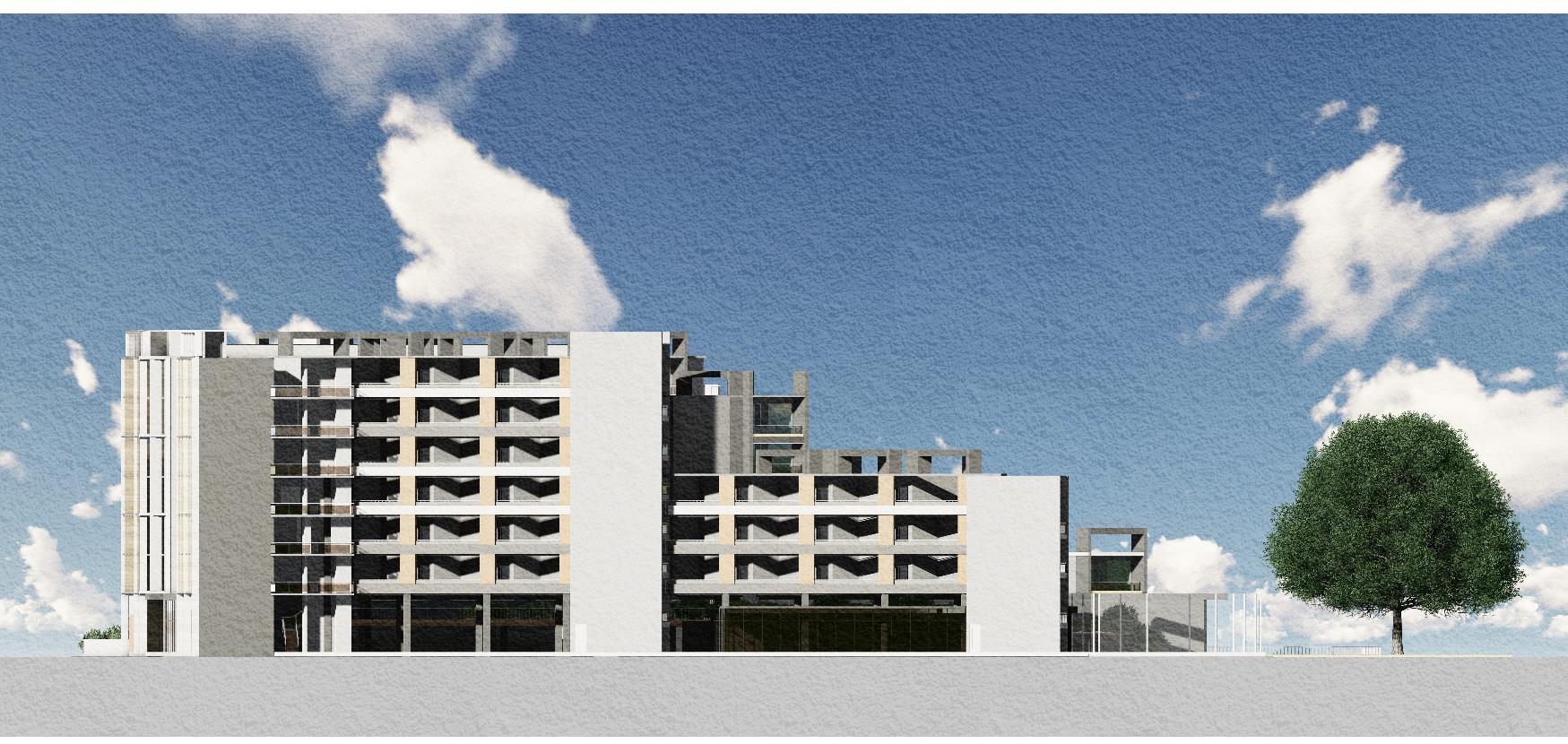

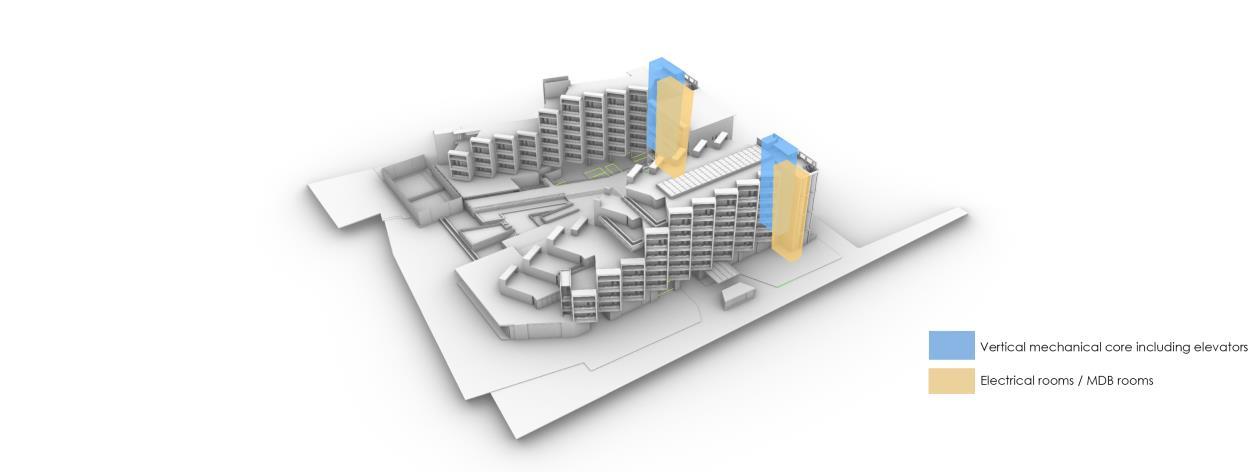

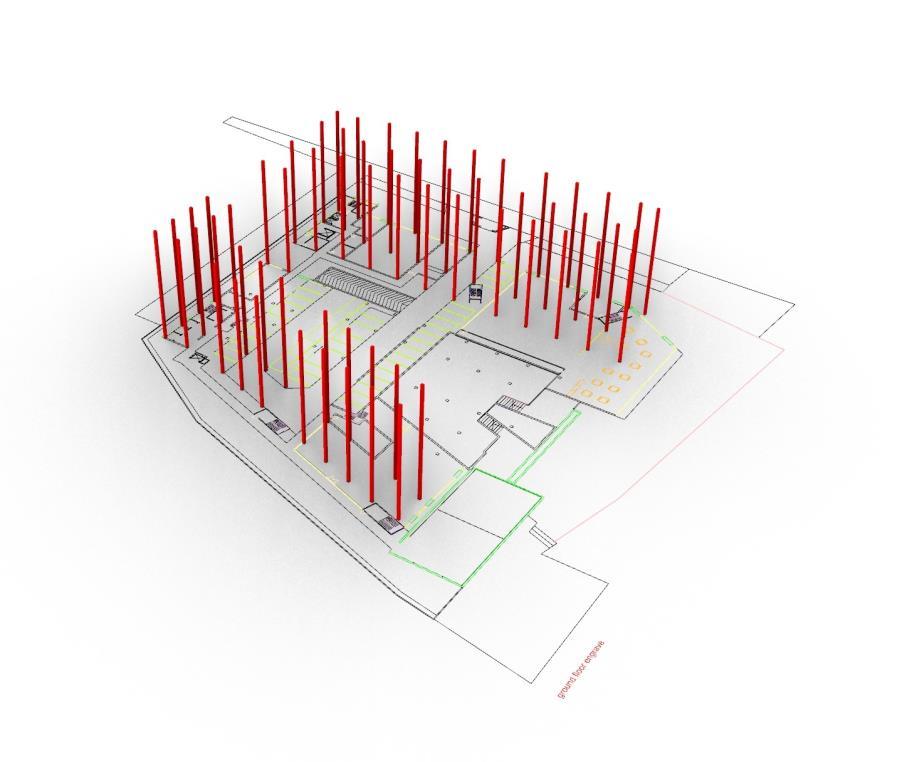

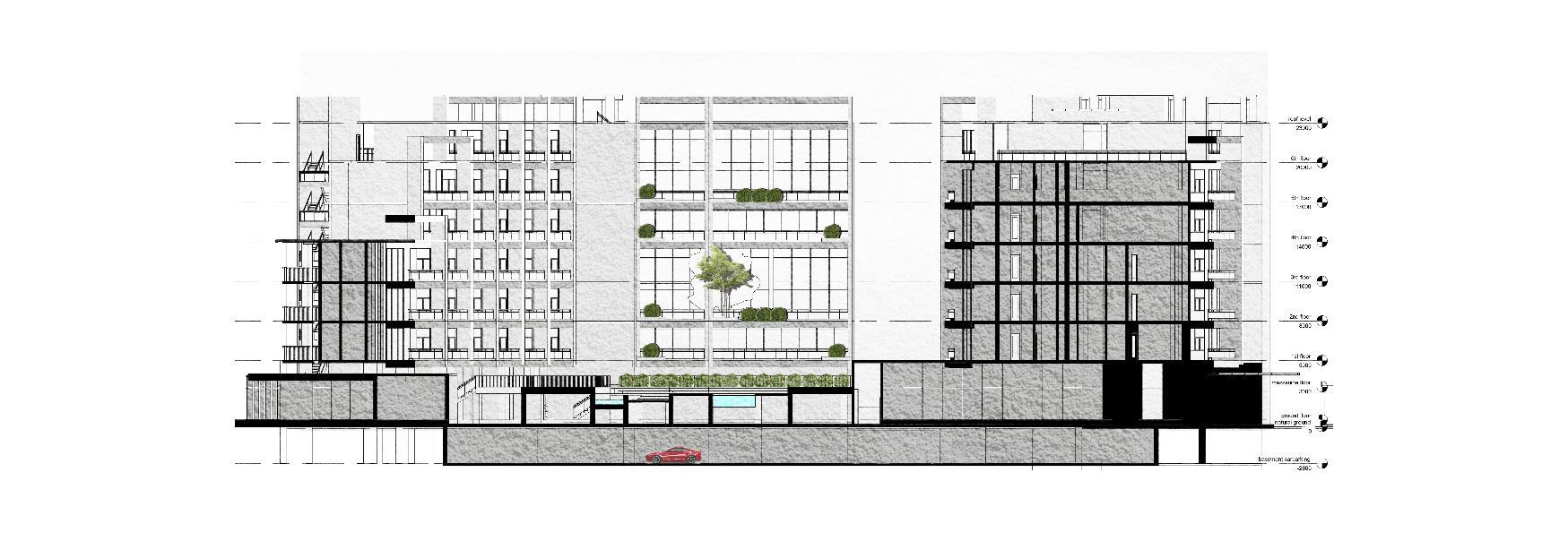

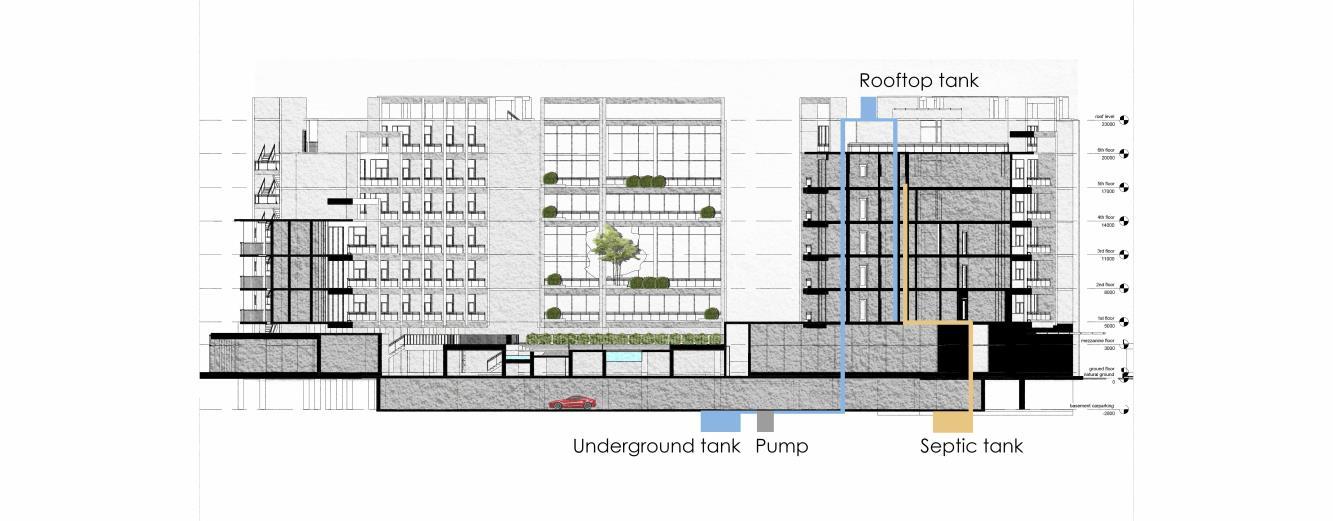

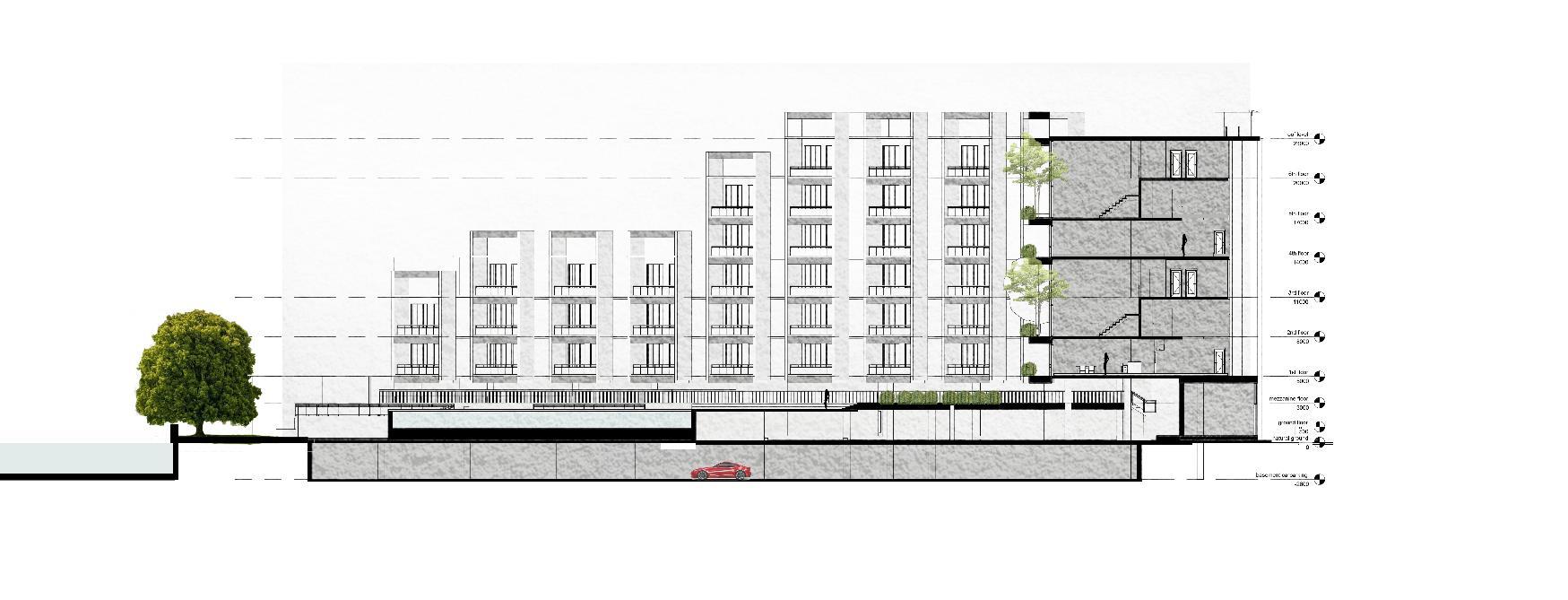

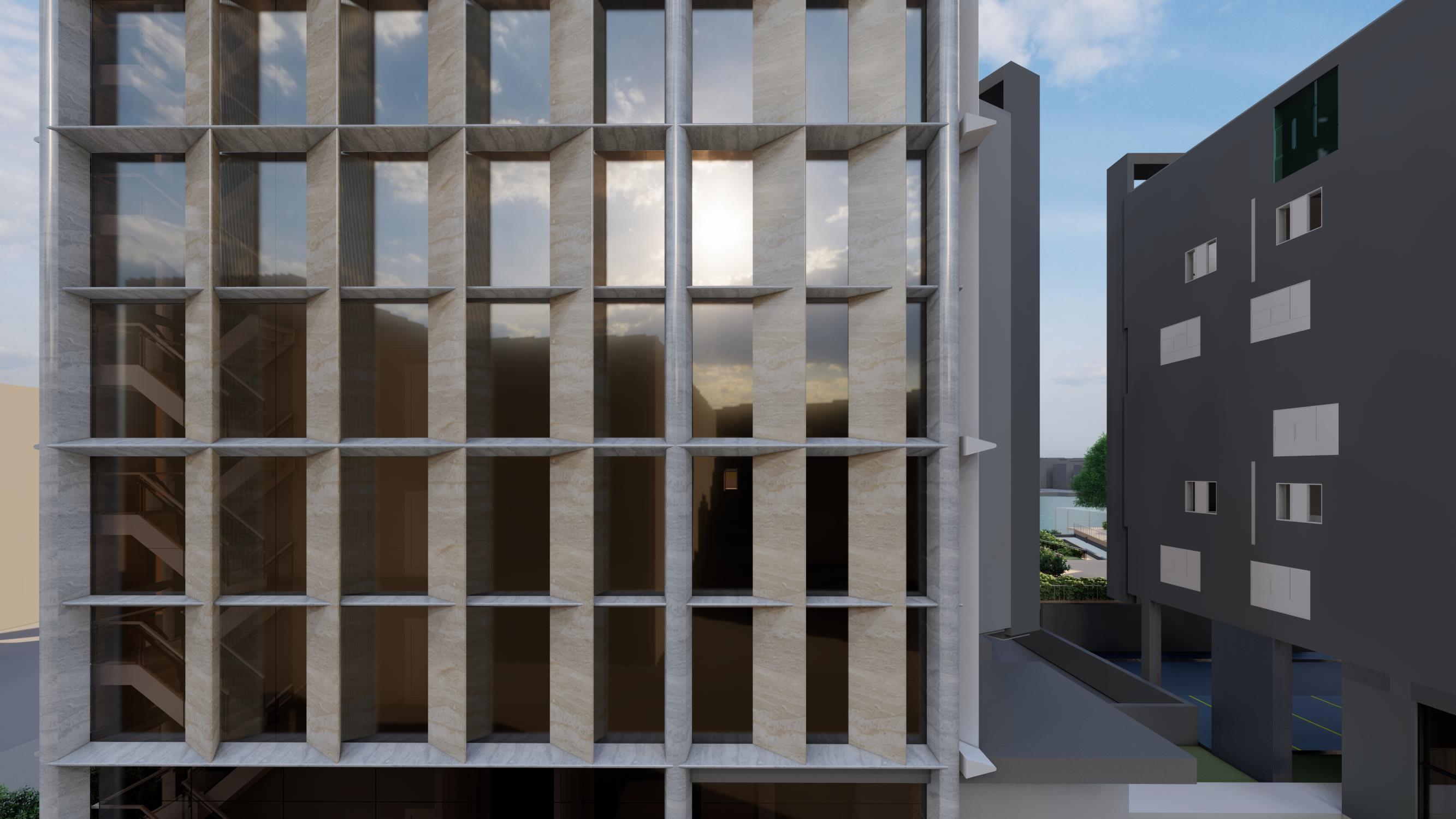

Structural Diagram
-two elevator core
-Column grid
-Post tensioned slab system
