Soil, Waste & Plumbing Product Guide

OUR MARKET-LEADING RANGE OF 110mm PUSH-FIT SOIL

ANTHRACITE GREY RAL

COUPLINGS

Manufactured to BS EN 1329-1:2000

Plain Ended & Socketed

A range of Pipe Couplings for joining cut pipe

Double Socket

Slip Couplings

Single Socket

Expansion joints should be used every 4m

PIPE CLIPS

A range of Pipe Fasteners to suit most applications

Pipe Clips

Socket Clips

Builders Band

BENDS

A range of bends manufactured to BS EN 1329-1:2000

Double Socket

Single Socket

Adjustable

Top & bottom offsets

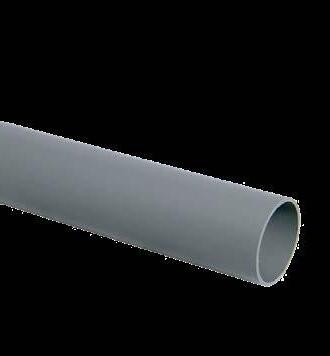

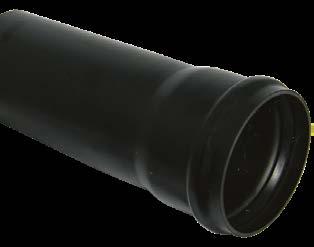

110mm SOIL PIPE

GREY RAL 7046

7016

BLACK RAL 9005

WHITE RAL 9003

BS EN 1329-1:2000

BS 4514:2015 & BS EN 1453-1

BSI KITEMARK KM 544331

INNOVATIVELY DESIGNED PUSH-FIT

EASY TO INSTALL

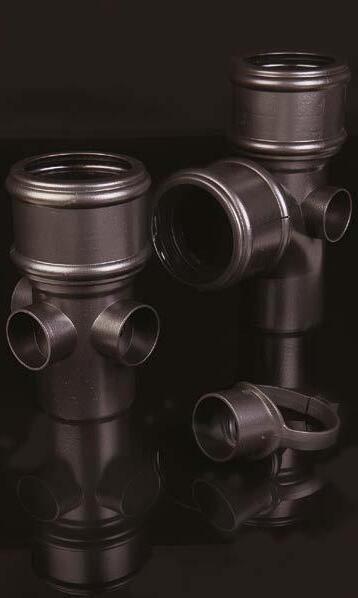

BOSS FITTINGS

Comprehensive range of Fittings to suit most installations

Boss Pipe

Strap Boss

Short Boss Pipe Reducers

Boss Adaptors

SCAN FOR MORE DETAILS

ACCESS FITTINGS

Our range of Access Fittings manufactured to

BS 4514 are designed to allow access to the soil system

Access Plugs

Access Pipes

Access Bends

Access Branches

Socket Plugs

BRANCHES

Branches are used to bring horizontal & vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack.

92.5° Branch

112.5° Branch

135° Branch

Double Branch

Corner Branch

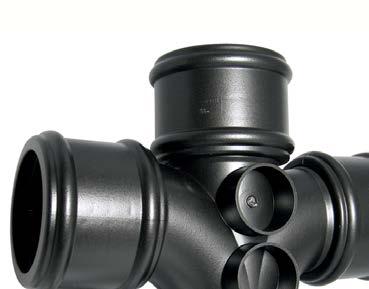

MANIFOLD

The FloPlast Soil Manifold is designed to be installed in a soil stack in the corner of a room and helps prevent stack induced siphonage on connecting runs.

Prevents crossflow design problems

32mm, 40mm, & 50mm connections possible in all inlets

Simple push-fit connection for all waste pipes

OUR MARKET-LEADING 110mm PUSH-FIT SOIL ( CONTINUED )

This Weathering Slate is used when a soil vent pipe penetrates the roof covering

This PVC Vent Terminal sits on top of the vent pipe to prevent birds from entering or nesting within the soil pipe

The Vent Cowl is open to the air, but has a top cover that prevents rainwater from entering the vent pipe

We stock a wide range of Loft Hatches manufactured by leading UK supplier Manthorpe. These include Drop-Down, Pull-up, Part L & Lockable variants

WEATHERING SLATES

VENT TERMINALS

VENT COWLS

LOFT HATCHES

GREY RAL 7046

ANTHRACITE GREY RAL 7016

BLACK RAL 9005

WHITE RAL 9003

BS EN 1329-1:2000

INNOVATIVELY DESIGNED PUSH-FIT

BS 4514:2015 & BS EN 1453-1

BSI KITEMARK KM 544331

ACCESSORIES

Comprehensive range of accessories to suit most installations

Chamfer Tools

Saws

Tape Measures

Lubricants

Solvent Cement

+ Many more

SCAN FOR MORE DETAILS

EASY TO INSTALL

REDUCERS & ADAPTORS

Our range of Reducers & Adaptors to suit most installations

Reducers

110 x 82mm

110 x 50mm

110mm x Universal 110 x 68mm

Adaptors

PVC to Cast Iron PVC to Clay

+ Many more

PAN CONNECTORS

A full range of horizontal Pan Connectors are available for use with WCs as specified in BS 5627:1984.

Made using polypropylene, they are supplied with an integral sealing diaphragm which allows for up to 5° misalignment in any direction

FIRE COLLARS

The intumescent lining of this Fire Collar reacts under extreme high temperatures, expanding to block the opening and the potential fire path.

This collar is clamped into position around a 110mm PVC soil pipe.

50mm, 82mm & 160mm options are also available as a special order

OUR STUNNING RANGE OF CAST EFFECT SOIL

SCAN

BS EN 1329-1:2000

20-YEAR GUARANTEE

BS 4514:2015 & BS EN 1453-1

EASY TO INSTALL

BSI

KITEMARK KM 544331

CAST EFFECT RAL 9055

FITTINGS

110mm SOIL PIPE

Manufactured to BS EN 1329-1:2000

20-year guarantee

Cast iron effect finish

Plain ended

Comprehensive range of fittings to suit most installations

Eared Couplings Bends

Pipe Clips

Boss Pipes

STRONG & DURABLE

ACCESS FITTINGS

Our range of access fittings manufactured to BS 4514 are designed to allow access to the soil system

Access Bends

Access Pipes

BRANCHES

Branches are used to bring horizontal & vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack.

92.5° Branch

112.5° Branch

135° Branch

Double Branch

Corner Branch

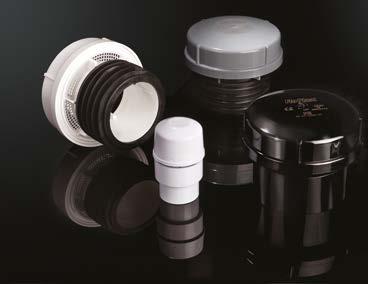

OUR UNBEATABLE AIR ADMITTANCE VALVES

SCAN

CE MARKED TO LEVEL 4

A1 APPROVED TO BS EN 12380

BSI KITEMARK KM 512474

ANTI-SIPHONAGE

EASY TO INSTALL

STRONG & DURABLE

The AF32 Air Admittance Valve has a universal adaptor to fit to 32, 40 & 50mm solvent waste pipe.

The FloPlast Internal Air Admittance Valve is designed to allow the free entry of air into the sanitary pipework system without the escape of foul gases into the building

Our best-selling Internal Air Admittance Valve ( AAV ) product is A1 approved in accordance with BS EN 12380. It can be installed below the flood level of connected appliances

Tested & approved for use in installations varying between -20° & +60°c (no insulation required).

„ CE marked to level 4 attestation of conformity in accordance with BS EN 12380.

„ FloPlast Air Admittance Valves are kitemark licensed in accordance with BS EN 12380 licence number KM 512474

WASTE AAV

PUSH-FIT AAV

SOLVENT AAV

EXTERNAL AAV

OUR COMPREHENSIVE RANGE OF 110mm SOLVENT SOIL

Manufactured to BS EN 1329-1:2000

Plain ended

COUPLINGS

A range of Pipe Couplings for joining cut pipe

Double Socket

Slip Couplings

Single Socket

Expansion joints should be used every 4m

PIPE CLIPS

A range of Pipe Fasteners to suit most applications

Pipe Clips

Socket Clips

Builders Band

BENDS

A range of Bends manufactured to BS EN 1329-1:2000

Double Socket

Single Socket

Long tail swivel

Top & bottom offsets

Various angles

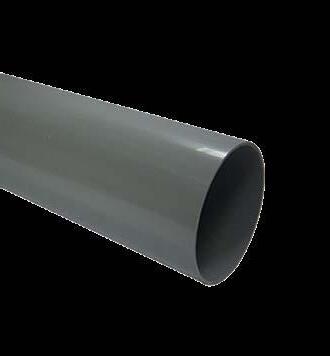

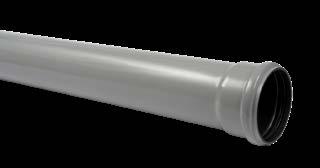

110mm SOIL PIPE

OLIVE GREY RAL 7023

BLACK RAL 9005

BS EN 1329-1:2000

BS 4514:2015 & BS EN 1453-1

BSI KITEMARK KM 563460

SCAN FOR MORE DETAILS

UV RESISTANT

EASY TO INSTALL

Comprehensive range of fittings to suit most installations

Boss Pipe

Strap Boss

Short Boss Pipe

Boss Adaptors

Our range of Access Fittings manufactured to BS 4514 are designed to allow access to the soil system

Access Plugs

Access Pipes

Access Bends

Access Branches

Branches are used to bring horizontal & vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack.

92.5° Branch

135° Branch

VENT TERMINALS

This PVC Vent Terminal sits on top of the vent pipe to prevent birds from entering or nesting within the soil pipe, which would cause a blockage of the vent pipe, & in turn would prevent the drainage system from operating correctly due to pressure imbalances

Vent Terminals

Weathering Collars

Weathering Slates

BOSS FITTINGS

ACCESS FITTINGS

OUR SPECIAL ORDER RANGE OF 82mm & 160mm SOIL

Manufactured to BS EN 1329-1

Socketed 3mtr

A range of Pipe Couplings for joining cut pipe

Double Socket Slip Couplings Single Socket

Expansion joints should be used every 4m

A range of bends manufactured to BS EN 1329-1

Double Socket Single Socket

92.5° Bends 135° Bends

Various angles

Branches are used to bring horizontal & vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack

92.5° Branch 135° Branch

Various angles

82mm SOIL PIPE

82mm COUPLINGS

82mm BENDS

82mm BRANCHES

GREY RAL 7046

BLACK RAL 9005

BS 4514:2015 & BS EN 1453-1

BSI KITEMARK

160mm COUPLINGS

160mm PIPE

Manufactured to BS EN 1329-1

Socketed

A range of Pipe Couplings for joining cut Pipe

Double Socket

Slip Couplings

Single Socket

EASY TO INSTALL

Expansion joints

160mm BENDS

A range of bends manufactured to BS EN 1329-1

Double Socket

Single Socket

92.5° Bends 135° Bends

160mm BRANCHES

Branches are used to bring horizontal & vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack

92.5° Branch 135° Branch

BS EN 1329-1:2000

OUR STATE OF THE ART RANGE OF ACOUSTIC SOIL

SCAN FOR

DIN 4109 & EN 14366

EXCEPTIONAL STRENGTH

RESISTANCE TO UV

RAYS

EXCELLENT CHEMICAL RESISTANCE

ACOUSTIC FITTINGS

ACOUSTIC SOIL PIPE

Manufactured to BS EN 1451-1

BluePower® Black is a push-fit drainage system made of copolymer polypropylene

Soundproof & exceptionally resistant to impact & stress.

Acoustic Tested to DIN 4109 & EN 14366.

Comprehensive range of fittings to suit most installations

Couplings Bends

Pipe Clips

Boss Pipes

ACOUSTIC ACCESS FITTINGS

Fire rated to D S3 d0 according to European standard EN 13501.

Our range of access fittings are designed to allow access to the soil system

Access Pipes

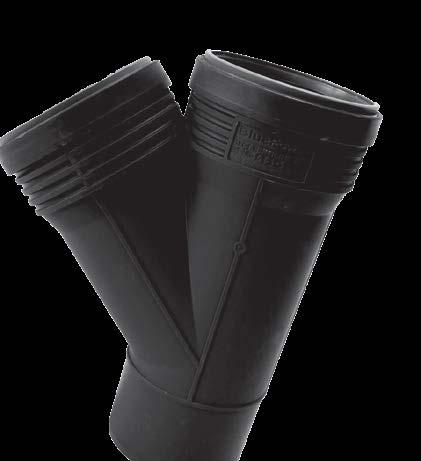

ACOUSTIC BRANCHES

Chemical resistance to ISO / TR 10358.

Branches are used to bring horizontal & vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack.

87° Branch

67° Branch

45° Branch

Double Branches

Unequal Branches

ASK US FOR MORE DETAILS

Manthorpe’s plastic Access Panels are available in a range of sizes

OUR RANGE OF WASTE PIPES & OVERFLOW

ACCESS PANEL

The revolutionary Tile Access Panel blends seamlessly into tiled surfaces, providing an access to concealed pipe work & other utilities

OVERFLOW PIPES

A 21.5mm solvent weld Overflow System in PVC-U with a comprehensive range of fittings to meet most installation requirements

Manufactured by FloPlast to BS EN 1455-1/ BS 5255, Push-Fit Waste is an easy to use, lightweight & cost effective option.

White, black & grey

ACCESS PANELS

TILE

PUSH-FIT WASTE

OLIVE GREY RAL 7023

BLACK RAL 9005

BS EN 1329-1:2000

BS 4514:2015 & BS EN 1453-1

BSI KITEMARK KM 563460

SOLVENT WELD WASTE

Our best-selling waste system.

Manufactured to BS EN 1455-1 / BS 5255

ABS is a lightweight yet strong and cost-effective option

SCAN FOR MORE DETAILS

INNOVATIVE DESIGN

EASY TO INSTALL

White, black, grey & anthracite grey

COMPRESSION WASTE

Manufactured to BS 5254, BS EN 1451-1:2000 and made in white polypropylene, this quick & easy to install waste system incorporates a universal compression socket that accepts plastic, lead & copper pipes

White only

CHROME EFFECT WASTE

Ideal for areas where pipe & fittings are on show, our chrome plated plastic Waste Pipe is manufactured in hard-wearing ABS. The system is manufactured in the UK using state-of-the-art technology to ensure a superb, blemish-free chrome plated finish

Chrome

CHROME EFFECT TRAPS

Ideal for areas where pipe & fittings are on show, our chrome plated plastic telescopic bottle traps are used when some flexibility is required with the connection to the waste pipe. The telescopic neck of the trap slides up & down within the trap body to vary the height of the outlet.

This trap has a 76mm seal. It is available in 32mm or 40mm size options

Probably the most common type of trap, our P Traps have a 76mm seal

Also available Telescopic

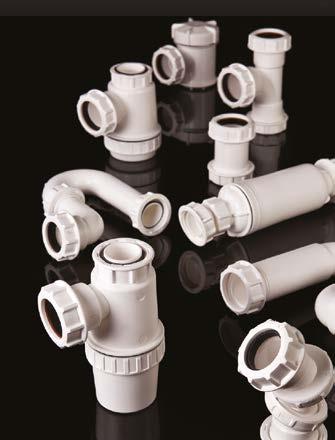

OUR COMPREHENSIVE RANGE OF TRAPS & GULLIES

Our S Traps have a deep 76mm water seal and a downward facing outlet

Pedestal Traps are designed to enable the waste pipe from a basin to be concealed behind the pedestal that supports the basin Telescopic

Bottle Traps are used as an alternative to P Traps. This trap has a 76mm seal

Also available Telescopic Anti-Syphon

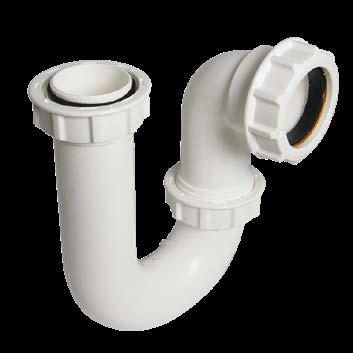

P TRAPS

S TRAPS

PEDESTAL TRAPS

BOTTLE TRAPS

BS EN 274-1

STRONG & DURABLE

Comprehensive range of Appliance Traps manufactured to BS EN 274-1

SCAN FOR MORE DETAILS

INNOVATIVE DESIGN

EASY TO INSTALL

P Trap & Upstand

Single Appliance P Trap

Double Appliance P Trap

Manufactured by FloPlast, our range of Bath Traps are designed for use in the tight space under a typical bath installation

20mm Water Seal

50mm Water Seal

This easy clean Shower Trap has a removable waste grid to enable easy maintenance of the shower tray.

Unlike most shower traps, it has a 50mm seal to minimise the possibility of trap seal loss as a result of siphonage 50mm water seal

FLOOR GULLIES

Manufactured by McAlpine, Alumasc, Harmer & Alutec. Our wide selection of wet room Floor Gullies are compatible with concrete & suspended timber floors with a choice of tops suitable for sheet flooring, tiles, or stone.

Choice of finishes

Various outlet options

APPLIANCE TRAPS

BATH TRAPS

SHOWER TRAPS

OUR PROBLEM-SOLVING MISSION RUBBER COUPLINGS

BS EN 16397

FOR ABOVE & BELOW GROUND USE

EASY TO INSTALL

CE-MARKED & EN ISO 9001

STRONG & DURABLE

STRAIGHT COUPLINGS

ADAPTOR COUPLINGS

The Adaptor Coupling MAC connects all plain ended pipes with different outside diameters & materials

Sizes in mm

32-40 to 24-32

40-50 to 24-32

40-50 to 32-40

53-63 to 32-40

53-63 to 40-50

Straight Coupling MDC connects all plain ended pipes with equal outside diameters. They can be used for applications above & below ground as well as inside & outside of buildings

Sizes in mm

24-32 both ends

32-40 both ends

42-50 both ends

55-65 both ends

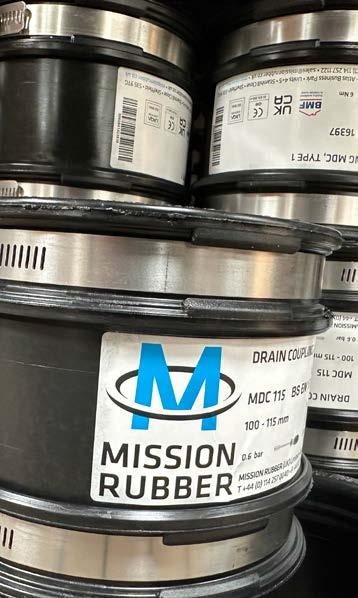

DRAINAGE COUPLINGS

Our Drainage Couplings connect all plain ended pipes

Sizes in mm

108-122 to 121-137

121-136 to 100-115

160-180 to 180-200

170-192 to 144-160

53-63 to 40-50

Sizes in mm

100-115 both ends

150-165 both ends

160-175 both ends

180-195 both ends

SPECIAL CONNECTIONS

The Special Connectors are suitable for non-buried pipe connections

Flexible Tee

40-50 all ends

50-60 all ends

78-90 all ends

106-118 all ends

Flexible Elbow

40-50 both ends

50-60 both ends

78-90 both ends

106-118 both ends

End Cap

45-55mm

56-66mm

80-90mm

105-115mm

*SOME

BS EN 295-4 & BS EN 681-1

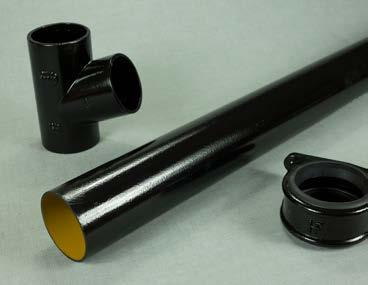

OUR TIMELESS TRADITIONAL EXPRESS CAST IRON

100

100-YEAR LIFE EXPECTANCY

BS 416/2 & BS EN 681-1

BBA & BSI KITEMARKED

PRE-FINISHED BLACK

EASY TO INSTALL

STRONG & DURABLE

100mm PUSH-FIT BENDS

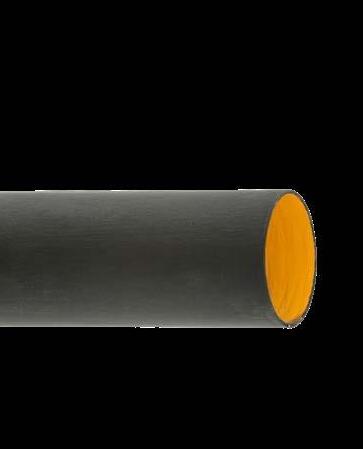

Our Traditional Express Push-Fit Cast Iron Soil Pipes are well-suited to installations in public buildings, listed buildings & conservation projects.

All of our push-fit cast iron soil pipes are treated with a black gloss paint factory finish

A range of Pipe Couplings for joining cut pipe

Eared Socket

Plain Socket

Eared Slip Couplings

Ductile Iron Coupling

A range of Bends manufactured to BS 416/2. As our push-fit cast iron soil pipes & fittings are all plain ended, sockets are required to connect this bend to a pipe

Short Radius

Long Radius

Long Tail

Fixed Projection offsets

Various angles

100mm PUSH-FIT FITTINGS

Our comprehresive range of fittings also includes Branches

Boss Pipes

Strap Bosses

Access Fittings

Vent Cowls

Blank Ends

Accessories

Tools + Many More!

100mm PUSH-FIT CAST IRON

100mm PUSH-FIT COUPLINGS

A

A range of Bends to suit most applications

Short Radius

Long Tail

Fixed

Our comprehresive range of fittings also includes

Branches

Boss Pipes

Strap Bosses

Access Fittings

Vent Cowls

Blank Ends

HALIFAX SOIL PIPE

COUPLINGS

PIPE

100

100-YEAR LIFE EXPECTANCY

BS

416/2 & BS EN 681-1

BBA & BSI KITEMARKED

SCAN FOR MORE DETAILS

EASY TO INSTALL

PRE-FINISHED BLACK STRONG & DURABLE

Mech 416 Soil is a mechanically jointed range of pipes & fittings in 50mm to 150mm diameter. They are suitable for above ground soil & waste systems

50, 70, 100 & 150mm

This Ductile Iron Coupling is a two piece fitting with an EPDM sealing ring & zinc plated locking screws

Ductile Iron Coupling

Ductile Iron Coupling with continuity

Adaptors to LLC

A range of Bends manufactured to BS 416/2. As Mech 416 soil pipes & fittings are all plain ended, sockets are required to connect this bend to a pipe

Short Radius

Long Radius

Long Tail

Fixed Projection offsets

Various angles

Our comprehresive range of fittings also includes Branches

Boss Pipes

Strap Bosses

Access Fittings

Vent Cowls

Blank Ends

Accessories

Tools + Many more!

MECH 416 SOIL PIPE

MECH 416 COUPLINGS

MECH 416 BENDS

MECH 416 FITTINGS

OUR RANGE OF UNDERFLOOR HEATING

SCAN

50

50-YEAR SERVICE LIFE

EN ISO 21003-1 & EN ISO 22391-2 CLASS 4

OXYGEN BARRIER COMPLIES WITH ISO 17455

UNDERFLOOR INSULATION

UNDERFLOOR HEATING PIPE

Flexible & lightweight, installation is fast & efficient with minimal maintenance required, making it an ideal component for underfloor heating systems. The pipe guarantees leak free performance

ISO

6 - 10 BAR DESIGN PRESSURE

20 - 70°C DESIGN TEMPERATURE

Our floor insulation is an EPS polystyrene floor insulation, split into sections for better handling. It’s 3cm thick, fibre glass reinforced, comes with a heat mirror film on it & is sectioned for easier handling in blocks (packed into one)

EASY TO INSTALL

UNDERFLOOR CONTROLS

A precise & well-functioning regulator system is necessary for all heating installations in order to comply with building codes & enable thermal comfort & energy-efficient operation settings

Valve actuators

Electronic room thermostats

UNDERFLOOR MANIFOLDS

Our range of Underfloor Heating Manifolds.

With 2 to 12 circuits, the underfloor heating manifold is fully functional & equipped for usage. There are eurocone connecting ports for circuits on each 1” manifold body

COPPER PIPE

All of our tube is Table X, which is the recognised standard for above ground domestic plumbing

OUR COMPREHENSIVE RANGE OF PLUMBING

SOLDER RING FITTINGS

ENDFEED FITTINGS

A range of End Feed Fittings

Couplings

Elbows

Tees

Stop Ends

+ Many more!

COMPRESSION FITTINGS

A range of Compression Fittings to suit most applications

Couplings Elbows

Tees

Tap Connectors

Tank Connectors

+ Many more!

A range of Solder Ring Fittings, also known by the brand name “Yorkshire” fittings

Couplings

Elbows

Tees

Stop Ends

Tap Connectors

+ Many more!

WRAS APPROVED

BS 7291 PART 1, 2 & 3

BS EN 1057

SCAN FOR MORE DETAILS

ISO 9001

EASY TO INSTALL

BSI APPROVED

ACCESSORIES

STOPCOCKS & VALVES

Comprehensive range of Stopcocks & Valves

Stopcocks

Gate Valves

Lever Valves

Isolation Valves

Check Valves

Ball Valves

Service Valves

Appliance Valves

+ Many more!

A range of various consumables & specialist tools for plumbing & heating installation work

Flux

Plumbers Mait

Sodler Wire

Boss White

Denso Tape Wire Wool

Fernox Products

+ Many more!

FloFit+ PEX Barrier Pipe is a 5-layer barrier (EVOH) pipe manufactured from cross-linked high-density polyethylene, developed for hot & cold-water services. PEX pipe is designed to suit BS 7291 Pushfit fittings as well as standard brass compression fittings

FloFit+ is a flexible & fully demountable push-fit plumbing system suitable for all domestic & small commercial hot & cold water installations.

FloFit+ has a wide range of fittings in 10mm, 15mm, 22mm & 28mm sizes, which are both WRAS approved for use with plastic &/ copper pipe, & Kitemarked to BS 7291

Part 1, 2 & 3

FLOFIT+ PEX PIPE

FLOFIT+

OUR OUTSTANDING RANGE OF VENTILATION

BS EN 15726

ISO5801 & ISO 3741

ISO 9001:2015

A comprehensive range of Flat Ducts to suit most applications

Ducting

Connectors

Tees

Horizontal & Vertical Bends & a range of other ducting accessories

Our range of flexible & rigid 100, 125 & 150mm standard round pipes & accessories to suit most applications

Ducting

Connectors

Tees Bends & a range of other ducting accessories

EASY TO INSTALL

Our wide range of high quality Fans from Monsoon. All of our fans exceed the requirements of the relevant UK building regulations & are BS Kitemarked & guaranteed.

In addition they have been tested for airflow performance to ISO5801 & sound tested to ISO 3741

The Monsoon Energysaver IntelliSystem heat recovery unit is the latest energy-saving heat recovery solution. Simple & effective, it has been designed to provide the maximum level of control & comfort available by continuously supplying & extracting air throughout the home, ensuring the best possible consumer experience

RECTANGULAR DUCT

ROUND DUCT

FANS

MVHR VENTILATION

At The PBSL Group we specialise in Underground Drainage. Unlike most general merchants, we stock a huge range of drainage supplies, including 110mm & 160mm Drainage Pipes & Fittings, Inspection Chambers & Manhole Covers, Land Drains, Twinwall Drainage, many types of Duct, including BT Duct, Utility & “Polyduct” style Electric Duct, MDPE for Water & Gas Supplies, a choice of Channel Drainage systems & various options for ground stabilisation, Soakaway Crates & Membranes.

All of our drainage systems are British Standard approved & are fully compatible with our above ground soil pipe systems.

Sewage Treatment Plants, Rainwater Harvesting, Pumping Stations & Fuel Storage Tanks are also available.

www.professionalbuildingsupplies.co.uk

COLCHESTER BRANCH

UNIT 1B ALTBARN ROAD, HAWKINS ROAD, COLCHESTER, CO2 8LG

Tel: 01206 867500

Email: col@profbuild.co.uk successes.hails.inner

PETERBOROUGH BRANCH

25 HARVESTER WAY, FENGATE, PETERBOROUGH, PE1 5UT

Tel: 01733 821417

Email: pb@profbuild.co.uk

page.dogs.faced

TUNBRIDGE WELLS BRANCH

UNIT 3 & 4 KINGSTANDING BUSINESS PARK, KINGSTANDING WAY, TUNBRIDGE WELLS, TN2 3UP

Tel: 01892 739717

Email: tw@profbuild.co.uk storms.sheet.brave

HUDDERSFIELD BRANCH

ST ANDREW’S ROAD, ASPLEY, HUDDERSFIELD, HD1 6RZ

Tel: 01484 905444

Email: hd@profbuild.co.uk

vibrate.wider.reef

HUDDERSFIELD BRANCH

ST ANDREW’S ROAD, ASPLEY, HUDDERSFIELD, HD1 6RZ

Tel: 01484 518798

Email: sales@danlett.co.uk

vast.with.goad
