Underground Product Guide

OUR UNBEATABLE RANGE OF 110mm DRAINAGE

Manufactured to BS EN 1401-1

SN4 max jetting pressure 2600 psi Plain

PERFORATED

Manufactured to BS EN 1401-1

Half perforated, ideal for drainage fields

Designed for gravity drainage & sewage installations at depths of up to 4 metres

Couplings Bends

Rest Bends

Long Radius Bends

Junctions

ACCESS FITTINGS

Manufactured to BS EN 1401-1 & BS 4660

Designed to allow access to the drainage run

Rodding Points

Access Bends

Access Pipes

Socket Plugs

Access Caps

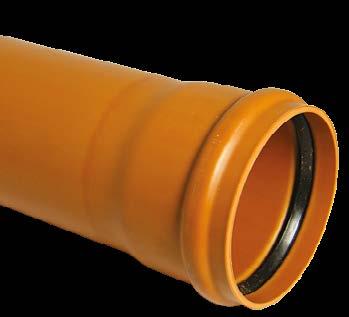

110mm DRAINAGE PIPE

110mm

PIPE

110mm DRAINAGE FITTINGS

110mm

BSI KITEMARK KM 563462

INNOVATIVELY DESIGNED PUSH-FIT

EASY TO INSTALL

STRONG

& DURABLE

110mm GULLIES & TRAPS

Manufactured to BS EN 1401-1, BS EN 124 & BS 4660

Suitable for high temperature waste discharge

Universal Gully Trap

Low Back P Trap

Bottle Gullies

Back Inlet Bottle Gullies

SCAN FOR MORE DETAILS

PIPE REDUCERS & ADAPTORS

Comprehensive range of fittings to suit most installations

Manufactured to BS EN 295-4

Salt Glazed

Vitrifed Clay

Supersleeve

Hepsleeve

Pitch Fibre

Asbestos Cement

Cast Iron & many more!

PIPE REDUCERS

Comprehensive range of fittings to suit most installations

Downpipes

68mm Round

65mm Square

80mm Round

Waste Pipes 32, 40 & 50mm & many more!

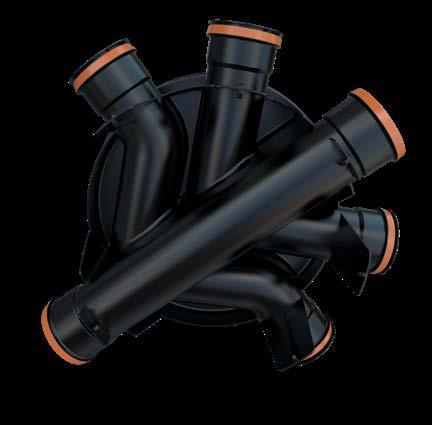

INSPECTION CHAMBERS

Manufactured to BS EN 1401-1, BS EN 124, BS EN 13598-1 & 2

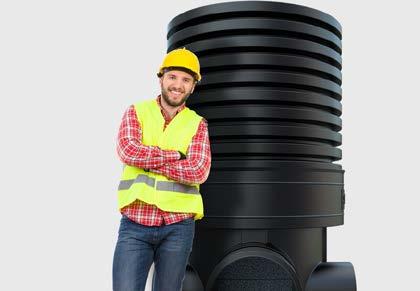

Large Inspection Chambers

450mm diameter

Fixed or adjustable inlets

Used in depths of up to 3mtr

Mini Access Chambers

300mm diameter

Fixed or adjustable inlets

Used in depths of up to 600mm

BS EN 1401-1 & BS EN 13476-2

BS EN 124-1 & BS EN 124-6

OUR UNSTOPPABLE RANGE OF 160mm DRAINAGE

INSPECTION CHAMBERS

160mm DRAINAGE PIPE

Manufactured to BS EN 1401-1

SN4 max jetting pressure 2600 psi

Plain Ended 6mtr

Socketed 3 & 6mtr

160mm DRAINAGE FITTINGS

Designed for gravity drainage & sewage installations

Couplings Bends

Junctions

160mm ACCESS FITTINGS

Manufactured to BS EN 1401-1 & BS 4660

Designed to allow access to the drainage run

Rodding Points

Socket Plugs

Access Caps

BS EN 1401-1, BS EN 124, BS EN 13598-1 & 2

Large Inspection Chambers

SfA7

450mm diameter

Fixed inlets

Used in depths of up to 3mtr

The Galvanised Gabion Cage is

60

60-YEAR DESIGN LIFE

EN 13598 PART 1 & 2 (2009)

SCAN FOR MORE DETAILS

INNOVATIVE DESIGN

EASY TO INSTALL

Our large variety of Twinwall Inspection Chambers

Manufactured to EN 13598-2 2009

Quick & simple installation Design life of 60 years

Lightweight & requires no specialist equipment to lift

The Silt Sentinel range features a design that is proven to be effective at removing silt, debris & litter from surface water drainage systems

Diameters 300mm 450mm

Various sizes

Our comprehensive range of catchpit chambers are to be used for catchment of silt & solids in surface water drainage systems

Diameters

300mm

450mm

600mm

750mm 1050mm

Various depths

Our Oriflo Flow Control Systems are a range of orifice plate flow control chambers, designed to support SuDS management as part of a project’s attenuation system. They help prevent flooding by controlling the flow into the main sewer

Various sizes

TWINWALL CHAMBERS

SILT SENTINEL TRAPS

CATCH PITS

FLOW CONTROL CHAMBERS

PART H COMPLIANT H

BS EN 124-2:2015

BS EN 1561:2011

BS EN 1449:1991 EN 10025:2004

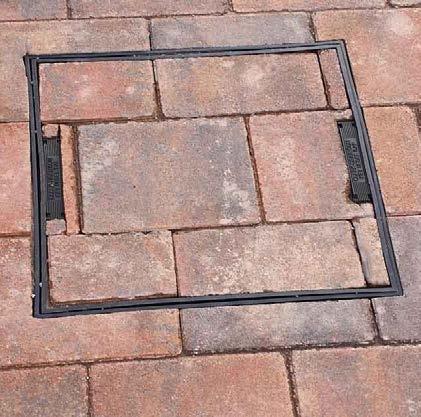

COMPOSITE DUCT ACCESS

BT CONCRETE DUCT ACCESS

B125

B125

12.5t Driveway

Primarily used for duct access chambers

Composite cover Galv. steel frame

12.5t Driveway

Primarily used for British Telecomm Quadbox Access chambers

Concrete cover Galv. steel frame

RECYCLED POLYPROPYLENE

EASY TO INSTALL

LOW MAINTENANCE

DUCTILE IRON MANHOLE COVERS

B125

12.5t Driveway

Circular

300 & 450mm diameter

Square / Rect.

600 x 450mm

600 x 600mm

~

D400

40t Delivery areas

Square / Rect.

600 x 450mm

600 x 600mm

DUCTILE IRON GULLY GRATES

Manufactured to

B125

12.5t Driveway

350mm x 333mm

~

C250

25t Kerbside, Car Parks

400mm x 362mm

~

D400

40t Estate Roads, Highway, Kerbside

570mm x 459mm

665 x 458mm

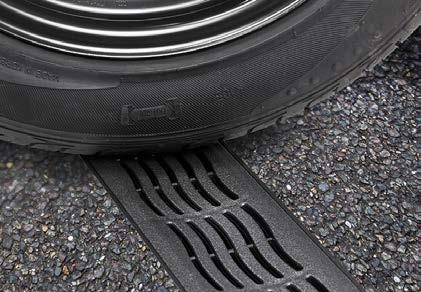

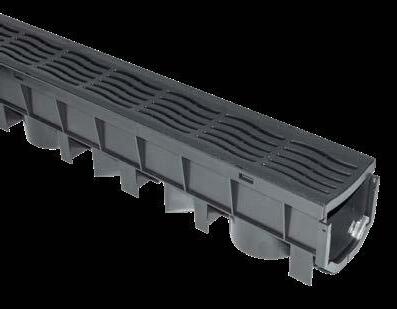

A15 PEDESTRIAN CHANNEL DRAIN

A15

CHANNEL DRAIN

A15

CHANNEL DRAIN

KITE MARKED CE

BS EN 1433

ATTESTATION LEVEL 3

BSI KITEMARK KM 563462

SCAN FOR MORE DETAILS

STRONG & DURABLE

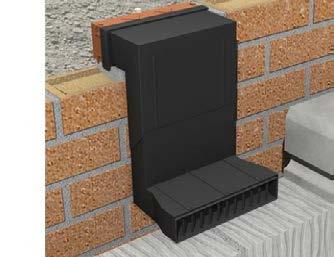

THRESHOLD / BRICKSLOT DRAIN

EASY TO INSTALL

LOW MAINTENANCE

THRESHOLD / BRICKSLOT DRAIN

Our best-selling threshold drain, manufactured by Floplast.

1.5t point load 5t spread load

Suitable for light traffic areas

Polyprop. threshold slot PVC base

12.5t point load

Suitable for driveways

DekDrain

Aluminium “Edge” Slot Drain is amazing. Adding a cutting edge finish to your drainage design

Composite grate & base

NARROW THRESHOLD

1.5t suitable for pedestrian areas

The sleek finish on this system is sure to bring a discrete look to your home whilst effectively draining water from in front of your doorways and patios.

Aluminum grate

Extruded composite base

COMMERCIAL CHANNEL DRAIN

Manufactured to

12.5t point load

Suitable for driveways

~

25t point load

Suitable for car park areas

~

40t point load

Suitable for heavy traffic main roads

~

90t point load

Suitable for docks & airports

Various grate & base options

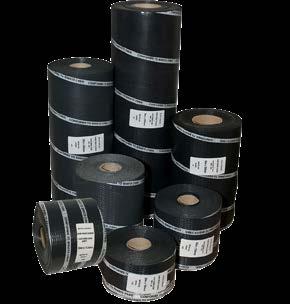

MEMBRANES

POLYPIPE POLYSTORM

20t

500mm

GRAF

60t

TURTLE SILTBLOK

Siltblok

Geotextile

Membrane Non Woven

Geotextile

Membrane Woven

Filtering

600mm (W)

Various sizes

Geotextile

Protection Fleece

LLDPE & Polypropylene Impermeable Membrane

50-YEAR

LIFE EXPECTANCY

BS EN 752-4

FLAT PACK OR PRE-ASSEMBLED

RAINSMART HEAVY

RAINSMART ELLIPSE

Our best-selling 24t vertical loading

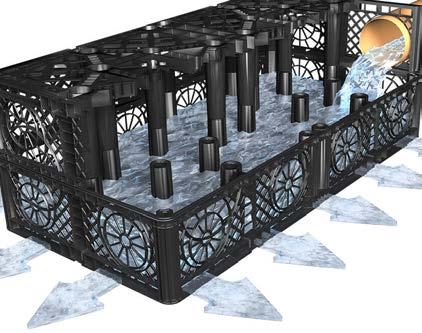

Single Crate 0.125m3

95% void- 119.47ltr

440mm deep

Double Crate 0.25m3

95% void- 233.64ltr

860mm deep

EASY TO INSTALL

LOW MAINTENANCE

FLOW

CONTROL CHAMBERS

Our best-selling 65t vertical loading

Single Crate 0.125m3

95% void- 123ltr

360mm deep

Double Crate 0.25m3

95% void- 236ltr

690mm deep

HYDRO-FLOW

VALVES

Our Hydro-Valve offering includes vortex flow control devices for throttling the flow rate of storm water before discharging into a storm drain or water course

WRc Certification No moving parts

Self-activating Self-cleansing Manual by pass Easy onstallation

Our Oriflo flow control systems are a range of orifice plate flow control chambers, designed to support SuDS management as part of a project’s attenuation system. They help prevent flooding by controlling the flow into the main sewer

Various sizes

OUR COMPREHENSIVE TWINWALL DRAINAGE RANGE

Ideal for collecting large amounts of groundwater

The pipe itself is co-extruded, with ribs in the outer wall for added strength & a smooth internal bore to ensure a free flow

Twinwall is generally used for stormwater drainage where there is likely to be a heavy load on the pipe

Ring seals

Couplings Bends

TWINWALL

LARGE

TWINWALL FITTINGS

50-YEAR

GUARANTEE

BS EN 13476-2

BBA & BSI KITEMARKED

SCAN FOR MORE DETAILS

EASY TO INSTALL

LOW MAINTENANCE

YARD

GULLIES

BESPOKE FABRICATIONS

Cherry’s in-house design & fabrication team can diagnose, solve & design bespoke fittings to suit your project’s needs

Various sizes

Our best selling roddable Yard

Gully with 160 / 150mm Spigot Outlet

450mm diameter

Connect directly to 150mm Twinwall

Pipe using the GULLYADP adaptor

INSPECTION CHAMBERS

Our large variety of Twinwall Inspection Chambers

Manufactured to EN 13598-2 2009

Quick & simple installation

Design life of 60 years

Lightweight & requires no specialist equipment to lift

FCATCH

PITS

Our comprehensive range of catchpit chambers are to be used for catchment of silt & solids in surface water drainage systems

Diameters

300mm

450mm

600mm

750mm

1050mm

750 & 900mm deep

Various sizes

Various depths

*SOME PRODUCTS

110mm PERFORATED PIPE

Manufactured to BS EN 1401-1

Half perforated, ideal for drainage fields

OUR UNBEATABLE RANGE OF LAND DRAIN

)

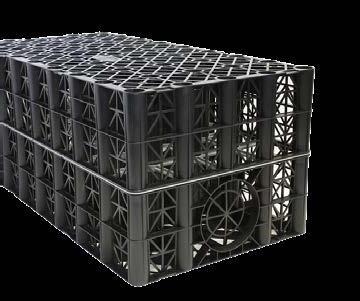

DRAINAGE CELLS

Nero Cell drainage systems

150t per mtr2

0.3m2

30mm deep

600mm (L)

500mm (W)

PERFORATED TWINWALL

High Density Polyethylene (HDPE)

Ideal for collecting large amounts of groundwater

150mm

225mm

300mm

Land drain filter sleeves are used to protect underground perforated land drain pipes from becoming clogged up by sand & silt particles

Various sizes

FILTER SLEEVE ( SOCK

ALL WRAPPED UP WITH OUR GEOTEXTILES

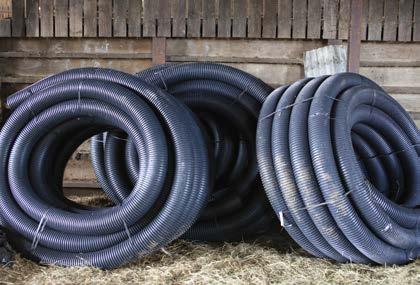

COILED LAND DRAIN

The most popular method of removing surplus water from boggy areas is to install flexible coiled land drain

60, 80, 100 & 160mm diameters

25, 50 & 100mtr

Pave

Paving 225t per mtr2

Nero Pave can be installed without the need for any heavy machinery as each pave can easily be clipped together

0.3m2

50mm deep

600mm (L)

500mm (W)

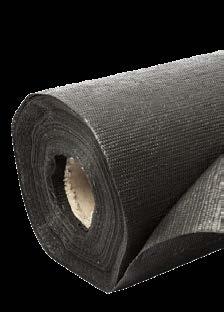

Geotextile membranes are often used in landscaping, engineering & drainage applications, such as filtration, soil separation, ground reinforcement & protection

4.5 x 100mtr also sold per mtr

4.5 x 100mtr

LLDPE & Polypropylene Impermeable Membrane

Geotextile Protection Fleece

Nero

Permeable

GEOTEXTILE FLEECE

NERO PAVE LAND DRAIN & GEOTEXTILES

ASK

OUR CUTTING EDGE RANGE OF TANKS & TREATMENT PLANTS

We provide grease traps for commercial kitchen or restaurant applications

Various sizes

We offer two of Atlantis’ leading ranges of fuel tanks; StoraFuel & PortaFuel. These tanks are available in a large variety of capacities & configurations

Bunded & Single Skin

Oil & fuel types including waste oil, heating oil, diesel, kerosene, water & more

Various sizes

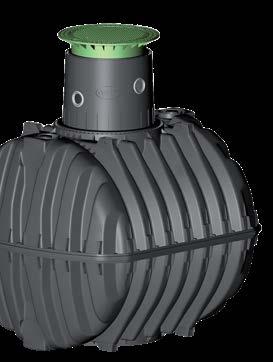

PuraTank is an easy to install underground water storage tank

WRAS approved Non-potable

1800ltr

2600ltr

3400ltr

4400ltr

10000ltr

Atlantis’ EasyTank

GREASE TRAPS

DIESEL STORES

OIL TANKS

WATER TANKS

OFTEC, PPG2, CE

APPROVED

BS EN 1825, EN12566-1 & 3

BS EN 12050, BS EN 752

SCAN FOR MORE DETAILS

ECO-FRIENDLY

EASY TO INSTALL

LOW MAINTENANCE

PUMPING STATIONS

RAINWATER HARVESTING

Graf’s Platin

Flat Rainwater

Tank has been designed to be installed quickly, as only a shallow dig is required for the tank

Lightweight

Pumping Stations are used when gravity drainage is unable to be installed on site, meaning the waste or surface water needs to be pumped from one place to the nearest gravity drain

Double or single pump

Various sizes

TREATMENT PLANTS

Our best-selling Sewage

Treatment Plants are supplied by leading brands such as Graf, who have been producing & improving these systems for many years

Robust, hard-wearing design

Low energy use

Pumped & gravity fed

Various sizes

ACCESSORIES

Treatment Plant

Exterior cabinets

Risers

Inspection Covers

Drainage Fields

Alarms

Pumping Stations

Lockable Kiosks

Alarms

Black MDPE

R/W Harvesting

Exterior Cabinets

Risers

Inspection Covers

Oil Tanks

Filter Packs

Watchman Alarm

Contents Gauge

OUR UNBEATABLE RANGE OF DUCTING SOLUTIONS

TELECOMS DUCTING

Our access chambers should be installed when

accessed for

BT QUADBOX CHAMBERS

Our Quadbox chambers are approved for use on BT Openreach networks Various

More commonly referred to as BT Duct, this is a grey PVC duct suitable for BT & other telecoms providers

54 & 96mm diameters

Also known by the brand name Polyduct, this duct is ENATS approved & UKPN compliant for carrying electrical services

32, 38 & 50mm diameters

DUCT ACCESS CHAMBERS

SMOOTH WALL COILED DUCT

BS EN 50086-2.4

BS EN 124:1994

TRANSCO APPROVED

BT APPROVED

ENATS 12-24 CLASS 3 - MARKED ELECTRIC

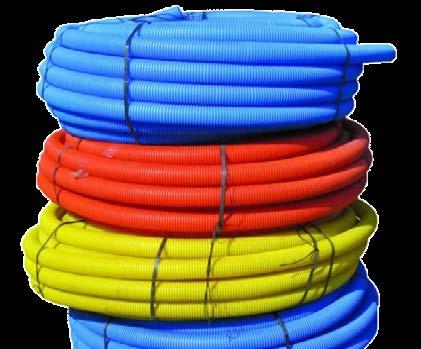

TWINWALL COILED DUCT

Our best selling duct has a ribbed external wall that ensures that the duct can withstand high compressive forces whilst the smooth inner bore resists any snagging

Supplied with drawcord

Various colours

Various diameters

50mtr

DUCTING

SCAN

ENATS RIGID DUCT

Our black ENATS approved & UKPN compliant twinwall electric duct is used for all kinds of electrical ducting.

ENATS is an acronym for the Energy Network Association Technical Specification 125 & 150mm diameter 6mtr

TWINWALL RIGID DUCT

Twinwall ducting is much stronger than standard flexible coiled duct. This makes it ideal for when services need to be channelled beneath roads etc

Blue - Water

Yellow - Gas

Green - CCTV

Orange - Street lighting

Purple - Road services

Various diameters 6mtr

Full range of complementary fittings

Coupling

Bends

Junctions

Hockey Sticks

ACCESSORIES *SOME

Meter Boxes

Gas Electric

Marker Tapes

Water

Gas Electric

Detectable

Drawcord

220 & 500mtr

+ Much more!

OUR UNBEATABLE RANGE OF WATER & GAS MDPE

ACCESSORIES

Ducting

Stopcock Boxes

Water Meters

Manifolds

Meter Boxes

Our MDPE Gas Pipe conforms to British Gas specifications

Suitable for natural gas & also LPG

Various sizes

Non-Potable Water Main is used for irrigation, industrial or unclean water supply. It can also be used as a pumping main for sewage treatment plants

Various sizes

Our best selling Medium Density

Polyethylene ( MDPE ) Potable

Water Main

PE80 12 Bar WRAS approved

20, 25, 32, 50, 63 & 90mm diameters

GAS MAIN

MDPE & HDPE ( BLACK )

MDPE ( BLUE ) WATER MAIN

10

10-YEAR GUARANTEE

BS EN 12201 - 2 (BLUE)

BS 6572:1985

WRAS APPROVED

SUITABLE FOR A VARIETY OF INDUSTRIES

SCAN FOR MORE DETAILS

EASY TO INSTALL

MDPE FITTINGS

Our best selling compression

MDPE Fittings are suitable for use on MDPE cold water services

WRAS approved

For use on either blue (potable) or black (non-potable)

MDPE Pipe

Various sizes

STRONG & DURABLE

BARRIER FITTINGS

BARRIER PIPE

Barrier Pipe is used when the ground in which the water supply pipe is to be laid is contaminated.

The most common use for this is in brownfield sites where the integrity of the soil cannot be guaranteed.

A range of pushfit fittings for use in conjunction with Barrier Pipe when the ground in which the water supply pipe is to be laid is contaminated

WRAS approved

WRAS approved

Various sizes

Various diameters

HDPE ( BLUE ) WATER MAIN

Our best large diameter

High Density Polyethylene ( HDPE ) Straight PE Sticks

Potable Water

Main PE100

10 to 16 Bar

SDR 11 & SDR 17

WRAS approved

90, 110, 125, 160 & 180mm diameters

6mtr

*SOME PRODUCTS

OUR RANGE OF UNDERFLOOR & WALL PRODUCTS

FLOOD DEFENCE

Our Airbricks have an airflow of 6,450mm²per unit

REMOTE

The Manthorpe Air Brick Flood Defence is a discreet solution to the problems of flood damage caused by unprotected airbricks

TELESCOPIC VENT

Our Telescopic Underfloor Void Ventilator is designed to provide a clear airflow passage to the void underneath a suspended floor

The Remote Void Ventilator is designed to connect an air brick or telescopic underfloor vent to a 4" round solid pipe or flexible pipe

AIR BRICKS

BS 493:1995, BS 5250:2011 & BS 5628-3:2005

EASY TO INSTALL

BBA APPROVED

SCAN

FOR MORE DETAILS

STRONG & DURABLE

WEEP & PEEP VENTS

Weep Vents are used to drain lintels, cavity trays and to ventilate cavity walls.

Peep Weep provides an unobtrusive solution to cavity wall drainage requirements

Our Cavity Closer has a double flange feature for use in standard in-line cavity wall details.

It is also used in cill details by simply cutting a length to suit the width of the window & placed in the cavity at the cill

BBA approved

CAVITY TRAYS

The PBSL Group supplies an extensive range of Cavity Trays to suit new build & refurbishment projects, covering all manner of scenarios, including internal & external corners, roof abutments, cavity bridges & lintels, as well as trays available for brickwork, blockwork & stonework details

AIR LEAKAGE

Our joist seals are designed to meet the requirements of Part L of the Building Regulations relating to insulation & air leakage.

Our radiator pipe guides & seals create an impermeable barrier at the point where radiator pipes meet & pass through walls

*SOME

CAVITY CLOSERS

Extremely flexible to use, it may be secured to existing supports such as trees or fencing pins

1

OUR TOP RANGE OF BARRIERS & MEMBRANES

WARNING TAPES

Full range of Marker Tapes to suit most applications

Water Gas

Electric

Detectable

Made from 100% recycled polythene, our BBA accredited DPM come in a choice of gauges: 250 & 300mu

500mu available to order

Our BBA certified Radon Barrier complies with new BBA regulations for radon protection membranes in line with BS 8485:2015

+A1:2019

BARRIER FENCING

DAMP PROOF MEMBRANE

RADON BARRIER

BBA CERTIFIED

BS 6515, EN 13967 2012 & EN14909 2012

CE MARKED

SCAN FOR MORE DETAILS

LLDPE & HDPE LINERS

DAMP PROOF COURSE

Our bestselling Damp Proof Course produced with 100% recycled polythene, conforming to BS 6515 (1984) & CE marked to EN 14909 2012

Techline Liners are used in many applications including solid & liquid waste containment, amenity lakes & ponds, canal & watercourse lining, dams, balancing ponds, & attenuation tank wrapping as a barrier layer on contaminated land

Various sizes

ECO-FRIENDLY

EASY TO INSTALL

STRONG & DURABLE

NON-WOVEN GEOTEXTILES

Non Woven Geotextile Membranes give the best rates of water flow and filtration, & therefore they are commonly used to wrap the outer surfaces of water crates & land drains to prevent soil particles from entering & clogging the soakaway or land drain

WOVEN GEOTEXTILES

Woven Geotextiles are most often used for stabilising & separating layers of soil during road & pavement construction as well as in garden projects. They also help to reinforce aggregate layers in civil engineering projects

*SOME

Our Soil Pipes & Fittings, manufactured in the UK by FloPlast to British Standards, are available in a push-fit (Ring Seal) range in grey, black, white, anthracite grey & cast iron effect.

A full Solvent Weld System is also stocked in black or olive grey. Waste is available in push-fit (polypropylene) or solvent weld (ABS). Compression Waste Adaptors connect different systems & materials.

A range of Traps & Pan Connectors completes the above-ground drainage lineup.

Our Soil & Waste system is fully compatible with our Underground Drainage products, enabling a simple push-fit connection between the two.

Cast Iron Soil manufactured by Hargreaves foundry is available in 4 styles: Halifax, Mech 416, Traditional Express Push Fit & Premier LLC soil.

www.professionalbuildingsupplies.co.uk

COLCHESTER BRANCH

UNIT 1B ALTBARN ROAD, HAWKINS ROAD, COLCHESTER, CO2 8LG

Tel: 01206 867500

Email: col@profbuild.co.uk successes.hails.inner

PETERBOROUGH BRANCH

25 HARVESTER WAY, FENGATE, PETERBOROUGH, PE1 5UT

Tel: 01733 821417

Email: pb@profbuild.co.uk

page.dogs.faced

TUNBRIDGE WELLS BRANCH

UNIT 3 & 4 KINGSTANDING BUSINESS PARK, KINGSTANDING WAY, TUNBRIDGE WELLS, TN2 3UP

Tel: 01892 739717

Email: tw@profbuild.co.uk storms.sheet.brave

HUDDERSFIELD BRANCH

ST ANDREW’S ROAD, ASPLEY, HUDDERSFIELD, HD1 6RZ

Tel: 01484 905444

Email: hd@profbuild.co.uk

vibrate.wider.reef

www.bolts.co.uk

HUDDERSFIELD BRANCH

ST ANDREW’S ROAD, ASPLEY, HUDDERSFIELD, HD1 6RZ

Tel: 01484 518798

Email: sales@danlett.co.uk

vast.with.goad
