ilektroRange 2600 Landscape
SPECIFICATIONSHEET
Version127/05/24
Contentsofmanualmaybeupdatedwithoutnotice. Forthelatestversionofthismanualpleasereferto ourwebsite:www.paulagnewdesigns.com.au
ilektro 2600 LandscapeGlassFronted
APPLIANCEDIMENSIONS
ProductCode:

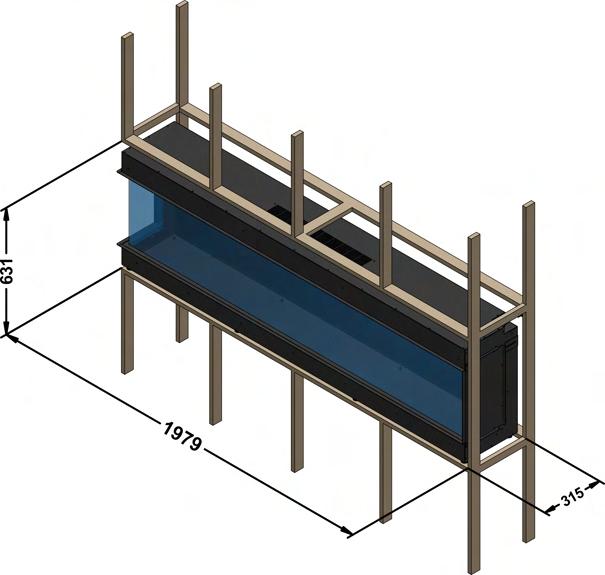

FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
1. ilektroRange
H-MIN W-MIN C-CAVITYDEPTH 631 2568 315
2568 2522 800 2568
ilektro 2600 LandscapeBay
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
2. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 2568 631 315
2598 2568 2522 800 2568
ilektro 2600 LandscapeLeftCornerGlass
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
3. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 631 2568 315
2583 2568 2522 800 2568
ilektro 2600 LandscapeRightCornerGlass
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
4. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 631 2568 315
2568 2583 2568 2522 800
ilektro 2600 Landscape
Note: Abovegivendimensionsareforframestructure only.
EXPLODEDVIEW
5. ilektroRange
ilektro 2600 Landscape
POSITIONINGYOURAPPLIANCE
NOTE:
Nofixturesaresuppliedtosecuretheappliancetothechosenwall.Ensureanappropriatefixingmethod isuseddependingontheconstructionmaterialofthewall.
•Wheninstallingintoawallcavityspace,astudworkenclosureshouldbebuilttohousethe appliance.Refertoframeoutbuildsheet.
•Finishtheenclosureinthechosenmaterialensuringcladdingarepusheduptotheedgeframe aroundtheglassoftheunit.
•Ifyourapplianceisnotlevelwheninstalledtheglasscornerfitwillbemisaligned.
6 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS
Whenfittingatelevisionabovethefireplacethe followinginstallationmustbeadheredto.
Debryanddustwillfallintothefanslotsabovethe appliancecausingdamageunlessprotected.Itisa requirementtosetashelfasshownbelow.

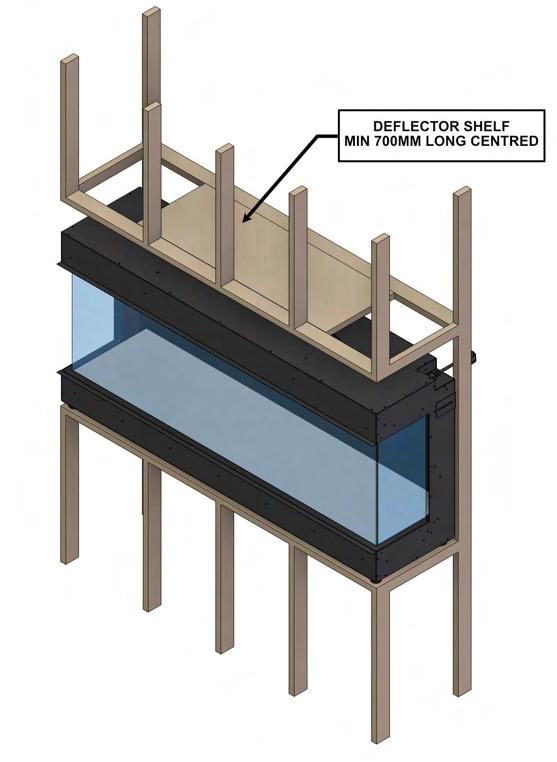

Option1:Shelftobemadeduringframing
Option2:Deflectorplate asanaccessories
CAUTION: Appliancewarrantywillbevoidifthe shelfordeflectorplateisnotinstalled.
Option1:
7 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS
Option2:
Deflectorplatecanbesecuredtowooden framethroughselftappers;refertodetailA.
Rearsideofthedeflectorplatescanbe securedtothefireplacebypickingupthe existingscrewholes;refertodetailA.
8 ilektroRange
ilektro 2600 Landscape
The above table contains the minimum opening
A = Width to outside of plaster flanges
B = Height to outside of plaster flanges
C=Heightoffire(min)
D=Depthfromfrontoffirebodytorearofsideplasterflange
=Depthoffire(+1MMTOL)
F=Heightoffireabovetopplasterbead
G=Minheightfromundersideofadjustablefoottoundersideoflowerplasterflange
F C G G 9 ilektroRange
Model A B C D E F G 2600LGF 2568mm 363mm 581mm 219mm 315mm 100mm119mm 2600LGF3 2598mm 363mm 581mm 219mm 315mm 100mm 119mm 2600LGF2L
100mm119mm 2600LGF2R
219mm 315mm 100mm 119mm 2000LGF 2598 2600LGF3 2600LGF2L 2600LGF2R 2583 2583
2583mm 363mm 581mm 219mm 315mm
2583mm 363mm 581mm
