SPECIFICATIONSHEET
Version427/02/23
Contentsofmanualmaybeupdatedwithoutnotice. Forthelatestversionofthismanualpleasereferto ourwebsite:www.paulagnewdesigns.com.au
ilektroRange 1650Landscape
ilektro 1650 LandscapeGlassFronted
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
1. ilektroRange
H-MIN W-MIN C-CAVITYDEPTH 631 1628
315
ilektro 1650 LandscapeBay
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
315 DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
2. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH
631
1628
ilektro 1650 LandscapeLeftCornerGlass
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
3. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 631 1628 315
ilektro 1650 LandscapeRightCornerGlass
APPLIANCEDIMENSIONS
ProductCode:
FRAMEBUILDOUTDIMENSIONS(Alldimensionsareinmillimetres)
DIMENSIONNOTES:
**C-CAVITYDEPTHINCLUDES 10MMBACKCLEARANCE.
**H-HEIGHTINLUDES50MMTOP CLEARANCE.
PLEASENOTE:DIMENSIONSAREFORREFERENCEONLY-CONSULTYOURINSTALLERANDRETAILERFORGUIDANCE
4. ilektroRange
H-MIN W-MAX C-CAVITYDEPTH 631 1628 315
ilektro 1650 Landscape
Note: Abovegivendimensionsareforframestructure only.

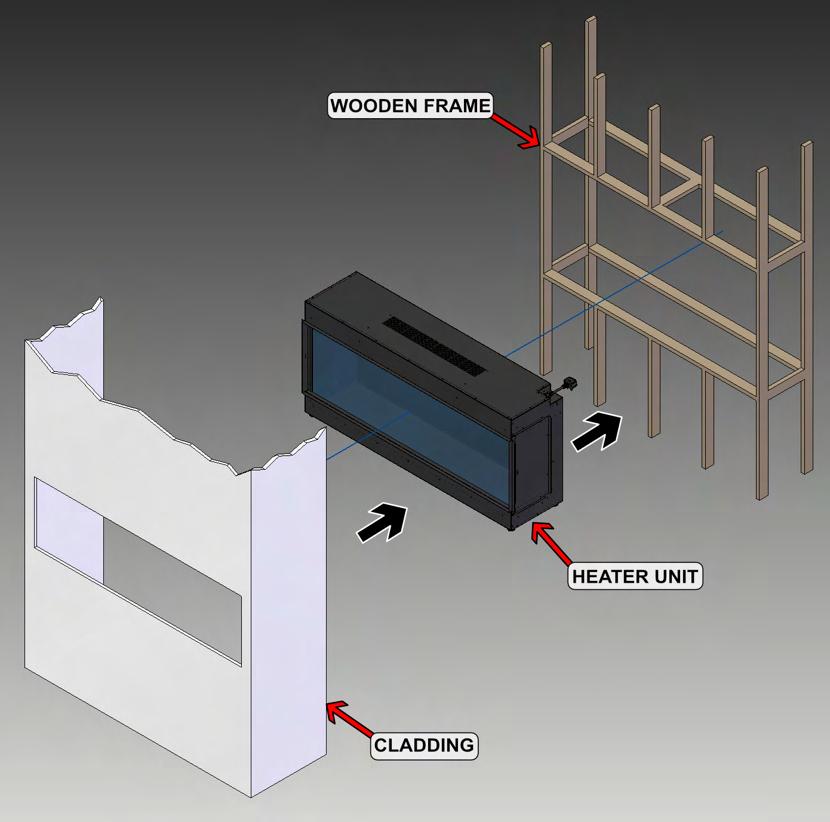

EXPLODEDVIEW
5. ilektroRange
ilektro 1650 Landscape
POSITIONINGYOURAPPLIANCE
NOTE:
Nofixturesaresuppliedtosecuretheappliancetothechosenwall.Ensureanappropriatefixingmethod isuseddependingontheconstructionmaterialofthewall.
•Wheninstallingintoawallcavityspace,astudworkenclosureshouldbebuilttohousethe appliance.Refertoframeoutbuildsheet.
•Finishtheenclosureinthechosenmaterialensuringcladdingarepusheduptotheedgeframe aroundtheglassoftheunit.
•Ifyourapplianceisnotlevelwheninstalledtheglasscornerfitwillbemisaligned.
6 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS
Whenfittingatelevisionabovethefireplacethe followinginstallationmustbeadheredto.
Debryanddustwillfallintothefanslotsabovethe appliancecausingdamageunlessprotected.Itisa requirementtosetashelfasshownbelow.
Option1:Shelftobemadeduringframing
Option2:Deflectorplate asanaccessories
CAUTION: Appliancewarrantywillbevoidifthe shelfordeflectorplateisnotinstalled.
Option1:
7 ilektroRange
CAUTION
TELEVISIONINSTALLATIONMANDATORYREQUIREMENTS
Option2:
Deflectorplatecanbesecuredtowooden framethroughselftappers;refertodetailA.
Rearsideofthedeflectorplatescanbe securedtothefireplacebypickingupthe existingscrewholes;refertodetailA.
8 ilektroRange
ilektro 1650 Landscape
Theabovetablecontainsthe minimum opening A =Widthtooutsideofplasterflanges
B=Heighttooutsideofplasterflanges
C=Heightoffire(min)
D=Depthfromfrontoffirebodytorearofsideplasterflange =Depthoffire(+1MMTOL)
F=Heightoffireabovetopplasterbead
G=Minheightfromundersideofadjustablefoottoundersideoflowerplasterflange
F C G G 9 ilektroRange
Model A B C D E F G 1650LGF 1629mm 363mm 581mm 219mm 315mm 100mm119mm 1650LGF3
219mm 315mm 100mm
1658mm 363mm 581mm
119mm 1650LGF2L 1644mm 363mm 581mm 219mm 315mm 100mm119mm 1650LGF2R 1644mm 363mm 581mm 219mm 315mm 100mm 119mm
1650LGF3
1650LGF2L
1650LGF2R
1650LGF
Distributed By
info@paulagnewdesigns.com|www.paulagnewdesigns.com
10. ilektroRange
