CONTENTS

PASSIVE HOUSE+

CONTENTS

10

26

28

24

8

HEALTHY HOMES IRELAND Healthy Homes Ireland launches indoor environmental quality report.

10

18

26

BIG PICTURE Talina Edwards of Envirotecture describes an extraordinary off-grid passive house which uses straw and a range of low embodied carbon building materials to blitz regulatory requirements on fire, while delivering year-round comfort levels that the neighbours can scarcely believe.

NEWS EU project aims to accelerate market for green homes; IGBC launches biodiversity building professionals network; UN pushes for radical sustainable building action; and Construct Innovate welcomes thirty-five companies as first members.

4 | passivehouseplus.ie | issue 45

COMMENT It’s fair to say that green building wasn’t a thing in early 90s Ireland, which makes one extraordinary Dublin project from 1994 all the more remarkable, as Dr. Marc O Riain writes.

Licence to skill

New accreditations available for sustainable building and retrofit The ever-tightening ambitions to integrate sustainability throughout Ireland’s new and existing buildings won’t be realised unless we can find smart, flexible ways to upskill the i ndustry. Lis O’Brien of Technological University of the Shannon (TUS) explains how Digital Academy for Sustainable Built Environment (DASBE) has it cracked.

CASE STUDIES

28

Hope springs external

High end passive house scheme lands in Killiney What happens when one of Ireland’s most seasoned passive house builders and a renowned design-led architecture practice collaborate? They create a head turning, high density passive house scheme that showcases the aesthetic possibilities of external insulation.

PASSIVE HOUSE+

40

40

50

60

50

CONTENTS

60

Seal of office

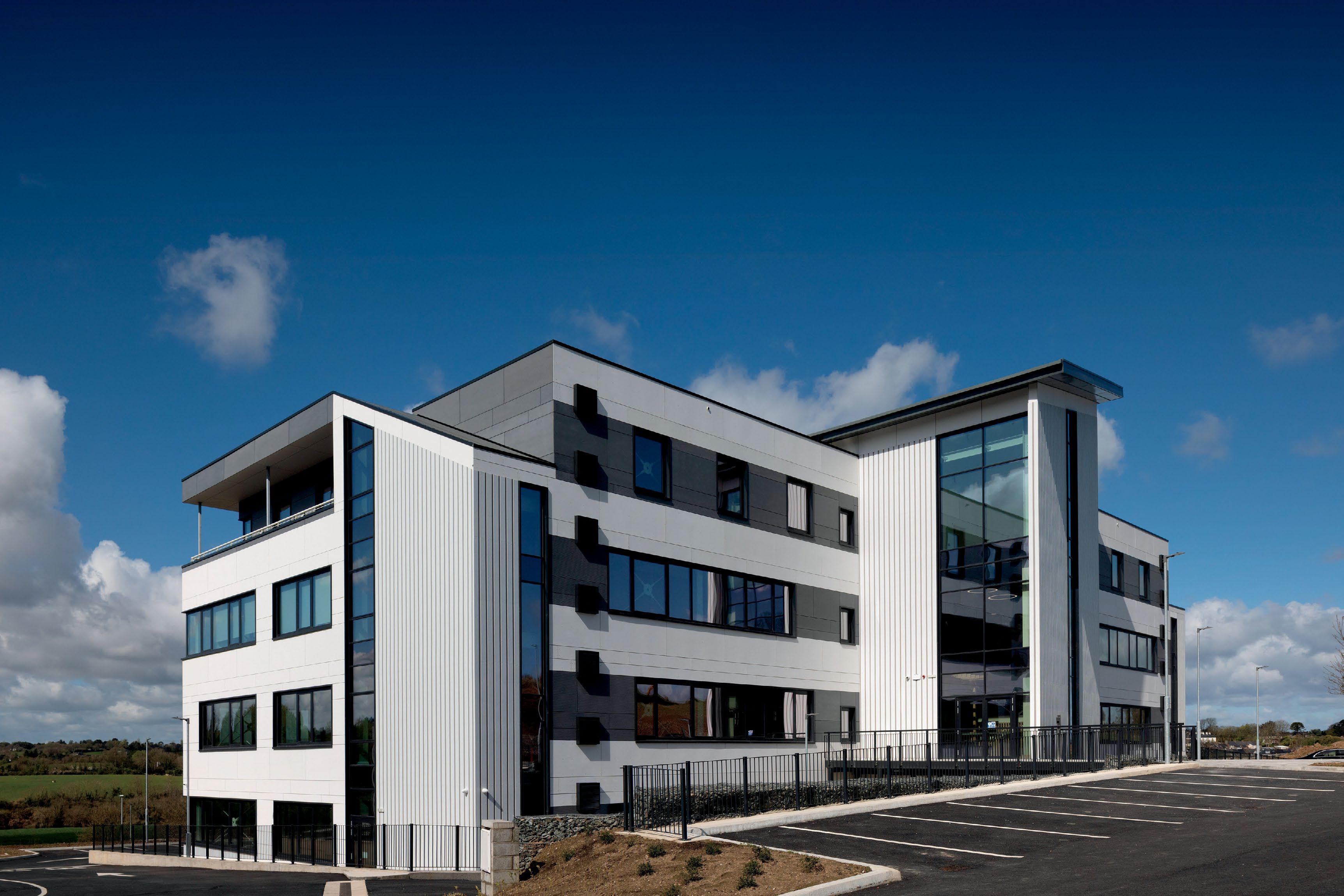

Ireland’s first passive certified office building While the passive house standard has had a lasting impact on the design and construction of new homes in Ireland, progress has been slower in commercial property. With the business world under increasing pressure to take meaningful climate action while providing better working conditions for staff, one new office building in the southeast may be a sign of things to come – and a beacon for a UNaffiliated project.

66

70

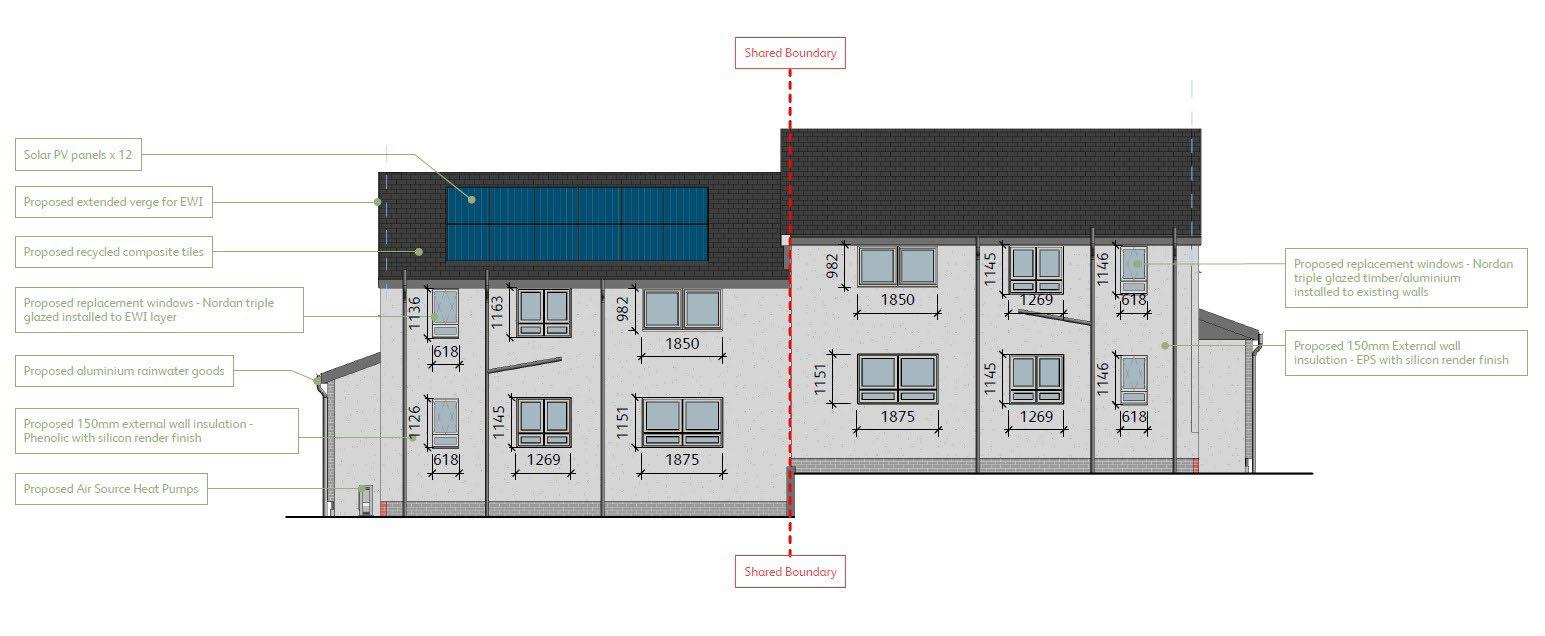

Bonny in Clyde

Scottish housing association cracks the safe on decarbonising social housing How do you solve a problem like decarbonising social housing, and do so rapidly, en masse, in a manner that lifts vulnerable people out of fuel poverty while delivering warm, healthy homes?

River Clyde Homes may be about to pull off the seemingly impossible.

Banking on sustainability

Why a pillar bank is financing verified green homes Last year Irish banking behemoth AIB launched discounted development finance for homes certified to the Irish Green Building Council’s rating system, the Home Performance Index.

But what was behind the move, how is it being received and does this indicate the finance industry is getting serious about green homes?

From small screen to deep green

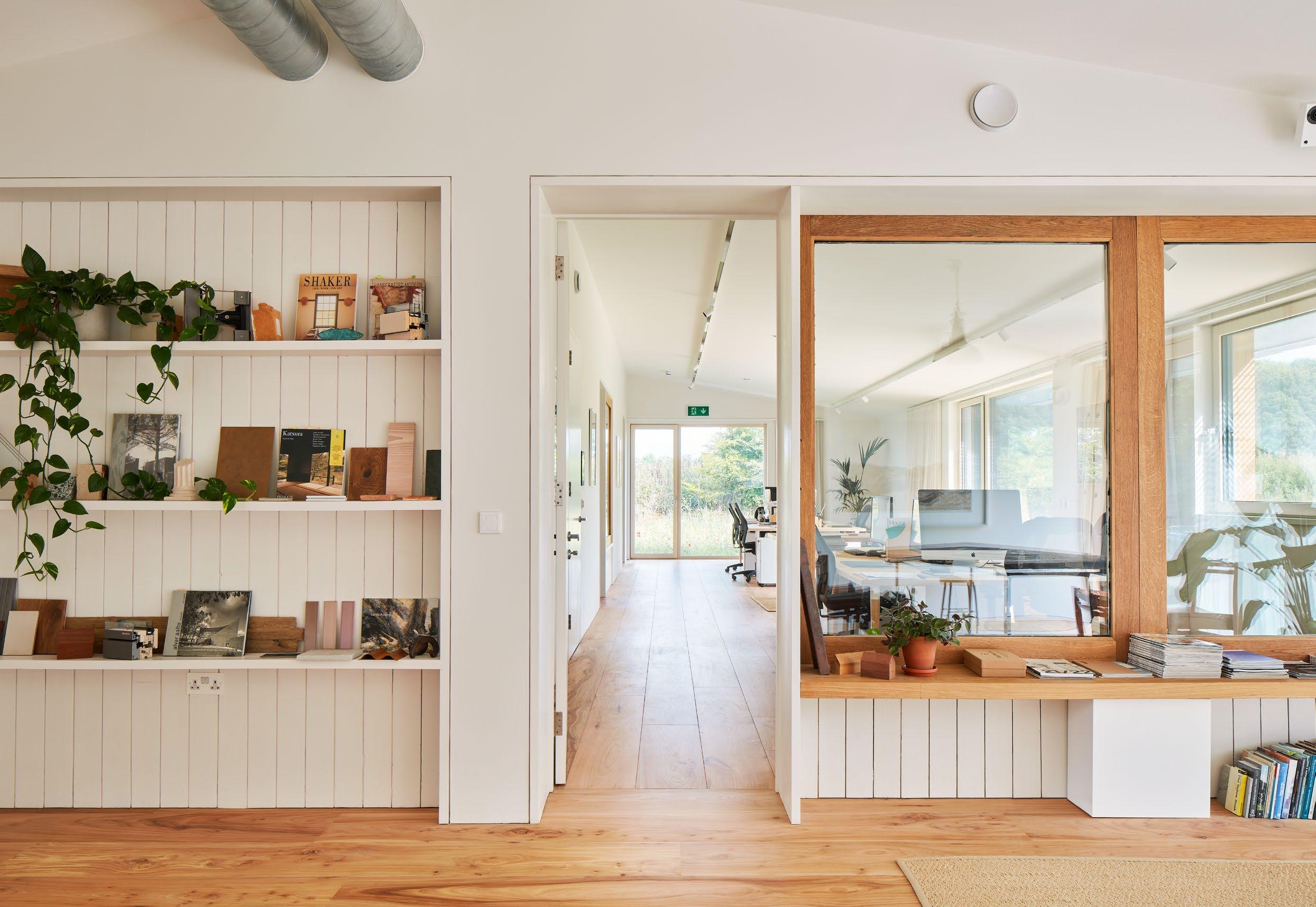

Charlie Luxton’s visionary new sustainable office The new Oxfordshire studio of Charlie Luxton Design, the practice of the well-known TV presenter and architectural designer, is deeply impressive for its exhaustive attention to sustainability across every facet of the project, from energy use and embodied carbon to the reuse of materials and the ecological restoration of the three-and-a-half-acre site. It’s a gorgeous building, too.

INSIGHT

74

MARKETPLACE Keep up with the latest developments from some of the leading companies in sustainable building, including new product innovations, project updates and more.

Flash floods and porous materials

While the most dramatic impacts of climateinduced flash flooding abounding on social media this year are all too obvious, other more insidious effects also pose risk to everything from agriculture to porous materials, as Toby Cambray explains.

ph+ || contents contents || 55 ph+

CONTENTS

PASSIVE HOUSE+

6 | passivehouseplus.ie | issue 45

PASSIVE HOUSE+

CONTENTS

ph+ || contents contents || 77 ph+

KEVIN O’ROURKE

INSIGHT

Healthy Homes Ireland launches indoor environmental quality report Words by Kevin O’Rourke, chair, Healthy Homes Ireland.

H

ealthy Homes Ireland (HHI) has published a series of recommendations for the improvement of indoor environmental quality (IEQ), including the creation of a cross-disciplinary national leadership body that will advocate for change and set goals.

The recommendations, set out in 'Our Place: Towards Healthier, Greener Homes', are the culmination of work undertaken by the HHI initiative, a high-level group of industry practitioners and academics that was established in 2021 to address health problems caused by low-quality homes. HHI is supported by Velux and the Irish Green Building Council.

The report also calls for a strengthening of building regulations and their enforcement, more grant funding and action to bridge the skills gap in the building industry, plus greater empowerment of building occupants.

The government target to retrofit 500,000 homes by the end of the decade represents a major opportunity to improve IEQ in existing homes. We therefore took the opportunity to present our report and its recommendations to Kieran O’Donnell, the Minister of State at the Department of Housing, Local Government & Heritage, plus several cross-party representatives and key stakeholders on 1 June.

HHI commissioned real estate services and investment firm CBRE Ireland to gather evidence from academics, specialists in public health medicine, consultants, local authorities, developers, builders, approved housing bodies and industry groups. Their findings form the basis of the policy recommendations at the heart of the report.

In many cases the recommendations support or propose reinforcing existing government policies, such as increasing energy efficiency through retrofitting, addressing energy poverty and upskilling the construction industry. We prioritised actions that are likely to have the highest impact and to be easiest to implement, starting with the creation of a national cross-disciplinary body to provide leadership and promote action for healthier housing in Ireland.

We think the body should include representatives from the Department of Health, Health Service Executive, Department of Environment, Climate and Communications, Sustainable Energy Authority of Ireland, Department of Social Protection, De-

8 | passivehouseplus.ie | issue 45

partment of Housing, Local Government and Heritage, The Housing Agency, Health & Safety Authority, local authorities, approved housing bodies, building trade and professional bodies, training bodies, occupant and consumer representatives, building owner representatives and leading research centres in universities.

Education and upskilling are also priorities.

It is recommended that education on best practice IEQ is delivered as part of the government’s targets for upskilling in the housing industry. More specifically, it is envisaged that IEQ skills should be embedded in apprenticeships and third-level education and that building professionals and construction trades are incentivised to acquire IEQ skills.

Those that have been trained in energy upgrades and best practice IEQ will qualify for inclusion on a national register.

Empowering occupants Occupant empowerment is another key issue. We recommend that the government provides additional funding and support to improve tenant representation, develops a process for swift interventions for occupants when unhealthy housing poses an immediate and serious health risk and establishes an ombudsperson for local authority and approved housing bodies (AHB) tenant redress. We also think there is a need for a public awareness campaign on the impact of housing on health and how to run an energy efficient and healthy home.

HHI also highlights the need for tenant safeguards to be updated and better enforced. We believe that the minimum standards in rented accommodations [set out in SI 137 of 2019] should be updated to include specific performance requirements

based on IEQ best-practice standards, and that the government needs to support local authorities with enforcing the standards or find an alternative mechanism for inspections, such as estate agents.

To date, the focus of the grants has been on energy efficiency, however we firmly believe that energy efficiency and IEQ should be considered together, so that works under energy retrofit grants schemes are designed to ensure positive IEQ outcomes along with energy use reduction.

Finally, to help deliver healthy homes, more data is required on the scale of the issue and the potential benefits of improving housing. We recommend that a comprehensive national study on the impact of housing conditions on health in Ireland is urgently required. It should investigate the link between poor housing and public health expenditure and social impact.

More broadly, the report also addresses links between housing and health, including a review of the literature on the impact of IEQ on health. It takes stock of the housing sector in Ireland, focusing on supply issues and housing standards in the rental sector and completes the picture with a survey of the relevant policy landscape, both national and EU. HHI commissioned the report to create a more integrated, forward-thinking approach to healthier homes. It aims to spearhead the integration of health considerations into public policy and delivery of both newbuild and retrofit homes, in their planning, design, construction as well as householder operation. It marks a beginning rather than an end.

To download the Our Place: Towards Healthier, Greener Homes report visit https ://tinyurl.com/HHIreport n

Pictured are (l-r) Velux GB & Ireland public affairs manager Neil Freshwater; Healthy Homes Ireland chair Kevin O’Rourke; minister of state Kieran O’Donnell TD and IGBC head of policy Marion Jammet.

Photo: Shane O’Neill, Coalesce

NORDAN WINDOWS & DOORS Sustainable Design, Energy Efficient, and Virtually Zero Maintenance

With secured by design accreditation and weather performance far exceeding the standard, it’s clear that no one can like NorDan can. Visit our showrooms in Cork, Dublin or Galway to experience the NorDan difference first hand 38 North Point Business Park, New Mallow Rd, Cork City Bluebell Industrial estate, Bluebell, Dublin 56b Briarhill Business Park, Briarhill, Galway

www.nordan.ie

HUFF’N’PUFF

BIG PICTURE

BIG PICTURE PASSI VE & ECO BUIL D S F R O M A R O U N D TH E WO R LD If you were choosing how to build in a bushfire-prone region of Australia, you could be forgiven for skirting over the possibility of packing your walls with straw.

Talina Edwards of Envirotecture describes an extraordinary off-grid passive house which uses straw and a range of low embodied carbon building materials to blitz regulatory requirements on fire, while delivering year-round comfort levels that the neighbours can scarcely believe.

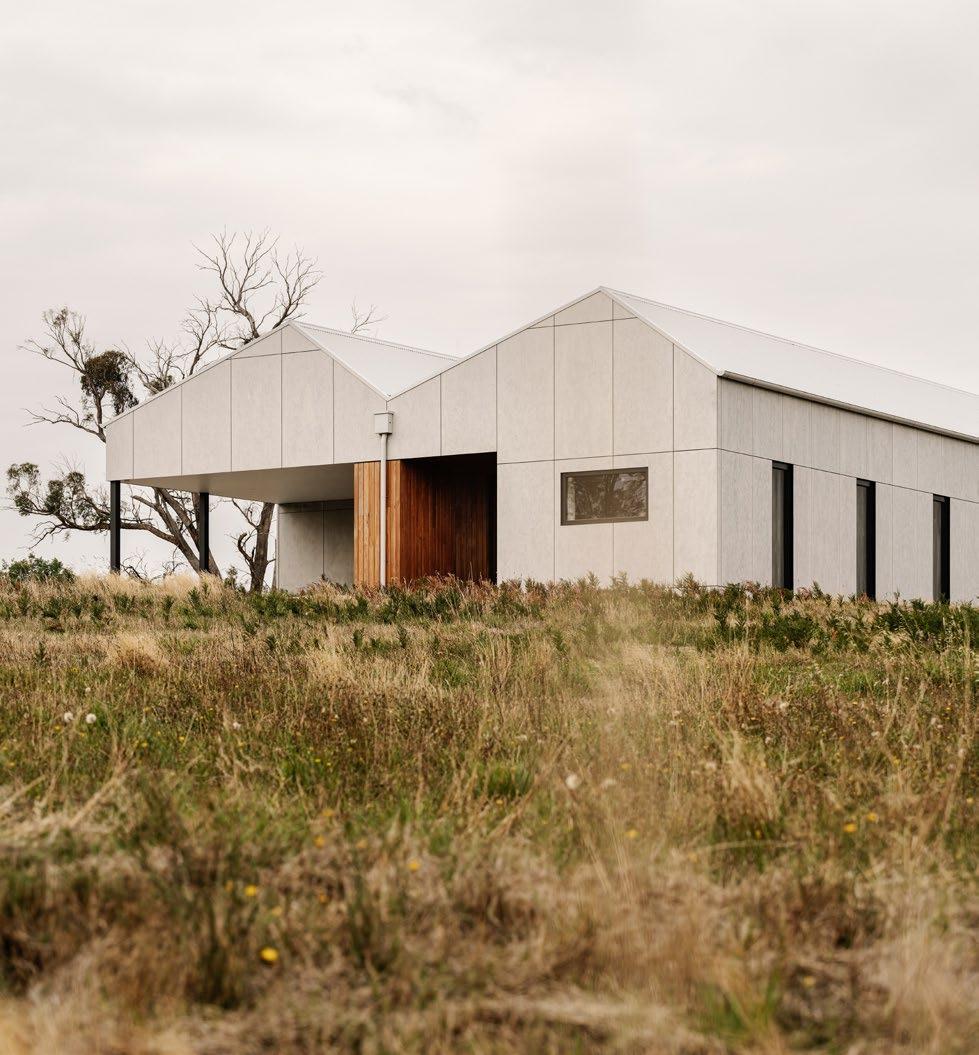

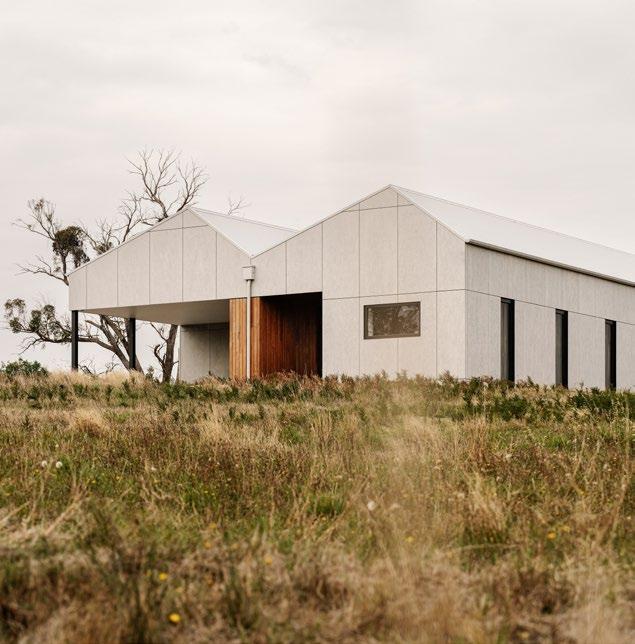

1. Huff’n’Puff Haus – a strawbale Passive House The Huff’n’Puff Haus is a new off-grid, energy efficient, natural and healthy passive house for retirement that is designed to be adaptable, bushfire and climate resilient. It is a contemporary strawbale house that is off-grid with completely self-sufficient power, water and waste.

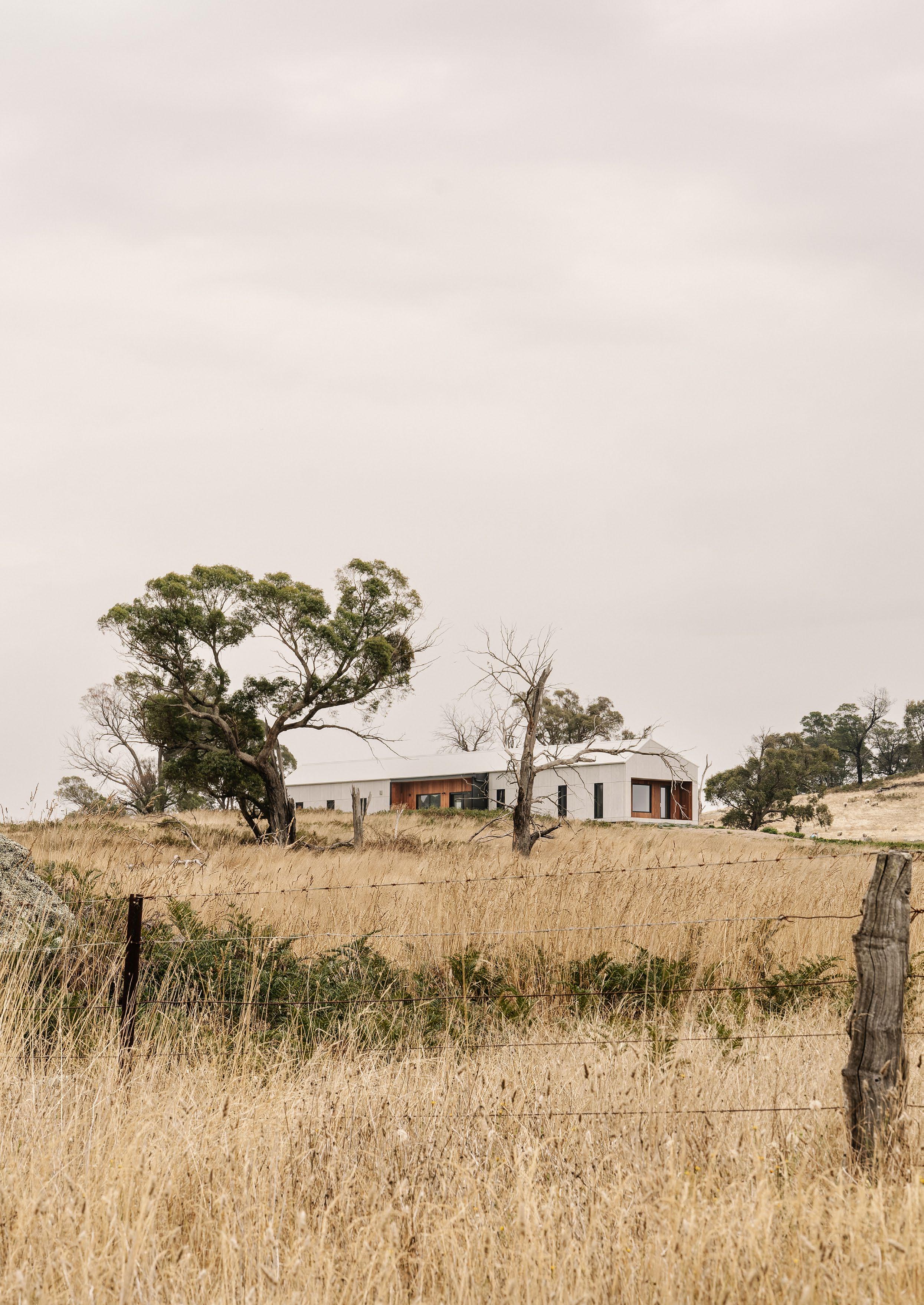

Located in the southern part of Australia, it is a few hours’ drive inland from Melbourne in ‘high country’ in the Strathbogie Ranges, Tangurung country. The temperate climate means winter temperatures drop to freezing overnight, but summer highs can reach 40+ C. It was designed to settle unobtrusively into the natural landscape.

10 | passivehouseplus.ie | issue 45

BIG PICTURE

HUFF’N’PUFF

2. The brief

We have owned the land (55 acres) since 2000 and dreamed about this for years.

When our clients initially approached us back in 2015, we’d just started learning more about the passive house standard and the importance of understanding building science for keeping a home comfortable and healthy – and energy efficient, which is a consideration for living off-grid.

What started as a conversation about a resilient and sustainable strawbale home in a rural location, soon offered us all a

new exciting challenge - was it possible to achieve certified passive house (with a low operational carbon footprint) whilst using materials with low embodied carbon too (with more bio-based materials like straw and timber)?

The whole team was eager to explore this possibility and make it a reality. Thankfully, there’s now a growing awareness about the importance of upfront carbon.

3. Bricks, timber or straw – which is best?

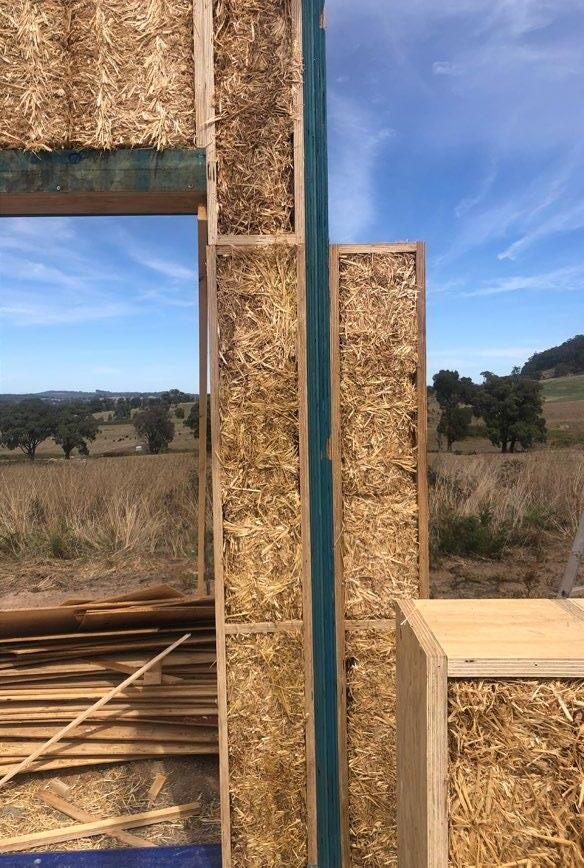

The strawbale walls we used were prefabricated “situp” panels made by John Glassford and team at Huff ’n’Puff. No big bad wolf or three little pigs here – this house will be strong and resilient for many years to come. The wall panel frames are crammed full of straw and sealed up for delivery – and it was observed they looked like a stack of coffins.

Being 350 mm – whereas a typical Australian wall frame is 90 mm thick – they are strong. The timber used for the framing is plywood, and this was very fortunate during the Covid materials shortages when typical timber studs were in very short supply.

Straw has excellent insulation values, is a waste-product from the farming industry, and as it’s a natural bio-based material it’s low in embodied carbon.

Once erected on site, the panels were temporarily wrapped up again to protect them from weather and from any curious rodents.

ph+ | huff’n’puff big picture | 11

HUFF’N’PUFF

BIG PICTURE

4. The wrong orientation?

An interesting siting challenge was that this regional location has lovely 360-degree outlooks, however the best views to the distant horizon are to the south.

In the southern hemisphere, we want to maximise solar gain from the north during our winters, while ensuring the building is appropriately shaded from the harsh summer sun.

Traditional principles of “solar passive

design” limit south-facing glazing as they lose too much heat from the home in winter. However, by looking at the building holistically and using PHPP as a design tool, we were able to test the performance impacts of adding (or removing) these southern windows and optimising the design to ensure every room in the house gets to enjoy the views – while not negatively impacting the internal comfort.

From an architectural design perspective, this was exciting news to realise that with passive house there aren’t necessarily “rules of thumb” that apply in every scenario – so our creativity as designers is not limited. In this case our clients desire to embrace those views, meaning we could have large windows to both the north and the south as we’d checked that it would still perform as intended.

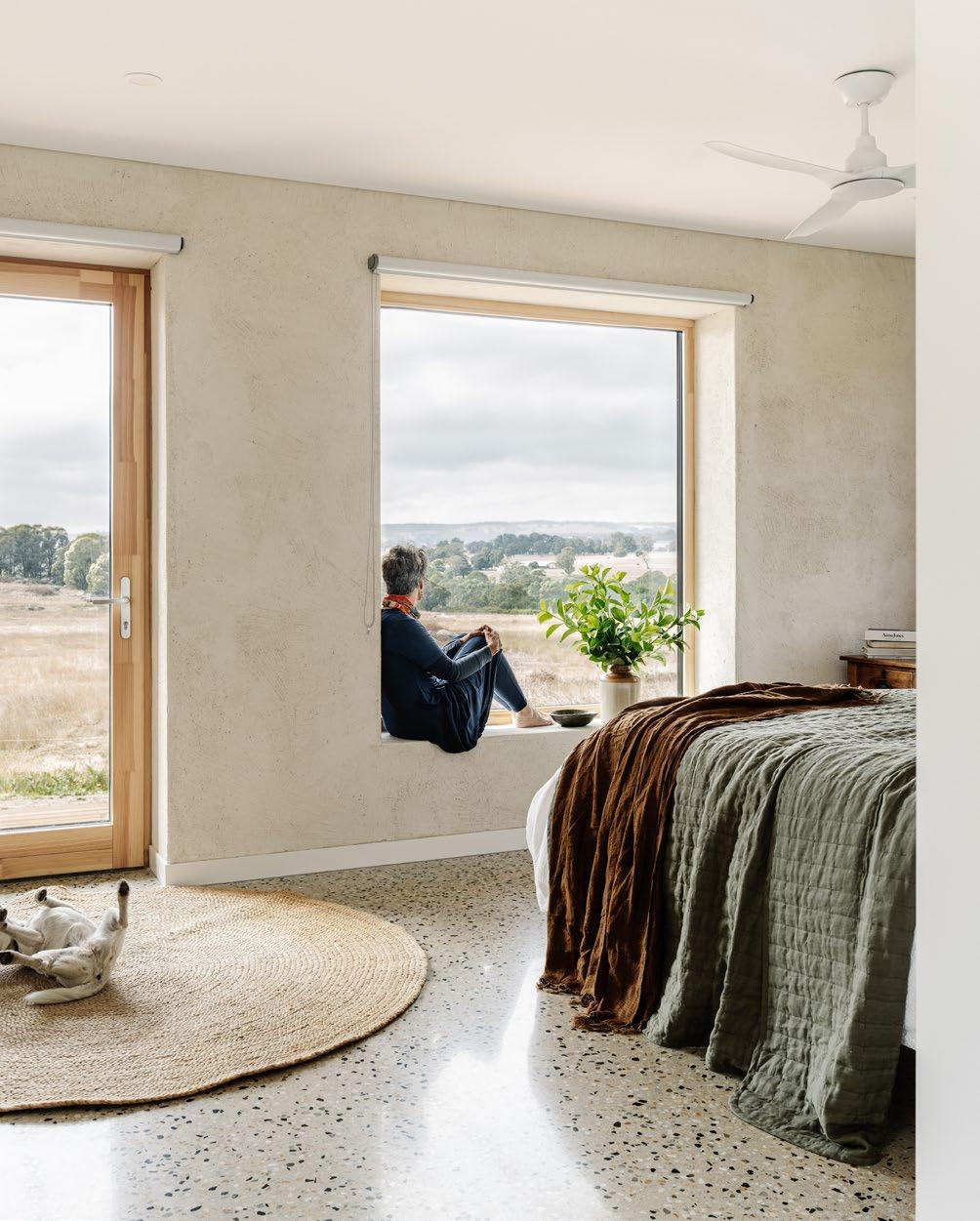

5. Biophilic design Internally, the straw panels were finished with lime render which formed the internal airtight layer. The exception to this was the two bathrooms, as these were wet areas. They had internal Intello membrane installed so they could be lined with cement sheeting, waterproofing and tiles.

The lime render really contributes to the biophilic design of the home – the texture and natural colour is lovely. Sustainable timbers were also chosen to complement the render, creating a simple, calm colour palette.

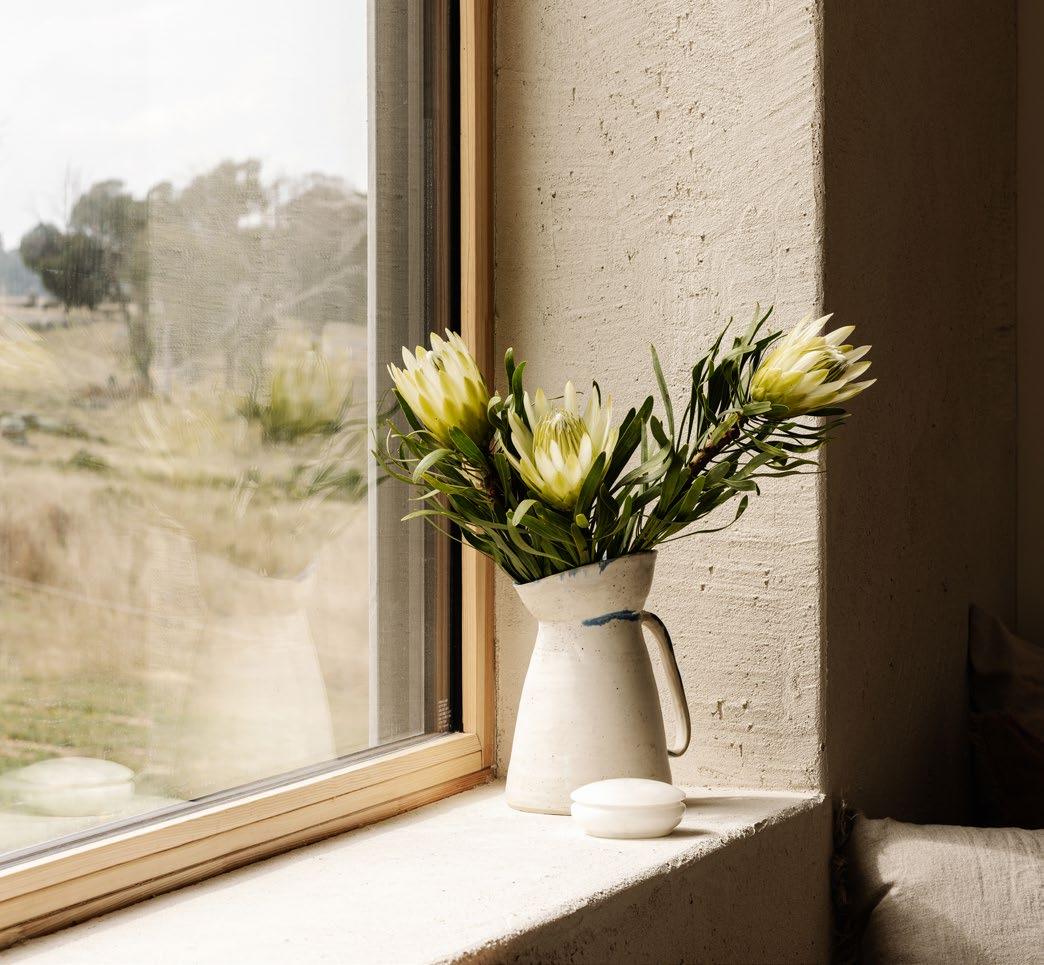

Deep sills are another benefit of the lime-rendered straw, framing the triple glazed windows, and creating shelves in some locations – or enough space to sit in the window and enjoy the views in all directions to the countryside.

12 | passivehouseplus.ie | issue 45

BIG PICTURE

HUFF’N’PUFF

6. Bushfire-prone area and external materials The intention was for this home to be safe, healthy, natural and non-toxic, with low embodied energy, durable and fireresistant materials. Due to the remote rural location, the threat of bushfire is real in hot dry summers, and due to a changing climate.

At the time we were also learning more about the Living Building Challenge and more ethical and responsible material choices – and we wondered if it was possible to have a certified passive house with no plastic. We realised this was potentially possible with rendered strawbale walls but could’ve been trickier to detail for the

ceiling airtight layer. We opted for Intello for the underside of the roof trusses, with a suspended ceiling to run the MVHR ducting through.

Our clients wanted to ensure their home was built to a higher ‘bushfire-prone’ standard than the building code required.

While the rendered-strawbale may have been suitable, the roof design would have needed to change with larger eaves if we’d wanted to protect external rendered walls. As this wasn’t aligning with the design concept of a long house reminiscent of an old woodshed in the paddock, and the additional bushfire protection we

were aiming for externally, we tried to source non-combustible magnesium oxide boards for cladding. However, thanks to the pandemic and supply issues, this unfortunately wasn’t to be, and we had to choose a non-combustible cement-sheet cladding instead.

Its neutral colour with clean lines does look lovely. This meant the external face of the strawbale was wrapped with a vapour-permeable membrane, with a ventilated cavity behind the cladding in a way more like typical lightweight walls would be constructed.

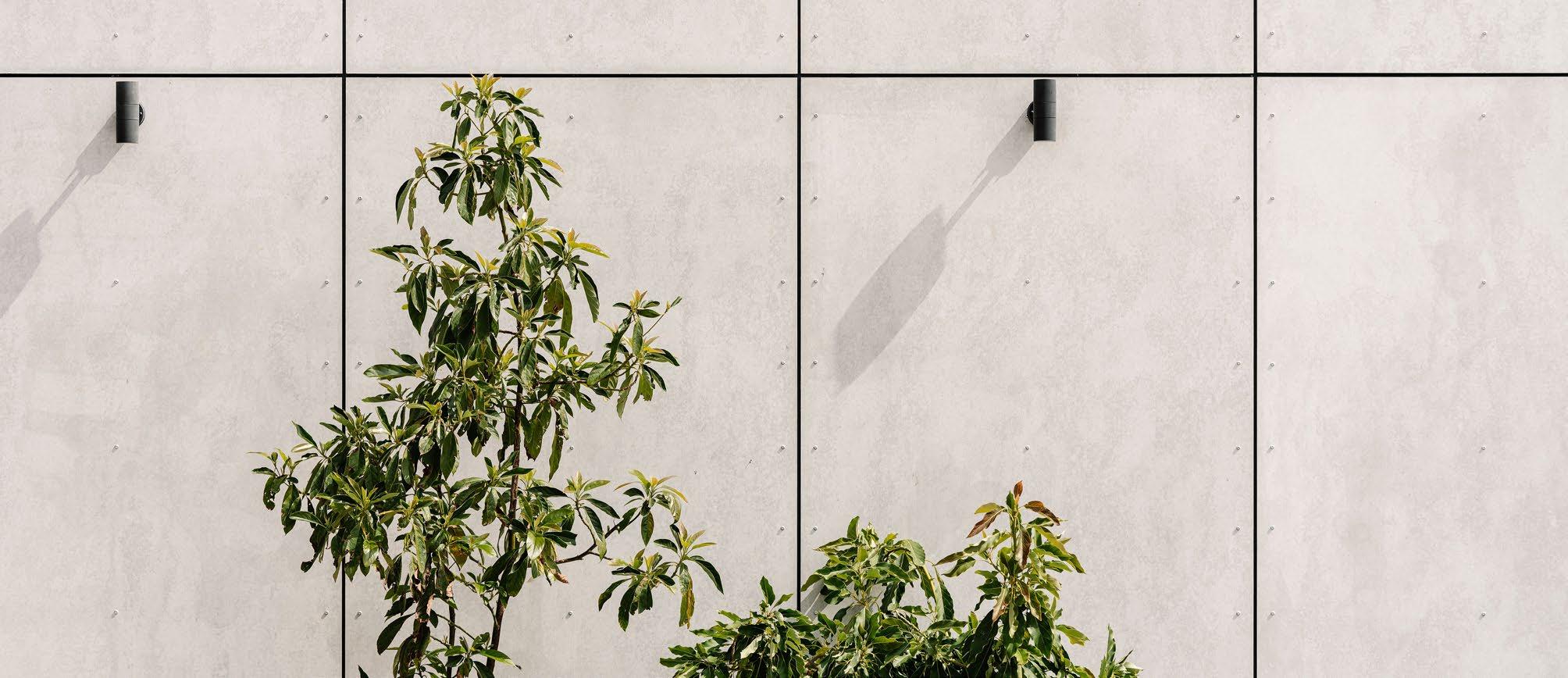

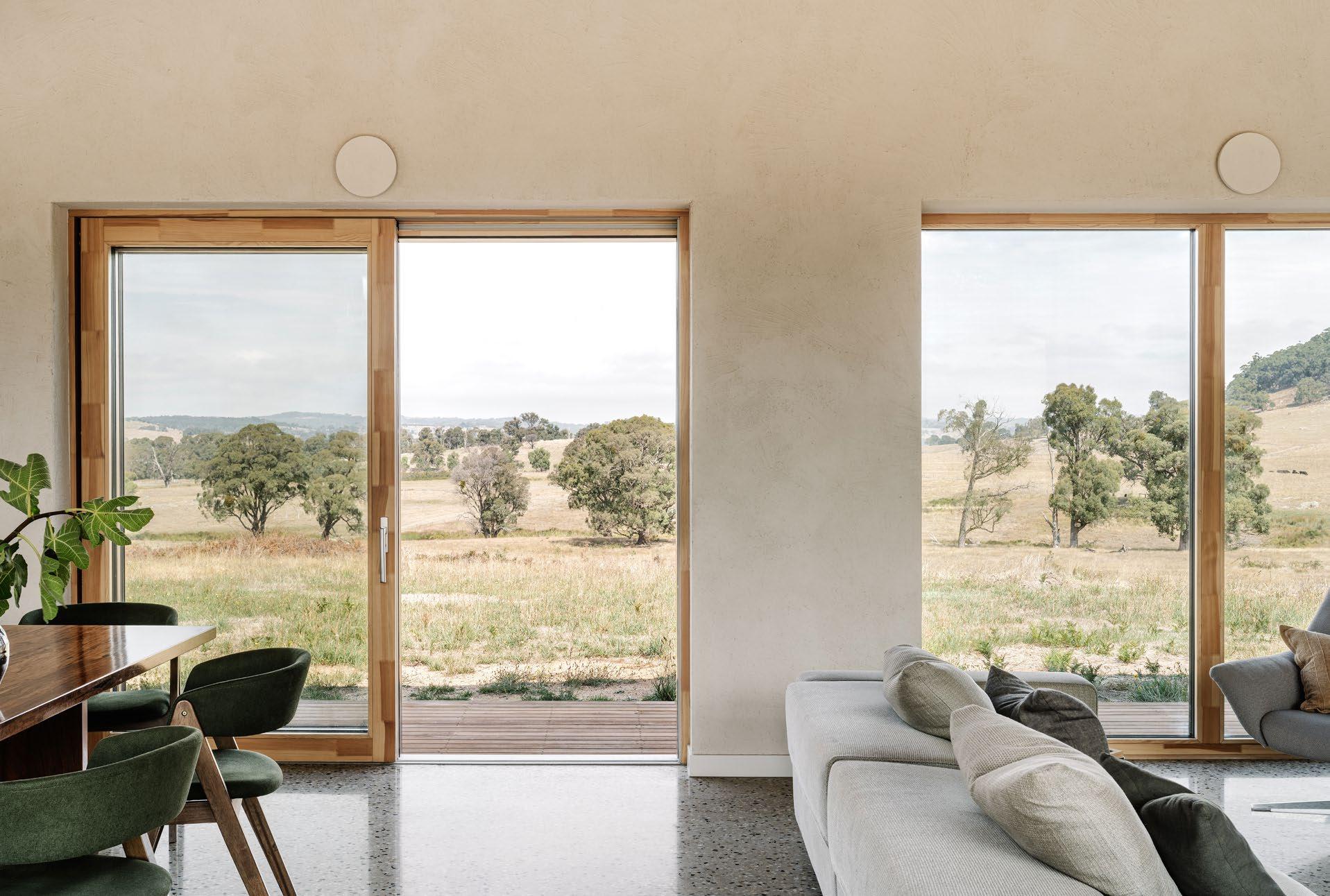

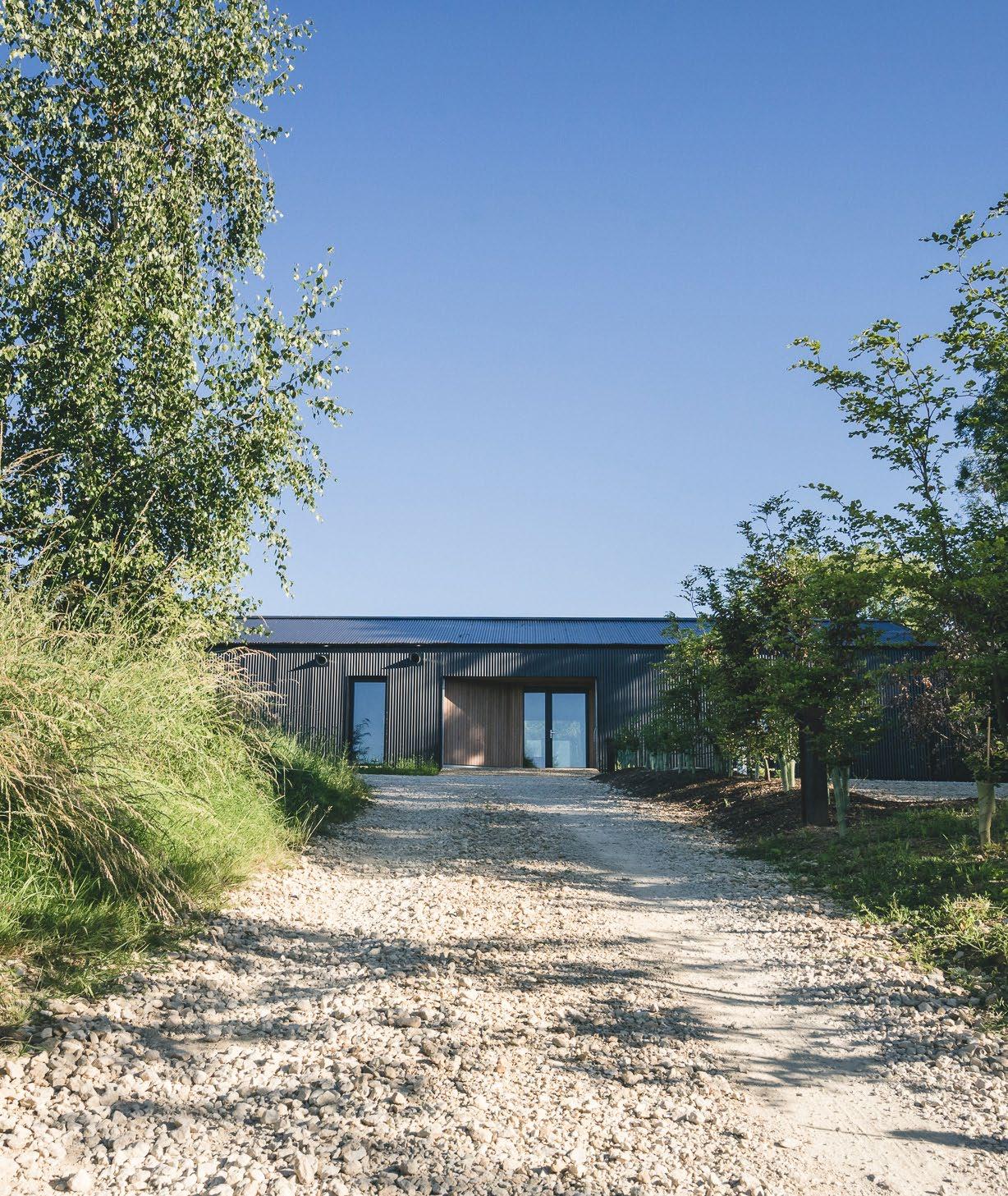

7. Views for days This home sits quietly in its place. It’s modest in size, selfsufficient in use, and a healthy home to live in harmony with the landscape.

While it is relatively small (TFA 171 m 2) in comparison to typical new Australian homes (240 m 2), inside it feels incredibly spacious and with connection to the distant horizon in every direction, and bright with lots of natural daylight.

It is a real retreat from the harsh elements all year round.

Our clients have shared how they love watching the sky change colours, and how this paints the landscape in varying beautiful ways – depending on the time of the day, the time of year, where they are in the house and the direction they’re facing.

This was a conscious design decision: to create space for contemplation and enjoy the views, to be able to chase the sun when desired, or to be able to seek shade and shelter from the winds when required too.

Photos: Marnie Hewson

ph+ | huff’n’puff big picture | 13

HUFF’N’PUFF

BIG PICTURE

unilininsulation.ie unilininsulation.ie

BIO-ENHANCED BIO-ENHANCED PIR INSULATION

PIR INSULATION

HIGH HIGH LOW LOW

THERMAL THERMAL EFFICIENCY EFFICIENCY

EMBODIED EMBODIED CARBON CARBON

The ECO360 strategy is a commitment

ThebyECO360 strategytoiscontinually a commitment Unilin Insulation by review Unilin Insulation to the continually and improve sustainable credentials of our product offering review and improve the sustainable and services, to reduce the credentials of our product offering environmental impact of the and services, to reduce the projects we work on in terms of environmental impact of operational the projects energy and embodied carbon. we work on in terms of operational energy and embodied carbon.

Bio-enhanced formulation

Meets RIAI and RIBA 2030 Targets Bio-enhanced formulation Halogen free formulation

Meets RIAI and RIBA 2030 Targets Improved thermal performance of 0.020 W/mK

Halogen free formulation

Bio-degradable packaging materials

Improved thermal performance of 0.020 W/mK Bio-degradable| packaging materials 14 | passivehouseplus.ie issue 45

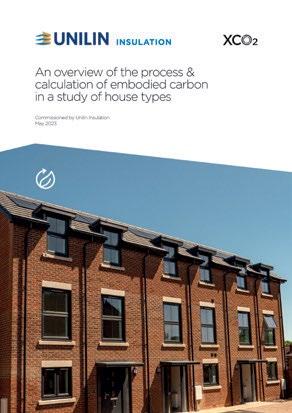

Visit the Unilin Insulation website to download our Visit the Unilin Insulation

website to download our

Embodied Carbon Report

Embodied Carbon Report

BIG PICTURE

HUFF’N’PUFF

8. That’s something a bit different.

Who will build a straw passive house in a rural location?

The site is reasonably remote, with not a lot of local builders servicing the area – particularly not ones who were familiar with straw bale construction or passive house performance.

This led us to working with Huff’n’Puff straw “Sit-up” panels (a prefabricated strawbale company) who could make the wall panels off-site and deliver them all boxed up ready to be erected.

Then with the expertise of a great team of builders, Hedger Constructions, who care about quality and were very open to learning something new, we had a successful outcome.

9. Flexibility and adaptability The house design balances the integration of passive solar design principles with the site constraints and local climatic conditions – view, orientation, site slope, sun, wind and rain. It has also been designed with a zoning of spaces unlike a typical family home, creating a flexibility of use with one wing of the house occupied by its permanent residents while the second wing can adapt to fulfil the needs of visiting family and friends when required. The ‘guest’ wing is within the same thermal envelope but separated by an external timber-lined covered entry/hallway space.

This creates a sheltered transition between outside and inside, whilst also creating privacy between the homeowners and their guests. Our clients have shared how well this is working for them and their visitors – making the home feel a lot larger than it is by utilising these outdoor spaces as extra rooms.

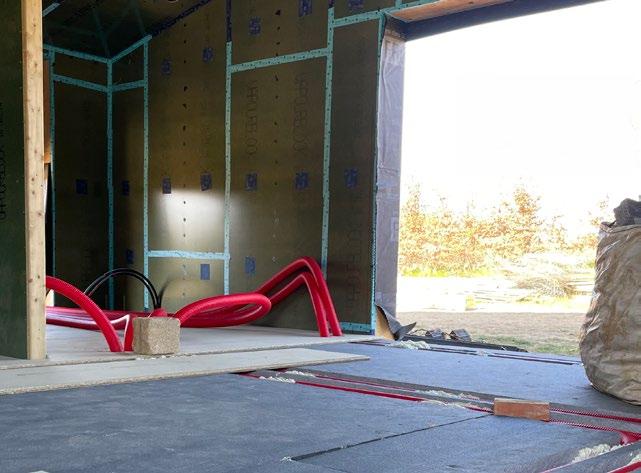

10. Thermal envelope and airtightness The floor plan for this house is relatively long and thin (37 m long by 6.7 m wide), with the roof trusses spanning the full width in the north-south direction. This meant the house could be constructed with the floor, external walls and roof structure all up, insulated and airtight before any internal walls were built. This simplified things for the builders internally with installing the MVHR and dealing with other services.

You don’t often see a whole house’s thermal envelope volume in one space like this, without the visible interference of internal partitions. It did create a distorted sense of size during the construction process but was clever to construct it in this way.

ph+ | huff’n’puff big picture | 15

HUFF’N’PUFF

BIG PICTURE

Our complete integrated heating Our Ourcomplete completeintegrated integratedheating heating packages provide everything packages provide everything packages provide everything Our complete integrated heating needed to build a highly efficient, needed to build a highly efficient, needed to build a highly efficient, packages provide everything warm and comfortable home. warmand and comfortable home. warm comfortable needed to build a highlyhome. efficient, warmtoand comfortable home.

Tailored suit the homeowners’requirements, Tailoredtotosuit suitthe thehomeowners’requirements, homeowners’requirements, Tailored each Grant heating correctly each Grant heatingpackage packageis correctly each Grant heating package isiscorrectly Tailored to suit the homeowners’requirements, sized and specified, free of charge, toto sized and specified, free of charge, sized and specified, free of charge, to each Grant heating package is correctly achieve compliance, maximise efficiencies achievecompliance, compliance,maximise maximiseefficiencies efficiencies achieve sized and specified, free of charge, to and provide long-term savings. and providelong-term long-termsavings. savings. and provide achieve compliance, maximise efficiencies 3 and provide long-term savings.

Packages feature the Aerona Packages feature theGrant Grant Aerona3 3air airto to Packages feature the Grant Aerona air to water, airair source heat pump, Grant hot water water, source heat pump, Grant hot water water, air source heat pump, Grant hot water 3 Packages feature the Grant Aerona air to cylinders, Grant Afinia aluminium radiators cylinders, Grant Afinia aluminium radiators cylinders, Grant Afinia aluminium radiators water, air source heat pump, Grant hot water and the Grant Uflex underfloor heating and the Grant Uflex underfloor heating and the Grant Uflex underfloor heating cylinders, Grant Afinia are aluminium radiators system.

Smart controls system.

Smart controls arealso alsoavailable. available. system.

Smart controls are also available. and the Grant Uflex underfloor heating system. Smart controls are also available.

TrustGrant Granton onthe thejourney journeyto towarmth warmth and and Trust Trust Grant on the journey to warmth and comfortby by sendinghouse house plansto to comfort comfort by sending sending house plans plans to and Trust Grant on the journey to warmth heatpump@grant.ie heatpump@grant.ie comfort by sending house plans to heatpump@grant.ie 16 | passivehouseplus.ie | issue 45

heatpump@grant.ie

BIG PICTURE

HUFF’N’PUFF

11. Why the odd roof pitch?

This home is off-grid, which means it’s completely self-sufficient for power, water and disposing of waste on site. There is no gas connection (or bottled LPG gas), so it is an all-electric home with enough solar PV and batteries to run the home and charge electric vehicles too.

The roof of the house was designed with an asymmetrical gable, so the north-facing pitch was steeper – a more appropriate angle to harvest that renewable energy from the sun, maximising the solar collection. The carport is at the western end of the house, which creates an asymmetrical double gable profile and adds a little fun and a modern twist to the roof line.

12. Beauty is in the eye of the beholder One of the design intentions was to keep the house size more modest, but create great functional use of all the space, while maximising the views, and creating a warm and welcoming space to be in.

There are appropriately sized eaves to the north to shade the house from the harsh summer sun while ensuring the occupants can enjoy natural daylight and views to the landscape all year round.

Our clients’ neighbours commented on this as they live in a typical ‘wooden tent’

with little insulation, single glazing, and no external shading. In an attempt to keep cool in summer they close all the curtains and keep the house dark. It was a stark contrast for them to visit a home that was perfectly comfortable inside despite the sweltering heat – and still light and bright and a joy to be in!

Our clients also told us how their home was the ‘talk of the town’ while under construction, as everyone was curious about this “big, long shed with small windows”.

Yet when the neighbours visited, they all commented on how deceptive appearances could be from afar, and how truly beautiful this home feels to be in. (We know that a passive house’s beauty is more than skin-deep.)

The last word should go to our clients: “We are delighted to be in the house,” they said. “It really is wonderful. Thank you for your skill and thoughtfulness in designing our lovely home.”

SELECTED PROJECT DETAILS Architect and interior designer: Envirotecture Builder: Hedger Constructions Prefabricated SIP supplier: Huff-n-Puff Strawbale Constructions Passive house consultant: Alex Slater Passive house certifier: Detail Green Stylist: Belle Bright Windows: Logikhaus Ventilation: Fantech Cladding: Cemintel Barestone Airtight membranes: Pro Clima

ph+ | huff’n’puff big picture | 17

NEWS

PASSIVE HOUSE+

NEWS UN pushes for radical sustainable building action The United Nations is pushing for a rapid drive to make the world’s buildings sustainable – aided by an international coalition centred in the Wexford town of Enniscorthy.

T

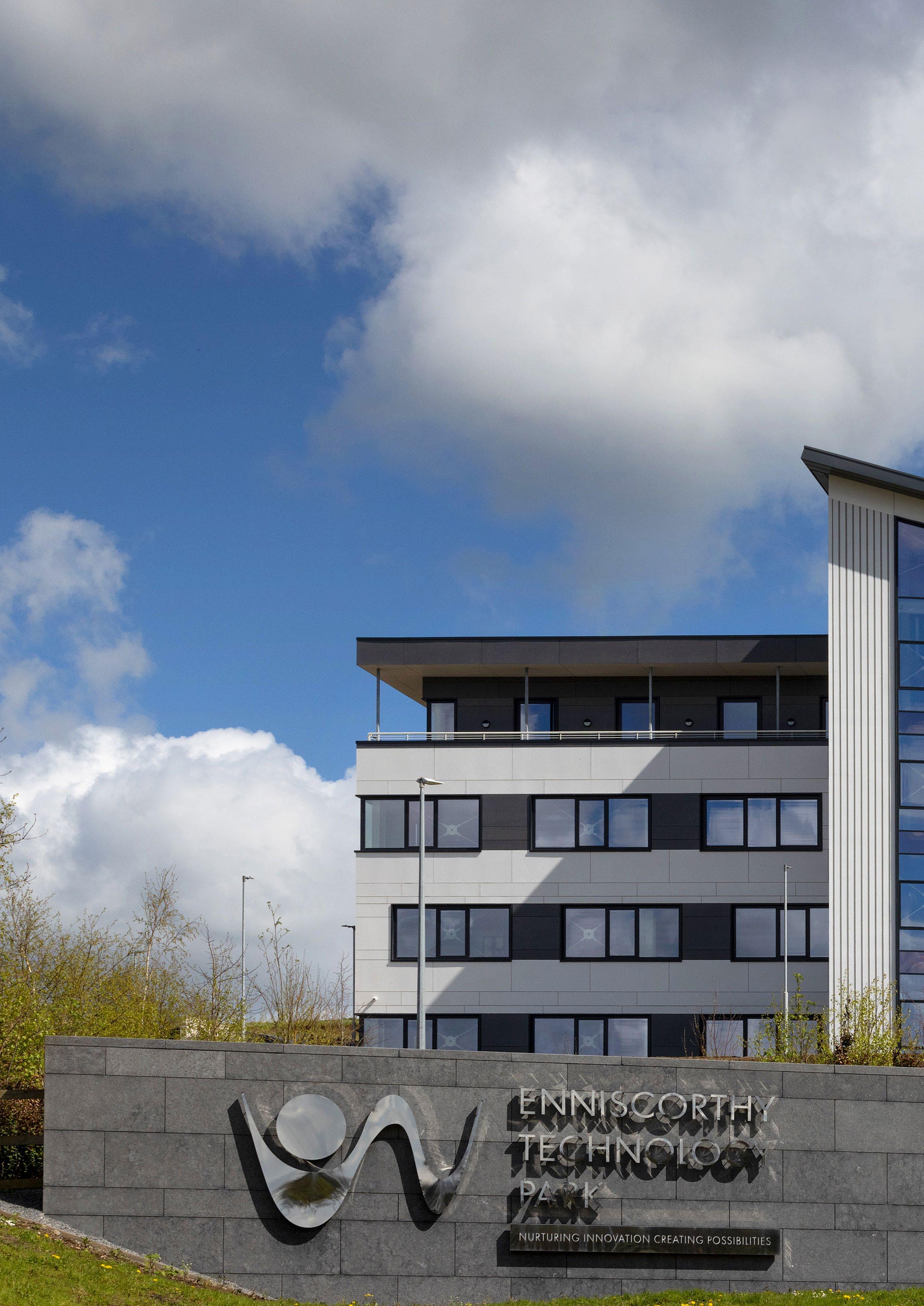

he Enniscorthy Forum has signed a memorandum of understanding (MoU) with the UN Environment Programme (UNEP) on a broad collaboration to accelerate the global transition to decarbonised, high performance buildings – including the UN’s Buildings Breakthrough target of making “near zero-emission and resilient buildings the new normal by 2030.”

Founded to support the UN sustainable development agenda, the forum has launched a global network, the Buildings Action Coalition (BAC), with a membership comprising community-centric organisations, global industry players, and academia – and set to include Zero Ambitions Partners, a new sustainability communications and strategy consultancy co-founded by Passive House Plus editor Jeff Colley.

The MoU between the Enniscorthy Forum and UNEP was announced at a major ministerial summit hosted by the forum on 27-29 June in Enniscorthy. The MoU includes a collaboration with UNEP’s Global Alliance for Buildings and Construction (GlobalABC) on the Buildings Breakthrough target. Led by the French and Moroccan governments, 16 countries have signed up to date.

Mark Radka, chief of the energy and climate branch of UNEP, said: “We are delighted with our newly formalised relationship with the Enniscorthy Forum and look forward to a strong and enduring partnership that helps raise the performance of buildings and the built environment on a global scale. Experts from Ireland helped initiate the UN’s High Performance Buildings Initiative and this prompted creation of the Enniscorthy Forum. UNEP values and appreciates the Irish government's support for the Enniscorthy Forum and the activities of its Buildings Action Coalition.”

The Enniscorthy Forum is supported by the Irish government and the summit was attended by senior industry figures, government officials, community-based organisations, and leading academics from around the world. Participants called on the Irish government to endorse the Buildings Breakthrough target, and the initiative has been placed on the government’s agenda for review and consideration.

Speaking at the event, Yves-Laurent Sapoval, senior advisor to the director general of planning, housing and nature at the French ministry

18 | passivehouseplus.ie | issue 45

(above l-r) Pictured are signatories including (top row) Passive House Massachusetts president Hank Keating; A2M founder Sebastian Moreno-Vacca; AECB CEO Andy Simmonds; River Clyde Homes director Richard Orr; Passive House Pennsylvania director Dave Parker (representing Passive House Network); Building Energy Exchange executive director Richard Yancey; (bottom row) passivhausMaine executive director Naomi Beal; Enniscorthy Forum CEO Barbara-Anne Murphy; Passive House for Everyone! co-founder In Cho; and Passive House Institute head of training Susanne Winkel.

of ecological transition, affirmed support for the initiative: “We consider improving the performance of buildings and the built environment to be imperative if we are to achieve the objectives set forth in the Paris Climate Agreement, and we look forward to working with the Enniscorthy Forum to accelerate achievement of tangible progress through the GlobalABC towards the Buildings Breakthrough target.”

The Passive House Institute was among a number of organisations from either side of the Atlantic which formally joined the coalition to coincide with the summit, alongside Building Energy Exchange, Building Innovation Hub, Built Environment - Smarter Transformation, Onion Flats, Passive House Canada, passivhausMaine, Passive House Network, River Clyde Homes, and South West College. Meanwhile, the Association for Environment Conscious Building (AECB), The Energy Coalition, Passive House for Everyone, Passive House Massachusetts, A2M, and Zero Ambitions Partners signed letters of intent to join the BAC. The BAC aims to advance the cause of high-performance building and a more sustainable built environment, and accelerate tangible action on decarbonisation and improving quality of life everywhere, by developing a pan-continental forum to share the experience and expertise from some of the world’s foremost experts in the field.

The BAC’s knowledge-sharing and anti-gatekeeping ethos is being driven by its coalition partners. By promoting and demonstrating the transformative benefits of high-performance buildings it is pushing for a quicker adoption of

best practice methods in planning, design and construction across the world.

Zero Ambitions Partners co-founder Jeff Colley and Enniscorthy Forum CEO Barbara-Anne Murphy signed the letter of intent in a ceremony at Enniscorthy Castle on the occasion of the summit.

“We recognise the potential for the Buildings Action Coalition to make a major contribution to raising the performance of the world’s buildings and the built environment,” said Colley.

“There is real substance in the coalition’s approach. Strong engagement with the UN sends out a significant positive signal, but the focus on engagement with grass-roots organisations will make a real difference.

“We’re excited to join the coalition to offer our help in raising awareness, recruiting, setting priorities for strategic communications, and assembling the required resources.”

Enniscorthy Forum CEO Barbara-Anne Murphy said: “We look forward to welcoming Zero Ambitions Partners to the coalition. They are extremely effective at outreach and information sharing, which is precisely the kind of support this initiative needs now.

“We have a significant programme underway to mobilise resources and disseminate knowledge, experience and best practices to transition towards high performance building. Given their competence in strategic communications, Zero Ambitions Partners will have an important role to play.”

Scott Foster, an adviser to the Enniscorthy Forum and former director of the Sustainable Energy Division of the UN in Geneva, said: “Improving the performance of buildings and the built environment is the one action that can deliver integrated solutions at scale in a timely fashion to produce tangible outcomes on economic, social, and environmental resilience, quality of life, and climate, among other desirable outcomes, and in the process advance employment, innovation, and investment.

“This launch is an exciting development for the Enniscorthy Forum and is proof that small local organisations can achieve big things with the right support, the right partners and the right vision. The Buildings Action Coalition has far-reaching ambitions to help transform the built environment worldwide.”

For further information visit www.enniscorthyforum.org •

PASSIVE HOUSE+

NEWS

EU project aims to accelerate market for green homes

A

new European project focussed on accelerating the roll-out of certified green homes – including the development of green mortgages, loans and development finance – has been launched.

Irish partners in the Smarter Finance for EU project, which is led by the Romania Green Building Council, include the Irish Green Building Council and Passive House Plus publisher Temple Media Ltd, along with partners in Spain, Portugal, Ukraine, Slovakia and Luxembourg.

The EU Life-funded project builds on the success of the Smarter Finance for Families project, which has led to over €8.5bn worth of certified green homes being built or planned to date. This includes over €600m worth of new homes under development in Ireland to the IGBC’s Home Performance Index certification, financed by AIB at reduced interest rates over the last twelve months. (Editor – See the feature article, “Banking on Sustainability” in this issue).

All in all, Smarter Finance for Families led to the creation of programmes for green home and green mortgages in 11 countries, and the new Smarter Finance for EU project has been designed to build on this early success, to accelerate the transition to verified green homes and tailored finance – both within the markets where programmes have already started, and in new partners in Spain and Portugal, along with a focus on the postwar rebuilding of Ukraine.

With energy poverty on the rise across Europe since the energy crisis caused by Russia’s invasion of Ukraine, the project also includes a work package on hybrid green finance tools for vulnerable citizens, led by Habitat for Humanity. The aim will be to improve the health and comfort, financial stability, and energy

performance of very low income, vulnerable households. It will also facilitate European and global discussions on what knowledge and lessons learned can be shared when implementing solutions that combine government incentives with private bank financing. The intent is to demonstrate that energy poverty solutions are “bankable” by private sector banks, provided they are supported with well-designed, hybrid solutions – such as a mixture of private finance and state subsidy – and that the banks are supported with an easy-to-use method of measuring energy efficiency and green performance.

One major undertaking included in the project is the establishment of a European centre of excellence, which is being set up to mine, expand upon and share the knowledge gained from developing successful programmes in Smarter Finance for Families, for two purposes: to ensure potential implementing partners don’t have to “reinvent the wheel”, and to give existing partners in the Smarter initiative the opportunity to improve the uptake of their green home programmes.

One issue that threatens to undermine public and investor confidence in green buildings is the lack of clarity – and in some cases credibility – to sustainability claims in the construction industry, including at building level. To this end the IGBC will focus on ensuring programmes from new partners - and those of existing implementing partners – are aligned with a number of EU policies, including the Level(s) sustainable buildings framework, the forthcoming recast to the Energy Performance of Buildings Directive, the EU Taxonomy, Fit for 55, and other critical EU initiatives. This will also involve ensuring strong governance principles and auditing practices so stakeholders can rely upon a trusted impartial

green finance program to deliver for Europe’s citizens.

Meanwhile, the project will focus on providing training and guidance to build the capacity of essential stakeholders, including citizens, property developers, lenders and green homes solution providers (in other words the supply chain offering the products and services needed to build green homes). Luxembourg-based sustainable finance facilitators EnerSave Capital will lead this work, which will also include specialized training for the financial services sector.

In addition to providing a portal of the businesses who provide products and services that can be used on green buildings, Temple Media Ltd’s main role in the project will centre around communication, including publishing news on progress in the project, and working out how to ensure that the approach taken to communications takes into account the needs of different stakeholder types in different local markets, and how to establish the best ways of reaching people with different needs and perspectives.

Co-ordinated by the Romania Green Building Council, the partners include Irish Green Building Council, Luxembourg-based sustainable finance facilitator EnerSave Capital, Passive House Plus publishers Temple Media Ltd, the Association Energy-Efficient Cities of Ukraine, Green Building Council España, Portuguese energy agency Adene, Habitat for Humanity International, and the European-Ukrainian Energy Agency. • (above) Speaking at the Smarter Finance for EU kick-off meeting in Brussels on 19 June, European-Ukrainian Energy Agency director Kateryna Polyakova describes the rebuilding challenge Ukraine will face when the war ends.

ph+ | news | 19

NEWS

PASSIVE HOUSE+

NSAI Agrément director suspended

S

eán Balfe, director of NSAI Agrément, has been suspended, Passive House Plus understands.

A member of NSAI’s management team responsible for the certification of all construction products, Balfe represents Ireland at the European Organisation for Technical Assessment (EOTA) and the group of notified bodies in Europe.

Passive House Plus heard of the suspension at the point of going to press, and reached out for comment from the NSAI. “As a matter of general principle NSAI does not comment on individual cases,” an NSAI spokesperson said. •

IGBC launches biodiversity building professionals network

(above) Pictured are (left to right) IGBC head of policy and advocacy Marion Jammet, heritage minister Malcolm Noonan, and CoP chair and Cluid Housing national sustainability manager Susan Vickers.

T

Advertise with us.

Contact us for more information on how your brand can feature in our next issue.

To enquire about advertising, contact Jeff Colley on +353 (0)1 2107513 or email jeff@passivehouseplus.ie

www.passivehouseplus.ie

20 | passivehouseplus.ie | issue 45

he Irish Green Building Council (IGBC) has launched a new Community of Practice (CoP) on biodiversity and the built environment.

The CoP is a networking group for building professionals and property managers working on biodiversity and the built environment in Ireland. Its objective is to provide a forum for industry leaders to share information on challenges and best practices, and to learn from each other. Members of the group include architects, developers, ecologists, engineers, investors, planners, property managers and representatives from local authorities.

Speaking at a launch event for the CoP, heritage minister Malcom Noonan – whose brief includes biodiversity – said: “The findings of the Citizens' Assembly on biodiversity loss are clear: We must all do more to protect nature. I am delighted to see the IGBC bringing together this group of leading building and property professionals to address this issue in the construction industry. I hope that the factsheet launched today will empower everyone in this sector to take concrete steps towards protecting and enhancing nature.”

The factsheet launched on biodiversity and the built environment offers useful insights to those working in the construction and property industry on what can be done to help nature thriving in the built environment, and in doing so address the climate crisis. The launch of the document follows a successful webinar

series, where experts showcased solutions and tools, and shared best practice to protect biodiversity when designing, constructing, renovating, or using buildings.

CoP chair Susan Vickers said: “As a sector, there is so much we can do to better protect and enhance biodiversity and play our part in Ireland’s Climate Action Plan, and in doing so improve people's quality of life. I am looking forward to working with all members of the Community of Practice, to learn from each other and to start making a meaningful impact in our field”.

The construction and built environment is a carbon and resource intensive sector, with a significant impact on biodiversity. These impacts happen both on-site and offsite, and result from land-use changes, pollution, climate change and the introduction of invasive alien species. However, when properly planned, designed, and maintained the built environment can protect and enhance nature, while improving people's health & wellbeing.

IGBC head of policy and advocacy Marion Jammet said: "With 400,000 homes to be delivered in the next decade, it is imperative for our industry to embrace the biodiversity challenge.

We must plan, design, build and renovate homes to protect and enhance nature in Ireland and further afield. I hope that the factsheet and the collaborative efforts of the Community of Practice will help everyone in this transition."

For more information visit www.igbc.ie. •

PASSIVE HOUSE+

NEWS

Construct Innovate welcomes thirty-five companies as first members C

onstruct Innovate, the University of Galway-hosted national research centre for construction technology and innovation, has announced Technological University Dublin as a new academic member and thirty-five companies as the first associate members.

Member companies will be supported by academic researchers and empowered to take ownership of the research, development and innovation activities required for their continued progression.

Construct Innovate provides access to a knowledge, business and innovation ecosystem to comprehensively deliver a broad agenda of strong innovation, engagement, excellence and impact in the Irish construction and built environment sector.

Dr Magdalena Hajdukiewicz, co-director of Construct Innovate, said: “Construct Innovate was founded just over a year ago with official launch in December 2022 and six months later it is very exciting to see the growing network of Construct Innovate. We are designing Construct Innovate to be inclusive for all stakeholders in the Irish construction and built environment sector, which builds on its current capacity and accelerates research and innovation.”

The announcement of the growing membership of Construct Innovate follows an academic industry meeting day (AIMday), the first networking and workshop event where members posed business challenges and sought new knowledge and solutions through work-

shops with multi-disciplinary groups of academic research experts.

As a result, the first research themes have been identified with working groups now being formed around these themes that include research and industry partners. The research programme of Construct Innovate will be driven by those multidisciplinary and intersectoral working groups to ensure research is focused on industry needs.

Construct Innovate centre manager Colm McHugh said: “Seeing the positivity and engagement that our industry members and academics brought to the first AIMday was very encouraging. It clearly demonstrated the scale of the issues that industry faces in transitioning to a more modern, productive and sustainable sector, but also the appetite and energy that is being brought by stakeholders to overcome these challenges. Construct Innovate will work to continuously facilitate vital research to assist our industry in this process.”

To coincide with the announcement of growing membership of Construct Innovate, University of Galway (UG) has launched a new postgraduate diploma in construction innovation, which starts in September.

Professor Jamie Goggins said: “The postgraduate diploma in construction innovation was developed in response to critical and proven skills needs in the construction and built environment sector. It is one-year, part-time, that aims to equip students with key knowledge and skills needed to develop sustainable tech-

nological solutions to the challenges facing the construction and built environment sector in Ireland and elsewhere.”

The course is funded through the Government’s Human Capital Initiative to provide 90 per cent funding towards fees, and fees are fully covered for those unemployed.

The diploma will enable prospective students to develop skills in digital adoption, sustainability and modern methods of construction (MMC), develop critical thinking, curiosity and problem solving to manage the innovation process, identify opportunities (and challenges) for innovation in the construction sector, create novel construction technology solutions to previously unmet, under-met and unrecognised problems, and continue their professional development for meeting the future needs of the construction sector.

Nuala McGuinn, director of UG’s Centre for Adult Learning & Professional Development said: “The postgraduate diploma is designed with busy professionals in mind who wish to upskill or reskill to meet the critical demand for skills in innovation, digital adoption, sustainability and modern methods of construction, as identified. Course delivery is flexible, combining online learning with periodic onsite workshops. Course assessment is focused on the workplace enabling students to immediately apply their learning to the workplace.”

For more information visit https://constructinnovate.ie/about-us/members/. •

London award-winner put the retro in retrofit W

ith polyester clothes and Cork interiors conjuring images of the 70s, it seems fitting that both materials should find a home in an award-winning retrofit to a house built in that decade: Bowman’s Lea. The Harry Paticas-designed retrofit to a London townhouse, which won the retrofit award at the recently announced UK Passivhaus Awards, uses recycled polyester to insulate the loft, and cork internal wall insulation. What’s next? Mirrorball windows? •

ph+ | news | 21

INGEBW C S U P DPA ATSES I V EP A HSOSUI V S E +H O U S E +

Align all of budget 2024 with climate targets: IGBC A

ll government spending and fiscal policy should be aligned with a 50 per cent drop in emissions by 2030, the Irish Green Building Council (IGBC) has said in a pre-budget submission.

IGBC CEO Pat Barry said: “EPA figures released earlier this month revealed a marginal decrease of only 1.9 per cent in Ireland's greenhouse gas emissions for 2022, making it increasingly challenging to meet our climate targets. This situation emphasizes the urgency for immediate action.

It’s hence critical that in 2024 all government expenditure and fiscal policies align with the objective of halving emissions by 2030”.

The IGBC pre-budget submission sets out a series of recommendations to decarbonise Ireland’s built environment while tackling the housing crisis and addressing the issue of inflation in construction, including several recommendations to support better use of the existing building stock and high-quality energy renovation, as well as the development of more sustainable new homes.

“Government must lead by example when providing funding for public procurement or grant aid to private developers,” said Barry. “It must require evidence of enhanced sustainability beyond minimum building standards for all new housing and construction, as is already done in other jurisdictions”.

The submission also calls for the introduction of a 9 per cent VAT rate on construction products which contribute to carbon savings in the operational phase of a building life cycle, highlighting that within two years, this reduced VAT rate will be reviewed to consider embodied carbon emissions.

To grow the market for sustainable materials the submission calls for financial incentives and direct funding of production facilities for biobased construction materials (such as CLT, sheep’s wool, hemp, and straw), as was done in Scotland to support the development of natural fibre construction insulation. The submission also proposes fully resourcing NSAI to make it easier and faster for new innovative, low embodied carbon materials to be placed on the Irish market without lowering standards.

Taking inspiration from requirements in Germany for projects funded by stateowned investment bank KFW, the sub-

22 | passivehouseplus.ie | issue 45

mission suggests new homes could be built to align with Ireland’s climate objectives using green building certifications such as the Home Performance Index or equivalent –– and first piloted on a programme where subsidies are significant, such as the Croí Cónaithe (Cities) Scheme.

The Home Performance Index (HPI) is Ireland’s national certification system for quality and sustainable residential development. The label was developed by the IGBC with support from the EPA and after extensive consultation with the industry. The HPI certification is based on verifiable indicators that are divided into five categories: environment, economic, health and wellbeing, quality assurance and sustainable location. 24,000 homes have registered for certification to date.

While new homes are needed, Mr Barry stressed the absolute necessity of better supporting the reuse of our existing buildings. According to the IGBC, the carbon cost of a home deep retrofit is approximately a quarter of a new build.

“Many vacant and underused properties to be retrofitted are in easily accessible locations with reduced dependence on cars. Encouraging reuse would help reduce Ireland's fastest growing carbon emissions namely from transportation. Furthermore, this approach will help provide more housing while revitalising city, town, and village centres.”

Actions recommended by the IGBC to support this approach include extending the “First Home Scheme” to renovation projects in village, town and city centres, making the “vacant property refurbishment grant” available in instalments, and allocating funding and resources to pilot a one-stop shop for re-use to make it easier for building owners and prospective buyers to bring back properties into use, along with another one-stop shop pilot for traditional buildings.

The submission also calls for reforms to the free energy upgrades scheme to ensure low-income households living in low BER homes are eligible – regardless of home ownership status and/or welfare payment eligibility.

Other highlights from the IGBC’s budget asks for 2024 include including allocating funding for: • well-resourced community energy advice services in each local authority;

According to the IGBC, the carbon cost of a home deep retrofit is approximately a quarter of a new build.

• local authorities better supporting the re-use of construction materials, such as by providing storage facilities for large quantities of high-quality construction materials for re-use; • a warranty scheme for all SEAI’s retrofit schemes to better protect building owners and increase trust in the process; • a register of independent energy renovation advisors to make it easier for building owners to identify building professionals who have upskilled in energy renovation, hence supporting quality renovation. This would complement SEAI’s list of registered technical advisors; • piloting the introduction of Building Renovation Passports as a first step to access any single measures under the Individual Energy Upgrade Grant scheme; • allocating funding for the development of more user-friendly information for homeowners/occupants, such as to improve the technical manuals that are shared with building users post retrofit and make them available in various formats (e.g., short videos); • introducing low interest energy renovation loans as soon as possible, making sure these are true low interest loan (i.e., 1-2 per cent as per international best practice).

The IGBC’s pre-budget submission was developed in close cooperation with its members and is available at www.igbc. ie/wp-content/uploads/2023/07/ IGBC_Budget24_Final.pdf.

You can find out more about the Home Performance Index at https:// homeperformanceindex.ie/

PASSIVE HOUSE+

NEWS

#BuildingLife series: Addressing the environmental impacts of buildings across their lifecycle.

I

n this #BuildingLife Ambassador Spotlight Series, Passive House Plus is profiling leaders who have endorsed the Irish Green Building Council’s call to address the environmental impacts of buildings across their lifecycle.

In this issue, Ciaran Cuffe, Member of the European Parliament (MEP), and rapporteur for the proposed revision of the Energy Performance of Buildings Directive (EPBD), tells us more about the campaign, the EPBD recast, and why he is supporting #BuildingLife.

Why did you choose to become a #BuildingLife ambassador?

Ciaran Cuffe: I became a #BuildingLife ambassador because, as an architect, a member of the Green Party and a legislator, this role aligns perfectly with my professional expertise and passion for a sustainable built environment. Buildings account for approximately 40 per cent, of the energy consumption in the European Union, and are responsible for 36 per cent of the greenhouse gas emissions. Decarbonising our building stock presents a tremendous opportunity to address climate change and tackle energy poverty at the same time. The majority of buildings in Europe remain energy inefficient. By advocating for and promoting building renovations, we can achieve clear wins in terms of energy efficiency, reducing carbon emissions, and lowering energy bills.

The goal of achieving climate neutrality by 2050 is clear and imperative. As a #BuildingLife ambassador, I am committed to helping pave the way toward this target by demonstrating the necessary political will and determination to drive change in our sector. I aim to contribute to the vital mission of transforming the building industry, making it more sustainable, energy efficient, and environmentally responsible.

What are you hoping to achieve with the #BuildingLife campaign?

CC: With the #BuildingLife campaign, my primary objective is to address the numerous barriers that currently hinder building renovation efforts. These barriers include challenges within supply chains, skills and labour shortages, and insufficient financial resources. As an ambassador for the campaign and an MEP, I believe I have a crucial role to play in overcoming these barriers and paving the way for more energy efficient

buildings that are accessible to everyone, no matter your income. The role of politics is pivotal in this effort, and it is essential to pass laws and regulations that support and facilitate energy efficient building practices.

As ambassadors, we can advocate for these policy changes and work towards creating an environment that fosters sustainable building practices.

One of my core aspirations with the #BuildingLife campaign is to maintain sustained pressure for action. By being an ambassador, I can contribute to keeping the spotlight on the importance of energy efficient buildings. Moreover, I aim to inspire households in Ireland to take action by showcasing the benefits of energy efficiency, including improved comfort, reduced energy bills, and enhanced health outcomes.

Can you explain a few ways in which you are working in the European Parliament towards a sustainable built environment?

CC: One of the key areas where I am actively involved is in shaping a crucial piece of legislation called the Energy Performance of Buildings Directive. As the lead negotiator in the European Parliament, I am committed to driving this legislation forward, as an essential part of the action plan to make our buildings climate neutral through renovations and reduce energy poverty. Moreover, I have been dedicated to raising awareness among fellow MEPs about the significance of energy efficiency. Through discussions and engagement, I aim to increase understanding and support for energy efficient measures, which can bring about substantial improvements over time.

An important aspect of my work is to prioritise the needs of vulnerable and low-income households. I advocate for policies that focus on buildings with high energy consumption, as addressing their energy inefficiency can have a significant positive impact on both reducing energy bills and enhancing people’s quality of life.

It's crucial to recognise that achieving a sustainable built environment encompasses more than technology. It involves addressing financial barriers and taking into account social considerations, and access to information services. As part of the EPBD recast, I am actively involved in creating an ecosystem that supports these aspects, including the introduction

of minimum energy performance standards (MEPS) and the establishment of high quality one-stop-shops across Europe.

There is an extraordinary opportunity at the EU level to mainstream sustainable building practices. We are at a critical juncture where taking swift action is important and urgent. I look forward to working with everyone involved in the #BuildingLife campaign to support this transition.

An important aspect of my work is to prioritise the needs of vulnerable and low-income households.

About #BuildingLife

#BuildingLife is a project led in Ireland by the Irish Green Building Council. The initiative aims to achieve the mix of private sector action and public policy necessary to tackle the whole-life impact of buildings.

Learn more and endorse the Building a Zero Carbon Ireland Roadmap at https:// www.igbc.ie/building-a-zero-carbon-ireland/. •

ph+ | news | 23

DR MARC Ó RIAIN

COLUMN

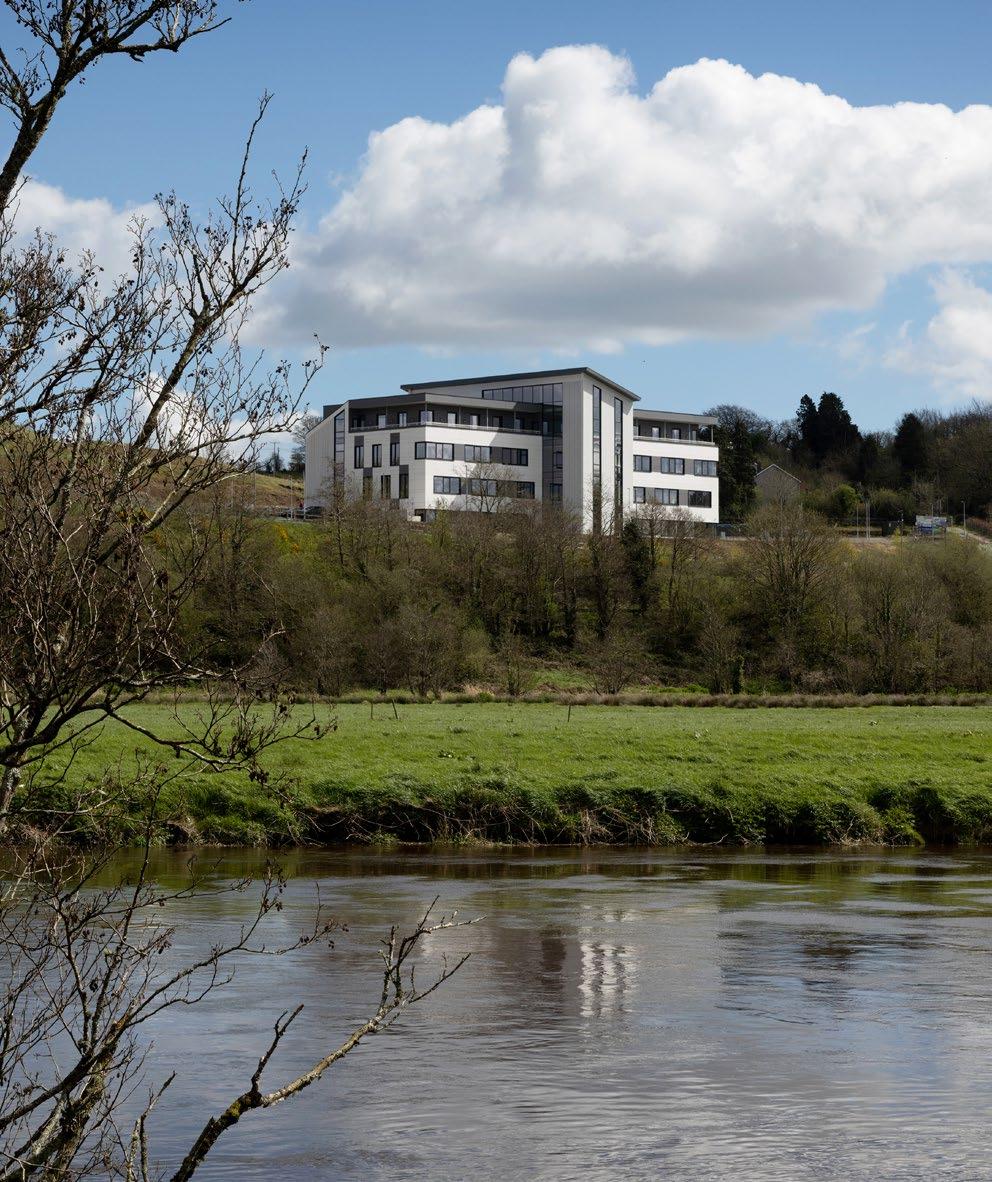

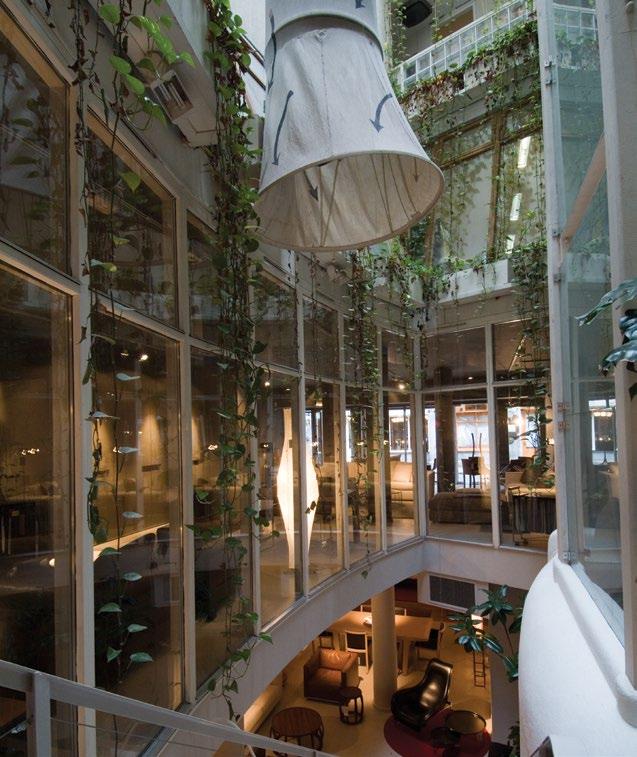

An early green building in a changing Ireland It’s fair to say that green building wasn’t a thing in early 90s Ireland, which makes one extraordinary Dublin project from 1994 all the more remarkable, as Dr. Marc O Riain writes.

A

lmost 30 years ago, designers and researchers set out to create a modern ‘green’ building on a vacant lot in the centre of Temple bar at the outset of its regeneration. I, at the time, was street-painting across from Trinity and had a good view of the queue that formed a day before the apartments went for sale. Word on the street was one could get paid for holding a spot in the queue for potential buyers of the eight apartments. So, what made the Green Building an instant hit?

Supported by €3m in European funding in 1994, Tim Cooper with Murray O'Laoire Architects developed a design for the Green Building. It was described in a 2007 feature in Construct Ireland, the progenitor magazine of Passive House Plus, as “an innovative mixed-use development of offices, apartments and shop units laid out around a six-storey central courtyard designed as a semi-external atrium space with a glazed operable roof. The atrium's roof is oriented southwards and designed to naturally ventilate and light the building”.

The building was designed with a low glazing factor and high interior radiant panel surfaces supplied by low temperature solar water heating. It was cooled in the summer by drawing cold air up through the atrium at night using canyon and stack effect ventilation. The building benefitted from its compact apartment units’ mid terrace location, thus reducing surface heat loss. The envelope uses a mineral wool external insulation sys-

24 | passivehouseplus.ie | issue 45

tem coupled with south-facing double glazed windows and triple glazing on the north face.

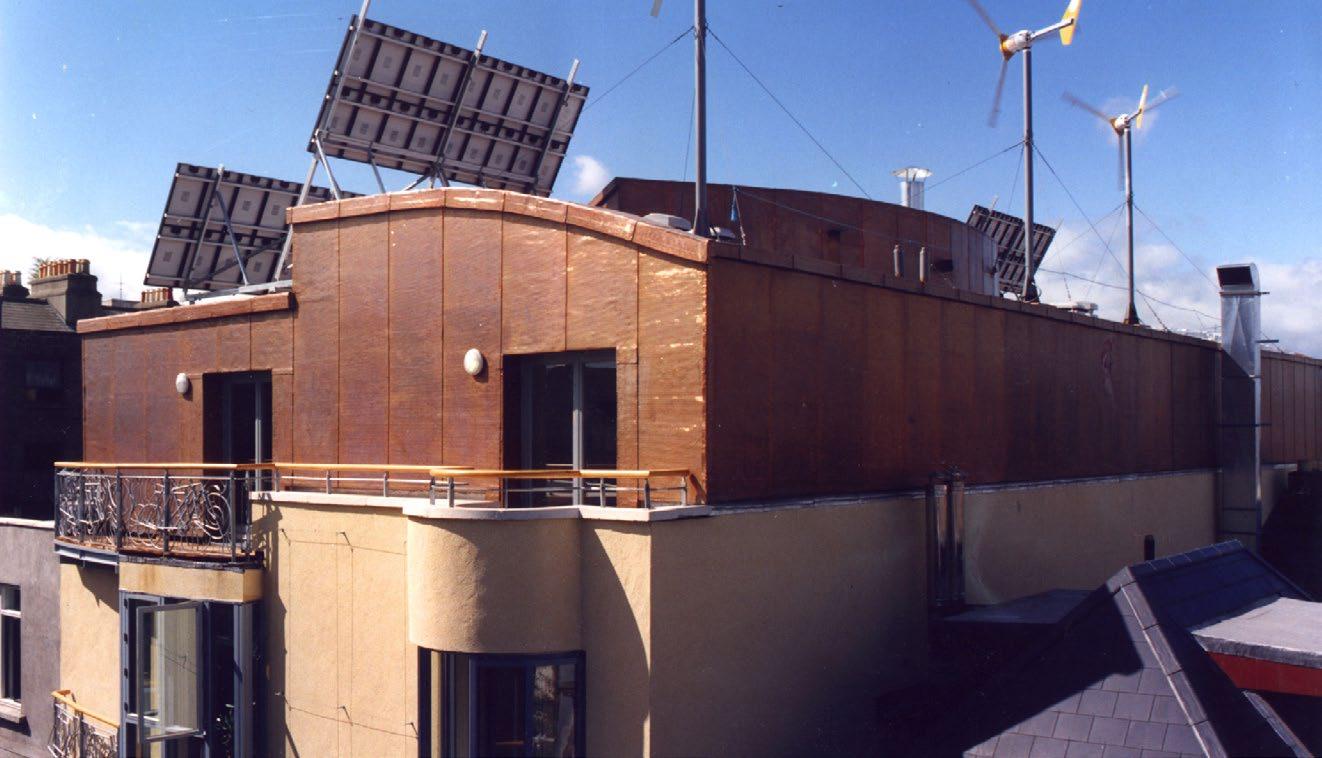

Although the roof initially featured wind turbines combined with solar electric panels (PV), the turbines would be later decommissioned because they were not successful. “The problems have been two-fold: firstly, their vibrations were heard in the penthouse apartments causing some discomfort for residents and, secondly, they failed to reliably produce power due to turbulence,” Walsh wrote.

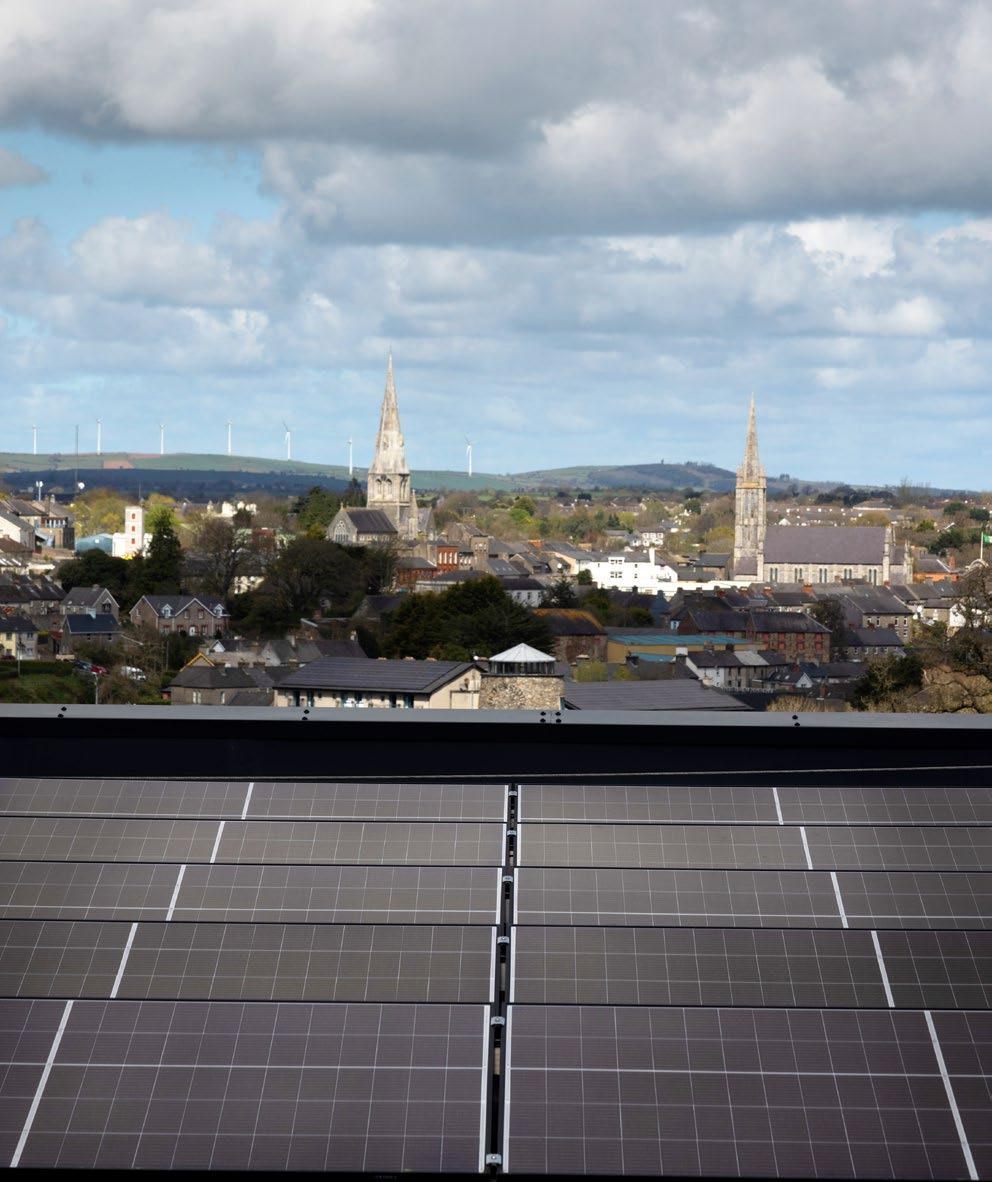

The PV panels were another matter. The PV energy production (3,000 kWh/a) met 75 per cent of associated heat pump electrical demand (4,000 kWh/a) when built.

Although grid connected, surplus electrical energy was fed back to the grid for free, as there was no associated purchase tariff at the time. “When we first put them in (PV panels) we couldn't grid connect,” Cooper told Walsh in 2007. “So, we had to put in the massive accumulator and a stack of inverters. That is now all redundant. The grid-connected photovoltaic alone is much more efficient than the photovoltaic and turbines were together, before".

Space heating and domestic hot water was driven by a ground source heat pump and evacuated solar tubes on the roof. The vertical ground source heat pump runs at a very efficient 5:1 co-efficiency of performance, which is impressive even by today’s standards. Interestingly Cooper reports that bedrock temperatures in Dublin have risen 2.5 C in the past 28 years since the bore-

hole was first measured, either a reflection of global warming or urban heat island effect.

Whatever the reason, it must be improving the heat pump efficiency.

This early Irish example of low energy building design had a blend of passive and active solutions. Of the active solutions the PV and ground source heat pump would appear to function well with the internal thermal mass of the building fabric. It was definitely a signpost for things to come, as building standards in Ireland had just been introduced in 1992 and energy efficiency standards under Part L of the Building Regulations, didn’t differ too much from the 1974 elective standards. It would be the Kyoto protocol in 1998 which would drive the European Union to introduce the Energy Performance of Buildings directive in 2002 which would have a direct impact on the design of our buildings going forward. It is perhaps only today, almost 30 years later, that we have caught up with the Green Building in Dublin. It is a testament to the visionaries who brought this new ground in a very conservative country which itself was on the brink of change. n Dr Marc Ó Riain is a lecturer in the Department of Architecture at Munster Technological University (MTU). He has a PhD in zero energy retrofit and has delivered both residential and commercial NZEB retrofits In Ireland. He is a director of RUA Architects and has a passion for the environment both built and natural.

Photos: David Ruffles

SHOWROOMS: CORK, DUBLIN, GALWAY & BELFAST CORK, DUBLIN, GALWAY & BELFAST UNPARALLELED CHOICESHOWROOMS: OF PASSIVE CERTIFIED PRODUCTS – OUTWARD OPENING, INWARD OPENING, UPVC, ALUMINIUM, ALUCLAD UNPARALLELED CHOICE OF PASSIVE CERTIFIED PRODUCTS – OUTWARD OPENING, INWARD OPENING, UPVC, ALUMINIUM, ALUCLAD

GROUND BREAKING U-VALUES FROM AS LOW AS 0.47W/M2K GROUND BREAKING U-VALUES FROM AS LOW AS 0.47W/M2K T. 064 7751151 E. info@munsterjoinery.ie T. 064 7751151 E. info@munsterjoinery.ie

WINDOWS & DOORS WINDOWS & DOORS

www.munsterjoinery.ie www.munsterjoinery.ie QUALITY I.S. EN ISO 9001:2015

NSAI Certified

QUALITY I.S. EN ISO 9001:2015

NSAI Certified

DASBE

INSIGHT

LICENCE TO SKILL

NEW ACCREDITATIONS AVAILABLE FOR SUSTAINABLE BUILDING AND RETROFIT The ever-tightening ambitions to integrate sustainability throughout Ireland’s new and existing buildings won’t be realised unless we can find smart, flexible ways to upskill the industry. Lis O’Brien of Technological University of the Shannon (TUS) explains how Digital Academy for Sustainable Built Environment (DASBE) has it cracked.

D

ASBE is creating an innovative digital training platform where professionals and workers alike can not only find and choose from a range of programmes, but also develop their own training plans. In a bid to respond to the ever-changing demands of the construction industry, DASBE is funded under Pillar 3 of the Higher Education Authority Human Capital Initiative.

New training is constantly being designed and developed, and DASBE is always looking for new ideas and needs from the industry. Whether this training leads to micro credentials or certificates, if the training is funded by DASBE, it will always be accredited. It’s about knowing that you will be upskilled by the best in the industry and validated by professional bodies.

For individuals and companies alike, upskilling is essential. The industry is constantly moving forward, and regulations have changed significantly in the last five years. The “bibles” for the industry, such as the Building Regulations, and NSAI’s SR 50 (Standards for modern plumbing and heating) and SR 54 (the code of practice for the energy efficient retrofit of dwellings, which is currently under revision) are key to understanding construction – especially for residential buildings.

Residential buildings in particular need our help. The level of construction in many

26 | passivehouseplus.ie | issue 45

cases is still well below par and the “performance gap”, a common expression used these days, is not being closed. Often, I am told about short-cuts being made – short cuts which are lethal to the quality of build.

This can be anything from poor window installation causing thermal bridging, to the stubbornly persistent phenomenon of cavity walls packed with paper cups and rubbish from the site – like some nightmarish subversion of the circular economy – and, shockingly, no DPC being installed.

Eleven years ago, we at TUS started a campaign for quality construction with the Build Up skills (BUSI) project QualiBuild. Some older – or should I say more mature – readers may remember this. But unsurprisingly, poor workmanship still exists. I suppose it is politically incorrect to use gendered words like workmanship, but I stand by the use of the word in this case as the uptake of women in the market is still so low.

Women currently make up less than 10 per cent of the construction workforce in Ireland – with only 1 per cent taking up jobs working on site. So how do we rebalance the gender quota?

In reality there is interest, especially from the younger cohort, but as usual the infrastructure is not there. What I mean by

this is that a woman with young children needs child support and incentives to help working on site. This is why many move towards the managerial or administrative roles. I was lucky – or perhaps I struggled unnecessarily – in that I was self-employed supervising work on site for houses and small retrofits in the middle of the boom, so I didn’t have to travel far for work and childcare was worked around.

The dramatic changes to the roles of workers in the construction industry are pretty obvious now, with an urgent need for young people with IT skills. Let’s face it – anyone below 30 has been brought up with laptops and gaming. This skillset fits pretty well into the role of a drone operator, robotics operators, and BIM technicians and coordinators.

There is less heavy lifting on site now and it certainly isn’t a dirty workplace, with the advent of modern methods of construction (MMC), heat pumps and green technologies. Given the opportunity and the transformation that’s occurred in how we build, if you’re not currently working in construction, why wouldn’t you want to join?

So let’s get back to upskilling or even reskilling. We all need to be diverse in our life and a change of direction is always good.

Recent research in DASBE and Build Dig-

INSIGHT

ital projects has predicted the urgent need in the construction sector for a number of key roles. Retrofit experts (in particular for dwellings), traditional building advisors, site coordinators / clerk of works, heat pump installers and technicians, BIM coordinators and technicians, and drone and scanning experts are some of the needs which are being looked at

by DASBE. We are busy working with the industry and other educational bodies such as the educational training boards, the Construction Industry Federation and of course other technological universities. It’s a busy period ahead, but it will be worth it in the end to upskill our workforce. It may be fair to say that we are one of the most upskilled workforces in Europe – and that comes from my experience working on EU projects for over 12 years and speaking at many events in Europe on construction skills – but we still have so much room for improvement.

One of the most challenging areas for the industry is the energy renovation of traditional buildings. This has rapidly become a popular topic with the announcement of the Conservation Advice Grant Scheme for Vacant Traditional Farmhouses. This avails of expert advice and supports the Vacant Property Refurbishment Grant of up to €50,000 to renovate a vacant property. And an added bonus is that these grants can be used in conjunction with the existing Sustainable Energy Authority of Ireland (SEAI) grants to help improve the energy efficiency of a home.

So how can we make sure the advice is suitable for the building? We need to make sure that architects and engineers working on these buildings have the knowhow – and also the skills – so that when they give advice, it’s the right advice, because renovating a pre-1940s vernacular building is a different kettle of fish to a newer concrete build.

This is where the Certificate in Energy Renovation of Traditional Buildings comes into play. People who gain this accreditation will know how to prepare a condition survey, how to detect defects and competently analyse them, and how to make informative

decisions to get it right from the start, before any extensive retrofit works have happened.

The Certificate in Energy Renovation of Traditional Buildings supported by the Irish Heritage Council starts in September for twenty-four weeks and has the illustrious Colm Murray – a bona fide heritage guru – delivering the first module on the fundamentals of energy renovation.

You could be forgiven for thinking digital tools and building information modelling (BIM) are restricted to the cutting edge of modern construction, but try telling that to Finola Deavy, our own renowned TUS lecturer. Finola is a passionate advocate for the application of digitalisation in heritage buildings and will deliver a module on how to prepare a condition survey, and how to use digital tools to streamline your work and investigate defects in more detail.

What’s not to like? The last run of this certificate was hugely popular and feedback was, frankly, amazing, with glorious testimonials and praise for not only the lecturers, but also the expert industry speakers, practical workshops and informative site visits.

“It’s been great in terms of learning about different ways to improve the energy efficiency of the buildings - roofs, floors, windows, walls etc.” said John Beatty, conservation officer, Dublin County Council. “It’s covered a whole gambit, starting from first principles and basics through to complexity of porosity and hygroscopic materials.

There’s been a really good mix of people on the course – architects, people working in authorities, BER assessors and contractors themselves and this stimulated a range of conversations which I found really useful. I really enjoyed the site visits in the Georgian Quarter in Limerick seeing physical case studies, and the speakers themselves have a really broad range of knowledge. Having international speakers and keynote speakers from Ireland was fantastic and it has been really worthwhile. I enjoyed it.”

Angela Naughton, senior assistant chief fire officer, fire & building control department,

DASBE

Clare County Council was equally positive: “From completion of this course, I have a far better understanding of how modern materials and modern practices cannot simply be imposed onto older buildings that were designed on entirely different principles, where issues of moisture movement and risk are different from those found in new construction.

“I was inclined to encourage everyone that was carrying out retrofit works to strive for compliance with the Building Regulations,” said Naughton. “I now have a better understanding that the Building Regulations cannot always be applied to traditional buildings. I also have a better understanding on how the use of computer models such as DEAP to predict energy use in traditional buildings is not very accurate as the default values of DEAP are often significantly different to measured energy use. Rather than relying on default values, an understanding of renovation materials and traditional materials must always be considered.”

Hopefully this interactive, informative and innovative course will continue to be acknowledged. It should be noted that this year the delivery is now fully blended with evening online lectures, practical workshops and site visits around Ireland. If you have any building that we can showcase on this course reach out to us, as we could well include it.

We also have the Certificate in Scan to BIM and the newly validated Assets for VR, which actually fit very nicely within the realm of renovating traditional and historical buildings by gathering detailed information and collecting this in a database to assess and carry out pathological analysis if required. And last, but definitely not least, one course that will be very popular and will be a game changer in renovation is the Certificate in Drones for Construction. While this course is specifically aimed at attracting younger learners, it does not exclude more mature learners.

For more information visit www. dasbe.ie •

ph+ | dasbe insight | 27

CHURCH ROAD

CASE STUDY

IN BRIEF Development type: 47 unit housing scheme, comprising apartments, duplexes and houses Method: Externally insulated hollow block walls with brick slips Location: Killiney, Co. Dublin Standard: Passive house classic Heating costs: €74 to €265 per year *Prices based on the smallest (77 m2) and largest (220 m2) homes in the scheme.

See In detail panel for more information.

28 | passivehouseplus.ie | issue 45

CHURCH ROAD

CASE STUDY

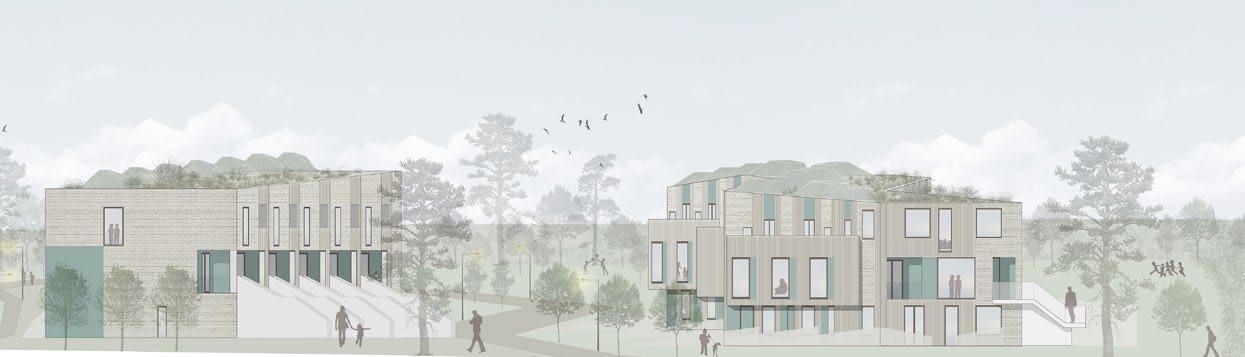

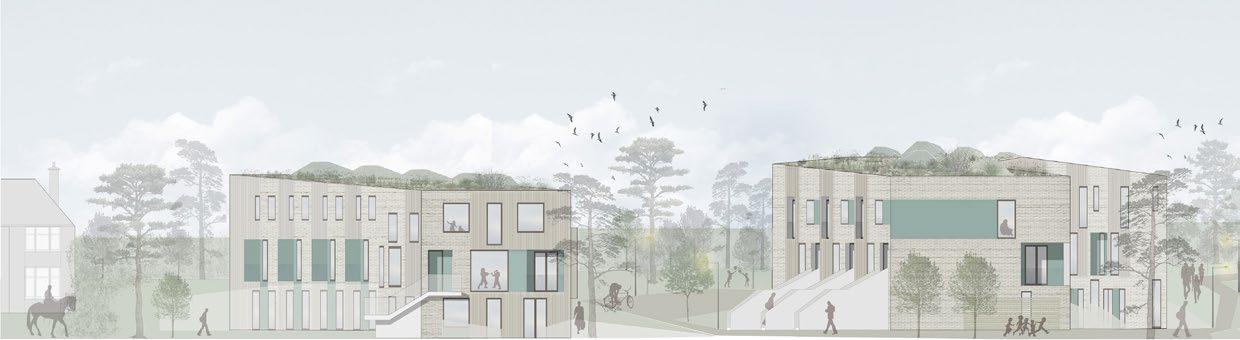

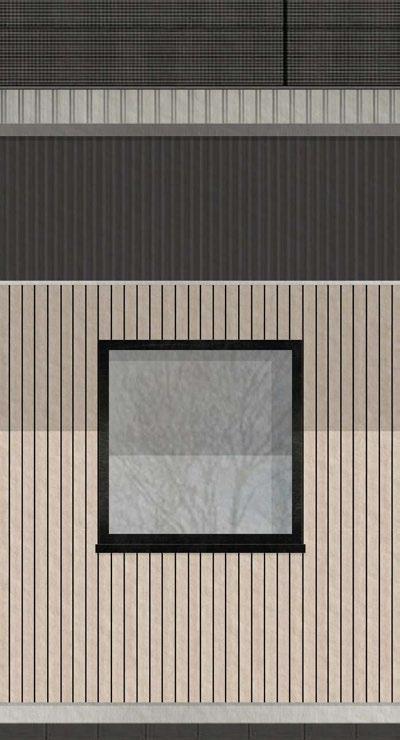

HOPE SPRINGS EXTERNAL Section A-A

1.

2.

3.

4.

5.

6.

7.

Living room Ensuite Stairs Bed 3 Bed 1 Storage Utility

HIGH END PASSIVE HOUSE SCHEME LANDS IN KILLINEY What happens when one of Ireland’s most seasoned passive house builders and a renowned design-led architecture practice collaborate?

They create a head turning, high density passive house scheme that showcases the aesthetic possibilities of external insulation.

By Jason Walsh

ph+ | church road case study | 29

CHURCH ROAD

CASE STUDY

B

uilding new homes in the middle of a housing crisis would seem uncontroversial. There are always pitfalls, however, from planning objections to the temptation to scrimp on quality simply in order to get numbers up. In light of this, any significant development will face an uphill battle getting planning permission, not to mention the danger that buyers will be nonplussed by the attention to technical detail.

And yet this is precisely what has been delivered in Egremont: 47 dwellings on a one-hectare site, designed to a high standard with extreme care taken to meet sustainability goals, including the passive house standard.

And all of this done in a district not known for approving planning for new housing of any sort, let alone a high-density mix of terraced houses, apartments and duplexes.

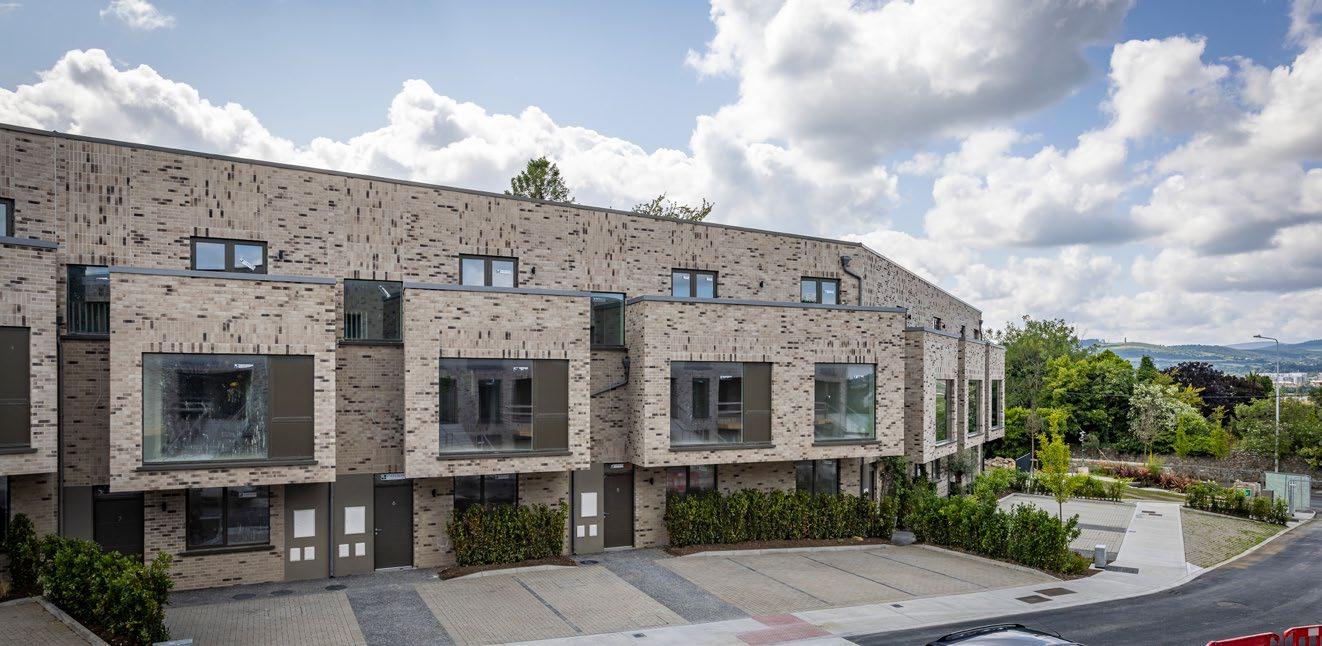

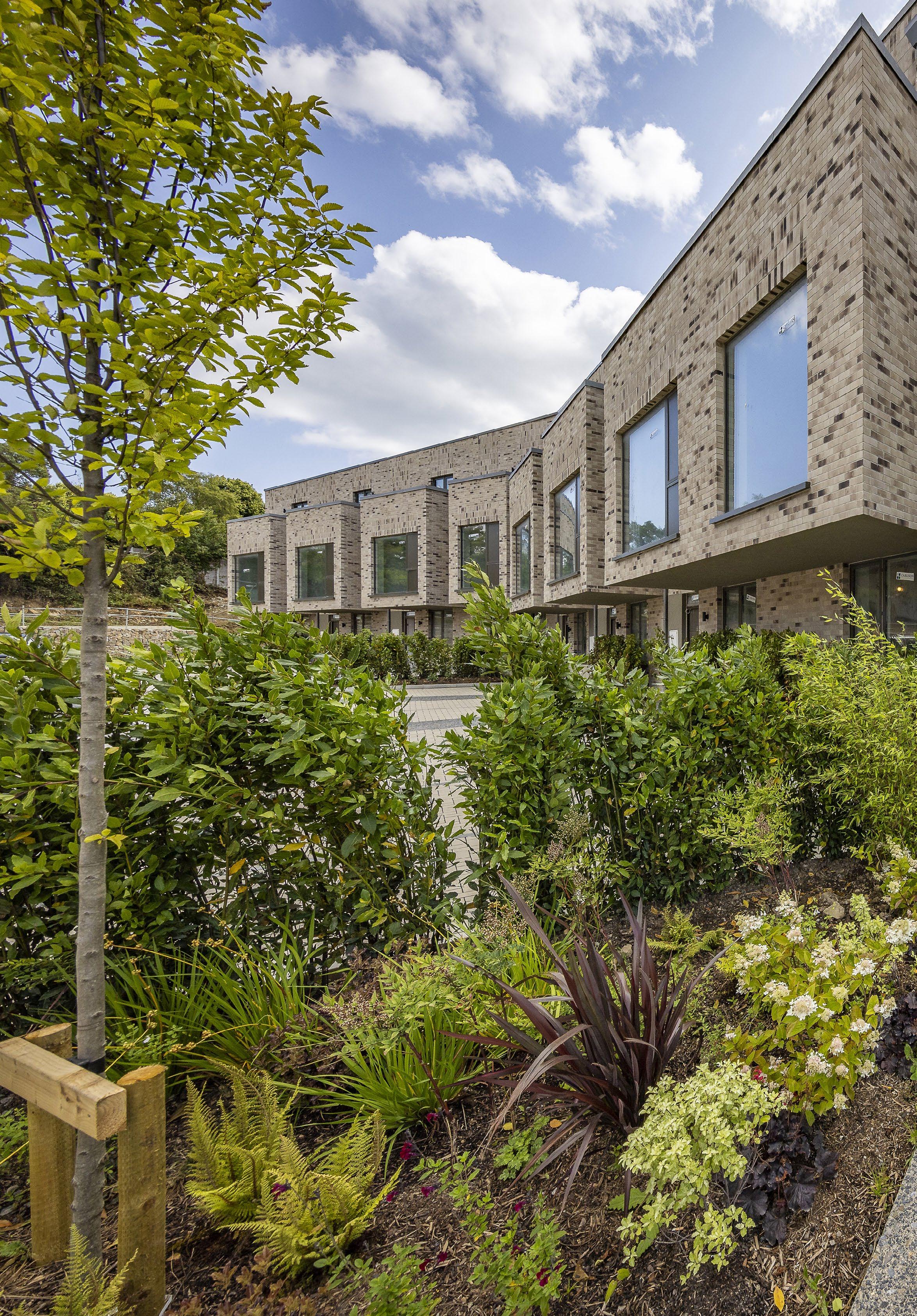

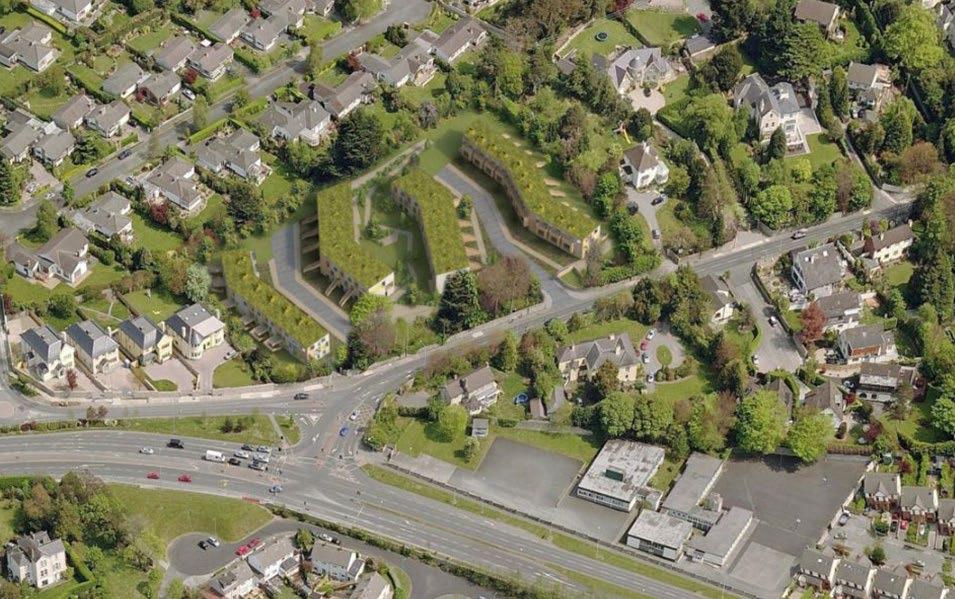

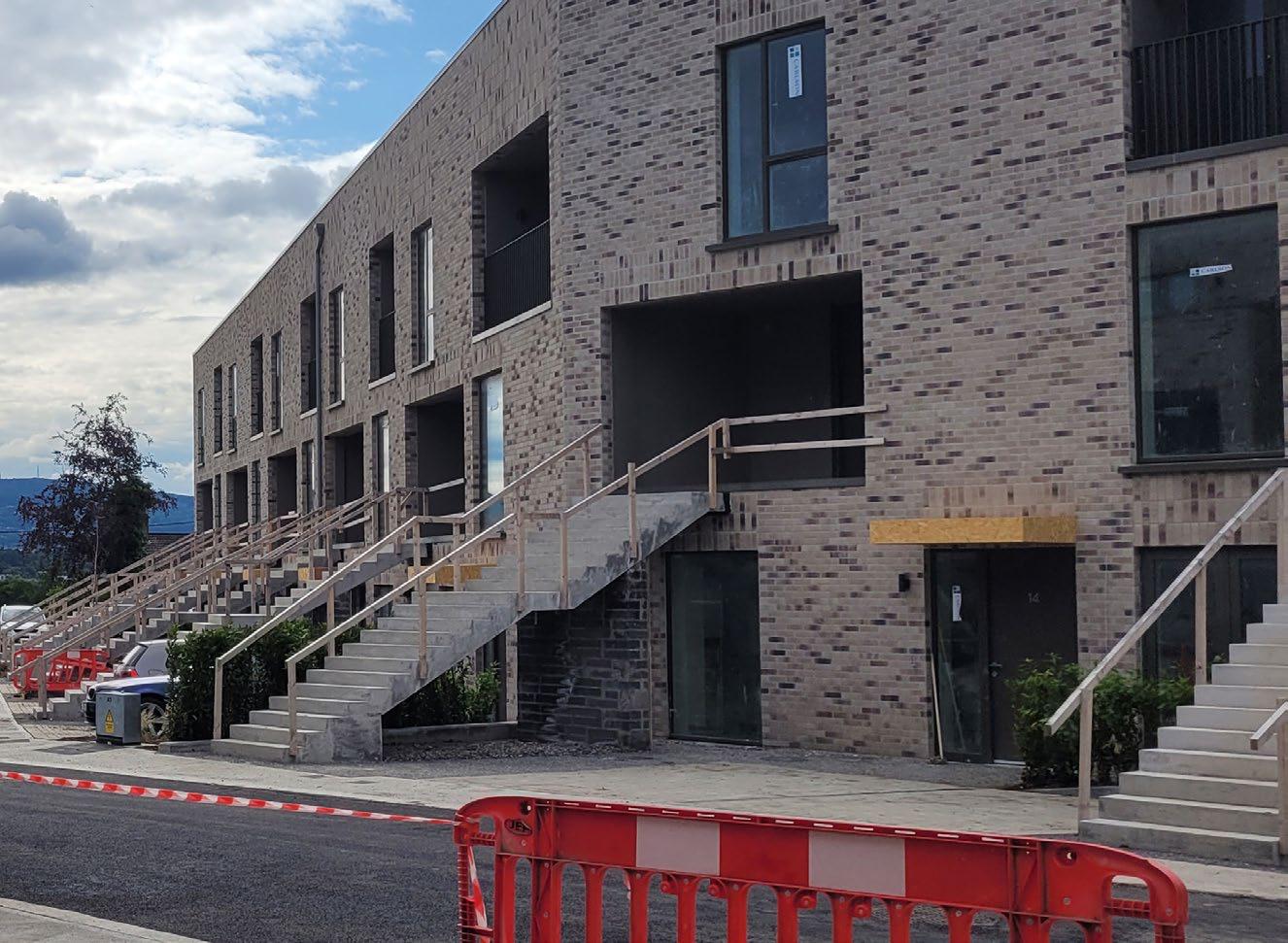

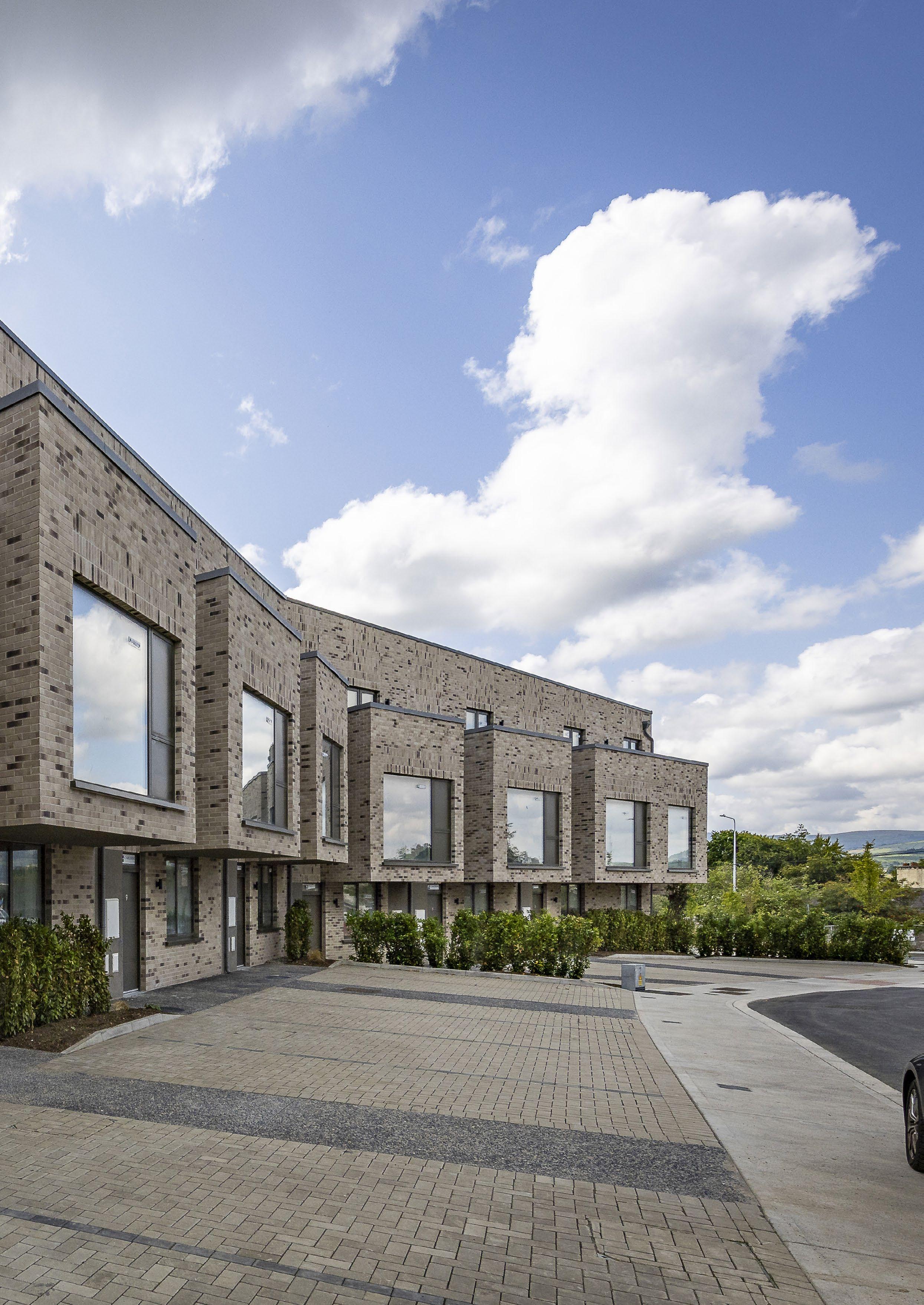

Located on Church Road in Killiney, County Dublin, the homes in Egremont are A2-rated and all electric, heated by an integrated air-based heating and ventilation system in the smaller units, and air-to-water heat pumps in the larger ones. Developed by Durkan Residential and designed by Ruth O’Herlihy of architects McCullough Mulvin, the development also saw consulting input from Irish passive house pioneer Tomas O’Leary of MosArt. When it comes to low energy building and retrofit, Durkan Residential has form. The firm set up an external insulation arm, Ecofix, in 2009, with pioneering green architect and sustainability consultant Jay Stuart. The

30 | passivehouseplus.ie | issue 45

firm built what remains Ireland’s largest passive house scheme, the 59-unit phase three of Silken Park in City West, and a sheltered housing scheme that became one of Ireland’s largest Enerphit schemes, St Bricin’s in Arbour Hill, Dublin city. Durkan Residential’s Barry Durkan said that, with this development, the twin goal was to meet the energy efficiency and sustainability standards that the company has put at the centre of its work, but to do so without making any compromises on design.

“Church Road is quite architecturally unique. It was always going to stand out. We did go down the road of passive house four or

five years ago, and I wanted to continue to do so,” Durkan said.

This proved a point, he says: the passive house standard could be adapted to all manner of architectural forms, including quite adventurous ones.

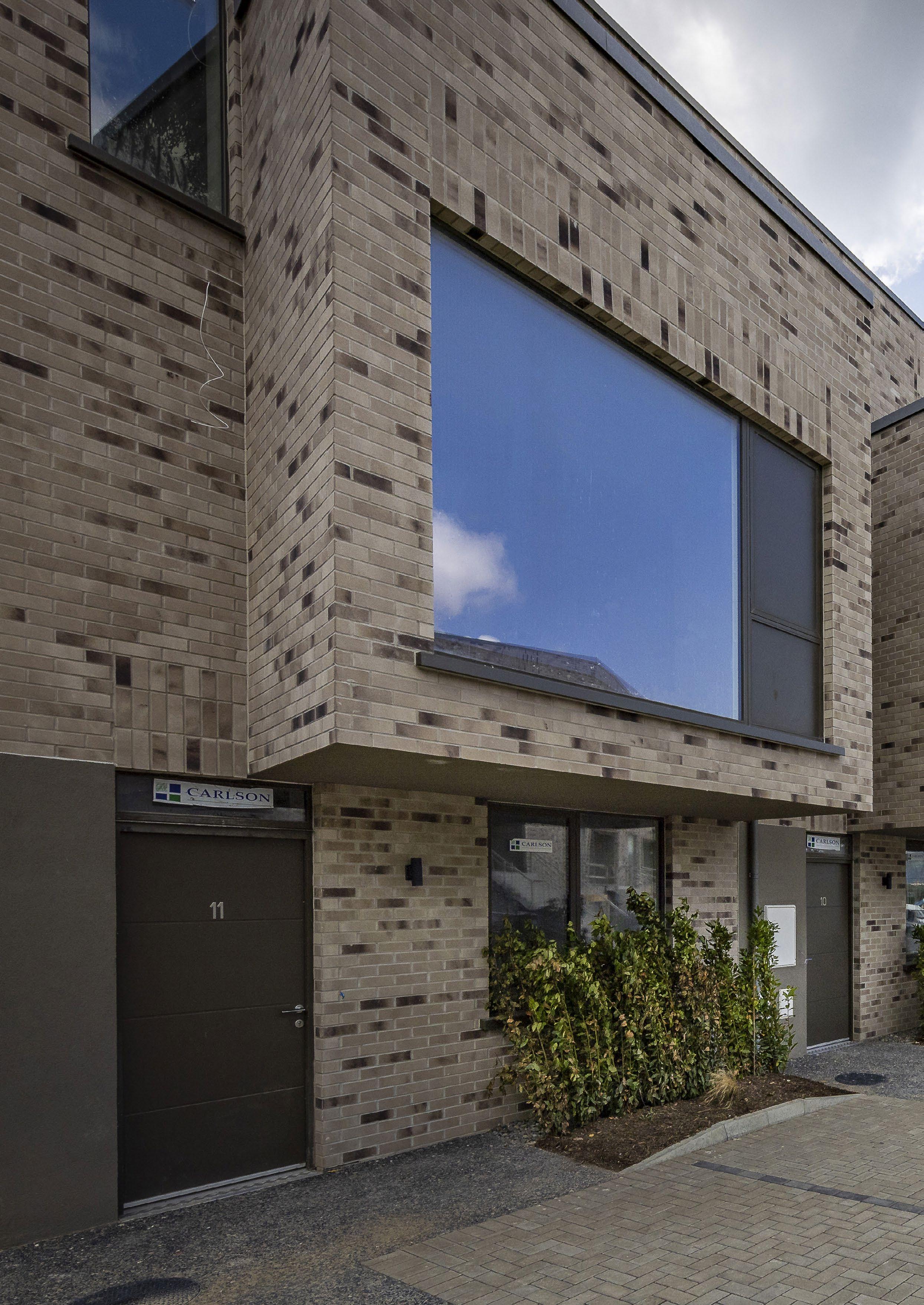

“The design called for lots of cantilevers, lots of balconies. That’s what I like about passive house: it’s a scientific model, so you eliminate all of the cold bridging, and you can prove you have done it. There’s no guesswork,” he said.

This is especially important as Durkan wanted the buildings to have design elements not typically associated with passive

CASE STUDY

CHURCH ROAD

It proves the point that a passive house doesn’t have to be a rectilinear box.

GF

GF

1F

1F

house developments.

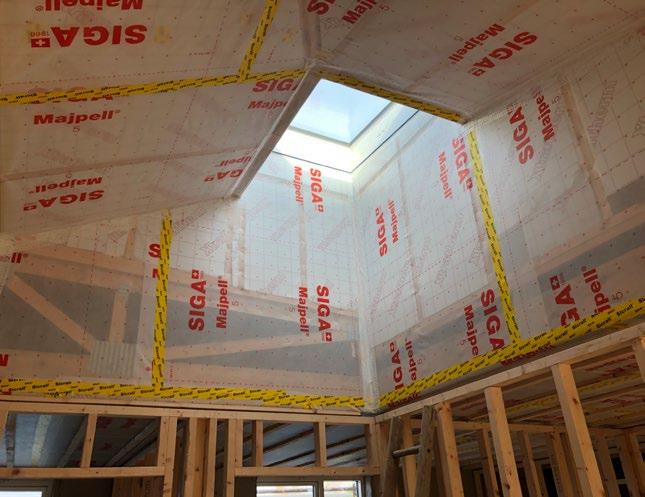

“Airtightness is a real challenge with cantilevers,” he said.

In addition, sedum roofing added additional natural insulation to the main insulation layer beneath, but its primary focus was to consider the environment in a broader sense than energy use. Egremont was built on the grounds of two demolished houses in a

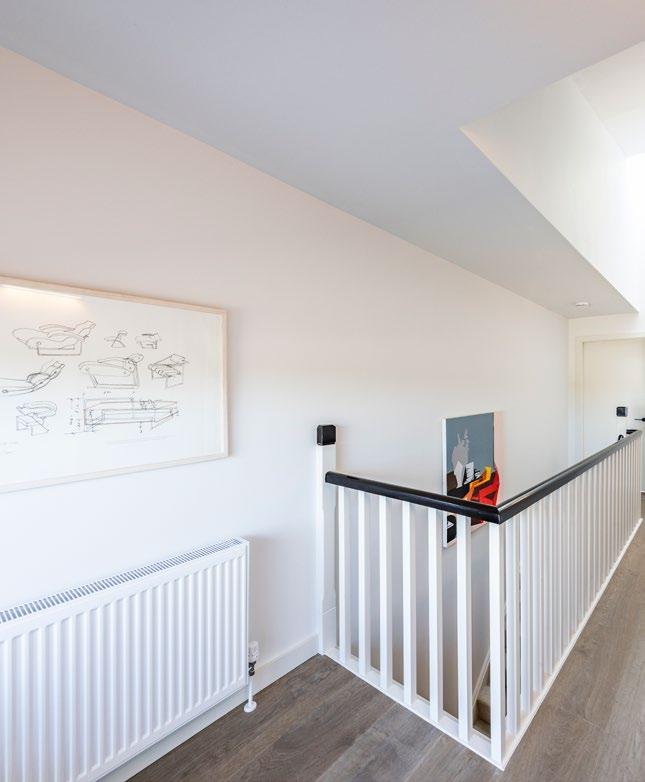

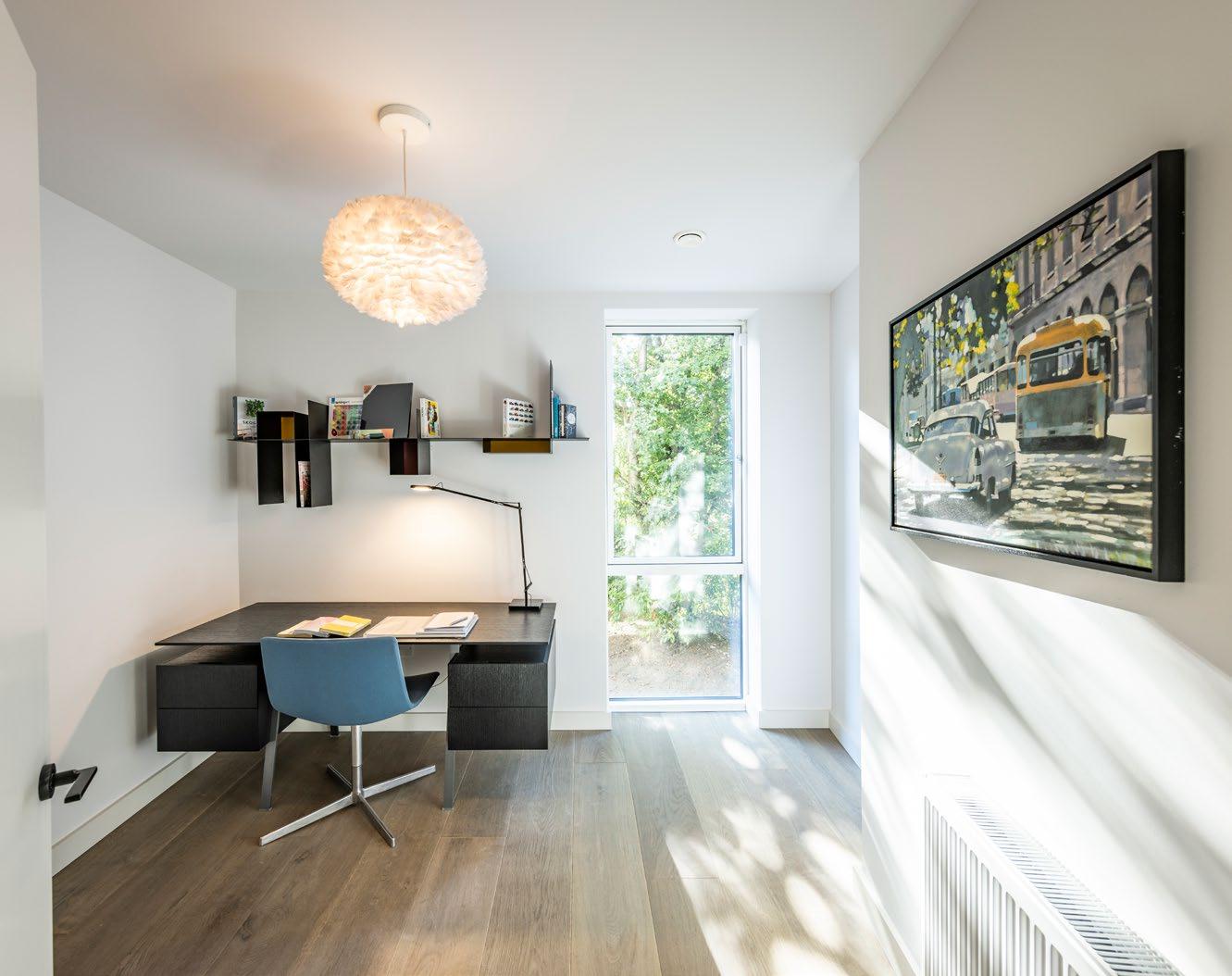

Photos: Terry McDonagh

2F

2F

leafy suburb. As a result, adding 47 dwellings required deep consideration of landscaping.

“The whole idea of the development is, because it’s an infill site with lots of houses around it, we had to help it blend into the landscape,” Durkan said.

The result has been transformative. Durkan Residential committed to the passive house standard some years ago, but until now, and

particularly with the ongoing housing crisis, energy issues have been secondary for buyers who are often happy to get any home. With Egremont, however, buyers have taken note of the buildings’ performance.

“It’s the first time we’ve had buyers with an interest in passive house. Up to now it has been location and price. It’s only until you live in one that you really understand it. People hate change,” he said.

Arguably, rising energy costs have played a role in this, alongside growing concern about climate change. Nonetheless, there can be little doubt that developing architecturally interesting houses that spark imagination helps.

However, one choice made at Egremont also represents a deviation from convention: the walls are externally insulated single leaf 9 inch hollow block, sitting on an insulated foundation system.

A combination which he had used successfully on Silken Park, Durkan says this choice made sense, but that he has often had to argue the point.

ph+ | church road case study | 31

CHURCH ROAD

CASE STUDY

Applications open open now!

Applications now!

DASBE hub forconstruction constructionprofessionals professionals to DASBE is is aa hub for to upskill. upskill.

All programmes are partially subsidized by DASBE. All programmes are partially subsidized by DASBE. For more information, please visit www.dasbe.ie or email info@dasbe.ie

For more information, please visit www.dasbe.ie or email info@dasbe.ie

Courses Courses • • • • • • •

•

Certificate in Residential Retrofit Site Coordination TUS | L6 | 24 Weeks

•

Certificate in Drones in Construction TUS | L7 | 24 Weeks

•

Certificate in Energy Renovation of Traditional Buildings TUS | L7 | 24 Weeks

•

Certificate in Green Procurement in Construction TUS | L7 | 24 Weeks

•

Certificate in Scan to BIM TUS | PG L8 | 1 year

•

Certificate in Residential Retrofit Fabric TUS | L8 | 12 Weeks

•

Higher Diploma in Residential Energy Retrofit Management TUS | L8 | 1.5 Years

Certificate in Residential Retrofit Site Coordination TUS | L6 | 24 Weeks Certificate in Drones in Construction TUS | L7 | 24 Weeks

Certificate in Energy Renovation of Traditional Buildings TUS | L7 | 24 Weeks Certificate in Green Procurement in Construction TUS | L7 | 24 Weeks Certificate in Scan to BIM TUS | PG L8 | 1 year

Certificate in Residential Retrofit Fabric TUS | L8 | 12 Weeks

Higher Diploma in Residential Energy Retrofit Management TUS | L8 | 1.5 Years

•

Micro-Credential Pilot in BIM Collaboration ATU | PG L8 | 2 Semesters

• •Micro-Credential ATU || PG PGL8 L8| |1 2Semester Semesters Micro-CredentialPilot Pilotin inBIM BIMCollaboration Infrastructure ATU •

Micro-Credential Pilot in BIM Infrastructure ATU | PG L8 | 1 Semester

dasbe.ie | info@dasbe.ie |

dasbe.ie | info@dasbe.ie |

32 | passivehouseplus.ie | issue 45

CASE STUDY

“I’ve had a lot of push back from architects, engineers, building control [and so on] on single leaf, but if you externally insulate and use a single leaf block the results are excellent.

Condensation does not occur, and it releases heat [back] into the home. They’ve been using this kind of system in Germany for the last 30 or 40 years,” he said.

In the end, Durkan Residential worked with sympathetic architects and engineers and, as a result, Egremont is another step in the journey it has been taking to sustainability.

“I guess sustainability was always part of what we did. We have worked with really good architects in the UK and Ireland. We met passive architect Jay Stuart, and that’s how we went down that road,” Durkan said.

The project was passive house certified by MosArt, led by Tomas O’Leary, who built the first passive house in the English-speaking world and will be well known to readers of Passive House Plus. O’Leary says he likes to think of the role of certifier as being a quality gatekeeper. Part of this, he says, is helping the team rise to challenges.

“In a project like this, for a lot of people in the design team it was new, so the learning curve was pretty steep. The architecture on this project, at face value, doesn’t lend itself to passive house: recessed balconies, cantilever rooms, roof lights, but it proves the point that a passive house doesn’t have to be a rectilinear box,” he said.

“Thermal bridging was a challenge, but we worked with the engineers and architects in

the detailing. It’s a real self-learning process and it’s very gratifying,” he said.

The project is now due to be submitted for the Irish Green Building Council’s Home Performance Index (HPI) certification, which includes consideration of embodied carbon and a broad range of quantifiable sustainability indicators. This is a reflection, O’Leary says, of Durkan Residential, and Barry Durkan in particular, having a sharp eye for sustainability.

“Barry really gets passive house. Very few developers have that. It’s so refreshing working with him. He has replicated a building system that he developed in Silken Park,” he said.

For his part, Durkan downplays his own

CHURCH ROAD

role in the project’s success, praising the role of Durkan Residential’s commercial manager Terry Maguire, who is procuring and project managing the whole project, and the funders, NAMA. “They backed our green agenda from the word go,” he said.

Architect Ruth O’Herlihy – who provides an architect’s statement below – was away on holiday when Passive House Plus approached her for additional comment, but her practice colleague and co-director Corán O’Connor spoke to us.

“As a practice, McCullough Mulvin has been interested in energy efficient building for some years. It all started with a lecture,” O’Connor said.

“Personally, I went to a lecture by Tomas

WANT TO KNOW MORE? The digital version of this magazine includes access to exclusive galleries of architectural drawings.

The digital magazine is available to subscribers on passivehouseplus.ie & passivehouseplus.co.uk

ph+ | church road case study | 33

CHURCH ROAD

CASE STUDY

[O’Leary] in Dublin Castle about ten years ago and I got wind of the passive house concept that way,” he said.

“Church Road, nevertheless, represented something of a departure for McCullough Mulvin as the majority of the practice’s work is in public buildings. But some of the knowhow the practice picked up on sustainability in other projects was transferable,” says O’Connor.

“A lot of our work is not one-off houses, and this project was developer-led. Barry has been doing this for quite a while in the threebed semi world. In the commercial world, BREEAM and NZEB have been coming in for some time,” he said.

The attraction of the techniques that have grown up in the wake of passive house is that McCullough Mulvin, as a practice, puts significant focus on building fabric.

“We’ve always had an interest in doing things simply, trying to hold on to simple things […] before we add in the tech,” O’Connor said.

McCullough Mulvin’s design for Egremont added one additional complexity to the build: each dwelling is unique. Indeed, despite being a development, the contemporary design is more akin to high-end one-off houses than giant schemes.

1

2

3

4

5

6

7

8

9

10

11

12

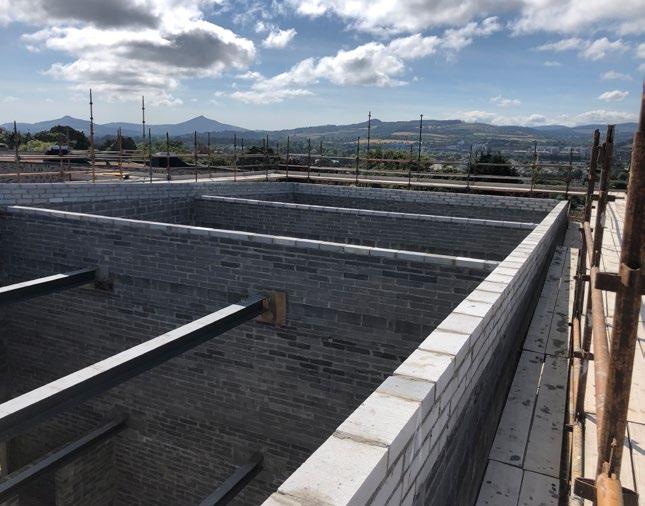

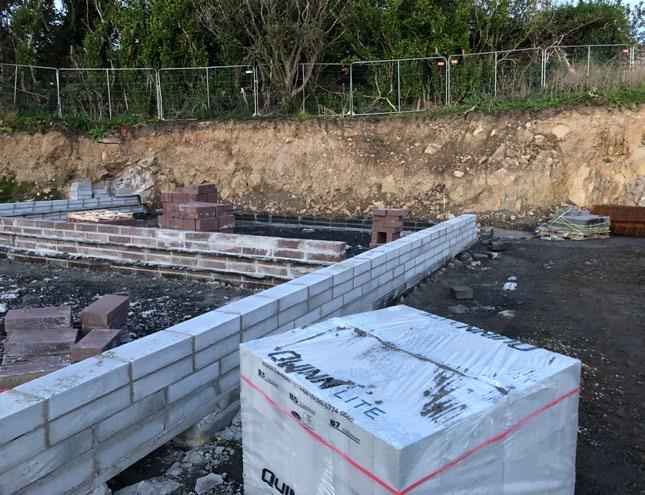

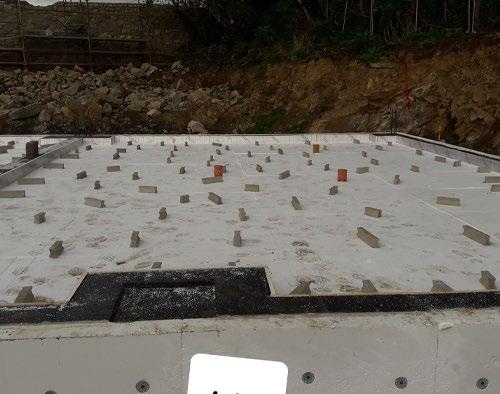

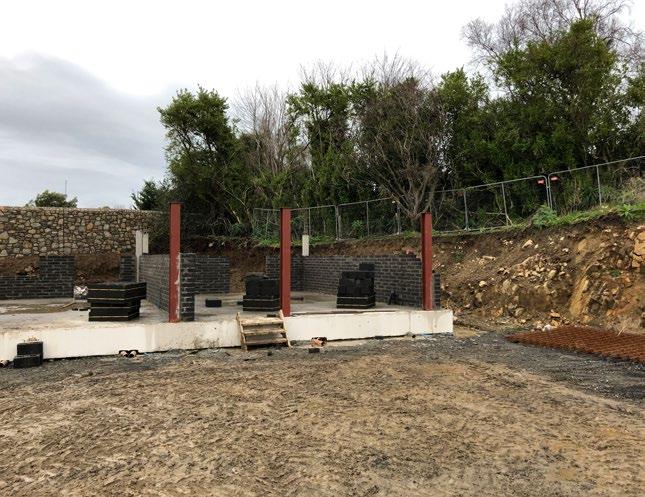

1 Several courses of Mannok blocks to start external walls; 2 floor Insulation EWI to foundation; 3 slab poured. see insulation again to front; 4 steel beams for cantilevered sections of townhouses; 5 Mannok block courses to wall plate level; 6 Tektherm plate thermal breaks to thermally isolate structural fixings; 7 windows sitting in external insulation layer; 8 Roben brick slips being fitted to external insulation; 9 bituminous cap sheet layer of IKO green roof system; 10 Siga membrane to roof structure and Skylux iWindow3 triple glazed roof windows; 11 Blowerproof paint-on airtight membrane used here at a concrete ceiling to blockwork junction; 12 fire collars for ductwork penetrating the ceiling.

34 | passivehouseplus.ie | issue 45

CASE STUDY

CHURCH ROAD

SELECTED PROJECT DETAILS

Client: Durkan Residential / NAMA Architect: McCullough Mulvin Architects Mechanical/electrical engineer: Metec Civil/structural engineer: CS Consulting BER assessor: Buildcert Passive house certifier: MosArt Main contractor/project management: Durkan Residential External insulation and airtightness contractors: Ecofix Mechanical contractor: MCD Plumbing Electrical contractor: Armour Electrical Airtightness tester/consultant: Building Envelope Technologies Fifty percent GGBS mortar: Kilcarrig Quarries Green cements: Milford Quarries Quantity surveyors: Conway McBeth External insulation: Baumit, via Chadwicks Thermal blocks: Mannok Green roof system: IKO Airtightness membrane: Siga Paint-on airtightness seals: Blowerproof Ireland Windows and doors: Carlson Roof lights: D&R Daylight Services Ltd. Compact heat pumps and ventilation systems: Nilan Ireland Air-to-water heat pumps: Unitherm Fit-out, furniture, flooring and carpets: Minima Sanitaryware: Rocca, via Bathhouse Attenuation tank: Resolute Engineering Group Ltd. Landscaping: Buggle Landscaping Insurance: Le Cheile

O’Connor praised his colleague’s work, saying McCullough Mulvin had achieved the feat of creating a high-density scheme that felt anything but.

“From our point of view, it was about making the green agenda important, also the fact that we kept as much of that green land. 47 units on one hectare, this is high density – but it doesn’t feel like an urban scheme: it’s like a landscape scheme”.

Indeed, O’Herlihy’s design not only resulted in unique houses, it also avoided a simple grid. Instead, homes are laid out in four terraces that have been ‘cranked’ or bent to shift perception of scale as well as situate them better in the landscape.

This runs counter to general expectations of passive houses, O’Connor said.

“We didn’t just drop in a grid of terrace houses; we bent them to make them feel quite natural and organic”.

In addition, the wider landscape of south County Dublin and Wicklow also figured.

ph+ | church road case study | 35

CHURCH ROAD

CASE STUDY

Blowerproof Liquid Airtight Paint and Spray on Membrane Blowerproof Liquid is the only airtight membrane that has been certiied by NSAI, BBA, and the Passive House Institute as an airtight, vapour control and radon certiied membrane & complies to Irish building regulations.

Blowerproof is a variable moisture control that reduces uncontrolled air innltration from or into the building resulting in a more energy efficient home that will help to reduce energy costs.

WALL TO CEILING JUNCTION WINDOW JAMBS WALLS FLOOR TO WALL JUNCTION

For a free quote call:

BrinkAdvertPassiveMagJune23.pdf

1

14/06/2023

(0404) 61901 (087) 6590000 10:21

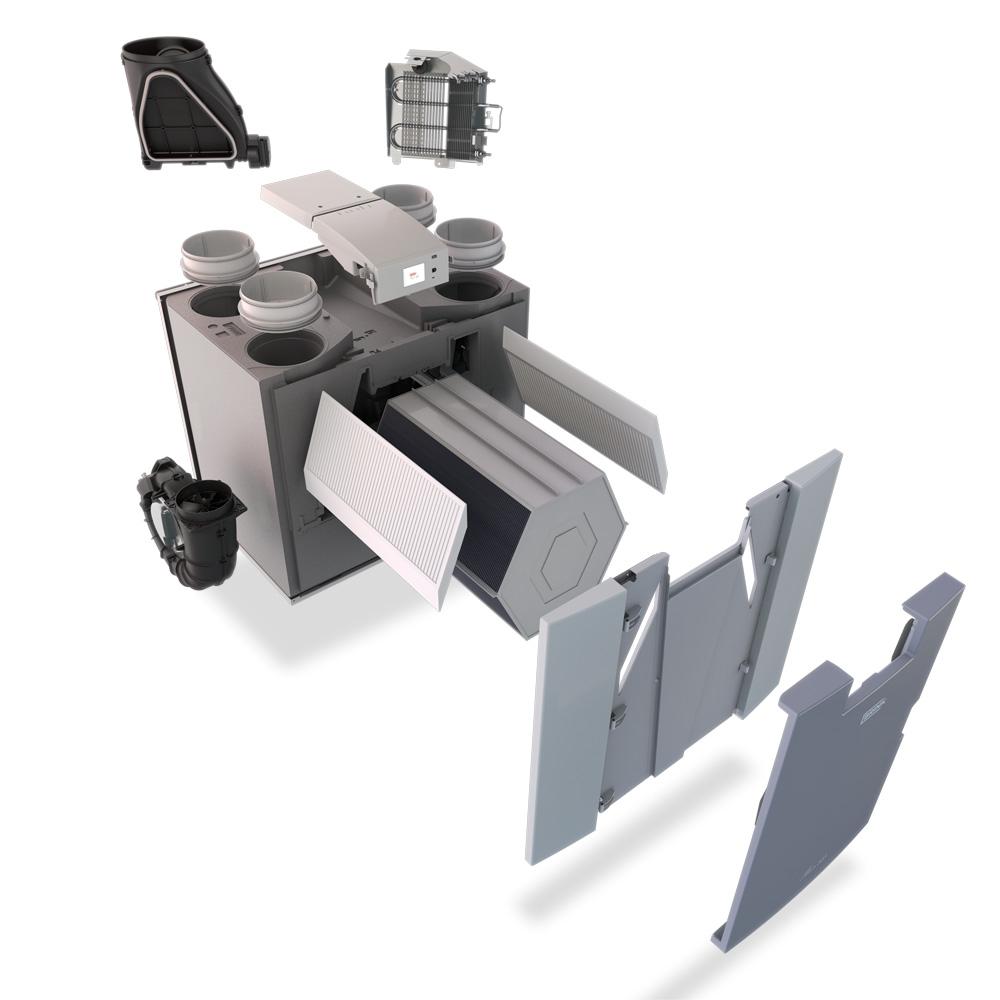

Mechanical Ventilation with Heat Recovery Systems SAP Appendix Q listed, PHI certified & available in a range of capacities from 75-600m3/h

• • • • • • •

C

M

Y

CM

MY

Passive House certified components Highest energy efficiency in several size classes* Suitable for homes up to 360m2 Benefit from in-built sound dampeners** Built-in pre-heater Full Summer Bypass as standard Wide range of filter choices

CY

Brink systems are also fully compatible with Ubbink’s Air Excellent air distribution systems. Air Excellent’s clever, push-together connection system combines unsurpassed ease of installation, with incredible levels of airtightness.

CMY

K

*Certified Passive House Components Certificate as of 01/02/2023 **Flair 600 model

Learn more at www.BrinkHRV.com Brink and Ubbink are distributed throughout Ireland by Kernohan Distribution: Fir Trees, Greenway Industrial Estate, Conlig, Co. Down, Northern Ireland, BT23 7SU Crank House, Banagher, Co. Offaly, Ireland, R42 DE61 E: info@iakonline.com | W: www.iakonline.com or www.brinkhrv.com 36 | passivehouseplus.ie | issue 45

CASE STUDY

It’s the first time we’ve had buyers with an interest in passive house.

Up to now it has been location and price.

“You want it to have a dialogue with Killiney hill, and it looks out toward the Sugar Loaf [mountain]. It’s a site-specific response,” he said.

“There are dozens of neighbours here, to the back of the scheme alone here are half a dozen houses and we wanted to preserve their views of the Wicklow mountains, so we put the short gable ends against their side”.

O’Connor says that he hopes the development will spark conversation about the future of high-density housing in Ireland, as it offers an alternative to uniformity and considers the environment in the widest possible sense.

“There’s so much talk at the moment about low-rise, high-density. We should be asking: how can good design be used to make these the best possible places to live,” he said.

surrounded by and shot through with mature trees – for the insertion of four canted blocks comprising 47 passive units.

The blocks are oriented east / west to maximise the light penetration and their cranked forms create a series of generous external public spaces including a children’s playground.

Their juxtaposition allows for parking to be dispersed, fractured by landscaping and access roads which twist up the site, their impact mediated by the geometries.

Two blocks of three-storey family houses take up each side of the site with two blocks containing apartments (duplex over ground floor) defining the centre of the site.

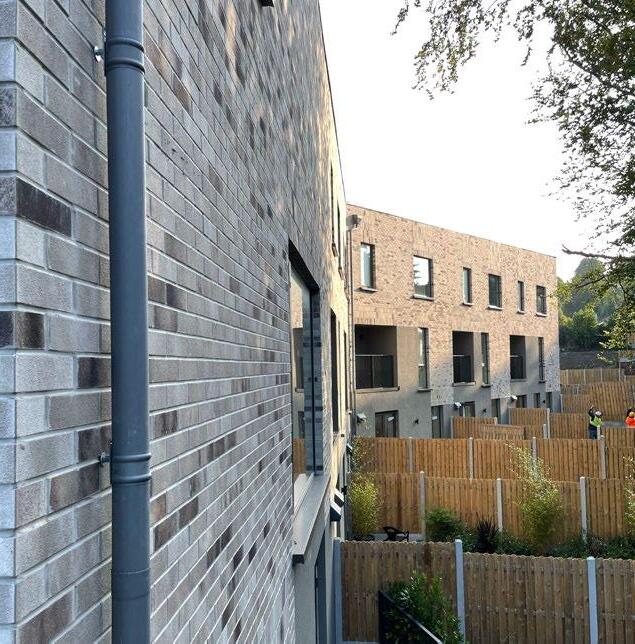

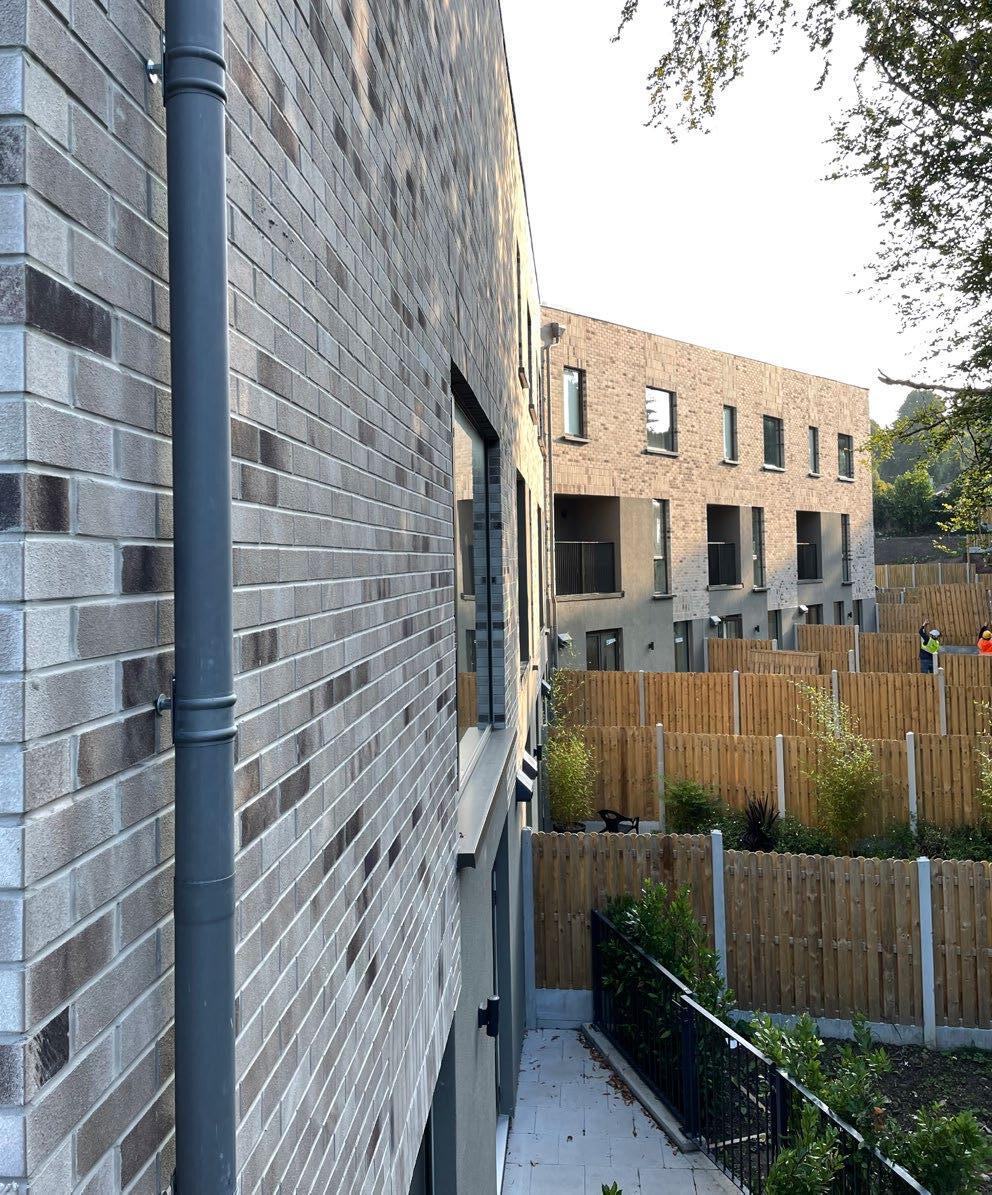

The sinuous geometry of the scheme is accentuated by the unity of materials – buff brick with green roofs and a series of carefully scaled inset balconies in all blocks that capitalise on views of the Wicklow mountains.

Living spaces are dual aspect and designed to be flexible, shot through with light that is brought deep into the houses & duplexes via roof lights and voids that allow it to penetrate. Generous landings below these give unique opportunities for the owners to make

CHURCH ROAD

them their own – maybe a library, maybe a home office, maybe a playroom.

The houses are a collection of flexible spaces designed for both living and working and for all stages of life.

Generous gardens to the rear of each have a stunning elevated backdrop of mature hedgerows and trees. The project has been carefully landscaped to draw together the existing context and enhance this with new levels and planting. Stone from the site has been used to create level changes using gabion baskets and sliced-in paths culminating in a public terrace elevated at the rear of the site looking towards the Leadmines chimney.

A simple palette of natural materials seeks to draw out the colours of the landscape making the buildings of the place. The varied views, available from the units resulting from their differing orientations, seeks to start a new conversation about how we live as a community: oblique connections are established between the blocks and perspective views change as you move, released by the way the light falls on the building planes.

Architect’s statement: Ruth O’Herlihy, McCullough Mulvin The site, on the side of a hill in South County Dublin, along with a progressive client inspired an idea that we would try to make a green housing project together.

Four individual sites were combined on a south facing slope – a beautiful backdrop

ph+ | church road case study | 37

Do something constructive…

CHURCH ROAD

CASE STUDY

Join the Irish Green Building Council and accelerate your journey towards

Learn

a sustainable built environment.

Discover our wide-range of online CPDs, Webinars and inhouse training.

BECOME A MEMBER TODAY www.igbc.ie/membership

Lead

Innovate

Contribute to the development of new tools, processes and policy.

Drive, develop and deploy innovation in construction.

Join IGBC now to access complimentary membership of the new National Research Centre for Construction Technology and Innovation, Construct Innovate.

Already an IGBC member?

You can now opt in to become a member of Construct Innovate for FREE.

IGBC is the industry partner in the Construct Innovate Technology Centre

Fo l l o w u s : 38 | passivehouseplus.ie | issue 45

www.ig b c. i e

CASE STUDY

CHURCH ROAD

IN DETAIL Development type: Speculative housing scheme of forty-seven passive houses, including apartments, duplexes and terraced houses of various sizes, indicatively including 73-97 m2 two-bed apartments, 125-175 m2 duplexes and 165-220 m2 three-bed houses.

Site type and location: Suburban infill site, Church Road, Killiney, Co. Dublin Completion date: Construction in progress Budget: €17m Energy standard: NZEB and passive house classic (pending) Energy costs: Smallest (73 m2) apartment: €74-88 per year.

Largest (220 m2) house: €223-265 per year.

These prices assume occupants opt for smart meters, with tariffs based on Electric Ireland’s Home Electric+ Night Boost offer, 03 August 2023. The prices are for space heating only, and assume 20 per cent of usage at day rate, 30 per cent at night rate, and 50 per cent at night boost rate (between 2-4am). The prices assume a seasonal COP of 3.

Space heating demand (PHPP): 16 kWh/m2/yr (Blocks A and C), 17 kWh/m2/yr (Block D) and 19 kWh/m2/yr (Block B) Heat load (PHPP): 9 W/m2 (Block A) and 10 W/ m2 (Blocks B, C and D) Primary energy non-renewable (PHPP): 90 kWh/m2/yr (Block A), 109 kWh/m2/yr (Block B), 91 kWh/m2/yr (Block C) and 106 kWh/m2/yr (Block D).

Primary energy renewable (PHPP): 44 kWh/m2/ yr (Blocks A and C), 52 kWh/m2/Yr (Block B) and 51 kWh/m2/yr (Block D) Heat loss form factor (PHPP): 2.08 (Block A), 2.18 (Block B) and 2.05 (Block C and D) Overheating (PHPP, expressed as percentage of year above 25C): 1 per cent (Blocks A and D), 0 per cent (Block B), 5 per cent (Block C) Number of occupants (assumed in PHPP

calculations): 24 (Block A, 34 (Block B), 32 (Block C) and 34 (Block D) Green building certification: The project will be submitted for certification to the IGBC’s Home Performance Index Embodied carbon: Not yet calculated (subject to HPI certification) Airtightness: All homes will meet 0.6 ACH @ 50 Pa (final tests pending). Airtight strategy includes sand / cement plaster layer to inner face of blockwork, Siga membrane to roof, with taping and Blowerproof paint-on membrane used around services and floor junctions and hard to reach areas.

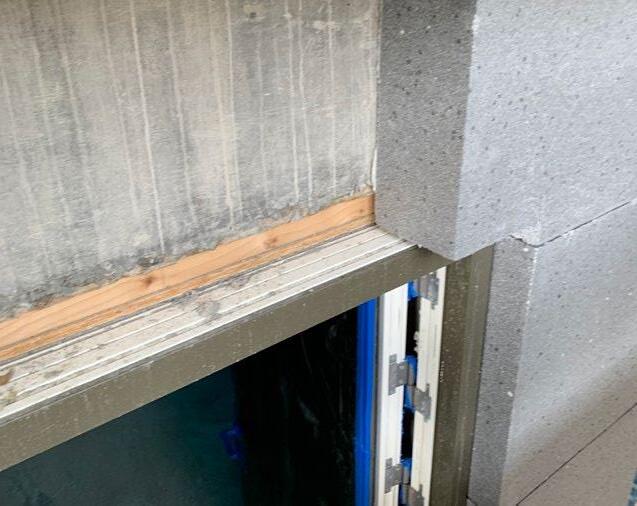

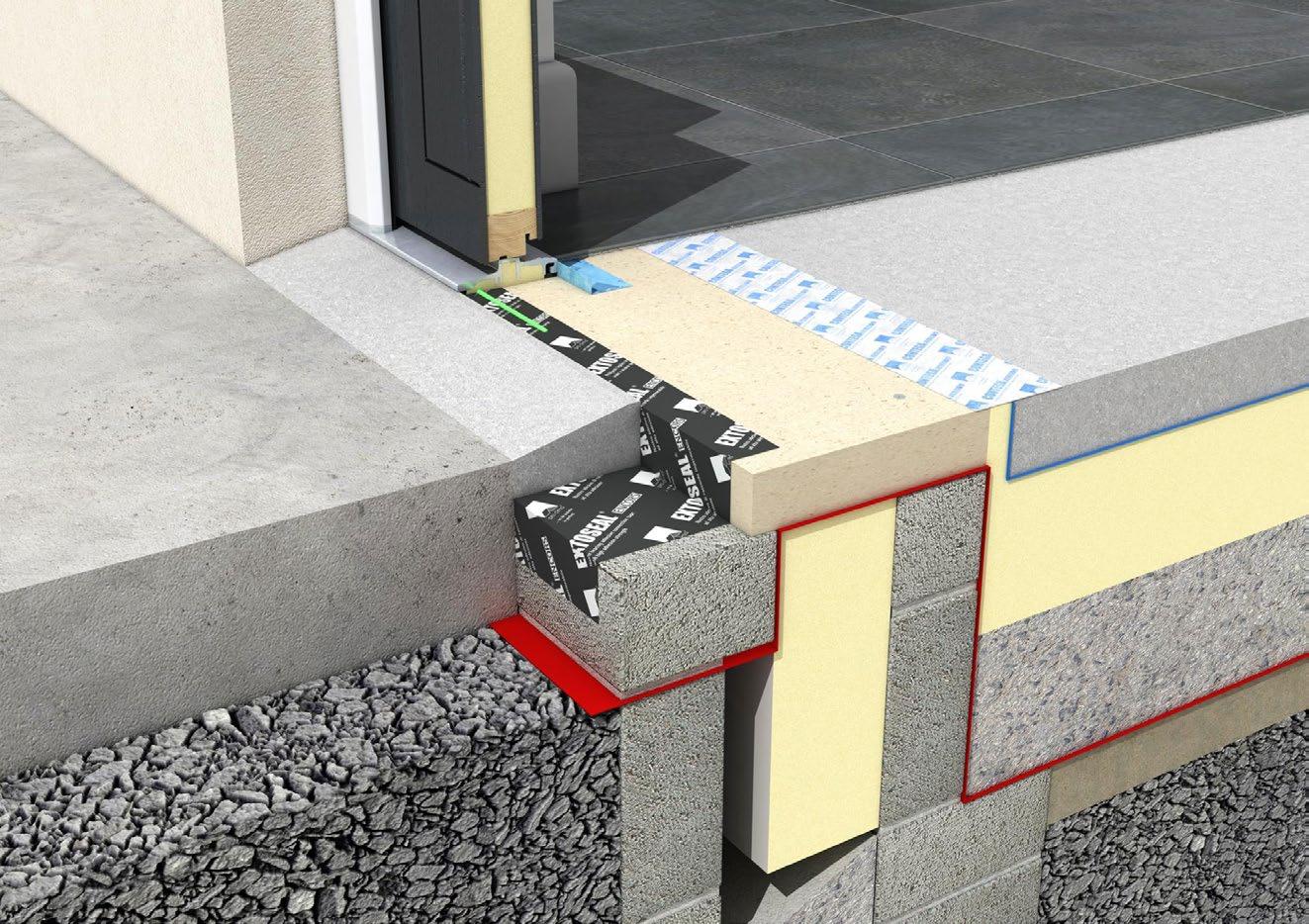

Thermal bridging: The use of external insulation – also brought below ground level – largely minimised thermal bridging. Several courses of Mannok Aircrete blocks were used at the base and top of external walls. Windows and doors with thermally broken frames sit proud of wall on structural insulation within insulation layer. Tektherm plate thermal breaks used at external stairs and canopy connections.

Ground floor: 150 mm in-situ reinforced concrete slab (airtight layer) on 100 mm EPS insulation on gas barrier DPM on 200 mm EPS insulation. U-value = 0.10W/m2K Walls: Single leaf masonry with Baumit external insulation system, comprising 15 mm clay facing brickslip by RobeN, 5 mm adhesive mortar & basecoat render, 160 mm EPS Platinum EPS70 (thermal conductivity 0.031 W/mK), 5 mm adhesive mortar & basecoat, 215 mm hollow concrete blockwork, 12 mm sand and cement render (airtightness line), 20 mm service cavity, 15 mm plasterboard & skimcoat finish.

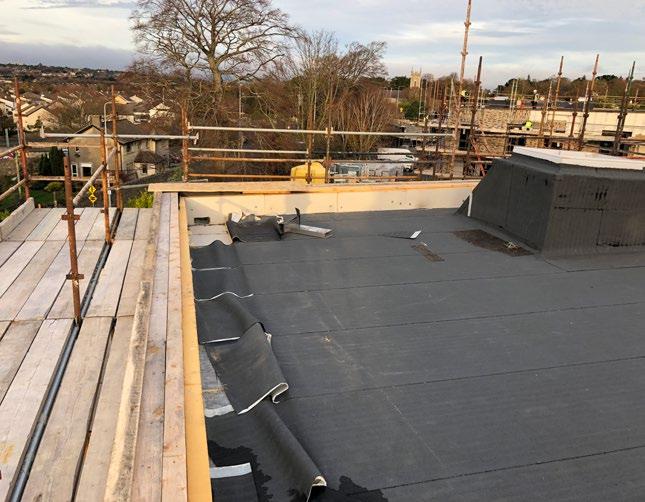

U-value: 0.17W/m2K Roof: Iko green roof including sedum mix blanket, 80 mm growing substrate, 20 mm drainage layer, 7 mm bituminous cap sheet and underlay, 220 mm Xtratherm FR/BGM insulation bonded to deck (thermal conductivity 0.025

w/mK), VCL, 18 mm ply decking, firring pieces to falls, 276 mm (minimum) Posi-joists, 15 mm plasterboard & skimcoat finish.

U-value: 0.11W/m2K Windows and external doors: Carlson triple glazed timber aluclad windows.

U-value (typical) = 0.79 W/m2K Roof windows: Skylux iWindow3 triple glazed roof windows. Uw-value: 0.5 W/m2K Heating system (Apartments & Duplexes): Nilan Compact P Passive House Institute-certified compact heat pump (air-based heating integrated with heat recovery ventilation, post heater, and domestic hot water) with 180 litre buffer tank. Hot water and the majority of heating is provided by the Nilan Compact P. Heat is extracted from the exhaust air after the heat exchanger via a heat pump and then used to heat a hot water tank.

The hot water tank stores the heat and when required provides hot water. The energy stored in the hot water tank can be extracted for use by the post heater when heating is required. There are electric radiators installed to provide top-up heating as and when required.

(Houses): LG Therma V R32 monobloc air-to-water heat pumps, with a SCOP of 4.45 and Energy label rating of A+++, supplying radiators and 180 litre buffer tank. The heat pumps feature a corrosion resistant heat exchanger designed for humid conditions and coastal regions, and produce 100 per cent power output down to -7 C ambient temperature, with an operation range of 25-65 C without an electric backup heater.

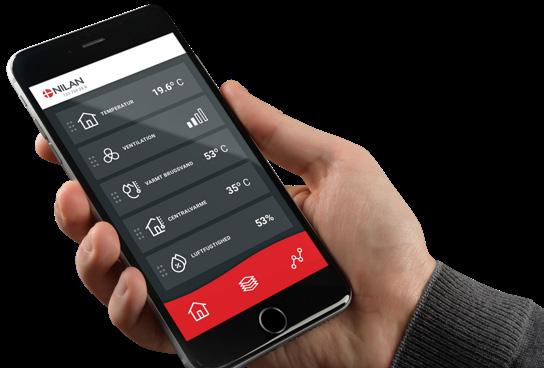

Ventilation: Nilan Compact P — Passive House Institute certified to have heat recovery rate of 80 per cent Potable water use: Not yet calculated (subject to HPI certification) Change in ecological value: Not yet calculated (subject to HPI certification)

ph+ | church road case study | 39

SENAN HOUSE

CASE STUDY

SEAL OF OFFICE IRELAND’S FIRST PASSIVE CERTIFIED OFFICE BUILDING

While the passive house standard has had a lasting impact on the design and construction of new homes in Ireland, progress has been slower in commercial property. With the business world under increasing pressure to take meaningful climate action while providing better working conditions for staff, one new office building in the southeast may be a sign of things to come – and a beacon for a UN-affiliated project.

By John Hearne

40 | passivehouseplus.ie | issue 45

SENAN HOUSE

CASE STUDY

Section A-A

IN BRIEF

1.

2.

3.

4.

5.

6.

7.

Living room Ensuite Stairs Bed 3 Bed 1 Storage Utility

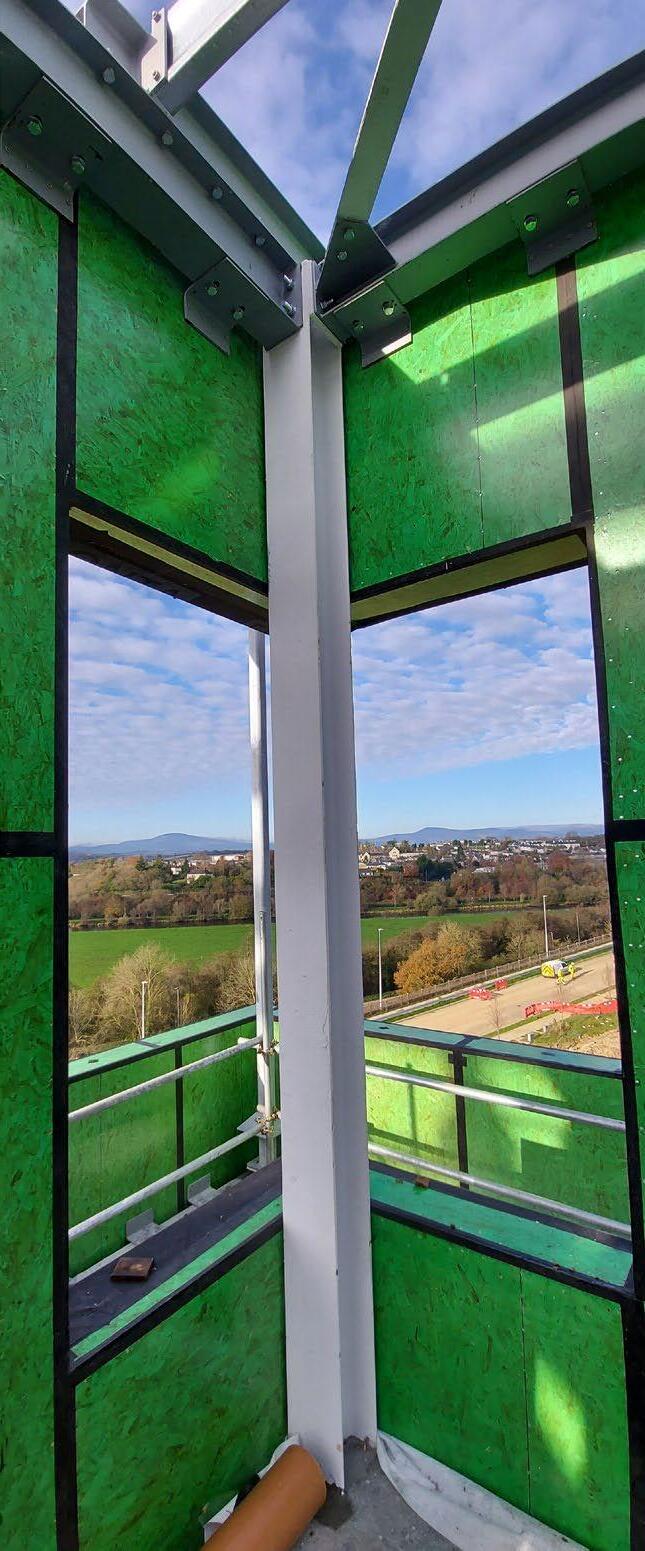

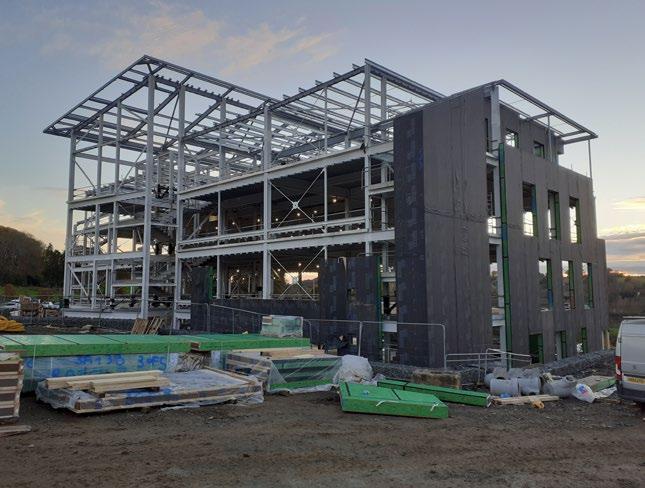

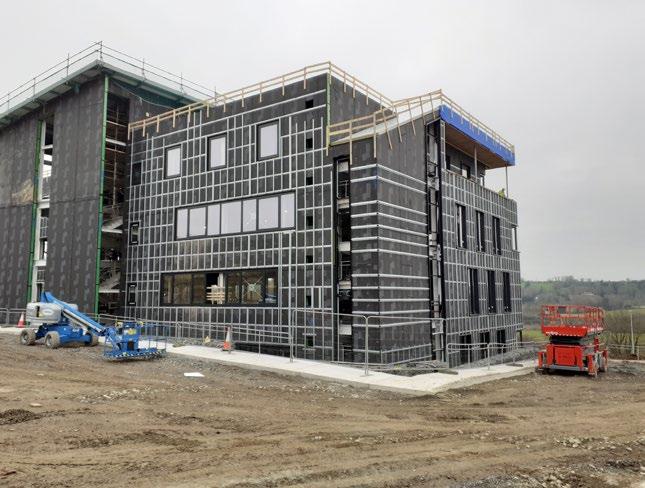

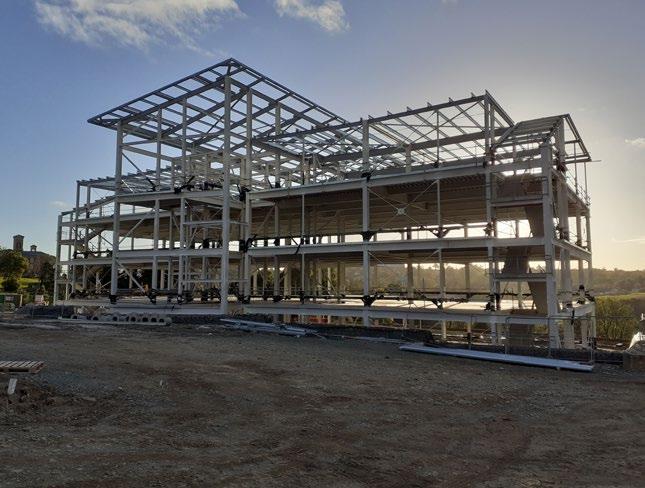

Building type: Four-storey, 4,710 m2 office building Method: Steel frame with celluloseinsulated timber panels Location: Enniscorthy, Co. Wexford Standard: Passive house classic

Embodied carbon: Meets RIAI 2030 Climate Challenge target See In detail panel for more information.

ph+ | senan house case study | 41

SENAN HOUSE

CASE STUDY

A

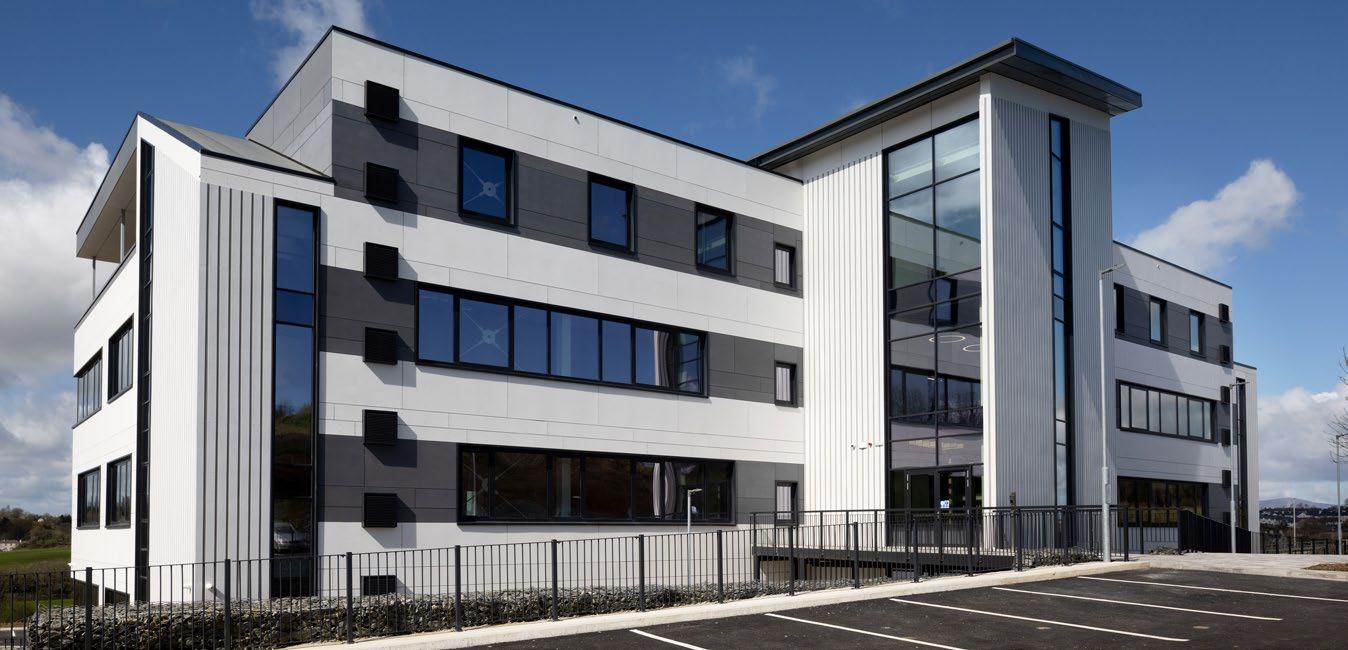

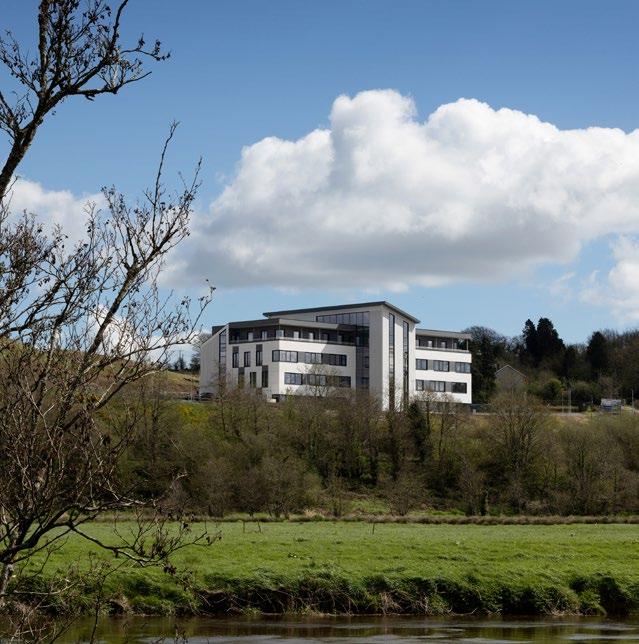

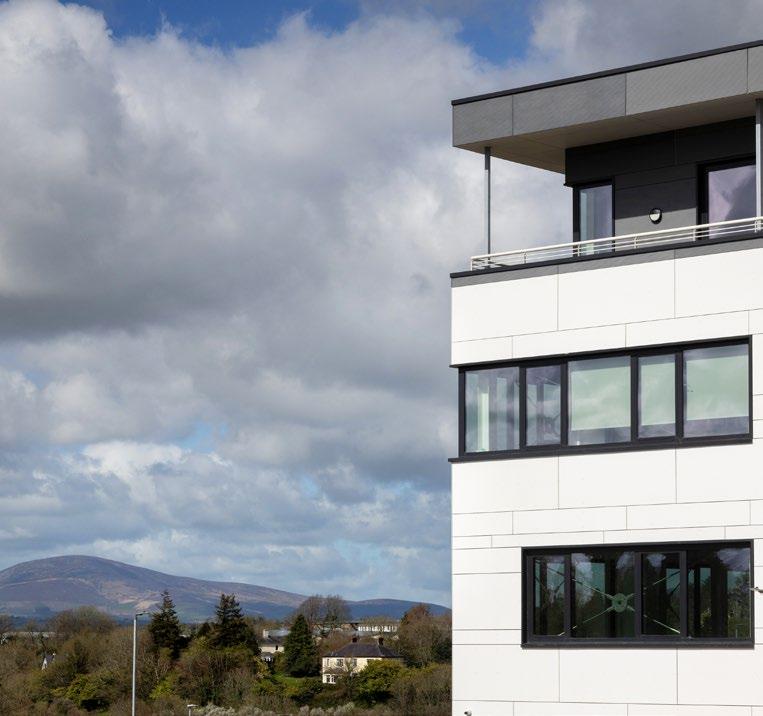

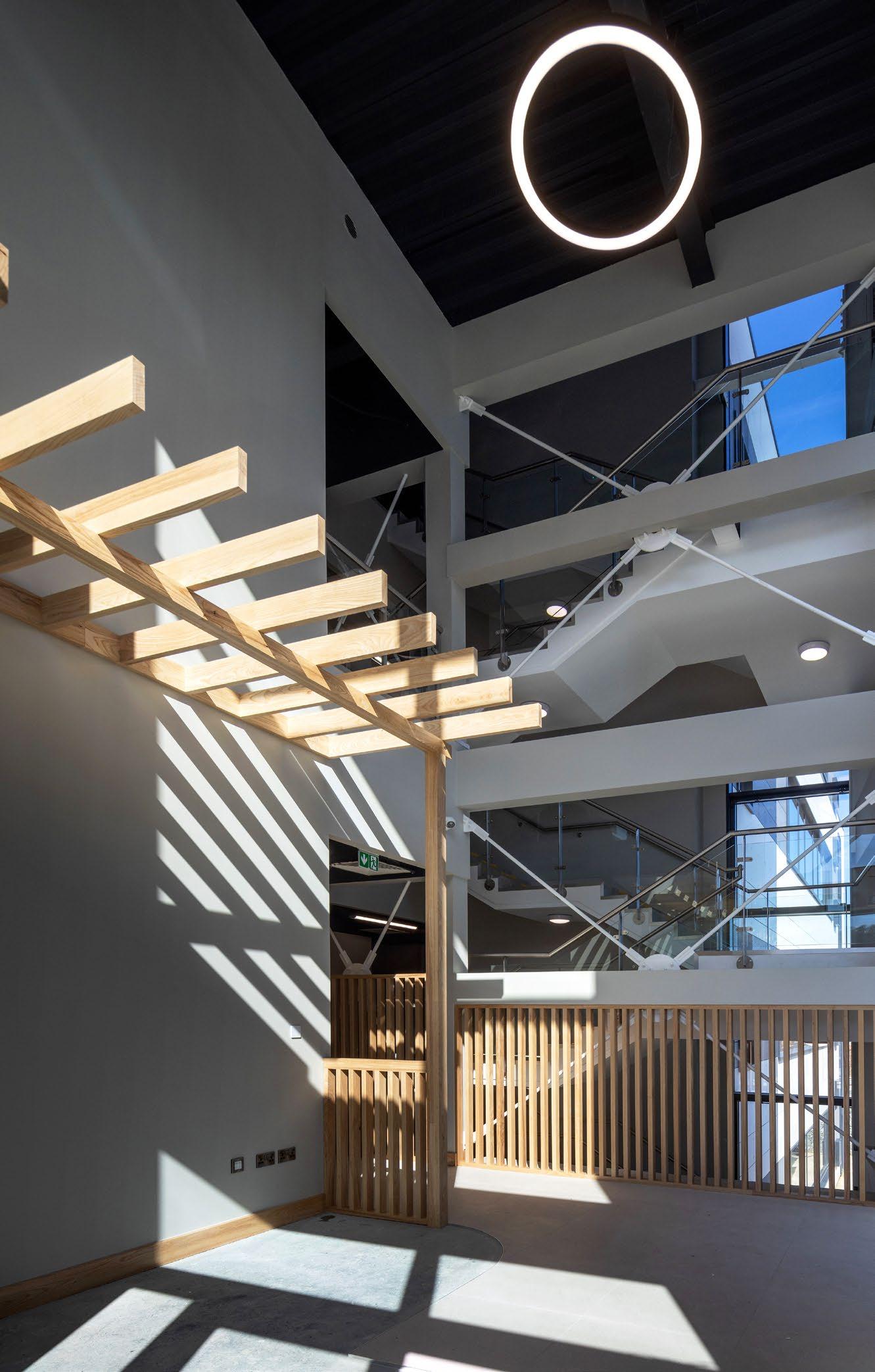

landmark development on a prominent site just outside Enniscorthy in Co. Wexford has become Ireland’s first passive house certified office building.

Built by longstanding passive house contractor Michael Bennett Group under a design and build contract, Senan House was designed by passive house architects MosArt. With that combination of expertise behind it, this building was always going to be exceptionally high performing. It also represents an early benchmark in respect of embodied carbon for Irish office buildings.

“Ever climbed Croagh Patrick?”, architectural technologist Stephen Donoghue asks in response to a query about the challenges posed by the site. Enniscorthy is a hilly town.

Its new technology park – of which Senan House is the lead building – is cut into the side of a steep hill that runs down to the Wexford road and the river Slaney, which run parallel to each other for about five kilometers outside the town. During the early stages of the project, preparing a sloping site and getting levels right was very challenging, not least because of the unstable wet marl that comprises so much of the land in this part of the country. The payoff comes in a striking building with fantastic views. Senan House runs on a slightly cranked north-south axis, with views of the river valley to the west. You can see the town with its spires against the backdrop of the Blackstairs Mountains to the north while St. Senan’s Hospital – a distinctive Victorian building now converted into

42 | passivehouseplus.ie | issue 45

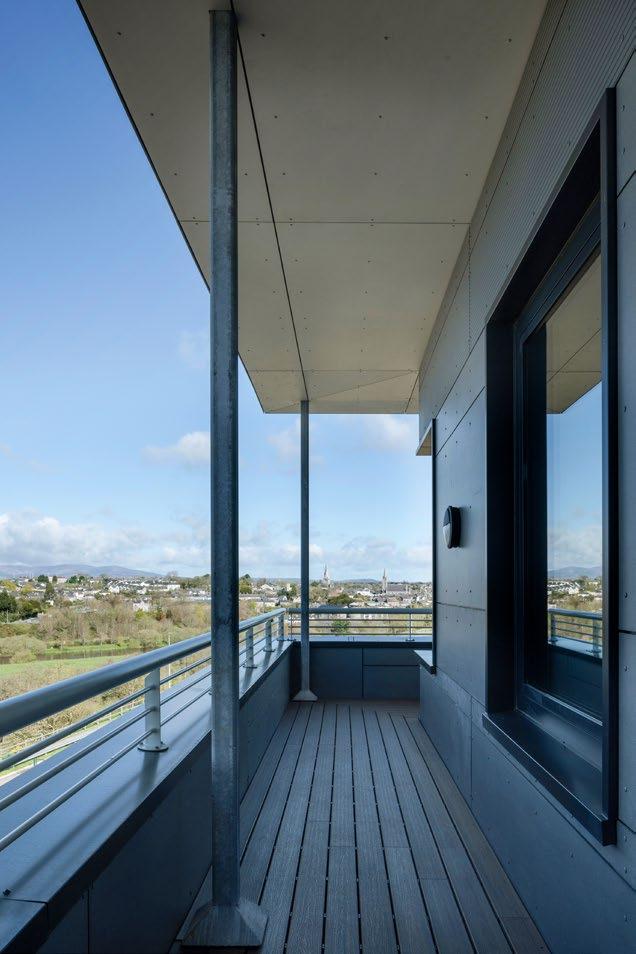

apartments – can be seen through the southern windows.

Art McCormack of MosArt explains that the reference building for this project was a successful tech incubation space called The Hatch Lab down the road in Gorey. Once brought on board by Michael Bennett, MosArt created a masterplan for the site, which included the construction of a sister building alongside Senan House. Wexford County Council, who plan a pedestrian and cycle bridge linking the town centre and the technology park, owned the site and supported the development through all its phases.

A variety of design options – including the possibility of creating a construction training centre – were explored before the team settled on a rational, flexible office building. The first plan ended at the third storey, but following input from Wexford County Council, it was decided to add a fourth, recessed, penthouse-style storey facing west to the river.

Further proof of the support of the local authority comes in the fact that it took just five weeks to get through planning.

“The steep site was one of the main design problems,” says Art McCormack. “So, we used the higher ground to the east to create a bridge and enter the building at the firstfloor level.”

In the original plan, the central bay which projects towards the river housed a multiheight atrium. The site was subsequently sold to a private company however, and, as McCormack puts it “they added insight into

The HVAC units have yet to operate. So far, things are really comfortable.

how the offices might be optimised.” Rentable floor space was expanded, and the atrium took on more modest dimensions.

McCormack explains the north-south alignment follows the contours of the site and makes sense in terms of road layout and how the building would be accessed via that aforementioned bridge linking the car park with the first floor.

The detailed design stage coincided with the pandemic and everything that went with it. A subcontractor was commissioned to provide the timber wall panels that the design team had settled on. Covid-related issues forced that contractor out of the project in mid 2020 however, and finding a replacement proved challenging. During this period, the design team almost decided on a cross laminated timber (CLT) construction. This is the process of using bonded layers of solid wood panels for floor, roof and wall elements, thereby achieving carbon savings that are vastly superior to concrete and steel. In the

CASE STUDY

12

13

12

13

7

18

1800x1800

SENAN HOUSE

7

18

1800x1800 6

19

24

Up.

700x1200

6

19

1

24

1 DN.

700x1200

700x1200

700x1200

Hand-dryer

Hand-dryer

Hand-dryer Hand-dryer

Hand-dryer

WHB

WHB

WHB

WHB

Urinal

Urinal

WHB

WHB

Hand-dryer Hand-dryer

WHB

3 SECOND FLOOR PLAN

Hand-dryer

WHB

WHB

WHB

WHB

Urinal

Urinal

WHB

WHB

WHB

4 THIRD FLOOR PLAN

3. Second floor plan

4. Third floor plan 1/200 Fall

2400x2400 Level Landing 12

13

12

13

18

1800x1800

7

18 1800x1800 6

6

19

1

1

24

Up.

Up.

22.6m²

690

700x1200

700x1200

700x1200

2620

700x1200

Hand-dryer

Hand-dryer

Hand-dryer Hand-dryer

Hand-dryer

WHB

WHB

WHB

WHB

Urinal

Urinal

WHB

WHB

Hand-dryer Hand-dryer

WHB

Hand-dryer

WHB

WHB

WHB

WHB

Urinal

Urinal

WHB

WHB

WHB

5 ROOF PLAN

1 GROUND FLOOR PLAN

1. Ground floor plan

2 FIRST FLOOR PLAN

2. First floor plan

5. Roof plan

end however, the financials didn’t add up, and PYC Construction stepped into the breach with their I-beam system. They built and supplied the factory-fabricated timber panel I-joist system that was used on the build – a low embodied carbon system designed to be airtight, breathable and windtight. The 240 mm wide panels comprise Propassiv boards on the inside taped at edges, I-beams fully filled with close to roughly 67 kg/m3 of Warmcel cellulose, Meditevent board and Pro Clima Fronta Wa, taped for wind tightness.

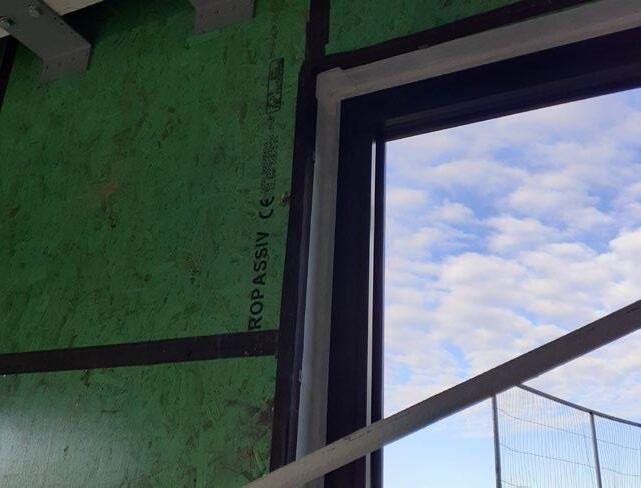

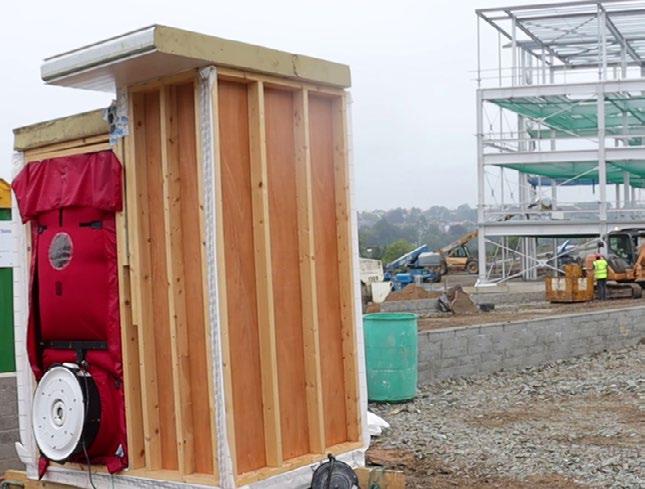

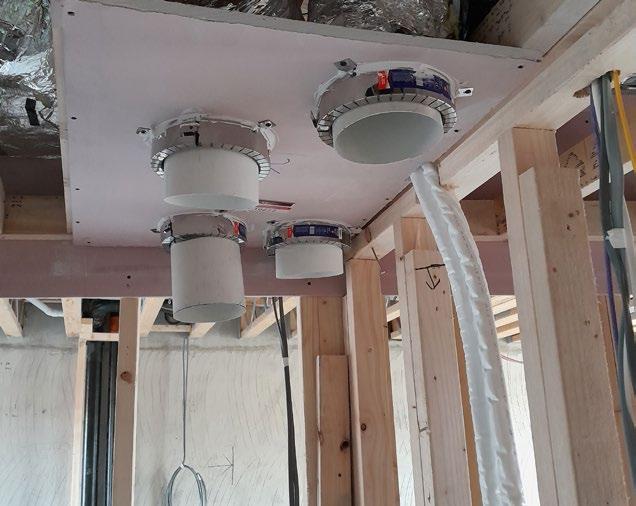

While the panels came pre-taped, they were taped together for airtightness, and taped to the concrete slab and roof.

Stephen Donoghue lists the advantages of this build approach. “There’s less mess, it’s cleaner and safer, and the panels go up faster, plus you get better quality. And you don’t need scaffolding. There was no scaffolding erected on this building.”

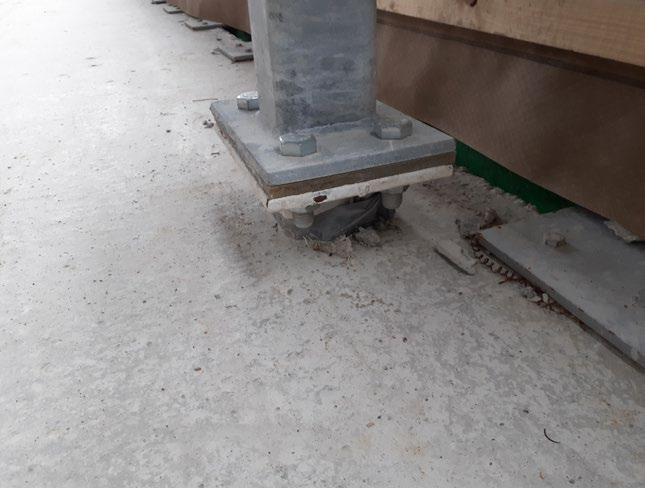

In order to avoid thermal bridging where the external walls meet the structure, the panels were hung from the steel beams. This was one of several strategies deployed to ensure an unbroken thermal envelope. Though the bridge at the main entrance looks as though it’s connected to the building, it is structurally separate, and actually ends 5 mm from the wall. On the top floor, a 10 mm load-bearing insulation was used to separate the steel base plate which supports the roof canopy from the insulation below, and rainwater downpipes were wrapped with foil-backed insulation from roof to ground floor.

Windows, curtain walling and external doors are Passive House Institute certified.

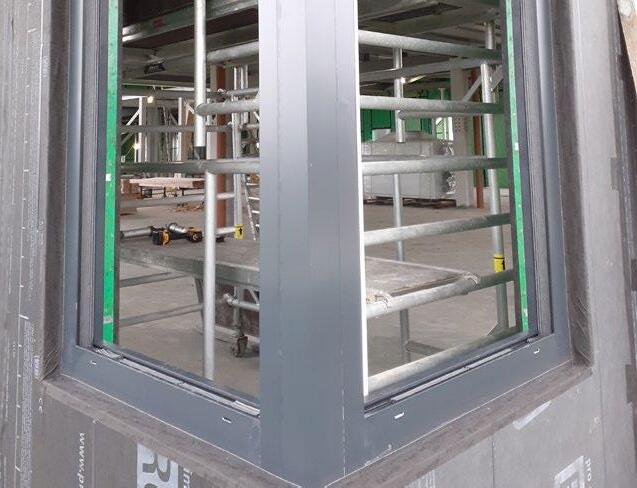

The windows have thermally broken aluminium frames, which were manufactured locally by Reynaers Aluminium. Unusually in an office space, all units are triple glazed, and glazing covers 23 per cent of the structure. At 1.34, the building has an excellent heat loss form factor.

According to the PHPP, there is zero risk

Photos: Paul Tierney

ph+ | senan house case study | 43

SENAN HOUSE

CASE STUDY

that the air temperature will exceed 25 degrees over the course of the year. In the absence of brise soleil, overheating risks are mitigated by glass with three separate G values, ranging from 42.7 per cent down to 27.8 per cent.

Art McCormack notes that there was a particular overheating risk in an office high in the central bay, which projects east but also has exposure to the southern sun. Again, that risk was dealt with using glazing with a very low G value.

Doubts about the airtightness strategy planned for the raised mono-pitch steel panel roof prompted the build team to construct a mock-up onsite, and test its airtightness, just to see if it would work. It didn’t. The dovetailed system failed, so all the panel joints and roof-to-wall junctions were taped by airtightness contractor Aerzeal Ltd, with input from Joe Fitzgerald from Ecological Building Systems and Roman Sypura from Clioma House. The subsequent test confirmed an excellent score of 0.15 ACH at 50 Pa. There is no oil or gas onsite – the office is fully electric. Integrated units from Nilan – two per floor – look after heating, cooling and ventilation. These units are connected to the Nilan Cloud system, a cloud-based management system which allows the facilities manager to remotely control the system as they wish, rather than going to individual control panels, and which enables remote servicing and maintenance. A large PV array supplements the power load. At one point, the plan was to mount the panels on the pitched roof, but the change to the roof spec

WANT TO KNOW MORE? The digital version of this magazine includes access to exclusive galleries of architectural drawings.

The digital magazine is available to subscribers on passivehouseplus.ie & passivehouseplus.co.uk

44 | passivehouseplus.ie | issue 45

as a result of airtightness issues prompted a rethink, and the panels – 119 in all – were relocated to the flat roofs.

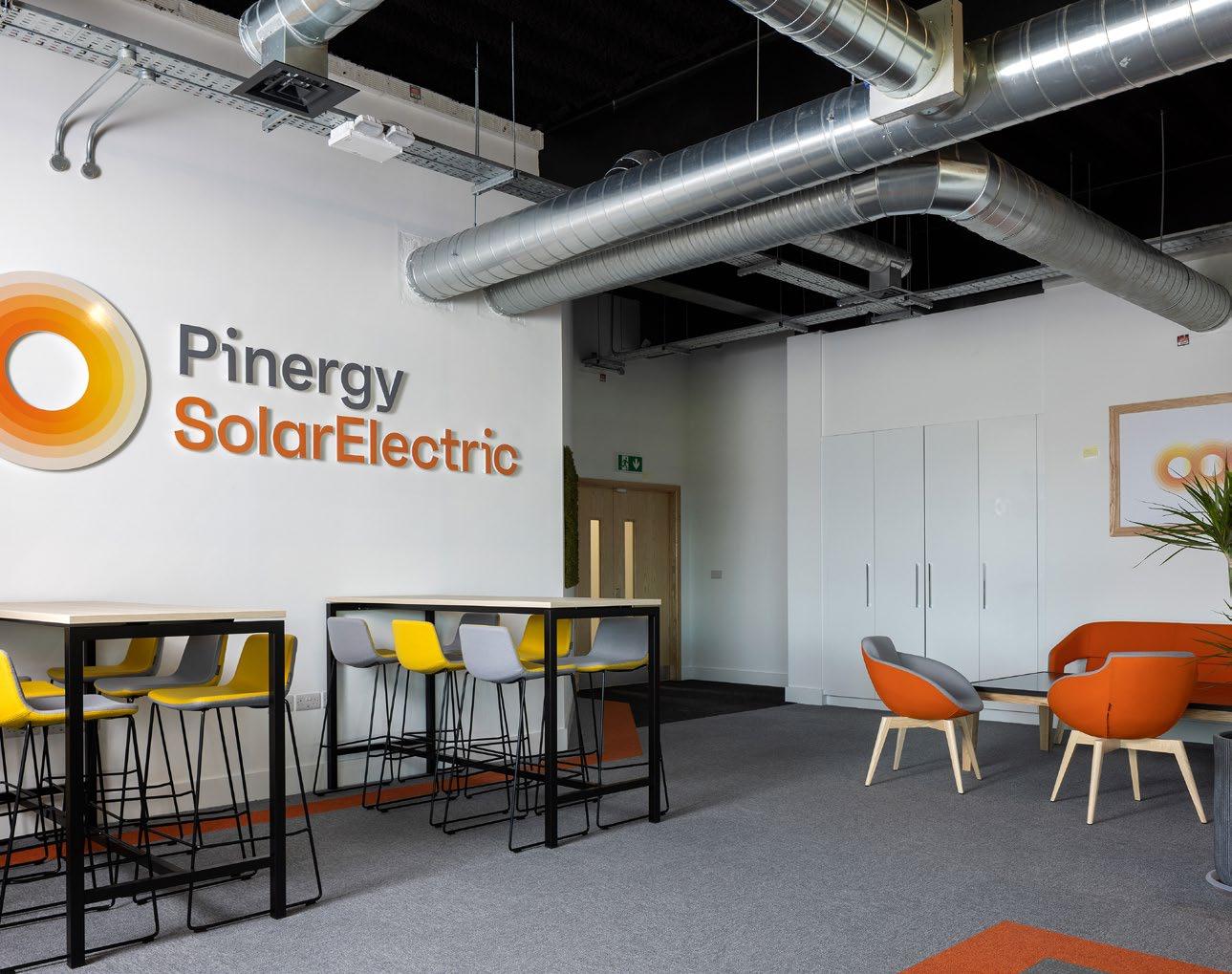

The system was actually installed by the building’s first tenant – Pinergy Solar Electric.

CEO Ronan Power explains the system generates an annual average power of just over 44,000 kWh, with peak power of just over 48,000 kWh. “The install here was quite similar to those we’ve done with other corporate customers.

Because this was a building still under construction rather than a retrofit, however, it was quite a complex lift and build, with a number of health and safety issues. So far, the generation appears to be excellent.”

He expects the system to offset in the order of 20 per cent of the building’s total power demand. There is also an export connection under ESB Networks’ mini-generation connection process which effectively compensates users for any unused electricity that is exported to the grid.

Power says that he and his colleagues moved in last February. “We’ve our feet under the table at this point, and it’s great, we love it here.

Senan is very aligned to our core values, in terms of sustainability, and it’s nice knowing we’re in a passive building.”

Though the company has not yet seen a full heating and cooling season, first impressions are very good.

“The building seems to be performing very well. Bear in mind, mine is a corner office, with two external windows. We’re monitoring humidity and CO2, and everything is staying within normal levels. There’s just our-

selves – twenty-four people – and one other tenant so far. That’s not a huge load, and the HVAC units have yet to operate. So far however, things are really comfortable.”

And there’s no comparison with the company’s last office, he says, which was old, with all an old building’s flaws. It’s currently being retrofitted.

“Ours is a growing business, so this is ideal for us. We’ve got space to expand, and we signed a ten-year lease because we want to continue to stimulate employment here.”

CASE STUDY

SENAN HOUSE

Embodied carbon A cradle-to-grave embodied carbon calculation was done by Ciaran Flanagan of MosArt using One Click LCA. The scope included all the big ticket items within the building itself - the foundations, superstructure, thermal envelope, PV array and heat pump and ventilation system – but did not include the external works, including the car parking area, which would likely have

added a significant amount. The building fit out was excluded, as were the ducts, pipes and cables for buildings services.

In many cases punitive default data from One Click was used, in the absence of Environmental Product Declarations, most notably in the case of the three largest sources of the building’s embodied carbon: the structural steel frame, concrete, and PV array,

1

2

4

5

7

8

9

10

which respectively contributed 1,200 tonnes, 371 tonnes and 180 tonnes of CO2e to the building’s cradle-to-grave total of 2,357 tonnes – or 484 kg CO2e/m2 of gross internal area, comfortably inside the RIAI 2030 Climate Challenge target for offices of 750 kg CO2e/m2, albeit with omissions from the scope including a potentially large total for external works.

3

6

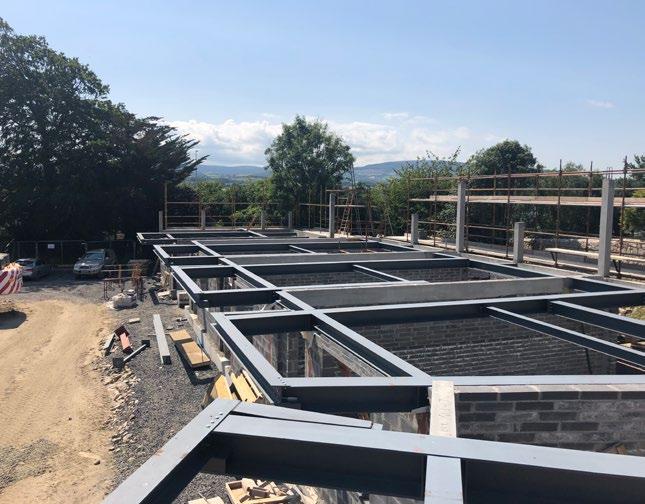

1 The steel frame structure; the thermal envelope takes shape with 2 PYC Construction’s cellulose insulated, airtight panels and 3 windows and steel battens and counter battens; 4 airtightness tests were conducted on a mock-up of the roof system to catch and address leakage issues; 5 & 6 to obviate thermal bridging where the external walls meet the primary steel structure, the wall panels were hung by steel lugs from the steel beams; 7 the windows have thermally broken aluminium frames, which were manufactured locally by Reynaers Aluminium; 8 a 10mm thick Farrat TBK structural load-bearing insulation was used to separate the steel base plate from the insulation within the structure; 9 precaution was taken to wrap rainwater down pipes with foil-backed insulation from roof to ground floor; 10 heating comprises air-based heat distribution via two Nilan VPM 360 MVHR units per floor.

ph+ | senan house case study | 45

SENAN HOUSE

CASE STUDY

Ventilation and Active Heat Recovery All-in-one indoor climate solutions for all types of low energy buildings

The Nilan commercial AHU series of ventilation units with heat recovery and integrated heat pump are aimed at ventilation of schools, offices, cleanrooms and business premises with a requirement for heating and cooling.

The primary heat recovery takes place via a high efficiency rotary heat exchanger or heat pipe, which is supplemented with the built-in heat pump. The reversible heat pump that can reverse the cooling circuit so it can cool the supply air in the summer. The compact design makes the units easy to place in projects.

An all-in-one economically good investment.

Scan the QR code to see Nilan VPR/VPM series

www.nilanireland.ie

Replace your inefficient immersion heater or hot water tank with a highly efficient Domestic Hot Water Heat Pump

Airtight Solutions for New Build, Retrofit & Commercial Constructions.

KEY FEATURES

Using Pro Clima Airtight Tapes & Membranes

• User friendly touch controller

• Eco-friendly R134a refrigerant

• Wrap around Micro-Channel Heat Coil

• 200 Litre Water Tank Capacity

• Tranquil Flow Technology

• Rated Heating Capacity: 2.5kW

• Easy installation

• Water Outlet Temperature: 38°c~60°c

• Constant hot water supply

• Dimension (mm): ø560 x 1730 (H)

• Low Noise 45 DB(A)

• Weight (Kg): 105

Specialists in Timber Frame Passive construction.

We also supply and design for Split and Monobloc Heat Pumps and underfloor heating.

For further information, contact aerZeal Ltd. on 0876878928, email us at info@aerzeal.com or go to our website at www.aerzeal.com

Contact: Gavin Dallas Business Development Manager (Renewables) Mobile: +353 (0) 87 183 8131 Email: gavindallas@waterfordstanley.com

waterfordstanley.com

46 | passivehouseplus.ie | issue 45 WS23_17-WS-Heat-Pump-135x93mm-Passive-House-070223.indd 1

07/02/2023 5:53 p.m.

CASE STUDY

SENAN HOUSE

UN Connection One thing the project team could not have anticipated is the building becoming emblematic of a UN-backed high performance building initiative, but that is what has happened.

Early in the project, builder Michael Bennett organized a visit to the site by a delegation that included Scott Foster, then director of sustainable energy at the United Nations in Geneva. During his decade-long tenure at the UN, Foster worked with experts to develop the UN’s Framework Guidelines for Energy Efficiency Standards in Buildings that were at the heart çof the high performance buildings initiative. The guidelines were endorsed by the Committee on Sustainable Energy in 2017 and then by the UN Economic and Social Council in 2018.

Foster credits Tomas O’Leary as a catalyst for the discussions that led to the creation of the guidelines.

Foster and Washington DC-based consultant Robert Cavey supported establishment of an entity in Enniscorthy, the Enniscorthy Forum, to support the UN’s sustainable development agenda. The remit for the forum includes not only buildings and the built environment, but also energy, diplomacy, health and education. In the process of the forum’s institution they worked with Michael Bennett, who championed Enniscorthy for the new organization and sits on the forum’s board.

Under the stewardship of CEO Barbara-Anne Murphy, the forum now has launched the Buildings Action Coalition, a global collaboration comprising partners from industry, communities, academia, NGOs, governments – all stakeholders in the built environment. “Our partners are dedicated to making real and rapid differences in the built environment around the world to enhance quality of life globally

while meeting the climate challenge,” said Foster.

The coalition convened an international summit in Enniscorthy in June to celebrate the recent signing of a memorandum of understanding with the UN Environment Programme. The memorandum of understanding sets out a broad collaboration between the Enniscorthy Forum and the UN to advance the buildings breakthrough target proposed under the Glasgow Breakthrough Agenda. The target calls for near-zero emission and resilient buildings to be the new normal by 2030. Foster notes how helpful it is to have a landmark building in Enniscorthy that demonstrates how high performance can be achieved, “The forum’s logo represents the castle of yesterday, the building of tomorrow, and the bridge of transformation”.

SELECTED PROJECT DETAILS

Client: Moyne Point Ltd Main contractor: Michael Bennett & Sons Architects/passive house designers/ landscape architects: MosArt Ltd Mechanical engineers: Arkman Mechanical designers: Colman Reynolds Associates Civil/structural engineer: John Quigley & Associates Energy consultant: JOT Energy / IES Quantity surveyors: Nolan Construction Consultants Mechanical contractor: Ollie McPhilips Ltd Ventilation contractor: AirCon Mech Electrical contractor: Bunclody Engineering Fire alarm & access control: Bluerock Networks Airtightness tester/consultant: Greenbuild Structural steel: Wall Steel Structural thermal breaks: Farrat Insulated wall panels: PYC Construction Thermal building blocks: Mannok Roof insulation: New Century Roofing Floor insulation and screeds: Niall Barry and Co. Ltd Airtightness contractor: AerZeal Ltd Windows, doors and curtain walling: Reynaers, via Curran Aluminium Cladding supplier: Cembrit, via New Century Roofing Flooring and carpets: Matt Kilroy Heating, cooling and ventilation: Nilan Ireland Primary hot water system: Ollie McPhilips Ltd Photovoltaic supplier: Pinergy Solar Electric

ph+ | senan house case study | 47

SENAN HOUSE

CASE STUDY

CELEBRATING 30 YEARS OF PASSIVE HOUSE EXCELLENCE

UNLOCK THE FUTURE OF SUSTAINABLE BUILDING WELCOME TO MOSART ARCHITECTS, YOUR NZEB & PASSIVE HOUSE EXPERTS At MosArt Architects, we believe that architecture should not only inspire but also embrace nature while providing unparalleled comfort and energy efficiency. As pioneers in Passive House design and certification, we bring a new era of sustainable living to the forefront.

Partner with Us - A Developers' Dream As developers, you seek to create cutting-edge and sustainable projects. Partner with MosArt Architects to elevate your development to new heights. Our expertise in Passive House and NZEB will not only enhance the market value of your projects but also attract environmentally-conscious buyers and investors.

WWW.MOSART.IE Architecture | Sustainability | Education

48 | passivehouseplus.ie | issue 45

CASE STUDY

SENAN HOUSE

IN DETAIL This building, Senan House, is the first in a series of buildings in the Enniscorthy Technology Park (ETP) that are intended to stimulate economic growth and development in Enniscorthy Town and its surrounds, as well as augmenting a sense of purpose and pride. The site, positioned on a slope that overlooks the river Slaney and its gentle flood plain, is highly visible from the town.

A new pedestrian and cyclist bridge is planned to cross the river Slaney, linking the town centre and the ETP, thus ensuring greater sustainability. It has been commented that this building makes a 21st century contribution to the form and profile of the town that is noteworthy for landmark structures from bygone years, including the Anglo-Norman Castle and two elegant Victorian church spires.

Building type: Senan House comprises a four-storey detached office building of 4,710 m2 with the top-most floor set back as a gallery balcony to provide penthouse offices.

Construction comprises factory-produced timber wall panels with Warmcel cellulose insulation that hangs on a steel primary structure.

Site type & location: The building is the first in the Enniscorthy Technology Park on a site owned by Wexford County Council and zoned for Business and Technology Park. It is a peri-urban site northeast of Enniscorthy Town, Co. Wexford looking onto the N11 linking to Wexford Town and over the river Slaney and its flood plain.

Completion date: February 2023 Budget: €6.5 million for construction and €8 million including site development and external works, but not including site purchase and professional fees.

Passive house certification: Passive House Classic (certification in process) Space heating demand: 18 kWh/ m2/yr Space cooling demand: 1 kWh/ m2/yr Heat load: 10 W/m2 Space cooling load: 6 W/m2 Primary energy: 149 kWh/m2/yr Heat loss form factor: 1.34 (Total thermal envelope of 5,708.32 m2 / TFA of 4,238 m2) Overheating: PHPP): 0 per cent of year above 25 C. Number of occupants: 377 Energy performance coefficient (EPC): 0.52.

Carbon performance coefficient (CPC): 0.53.

BER (SBEM/NEAP): A2 (52 kWh/m2/yr)

Embodied carbon: 484 kg CO2e/m2 TFA, calculated using One Click LCA (cradle-to-grave, excluding operational energy and water). See article for detailed description.

Measured energy consumption: N/A – would require a minimum year’s occupation and use.

Airtightness: 0.15 ACH at 50 Pa or 0.540 m3/m2/ hr at 50 Pa. Thermal bridging: Point thermal bridge where steel posts supporting projecting roof canopy at top floor meet the gallery. A 10 mm thick Farrat TBK structural load-bearing insulation (0.187 W/ mK thermal conductivity) was used to separate the steel base plate from the insulation within the structure.

Thermal modelling was carried out at the plinth, particularly regarding the penetration of floor insulation by steel stanchions. Likewise, the plinth was modelled to see whether the thermal block used as a thermal break could be reduced. It was, thus, established that a reduction was feasible.

Precaution was taken to wrap rainwater down pipes with foil-backed insulation from roof to ground floor, and ventilation ducts were isolated with insulation from the external walls.

Main access via a steel and concrete bridge that remained structurally independent of the building.

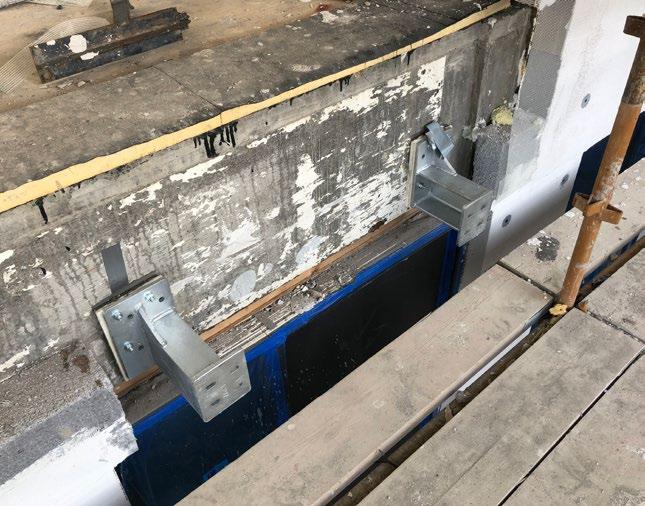

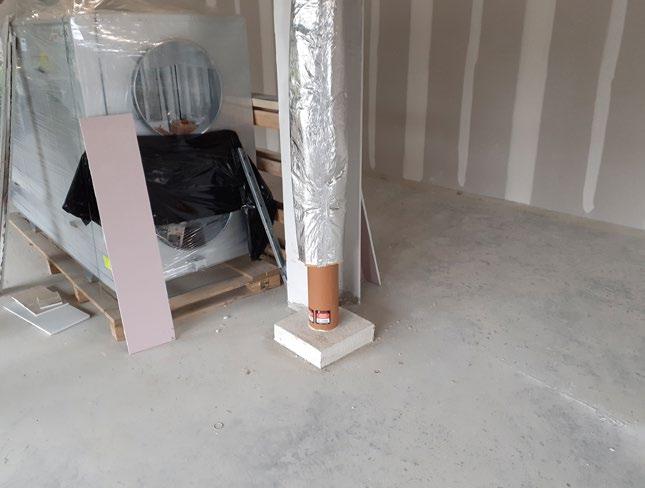

To obviate thermal bridging where the external walls meet the primary steel structure, the wall panels were hung by steel lugs from the steel beams.

Ground floor: 150 mm reinforced concrete slab reinforced with fiberglass thread on 125 mm PIR insulation (thermal conductivity 0.022 W/mK), on Visqueen EcoMembrane loose-laid polyethylene DPM, U-Value: 0.169W/m2K. Walls: 8 mm Cembrit fibre cement rainscreen board, on treated and planed timber battens and counter battens faced with EPDM and profile ribs, on factory-fabricated s.w. wall panels from PYC Construction comprising Pro Clima Solitex Fronta WA membrane, on 12 mm Smartply Medite Vent Board (vapour-open), 240 mm deep I-sections @ 600 mm centres filled with blown Warmcel cellulose 0.15 W/mK thermal conductivity), on 12.5 mm Smartply ProPassiv airtight board on 12.5 mm plasterboard. U-value: 0.152 W/m2K Roof: Single-ply membrane with standing seam on pitched roofs on RK Roofliner with 10 mm insulation. U-value: 0.12 W/m2K This insulation abuts directly to the perimeter parapet balustrade and to high-density Rockwool

insulation beneath the recessed glazing forming part of the wall for the top floor in order to minimise thermal bridging.

Fenestration: Passive House Institute certified windows, curtain walling and external doors.

Aluminium thermally broken frames with argon-filled triple glazing. Whole-window and curtain walling U-value installed: 0.63-0.90 W/ m2K, depending on orientation. Average U-value installed: 0.71 W/m2K. North-facing glazing: U-value of 0.6 W/m2K and a g-value of 42.7 per cent.

East, south and west-facing glazing: U-value of 0.5 W/m2K and a g-value of 36.7 per cent.

Modelling with SBEM established that a single office located above the main entrance and with east and south exposure could suffer from more critical over-heating and, thus, comprises a U-value of 0.5 W/m2K and a g-value of 27.8 per cent.

Doors: Installed U-values of 0.93-1.3 W/m2K, depending on orientation.

Typical Psi-values for fitted windows are 0.060 W/mK at heads, 0.047W/mK at cills and 0.058 W/ mK at jambs.

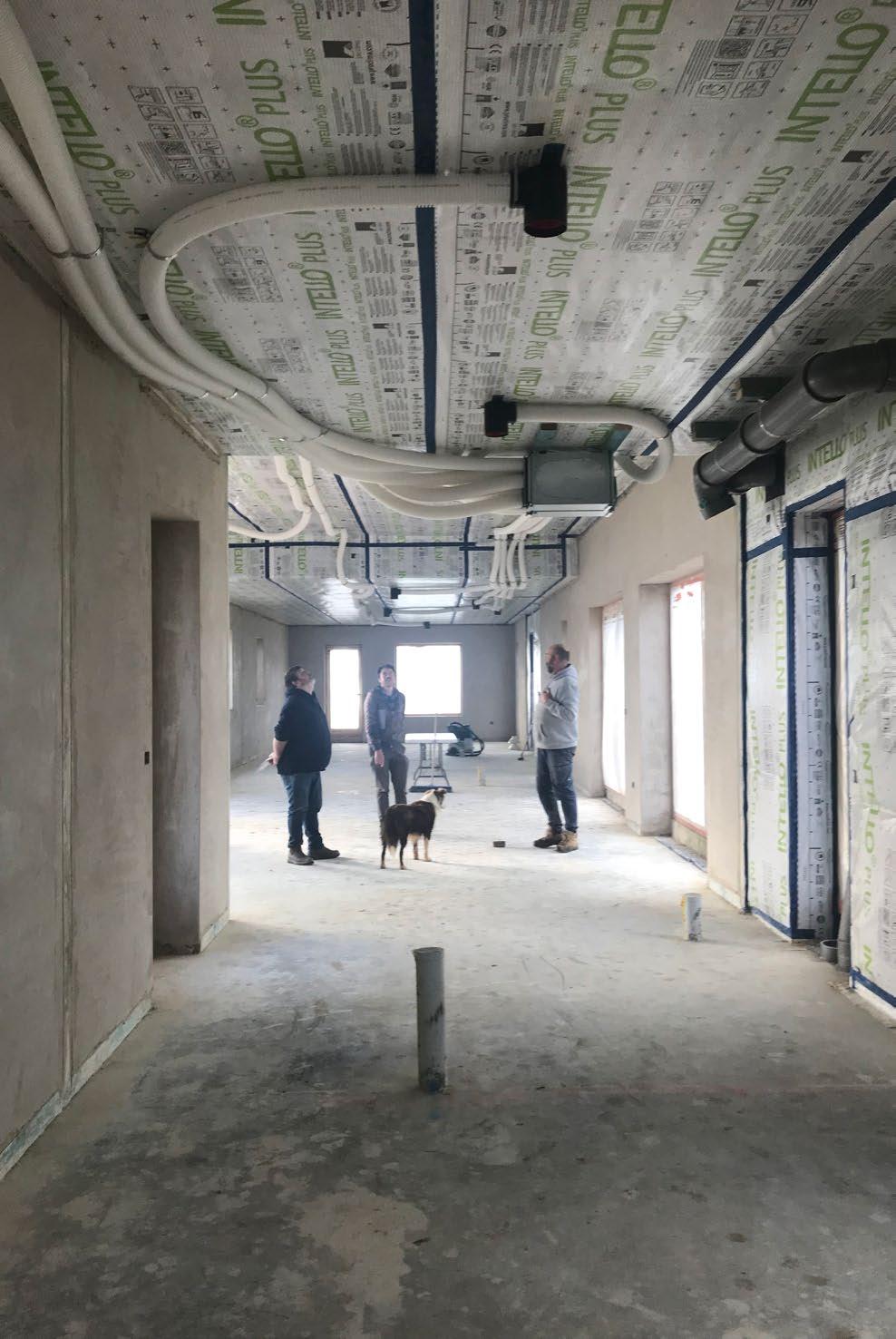

Heating, cooling and ventilation system: Air-based heat and cooling distribution via the 2 x Nilan VPM 360 heat recovery ventilation units per floor. Each unit has a 3,600 m3/h capacity, combining passive and active heat recovery as well as heating and cooling to all office spaces.

The building is completed to a shell and core standard with fit-out by future tenants.

Individual split units to meet localized heating and cooling needs if necessary for each office area are, therefore, to be selected as tenants assume occupancy.

Electricity generation: Vertex S solar photovoltaic array with an average annual output of 44,386 kWh and 48,196 kW peak power. The majority of the electricity thus produced is used on site, with the excess exported to the grid.

Four car parking EV chargers fitted and there is a provision in 20 per cent of car parking spaces for future EV charging.

Sustainable materials: Timber frame panels using FSC certified timber; cellulose insulation, glass fibre reinforcement in (above ground floor) concrete floor slabs instead of more conventional steel reinforcement bars, locally produced high performance windows and curtain walls.

ph+ | senan house case study | 49

LUXTON

CASE STUDY

IN BRIEF

Building type: Steel barn converted into 204 m2 office and recording studio Method: Flat pack I-beam timber frame, wood fibre insulation, material reuse and biodiversity focus Location: Oxfordshire Standard: Uncertified passive house Energy use: Beyond net zero. Net export of 1,400 kWh from Jan to mid July 2023, excluding EV charging.

Embodied carbon: Meets LETI 2030 target and RIBA 2025 target See ‘In detail’ panel for more information.

50 | passivehouseplus.ie | issue 45

CASE STUDY

LUXTON

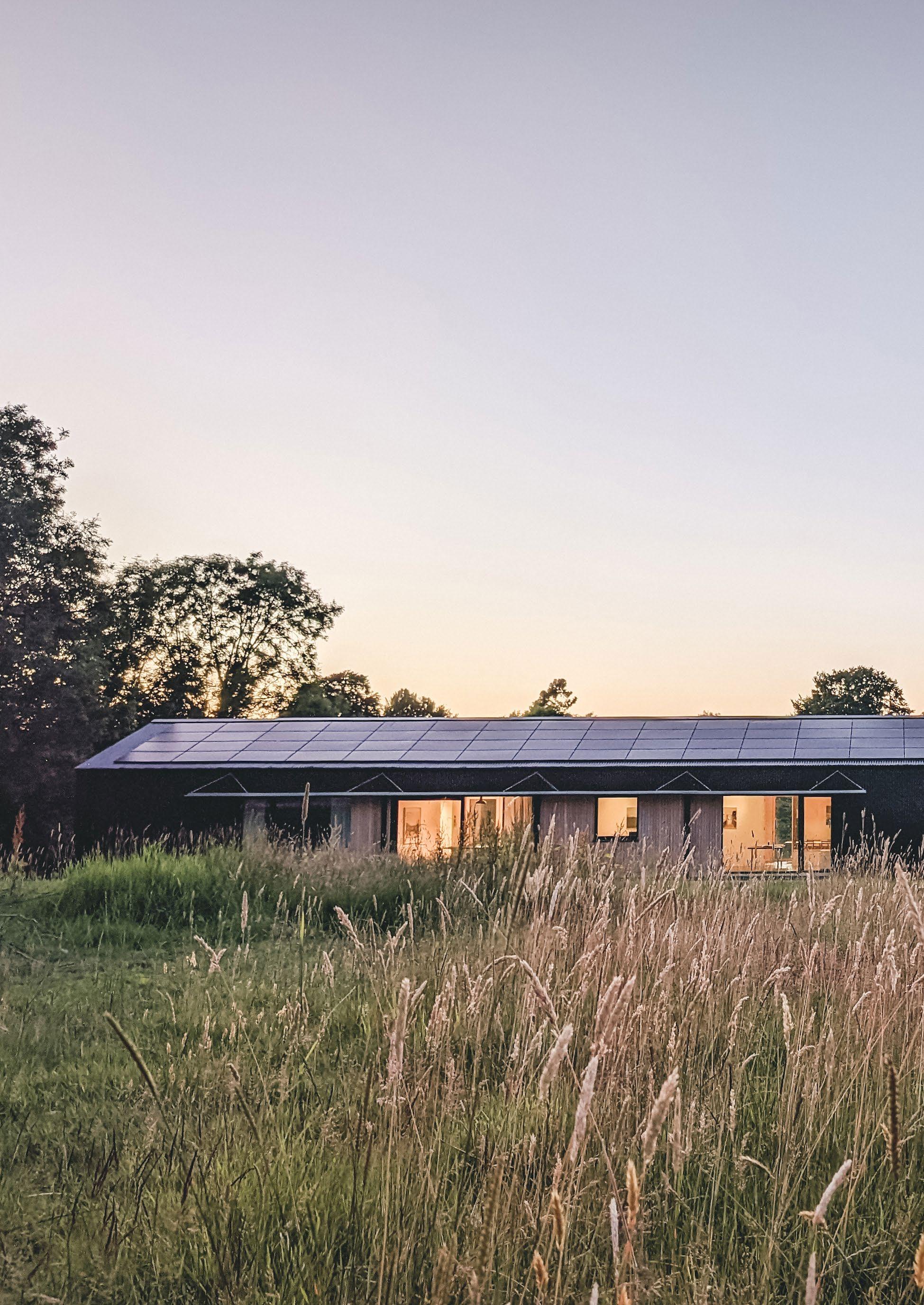

FROM SMALL SCREEN TO DEEP GREEN CHARLIE LUXTON’S VISIONARY NEW SUSTAINABLE OFFICE The new Oxfordshire studio of Charlie Luxton Design, the practice of the well-known TV presenter and architectural designer, is deeply impressive for its exhaustive attention to sustainability across every facet of the project, from energy use and embodied carbon to the reuse of materials and the ecological restoration of the three-and-a-half-acre site. It’s a gorgeous building, too.

By Lenny Antonelli

ph+ | luxton case study | 51

LUXTON

CASE STUDY

country’s old growth forests made a lasting impression on him. He moved to a farm in England at the age of nine and says playing in streams and climbing trees helped to foster his love of nature.

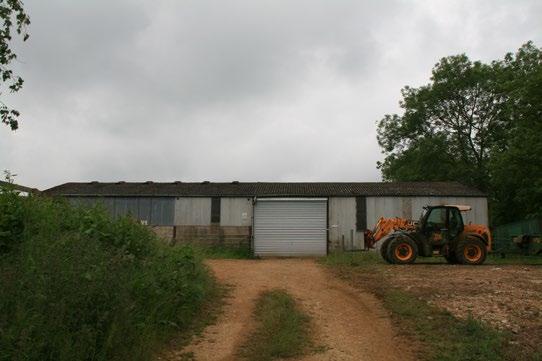

Charlie and his wife Kate, who is CLD’s studio manager, were finishing their own house next door when this three-and-a-halfacre plot came up for sale. It had been used to keep horses and had a steel-framed barn surrounded by heavily grazed paddock. The CLD team had been working in Charlie and Kate’s old thatch cottage down the road, but this site offered the perfect opportunity to create a purpose-built studio.

20 kW PV array 1. 1.

20 kW PV array 2. Corrugated metal skin 2. 3.Corrugated metal Reclaimed walkaway usedskin as solar shading Existing and adapted steel frame 3. 4.Reclaimed walkaway as solar shading 5. Steico timber inner frame 4. 6.Existing and adapted steel frame Internorm triple glazed windows 5. 7.Steico inner frame Existing timber concrete slab Insulation above slab glazed windows 6. 8.Internorm triple Void for services and ease of construction 7. 9.Existing concrete slab 8. Insulation above slab 9. Void for services & ease of construction

I

f you’re a fan of architectural TV shows, you will know Charlie Luxton from programmes such as Building the Dream, Homes by the Sea, and Building a New Life in the Country. What you may be less aware of is the sheer depth and breadth of his knowledge of — and commitment to — sustainable building.

Charlie heads his own small practice, Charlie Luxton Design (CLD). When the firm decided to build a new studio just outside the village of Hook Norton in Oxfordshire, it was a chance to push the envelope across a swathe of sustainability metrics in a way that is often difficult when working for a client. “If I’m going to do a project for me, I have to make it a massive education piece,” he says.

His commitment to environmental protection stretches back to his childhood in Australia, when protests to save some of the

52 | passivehouseplus.ie | issue 45

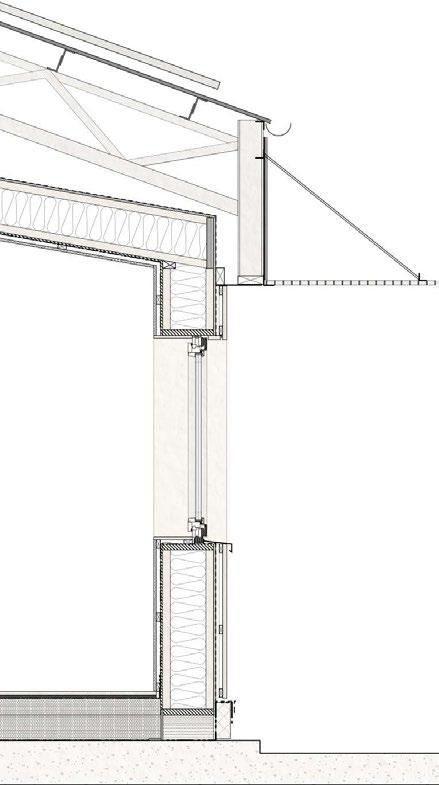

Building-within-a-building From the outset, Charlie was keen to make use of the existing barn. “We stripped it back very carefully and engineered it so we could work with the existing concrete slab,” he says. “We took down the walls, took all the wood out of the stables for reuse, and basically tried to design a [new] building that could use as much of the existing structure as possible.”

Building on the existing slab required extra thick walls to spread the load of the new studio. But with a goal to get close to the passive house standard and a preference for natural insulation, the walls were always likely to be quite thick.

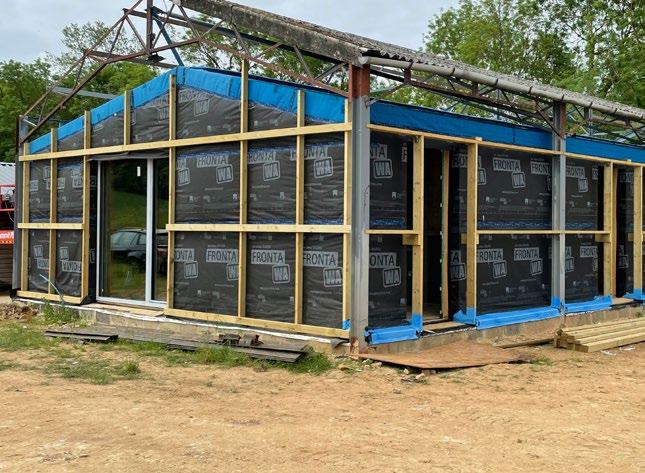

Charlie served as principal contractor and recruited as many local trades as he could. The team laid a thin layer of levelling screed and then set out to build a new timber-framed studio within the structure of the old barn.

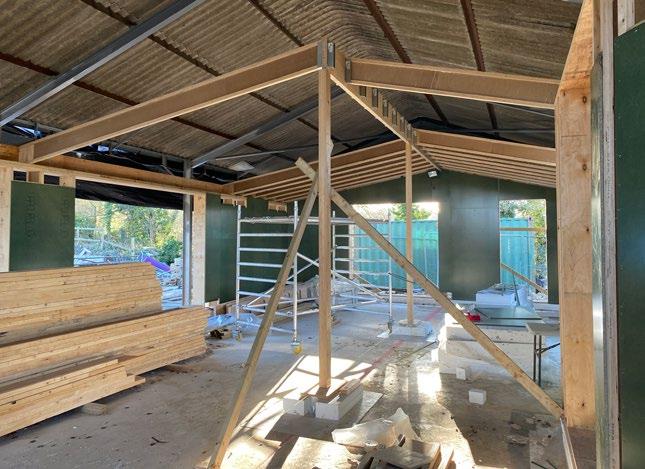

“The idea was very much to build a building within the building,” he says, “so that we didn’t put any additional load on the frame, because the frames of those buildings are really only designed to take themselves, and the wind.”

But the barn did provide a sheltered space within which to build the studio. The CLD team chose a timber I-beam system from German wood product specialist Steico.

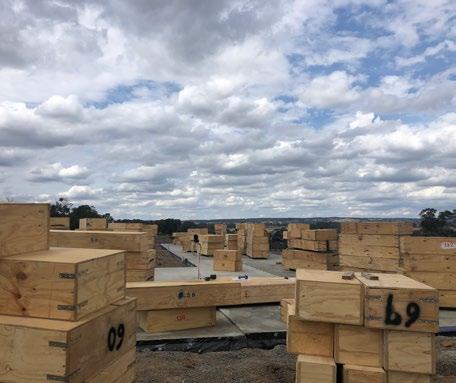

Each of the beams was digitally modelled and precut before being delivered to site.

It’s a low-waste system Charlie had grown to like on previous projects.

“The thing about going with these precut systems is you can get an entire building on one lorry,” he says, and this was one of many ways he sought to reduce the carbon footprint of the build.

Steico laminated veneer lumber (LVL) — a mass timber product that takes dozens of thin layers of wood and glues them together to create a structural timber panel — was used for posts and beams, and around the building’s Internorm timber aluclad triple glazed windows. Durelis VapourBlock, a structural chipboard that also provides airtightness and vapour control, frames the

walls and roof internally, and serves as the main airtightness layer too. The walls and roof were pumped with blown cellulose insulation (Charlie brought his local labourers down to PYC Systems in Welshpool for training in how to install it), and then lined internally with Fermacell board, which is made from recycled gypsum and paper.

The team clad the structure in dark, powder-coated standing seam steel and British-grown larch and fitted a cap of EPS insulation — salvaged from another project — above the LVL ridge beam to stop thermal bridging down through the steel joist hangers. “We were really careful about that level of detailing,” Charlie says. The roof is finished with a 20 kW solar PV array.

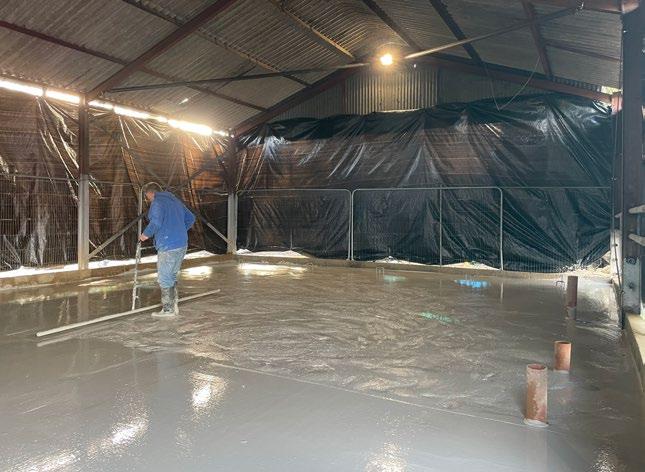

Design for reuse Inside, the team fitted 250 mm of EPS insulation over the existing slab. This was laid without any glue so that it could be easily reused in future. “We planned it all out on a computer so that we could do it with as few cuts as possible,” Charlie says.

The team also used a hot wire cutter to cut the insulation as cleanly as possible, to stop microplastics from breaking off. The floors are finished with boards made from English elm.

An obsession with minimising the environmental impact of materials permeated the whole project. “We really tried to reuse as much as we can,” Charlie says. Timber reclaimed from the horse stables was reused for internal finishes. An oak-framed sliding door was salvaged from another project and re-purposed as an internal screen. Old walkways from the site were reused as solar shading. Recycled furniture and second-hand appliances were specified throughout. Outside, rather than completely dig up the concrete yard, the team simply broke up some areas of concrete and planted within it.

Charlie says that thinking about how to reuse materials at scale was one of the big takeaways from the project. “How do you use the things you’ve got to make the buildings you need?” he asks. “And how do you do that at scale? How do you find the materials, log the materials, test the materials, certify the materials?” These are some of the next big environmental questions for the building sector to get to grips with.

The CLD team also thought about how the building, and its components, might be used long into the future. “We sort of tried to imagine how you might minimise disruption for other phases of the life of the building,” he says. The building has been plumbed for future conversion to a house, and it’s been framed so that more doors can easily be installed in future.

Cladding and roofing were also fixed to be easy to remove.

CASE STUDY

LUXTON

WANT TO KNOW MORE? The digital version of this magazine includes access to exclusive galleries of architectural drawings.

The digital magazine is available to subscribers on passivehouseplus.ie & passivehouseplus.co.uk

In the seven years since the Luxtons bought the site, it has gradually become richer in wildlife, and noticeably louder with the sounds of nature.

Minimalist heating The finished studio achieved an airtightness score of 0.3 air changes per hour and is within the parameters for passive house certification. The building is both heated and cooled, when needed, by an air source heat pump that warms or cools supply air being drawn into the building through a Passive House Institute-certified heat recovery ventilation system from Airflow, the specialist ventilation supplier who suggested this project to Passive House Plus for this article. The system, along with the lighting system, is managed by a building automation system from Wiise.

It’s a fairly minimal approach to heating, and Charlie says it keeps the building sufficiently warm on all but the three or four coldest days of the year. But while the building was wired for infrared radiators to top up the heating, he decided against putting them in. “Given how little we would use it, I suspect the embodied energy would make no sense whatsoever,” he says.

So instead, on freezing winter mornings, an old electric radiator, covered in paint, is wheeled to provide some extra heat, and Charlie says this works well.

And what about comfort on hot days?

The heat pump provides cooling too, and on the hottest day of 2022, when temperatures in Oxfordshire exceeded 38 C, the temperature in the studio was a warm-but-acceptable 26 C. An external shade limits solar gain from the high summer sun to the south-facing studio space.

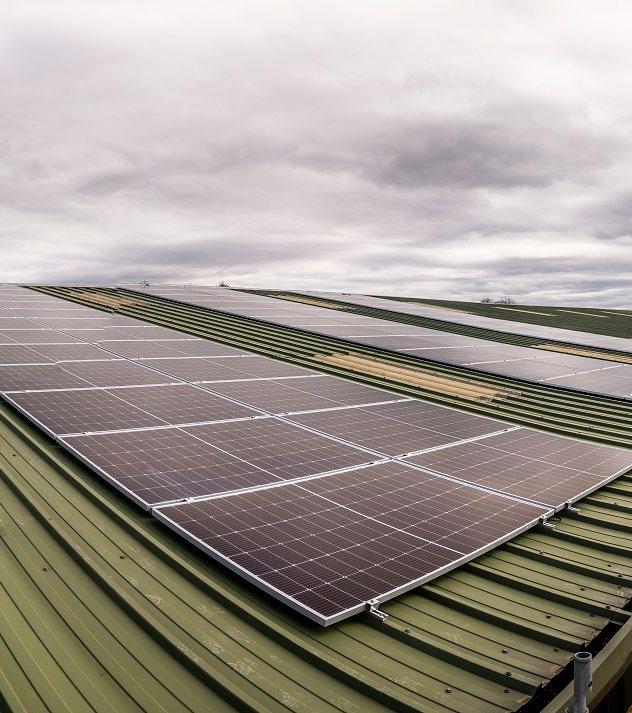

The 20 kW solar PV array provides electricity to the studio, to two electric cars, and to Charlie and Kate’s own house next door. So far this year, as of 12 June, the three buildings have used 11 mW of electricity in total, but only 2.4 mW of this was imported from the grid, with the rest — almost 80 per cent — coming from solar power. Charlie is planning to install a battery next year.

Finished photos: Ed RS Aves | Other photos: Charlie Luxton Design

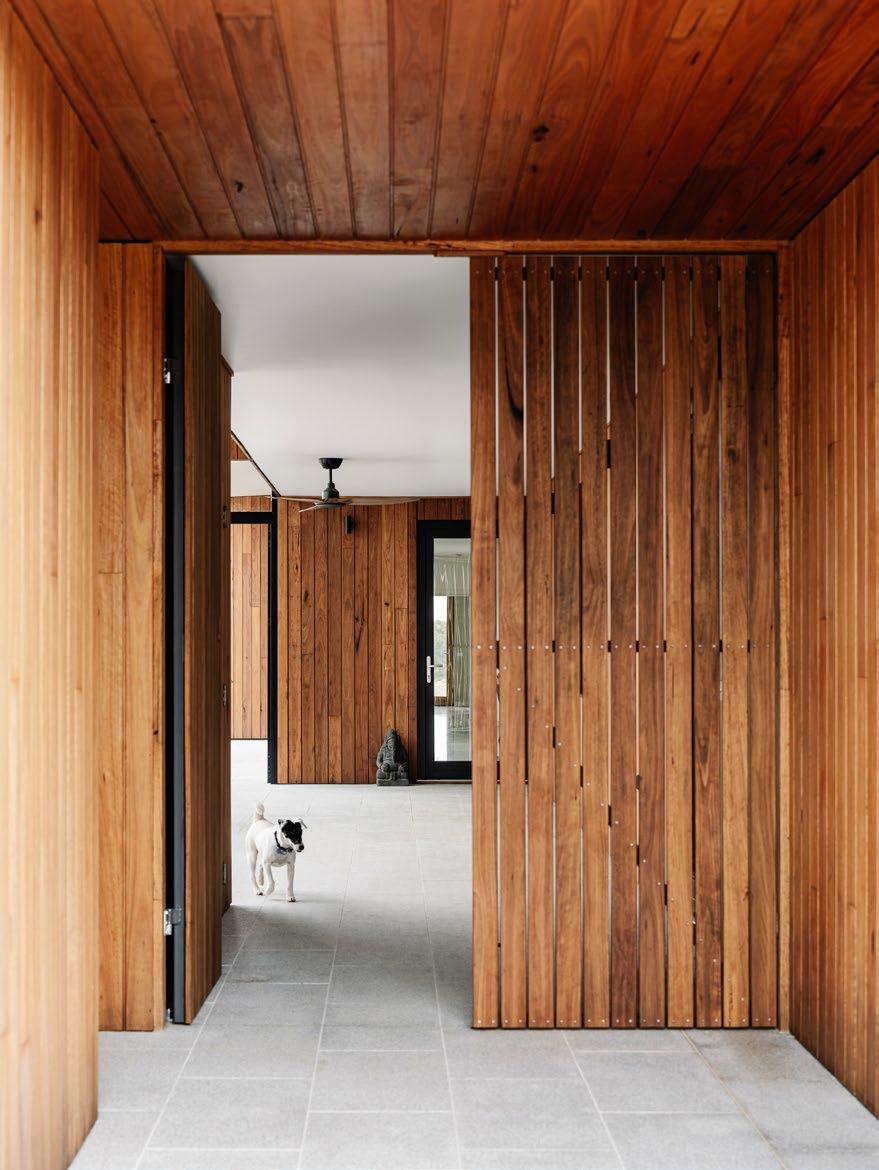

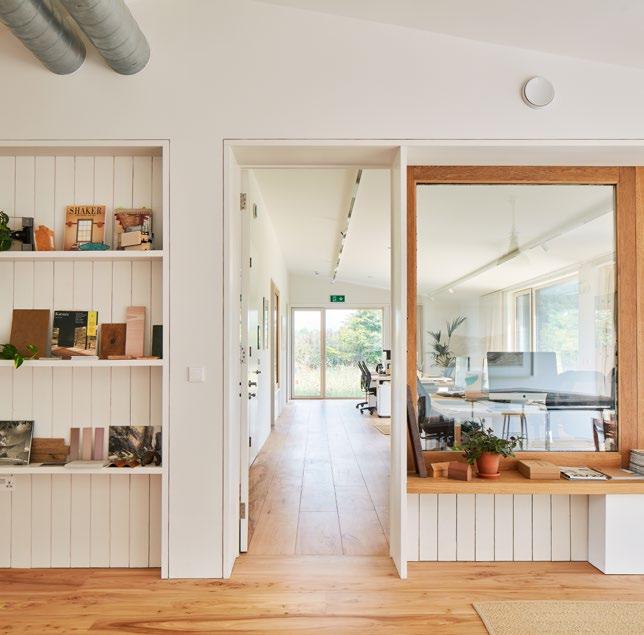

Studio space And what about the spaces inside? What kind of studio did a group of architects and designers want to create for themselves to work in? Kate says that while the old thatched cottage was a pleasant space, it wasn’t really suitable for an office. “For clients coming, it was slightly weird,” she says.

For the new studio, the team wanted to have an open plan working area that fostered collaboration, but also separate rooms for calls, meetings, or quiet working. And with its light filled spaces and warm timber finishes, the new studio is certainly a beautiful space to work in.

“I know the team love coming here,” Kate says, “post-Covid there has been a culture of working from home, but we didn’t suffer from that. The guys wanted to get back into the office and be all together, and I think having this building is a huge part of that.”

She adds: “It’s a place that we want our clients to come to, we want to have meetings here, we want to share it with people.”

CLD does not use the whole building — about one third of the footprint is a music studio for writing and rehearsal, rented by a friend of Charlie’s, and some work was needed during the build to ensure this would be acoustically separated. “You can hear a little bit of drumming, but nothing bothersome, actually it’s really quite nice,”

ph+ | luxton case study | 53

LUXTON

CASE STUDY

he says.

The needs of this space were factored into the design of the building management systems by Wiise. When musicians press record in the studio, the ventilation system – which is inaudible to the occupants but may be detectable in recordings – is temporarily turned off.

1

6

2

7

3

8

4

9

5

10

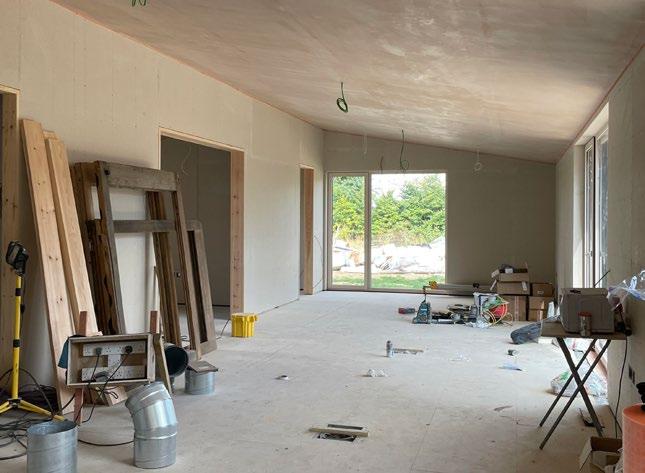

1 Charlie Luxton in the old building. The slab and steel frame were retained, and some blocks were reused; 2 levelling screed to existing slab; 3&4 Steico I-beam frame going up; 5 Caberfloor chipboard on 100 mm Platinum EPS, including channels cut for 75 mm semirigid Airflow ducting, with a further 150 mm EPS beneath; 6 25 mm battens on Durelix Vapourblock airtight vapour control board and Pro Clima airtight tapes, after the Steico Zell woodfibre insulation was blown in; 7 Fermacell boards; 8 Luxton and the Airflow Flexi DV1600 MVHR system; 9 Panelvent under Solitex Fronta vapour permeable breather membrane; 10 battened and counterbattened wall awaiting the powder coated corrugated iron cladding and roofing.

54 | passivehouseplus.ie | issue 45

Rewilding the site Outside, the team’s attention to detail extended well beyond the boundaries of the building. The site was heavily cropped and packed with hardcore and rubber crumb, and as soon as they got the site, Charlie wanted to start restoring biodiversity.

This included planting over seven hundred native trees — particularly elm, alder and black poplar — plus new areas of wildflower flower meadow, and native scrub with crab apple, dog rose, hazel and rowan.

Charlie estimates that it will take about twenty years for the surrounding site to sequester, in the soil and new vegetation, the building’s carbon footprint (excluding the PV array – see embodied carbon section below) of sixty-seven tonnes. He says this is based on back-of-the-envelope sums, but he’s having more detailed calculations performed soon, and developing a longer-term biodiversity management plan.

He says that in the seven years since they bought the site, it has gradually become richer in wildlife, and noticeably louder with the sounds of nature. “Last year waking up at certain times of day and in certain weather was extraordinary,” he says.

“That’s just been joyous to be honest with you… the sense of wellbeing it gives you to bring a land back to biodiversity health. It just feels amazing.”

The project was a winner of the sustainability prize at the 2023 Architects’ Journal Small Projects Awards. “That was a real vindication of what we’ve done and what we’ve worked towards,” Kate says. “To get that industry recognition was so exciting and we feel incredibly proud of it.”

I asked Charlie what the biggest challenge on the building was, but he says it all went pretty smoothly. “It went really well if I’m honest,” he says. “Do you know why? Because it was incredibly rational. And that’s the biggest lesson I think is, we just need to make things a lot simpler, to make all of our buildings a lot simpler.” He says that simpler buildings mean quicker and cheaper builds, less travel to site, lower embodied energy, and more flexible and longer-lasting buildings. It makes it easier to deliver airtightness and eliminate thermal bridges, too.

“And I think it’s actually really liberating to say I can make a really simple building, and if I concentrate and work really hard on that, it can be beautiful.”

L in Re Or d a rig pr o h Sur pert v ey project

The Stables Tunnel Farm Swerford Road Hook Norton OX15 5QB

W0 Fire Call Point Wall

W01

Quiet work room

LED in joinery LED under shelves

LUXTON

DW01

Work Space

W01

Meeting Room

Wall

CASE STUDY

Single pipe Wall

E Wall

E Single pipe

Wall

LED in joinery

WIDER SITE PLAN B

E Wall E Wall

E Wall

E

E

E

W01

B

Kitchen

LED under shelves

South Facing Terrace

D02

Atrium

A

Pre-app 23.09.19 P1

P2 24.12.19 01608 730086

10 M 5 0

Do not scale off this drawing. This drawing is to be read with all other contract documents. Any discrepancies are to be reported to the Architect. At construction status, this drawing remains design intent only. All information to be checked by contractor for site accuracy and fit. Drawings are subject to statutory approvals and site surveys.

info@charlieluxton.com

Planning

A-

0

Beanacre Cottage, Ropeway, Hook Norton, Oxon, OX15 5QB

EFire Call Point Wall

W03

W04

DW02

Wall E

Wall E

Store

Flexible Work Space

WC

E

Wall E

Meeting Room

x

400

Single pipe E

440

Single pipe

400

250

250 E EWC

A-

A

Fire Panel

Embodied carbon calculations were conducted by passive house consultant Richard Bendy of The Healthy Home, using the AECB’s PHPP-based embodied carbon calculation tool, PHribbon. I amended these calculations to consider the effect of different product specifications in a couple of high impact areas. The project was then compared against the embodied carbon targets for offices in the RIBA 2030 Climate Challenge, and the LETI 2030 design targets.

The scope included the whole building, with the exception of reused/recycled items such as the retained concrete slab, steel frame and blocks for a first course of blockwork, along with brise soleil made from a recycled walkway. Groundworks were not included.

Fixed furniture and equipment – including reused appliances – were also omitted, as were external works, along with ductwork, pipes, electrical fittings, and the Mixergy hot water cylinder, but the vast bulk of the building was included.

In the absence of quantified data on construction process-related emissions, the calculations rely on the default assumption in the RICS methodology, where construction process emissions are derived based on the value of the project. In this case, the construction process-related emissions, which are taken to represent 23 tonnes of CO2e, are likely an over-estimate, given the care taken by the project team to minimise emissions throughout the build.

400

Wider Site Plan

Wall

D01

LED on top of ducts

Fire Call Point

Wall

LED under shelves

Embodied carbon

By Jeff Colley

25

7

6 7

3

1 6

4

5

6

2

50 M

1.2. Writer’s Black Retreat Barn Studio 3. Site entrance 2.4. Parking Writer’s Retreat Existing concrete yard adapted for 3.5.planting Site entrance Native woodland 4.6.7. Wild Parking flower meadow & grassland 5. Existing concrete yard adapted for planting 6. Native woodland 7. Wild flower meadow & grassland 1. Black Barn Studio

In several cases, where the specified product didn’t have source data – such as an Environmental Product Declaration, default data, or CIBSE TM65 calculations in the case of building services – data was taken from EPDs or Product Eco Passports on similar products, to produce an indicative result. Most notably, this was the case with regard to the PV array, EPS insulation, air-to-air heat pump and heat recovery ventilation system.

Based on the precautionary principle, in the case of the building’s large PV array, where the specified product didn’t have an EPD, a similar product a with high embodied CO2 score was included in the calculations.

Charlie Luxton Design

On this basis, the building scored a cradleto-grave total of 814 kg CO2e, meaning it meets the RIBA 2025 target for offices.

As Passive House Plus has shown previously, this total was dominated by the large PV array, which contributes a whopping 59.3 per cent of the total – albeit based on a panel with an EPD showing a high embodied carbon score, given the absence of an EPD for the actual panels used. If the roof mounted array is omitted, the total is just 332 kg CO2e/m2. This ignores the energy generated by the array, and is based on the conservative requirement set by RICS that any replacement materials/technologies within

ph+ | luxton case study | 55

LUXTON

CASE STUDY

56 | passivehouseplus.ie | issue 45

CASE STUDY

Detail Study

LUXTON

D E TD AE I LT AS ITLU S D TY U D Y

Roof Construction: Roof Construction:

Roof Construction: - Photo voltaic panel voltaic panel - Photo - 0.7mm corrugated sheet metal sheet - 0.7mmmetal corrugated • Photo voltaic panel - Existing steel frame steel frame - Existing • 0.7mm corrugated metal sheet - Ventilated void - Ventilated void - Solitex Fronta Quattro breather membrane - Solitex Fronta Quattro breather membrane • Existing steel frame - 12.5mm Panelvent - 12.5mm Panelvent - 300mm Steico I-BeamSteico & blown woodfibre insulation - 300mm I-Beam & blown woodfibre insulation • Ventilated void - Duralis Vapourblock board, taped board, for airtightness - Duralis Vapourblock taped for airtightness - 25mm service void service void - 25mm • Solitex Fronta Quattro breather membrane - 12.5mm Fermacell board, finished & painted - 12.5mm Fermacell board, finished & painted • 12.5mm Panelvent • 300mm Steico I-Beam & blown woodfibre insulation • Duralis Vapourblock board, taped for airtightness • 25mm service void • 12.5mm Fermacell board, finished & painted Wall Construction: Wall Construction:

Wall Construction: - UK grown larch cladding - UK vertical grown larch vertical cladding treated softwood counter batten - 50 x50mm treated softwood counter batten • UK grown larch vertical cladding -- 5050 x50mm x50mm treated softwood batten - 50 x50mm treated softwood batten - Solitex Fronta Quattro breather membrane - Solitex Fronta Quattro breather membrane • 50 x 50mm treated softwood counter batten - 12.5mm Panelvent - 12.5mm Panelvent - 300mm Steico I-beamSteico & blown woodfibre insulation - 300mm I-beam & blown woodfibre insulation • 50 x 50mm treated softwood batten - Duralis Vapourblock board, taped board, for airtightness - Duralis Vapourblock taped for airtightness • Solitex Fronta Quattro breather membrane - 25mm service void service void - 25mm - 12.5mm Fermacell board, finished & painted - 12.5mm Fermacell board, finished & painted • 12.5mm Panelvent • 300mm Steico I-beam & blown woodfibre insulation • Duralis Vapourblock board, taped for airtightness • 25mm service void Floor Construction: • 20mm English Elm wood floorboards Floor Construction: Floor Construction: • 22mm Glued Caberdeck - 20mm English Elm wood floorboards - 20mm English Elm wood floorboards - 22mm Glued- 22mm Caberdeck Glued Caberdeck • 100mm HP EPS 100 (laid for re-use) - 100mm HP -EPS 100 (laid for re-use) 100mm HP EPS 100 (laid for re-use) - 150mm EPS-PREMIUM (laid for re-use) 150mm EPS 100 PREMIUM 100 (laid for re-use) • 150mm EPS PREMIUM 100 (laid for re-use) - Fully taped -radon Fully membrane taped radon membrane • Fully taped radon membrane - 20mm levelling screed - 20mm levelling screed - Existing concrete slab - Existing concrete slab • 20mm levelling screed • Existing concrete slab

SELECTED PROJECT DETAILS

Client, architect, main contractor: Charlie Luxton Design Passive house consultant: The Healthy Home Structural engineer: Varndell Engineering Quantity surveyor: Andrew Bird Associates Electric contractor: AMR Electrical Contractor Airtightness tester: Aldas Life cycle assessment: The Healthy Home Building system supplier: Steico Wood fibre insulation: Steico Floor insulation (EPS): Kay-Metzeler Windows & doors: Internorm, via At-Eco Liquid airtight membrane: Blowerproof, via Ecomerchant Airtight tapes & membranes: Pro Clima, via Ecomerchant Corrugated metal roofing: Sandford Roofing Fit out: Hook Norton Construction British elm floorboards: Sutton Timber Heat pump: Panasonic, via Airflow MVHR: Airflow Solar PV: Aspey Energy Building management system: oxone, via Wiise Landscaping: Katie Guillebaud Garden Design Breathable sheathing board: Panelvent, via Ecomerchant Insurance: The Build Store Hot water cylinder: Mixergy Lighting: Darklight design Sanitaryware: Duravit Insulating blowing machine and training: PYC

the 60-year study period for the building must be assumed to have the same embodied carbon emissions as the initial one – a highly questionable assertion given the rate of decarbonisation in industry. Based on the projected lifespan of 25 years in the EPD for the default PV array chosen, this meant two replacement arrays were included.

It is worth adding, however, that if the value for what is currently the lowest emissions PV array on the market was used – the Sunpower Maxeon 3 – the totals for the PV array would have dropped by 73 per cent – or a cradle-to-grave total of over 26 tonnes, versus almost 98.5 tonnes. While this massive reduction owes mainly to the panel’s low carbon manufacturing – notably including the wafer and ingot being manufactured in Norway, using hydroelectric power – it’s also due to the panel’s higher output. For this calculation, 103 m2 of Maxeon 3 array had the same output as 120 m2 of the high carbon array that was assumed.

While thinking in terms of cradle-to-grave impacts is key, there is an argument that greater emphasis should be placed on reducing emissions now, provided it doesn’t lock in avoidable emissions over the lifespan of the building via operational energy use and avoidable repair or replacement of components.

For this reason, LETI has set upfront embodied carbon emissions targets, alongside cradleto-grave and operational energy targets.

On this basis, the building fares very well, registering a total of 217 kg CO2e/m2, comfortably beating LETI’s 2030 target for upfront embodied carbon target for office buildings of 350 kg CO2e/m2.

It’s also worth noting that because both RIBA and LETI – quite reasonably – have separate embodied carbon and operational energy performance target, the extra carbon

0

0

2M

2M

Charlie Luxton Design

invested in reducing emissions over time is counted, but the carbon saved through energy efficiency and generation of renewable energy isn’t. It may be the case that the upfront carbon pays back very quickly, which is precisely why it makes sense to have embodied carbon and operational energy targets, rather than trading one off against the other.

One factor which substantially helps: LETI’s targets don’t count roof-mounted PV arrays, instead regarding them as part of the grid, which drops the upfront total by 157 kg CO2e/m2.

Based on LETI’s definitions of upfront emissions alone – excluding the PV array – the biggest embodied carbon total comes from the standing seam galvanised steel cladding at over eight tonnes – an estimate which would have increased if the impact of the vertical steel ribs on surface area of materials was considered.

While LETI’s targets don’t permit CO2 sequestered in materials to be offset against the emissions released upfront, the reliance on timber and wood fibre insulation means that at the point of practical completion, the building’s materials had absorbed and stored 176 kg CO2e/m2 – over 80 per cent of the upfront total.

Another factor significantly affecting the cradle to grave totals is the life cycle assessment requirement to consider the sequestered CO2 in the building’s timber and timber-based materials as effectively being released into the atmosphere at the building’s assumed end of life. 35.9 tonnes of CO2 stored in the building become 40.8 tonnes at the end of life, through a combination of the emissions being assumed to be released, and the extra carbon spent in transporting and processing the materials at that stage.

ph+ | luxton case study | 57

LUXTON

CASE STUDY

hab hab hab

58 | passivehouseplus.ie | issue 45

CASE STUDY

LUXTON

IN DETAIL Building type: 204 m2 (gross internal floor area) timber frame building comprising architectural studio and music studio.

Treated floor area: 195 m2 Site type & location: Village edge site, Hook Norton, Oxfordshire.

Budget: £340,500 (£1,669 per square metre).

Inclusive of landscaping but exclusive of VAT, fees and loose furniture.

Completion date: January 2022 Passive house certification: Not certified Space heating demand (PHPP): 12 kWh/m2/yr Heat load (PHPP): 10 W/m2 Primary energy non-renewable (PHPP): 15 kWh/m2/yr Primary energy renewable (PHPP): 13 kWh/m2/yr Renewable energy generation (PHPP): 65 kWh/m2/yr Heat loss form factor (PHPP): 3.6 Overheating (PHPP): 4 per cent of year above 25 C Number of occupants (PHPP): 12 Embodied carbon: When assessed in line with requirements of the RIBA 2030 Climate Challenge, the whole-life cycle carbon footprint (A1 to C4, excluding emissions from operational energy and water use) calculated as 76.4 tonnes CO2e or 814 kg CO2e/m2 gross internal area in PHRibbon. 59.3 per cent of this total is based on the PV array alone, albeit based on conservative default data), meeting the RIBA

2025 target for office buildings.

Measured energy usage: 39.8kwh/m2/yr Airtightness (at 50 Pascals): 0.3 air changes per hour Ground floor: 22 mm elm floorboards, followed underneath by Caberfloor Chipboard flooring, 100 mm timbers at 600 mm centres with 100 mm platinum EPS, on 150 mm timbers at 1200 mm centres with 150 mm white EPS, on radon-proof DPM, on levelling screed, on existing concrete slab. U-value: 0.13 W/m2K. Walls: Polyester powder coated corrugated iron cladding to existing steel frame, followed inside by ventilated cavity, breather membrane, Panelvent breathable sheathing board, Steico I-beam system with 300 mm Steico Zell wood fibre insulation, Durelos Vapourblock airtight vapour control board, 25 mm services zone, Fermacell board. U-value: 0.132 W/m2K Roof: Polyester powder coated corrugated iron sheet on steel frame, followed underneath by wind-tight membrane, Panvelvent breathable sheathing board, Steico I-beam system with 300 mm Steico Zell wood fibre insulation, Durelis Vapourblock airtight vapour control board, 25 mm services zone, 12.5 mm plasterboard to ceiling. U-value: 0.132 W/m2K Windows & doors: Internorm HF410 triple glazed timber-aluclad windows throughout.

Plus, Internorm HS330 timber/aluminium lift and slide door. Installed U-value range: 0.70 to 0.82 W/m2K. Heating & ventilation system: Airflow Flexi DV1600 MVHR system. Passive House Institute

certified heat recovery rate of 86 per cent.

Extracts up to 1,600 m3/h (0.44 m3/s) at 200 Pa. A Panasonic PACi Elite single phase inverter air conditioner/heat pump (with R32 refrigerant) provides heating or cooling to MVHR supply air via a DX coil.

Electricity: 20 kW solar photovoltaic array on the south-facing roof. Provides electricity to this building, three electric car chargers and to the house next door. Between 1 January and 12 June 2023, the PV system had supplied 8.6 mW out of 11 mW consumed on the site, with 2.4 mW imported from the grid.

Biodiversity and landscape: 2,100 m2 of land stripped of hard standing, rubber crumb and returned to wildflower and scrub. 180 tonnes of hardcore taken from land for local recycling. 25 m3 of rubber crumb reclaimed from menage for reuse locally. 1,800 m2 native scrub, 2,500 m2 of wildflower and over 700 native trees planted.

The next step is to analyse the biodiversity net gain and develop a long-term management strategy with local wildlife trust.

Sustainable materials: Steico PEFC certified timber building system, steel barn and concrete slab retained, salvaged oak door reused as internal screen, salvaged timber from horse stables used for internal finish, walkways recycled as solar shading, rubber crumb reused locally, concrete blockwork and site hardcore reused. Floor insulation, cladding and roofing are designed to be easy to remove and reuse in future. English larch cladding, English elm floorboards. Recycled furniture and secondhand appliances throughout.

ph+ | luxton case study | 59

RIVER CLYDE

CASE STUDY

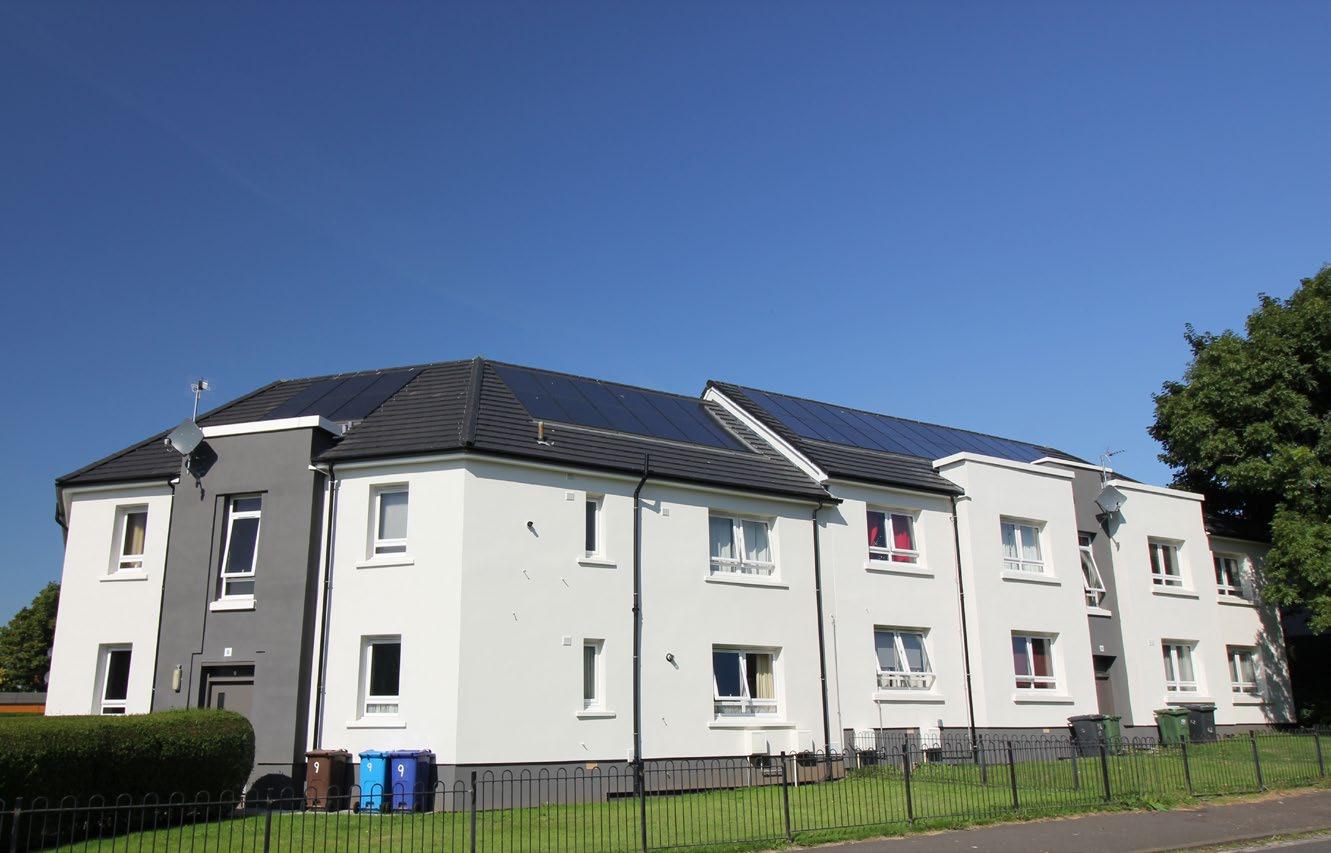

BONNY IN CLYDE SCOTTISH HOUSING ASSOCIATION CRACKS THE SAFE ON DECARBONISING SOCIAL HOUSING How do you solve a problem like decarbonising social housing, and do so rapidly, en masse, in a manner that lifts vulnerable people out of fuel poverty while delivering warm, healthy homes?

River Clyde Homes may be about to pull off the seemingly impossible.

By Lenny Antonelli

R

apidly decarbonising our built environment is an urgent task, but it poses a vicious puzzle: how to do it fast, but do it well? And how to pay for it? Deep retrofit is complex, and poorly executed upgrades have a history of causing damp and mould.

The UK and Ireland both plan to become zero carbon societies by 2050. Both countries will need to upgrade a large majority of their homes — two million dwellings in Ireland, twenty-seven million in the UK— by 2050. This will require an unprecedented scaling up of retrofit, and an unprecedented level of investment.
