2025 Urbane Homes Product Range Customer Booklet - QLD
Our experienced team are focused on ensuring your house & land package is designed to meet your needs with all aspects considered up-front so the house is ready to move into on completion with no hidden surprises or costs.
Leveraging key relationships across the industry, our buying power across both land development & construction ensures that our homes the best quality and value on the market.
25 YEAR STRUCTURAL WARRANTY*
All Urbane Homes proudly feature a 25-year Structural Guarantee. This demonstrates our commitment to giving you peace of mind, knowing that you have made the right decision to build with Urbane Homes & that your home will stand the test of time.
FIXED PRICE TURNKEY HOME
At Urbane Homes turnkey really means turnkey. All house & land packages include everything from full landscaping & letterboxes, to window furnishings & clotheslines so you don't have to do anything except move in.
7 STAR ENERGY
RATING
Our homes are designed & sited on each lot to ensure the best possible outcome in terms of cross ventilation & energy efficiency.
ARCHITECT DESIGNED HOMES
Our inhouse design team meticulously focus on all aspects of our homes from both an internal & external perspective.
Proudly part of the Orbit Homes Group, rest assured that your build is in safe hands.
We have a long history of building premium homes for Australian families, delivering outstanding service, design excellence and exceptional quality homes since 1979.
We focus on quality, so be sure that our designs, workmanship and relationships with our clients and suppliers, are front-of-mind for all of our team.
Reaching over 45 years is a milestone in any business, but particularly so in the building industry where changes in the housing market, materials innovation, building standards and regulations, not to mention styles and trends, all play a huge part in our day-to-day success.
We stand proudly by the more than 15,000 homes we have built.
THE JOURNEY
PRE-SITE JOURNEY
At Urbane Homes we believe that you shouldn’t be left in the dark when purchasing your brand new home. We will be with you at every stage during your journey.
WHAT YOU DO
Select house type and facade.
Select from list of upgrades and predetermined interior and external colours.
Fill out expression of interest template & pay initial deposit.
WHAT WE DO
Put together fixed price building contract.
WHAT YOU DO
Review Standard HIA Contract document and if required submit any questions.
WHAT YOU DO
Sign building contract. Contracts are loaded to DocuSign
WHAT YOU DO
Sign post contract variation for any outstanding items.
Pay balance of 5% deposit
WHAT WE DO
Internal Urbane admin begins. Update to agent on progress for Agent to deliever feedback to end customer.
WHAT YOU DO
Your Building Supervisor will discuss your pre-construction site requirements and the first stage of construction.
WHAT YOU DO
Attend your pre-site inspection meeting with your Building Supervisor. At this stage, you will need to ensure your block is ready for construction. This means your site needs to be clean and the survey pegs must be in place.
WHAT WE DO
Building Approval application will be lodged with an Independent Surveyor.
WHAT YOU DO
Provide your Customer Service Officer with a copy of your signed loan documents.
2. BUILDING CONTRACT
1. EXPRESSION OF INTEREST
4. FINAL AMENDMENTS
6. PRE-START ON-SITE MEETING 3. CONTRACTS SIGNED
7. BUILDING APPROVAL
BUILDING JOURNEY
At Urbane Homes we believe that you shouldn’t have to face building your home alone, that’s why we will be here at each stage during the construction of your home.
WHAT WE DO

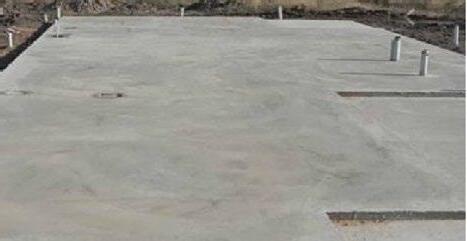

Underground services will be installed and your slab will be poured
WHAT YOU DO
Pay your slab stage claim invoice.
WHAT WE DO
Frame is erected and roof trusses are installed.
WHAT YOU DO
Pay your frame stage claim invoice.
WHAT WE DO
External cladding, electrical and plumbing rough ins are completed and external doors are hung to secure your home.
WHAT
YOU DO
Your pre-plaster inspection and pay your lock up stage claim invoice.
WHAT
WE DO
Painting, tiling and final fit offs are completed.
WHAT YOU DO
Meet with your Building Supervisor for your pre-tile inspection and pay your fixing stage claim invoice.
WHAT WE DO
Quality Assurance Inspection is carried out on the home and final inspection by the Building Surveyor
WHAT YOU DO
Inspect your home with your Building Supervisor and the Quality Assurance Manager.
WHAT WE DO
Appliances are installed along with any final touch ups.
WHAT YOU DO
Collect your keys and finalise the settlement of your new home.
WHAT WE DO
Contact you to you see how you have settled into your new home.
WHAT YOU DO
Write down any questions or queries in relation to maintenance during this period.
LOCK UP
FRAME

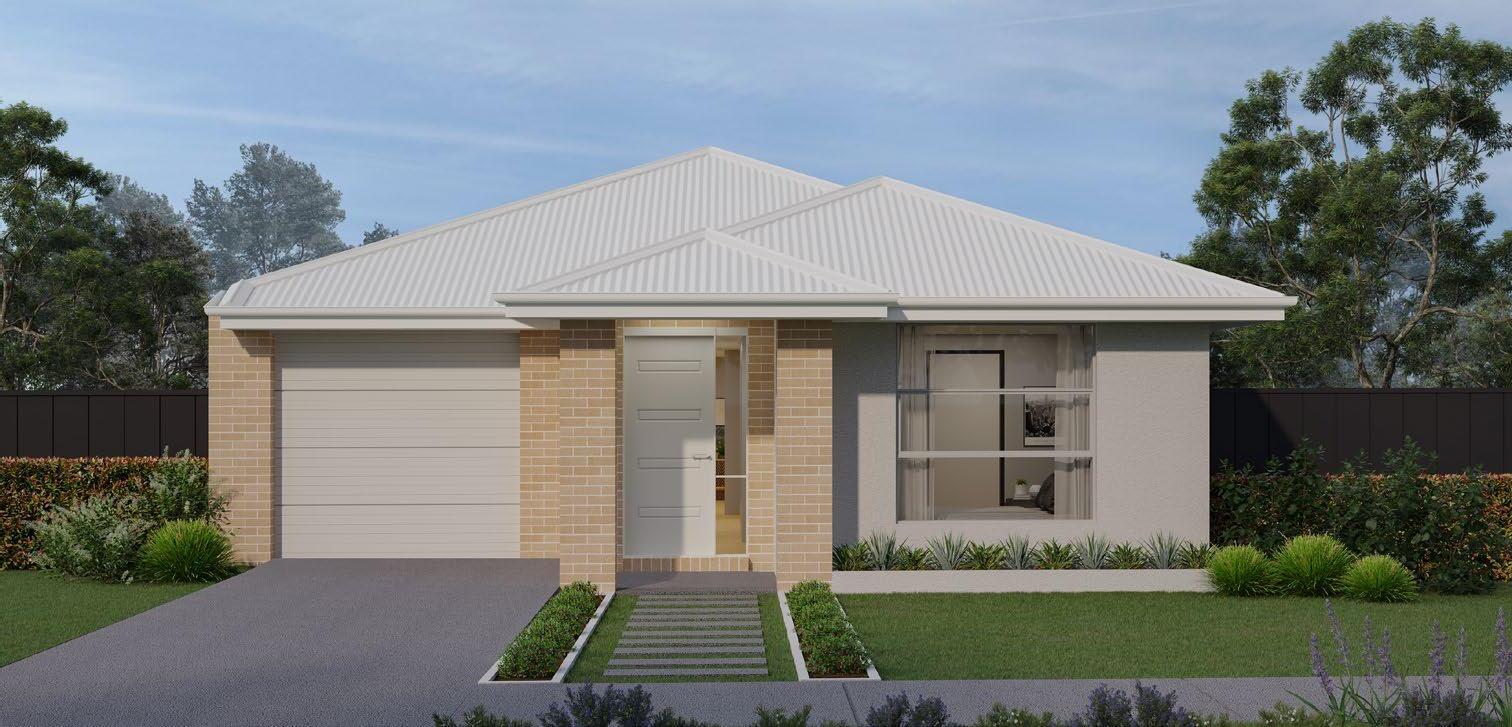

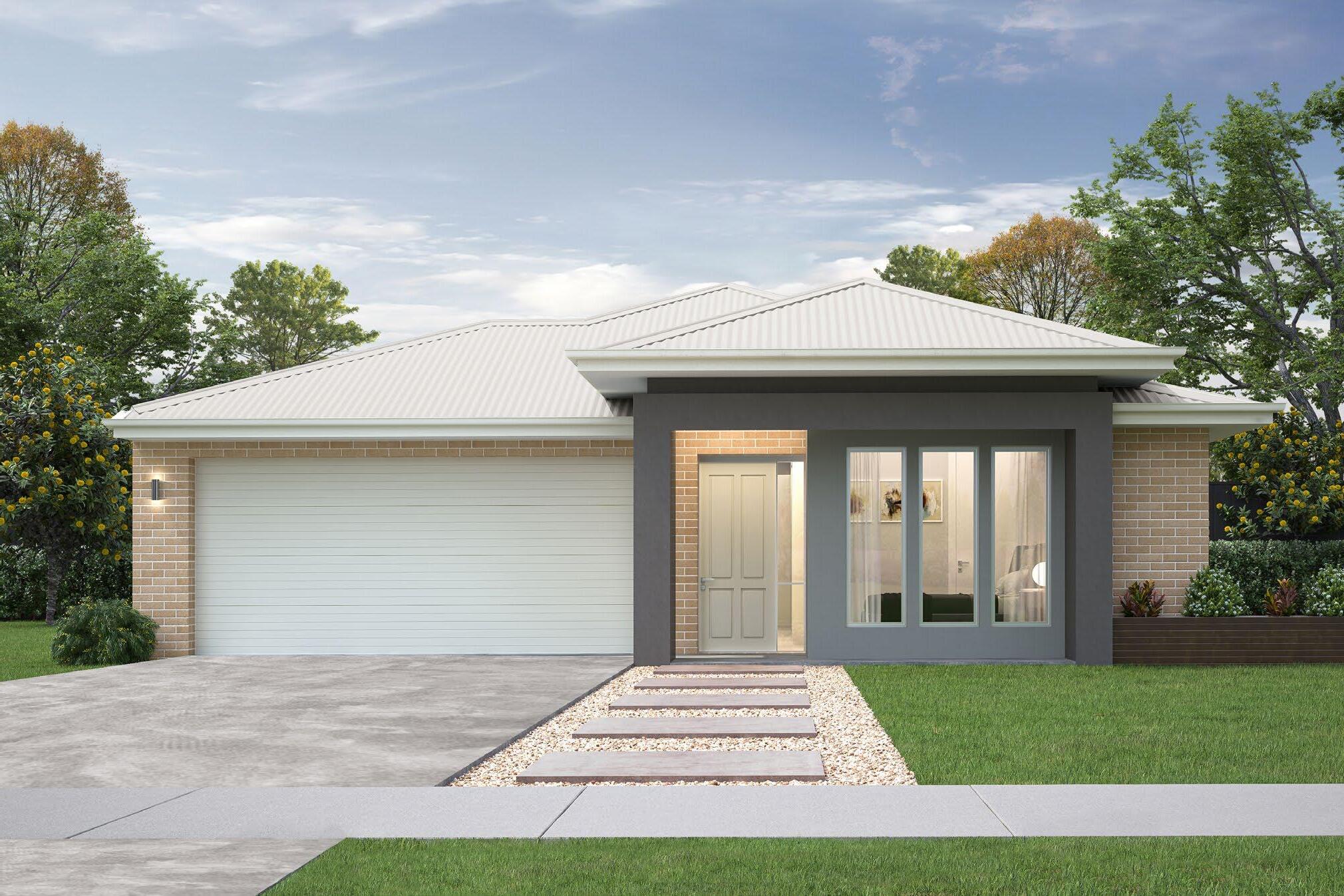

Single Storey Narrow Lot Facade Options
IMPRESS AND DELIGHT WITH ONE OF OUR STYLISH NARROW LOT FACADES. (ONLY APPLICABLE TO DESIGNS FEATURING A SINGLE CAR GARAGE)

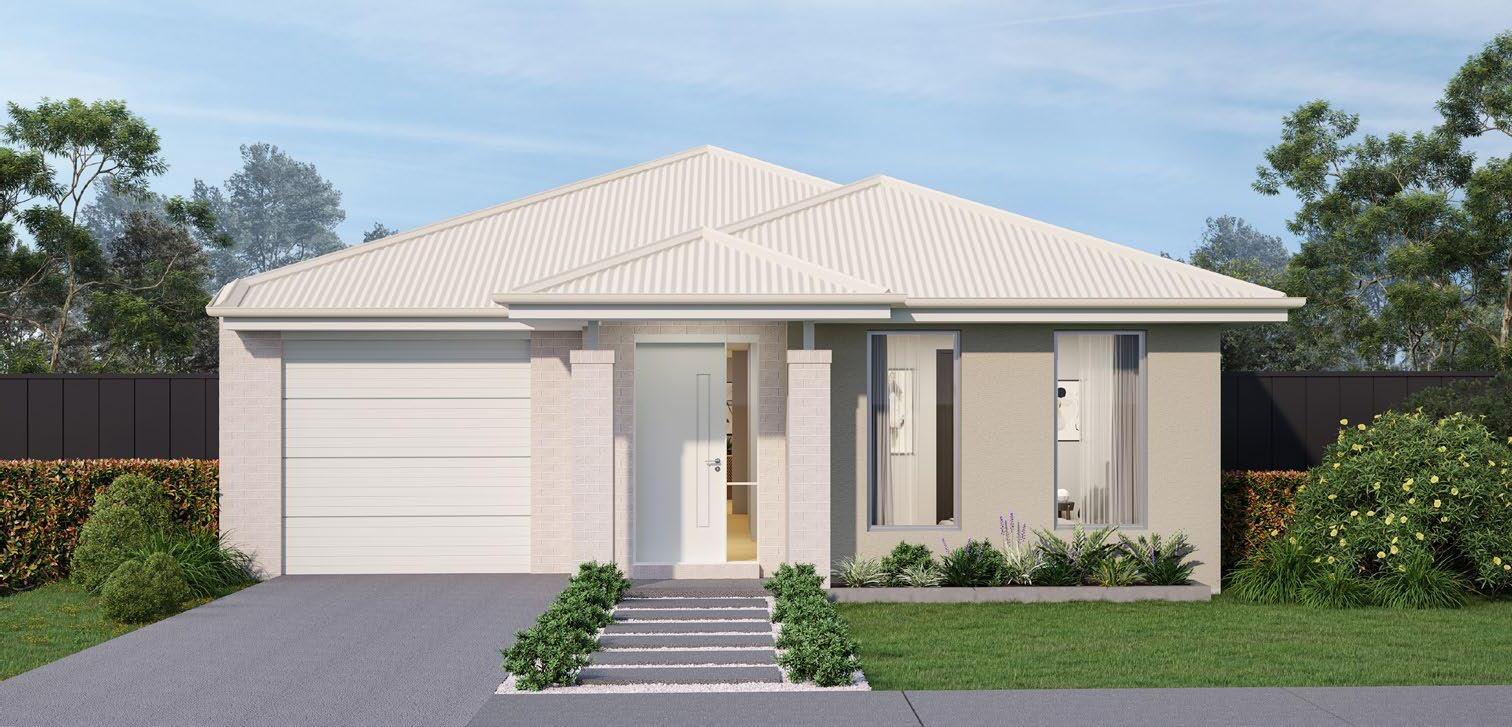

Sagres Facade Lisbon Facade
Seville Facade
PRICE: INCLUDED ILLUSTRATED ON LENNOX 132 | COLOUR SCHEME STONE
PRICE: INCLUDED ILLUSTRATED ON LENNOX 132 | COLOUR SCHEME LATTE
PRICE: INCLUDED ILLUSTRATED ON LENNOX 132 | COLOUR SCHEME GREY
Single Storey Standard Facade Options
CHOOSE FROM FOUR MODERN AND STYLISH STANDARD FACADE OPTIONS AT NO EXTRA COST.
THIS SECTION TAKES YOU THROUGH THE DETAILS OF EACH STANDARD FACADE, EXPLAINING ALL INCLUDED ITEMS AND EXTRAS YOU CAN CHOOSE TO ADD ON.

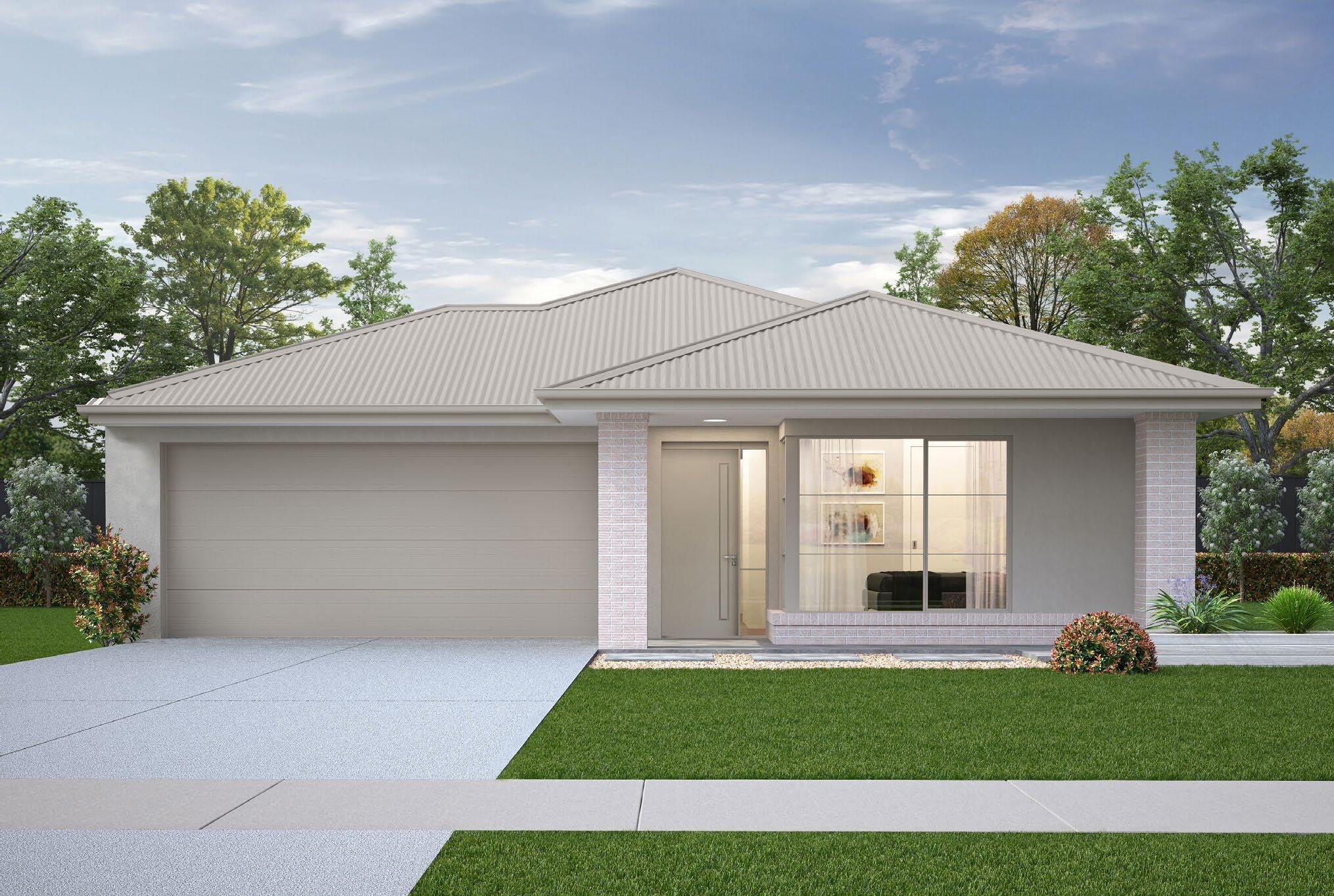

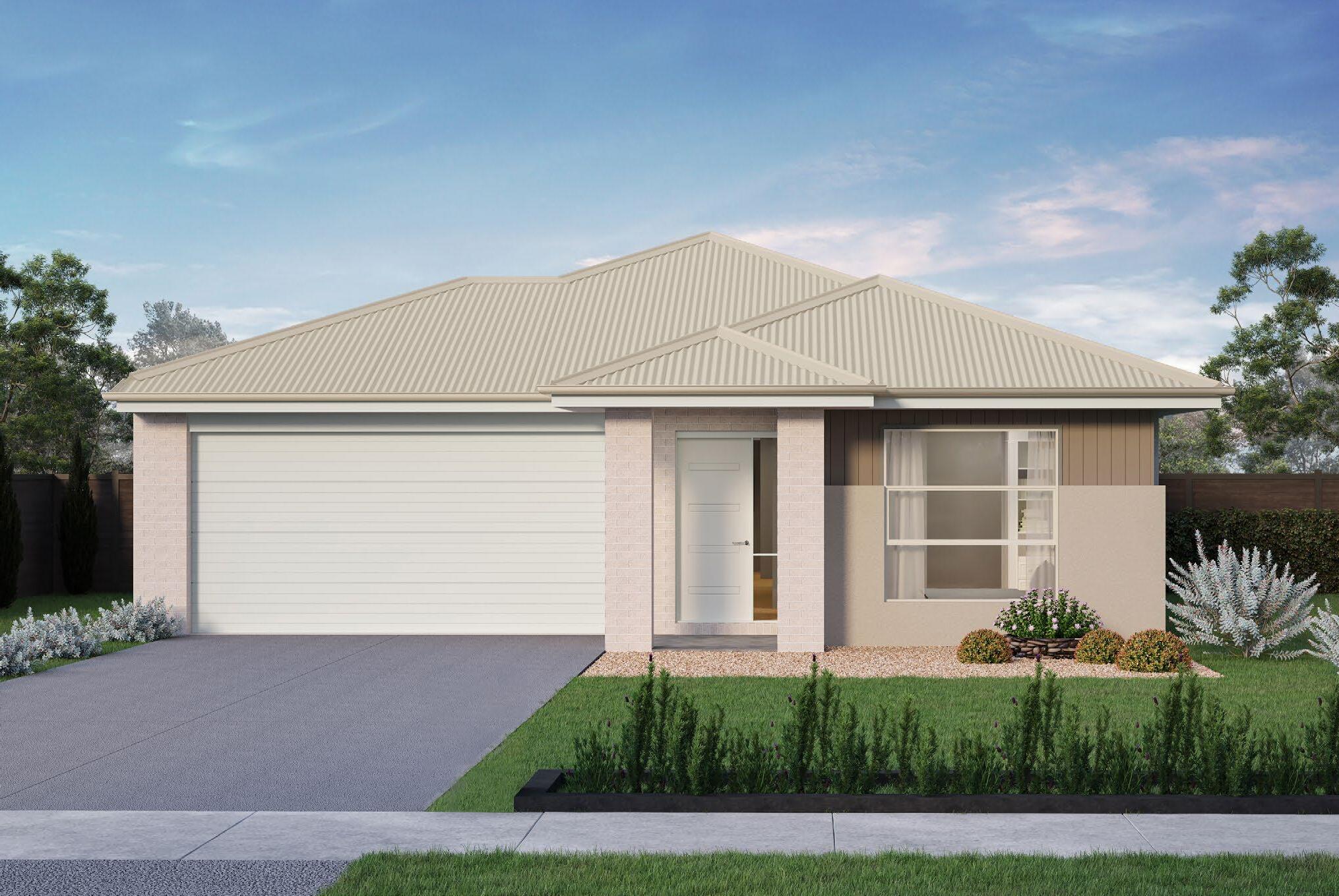

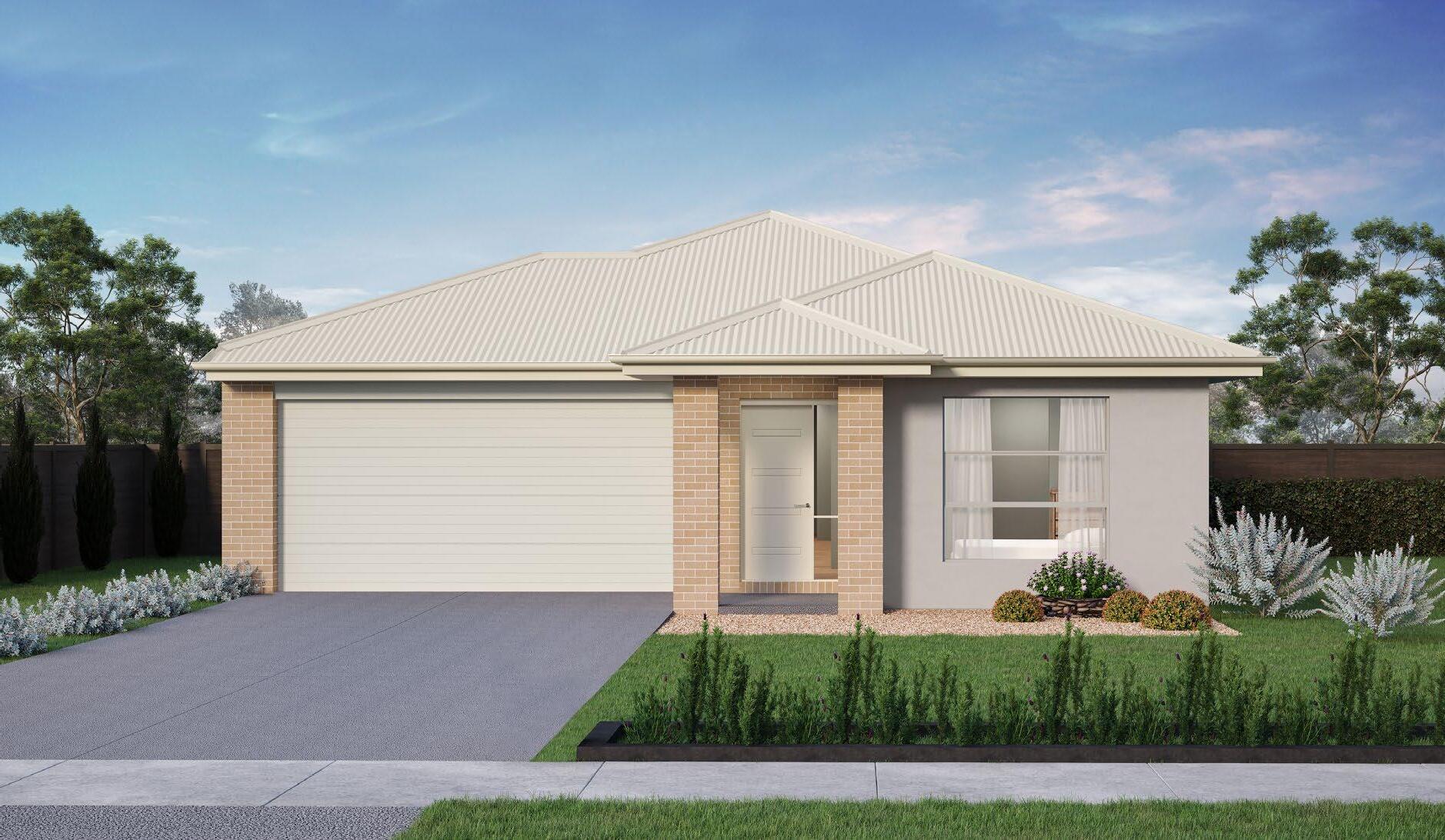

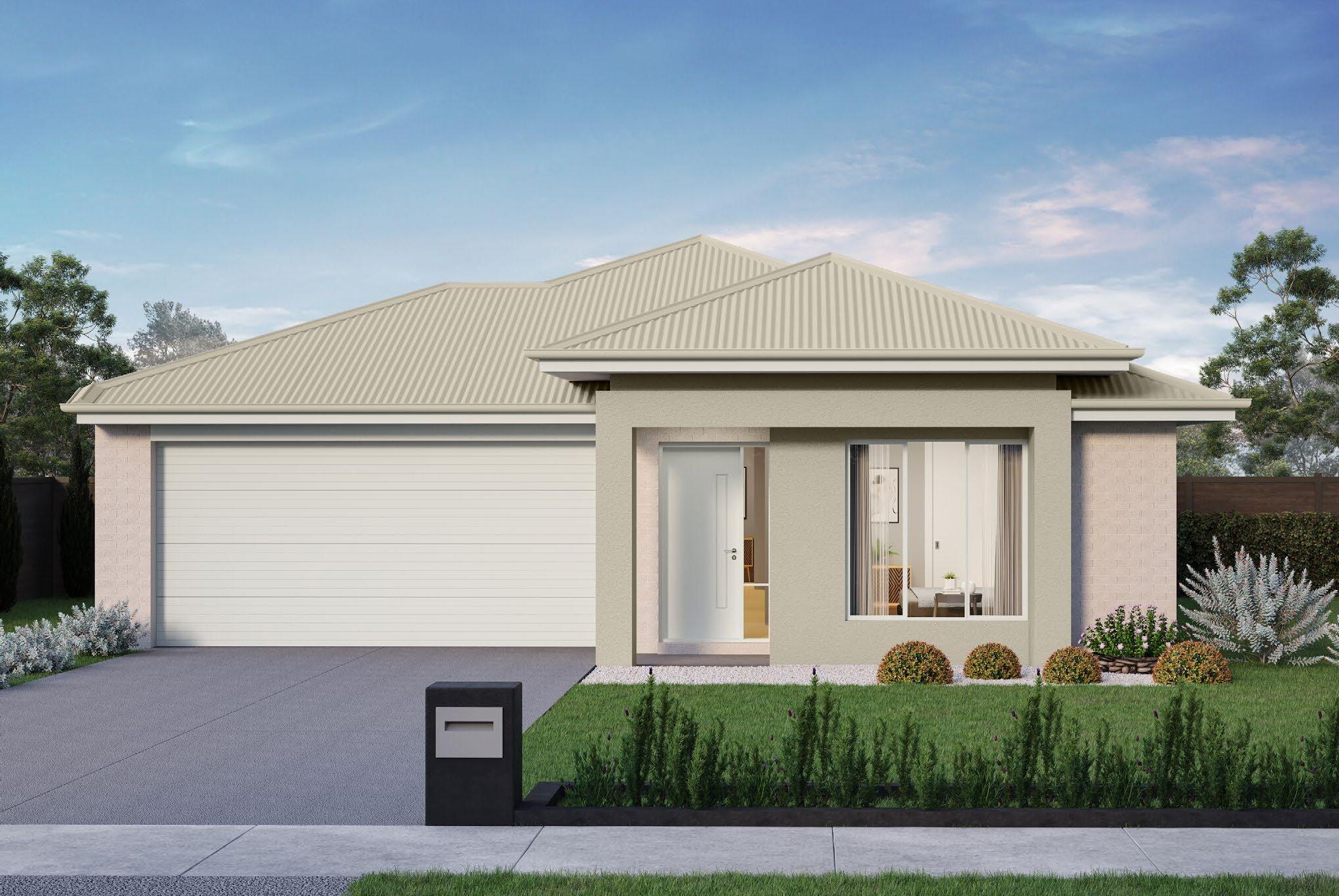

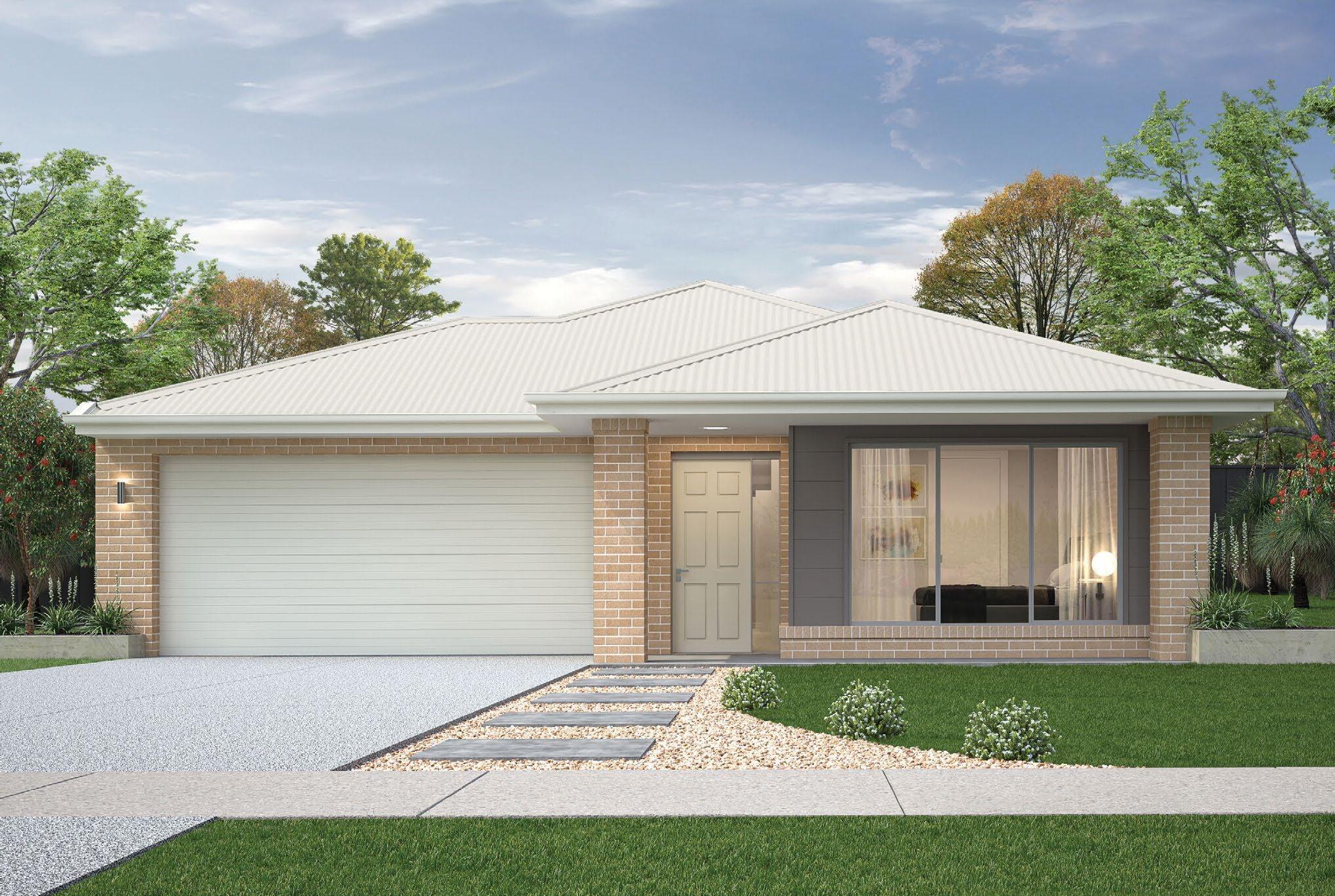

Lisbon Facade
PRICE: INCLUDED
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Landscaping design, refer to plan
• Brick infill above garage door
ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME STONE
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted render finish to front room protrusion
– from but not including entry wall across front and returned 450mm

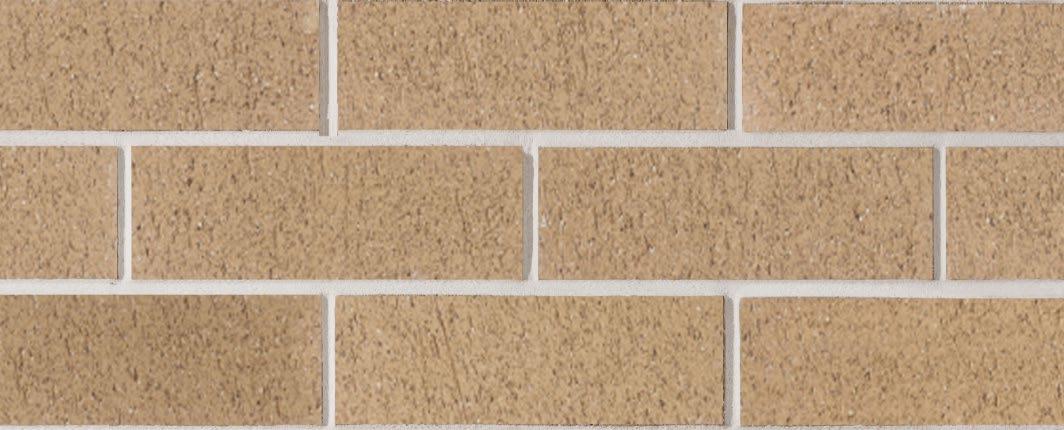

Face brick to remainder of front facade
• 2 no 470x470mm face brick piers supporting porch roof
Armadale style aluminium awning windows to front (window numbers and widths are subject to available space – house specific)
• 820mm framed front door (width and inclusion of sidelight is house type specific)
• Painted FC infill above garage door
• 2100 high Colourbond garage door (width is house type and lot size specific)
• FC sheet lining to porch ceiling
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
Sagres Facade
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted render finish to front room protrusion
– from but not including entry wall across front and returned 450mm
Face brick to remainder of front facade
• 2 no 470x470mm face brick piers supporting porch roof
1 no multi transom style aluminium awning window to front with middle sash openable, top and bottom sash fixed (window width is subject to available space – house specific)
• 820mm framed front door (width and inclusion of sidelight is house type specific)
• Painted FC infill above garage door
• 2100 high Colourbond garage door (width is house type and lot size specific)
• FC sheet lining to porch ceiling
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Landscaping design, refer to plan
• Brick infill above garage door
URBANE HOMES

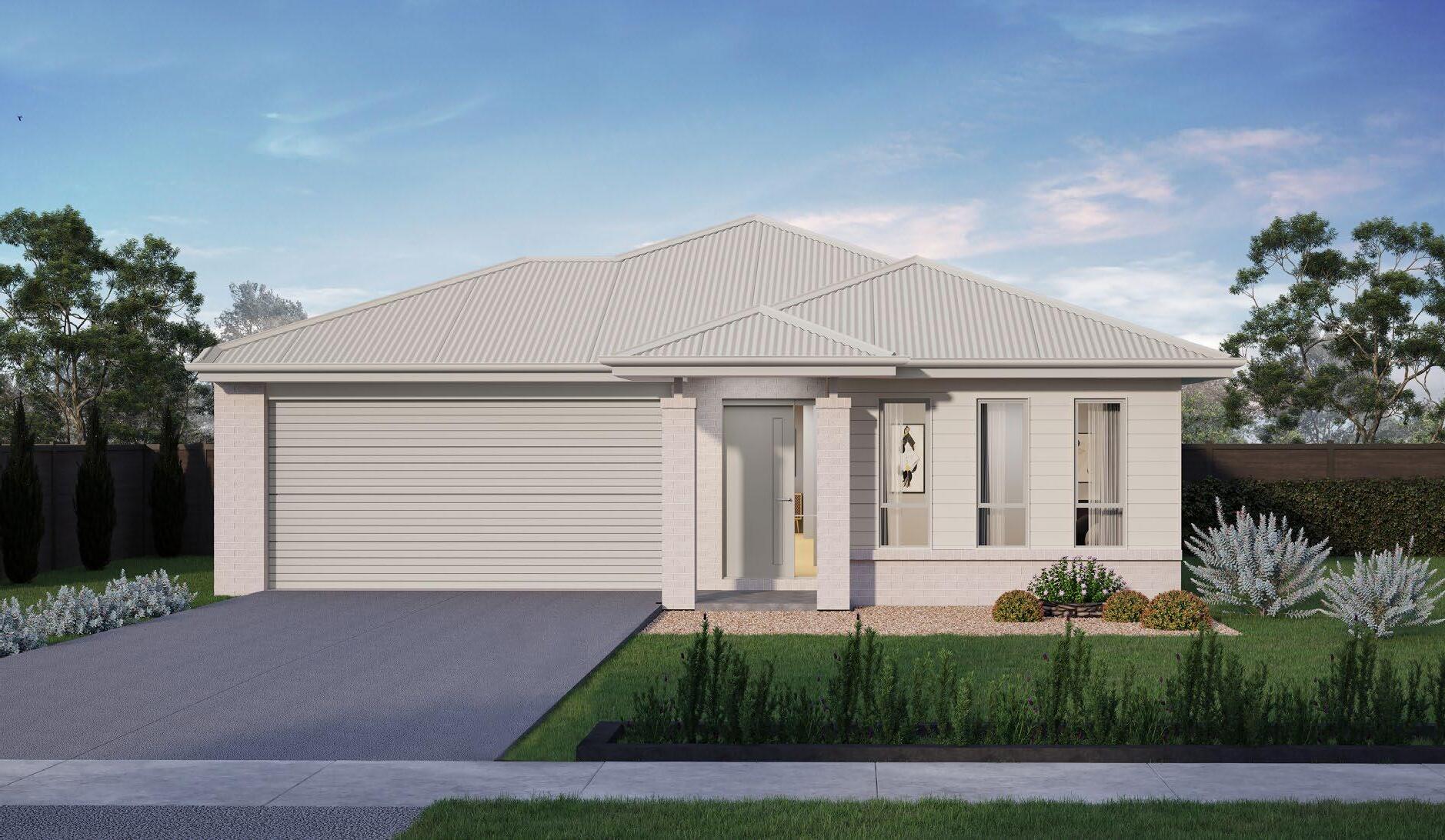

Seville Facade
PRICE: INCLUDED ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME LATTE
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Brickwork infill above garage door
• Landscaping design, refer to plan
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted weatherboard look lightweight cladding to front room protrusion – from but not including entry wall across front and returned 450mm with FC corner stops above face brick base.
• Face brick to remainder of front facade
• 2 no 470x470mm face brick piers, mitred brickwork finish to top with exposed 90x90mm timber post to top supporting porch roof
• 820mm framed front door (width and inclusion of sidelight is house type specific)
• 3 no aluminium awning windows to front with FC trimmed external architrave (window numbers and widths are subject to available space – house specific)
• Painted FC infill above garage door
2100 high Colourbond garage door (width is house type and lot size specific)
FC sheet lining to porch ceiling
450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
Vienna Facade
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted vertical look lightweight cladding to top third of front room protrusion – from but not including entry wall across front and returned 450mm with FC corner stops and painted rendered brick base.
• Face brick to remainder of front facade
• 2 no 470x470mm face brick piers supporting porch roof
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
• 820mm framed front door (width and inclusion of sidelight is house type specific)
• Painted FC infill above garage door
• 1 no multi transom style aluminium awning window to front with middle sash openable, top and bottom sash fixed (window width is subject to available space – house specific)
• 2100 high Colourbond garage door (width is house type and lot size specific) FC sheet lining to porch ceiling
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Brickwork infill above garage door
• Landscaping design, refer to plan
URBANE HOMES
PRICE: INCLUDED
ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME STONE
Single Storey Upgrade Facade Options
A STRIKING FACADE CAN INCREASE THE VALUE OF YOUR INVESTMENT HOME. CHOOSE FROM FOUR STYLISH UPGRADE FACADE OPTIONS. THIS SECTION DETAILS EACH FACADE, LISTING THE FEATURES INCLUDED IN THE PRICE AS WELL DETAILING ANY EXTRAS YOU CAN CHOOSE TO ADD ON.
Porto Facade
PRICE: $1,999
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Entry door design
• Brickwork infill above garage door
• Landscaping design, refer to plan
• Feature lighting
ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME GREY
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted weatherboard look lightweight cladding to front room protrusion – from but not including entry wall across front and returned 450mm with fc corner stops above face brick base.
• Face brick to remainder of front facade
• 1 no 470x470mm face brick piers, mitred brickwork finish to top with exposed 90x90mm timber post to top supporting porch roof
• 2100 high Colourbond garage door (width is house type and lot size specific)
• 1 no Armadale style aluminium awning window to front with FC trimmed external architrave (window width is subject to available space – house specific) 820mm framed front door (width and inclusion of sidelight is house type specific)
• Painted FC infill above garage door FC sheet lining to porch ceiling 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
URBANE HOMES
Palma Facade
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted rendered finish to entire facade excluding base brickwork at front room protrusion from but not including entry wall across front and returned 450mm to side elevation to front window sill height
• 1 no 470x470mm face brick pier, mitred brickwork finish to top with exposed 90x90mm timber post to top supporting porch roof
• 1 no metro style aluminium awning window to front with two stick on horizontal moulds evenly spaced (window width is subject to available space – house specific)
• Aluminium cover plate to corner between windows
• 1 no Armadale style aluminium awning window facing entry side with two stick on horizontal moulds evenly spaced (window width is subject to available space – house specific)
• 820mm framed front door (width and inclusion of sidelight is house type specific)
• Painted FC infill above garage door
• 2100 high Colourbond garage door (width is house type and lot size specific)
• FC sheet lining to porch ceiling
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Entry door design
• Brickwork infill above garage door
• Landscaping design, refer to plan
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).

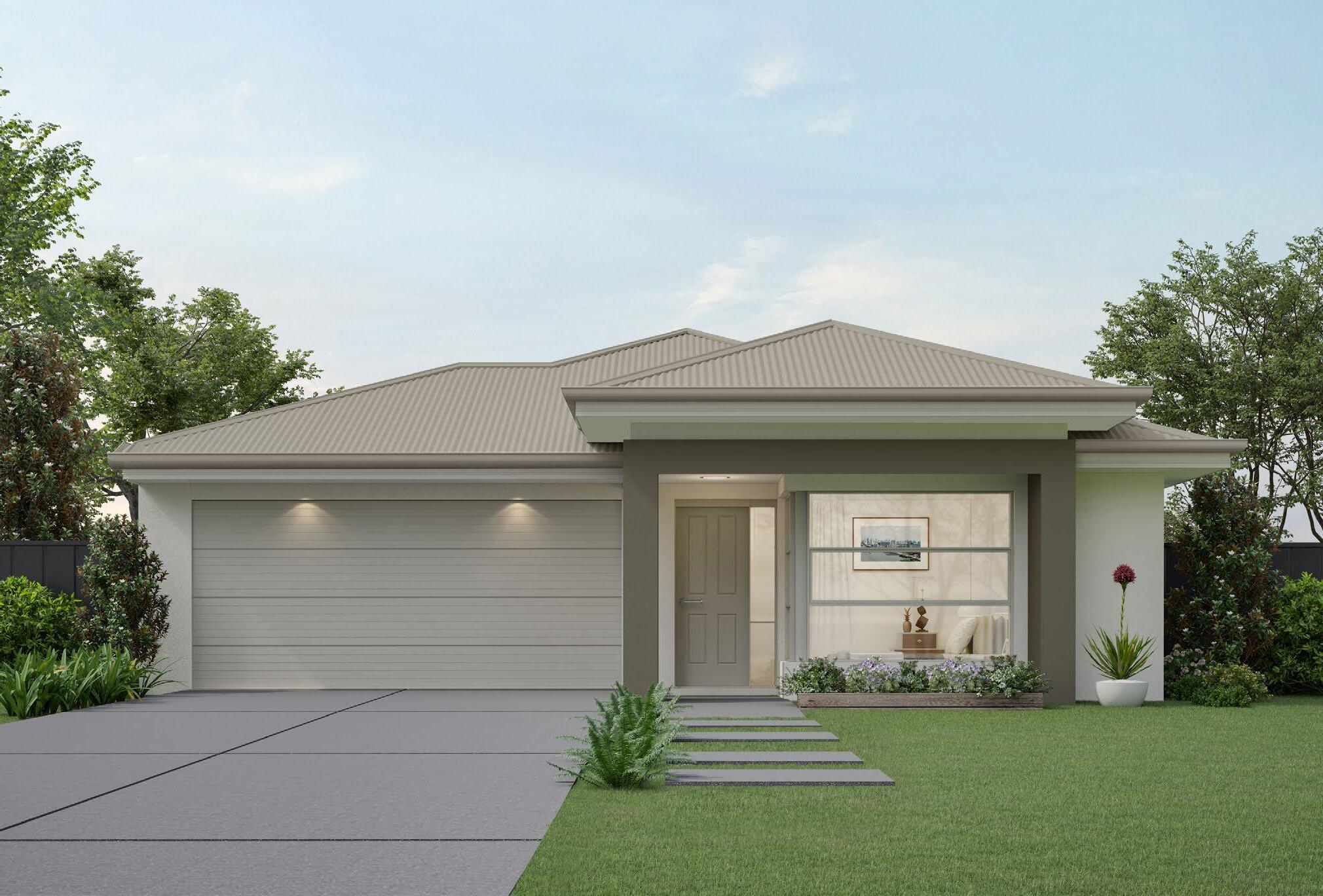

Nordic Facade
PRICE: $7,999
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Entry door design
• Landscaping design, refer to plan
• Feature lighting
ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME STONE
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted render finish to front room protrusion – from but not including entry wall across front and finished at engaged brick pier
Face brickwork to all other areas of facade
• 2 no 350mm wide x 590mm deep rendered engaged brick pier attached to front wall of house
• Raised roof to porch and across to engaged brick pier above main roof pitching point
• 350mm high rendered bulkhead to front between pier and engaged pier and between front pier and garage wall.
• Painted FC infill above garage door
• Bottom set at 2100mm high. Painted cement sheet shadow line between top of bulkhead and eave lining
• 1 no Armadale style aluminium awning window to front (window width is subject to available space – house specific)
• 820mm framed front door (width and inclusion of sidelight is house type specific)
• 2100 high Colourbond garage door (width is house type and lot size specific)
• FC sheet lining to porch ceiling
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
URBANE HOMES
Kobe Facade
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted render finish to front room protrusion
– from but not including entry wall across front and finished at engaged brick pier
Face brickwork to all other areas of facade
• 1 no 350mm wide x 950mm deep rendered pier at porch corner
1 no 350mm wide x 720mm deep rendered engaged brick pier attached to front wall of house
• Raised roof to porch and across to engaged brick pier above main roof pitching point
• 350mm high rendered bulkhead to front between pier and engaged pier and between front pier and garage wall.
• Painted FC infill above garage door
• Bottom set at approx. 50mm below main roof fascia. Painted cement sheet shadow line between top of bulkhead and eave lining
• 4 no Armadale style aluminium awning windows to front (window widths and numbers are subject to available space –house specific)
820mm framed front door (width and inclusion of sidelight is house type specific)
• 2100 high Colourbond garage door (width is house type and lot size specific)
• FC sheet lining to porch ceiling
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Entry door design
• Brickwork infill above garage door
• Landscaping design, refer to plan
• Feature lighting
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
$8.999
ON LINCOLN 209 | COLOUR SCHEME GREY
Coastal Facade
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted render finish to front facade excluding feature face brick section (face brick feature location is subject to facade width – house specific)
• 1 no 350mm wide x 950mm deep rendered pier at porch corner
• 1 no 350mm wide x 720mm deep rendered engaged brick pier attached to front wall of house
• Raised roof to porch and across to engaged brick pier – 300mm above main roof pitching point
• 350mm high rendered bulkhead to front between pier and engaged pier and between front pier and garage wall. Bottom set at approx. 50mm below main roof fascia. Painted cement sheet shadow line between top of bulkhead and eave lining
• 1 no 3 panel Contempo style aluminium awning window to front with middle sash openable (window width is subject to available space – house specific)
• 1 no 3 panel Contempo style fixed window facing entry side
• Aluminium cover plate to corner between windows
• 820mm aluminium framed front door (width and inclusion of sidelight is house type specific)
• Painted FC infill above garage door
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Entry door design
• Brickwork infill above garage door
• Landscaping design, refer to plan
• Feature lighting
• 2100 high Colourbond garage door (width is house type and lot size specific)
• FC sheet lining to porch ceiling
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
URBANE HOMES

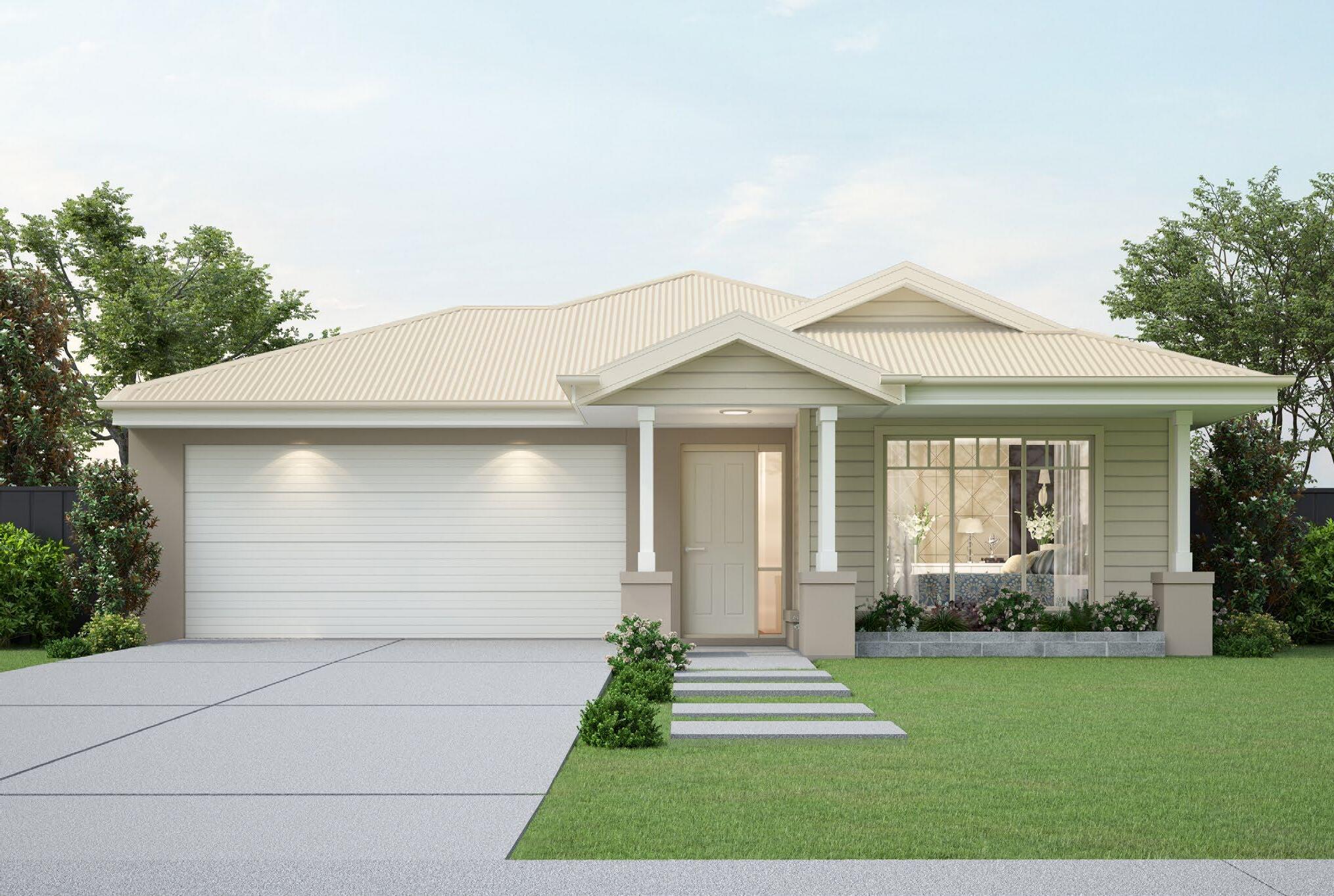

Southampton Facade
SPECIFICATIONS
• Colourbond roof at 22.5° pitch
• Painted rendered finish to facade excluding weatherboard areas
• Brick Corbel to top of rendered base brick work 85x15mm (approx.)
• Painted cement sheet weatherboard finish to front room protrusion above rendered base –from but not including entry wall across front and returned 450mm down side facade.
• 2 no 470mm wide x 950mm deep rendered brick piers to front of entry way and 1 no 470x470mm deep rendered brick pier to side of veranda approximately 700mm high (above house finished floor level) with 85x15mm (approx.) Brick Corbel around top. Each pier to include 2 no ex 120x120mm painted pine posts extending up to support roof. Posts to have 190x20mm (approx.) Painted timber architrave to finish against top of rendered pier and 140x20mm (approx.) Painted timber top trim finishing against soffit lining. Gable roof to entry with cement sheet weatherboard finish – facia and gutter to each side of gable and gutter to return to front of barge.
• Dutch gable to roof with 250mm wide verge, painted FC lining to underside of outriggers and cement sheet weatherboard finish to face (gable size is house specific)
• 1 no Armadale style awning window with hawthorn style stick on bars – window to ave 90x18mm (approx.) external architrave to sides and top
• 820mm aluminium framed front door (width and inclusion of sidelight is house type specific)
• Painted fc infill above garage door
• 2100 high Colourbond garage door (width is house type and lot size specific)
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Entry door design
• Brickwork infill above garage door
• Landscaping design, refer to plan
• Feature lighting
• FC sheet lining to porch ceiling
• 450mm eaves to front facade (eave return on side facades is subject to required boundary clearances).
• Additional area of raised roof shown on illustration is available only on certain home styles where the width of the home is sufficient.
PRICE: $11,999
Double Storey Standard Facade Options
OUR THREE MODERN DOUBLE STOREY STANDARD FACADE OPTIONS ARE AVALABLE TO CHOOSE FROM AT NO EXTRA COST.
THIS SECTION TAKES YOU THROUGH THE DETAILS OF EACH DOUBLE STOREY STANDARD FACADE, EXPLAINING ALL INCLUDED ITEMS AND EXTRAS YOU CAN CHOOSE TO ADD ON.

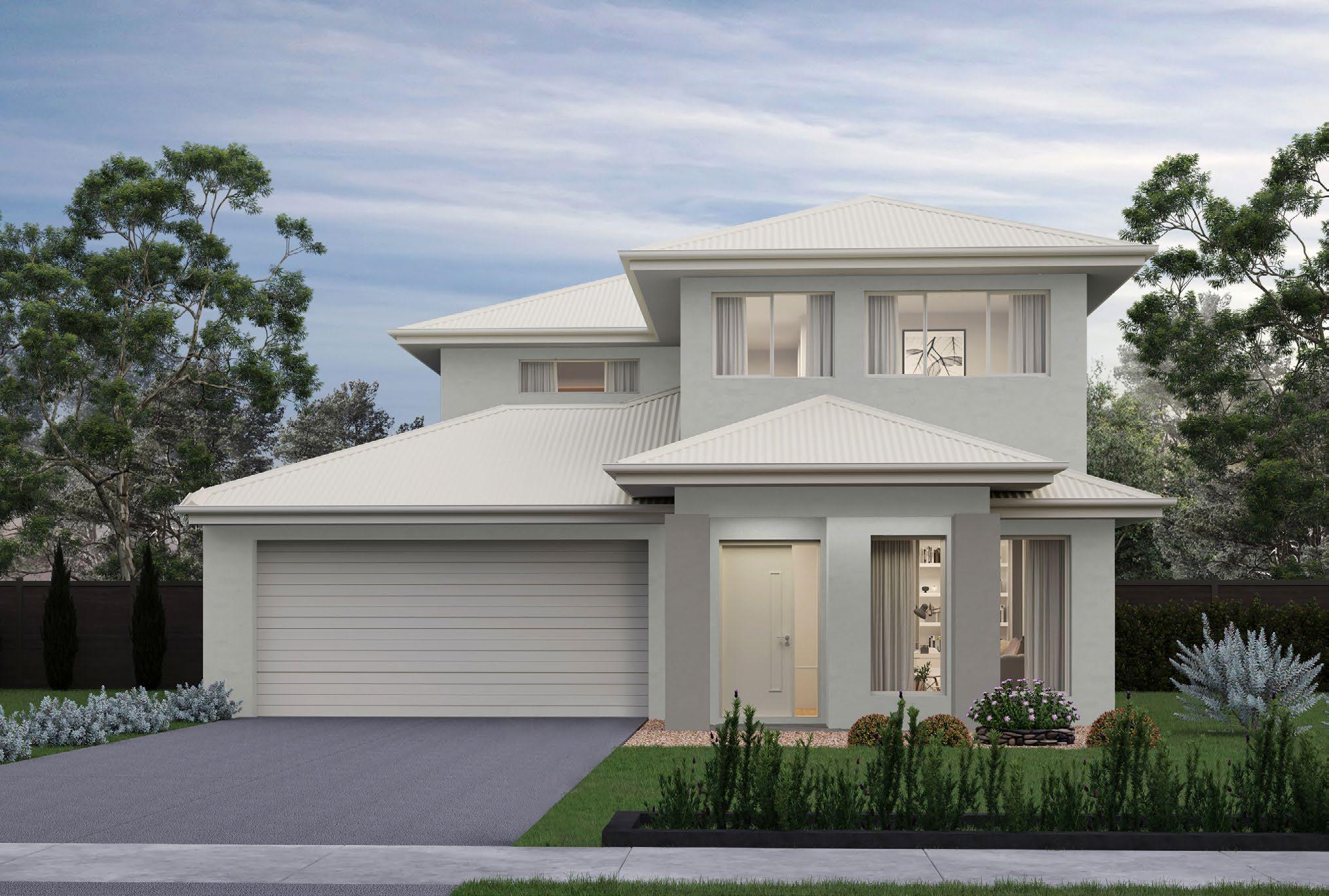

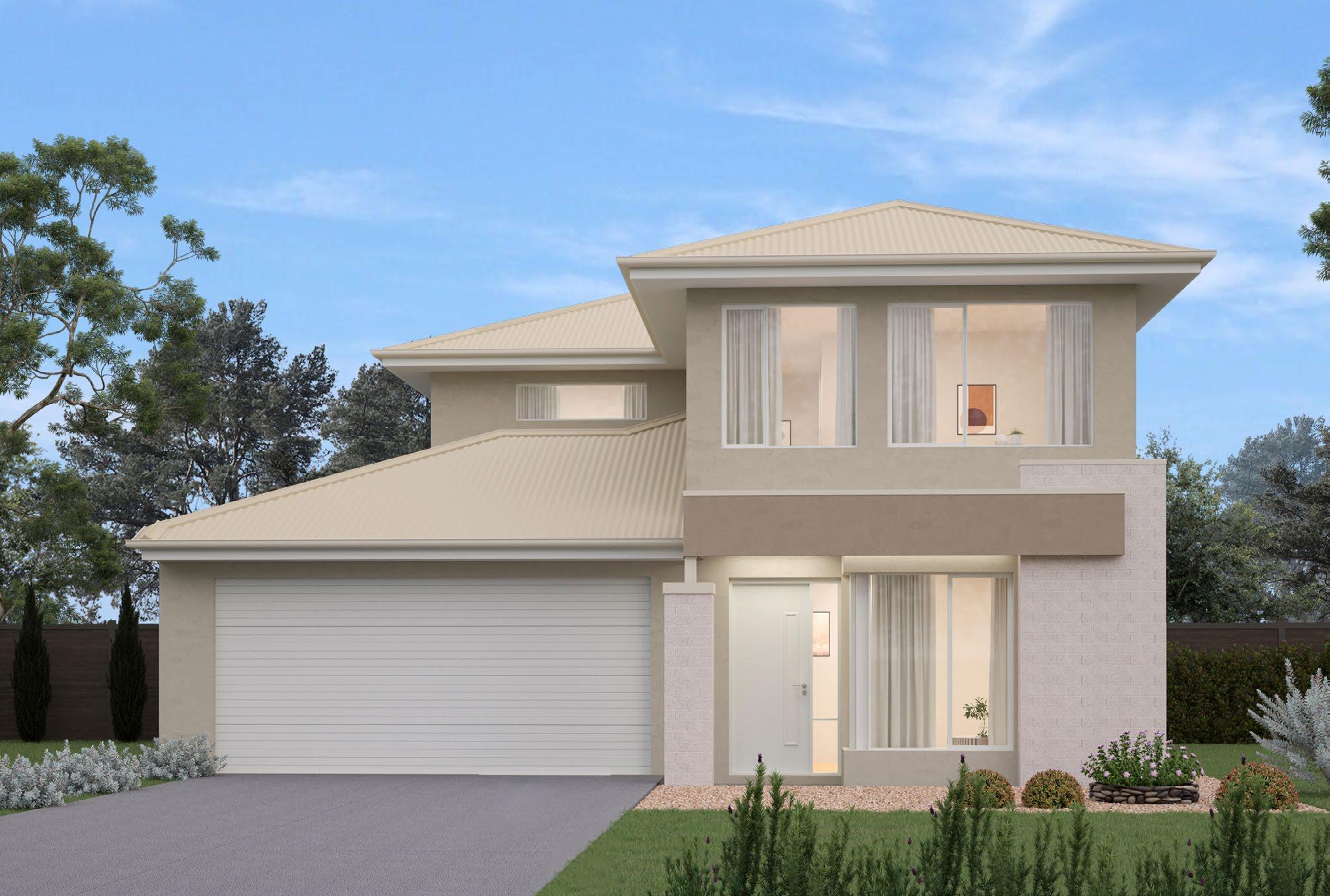

Contemporary Facade
SPECIFICATIONS
• Colourbond Roof to house and portico pitched at 22.5°, Garage roof pitch to be hidden behind feature parapet.
• Painted rendered group 1 brick veneer walls to ground floor façade walls including render return to side elevations. Remainder of ground floor to be group 1 face brickwork.
• First floor build over garage set behind feature parapet with spreader over garage roof.
• Lightweight wall cladding to remainder of first floor walls (Finish subject to specification).
• 2No. painted rendered brick piers to portico, including painted render bulkhead/infill above portico from top of piers to soffit lining.
• 6No. aluminium “Armadale style” awning and/or fixed windows to front façade (window numbers and sizing is house specific)
• 1No. front entry door and sidelight (height subject to specification, door size is house type specific)
• Brickwork or lightweight infill above garage door (subject to client selected specification, refer to quality inclusions)
• Colourbond sectional panel garage door (width is house type and lot size specific)
• Downlight to portico ceiling (number included is house type specific, refer to quality inclusions)
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Landscaping design, refer to plan
*Gutters and downpipes removed for image clarity. Refer to working drawings for locations.
Urban Coastal Facade
SPECIFICATIONS
• Colourbond Roof to house pitched at 22.5°, Garage roof pitch to be hidden behind feature parapet.
• Painted rendered group 1 brick veneer walls to ground floor façade walls excluding feature piers but including render return to garage side elevation. Remainder of ground floor to be group 1 face brickwork.
• First floor build over garage set behind feature parapet with spreader over garage roof.
Lightweight wall cladding to remainder of first floor walls (Finish subject to specification).
• Portico including 1No. group 1 face brick pier with header course and exposed top LOSP post running into boxed out bulkhead feature with metal roof and box gutter.
• 1No. engaged pier to façade projection running into first floor.
• 5No. aluminium “Metro style” awning and/or fixed windows to front façade (window numbers and sizing is house specific)
• 1No. front entry door and sidelight including painted rendered brickwork above (height subject to specification, door size is house type specific)
• Brickwork or lightweight infill above garage door (subject to client selected specification, refer to quality inclusions)
• Colourbond sectional panel garage door (width is house type and lot size specific)
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Landscaping design, refer to plan
• 450mm eaves to remainder of first floor (eave return on side facades is subject to required boundary clearances)
• Downlight to portico ceiling (number included is house type specific, refer to quality inclusions)
*Gutters and downpipes removed for image clarity. Refer to working drawings for locations.
PRICE: INCLUDED
ILLUSTRATED ON MALUA 224 | COLOUR SCHEME STONE
Double Storey Upgrade Facade Options
A STRIKING FACADE CAN INCREASE THE VALUE OF YOUR INVESTMENT HOME. CHOOSE FROM FOUR STYLISH DOUBLE STOREY UPGRADE FACADE OPTIONS. THIS SECTION DETAILS EACH FACADE, LISTING THE FEATURES INCLUDED IN THE PRICE AS WELL DETAILING ANY EXTRAS YOU CAN CHOOSE TO ADD ON.
Provincial Facade
SPECIFICATIONS
• Colourbond Roof at 22.5° pitch roof. Garage roof to be hidden behind feature parapet.
Feature parapet to front projection including Brick Corbel.
Group 1 brick veneer walls to ground floor façade including feature render to facade piers and base of facade punch-out. Remainder of ground floor to be group 1 face brickwork.
• First floor build over garage set behind feature parapet with spreader over garage roof.
• Lightweight wall cladding to remainder of first floor walls (Finish subject to specification).
• 2No. group 1 brick piers to portico with feature render, including Brick Corbel over piers, garage parapet and recessed feature to underside of eave soffit.
• 4No. aluminium “Armadale style” awning and/or fixed windows to front façade (window numbers and sizing is house specific)
• 1No. front entry door and sidelight (height subject to specification, door size is house type specific)
• Brickwork infill above garage door (subject to client selected specification, refer to quality inclusions)
• Colourbond sectional panel garage door (width is house type and lot size specific)
• Downlight to portico and balcony ceiling (number included is house type specific, refer to quality inclusions)
• Landscaping design, refer to plan
*Gutters and downpipes removed for image clarity. Refer to working drawings for locations.
URBANE HOMES
$10,999
ON MALUA 224 | COLOUR SCHEME LATTE

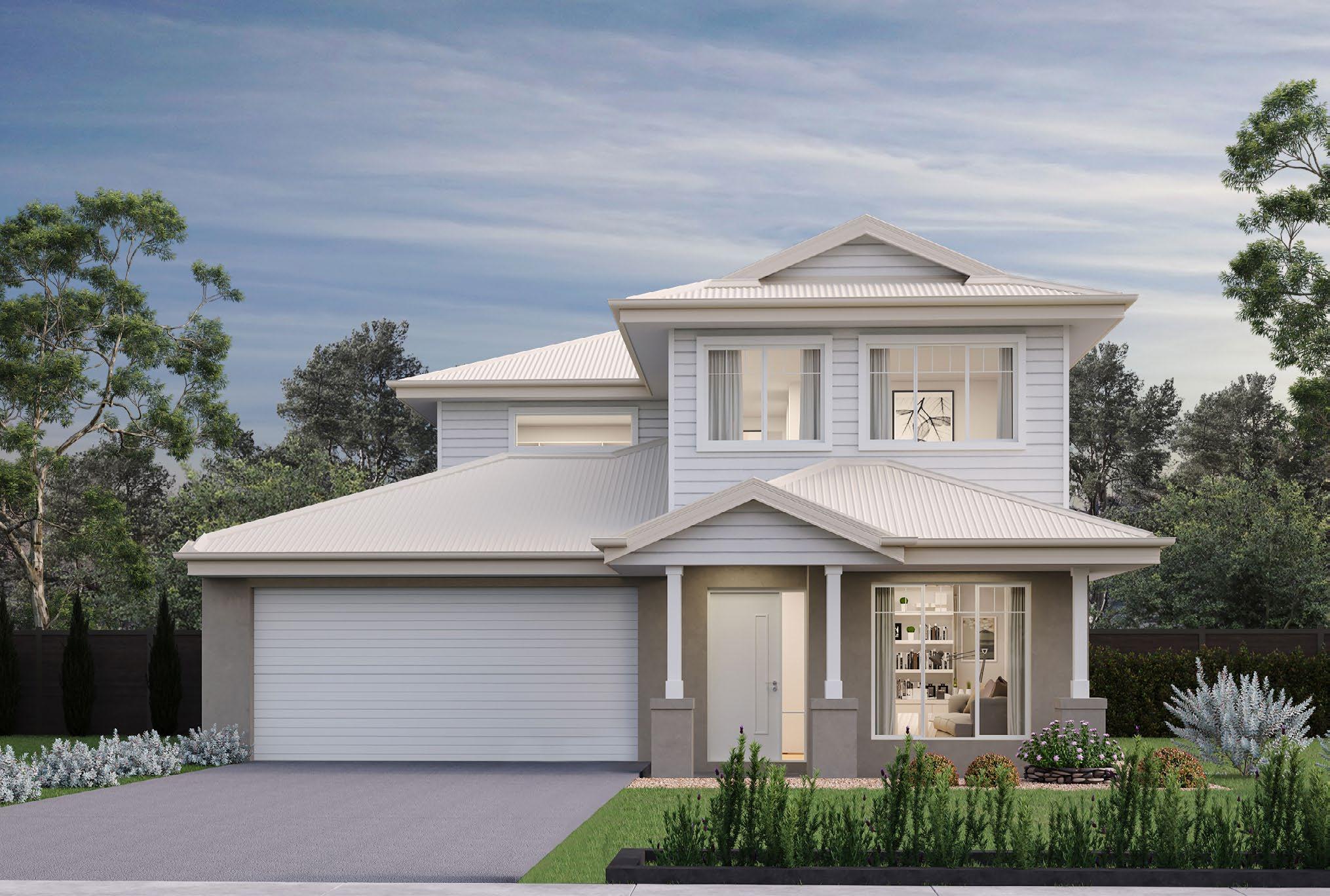

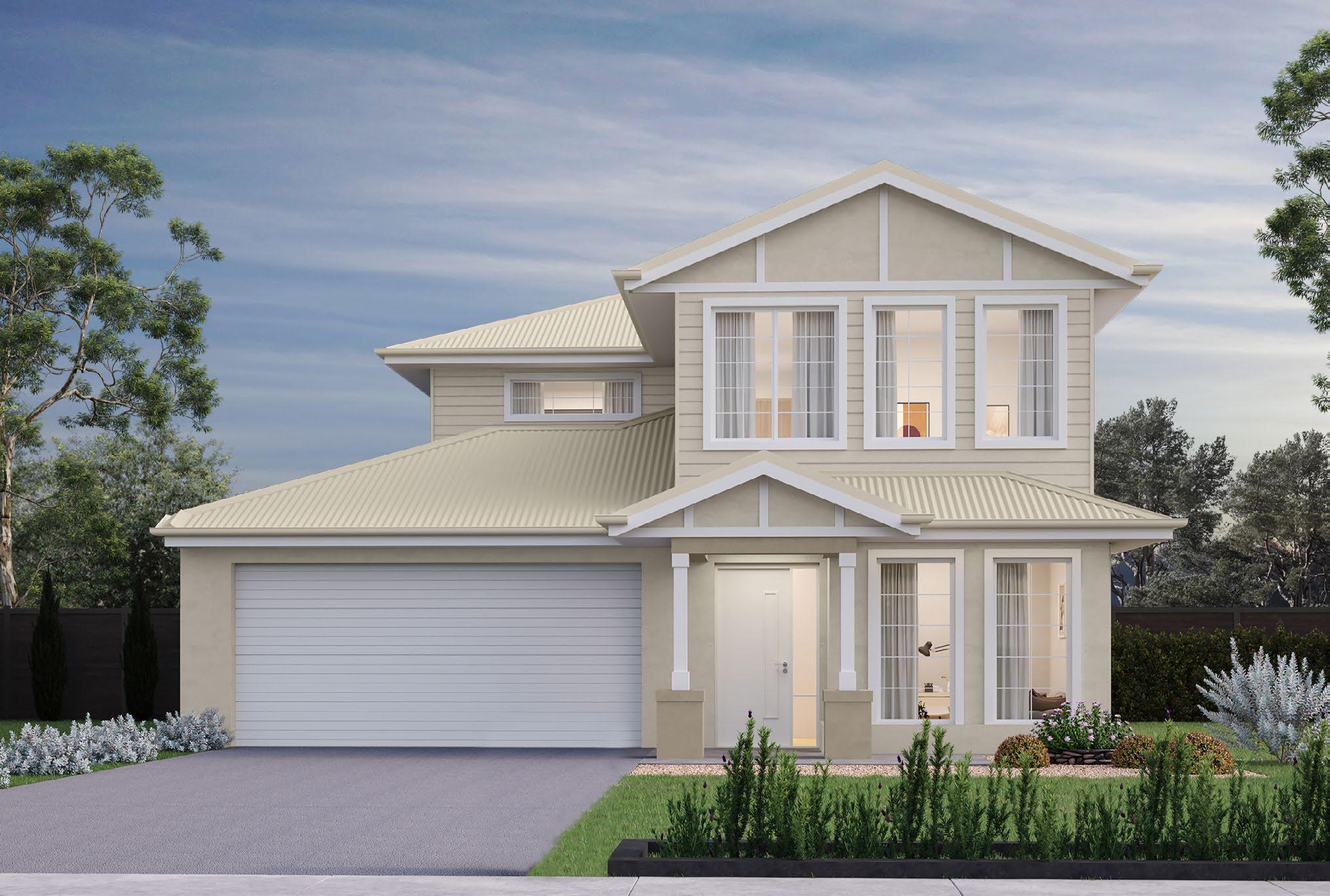

Bridgehampton Facade
SPECIFICATIONS
• Colourbond Roof with Dutch gable pitched at 22.5° to house. Full gable to portico and hipped roof to remainder of veranda pitched at 22.5°. Garage roof pitch to be hidden behind feature parapet.
• Rendered group 1 brick veneer walls to ground floor façade including render return to sides of home. Remainder of ground floor to be group 1 face brickwork.
• First floor build over garage set behind feature parapet with spreader over garage roof.
• Painted cladding to first floor façade including trim moulding to external corners and window surrounds.
• Lightweight wall cladding to remainder of first floor walls (Finish subject to specification)
• 2No. rendered brick piers to portico, each including 2No. painted feature posts.
• 1No. rendered brick pier to Lounge veranda including 1No. painted feature post.
• 4No. aluminium “Armadale style” awning and/ or fixed windows with hawthorn style glazing bars to front façade (window numbers and sizing is house specific)
• 1No. front entry door and sidelight (height subject to specification, door size is house type specific)
• Brickwork or lightweight infill above garage door (subject to client selected specification, refer to quality inclusions)
• Colourbond sectional panel garage door (width is house type and lot size specific)
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Landscaping design, refer to plan
• 450mm eaves to first floor and ground floor veranda (eave return on side facades is subject to required boundary clearances)
• Downlight to portico ceiling. (number included is house type specific, refer to quality inclusions)
*Gutters and downpipes removed for image clarity. Refer to working drawings for locations.
Northampton Facade
SPECIFICATIONS
• Colourbond Roof to house and portico pitched at 22.5°, Garage roof pitch to be hidden behind feature parapet.
• Gable roof with gutter return to front barge including painted lightweight infill and feature trim mouldings. Remainder of roof to be hipped.
• Painted rendered brick veneer walls to ground floor façade including render return to garage side. Remainder of ground floor to be group 1 face brickwork.
• First floor build over garage set behind feature parapet with spreader over garage roof.
• Painted cladding to first floor façade and ground floor façade punchout including trim mouldings to external corners and window surrounds.
• Lightweight wall cladding to remainder of first floor walls (Finish subject to specification).
• 2No. painted rendered brick feature piers with Brick Corbel to portico including painted pine feature posts.
• 6No. aluminium “Armadale style” awning and/or fixed windows with colonial glazing bars to front façade (window numbers and sizing is house specific) 1No. front entry door and sidelight (height subject to specification, door size is house type specific)
• Brickwork or lightweight infill above garage door (subject to client selected specification, refer to quality inclusions)
• Colourbond sectional panel garage door (width is house type and lot size specific)
IMAGE VARIATIONS NOT INCLUDED AS STANDARD
• Landscaping design, refer to plan
• 250mm Gable verge to façade including 450mm eaves to remainder of first floor (eave return on side facades is subject to required boundary clearances)
• Downlight to portico ceiling (number included is house type specific, refer to quality inclusions)
*Gutters and downpipes removed for image clarity. Refer to working drawings for locations.
URBANE HOMES

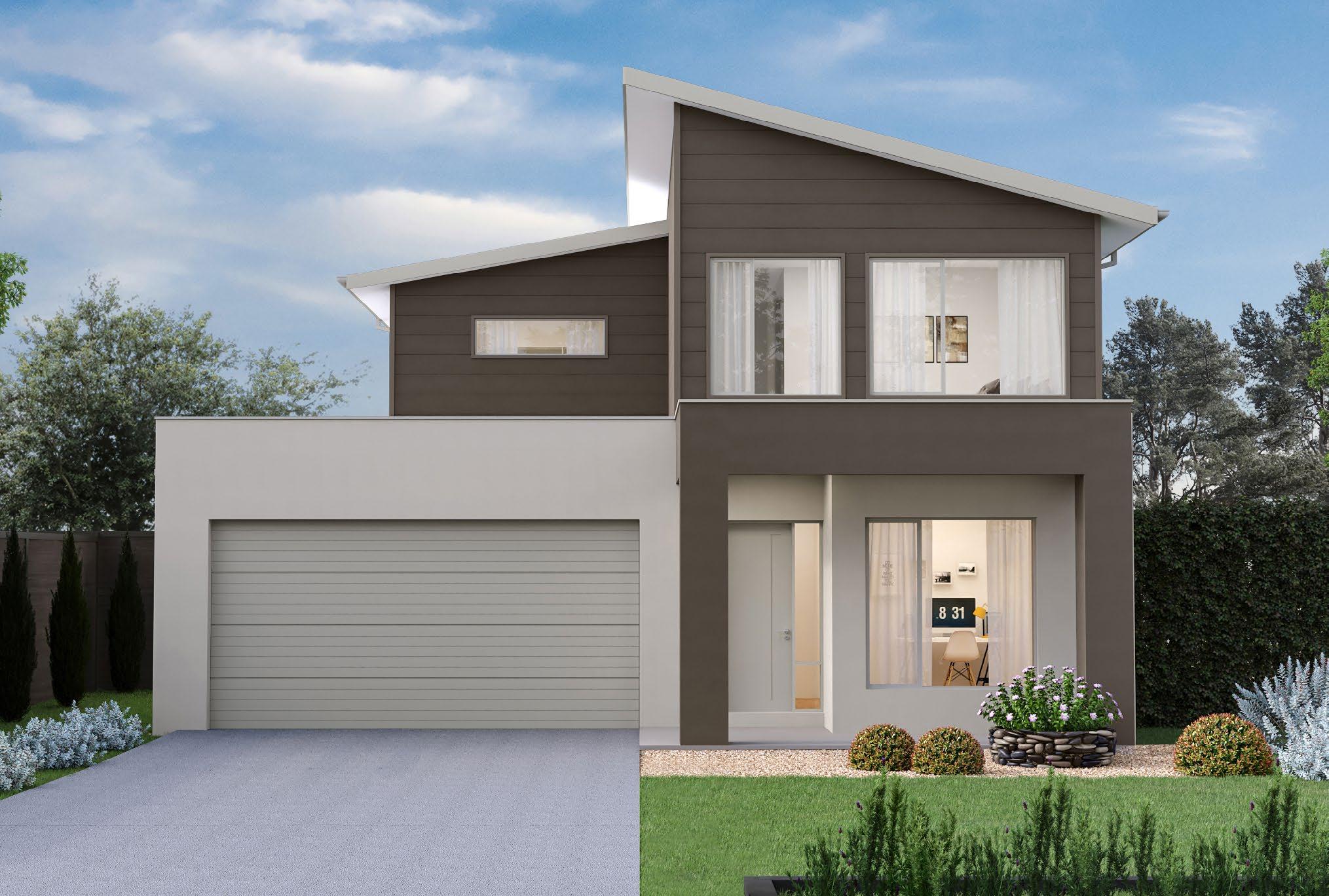

Atlantic Facade
SPECIFICATIONS
• Dual pitch roof with Colourbond skillion roof pitched at 15 and 10 degrees including eave overhang.
• Painted rendered brick veneer walls to ground floor façade including render return to side elevations. Remainder of home to be group 1 face brickwork.
• Painted cladding to first floor façade and nominated returns including trim moulding to external corners and window surrounds.
• First floor build over garage set behind feature parapet.
• Lightweight wall cladding to remainder of first floor walls (Finish subject to specification).
• 1No. rendered detached pier supporting portico and 1No. engaged rendered brick pier to house projection.
• Feature rendered parapet above garage. Horizontal length and finishing point of awning is design dependent.
• 4No. Aluminium “Metro” and “Armadale” style awning and/or fixed windows to front façade (window sizing is house specific)
• 1No. front entry door including painted rendered brickwork above (height subject to specification, door size is house type specific)
• Colourbond sectional panel garage door (width is house type and lot size specific)
• Downlight to portico ceiling (number included is house type specific, refer to quality inclusions)
• Entry door design
• Landscaping design, refer to plan
*Gutters and downpipes removed for image clarity. Refer to working drawings for locations.

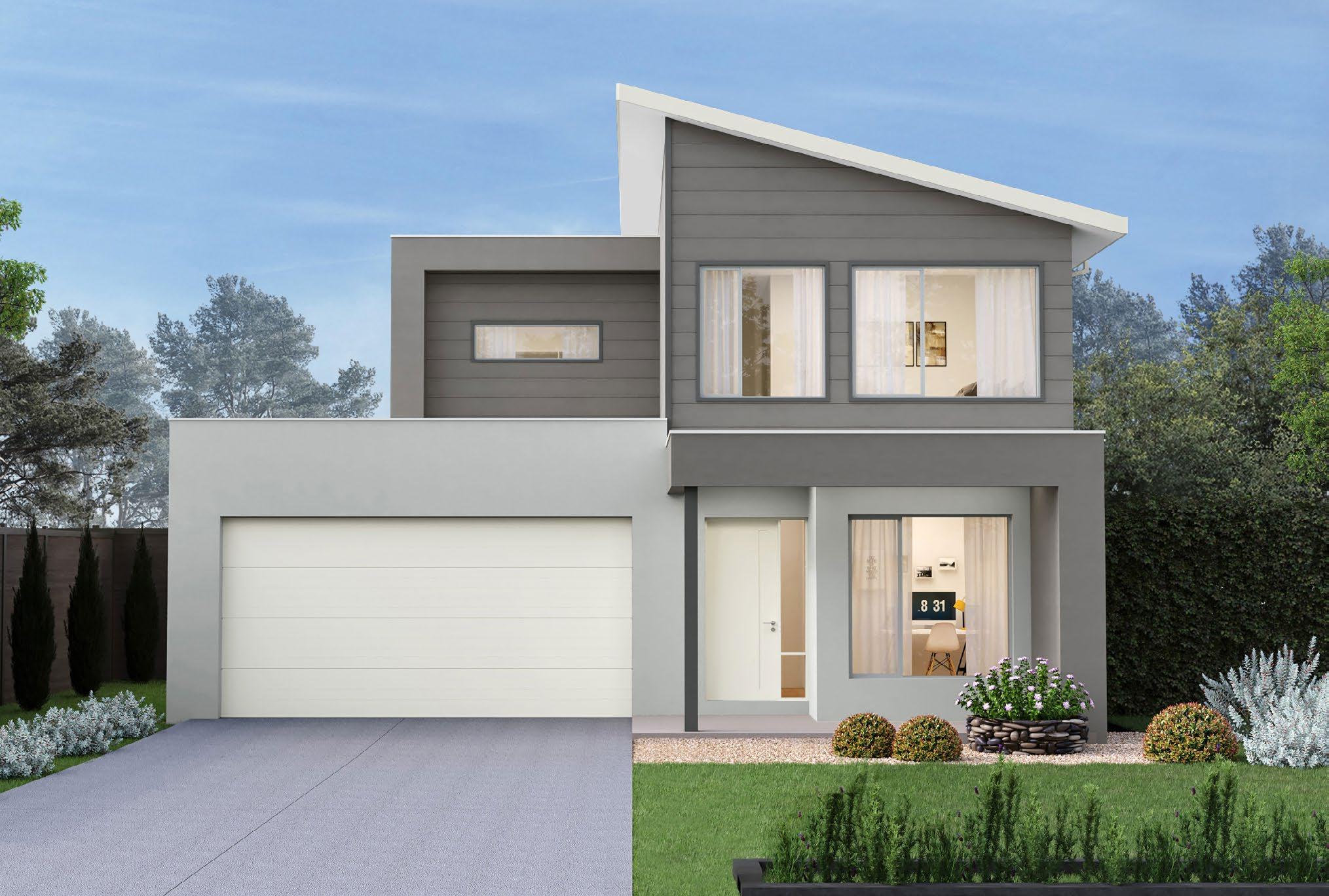

Pacific Facade
PRICE: $23,999
• Landscaping design, refer to plan
SPECIFICATIONS
• Dual pitch roof with Colourbond skillion roof pitched at 15° including 490mm eave overhang and Colourbond skillion roof hidden behind rendered feature parapet.
• Painted rendered brick veneer walls to ground floor façade including render return to side elevations. Remainder of home to be group 1 face brickwork.
• Painted cladding to first floor façade and nominated returns including trim moulding to external corners and window surrounds.
First floor build over garage set forward of feature parapet with spreader over garage roof.
• Lightweight wall cladding to remainder of first floor walls (Finish subject to specification).
• 1No. rendered attached pier and 1No. painted feature post with metal stirrup supporting rendered feature awning.
• Painted feature infill across face of porch structure from engaged pier to post.
• Feature rendered parapet to first floor wall above garage. Horizontal length and finishing point of awning is design dependent.
• 4No. Aluminium “Metro style” awning and/or fixed windows to front façade (window sizing is house specific)
• 1No. front entry door and sidelight (height subject to specification, door size is house type specific)
• Brickwork or lightweight infill above garage door (subject to client selected specification, refer to quality inclusions)
• Colourbond sectional panel garage door (width is house type and lot size specific)
• Downlight to portico ceiling (number included is house type specific, refer to quality inclusions)
*Gutters and downpipes removed for image clarity. Refer to working drawings for locations.
URBANE HOMES
ILLUSTRATED ON MALUA 224 | COLOUR SCHEME GREY
Inclusions & Upgrades
EXPERIENCE LUXURY, CRAFTED SPECIFICALLY FOR YOU, WITH THESE INCLUSIONS.
Upgrade Matrix
Exterior, Doors & Windows
URBANE HOMES WIDE RANGE OF PREMIUM INCLUSIONS MEANS YOUR HOME CAN REFLECT YOUR INDIVIDUAL STYLE AND TASTES ON THE OUTSIDE AS WELL AS IT DOES INSIDE.
INCLUSIONS
LETTERBOX FENCING

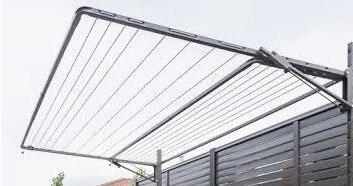

CLOTHESLINE
FIXED PRICE SITE COSTS

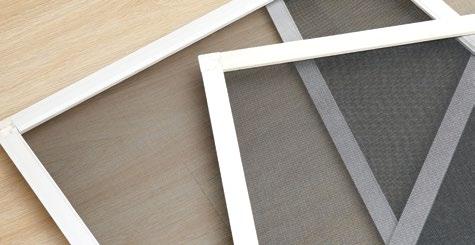

FLY SCREENS TO DOORS AND WINDOWS
FIXED PRICE ROCK REMOVAL COSTS
OPTIONAL UPGRADES
BRICK INFILL ABOVE GARAGE DOOR PRICE: $990
BRICK ABOVE WINDOWS & EXTERNAL DOORS PRICE: POA
2 HANDHELD REMOTES TO GARAGE
LANDSCAPING TO FRONT AND REAR
7 STAR ENERGY RATING
CAPPED WATER POINT PRICE: $225
820MM WIDE PAINTED CORINTHIAN URBAN VURB 1 HINGED DOOR WITH CLEAR GLAZING PRICE: $475
920MM WIDE PAINTED CORINTHIAN URBAN VURB 1 HINGED DOOR WITH CLEAR GLAZING PRICE: $970

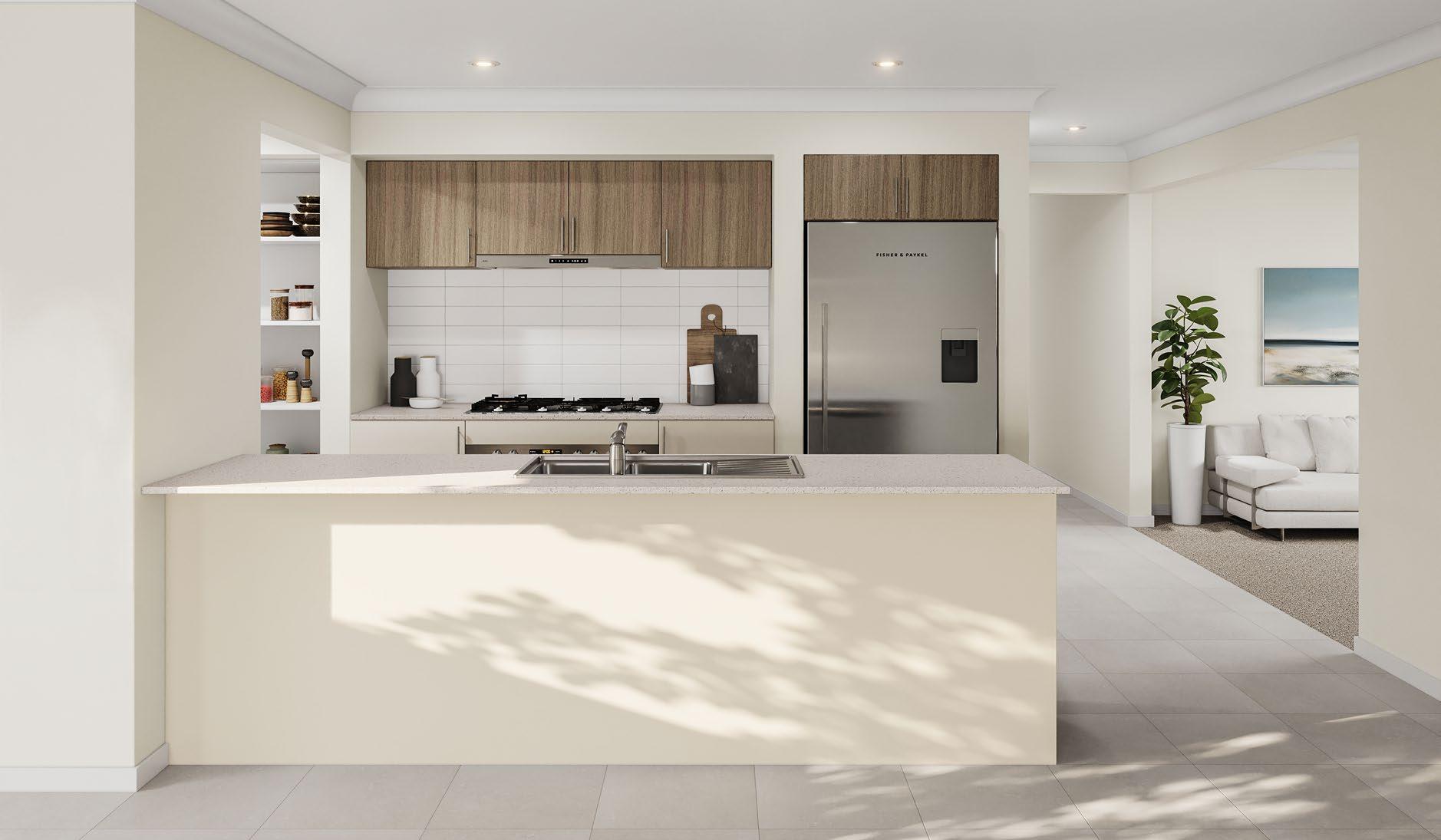

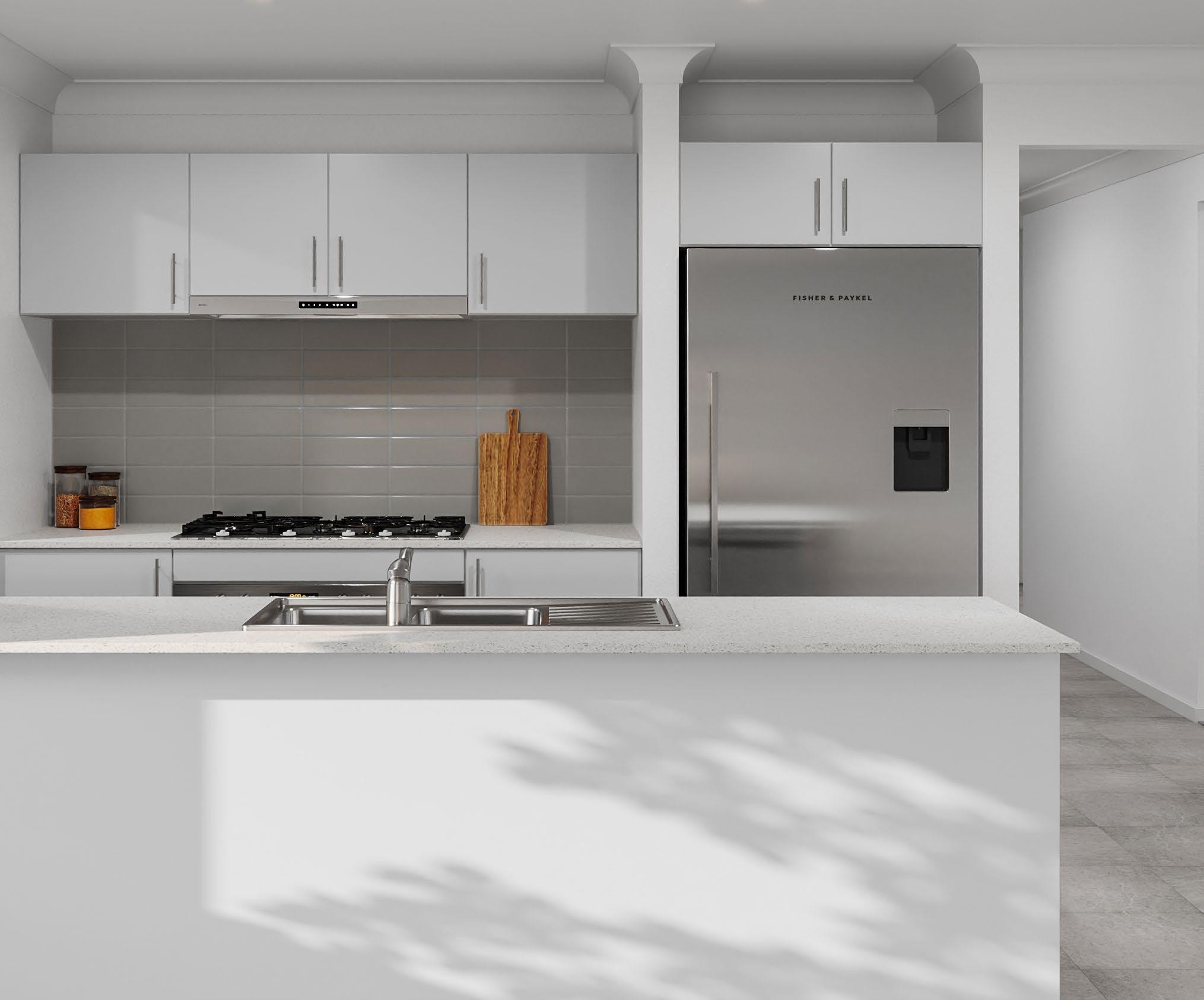

Kitchen
YOUR KITCHEN NEEDS TO BE STYLISH, PRACTICAL AND HARD-WEARING SO THAT YOU CAN COOK AND ENTERTAIN IN STYLE. OUR QUALITY RANGE OF INCLUSIONS MEANS YOUR KITCHEN WILL LOOK GOOD AND PERFORM WELL FOR YEARS TO COME.
OPTIONAL UPGRADES

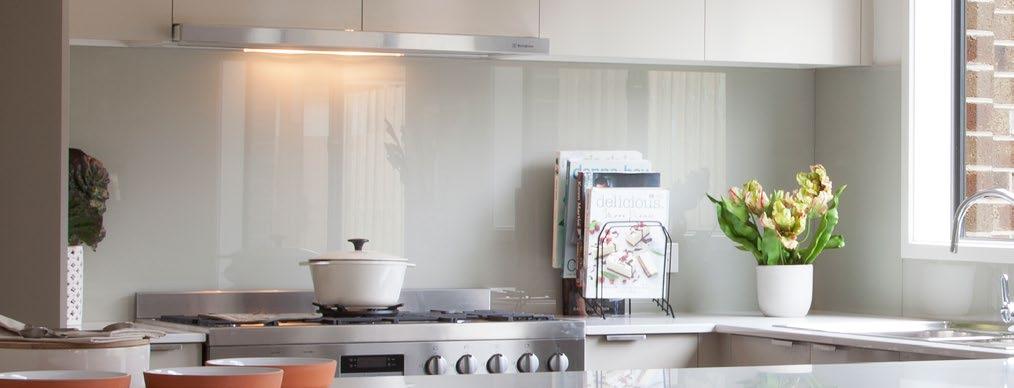

GLASS SPLASHBACK TO KITCHEN PRICE: $2,415

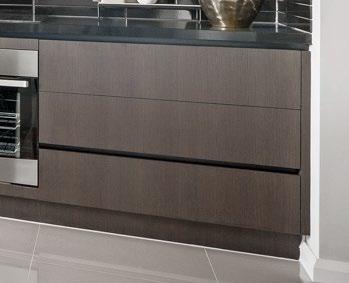

UP TO 900MM POT DRAWER
(BANK OF 2)
PRICE: $300
UP TO 900MM POT DRAWER
(BANK OF 3)
PRICE: $449
40MM STONE TO ENTIRE KITCHEN PRICE: $900

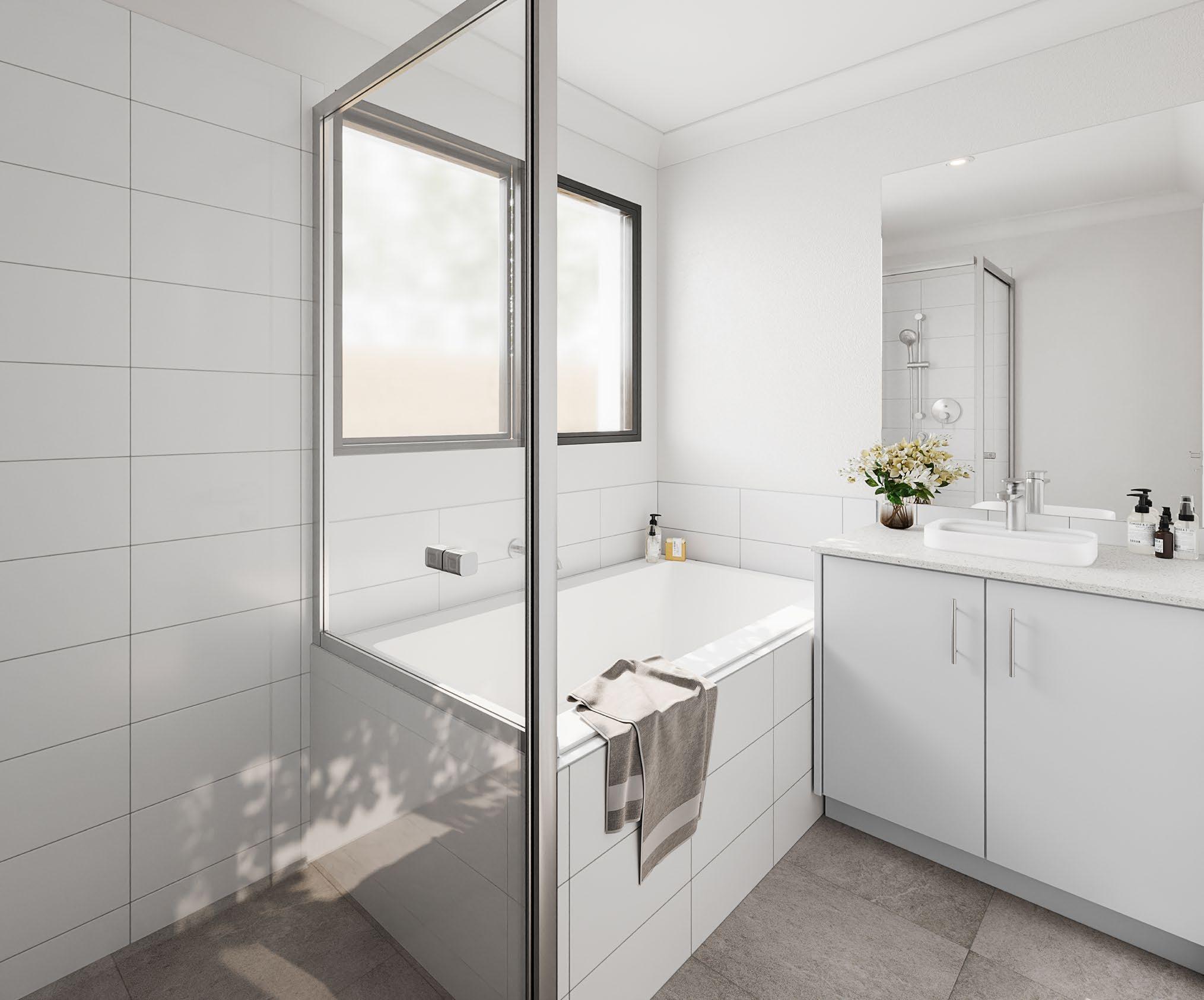

Bathroom & Ensuite
EVERY CONSIDERED DETAIL ENSURES YOUR BATHROOM AND ENSUITE PROVIDE AN INDULGENT EXPERIENCE.
INCLUSIONS
MIXER TAPS TO BASINS & BATHS
OPTIONAL UPGRADES
400X400MM TILED NICHE TO SHOWER (EACH) PRICE: $450
400X600MM TILED NICHE TO SHOWER (EACH) PRICE: $600
TILED SHOWER BASES
20MM STONE BENCHTOP
ACRYLIC BATH IN TILED PODIUM

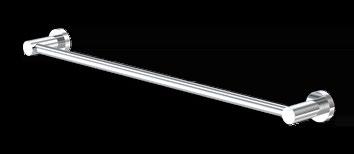

TOILET ROLL HOLDER AND TOWEL RAIL

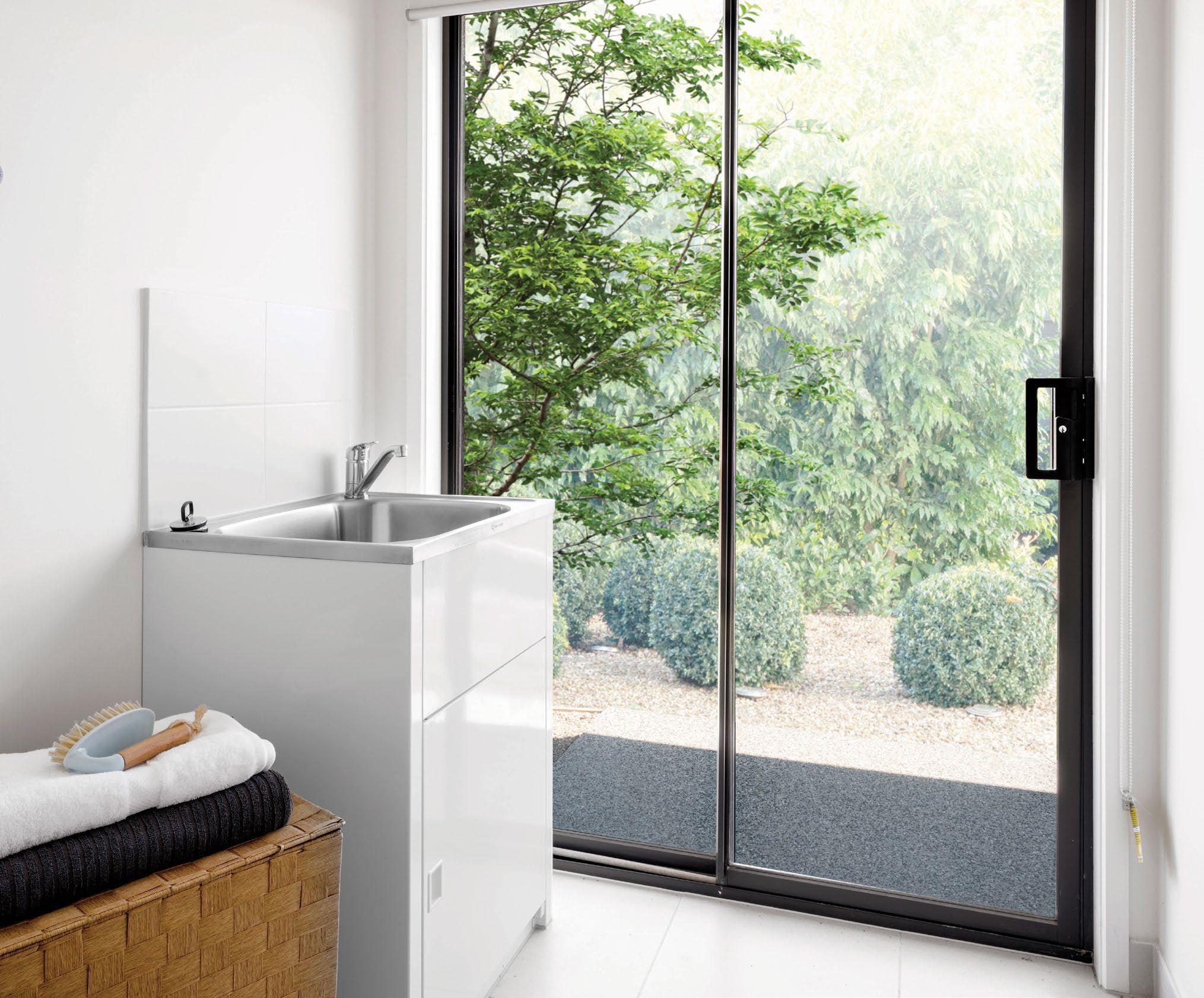

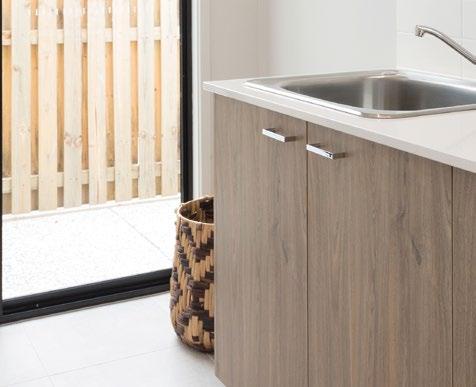

Laundry
AS YOUR HOME’S ENGINE ROOM, WE MAKE SURE YOUR LAUNDRY IS A GREAT SPACE TO USE.
STAINLESS STEEL BOWL CHROME SINK SET
OPTIONAL UPGRADES
UP TO 1000MM BASE CUPBOARDS WITH LAMINATE BENCHTOP TO LAUNDRY PRICE: $856

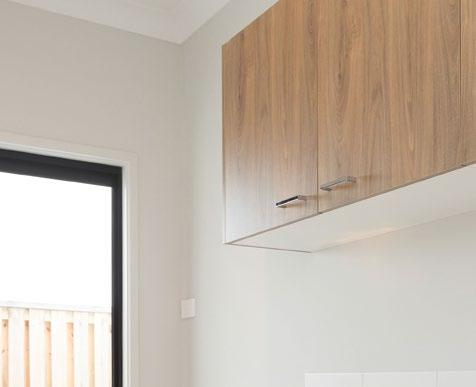

UP TO 1000MM OVERHEAD CUPBOARDS TO LAUNDRY PRICE: $700
20MM STONE TO LAUNDRY IN LIEU OF LAMINATE BENCHTOP PRICE: $589

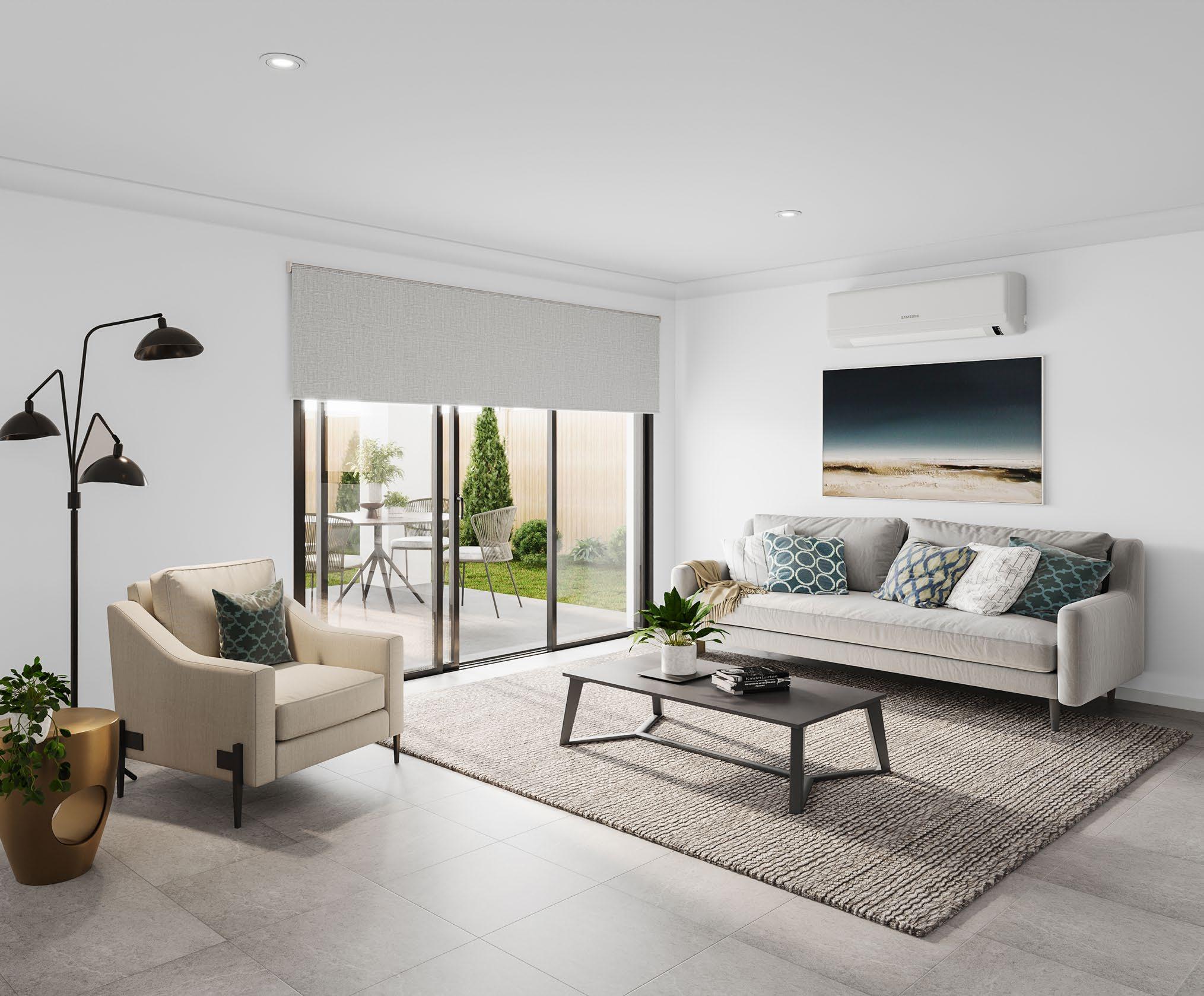

Living Luxuries
QUALITY FINISHINGS ARE JUST AS IMPORTANT AS QUALITY FOUNDATIONS IN ENSURING YOUR HOME ENDURES AS A COMFORTABLE AND STYLISH RESIDENCE.
OPTIONAL UPGRADES
ADDITIONAL LED DOWNLIGHT (EACH) PRICE: $115
2550MM HIGH CEILINGS IN LIEU OF 2400MM HIGH TO SINGLE STOREY PRICE: $20 (PER M2)
2550MM HIGH CEILINGS IN LIEU OF 2400MM HIGH TO DOUBLE STOREY UPPER FLOOR PRICE: $22 (PER M2)
2700MM HIGH CEILINGS IN LIEU OF 2550MM HIGH TO DOUBLE STOREY GROUND FLOOR PRICE: $31 (PER M2)
2700MM HIGH CEILINGS IN LIEU OF 2400MM HIGH TO SINGLE STOREY PRICE: $42 (PER M2)
2700MM HIGH CEILINGS IN LIEU OF 2400MM HIGH TO DOUBLE STOREY UPPER FLOOR PRICE: $47 (PER M2)
ALARM SYSTEM (KEYPAD OPERATED) PRICE: $1,425
2 X ‘UP/DOWN’ LIGHTS TO FRONT PORCH PIERS PRICE: $400
820MM WIDE CAVITY SLIDING DOOR IN LIEU OF HINGED DOOR (EACH)
PRICE: $450
UP TO 820MM WIDE CAVITY SLIDING DOOR IN LIEU OF OPENING UP TO 1200MM (EACH) PRICE: $645
LED DOWNLIGHTS TO MAIN LIVING AREAS ROLLERBLINDS
FLOOR TILES TO KITCHEN, MEALS AND ENTRY
External Colour Scheme
Options
SELECT ONE OF OUR THREE ON-TREND COLOUR SCHEMES FOR YOUR NEW HOME.
Stone External Scheme
STONE IS A VERSATILE COLOUR SCHEME BROUGHT TO LIFE WITH A WARM WHITE PALETTE AND CONTRASTING CHARCOAL TONES. THIS SCHEME PAIRS PERFECTLY WITH WARM DECOR AND RICH, DARK HIGHLIGHTS.

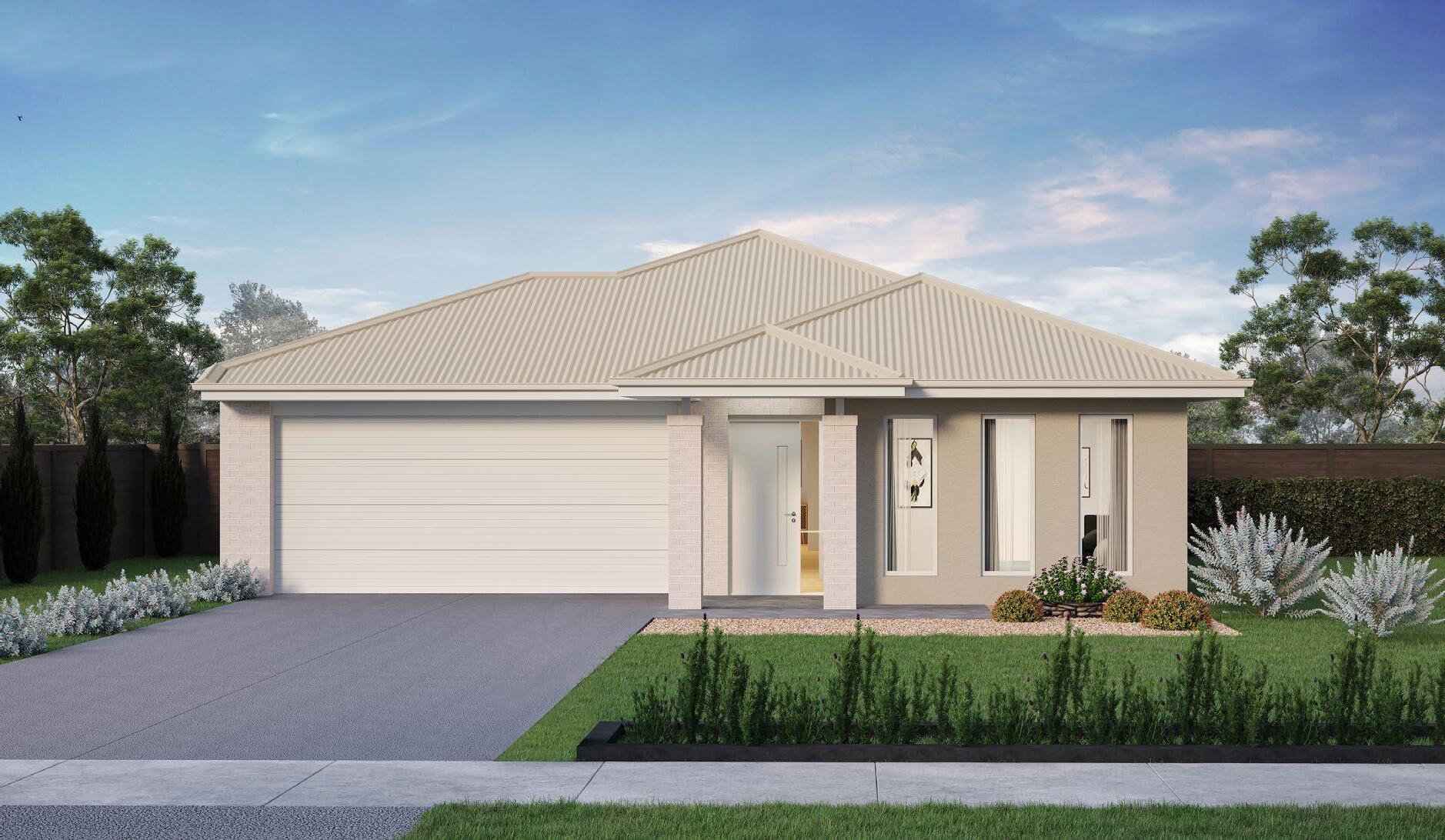

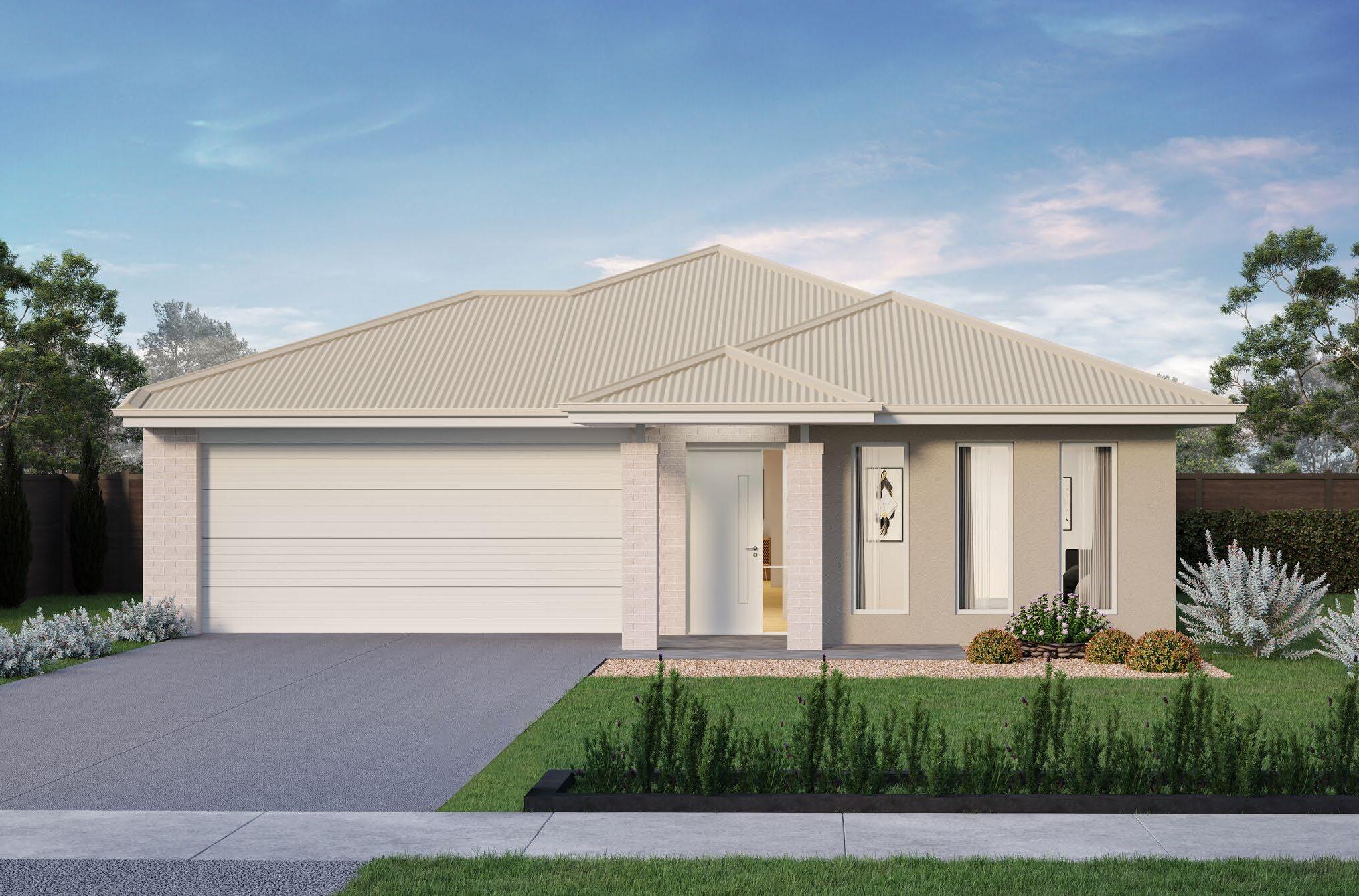

ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME STONE
Colourbond Roof
Gutter
Sand External Scheme
SAND IS A LIGHT, NEUTRAL COLOUR SCHEME MAKING IT SUITABLE FOR EVERY STYLE OF HOME. SOFT AND SERENE, NEUTRALS AND GREYS CREATE A FLEXIBLE BACKDROP TO ADD COLOUR AND MAKING IT YOUR OWN.

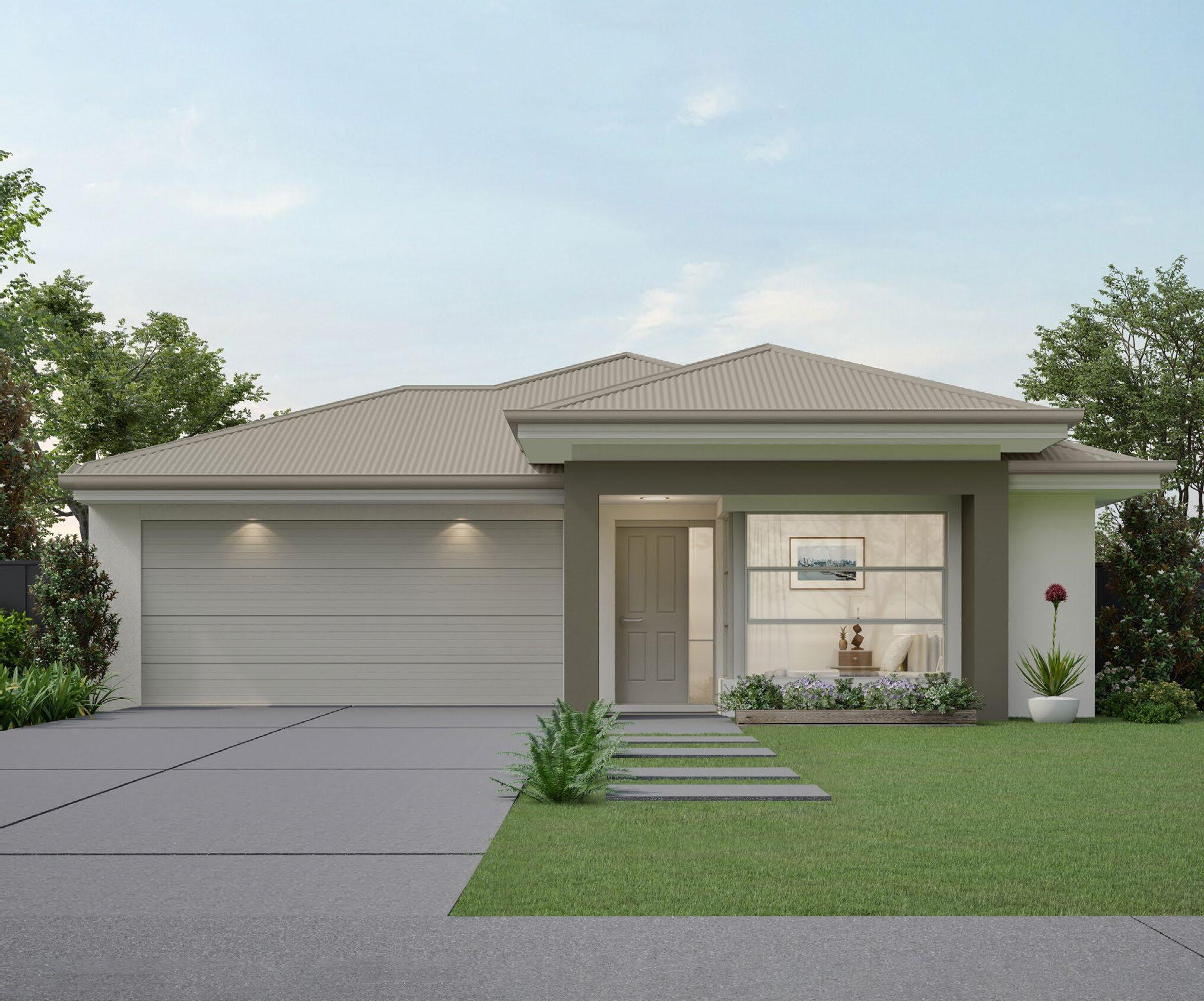

ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME GREY
Front Door, Garage, Gutter & Fascia/Downpipes
Bricks Paving
Colourbond Roof
Frames
Clay External Scheme
CLAY IS A SOPHISTICATED COLOUR SCHEME. THE MIX OF RED BRICK AND WARM GREY TONES CREATES A SENSE OF STYLE, CALM, AND A SOFT MASCULINE FEEL. A PERFECT BACKDROP THAT PAIRS WITH CLASSIC COLOURS AND DESIGN STYLE.

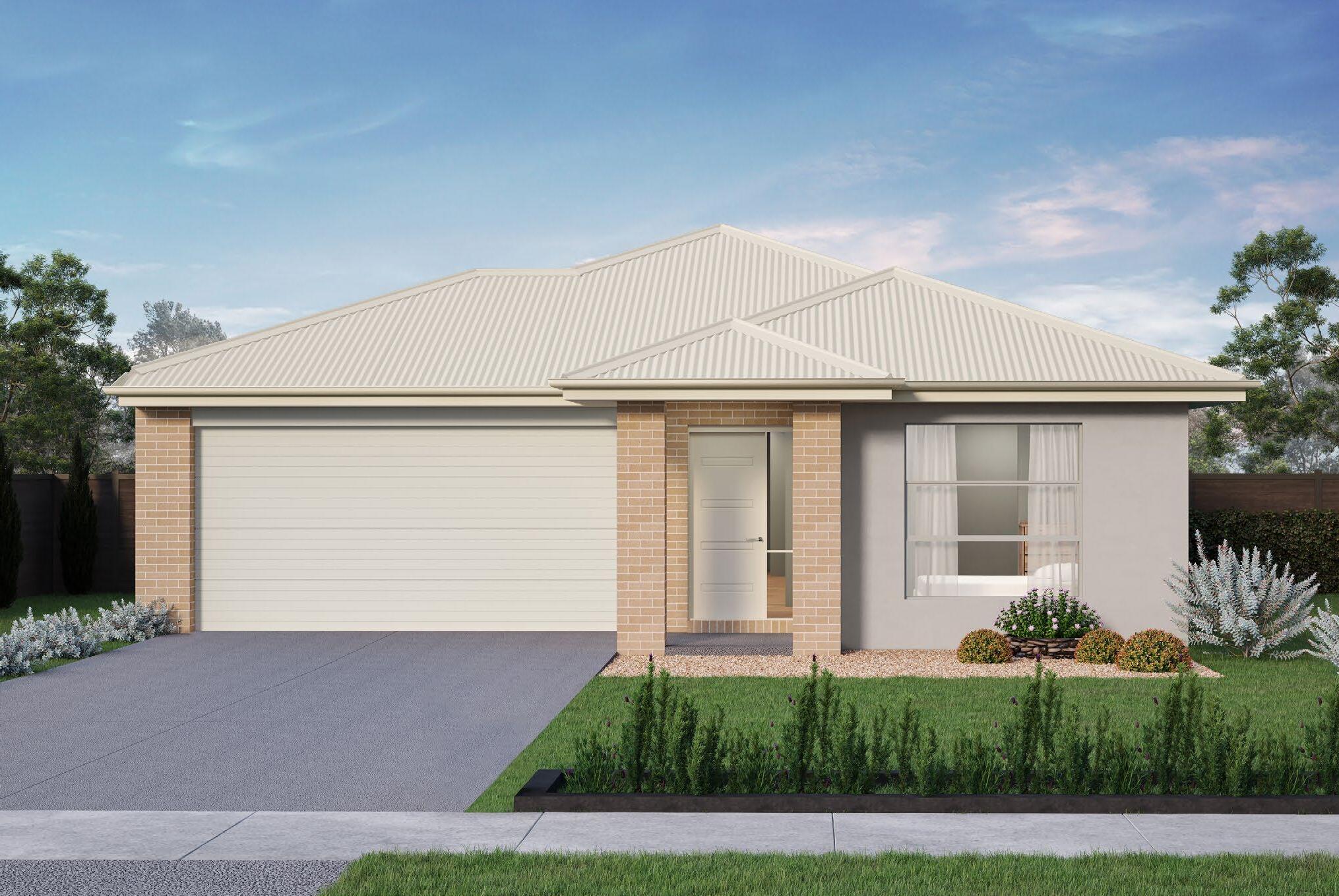

ILLUSTRATED ON LINCOLN 209 | COLOUR SCHEME LATTE
Bricks
Colourbond Roof
Aluminum Frames Main
Gutter & Fascia/ Downpipes
Front Door & Garage
Internal Colour Scheme
Options
SELECT ONE OF OUR THREE ON-TREND COLOUR SCHEMES FOR YOUR NEW HOME.
Warmth Internal Scheme
WARMTH IS A INVITING COLOUR SCHEME. THE NEUTRAL COLOUR PALETTE HAS SUBTLE YELLOW UNDERTONES AND PAIRS PERFECTLY WITH WARM TEXTURES AND CONTRASTING BLACK DECOR FOR A MODERN FEEL.
Kitchen Overhead, Fridge & Tall Pantry Cabinetry Kitchen Base & Island Cabinetry
Sanctuary Internal Scheme
SANCTUARY IS A SOFT AND SERENE COLOUR SCHEME FEATURING GREY TONES, STONE & WOOD GRAINS MAKING IT SUITABLE FOR EVERY STYLE OF HOME AND A FLEXIBLE BACKDROP FOR STRONGER MORE CONTRASTING COLOURS.
Carpet
Kitchen & Bathroom Bench Tops
Bathroom & Ensuite Cabinetry
Kitchen & Laundry Wall Tiles
Kitchen Overhead, Fridge & Tall Pantry Cabinetry
Kitchen Base & Island Cabinetry
Balance Internal Scheme
BALANCE IS A WARM, SOPHISTICATED COLOUR SCHEME THAT PAIRS WELL WITH PRACTICALLY ANY COLOUR AND DESIGN STYLE. THE CONTRAST BETWEEN LIGHT TONES AND WARM DARKER TEXTURES CREATES A SENSE OF STYLE AND A SOFT MASCULINE FEEL.
Paintwork
Kitchen & Bathroom Bench Tops
Bathroom & Ensuite Cabinetry
Floor & Wet Area Wall Tiles
Kitchen & Laundry Wall Tiles
Carpet
Kitchen Overhead, Fridge & Tall Pantry Cabinetry
Kitchen Base & Island Cabinetry
Landscaping Plan
A BIRDS EYE VIEW OF HOW YOUR INVESTMENT LANDSCAPE WILL LOOK.
WING FENCE & GATE TURF
50MM DEEP TUSCAN OR LILYDALE TOPPING
PLAIN COLOURED CONCRETE PAD TO CLOTHESLINE (DESIGN SPECIFIC)
3.0 ENSUITE / ENSUITE 1 / ENSUITE 2 (IF APPLICABLE)
3.1 Laminex Lamiwood melamine base cabinetry with Caroma Luna 1TH Inset Basin (899215W) –White OR Caroma Luna Hand (One Tap Hole) Wall Basin White (Design Specific). Colour as per predetermined colour boards.
3.2 20mm Caesarstone benchtops from builders’ group 1 Investor range. Colour as per pre-determined colour boards.
3.3 Polished edge mirrors full length of vanity.
3.4 Recessed Tiled shower bases from group 1 investor range and pre-determined colour boards.
3.5 Semi framed shower screens with glass on glass sill-less overlap door.
3.6 Caroma Luna mixer taps (Chrome) to basins & showers
3.7 Caroma Luna Multi-function shower rail (Chrome).
3.8 Stylus Origin Rimless Close Coupled toilet suite (White).
3.9 Caroma Cosmo 600mm single towel rails (Chrome) and Caroma Cosmo toilet roll holders (Chrome). (Design Specific).
4.1 Laminex Lamiwood melamine base cabinetry with Caroma Luna Hand (One Tap Hole) Wall Basin White. Colour as per pre-determined colour boards. Note: Some designs will have a wall mounted basin only with no base cabinet due to space limitations.
4.2 20mm Caesarstone benchtops from builders’ group 1 Investor range and pre-determined colour boards.
4.3 950mm high polished edge mirror to full length of vanity.
4.4 Clark Round Pin chrome mixer taps to basin.
4.5 Stylus Origin Rimless Close Coupled toilet suite (White).
4.6 Caroma Cosmo toilet roll holders (Chrome).
4.7 Caroma Cosmo towel ring (Chrome).
5.0 WC (IF APPLICABLE)
5.1 Stylus Origin Rimless Close Coupled toilet suite (White).
5.2 Caroma Cosmo chrome toilet roll holder.
6.0 BATHROOM
6.1 Wall hung Laminex Lamiwood melamine base cabinetry with White cultured marble vanity top and integrated basin. Colour as per pre-determined colour boards.
6.2 950mm high polished edge mirror to full length of vanity.
6.3 Caroma Round 1525mm (Four Tile Flange) white acrylic bath with overflow in tiled podium.
6.4 Recessed Tiled shower bases from group 1 investor range and pre-determined colour boards.
6.5 Semi framed shower screens with glass on glass sill-less overlap door.
6.6 Clark Round Pin chrome mixer taps to shower, bath and basin.
6.7 Clark Round 220mm chrome wall mounted bath spout.
6.8 Clark Round Basic chrome hand held shower on rail.
6.9 Caroma Cosmo 600mm chrome double towel rails.
7.0 FLOOR & WINDOW COVERINGS
7.1 Wall tiles to Kitchen, Bathroom, Ensuite and Laundry, as per plans. Selection from builders group 1 Investor range and pre-determined colour boards.
7.2 Floor tiles to Ensuite, Bathroom, Laundry, WC, Kitchen, Meals, Rear Passage and Entry, as per plans. Selection from builders’ group 1 Investor range and pre-determined colour boards.
7.3 Textured ceramic floor tiles to balcony (where applicable). Colour to match internal floor colour.
7.4 Carpet to non-tiled areas. Selection from builders’ group 1 Investor range and pre-determined colour boards.
7.5 Flyscreens and window locks to be installed to all openable window sashes.
7.6 Sliding doors with keyed locks and fly screen doors.
7.7 Satinlite glazing to the Bathroom, Ensuite and WC windows.
7.8 Block -Out Roller blinds (single) to all windows and sliding doors, excludes Sidelight(s), Bathroom, Ensuite, Powder Room, WC windows, stairs and glazed external hinged doors.
8.0 PAINT
8.1 2 coats Solver Duraguard Matt to external surfaces (where applicable).
8.2 2 coats Wattyl Trade Ceiling White to ceilings, cornices and eaves.
8.3 3 coat system - 1 coat Wattyl Trade Prep Acrylic Sealer Undercoat & 2 coat Wattyl I.D Advanced Matt
8.4 Wattyl Aquatrim Gloss acrylic paint to internal doors, internal face of external doors skirting boards, architraves and internal woodwork (3 coat system).
8.5 Colorbond finish to downpipes.
8.6 Colours selected as per builders pre-determined colour boards.
9.0 INTERNAL FEATURES
9.1 Flush panel doors, 2040mm high hinged or cavity sliding, as per plan.
9.2 Gainsborough G4 Amelia levers door furniture to all internal hinged doors, excluding garage.
9.3 Privacy locks to bathroom, ensuite, WC and powder room (where applicable).
9.5 67 x 18mm Bevelled MDF skirting & 42 x 18mm Bevelled MDF architraves.
9.6 Stairs: Painted Posts, Post Tops and Balusters, Painted continuous Handrail (wall mounted where applicable), Painted cut open stringers & Painted exposed wall stringers, Painted fascia & cappings and Carpeted treads & risers. Note: Painted handrails and balustrades to open voids (design specific).
9.7 White cushion door stops to hinged doors (where applicable).
9.8 Door seal to nominated internal doors. Note: This will be in accordance with energy rating assessor’s report.
10.0 EXTERNAL FEATURES

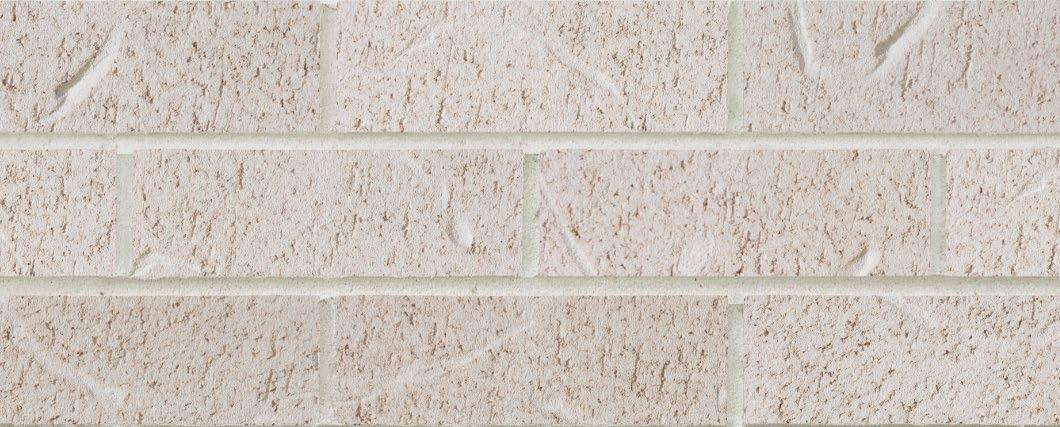

10.1 Clay face bricks with natural coloured rolled mortar joints to side and rear elevations (where applicable) as per plans from builders’ group 1 Investor range and pre-determined colour boards. First Floor: Painted or rendered lightweight cladding (design specific) where applicable. Refer to working drawings.
10.2 Clay feature bricks with off white colour rolled mortar joint to front facade (where applicable).
10.3 Painted render facade where applicable. Refer to working drawings. Note: When render provided to facade, it is to return 4000mm to the side of the house where applicable.
10.4 Feature aluminium Hybrid windows to front elevation (facade specific). Awning Hybrid aluminium windows to sides and rear. Double Storey: Overlooking windows to upper floor where required.
10.5 Aluminium flyscreen with fibreglass mesh to all operable windows. Frame colour to match windows.
10.6 Aluminium flyscreen with fibreglass mesh to all external sliding glass doors. Frame colour to match windows.
10.7 Aluminium barrier screen door to front entry door. Frame colour to match windows with black grille.
10.9 2040mm high by 920mm wide painted front entry door. Corinthian Madison PMAD101 or PMAD106 with clear glazing.
10.10 Gainsborough Terrace entrance set keyed door handle and lock to front door.
10.11 Brick infills over front facade windows and front entry (design specific). Painted fibre cement infills above doors and windows (where applicable).
10.12 Double glazed single coat Low E clear windows and sliding doors throughout
11.0 INSULATION
11.1 Glasswool batts to ceiling as per energy rating assessors report. Glasswool batts to walls if required as per energy rating assessors report.
11.2 Wall wrap as per energy rating assessors report and compliance requirements.
12.0 GARAGE
12.1 Double garage with colorbond corrugated hip roof including painted FC sheet or EPS (design specific) infill over garage door, plaster ceiling and concrete floor.
12.2 Automatic sectional garage door with (2) hand held remote controls & (1) wall mounted remote control.
12.3 Clay feature bricks with off white colour rolled mortar joint to front facade (where applicable).
12.4 Weatherproof flush panel external hinged door to rear of garage (design specific).
12.5 Gainsborough Terrace entrance set keyed door handle and lock to external hinged doors (where applicable) and door from garage to house.
12.6 Aluminium door frame with powder coat finish (design specific).
13.0 HOT WATER SYSTEM
13.1 250L Aquamax electric hot water service.
14.0 LAUNDRY
14.1 42 litre Clark Utility Standard tub and white enamel cabinet with bypass.
14.2 Alpine Project chrome mixer tap.
14.3 Clark Cross Washing Machine Set CL10037.C – Chrome.
15.0 PLASTER
15.1 10mm Plasterboard to ceiling and water-resistant Plasterboard to ensuite walls, bathroom walls and above laundry trough.
15.2 90mm cove cornice throughout.
16.0 FRAMING
16.1 Engineered design steel wall frames and roof trusses.
17.1 2 No. external taps (1 to front and 1 to rear).
18.0 ROOFING
18.1 Painted FC lined eaves where applicable Refer to working drawings.
18.2 Colorbond corrugated sheet metal roof from Builders pre-determined colour boards and including Whirly Bird where required for compliance.
18.3 Colorbond fascia and quad profile gutter.
18.4 Painted finish 90mm PVC round downpipes.
19.0 COOLING/HEATING
19.1 6.0kW reverse cycle split system air—conditioner to Family.
19.2 2.5kW reverse cycle split system air-conditioner to Bedroom 1.
20.0 STORAGE
20.1 Built in robes with 2100mm high vinyl sliding doors to bedrooms 2, 3 and 4.
20.2 Built in robe/s with 2100mm high vinyl sliding door/s and (1) mirror sliding door to walk in robe.
20.3 (1) 450mm white melamine shelf with hanging rail to walk-in robe.
20.4 (1) 450mm white melamine shelf with hanging rail to robes and coat cupboards, where applicable.
20.5 (1) 1700mm high x 450mm deep white melamine shelving tower with four evenly spaced white melamine shelves to built in and walk in robes.
20.6 (4) 450mm white melamine shelves to pantry/linen closets.
20.7 2100mm high vinyl sliding doors to robes and linen (design specific).
20.8 2040mm high flush panel hinged doors to pantry and linen (design specific).
21.0 CEILINGS
21.1 Single Storey: 2440mm (nominal) height throughout or that meets or exceeds estate design guidelines. Double Storey: 2440mm (nominal) height to ground floor and 2440mm (nominal) height to upper floor, or that meets or exceeds estate design guidelines.
22.0 ELECTRICAL
22.1 (1) White combination ceiling fan and light (with warm white LED bulbs) to all bedrooms, family room, lounge room/s (where applicable) and MPR (where applicable).
22.2 White LED IC Rated downlights to all other rooms, hallway and front entry. Colour temperature warm white.
22.3 (2) Externally ducted 250mm exhaust fan units to (1) Bathroom and (1) Ensuite and exhaust fan on timer to WC (if required) and Powder room (if required).
22.4 (2) Weatherproof external single flood lights, as per electrical plan.
22.5 Double power points in all bedrooms and living areas.
22.6 Single power points for fridge space, microwave, dishwasher, rangehood & Garage panel lift door.
22.7 TV Antenna connected to two (2) points within dwelling. (1) Bedroom 1 and (1) Family.
22.8 Telephone/Data points. (1) to bedroom 1, (1) to Family room and (1) to lounge room/s (where applicable or MPR (where applicable) with wall plate including underground draw wire with the ability to connect to supply pit.
22.9 Wall mounted switch plates (White).
22.10 Hardwired and interconnected smoke detectors with battery backup.
22.11 RCD safety switch and circuit breakers to meter box.
22.11 (1) Internal batten light point to garage ceiling, (1) to laundry in garage (where applicable) and (1) to under staircase (where applicable).
22.11 (1) White LED IC Rated downlight to front porch, alfresco and balcony (where applicable). Colour temperature warm white.
22.12 Basic NBN requirements including conduit run in and internal point, double power point.
23.0 LANDSCAPING

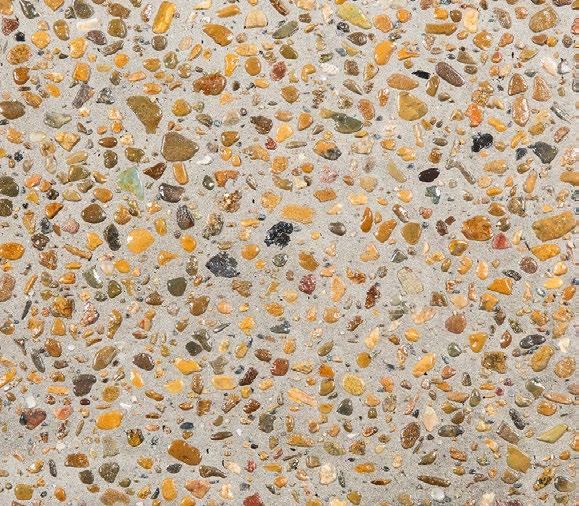

23.1 Exposed aggregate concrete paving to driveway, front path & porch. Refer working drawings.
23.2 Exposed Aggregate concrete paving to Outdoor Living.
23.3 Concrete stepping stones from laundry to underneath clothesline.
23.4 High density lightweight painted textured Polytec letterbox including concrete pad and street number. Refer to external colour scheme.
23.5 Wall mounted or post mounted foldaway clothesline.
23.6 Garden beds to front yard including;- Stormwater gully pits as required to collect surface water;A combination of shrubs and ground covers, (1) shrub / groundcover per 1 m2 garden; - (2) Feature shrubs; - Timber edging; - Garden soil; - Garden Mulch.
23.7 Turf to remainder of yard.
23.8 Gravel strip to perimeter of home (where applicable) including timber edge.

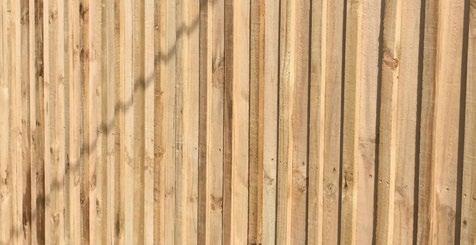

23.9 1800mm high butt paling timber fencing including return wing panel/s and (1) single gate.
24.0 GENERAL INCLUSIONS
24.1 Site costs include council requirements, concrete slab including piers (if specified) to suit engineers soil classification and foundation design.
24.2 Fixed price rock excavation and removal (where required).
24.3 Construction Insurance, Public Liability & BSA Insurance.
24.4 Covenant, Certification and Council application fees.
24.5 Soil tests, engineering reports and full working drawings.
24.6 Engineering plans.
24.7 Star energy rating included (BERS).
24.8 Connection of services (water, gas, electricity, sewer, stormwater and telephone conduit). Does not include electricity and telephone consumer account opening fees.
24.9 All developer estate design requirements to be determined and priced accordingly.
24.10 25-year structural warranty period (subject to terms and conditions).
24.11 12 months non-structural warranty period.
24.12 7 Star energy rating included.
24.13 Termite control system in accordance with all relevant standards.
24.14 Handover kit / manual including all relevant manufacturer and subcontractor certificates, warranties, contacts and instruction documents.
24.15 3.5KW single phase Solar PV including Jinko Panels and SolaX Inverter. Note: Output is orientation specific.
25.0 CLEANING
25.1 Thorough internal and external builders clean to allow presentation of property for occupancy.
26.0 MISCELLANEOUS TERMS AND CONDITIONS
26.1 Unless otherwise specified, the works shall be constructed in accordance with the Building Act (as amended) Australian Domestic Construction Manual and where appropriate the AS 1684 SAA Timber Framing Code.
26.2 Any valuations required by the lending body are to be the responsibility of the owner.
26.3 The builder reserves the right to replace any item at any time of construction with an equivalent product.
26.4 Building Plans and Colour Selections are subject to change and may be altered to meet with Engineering, Council and Estate requirements and guidelines.
ORBIT HOMES QUEENSLAND PTY LTD • QBCC LICENCE NUMBER 716019.
Disclaimer: Facade illustrations, images and photographs in this brochure may depict items not supplied by Orbit Homes, such as but not limited to; fencing, glass in balcony, landscaping (including planter boxes), driveway, decorative lights, window furnishings, upgrade materials, fixtures and finishes. Photographs and floor plans used in this brochure may not represent standard specifications or inclusions and are not to scale. This information is to be used as a guide only and Orbit Homes makes no warranties about the accuracy or completeness of the information. Facade designs and elements may vary depending on the home design chosen. Refer to standard working drawings. Upgrade options are at an additional cost. Orbit Homes reserves the right to change or substitute the make, range, model and/or type of any product. Total squares and building size of the homes set out in this brochure are calculated by measuring from the external side of external walls. Where no external wall exists for the purpose of measuring building area (such as porticos, balconies or outdoor rooms), Orbit Homes assumes a straight line between the exterior of walls or columns. All plans and facades are copyright; no part may be used, reproduced or copied by any means or in any form without the prior written permission of Orbit Homes. On display plan measurements do differ and includes balcony. Customer’s journey may differ depending on the individual home design. Updated 30/01/2025
