Master in Interior Design Post Professional NANDITA
2023 - 2024
University of Texas at Austin
WARRIER
CONTENTS
1 SCULPTED TESSELLATIONS
An Immersive threshold experience | Public pool
2 ELEMENTS OF TRANSITION
Foster interactions to create a sense of collective thinking | Adaptive 4D
3 THE NEXUS being. belonging. becoming | Senior Living
SCULPTED TESSELLATIONS
An Immersive threshold experience
Academic Work Instructor Project type
Site Location
Advance Studio | Sem 03 | Group of 2 Nerea Feliz

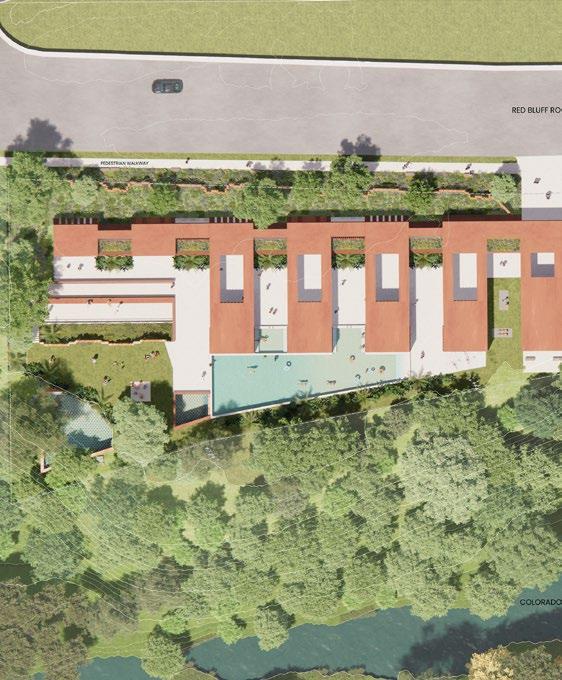

Multi-species inclusive Public Pool (Collective Waters) Red Bluff Road, Austin

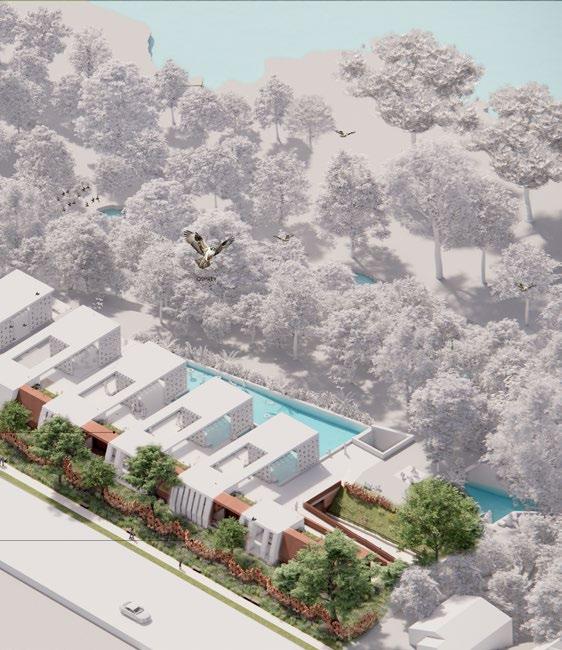

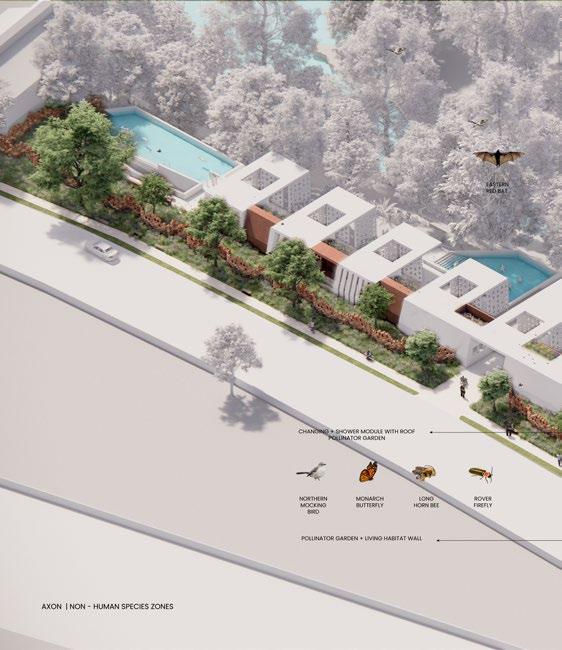

Sculpted Tessellation is a multispecies-focused public pool project that seamlessly blends human recreation with ecological integration. The aim of the project is to make the presence of the species apparent and create more public awareness and sensitivity to the species around us.

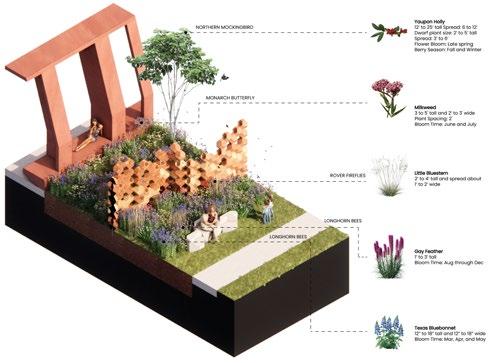

A pollinator garden with polyhedral living wall, tessellated with hexagonal modules, serving as a habitat for multi species. By positioning them along the site’s road-facing boundary, creates an interesting edge condition enabling a dynamic threshold, inviting both species and humans into a shared space. This fosters interaction between the pool facility and the neighborhood. The pollinator garden complements the wall, acting as a vibrant ecological buffer and enhancing species visibility.

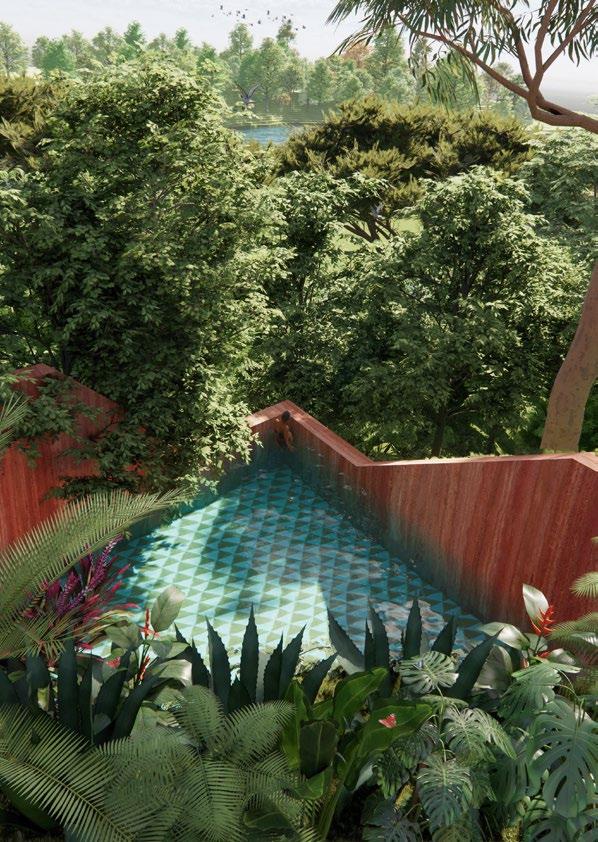

Inside, the pools are carved into the cliffside, offering a unique experience of immersion—balancing both shared experience zones like recreational pools along with children’s pool, splash pad and selfreflective zones like wellness and therapy pools, instructional pools. This design celebrates the interplay of geometry, flow, and connection, crafting an environment where the presence of nature is felt, observed, and appreciated by all.

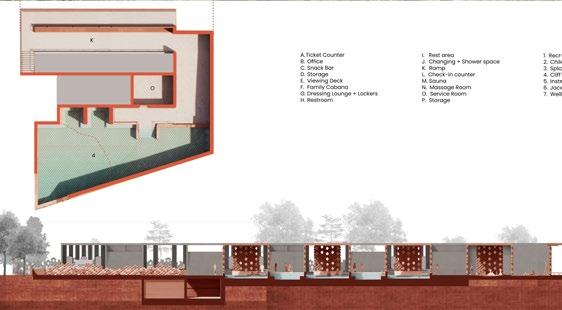

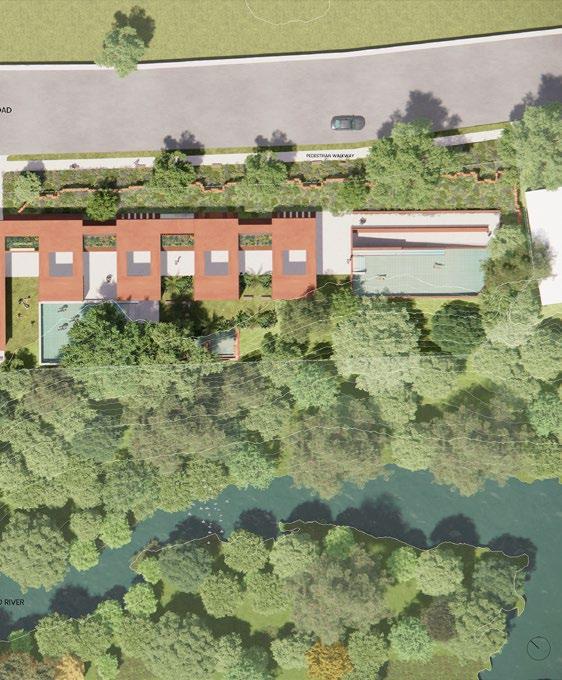

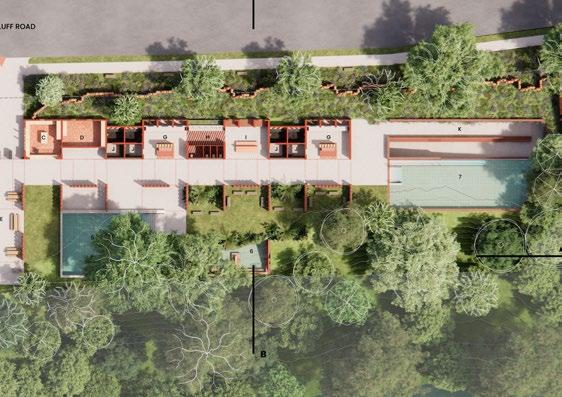

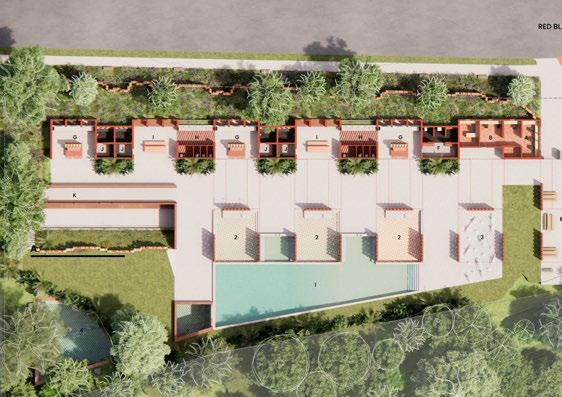

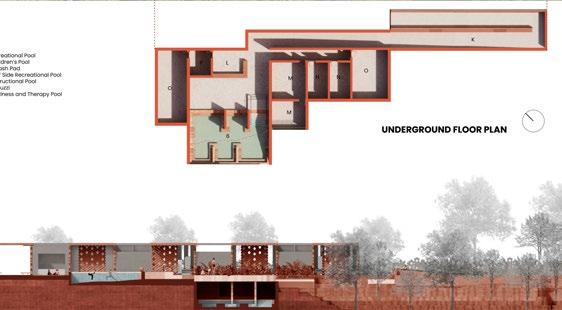

GROUND FLOOR PLAN

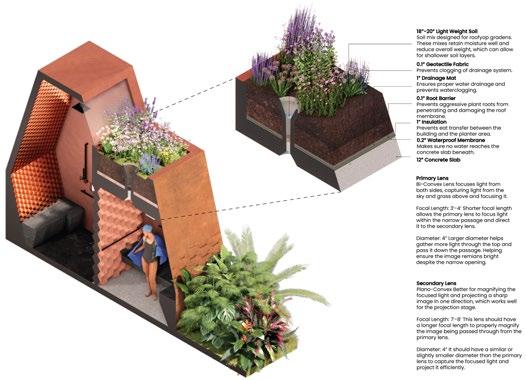

Living Wall surface
Ceramic are durable, easy to mold, moisture resistant and excellent wear resistance. Ceramics also provide good thermal insulation, preventing heat transfer and a cool environment for the species.
Solid Oak Wood are excellent renewable resource, easy to work - can be easily cut, shaped, and nailed. Have good thermal properties maintaining comfortable temperatures for species.
Concrete are durable, resistant to weathering, erosion, and abrasion, offering a long lifespan with minimal maintenance. Concrete is highly resistant to water Infiltration when properly sealed making it suitable for high traffic space.
A
Non- Human perspective of the Living Surface Wall

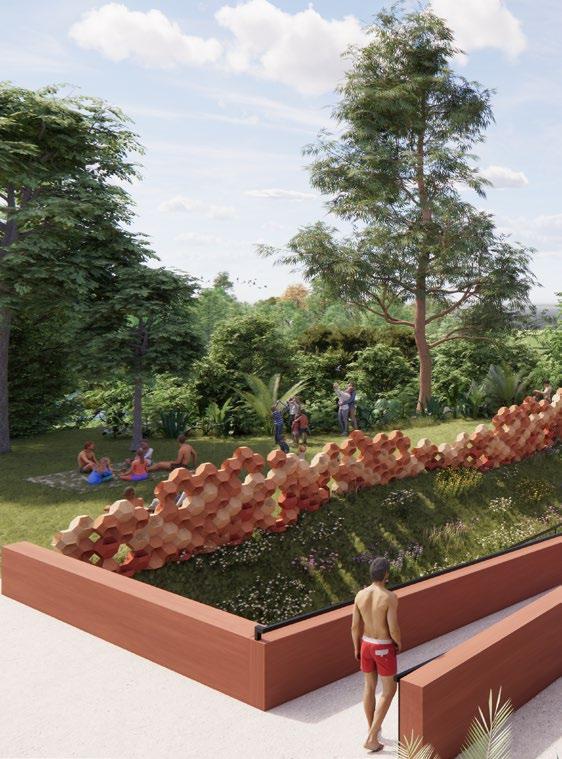

snapshot of the interactions with Living Surface Wall

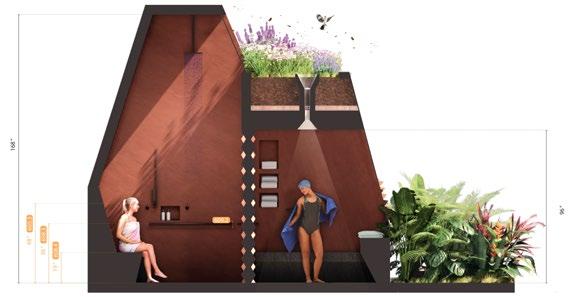

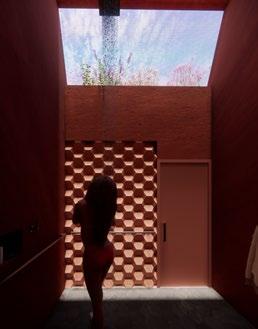

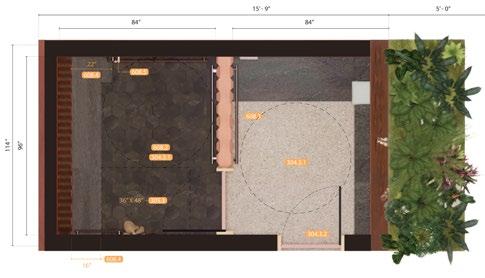

Changing & Shower space

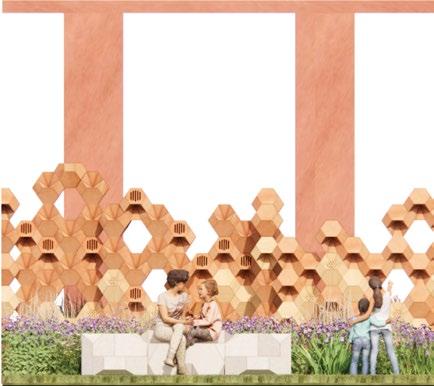

A snapshot of the interactions with Living Surface Wall
Instructional Pool Jacuzzi
Wellness and Therapy pool

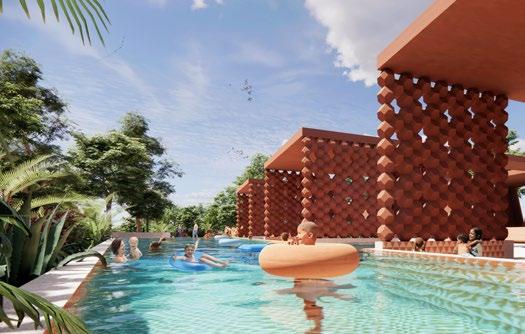

Recreational Pool, Cliff Rec pool and Children’s Pool
ELEMENTS OF TRANSITION
Foster interactions to create a sense of collective thinking
Academic Work Instructor Project type
Site Location
Advanced Studio | Sem 02 | Individual Ashley Heeren Adaptive Reuse of an existing residential building (Adaptive 4D) Juarez neigbourhood, Mexico City

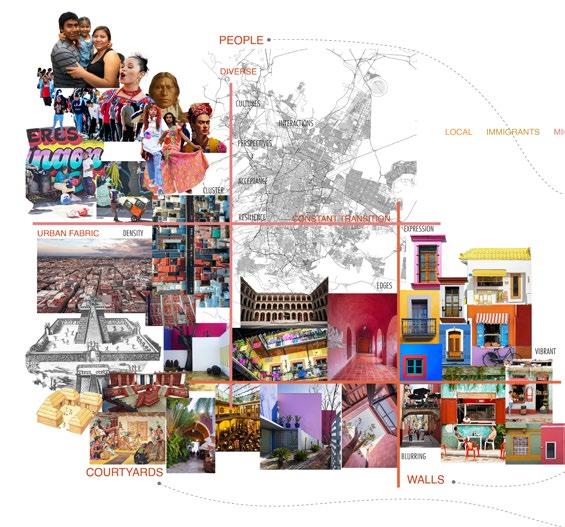

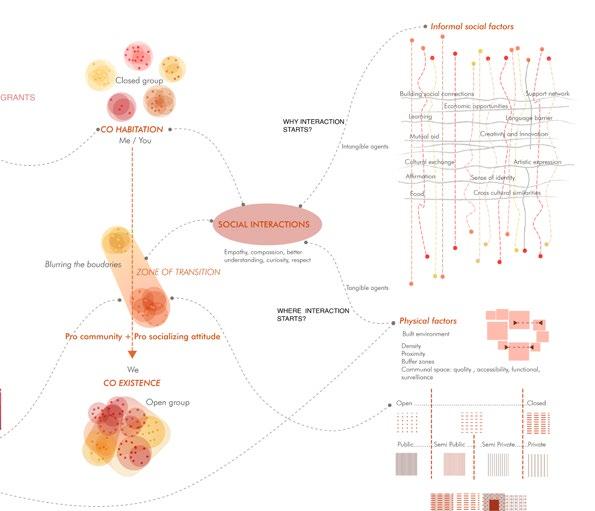

In an era defined by global mobility and cultural exchange, the need for coexistence presents both challenges and opportunities for connection. This proposal addresses these dynamics by fostering environments that facilitate meaningful social interactions, encourage collective thinking, and celebrate diversity.
Dynamic living Wall systems respond to the diverse needs of residents while fostering a sense of community and shared identity. Configuring these adaptable systems, accommodate various modes of interaction between units and exterior enhancing aspect of communal engagement, while also providing residents autonomy to privacy. The wall systems becomes an enabler to cultivate vibrant and inclusive living environments that encourage collective thinking.
The systems are integrated into spatial arrangements, facilitating seamless transitions between private and public spaces. With sliding, folding, or pivoting mechanisms, inhabitants can adjust their environment based on preferences and activities. The spatial arrangement establishes natural hierarchies of interaction and intimacy, while communal areas provide shared experiences and collaboration. Through thoughtful deployment of these strategies, the project aims to create harmonious and resilient communities that thrive on collective engagement and mutual respect.
Formation of Bucareli Avenue
A swampy dry land on the outskirts of the city converted as a promenade for the elite to spend time called Paseo Nuevo with wide Boulevard of 1000 Ash trees and huge roundabouts on the so-called New Walk
City’s growth cut the size of the avenue with 3 paired lanes: for cars, horses, a garden pair dedicated to walkers. After Reforma was formed, avenue became more of a residential zone
Bucareli avenue Chinese Clock Tower
Secretariat for Home Affairs
Edificio Gaona
Emilio Donde Street

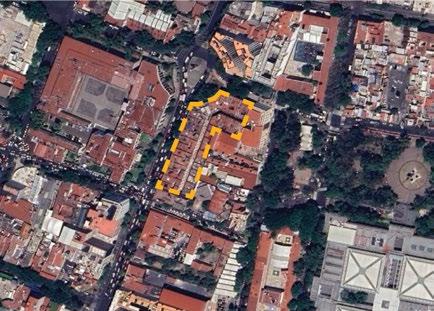

Capital City’s First Urban SuburbJuarez Neighborhood 1910
Rodolfo Gaona, famous bullfighter built Edificio Gaona designed by architect Ángel Torres Torija with purpose of first elite housing in the neighborhood.
Shelter for students who were persecuted by Gustavo Diaz Ordaz

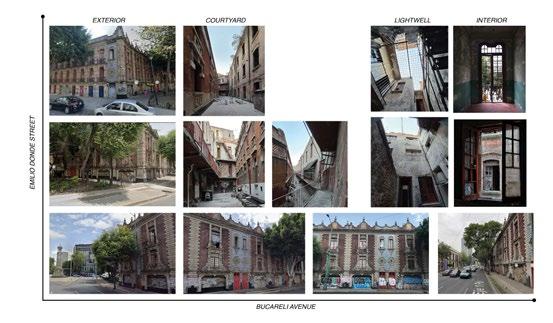

Understanding the layers of residue
Death of Rodolfo, Grand children became in charge, left unattended and neglected - decay.
Building occupied by paratroopers. Evictions attempts of residents. Witness to lot of protests in the street
Edificio Gaona
Volumetric adaptations

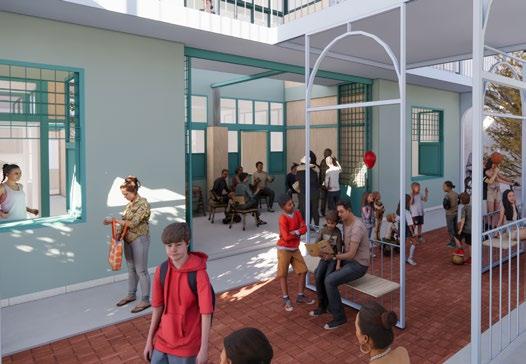

Street Level Interventions focused on blurring Boundaries between Gaona and the city
01 Existing Structure
Enclosed + Restricted access + Limited interaction with neighborhood
02 Scraping + Introducing voids
Create flexibility for future adaptations + Break linearity
03 Access Strategy + Weaving
Create strong connection to Bucareli and Regain Prominence + Connect two structures through Social Corridor
04 Hot Spot for Interactions
Identifying zones of different levels of interaction

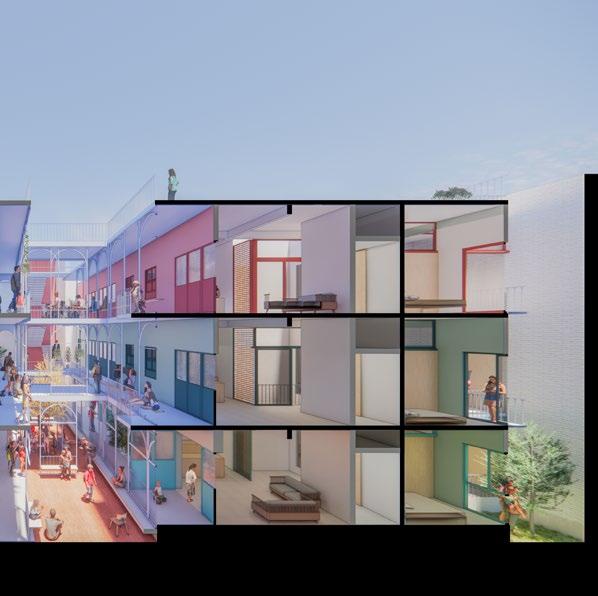

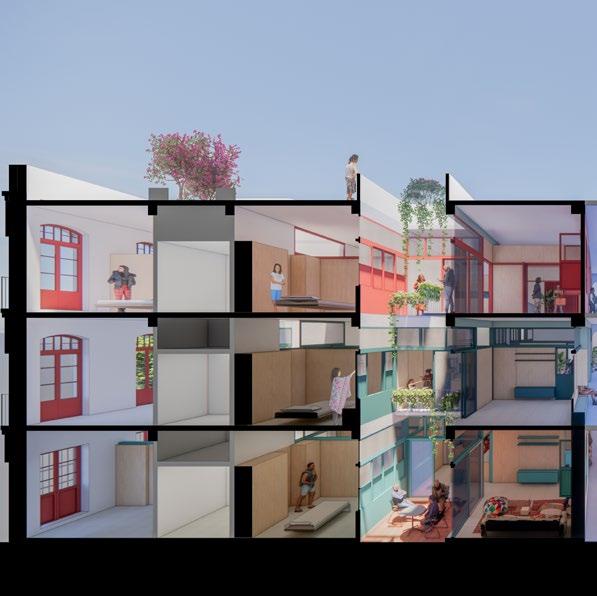

Residential Block Intervention
Wall systems as enabler for Transitions
Plumbing Core New Light Well
Retained Light well New Staircase + Corridor
Public

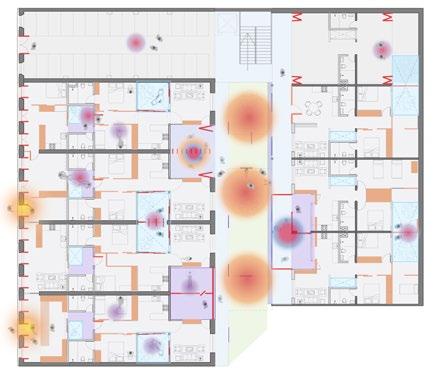

Systems in Play : Fostering Diverse Interactions in its own pace
Open ...................................................Semi....................................................................Close No Boundary........................................Blurred....................................................Clear Boundary
Physical access...............................Visual & Verbal ....................................Visual / Verbal / None Prolonged..............................................Brief.....................................................................None
FUNCTIONAL SYSTEMS : Fixed
Unit divider/ room partitions: Enables adaptability for flexible layout options where it can grow or contract according to user’s affordability and needs. These have an functional component as storage space
INTEGRATION SYSTEM : Slide & Fold, Pivot, Hinged, Slide
Inter + Intra unit : Apertures enable integration between units and also towards the courtyard by giving autonomy to the user for privacy as well.
CORE SYSTEM : Movable - Slide
Located along the “core” of the building - the courtyard that enables diverse interactions for community life. These systems becomes a play component , can compartmentalize the courtyard into zones of different functions like communal learning area, play area, also function as a bench

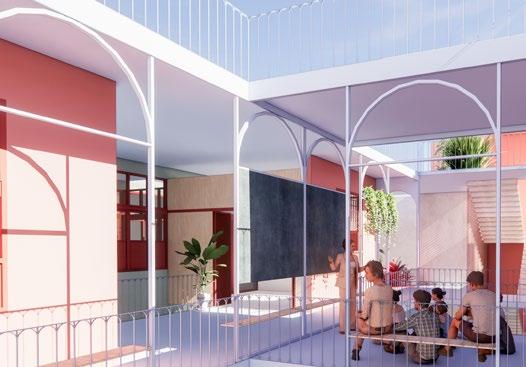

Shared Space Moments by Integrative systems
These systems could be a part of Inter / Intra unit. Allows residents the autonomy to change these as they get familiarize with their neighbors. They become a form of expression from inhibition where the system is closed to forming initial conversations (semi open) to creating friendships or extending hospitality where the system is completely open. They can also be elements of safety, privacy when needed.
Towards Courtyard / neighbor
Intra unit - Light well
Intra unit - Rear Light well
Shared Space Moments by Core systems
Deployed along the corridor creating spaces of diverse interactions. It enables to segregate space like converting the shared connecting corridor as a learning space. It can also be a tool for emergence of new interactive spaces for all age groups.
AN EVENING In GAONA
THE NEXUS
being.beloning.becoming
Academic Work Instructor Project type
Site Location Interior core III | Sem 01 | Group of 3 Nerea Feliz
Adaptive Reuse of existing Senior residence + Public space proposal (Beyond Isolation) Austin, Texas
The NEXUS takes you on a journey through our vision for the future – a vision where age isn’t a limitation but an opportunity for vibrant living.
As per WHO “The life expectancy of human beings will exceed 90 years for the first time and by 2050, the proportion of the world’s population over 60 years will nearly double.”
What does this mean for future generations?
As human lifespans increase, a spectrum of challenges and opportunities emerges. This shift encourages extended careers, exploration of new activities, and the possibility of career changes, fostering increased interaction with younger generations. Our design aims to address the core issues of isolation faced by seniors by providing a platform for pursuing passions and embracing career transitions. We seek to harness the wisdom and experience of seniors, benefiting both society and younger generations by creating an environment that goes beyond comfort – it’s dynamic, engaging, and inspiring. This not only ensures financial independence but also promotes physical well-being through an active lifestyle for seniors, ultimately reducing feelings of isolation and positively impacting psychological well-being.
For our design proposal we have chosen to breathe new life into the Rebekah Baines Johnson (RBJ) building in Austin, Texas which was initially designed for low income seniors in 1970’s. It’s not just a structure, its a piece of history, a part of a neighborhood that’s evolving and witnessing change with young professionals moving into the locality. We are not just designing, we are revitalizing. Think of it as a nod to the past, a step into the future, all while surrounded by the dynamic pulse of Austin.
Existing Building
Residential units : 250 Domestic Public space
Existing 16 storey structure has only with 5% Public space & a floor to ceiling of 8’ clearance.
GF&FF:5(1BHK)+5(Studio)+ Public space
3-8 Floor:8(1BHK)+9(Studio) 9-16 Floor:10(1BHK)+6(Studio)

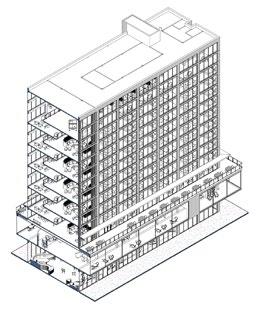

Minimal Structural Changes by Strategic Omission of Floor Slabs
Focus is to enhance the spacious volume of public spaces on ground level to create more public interaction. Thoughtful alterations to floor slabs introduces double heights near elevator lobbies, creating spatial dynamics for an interconnected design in upper residential floors.
Gradual flow from Public to Private
Residential units
Residential amenities
Public space
Public space is thoughtfully situated at the base with upper levels occupying private residential units with domestic public zones near elevator lobbies. This intentional layout ensures a seamless and purposeful progression from communal to more private spaces.
Connect through Levels
Extended balcony to break the monotony
The extended third floor slab is strategically employed to accentuate and disrupt the uniformity of the brick facade. This addition forms a wrapped terraced seating area providing residents with a scenic view of the lake and downtown skyline in the background from the comfort of the residential lounge.
NEXUS OF LIFE
Our design is rooted in the three fundamental domains of the Quality of Life (QOL) profile:
BEING
Maintaining one’s physical, psychological and spiritual quality
BELONGING
A profound connection with one’s environment through physical, social, and communal ties.
BECOMING
Achieving one’s personal goals, hopes and aspiration NEXUS is chosen for its meaning as a connection or a central point where these three attributes converge.
BEYOND ISOLATION: LEVELS OF CONNECTIVITY
Levels of connectivity shows the varying levels of spatial programs addressing different levels of user group interaction from public to private which are employed to facilitate intergenerational exchange and community building.
RESIDENTIAL UNITS : FLOOR 4-12
BEING + BELONGING
RESIDENTIAL AMENITIES : FLOOR 3 &13
BELONGING + BEING
BELONGING + BECOMING
PUBLIC SOCIAL HUB : FLOOR 1 & 2
A profound connection with one’s environment through physical, social, and communal ties.
THE CONNECT: Belonging Through Brews and Bonds
a. Entrance to Cafe
b. Learning stairs
c. Retail space / Interactive
exhibit space
d. Cafe bar
e. Work-Ez table
f. Communal couch
g. Outdoor seating
h. Residential Entrance
i. Reception
j. Elevator lobby
k. Fire Staircase
l. Recreational zone
m. Restrooms
n. Storage
ADA Compliant standards
1. Pop-up Screen:
a. Adjustable Monitor, b. Integrated lamp, c. Charging point, d. Self-Illuminated controls
2a.Plug-in Split ergonomic Keyboard tray & dual side Mouse tray for neutral hand & wrist position
2b. Magnetic Cup holder to prevent spillage. 4. Magnetic strip sandwiched between plywood sheets
2c. Portable Book/ Tablet holder for ease of reading.
Recycled Plastic 3. Bag hook
Interior Layers as Assistive technology for Ageing Body: Work-Ez Cafe table

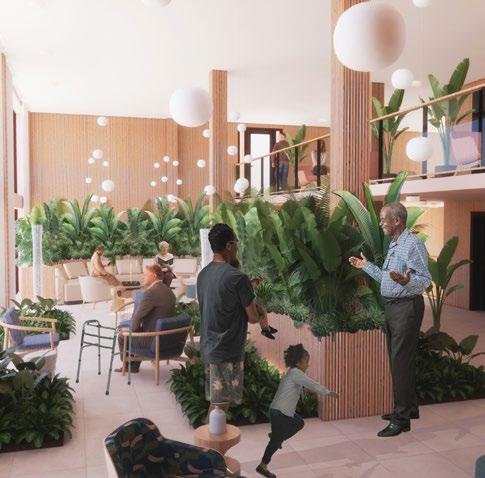

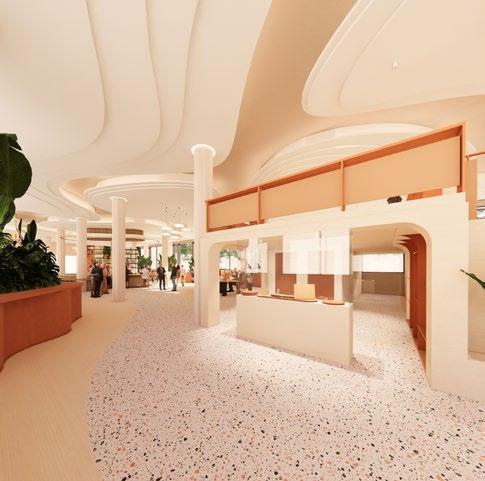

“The Connect” Cafe Hub, bustling with people of all ages and professions socializing and career networking where the seniors experience a Sense of belonging by providing a safe and inclusive space to evolve through learning, creating intergenerational relationships, and developing new interests.

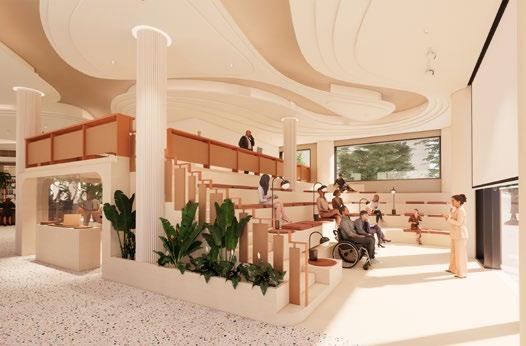

The public and the residents sharing the Learning Stairs, a versatile platform for sharing experiences and knowledge, also serve as an event space. Managed by active seniors, the retail space underneath the landing is an income generator to the community where they showcase senior works and achievements, fostering community pride. “The Nexus” branding, offers senior-friendly electronics for borrowing, enhancing inclusivity and functionality.
being . belonging . BECOMING achieving one’s personal goals, hopes and aspirations

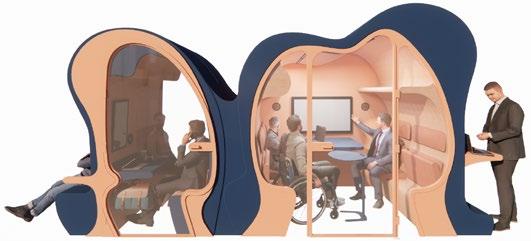

Interior Layers as Assistive technology for Ageing Body: Co-Connect Pod
a. Mentor-ship corners
b. Flex zone
c. Collaborative work lounge
d. Innovation Hub
e. Co-Connect pod
f. Skill Workshop Studio
g. Digital learning Lab
h. Retreat zone
i. Restroom
j. Elevator lobby
K. Fire staircase

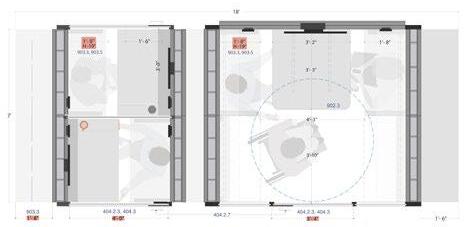

A versatile space equipped for Zoom calls, meetings, Online classes, small group discussions. Main feature: Two individual private pods is partitioned with a frosted glass technology, enabling communication via connected speakers and the ability to view and converse, transforming into private work pods as needed.
1. Acoustical Glass Divider with Frosting Technology
2. Cup-holder with Powerless charging station + easy to reach Power module in the front end
3. Folding table with grab bar below, function as Bag holder
4. Touch Screen Monitor for easy viewing
5. Room Connecting Speaker for conversation between the two private work pods
6. Fold-able chair along with Armrest to accommodate wheelchair
7. Neck and back support cushion with warmer to ease muscle fatigue
8. Laminated acoustic glass door with easy to operate handle integrated with concealed automatic swing door system
9. Motion Sensor LED Lighting with Dimmer & Ventilation system
Anodized aluminium powder coated
Lightly textured fabric woven entirely from post-consumer recycled plastic
Acoustic false ceiling panel (EURO SPAN)
Acoustic Wall panel ( CONWED) has a 1/16” copolymer sheet hidden beneath the fabric has high-impact resistance is fixed by Z bars on to the plywood backing fixed to the wall.
1.25” thk. Molded Bio based thermo plastic elastomer (TPEs) fixed by 2 course epoxy adhesive to Plywood Skin
0.75” thk. Plywood skin screwed to plywood framework supported by Metal bracket fixed to the concrete slab
Seat is covered in a Biodegradable Fabric backed by 2” thk. Foam on a plywood frame attached to the Divider wall

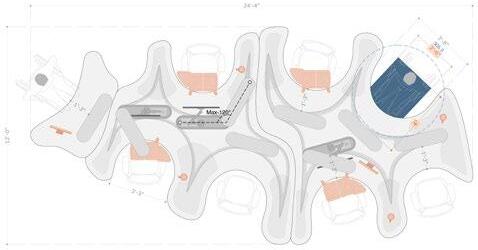

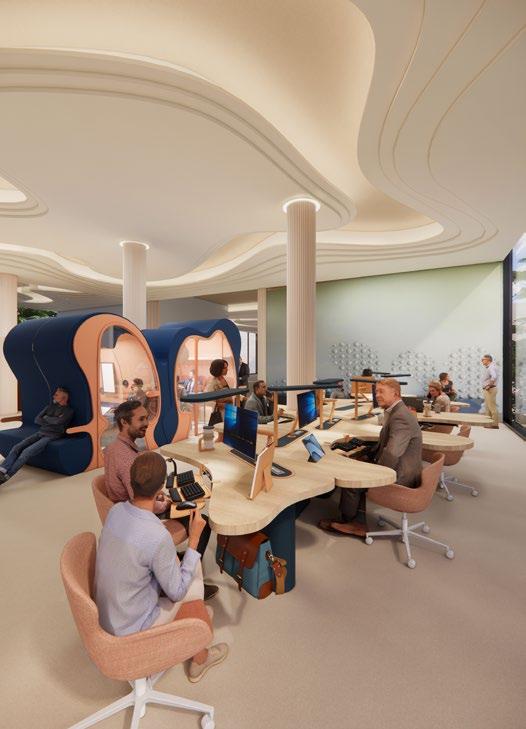

COLLABORATIVE ZONE with Work-Ez Table for individual or group workspace with tailored Pods for Acoustic benefits.
COLLABORATIVE ZONE with different sizes of booths for discussions with comfortable seating options.
RESUME
Aug 2023 - May 2025
Masters in Interior Design Post Professional University of Texas at Austin
Scholarship: Recipient of consecutive cash awards for two semesters.
Sept 2012 - April 2017
Bachelor Of Architecture| Chennai, India Anna University, School of Architecture, MCE
ACADEMIC APPOINTMENTS
Spring 2024 |Teaching Assistant Under Prof. Larry Speck for Architecture and Society AR308
Fall 2024 |Teaching Assistant For Prof. Deborah Beck - Intro to Classical Mythology CC303
ACADEMIC INVOLVEMENTS
Fall 2023, Austin | Fortlandia 2023 - Part of Fabrication and Installation team for Monkey Bar Fort under Asst. Prof. Ria Bravo
AWARDS & ACHIEVEMENTS
2017 - Earned First Class honors and ranked second in my college and 20th out of 1108 graduates in the Bachelor of Architecture program at the university. (State Level)
2022 - “Eclectic House”Shortlisted in Top 20 entries | Creative Minds Next Competition by FOAID 22’
SKILLS
Digital Software Auto CAD
Digital Modeling Rhino Revit (Intermediate) SketchUp
Rendering V-ray, Enscape, Lumion
Adobe Suite Photoshop, Illustrator Indesign, Lightroom, Acrobat
Student Intern (Academic)
Jun 2024 - Aug 2024 STUDIOS Architecture | Architectural & Interior Design Firm Washington DC
• Collaborated with various teams on different project scopes, including schematic designing, branding, detailed drawings and client presentations.
• Coordinated effectively to deliver high-quality outputs under tight deadlines.
• Enhanced project management and teamwork skills through diverse project involvement.
Design Head
Jan 2021- Aug 2022 Atelier Nord | Architectural & Interior Design Firm Chennai, India
• Managed and coordinated from conceptual design phase to completion.
• Curated inspiring mood boards and conceptual designs, leading discussions to ensure alignment with client visions.
• Supervised the construction drawings, provided comprehensive information to the team
• Facilitated material selection and validation processes, ensuring thoroughness and accuracy.
• Managed seamless collaboration between clients, contractors, consultants and project management team throughout the execution phase, while overseeing project progress through regular site visits and proactively addressing any emerging issues at site.
Design Partner
Sept 2018- Dec 2020 LIVSPACE |Pan India Commercial Interior Design E-commerce Company Chennai, India
• Conducted sales meetings, achieving a 90% approval rate for converted leads.
• Led design development phases, creating tailored solutions using their modular range of products.
• Carried out project budget discussions with client as per final design and scheduled a comprehensive timeline.
• Demonstrated effective communication skills by serving as the primary liaison between the client and the project management team during the execution phase.
• Supervised site progress and addressed any escalations promptly, ensuring seamless and successful project completion.
Junior Architect
Jan 2018- Mar 2018 EDIFICE by Ar. Pramod Balakrishnan | Multi Disciplinary Design Firm Chennai, India
• Developed conceptual and schematic designs for a large-scale housing project with 3D visualization.
Student Intern (Academic)
Dec 2015- May2016 OFF CENTERED Architects | Architectural & Interior Design Consultant Chennai, India
• Produced conceptual and schematic designs by showcasing my versatile expertise in hand-drawn sketches across various project types, including individual residences, apartment complexes, commercial spaces, and hospitality projects.
• Developed space plans, furnished multiple facade design options through hand drawn sketches and 3D rendered images employing diverse fabrication methods to achieve desired aesthetics.
• Prepared and presented in interior design by conceptualizing and developing detailed and visually captivating designs and 3D renderings for a private luxury residence.
Student Intern (Academic)
June 2015- Nov 2015 COSTFORD Centre of Science and Technology for Rural Development Trivandrum, India
• Researched on their projects like Slum Rehabilitation projects and other government projects to learn and familiarize their design philosophy and approach on low cost construction techniques and implementation strategies.
• Provided on-site supervision and assistance to project managers, gaining hands-on experience.
General MS Office suite, Google suite
Others Hand Sketch, Pen Rendering, Fabrication Laser Cutting
VOLUNTEER WORK
Laurie Baker Center for Habitat Studies
October 2015 - Volunteered and actively participated for their Summer School program by sharing awareness about sustainable architecture and Baker’s construction principles by demonstration of the construction techniques to almost 40 students who attended from different countries.
