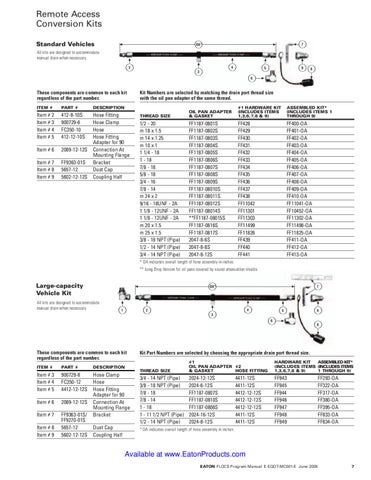

Remote Access Conversion Kits
7
OA*
Standard Vehicles
1
OA*
2
4
7
5
9
8
3
All kits are designed to accommodate manual drain when necessary.
6 1
4
2
5
9
8
3 6
These components are common to each kit regardless of the part number. ITEM #
PART #
DESCRIPTION
Item # 2 Item # 3 Item # 4 Item # 5
412-8-10S 900729-6 FC350-10 412-12-10S
Item # 6
2089-12-12S
Item # 7 Item # 8 Item # 9
FF9363-01S 5657-12 5602-12-12S
Hose Fitting Hose Clamp Hose Hose Fitting Adapter for 90 Connection At Mounting Flange Bracket Dust Cap Coupling Half
Kit Numbers are selected by matching the drain port thread size with the oil pan adapter of the same thread.
THREAD SIZE
OIL PAN ADAPTER & GASKET
#1 HARDWARE KIT (INCLUDES ITEMS 1,3,6,7,8 & 9)
ASSEMBLED KIT* (INCLUDES ITEMS 1 THROUGH 9)
1/2 - 20 m 18 x 1.5 m 14 x 1.25 m 10 x 1 1 1/4 - 18 1 - 18 7/8 - 18 5/8 - 18 3/4 - 16 7/8 - 14 m 24 x 2 9/16 - 18UNF - 2A 1 1/8 - 12UNF - 2A 1 1/8 - 12UNF - 2A m 20 x 1.5 m 25 x 1.5 3/8 - 18 NPT (Pipe) 1/2 - 14 NPT (Pipe) 3/4 - 14 NPT (Pipe)
FF1187-0801S FF1187-0802S FF1187-0803S FF1187-0804S FF1187-0805S FF1187-0806S FF1187-0807S FF1187-0808S FF1187-0809S FF1187-08010S FF1187-08011S FF1187-08012S FF1187-08014S **FF1187-08015S FF1187-0816S FF1187-0817S 2047-8-6S 2047-8-8S 2047-8-12S
FF428 FF429 FF430 FF431 FF432 FF433 FF434 FF435 FF436 FF437 FF438 FF11042 FF11301 FF11303 FF11499 FF11826 FF439 FF440 FF441
FF400-OA FF401-OA FF402-OA FF403-OA FF404-OA FF405-OA FF406-OA FF407-OA FF408-OA FF409-OA FF410-OA FF11041-OA FF10452-OA FF11302-OA FF11498-OA FF11825-OA FF411-OA FF412-OA FF413-OA
* OA indicates overall length of hose assembly in inches. ** Long Drop Version for oil pans covered by sound attenuation shields.
Large-capacity Vehicle Kit
7
OA*
All kits are designed to accommodate manual drain when necessary.
1
2
OA*
7
4
5
9
3 6 8 1
4
2
5
9
3 6 8
These components are common to each kit regardless of the part number. ITEM #
PART #
DESCRIPTION
Item # 3 Item # 4 Item # 5
900729-8 FC350-12 4412-12-12S
Item # 6
2089-12-12S
Item # 7
FF9363-01S/ FF9270-01S 5657-12 5602-12-12S
Hose Clamp Hose Hose Fitting Adapter for 90 Connection At Mounting Flange Bracket
Item # 8 Item # 9
Dust Cap Coupling Half
Kit Part Numbers are selected by choosing the appropriate drain port thread size.
THREAD SIZE
#1 OIL PAN ADAPTER #2 & GASKET HOSE FITTING
HARDWARE KIT ASSEMBLED KIT* (INCLUDES ITEMS (INCLUDES ITEMS 1,3,6,7,8 & 9) 1 THROUGH 9)
3/4 - 14 NPT (Pipe) 3/8 - 18 NPT (Pipe) 7/8 - 18 7/8 - 14 1 - 18 1 - 11 1/2 NPT (Pipe) 1/2 - 14 NPT (Pipe)
2024-12-12S 2024-6-12S FF1187-0807S FF1187-0810S FF1187-0806S 2024-16-12S 2024-8-12S
FF943 FF945 FF944 FF946 FF947 FF948 FF949
4411-12S 4411-12S 4412-12-12S 4412-12-12S 4412-12-12S 4411-12S 4411-12S
FF293-OA FF322-OA FF317-OA FF380-OA FF395-OA FF833-OA FF834-OA
* OA indicates overall length of hose assembly in inches.
Available at www.EatonProducts.com EATON FLOCS Program Manual E-EQOT-MC001-E June 2005
