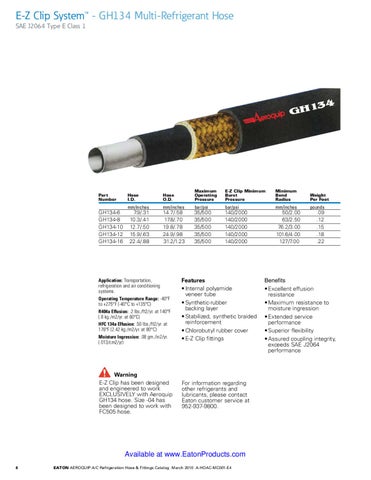

E-Z Clip System™ - GH134 Multi-Refrigerant Hose SAE J2064 Type E Class 1
Part Hose Hose Number I.D. O.D.
GH134-6 GH134-8 GH134-10 GH134-12 GH134-16
mm/inches
7.9/.31 10.3/.41 12.7/.50 15.9/.63 22.4/.88
Maximum Operating Pressure
mm/inches
14.7/.58 17.8/.70 19.8/.78 24.9/.98 31.2/1.23
Application: Transportation,
refrigeration and air conditioning systems. Operating Temperature Range: -40°F to +275°F (-40°C to +135°C) R404a Effusion: .2 lbs./ft2/yr. at 140°F (.8 kg./m2/yr. at 60°C) HFC 134a Effusion: .50 lbs./ft2/yr. at 176°F (2.42 kg./m2/yr. at 80°C) Moisture Ingression: .08 gm./in2/yr. (.013/cm2/yr)
Warning E-Z Clip has been designed and engineered to work EXCLUSIVELY with Aeroquip GH134 hose. Size -04 has been designed to work with FC505 hose.
bar/psi
35/500 35/500 35/500 35/500 35/500
E-Z Clip Minimum Burst Pressure
Minimum Bend Radius
Weight Per Foot
bar/psi
mm/inches
pounds
140/2000 140/2000 140/2000 140/2000 140/2000
Features • Internal polyamide veneer tube • Synthetic-rubber backing layer • Stabilized, synthetic braided reinforcement • Chlorobutyl rubber cover • E-Z Clip fittings
For information regarding other refrigerants and lubricants, please contact Eaton customer service at 952-937-9800.
Available at www.EatonProducts.com 6
EATON AEROQUIP A/C Refrigeration Hose & Fittings Catalog March 2010 A-HOAC-MC001-E4
50/2.00 63/2.50 76.2/3.00 101.6/4.00 127/7.00
.09 .12 .15 .18 .22
Benefits • Excellent effusion resistance • Maximum resistance to moisture ingression • Extended service performance • Superior flexibility • Assured coupling integrity, exceeds SAE J2064 performance
