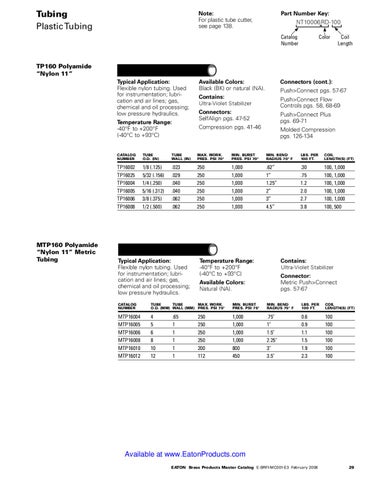

Tubing Plastic Tubing
Part Number Key:
Note: For plastic tube cutter, see page 138.
NT10006RD-100 Catalog Color Number
Coil Length
TP160 Polyamide “Nylon 11” Typical Application: Flexible nylon tubing. Used for instrumentation; lubrication and air lines; gas, chemical and oil processing; low pressure hydraulics. Temperature Range: -40°F to +200°F (-40°C to +93°C)
MTP160 Polyamide “Nylon 11” Metric Tubing
Available Colors: Black (BK) or natural (NA).
Connectors (cont.):
Contains: Ultra-Violet Stabilizer
Push>Connect Flow Controls pgs. 58, 68-69
Push>Connect pgs. 57-67
Connectors: SelfAlign pgs. 47-52
Push>Connect Plus pgs. 69-71
Compression pgs. 41-46
Molded Compression pgs. 126-134
Catalog Number
Tube O.D. (in)
Tube Wall (in)
Max. Work. Pres. PSI 70°
Min. Burst Pres. PSI 70°
Min. Bend Lbs. Per Coil Radius 70° F 100 Ft. Length(s) (Ft)
TP16002 TP16025 TP16004 TP16005 TP16006 TP16008
1/8 (.125) 5/32 (.156) 1/4 (.250) 5/16 (.312) 3/8 (.375) 1/2 (.500)
.023 .029 .040 .040 .062 .062
250 250 250 250 250 250
1,000 1,000 1,000 1,000 1,000 1,000
.62” 1” 1.25” 2” 3” 4.5”
Typical Application: Flexible nylon tubing. Used for instrumentation; lubrication and air lines; gas, chemical and oil processing; low pressure hydraulics.
.30 .75 1.2 2.0 2.7 3.8
100, 1,000 100, 1,000 100, 1,000 100, 1,000 100, 1,000 100, 500
Contains: Ultra-Violet Stabilizer
Temperature Range: -40°F to +200°F (-40°C to +93°C)
Connector: Metric Push>Connect pgs. 57-67
Available Colors: Natural (NA).
Catalog Number
Tube Tube Max. Work. O.D. (mm) Wall (mm) Pres. PSI 75°
Min. Burst Pres. PSI 75°
Min. Bend Lbs. Per Coil Radius 75° F 100 Ft. Length(s) (Ft)
MTP16004 MTP16005 MTP16006 MTP16008 MTP16010 MTP16012
4 5 6 8 10 12
1,000 1,000 1,000 1,000 800 450
.75" 1" 1.5" 2.25" 3" 3.5"
.65 1 1 1 1 1
250 250 250 250 200 112
0.6 0.9 1.1 1.5 1.9 2.3
100 100 100 100 100 100
Available at www.EatonProducts.com EATON Brass Products Master Catalog E-BRFI-MC001-E3 February 2008
29
