QUICK DISCONNECT COUPLINGS
AIR ™

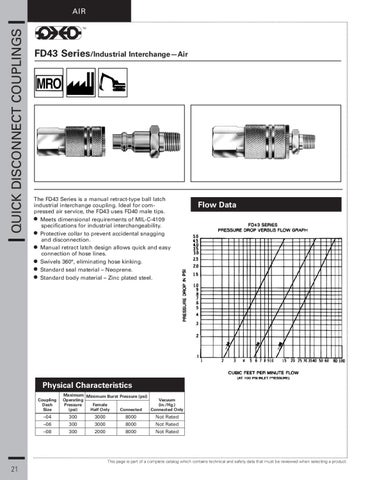

FD43 Series/Industrial Interchange—Air
The FD43 Series is a manual retract-type ball latch industrial interchange coupling. Ideal for compressed air service, the FD43 uses FD40 male tips. Meets dimensional requirements of MIL-C-4109 specifications for industrial interchangeability. Protective collar to prevent accidental snagging and disconnection. Manual retract latch design allows quick and easy connection of hose lines. Swivels 360°, eliminating hose kinking. Standard seal material – Neoprene. Standard body material – Zinc plated steel.
Flow Data
• • • • • •
Physical Characteristics Coupling Dash Size
–04 –06 –08
Maximum Minimum Burst Pressure (psi) Operating Vacuum Pressure Female (in./Hg.) (psi) Half Only Connected Connected Only
300 300 300
3000 3000 2000
8000 8000 8000
Not Rated Not Rated Not Rated
This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product.
21
