GAMMA™ - 10K MUD & CEMENTING HOSE
10,000 PSI hose designed for cementing services
Heavy duty 10,000 PSI hose designed for cementing services.
TECHNICAL DATA
Standard To API Spec. 7K FSL 0 *
Tube Black, NBR
Cover Black, abrasion, ozone and hydrocarbon resistant synthetic rubber
Reinforcement Multiple layers of spiraled high tensile steel wire
Maximum Length 200 f t.
Operating Temperature -40 F to +250 F
Branding GAMMA™ - 10K MUD & CEMENTING HOSE 2” (50.8 mm) 10,000 PSI (690 bar) W.P. / 15,0000 PSI (1,035 bar) T.P. MEETS OR EXCEEDS API Spec. 7K FSL 0
Couplings: Must contact TEXCEL
*Non-Monogrammed
GAMMA™ - SLIM HOLE ROTARY HOSE
4,000 PSI hose designed for drilling applications
TECHNICAL DATA
Tube Black, NBR
Cover Black, abrasion, ozone and hydrocarbon resistant synthetic rubber
Reinforcement Multiple layers of spiraled high tensile steel wire
Maximum Length 100 f t.
Safety Factor 2.5:1
Operating Temperature -40 F to +250 F
Branding (Dual Layline) GAMMA™ - SLIM HOLE ROTARY HOSE 2 ½” (63.5mm) 4,000 PSI (276 bar) W.P. / 10,000 PSI (690 bar) B.P. 2.5:1 S.F.
SHR/H-40 TERA-GLIDE 2 ½” -40 DN65 2,500 PSI (170 BAR) W.P. / 10,000 PSI (690) B.P. 4:1 S.F/ MSHA IC-84/43
Couplings: Use GMCO™ 9000 SERIES Couplings
SUPRA™ - HPOJ
High Pressure Oil & Jetting Hose
TECHNICAL DATA
Tube Black, NBR (50% Aromatics (ORS))
Cover Black, CR, extremely high abrasion and weather resistant
Reinforcement Multiple steel wire plies
Maximum Length 100 f t.
Operating Temperature -20 F to +194 F, up to 212 F for oil use only
Branding SUPRA™ - HIGH PRESSURE OIL & JETTING HOSE
Couplings Use GMCO™ 9000 SERIES Couplings T
TEX-FUEL
Fuel Transfer Hose
A multi-use hose for transporting leaded, unleaded, lead substitutes, lowpressure brake fluid or diesel. Used in farm and barrel pump applications, as well as construction and industrial service where UL approval is not required.
TECHNICAL DATA
Tube Black, NBR (ARPM Class A)
Cover Black, SBR/Nitrile blend compounded for oil and ozone resistance
Reinforcement Braided polyester cords
Safety Factor 3:1
Temperature -40 °F to +190°F
Non-Conductive 1,800 megaOhm @ 1,000 volts
Grounding Embedded Copper Wire
Branding TEXCEL® TEX-FUEL - FUEL TRANSFER HOSE -<ID>200PSI WP (white ink letters)
TEX-F.O.D.
Fuel Oil Delivery Hose
Designed for the transfer and delivery of fuels, oils, kerosene, diesel and other petroleum-based products for home, commercial, marine and industrial service. Its braided synthetic reinforcement allows for extreme flexibility, reduced twisting and ease of handling, while maintaining kink resistance. Drivers will prefer this hose because of its static conductive tube, abrasion and oil resistance.
TECHNICAL DATA
Tube Black, NBR (ARPM Class A)
Cover Red, NBR (ARPM Class A)
Reinforcement 2 braided polyester cords
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL F.O.D. Fuel Oil Delivery Hose - <ID> - 250PSI WP LOT (white ink letters)
*Replace XXX in Part Number with standard length required
HBR4
Low Pressure Suction/Return Hose
Low pressure hydraulic return line or suction line for petroleum- and waterbased hydraulic fluids.
TECHNICAL DATA
Tube Black, Oil, fuel and heat resistant, NBR (ARPM Class A)
Cover Black, smooth with cloth impression, oil, abrasion, weather and ozone resistant
Reinforcement High tensile tire cord plies with dual helix wires
Temperature -40 °F to +212°F (-40°C to +100°C)
Branding TEXCEL® HBR4-12 <ID> MSHA MEETS OR EXCEEDS SAE 100R4
Specifications Meets or Exceeds SAE 100R4
TEX-OVAC
Oilfield Suction Hose
Texcel’s exclusive design for rugged oilfield service where full suction and working pressures are required.
TECHNICAL DATA
Tube Black, specially compounded elastomer low oil swell
Cover Black, SBR/Nitrile blend compounded for oil and ozone resistance (smooth)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -20° F to +180°F
Branding TEXCEL® TEX-OVAC - OILFIELD SUCTION HOSE NOT FOR REFINED FUELS 150 PSI W.P.
Safety Note Not recommended for refined petroleum products
GAMMA™ -FLEX OVAC
Corrugated Oilfield Suction Hose
Texcel’s exclusive design for rugged oilfield service where full suction and working pressures are required. Corrugated cover for improved flexibility.
TECHNICAL DATA
Tube Black, specially compounded elastomer; low oil swell
Cover Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -20° F to +180°F
Branding TEXCEL® GAMMA™-FLEX OVAC - FLEXIBLE OILFIELD
SUCTION HOSE NOT FOR REFINED FUELS
150
W.P.
Safety Note Not recommended for refined petroleum products
Features Exceptional flexibility
TEX-FRAC
Frac Tank Hose
A heavy-duty frac tank hose ideal for handling salt and fresh water, tank bottoms, crude oil, drilling muds and mild solutions of hydrochloric acids.
TECHNICAL DATA
Tube Black, specially compounded elastomer; low oil swell
Cover Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated)
Reinforcement High tensile tire cord plies; single helix wire
Safety Factor 4:1
Temperature -40 °F to +190°F
Branding TEXCEL® TEX-FRAC - FRAC TANK HOSE NOT FOR REFINED FUELS 150 PSI W.P.
Safety Note Not recommended for refined petroleum products
TEX-FRAC ASSEMBLY
Frac Tank Hose Assembly
This hose assembly is ideal for handling salt and fresh water, tank bottoms, crude oil, drilling muds and mild solutions of hydrochloric acids. This heavyduty frac tank hose is assembled with female frac subs and carbon steel sleeves. Its corrugated cover allows for maximum flexibility.
TECHNICAL DATA
Tube Black, specially compounded elastomer; low oil swell
Cover Black, SBR/Nitrile blend compounded for oil and ozone resistance (corrugated)
Reinforcement High tensile tire cord plies; helix wire
Safety Factor 4:1
Temperature -40 °F to +190°F
Branding TEXCEL® TEX-FRAC - FRAC TANK HOSE NOT FOR REFINED FUELS 150 PSI W.P.
Safety Note Not recommended for refined petroleum products .The 39" hose with fittings will have. OAL 43.5" +/- 1"
FITTINGS TECHNICAL DATA
Threads General purpose ACME threads
Surface Finish Machined and oiled
Interior Finish Black enamel
Size 8"
Weight 18.78 lbs. each
Requirements Material conforms to DI 65-45-12 requirements
Crimp Sleeves Carbon steel
TEX-OIL-D
200psi Oil Discharge Hose
Soft-wall discharge hose designed for use on trucks, docks and barges.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Black, Neoprene
Reinforcement 4 high tensile tire cord plies
Safety Factor 4:1
Temperature -40 °F to +200°F
Static Grounding Braided copper wire runs length of hose
Branding TEXCEL® TEX-OIL-D - PETROLEUM OIL TRANSFER / DISCHARGE HOSE 200 PSI W.P.
Safety Note Not recommend for use on reels
GAMMA™ -RED OIL
Oil Delivery Hose
Lightweight oil discharge hose for use in a variety of applications where an oil-resistant, soft-wall discharge hose is required.
TECHNICAL DATA
Tube Black, fuel and oil-resistant, NBR compound
Cover Red, oil, weather and abrasion-resistant EPDM/NR/SBR compound
Reinforcement High tensile tire cord plies and static wire
Safety Factor 3:1
Temperature -30 °F to +180°F
Branding TEXCEL® GAMMA™-RED OIL - OIL DELIVERY HOSE 150 PSI W.P.
Safety Note Not recommend for use on reels
GAMMA™ -BLEND
400psi Blender/Fracturing Hose
A rugged hose designed for blender/fracturing operations in oilfield and gas exploration applications. The abrasion-resistant cover is constructed to withstand extended exposure to harsh, abrasive conditions typically seen in oilfield fracturing operations. Designed for the transfer of 98% water and sand mixtures, oil slurries and crude oil.
TECHNICAL DATA
Tube Black, fuel and oil-resistant, NBR compound
Cover Black, abrasion-resistant, SBR/Nitrile blend compound*
Reinforcement High tensile strength tire cord plies
Safety Factor 4:1
Temperature -30 °F to +180°F
Branding TEXCEL® GAMMA™-BLEND - BLENDER / FRACTURING DISCHARGE HOSE 400 PSI W.P.
*Additional UHMW heavy-duty cover application available for special order.
GAMMA™ -MULTI OIL
500psi Multi-Purpose Discharge Hose
This heavy-duty discharge hose can be used in a variety of applications in severe conditions such as oil waste, drilling muds, high pressure water or fracturing.
TECHNICAL DATA
Tube Black, fuel and oil-resistant, NBR compound
Cover Black, oil, weather and abrasion-resistant NR/SBR compound
Reinforcement High tensile tire cord plies; static wire
Safety Factor 4:1
Branding TEXCEL® GAMMA™-MULTI OIL - MULTIPURPOSE DISCHARGE HOSE 500 PSI W.P.
GAMMA™ -RED TANK
Red Tank Truck Hose
The industry standard for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Red cover for easy identification.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Red, Neoprene (smooth)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-RED TANK - RED TANK TRUCK HOSE 150 PSI W.P.
GAMMA™ -FLEX RED TANK
Red Corrugated Tank Truck Hose
A world-class hose for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Red cover for easy identification. Exceptional flexibility (one-to-one ratio) for ease of handling.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Red, Neoprene (corrugated)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-FLEX RED TANK - FLEXIBLE RED TANK TRUCK HOSE 150 PSI W.P.
Features Exceptional flexibility
GAMMA™ -TANK
Tank Truck Hose
The industry standard for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS), Minimum oil swell and low ECI value
Cover Black, Neoprene (smooth)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-TANK - TANK TRUCK HOSE 150 PSI W.P.
GAMMA™ -FLEX TANK
Corrugated Tank Truck Hose
A world-class hose for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Dramatic flexibility (one-to-one ratio, up to 4" inside diameter) for ease of handling.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Black, Neoprene (corrugated)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-FLEX TANK - FLEXIBLE TANK TRUCK HOSE 150 PSI W.P.
Features Exceptional flexibility
GAMMA™ -TANK 300
300psi Heavy-Duty Tank Truck Hose
Designed for offshore drilling and other demanding applications where a high working pressure is needed and longer lengths with fewer connections are desired.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Black, Neoprene (smooth)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding
TEXCEL® GAMMA™-TANK 300 - HEAVY-DUTY TANK
TRUCK HOSE 300 PSI W.P.
GAMMA™ -FLEX TANK 300
300psi Heavy-Duty Corrugated Tank Truck Hose
Designed for offshore drilling and other demanding applications where a high working pressure is needed and longer lengths with fewer connections are desired. Corrugated cover for greater flexibility.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Black, Neoprene (corrugated)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1 * (2" - 6") 3:1 *(8")
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-CORR TANK 300 - HEAVY DUTY CORRUGATED TANK TRUCK HOSE 300 PSI W.P.
Features Exceptional flexibility
GAMMA™ -FLEX TANK 500
500psi Heavy-Duty Corrugated Tank Truck Hose
Heavy-duty and high pressure tank truck hose for the most demanding applications.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Black, Neoprene (corrugated)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-CORR TANK 500 - HEAVY DUTY TANK TRUCK HOSE 500 PSI W.P.
TEX-OSD 250
250psi Oil Suction & Discharge Hose
Smooth bore dock hose with high strength construction and 250psi working pressure for the longest possible service life under severe conditions. Meets
U.S.C.G. certification requirements when assembled per USCG 33CFR 154.500 specifications.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Black, Neoprene
Reinforcement High tensile tire cord plies; dual helix on sizes 2”-4”; single helix wire on sizes 6”-12”
Safety Factor 4:1
Temperature -40 °F to +190°F
Branding TEXCEL® TEX-OSD 250 - OIL SUCTION AND DISCHARGE HOSE 250 PSI W.P. MEETS USCG 33CFR 154.500
Specifications Meets U.S.C.G. requirements
GAMMA-OBL 250
Built-In Flanges Oil Suction & Discharge Assemblies
This smooth bore dock hose is manufactured with built-in carbon steel 150# ANSI flanges. Meets U.S.C.G. certification requirements per USCG 33CFR 154.500.
TECHNICAL DATA
Tube Black, Nitrile, 55% aromatics (ORS)
Cover Black, Neoprene
Reinforcement High tensile tire cord plies; helix wire
Safety Factor 4:1
Temperature -40 °F to +190°F
Ends ANSI 150# carbon steel built-in fixed by floating flanges
Branding TEXCEL® GAMMA-OBL 250 - OIL SERVICE SUCTION AND DISCHARGE HOSE 250 PSI W.P. MEETS USCG 33CFR 154.500
Specifications Meets U.S.C.G. requirements
SIGMA-TDG™
Tank Drop Hose

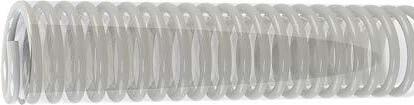

High quality tank drop hose designed with specially compounded, non-permeable polyurethane, designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel (B100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures.
TECHNICAL DATA
Construction Clear, specially compounded polyurethane with a rigid PVC right-handed helix (green) with spiraled synthetic yarn
Safety Factor 4:1
Temperature -40 °F to +150°F (service temperature depends on actual application)
Grounding Embedded tin coated copper wire
Branding TEXCEL® SIGMA™-TDG - TANK DROP HOSE<ID>-LOT
Compared To TDH Tigerdrop Clear
Sleeves SIGMA-TDG™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures
Features Compatible with ethanol up to E98 & biodiesel up to B100
SIGMA-TDHD™ Heavy-Duty Tank Drop Hose
High quality gasoline tank drop hose that is lightweight and flexible with a high abrasion resistant helix for easy drag and handling. Flexible, even in sub-zero temperatures. It's suitable for the transfer of gasoline, ethanol blends (up to E15) and other petroleum products with an aromatic content of 40% or less.
TECHNICAL DATA
Construction Black, specially compounded NBR/PVC (Up to 40% Aromatics) – static dissipating with a Rigid, orange, right-handed PVC helix with spiraled synthetic yarn
Safety Factor 4:1
Temperature -40 °F to +150°F (service temperature depends on actual application)
Grounding Embedded tin coated copper wire
Branding TEXCEL® SIGMA -TDHD - HEAVY DUTY TANK DROP HOSE -<ID>-LOT
Compared To 120LT
Sleeves SIGMA-TDHD™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures
Features Compatible with gasoline and ethanol blends up to E15
CAUTION
Hose fabrications should be performed only by experienced personnel. Static wire must be properly embedded, grounded and tested prior to use to assure grounding of hose and hose assembly.
SIGMA-TD 150™
150psi Heavy-Duty Tank Drop Hose
This lightweight drop hose is designed for higher working pressure applications where 150psi is desired. It’s suitable for the transfer of gasoline, ethanol blends (up to E15), and other petroleum products with an aromatic content of 40% or less in both drop and pump off service applications. Its rugged and abrasion-resistant construction allows for a low coefficient of friction for ease and maneuverability.
TECHNICAL DATA
Construction Black, specially compounded NBR/PVC (up to 60% aromatics) – static-dissipating with a rigid PVC right-handed helix (red) and spiraled synthetic yarn
Safety Factor 4:1
Temperature -40 °F to +150°F (service temperature depends on actual application)
Grounding Embedded tin coated copper wire
Branding TEXCEL® SIGMA-TD150™ - HEAVY DUTY TANK DROP HOSE 150 PSI W.P. -<ID>-LOT
Compared To SP353
Sleeves SIGMA-TD150™ Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures
Features Designed for use at a higher 150psi working pressure
SIGMA-VRM™
Medium-Duty Yellow Vapor Recovery Hose
High quality vapor recovery hose for medium-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D 6751). Extremely flexible, even in sub-zero temperatures.
TECHNICAL DATA
Construction Clear, specially compounded polyurethane with a yellow, rigid PVC, right-handed helix
Temperature -40 °F to +150°F (service temperature depends on actual application)
Grounding Embedded tin coated copper wire
Branding TEXCEL® SIGMA-VRM™ - MEDIUM DUTY VAPOR RECOVERY HOSE -<ID>-LOT
Compared To Tiger vapor/ST-120-VP
Sleeves SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-COIL™ (banding coils) are recommended to accurately follow assembly procedures
SIGMA-VRH™
Heavy-Duty Red Vapor Recovery Hose
High quality vapor recovery hose for heavy-duty applications. Specially compounded, non-permeable polyurethane designed to be compatible with gasoline, diesel and most biofuels, such as ethanol (up to E98) and biodiesel vapors (B100 meeting ASTM D-6751). Extremely flexible, even in sub-zero temperatures.
TECHNICAL DATA
Construction Clear, specially compounded polyurethane with a bright red, rigid PVC, right-handed helix
Temperature -40 °F to +150°F (service temperature depends on actual application)
Grounding Embedded tin coated copper wire
Branding TEXCEL® SIGMA™-VRH - HEAVY DUTY VAPOR RECOVERY HOSE -<ID>-LOT
Compared To Tigervapor HD
Sleeves SIGMA-VR™-Sleeves (flexible PVC banding sleeves) or SIGMA-Coil™ (banding coils) are recommended to accurately follow assembly procedures
SIGMA-BANDING SLEEVES™
Plastic banding sleeves for use with SIGMATM SERIES Tank Drop hose products. The suggested usage is in 12" sections per hose end to prevent band clamps from slipping, cutting into the exterior helix and improves fitting retention.
TECHNICAL DATA
Material Non-food grade, flexible PVC
Temperature -40 °F to +150°F (service temperature depends on actual application)
Features Designed for right-handed spiral hose
GREEN BANDING SLEEVE FOR: SIGMA-TDG
ORANGE BANDING SLEEVE FOR: SIGMA-TDHD
RED BANDING SLEEVE FOR: SIGMA-TD 150
YELLOW BANDING SLEEVE FOR: SIGMA-VRM AND VRH
2" 2.0-SLEEVE-VAPOR 3' 1.10 3" 3.0-SLEEVE-VAPOR 3' 3.20
4.0-SLEEVE-VAPOR 3' 3.75
GAMMA™ JETT Water Jetting Hose
High pressure water jetting hose.
TECHNICAL DATA
Tube Black, NR/SBR smooth and abrasion resistant
Cover Black, NR/SBR, high abrasion and weather resistant
Reinforcement High tensile tire cord plies
Maximum Length 100 f t.
Temperature -40 F to +185F
Branding GAMMA™ JETT – WATER JETTING HOSE
SIGMA-HD GREEN PVC ™
Heavy-Duty Green PVC Water Suction Hose
Premium, heavy-duty yet economical construction for great durability. Smooth bore allows full production flow.
TECHNICAL DATA
Construction Olive green PVC with a green, tough vinyl helix
Safety Factor 3:1
Temperature -4° F to +150°F
Compared To 110GR/Series J
Branding TEXCEL® SIGMA-HD GREEN PVC™ - HEAVY DUTY WATER SUCTION HOSE -<ID>-LOT
Safety Note Ser vice temperature depends on actual application
SIGMA-HD CLEAR PVC™
Heavy-Duty Clear PVC Water Suction Hose
Premium, heavy-duty yet economical construction for great durability. Clear PVC allows visual confirmation of product flow.
TECHNICAL DATA
Construction Clear PVC (smooth bore) with a white, tough vinyl helix
Safety Factor 3:1
Temperature -4° F to +150°F
Branding TEXCEL® SIGMA-HD CLEAR PVC™ - HEAVY DUTY WATER SUCTION HOSE -<ID>-LOT
Compared To 110CL/Series H
Safety Note Ser vice temperature depends on actual application
Premium-quality, lightweight, lay-flat PVC hose that is economical and easy

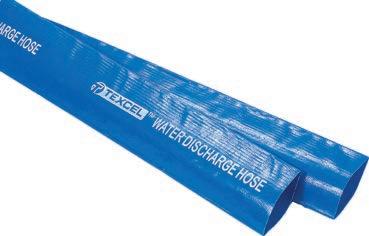

SIGMA-PB DISCHARGE™
Blue PVC Lay-Flat Discharge Hose Coupled
Coupled Premium-quality, lightweight, lay-flat PVC hose that is economical and easy to handle. Excellent for pump discharge applications. Coupled with aluminum camlocks or pinlugs.
TECHNICAL DATA
Construction Blue, homogeneous virgin PVC with high tensile polyester yarn coupled with aluminum camlocks or pinlugs
Safety Factor 3:1
Temperature -10 °F to +120°F
Branding TEXCEL® SIGMA-PB DISCHARGE™ - WATER DISCHARGE HOSE -<ID>-LOT
e, homogeneous virgin PVC with high tensile polyester
Temperature -10 °F to +120°F
Branding TEXCEL® SIGMA-PB DISCHARGE™ - WATER DISCHARGE HOSE -<ID>-LOT
Safety Note Ser vice temperature depends on actual application
Safety Note Ser vice temperature depends on actual application
SIGMA-RH DISCHARGE™
Heavy-Duty Red PVC Lay-Flat Discharge Hose
Tube and Cover Red, homogeneous virgin PVC
Reinforcement High tensile polyester yarn
Safety Factor 3:1
Temperature -10 °F to +120°F
Branding TEXCEL® SIGMA-RH DISCHARGE™ - HEAVY DUTY WATER DISCHARGE HOSE -<ID>-LOT
Safety Note Ser vice temperature depends on actual application
SIGMA-RH DISCHARGE™
Heavy-Duty Red PVC Lay-Flat Discharge Hose Coupled
A heavy-duty PVC lay-flat hose designed for higher pressure applications. The exclusive “through the weave” process ensures the highest quality and durability. An ideal hose for pump discharge, tank cleaning, dewatering,
Coupled heavy-duty PVC lay-flat hose designed for higher pressure applications. The exclusive “through the weave” process ensures the highest quality and durability. An ideal hose for pump discharge, tank cleaning, dewatering, irrigation and wash down applications. Coupled with aluminum camlocks or pinlugs.
TECHNICAL DATA
Tube and Cover Red, homogeneous virgin PVC, coupled with aluminum camlocks or pinlugs
Reinforcement High tensile polyester yarn
Safety Factor 3:1
Temperature -10 °F to +120°F
Branding TEXCEL® SIGMA-RH DISCHARGE™ - HEAVY DUTY WATER DISCHARGE HOSE -<ID>-LOT
Safety Note Ser vice temperature depends on actual application
TEX-MILL
Mill Discharge Hose (Single Jacket)
Lightweight general purpose hose designed for open-ended discharge applications. 300psi acceptance test/150psi working pressure.
TECHNICAL DATA
Tube Synthetic rubber EPDM
Reinforcement White, 100% polyester jacket
Temperature -58 °F to +176°F
Branding TEXCEL® TEX-MILL - DISCHARGE HOSE -<ID>- 150 PSI SERVICE PRESSUREI
Packaging Boxed
Safety Note Not recommended for use as a fire hose
SIGMA-PVC AQUA™
PVC Water Suction Hose
Heavy-duty suction and discharge hose for use in a variety of industries, such as rental pumping equipment and applications where the hose needs to slide easily, or visual confirmation of material flow is necessary.
TECHNICAL DATA
Construction Clear, flexible PVC with synthetic yarn and an orange, rigid PVC, right-handed helix
Safety Factor 3:1
Temperature -4° F to +150°F
Branding TEXCEL® SIGMA-PVC AQUA™ - WATER SUCTION HOSE -<ID>- XXXPSI WP-LOT
Compared To SR/ WST
Safety Note Ser vice temperature depends on actual application
SIGMA-CLAMP™
Double Bolt Spiral Clamp
Double bolt spiral clamps are recommended for use with Texcel's SIGMA-Series PVC hoses with convoluted cover.
TEX-AQUA HD
Heavy-Duty Water Suction & Discharge Hose
Constructed with the highest quality compounds to provide maximum flexibility, long life and lighter weight for easy handling.
TECHNICAL DATA
Tube Black, SBR/EPDM blend
Cover Black, SBR/EPDM blend
Reinforcement High tensile tire cord plies; helix wire
Safety Factor 3:1
Temperature -40 °F to +180°F
Ends Sof t cuffs available on 6" and 8" sizes only
Branding TEXCEL® TEX-AQUA HD - HEAVY DUTY WATER SUCTION & DISCHARGE HOSE XXX PSI W.P.
Note 6" and 8" available in a smooth or corrugated cover
For extra flexibility use 5"-12" corrugated
Right Hand
SMOOTH COVER
Left Hand
CORRUGATED COVER
TEX-FLO 2MD
Medium-Duty 2-Ply Water Discharge Hose
Soft-wall design gives similar performance to a lay-flat hose, but with increased abrasion resistance and tensile strength.
TECHNICAL DATA
Tube Black, SBR/EPDM blend
Cover Black, SBR/EPDM blend
Reinforcement High tensile tire cord plies
Safety Factor 3:1
Temperature -40 °F to +180°F
Branding TEXCEL® TEX-FLO 2MD - WATER DISCHARGE HOSE 2PLY XXX PSI WP
TEX-FLO 4HD
Heavy-Duty 4-Ply Water Discharge Hose
Soft-wall design gives similar performance to a lay-flat hose, but with increased abrasion resistance and tensile strength. FLO-HD is made of a premium-quality SBR/EPDM blend for maximum weather resistance and life in abusive service.
TECHNICAL DATA
Tube Black, SBR/EPDM blend
Cover Black, SBR/EPDM blend
Reinforcement High tensile tire cord plies
Safety Factor 3:1
Temperature -40 °F to +180°F
Branding TEXCEL® TEX-FLO 4HD - HEAVY DUTY WATER DISCHARGE HOSE 4PLY XXXPSI WP
*The material code defaults to a Blue cover. To order Green cover insert the letter G before hyphen in part number.
**Only Available in Blue.
GAMMA™-FLEX UHMW
Ultra-High Molecular Weight Polyethylene Chemical Hose
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.
TECHNICAL DATA
Tube Clear, ultra-high molecular weight polyethylene
Cover Blue or green*, EPDM (corrugated)
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +250°F (intermittent)
Branding TEXCEL® GAMMA™-FLEX UHMW - CHEMICAL SUCTION AND DISCHARGE HOSE 200 PSI W.P.
UHMW TUBE
Safety Note Temperature rating depends on specific chemical conveyed and concentration
Features Exceptional flexibility
TEX-PUSH-ON 300
300psi Push-On Hose
Low pressure braided hose for quick and easy insertion of push-on fittings with no special crimping tools required. Its internal polyester reinforcement design allows for excellent coupling retention. Tube handles oil-laden air, lubricating oils, mild alkalis or caustic solutions, fuel oil, and other petroleumbased products.
TECHNICAL DATA
Tube Black, NBR (ARPM Class A)
Cover Black, Red, Blue NBR/PVC (ARPM Class A)
Reinforcement Reinforced braided polyester cords
Safety Factor 4:1
Temperature -40 °F to +212°F (-40°C to +100°C)
Branding TEXCEL® TEX-PUSH-ON <ID>
Packaging 1pc Reel
* For color variations of Blue, Red or Gray, add color name to the end of the part number, for example: PUSH-4-250-RED. Note: PUSH-5-250-BLUE is only available in Blue Cover.
On ½” – 1” sizes that cannot be made to 600’, but are ordered at 600’, we will produce 2 – 300’ lengths. 1-1/4” X 300’ Reels will be made using 2- 150’ lengths. 1-1/2” x 250’ Reels will be made using a 100’ length + a 150’ length. There will be no more than 3 pieces per reel and there will never be a piece that is shorter than 50'
TEX-MP
Multi-Purpose Air Hose
Excellent quality multi-purpose hose for applications calling for oil resistance and higher working pressures. Tube handles oil-laden air, lubricating oils and mild alkalis or caustic solutions.
TECHNICAL DATA
Tube Black, NBR (ARPM Class B)
Cover Red, NBR/PVC (ARPM Class C)
Reinforcement Braided polyester cords
Safety Factor 3:1
Temperature -20° F to +180°F
Branding TEXCEL® TEX-MP - MULTI-PURPOSE AIR HOSE -<ID>XXX PSI WP-LOT
TEX-MP MAX
Non-Conductive Multi-Purpose Air Hose
Premium quality multi-purpose hose for applications calling for maximum oil resistance and higher working pressures. Tube handles oil-laden air, lubricating oils, mild alkalis or caustic solutions, fuel oil, and other petroleum-based products.
Non-Conductive construction makes it suitable for applications where electrical exposure and contact with high voltage may be encountered.
TECHNICAL DATA
Tube Black, NBR (ARPM Class A)
Cover Red, NBR/PVC (ARPM Class A)
Reinforcement Braided polyester cords
Safety Factor 3:1
Temperature -20° F to +180°F
Branding TEXCEL® MP MAX - NON-CONDUCTIVE MULTIPURPOSE HOSE -<ID INCH>-300PSI WP (2.07MPa) -LOT
On ½” – 1” sizes that cannot be made to 600’, but are ordered at 600’, we will produce 2 – 300’ lengths. 1-1/4” X 300’ Reels will be made using 2- 150’ lengths. 1-1/2” x 250’ Reels will be made using a 100’ length + a 150’ length. There will be no more than 3 pieces per reel and there will never be a piece that is shorter than 50’
Maximum Length Per Size ¼” – 3/8” = 600’ ½” – 1” = 500’ 1-1/4” – 2” = 200’
TEX-CONTRACTORS
Banded Contractor’s Assembly
A tough, heavy-duty, abrasion and ozone-resistant general service hose coupled with plated, universal fittings secured with two galvanized steel Band-It bands on each end.
TECHNICAL DATA
Tube Black, EPDM
Cover Red, SBR/EPDM
Reinforcement Braided polyester cords
Safety Factor 3:1
Temperature -20° F to +180°F
Branding TEXCEL® TEX-GS - GENERAL SERVICE AIR AND WATER -<ID>-XXXPSI WP-LOT
Couplings Plated universal couplings with two galvanized steel Band-It ® bands on each end
Packaging Shrink-wrapped coils
TEX-CRIMP CONTRACTORS
Crimped Contractor’s Assembly
A tough, heavy-duty, abrasion and ozone-resistant general service hose. Couplings are secured with a crimp ferrule.
TECHNICAL DATA
Tube Black, EPDM
Cover Red, SBR/EPDM
Reinforcement Braided polyester cords
Safety Factor 3:1
Temperature -20° F to +180°F
Branding TEXCEL® TEX-GS - GENERAL SERVICE AIR AND WATER -<ID>-XXXPSI WP-LOT
Couplings Plated universal coupling with crimped ferrules
Packaging Shrink-wrapped coils
TEX-MASTER
Heavy-Duty Textile Reinforced Air Hose
Heavy-duty, multi-purpose, textile reinforced hose for service where a tough and rugged hose is required.
TECHNICAL DATA
Tube Black, Nitrile blend
Cover Yellow, EPDM/SBR blend
Reinforcement High tensile tire cord plies
Safety Factor 4:1
-40
to +220°F Branding TEXCEL® TEX-MASTER - HIGH TENSILE AIR HOSE
PSI W.P.
TEX-KING Wire Air Hose
The ideal “bull hose” for heavy construction, mining and road-building service. Braided steel wire construction.
TECHNICAL DATA
Tube Black, Nitrile/SBR blend
Cover Bright yellow, SBR blend (Pinpricked)
Reinforcement Steel braided wire plies
Safety Factor 4:1
Temperature -22 °F to +185°F, intermittent at 250°F
Branding TEXCEL® TEX-KING - STEEL WIRE AIR HOSE -<ID>XXXPSI MAX WP(embossed)
SATURATED (NOT SUPER-HEATED)
STEAM WARNING
Steam heat is hotter than 212ºF and increases in temperature as pressure increases.
Consult with your coupling manufacturer to make sure the correct fittings are used for the application and for guidelines on proper assembly techniques.
If not controlled properly, exposure to steam can be hazardous and could cause serious injury or even death. In order to avoid serious injury or death, proper hose selection, installation, usage and maintenance is necessary.
TEX-STEAM
Steam Hose
Rugged, wire-braid steam hose recommended for saturated and super-heated steam applications in chemical plants, shipyards and industrial plants.
TECHNICAL DATA
Tube Black or red heat-resistant EPDM
Cover Black, EPDM (pinpricked) Red EPDM (pinpricked) *Red available in .75 x 50 only
Reinforcement High tensile steel wires
Safety Factor 10:1
Temperature -40°F to 410°F for saturated steam -40°F to 450°F for superheated
Branding
TEXCEL TEX-STEAM WIRE BRAID STEAM HOSE – 250PSI AT 450F/SATURATED STEAM 410F – DO NOT ALTERNATE STEAM AND WATER – DRAIN AFTER USE (embossed)
Safety Note Drain the hose after each use for maximum hose life Do not alternate use between steam and water
Texcel recommends using Dixon Valve and Coupling’s Crimp Boss™ Steam Fittings for black cover Tex-Steam hose or Boss™ 4-Bolt Clamp System for black and red Tex-STEAM hose. Please consult Dixon for proper coupling procedures.
TEX-GS
General Service Air & Water Hose
A tough, heavy-duty, abrasion and ozone-resistant general service hose. Designed for the transfer of air, mild chemicals and water across multiple applications. The ability to order this product in continuous lengths provides efficiently in inventory controls as well as ease of handling at job sites.
TECHNICAL DATA
Tube Black, EPDM
Cover Red, SBR/EPDM
Reinforcement One or two braided polyester cords
Safety Factor 3:1
Temperature -20° F to +180°F
Branding TEXCEL® TEX-GS - GENERAL SERVICE AIR AND WATER -<ID>-XXXPSI WP-LOT (white letters)
Packaging Coils are continuous lengths
2-1/2"
3"
On ½” – 1” sizes that cannot be made to 600’, but are ordered at 600’, we will produce 2 – 300’ lengths. 1-1/4” X 300’ Reels will be made using 2- 150’ lengths. 1-1/2” x 250’ Reels will be made using a 100’ length + a 150’ length. There will be no more than 3 pieces per reel and there will never be a piece that is shorter than 50’
SIGMA-POLY-U™
Lightweight Polyurethane Hose
Extremely flexible hose, ideal for leaf collection, mulch blowing, straw blowing, wood chips, saw dust, lawn cleaning and concrete surface preparation equipment. The smooth bore polyurethane tube allows for high abrasion resistance and unrestricted flow.
TECHNICAL DATA
Construction Clear, polyurethane (ether-based) with exposed orange, rigid PVC, right-handed helix
Safety Factor 3:1
Temperature -4° F to +150°F
Branding TEXCEL® SIGMA-POLY U™ -LIGHTWEIGHT POLYURETHANE HOSE -<ID>-LOT
Compared To Urevac-1/150 UDH
Safety Note Ser vice temperature depends on actual application
SIGMA-ULTRAVAC-SBR™
SBR Vacuum Hose
Ultravac SBR™ is a specially compounded vacuum hose that is suitable for use in a multitude of wet and dry material applications. Being lightweight and flexible, Ultravac SBR™ is the ideal hose for vacuum trucks, hydro-excavators, and sewer cleaning equipment. Its static dissipative carbon black tube makes it suitable for handling sand, gravel, dry cement, iron chips, grains and other light abrasives.
TECHNICAL DATA
Construction Static dissipating, SBR blended tube with a rigid righthanded PVC helix
Safety Factor 3:1
Temperature -40 °F to +158°F
Branding SIGMA SERIES - ULTRAVAC SBR-<ID>-LOT
Compared To 180 AR
Features Excellent flexibility when compared to PVC/polyurethane hose
SIGMA-ULTRAVAC™
Polyurethane Vacuum Hose
Heavy-duty, abrasion-resistant suction hose for use in a variety of wet and dry, industrial vacuum applications including: vacuum trucks, hydro-excavators, sewer cleaners, street sweepers. SIGMA-ULTRAVAC™ is ideal for handling a wide range of materials, such as crushed rock, sand, pea gravel, dry-cement, grains and slurries. Made of with a permanently conductive tube that remains flexible at low temperatures for ease of handling.
TECHNICAL DATA
Construction Smooth permanently conductive, high abrasion resistant, polyurethane liner with a black, specially formulated polymer and a rigid PVC right-handed helix
Safety Factor 3:1
Temperature -40 °F to +158°F
Branding TEXCEL® SIGMA-ULTRAVAC™ - POLYURETHANE SUCTION HOSE -<ID>-LOT
Safety Note NOT recommended for constant contact with fuels or petroleum products
Service temperature depends on actual application
Compared To ARVAC-SW
Features Superior flexibility at low temperatures
SIGMA-URE-B™
Polyurethane Material Handling Hose with PVC Cover
Abrasion-resistant, polyurethane tube for material handling in dry applications, such as sandblast recovery lines, roof rock cleaning and other abrasive applications. Made of static-dissipating material that remains flexible at low temperatures for ease of handling.
TECHNICAL DATA
Construction Black, flexible PVC and smooth with black, rigid, right-handed helix and smooth, polyurethane liner
Safety Factor 3:1
Temperature -40 °F to +150°F
Compared To UBK
Safety Note Ser vice temperature depends on actual application
6"
SIGMA-URE HD BLUE™
Heavy-Duty Polyurethane Material Handling Hose
Premium-quality, material handling hose designed with a thick, heavy-duty, smooth polyurethane lining. Ideal for dry applications where high abrasion resistance is required, as well as flexibility in sub-zero temperatures.
TECHNICAL DATA
Construction Clear, thick, heavy-duty, smooth, polyurethane lining with a blue, HMW PVC, formulated for static dissipation and a rigid PVC, right-handed helix
Safety Factor 3:1
Temperature -40 °F to +150°F
Branding TEXCEL® SIGMA-URE-HD BLUE™ - HEAVY DUTY MATERIAL HANDLING HOSE -<ID>-LOT
Compared To Uref lex-2
Safety Note Flexibility in sub-zero temperature
Service temperature depends on actual application
GAMMA™-HTA
Hot Tar and Asphalt Hose
This rugged hose is specifically designed for the transfer of petroleumbased products such as high temperature asphalt, tar, and hot oils. Suitable for suction and discharge service on rail transport cars, tank trucks, bulk stations, storage tanks and disposing units.
TECHNICAL DATA
Tube Black, special synthetic acrylic rubber, heat and abrasion resistant
Cover Bla ck, CR anti-static, with a smooth abrasion, weather and heat resistant wrapped cover
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -20° F to +350°F (intermittent)
Branding TEXCEL® GAMMA™-HTA - HOT TAR & ASPHALT HOSE 150 PSI W.P.
Safety Note Texcel recommends using Dixon Valve and Coupling’s Boss™ 4-Bolt Clamp System for Hot Tar and Asphalt hose. Please consult Dixon’s selection and installation recommendations, including bolt re-tightening procedures, to insure proper hose assembly.
Maximum service temp. 350°F, intermittent use only
material code
GAMMA™ -HEAT
Hot Air Blower Hose
High heat-resisting EPDM blower hose made with premium-grade materials for reliable service life when connecting the blower to flow lines on dry-bulk trailers.
TECHNICAL DATA
Tube Black, high heat-resisting EPDM
Cover Black or brown*, smooth high heat-resisting EPDM
Reinforcement High tensile tire cord plies; dual helix wire
Safety Factor 4:1
Temperature -40 °F to +300°F continuous; 350°F intermittent
Branding TEXCEL® GAMMA™ - HEAT - HOT AIR BLOWER HOSE 150 PSI
GAMMA™ -BULK
Dry Bulk Material Discharge Hose
Soft-wall discharge hose used in the transfer of dry materials and slurries. Ideal for dry cement, pebble lime and other abrasive media.
TECHNICAL DATA
Tube Black, abrasion-resistant NR/SBR, static-dissipating materials
Cover Black, abrasion-resistant NR/SBR
Reinforcement High tensile tire cord plies
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-BULK - DRY CEMENT DISCHARGE HOSE STATIC CONDUCTIVE XX TUBE 75 PSI W.P.
TEX-BLAST
Sandblast Hose
Used with grit, aluminum oxide, glass beads, etc., and is ideal for rugged use in shipyards and construction sites.
TECHNICAL DATA
Tube Black, SBR/GUM, wear-resistant, static-dissipating materials
Cover Black, SBR (pinpricked)
Reinforcement High tensile tire cord plies
Safety Factor 4:1
Temperature -40 °F to +190°F
Branding TEXCEL® TEX-BLAST - PREMIUM GRADE SANDBLAST HOSE 150 PSI W.P.
GAMMA™-COMM DISCHARGE
Commodity Discharge Hose
Soft-wall hose designed with a high abrasion-resistant tube. Ideal for applications where the discharging of wet or dry abrasive media is required.
TECHNICAL DATA
Tube Black, abrasion-resistant NR/SBR, static-dissipating materials
Cover Black, SBR
Reinforcement High tensile tire cord plies
Safety Factor 4:1
Temperature -40 °F to +180°F
Branding TEXCEL® GAMMA™-COMM DISCH - BULK COMMODITY DISCHARGE HOSE STATIC CONDUCTIVE TUBE XXX PSI W.P.
GAMMA™ -BLACK COMM
Black Commodity Suction Hose
A hose similar to our renowned “TEX-COMMODITY” green suction hose, but with a black cover and tube, made of static-dissipating materials where food and potable water features are not necessary.
TECHNICAL DATA
Tube Black, abrasion-resistant NR/SBR, static-dissipating materials
Cover Black, SBR
Reinforcement High tensile tire cord plies; dual helix on sizes 2”-4”; single helix on sizes 5”-12”
Safety Factor 4:1
Temperature -20° F to +180°F
Branding TEXCEL® GAMMA™-BLACK COMM - BULK COMMODITY SUCTION HOSE STATIC CONDUCTIVE TUBE XXX PSI W.P.
Features Size 5"-12" are corrugated for extra flexibility
TEX-COMMODITY
FDA Commodity Hose
The "original Green Monster", TEX-COMMODITY is the premier material handling hose in the industry. Suitable for abrasive materials, wet or dry. Also used for foodstuffs, flour, plastic pellets, etc. Ideal for sandblast return operations. Tube meets FDA requirements for food and potable water.
TECHNICAL DATA
Tube White, natural gum rubber
Cover Green, SBR
Reinforcement High tensile tire cord plies; dual helix on sizes 2”-4”; single helix on sizes 5”-12”
Safety Factor 4:1
Temperature -40 °F to +190°F
Branding TEXCEL® TEX-COMMODITY - FDA COMMODITY HOSE XXX PSI W.P.
Features Size 5"-12" are corrugated for extra flexibility Meets FDA requirements Superior abrasion resistance
TEX-ELEPHANT
Elephant Trunk Hose
Premium-quality hose made with 1/8" tube gauge for high abrasion and cut resistance. Ideal for cement and abrasives gravity flow, and for use in sleeve applications.
TECHNICAL DATA
Tube Tan, pure gum
Cover Black, NR/SBR compound
Reinforcement High tensile synthetic plies
Safety Factor 3:1
Temperature -20° F to +180°F
Branding TEXCEL™ TEX-ELEPHANT - ELEPHANT TRUNK HOSE
50 PSI W.P.
TEX-DREDGE Dredge Sleeve
A rugged, abrasion-resistant tube and cover for flexible connections between pipes used in dredging applications.
TECHNICAL DATA
Tube Black, 3/8", abrasion-resistant SBR compound
Cover Black, 3/32", weather and abrasion-resistant SBR
Reinforcement High tensile synthetic plies
Safety Factor 3:1
Temperature -20° F to +180°F
GAMMA™ -WIRE CRETE
Wire Concrete Placement Hose
A heavy-duty hose designed to handle the most abrasive applications and weather conditions. Suitable for handling wet concrete in areas where flex is critical. Ideal for use on high pressure concrete pumps or boom trucks where a tough, durable hose is required for high pressure concrete pumping and placing applications.
TECHNICAL DATA
Tube Black, wear-resistant, GUM/SBR blend
Cover Black, SBR, cut and gouge-resistant
Reinforcement Multiple steel wire plies
Safety Factor 2:1 (per ASME standards)
Temperature -40 °F to +200°F
Branding
TEXCEL GAMMA SERIES CONCRETE PLACEMENT HOSE – WIRE XX" 1450 PSI (100 BAR) WP XXLBS/FT (F.W.C.) MEETS OR EXCEEDS ASME B30.27-2009
Features Meets ASME B3.27-2009 specifications
TEX-CRETE
Textile Concrete Hose
Designed to provide the ultimate combination of handling ease, abuse resistance and long service life required for plaster, grout and concrete placement applications. Ideal for concrete pumping applications.
TECHNICAL DATA
Tube Black, wear-resistant, GUM/SBR blend
Cover Black, SBR, cut and gouge-resistant
Reinforcement Multiple plies of high tensile tire cord
Safety Factor 2:1 (per ASME standards)
Temperature -40 °F to +200°F
Branding TEXCEL® TEX-CRETE - FABRIC CONCRETE PLACEMENT HOSE 1230 PSI (85 BAR) W.P. XXX LBS/FT (F.W.C)
Features Meets ASME B3.27-2009 specifications
SIGMA-DUTY MAX™
NBR Suction Hose
Duty Max is a heavy-duty, all-weather, suction hose for use in liquid manure handling, septic and wastewater handling, water suction, and general oilfield applications. Please note that service life may vary based on media being conveyed and operating conditions. The PVC helix makes for increased toughness over rough surfaces and around corners making it the perfect product for harsh conditions.
TECHNICAL DATA
Construction NBR/PVC tube with a PVC helix
Safety Factor 3:1
Temperature -40 °F to +140°F (-40°C to +60°C)
Features Superior flexibility even at sub-zero temperatures Lightweight, with floating capabilities
Hose System Pressure Derating Multipliers For Elevated Temperatures (°F)
* For color variations of Blue and Yellow, add color name before the size, for example: SP-DUTY-BLUE-2.0-100
*Special order items only.
GROWLER™ Brewery Hose
GROWLER™ brewery hose is a heavy-duty hose formulated for the suction and delivery of beer, wine, alcohol, and soft drinks. The GROWLER ™ hose has a white, smooth BIIR (butyl) rubber tube to ensure food quality and is odorless and does not alter taste. Its high working temperature allows for the sterilization of the hose with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(e) for liquid foods, BfR, ADI free, EC 1935 / 2004.
TECHNICAL DATA
Tube White, BIIR (BUTYL)
Cover Orange, EPDM
Reinforcement High strength synthetic plies with steel helix
Safety Factor 3:1
Temperature -40 °F to +248°F
Branding TEXCEL® GROWLER™ BREWERS HOSE 150PSI (10 BAR)
W.P. TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA , USDA compliant
BALTHAZAR™ PLUS Winery Hose
BALTHAZAR™ Plus winery hose is a smooth covered hose formulated for the suction and delivery of wine, fruit juice, and soft drinks. The BALTHAZAR™ Plus hose has a white, smooth Butyl tube to ensure food quality and is odorless and does not alter taste. Its high working temperature allows for the sterilization of the hose with steam at 230ºF for 30 minutes. Meets FDA title
21 part.177.2600(e) for liquid foods, BfR, ADI free, EC 1935 / 2004.
TECHNICAL DATA
Tube White, Butyl
Cover Gray, EPDM
Reinforcement High strength synthetic plies with polyethylene spiral helix
Safety Factor 3:1
Temperature -30 °F to +220 °F
Branding TEXCEL® BALTHAZAR™ PLUS WINERY HOSE 250 PSI (17BAR)
W.P. TEMP. -30F TO +220F (-34C TO 104C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA USDA compliant
order items only.
DAIRY-KING™
Milk Hose
DAIRY-KING™ milk hose is specifically designed for the suction and delivery of milk and other fatty foods. The DAIRY-KING™ hose has a white, smooth, NBR rubber tube to ensure product quality, is odorless and does not alter taste. Its blue, smooth, cloth impression EPDM rubber cover offers abrasion-, ozoneand weather-resistance. This hose can be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(f) for fatty foods, BfR, ADI free, D.M. 21/03/73, EC 1935 / 2004. Hose conform to 3A standards.
TECHNICAL DATA
Tube White, NBR
Cover Blue, EPDM
Reinforcement High strength synthetic plies with steel helix
Safety Factor 3:1
Temperature -40 °F to +248°F
Branding TEXCEL® DAIRY-KING™ MILK HOSE 150 PSI (10 BAR) W.P TEMP. -40F TO 248F (-40C TO 120C) STERILIZATION AT 230F FOR 30 MINS FDA BFR ADI FREE
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA , USDA and 3A compliant
ELIXIR™
Distillery Hose
ELIXIR ™ distillery hose is specially formulated for the suction and delivery of alcohols up to 96%, wine, beer, potable water, and other related foodstuffs. The ELIXIR ™ hose has a clear, UHMWPE tube to ensure food quality and is both odorless and does not alter taste. Its higher working temperature allows for it to be sterilized with steam at 230°F for 30 minutes. Meets FDA title 21 part.177.2600(e) for liquid foods, BfR, KTW, EC 1935 / 2004.
TECHNICAL DATA
Tube Clear, UHMWPE
Cover Green, EPDM
Reinforcement High strength synthetic plies with steel helix
Safety Factor 3:1
Temperature -40 °F to +230°F
Branding TEXCEL® ELIXIR ™ DISTILLERY HOSE 150 PSI (10 BAR) W.P. TEMP. -4F TO 230F (-20C TO 100C) STERILIZATION AT 230F FOR 30 MINS FDA BFR KTW
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA , USDA compliant
SIGMA-LT-BLUE™
FDA PVC Low Temp Suction Hose
Heavy-duty, low-temp, blue, food-grade suction hose for wet material applications. Hose complies with applicable FDA and 3A requirements as well as USDA for use in dairy plants. Clear PVC and blue helix construction allows for visual confirmation of material flow. Smooth bore eliminates material build up. Hose remains flexible in sub-zero temperatures.
TECHNICAL DATA
Construction Clear, flexible FDA PVC with smooth tube and cover, flexible in extreme cold.
Safety Factor 3:1
Temperature -40 °F to +150°F
Branding
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA , USDA and 3A compliant. Phthalate Free
SIGMA-FDW™
FDA PVC Grounded Food-Grade Suction Hose
Heavy-duty, food-grade suction hose with embedded copper grounding wire for dry/wet material applications. Hose complies with applicable FDA and 3A requirements as well as USDA for use in meat and poultry plants. Clear PVC and clear helix construction allows for visual confirmation of material flow. Smooth bore eliminates material build up. Heavy corrugation provides high flexibility. Embedded wire prevents static electricity build up.
TECHNICAL DATA
Construction Corrugated, clear, flexible PVC with smooth bore and a rigid, clear PVC, right-handed helix with embedded copper wire for static dissipation
Safety Factor 3:1
Temperature -4° F to +150°F
Branding TEXCEL® SIGMA-FDW™ - GROUNDED FOOD GRADE SUCTION HOSE -<ID>-LOT
Compared To WE/ST 200 SFG
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA , USDA and 3A compliant. Phthalate Free
SIGMA-FD™
FDA PVC Food-Grade Suction Hose
Heavy-duty, food-grade suction hose for dry/wet material applications. Hose complies with applicable FDA and 3A requirements as well as USDA for use in meat and poultry plants. Clear PVC and clear helix construction allows for visual confirmation of material flow. Smooth bore eliminates material build up. Heavy corrugation provides high flexibility.
TECHNICAL DATA
Construction Corrugated, clear, flexible PVC with smooth bore and a rigid, clear PVC, right-handed helix
Safety Factor 3:1
Temperature -4° F to +150°F
Branding TEXCEL® SIGMA-FD™ - FOOD GRADE SUCTION HOSE -<ID>-LOT
Compared To WT/200 SFG
Safety Note Ser vice temperature depends on actual application
It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA , USDA and 3A compliant. Phthalate Free
TEX-WASHDOWN
300PSI Washdown Hose
TEX-WASHDOWN hose is the perfect solution for conveying water up to 199°F (93°C) for washdown service in dairies, creameries, breweries, distilleries, meat packing facilities, and food processing plants. Its high-quality, white EPDM cover offers mild abrasion-, ozone-, and weather-resistance.
TECHNICAL DATA
Tube Black, EPDM
Cover White, EPDM
Reinforcement Braided polyester cords
Safety Factor 4:1
Temperature -40 °F to +199°F
Branding TEXCEL® TEX-WASHDOWN 300 PSI (20 BAR) W.P. WASHDOWN HOSE TEMP. -40F TO 199F (-40C TO 92C) 4:1 SAFETY FACTOR
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
TEX-SANITRANS
FDA Sanitary Discharge Hose
Tube and cover designed for discharge or transfer of food and potable water. Highly resistant to animal fat and vegetable oils.
TECHNICAL DATA
Tube White, Nitrile
Cover Gray Neoprene
Reinforcement High tensile strength tire cord plies
Safety Factor 3:1
Temperature -22° F to +185°F
Branding TEXCEL® TEX-SANITRANS - SANITARY DISCHARGE HOSE 150 PSI W.P. MEETS FDA AND USDA
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA and USDA compliant
TEX-SANIVAC
FDA Sanitary Vacuum Hose
Tube and cover designed for suction, discharge or transfer of food and potable water. Highly resistant to animal fat and vegetable oils.
TECHNICAL DATA
Tube White, Nitrile
Cover White or gray Neoprene
Reinforcement High tensile strength tire cord plies; dual helix wire
Safety Factor 3:1
Temperature -22° F to +185°F
Packaging Coiled, double wrapped, ends capped
Branding TEXCEL® TEX-SANIVAC - SANITARY SUCTION HOSE 150 PSI W.P. MEETS FDA AND USDA
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA and USDA compliant
*Special order items only.
CORNUCOPIA™
All-Purpose Sanitary Hose
CORNUCOPIA™ hose is a multipurpose sanitary hose. CORNUCOPIA™ is formulated for use with fatty foods, wine, beer, potable water, and other related foodstuffs. The white, smooth EPDM tube ensures food quality by being odorless and does not alter taste. The UHMWPE outer cover not only dramatically increases the abrasion resistance of the hose but is Antimicrobial and offers increased dragability. The high working temperature allows for the sterilization of the hose with steam at 230°F for 30 minutes.
Meets FDA title 21 part. 177.2600(f) for fatty foods, BfR, ADI Free, D.M. 21/03/73, EC 1935 / 2004.
TECHNICAL DATA
Tube White, EPDM
Cover Red, EPDM with a clear UHMWPE wrap
Reinforcement High strength synthetic plies with steel helix
Safety Factor 3:1
Temperature -40 °F to +284°F
Branding TE XCEL® CORNUCOPIA™ ALL PURPOSE SANITARY HOSE 150 PSI (10 BAR) W.P. UHMW COVER TEMP. -40F TO 284F (-40C to 140C) FDA BfR D.M.21/03/73 ADI FREE STERILIZATION at 230F FOR 30 MINS
Safety Note It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA and USDA compliant
UHMWPE abrasion-resistant, Antimicrobial cover
SIGMA-POLY MHH™
Polyurethane Food-Grade Suction & Discharge Hose
Heavy-duty construction that complies with all applicable FDA requirements. Clear polyurethane and blue PVC helix construction allows for visual confirmation of material flow. Smooth bore construction eliminates material build up. Yarn reinforced for discharge applications. Heavy corrugation provides extra flexibility. Embedded wire prevents static electricity build up.
TECHNICAL DATA
Construction Clear, flexible polyurethane with a blue, tough vinyl right-handed helix; synthetic yarn reinforcement, embedded copper wire for grounding; static wire
Safety Factor 3:1
Temperature -40 °F to +150°F
Branding TEXCEL® SIGMA-PVC MHH™ - POLYURETHANE FOOD GRADE SUCTION / DISCHARGE HOSE -<ID>-LOT
Safety Note Grounding wire must be properly terminated at both ends in order to dissipate static electricity
It is recommended that all food grade hose be thoroughly flushed prior to initial use
Features FDA and USDA compliant, Phthalate Free
FDA-HEAT
FDA Hot Air Blower Hose
Suction and delivery hose for hot dry air in FDA tanker hauling. FDA title 21 part.177.2600 (a,b,c,d) for dry foods.
TECHNICAL DATA
Tube White, Smooth EPDM rubber compound, food quality odorless and taste free
Cover Blue, cloth impression EPDM rubber, resistant to abrasion, ozone and weather
Reinforcement High strength synthetic plies with single steel wire helix
Safety Factor 3:1
Temperature -40 °F to +350°F
Branding TEXCEL® FDA - HEAT - FDA HOT AIR BLOWER HOSE 150 PSI W.P.
CERTIFICATIONS & AGENCIES
FDA The Food & Drug Administration
FDA title 21 part.177.2600 e
This is a regulation that the FDA puts out regarding polymers that come in contact with food meant for human consumption. Section 177.2600, paragraph E, mentions that the food-contact surface of the rubber article when extracted with distilled water at reflux temperature, shall yield total extractives not to exceed 20 milligrams per square inch during the first 7 hours of extraction, nor to exceed 1 milligram per square inch during the succeeding 2 hours of extraction.
BfR
D.M. 21 / 03 / 73
Bundesinstitut fur Risikobewertung, the German version of the FDA that outlines how polymers should be used in the manufacturing process so that polymers do not endanger human health.
This stands for "Decree of the Minister of Health of 21 March 1973". An Italian Regulation that deals with polymers that come in contact with food stuffs, mainly aqueous, oily or fatty foods.
ADI Free Free of any Animal-Derived Ingredients
Wine Glass & Fork Symbol
EC 1935 / 2004
KTW
The international symbol for "food safe" material. The symbol identifies that material used in the product are safe for food contact. It is used in North America, Europe and Asia but is now mandatory in Europe after Framework Regulation EC 1935 / 2004.
EC means the European Community a.k.a., the European Commission. This regulation is from the European Parliament and of the Council of 27 October 2004 on materials and articles intended to come into contact with food.
The German agency for water and gas, Deutsche Vereinigung des Gas -und Wasserfaches, defines a series of recommendations for materials coming in contact with water.
Compliance Information:
3A
BSE/TSE
Material approved by 3A Sanitary Standards, Inc. for multi-use plastic materials, number: 20-25, as product contact surfaces in equipment for production, processing and handling of milk and dairy products.
The majority of the raw materials used in formulations are not manufactured or derived from materials of animal origin. Nor do products come into contact with materials of animal origin during processing. Suppliers of raw materials have assured that their compounds exceed the relevant European Guidance on minimizing the Risk of Transmitting Animal Spongiform Encephalophy Agents Via Human and Veterinary Medical Products.
FDA Material conforms to CFR title 21, parts 170-199.
RoHS
The product complies with the requirements of the EU directive 2002/95/EC which is on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
USDA Hose approved by the US Department of Agriculture for use in federally inspected meat and poultry plants.
COUPLINGS
FEMALE BY HOSE BARB WITH O-RING:
MALE BY HOSE BARB:
TEX-QD-HD Quick Disconnect Fittings
FEMALE BY HOSE BARB WITH O-RING:
MALE BY HOSE BARB:
TEX-RHS
Round Hole Strainers
14 gauge zinc-plated strainer by female thread.
SIGMA-CLAMP ™
Double Bolt Plated Steel Spiral Clamp
Double bolt plated steel spiral clamps are recommended for use with Texcel's Sigma-Series PVC hoses with convoluted cover.
SIGMA-COIL™ Banding
Coil
Use banding coils to level external corrugations, or when using sleeves or bands for increased surface area and improved compression and fitting retention. Each piece makes two hose ends (one hose assembly). Operator must cut into two pieces.
Right Hand
Left Hand
12.0-SP-CLAMP 4.11
1-1/2" 1.5-SP-CLAMP-LH 0.29
2" 2.0-SP-CLAMP-LH 0.34
3" 3.0-SP-CLAMP-LH 0.72
4" 4.0-SP-CLAMP-LH 1.21
5" 5.0-SP-CLAMP-LH 1.41
6" 6.0-SP-CLAMP-LH 2.29
8" 8.0-SP-CLAMP-LH 2.97
CAM & GROOVE COUPLING LINE
Type A Adapter
Aluminum Constructed Cam and Groove type A male adapter by female NPT. Also available in stainless steel and brass.
3/4" .75-A-ALUM-SP
1-1/4" 1.25-A-ALUM-SP 0.22
1-1/2" 1.5-A-ALUM-SP 0.27
2"
5" 5.0-A-ALUM-SP 2.09
6" 6.0-A-ALUM-SP 2.62
8" 8.0-A-ALUM-SP 8.5
3/4" .75-A-BRASS-SP 0.29
1" 1.0-A-BRASS-SP 0.38
1-1/4" 1.25-A-BRASS-SP 0.59
1-1/2" 1.5-A-BRASS-SP 0.75
2" 2.0-A-BRASS-SP 1.1
2-1/2" 2.5-A-BRASS-SP 2.48
3" 3.0-A-BRASS-SP 2.09
4" 4.0-A-BRASS-SP 3.45
CAM & GROOVE COUPLING LINE
Type B Coupler
Aluminum Constructed Cam and Groove type B female coupler by male NPT. Also available in stainless steel and brass.
3/4" .75-B-ALUM-SP 0.26 1" 1.0-B-ALUM-SP 0.44 1-1/4" 1.25-B-ALUM-SP 0.66
1-1/2" 1.5-B-ALUM-SP 0.69 2" 2.0-B-ALUM-SP 0.85
2-1/2" 2.5-B-ALUM-SP 1 3" 3.0-B-ALUM-SP 1.65
4.0-B-ALUM-SP 2.26
5.0-B-ALUM-SP 2.64
6.0-B-ALUM-SP 4.37 8" 8.0-B-ALUM-SP 15.66 3/4" .75-B-BRASS-SP 0.41 1" 1.0-B-BRASS-SP 0.64
1-1/4" 1.25-B-BRASS-SP 1.1 1-1/2" 1.5-B-BRASS-SP 1.23
2.0-B-BRASS-SP 1.43
2.5-B-BRASS-SP 1.98
3.0-B-BRASS-SP 2.88 4" 4.0-B-BRASS-SP 4.08
CAM & GROOVE COUPLING LINE
Type C Coupler
Aluminum Constructed Cam and Groove type C female coupler by hose shank. Also available in stainless steel and brass.
8"
1-1/4" 1.25-C-BRASS-SP 1.15
1-1/2" 1.5-C-BRASS-SP 1.43 2" 2.0-C-BRASS-SP 1.91 2-1/2" 2.5-C-BRASS-SP 2.94 3" 3.0-C-BRASS-SP 3.58
4" 4.0-C-BRASS-SP 5.07
3/4" .75-C-SS-SP 0.39
1 1.0-C-SS-SP 0.65
1-1/4" 1.25-C-SS-SP 1.02
1-1/5" 1.5-C-SS-SP 1.23
2 2.0-C-SS-SP 1.78
2-1/2" 2.5-C-SS-SP 2.77
3 3.0-C-SS-SP 3.4
4 4.0-C-SS-SP 5.89
5 5.0-C-SS-SP 7.25
6 6.0-C-SS-SP 11
2" 2.0-C-CS-SP 1.78
3" 3.0-C-CS-SP 3.88
4" 4.0-C-CS-SP 5.89
CAM & GROOVE COUPLING LINE
Type D Coupler
Aluminum Constructed Cam and Groove type D female coupler by female NPT. Also available in stainless steel and brass.
3/4" .75-D-ALUM-SP 0.26
1" 1.0-D-ALUM-SP 0.37
1-1/4" 1.25-D-ALUM-SP 0.77
1-1/2" 1.5-D-ALUM-SP 0.80
2" 2.0-D-ALUM-SP 0.88
2-1/2" 2.5-D-ALUM-SP 1 3" 3.0-D-ALUM-SP 1.75 4" 4.0-D-ALUM-SP 2.51 5" 5.0-D-ALUM-SP 3.51 6" 6.0-D-ALUM-SP 5.31
8" 8.0-D-ALUM-SP 11
3/4" .75-D-BRASS-SP 0.44
1" 1.0-D-BRASS-SP 0.68
1-1/4" 1.25-D-BRASS-SP 1.14
1-1/2" 1.5-D-BRASS-SP 1.32
2" 2.0-D-BRASS-SP 1.54
2-1/2" 2.5-D-BRASS-SP 1.98
3" 3.0-D-BRASS-SP 3.06
4" 4.0-D-BRASS-SP 4.96
3/4" .75-D-SS-SP 0.48
1" 1.0-D-SS-SP 0.81
1-1/4" 1.25-D-SS-SP 1.44
1-1/2" 1.5-D-SS-SP 1.50
2" 2.0-D-SS-SP 1.82
2-1/2" 2.5-D-SS-SP 2.54
3" 3.0-D-SS-SP 3.24
4" 4.0-D-SS-SP 5.18
5.0-D-SS-SP 8.35
6.0-D-SS-SP 8.42
CAM & GROOVE COUPLING LINE
Type E Coupler
Aluminum Constructed Cam and Groove type E male coupler by hose shank. Also available in stainless steel and brass.
1-1/4" 1.25-E-BRASS-SP 0.99
1-1/2" 1.5-E-BRASS-SP 1.24
2" 2.0-E-BRASS-SP 1.87
2-1/2" 2.5-E-BRASS-SP 2.69
3" 3.0-E-BRASS-SP 4
4" 4.0-E-BRASS-SP 6.34
3/4" .75-E-SS-SP 0.31 1" 1.0-E-SS-SP 0.51
1-1/4" 1.25-E-SS-SP 0.9 1-1/2" 1.5-E-SS-SP 1.12
2" 2.0-E-SS-SP 1.65
2-1/2" 2.5-E-SS-SP 2.58
3" 3.0-E-SS-SP 3.55
4" 4.0-E-SS-SP 4.89
5" 5.0-E-SS-SP 6.11
6" 6.0-E-SS-SP 8.25
2" 2.0-E-CS-SP 1.67
3" 3.0-E-CS-SP 3.44
4" 4.0-E-CS-SP 4.89
CAM & GROOVE COUPLING LINE
Type F Adapter
Aluminum Constructed Cam and Groove type F male adapter by male NPT. Also available in stainless steel and brass.
3/4" .75-F-ALUM-SP 0.17 1" 1.0-F-ALUM-SP 0.22 1-1/4" 1.25-F-ALUM-SP 0.26
1-1/2" 1.5-F-ALUM-SP 0.40
2" 2.0-F-ALUM-SP 0.55
2-1/2" 2.5-F-ALUM-SP 0.97
3" 3.0-F-ALUM-SP 1.18 4" 4.0-F-ALUM-SP 2.02 5" 5.0-F-ALUM-SP 2.94 6" 6.0-F-ALUM-SP 3.98 8" 8.0-F-ALUM-SP 11.30
3/4" .75-F-BRASS-SP 0.41
1" 1.0-F-BRASS-SP 0.81
1-1/4" 1.25-F-BRASS-SP 1.05
1-1/2" 1.5-F-BRASS-SP 1.27
2" 2.0-F-BRASS-SP 1.8
2-1/2" 2.5-F-BRASS-SP 2.2
3" 3.0-F-BRASS-SP 3.62
4" 4.0-F-BRASS-SP 6.39
3/4" .75-F-SS-SP 0.39
1" 1.0-F-SS-SP 0.78
1-1/4" 1.25-F-SS-SP 0.98 1-1/2" 1.5-F-SS-SP 1.7
2" 2.0-F-SS-SP 1.75
2-1/2" 2.5-F-SS-SP 1.7
3" 3.0-F-SS-SP 3.55 4" 4.0-F-SS-SP 6.18
5.0-F-SS-SP 8.22
CAM & GROOVE COUPLING LINE
Type Dust Cap
Dust caps are the solution to seal a hose assembly when it is not under pressure during transfer or storage. The aluminum constructed dust cap is compatible with type A & E. Also available in stainless steel and brass.
CAM & GROOVE COUPLING LINE
Type Dust Plug
Dust plugs are the solution to seal a hose assembly when it is not under pressure during transfer or non-use. The aluminum constructed dust plug is compatible with type C & D. Also available in stainless steel and brass.
3/4" .75-DP-ALUM-SP 0.07 1" 1.0-DP-ALUM-SP 0.11 1-1/4" 1.25-DP-ALUM-SP 0.22
1-1/2" 1.5-DP-ALUM-SP 0.25
2" 2.0-DP-ALUM-SP 0.35
2-1/2" 2.5-DP-ALUM-SP 0.41
3" 3.0-DP-ALUM-SP 0.69 4" 4.0-DP-ALUM-SP 1.29 5" 5.0-DP-ALUM-SP 1.63 6" 6.0-DP-ALUM-SP 2.36
8" 8.0-DP-ALUM-SP 6.14
3/4" .75-DC-BRASS-SP 0.38
1" 1.0-DC-BRASS-SP 0.55
1-1/4" 1.25-DC-BRASS-SP 1.05
1-1/2" 1.5-DC-BRASS-SP 1.07
2" 2.0-DC-BRASS-SP 1.43
2-1/2" 2.5-DC-BRASS-SP 2.04
3" 3.0-DC-BRASS-SP 2.76
4" 4.0-DC-BRASS-SP 3.86
3/4" .75-DC-SS-SP 0.35
1" 1.0-DC-SS-SP 0.51
1-1/4" 1.25-DC-SS-SP 0.98
1-1/2" 1.5-DC-SS-SP 1.01
2" 2.0-DC-SS-SP 1.33
2-1/2" 2.5-DC-SS-SP 1.95
3" 3.0-DC-SS-SP 2.55
4" 4.0-DC-SS-SP 3.56
5" 5.0-DC-SS-SP 4.12
6" 6.0-DC-SS-SP 6.33
3/4" .75-DP-BRASS-SP 0.17
1" 1.0-DP-BRASS-SP 0.3
1-1/4" 1.25-DP-BRASS-SP 0.61
1-1/2" 1.5-DP-BRASS-SP 0.75
2" 2.0-DP-BRASS-SP 1.19
2-1/2" 2.5-DP-BRASS-SP 1.71
3" 3.0-DP-BRASS-SP 2.2
4" 4.0-DP-BRASS-SP 3.67
3/4" .75-DP-SS-SP 0.16
1" 1.0-DP-SS-SP 0.25
1-1/4" 1.25-DP-SS-SP 0.55
1-1/2" 1.5-DP-SS-SP 0.66
2" 2.0-DP-SS-SP 1.05 2-1/2" 2.5-DP-SS-SP 1.66
FERRULE
KC-NIP KC NIPPLE
1" 1-32/64 1.0-CS-FERR-132-SP
1" 1-36/64 1.0-CS-FERR-136-SP
1" 1-40/64 1.0-CS-FERR-140-SP
1-1/4" 1-48/64 1.25-CS-FERR-148-SP
1-1/2" 2 1.5-CS-FERR-200-SP
1-1/2" 2-04/64 1.5-CS-FERR-204-SP
1-1/2" 2-08/64 1.5-CS-FERR-208-SP
2" 2-32/64 2.0-CS-FERR-232-SP
2" 2-36/64 2.0-CS-FERR-236-SP
2" 2-40/64 2.0-CS-FERR-240-SP
2" 2-44/64
2.0-CS-FERR-244-SP
2" 2-48/64 2.0-CS-FERR-248-SP
2" 2-52/64 2.0-CS-FERR-252-SP
2" 2-56/64
2-1/2" 3-08/64
2-1/2" 3-12/64
2-1/2" 3-16/64
2-1/2" 3-32/64
3" 3-36/64
3" 3-40/64
3" 3-44/64
3" 3-48/64
3" 3-52/64
3" 3-56/64
3" 3-60/64
3" 4
4" 4-36/64
4" 4-40/64
4" 4-44/64
4" 4-48/64
4" 4-52/64
4" 4-56/64
4" 4-60/64
4" 5
4" 5-04/64
6" 6-40/64
6" 6-48/64
6" 6-56/64
6" 7
2.0-CS-FERR-256-SP
2.5-CS-FERR-308-SP
2.5-CS-FERR-312-SP
2.5-CS-FERR-316-SP
2.5-CS-FERR-332-SP
3.0-CS-FERR-336-SP
3.0-CS-FERR-340-SP
3.0-CS-FERR-344-SP
3.0-CS-FERR-348-SP
3.0-CS-FERR-352-SP
3.0-CS-FERR-356-SP
3.0-CS-FERR-360-SP
3.0-CS-FERR-400-SP
4.0-CS-FERR-436-SP
4.0-CS-FERR-440-SP
4.0-CS-FERR-444-SP
4.0-CS-FERR-448-SP
4.0-CS-FERR-452-SP
4.0-CS-FERR-456-SP
4.0-CS-FERR-460-SP
4.0-CS-FERR-500-SP
4.0-CS-FERR-504-SP
6.0-CS-FERR-640-SP
6.0-CS-FERR-648-SP
6.0-CS-FERR-656-SP
6.0-CS-FERR-700-SP
6" 7-08/64 6.0-CS-FERR-708-SP
6" 7-24/64 6.0-CS-FERR-724-SP
8" 8-48/64 8.0-CS-FERR-848-SP
8" 9 8.0-CS-FERR-900-SP
8" 9-16/64 8.0-CS-FERR-916-SP
8" 9-32/64 8.0-CS-FERR-932-SP
2.5-KC-NIP-SP 1
3.0-KC-NIP-SP 2.2
4.0-KC-NIP-SP 3.97
5.0-KC-NIP-SP 5.25
6.0-KC-NIP-SP 8.82 8" 8.0-KC-NIP-SP 15
10.0-KC-NIP-SP 18 12" 12.0-KC-NIP-SP 22
MALE PIPE
MALE PIPE THREAD
CRIMP
SLEEVE
2" 2-36/64 2.0-CS-SLEEVE-236-SP
2" 2-40/64 2.0-CS-SLEEVE-240-SP
2" 2-48/64 2.0-CS-SLEEVE-248-SP
3" 3-36/64 3.0-CS-SLEEVE-336-SP
3" 3-40/64 3.0-CS-SLEEVE-340-SP
3" 3-44/64 3.0-CS-SLEEVE-344-SP
3" 3-48/64 3.0-CS-SLEEVE-348-SP
3" 3-52/64 3.0-CS-SLEEVE-352-SP
3" 3-56/64 3.0-CS-SLEEVE-356-SP
4" 4-40/64 4.0-CS-SLEEVE-440-SP
4" 4-44/64 4.0-CS-SLEEVE-444-SP
4" 4-48/64 4.0-CS-SLEEVE-448-SP
4" 4-52/64 4.0-CS-SLEEVE-452-SP
4" 4-56/64 4.0-CS-SLEEVE-456-SP
4" 4-60/64 4.0-CS-SLEEVE-460-SP
5" 5-48/64 5.0-CS-SLEEVE-548-SP
5" 5-60/64 5.0-CS-SLEEVE-560-SP
6" 6-40/64 6.0-CS-SLEEVE-640-SP
6" 6-48/64 6.0-CS-SLEEVE-648-SP
6" 6-56/64 6.0-CS-SLEEVE-656-SP
6" 7 6.0-CS-SLEEVE-700-SP
6" 7-08/64 6.0-CS-SLEEVE-708-SP
6" 7-16/64 6.0-CS-SLEEVE-716-SP
6" 7-24/64 6.0-CS-SLEEVE-724-SP
8" 8-32/64 8.0-CS-SLEEVE-832-SP
8" 8-48/64 8.0-CS-SLEEVE-848-SP
8" 9 8.0-CS-SLEEVE-900-SP
8" 9-08/64 8.0-CS-SLEEVE-908-SP
8" 9-32/64 8.0-CS-SLEEVE-932-SP
FLANGES
FLOATING FLANGES
FIXED FLANGES
TURNBACKS
MALE ADAPTERS
SPOOL ADAPTER (MALE X MALE)
FEMALE ADAPTERS
DOUBLE FEMALE ADAPTER (FEMALE X FEMALE)
2"
REDUCING ADAPTERS
COUPLER X ADAPTER - REDUCING (FEMALE X MALE)
3" X 2"
3020-DA-AL-SP
3" X 2" 3020-DA-SS-SP
4" X 3" 4030-DA-AL-SP
6" X 4" 6040-DA-AL-SP
BLAST FITTING SANDBLAST
COUPLING
UNIVERSAL
UNIVERSAL CROWFOOT
LOCATIONS
Contact Information
Toll Free: 800.231.7116
Fax: 800.759.4673 sales@texcelrubber.com
Corporate Headquarters 4444 Homestead Road Houston, Texas 77028
Phone: 713.675.8590
ADDITIONAL LOCATIONS
Chicago 2725 Davey Road, Suite 400 Woodridge, Illinois 60517
Newark
Denver
2460 Airport Blvd., Suite 300 Aurora, Colorado 80011
211 Executive Drive, Suite 9 Newark, Delaware 19702 Birmingham 236 Distribution Drive Homewood, Alabama 35209
TRADE ASSOCIATIONS
We feel that it’s important to stay up-to-date on the latest news and events within the industry, as well as maintain memberships in leading industry organizations. As a result, we are honored to be a part of the following organizations, which represent the same values and standards that are so important to us here at Texcel.
Founding Member
