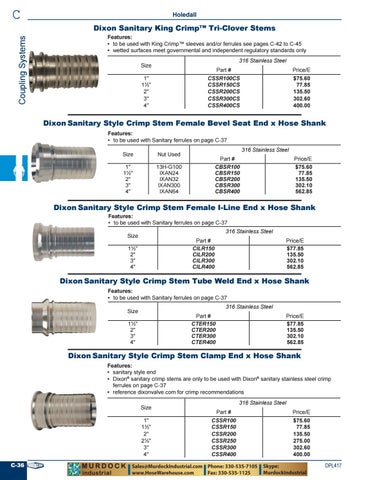

Coupling Systems
C
Holedall
Dixon Sanitary King Crimp™ Tri-Clover Stems Features: • to be used with King Crimp™ sleeves and/or ferrules see pages C-42 to C-45 • wetted surfaces meet governmental and independent regulatory standards only
316 Stainless Steel
Size
Part # CSSR100CS CSSR150CS CSSR200CS CSSR300CS CSSR400CS
1" 1½" 2" 3" 4"
Price/E $75.60 77.85 135.50 302.60 400.00
Dixon Sanitary Style Crimp Stem Female Bevel Seat End x Hose Shank Features: • to be used with Sanitary ferrules on page C-37
Size
Nut Used
1" 1½" 2" 3" 4"
13H-G100 IXAN24 IXAN32 IXAN300 IXAN64
316 Stainless Steel Part # CBSR100 CBSR150 CBSR200 CBSR300 CBSR400
Price/E $75.60 77.85 135.50 302.10 562.85
Dixon Sanitary Style Crimp Stem Female I-Line End x Hose Shank Features: • to be used with Sanitary ferrules on page C-37
316 Stainless Steel
Size
Part # CILR150 CILR200 CILR300 CILR400
1½" 2" 3" 4"
Price/E $77.85 135.50 302.10 562.85
Dixon Sanitary Style Crimp Stem Tube Weld End x Hose Shank Features: • to be used with Sanitary ferrules on page C-37
316 Stainless Steel
Size
Part # CTER150 CTER200 CTER300 CTER400
1½" 2" 3" 4"
Price/E $77.85 135.50 302.10 562.85
Dixon Sanitary Style Crimp Stem Clamp End x Hose Shank Features: • sanitary style end • Dixon® sanitary crimp stems are only to be used with Dixon® sanitary stainless steel crimp ferrules on page C-37 • reference dixonvalve.com for crimp recommendations
Size 1" 1½" 2" 2½" 3" 4" C-36
316 Stainless Steel Part # CSSR100 CSSR150 CSSR200 CSSR250 CSSR300 CSSR400 877.963.4966 • dixonvalve.com
Price/E $75.60 77.85 135.50 275.00 302.60 400.00 DPL417
