900705
900564
900952
Stainless steel internal support coils
Steel protective coil sleeve
Steel protective coil spring
Plastic protective coil sleeve
Recommended for vacuum service with most hose.
Recommended for use where hose lines are subjected to excessive abrasion, kinking or accidental damage. Construction: spring steel, rust resistant.
Protects hose cover and reinforcement from abrasion and accidental damage. Construction; steel wire, rust resistant.
Recommended to protect hose from abrasion, this light weight plastic sleeve is unaffected by air, water, oil, gasoline, hydraulic and most other fluids. This coil can also be used for group bundling of hose lines. Temperature range of 0°F to +180°F.
.34 .42 .51 .60 .70 .73 .94 .97 1.19 1.25 1.44 1.50 1.88 1.97 2.44 2.67 3.27 4.28 5.28
*222005 is 301 stainless steel.
This coil should fit snugly to the hose O.D. expanding the coil I.D. (unwind the coil) may be necessary for proper installation. For use with hose: see pages 300-308. SLEEVE DASH NO
–17S –1S –13S –2S –3S –4S –5S –14S –6S –7S –9S –8S –10S –16S –11S
SLEEVE DASH NO
SLEEVE I.D.
mm
in.
11,2 12,7 14,5 16,0 19,0 22,3 26,2 28,7 31,0 37,3 42,9 48,5 54,1 62,0 65,0
.44 .50 .57 .63 .75 .88 1.03 1.13 1.22 1.47 1.69 1.91 2.13 2.44 2.56
For use with hose: see pages 300-308.
For use with hose: see pages 300-308.
–1S –12S –2S –15S –14S –3S –4S –5S –6S –7S –9S –8S –10S –13S –11S
PART NO SLEEVE I.D.
mm
in.
15,5 17,0 19,0 20,6 21,6 23,1 26,4 30,0 34,0 42,2 47,5 54,1 60,4 69,8 73,1
.61 .67 .75 .81 .85 .91 1.04 1.18 1.34 1.66 1.87 2.13 2.38 2.75 2.88
900952-30 900952-22 900952-16 900952-12 900952-10 900952-8 900952-6 900952-4
SLEEVE I.D.
mm
in.
40,0 34,0 27,0 21,0 16,0 12,5 9,5 6,0
1.58 1.34 1.06 .83 .63 .49 .37 .24
HOSE FITTINGS
in.
8,6 10,7 12,9 15,2 17,8 18,5 23,9 24,6 30,2 31,7 36,6 38,1 47,7 50,0 62,0 67,8 83,0 108,7 134,1
ADAPTERS & TUBE FITTINGS
mm
This coil should fit snugly to the hose O.D. expanding the coil I.D. (unwind the coil) may be necessary for proper installation.
ACCESSORIES & ASSEMBLY INSTRUCTIONS
222005-23C 222005-10C 222005-21C 222005-11C 222022-12C 222005-13C 222005-14C 222022-16C 222005-15C 222022-20C 222005-17C 222022-24C 222005-18C 222022-32C 222005-19C 222022-40C 222022-48C 222022-60C 222022-80C
COIL O.D.
HOSE ASSEMBLY EQUIPMENT
PART NUMBER
APPENDICIES
For use with hose: see pages 300-308.
HIGH PRESSURE HOSE
222005*, 222022
LOW & MEDIUM PRESSURE HOSE
SPECIALTY & TRUCK HOSE

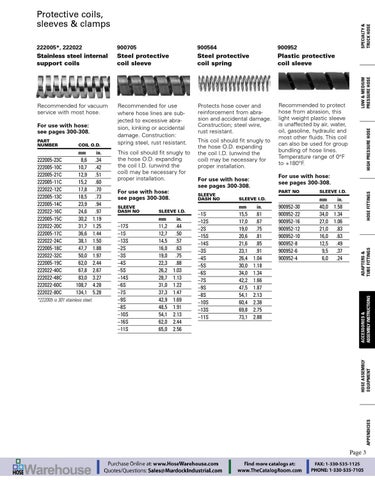

Protective coils, sleeves & clamps
Page 3 EATON Aeroquip Fluid Conveyance Products A-HOOV-MC001-E1 March 2011
295
