BA210S Series
The BA210S biological compound microscope is designed for advanced biology students, teachers, doctors, and lab technicians. Every aspect of these microscopes contributes to making your daily work easier. The ergonomic shape of the stand and the comfortability of the different heads enables fatigue-free viewing for many hours.
Microscope Specifications
30° inclined head Siedentopf, 360° rotating
Widefield high eyepoint eyepiece WF10X/20mm with diopter adjustment on the left eyetube and rubber eyecups
Reversed quadruple revolving nosepiece
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position coaxial rackless stage (Right-hand control)
3WLED module
Power Supply 100-240V

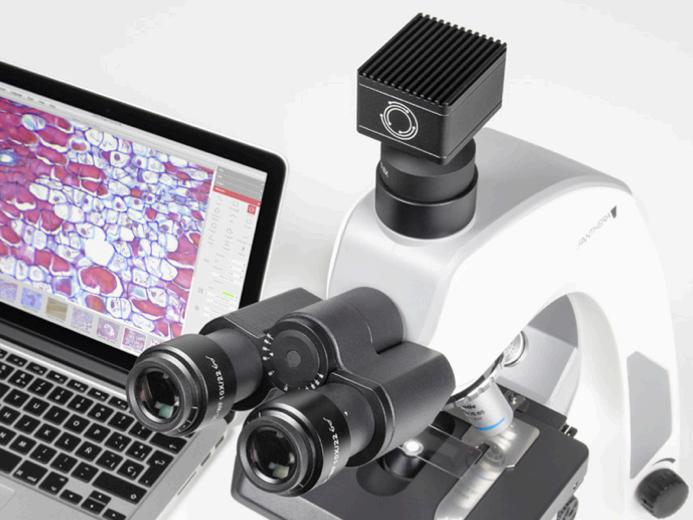

Microscope with Camera Bundle
BA210S (Binocular)

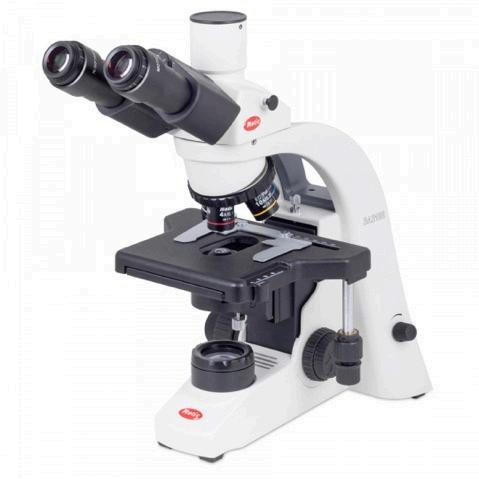

BA210E Series
A compound microscope perfect for basic work in life sciences, education, and industrial environments. The use of Motic's Plan Achromatic objectives ensures the clarity and precision of sections, smears, and native transparent samples. Students and lab technicians benefit from the pre-installed optics and illuminations.
Microscope Specifications
30° inclined head Siedentopf, 360° rotating
Widefield high eyepoint eyepiece N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
Reversed quadruple revolving nosepiece
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position coaxial rackless stage (Right-hand control)
3WLED module Power Supply 100-240V
Phase Package
BA210E (Trinocular)

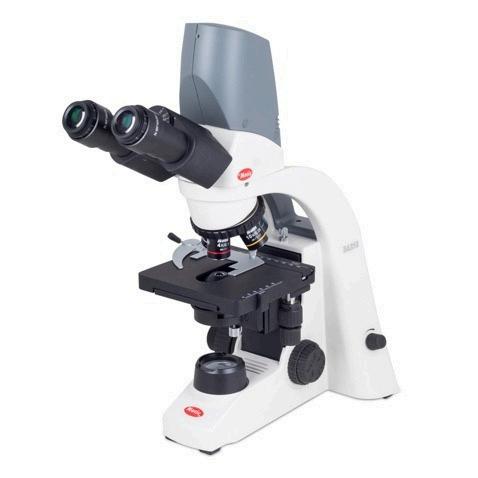

BA210 Digital
A compound microscope perfect for basic work in life sciences, education, and industrial environments. The use of Motic's Plan Achromatic objectives ensures the clarity and precision of sections, smears, and native transparent samples. Students and lab technicians benefit from the pre-installed optics and illuminations.
Microscope Specifications
Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Built-in Digital Live Hi-Res Imaging Chip
2592 x 1944 Resolution USB 2 0
Reversed quadruple revolving nosepiece
Coaxial coarse and fine focusing adjustment
Built in low position coaxial mechanical stage (Right-hand control)
Built in illumination 3W LED with intensity control
Universal Power Supply 100-240V
1100401200771
OCM401200771 Binocular
/ 20mm
BA210 Digital

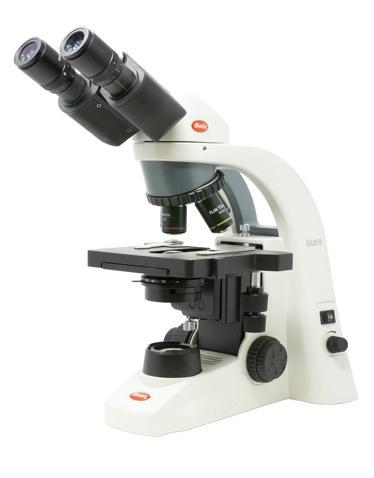

BA310E Series
The BA310E is designed for the rigors of daily routine work in the demanding applications of universities, clinics, laboratories, and many other life sciences or medical applications requiring quality optical performance. BA310's full Kohler configuration provides maximum illumination quality for even the most demanding samples.
Microscope Specifications
30° inclined head Siedentopf, 360° rotating
Widefield high eyepoint eyepiece N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
Reversed quadruple revolving nosepiece
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position coaxial rackless stage (Right-hand control)
Power Supply 100-240V
Phase Package
Microscope with Camera Bundle

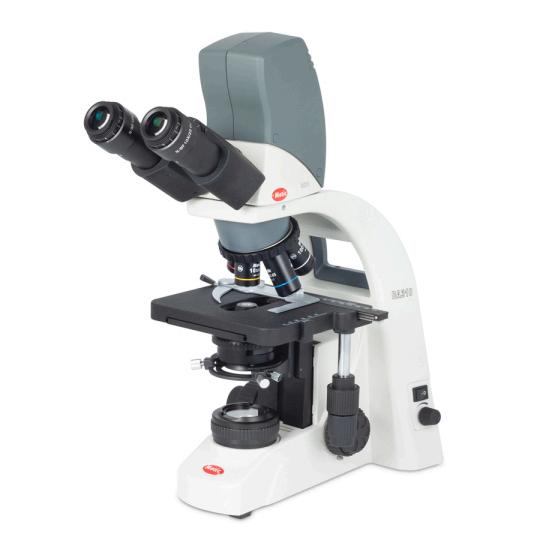

BA310 Digital
Binocular microscope for advanced work in life sciences. Sections, smears and dispersions can be checked by CCIS© Plan Achromat objectives. Lab technicians benefit from the Full-Köhler illumination with a 3W LED light source, ready to work on unstained or weakly-stained structures from biology and medicine.
Microscope Specifications
Widefield high eyepoint eyepiece N-WF10X / 20mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Built-in Digital Live Hi-Res Imaging camera: 5 megapixel
Resolution USB 2 0
Reversed quintuple revolving nosepiece
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position coaxial mechanical stage (Right-hand control)
Koehler illumination 3W LED with intensity control
Universal Power Supply 100-240V
1100401200721
OCM401200721 Binocular
/ 20mm
N-WF10X
4X, 10X, 40X S, 100X S-Oil
CCIS EC Plan Achromat
Abbe 0 9, iris diaphragm & slot LED 3W
BA310 Digital

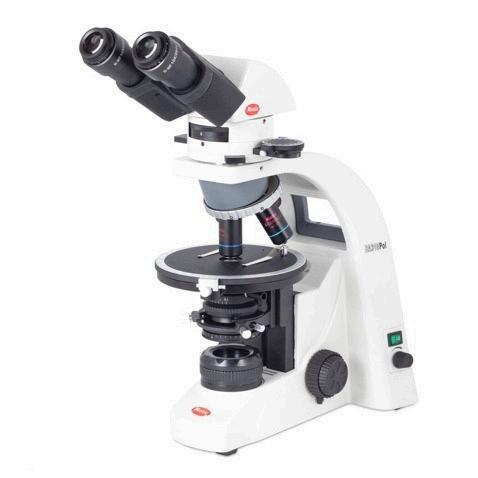

BA310POL Series
Advanced Polarization microscope for birefringent samples from mineralogy and petrography, but also for synthetic materials like fibres, foils. The Intermediate tube with Bertrand lens and compensator slot carries a 360° Analyzer. Users benefit from the Full-Köhler illumination with Field diaphragm, ready to work on a maximum image contrast.
Microscope Specifications
Widefield high eyepoint eyepiece N-WF10X / 20mm wit diopter adjustment on both eyepieces, with rubber eyecu (paired)
Built-in Digital Live Hi-Res Imaging camera: 5 megapix
Resolution USB 2 0
Reversed quintuple revolving nosepiece
Coaxial coarse and fine focusing adjustment with tensio adjustment
Built in low position coaxial mechanical stage (Right-han control)
Universal Power Supply 100-240V
1100100402241
OCM100402241
1100100402251
OCM100402251
1100100402694
OCM100402694
Binocular
Trinocular (Light Split = 20/80)
Binocular
1100100402412
OCM100402412
Trinocular (Light Split = 20/80)
N-WF PL10X, 20mm 4X, 10X, 40X(S), 60X(S)
CCIS EC Plan Strain-free
Achromat Swingout N.A.0.9/0.13 (strain-free)
Kohler illumination quartz halogen (6V/30W)
N-WF PL10X, 20mm 4X, 10X, 40X(S), 60X(S)
CCIS EC Plan Strain-free
N-WF PL10X, 20mm 5X, 10X, 20X, 50X(S)
CCIS Plan LP Strain-free
N-WF PL10X, 20mm 5X, 10X, 20X, 50X(S)
CCIS Plan LP Strain-free
Achromat Swingout N A 0 9/0 13 (strain-free)
Kohler illumination quartz halogen (6V/30W)
Achromat Swingout N A 0 9/0 13 (strain-free)
Achromat Swingout N A 0 9/0 13 (strain-free)
Kohler illumination quartz halogen (6V/30W) & Epi-illumination halogen 12V/50W
Kohler illumination quartz halogen (6V/30W) & Epi-illumination halogen 12V/50W
BA310POL (Binocular)
BA410E Series
With a complete set of EC-H Plan Apochromatic lenses, it allows maximum clarity in colour reproduction and resolution. It allows a profound diagnosis for those in pathology, haematology & cytology who require the best colour fidelity. Increased numerical apertures provide an higher resolution power for a more detailed specimen evaluation.
Microscope Specifications
Widefield high eyepoint eyepiece WFPL 10X / 22mm with diopter adjustment on both eyepieces, with rubber eyecup (paired)
Reversed sextuple nosepiece
Coaxial coarse and fine focusing adjustment
Built in low position rackless stage with right hand control
Universal Power Supply 100-240V UL
Achromat swingout N.A. 0.90, iris diaphragm
Achromat swingout N A 0 90, iris diaphragm
Phase Package
Clinical Application Package
Achromat swing-out
N.A. 0.90, iris diaphragm
Achromat swing-out
N.A. 0.90, iris diaphragm
BA410E (Trinocular)

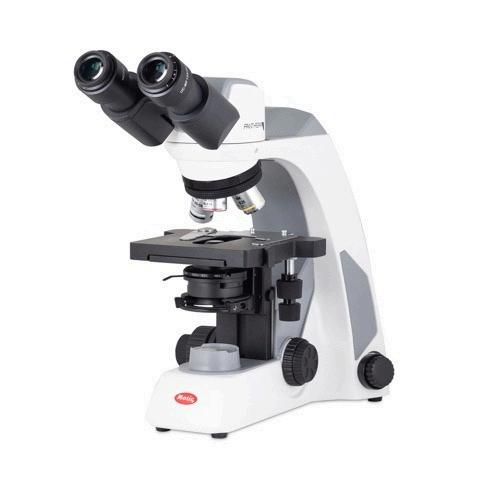

Panthera E2 Series
Equipped with smart features for the ambitious work in education areas or small life science labs. A Fixed Koehler setup with 1W LED illumination power and LED intensity indicator guarantees fast access to convincing imaging results, features CCIS Plan Ultra Contrast objectives in the Bright field, Phase contrast, Darkfield, and Polarization.
Microscope Specifications
UC Widefield high eyepoint eyepiece UC-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
Reversed quadruple nosepiece
LED illumination 1W with intensity control & LED light indicator
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position coaxial rackless stage with right hand control
USB port for camera power supply
Power supply 100-240V, UL / CE

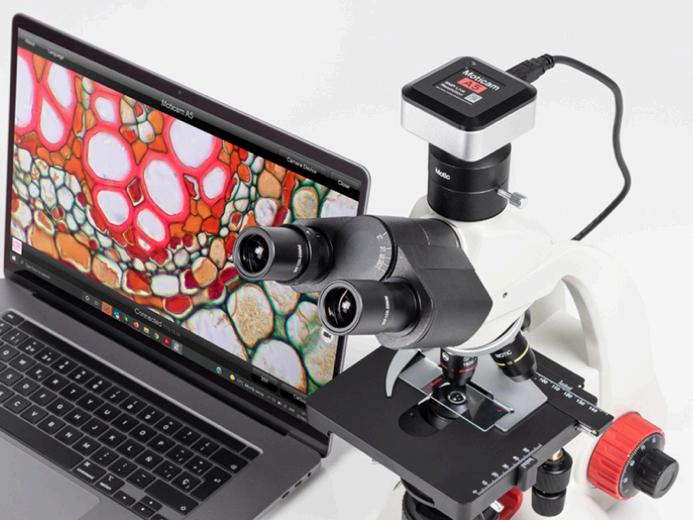

Microscope with Camera Bundle
Panthera E2 (Binocular)
BA210S Series

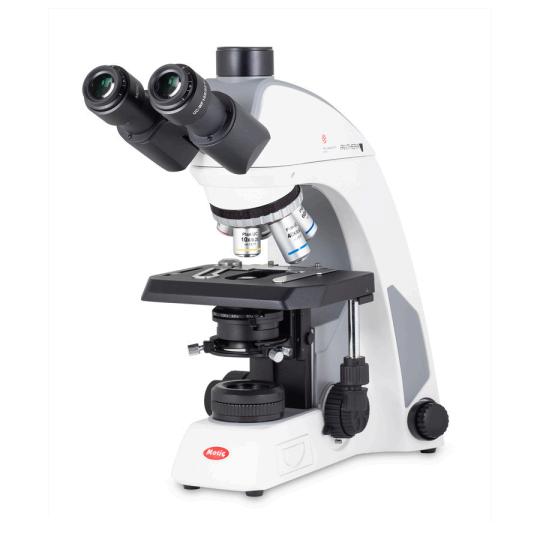

Panthera C2 Series
Panthera C2 microscope for Life Sciences: your instrument for demanding applications. The Motic LightTracer with coded nosepiece, a built-in Low-Energy mode (Auto ON/OFF) and an LED feedback indicator helps to optimize your daily workflow.
Microscope Specifications
UC Widefield high eyepoint eyepiece UC-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
Reversed coded quintuple nosepiece with light tracer (intelli Light Management)
LED light indicator
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position coaxial rackless stage with right hand control
Kohler illumination with 3W LED & halogen 6V/30W
Kohler illumination with 3W LED & halogen 6V/30W
Phase Package
Kohler illumination with 3W LED & halogen 6V/30W
Kohler illumination with 3W LED & halogen 6V/30W
Microscope with Camera Bundle
Kohler illumination with 3W LED & halogen 6V/30W
Kohler illumination with 3W LED & halogen 6V/30W
Panthera C2 (Trinocular)

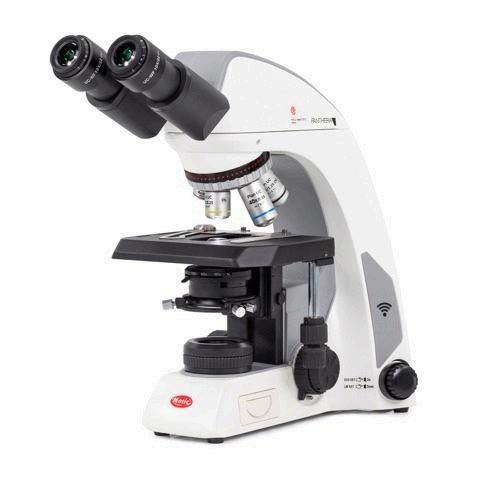

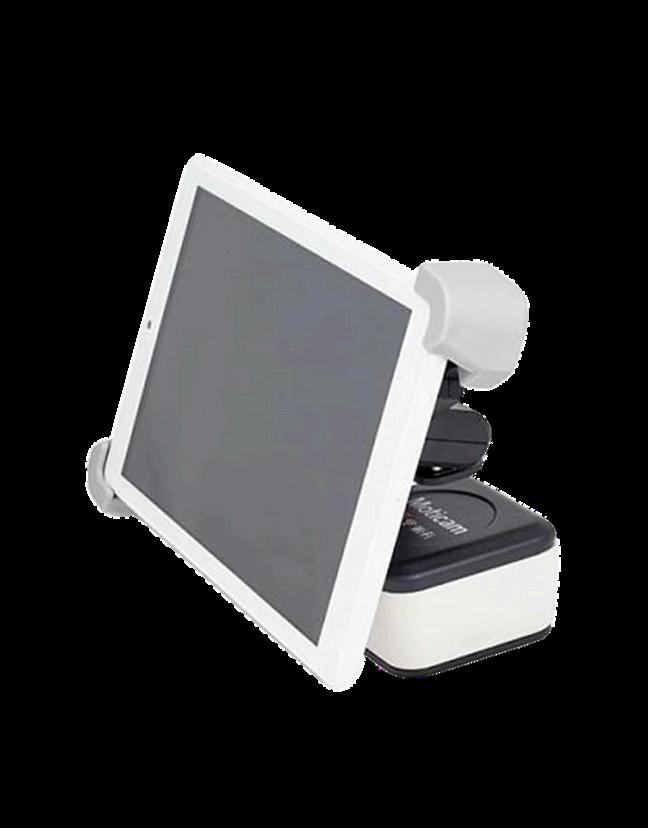

Panthera Cloud
The Smart CAM digital head and its ImagingOnDevice System allows you to instantly capture what you are viewing without the need of a computer. Store and share easily with its Unique Cloud Storage Function. Link your Panthera Cloud with your Cloud Storage account and get ready to share your findings with anyone wherever they are.
Microscope Specifications
Widefield high eyepoint eyepiece N-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
Built-in-Digital Camera: 8MP [HDMI (1080i - FullHD)]
USB 2 0 for external devices (2x)
ImagingOnDevice system (Panthera App embeded software)
Reversed quintuple revolving nosepiece, coded
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position rackless coaxial stage (Right-hand control)
Motic LightTracer function, Sleep mode (auto on-off function)
Power Supply 100-240V
1100403300201
OCM403300201 Binocular N-WF10X / 22mm 4X, 10X, 40X S, 100X S-Oil Plan Achromat UC
Abbe 0 9/1 25, iris diaphragm & slot
Kohler illumination with 3W LED & halogen 6V/30W
Panthera Cloud
BA210S Series

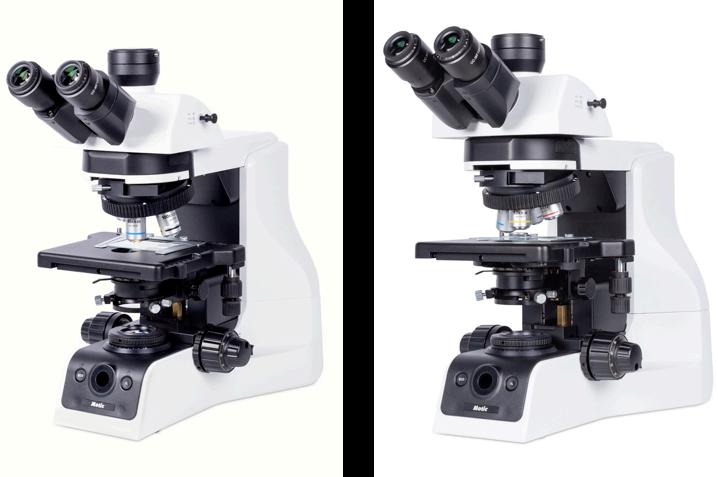

PA43BIO Series
A progression into routine work, this microscope’s robust design and solid footprint does not compromise on optical quality and features. Its modularity offers flexibility when choosing a configuration that suits multiple end-user applications--from cost-effective solutions, to high-quality optical systems for lab diagnostics.
Microscope Specifications
Scalable Infinity-Corrected Optical System (CCIS®)
Trinocular Observation Tube (FN22) ， Siedentopf type (100:0, 20:80)
Wide-Field Eyepiece 10X/22mm, diopter adjustable +/-5
Coded Quintuple (5) revolving nosepiece
N A 0 9/1 25 Abbe condenser with PH/DF slider slot
Rackless stage, size 220 (W) x 170 (L) mm, stroke 80(X) x 55(Y)mm
Koehler Illumination, Integrated power supply Halogen 6V/30W and LED 3W
1100105500011
OCM105500011
1100105500021
OCM105500021
PA43-BIO-PH-2 OCMPA43BIOPH2
Trinocular
Trinocular
Trinocular
PA43-PATH-E OCMPA43PATHE
Trinocular Ergo
WF10X, 22mm 4X, 10X, 40X, 100X (S-Oil) Plan UC
condenser N A 0 9/1 25 slider slot
WF10X, 22mm 4X, PH 10X (Ph1), PH 40X (Ph2), 100X (S-Oil) Plan UC Abbe condenser N A 0 9/1 25 slider slot
WF10X, 22mm 4X, PH 10X (Ph1), PH 40X (Ph2), PH 100X (S-Oil) (Ph3) Plan UC
WF10X, 22mm 2X, 4X, 10X, 20X, 40X Plan UC
Abbe condenser N A 0 9/1 25 slider slot
Achromat Swingout Condenser, N A 0 90 / 0 13
Illumination 6V/30W & LED 3W
Illumination 6V/30W & LED 3W
Illumination 6V/30W & LED 3W
Kohler Illumination 6V/30W & LED 3W
PA43BIO
BA210S Series
PA53BIO Series
The PA53 BIO are designed for research work in hospitals and life science laboratories. It features powerful Köhler Quartz Halogen 100W transmitted illumination and a 1µ fine focus precision. The IL Function, together with the quintuple coded nosepiece, memorizes the brightness level for each objective position.
Microscope Specifications
Scalable Infinity-Corrected Optical System (CCIS®)
Transmitted 100W Halogen illumination
Coded Quintuple (5) revolving nosepiece
N A 0 9/1 25 Abbe condenser with PH/DF slider slot
(Kohler Collector)
Rackless stage, size 220 (W) x 170 (L) mm, stroke 80(X) x 55(Y)mm
Integrated power supply for 12V/100W light adjustment
1100104600941
OCM104600941
1100104600945
OCM104600945
Trinocular
Trinocular
Parts & Accessories
WF10X, 23mm 4X, 10X, 40X, 100X (S-Oil) Plan UC
WF10X, 25mm 4X, 10X, 40X, 100X (S-Oil) Plan UC Fluor
N A 0 9/1 25 Abbe condenser with PH/DF slider slot
Transmitted 100W Halogen illumination
N A 0 9/1 25 Abbe condenser with PH/DF slider slot
Transmitted 100W Halogen illumination
PA53BIO

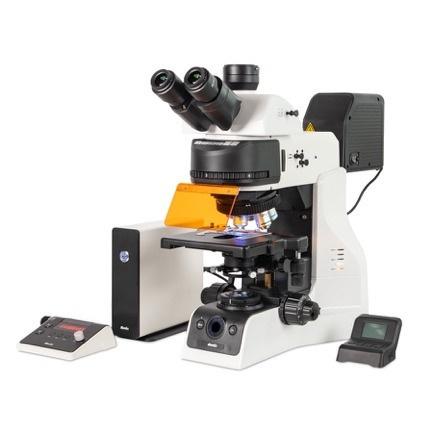

PA53BIO FS6 Series (with LUMOS High-Powered Fluorescence LED Light Source)
The PA53 BIO are designed for research work in hospitals and life science laboratories. It features powerful Köhler Quartz Halogen 100W transmitted illumination and a 1µ fine focus precision. The IL Function, together with the quintuple coded nosepiece, memorizes the brightness level for each ob
Microscope Specifications
Transmitted 100W Halogen illumination
Reflected High-power LED fluorescence illumination (LUMOS)
Coded Quintuple (5) revolving nosepiece
Coded fluorescence turret for 6-position (5 filter sets and 1 BF)
AT-DAPI/Hoechst/AlexaFluor 350 SET
AT-EGFP/FITC/Cy2/AlexaFluor 48 SET
AT-TRITC/Cy3/TagRFP/AlexaFluor 546 SET
Two (2) empty filter cube sets
Rackless stage, size 220 (W) x 170 (L) mm, stroke 80(X) x 55(Y)mm
Kohler Collector, N.A 0.9/1.25 Abbe condenser with PH/DF slider slot
1100104600931
OCM104600931 Trinocular
WF10X, 23mm 4X, 10X, 20X, 40X, 100X (S-Oil) Plan UC Fluor
1100104601151
OCM104601151
Trinocular with EDF
Parts & Accessories
WF10X, 23mm 4X, 10X, 20X, 40X, 100X (S-Oil) Plan UC Fluor
N.A 0.9/1.25 Abbe condenser with PH/DF slider slot
Transmitted 100W Halogen illumination
N A 0 9/1 25 Abbe condenser with PH/DF slider slot Transmitted 100W Halogen illumination
(OCM011400731) ScanPlus 100 x 100mm Motorized XY Stage, with linear measuring system, max travel speed 240 mm, control box and two axes joystick 1101011401111 (OCM011401111) PA53 10W LED Bulb for transmitted light illumination
PA53BIO FS6 EDF
AE31E Series
Live cell inverted microscope platform for advanced microbiology. The powerful LWD CCIS Phase objectives are designed for the inspection of native cell cultures. The instrument can be upgraded with Fluorescence for research tasks, while the “Light memory” function and the Auto ON/OFF mode enables a fast and safe throughput of samples.
Microscope Specifications
Widefield high eyepoint eyepiece N-WF10X/22mm with diopter adjustment on both eyepieces and rubber eyecups
Built-in-Digital Camera: 8MP [HDMI (1080i - FullHD)]
USB 2 0 for external devices (2x)
ImagingOnDevice system (Panthera App embeded software)
Reversed quintuple revolving nosepiece, coded
Coaxial coarse and fine focusing adjustment with tension adjustment
Built in low position rackless coaxial stage (Right-hand control)
Motic LightTracer function, Sleep mode (auto on-off function)
Power Supply 100-240V
1100100200861
OCM100200861 Binocular
1100100200841
OCM100200841 Trinocular (Light Split = 20/80)
PL 10X, 22mm
PL 10X, 22mm
4X
Plan
& PL PH 10X, LWD PL PH 20X CCIS Plan Achromat Phase
N.A. 0.30 (W.D. 72mm) LED 3W
N.A. 0.30 (W.D. 72mm) LED 3W
AE31E (Trinocular)

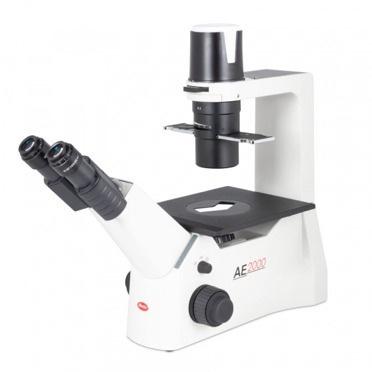

AE2000 Series
Inverted live cell microscope for routine microbiology. The pre-defined optical setup with LWD CCIS Phase objectives is ready for the inspection of diverse native samples in cell culture flasks, while the Fixed-Köhler illumination with interchangeable light source (HAL/LED) and Auto ON/OFF function enables a fast throughput of samples.
Microscope Specifications
Widefield high eyepoint eyepiece 10X / 20mm (paired), focusable
Side facing quadruple nosepiece
Phase slider Ph0, BF, Ph1
Centering telescope
Plain Stage with metal & glass stage inserts
Universal Power Supply 100-240V
20mm (paired)
(Light Split = 20/80)
(Light Split = 20/80)
Microscope with Camera Bundle
(paired)
20mm (paired)

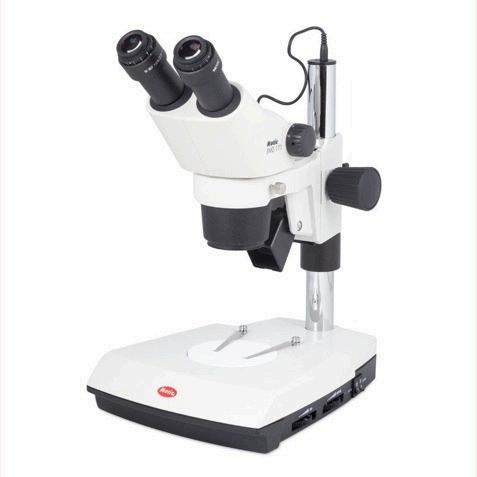

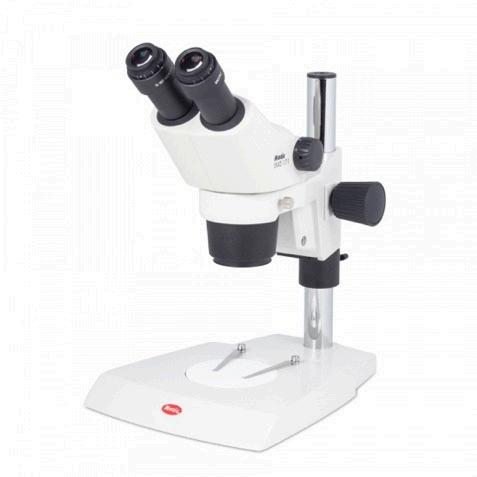

SMZ-171 Series
A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X50X in the standard setup. The implemented click-stops allow precise reproduction of magnification.
Microscope Specifications
Greenough Zoom Optical System
Widefield adjustable eyepieces 10X/F N 23
6 7:1 Zoom Ratio, WD = 110mm
Magnification Range: 0 75X - 5X
1100200600758
OCM200600758 45° Binocular stereomicroscope head
1100200600754
OCM200600754
1100200600762
OCM200600762
1100200600767
OCM200600767
45° Binocular stereomicroscope head
45° Trinocular Head, 360° rotation
45° Trinocular Head, 360° rotation
Microscope with Camera Bundle
WF10X, 23mm Pole type stand without illumination
WF10X, 23mm Pole type stand with transmitted illumination (3W LED)
WF10X, 23mm Pole type stand without illumination
WF10X, 23mm Pole type stand with transmitted illumination (3W LED)
(1100200600767)
(1100200600767)
Parts & Accessories
(OCM200600751)
(OCM200600761)
Stereo Microscope head, Trinocular
SMZ-171-BLED

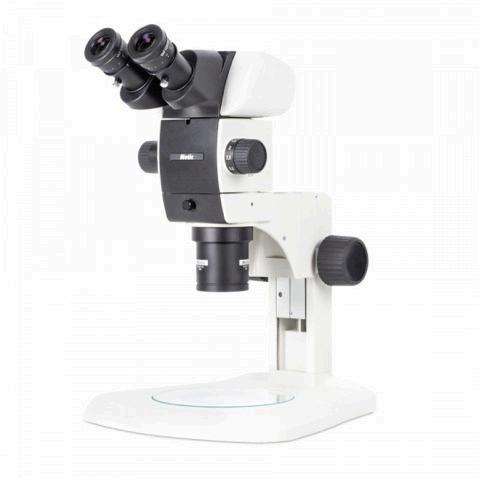

SM7 Series
The SM7 Series features an optical performance with true colour reproduction, high resolution and low distortion. Motic’s new Galilean stereomicroscopes are our new highlight in terms of colour reproduction, resolution and spatial information for users from biology, medicine and industrial QC.
Microscope Specifications
Infinity Common Main Objective [CMO, Galilean]
7:1 zoom microscope body ( Zoom ratio values (0 8-5 6x)
UC WideField 10X/22mm with diopter adjustment, +/- 5 diopter
Interpupillary distance adjustable range : 55 to 75mm
Zoom magnification indication: 10-step, 0 8,1, 1 25, 1 6, 2, 2
3 2, 4, 5, 5 6 Click stop for each zoom magnification: On-O switching possible
Head holder Mounting diameter: 76mm
Focus mechanism: coarse focusing system with tensi adjustment
Standard large Plain Stand (Fixed arm) 1100201800071
(W D 81mm)
Standard large Plain Stand (Fixed arm) 1100201800081
Stand LED Reflected/Transmitted
Stand LED Reflected/Transmitted
Standard large Plain Stand (Fixed arm) 1100201800031
Standard large Plain Stand (Fixed arm)
Standard Stand LED Reflected/Transmitted 1100201800051
Stand LED Reflected/Transmitted
SM7 (Binocular)
Moticam A Series
Our Moticam A Series Digital Cameras are designed with microscopy beginners, teaching environments, hobbyists, and small labs in mind. If there is a PC nearby it is a perfect upgrade for every setup, giving even old microscopes a new life.
Digital Camera Specifications
Progressive scan mode, Rolling shutter mode
Data transfer: USB 2 0
Operating temperature from -10 to +60 Degrees Celsius non condensing
Software: MotiConnect for Windows/macOS/Linux (Download only)
C-mount required
CS-ring adaptor, Focusable Lens, 30mm and 38mm
Eyepiece Adapters, USB 2.0 Cable, Motic 4-Dot
Calibration Slide, Macro Tube, Calibration Card included
(*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
@ 15 fps,
@ 15 fps,
Moticam S Series
Motic’s new sCMOS cameras, manufactured by professionals represent an impressive impetus to microscope camera performance. With a member of this product line the door for new application fields opens wide. The accelerated data readout enables to work on fast phenomena in biology and industry.
Digital Camera Specifications
Progressive scan mode
Rolling shutter mode: S1, S3, S6, S12, S20
Global shutter mode: ProS5 (Lite & Plus)
Data transfer: USB 3.1
Operating temperature from -10 to +60 Degrees Celsiu
non condensing
Software: Motic Image Plus 3.0 for Windows, OSX an Linux
C-mount required
CS ring adaptor, USB 3.1 cable, Motic 4-dot calibratio slide, Motic Images Plus 3.0 for PC/OSX/Linux included
BA210S Series

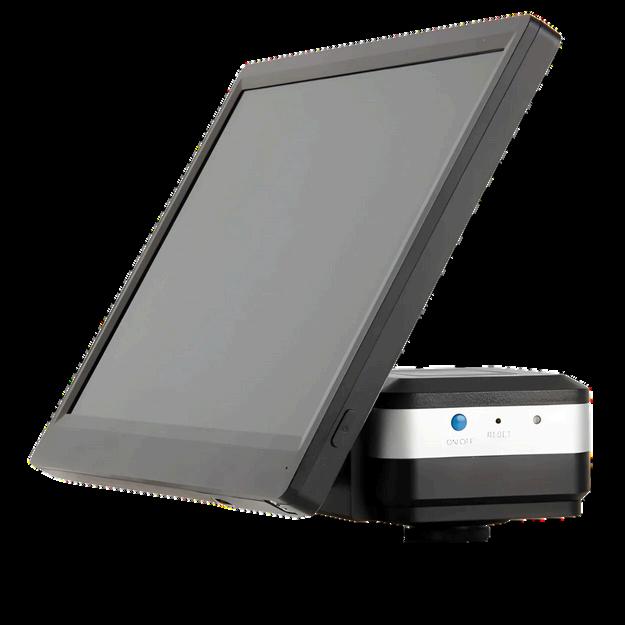

Others: HDMI & Tablet Cameras
HDMI: Highest definition in Full HD (4K resolution), USB and HDMI outputs which are able to work simultaneously, and even an on-board software that will allow you to work just with a screen and a mouse. Tablet: Covert a traditional microscope into a standalone digital microscopy system. All it takes is a touch of your finger!
Digital Camera Specifications
C-mount required HDMI
Attachable Microscopy Camera with 4K(3840*2160)
Resolution (4K through HDMI)
30fps@ 3840*2160 through USB connection (4K)
Progressive scan mode, rolling shutter mode
Software: Motic Image Plus 3 0 for Windows, OSX and Linux
10" LCD Android tablet with 1900x1200 screen resolution
Connection: Wi-Fi (2.4 & 5 GHz), Ethernet (RJ45)
Software: Preloaded optimized MotiConnect app
Note: C-mount required; Above packages include 12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm Focusable Lens, 30mm and 38mm Eyepiece Adapters, Macro Tube, Macro Calibration card
Note: C-mount required; Above packages include USB cable, Motic 4-dot calibration slide, universal
BA210S Series
C-Mount Camera Adapter (PA53 BIO Series)
Microscopes that work with these c-mount camera adapters:
PA53 BIO (Basic Configuration):
PA53 BIO (High-end Configuration):
PA53 BIO FS6 w/ LUMOS FL LED:
PA53 BIO FS6 EDF w/ LUMOS FL LED:
A Series: A8
1100600101443 (OCM0600101443) A16
1100600101463 (OCM0600101463)
1100104600941 (OCM104600941)
1100104600945 (OCM104600945)
1100104600931 (OCM104600931)
1100104601151 (OCM104601151)
S Series: S1 1100600101081 (OCM600101081) S3 1100600101091 (OCM600101091)
Moticam 4000X 1100600101641 (OCM600101641) Moticam BMH4000X 1100600101731 (OCM600101731)
Digital cameras with 1/4" chip sensors
Moticam
Moticam
Digital cameras with 2/3" chip sensors
Moticam
C-Mount Camera Adapter (BA/Panthera/AE/SMZ Series)
Microscopes that work with these c-mount camera adapters:
BA Series
BA210S:
BA210E:
BA210 Digital:
BA310E:
BA310 Digital:
BA310POL:
BA410E:
Panthera Series
Panthera E2:
Panthera C2:
Panthera Cloud:
AE Series
AE31E:
AE2000:
SMZ-171:
1100100403831 (OCM100403831), 1100100403841 (OCM100403841)
1100100403881 (OCM100403881), 1100100403783 (OCM100403783),
1100100403018 (OCM100403018)
1100401200771 (OCM401200771)
1100100402631 (OCM100402631), 1100100402641 (OCM100402641),
1100100402645 (OCM100402645)
1100401200721 (OCM401200721)
1100100402241 (OCM100402241), 1100100402251 (OCM100402251),
1100100402694 (OCM100402694), 1100100402412 (OCM100402412)
1100100404301 (OCM100404301), 1100100404311 (OCM100404311), 1100100403242 (OCM100403242), 1100100403049 (OCM100403049), 1100100403047 (OCM100403047)
1100104601116 (OCM104601116), 1100104601126 (OCM104601126)
1100104601136 (OCM104601136), 1100104601147 (OCM104601147), 1100104601161 (OCM104601161), 1100104601171 (OCM104601171)
1100403300201 (OCM403300201)
1100100200841 (OCM100200841), 1100100200861 (OCM100200861)
1100103800222 (OCM103800222), 1100103800268 (OCM103800268), 1100103800266 (OCM103800266), 1100103800267 (OCM0103800267)
1100200600758 (OCM200600758), 1100200600754 (OCM200600754), 1100200600762 (OCM200600762), 1100200600767 (OCM200600767)
C-Mount Camera Adapter (BA/Panthera/AE/SMZ Series)
0.35X C-mount camera adapter (1101001904111)(OCM1001904111)
Moticam A Series: A8
1100600101443 (OCM0600101443) A16 1100600101463 (OCM0600101463)
Moticam 4000X 1100600101641 (OCM600101641)
Digital cameras with 1/4" chip sensors
Moticam S Series: S1
1100600101081 (OCM600101081) S3 1100600101091 (OCM600101091)
Moticam BMH4000X 1100600101731 (OCM600101731)
Moticam BTI 10 1100600101511 (OCM600101511)
0.5X C-mount camera adapter (1101001901791)(OCM1001901791)
Moticam S Series:
(1100600101111) (OCM600101111)
Digital cameras with 1/2" chip sensors
C-mount camera adapter (1101001901781)(OCM1001901781)
C-mount camera adapter (1101001901771)(OCM1001901771)
Moticam S Series: S20 (1100600101401) (OCM600101401)
Digital cameras with 2/3" chip sensors
Moticam S Series:
ProS5 Plus (1100600101121) (OCM600101121)
