MoticEasyScan
Digital Pathology Solution
Designed for pathologists, we provide a range of whole-slide imaging scanners and software solutions to power your daily workflow and enable collaboration from anywhere.

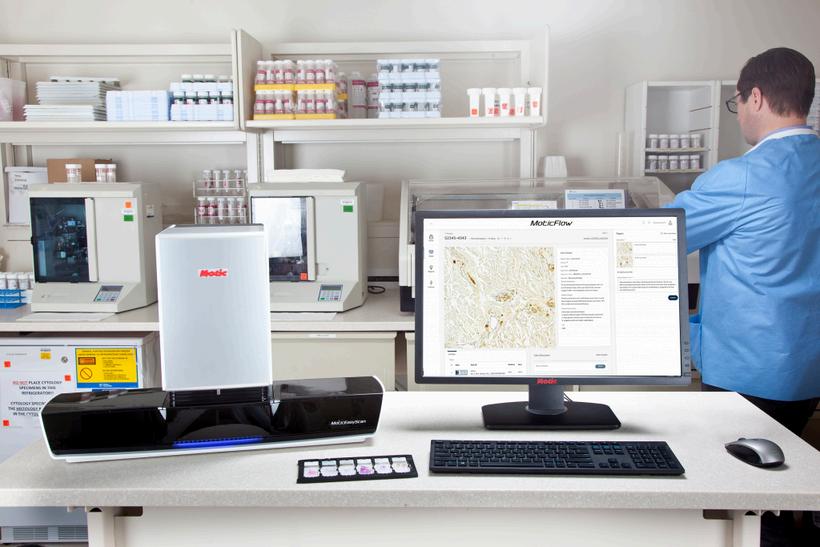

MoticEasyScan One: A Basic Digital Pathology Solution
Fisher Scientific Cat. No. 01-670-300
This basic digital pathology solution includes:
MoticEasyScan One single objective (20x) base

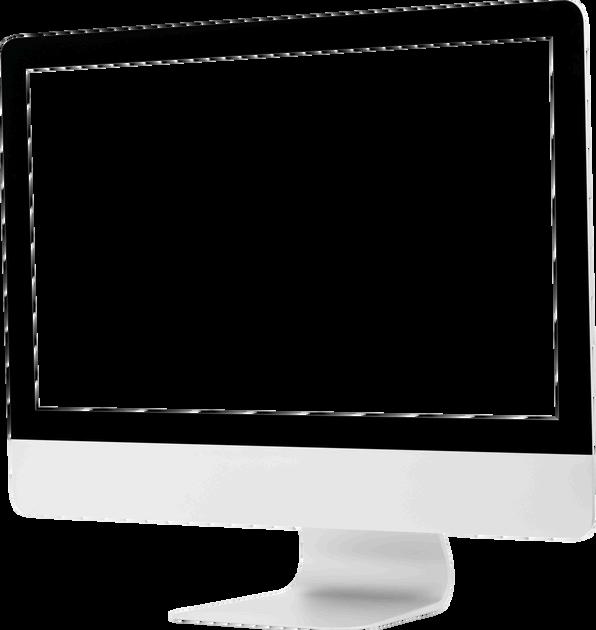

Computer for MoticEasyScan One
Onsite customer training (installation, training x2)
EPI fluorescence option available with the new Flexscan 1 (Fisher Scientific Cat No. 01-001-001)
The MoticEasyScan One is the best desktop digital scanner on the market today Compact, powerful, and deployable anywhere, this scanner is the perfect assistant for any digital slide application Share your slides with a single click, or switch to live mode for direct specimen observation. This scanning system sets a new industry benchmark with its affordable price and high performance, seamlessly integrating into
Single-slide scanner designed for industrystandard 76x26mm glass slides
Perfect for diagnostic, research and educational purposes
Small footprint allows space to be found in the smallest of labs
any workflow and bringing lab-quality scanning to any work environment MoticEasyScan scanners use a specially designed high-NA Plan Apochromatic objective (20X/0 75) to maximize color fidelity and resolution power Combined with a large 2/3" CCD sensor, the MoticEasyScan is able to image large fields of view in a split second, while delivering image detail equivalent to a high power 40X lens
Scanning time of as little as 60 seconds per slide*
Supports MDS, SVS, JPEG, TIFF and DICOM format files
Barcoding of slides enables their easy tracking during and after digitisation
Four versatile scanning modes allow for all your scanning needs, including uneven samples
Suitable for both whole-slide imaging and area of interest scanning
Intelligent software automatically and rapidly detects the area of interest

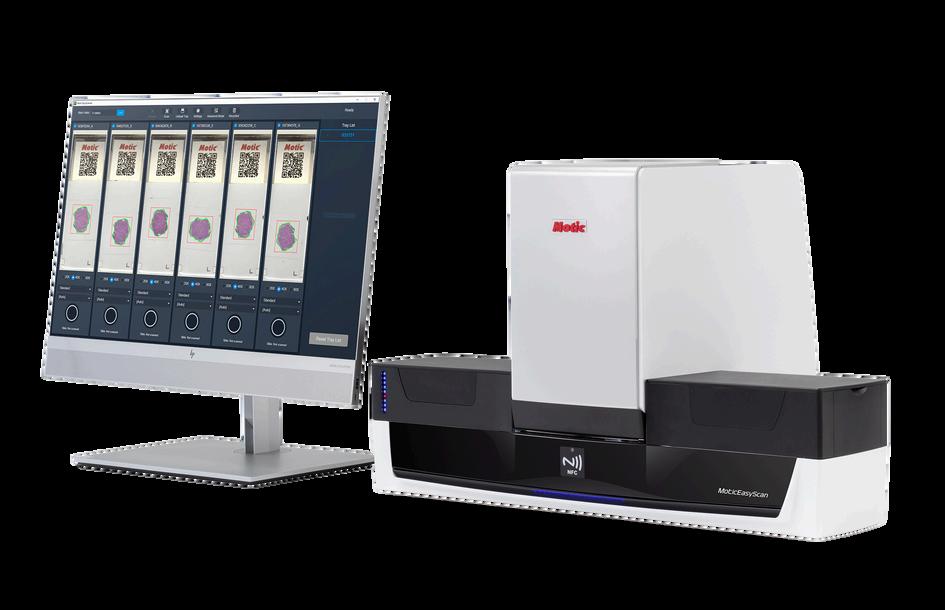

This advanced digital pathology solution includes:
MoticEasyScan Pro 6 single objective (20x) (12MP camera) base
Computer for MoticEasyScan Pro 6
Onsite customer training (installation, training x2)
The MoticEasyScan Pro is the perfect gateway product for any lab, startup, or medical organization joining the digital revolution in pathology Simple and easy to use, this scanner system offers 6-slide capacity options It scans and uploads high-quality digital slides to your slide management server, all at a single click. With its small footprint, high resolution power, and hassle-free setup, this multipurpose scanner
Six-slide tray design boosts efficiency
Perfect for diagnostic and research purposes in small- to medium-volume labs
Exhibits greatly increased efficiency compared with traditional microscopy methods
JPEG
is the ideal tool for any application that requires glass slide digitization. MoticEasyScan scanners use a specially designed high-NA Plan Apochromatic objective (20X/0 75) to maximize color fidelity and resolution power Combined with a large 2/3" CCD sensor, the MoticEasyScan is able to image large fields of view in a split second, while delivering image detail equivalent to a high power 40X lens
Provided with a powerful all-in-one PC with a 27” QHD-resolution touchscreen
Scanning time of as little as 40 seconds per slide with the MoticEasyScan Pro 6 N*
Supports MDS, SVS, JPEG, TIFF and DICOM format files
Barcoding of slides enables their easy tracking during and after digitisation
Four versatile scanning modes allow for all your scanning needs, including uneven samples
Suitable for both whole-slide imaging and area of interest scanning

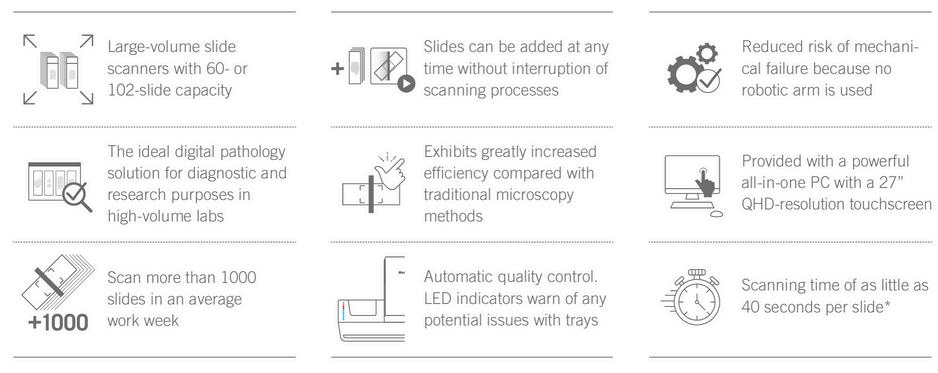

MoticEasyScan Infinity: High-throughput Slide
Scanners with 60- or 102-Slide Capacity
These digital pathology solution include:
MoticEasyScan Infinity 60- or 102-slide NFC single objective (20x) (12MP camera) base
Computer for MoticEasyScan Infinity
Onsite customer installation and training
Power and speed are key in the MoticEasyScan Infinity NFC. Coming in two models - the MoticEasyScan Infinity 60 NFC, with 60-slide capacity, and the MoticEasyScan Infinity 100 NFC, with 102-slide capacity - these highthroughput slide scanners offer a flexible configuration for fast-paced diagnostic and research labs Both Infinity models are equipped with three high-quality objectives and a large
optical sensor Intelligent and automated quality control eliminates the need for pre-scan setup while Motic’s Smart Tray system slashes hands-on time for technicians and error rates by allowing the real-time tracking and identification of every scanned slide Moreover, the innovative design enables a continuous loading and queuing of slides without interruption of the scanning process

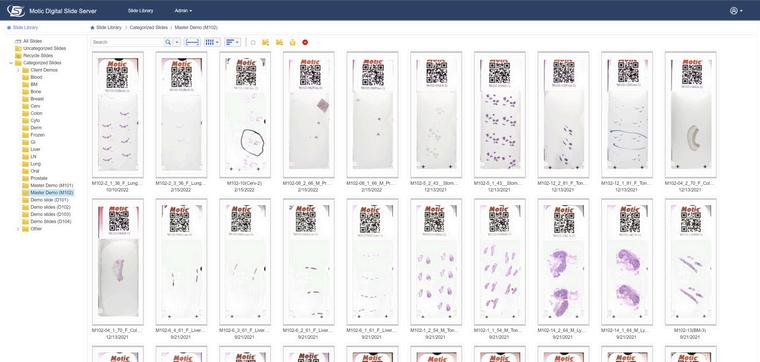

Motic DSServer: Image Management and Viewing Software
Fisher Scientific Cat. No. 01-670-301
Motic Digital Slide Server (DSServer) is exclusively designed for the MoticEasyScan digital slide scanners, proving a comprehensive image management platform for the organization, and sharing of Motic WSI digital slides. DSServer includes a complete image viewer with annotation and basic analysis functions, as well as presentation features The platform also includes easy-to-use administrative functions to manage user rights and permissions over LAN and Internet IP connections
