mikhail hutchinson

education background work experience

University of Technology

ba. in architectural studies, september 2018 - november 2023

csa graduate, utech Skills

Architecture Software

ARCHICAD

SKETCHUP

REVIT

AUTOCAD

LUMION

twinmotion

d5 render

mikhailhutchinson@gmail.com contact

Duhaney Meadows, Duhaney Park, Kingston 20 (876)-509-3295/(876)-237-7478

St. Elizabeth Technical High School

caribbean advanced proficiency examination diploma, Class of 2018

Successful Completion Of Eight(8) CAPE subjects:

(Physics (Units I and II), Communication Studies, Computer Science, Caribbean Studies, Green Engineering, Building, Mechanical and Engineer Drawing(B.M.E.D), PureMath

Munro College

caribbean secondary education certificate, Class of 2016

Successful Completion Of Nine (9) CSEC subjects:

(Mathematics, English Language, Information Technology, Geography, Chemistry, Physics, Spanish, History, Technical Drawing)

courses

utech

certificate of completion

Successful Completion Of Surveying and Mapping with Unmanned Aerial Vehicles April 2023

ARCHITECTURAL designer

studio 215 jan 2024 to sep 2024

* Creating 3D Models of Buildings

* Constructing 3D Renders

* Drawing Detail and Plan Drawings

* Drafting 2D Construction Drawings

ARCHITECTURAL INTERN

dm planning and associates oct 2023 to nov 2023

* Creating 3D Models of Buildings

* Constructing 3D Renders

ARCHITECTURAL INTERN

LLOYD J. ROBINSON’S AND ASSOCIATES DEC 2022 to SEP 2023

* Creating 3D Models of Buildings

* Constructing 3D Renders

* Drawing Detail and Plan Drawings

* Drafting 2D Construction Drawings

The purpose of this portfolio is to highlight the design process of each project, during university as well as post graduate, in a concise manner that demonstrates my growth as a budding professional in the architectural field.

1. commercial mall

2. residential area

3. towers

Project Year: 2023

Location: May Pen, Clarendon

OBJECTIVE: The objective of this project was the renovation of a previously abandoned building in a suitable location within the town into a mall to promote traffic and business to the surrounding areas.

Project Year: 2023

Location: St. Andrew

OBJECTIVE: To create renders to visualize the finished vision of this apartment complex using a software that was unfamiliar at the time, D5 Render software.

Project Year: 2021

Year 3, Semester 2

Materials: Concrete, Glass and Steel

OBJECTIVE: To innovate and challenge the current conventions of building towers within hurricane/ earthquake/pandemic/prone areas of the world and interpret the future ‘Urban Fabric’ of Downtown Kingston.

pure presence

Project Year: 2022

Year 4, Semester 2

OBJECTIVE: This project seeks the creation of a Food and Drink Museum of ‘Pure Presence’ which challenges the current notions of Architecture in the Caribbean. One which embraces the challenges inherent to the design of the chosen

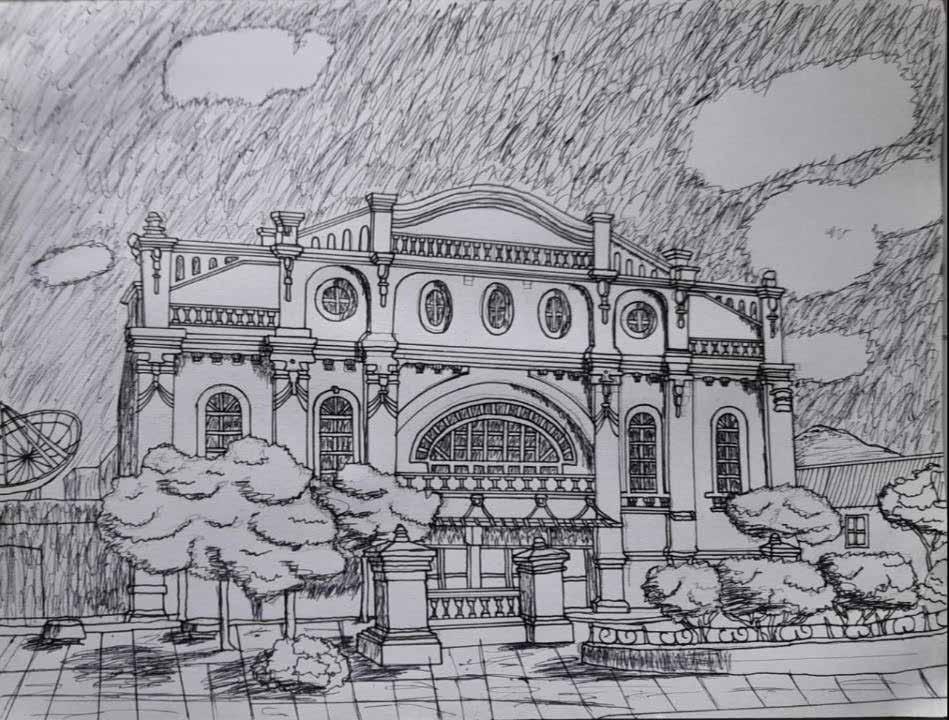

5. other works

A compilation of various related works such as sketches and drone shots of various areas.

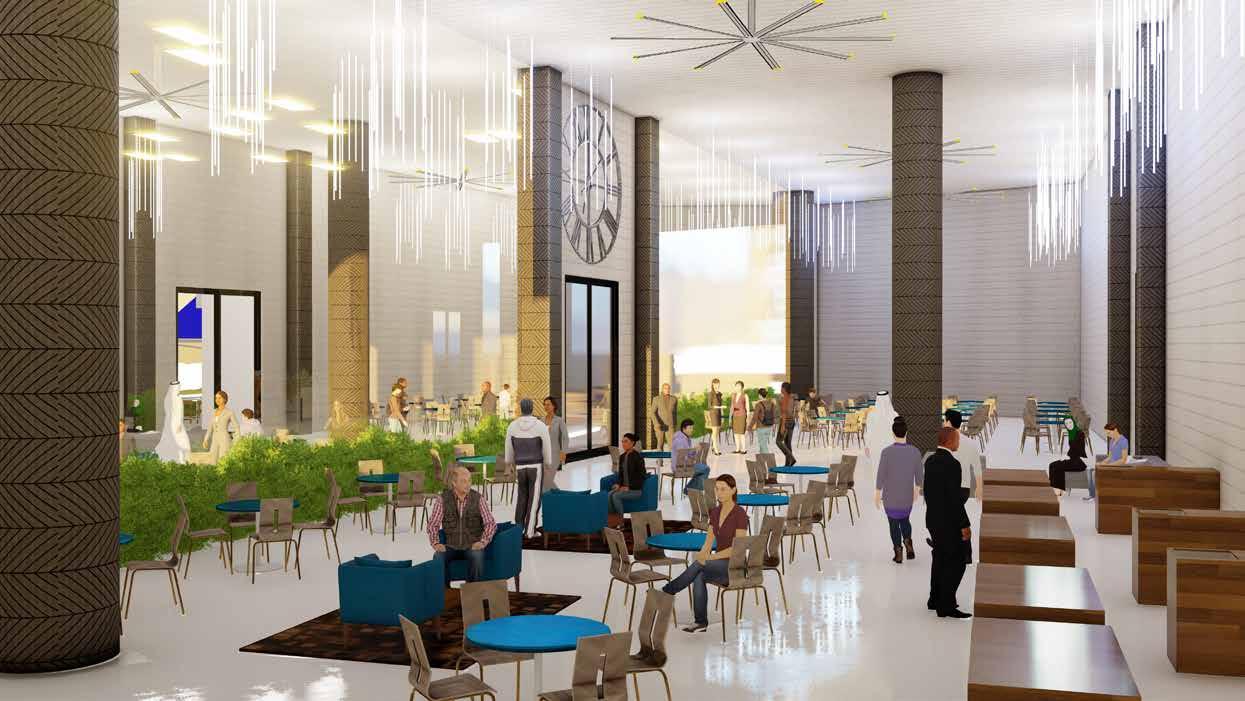

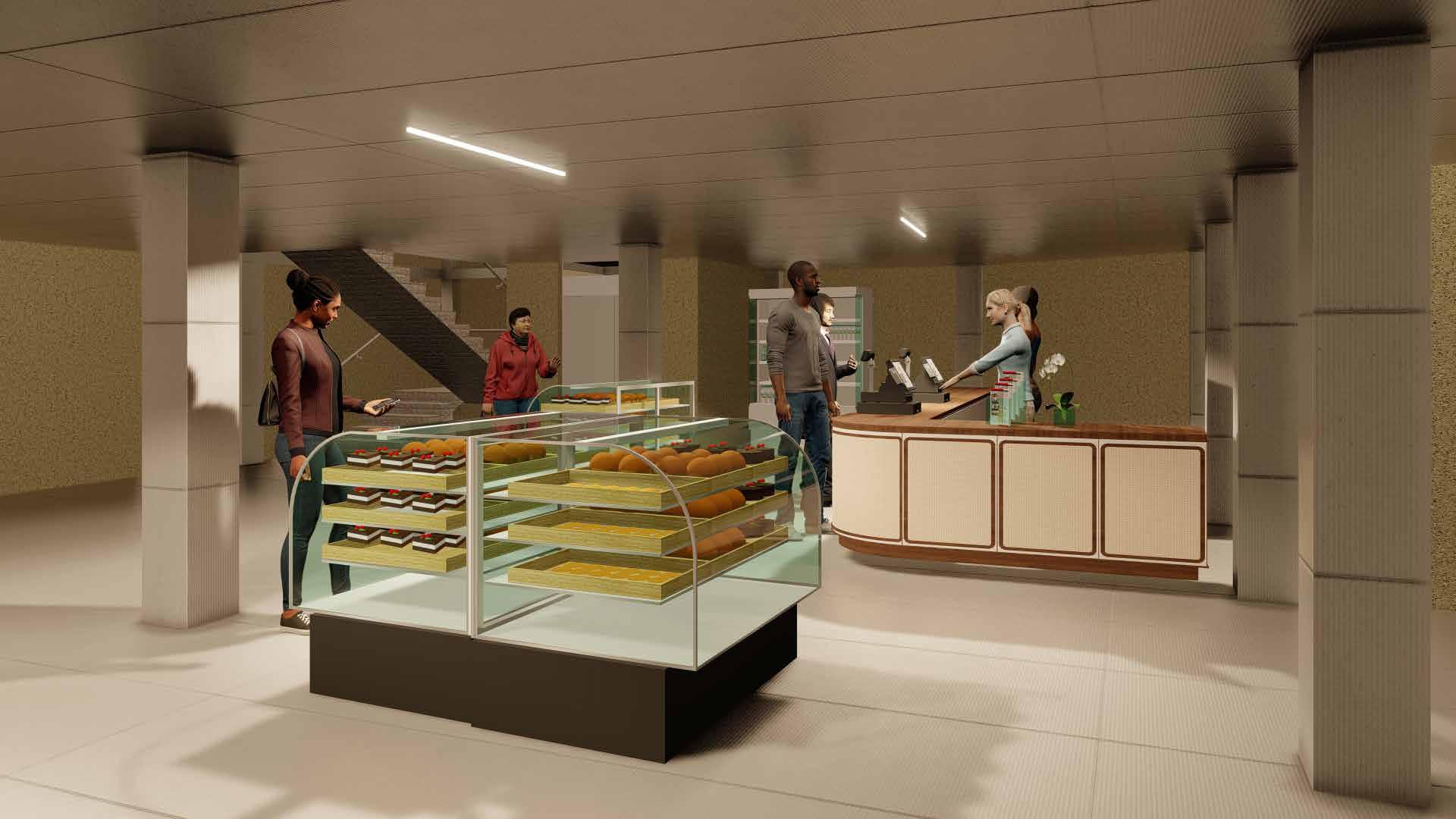

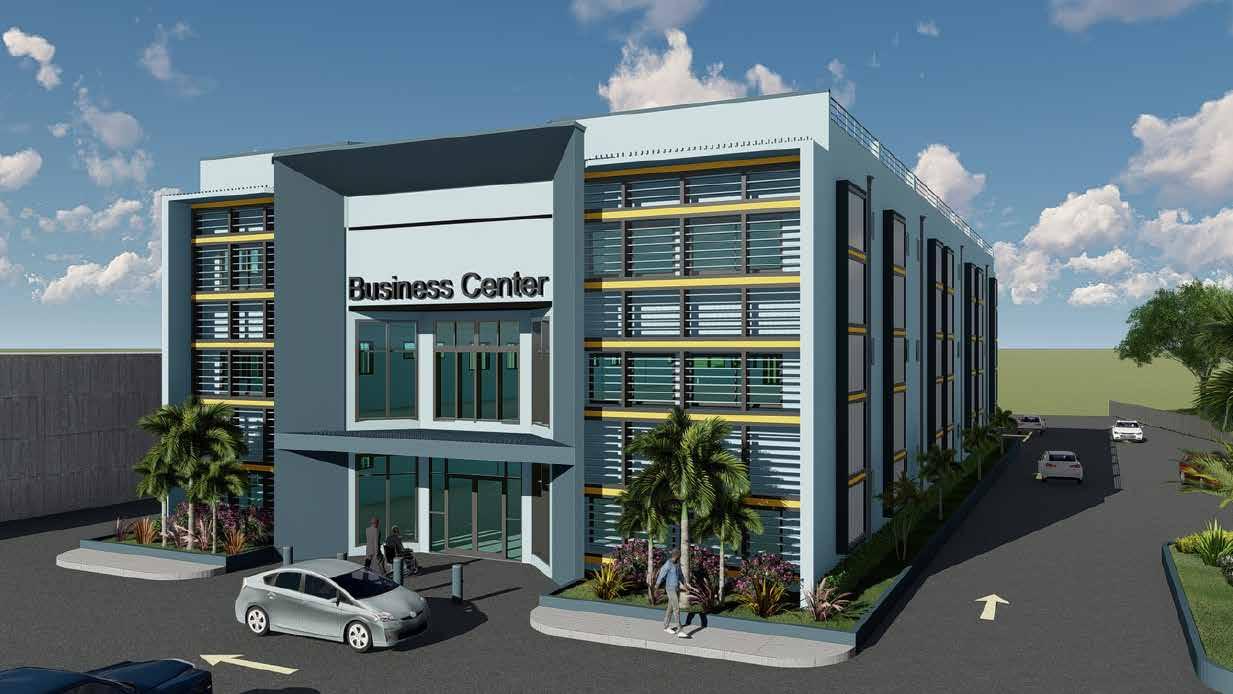

Commercial mall

Project Details: Post Graduate (Lloyd J. Robinson’s and Associates)

Project Date: 2023

Location: May Pen, Clarendon

This was my final project during my journey at Lloyd J. robinson’s and Associates. I consider it a culmination of everything I learned during my time there such as utilizing ArchiCAD, Lumion and my ability to operate an unmanned drone. The project is located in May Pen, Clarendon.

Site location

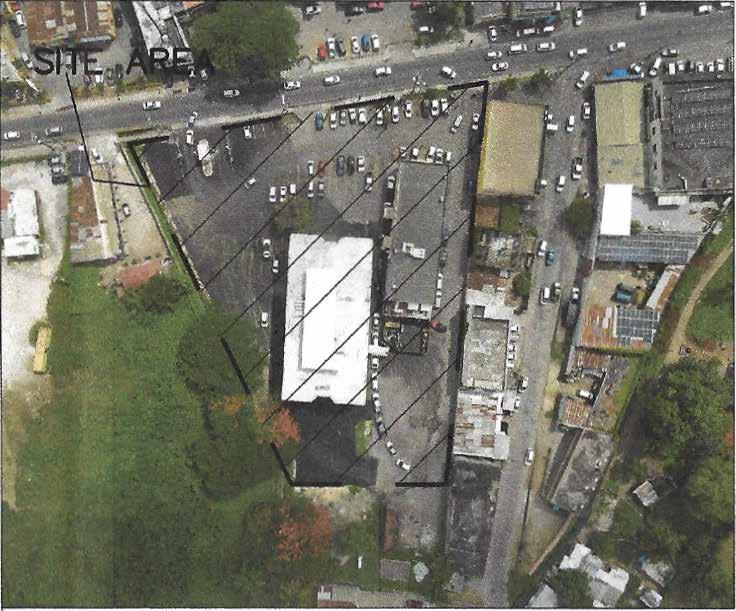

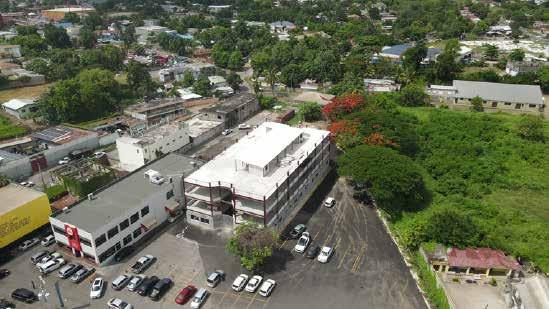

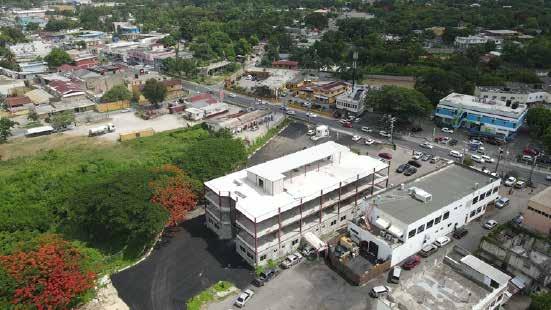

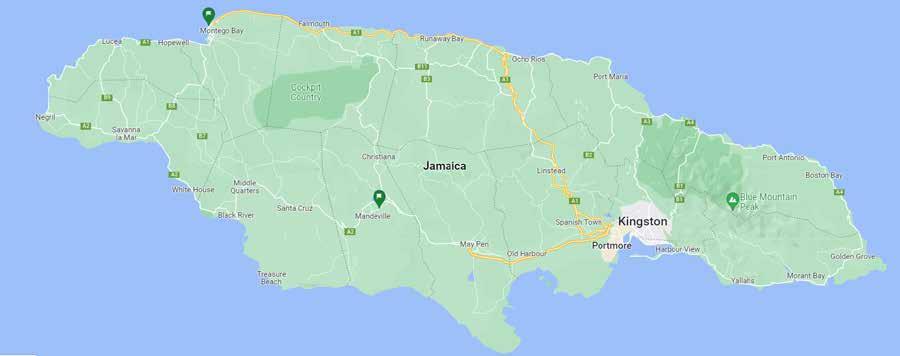

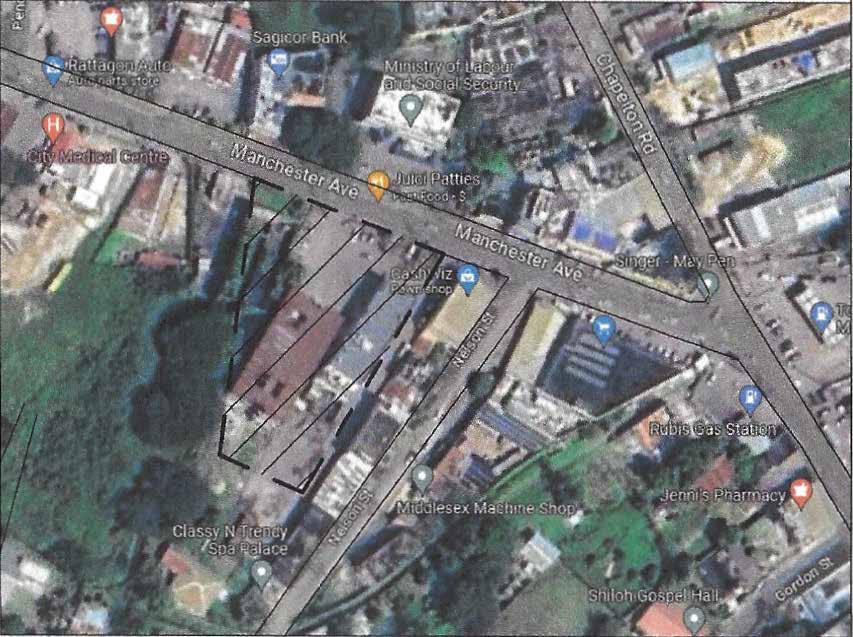

Using a combination of google maps initially to get the location of the building which is on Manchester Avenue main road. This was also an opportunity for me to utilize my skills in operating a UAV as the shots shown here were taken by yours truly using a DJI Mavic Air 2 Drone to get a better view of the building and the surrounding context.

site location

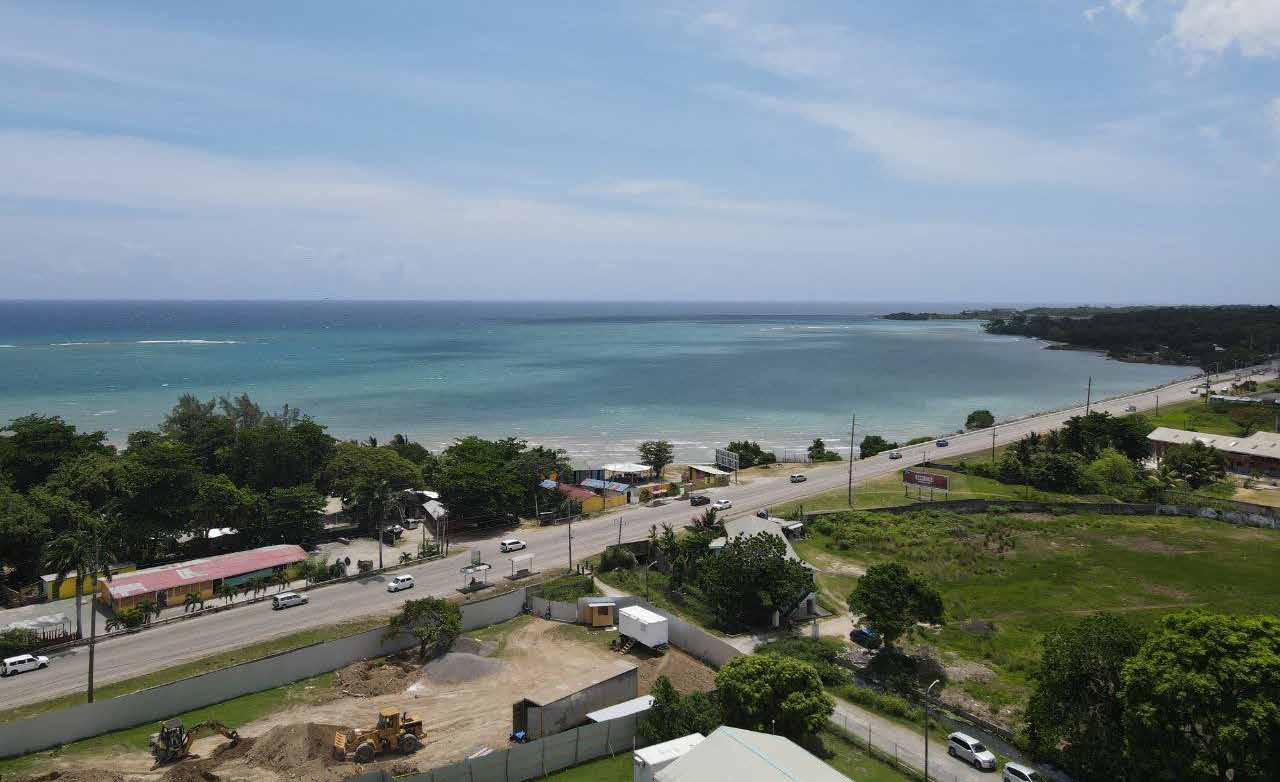

front facing view via drone shot

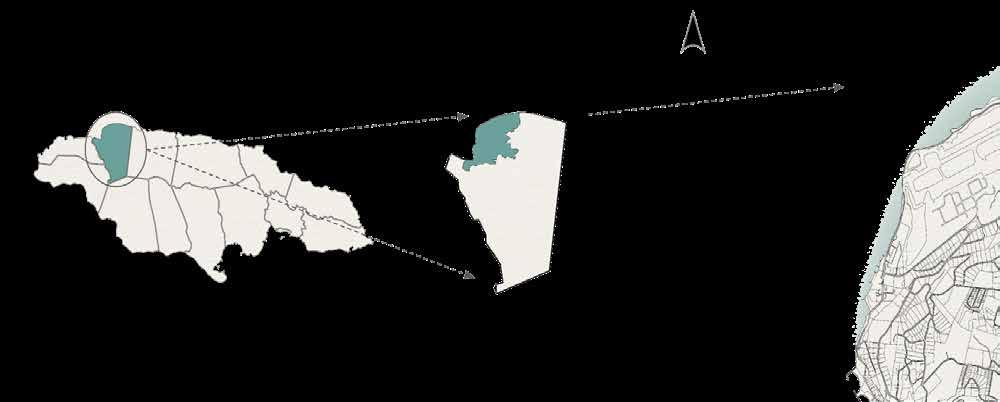

location map

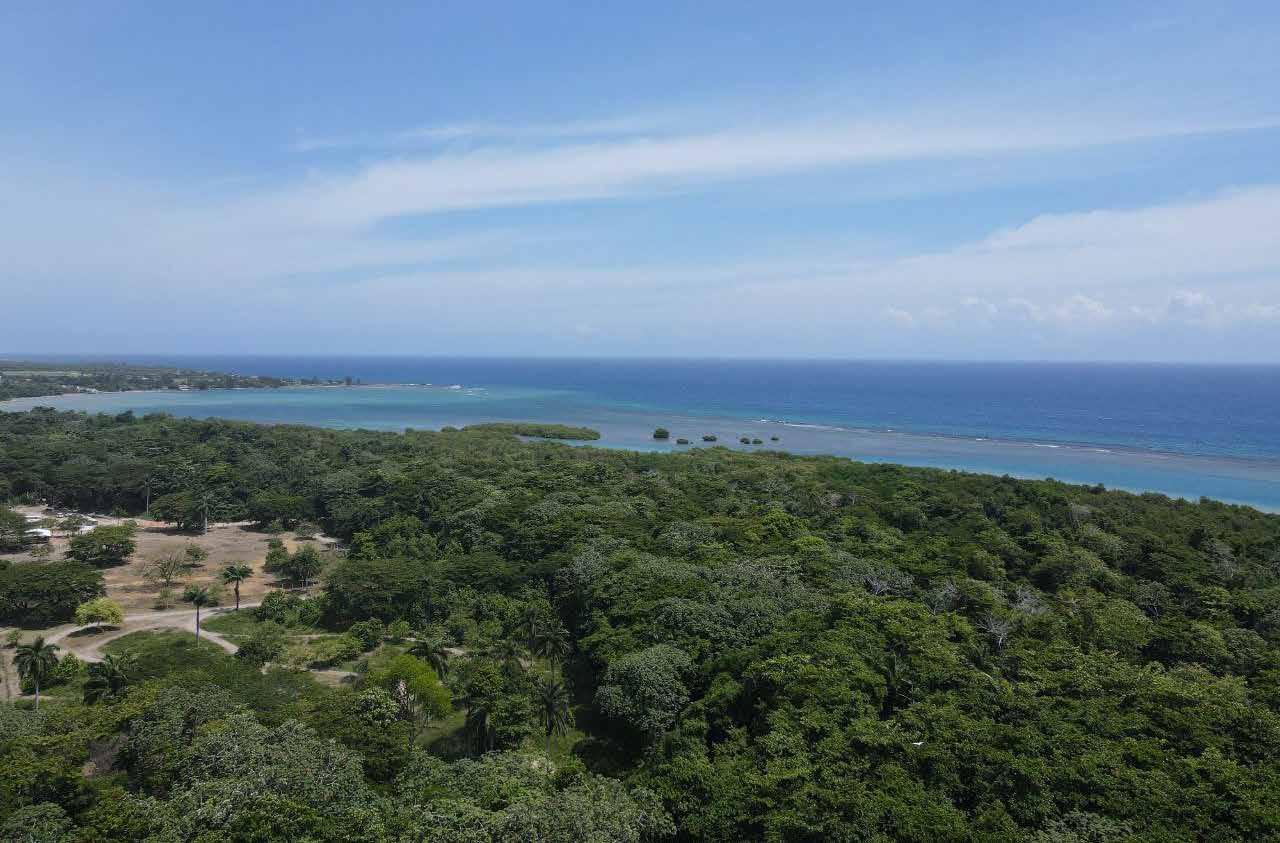

rear facing view via drone shot

Floor plans

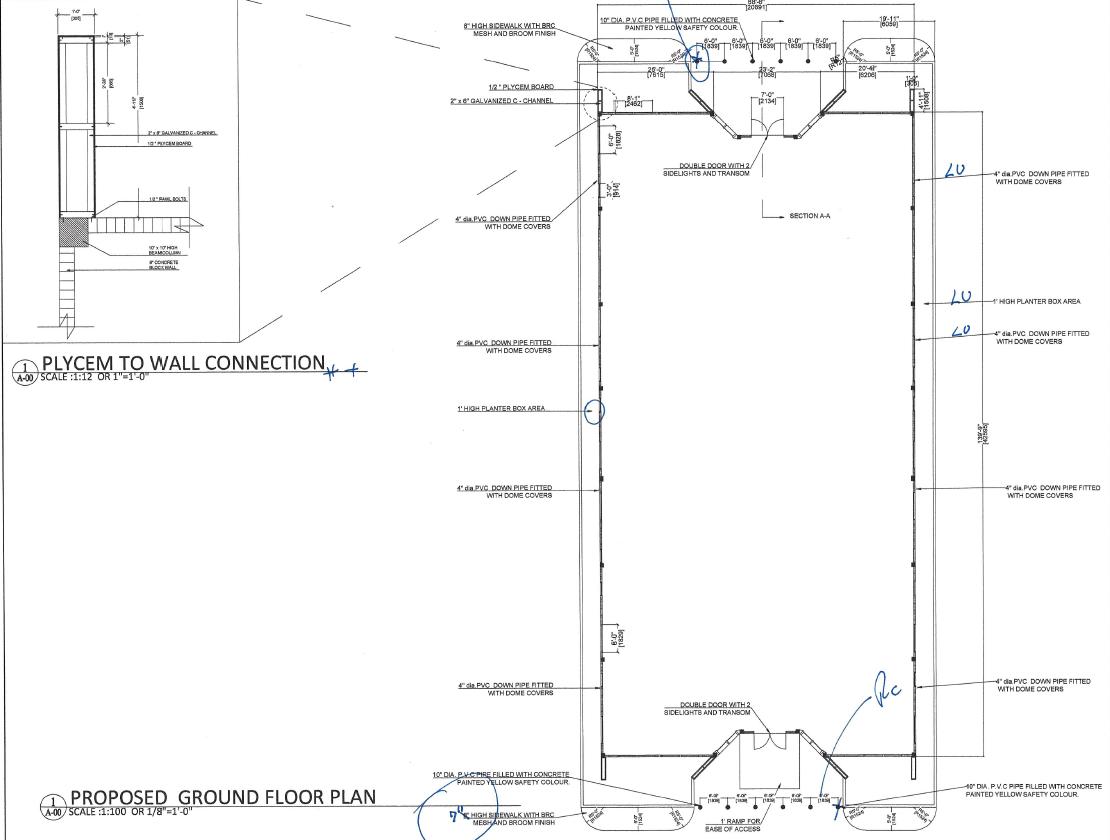

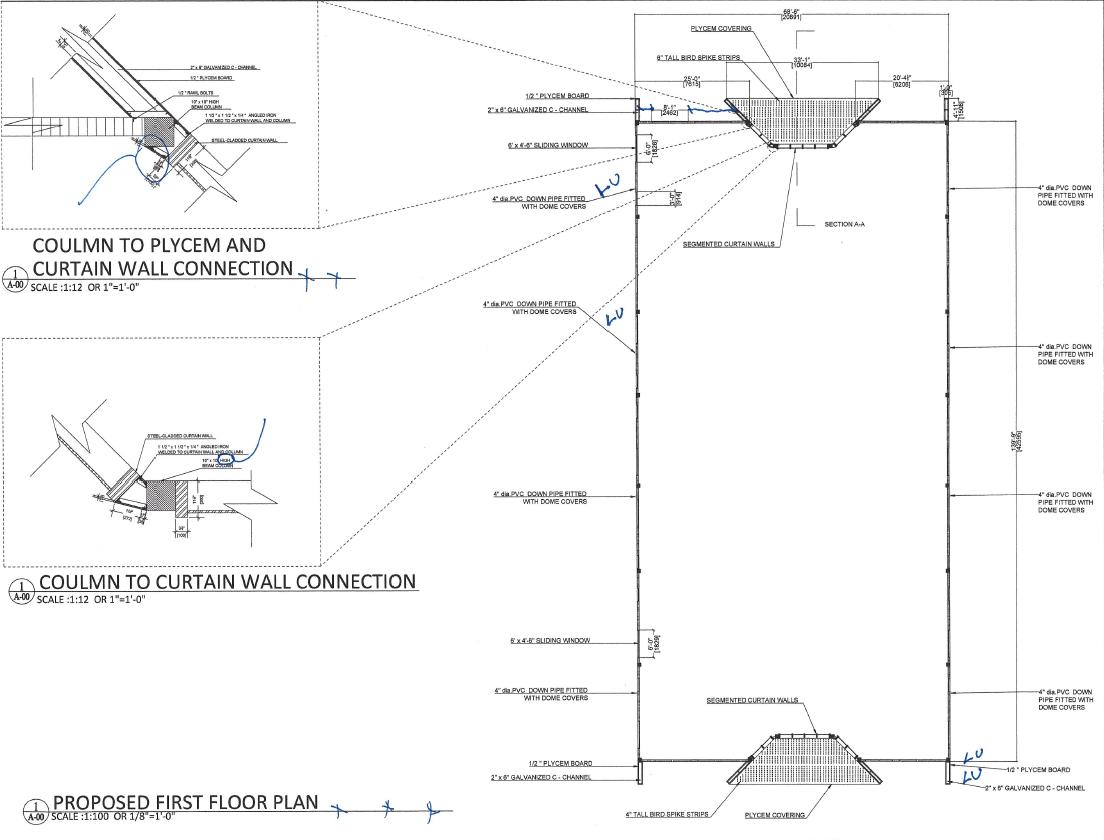

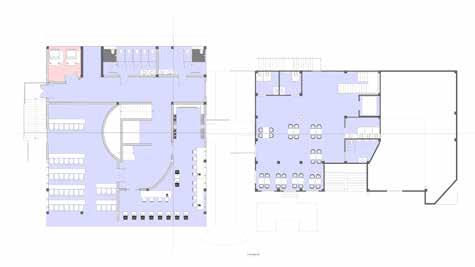

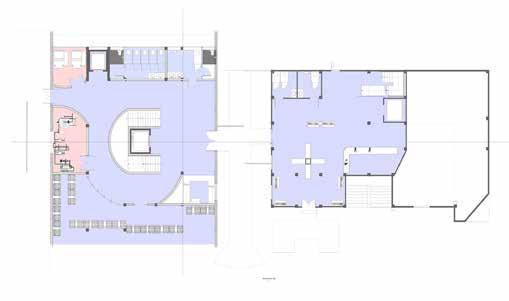

These plans show the proposed ground and first floors for this structure while highlight some wall connection details

section and elevation

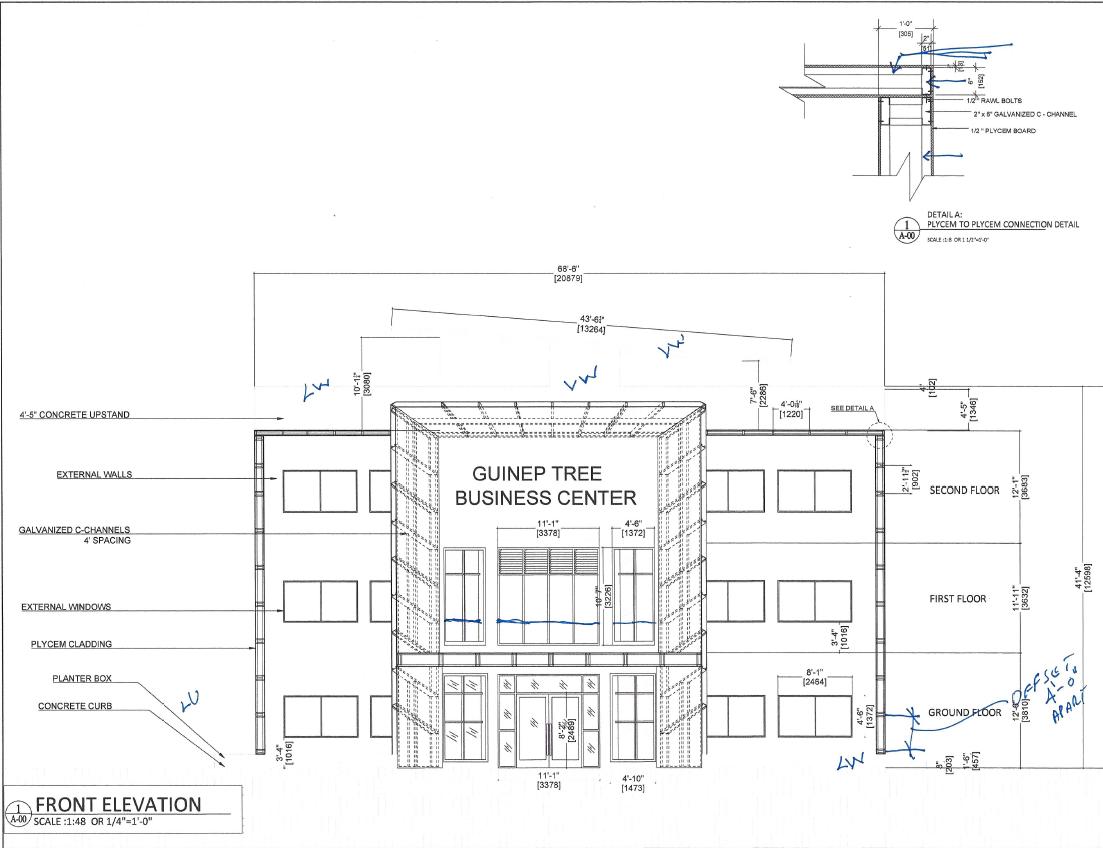

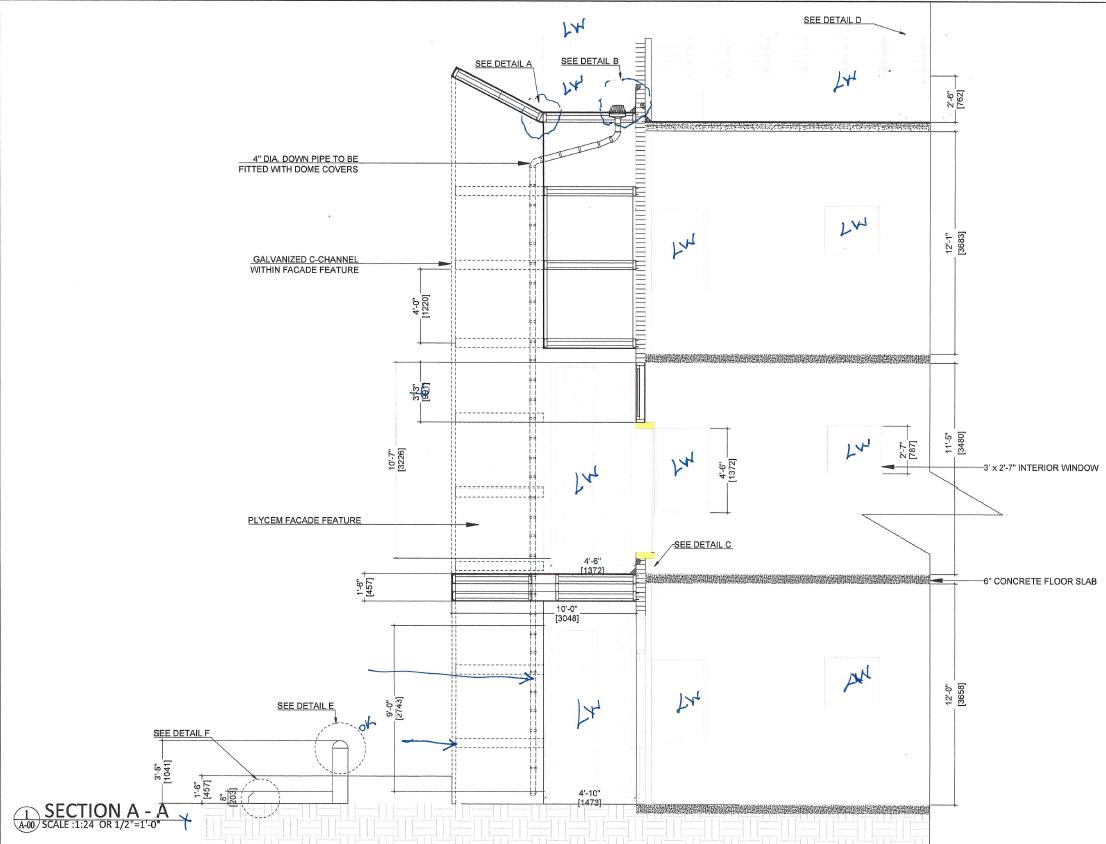

These highlight the section and elevation of the structure while highlihgting the various detail callouts that is shown on the next page.

detailed sections

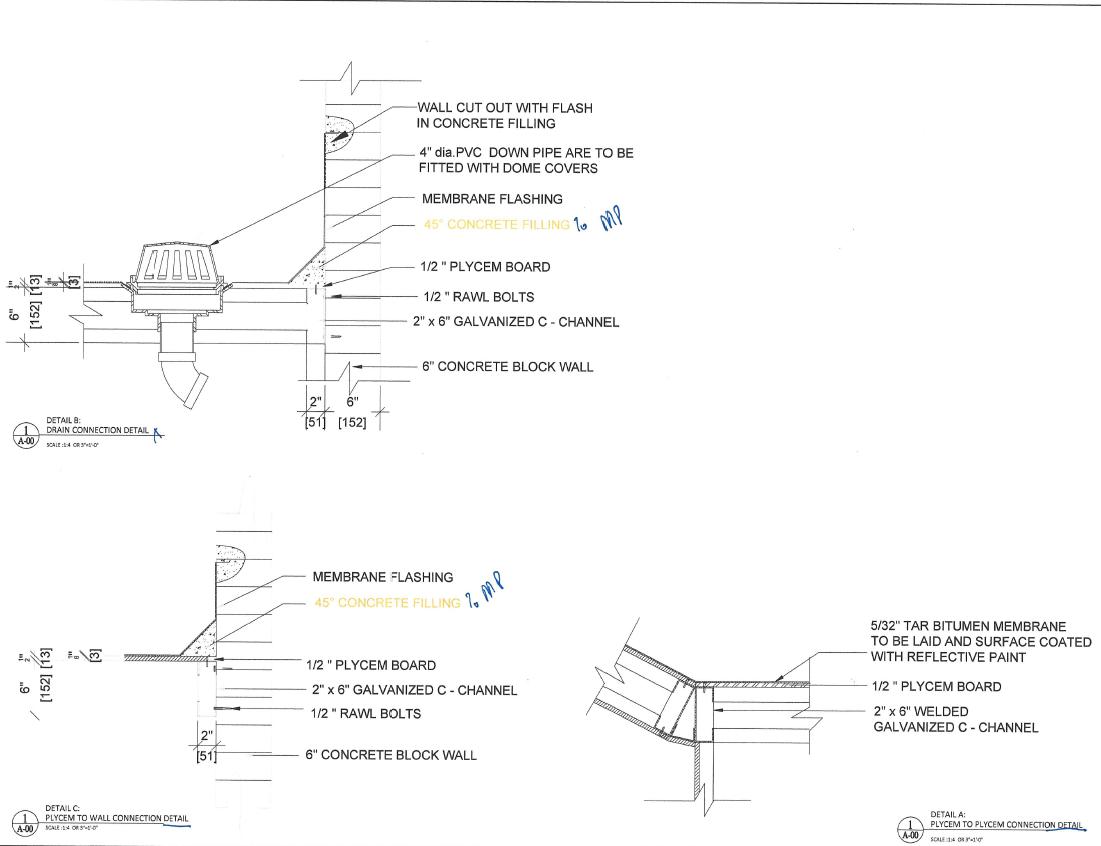

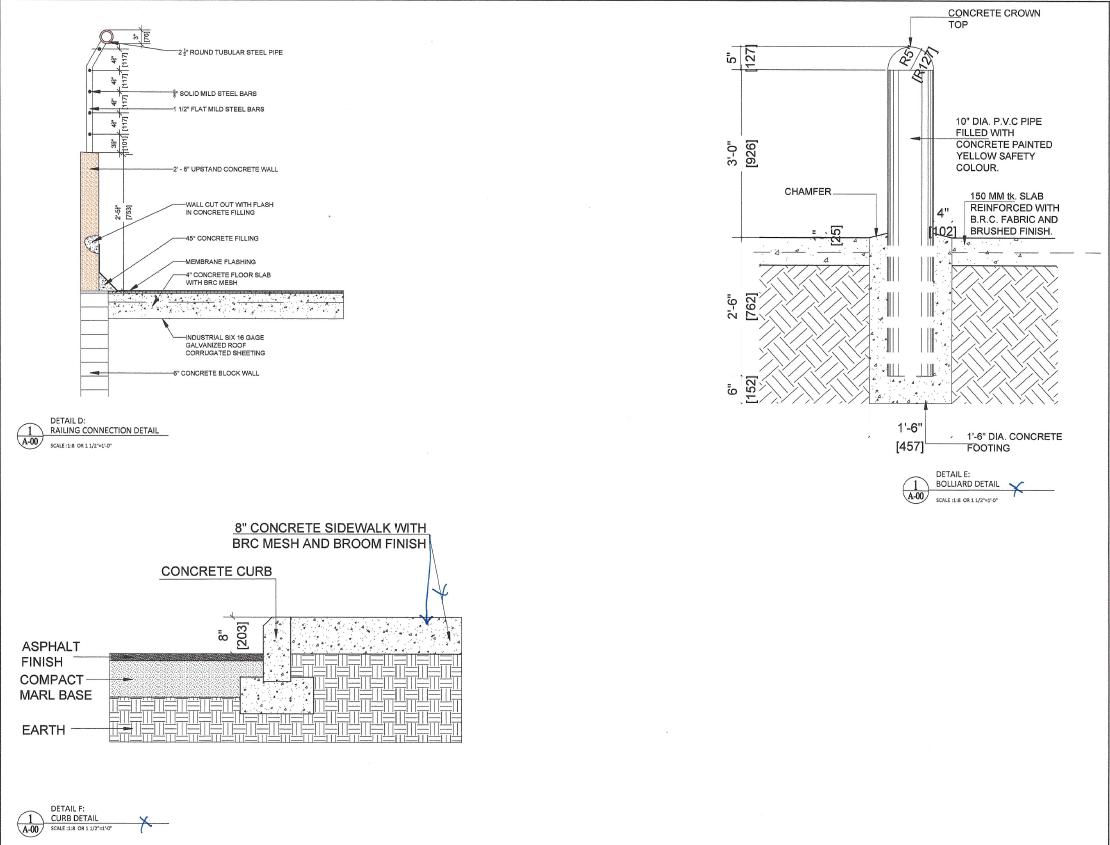

These sections show the connection details of the roof drainage, the wall connections, as well as the railing details on the roof and the curb and bullion details.

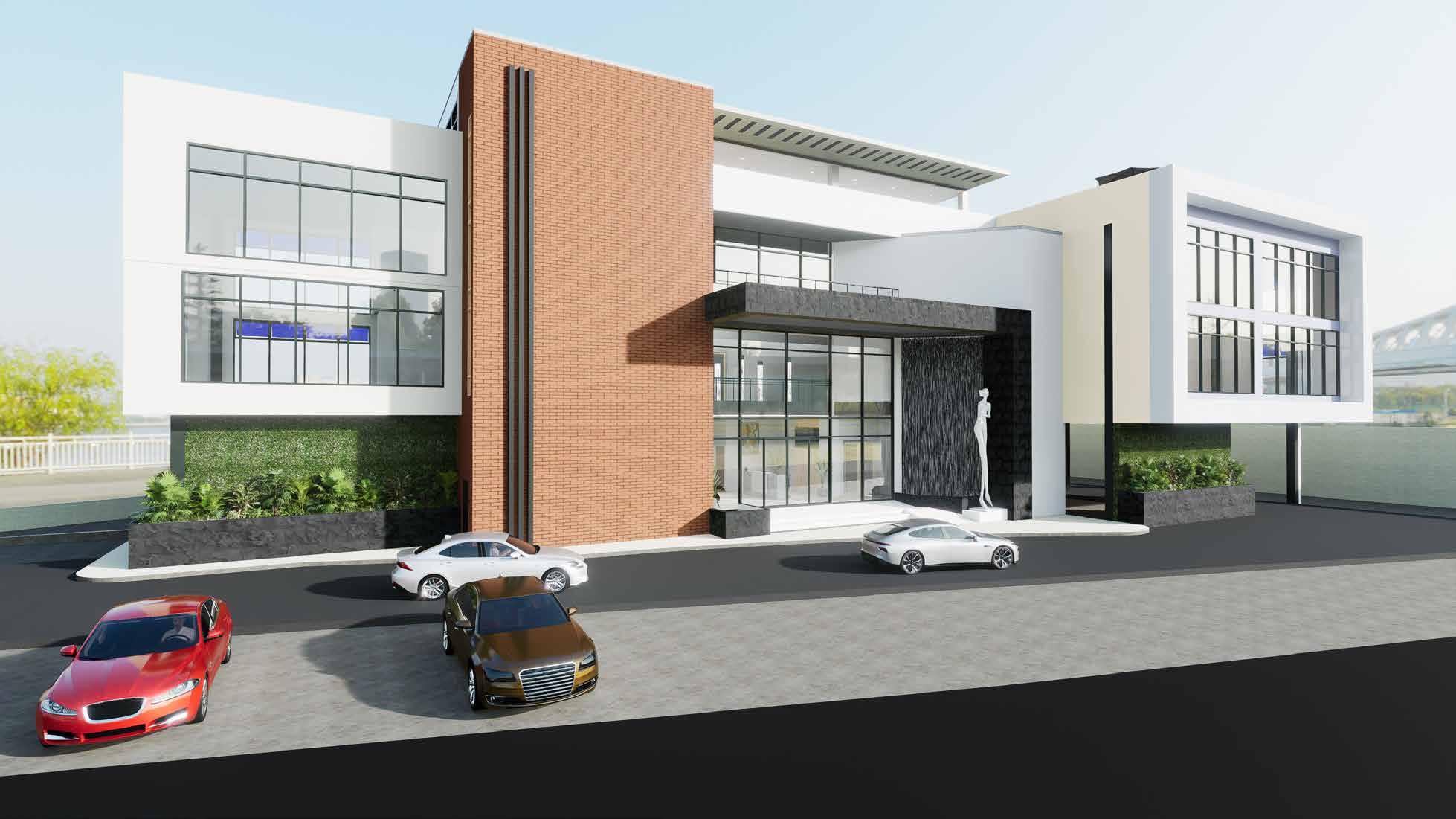

commercial complex

Project Details: Post Graduate (DM Planning and Associates)

Project Date: 2023

Location: St. Andrew

This was my only project during my time at DM Planning and Associates, and though my time there was brief, it afforded me an opportunity to develop my skills in a brand new rendering software known as D5 Render. So for this project, where the plans and 3D models were already complete, my objective was to utilize D5 Render to bring the finalized vision of this space to life.

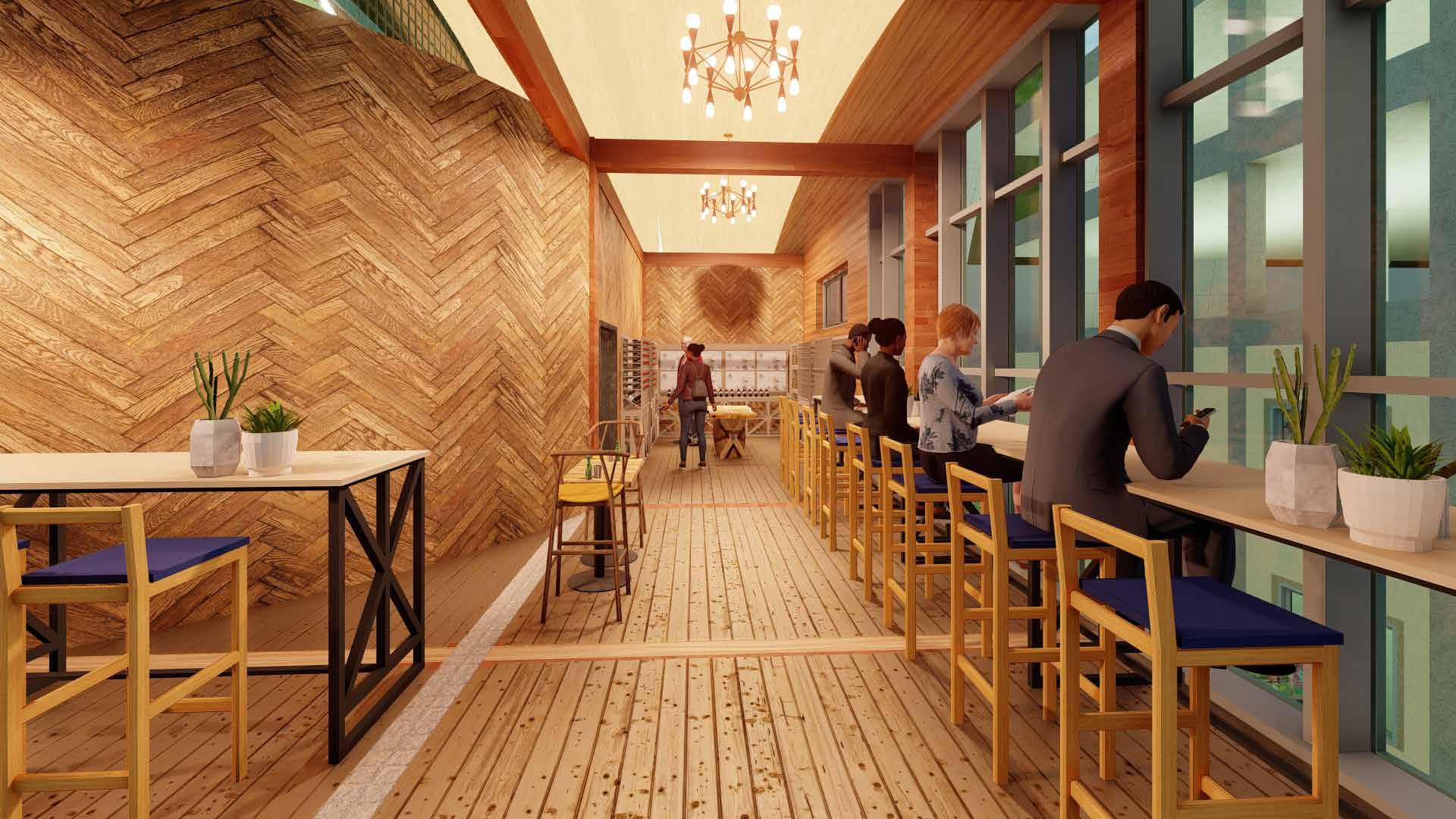

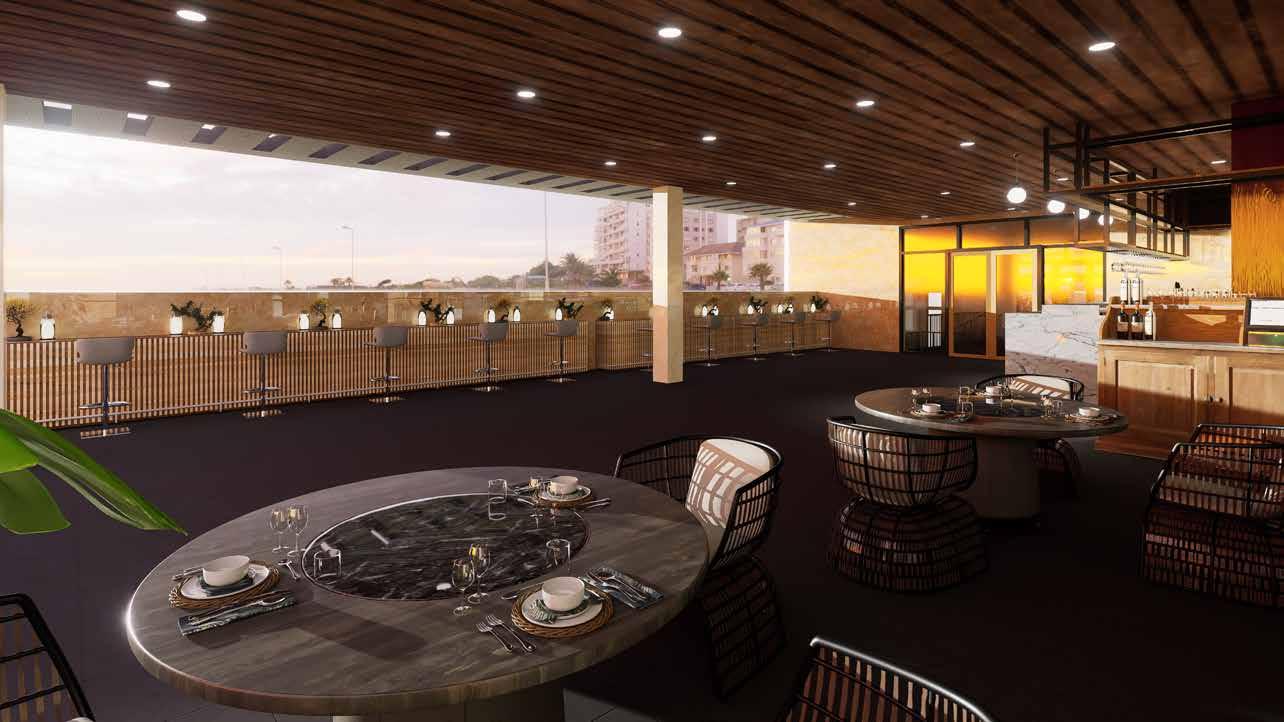

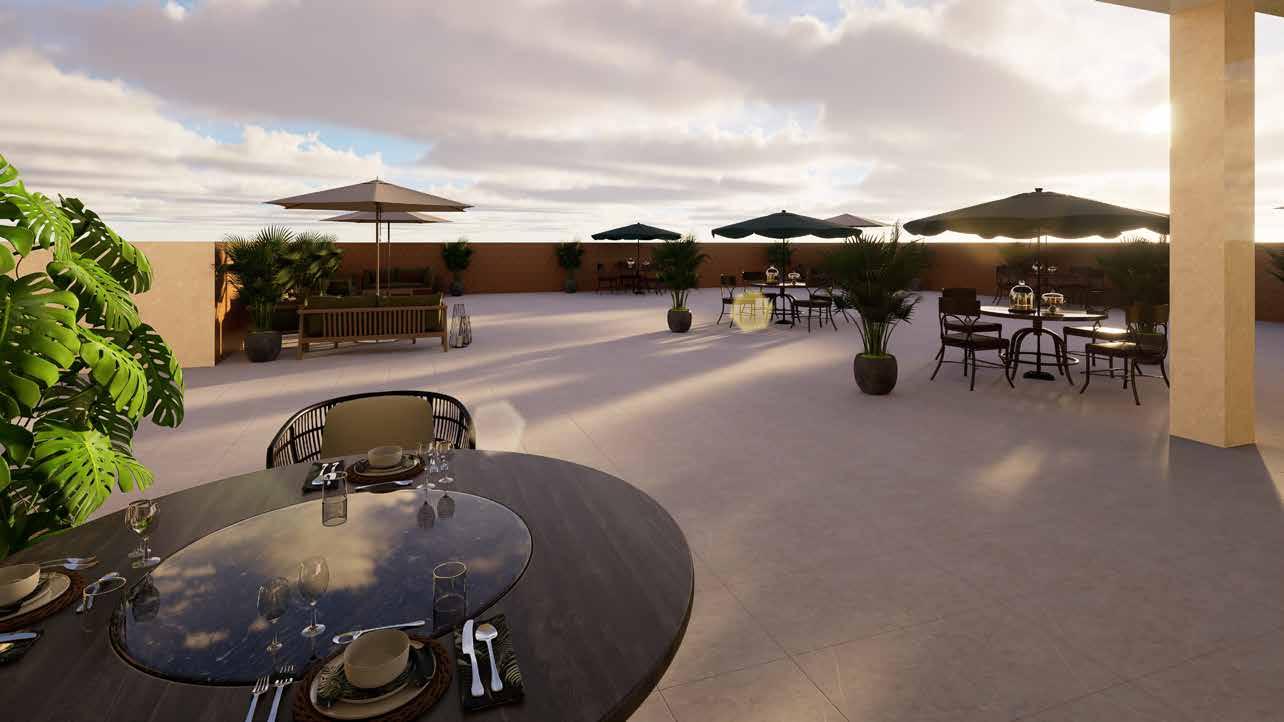

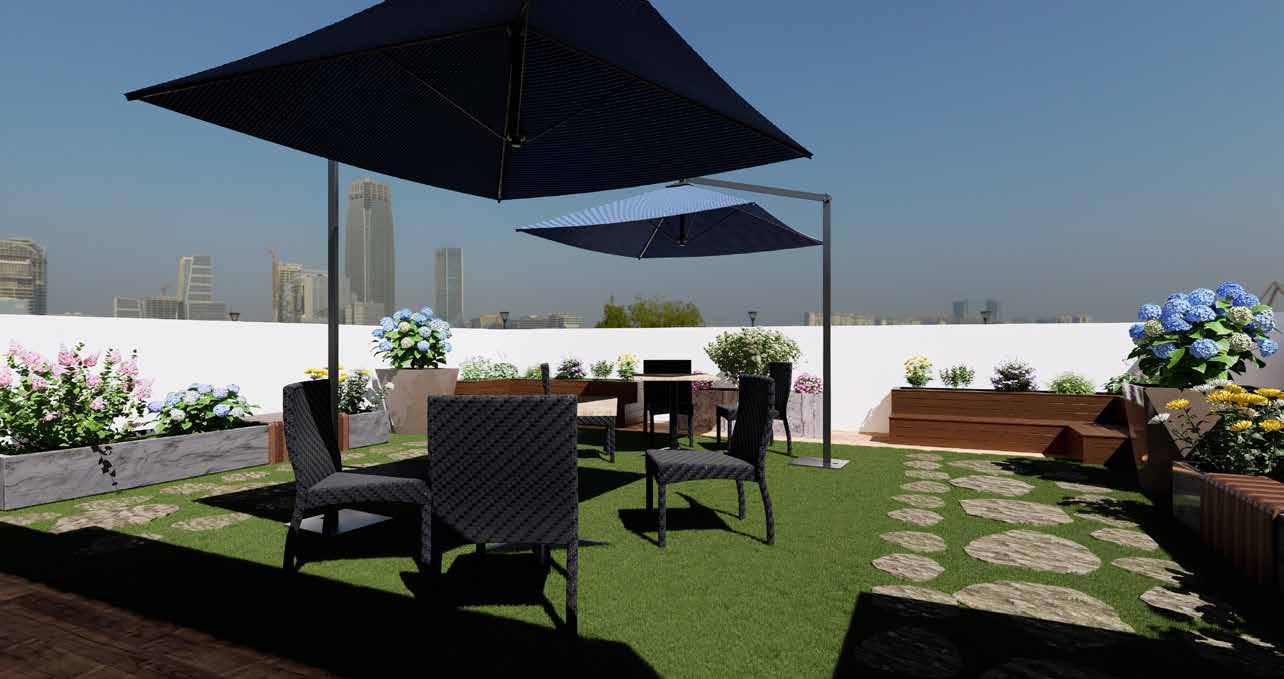

The main selling point of this project are the amenities located on the roof, that being the rooftop bar/dining area. There is also a rooftop garden that serves as an area to relax and unwind. However, the main focus of this project was to bring to life a vision of an area where people can enjoy the evening/night view of the city while enjoying a nice meal, or any refreshment of sorts with a beautiful ambiance brought by the earthen aesthetic of the bar and dining area.

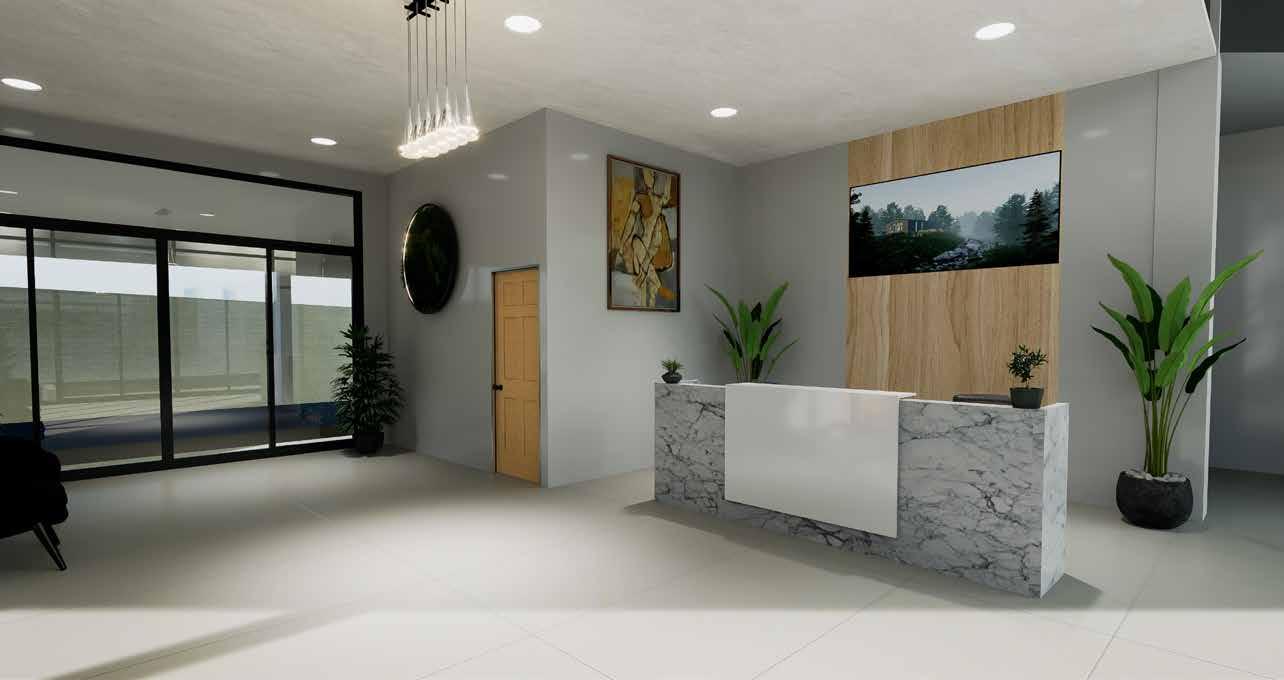

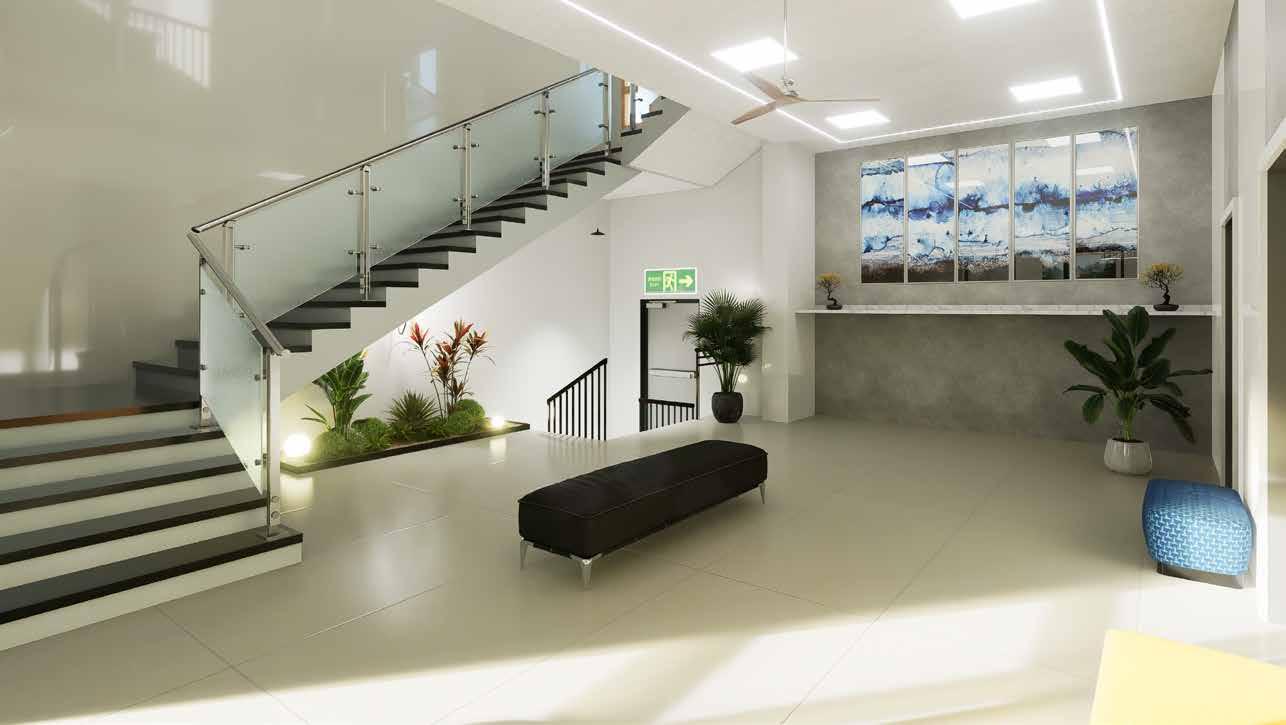

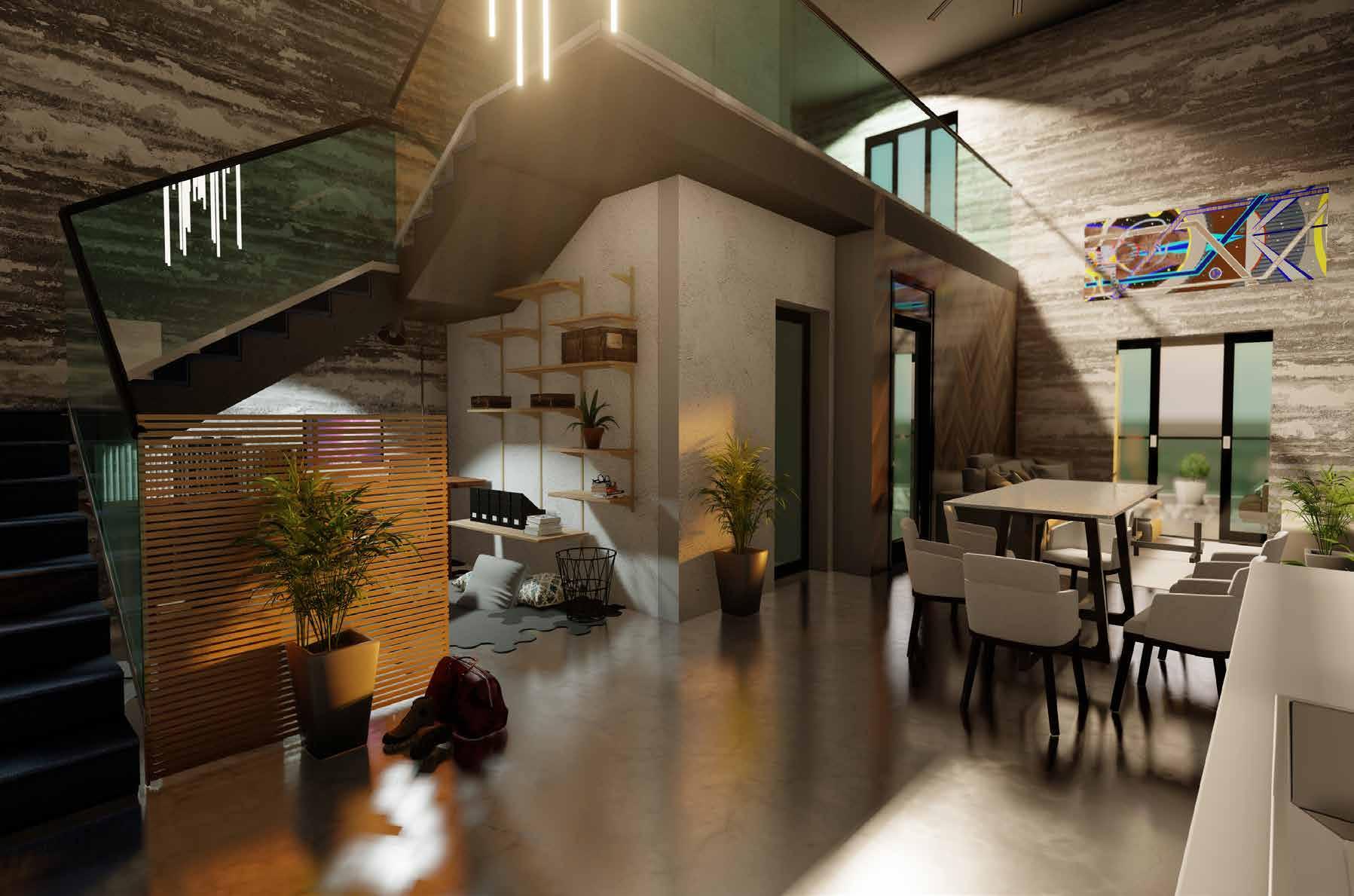

Although the rooftop amenities are the primary focus of this project, the interiors are by no means to be ignored in any way. The reception area, as well as the waiting area leading uptairs, is fitted with an off white aesthetic that gives off a formal, yet soothing feeling to those whom may enter this space.

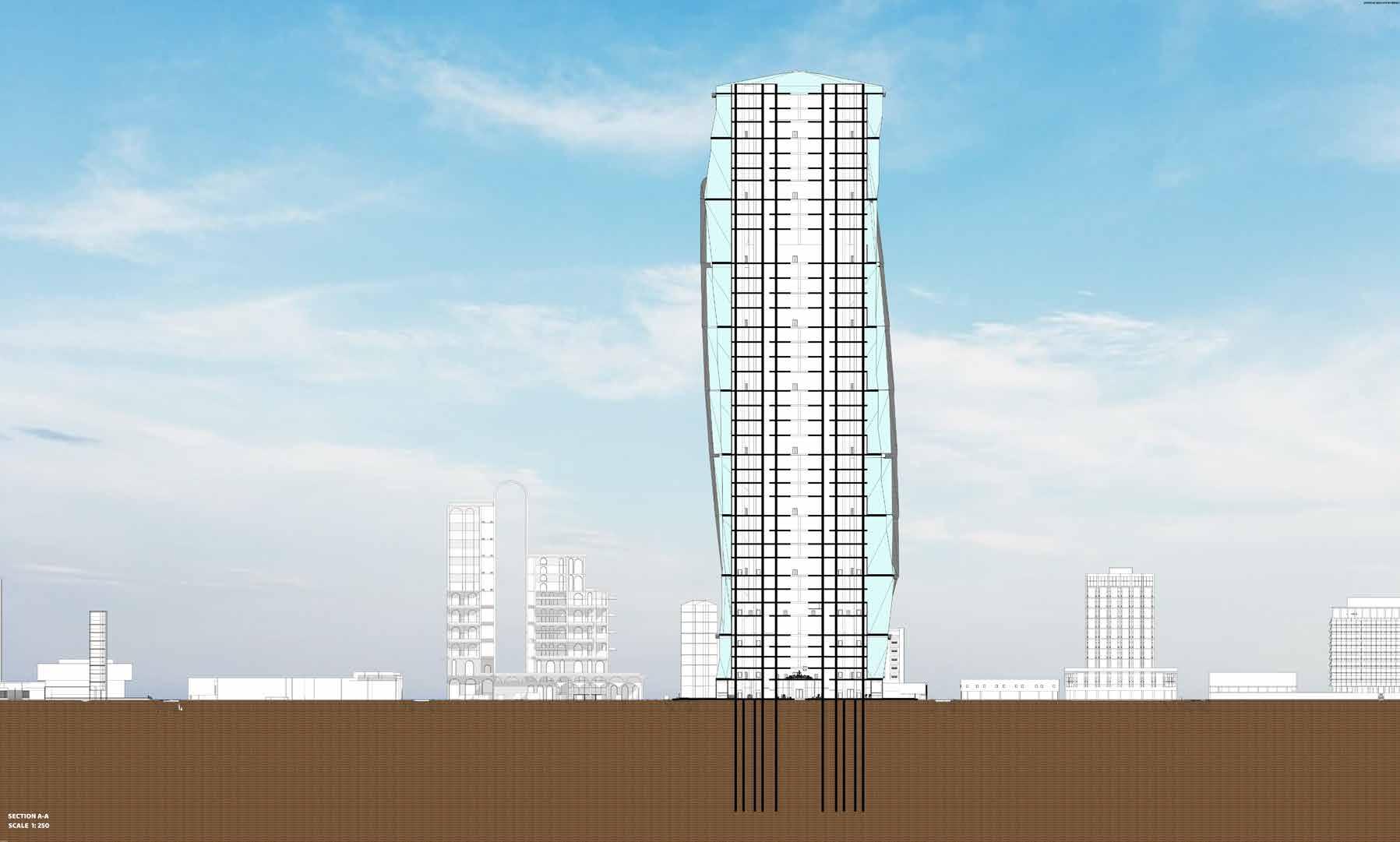

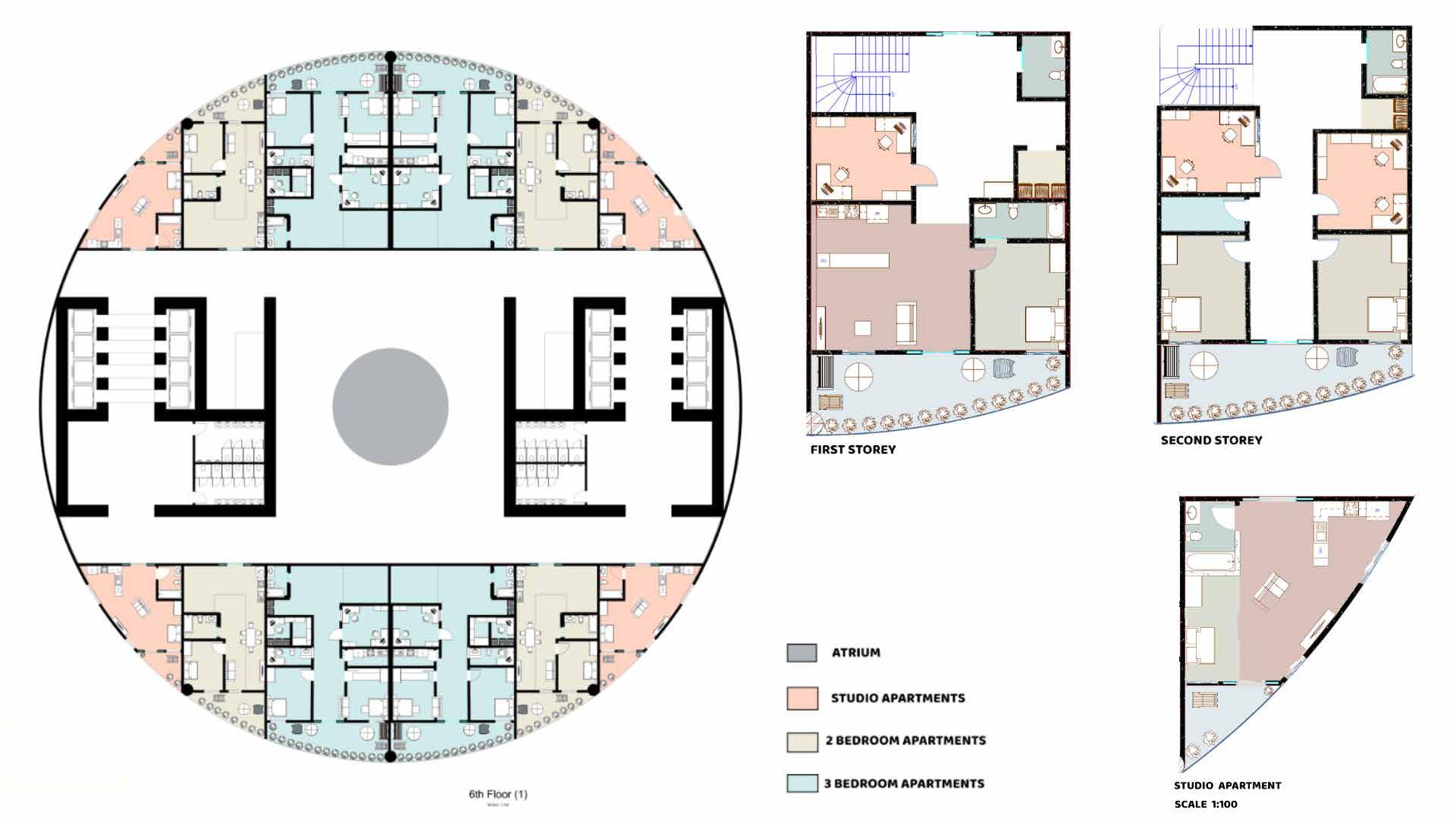

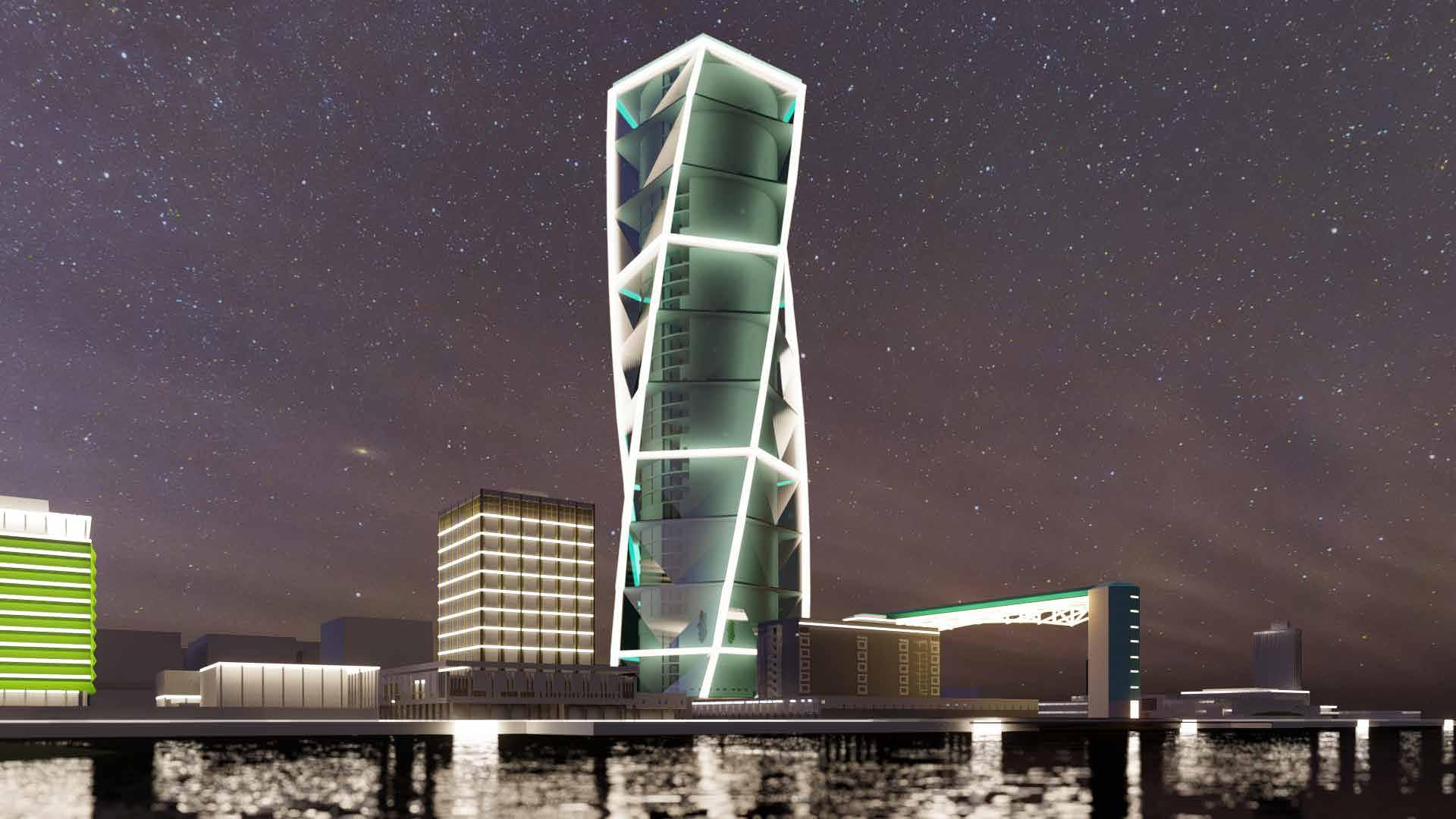

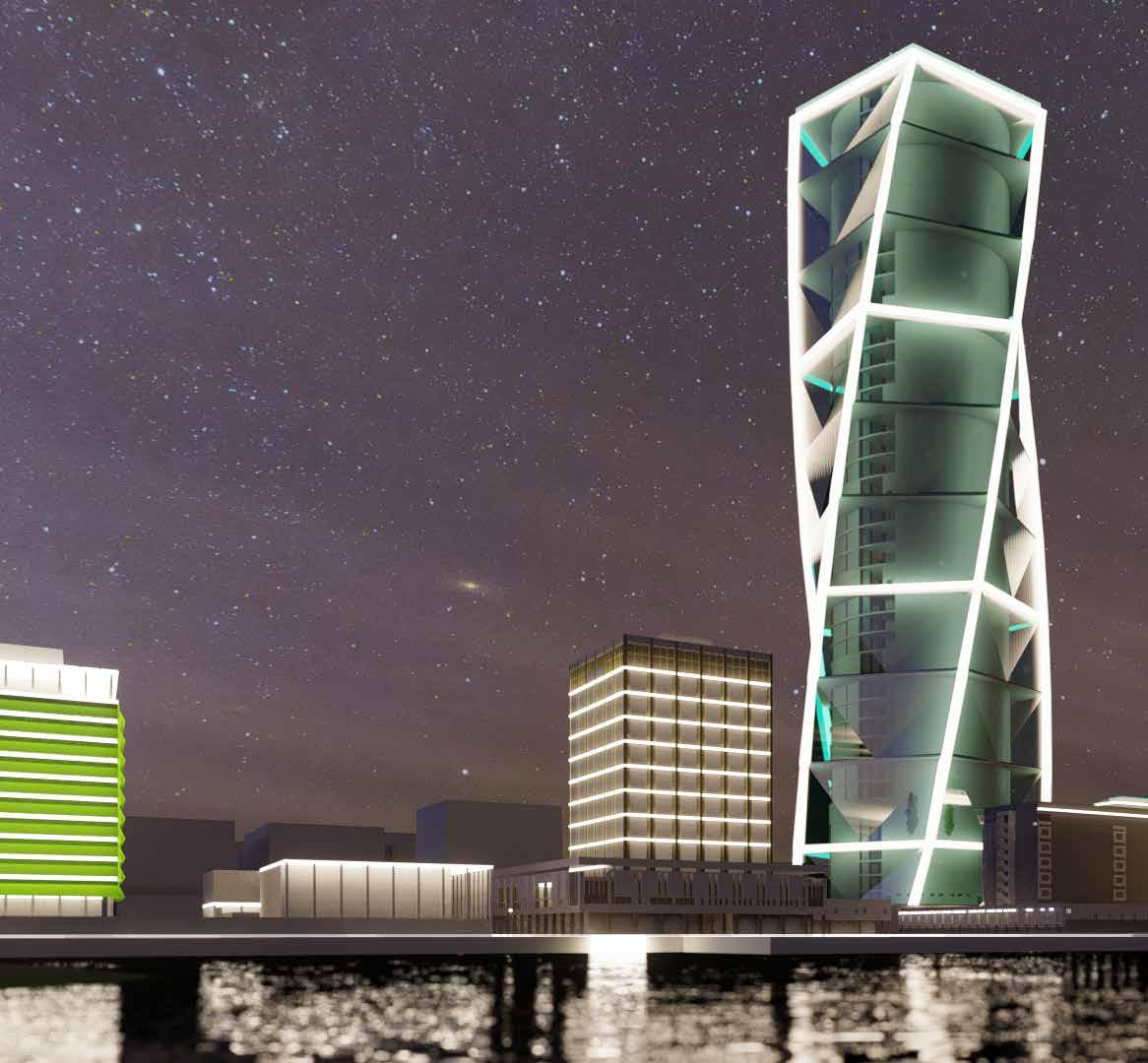

towers

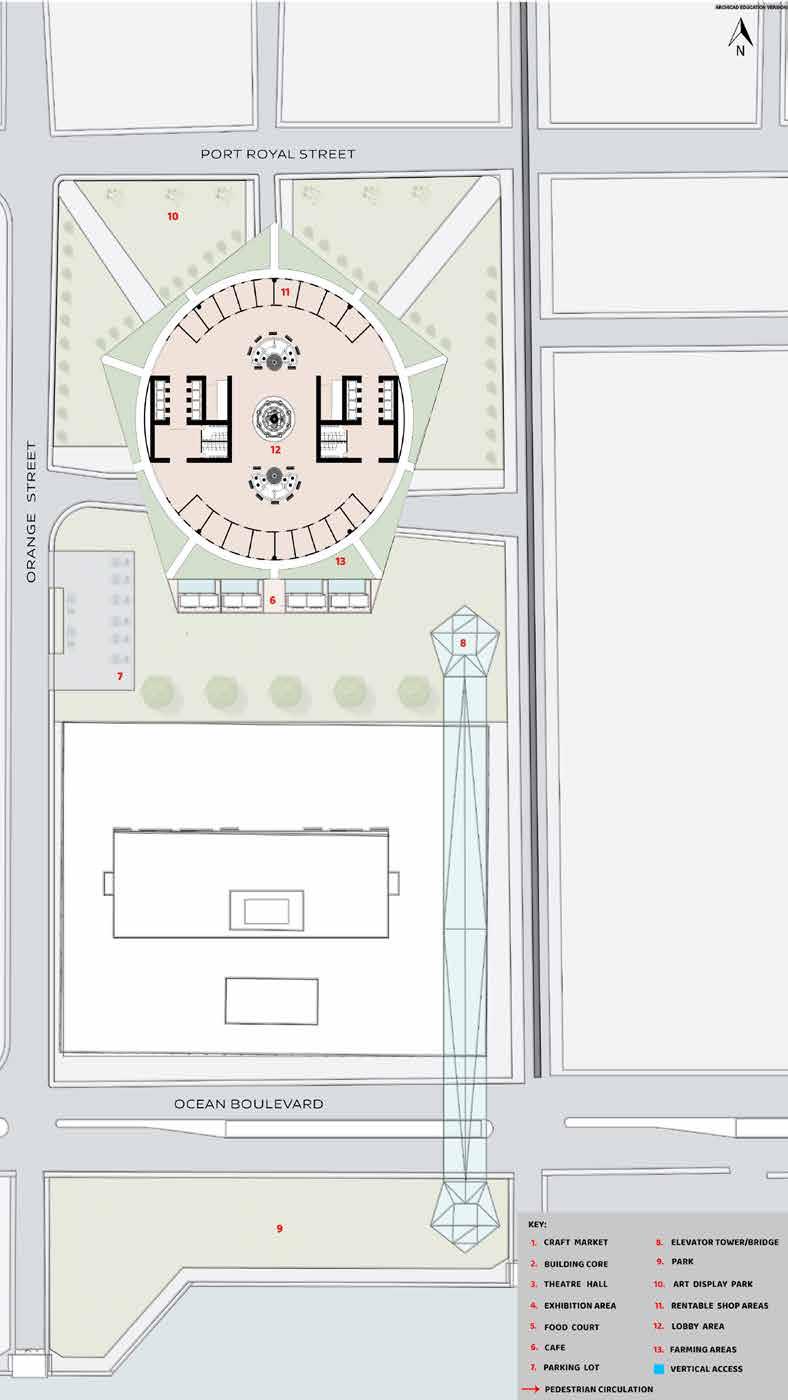

The year is 2092, the much anticipated 400 year anniversary of the Port Royal earthquake of 1692, and Jamaica now experiences an average of 10 hurricanes per year. However, despite the climatic challenges, Jamaica has risen to an economic standing parallel to the world’s wealthiest country, Singapore. Jamaica’s population has now increased to a total of 20 million residents.

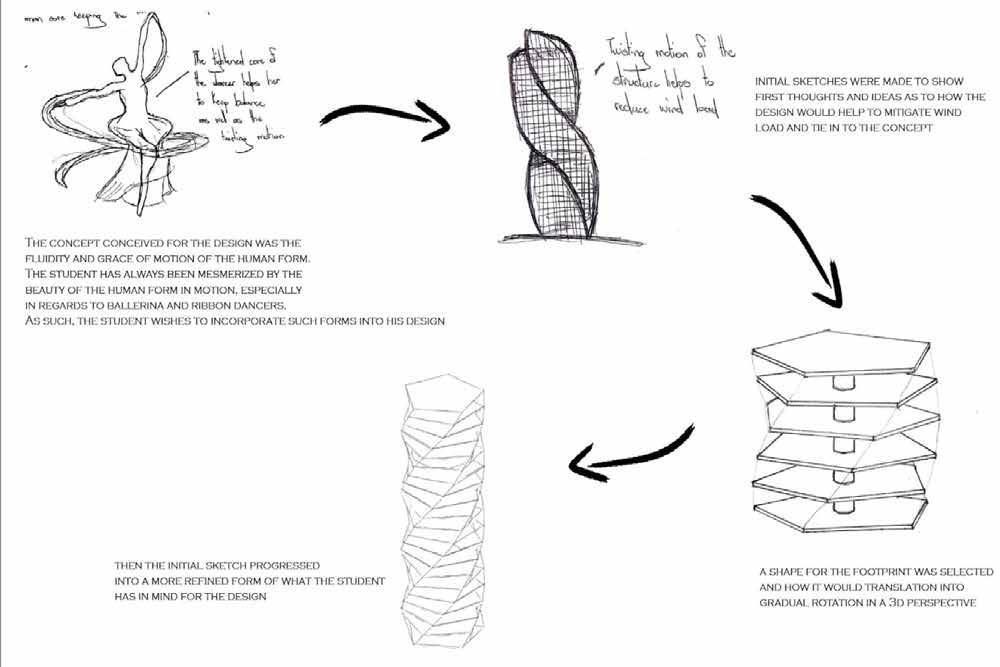

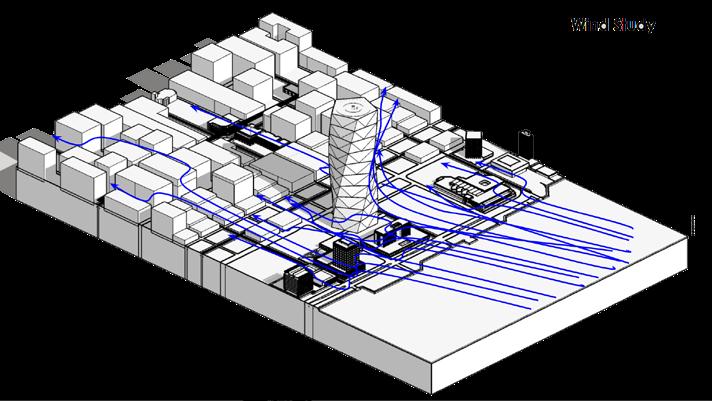

concept

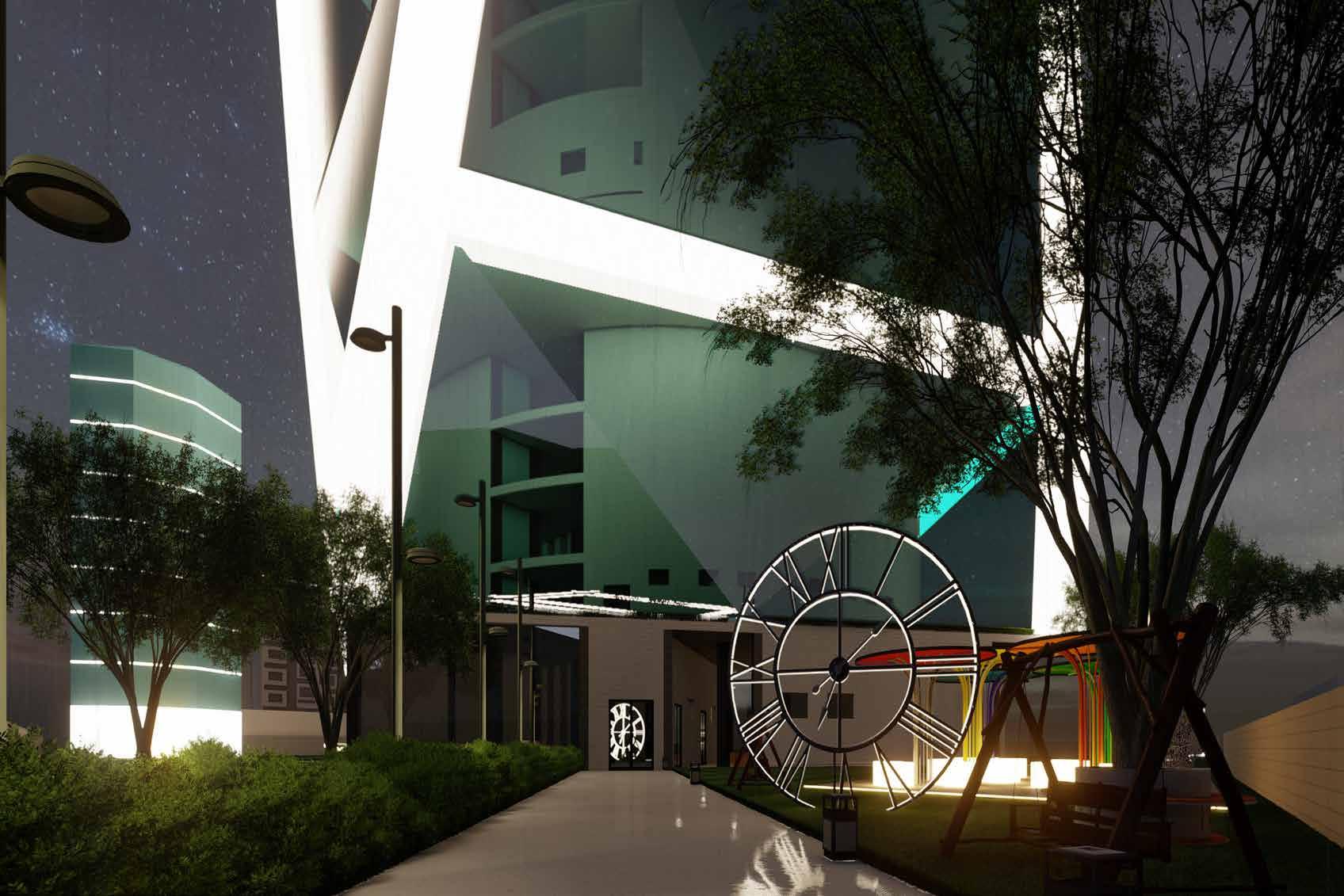

A - ENTRY

One of the entry points into the tower, it highlights its scale and beauty while also simultaneously inviting one to enjoy the garden space around as you make your way inside to the ground level.

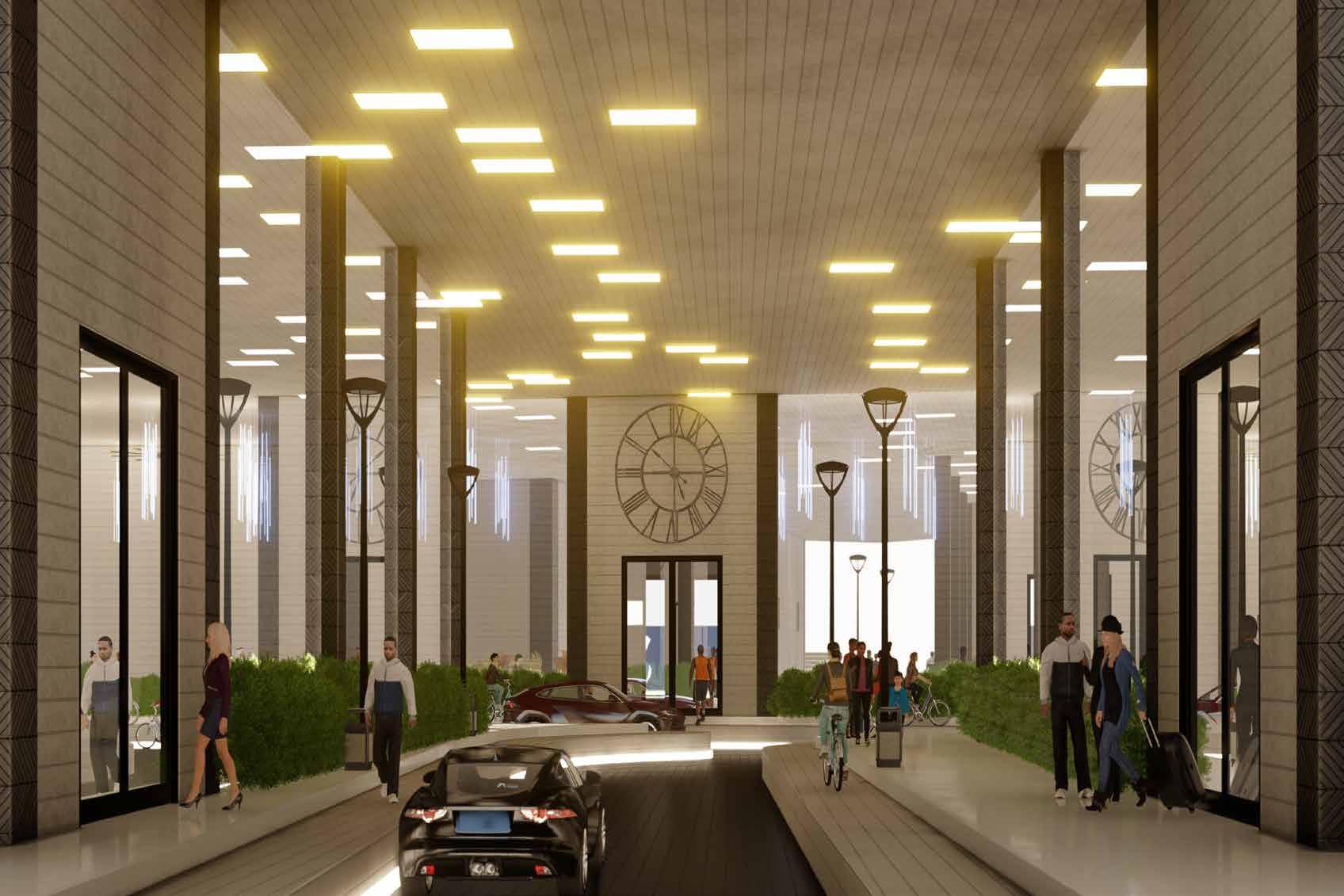

B - GROUND LEVEL

A key aspect of this space was that it did not interrupt the flow of traffic in any way, but rather enhances a person’s drive through it with a series of lights and cobblestone aesthetic.

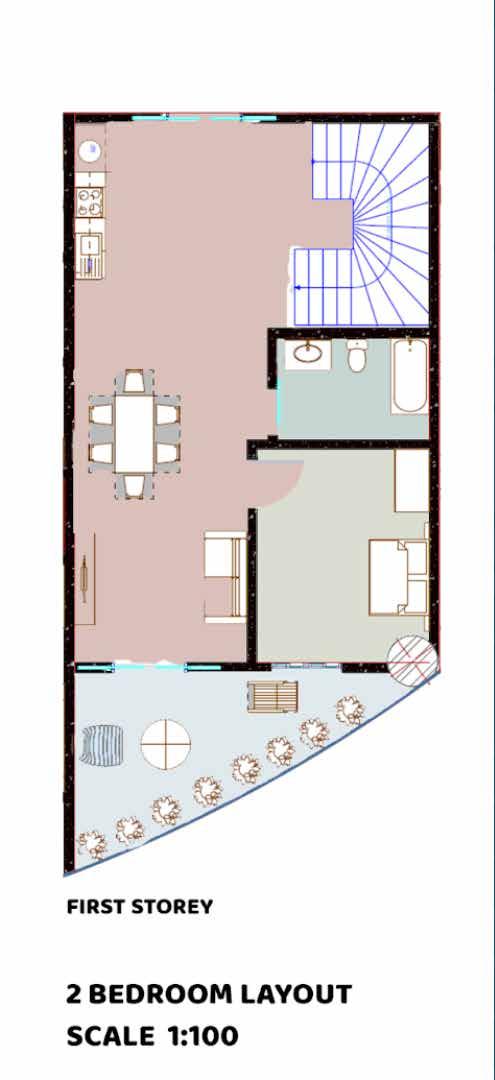

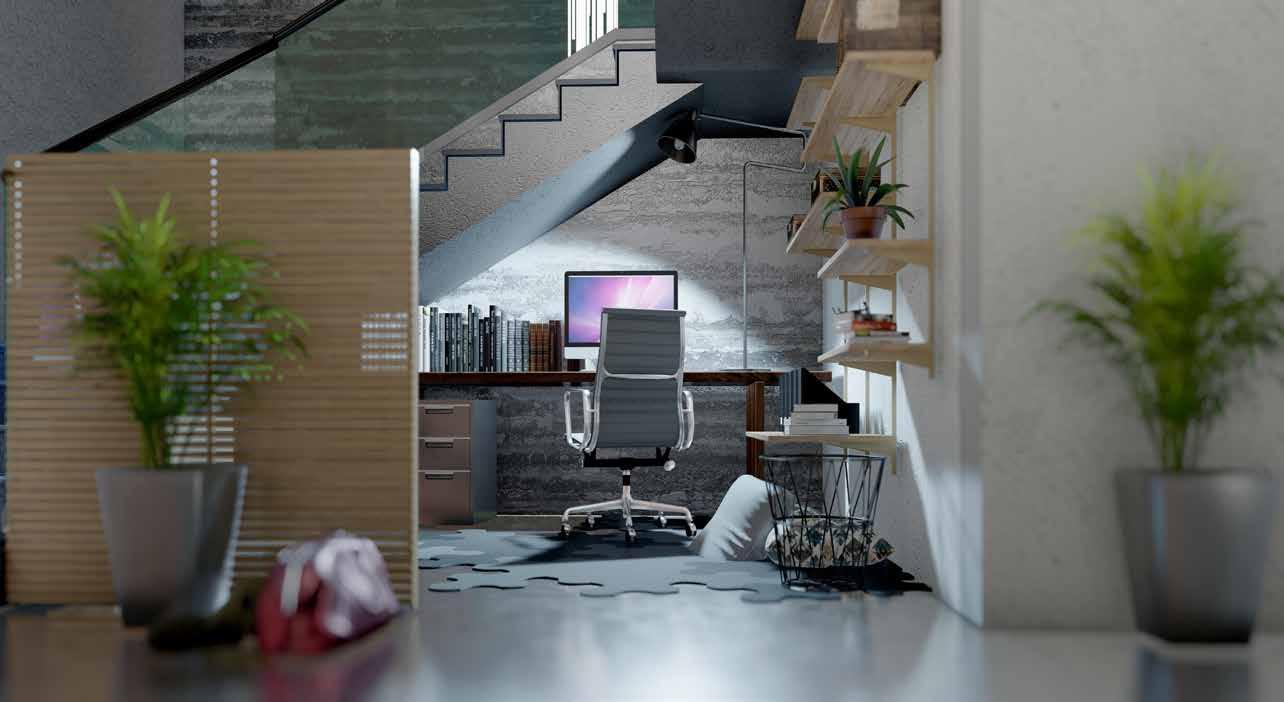

This render, by using Lumion, allows you to get a visual of my vision for this 2 bedroom layout and how all of the limited space is maximized while also offering each section of the apartment to feel distinct from the other.

PURE PRESENCE

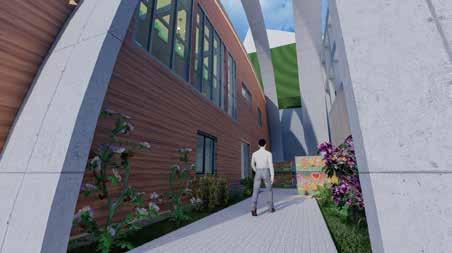

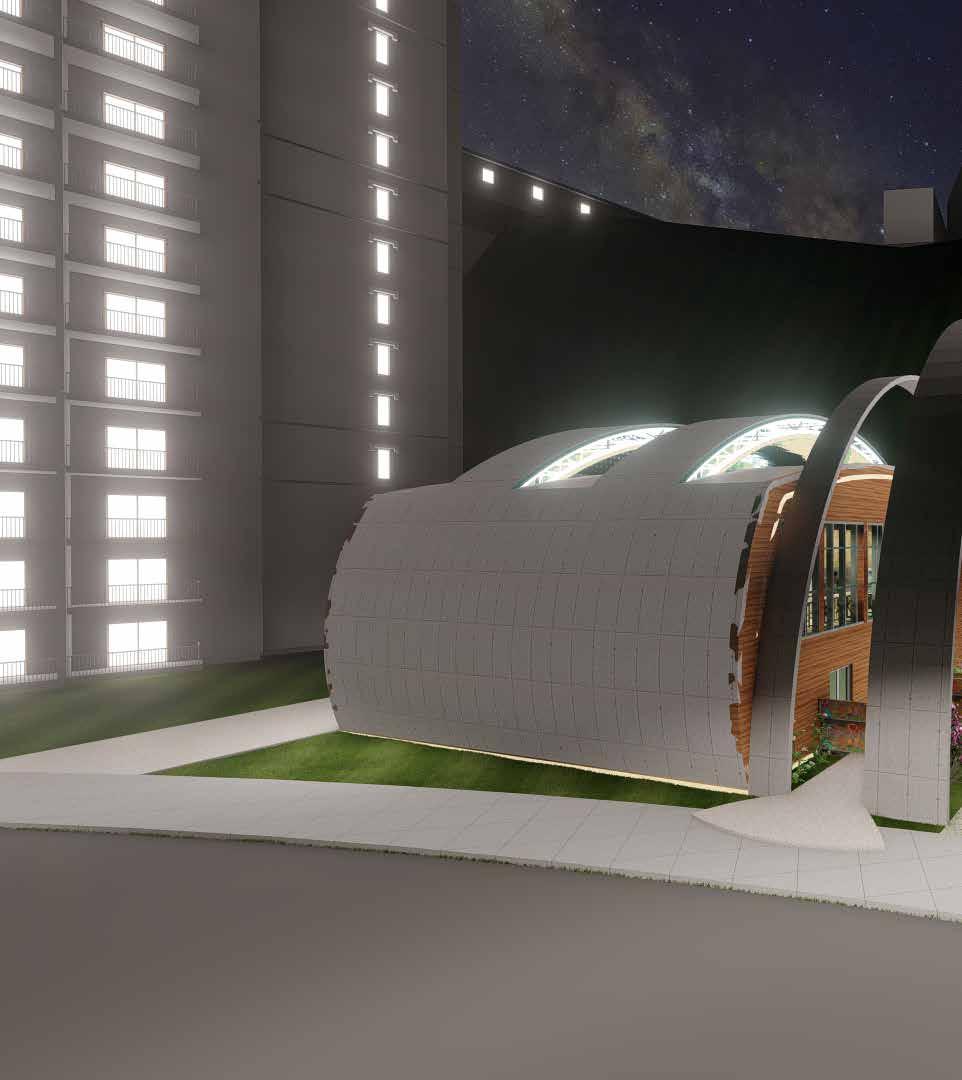

The idea for this project is to have a food and drink museum focused on the production process of various wines using different fruits. The design scheme is one that would be shaped like a wine barrel with a rustic feel, as well as a courtyard with different fruits growing for tasting

concept

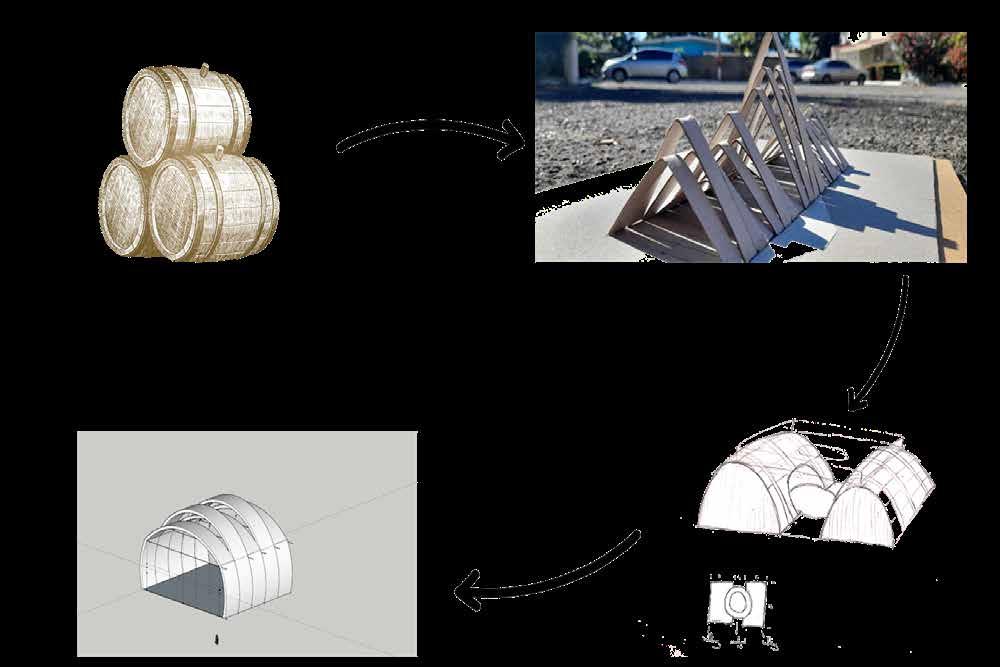

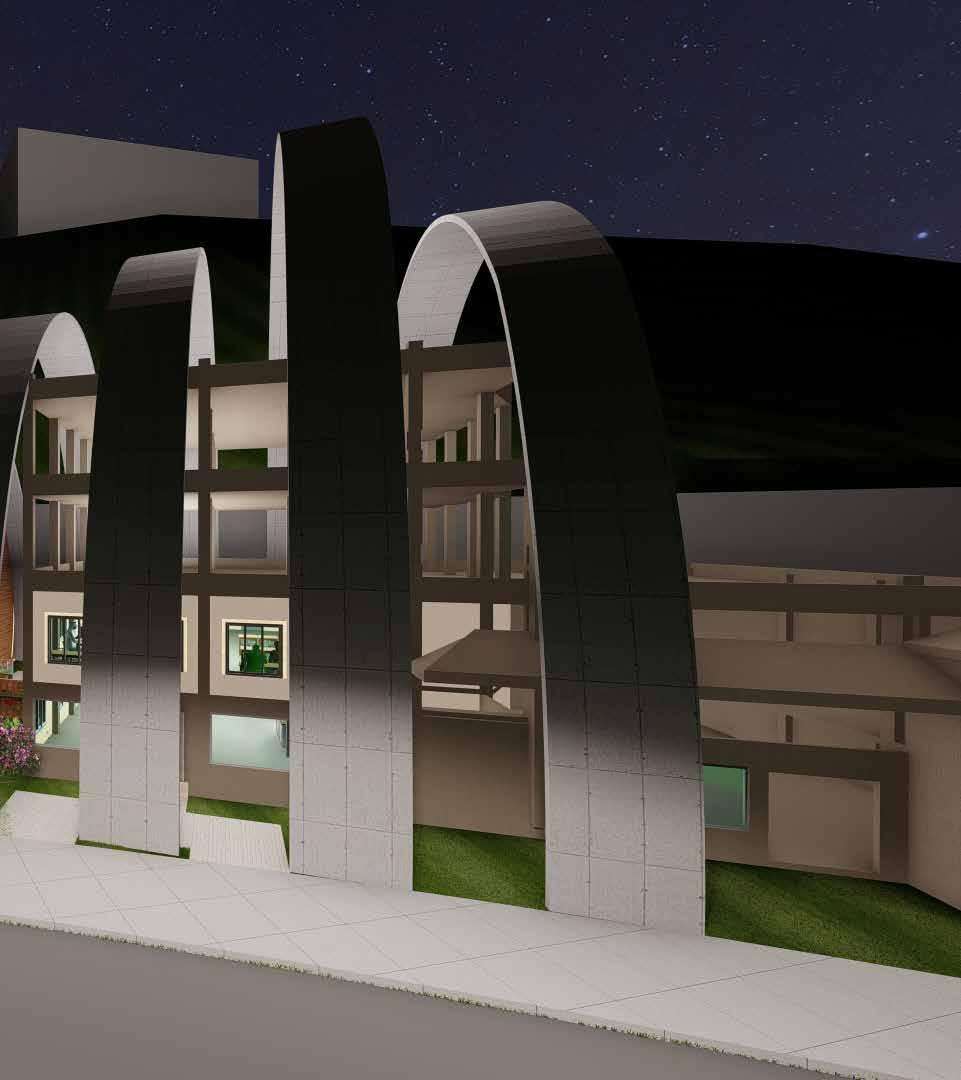

Drawing inspiration from the curved shape of the interior of the Lahofer Winery, a concept of using a wine barrel shape for the structure was born, further tying in to the purpose of the building, which is the focus of wine production using local materials.

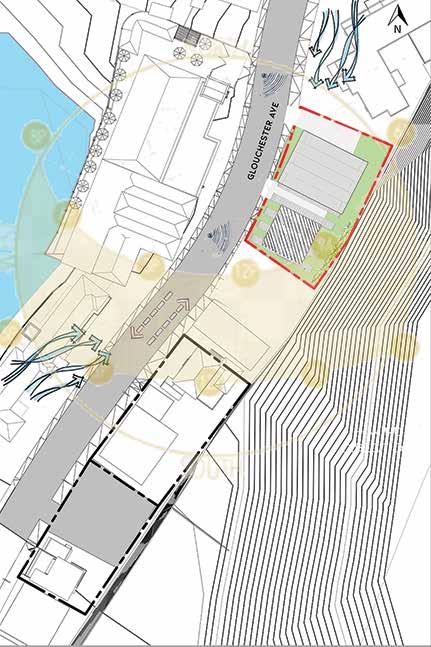

Site Analysis

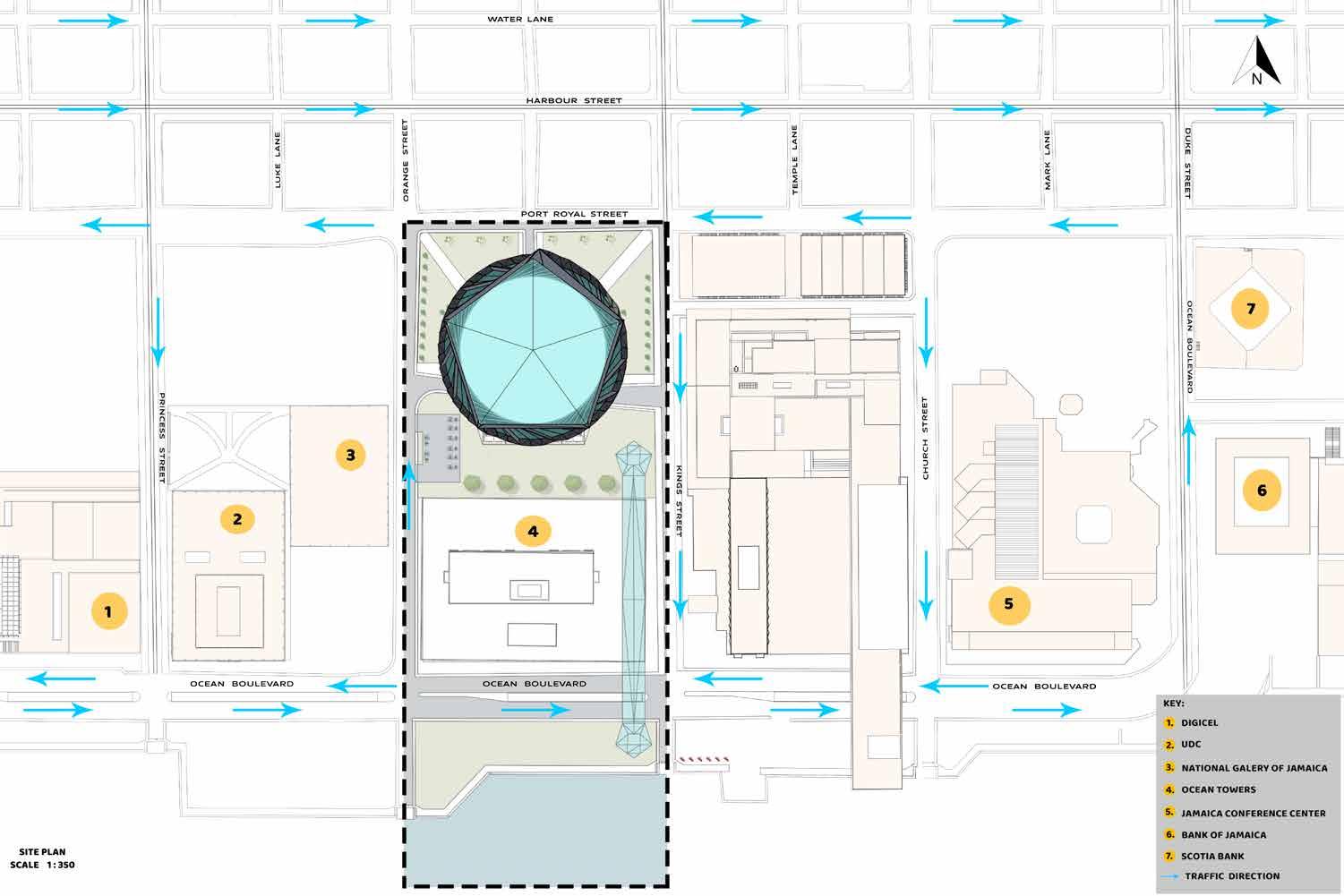

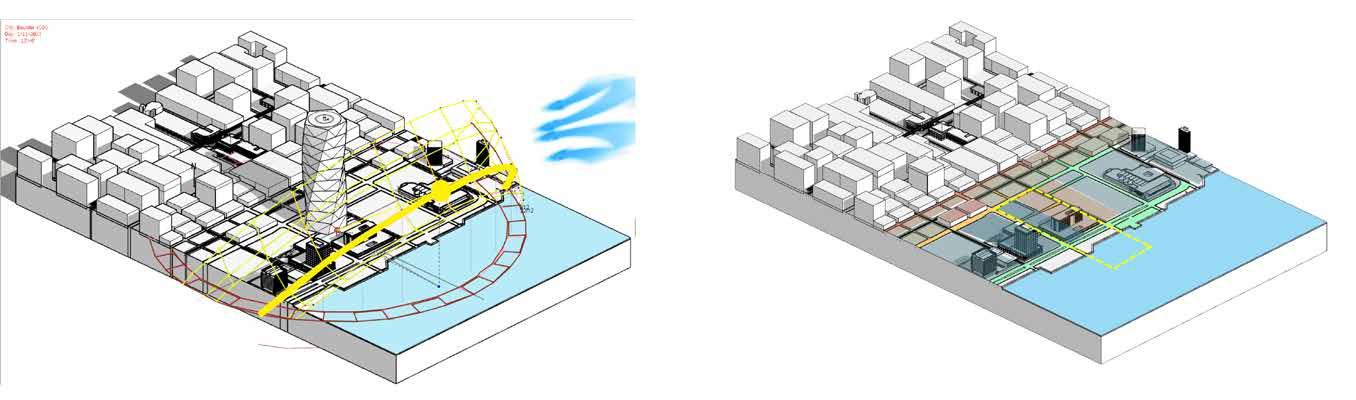

The site allocated is site 1, located on Jimmy Cliff Boulevard and across from the Casa Blanca Restaurant. Vehicular traffic on this street is two way, as well as pedestrian traffic. Wind was observed coming from the north and southwest at the time. Due to the nature of the Hip, Strip, noise was also a potential issue observed.

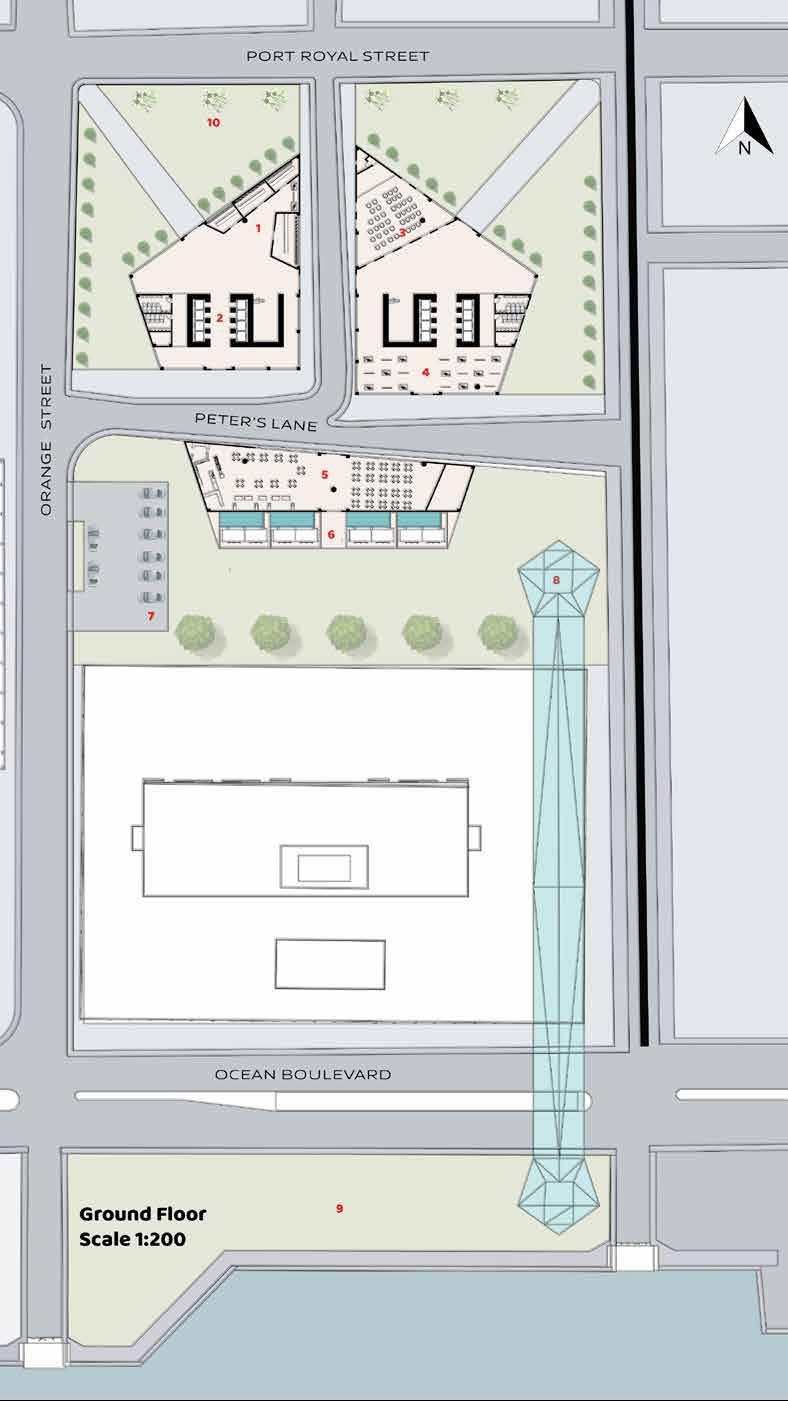

ground floor

1. Reception Area 2. Wine Cellar

Machine Room

Service Area

Service Lift

Bathroom

Elevator

Staircase

Shop Area 2. Elevator

Stairs 4. Bathroom

1. Shop Area

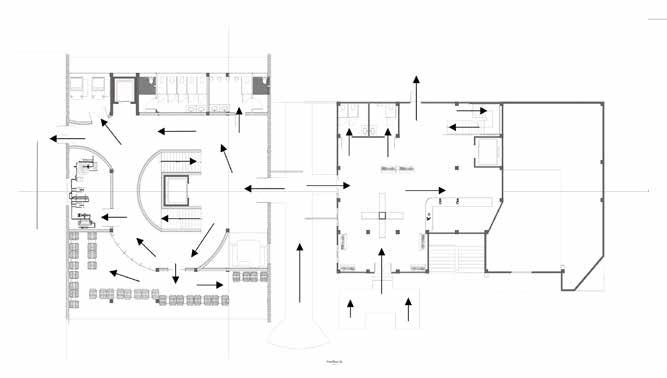

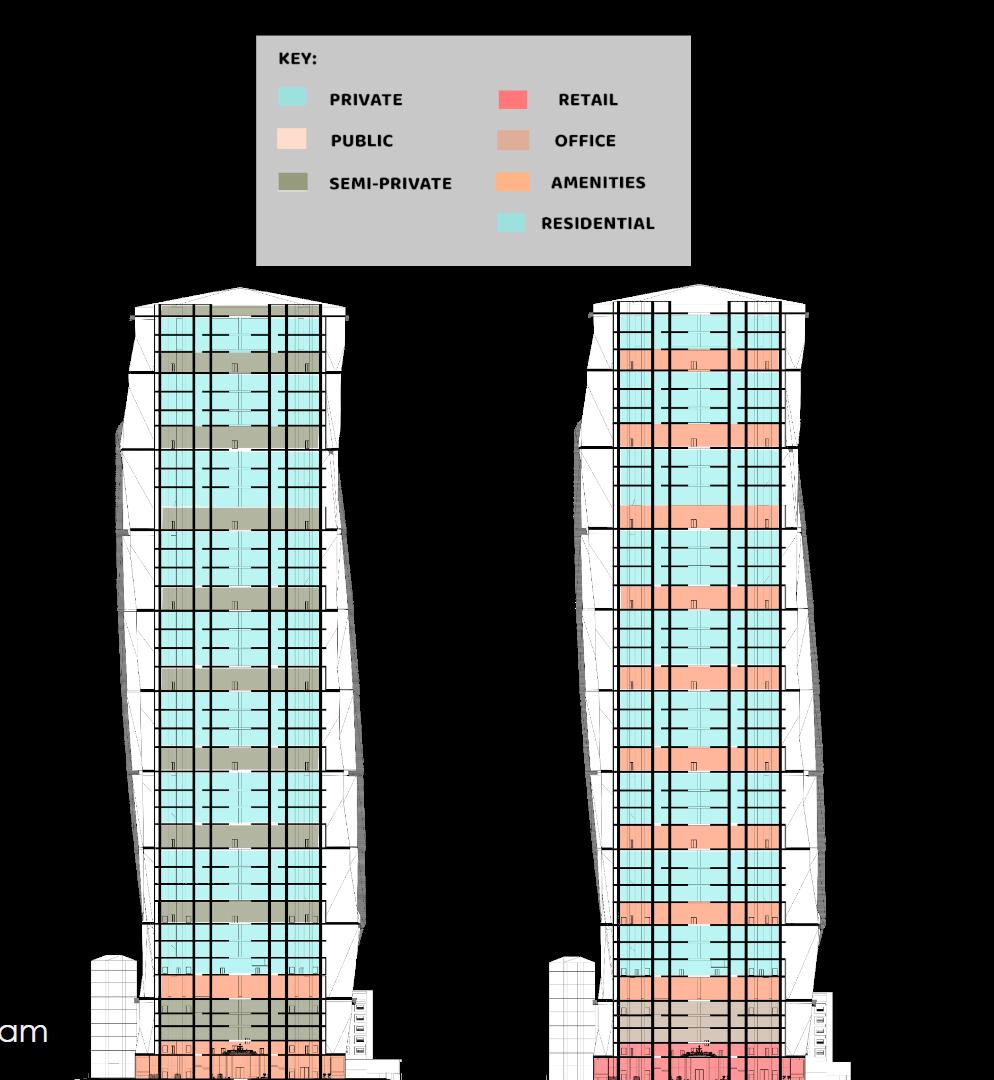

PUBLIC VS. PRIVATE SPACES (GROUND FLOOR)

PUBLIC VS. PRIVATE SPACES (FIRST FLOOR)

Showroom

Wine Tasting Area

Seminar Area

Service Area

Bathroom

Emergency Stairs

Cafe

Kitchen

Bathroom 4. Emergency

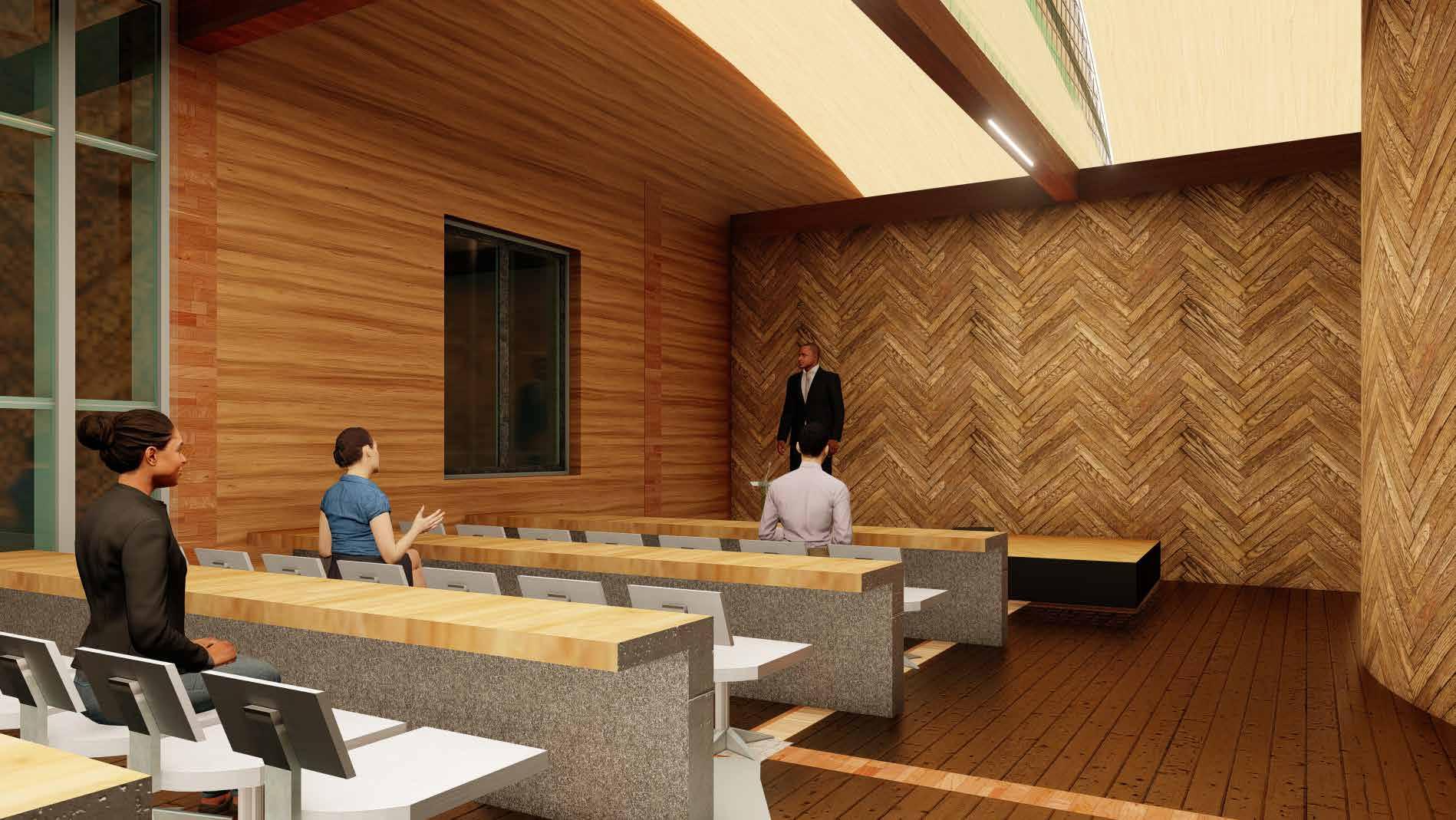

3. seminar area

CIRCULATION

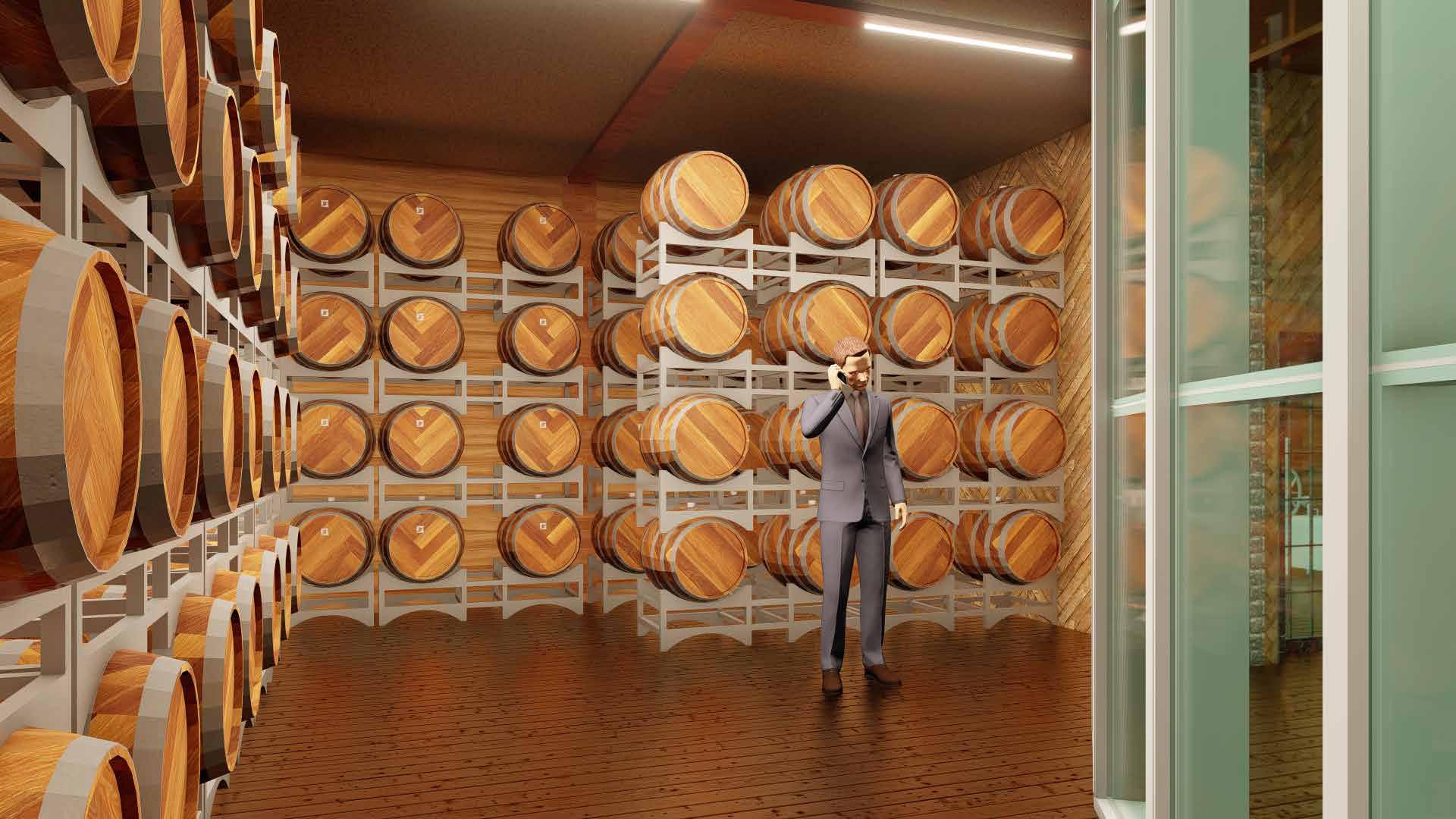

2. WINE CELLAR

This space, as stated, is the wine cellar where a various assortment of different wines and meads are kept for storage as well as aging in a cool and slightly lit environment

2. WINE TASTING AREA

As well as being able to enjoy the view across the street, this space offers a relaxing ambiance in which visitors can savour the different flavours of wines and meads.

detailed

sections (fig. 1)

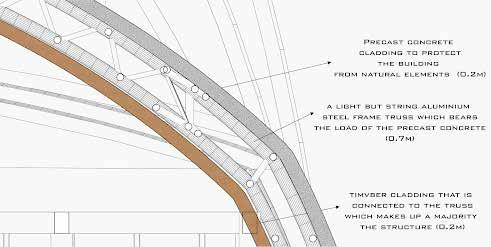

THIS SECTION SHOWS THE DETAILED CONNECTION OF THE LAYERS OF THE STRUCTURE STARTING WITH THE EXTERIOR, WHICH IS COMPRISED OF PRECAST

CONCRETE AND PROTECTS THE INTERIOR FROM THE ELEMENTS, AND THIS EXTERIOR IS SUPPORTED BY A LIGHTWEIGHT YET STURDY ALUMINIUM FRAMING

WHICH ACTS AS THE SKELETON FOR THE STRUCTURE, AND FINALLY THE INTERIOR FINISH, COMPRISED OF A TIMBER CLADDING, MADE UP OF DIFFERENT PANELS, WHICH ARE ATTACHED TO THE ALUMINIUM FRAME TO CREATE A STRONG, LIGHTWEIGHT AND BREATHABLE STRUCTURE.

detailed sections (fig. 2)

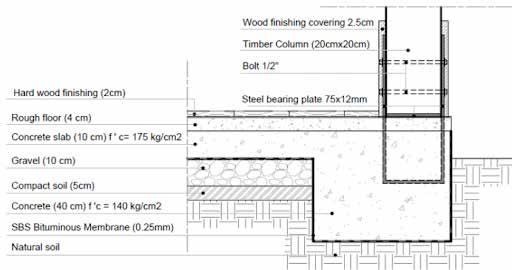

THIS SECTION SHOWS THE DETAILED CONNECTION OF THE floor and column of the structure. since both primarily consist of timber, concrete was used as the base of the floor as well as the foundation which goes deeper into the earth. the timber column is embedded into the concrete flooring and fitted with steel bearing plates for extra stability and secured with bolts, WHILE A ROUGH FLOORING WAS PLACED ON TOP OF THE CONCRETE SLAB AND TOPPED OFF WITH A TIMBER FLOORING FINISH.
