csa graduate, utech Skills
Architecture
twinmotion
d5 render
mikhailhutchinson@gmail.com contact
Duhaney Meadows, Duhaney Park, Kingston 20
(876)-509-3295/(876)-237-7478
education background work experience
University of Technology
ba. in architectural studies, september 2018 - november 2023
St. Elizabeth Technical High School
caribbean advanced proficiency examination diploma, Class of 2018
Successful Completion Of Eight(8) CAPE subjects:
(Physics (Units I and II), Communication Studies, Computer Science, Caribbean Studies, Green Engineering, Building, Mechanical and Engineer Drawing(B.M.E.D), PureMath
Munro College
caribbean secondary education certificate, Class of 2016
Successful Completion Of Nine (9) CSEC subjects:
(Mathematics, English Language, Information Technology, Geography, Chemistry, Physics, Spanish, History, Technical Drawing)
courses
utech
certificate of completion
Successful Completion Of Surveying and Mapping with Unmanned Aerial Vehicles April 2023
ARCHITECTURAL designer
studio 215 jan 2024 to sep 2024
* Creating 3D Models of Buildings
* Constructing 3D Renders
* Drawing Detail and Plan Drawings
* Drafting 2D Construction Drawings
ARCHITECTURAL INTERN
dm planning and associates
oct 2023 to nov 2023
* Creating 3D Models of Buildings
* Constructing 3D Renders
ARCHITECTURAL INTERN
LLOYD J. ROBINSON’S AND ASSOCIATES DEC 2022 to SEP 2023
* Creating 3D Models of Buildings
* Constructing 3D Renders
* Drawing Detail and Plan Drawings
* Drafting 2D Construction Drawings
The purpose of this portfolio is to highlight the design process of each project, during university as well as post graduate, in a concise manner that demonstrates my growth as a budding professional in the architectural field.
1. commercial mall
2. complex
Project Year: 2023
Location: May Pen, Clarendon
OBJECTIVE: The objective of this project was the renovation of a previously abandoned building in a suitable location within the town into a mall to promote traffic and business to the surrounding areas.
Project Year: 2023
Location: St. Andrew
OBJECTIVE: To create renders to visualize the finished vision of this apartment complex using a software that was unfamiliar at the time, D5 Render software.
3. towers
Project Year: 2021
Year 3, Semester 2
Materials: Concrete, Glass and Steel
OBJECTIVE: To innovate and challenge the current conventions of building towers within hurricane/ earthquake/pandemic/prone areas of the world and interpret the future ‘Urban Fabric’ of Downtown Kingston.
4. pure presence
Project Year: 2022
Year 4, Semester 2
OBJECTIVE: This project seeks the creation of a Food and Drink Museum of ‘Pure Presence’ which challenges the current notions of Architecture in the Caribbean. One which embraces the challenges inherent to the design of the chosen
5. other works
A compilation of various related works such as sketches and drone shots of various areas.

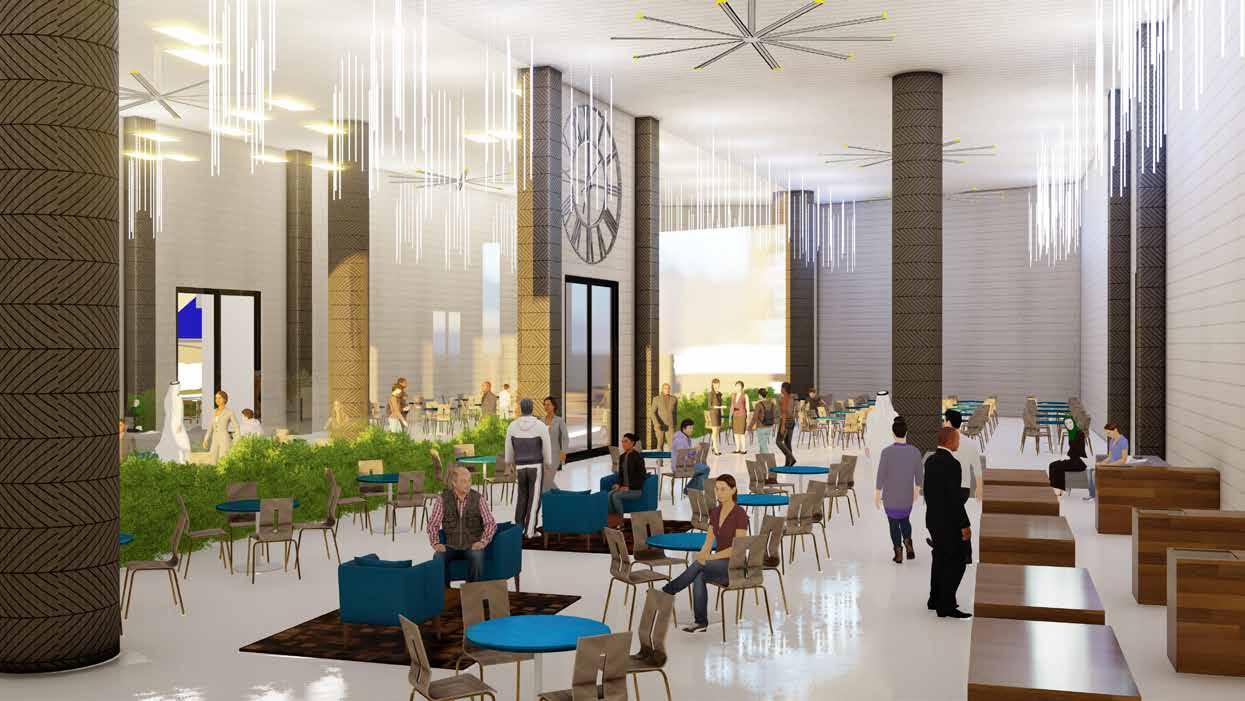

Commercial mall
Project Details: Post Undergraduate (Lloyd J. Robinson’s and Associates)
Project Date: 2023
Location: May Pen, Clarendon
This was the final project during the journey at Lloyd J. Robinson’s and Associates. It is considered it a culmination of everything learned during the time there such as utilizing ArchiCAD, Lumion and the ability to operate an unmanned drone. The project is located in May Pen, Clarendon.
Site location

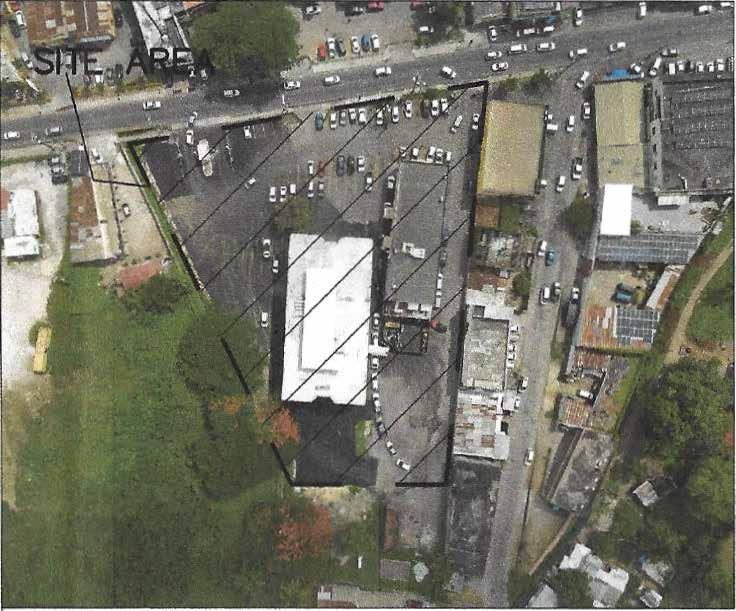

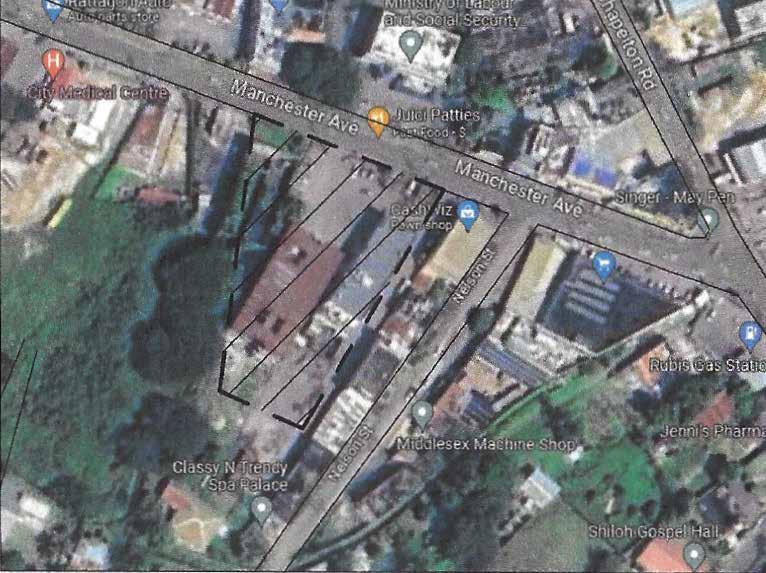

Using a combination of google maps initially to get the location of the building which is on Manchester Avenue main road. This was also an opportunity to utilize skills in operating a UAV as the shots shown here were taken using a DJI Mavic Air 2 Drone to get a better view of the building and the surrounding context.

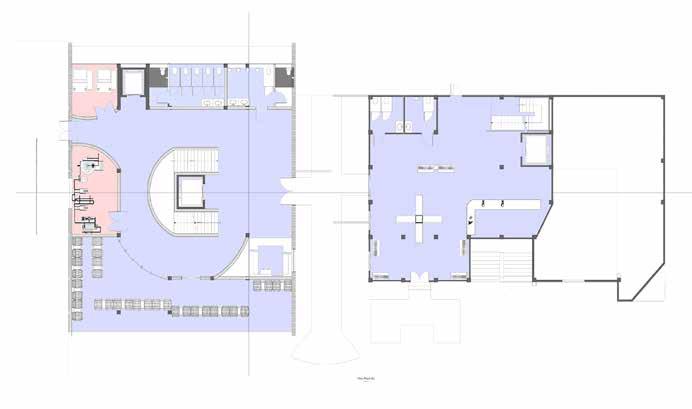

Floor plans

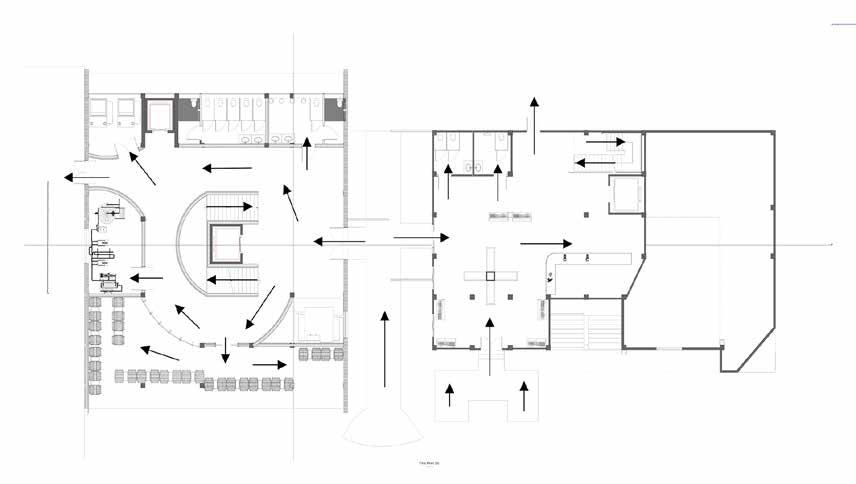

These plans show the proposed ground and first floors for this structure while highlight some wall connection details

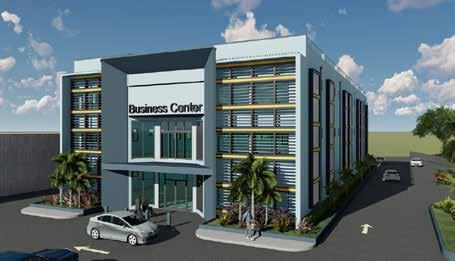

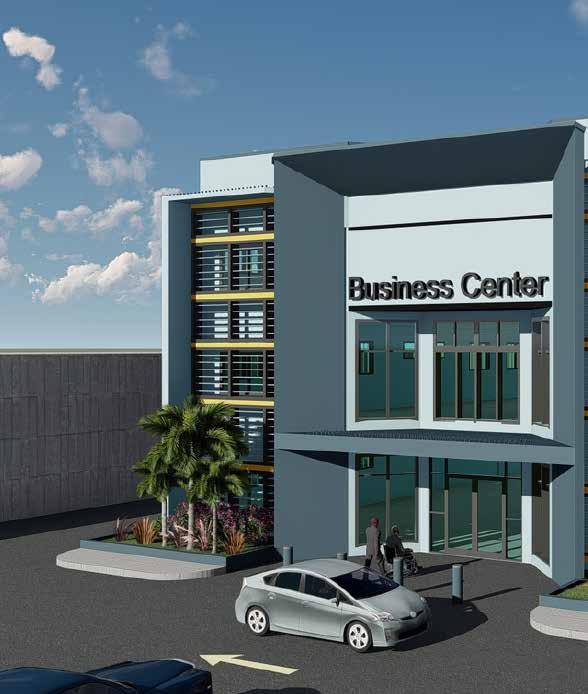

front elevation
A building elevation is a drawing or representation of one side (or face) of a building. It provides a clear, flat view of the structure from one direction, showing its external appearance, including windows, doors, materials, rooflines, and other architectural features.
Here’s a breakdown of what this elevation includes:
Vertical Dimensions: The height of the building is shown, often with markings for floor levels, door/window heights, and roofline.
Architectural Features: These include windows, doors, balconies, or columns. The design, size, and spacing of these elements are highlighted.
Materials: The materials used on the facade, such as brick, stone, glass, or wood.
GUINEP TREE
BUSINESS CENTER
a-a section
A sectional drawing of a building is a detailed illustration that shows a vertical “slice” through the structure, cutting through walls, floors, and ceilings to reveal the interior. This drawing allows viewers to see how the building’s components relate to each other in three dimensions.
Here’s a more detailed breakdown of what this sectional drawing includes:
Walls: The section reveals the thickness, materials, and structure of the walls, both interior and exterior. For example, you might see a concrete wall with insulation or a partition wall with drywall.
Floors and Ceilings: The drawing shows the floors’ construction, such as slabs, beams, or joists, and how they connect to the ceiling structure. It may include details like flooring material (wood, tile) or ceiling finishes.
Callouts: These highlight areas of the structure that are further detailed as shown below.
detailed sections
These sections show the connection details of the roof drainage, the wall connections, as well as the railing details on the roof and the curb and bullion details.
commercial complex
Project Details: Post Undergraduate (DM Planning and Associates)
Project Date: 2023
Location: St. Andrew
This was my only project during my time at DM Planning and Associates, and though my time there was brief, it afforded me an opportunity to develop my skills in a brand new rendering software known as D5 Render. So for this project, where the plans and 3D models were already complete, my objective was to utilize D5 Render to bring the finalized vision of this space to life.

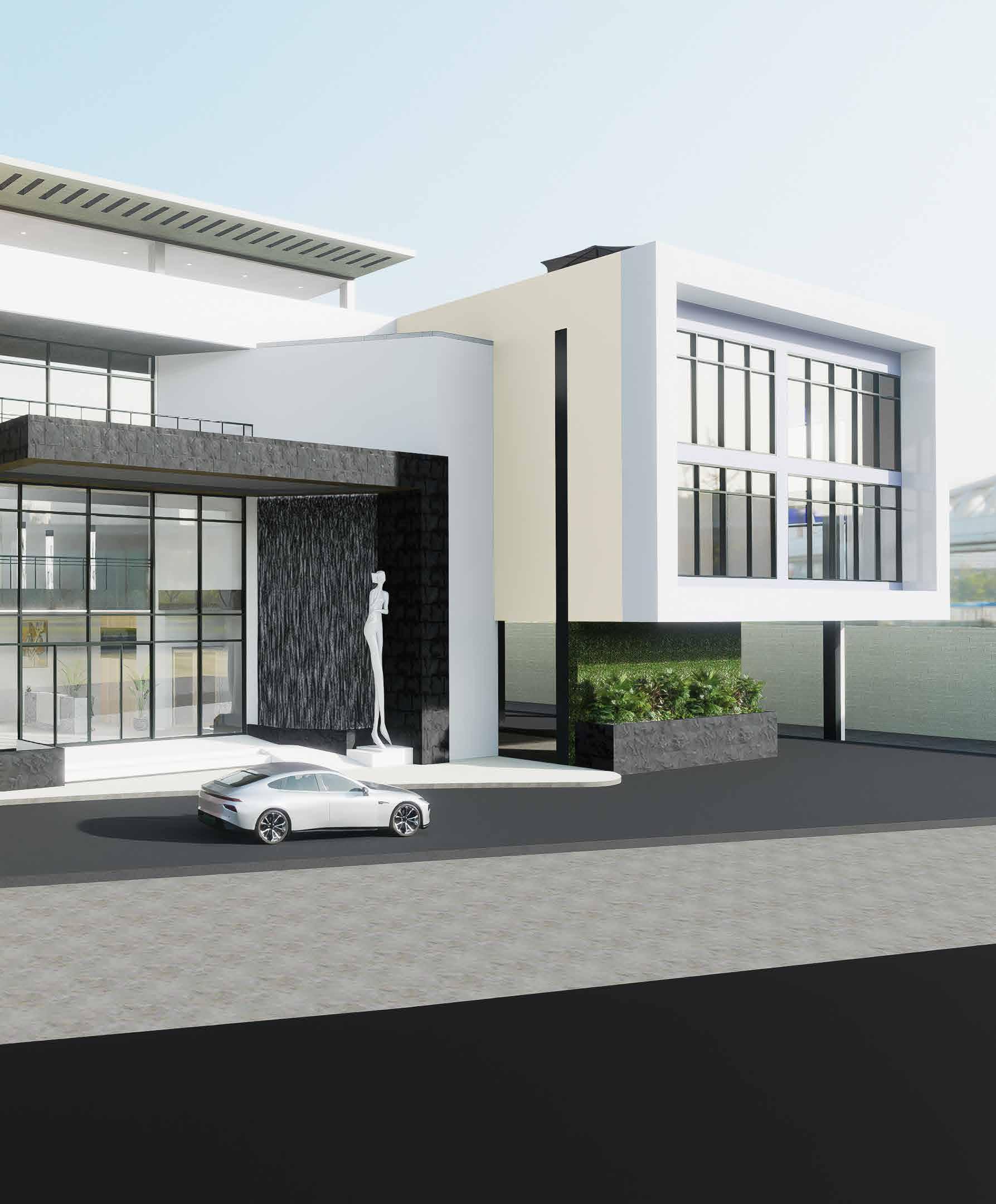

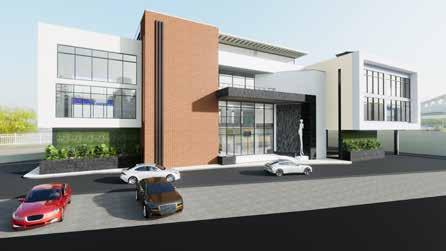

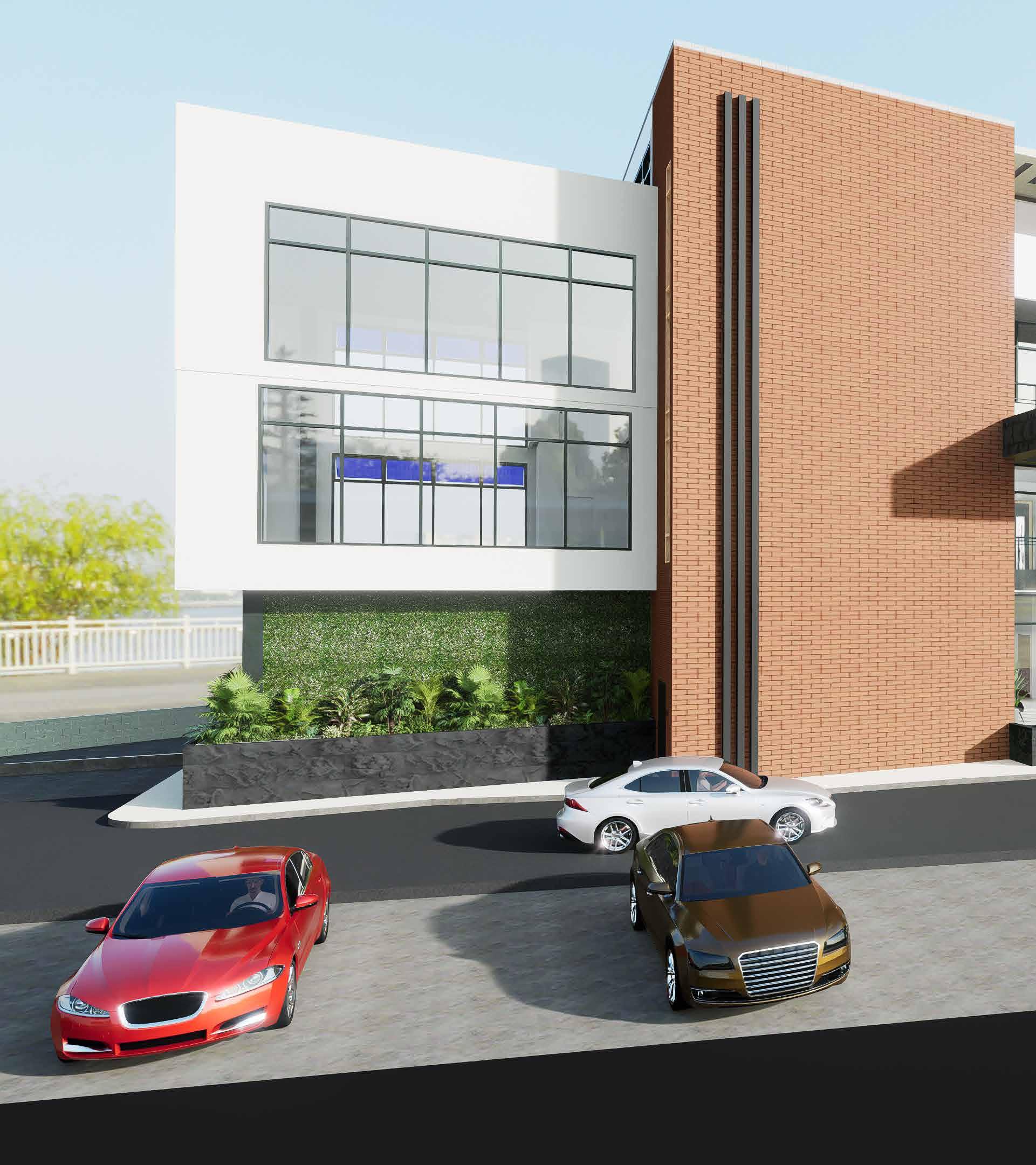

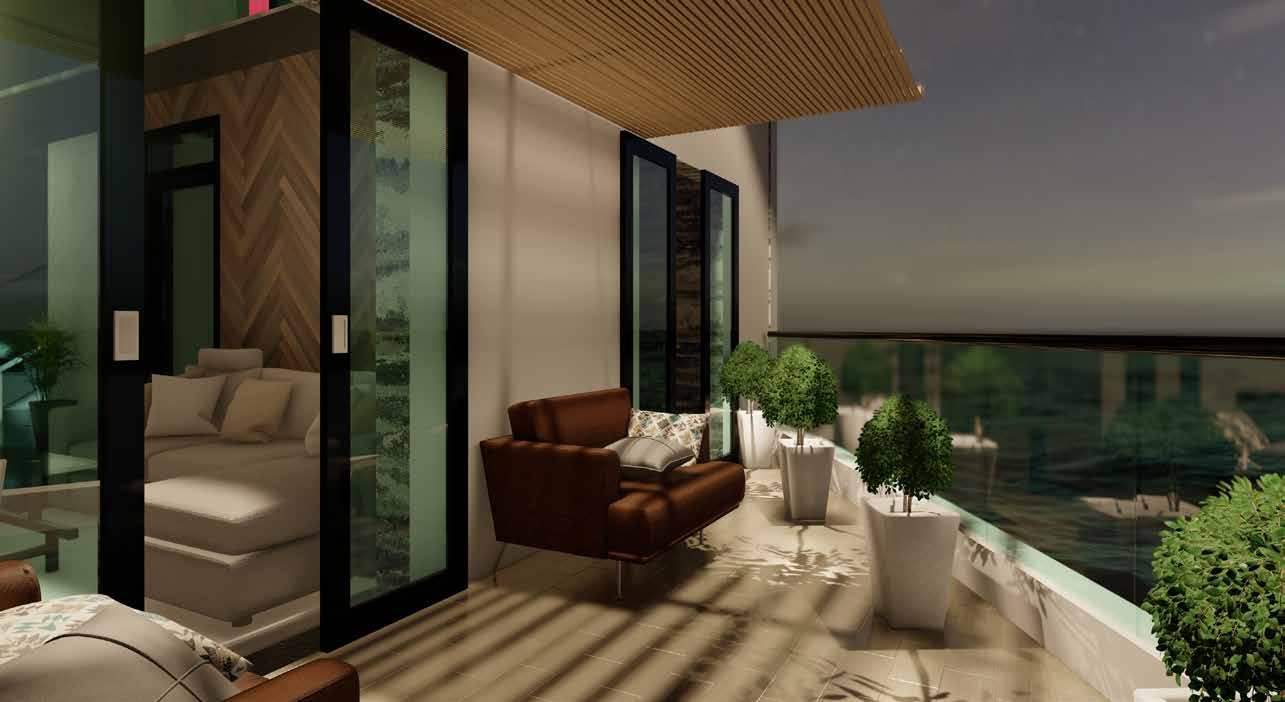

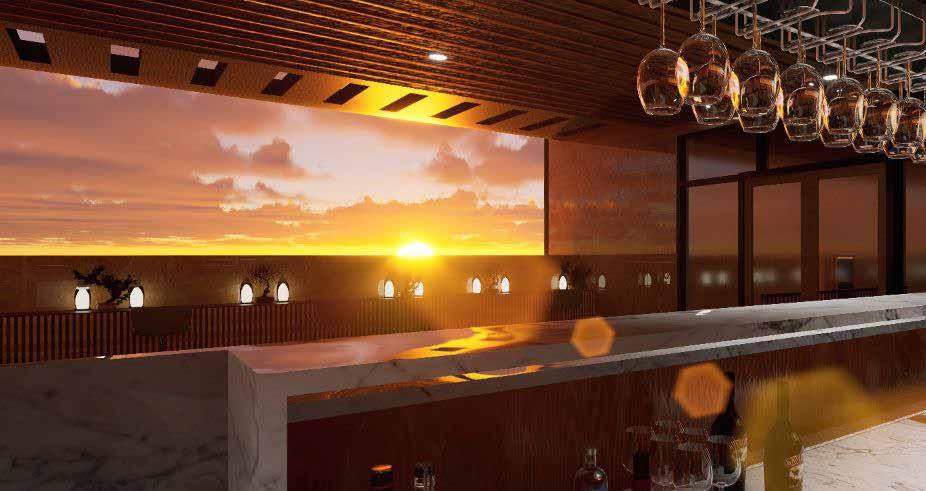

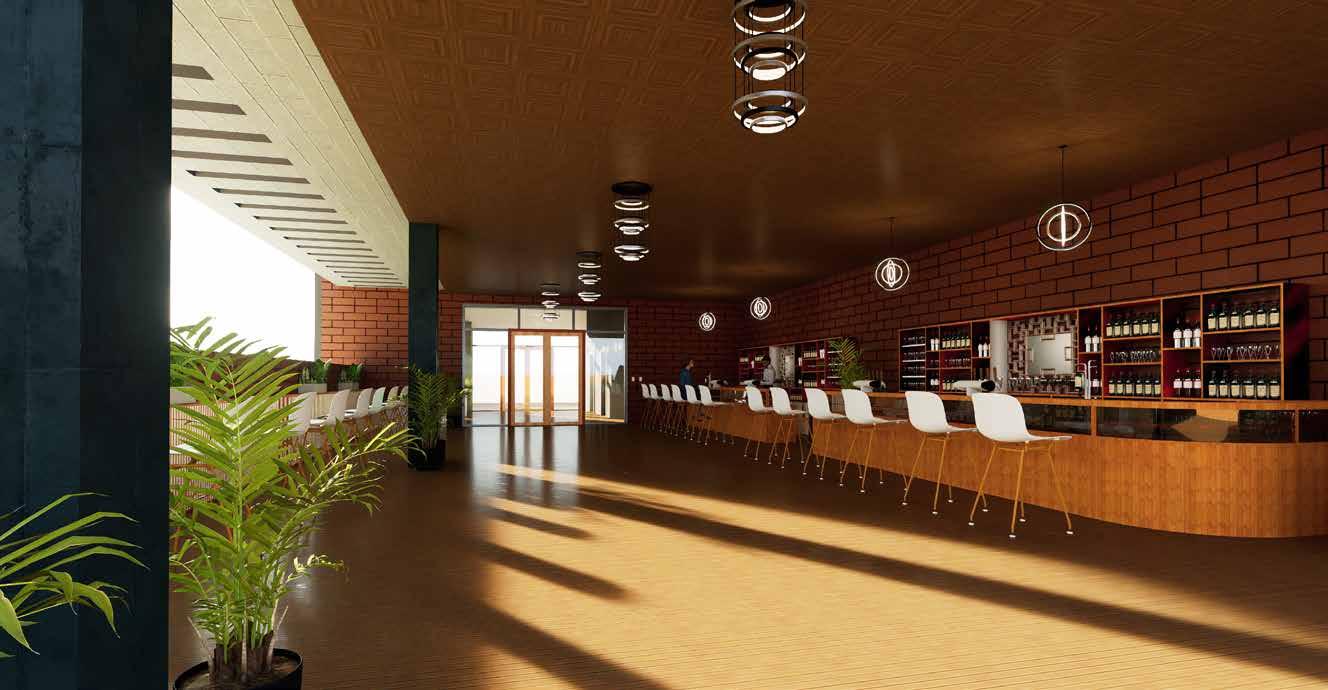

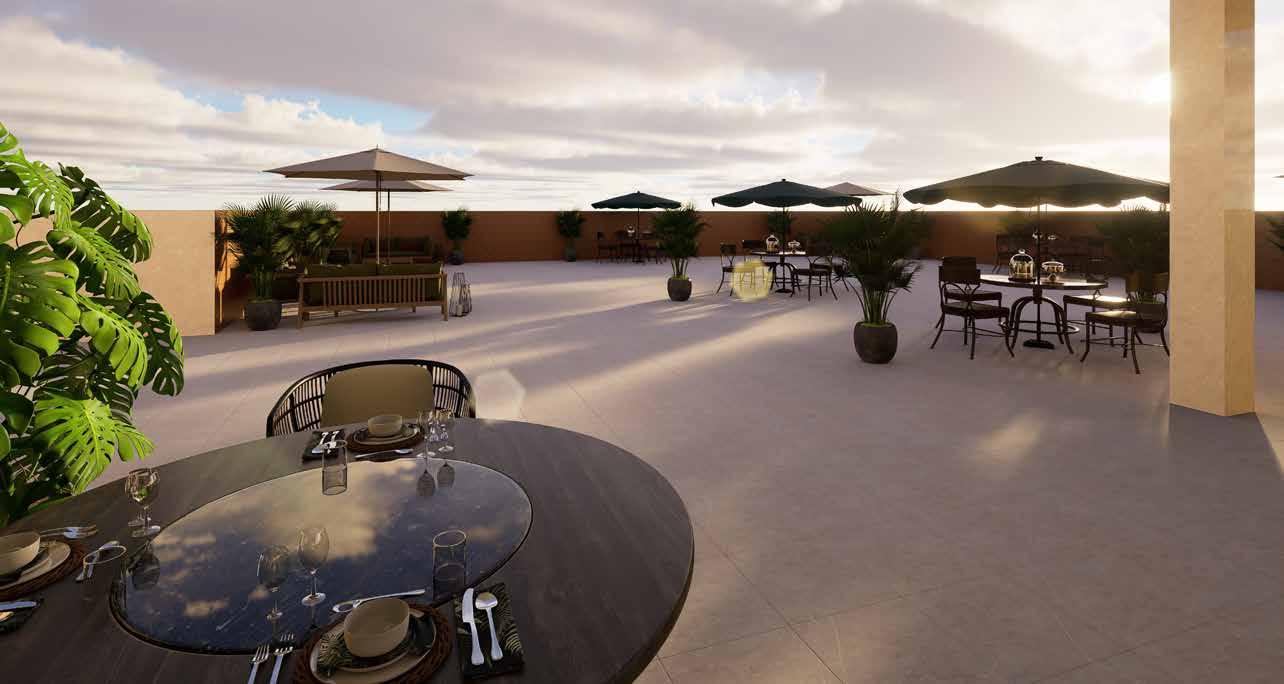

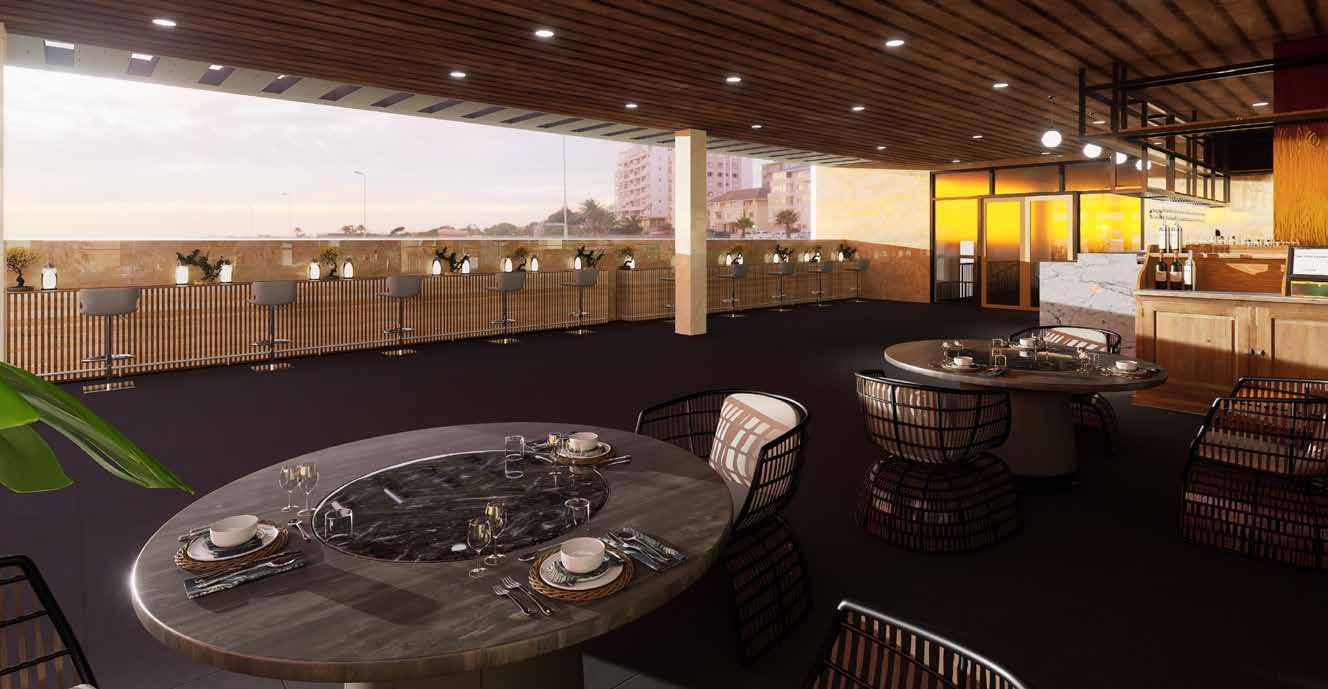

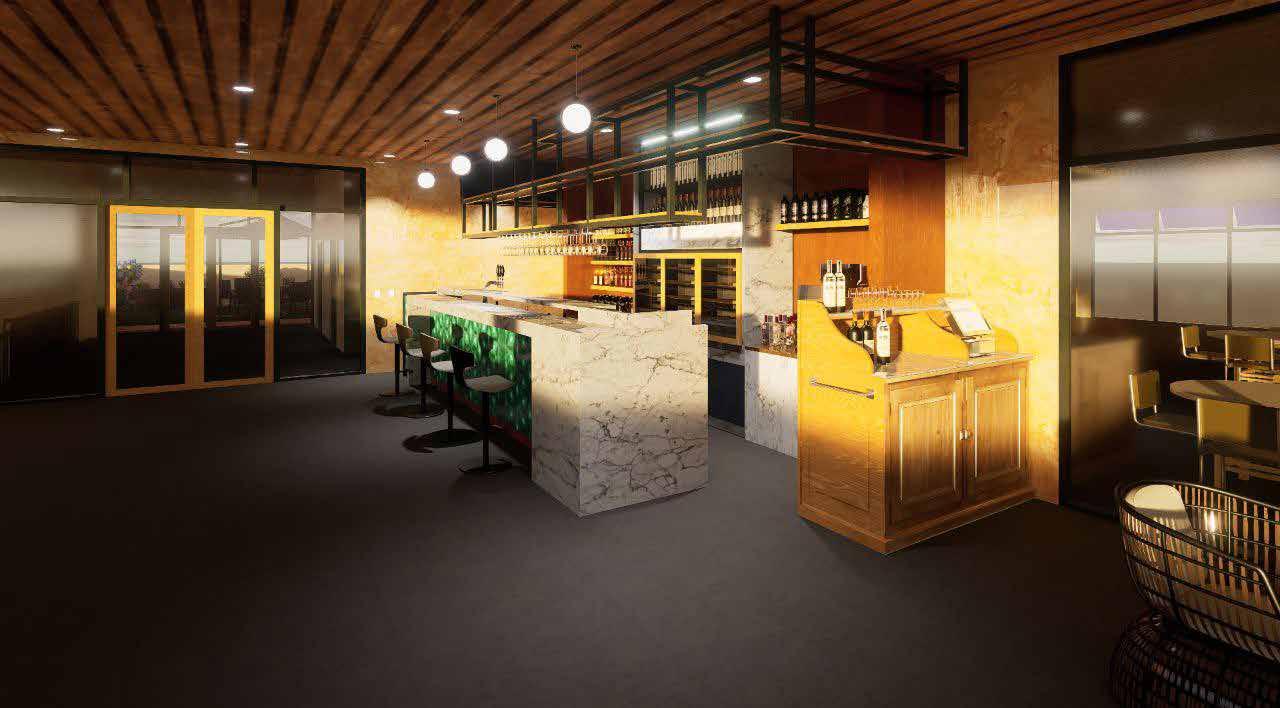

The main selling point of this project are the amenities located on the roof, that being the rooftop bar/dining area. There is also a rooftop garden that serves as an area to relax and unwind. However, the main focus of this project was to bring to life a vision of an area where people can enjoy the evening/night view of the city while enjoying a nice meal, or any refreshment of sorts with a beautiful ambiance brought by the earthen aesthetic of the bar and dining area.

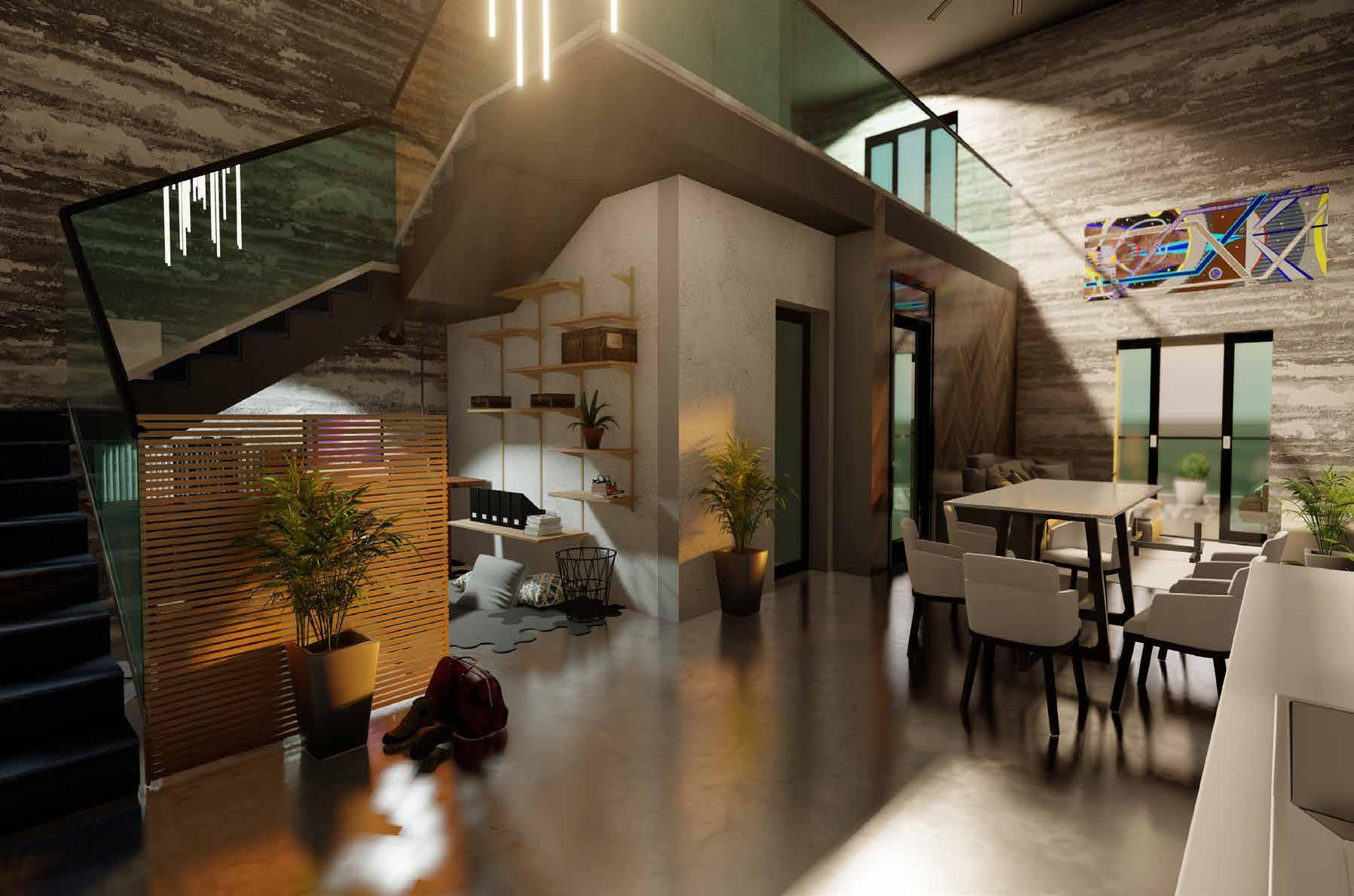

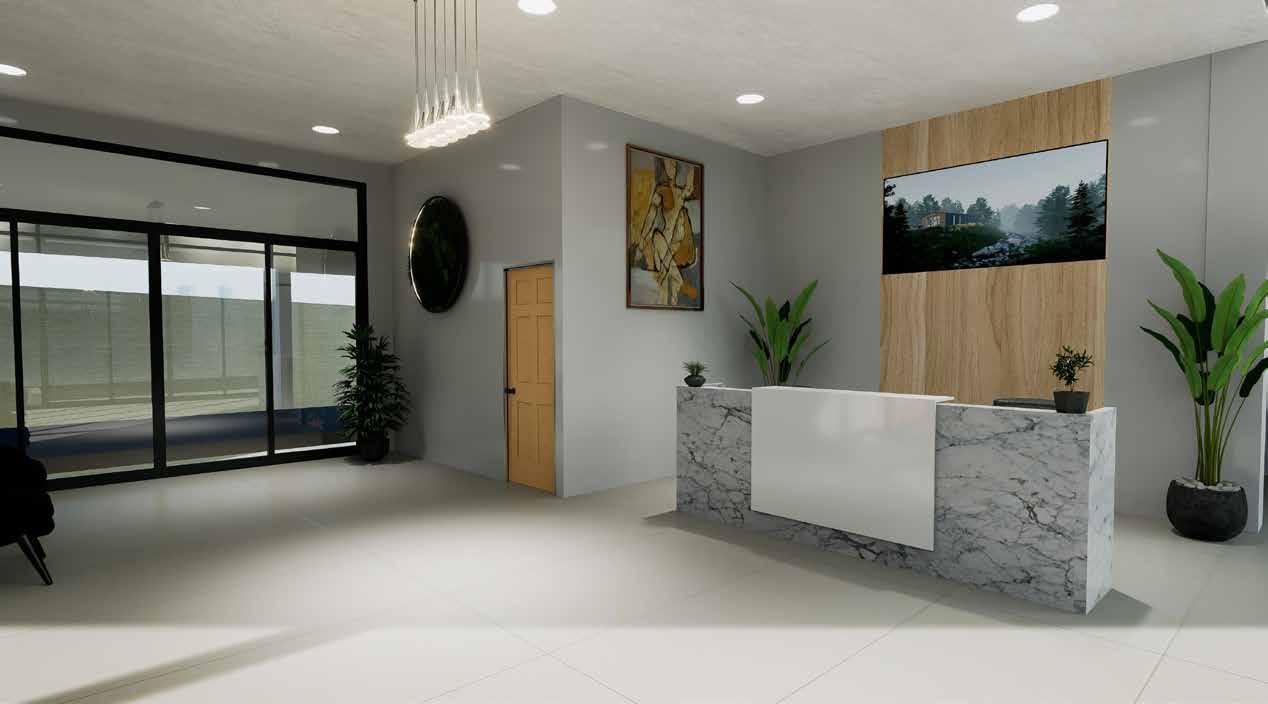

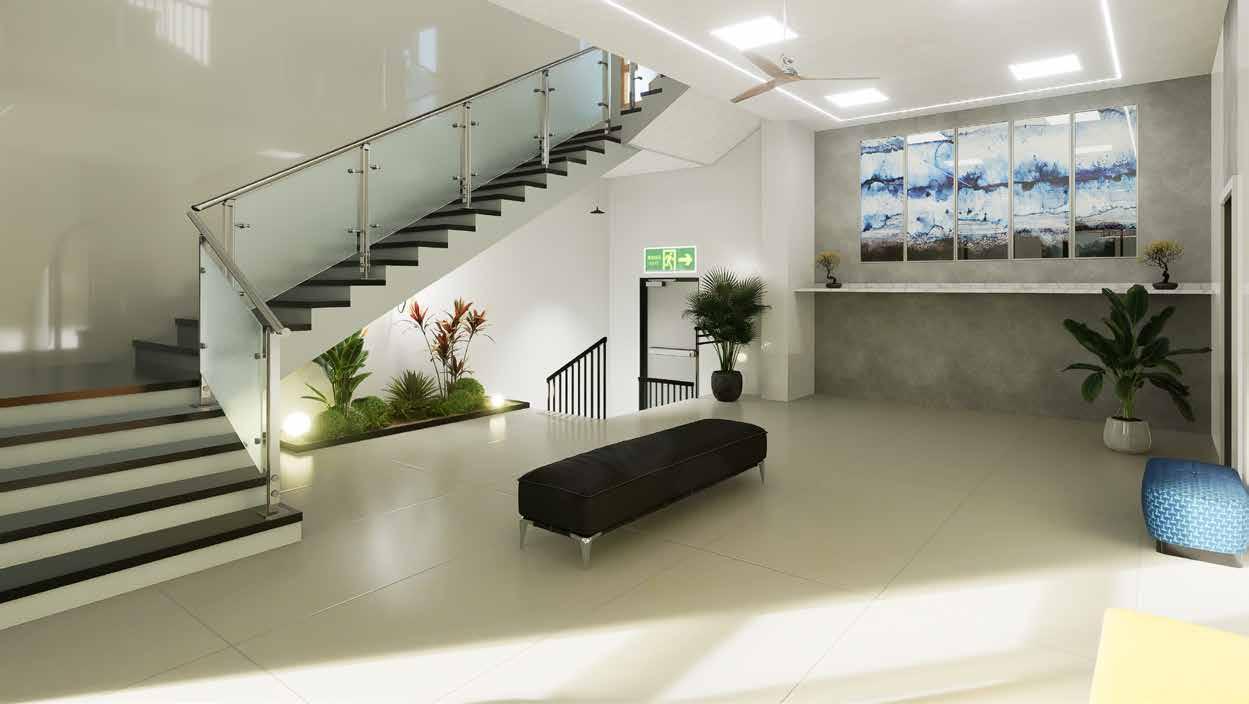

Although the rooftop amenities are the primary focus of this project, the interiors are by no means to be ignored in any way. The reception area, as well as the waiting area leading uptairs, is fitted with an off white aesthetic that gives off a formal, yet soothing feeling to those whom may enter this space.
towers
Project Details: Pre-Undergraduate (3rd Year, 2nd Semester)
Project Date: 2021

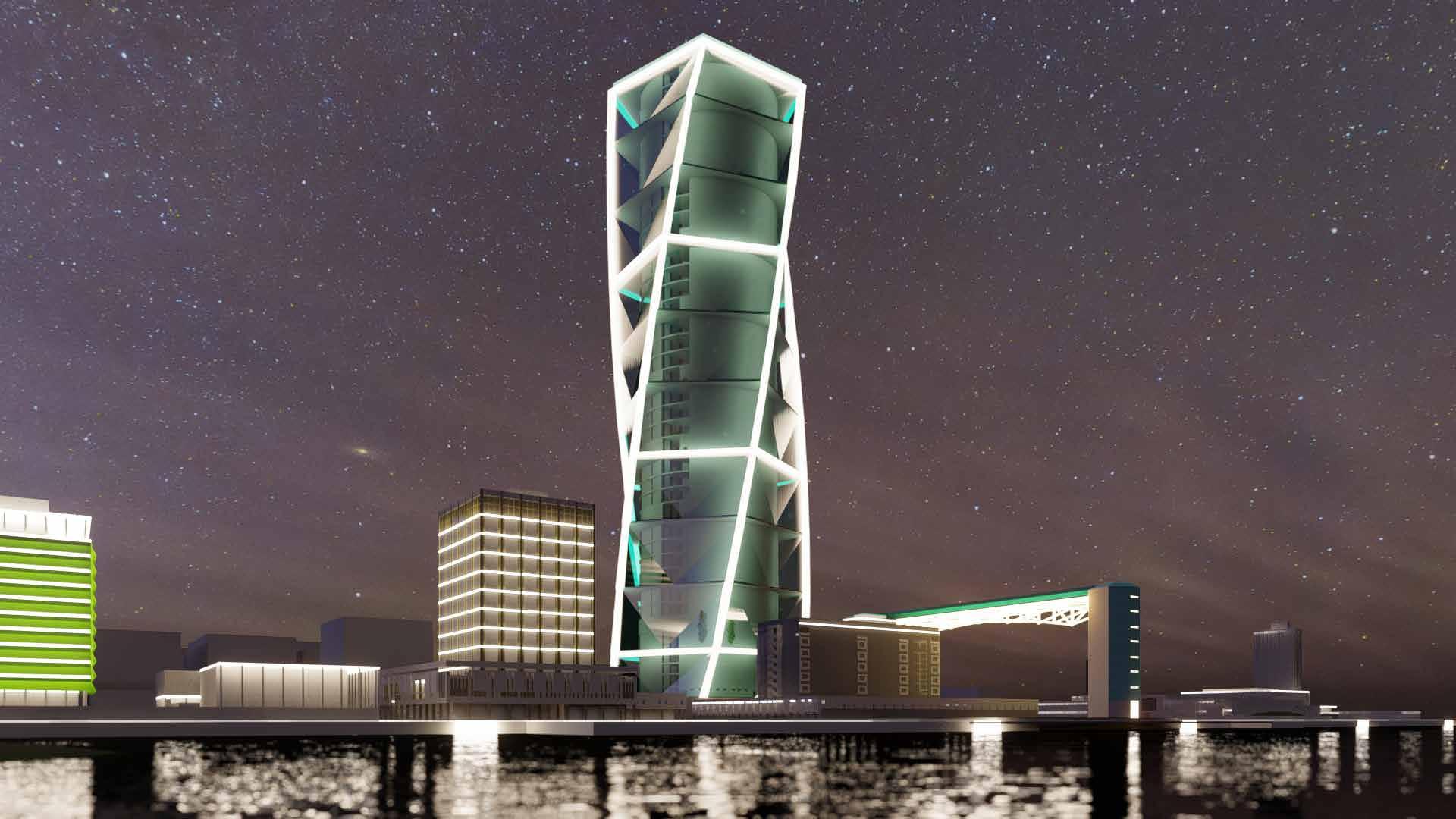

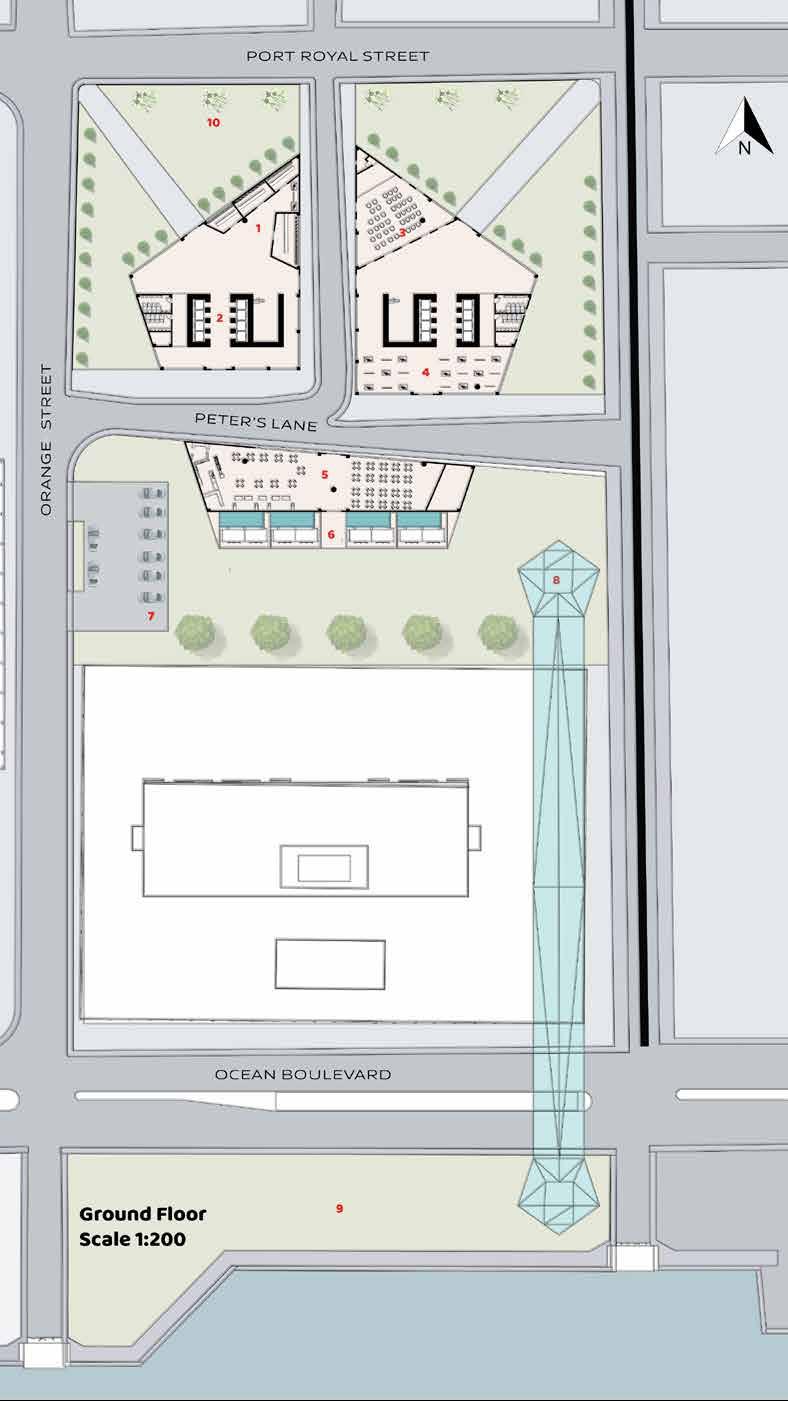

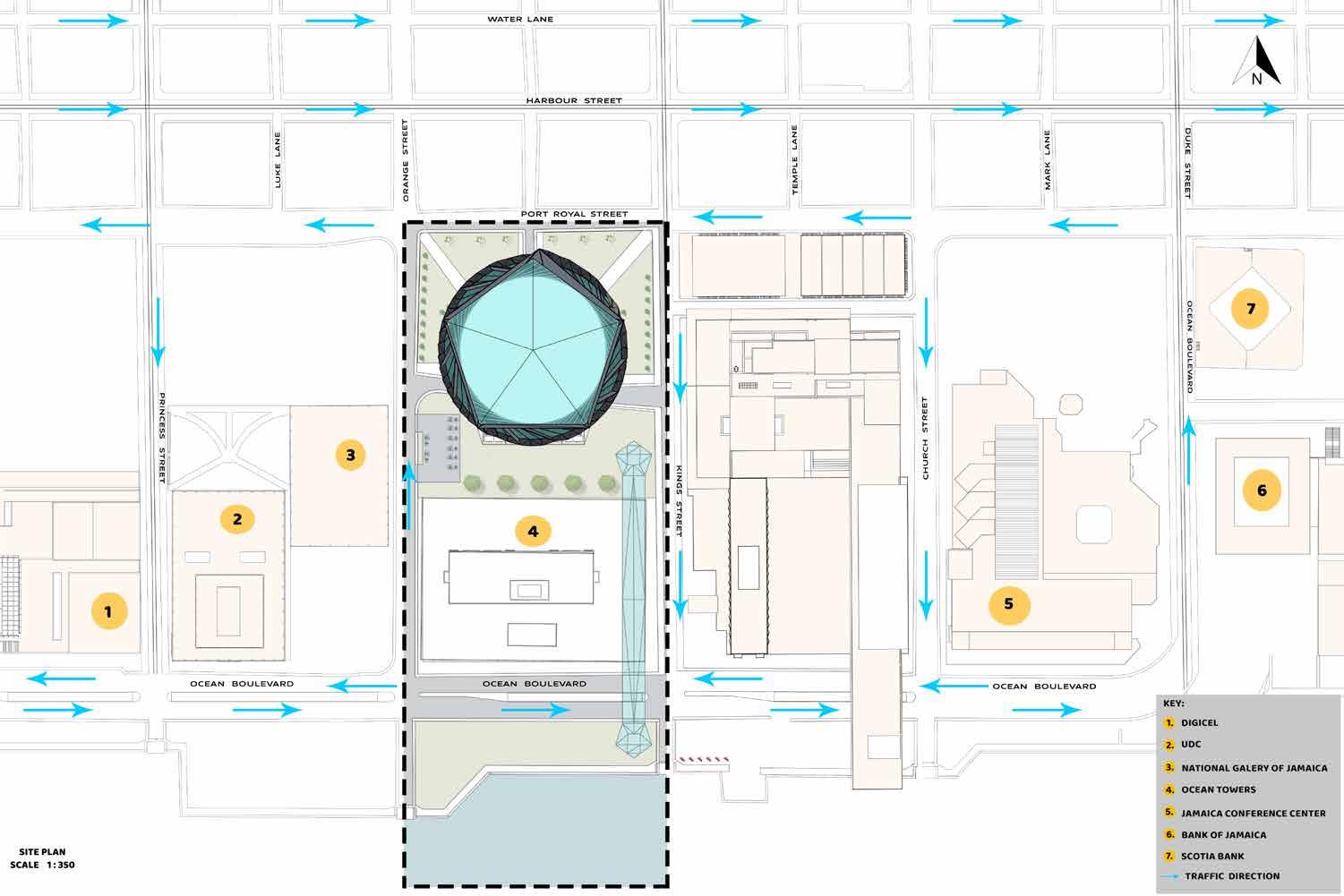

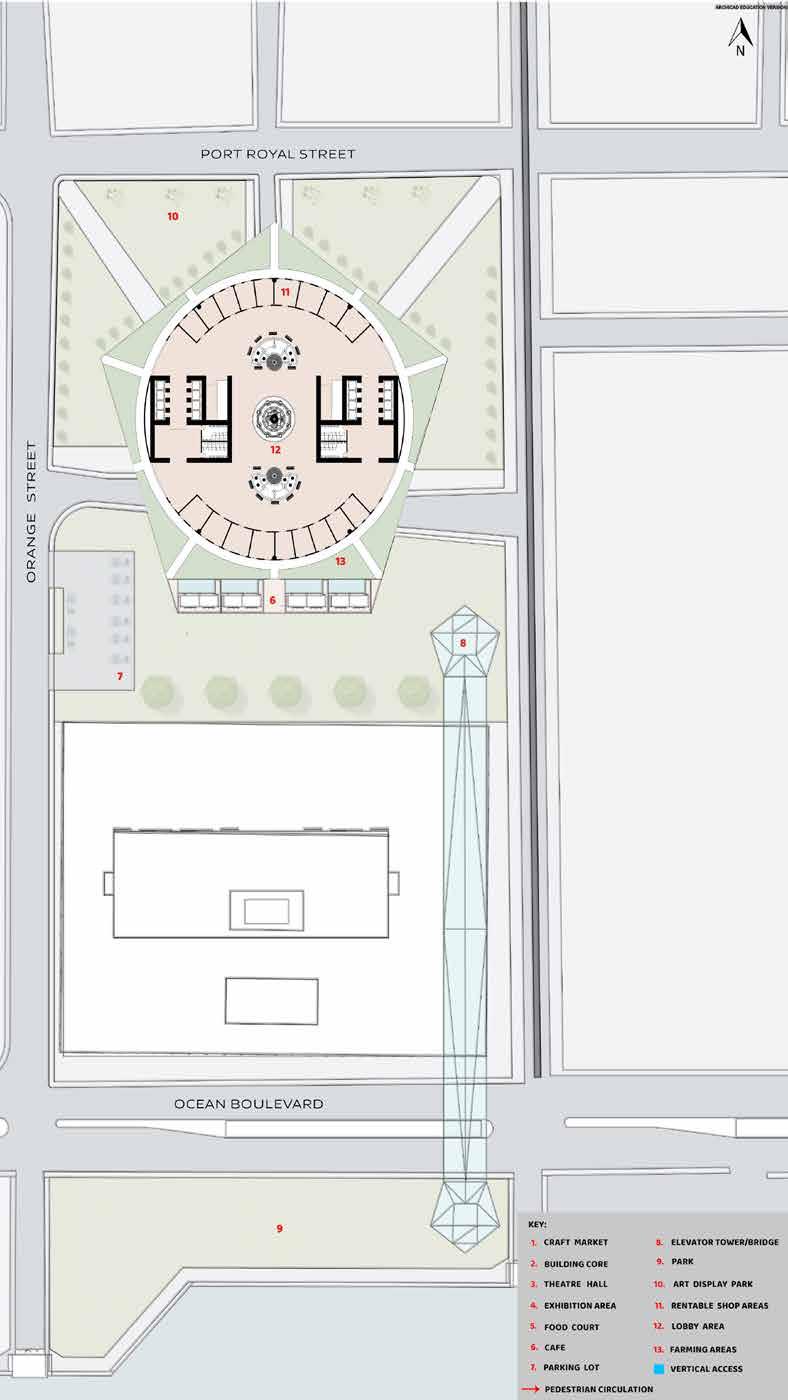

Location: Kingston

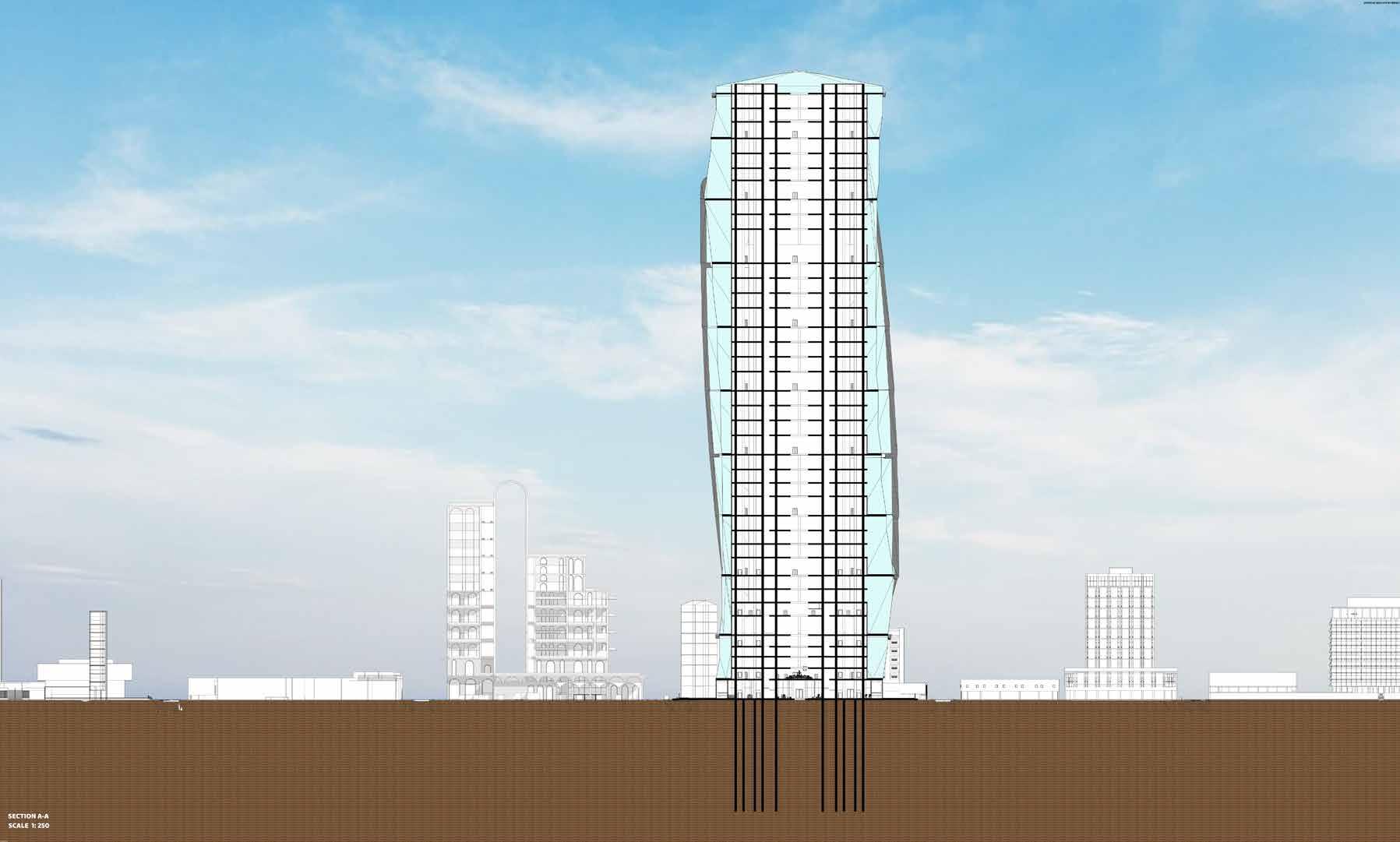

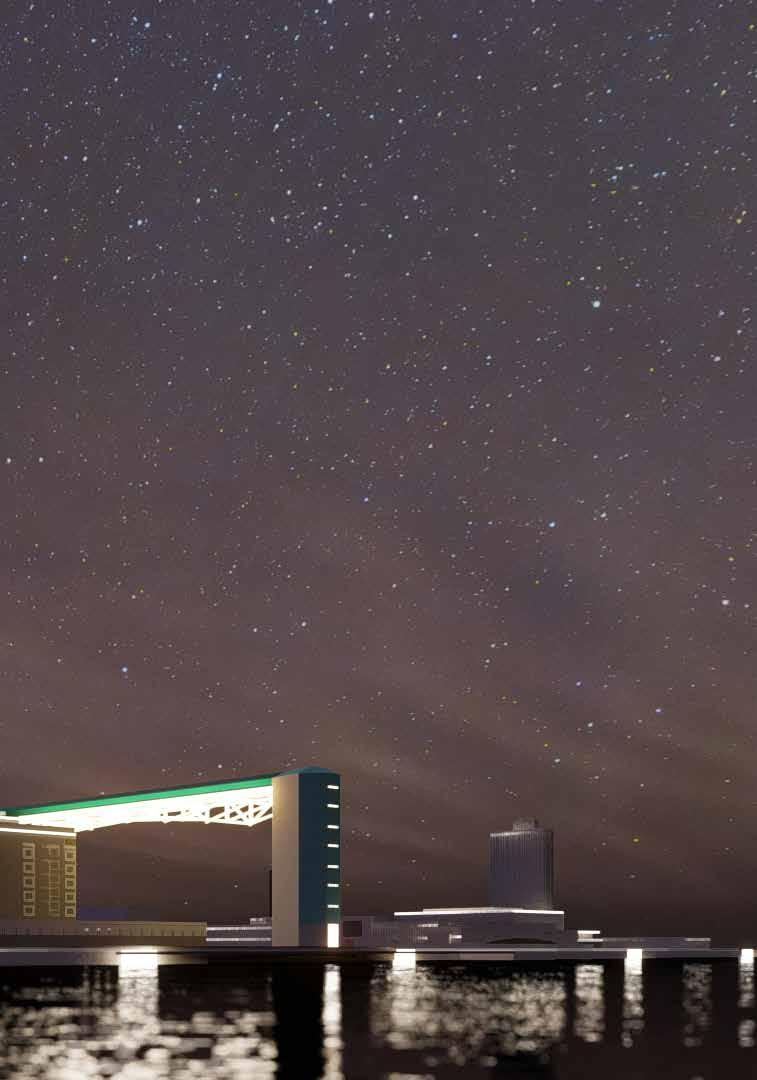

The year is 2092, the much anticipated 400 year anniversary of the Port Royal earthquake of 1692, and Jamaica now experiences an average of 10 hurricanes per year. However, despite the climatic challenges, Jamaica has risen to an economic standing parallel to the world’s wealthiest country, Singapore. Jamaica’s population has now increased to a total of 20 million residents.

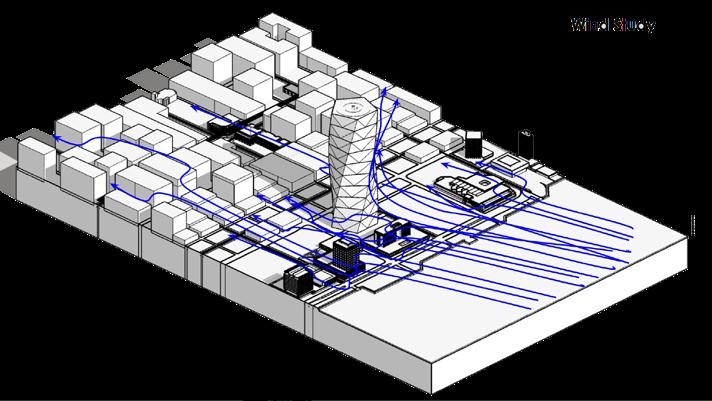

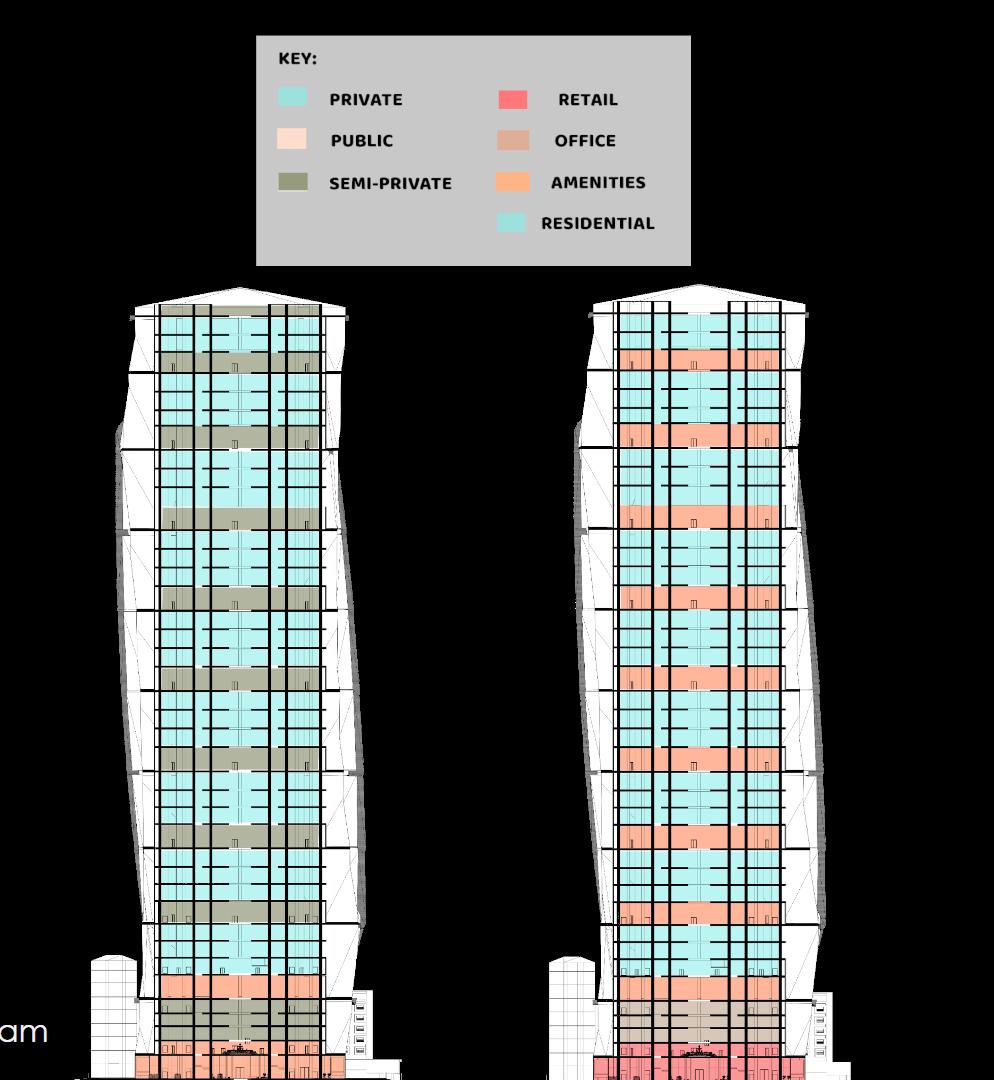

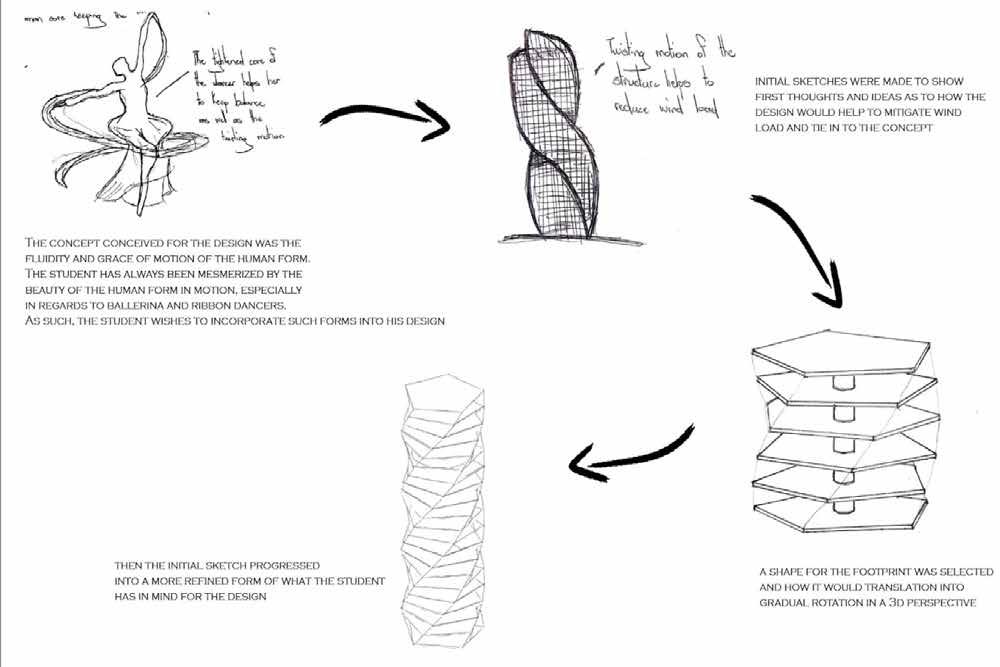

concept

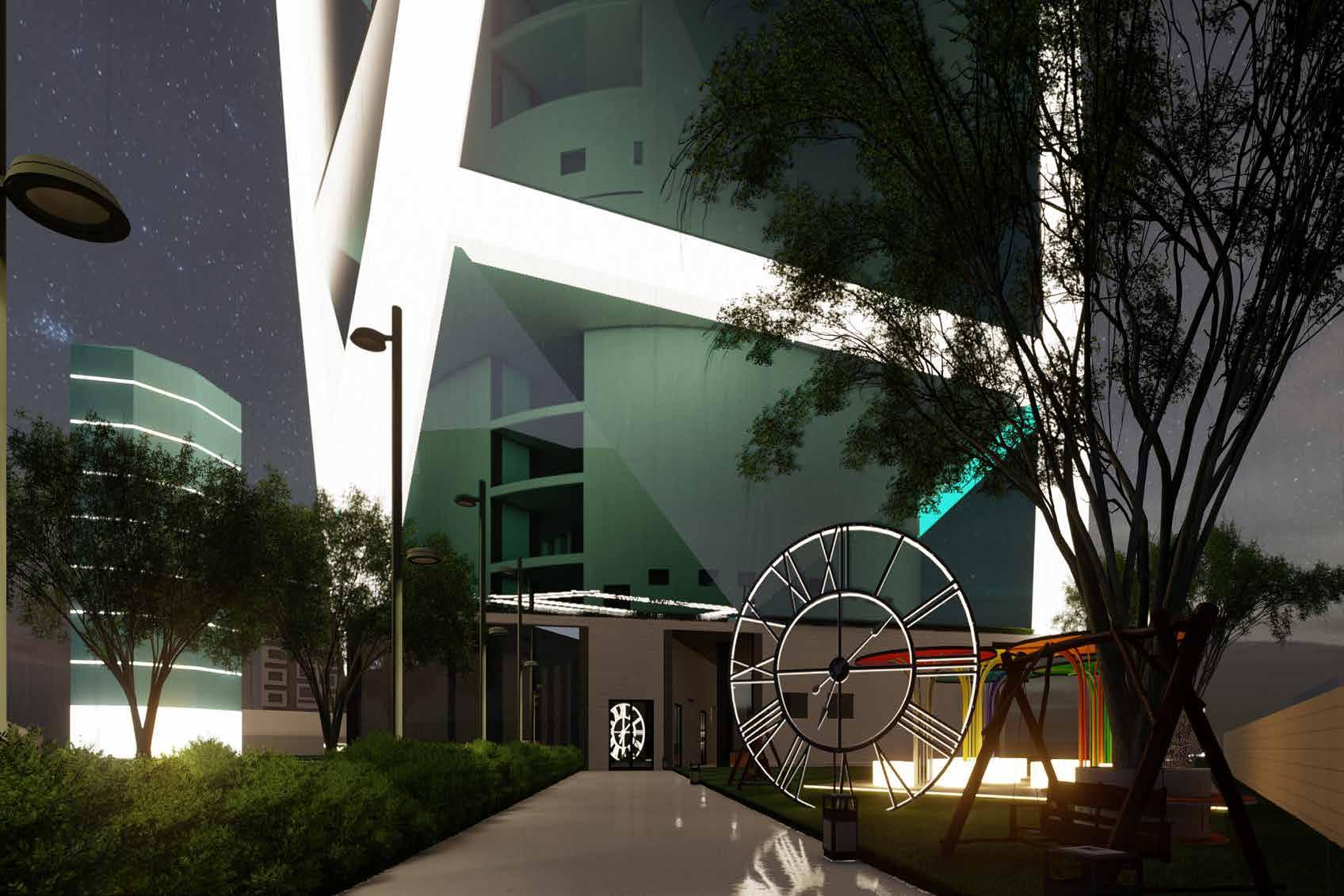

A - ENTRY

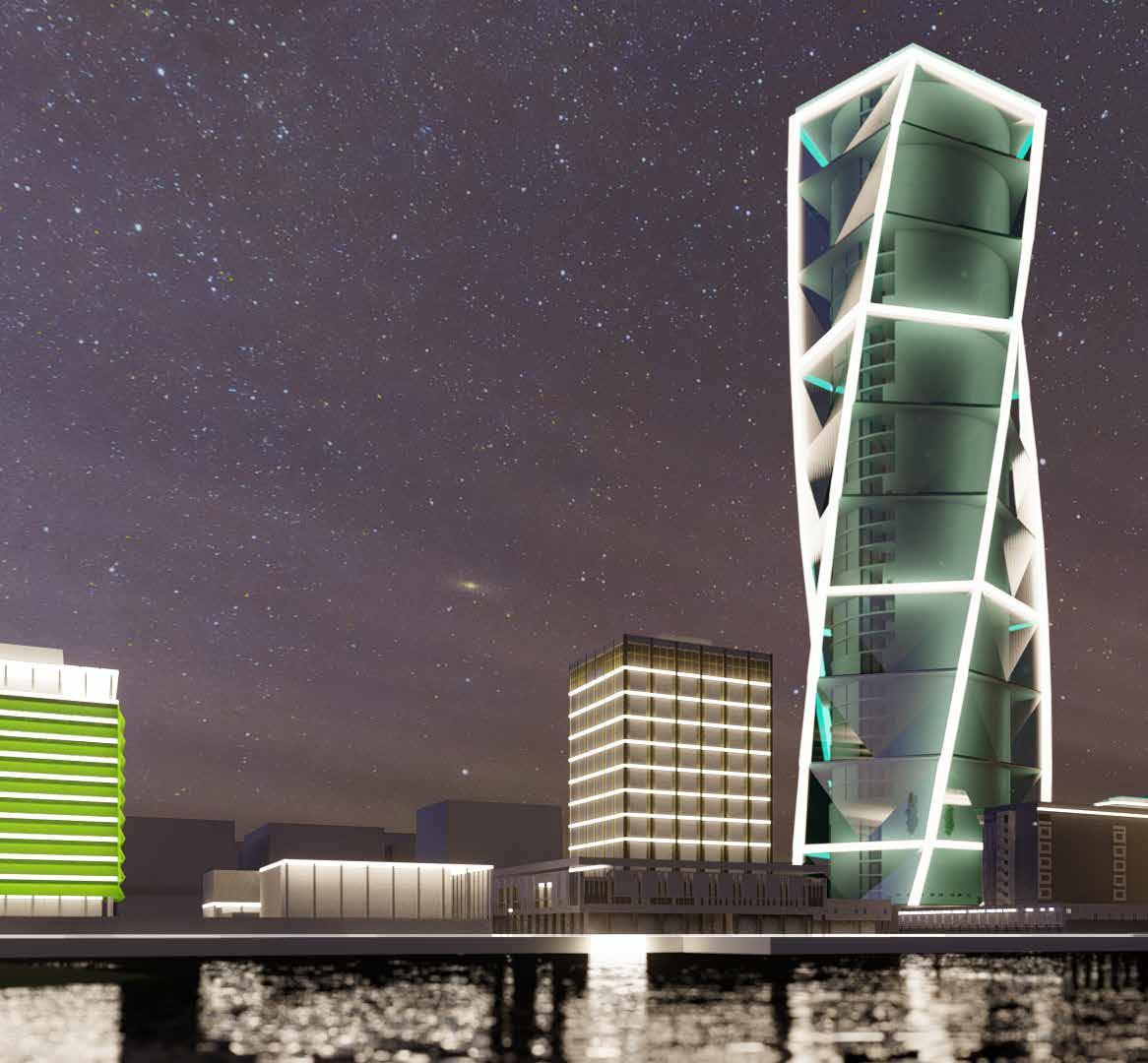

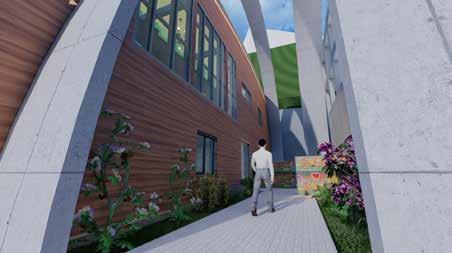

One of the entry points into the tower, it highlights its scale and beauty while also simultaneously inviting one to enjoy the garden space around as you make your way inside to the ground level.

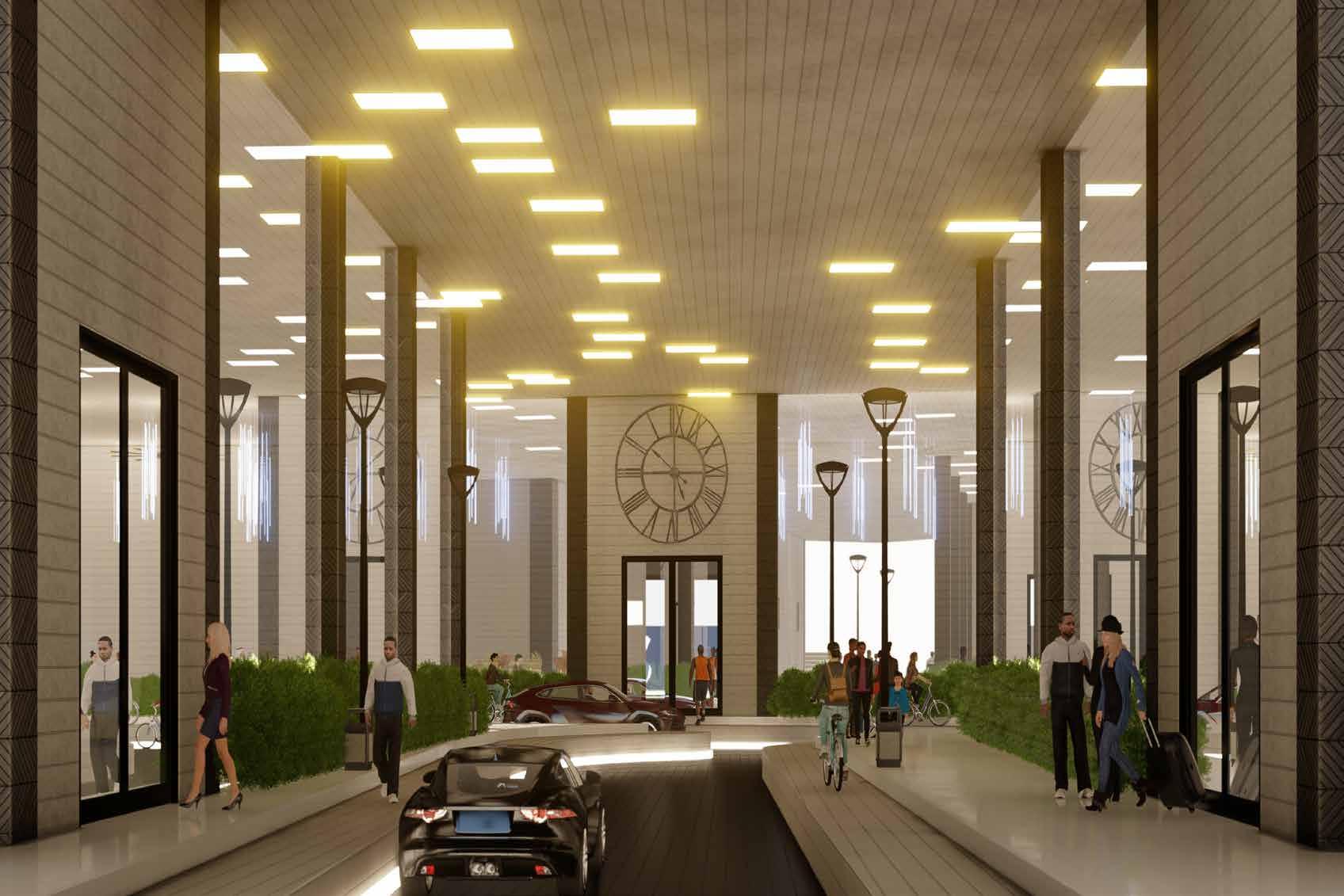

B - GROUND LEVEL
A key aspect of this space was that it did not interrupt the flow of traffic in any way, but rather enhances a person’s drive through it with a series of lights and cobblestone aesthetic.

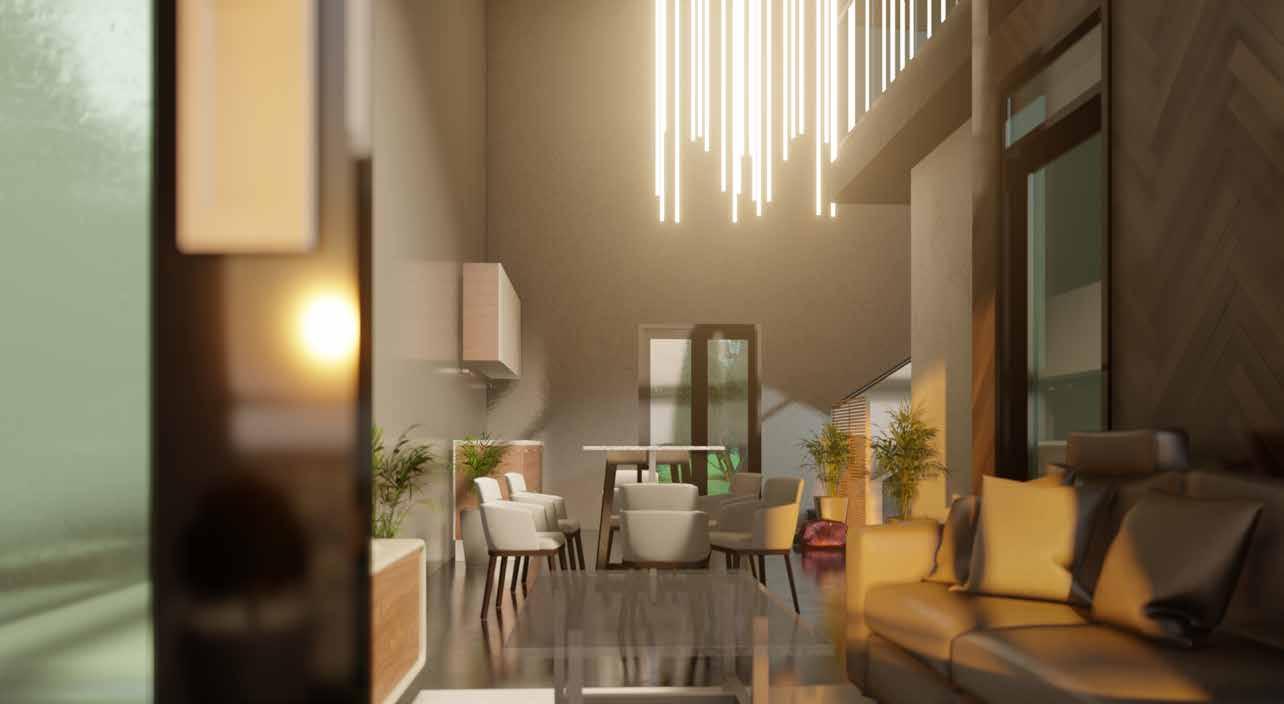

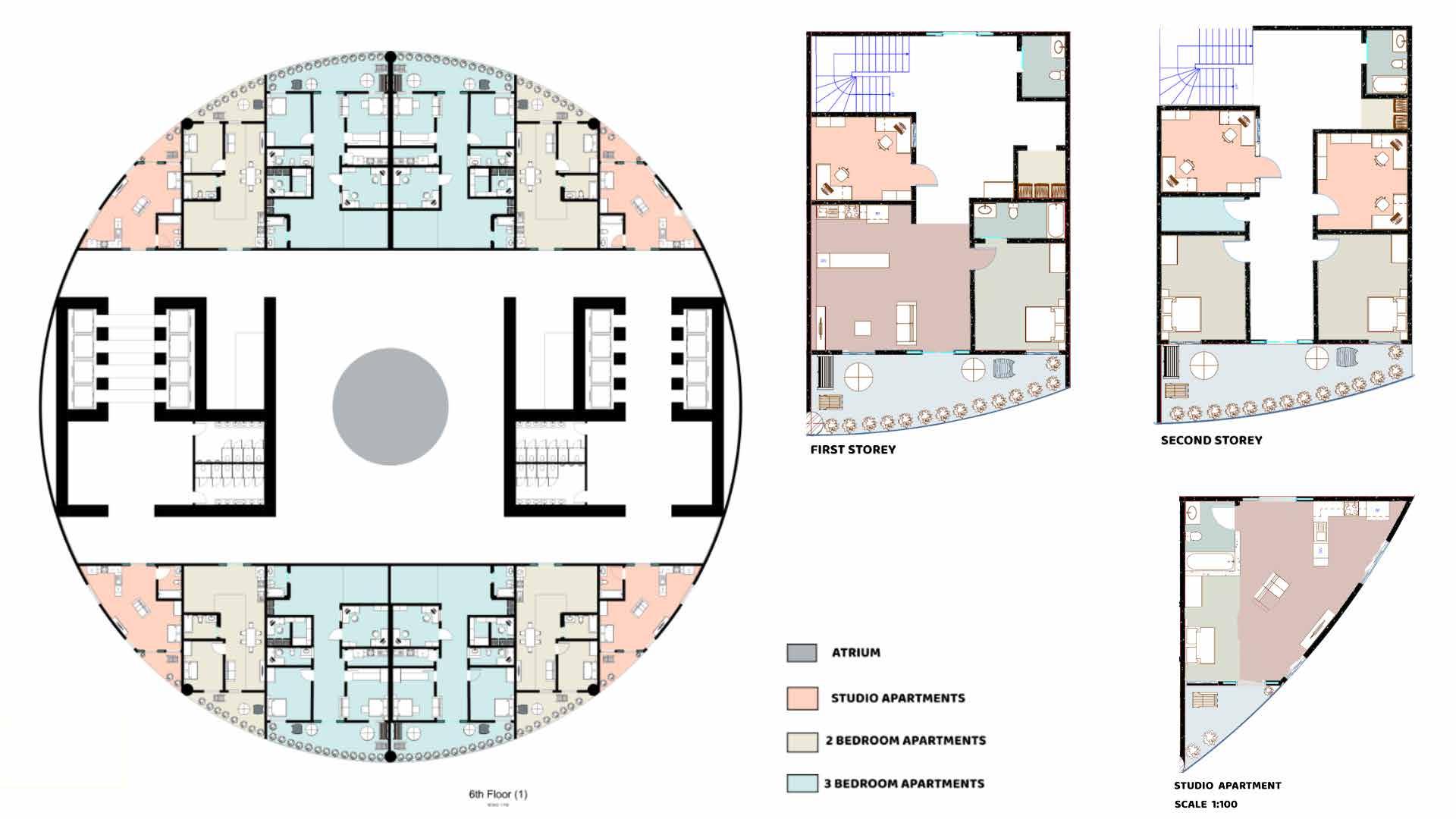

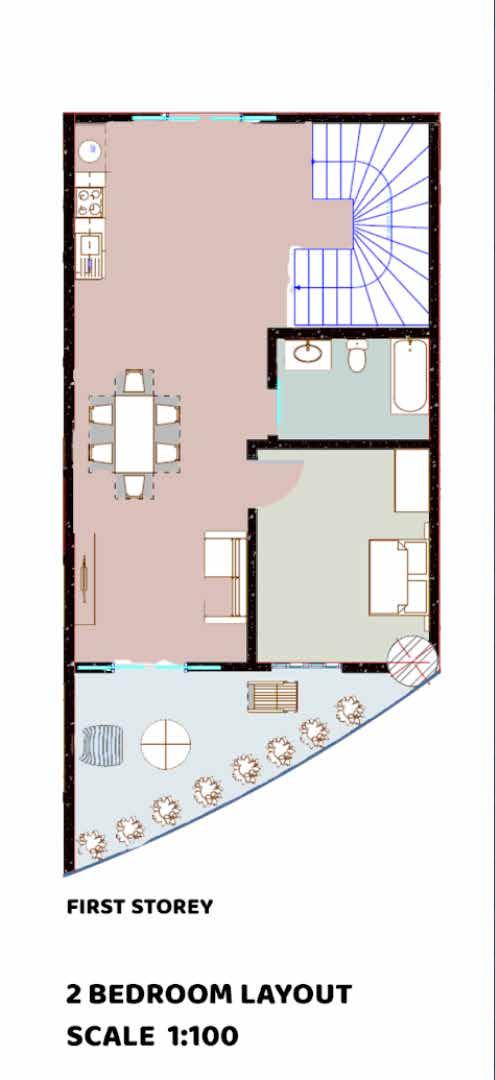

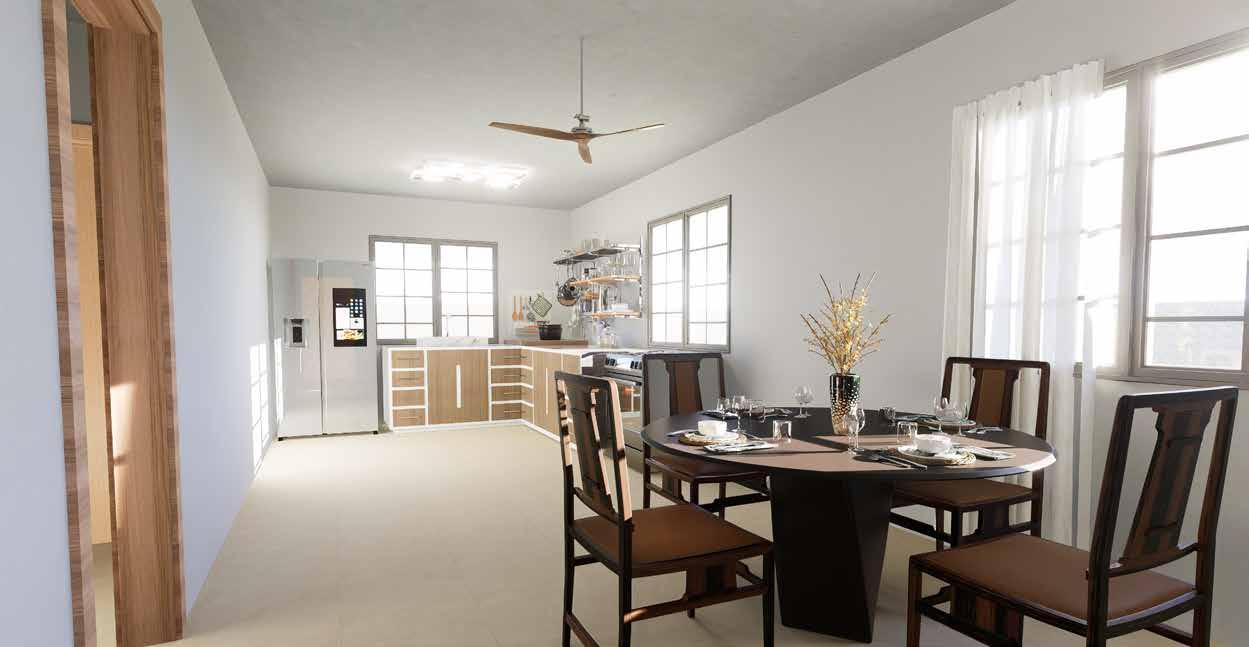

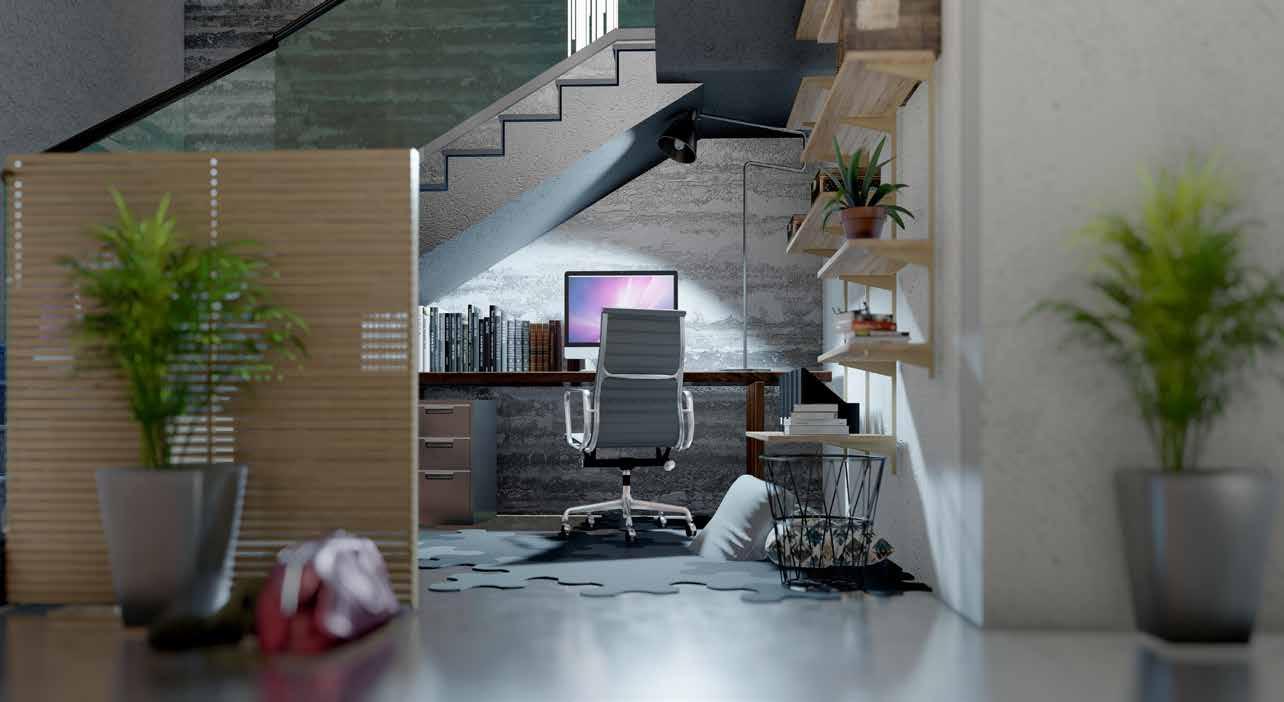

This render, by using Lumion, allows you to get a visual of my vision for this 2 bedroom layout and how all of the limited space is maximized while also offering each section of the apartment to feel distinct from the other.
PURE PRESENCE
Project Details: Pre-Undergraduate (4th Year, 2nd Semester)
Project Date: 2022
Location: St. Ann

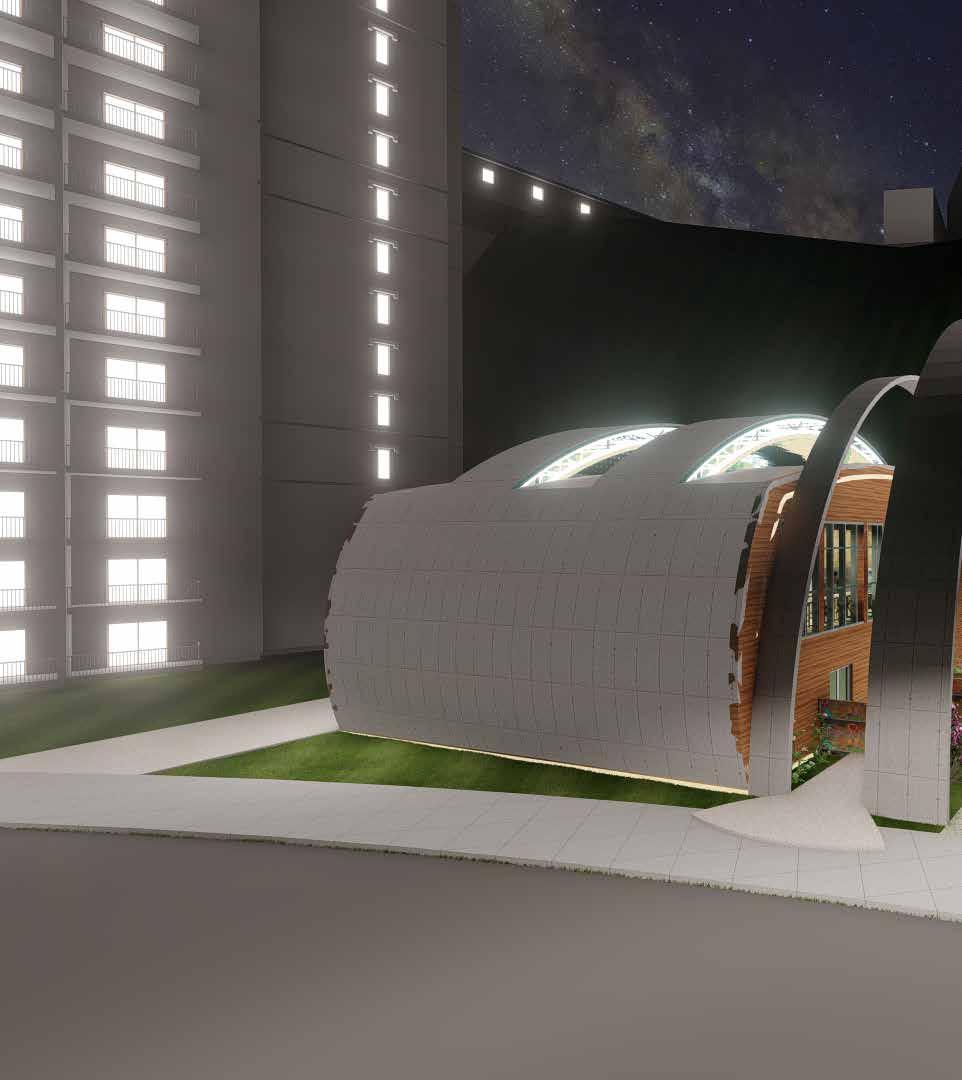

concept

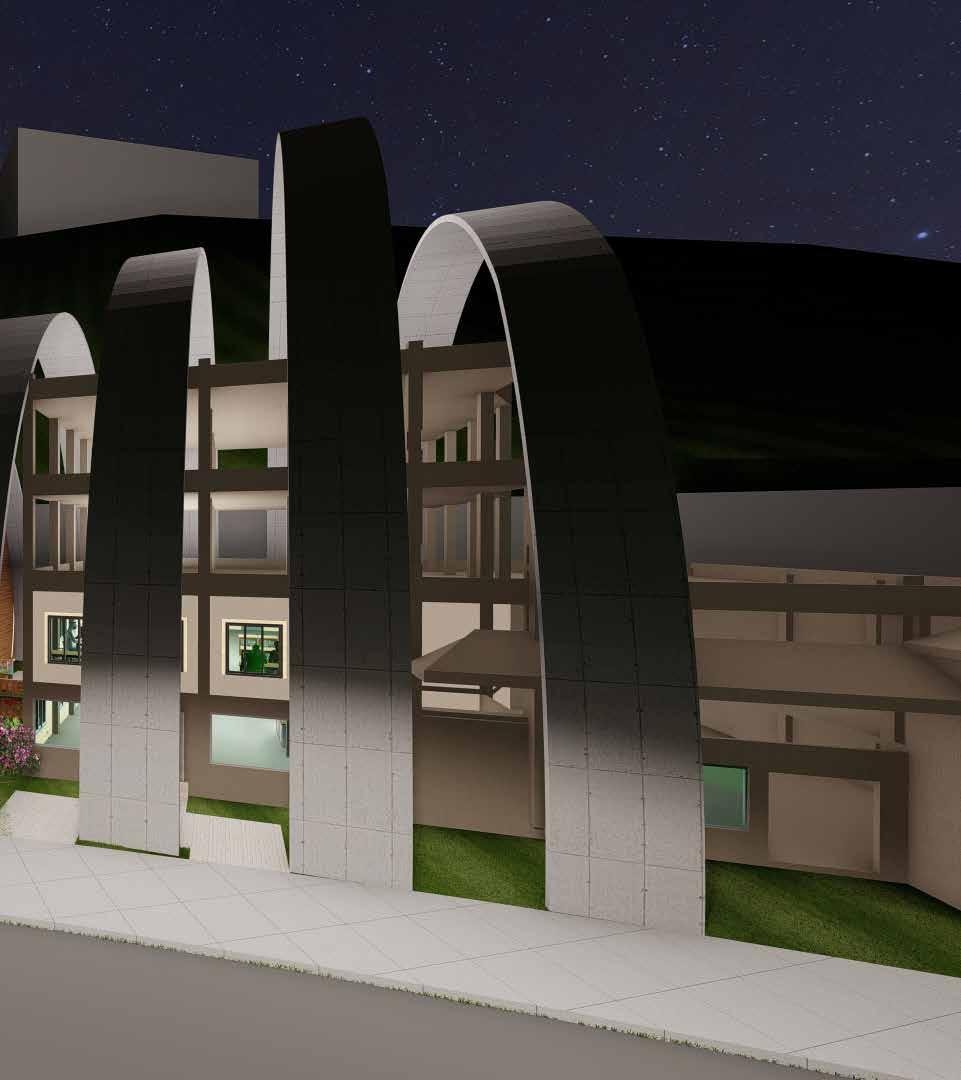

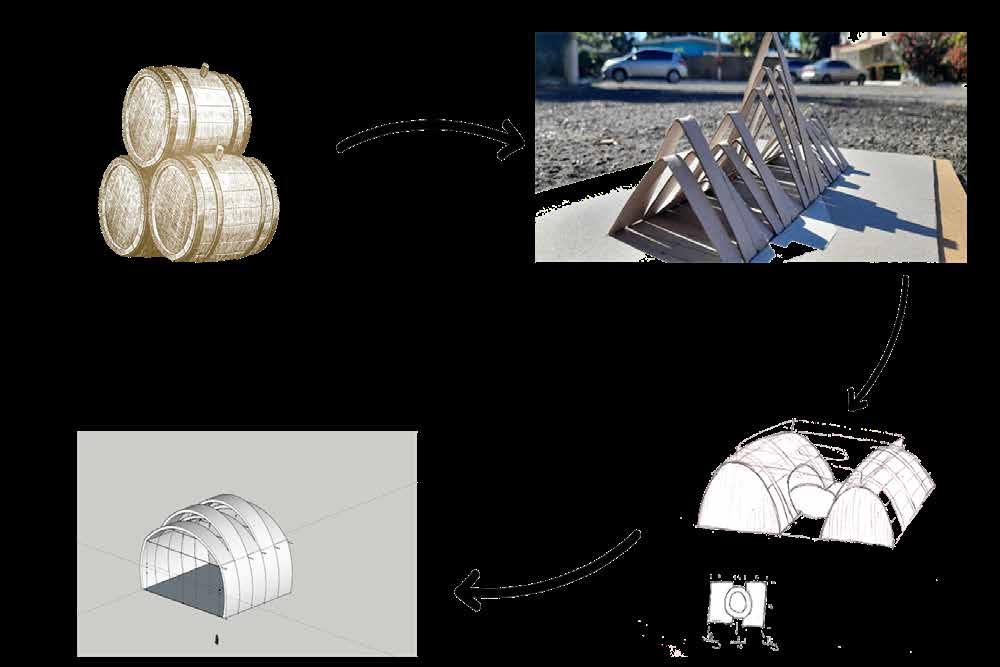

Drawing inspiration from the curved shape of the interior of the Lahofer Winery, a concept of using a wine barrel shape for the structure was born, further tying in to the purpose of the building, which is the focus of wine production using local materials. The idea for this project is to have a food and drink museum focused on the production process of various wines using different fruits.

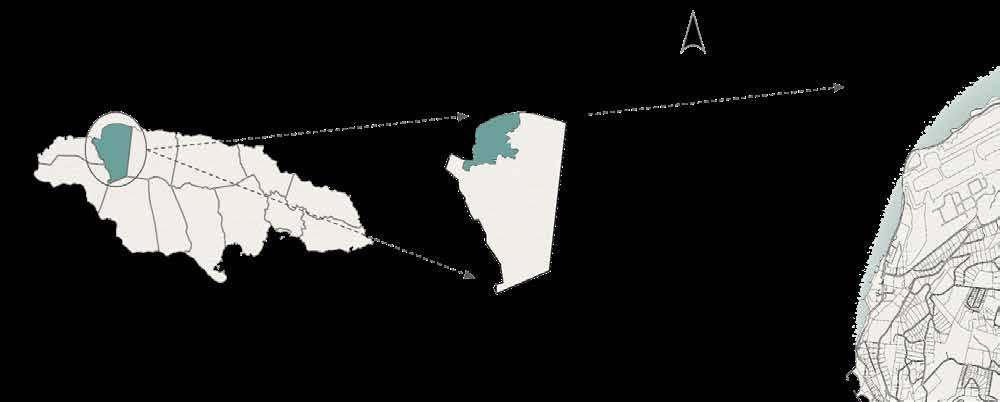

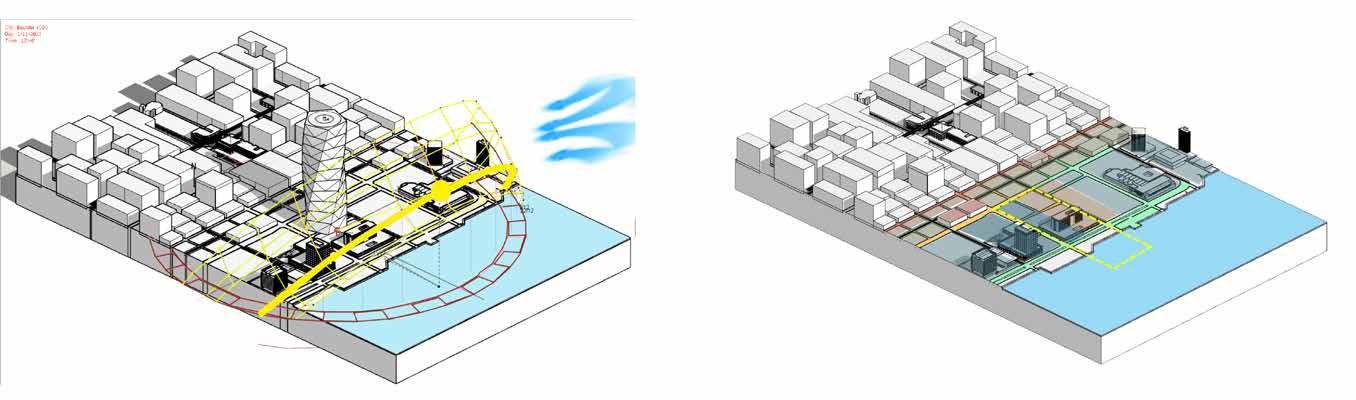

Site Analysis

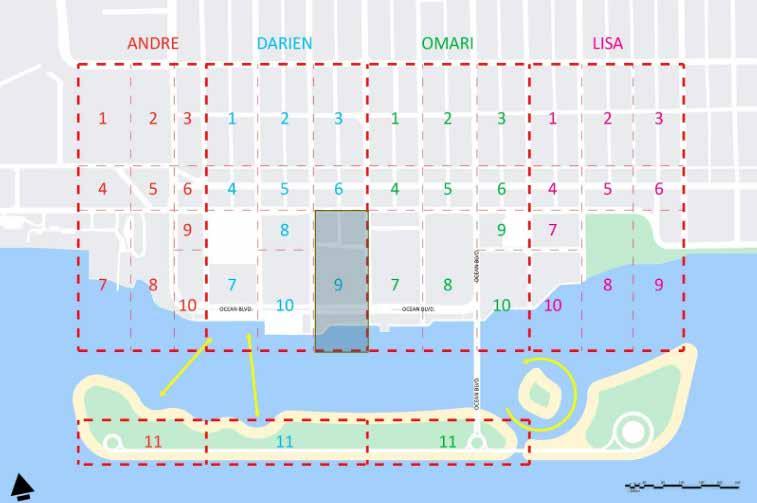

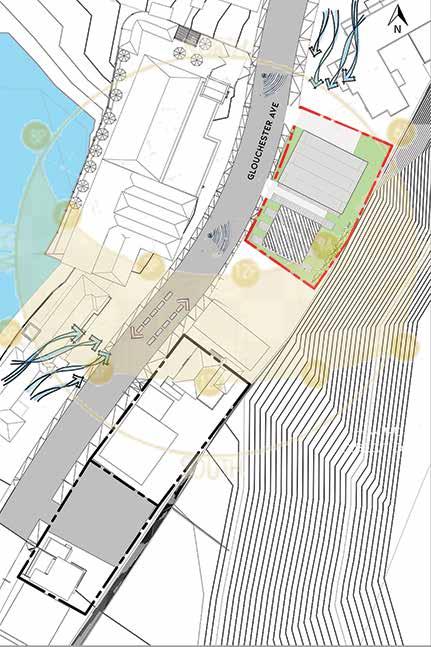

The site allocated is site 1, located on Jimmy Cliff Boulevard and across from the Casa Blanca Restaurant. Vehicular traffic on this street is two way, as well as pedestrian traffic. Wind was observed coming from the north and southwest at the time. Due to the nature of the Hip, Strip, noise was also a potential issue observed.
1. Reception Area
Wine Cellar
Machine Room
Service Area
Service Lift
Bathroom
Elevator 8. Staircase 1. Shop Area 2. Elevator 3. Stairs 4. Bathroom 1. Shop Area

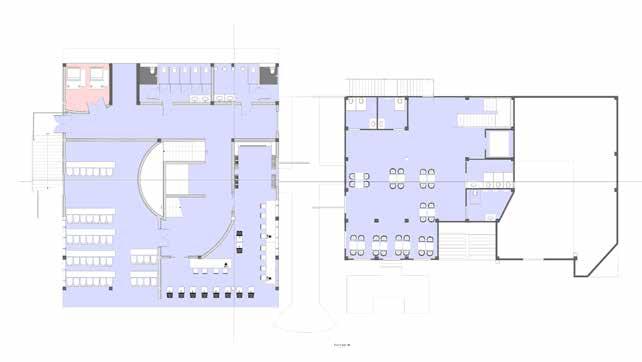

PUBLIC VS. PRIVATE SPACES (GROUND FLOOR)
PUBLIC VS. PRIVATE SPACES (FIRST FLOOR)
first floor
1.
CIRCULATION
Showroom 2. Wine Tasting Area
Seminar Area
Service Area
Bathroom 6. Emergency Stairs 1. Cafe
2. Kitchen 3. Bathroom 4. Emergency

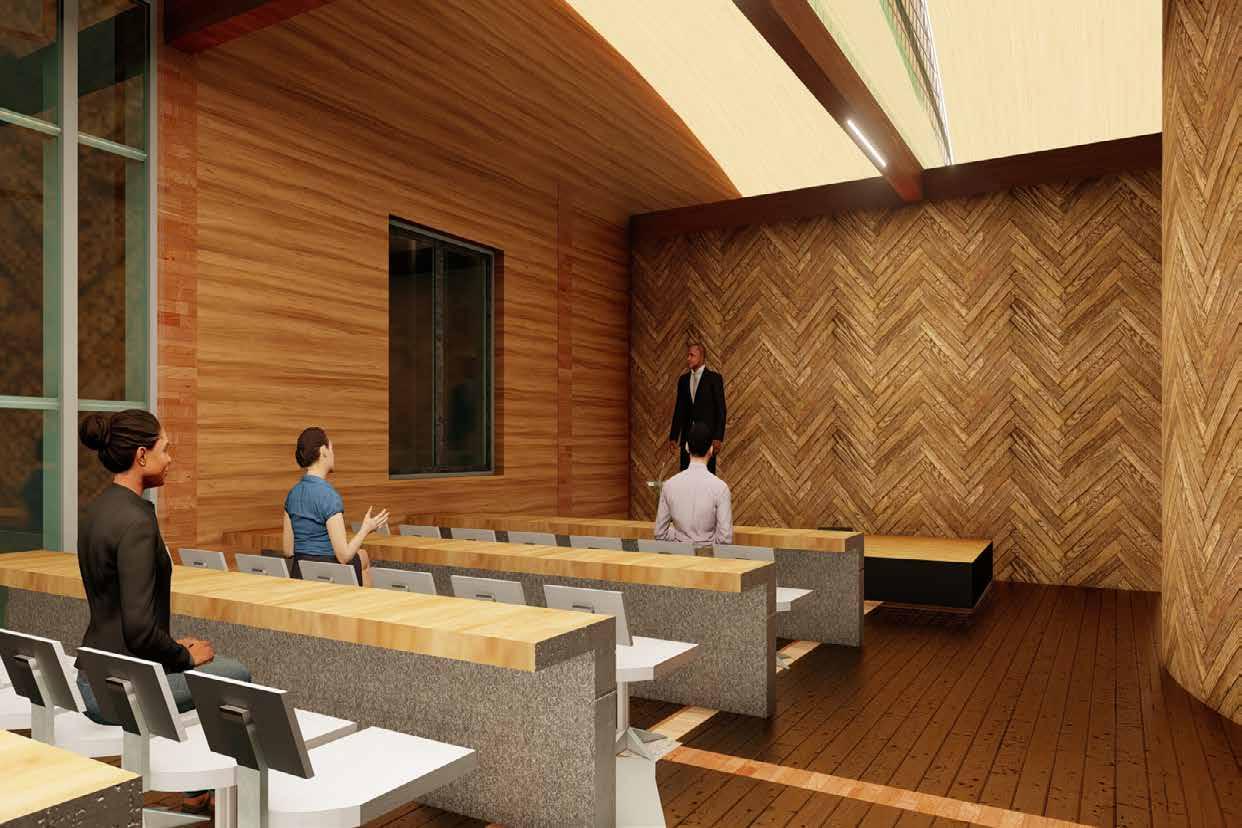

3. seminar area

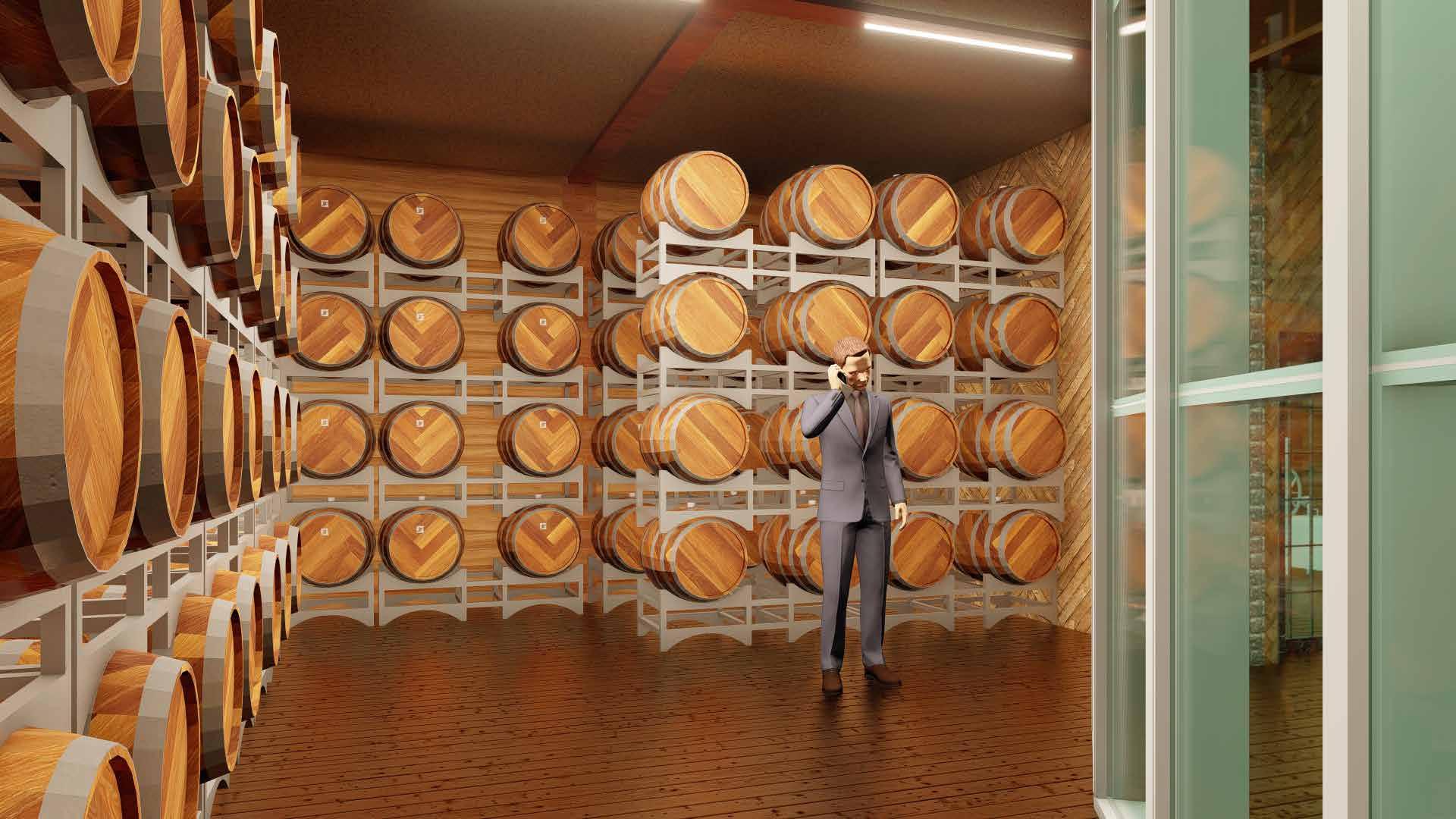

This space, as stated, is the wine cellar where a various assortment of different wines and meads are kept for storage as well as aging in a cool and slightly lit environment
2. WINE CELLAR

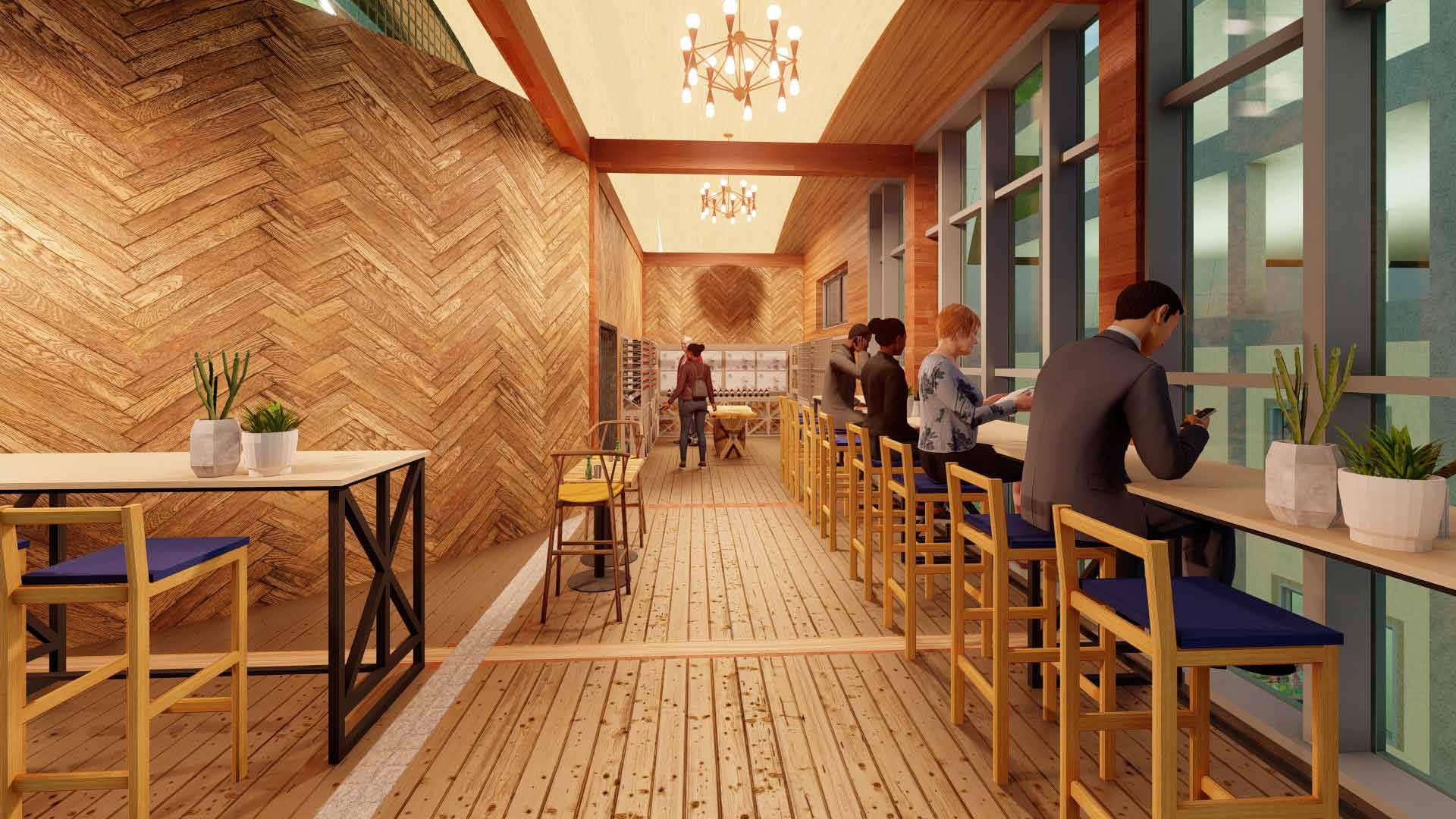

As well as being able to enjoy the view across the street, this space offers a relaxing ambiance in which visitors can savour the different flavours of wines and meads.
2. WINE TASTING AREA
detailed
sections (fig. 1)

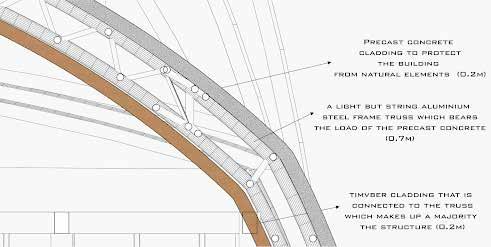

This section shows the detailed connection of the layers of the Structure starting with the exterior, which is comprised of precast Concrete and protects the interior from the elements, and this Exterior is supported by a lightweight yet sturdy aluminium framing which acts as the skeleton for the structure, and finally the Interior finish, comprised of a timber cladding, made up of Different panels, which are attached to the aluminium frame to create a strong, lightweight and breathable structure.
detailed sections (fig.
2)
This section shows the detailed connection of the floor and column of the structure. Since both primarily consist of timber, concrete was used as the base of the floor as well as the foundation which goes deeper into the earth. The timber column is embedded into the concrete flooring and fitted with steel bearing plates for extra stability and secured with bolts, while a rough flooring was placed on top of the concrete slab and topped off with a timber flooring finish.
(fig. 1)
(fig. 2)
B-B (Cross Section)
Section
ART SKETCHES OTHER WORKS
Various drawings of different anime characters using a combincation of pens, markers and pencils on different sized sheets
A micro pen drawing of the Ward Theatre on North Parade, Kingston using micro pens on a 9x12 sheet
DRONE SHOTS

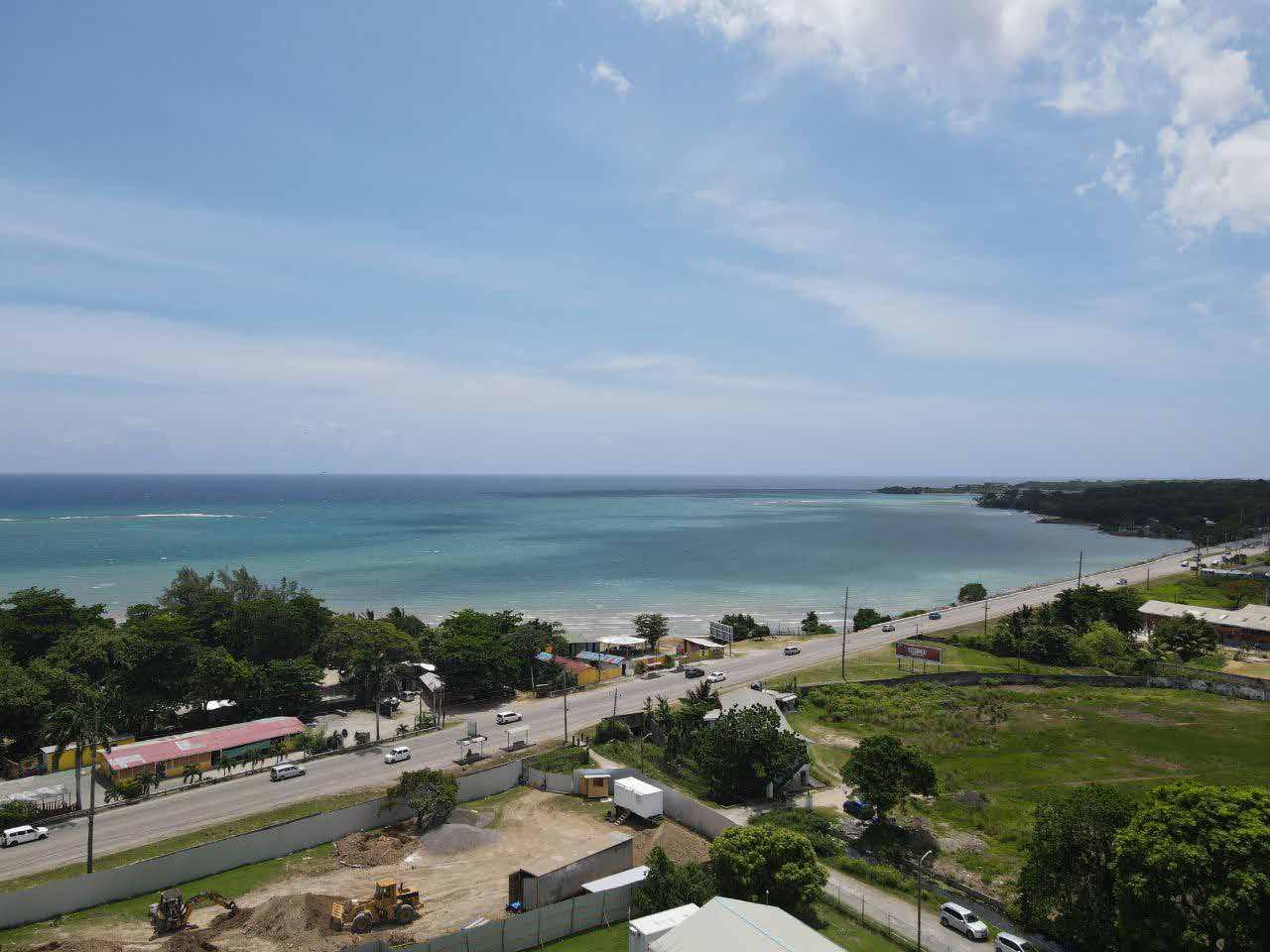

Utilizing the drone skills obtained, using a Mavic Air 2 Drone, these shots of various places were taken;
and
Mona Dam(top left), St. Ann’s Bay (top right, bottom left)
St. Ann’s Hospital (bottom right)
