MACKENZIE - Station Design - LE Presentation

Threat Mitigation through Design Application PRESENTATION - AUGUST 26, 2021

1

STATION DESIGN CONFERENCE // 2021

Introduction KEY SPEAKERS

Jeff Humphreys PRINCIPAL

Brett Hanson ASSOCIATE PRINCIPAL

2

STATION DESIGN CONFERENCE // 2021

Who Are We  Established in 1960  Multiple Offices  Integrated Design Firm • • • • • • •

3

ARCHITECTURE INTERIOR DESIGN LANDSCAPE ARCHITECTURE STRUCTURAL ENGINEERING CIVIL ENGINEERING LAND USE PLANNING TRANSPORTATION PLANNING

STATION DESIGN CONFERENCE // 2021

1.

4

Understanding threat assessment through both the perspective of the architect and the end user.

2.

Prioritizing key design strategies and techniques.

3.

Implementing design strategies while preserving project goals.

4.

Managing the pros & cons between application, construction and costs.

5.

Balancing human need with occupant safety.

STATION DESIGN CONFERENCE // 2021

Today’s Learning Objectives

Threats NATURAL VERSUS HUMAN

Site and Building

5

STATION DESIGN CONFERENCE // 2021

Internal and External

Threats GEOGRAPHICAL AREA AND CONTEXT

Urban

6

STATION DESIGN CONFERENCE // 2021

Suburban

Rural

Natural Threats SITE AND BUILDING RELATED

wild fire

flooding

wind

7

STATION DESIGN CONFERENCE // 2021

lightning

snow

tsunami

earthquake

What are Client’s concerns?  Protecting Equipment  Damage to the Site  Ability to respond from Site  Damage to the Building  Ability to occupy Building

8

STATION DESIGN CONFERENCE // 2021

Site Related Natural Threats

Design Strategies to Mitigate Concerns:  Consider available space  Proper siting of Project  Understand the Topography  Examine both ingress and egress from Site  Understand FEMA Regulations  Flood Control Measures  Investigate the Site soils

9

STATION DESIGN CONFERENCE // 2021

Site Related Natural Threats

What are Client’s concerns?  Building Resiliency  Ability to Operate  Protection of Infrastructure  Damage to the Building  Safety of Occupants

10

STATION DESIGN CONFERENCE // 2021

Building Related Natural Threats

Design Strategies to Mitigate Concerns:  Essential Facilities Design  Increase Seismic Design  Emergency Power Redundancy  Lightning Protection  Glass Strengthening  Special Foundation Systems  Careful Material Selections

11

STATION DESIGN CONFERENCE // 2021

Building Related Natural Threats

Human Threats SITE AND BUILDING RELATED

12

active shooter

explosive

vehicular

vandalism

intrusion

internal

theft

contamination

STATION DESIGN CONFERENCE // 2021

What are Client’s concerns?  Public and Private Zones  Clear Public vs LE Vehicular Circulation  Clear Lines of Sight from Building  Facility Hardening  Parking Security  Remains Welcoming to Public

13

STATION DESIGN CONFERENCE // 2021

Related Human Threats

Design Strategies to Mitigate Concerns:

CRIME PREVENTION THROUGH ENVIRONMENTAL DESIGN (CPTED)

14

STATION DESIGN CONFERENCE // 2021

Related Human Threats

Related Human Threats CRIME PREVENTION THROUGH ENVIRONMENTAL DESIGN

Surveillance

15

STATION DESIGN CONFERENCE // 2021

Access

Territoriality

Related Human Threats SURVEILLANCE

16

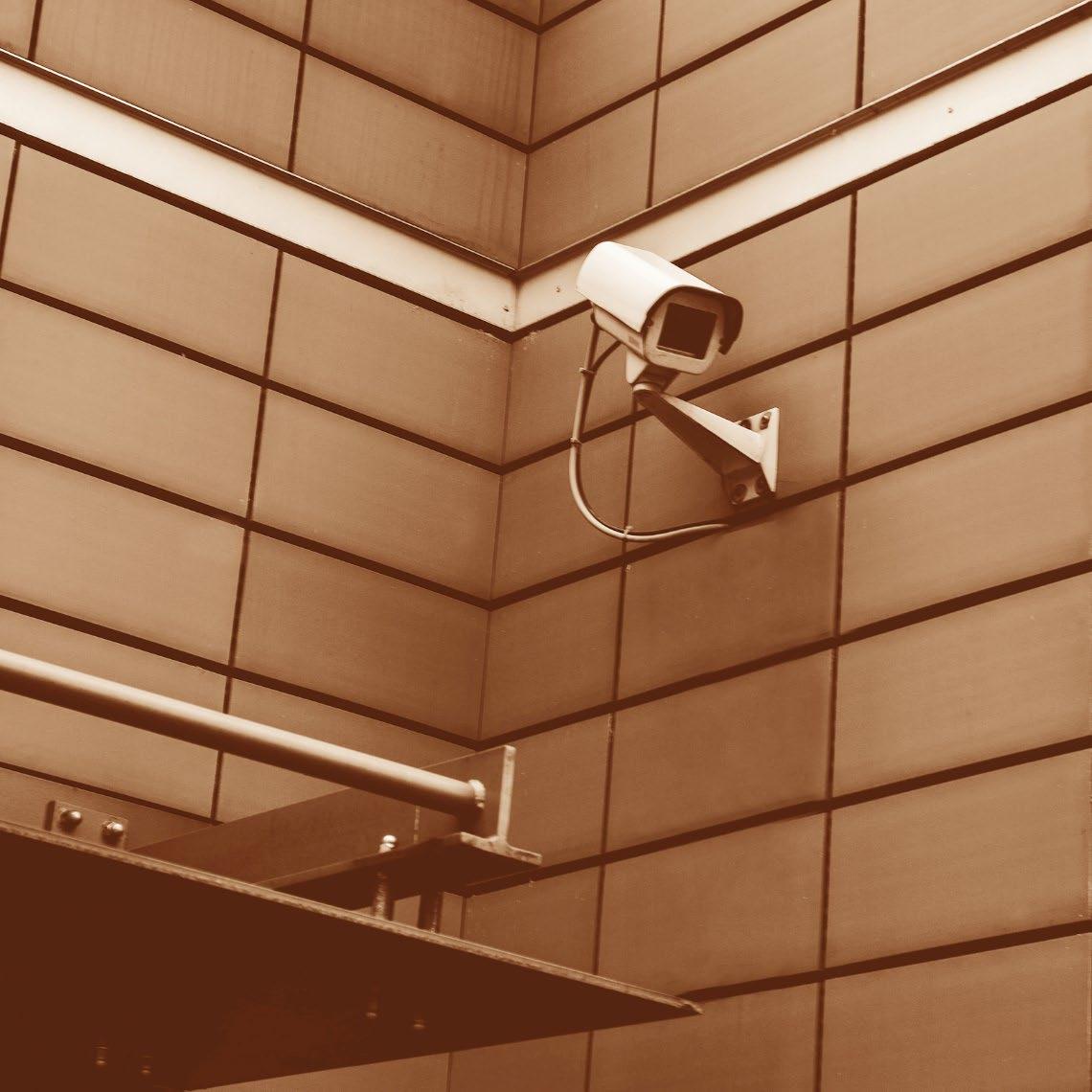

 Visible Surveillance Cameras

 Locate Public Parking Prominently

 Visual Access From Building

 Maintain Landscaping

 Limit Sight Obscuring Features

 Provide Adequate Site Lighting

STATION DESIGN CONFERENCE // 2021

 Eliminate Blind Corners

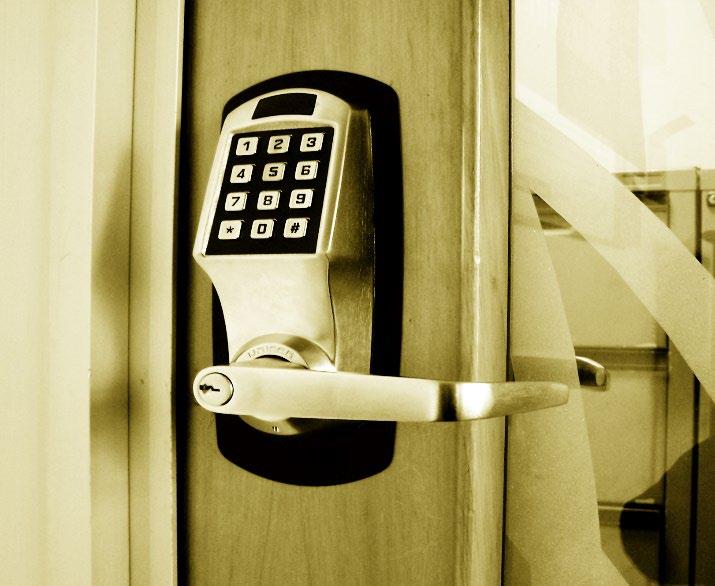

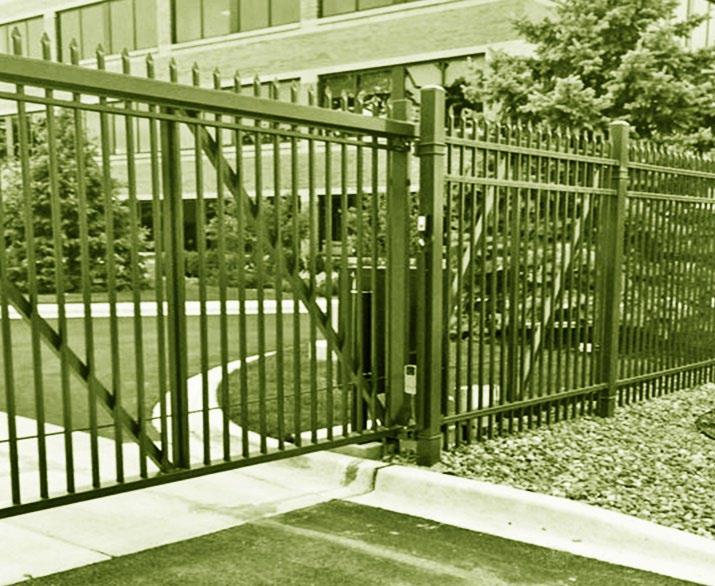

Related Human Threats ACCESS

17

 Clear Delineation of Public versus Secure Zones

 Consider required Support Spaces & Type of Access

 Consider How & When Public Spaces are accessed

 Embed Flexibility in Public and Secure Access Control

 Consider Multi-Story Public Access and Control

 Use Landscape selections to limit Building Approach

STATION DESIGN CONFERENCE // 2021

Related Human Threats TERRITORIALITY

 Clearly Distinguish Public Zones  Create a Sense of Transition to Trespass  Instill a Sense of Pride and Ownership 18

STATION DESIGN CONFERENCE // 2021

 Develop a distinct Front & Back - Public & Secure Zone  Program Activity Support

Design Strategies to Mitigate Concerns:

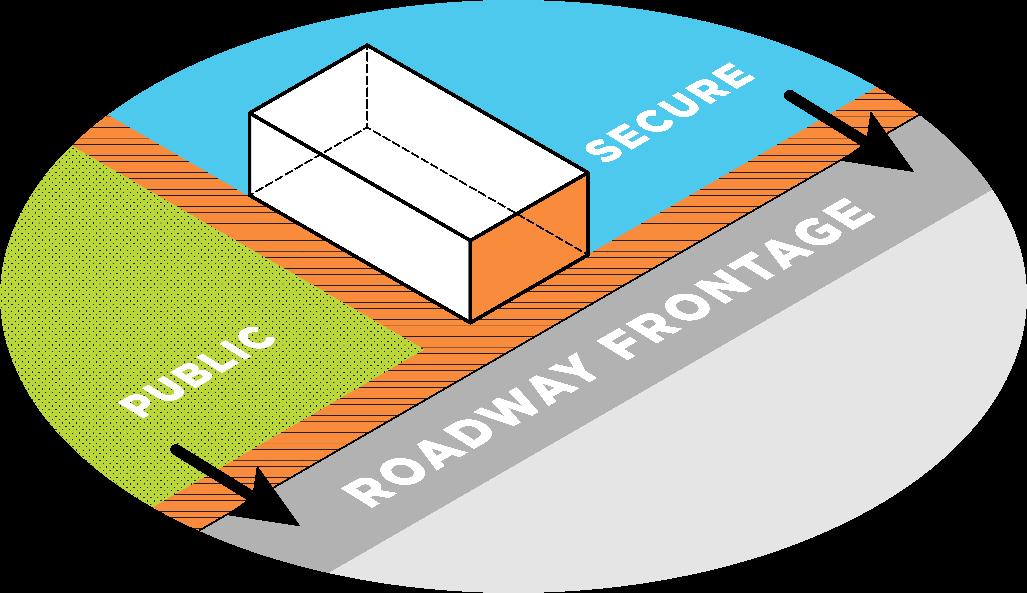

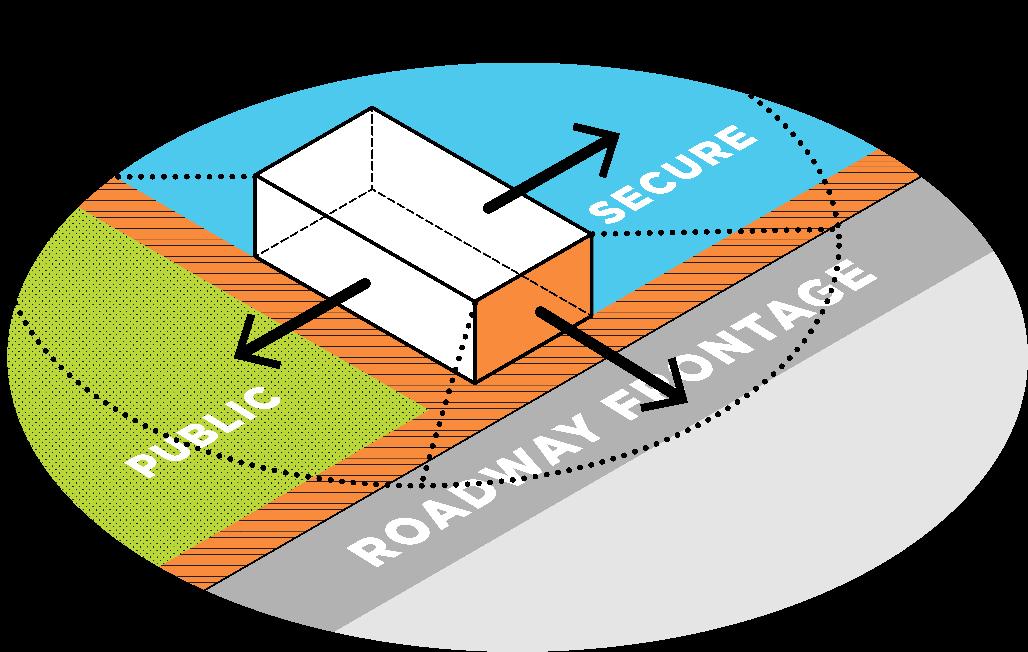

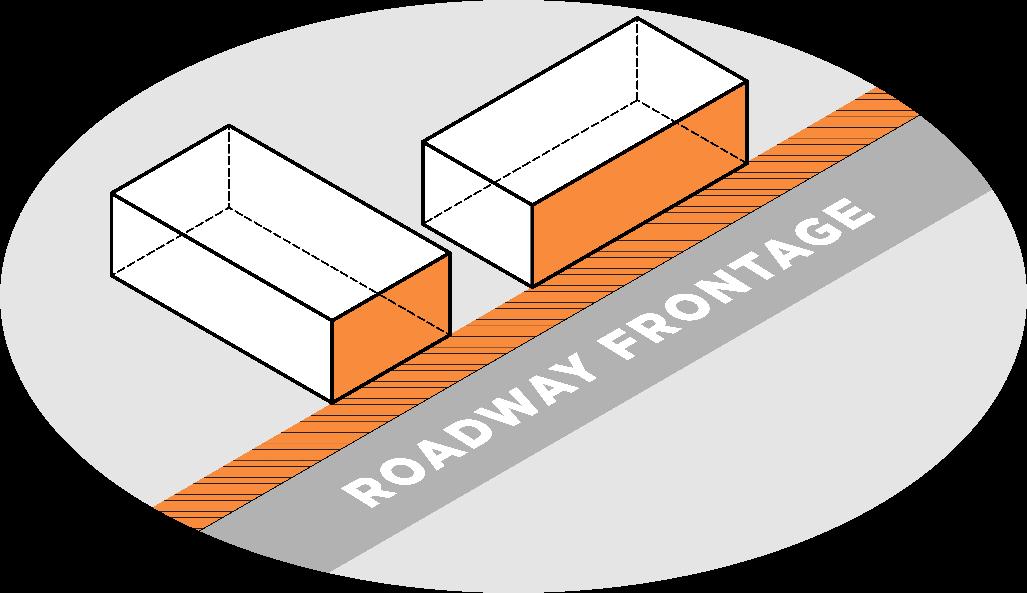

ORIENTING THE BUILDING TO MINIMIZE EXPOSURE

19

STATION DESIGN CONFERENCE // 2021

Site Related Human Threats

Design Strategies to Mitigate Concerns:

STRATEGICALLY BUFFERING THE BUILDING FROM PUBLIC

20

STATION DESIGN CONFERENCE // 2021

Site Related Human Threats

Design Strategies to Mitigate Concerns:

DISTINCTLY DEFINING PUBLIC AND SECURE ZONES

21

STATION DESIGN CONFERENCE // 2021

Site Related Human Threats

Design Strategies to Mitigate Concerns:

CONTROL EXPOSURE AND VISUAL ACCESS

22

STATION DESIGN CONFERENCE // 2021

Site Related Human Threats

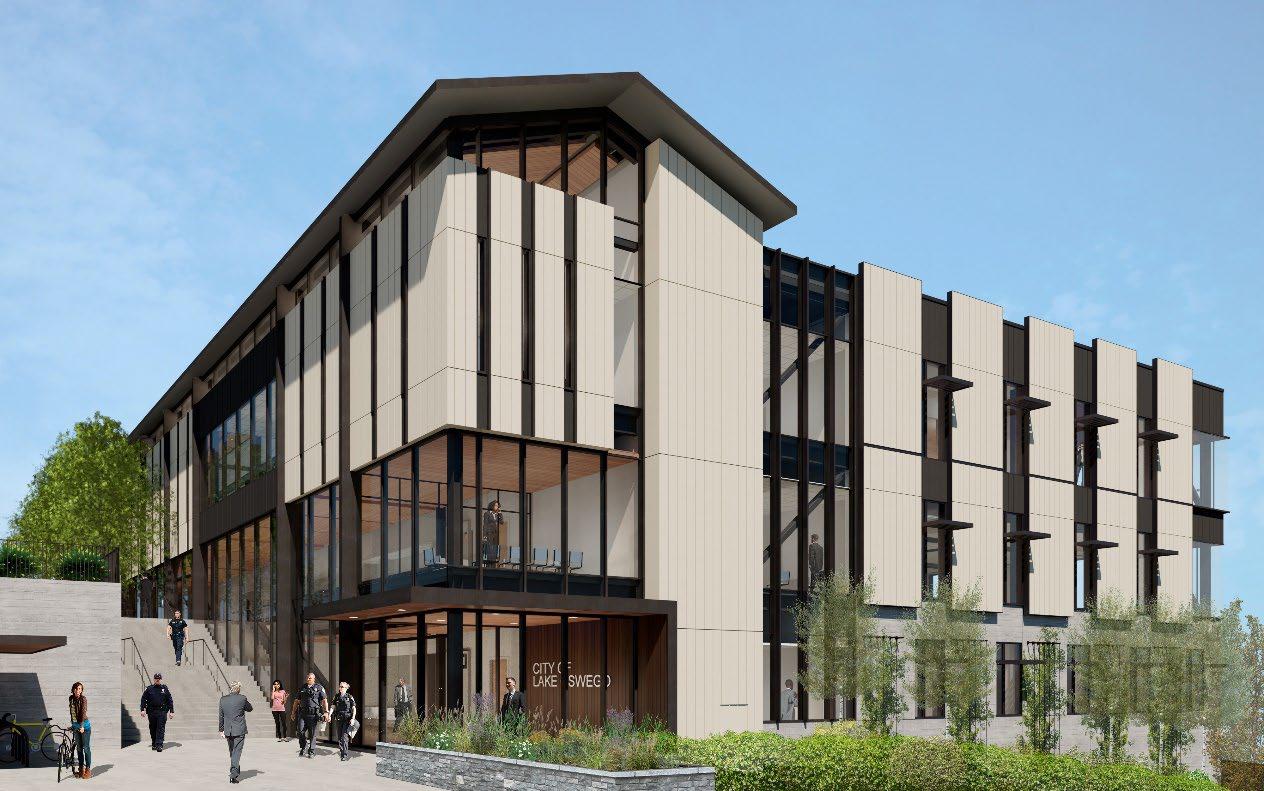

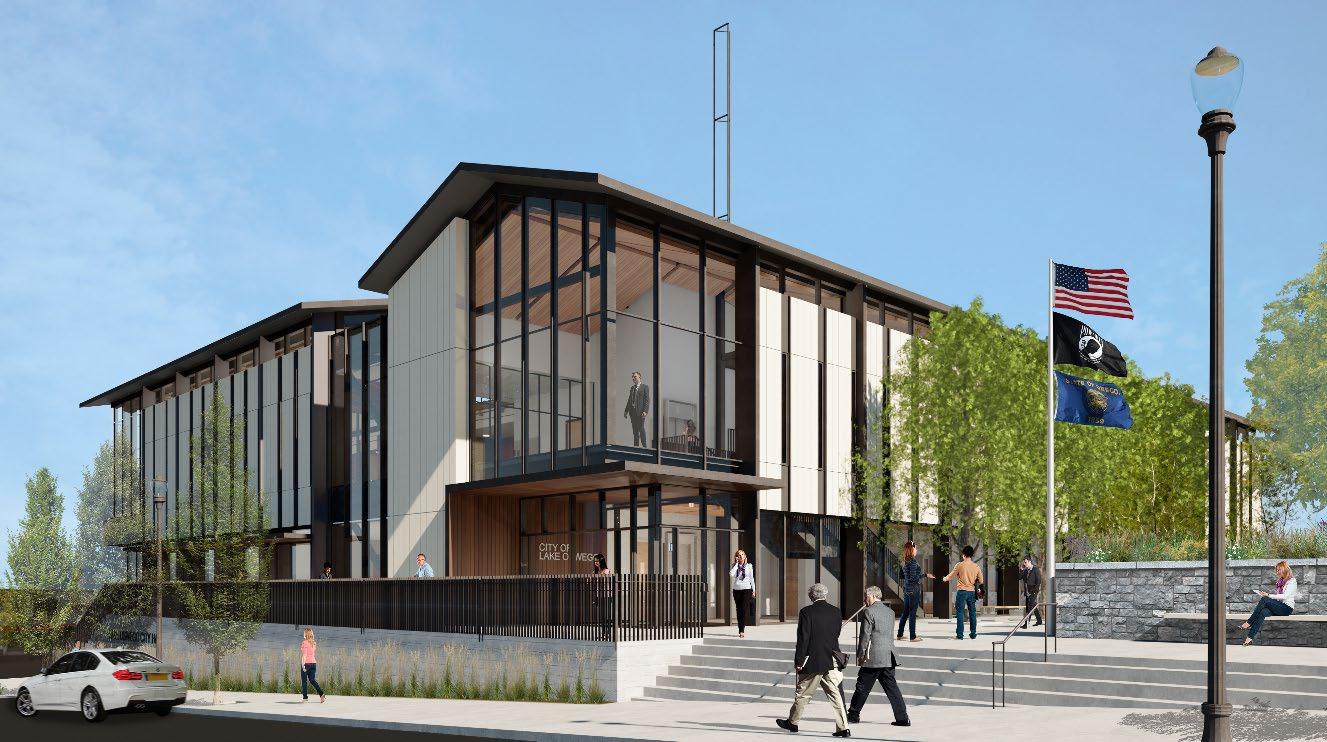

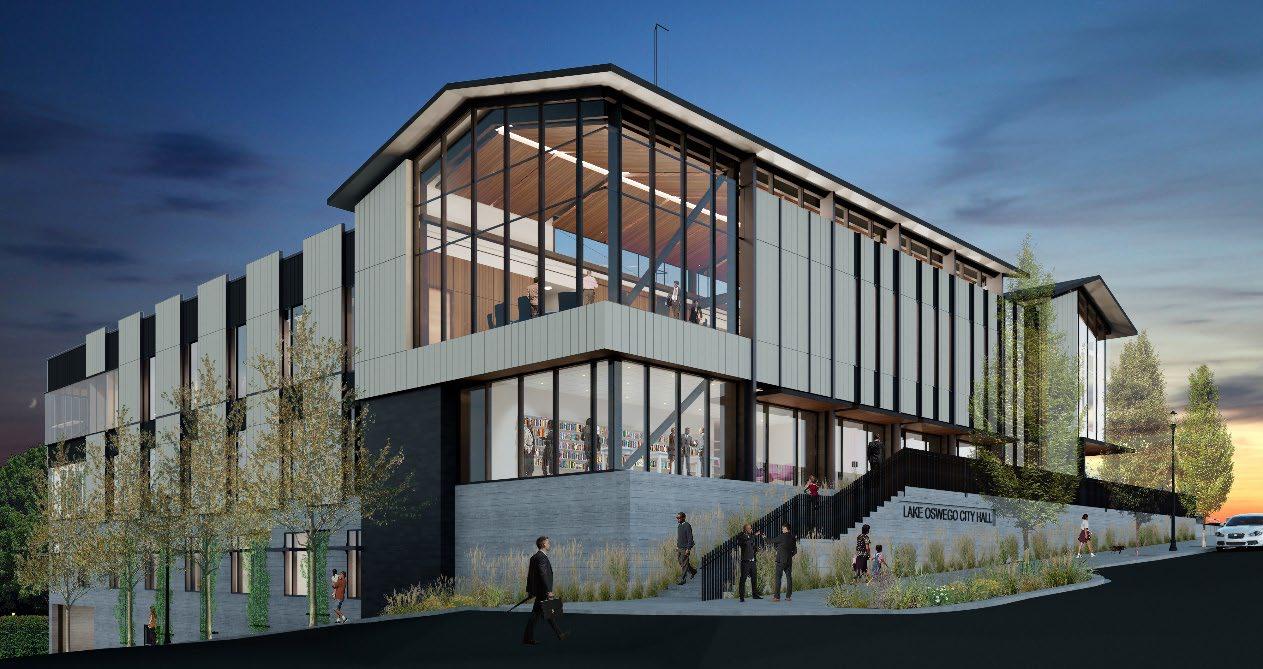

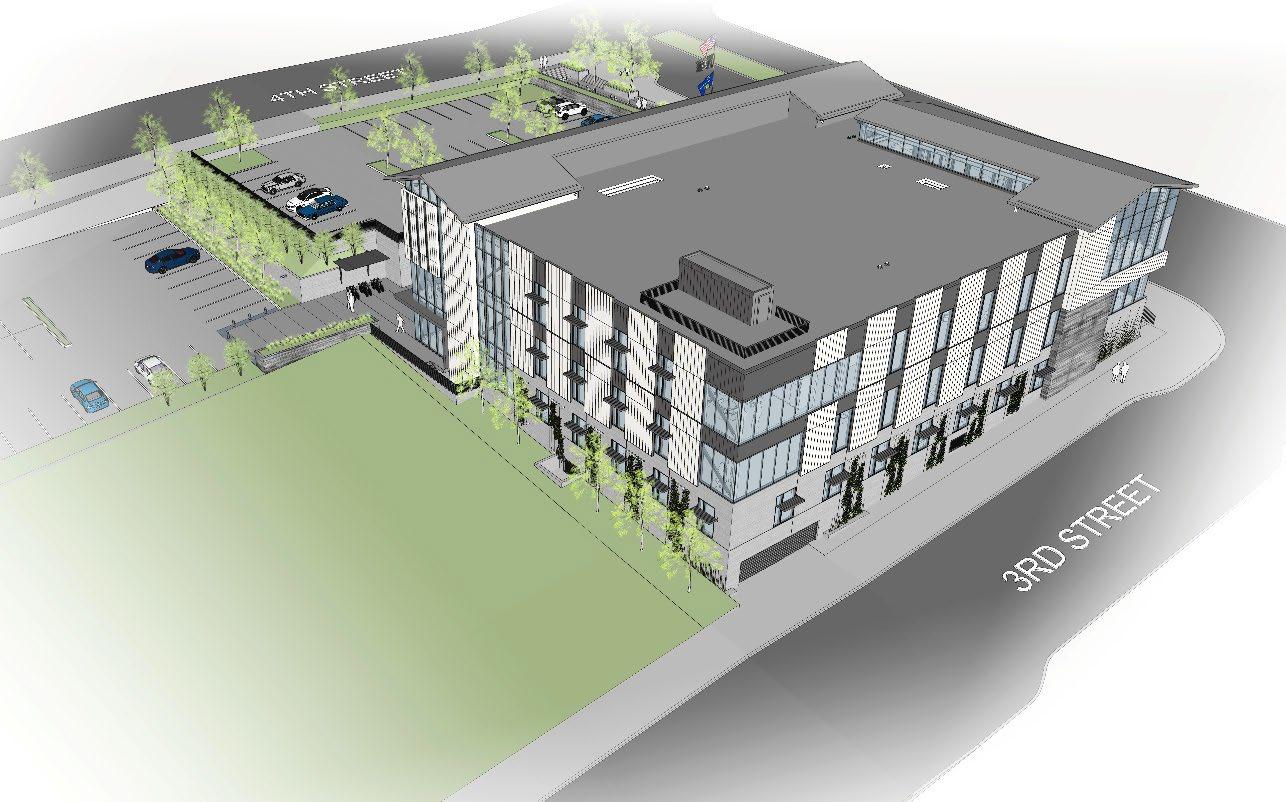

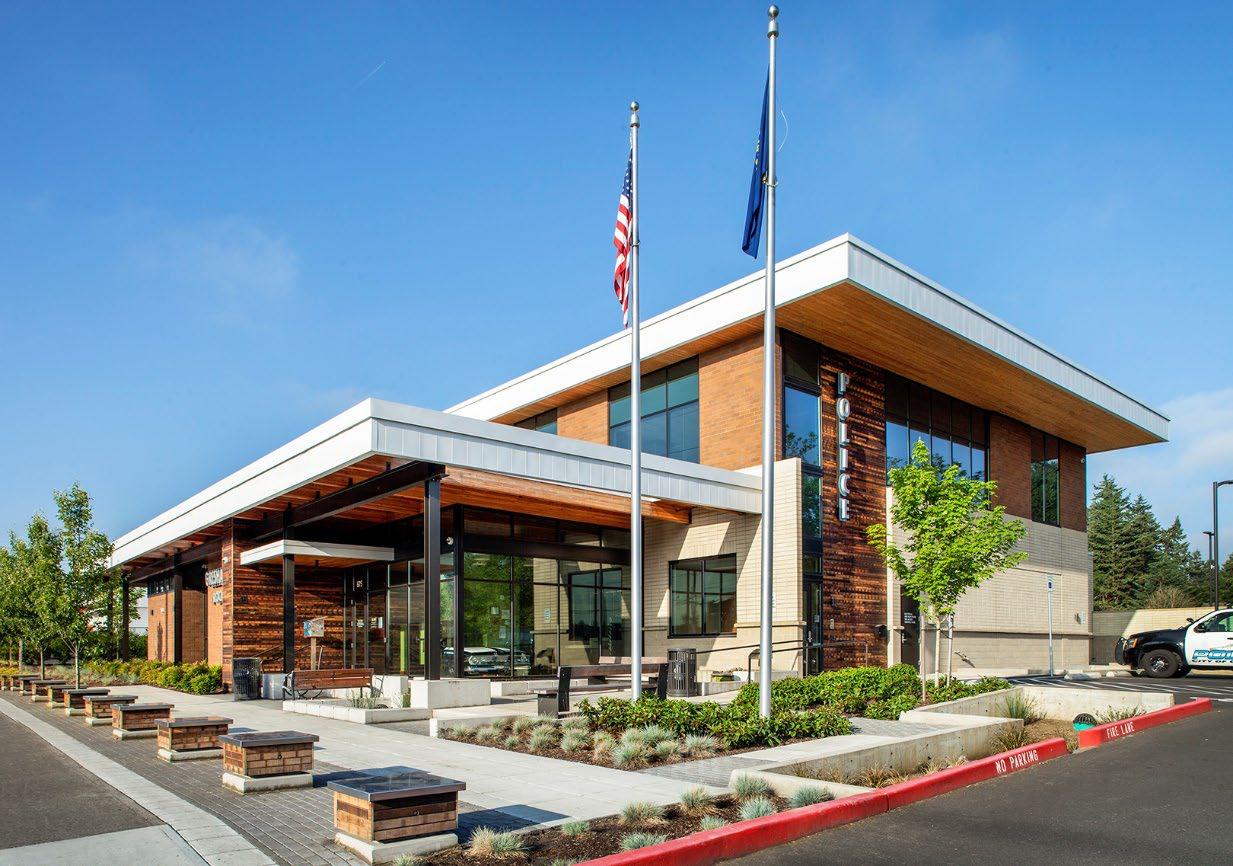

Case Study: Lake Oswego, OR DESIGN SOLUTIONS FOR THREAT MITIGATION

 Project: Police, City Hall & Court  Construction Completed in 2021  71,000 SF  Construction Cost of $37 million  Construction Delivery Method: Construction Manager/General Contractor (CMGC)

23

STATION DESIGN CONFERENCE // 2021

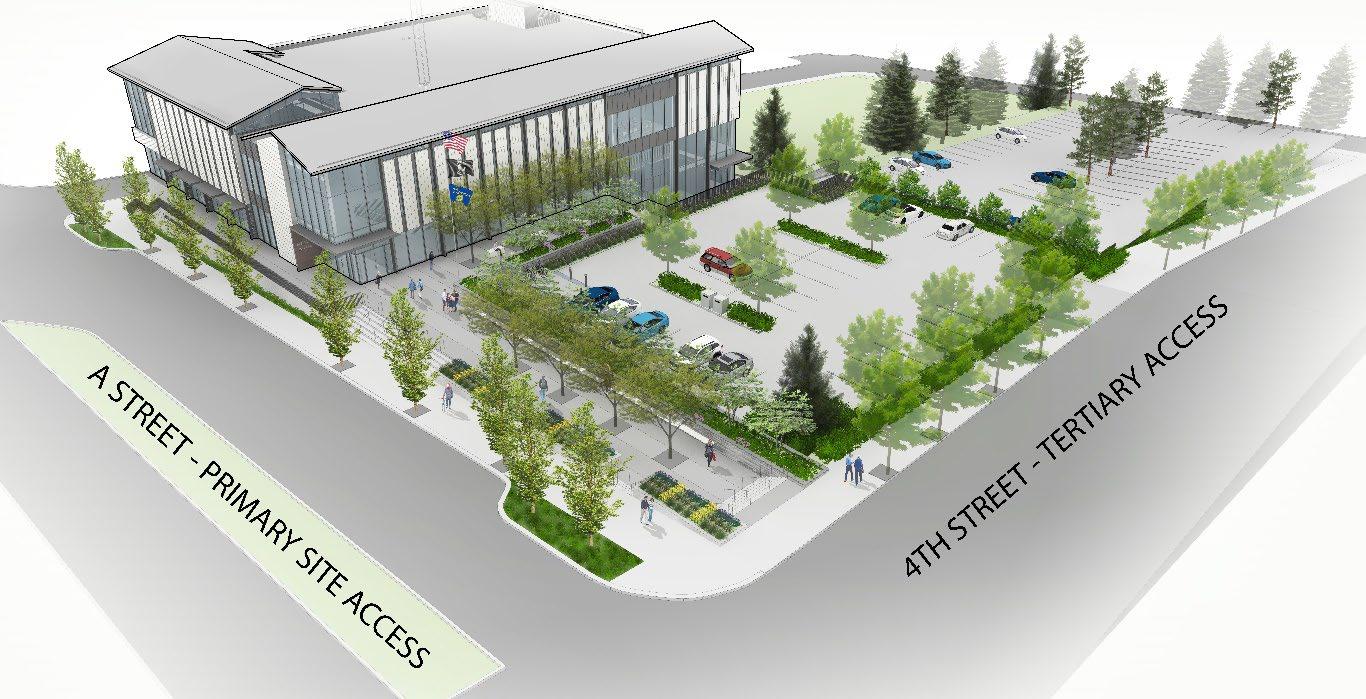

Site Related Threat Mitigation DESIGN STRATEGIES FOR SITE SECURITY ZONING FOR POLICE Primary Public Entry

Public Parking Secondary Egress

Police Facility

Secure Underground Police Parking Entry

Secure Utility Zone

Public Parking

24

STATION DESIGN CONFERENCE // 2021

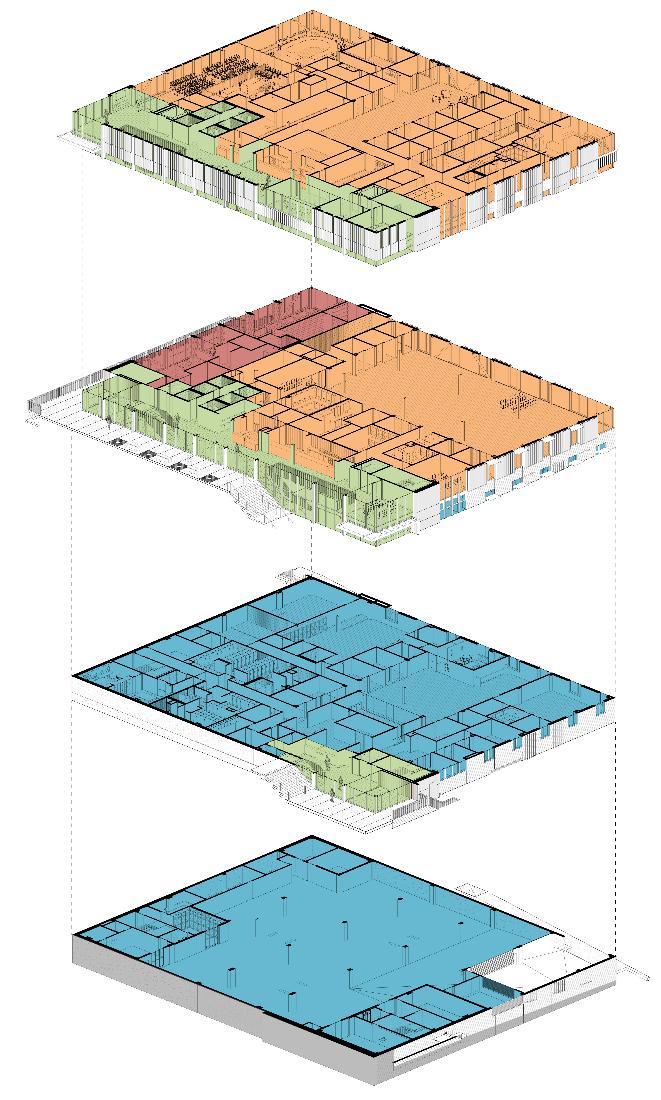

Building Related Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY 3rd Floor

•

POLICE……………………………

•

PUBLIC……………………………

•

ADMINISTRATION………..

•

RETAIL…………………………….

2nd Floor

1st Floor

Garage 25

STATION DESIGN CONFERENCE // 2021

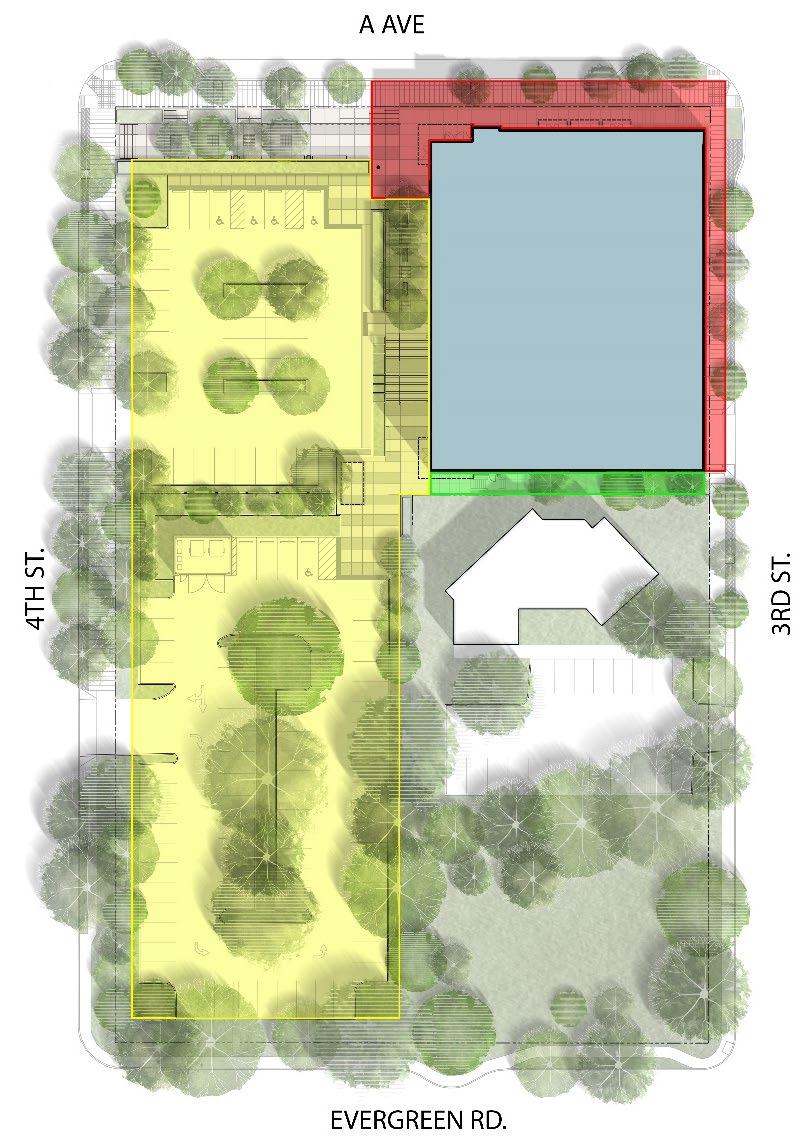

Site Related Threat Mitigation DESIGN STRATEGIES FOR SITE SECURITY ZONING FOR PUBLIC

Public Parking Buffer Zone Public Entry Steep Slopes

26

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES FOR PRIVACY AND VISUAL SCREENING

Provide Site Obscuring Screening Around Parking Provide the Ability to Offer Private Parking and Access for Informants Secure Emergency Power Equipment

Limit Visual Access into Secure Parking Secure Parking for Police, Court and Sally Port Access

27

STATION DESIGN CONFERENCE // 2021

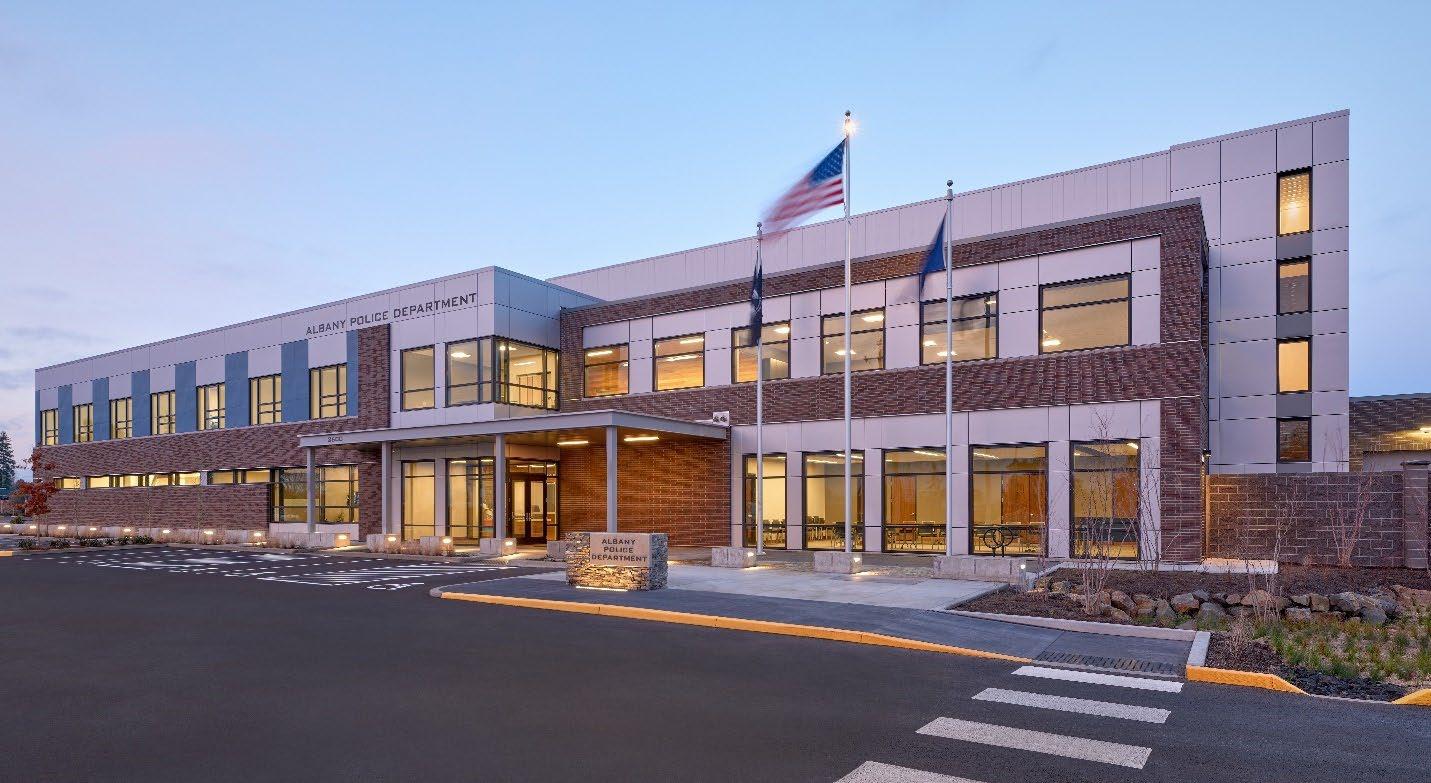

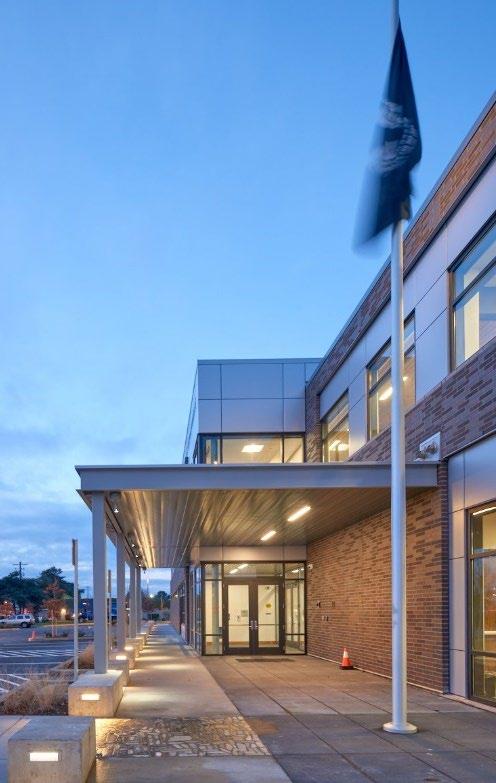

Site Related Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY

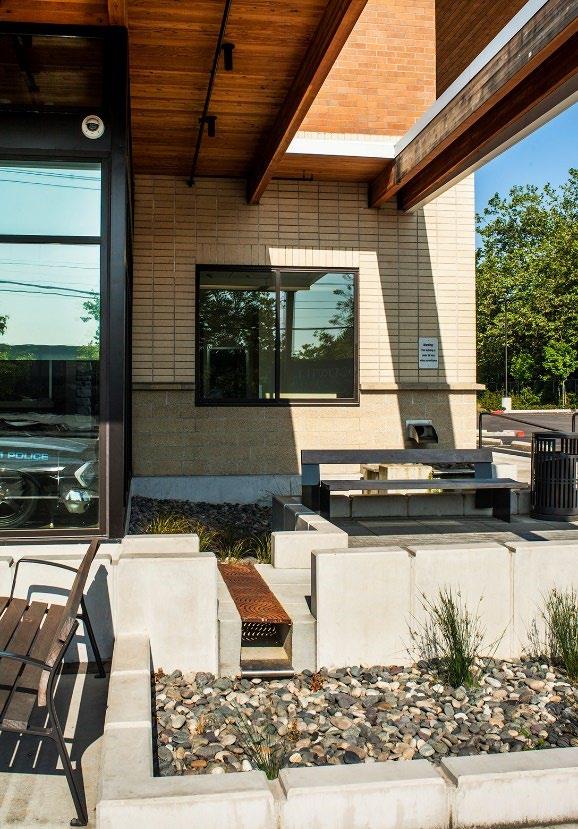

Utilize Landscaping to Restrict Access to Windows Create Line of Sight to Public Approach Utilize Landscape Site Features as Natural Buffers Provide Adequate Separation of Public Parking From Building

28

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY

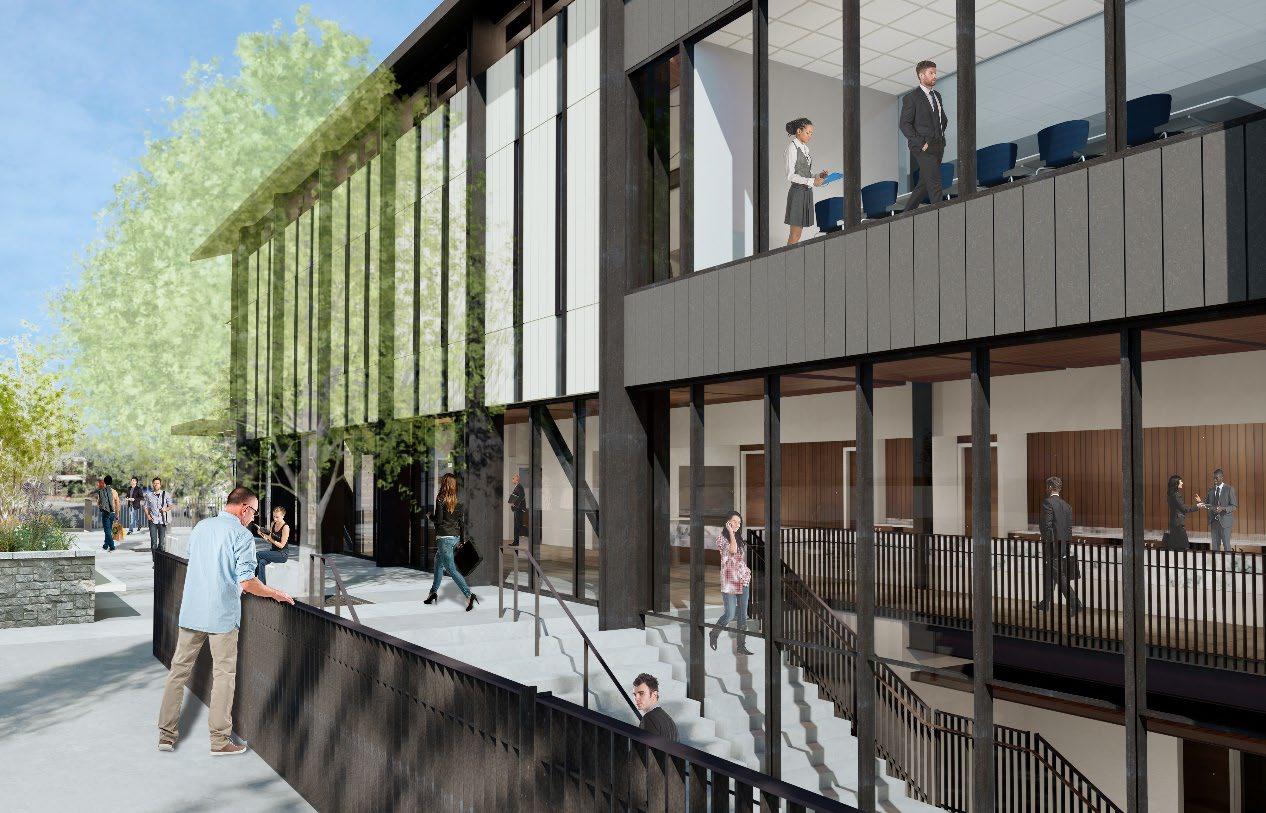

Use Changes in Paving Materials to Define Zone Changes Activate Frontage After Hours Elevate Windows

29

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY

Utilize Landscape Site Features as Natural Buffers Utilize Steep Slopes to Restrict Access to Windows Separate and Secure Parking Entry

30

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY

Properly Place Trees to Preserve Line of Sight Clear Delineation of Entry Create Distinct Edges to Support Wayfinding Human Scale Site Features Protect Building 31

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY

Properly Light Public Parking and Access Occupied Spaces Provide Oversight Elevate building Site Walls can Provide Protection and Blend with the Design

32

STATION DESIGN CONFERENCE // 2021

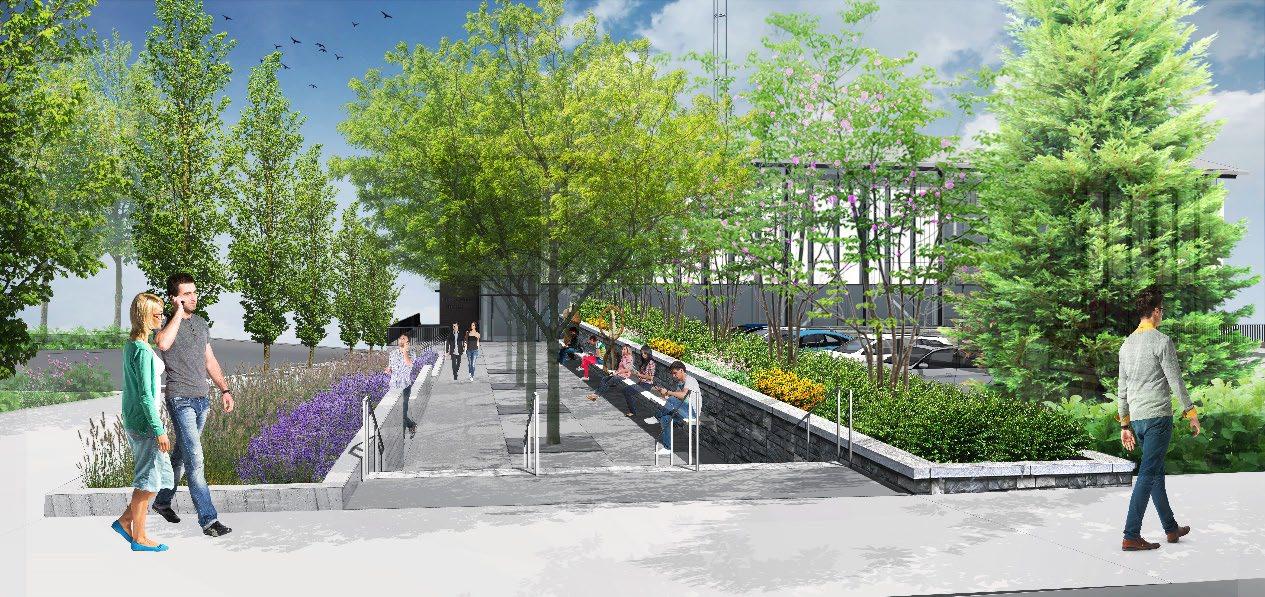

Site Related Threat Mitigation DESIGN STRATEGIES FOR PRIVACY AND VISUAL SCREENING Maintain Tree Canopy for Visibility Provide Diversity of Activities Lower Planting for Visibility Minimize Site Obscuring Elements to the Greatest Extent Feasible

33

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES FOR PRIVACY AND VISUAL SCREENING Maintain Tree Canopy for Visibility Lower Planting for Visibility Provide Multiple Diversity of Activities Minimize Site Obscuring Elements to the Greatest Extent Feasible

34

STATION DESIGN CONFERENCE // 2021

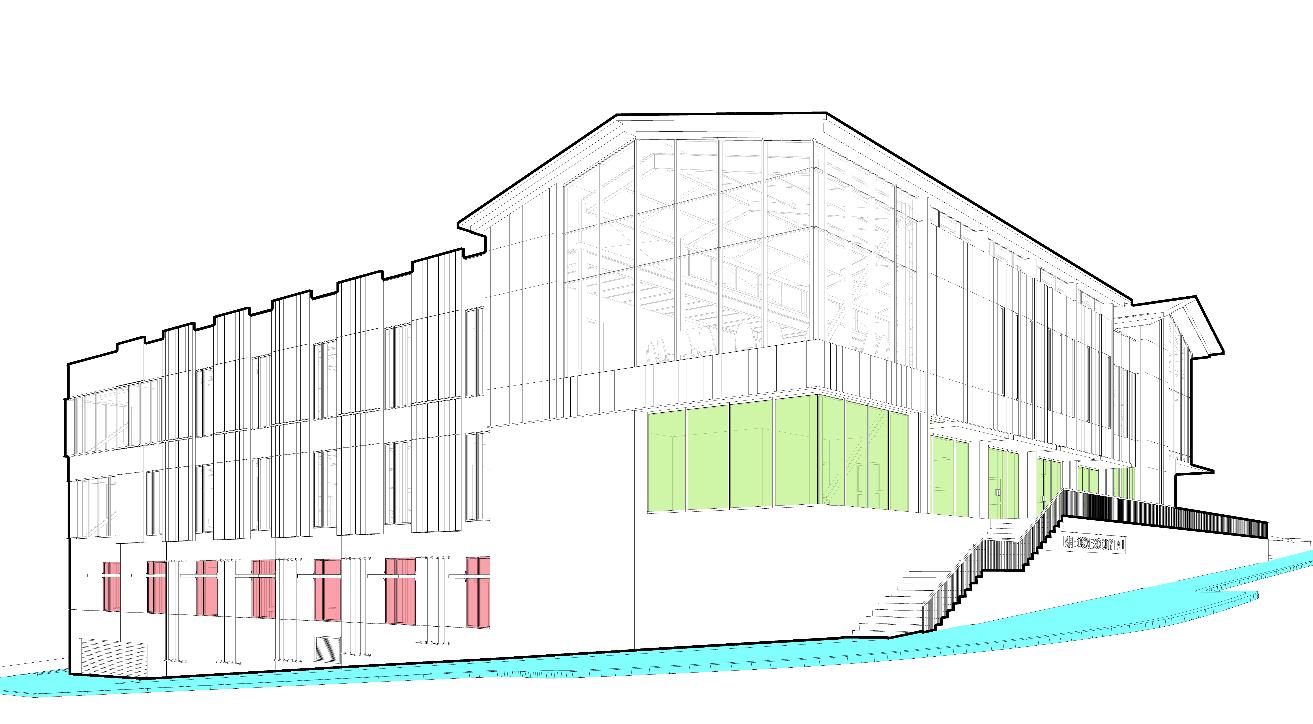

Building Related Threat Mitigation DESIGN STRATEGIES FOR COST EFFECTIVE BALLISTIC & BLAST PROTECTION

Locate Blast Film Where Vulnerable to Public Utilize Naturally Ballistic Resistant Building Materials; Stone, Concrete, Brick etc.

Localize Ballistic Glazing to Human Centric Locations Utilize Existing Grades to Limit Window Exposure 35

STATION DESIGN CONFERENCE // 2021

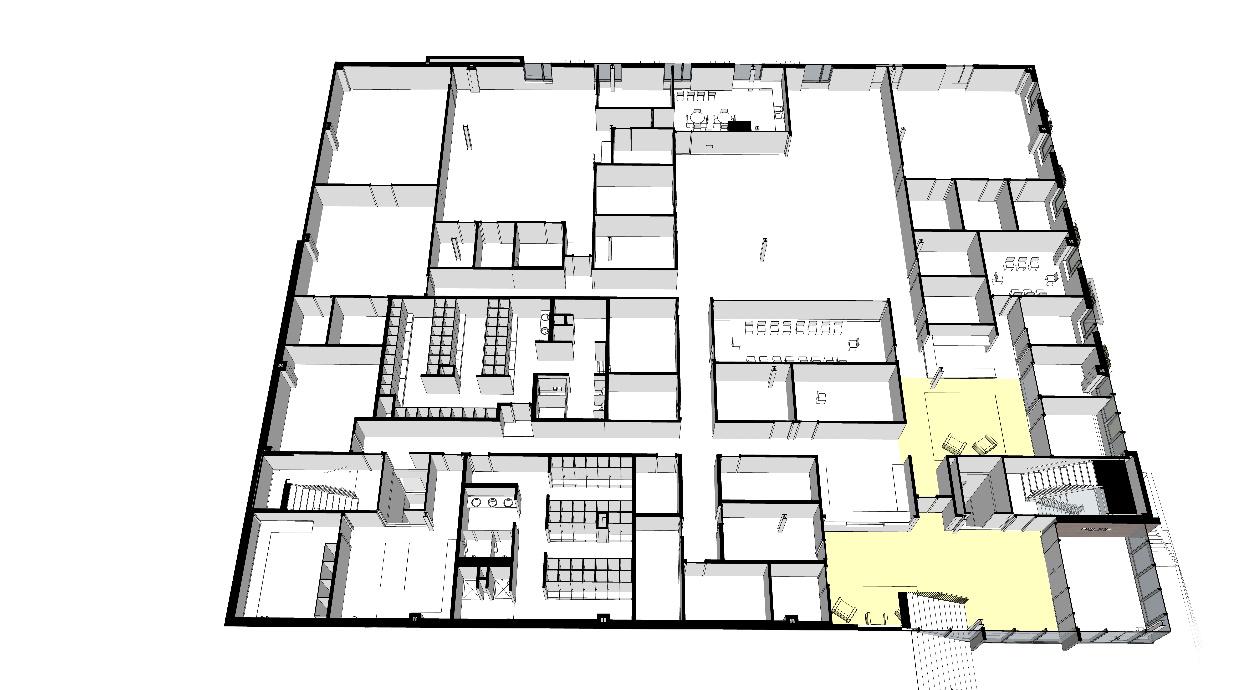

Building Related Threat Mitigation DESIGN STRATEGIES FOR PLAN LAYOUT TO SUPPORT SECURITY & SAFETY

Zone Program to Maximize Visual Oversight Patrol Limited Exterior Doors Use Circulation Patterns that Support Observation and Control Locate Shared Space with Dual Access Zone Program to Maximize Visual Oversight Records 36

STATION DESIGN CONFERENCE // 2021

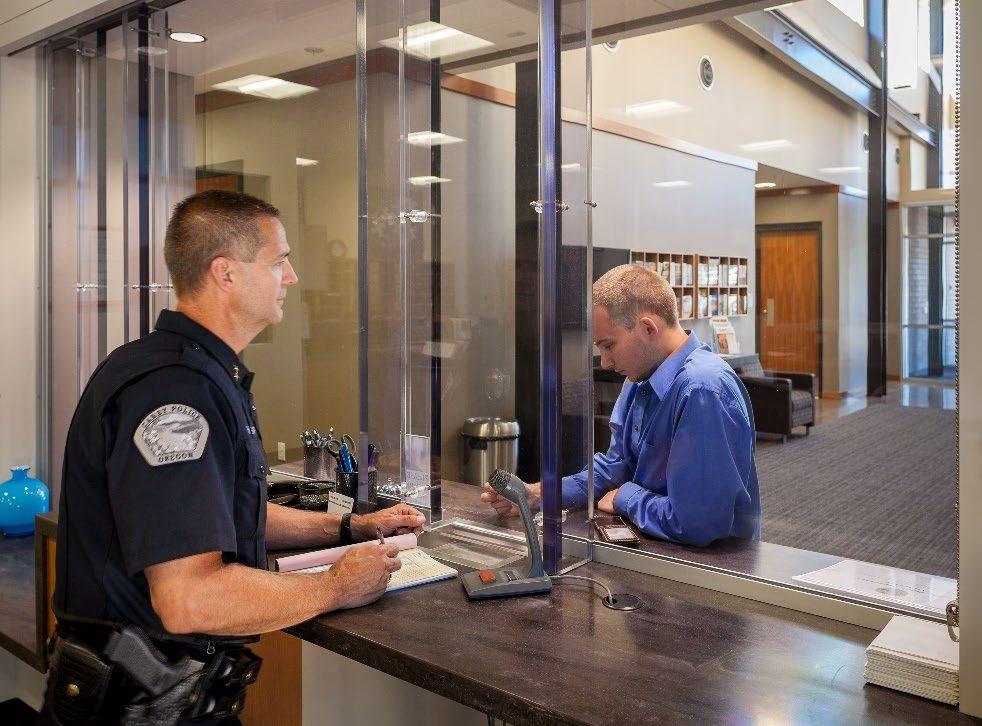

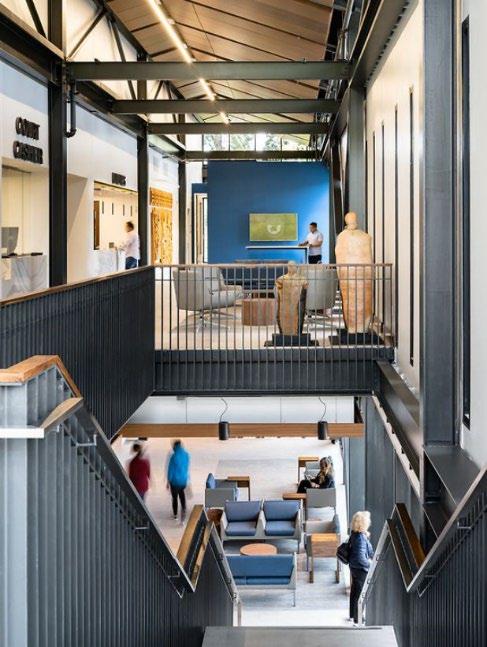

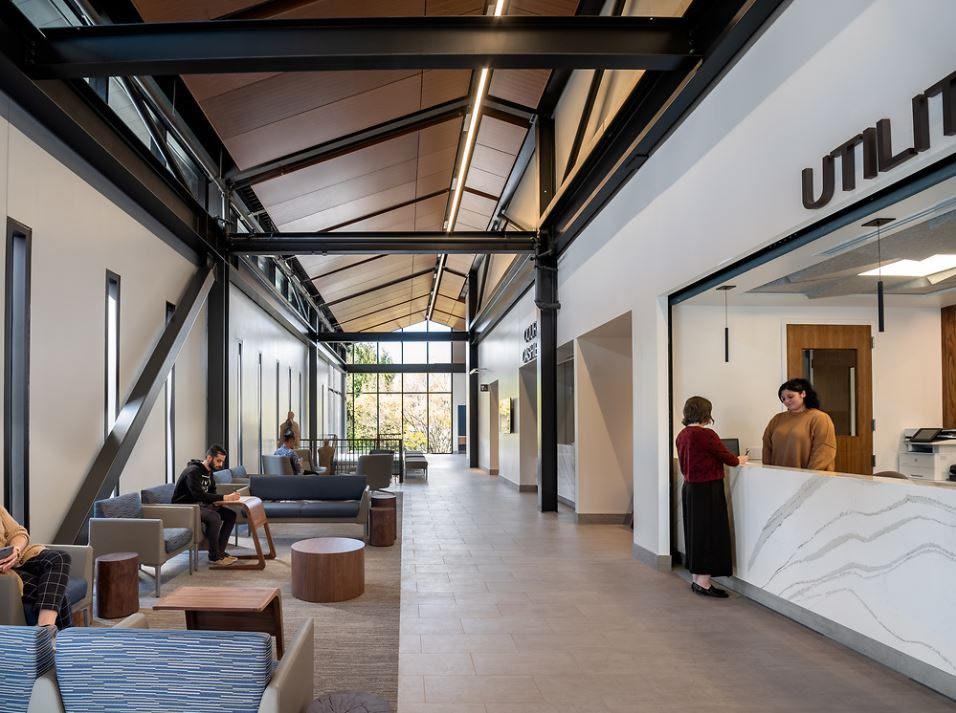

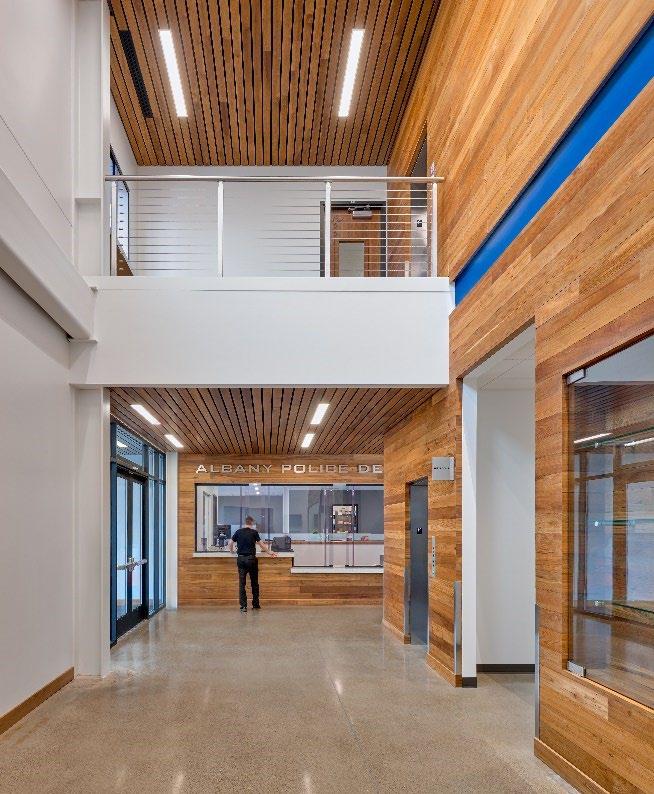

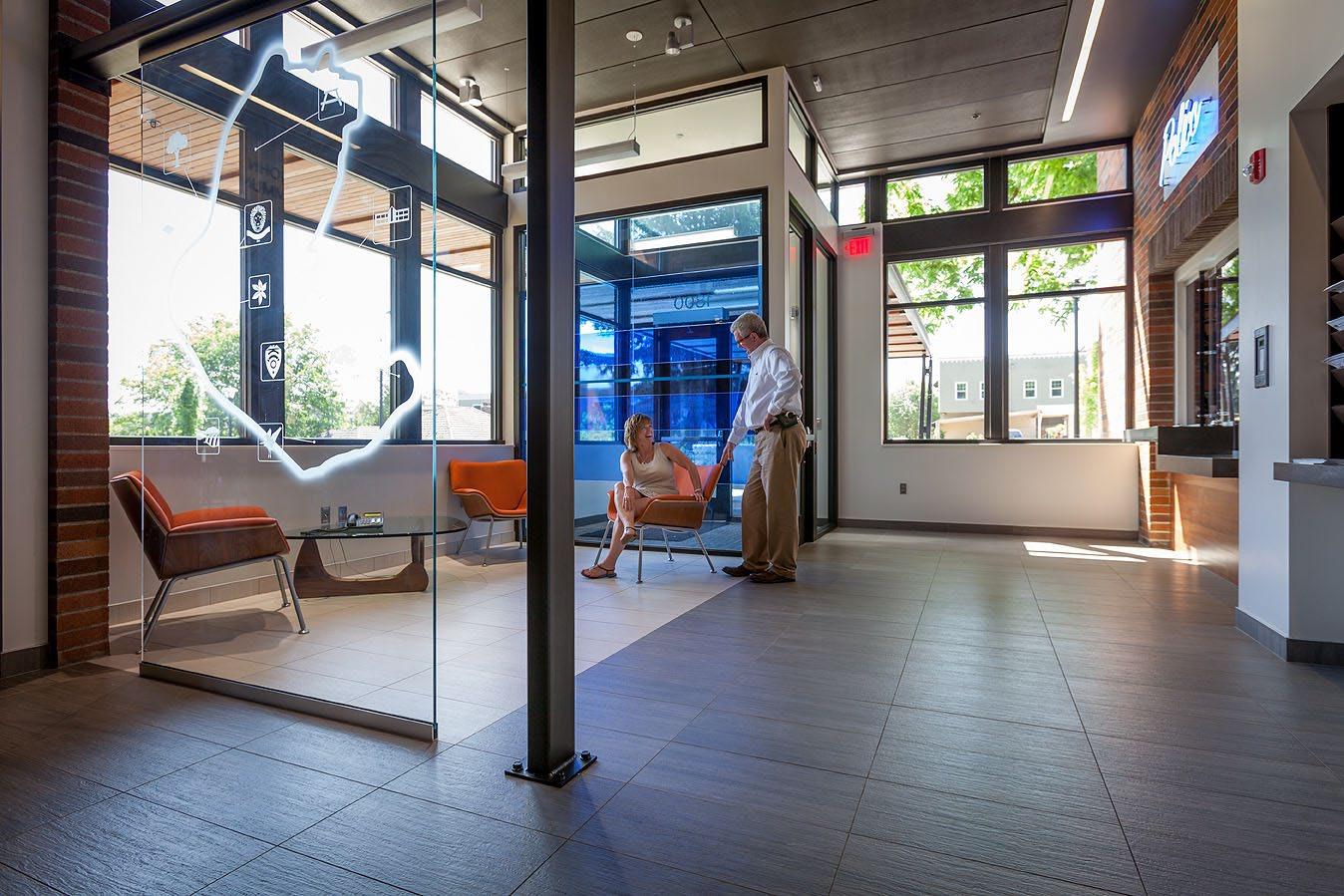

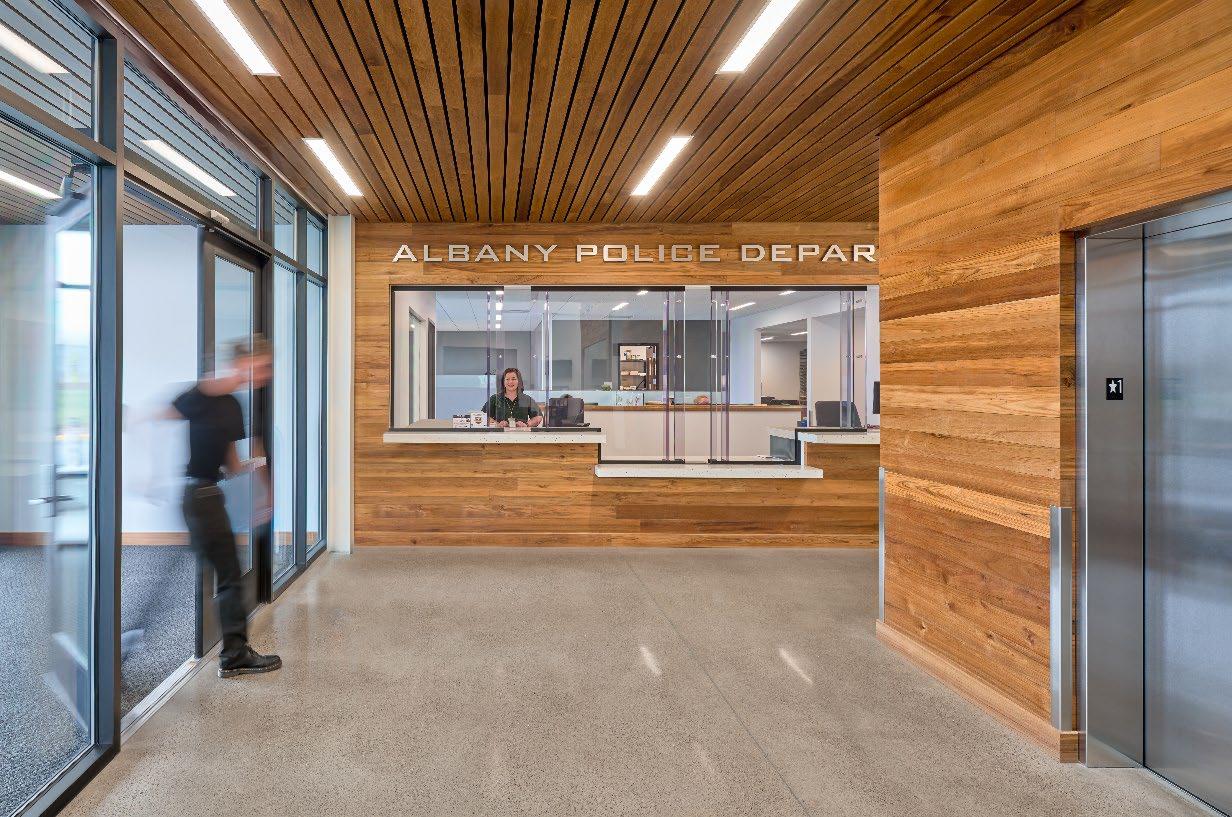

Interior Design Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY Roll Down Gate for Security Easy Monitoring and Observation for Public Safety

37

STATION DESIGN CONFERENCE // 2021

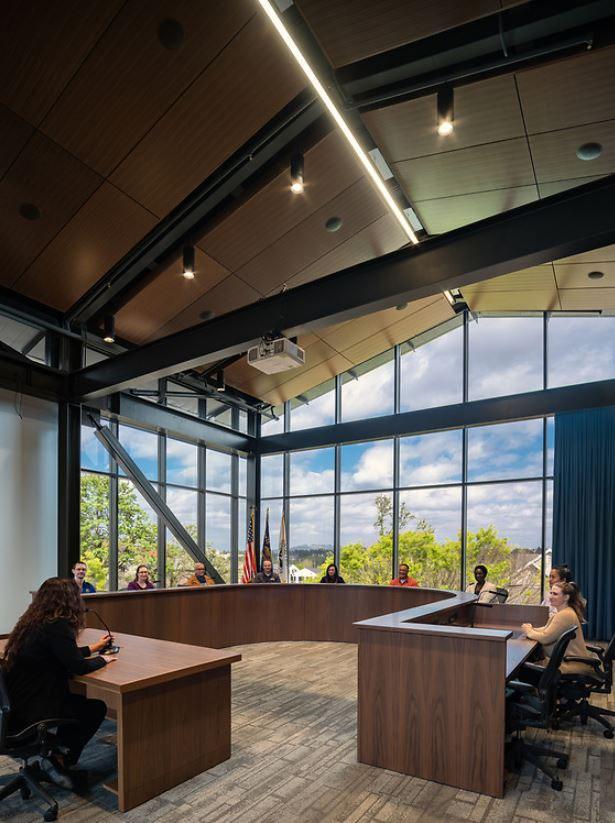

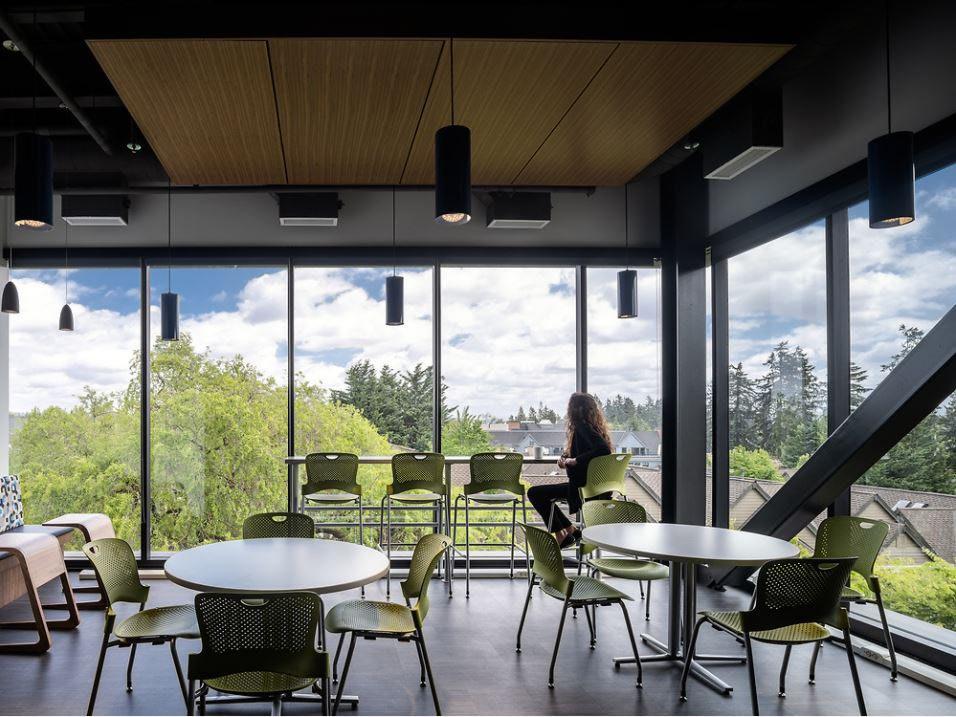

Interior Design Threat Mitigation DESIGN STRATEGIES FOR SECURITY & PRESERVING WELCOMING FACILITY Open Staff Areas Elevated for Security Court and Public Chambers are Elevated for Security

38

STATION DESIGN CONFERENCE // 2021

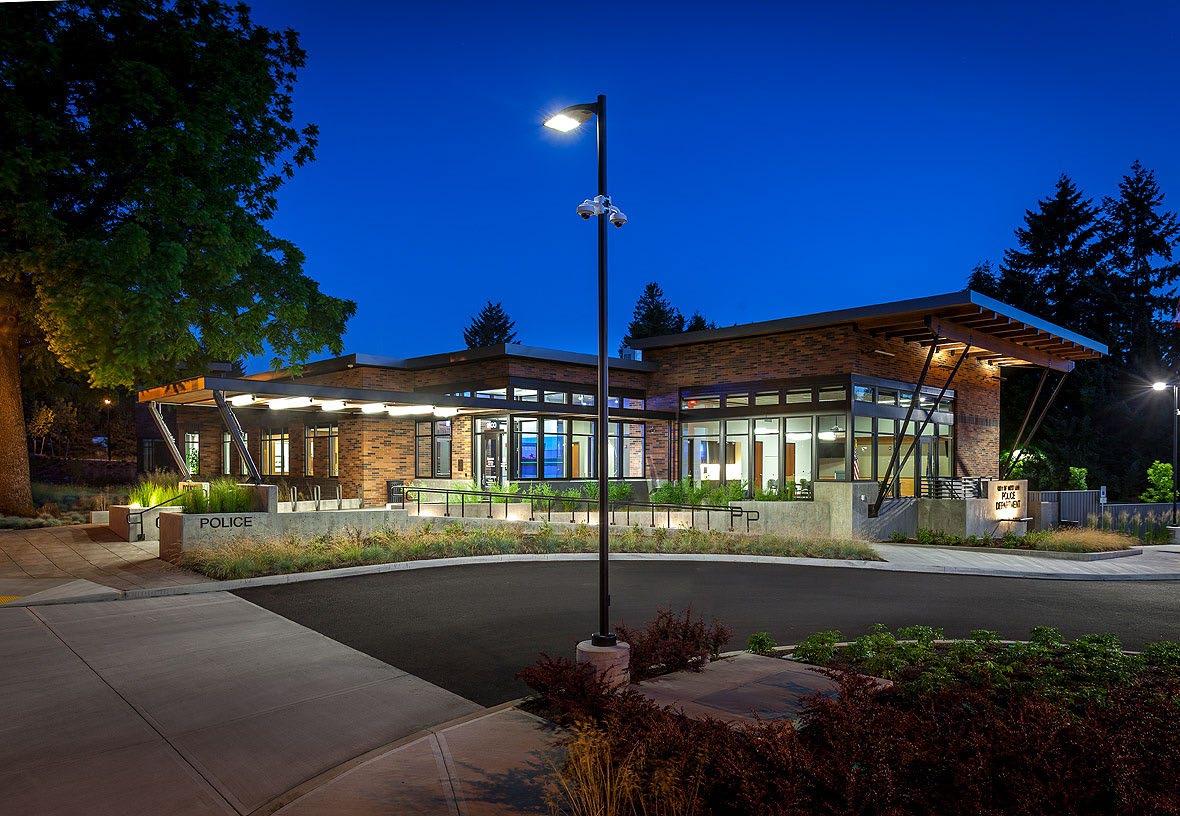

Site Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

39

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

40

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

41

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

42

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

43

STATION DESIGN CONFERENCE // 2021

Site Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

44

STATION DESIGN CONFERENCE // 2021

Building Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

45

STATION DESIGN CONFERENCE // 2021

Building Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

46

STATION DESIGN CONFERENCE // 2021

Building Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

47

STATION DESIGN CONFERENCE // 2021

Building Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

48

STATION DESIGN CONFERENCE // 2021

Building Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

49

STATION DESIGN CONFERENCE // 2021

Building Related Threat Mitigation DESIGN STRATEGIES IN PRACTICE

50

STATION DESIGN CONFERENCE // 2021

Take-Aways RECAP AND CONCLUSIONS

 Maintaining a welcoming facility while overlaying security objectives is achievable.  Overall project goals & stakeholder aspirations can be preserved while ensuring safety & security of your facility.  Safety & security of your facility can be accomplished without an extensive extra cost if done strategically.

51

STATION DESIGN CONFERENCE // 2021

Thank you.

QUESTIONS AND ANSWER
