SELECTED WORKS

4-5

(Fall 2020) Museum of Contemporary Japanese Art

6-10

(Spring 2021) CLA Tower

11

(Fall 2021) Structure Excercises

12-17 (Fall 2021) Scientists’ Retreat 18-21 (Spring 2022) Residential Building Design Introduction 22-27 (Spring 2022) Mixed Use Multi Family Residential 28-32 (Fall 2022) Tsunami Evacuation Tower 33

Graphic Design for Student Innovation Idea Labs CPP

Museum of Contemporary Japanese Art Second Year Design Studio (Fall 2020)

This proposal for a Japanese Contemporary Art Museum in Little Tokyo is an extension of the greater site that is surrounded by important cultural buildings - Noguchi Plaza, Aratani Theatre, Japanese American Cultural and Community Center, and the Japanese Village Plaza. A raised courtyard complements and extends Noguchi Plaza to create a connection to all of the cultural buildings. The largest public programs such as the courtyard, auditorium, and store are accessible from both sides of the project without passing galleries for better accessibility. Visitors remain outside as they first enter through the envelope of the building and approach the raised courtyard that serves as a gathering space.

4

Left: Ground Floor Plan | Right: Second and Fourth Floor Plans 5

Left: Longitudinal Section | Right: Cross Section 6

CLA Tower at CPP Adaptive Reuse Second Year Design Studio (Spring 2021)

This project proposes adaptive reuse of Cal Poly Pomona’s CLA building. The plinth of the project draws from stitching and bridging in three bands of volumes. The tower uses the same triangular footprint as the CLA tower but uses an enclosure of an offset wooden louver system that bends gradually like a bending sheet of paper. The space and ramps between the tower and the envelope serves as secondary circulation and a moment of rest between the outside and the interior of the building. The internal organization of the tower is determined by lines and different ways to inhabit them. The lines that divide the tower space do not always define walls and can instead be defined by other features. These lines can fill the space with program as seen with the office level or be a disruption of an otherwise open floor plan of studios.

7

Left: Ground Floor Plan | Right top: Second Floor Plan | Right bottom: Seventh Floor Plan 8

Left: Longitudinal Section | Right top: Building Envelope Exploded | Right bottom: Plinth Render 9

Left: Circulation Diagram | Right: Program Diagram 10

Structure Excercises

Third Year Design Studio (Fall 2021) These three projects are a collection of week long excersises to create a tower, bridge, and cantilever structures. Each design has three specific locations - a place to look up, look down, and look in.

As the site for this exercise is a remote area in the mountainside, looking up refers to a place used as an observation deck, looking down is an area for observation of the flora and fauna below, and looking in refers to a gathering space.

The three designs are an exploration of the organization of those three spaces paired with the design and organization of structure.

LOAD TRACING DIAGRAM

ORGANIZATION DIAGRAM

Left: Tower | Middle: Bridge | Right: Cantilever 11

Scientists’ Retreat at Vetter Mountain Third Year Design Studio (Fall 2021)

This proposal for a scientists’ retreat and research center in Vetter Mountain is a shallow, reserved, shed-like structure placed on top of the mountain. The structure and typology of the building draws inspiration from the Yusuhara Wooden Bridge Museum. The building is organized around a core hallway and further divided based on a grid, making two distinct bars for the program to fill. The hallway creates the two halves - the side for work and the side for personal living spaces.

The hallway links two decks with one being a public gathering deck accessible from a lower point of the site through a winding ramp that follows the contours of the topography, and the other a private observation deck accessible for the resident scientists.

The activities in the buliding are balanced in its grid as the reserved building itself appears balanced on the mountain top.

12

Image: Exterior Rendering 13

Left: Floor Plans | Right: Site Plan 14

Left (top to bottom): Massing, Program Adjacency, and Program Diagrams | Right: Detailed wall Section 15

2

FLASHING GUTTER DOWNSPOUT PROTECTION BOARD RIGID INSULATION METAL DECKING BATT INSULATION

STANDING SEAM SHEET METAL FASCIA METAL ANGLE

MAPLE CEILING FINISH GYPSUM BOARD ALUMINUM PANELS AIR GAP/PANEL SUPPORT RIGID INSULATION WEATHER BARRIER PLYWOOD SHEATHING

METAL STUDS

Z CLIP

PLYWOOD SHEATHING MAPLE FLOOR FINISH RIGID INSULATION METAL JOISTS

FLASHING

WALL SECTION 3 | 1 1/2” = 1’ - 0”

Left (top to bottom): Longitudinal Section and North Elevation | Right (top to bottom): Cross Section, West Elevation, Wall Elevation 16

WALL ELEVATION

Image: Interior Rendering 17

Residential Building Design Introduction Third Year Design Studio (Spring 2022)

This excersise is the beginning development of what will be a final mixed-use multifamily design project at the end of the semester.

The focus of this project is the stacking of housing units while using scattered windows to hide the location of the shear walls.

18

Left (top to bottom): Full Floor Plan with Shear Walls, Full Floor Plan with Unit Types | Right (top to bottom): Shear Wall Diagram, Shaft Diagram 19

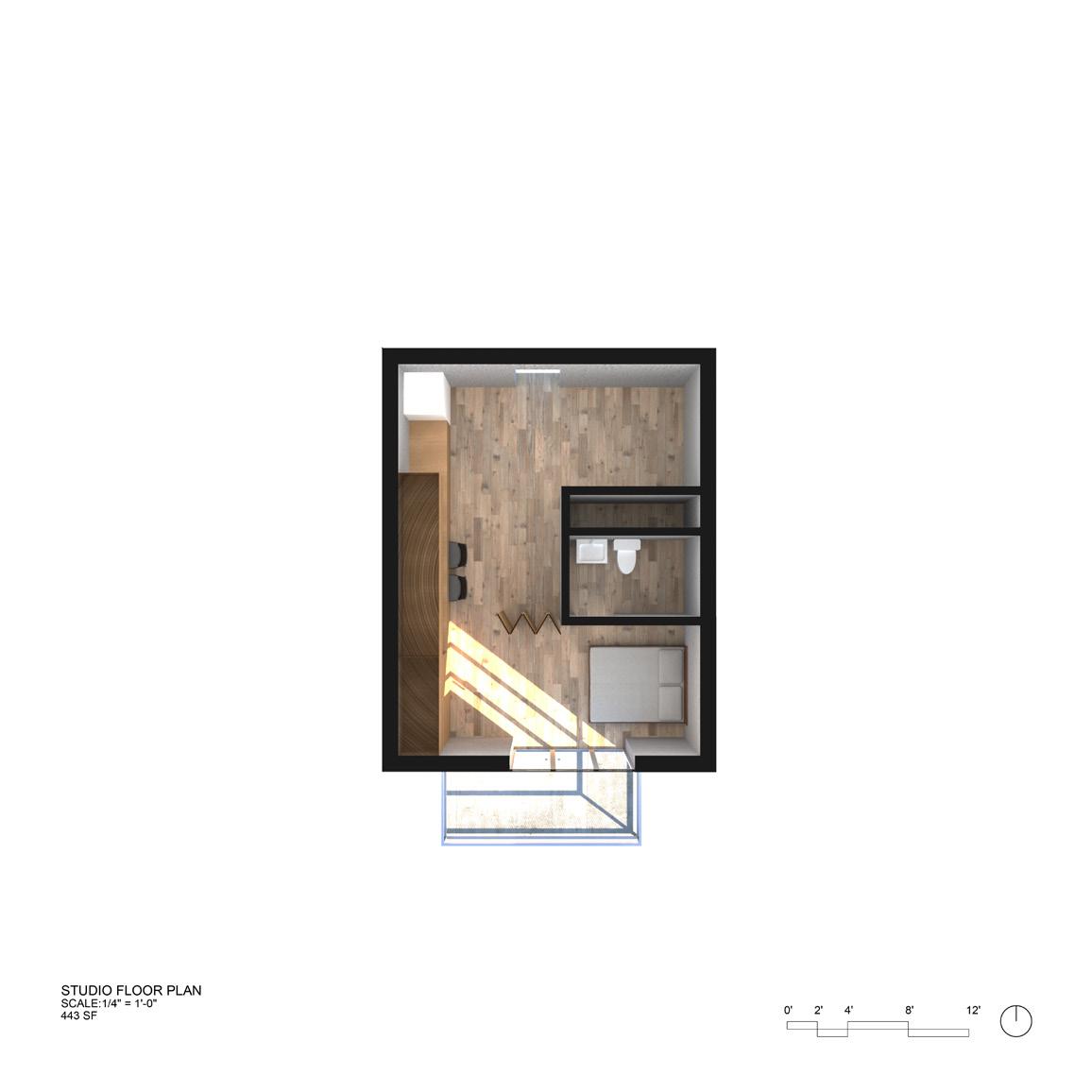

Left (top to bottom): Studio Floor Plan, Studio Floor Plan Lighting Study | Middle (top to bottom): 1 Bed Floor Plan, 1 Bed Lighting Study | Right (top to bottom): 2 Bed Floor Plan, 2 Bed Lighting Study 20

Left (top to bottom): Longitudinal Section and North Elevation | Right (top to bottom): Cross Section, West Elevation, Wall Elevation 21

Mixed Use Multi Family Residential

Third Year Design Studio (Spring 2022) This is the beginning of the design of a mixed use multi family residential project.

The building is designed for 10 units of housing for artists, with plenty of open space for the residents to use as work spaces. The ground floor hosts a maker studio that the residents can showcase their work in while also being open to the public as a center for innovation. The buildng’s appearance is a series of individual rugged blocks which are carved out of larger original volumes.

22

Image: Exterior Rendering 23

1

2

3

4 TOP OF BUILDING 44'-0"

5

6

MBD STUDIO Meilinda Darmawan

CPP ARC | SP 22 | ARC 3021A FOURTH FLOOR 32'-0"

E

THIRD FLOOR 24'-4"

SECOND FLOOR 14'-0"

D

D1 ELEVATION C 1/8":1'-0"

TOP OF BUILDING 44'-0"

FOURTH FLOOR 32'-0"

THIRD FLOOR 24'-4"

C SECOND FLOOR 14'-0"

Project Info Project Name: 1650 SILVER LAKE Client: Resident artists

B1

Project Address: 1650 Silver Lake Blvd, Los Angeles, CA 90026

ELEVATION B 1/8":1'-0"

B

TOP OF BUILDING 44'-0"

No.

Revision/Issue

1

FINAL DELIVERABLE

Date 05/12/22

FOURTH FLOOR 32'-0"

THIRD FLOOR 24'-4"

SECOND FLOOR 14'-0"

BUILDING ELEVATIONS

A

A1

ELEVATION A

A-201

1/8":1'-0"

SHEET SIZE: 24" X 36"

Left: Elevations | Right: Isonometric Renderings 24

SECTION A

SCALE:1/8" = 1'-0" 0'

2'

4'

8'

12'

Left (top to bottom): Section, Massing Diagram | Right: Framing Diagram 25

2

1

2

3

4

5

6

C1

2

3

4

5

6 TOP OF BUILDING + 35'0"

PLYWOOD SHEATHING

E

A-521

MBD STUDIO Meilinda Darmawan

CPP ARC | SP 22 | ARC 3021A

LIQUID APPLIED WATER CONTROL LAYER RIGID INSULATION WEATHER BARRIER

WINDOW HEAD + 31'4"

3 PART STUCCO

DRIP CAP ALUMINUM WINDOW FRAME

WINDOW SILL + 27'10"

DOUBLE PANE GLASS BATT INSULATION GWB

D

2X6 STUDS

THIRD FLOOR + 24'4"

C3

WINDOW HEAD + 21'0"

A-521

RENDERED PROPOSAL

BASEBOARD CEDAR HARDWOOD FLOOR WINDOW SILL + 17'6"

A3 A-521

DUTCH LAP CEDAR

C SECOND FLOOR + 14'0"

Project Info Project Name: 1650 SILVER LAKE Client: Resident artists Project Address: 1650 Silver Lake Blvd, Los Angeles, CA 90026

VICINITY MAP

B

No.

Revision/Issue

1

FINAL DELIVERABLE

3D FRAGMENT GROUND FLOOR + 0'0"

Date

05/13/2022

A1 A-521

3D FRAGMENT

A

A-512 SHEET SIZE: 24" X 36" 0'

Left: Rendered Building Fragment | Right: Detail Wall Section and Elevation 26

1/2'

1'

Left: Exterior Community Space Rendering | Right: Entry Render 27

Tsunami Evacuation Tower

Fourth Year Topic Studio (Fall 2022) This tower is situated in a preservation zone in Kalama Beach in Kailua, Oahu. As one of three proposed evacuation towers in Hawaii, this project maintains the basic skeleton and pattern of the group’s base structure but elongates the building outline. The precast double tee has a wave-like shape, representing “Kailua” which translates to “two seas.” The local context of the Beach Club area and the enlargement of the floor plates allows for more people to inhabit the levels without needing to build up as high as the base tower. The facade came with a different approach, an oblique metal facade that took into account the datum lines from the stairs as well as the non-linear datums that came from the residential homes around. Overall the building’s porosity allows for ease of movement on the ground level and visual transparency to better fit a residential area.

28

UP

DN

DN

UP

DN

UP

STALL SPACE

STALL SPACE

UP

STALL SPACE

STALL SPACE

UP

STALL SPACE

STALL SPACE

STALL SPACE

STALL SPACE

STALL SPACE

STALL SPACE

UP

ROOF ACCESS

DN

UP STALL SPACE

STALL SPACE

STORAGE

STALL SPACE

STALL SPACE

STALL SPACE

STALL SPACE

STALL SPACE

DN

STALL SPACE

STALL SPACE

STALL SPACE

STALL SPACE

DN

DN STORAGE

STORAGE

ELEVATOR RESTROOM UP

FOURTH FLOOR PLAN (43'-0") 1/8” = 1’-0”

POP UP MARKET

STORAGE

ELEVATOR RESTROOM

DN

DN

UP

THIRD FLOOR PLAN (30'-0") 1/8” - 1’-0”

STORAGE

ELEVATOR COMMUNITY SPACE RESTROOM ROOF ACCESS

STORAGE

UP

COMMUNITY SPACE

SECOND FLOOR PLAN (15'-0") 1/8" = 1'-0" DN

POP UP MARKET

POP UP MARKET

POP UP MARKET

POP UP MARKET

POP UP MARKET

COMMUNITY SPACE

GROUND FLOOR PLAN (0' - 0") 1/8" = 1'-0"

FIFTH FLOOR PLAN (58'-0") 1/8" = 1'-0"

71 ft B

71 ft B

58 ft A

58 ft A

43 ft B

43 ft B

30 ft (Maximum Local Tsunami Height)

30 ft (Maximum Local Tsunami Height)

20 ft (Average Local Tsunami Height)

20 ft (Average Local Tsunami Height)

B

B

COMMUNITY SPACE

15 ft A

15 ft A

0 ft A

0 ft A

CROSS SECTION

SIXTH FLOOR PLAN (71'-0") 1/8” = 1’-0”

LONGITUDINAL SECTION

01

5

10

Left: Floor plans and Sections | Right: Program Diagram ROOF ACCESS

29

ASSEMBLY DIAGRAM

Left: Assembly Diagram | Right: Base Physical Model 30

Images: Physical Base Model 31

Left: Daily Use Interior Rendering | Right: Tsunami Rendering 32

Website Banner Design and Logo Work

Student Innovation Idea Labs, CPP Student Innovation Idea Labs (SIIL) at Cal Poly Pomona offers equipment training such as 3D printing and laser cutting to students which promotes and supports creativity and innovation on campus. A new program called Innovator’s Harvest showcases student work that has been made using the spaces, tools, and training SIIL provides.

This created a need for graphics to promote the program and a logo to symbolize the innovation and creation that will be showcased by students.

Top: Innovator’s Harvest website banner | Middle: Proposed CPP iLab website banner | Bottom (left to right): Innovator’s Harvest logo development 33
