MANI HOTA DESIGN PORTFOLIO
2019-2023
B-Arch 4th Year
One of the first few things that one learns about architecture is scale, as everything must be to scale. It determines one’s building type- from monumental to miniature and everything in between. Even an incremental shift within the scale can lead to massive differences, each with their own implication. The projects covered in this portfolio each correspond to a different scale, ranging from the built (urban) to a unit (a room), each with their own prerequisites and set of criteria that had to be fulfilled. Thereby elucidating the multiplicity of design and the range of possibilities it beholds.
The only constant amidst this chasm of possibilities and its ever changing dynamic is none other than the human, who is often lost in the splendor of design. By bringing ‘the human’ back in our plans and designs, we create much more sustainable, holistic, sensorial and habitable spaces.
2
3 KN KATJU MARG CHITTI GREEN HOMES THE VILLAGE SCHOOL MMR BANQUET HALL SUPERNOVA PENTHOUSE STUDIO ACOUSTIC DESIGN CONTENTS 01 02 03 04 05 06
KN KATJU MARG
ROHINI SECTOR 13, DELHI
Type: Sub-arterial Road (30m -80m)
Width: 42m (Right Of Way, ROW)
Speed: 50km/hr (HMV)
Length of segment: 2km
Landmarks: Sachdeva Public School
The goal was to document both LHS and RHS of the segment, which involved a series of site visits to conduct on-site stakeholder interviews, do activity mapping, safety audit, and finally propose interventions to make it more accessible and pedestrian friendly. A series of guidelines like UTTIPEC, RCI, ITDP were referred for the interventions proposed.
01
KEY PLAN
Length of Section (4) : 580m
Carriage Way:
RHS: 10.9m - 11.1m
LHS: 11.1m - 11.9m
Service Road:
RHS: 4.2m - 6.8m
LHS: 5.1m - 8m
LAND USE
Government
Recreational Residential Commercial Medical
DD CLUB
SAI APARTMENTS
DDA PARK PUBLIC PARK OUT GATE GATE GATE GATE GATE 6
ANUBHAV APARTMENTS
SUNEHRI BAGH
INTERVENTION
ACTIVITY MAPPING
SUNDER APARTMENTS PATEL APARTMENTS GOODWILL APARTMENTS NEELKANTH APARTMENTS GATE IN GATE GATE GATE GATE 0 50 100 7 MODAL SHARE INTERSECTION TRAFFIC EXISTING PROPOSED
INTERNAL ROAD SECTION
SUB-ARTERIAL ROAD SECTION
DESIGNING TIVE USERS EYES ON 8 FOOTPATH FOOTPATH SERVICE ROAD SERVICE ROAD FOOTPATH FOOTPATH PARKING PARKING M U Z M U Z MUZ CARRAIGE
CARRAIGE WAY CARRAIGE
CARRAIGE WAY
CYCLE TRACK
CYCLE TRACK BICYCLE LANE BICYCLE LANE 3.1m 3.1m 2.1m 2.1m 2.0m 2.0m 2.4m 2.4m 3.3m 3.3m 5.2m 5.2m 3.0m 3.0m 1.4m 2.1m 2.1m 1.4m 3.3m 3.3m
WAY
WAY
CYCLE TRACK PARKING PARKING
CYCLE TRACK
PROPOSED
ON THE STREET
PEDESTRIAN FRIENDLY
DESIGNING FOR CAPUSERS
UNIVERSAL ACCESSIBILITY
9
CHITTI GREEN HOMES
ALWAL, HYDERABAD
Site Area: 1200 sq.m
Permissible Ground Coverage: 25%
Permissible FAR: 1.25
Permissible Height: 18m
Achieved Built-up Area: 1500 sq.m
This is an ongoing project in Hyderabad by a start-up company, ‘Chitti Green Homes’, that is built using primarily mud blocks and RCC frame structure. The developers are also incorporating waste management techniques that include compost pit and treatment of sewage water for recycling purposes. Given Hyderabad’s water problem, the building also houses a rainwater harvesting system. As the graphic design intern, my role was to make the seemingly new project at the region, more aesthetically appealing to the masses for marketing purposes. Also, I would often go for site visits and shadow the project manager to learn more about site planning and management.
02
12
13

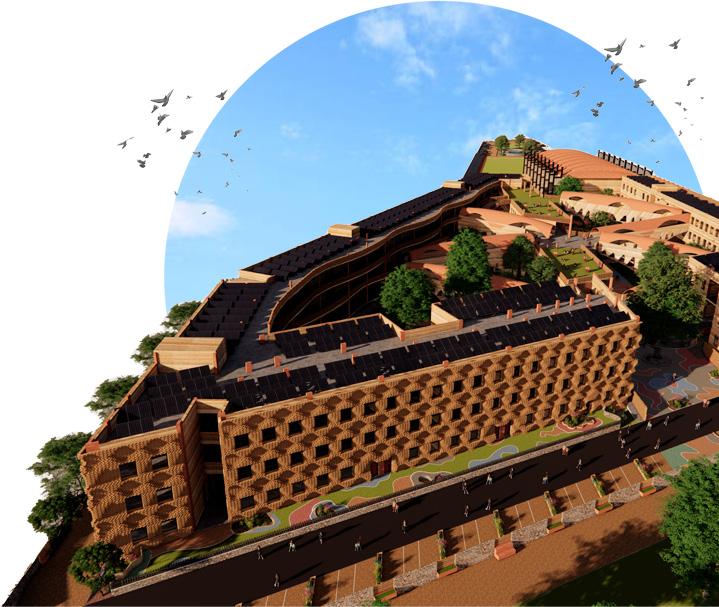

THE VILLAGE SCHOOL
MEWAT, HARYANA
Site Area: 25734 sq.m
Permissible Ground Coverage: 35%
Derived Landscape Area: 7618 sq.m
Permissible FAR: 1.5
Achieved Built-up Area: 20407 sq.m
The project aimed at designing a Net-Zero school in collaboration with Orphans In Need (NGO). Mewat lacks access to education (indicated by the high drop-out rates of girls as the nearest school is at least 10 km away) and healthcare. The school was designed to foster such community needs, conveyed through its design and material language. The school would accommodate student capacity of approximately 2000 including additional 100 faculty and admin staff.
Designing for the school was a team effort wherein my contribution (primarily) was landscape design.
03
Landscape of the site was designed holistically. The aim was to maintain the ecosystem of the site, by planting all local species, keeping in mind the birds, insects and animals of the site. This ensured a symbiotic relation between all inhabitants of the space.
BIODIVERSITY SOUND SIGHT
PERMACULTURE 16
ECOSYSTEM COLOUR XERISCAPING
MINI SKATING PARK
SPILL OVER SPACE
17
CLASSROOM DETAIL
18
This classroom detail illustrates the various passive and active systems incorporated to achieve desired thermal comfort throughout the year and reduce EPI.
19
MMR BANQUET HALL
BISRAKH JALALPUR, GREATER NOIDA
Site Area: 7850 sq.m
Permissible Ground Coverage: 55%
Permissible height of the structure: 16m
Permissible FAR: 1.5
Achieved Built-up Area: 11775 sq.m
This architectural design project, a team collaboration, consists of a banquet hall with provisional lodging, accompanied by a Quick Service Restaurant. It provides indoor and outdoor areas to host various events catering to different occupancy capacity and ambiance. The varied program brief arrives from the client’s requirement of ensuring 300+ days of revenue generation through business ventures housed on site. Therefore the model focuses on ensuring continuous activity through various business schemes like QSR, subletting hotel rooms when not in use, cloud kitchen etc.
04
RECEPTION 22

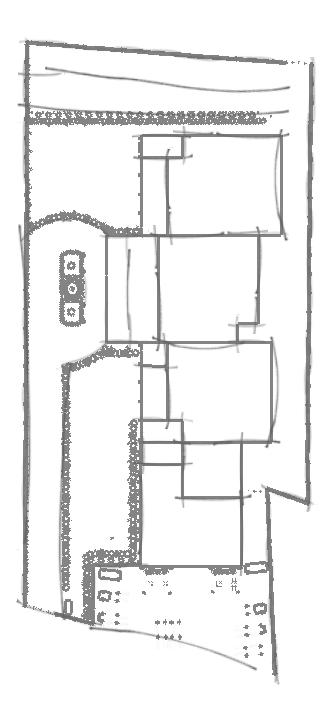

SITE PLAN
BUILDING SECTION 23
FRONT ELEVATION
FIRST FLOOR PLAN
The reference image the client had preferred , had elements of symmetry and repetition that exuded grandeur
The same was kept in mind while designing the facade and layouts, ensuring functionality all along.
The circulation for all services was done in a manner to prevent direct interaction with guest areas.
SECOND FLOOR PLAN
24
25

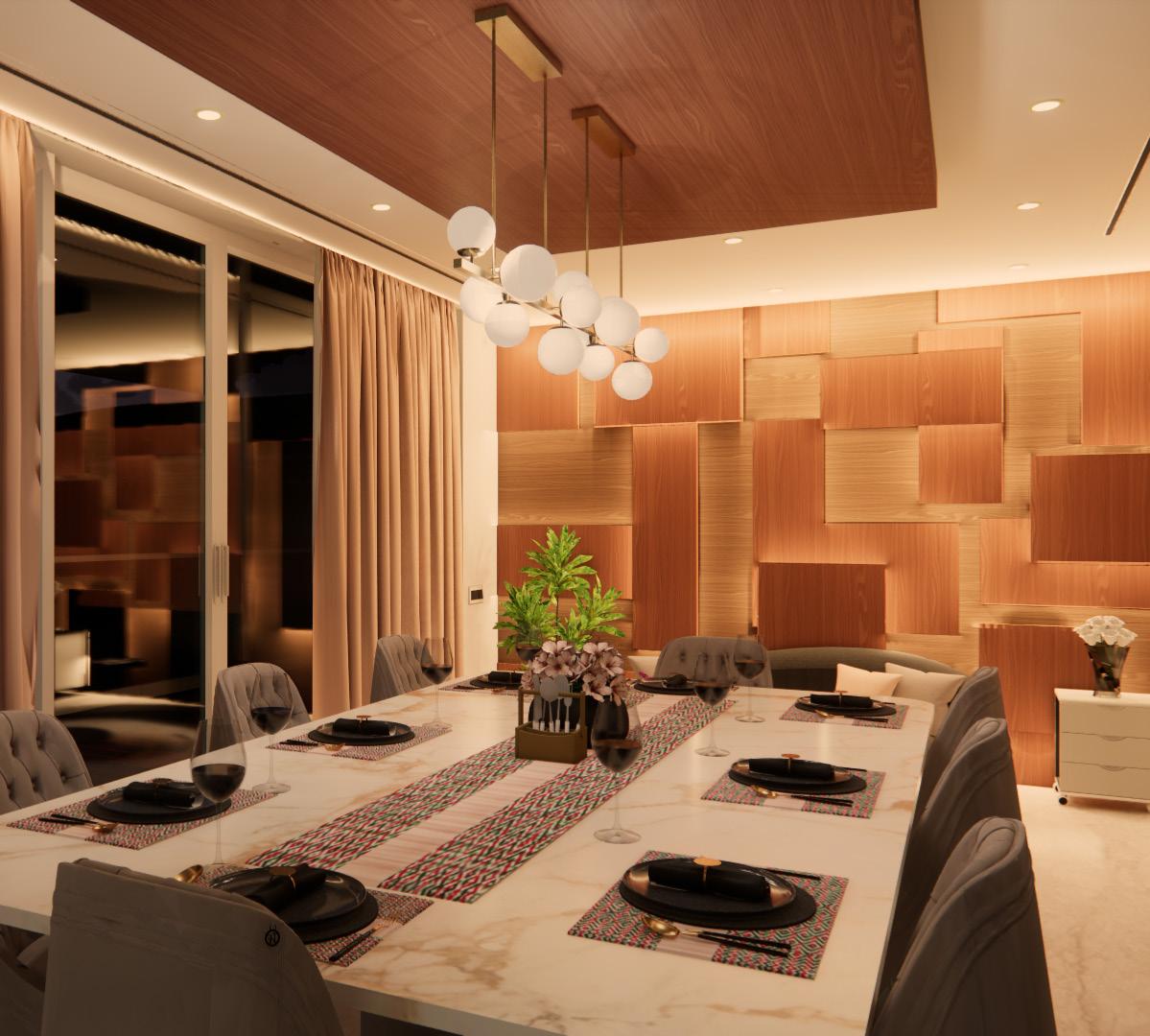

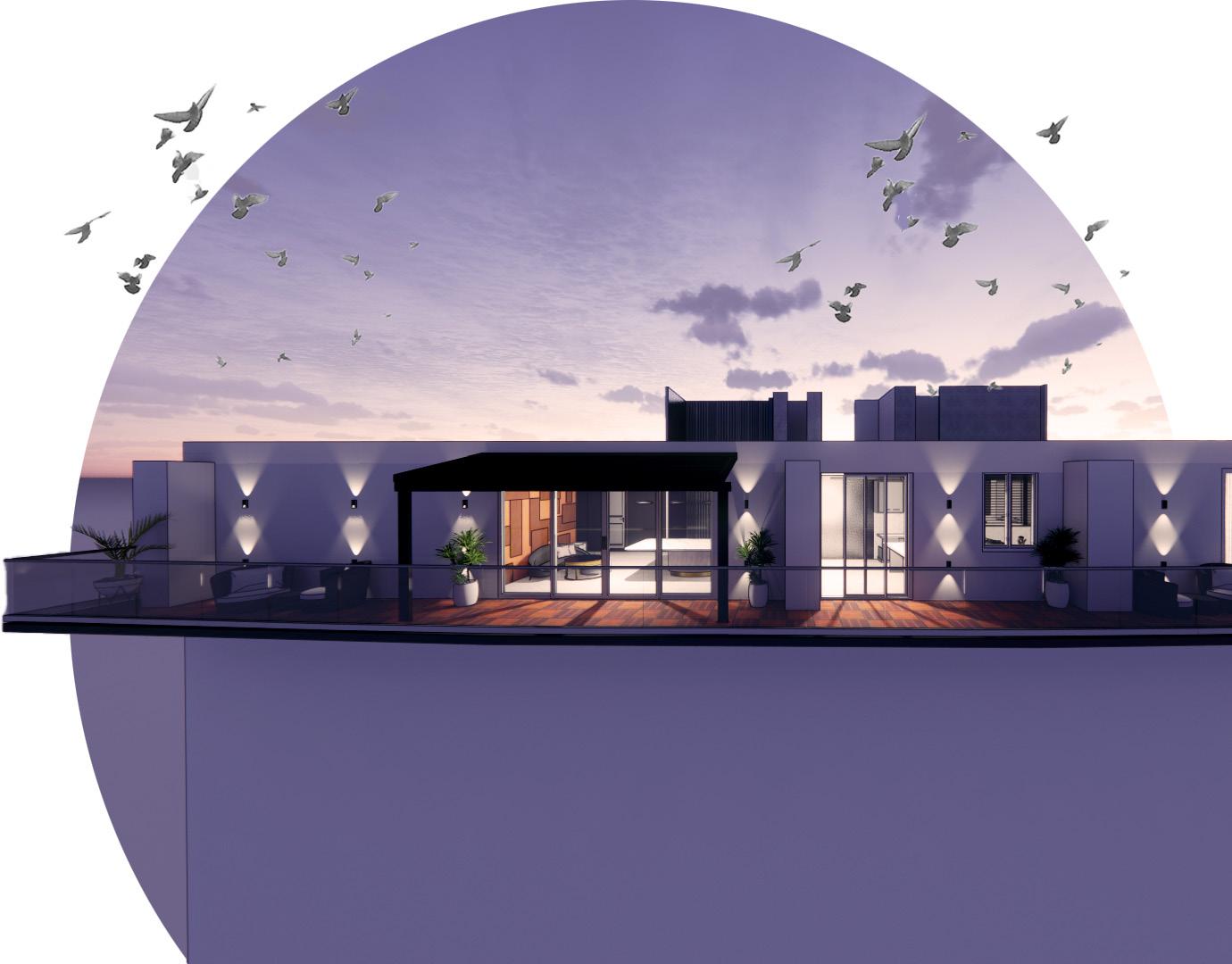

SUPERNOVA PENTHOUSE
The goal of this project was to design the interiors along with all the necessary services for a luxurious penthouse at Supernova for a family of four. The aim was to meet all the criteria set by the client and stay under budget, all the while developing a working knowledge of different materials and services of a building. It was a team effort which came with long discussions on design decisions, calling vendors to formulate BOQs and making the required GFCs and plans.
05
NOIDA
Apartment Area : 535.78 sq.m
28
LOOK AND FEEL THE VISIBLE
REFLECTED CEILING PLAN
FIRE FIGHTING SLD
MEP ON REVIT PLUMBING SLD
1 21 100 CFM INLINE TOILET FAN TRAP DOOR SIZE 400*400 HI- WALL AC UNIT 1 TR AHU INDOOR UNIT 3TR MAID BEDROOM MAID BATHROOM GUEST BATHROOM LAUNDRY ROOM FOYER KITCHEN AHU INDOOR UNIT 4.6 TR 6.3 TR RETURN AIR GRILL GUEST BEDROOM FRESH AIR DUCT WITH LOUVRE AND BIRD SCREEN 2* 100 Ø DISC VALVE DIFFUSER 50 CFM EACH SUPPLY AIR SLOT DIFFUSER SUPPLY AIR SLOT DIFFUSER SUPPLY AIR SLOT 24 HP OUTDOOR UNIT PIPE 20 HP OUTDOOR UNIT PIPE #2 RETURN AIR DIFFUSER #2 SUPPLY AIR DIFFUSER SLOT DIFFUSER WITH KEY DAMPER SLOT DIFFUSER WITH KEY DAMPER FRESH AIR DUCT #1 PROPELLER FAN 50CFM DRAIN PIPE TRAP DOOR -1900x1050 1# DUCTABLE 6.3 TR(2260 CFM) SIZE -1562x688x440 +2450 LVL 300 X 150 EXHAUST AIR LOUVRE WITH BIRD SCREEN 100 CFM 500x250 1141 CFM B.O.D 2720 500x250 1141 CFM BOD 2825 200x250 CFM 420 BOD 2925 TOD 3175 750x250 2260 CFM B.O.D 2720 T.O.D 2970 550x150 CFM 315 BOD 2765 T.O.U 2915 4#600x150 SA COLLAR WITH KEY TYPE DAMPER 400 CFM EACH. 150 MM HEIGHT SLOT DIFFUSER 2# 300x300 SA DIFFUSER 315 CFM EACH. 2# 300x300 RA DIFFUSER 2#600x150 SA COLLAR WITH KEY TYPE DAMPER 420 CFM EACH. 150 MM HEIGHT S/R SLOT DIFFUSER 75 MM RETURN AIR SLIT FROM PELMET SUPPLY AIR SLOT DIFFUSER 4#600x150 SA COLLAR WITH KEY TYPE DAMPER 306 CFM EACH. 150 MM HEIGHT SLOT DIFFUSER 75 MM RETURN AIR SLIT FROM PELMET 300x250 1222 CFM B.O.D 2715 T.O.D 2965 B.O.U 2685 T.O.U 2985 750x250 2260 CFM B.O.D 2625 T.O.D 3065 300x150 TOD 3150 100Ø 25Ø 100Ø 100Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 25Ø 32Ø 32Ø 32Ø 40Ø 80Ø 80Ø 80Ø 65Ø 50Ø FHC SHAFT PLUMBING SHAFT LEGEND: FRESH AIR DUCT (FLEXI) BOTTOM OF BEAM BOTTOM OF FALSE CEILING F.A.D B.O.B B.O.F.C BOTTOM OF DUCT B.O.D TOP OF DUCT T.O.D BOTTOM OF INDOOR UNIT B.O.U T.O.U TOP OF INDOOR UNIT B.O.P T.O.P BOTTOM OF PIPE TOP OF PIPE FIREFIGHTING PIPE LEGEND: PL- RO-WATER SUPPLY 25ØMM CEILING MOUNTED SPRINKLER WALL MOUNTED SPRINKLER PL- HOT WATER SUPPLY PIPE 25Ø PL- COLD WATER SUPPLY PIPE 25Ø PL- RETURN WATER SUPPLY PIPE 25Ø AC DRAIN PIPE P.B ELECTRICAL LEGEND SYMBOL DESCRIPTION MOUNTING HEIGHT 2*16 AMP SWITCH SOCKET OUTLET FOR KITCHEN APPLIANCES 2* 16 AMP SWITCH SOCKET OUTLET FOR REFRIGERATOR 200 MM 16 AMP SWITCH SOCKET OUTLET FOR GEYSER 2000 MM 16 AMP SWITCH SOCKET OUTLET FOR WASHING MACHINE 1050MM 2* 6 AMP SWITCH SOCKET FOR BEDSIDE TABLE 550MM AMP SWITCH SOCKET OUTLET 400 MM SWITCHBOARD 16 AMP SWITCH SOCKET OUTLET 200MM 2* 6 AMP SWITCH SOCKET FOR TV OCCUPANCY SENSOR ON FALSE CEILING AS PER DESIGN WIFI DATA POINT ON FALSE CEILING AS PER DESIGN SMOKE DETECTOR AS PER DESIGN CEILING MOUNTED SPEAKERS AS PER DESIGN 2 *16 AMP SWITCH FOR HOB AND CHIMNEY 1050 MM DISTRIBUTION BOARD 6 AMP POP UP SOCKET FOR DINING DINING SURFACE 16 AMP POINT FOR AHU 3300MM 25 MM RIGID PVC CONDUIT IN CEILING 25MM RIGID MS CONDUIT IN FLOOR AHU INDOOR UNIT POWER POINT 16 AMP ON MOTHER SLAB SMOKE DETECTOR WIRING WIFI WIRING R LIGHTING LEGEND SYMBOL DESCRIPTION MOUNTING HEIGHT CHANDELIER CEILING 9W CEILING LED LIGHT CEILING FLUORESCENT TUBE LIGHT UNDER KITCHEN CABINETS 30MM DIA PENDANT LIGHT WOODEN FALSE CEILING TABLE LAMP TABLE STRIP LIGHT COVE TUBELIGHT WALL PROFILE LIGHTS FLUTING S AC- REFRIGERANT PIPE 1 25Ø AC- REFRIGERANT PIPE 2 25Ø B. O. F/C 2800 F/C 2600 O. F/C 2800 B. O. F/C 2800 B. O. F/C 3000 O. F/C 2550 01 A' 01 A 02 B' 02 B B. FF PIPE 3215 O. F/C. 2500 B. UNIT 2685 1180(L)X 450 (B) X 330 (H) SECTION CC' DINING INDOOR AHU UNIT SECTION BB' PASSAGE 03 C' 03 C 300Ø FAD BOD 2720 25Ø REFRIGERANT PIPE WILL BE PLACED DUCTS PARALLEL TO EACH OTHER 150Ø FAD BOD 2820 150 Ø FAD BOD 2820 REFLECTED COORDINATED CEILING NAME: 41ST FLOOR SUPERNOVA WEST DINING ROOM 42nd FLOOR (DIESEL) JOCKEY PUMP SINGLE LINE DRAWING NAME: 41ST FLOOR PURPOSE: FIRE FIGHTING SLD DATE: 24 AUGUST 2021 PUMP BOOSTER CWS 25 OD CWS 25 OD HWS 32 OD 42nd FLOOR 41st FLOOR HWS Capacity 1400L Guest Washroom Maid Washroom kitchen CWS 25 OD FAUCET FAUCET HWS 32 OD 32 OD Hot Water Supply SINGLE LINE DRAWING NAME: 41ST FLOOR PURPOSE: PLUMBING DATE: 24 AUGUST 2021 ATELIER : SKIN AND SERVICES N
HIDDEN SERVICES
THE
29
706,98 175,83 31 1719 900 WD 02 F 01 C 03 PT 02 W 08 W 07 ST 02 FB 01 FB 01 GREY VELVET 40MM PINE FRAMEWORK LEVEL O 19MM PLY+ 4MM VENEER LEVEL 1 25MM PLY 19MM PLY + 4MM VENEER LEVEL 2 19MM PLY + 4MM VENEER LEVEL 3 ACCENT WALL DETAIL C' SECTION SCALE 1:10 MATERIAL GFC 30
31
STUDIO ACOUSTIC DESIGN
The aim was to provide the studio with acoustic treatment which falls under a budget of four lakh INR. The acoustic treatment had to take care of both sound absorption as well as reflection, while minimizing sound transmission. Especially since the closest neighbors reside approximately 10 meters away from the studio. The acoustic treatment was carried out using corner bass traps, ceiling mounted traps as well as flat acoustic panels (diffusers and absorbers) for the walls. A combination of reflection and absorption panels was implemented to fulfill the requirements of the studio.
06
GURGAON
Studio Area : 17.9 sq.m
FLUTING DETAIL Scale 1:10
While soundproofing the studio was intimate relation between the user board, that held a sentimental value at the center of the room.
6mm toughened Air gap Echoseal fiber board wooden Absorber acoustic panel Air gap Echoseal fiber board wooden Absorber acoustic panel Nankarrow Quadra fuse Wood acoustic diffuser Sound Proofing foam Corner Bass Trap 24" X 12" with beige matt finish Sound Proofing foam Corner Bass Trap 24" X 12" with beige matt finish Air Gap Cork board with MS frame and beige fabric Nankarrow Quadra fuse Wood acoustic diffuser Ecohush groove fluted acoustic panels 23.9 41 15.58 164 27.64 27.64 60 23.95 N 6mm reflected glass 6mm toughened clear glass Aluminum slider 16mm Air cavity WINDOW DETAIL SCALE 1:10 with MS beige FLUTING 18MM THICK HDHMR BOARD 25MM THICK ALUMINUM FRAME WALL FLUTING DETAIL SCALE 1:10
PLAN 34
was the priority, personalization of the space was important to highlight the and the space. Therefore, the space-time astronomy chart on the pin-up value to the client, seemed like the perfect pattern for the diffuser panels placed
35
