CROPS HOUSE AQUA NEXUS
Each step repairs the prior one – the first rectifies the zero, the second addresses the first, the third corrects the second, and so forth.. Farming Architecture: Crops House as Architectural
VILLAGE MADURA PERSONAL

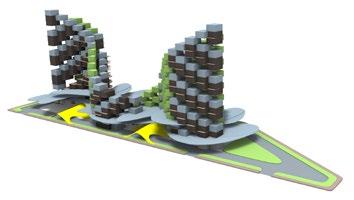

01 AQUA NEXUS
The water crisis and inadequate water management in Mojokerto highlight the urgent need for sustainable solutions. The proposed Aqua Nexus system offers a potential answer by recycling rainwater, river water, and treated wastewater to ensure a consistent water supply.

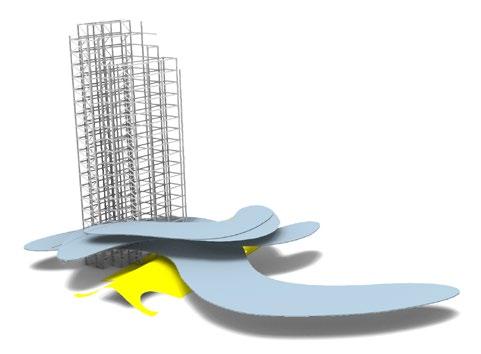

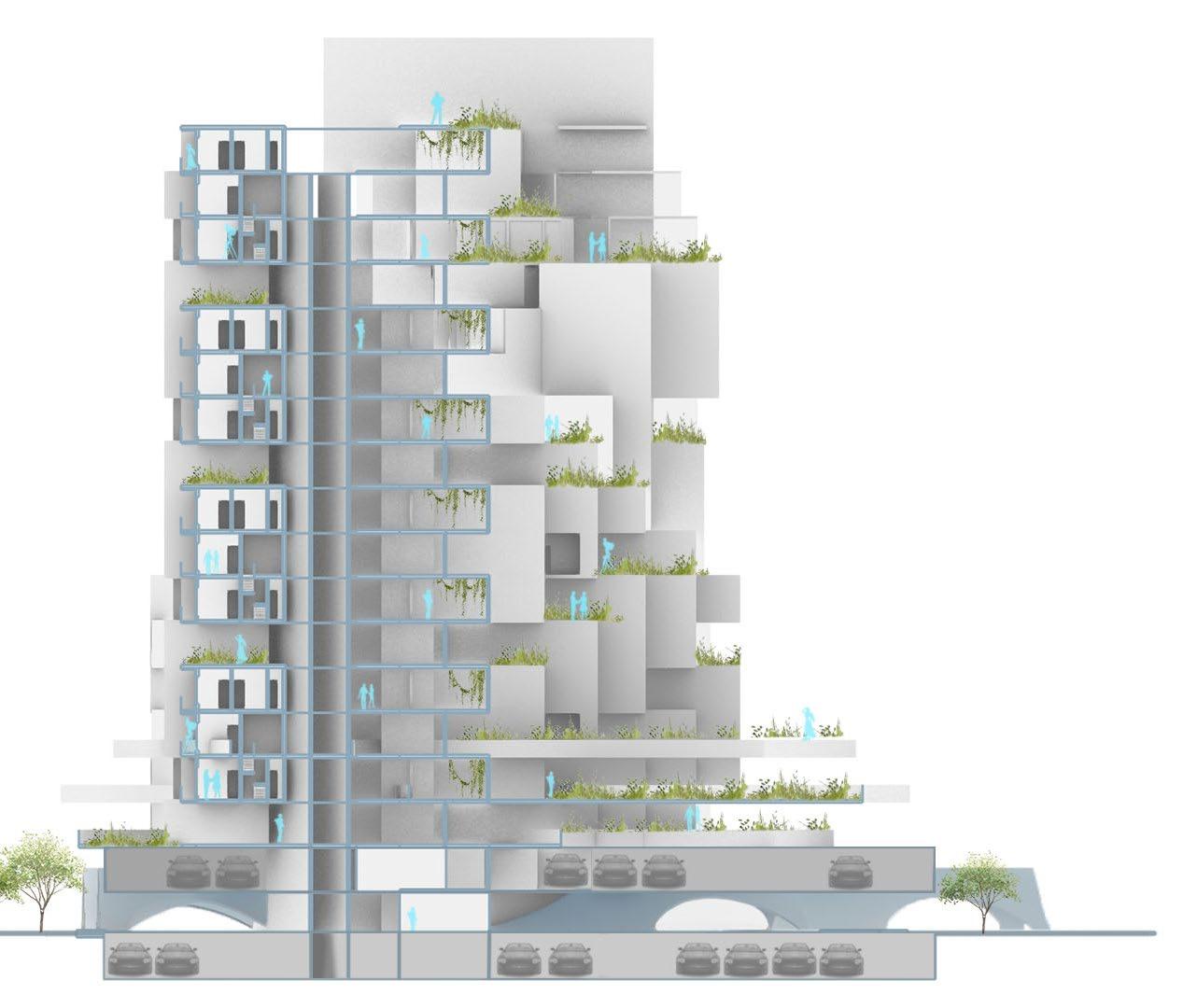

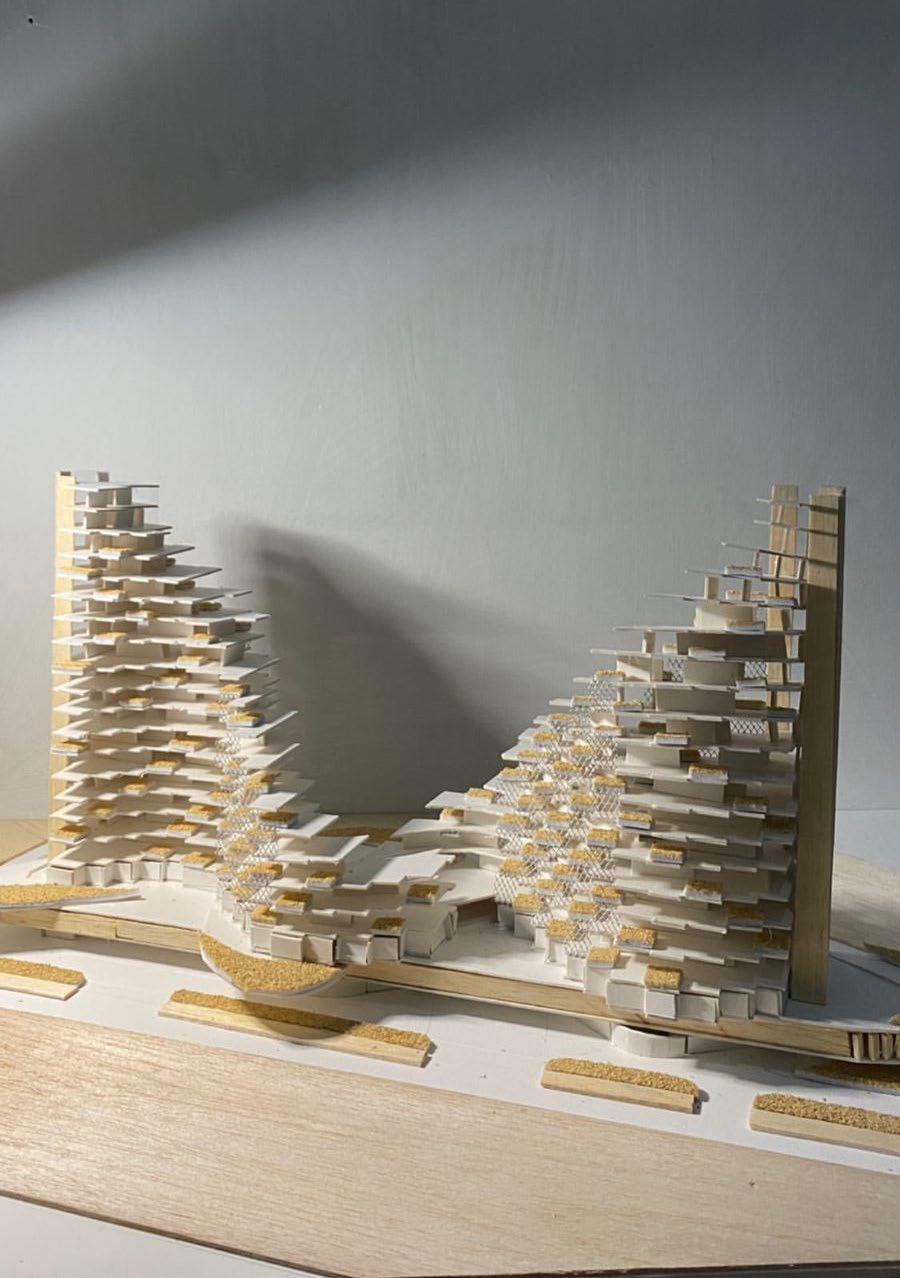

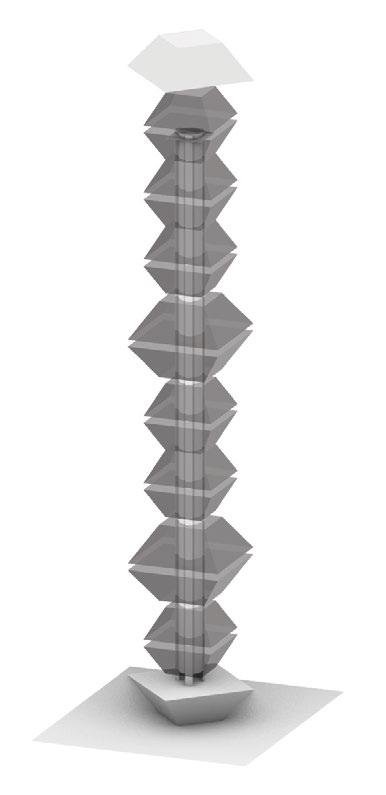

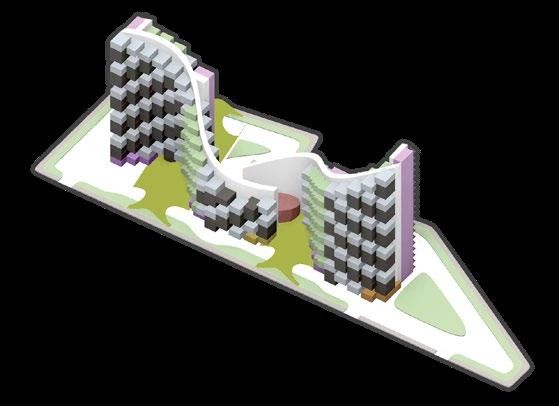

Skyscraper Housing Powered by a Circular Water Cycle
Mojokerto Crisis
Drought Impact: Three villages in Mojokerto Regency have been experiencing drought throughout the dry season, leading to a significant clean water crisis.
Affected Population: Around 8,320 people are affected by the clean water shortage, highlighting the scale of the crisis.
Environmental Strain: The combination of drought and improper waste disposal places additional stress on the local water system, reducing the availability of clean water.
MOJO LOOKS

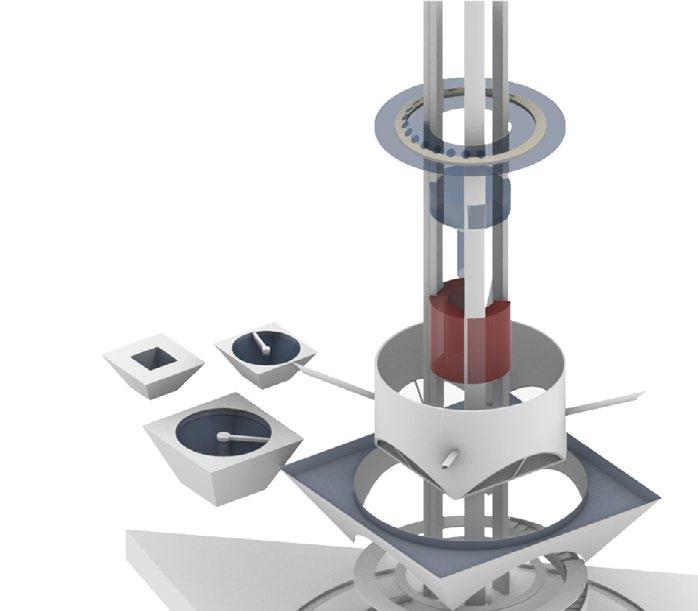

Wastewater from House units, rain, and River

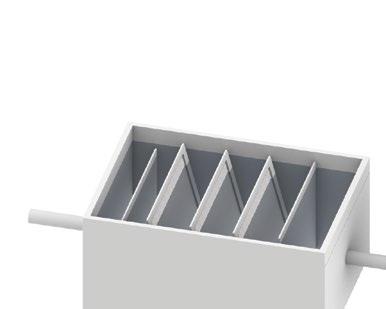

b. GRIT CHAMBER
Remove heavier inorganic coarse particles, such as sand, silt, clay, egg shells. particles that are forced down the chamber walls to exit at the bottom.

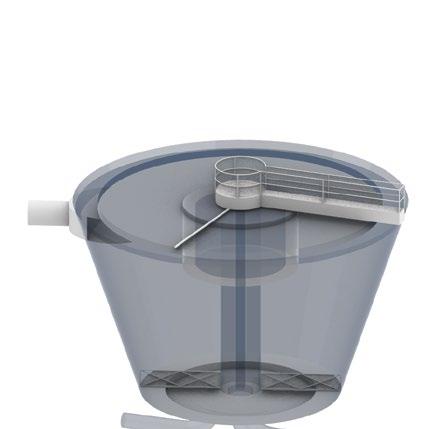

c. PRIMARY CLARIFICA-
Separets organic matter from waste water
d. AERATION
Special bacteria and protoza that consume food, soaps, and detergents waste. O2 pumped through the mixture.
Water is ready to be released into the environment and evaporated upwards.
Increase the concentration of sunlights to producing heat
Median for fumes and waste water
e. FINAL CLARIFICA-
e. FINAL CLARIFICA-
Collected for re-use in the aeration process as the helpful organisms are still active. UV light exposure tank
The filter makes rain slow down before it wets the hot building.
A fan force rain to the tube which distributed to

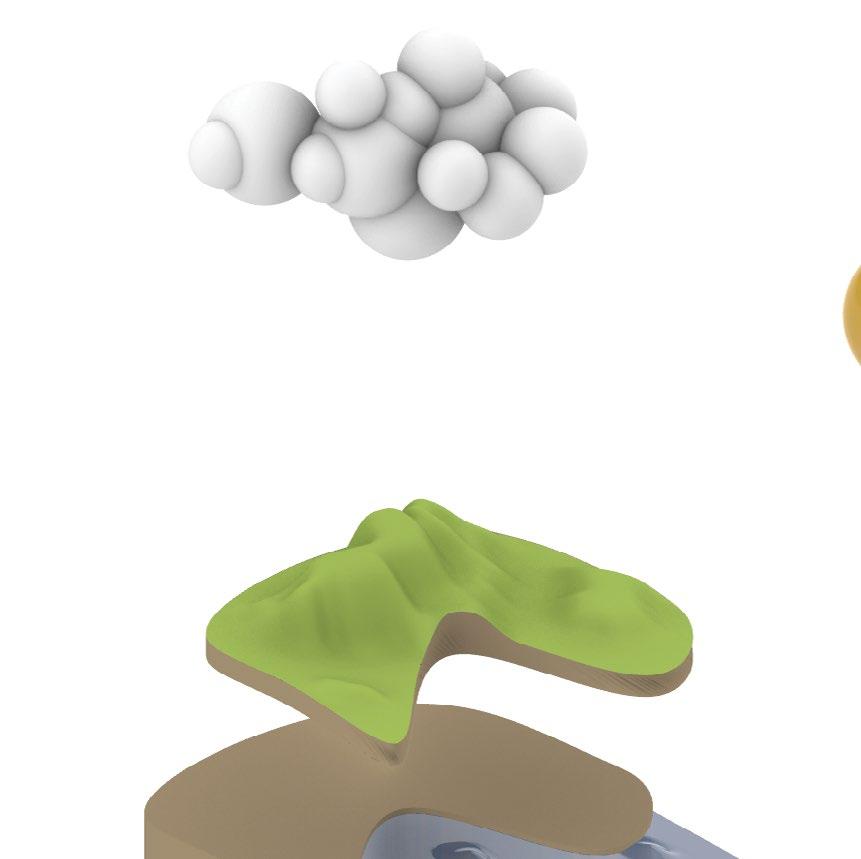

modify clouds and induce rain with particles such as silver iodide crystals
a. WATER SOURCE
g. WATER STROARGE

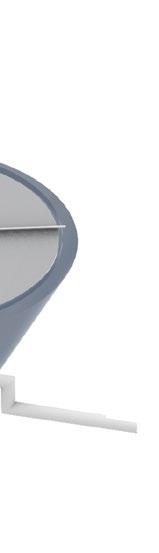

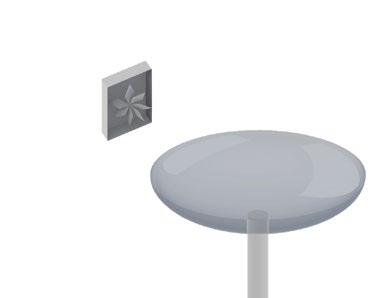

h. CONVEX LENS
i. TUBE
l. SLOW DOWN THE RAIN
k. RAIN COLLECTOR
j. CLOUD SEEDING

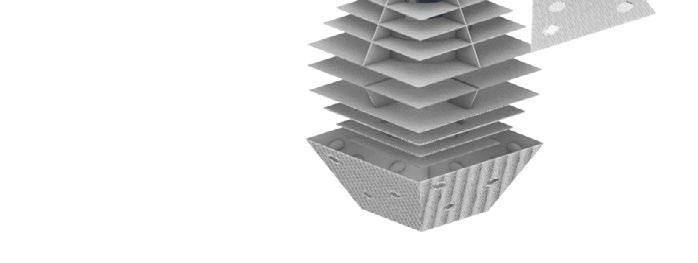

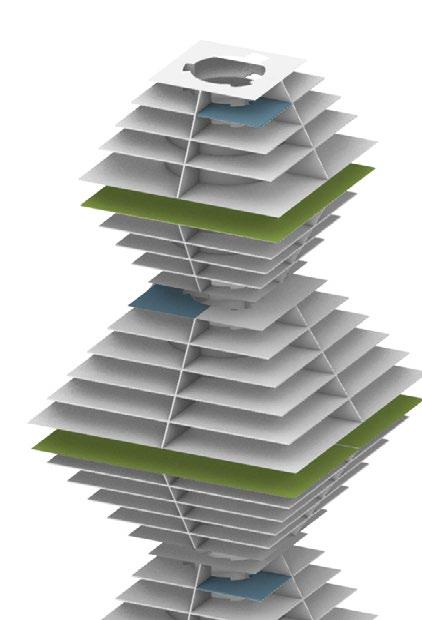

Each type, whether Massive or Tny, has a water storage system. The different positions of the water storage help balance the structure.
02 CROPS HOUSE
Farming Architecture: Crops House as Architectural efforts to help food security
The architectural space designed to be used as an Farming space in the building is a response to food security which is getting smaller in value. This food security is caused by the increase in population every year so that it requires land and invades agricultural land to non-agriculture.
In this case, it is getting narrower, exacerbated by the weather and climate that often occurs due to Global Warming. Architecture as a way to accommodate farming must be able to integrate agriculture with other spatial functions in buildings.
Tunjungan Plaza, Surabaya
In the realm of agriculture, a pivotal stride towards bolstering food resilience involves integrating architecture into urban life through vertical farming. This innovative approach aligns with the contemporary inclination of young people to actively engage in the gardening process. By harmonizing human activities with agricultural architecture, vertical farming not only contributes to food security but also resonates with the preferences of today’s youth, fostering a sustainable and hands-on connection with the cultivation process.
The processing Room

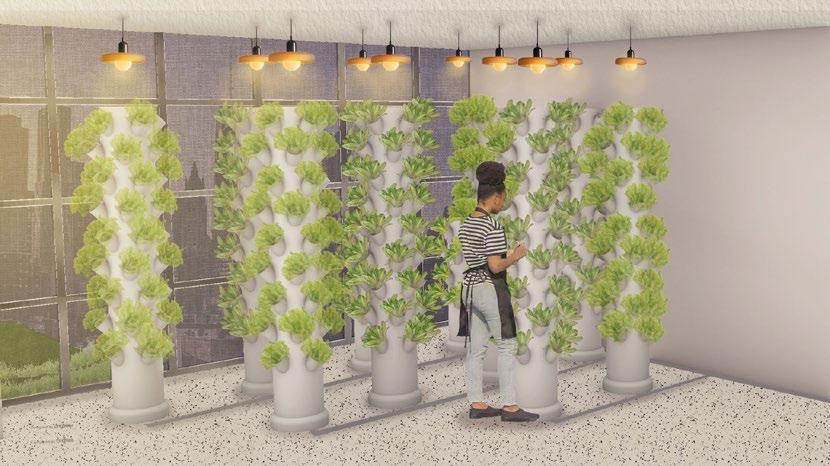

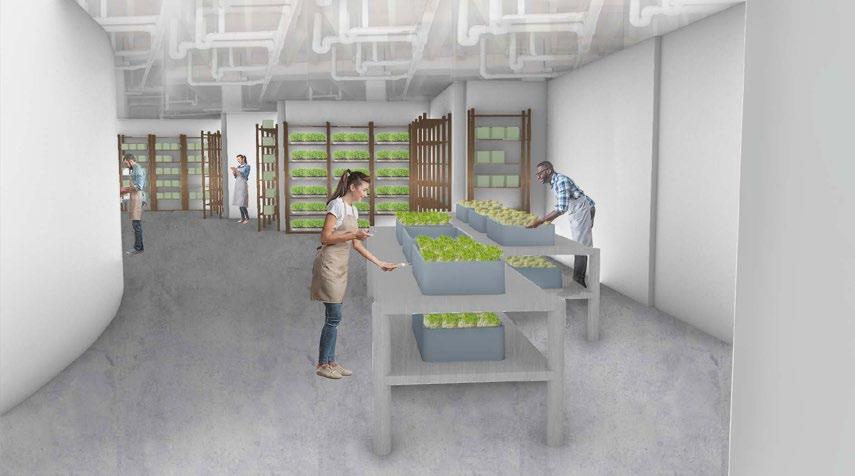

Indoor Farming
In the realm of agriculture, efficient farming hinges on strategic architectural planning. The synergy between humans, the environment, and cutting-edge technology is paramount in cultivating a space optimized for planting and multifunctional use. Thoughtful integration of these elements in farming architecture not only enhances productivity but also fosters a harmonious relationship between man, nature, and innovation.

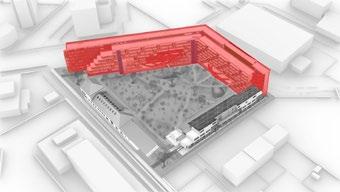

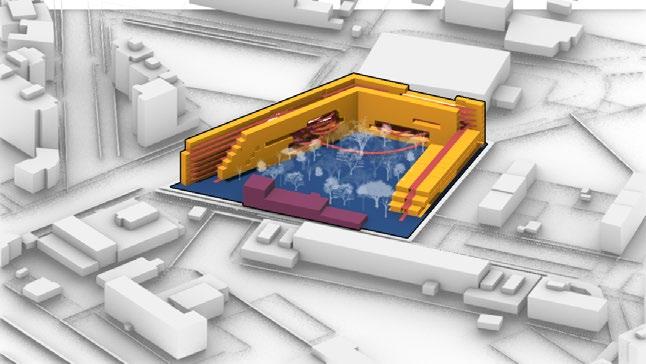

03 INFINITY STORY

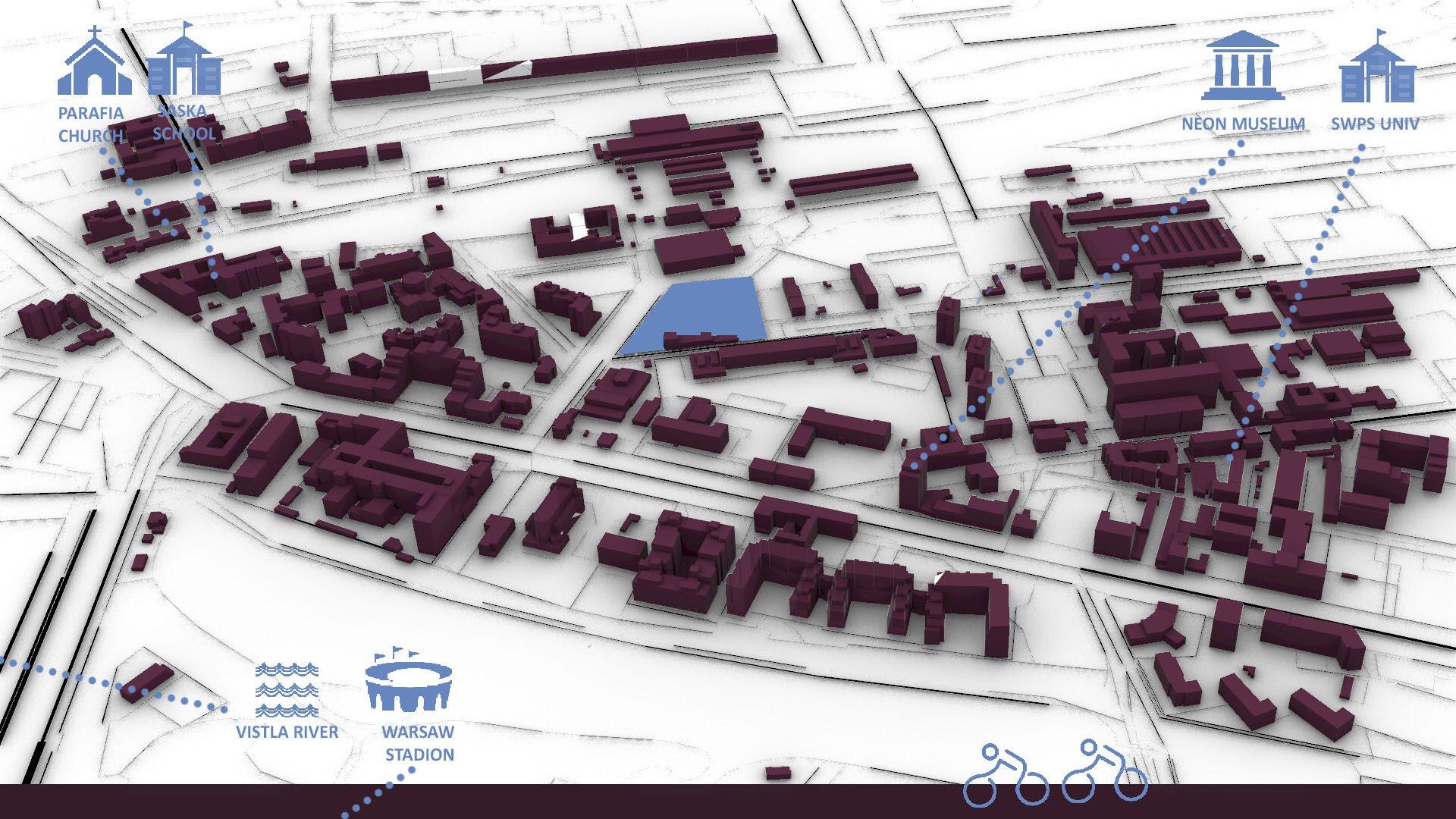

Warsaw in the past, present, and the future

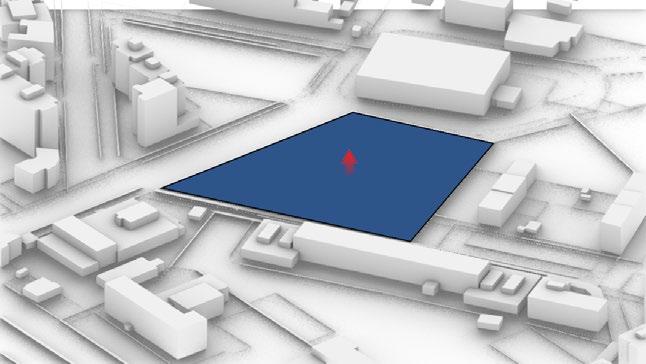

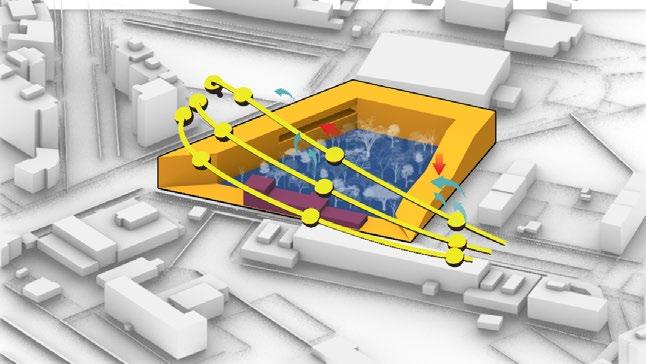

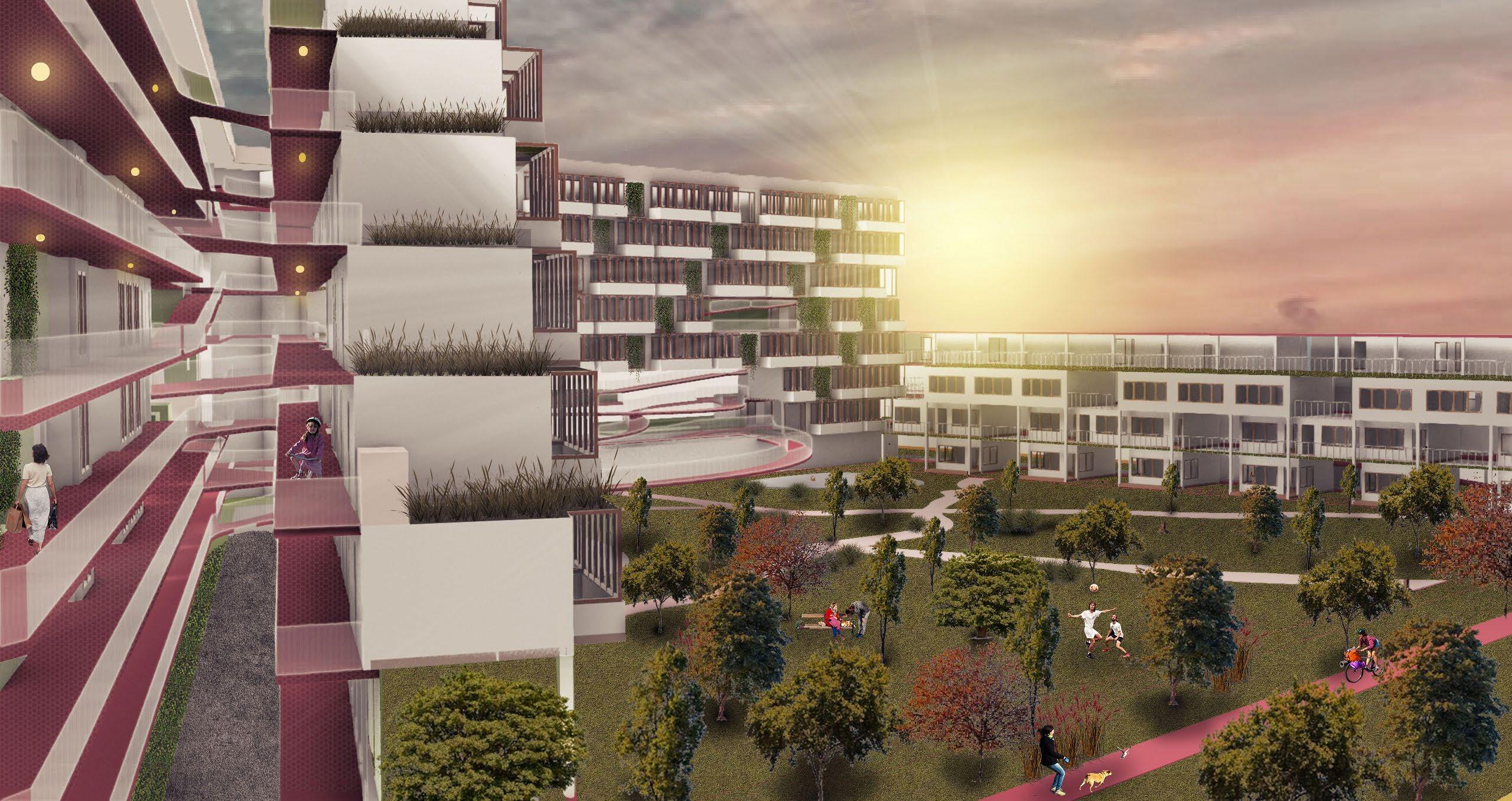

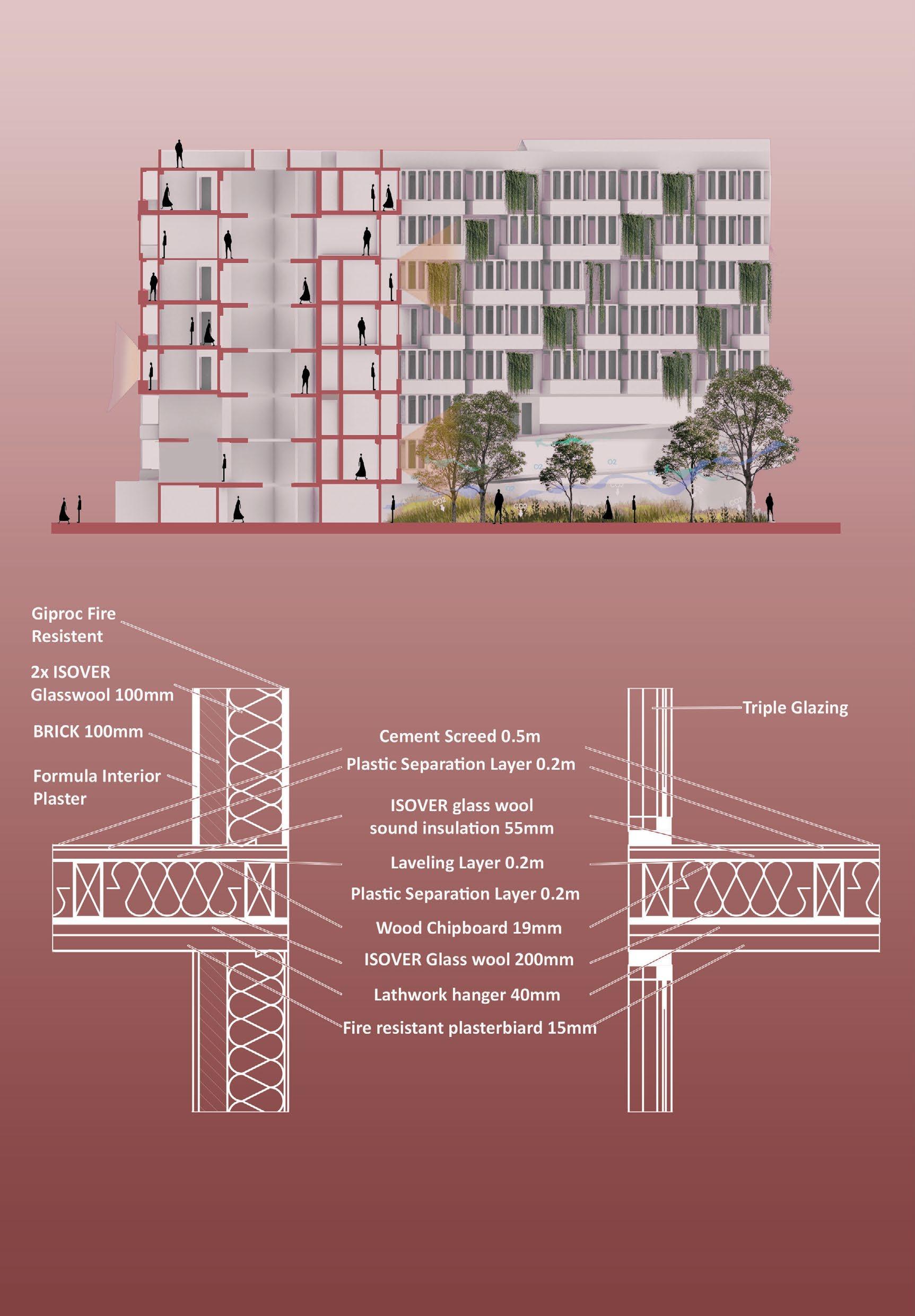

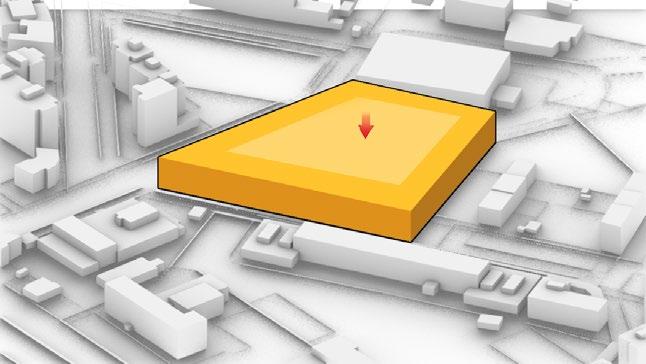

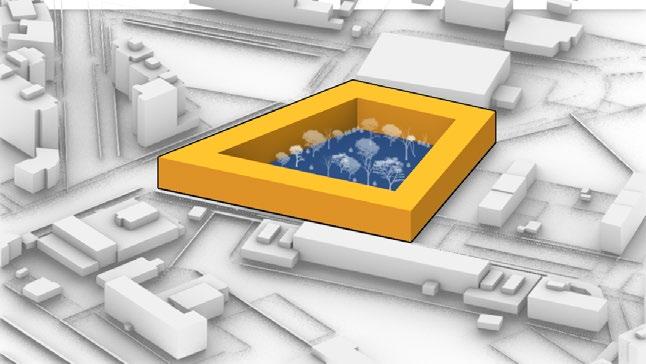

Infinity Story’s design was motivated by the need for revitalization in the Warsaw Wschodnia area through a combination of social activities and residential. Conducted analysis in various aspects such as Physical, Existing, and History. This analysis become the design criteria by using the vision and mission of Warsaw in 2030 and 2050.
especially in the fields of Environment and energy as well as Culture and Heritage. The emphasis is on building comfort for humans by prioritizing the four human senses, such as thermal comfort, indoor air comfort, acoustic comfort, and visual comfort.
The historical value taken as a design force is to see the character and habits of the Warsaw people who like cycling, walking, running in their daily activities and are still doing it today. So, those this habit is tried to be incorporated into the concept design by ramp.

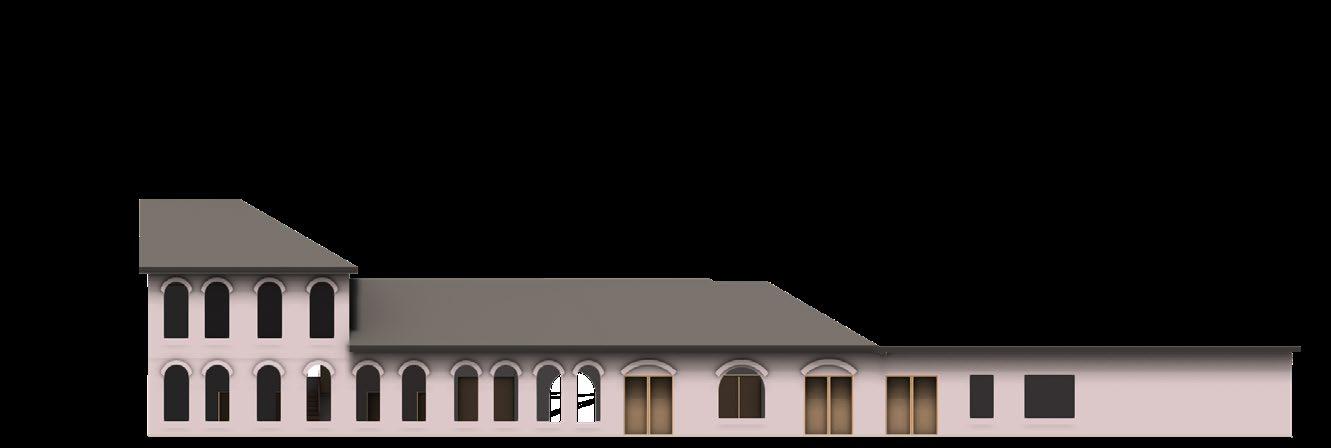

Preserving the museum by keeping the original facade.

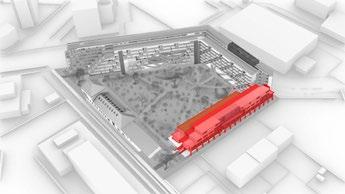

Retail and office as complementary of residential
04 45 OF ROTUNDA
INTRODUCING ARCHITECTURAL THEORY
Understanding of proportion and organization, Chapter 8
Palladio and Le Corbusier had their own way of designing buildings, so they both had different characters from the work they produced. Palladio is known for its symmetrical structure and centrality in its spatial organization, while Le Corbusier is well known for his freedom in managing his space organization due to the Le Modular that he has made. This is because Palladio itself, in the building of the Villa Rotunda, started its design with horizontal, or like a slate made so that it always looks like
a centralized and symmetrical organization of space, and continued with the vertical part (walls) or facade as the face of the projected building from its plan. While Le Corbusier’s initial design for Villa Savoye created a grid that was a projection of the volume of its vertical buildings (walls) or facades, he had the freedom to arrange it. In this case, the image or facade of the Villa Rotunda and Villa Savoye is very visible as a result of the initial projections by Palladio and Le Corbusier.
How exactly is the relationship between vertical (wall) and horizontal (plan)?
Do both work just as linearly as Palladio and Le Corbusier do? What communication is caused by the organization of space and proportions inside?
The verticality is a projection from the horizontality or simetric plan. The facade is an addition of certain parts with specified criteria.
The form is shaped by the grid as a colom or verticality, which makes a free plan or horizontal. The facade should emphasize the building’s mass.
New elements influence vertical and horizontal projection (whether it removes or supports the pro-

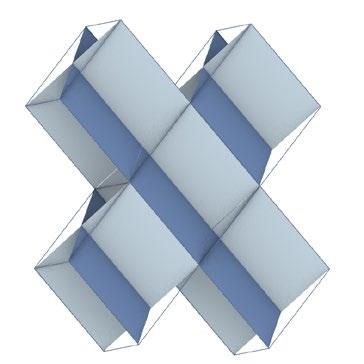

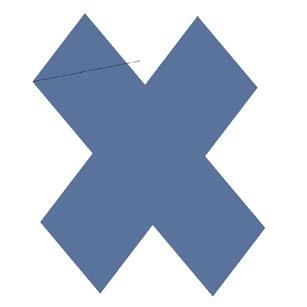

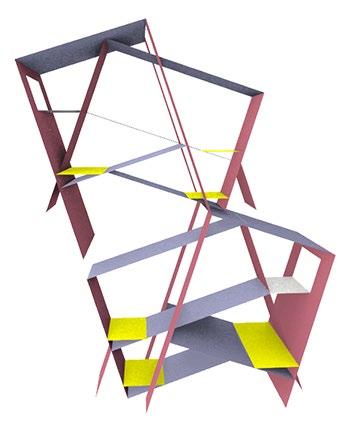

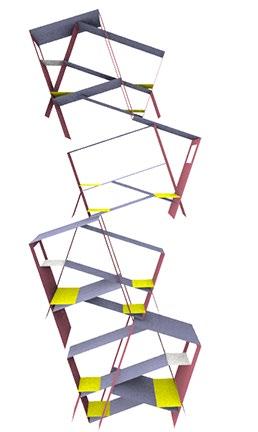

RE-IMAGINING VILLA ROTUNDA ROTATED

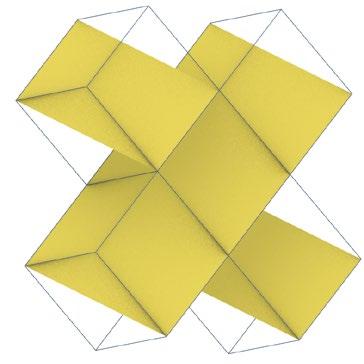

VERTICAL : HORIZONTAL = 1:1
Because it produces straight-edge elements, it is not used. We are supposed to try something new, instead doing the same thing such the theory

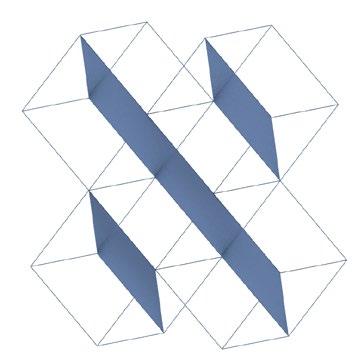

VERTICAL : HORIZONTAL = 1:2
Because it produces straight-edge elements, it is not used. We are supposed to try something new, instead doing the same thing such the theory
INFORMATION FROM THE THEORY
1. Horizontal spatial organization

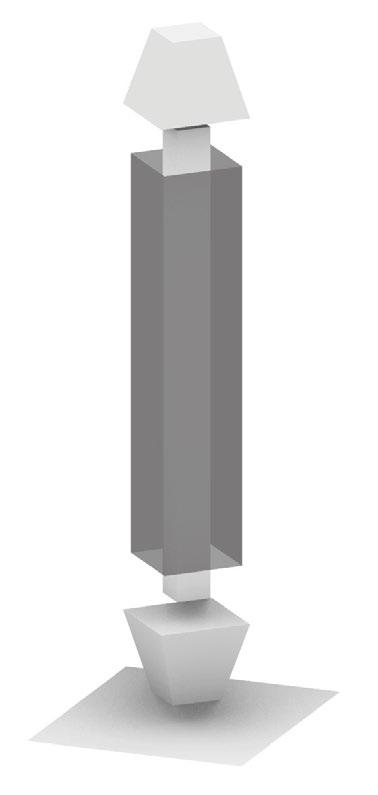

2. Vertically, the structure is divided into three sections:
- Top: Roof - Bottom: Wall
- Footwear: Stairs or terrace
3. Walls and floors are always perpendicular.
4.The main building and terrace are open, which is a unit in his organization.
INFORMATION FROM IDEA
1. Bury vertically and horizontally.
2. Not perpendicular to normal humans
3. The facade is not forced to be straight or free.

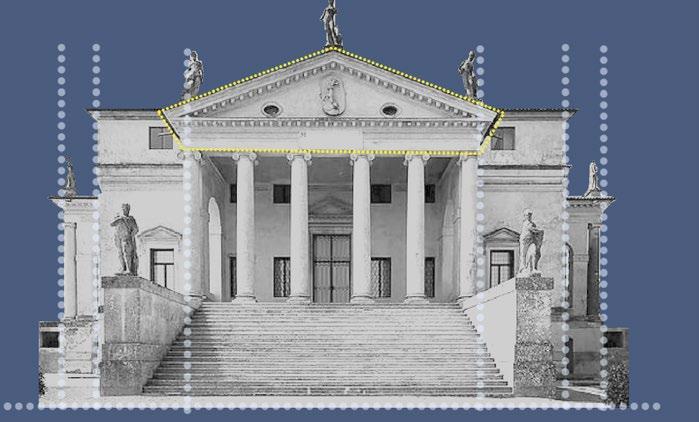

VILLA ROTUNDA BY ANDREA PALLADIO

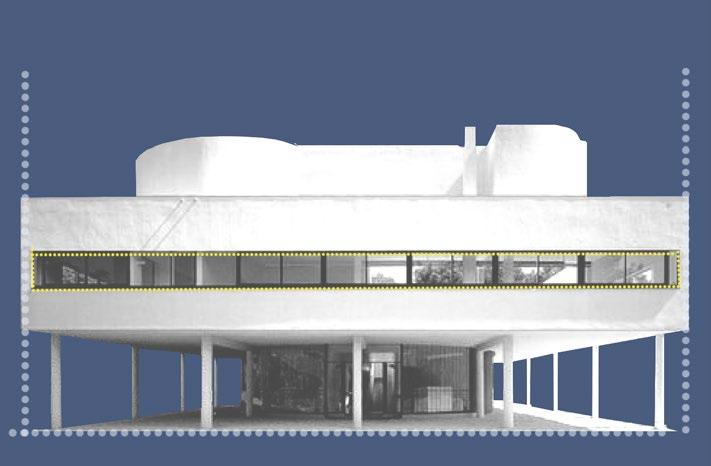

VILLA SAVOYE BY LE CORBUSIER
VERTICAL : HORIZONTAL = 1:2

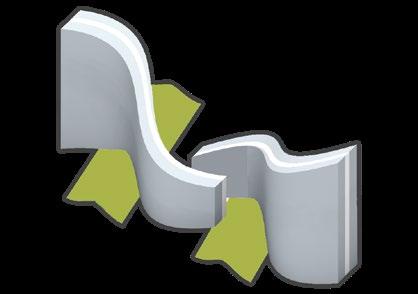

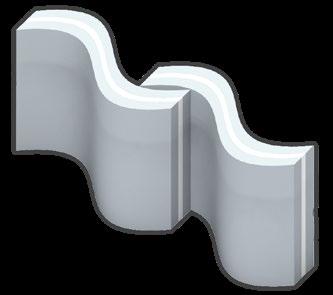

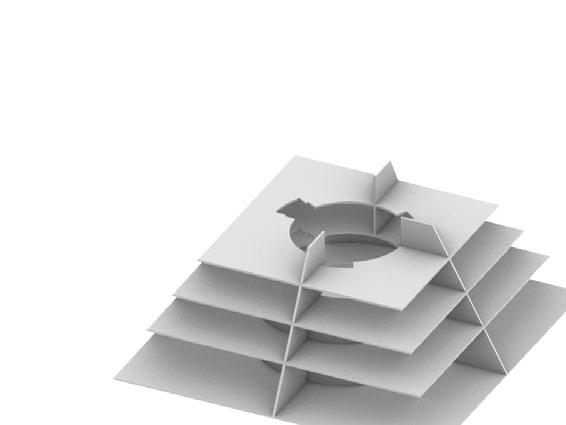

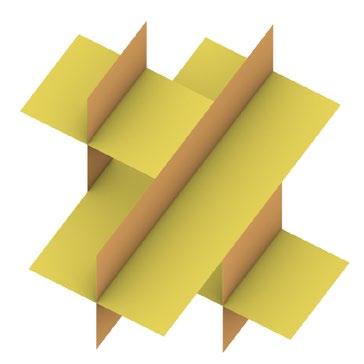

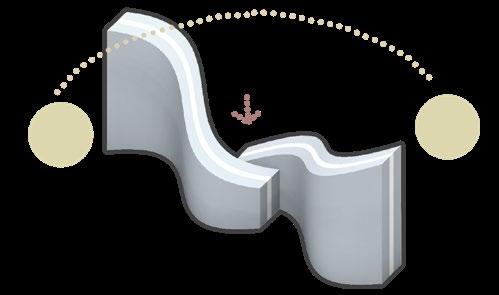

There is a blurring of the roles of the floor as a horizontal element and the wall as a vertical element. This approach, in my opinin my opinion, is the finest despite using conventional design techniques like Palladio’s Symmetrical Plan and Le Corbusier’s Grid Collom.

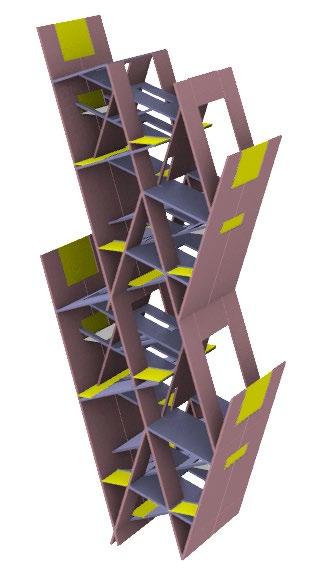

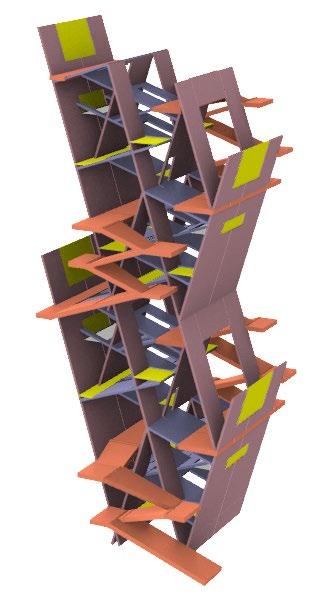

RE-ORGANIZING THE SPACE AND PROPORTION

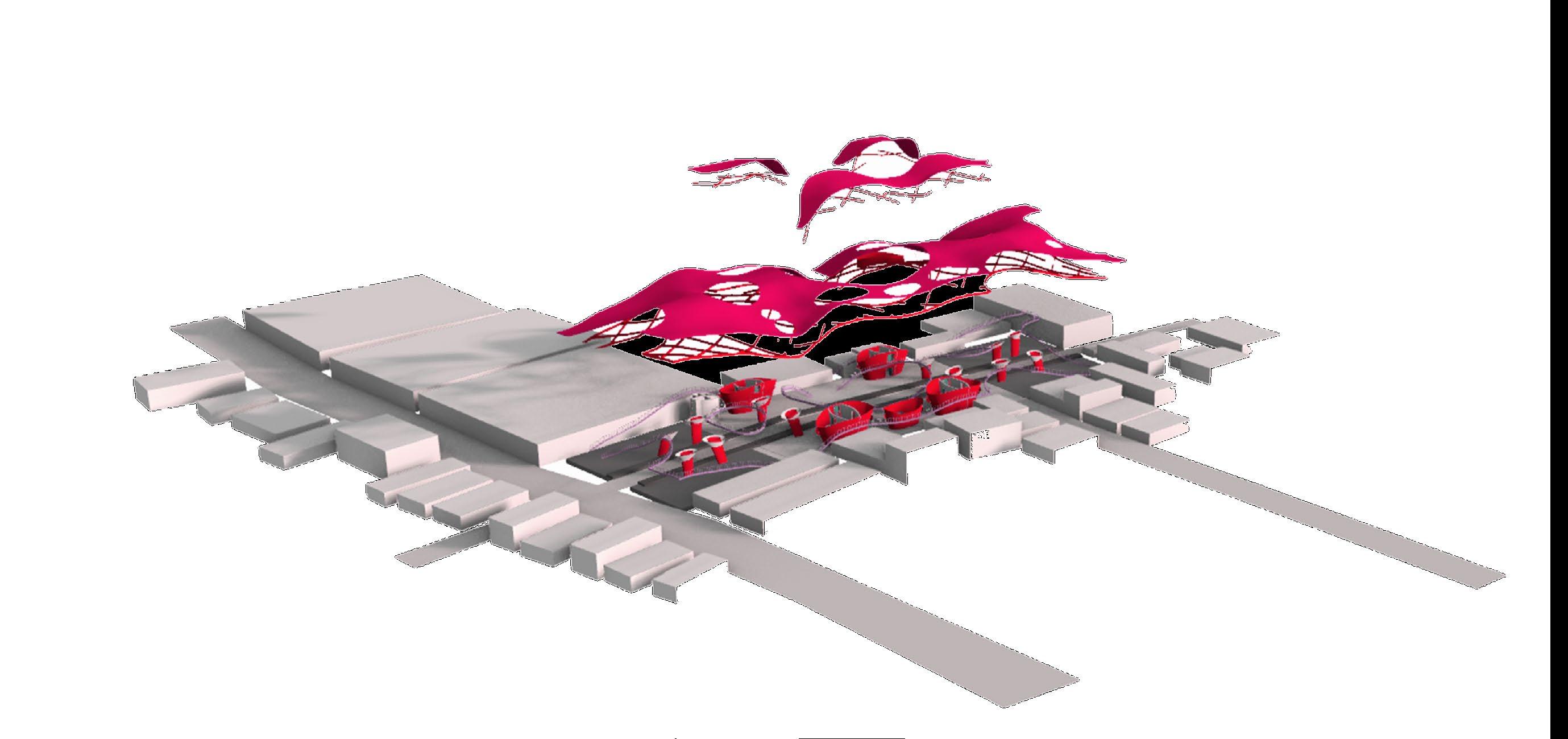

05 KALITUTUP WONDERLAND
The Story of Gresik
Kalitutup is an area in Gresik Indonesia that is like a market because the residents there are mostly traders. They sell local foods such as soto kikil, herbal medicine, wedang, cendol, pentol, and others. They also sell souvenir items such as kopyah, bags, prayer beads, and tambourines, which are made in the home industry. Authenticity is intended to reveal the architectural spaces of the city of Gresik.
Architecture Studio 4, 2021
Authenticity is intended to reveal the architectural spaces of the city of Gresik. The authenticity of this is by uncovering the hidden things in Gresik’s sociocultural society. At a certain layer and transforming the active and passive spaces that correspond to the socio-cultural life of today’s society. Through this transformation, it is hoped that awareness and new things will be born in the recognized and familiar spaces.
This design will make local traders happy when they work. The parking area is one of the concerns that is controlled by the circulation that has been created and placed on the side of the site. There are three functions of shelter: as a shelter or shade, as a bridge between right and left sites, and as a place for other activities.

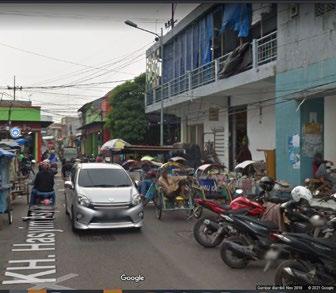

Gresik, Kalitutup Market
How and Where i can do this??
SOUVENIRS VENDORS
How to Centered Sovenirs Vendors? INTERESTING
CONTRAINS
- A traffic jam in the market area
- Prone to flooding
- the lack of green land causes pollution to worsen
- does not represent market op portunities and uniqueness
- Less Parking Area
- Cultural wealth such as food and goods production

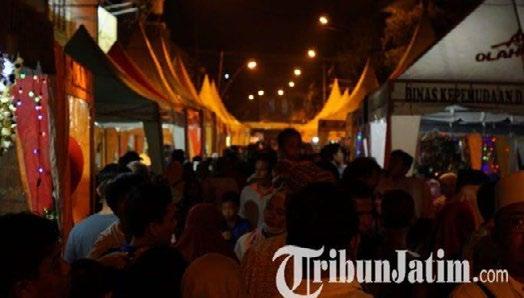

- There is a new Festival that has be come an iconic cultural of Gresik
- Strategies Place as a public area
- Damar Kurung Culture
- People like to trade
what holds me????

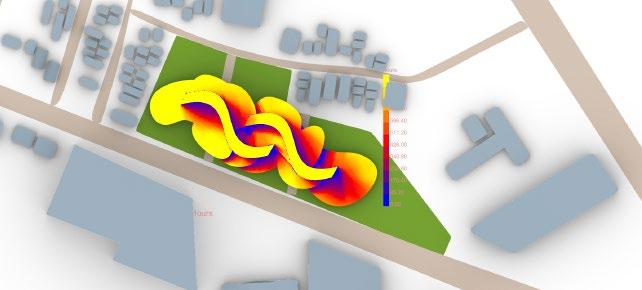

Its aim to make a circultion i n te building design and provide green area.Sport types are running, walking, and cycling.
Food spot aim to as a place for people to sell their food. This spot also provide mini kitchen to put a lot of stuff.
Sounenirs spot also provide space to make seller make their own produts in the same place.
Open Space for outdoor area is a communal space or public space where people or community can do various kind of activities like Festival which need a stage.
Indoor open space is usefull room because it can be used for Stage Exericise, Small Competition.
Parking area encouraging local artist to show and sell their creativity, we placed in parking area. to make use of space. So, parking area not only as place of vehicle but also as a gallery and museum.

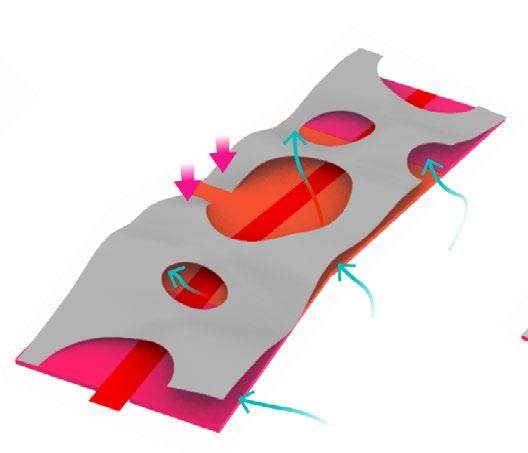

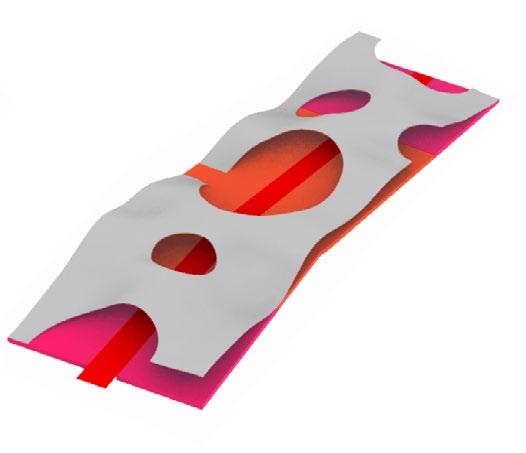

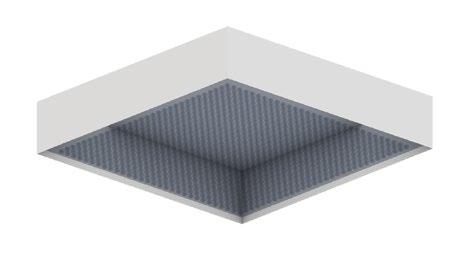

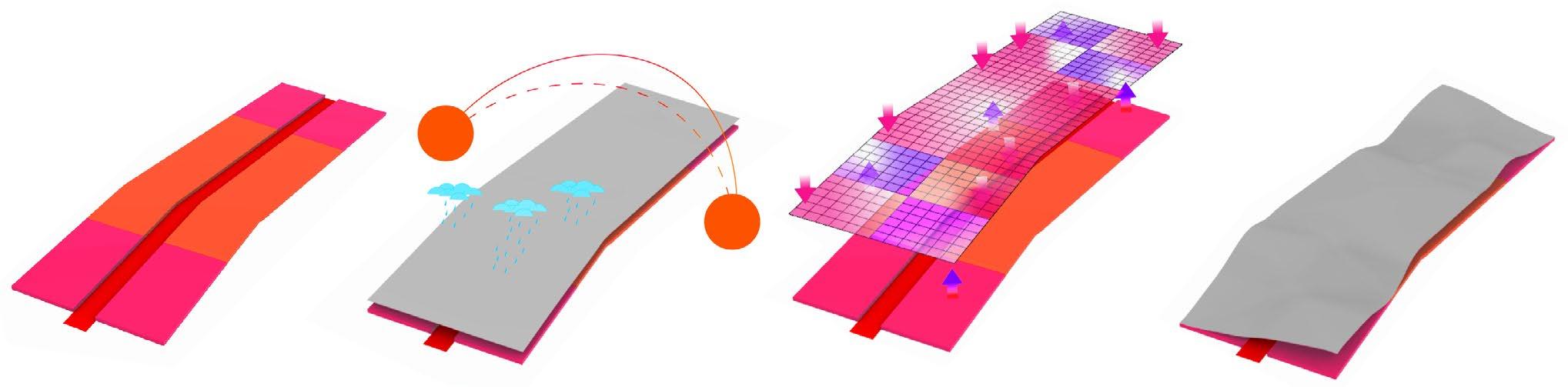

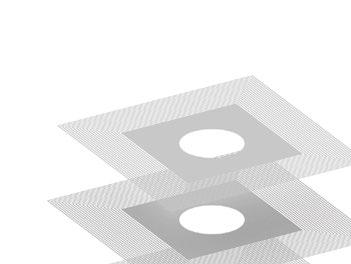

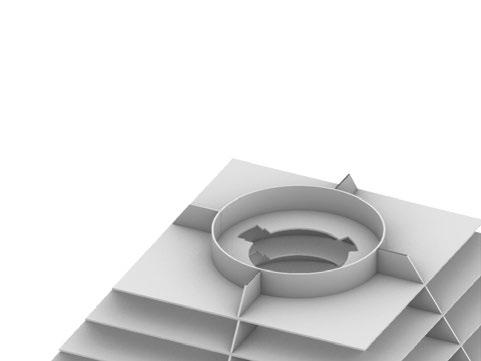

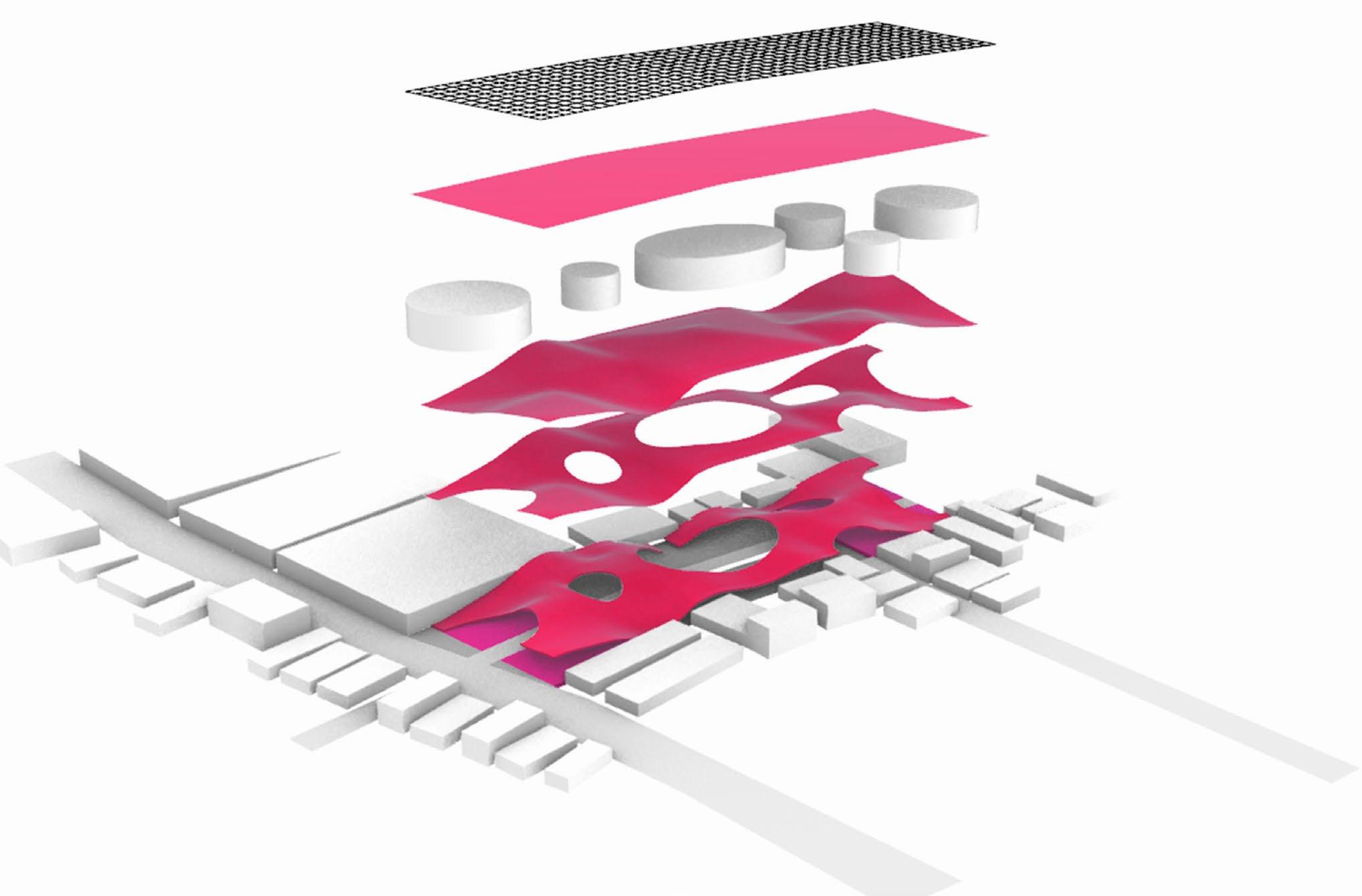

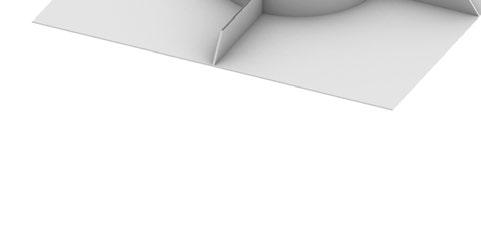

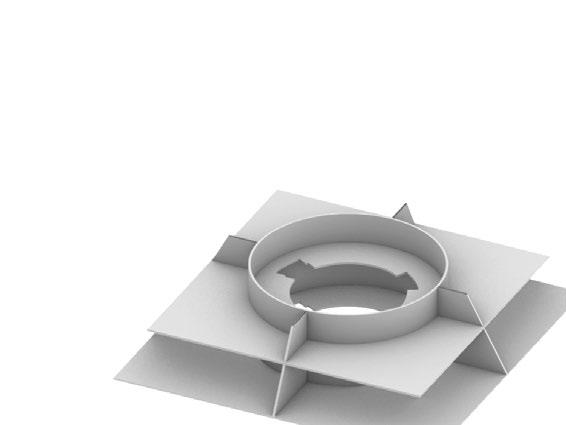

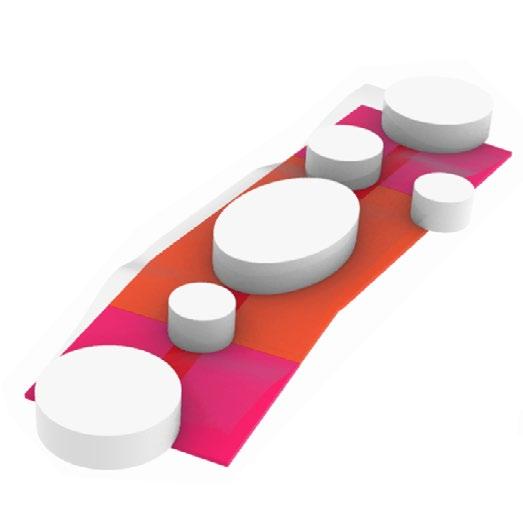

Each Grid has 3m x 3m spacious as a parameter to push and up surface
The surface is to be on the grid.

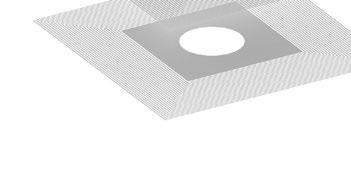

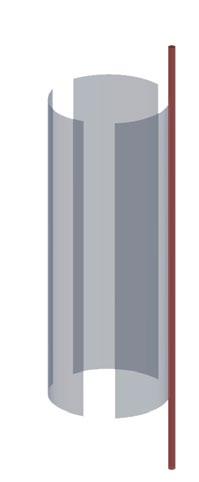

The Tubes as a tool to make a hole.
Circle, Cap= r: 10.0m
Circle, Cap= r: 6.00m
Ellips, Cap= r1: 6.00m, r2: 12.0m
CONCRETE ROOF
STRUCTURE OF ROOF (MONOLIT BEAM) ‘Span 3m’
CONCRETE FLOOR PLATE/ SHELTER
STRUCTURE OF SHELTER (MONOLIT
SOLID STRUCTURE
CYLINDER STRUCTURE

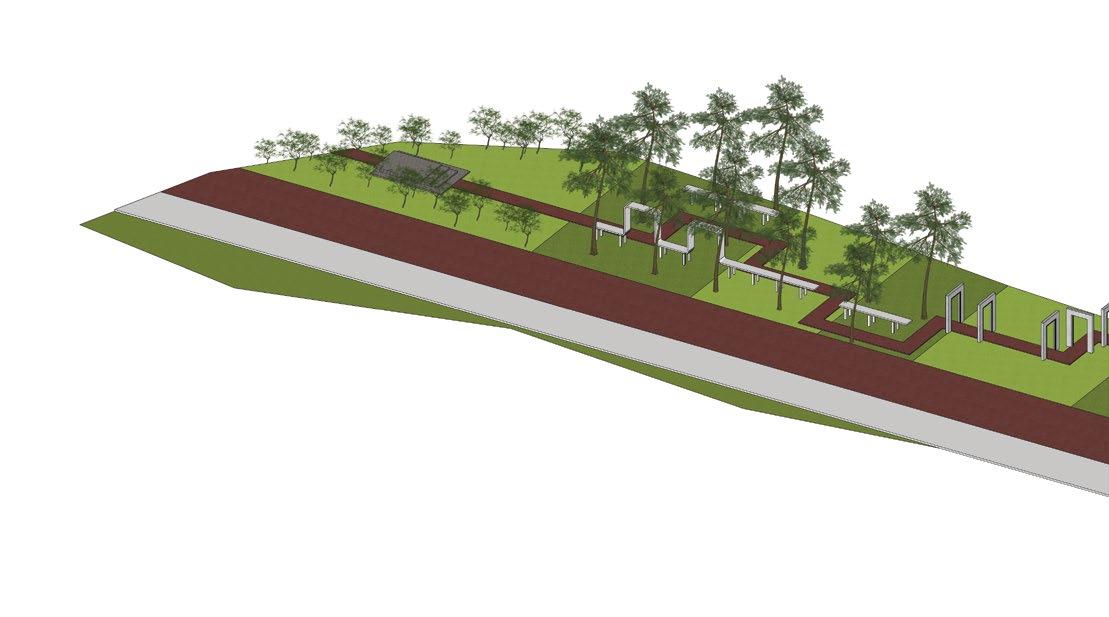

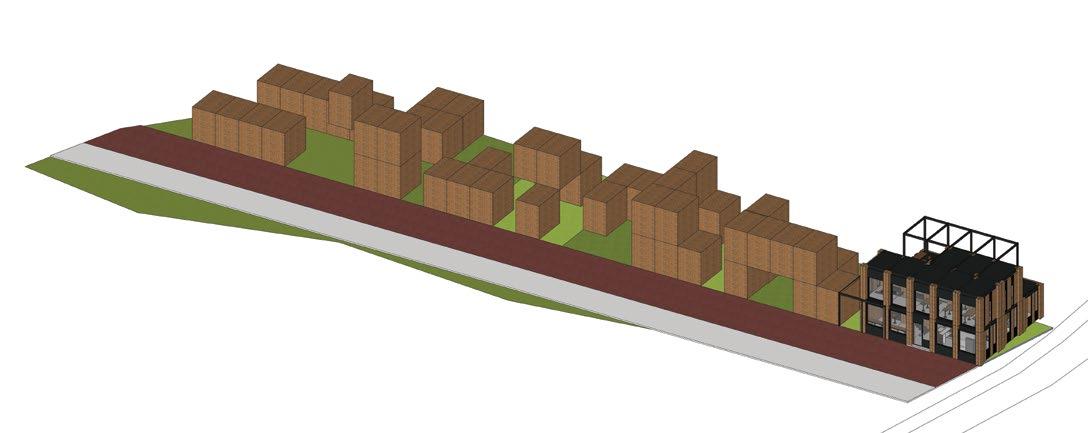

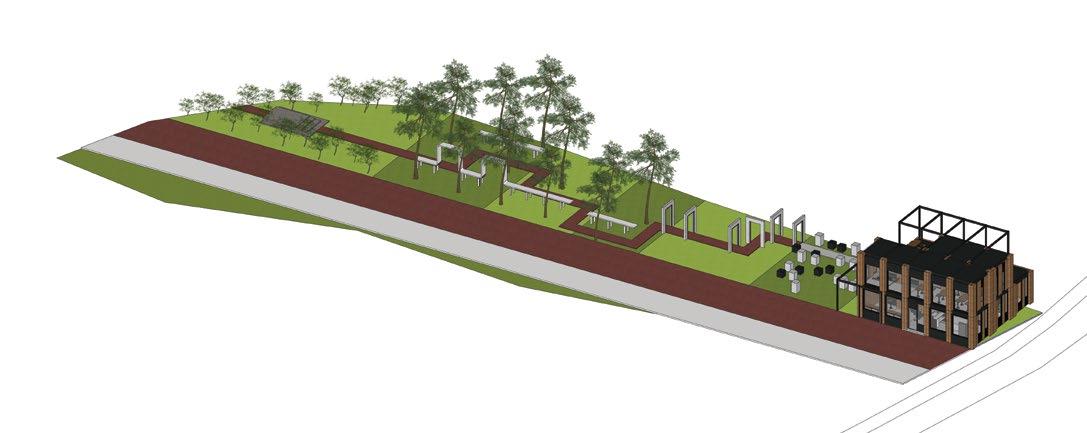

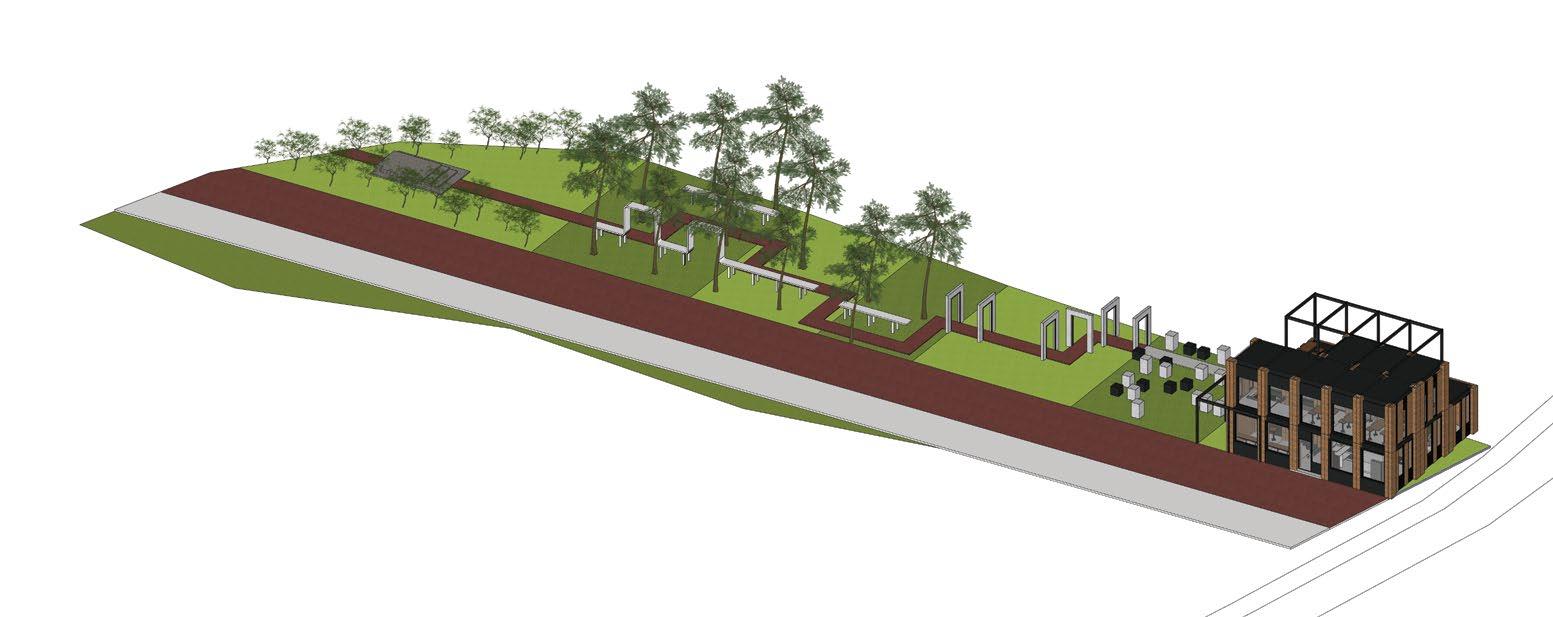

06 REKA VILLAGE MADURA
Project with DOPE Architecture+Urbanism

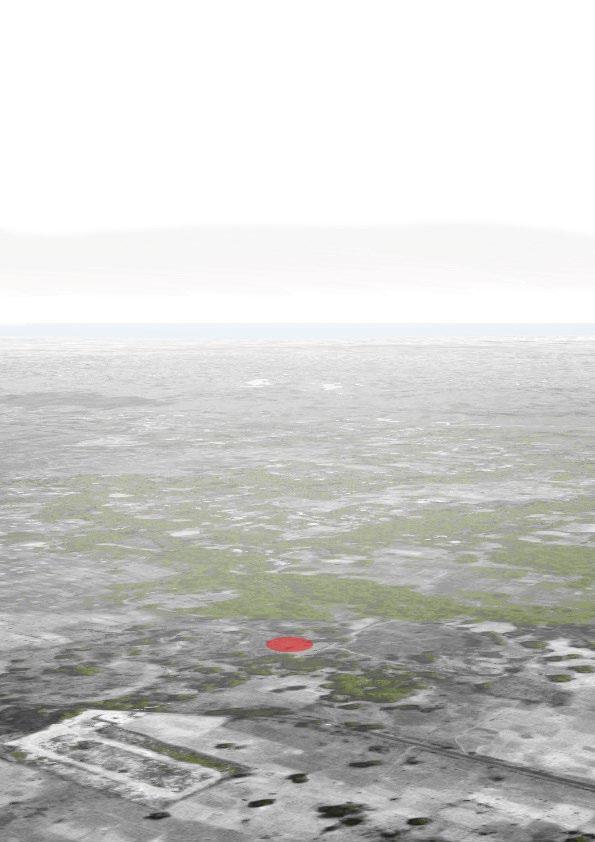

Projecting site, and time with ephemeral architecture
In an area or urban concept, there are always several components that are factors in which the area can be said to be urban. The small area where people still don’t recognize it except only people who own the land. Becoming a new land more dense needs an injection of something to make it a life. Furthermore, several factors restrict it to branch out due to context. So what next can we do?
The land probably will extend in terms of number or wide which make it heavier. However, back to the previous statement that the land needs an injection to attract people to fulfill the activities there. So we need a method of thinking of something ephemeral to be built in these places that will support more adaptive in the future.
Questioning Unknown
1. What is the current job of the Madurese to fulfill their needs??
2. How their job could add to the quality of their life?
3. How do factors affect the growth and development of the economy?
4. What if adding new value in the area? will they accept it?
5. How about an art? How does art change their quality of life? What has changed in their social and economic life?
Plotting Questions
Empowering local communities to carry out activities following the needs that will continue to grow by making art and technology the main attractions. Enviromental and human Relation

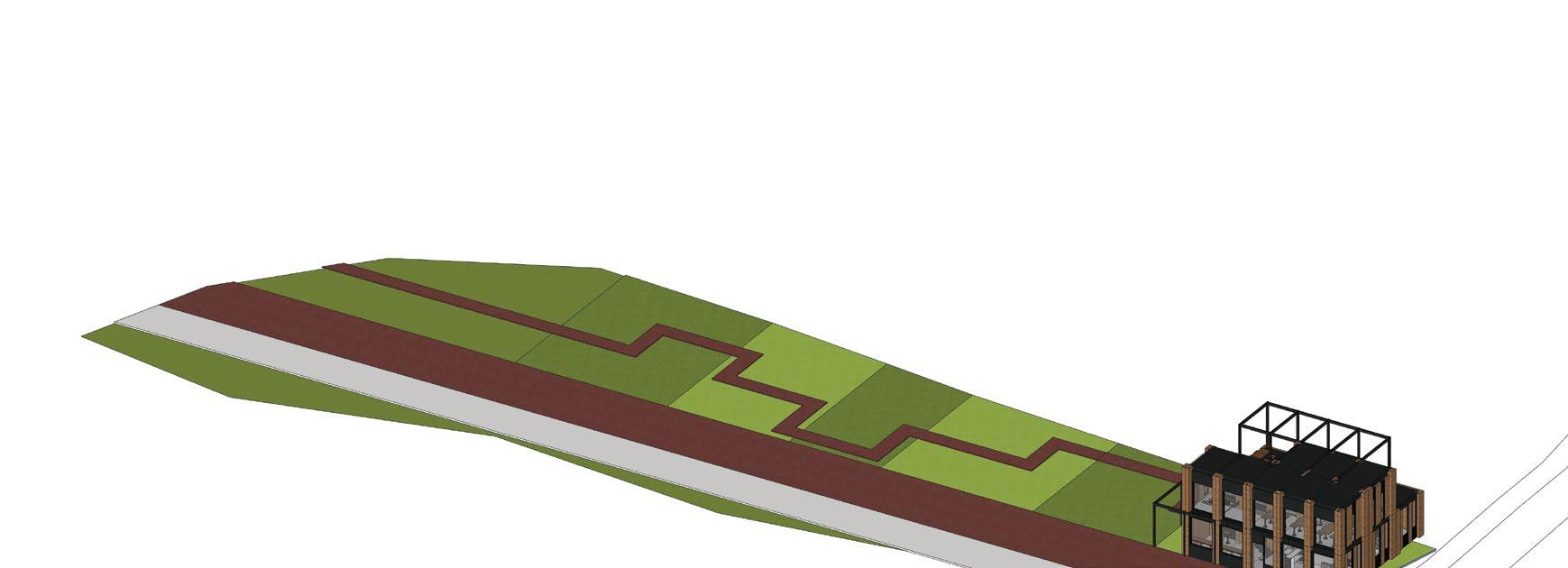

Develop the land through the increasing amount of time with ephemeral architecture.
The improvement of madurese’s qualities life is the progressing their economic while art as western culture invert in the area which is going to change in several factors such as economic, society, and even education
The Components
Commercial Activities
Exhibition
Workshop
Healt Counseling
Trading
Infrastructures
Parking
Field

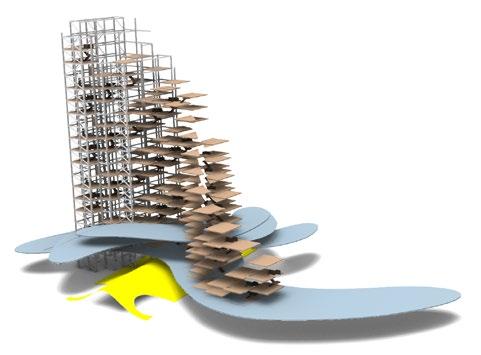

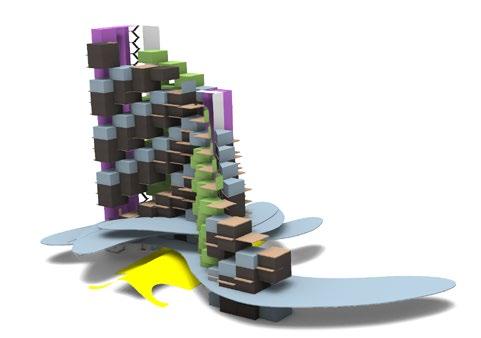

Precedent Activities System Arch
Student’s Pavillion Sitting, standing, lean back, small gathering

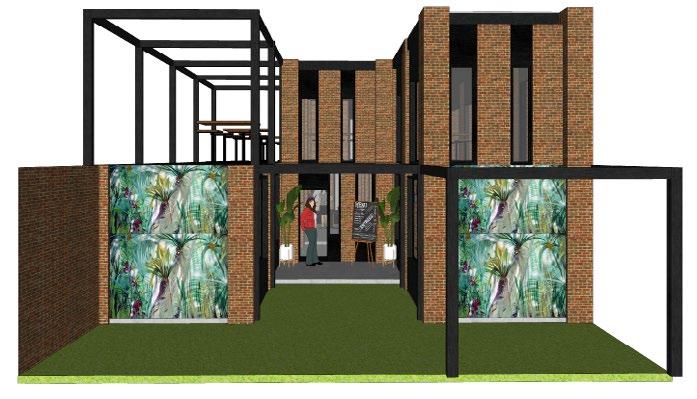

Lodging Log

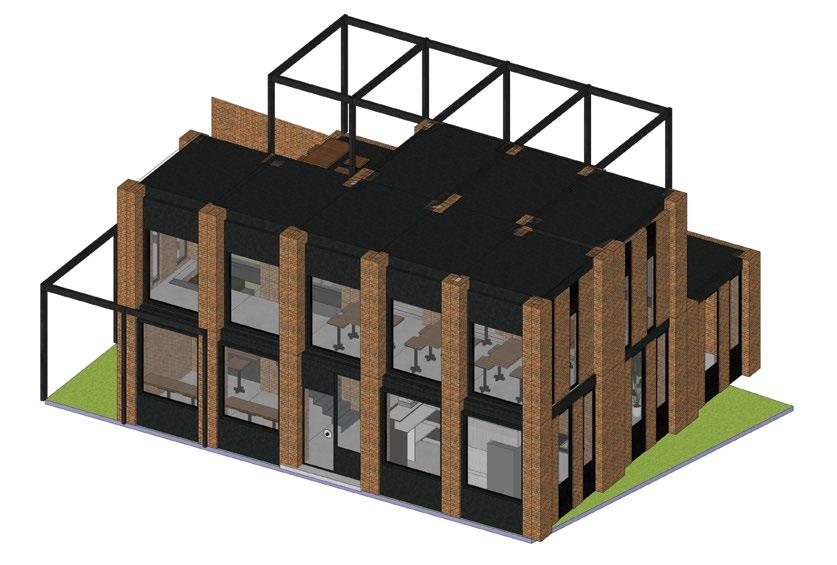

Cafe Lodge
Flying Wood
Art Space
Term
Kinetic Box
Lodging, sitting various community gathering, yoga nad streching accounts, etc
Mix-used
Per;, 2, ... 12 months
Short Term
Circular Wall
Mostly for sports
Command on Design
Context Control
1. Low cost
2. Take advantage natural local resouces
3. Provide local and surrounding people to do activities
4. Responds to weather
5. Respect to local customes, faith, culture, etc.
Ephemeral Control
1. Adaptive
2. Movable elements
3. Potential for deconstruction
4.Ability take on fragmenta tion
Control
Entrance
Frontage
Landscape
Parking
Material Control
Brick

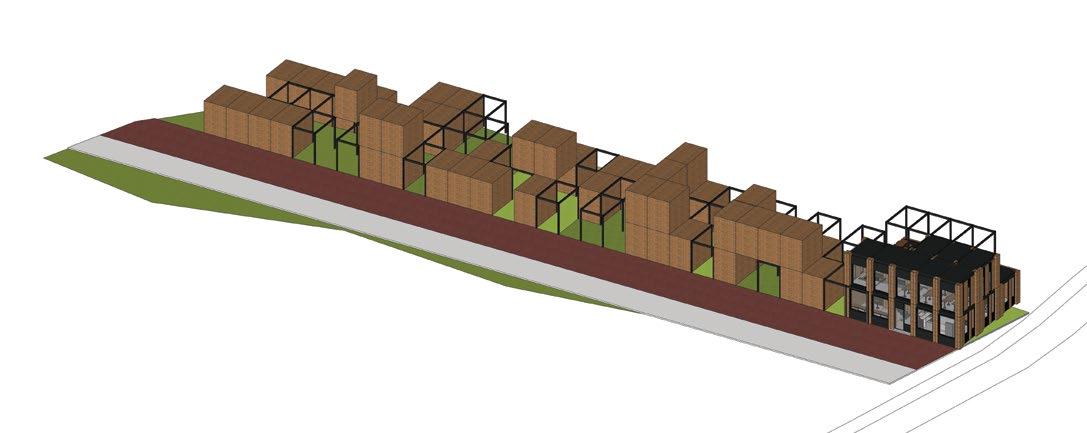

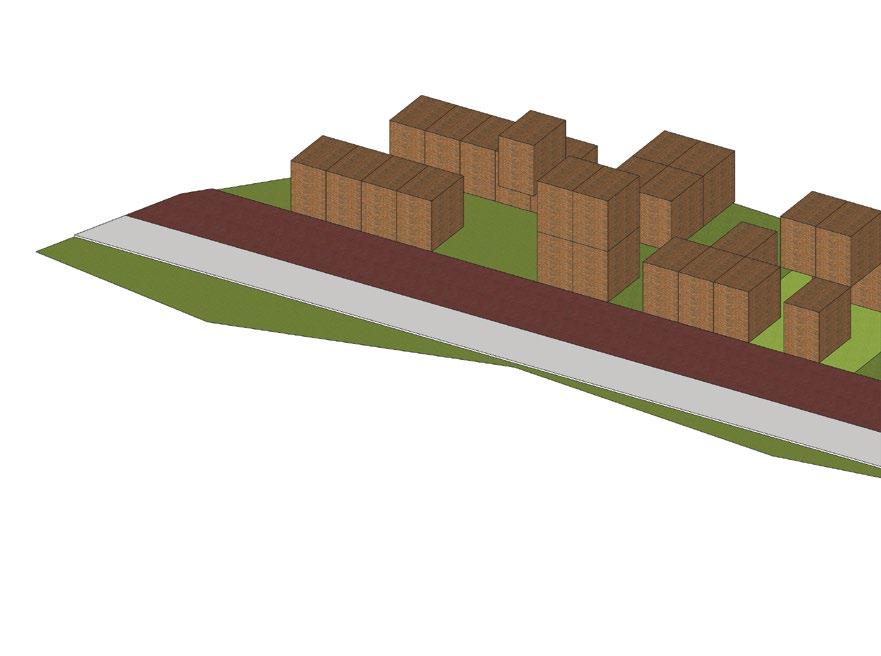

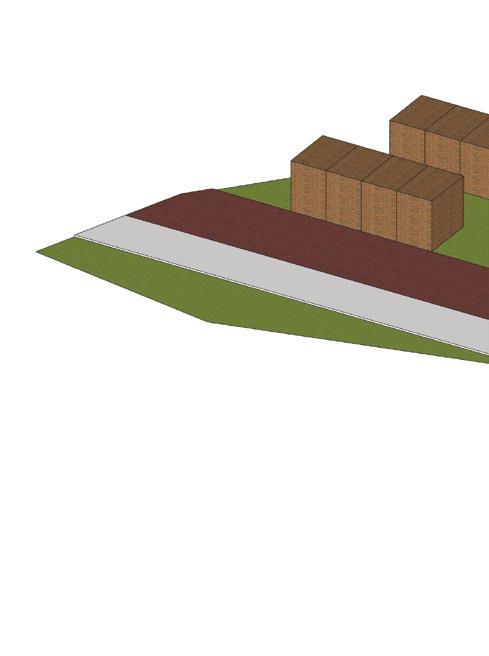

Development Stage
The flow of the line was planned for the next building in the next few years.
Period
The growth develops as long as the second period is still used.

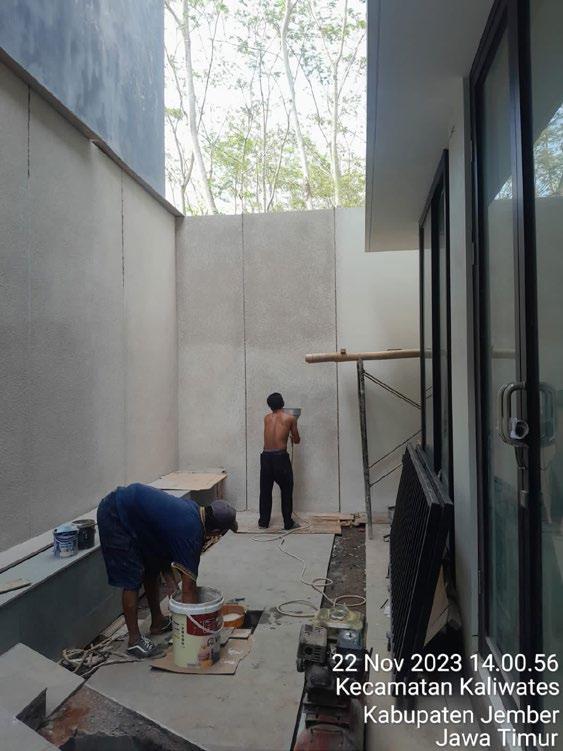

07.1 AG SPACE
Personal Works, Side Hustle
Improving some spaces to encouraging a family time

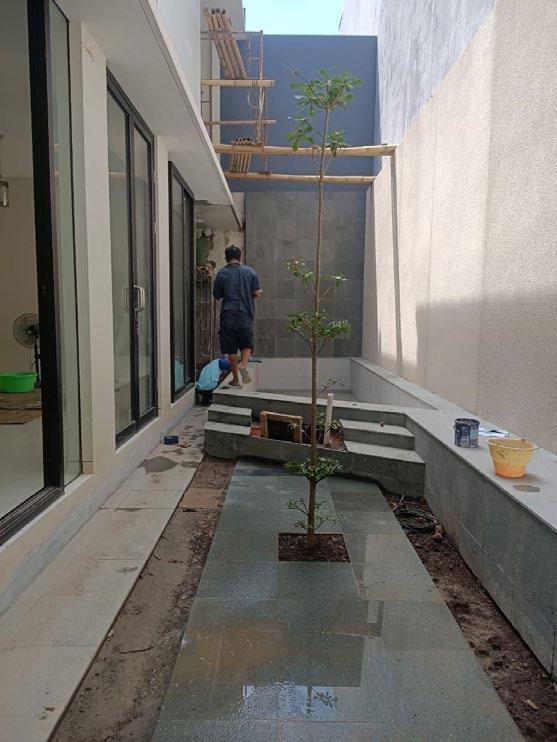

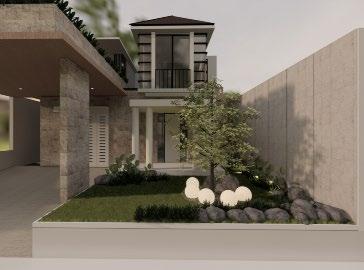

The client requested that I redesign various spaces in her new house, including the balcony, garden, inner court, and interiors. While enhancing these spaces, the client emphasized the importance of prioritizing the safety of her three young children, two of whom are under fifteen and one under five years old.
In the process, I endeavored to maintain consistency with the existing hype by adhering to similar materials or applying identical tones. The most challenging aspect was convincing the client that this represents an ideal design and establishing a connection with the contractor to consider the associated costs.

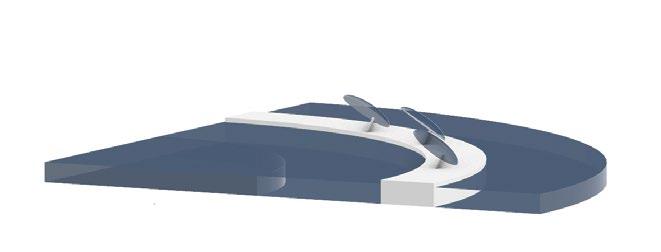

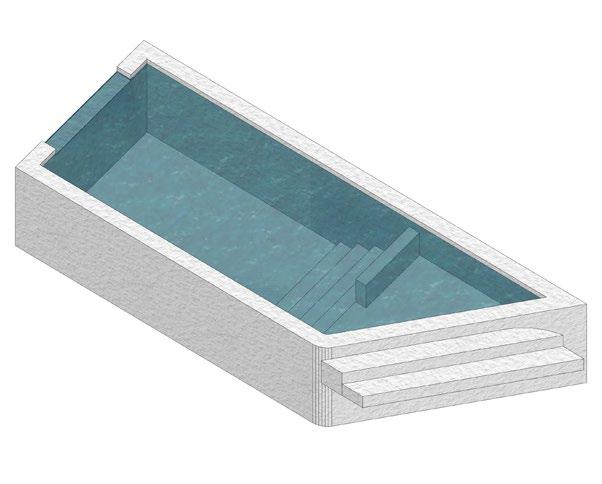

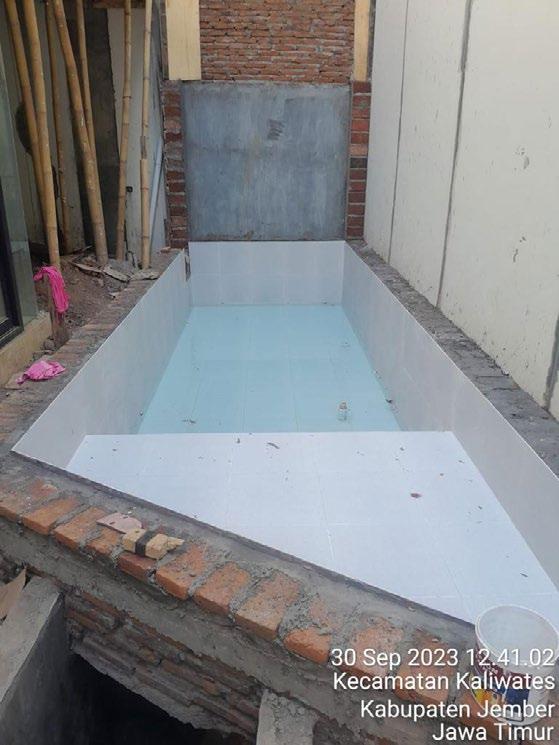

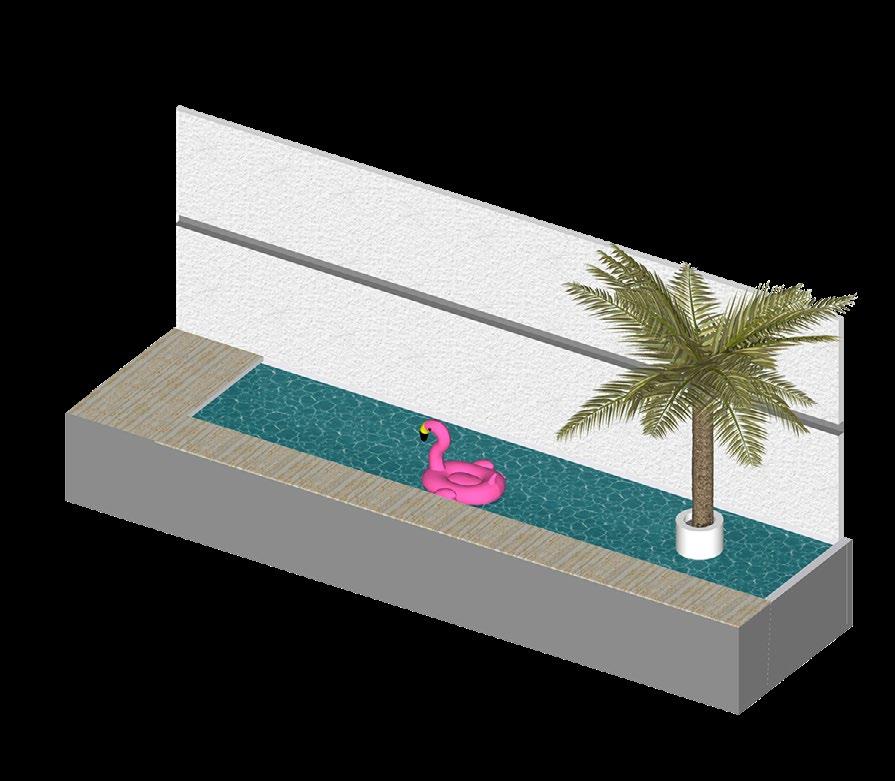

1st Stage is wide Pool
Imperial White
Off White Camprot wall
2nd Stage is Jacuzzi
3rd is shorter swimming pool

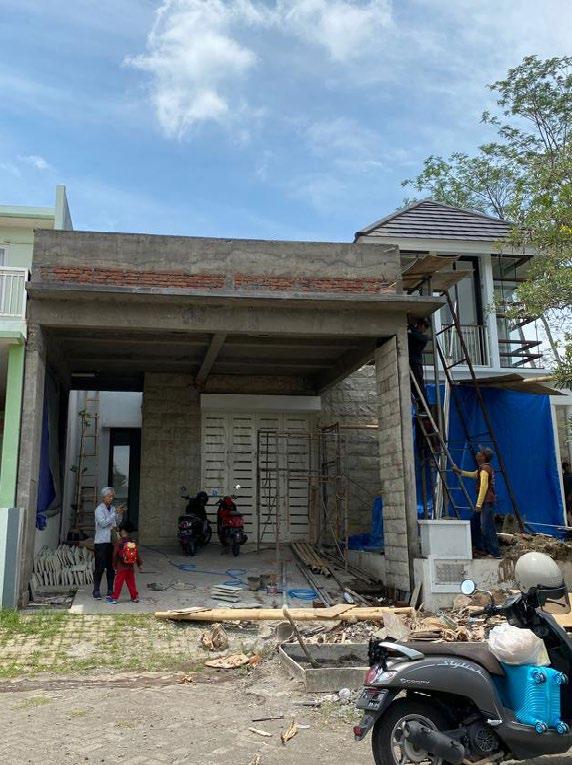

Existing
In process..
07.2
Personal Works Courses by Futurly.com
I won the challenge from the Futurly Instagram account for creating a prompt. Being in the first position, I had the opportunity to become a Futurly member, which grants access to some classes. I chose to focus on parametric design to enhance my skill sets in architecture.
07.3 Exercise STUDIO PROJECT
Personal Works with DOPE Architecture+Urbanism

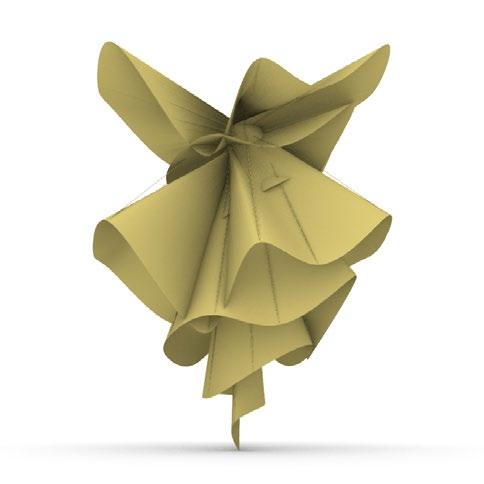

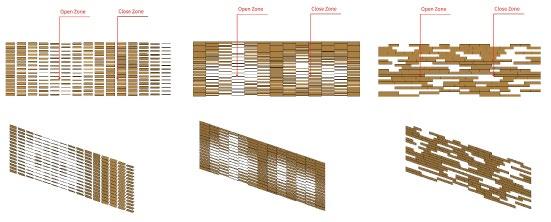

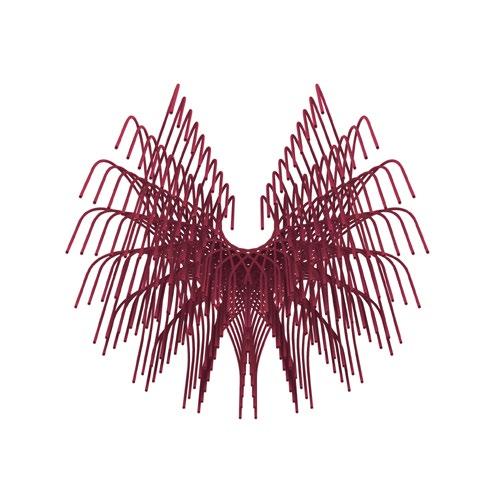

I was responsible for developing the facade of one of the projects, utilizing some basic Grasshopper skills that I possess. The horizontal orientation was chosen due to the Javanese context, which employs the krepyak system for the windows.

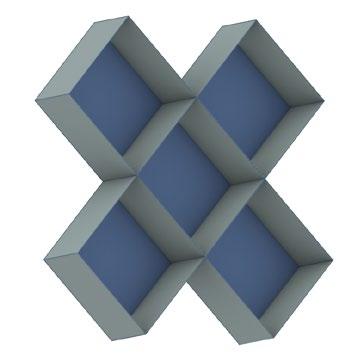

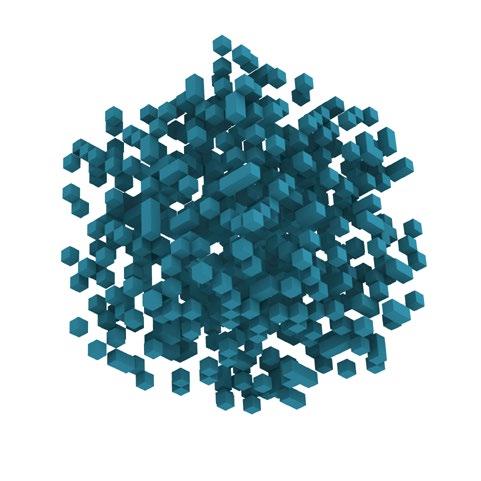

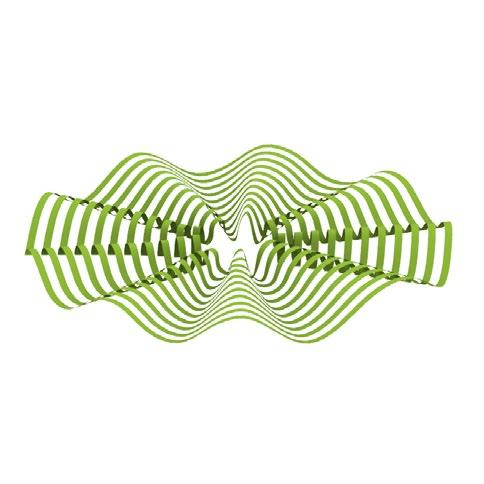

Water Dripple Spiral Veil Rotated Arch Pixel Randomizer

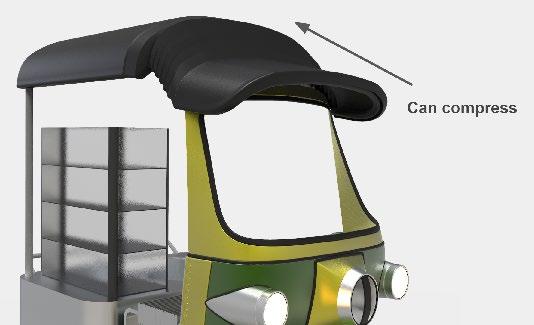

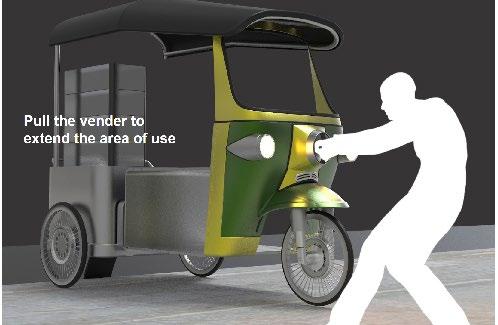

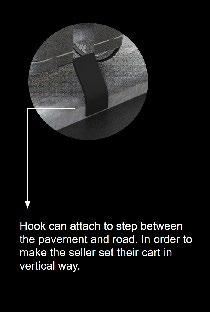

07.4 COOKTUK_Siloam Road
Personal Works _ Bangkok Workshop, in a team.
Design Statement

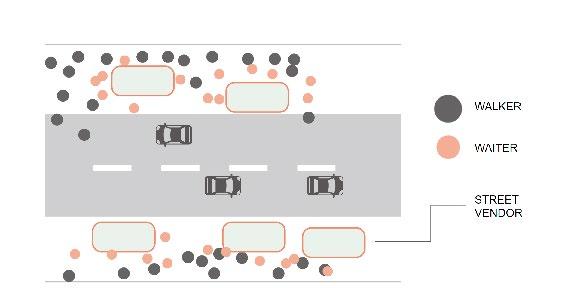

In order to solve the untidy system of street vendors, improve walkway. We are trying to design a new cart that can manage pavement for people who are seller, buyer also pedestrian who use the pavement in Silom road.

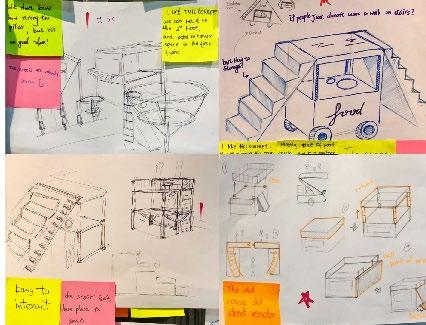

Ideas
New tidy system by new vendor cart to change the customers waiting place on the pavement.
