Lumineux Sports Brochure

Sports Lighting

Introduction to Lumineux

The Lumineux Group is a family run, UK based manufacturer and distributor of quality LED lighting products. We have been providing a superb range of commercial and industrial lighting solutions for over 35 years and are founded on an approach of high quality, innovation and dependability.

Over the years, the group has developed into four central brands:

Supplier and manufacturer of high-performing and reliable lighting products throughout the UK.

A revolutionary system designed to enable you to control smart enabled LED fi ttings.

A fully automatic system of testing, analysing and reporting on emergency lighting.

A UK provider of LED modules, drivers and emergency solutions for lighting.

Our fresh approach includes:

• Market leading products – combining fair prices and great performance

• Trustworthy, straight forward warranties with no complex registration

• Easy ordering and next day delivery directly from us

Lighting Design Service

As part of our quoting and energy saving calculation process, Lumineux offers a comprehensive and free lighting design service.

Please see page 22 for more information.

performance.

It is commonly accepted that improved lighting leads to improved performance. Major Premiership football clubs have hired people solely responsible for analysing vision as a way of enhancing results. Combine this with our project at a David Lloyd facility, where they saw a fi ve-year projected saving of over £135,000, it is clear how improved lighting can improve the fi nances and performance of your organisation.

Why upgrade your LED lighting?

Cost Effectiveness – LED Lighting is more effi cient, meaning lower energy costs with improved performance. Also, funding is now available meaning very little initial investment from your budget.

Maintenance – LED products last a lot longer and all of our LED products come with simple, no-nonsense warranties, meaning less worry, less need to replace and more money saved.

Improved Performance – the right lighting can improve focus, vision and the mentality of individuals. It is also proven to positively impact mental health.

Durability - LEDs are up to 30 times longer lasting than previously traditional lighting products. Throughout their lifespan, they continue to deliver consistent light.

Environment – LEDs have a dramatically reduced carbon emission compared to traditional lighting. They are better for your budget, as well as the environment.

FUNDING OPPORTUNITIES Find the funding support you need

Lumineux can guide you to support that may be available

Lumineux recognise that in order to obtain the perfect professional lighting solution, you may require additional funding. Listed below are a selection of organisations that may help to provide funding options towards your lighting installation.

FOOTBALL

https://footballfoundation.org.uk/

RUGBY

https://www.englandrugby.com/ participation/running-your-club/funding

TENNIS

https://www.lta.org.uk/roles-and-venues/ venues/tennis-padel-facility-fundingadvice/quick-access-loan-scheme/

HOCKEY

https://www.sportengland.org/how-wecan-help/our-funds/queens-platinumjubilee-activity-fund

Efficient lighting leads to lower bills and higher

GUIDELINES

Lighting Schemes

The below illustrations show a standard lighting scheme for semi-professional competition courts and pitches. This gives your customer an idea of lighting positions and the appropriate amount of light fittings required.

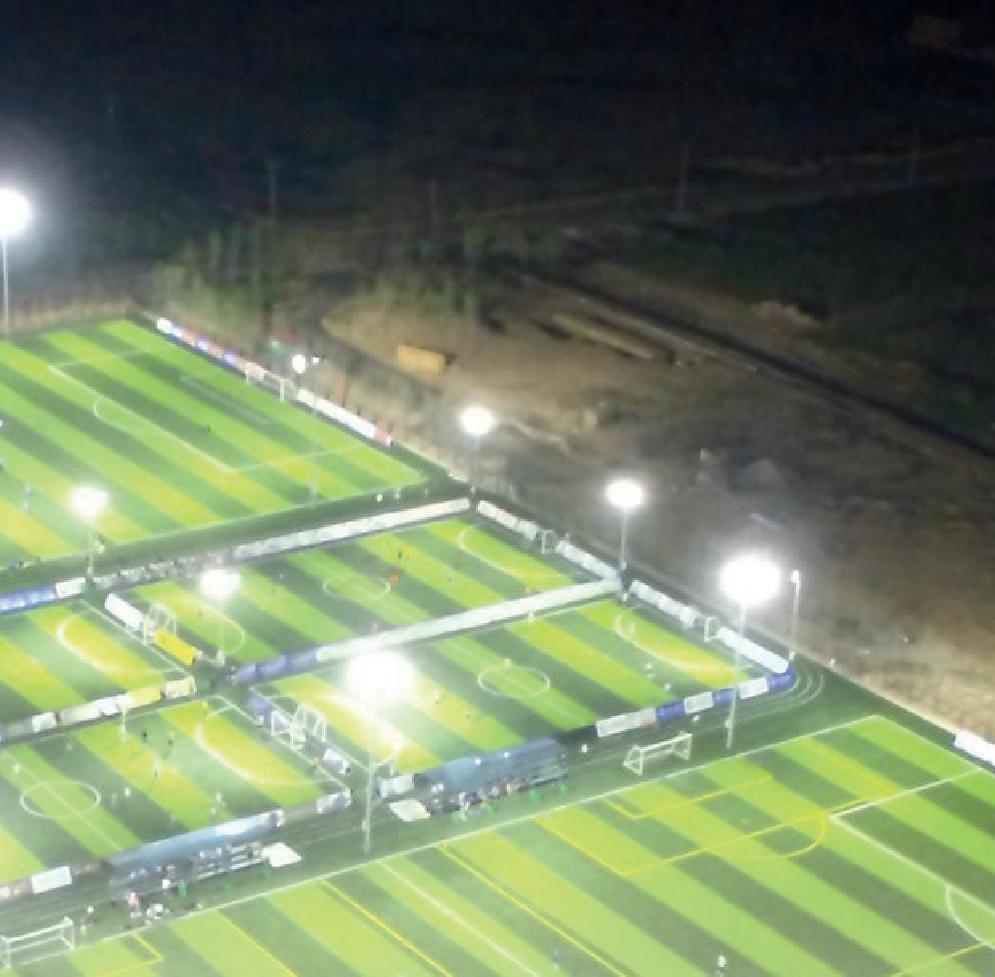

Football Ground

https://www.thefa.com/-/media/cfa/ durhamfa/files/facility-and-football-pitchdevelopment/fa-guide-to-floodlighting.ashx

Football Grade A - G (Step 2 -6)

Rugby Pitch

https://www.englandrugby.com//dxdam/ d1/d176970b-b1dd-4f7d-b06f-1feb55a41977/RFUguidetofloodlighting.pdf

Hockey Pitch

http://fih.ch/media/12500056/fih-lightingguide-2017-17-10-17.pdf

Class II

1650W

Tennis (2 x Courts)

https://www4.lta.org.uk/globalassets/ venue/support-your-venue/documents/ floodlighting-guidance.pdf

Wolves FC Training Centre

Wolverhampton

Wolverhampton Wanderers, the Premier League football club were looking for a way of improving the light levels throughout their training ground, without increasing running costs.

Working with the contractor, Lumineux’s lighting design team built a solution to improve the coverage and cost effectiveness of the club’s current set up.

The training centre now has over 220 lights installed, throughout the pitch, balcony, evaluation area and training room. The lighting has made an immediate impact, especially on the training pitch where the difference between the old and new lighting is clear to see.

Significant improvement in lighting coupled with a reduction in running costs.

Results

• Greater light coverage

• Higher illumination

• Improved efficiency

Wilton

Asymmetric Sports Lighting

Suitable for: Swimming Pools and Tennis Courts

The Wilton is a high quality sports light with asymmetric optics, ideal for environments that require a specifi c direction of light. This high effi ciency, 140 lumens per circuit watt fi tting combines a IP67 ingress protection rating with and durable IK09 rated construction. It also comes with a 5-year warranty.

Features and benefits

• Asymmetric optics

• Suitable for swimming pools and coastal areas

• 304 stainless steel bracket supplied

• Easy installation

• High efficiency up to 140LPCW

• IP67 and tough IK09 rated construction

Harlock

Court Lighting

Suitable for: Outdoor Tennis Courts, Large Swimming Pools & Driving Ranges

The Harlock is an asymmetric sports light with an optic lens and up to 93% lighting transparency. It’s a tough light, suitable for outdoors with an IP66 ingress protection rating and an IK10 impact rating, alongside its highly effi cient 143 lumens per circuit watt.

Features and benefits

• Optic lens up to 93% lighting transparency

• Asymmetric optics

• 10kVA L/N-PE surge protection

• High efficiency 143LPCW

• IP66 and tough IK10 rated construction

Indoor Tennis Courts

Working alongside our Lighting Design team, a solution was created to replace their existing lighting for an LED alternative. Throughout the courts, 264 Arnfi elds were installed, leading to noticeably improved lighting on the courts and a dramatic saving in running and maintenance costs.

The estimated saving was calculated at £136,235 over 5 years

Results

• All lighting updated to LED alternatives • Estimated saving of £27,247 per year

David Lloyd Leisure in Southampton is one of a number of David Lloyd facilities where Lumineux products have been installed. The Southampton Club were looking to improve the lighting in their indoor tennis courts, without increasing their energy costs.

Arnfield

Linear Court Lighting

Suitable for: Indoor Tennis Courts

Reaching LTA standards, the Arnfi eld can be adapted to the environment with bespoke court lighting optics.

Features and benefits

• Designed to meet LTA Standards

• Bespoke court lighting optics

• Supplied with 1.5M prewired H05RN-F cable

• IK10 rating

• Option of lumens maintenance

Suitable for: Football Pitches, Rugby Pitches, Golf Courses & Driving Ranges

The Carsington is one of the most popular fl oodlights available, with adjustable beam angles and light pollution visors included, meaning light can be directed exactly where it is needed. As an investment, the Carsington is durable – IK10 rated construction and an aluminium body with UV resistant powder-coat fi nish, as well as a 5 year product warranty.

Features and benefits

• Die-cast aluminium body with UV resistant powder coat finish

• 10kV surge protection

• IP66 and tough IK10 rated construction

• Light pollution visor included

• Beam angles can be adjusted to 15º, 30º, 45º, 60º and 90º

Example of a Sports Hall Layout

• 28m x 16.5m

• 12 x 120W Belmont Linear High Bays

• UGR <= 21.8

Belmont Linear High Bays in Sports Hall

Sports Hall

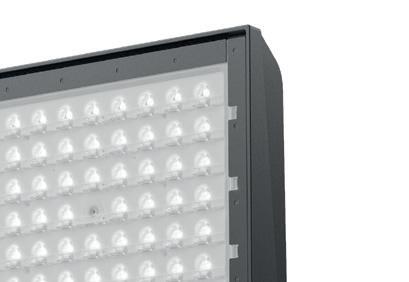

Carsington Plus

Premium Sports Floodlight

Suitable for: All types of outdoor sports pitch

The Carsington Plus is a premium fl oodlight built to perform and to last. It has professionally designed true asymmetric fl at optics and up to 218,000lm of light output to maximise lighting, in the place it is needed. The Carsington Plus has over 50,000 hours lifespan alongside its tough IP66 ingress protection rating. Its design also ensures a low wind force to minimise impact and maximise its lifespan.

Features and benefits

• Massive light output of up to 218,000lm

• Ultra-high system efficiency over 140lm/W

• High quality Lumileds LED chip and Inventronics driver

• Over 50,000 hours lifespan to L70

• Professionally designed true asymmetric flat optics

• Tough IP66 and IK09 construction

• High quality AkzoNobel anti-corrosion powder coating

CARSINGTON PLUS

Ultra-high efficiency light designed to maximise sports ground lighting.

Mounting Options

Depending on the size of installation, we would recommend installing the cabinet option as this offers the greatest flexibility in terms of installation of Control Gear and ease of maintenance.

Perfect for large installations. We would recommend this option as it provides very good installation and maintenance all in one cabinet.

Game

The Changer!

Averon

High-Power Lightweight Sports Lighting

The Averon combines high performance with durability and a lightweight, easy install design. This 220,000 lumens output fitting is only 18.5kgs and can be retrofitted using the existing electrical install.

The Averon combines high performance with durability and a lightweight, easy install design. This 220,000 lumens output fitting is only 18.5kgs and can be retrofitted using the existing electrical install.

Reliability

10KV surge protection

High thermal conductive aluminium alloy

IP66 ingress protection

1,000 hours salt spray resistance

Accessories

Visor

Safety Wire

Features

Control

DMX – rdm programmable drivers for remote management via software

Performance

1659W 220,000 lumens output

Efficient heat dissipation

Easy Install

Retrofit designed for easy 1-1 replacement of existing HID fittings

Lightweight design - Only 18.5kg

Belmont Linear High Bay

120W & 180W - Zhaga Plug & Play

The high impact Belmont is a robust linear high bay with outstanding performance and low glare.

Suitable for: Sports Halls, Gymnasiums and Assembly Halls

The Belmont options include emergency, microwave and PIR. In addition, the Belmont offers a truSmart sensor, where you can create scenes for different sports activities or exam lighting providing a complete solution.

Features and benefits

• Fresnel style optics for improved glare control

• Tough, impact resistant IK10 housing

• Plug & Play Options:

• Grafham High Output Emergency Pack

• Alwen Zhaga Microwave sensor

• Alwen Zhaga PIR Sensor

• Alwen Zhaga truSmart PIR sensor

Non-adjustable bracket set shown, other options available.

The Belmont is available with three installation options:

Suspension wire

An adjustable +/- 60º bracket set

Non-adjustable bracket set

Protective wire mesh

LOW UGR

Zhaga Plug & Play

Philips High School

Oldham - Manchester

Philips High School in Manchester wanted to improve the lighting in their multi-use sports hall. They wanted a reliable lighting solution that would be suitable for several different uses, from sports to events.

We supplied the 120W Belmont Linear High Bay. It’s tough and durable, impact resistant housing is perfect for the environment. It is also fl icker-free, with an IK10 impact rating.

Significantly improved lighting in a large multi use hall and major savings on our energy bills.

Results

• Signifi cantly improved lighting in a large multi-use hall

• Increased lighting effi ciency

• Reduced energy costs

Example of a Sports Hall Layout

• 28m x 16.5m

• 12 x 120W Belmont Linear High Bays

• UGR <= 21.8

Belmont Linear High Bays in Sports Hall

Sports Hall

Columns

Modular and Bespoke

Suitable for: Sports Pitches, Car Parks and Recreational Lighting

The Columns are a range of lighting options that can be tailored to your individual requirements. They are available with custom heights and mounting options and custom brackets and T-bars for easy installation. Columns can be designed to maximise the impact of your lighting, whilst minimising the impact on the environment it illuminates.

Types of Conical

• Tubular

• Tapered

• Multi-Sided Tapered

Columns can be tailored to suit your individual needs. For more information, please get in touch.

Lighting Design

How our lighting designers can help provide the correct lighting for your building or outdoor space.

FREE Lighting Design Service

As part of our quoting and energy saving calculation process, Lumineux offers a comprehensive and free lighting design service aimed at offering the right lighting solution, whilst also providing the very best energy and cost savings.

Site Survey Service

The benefi ts of working with a lighting supplier is the ability to specify the right products for the right environment. Whether it’s a production facility or a giant warehouse, every environment requires the correct lighting throughout. For standard, specialist or emergency surveys Lumineux have experts who can provide a site survey to maximise the lighting, whilst offering the best solution for your budget requirements and return on investment.

Return on Investment

Our ROI calculator factors variables, including maintenance and occupancy of the environment, to ensure a comprehensive payback calculation.

The Right Solutions

Our approach to all lighting projects is to provide the correct solution. Throughout this brochure you will fi nd some of the very best industrial lighting available, all covered by a comprehensive warranty.

When planning your project, please call Lumineux to see how we may be of assistance at the design stage to offer an insight into how much you could save.

From design to completion, this comprehensive lighting install at Leeds College was designed by our in house lighting designers using Lumineux LED fittings.

What is Lumineux Controls?

Lumineux Controls enables you to remotely control your sports lights, through a touch screen, App or battery powered gateway. This ensure you have lighting where and when you need it.

Our fresh approach includes:

• No additional wiring

• Easy to install

• Tailored to suit your individual needs

Benefits of Lumineux Controls

Maximum Efficiency

Control your lighting and reduce energy waste. Lumineux Controls enables you to light only the areas you need, when you need them. With options to light sections of your facility, you can reduce your energy costs without sacrificing lighting quality.

Simple Control

Lumineux Controls are simple to use. Available through touch screen, a phone app or battery powered gateways. All devices are designed to be user-friendly, fast and understandable regardless of your lighting knowledge or experience.

Tailored to Your Needs

Make your lighting work for you. Lumineux Controls enables you to tailor lighting to suit your needs. Whether that’s pre-sets for specific sports of routines or bespoke scenes targeting specific lighting or energy management. You can consistently find the balance between effective lighting and running costs.
