lumencove® nano 2.0 The Lumencove Nano 2.0 is a dimmable cove lighting system that eliminates the need for a power supply, optimizing size, efficiency and durability. •
Industry leading 10-year limited warranty
•

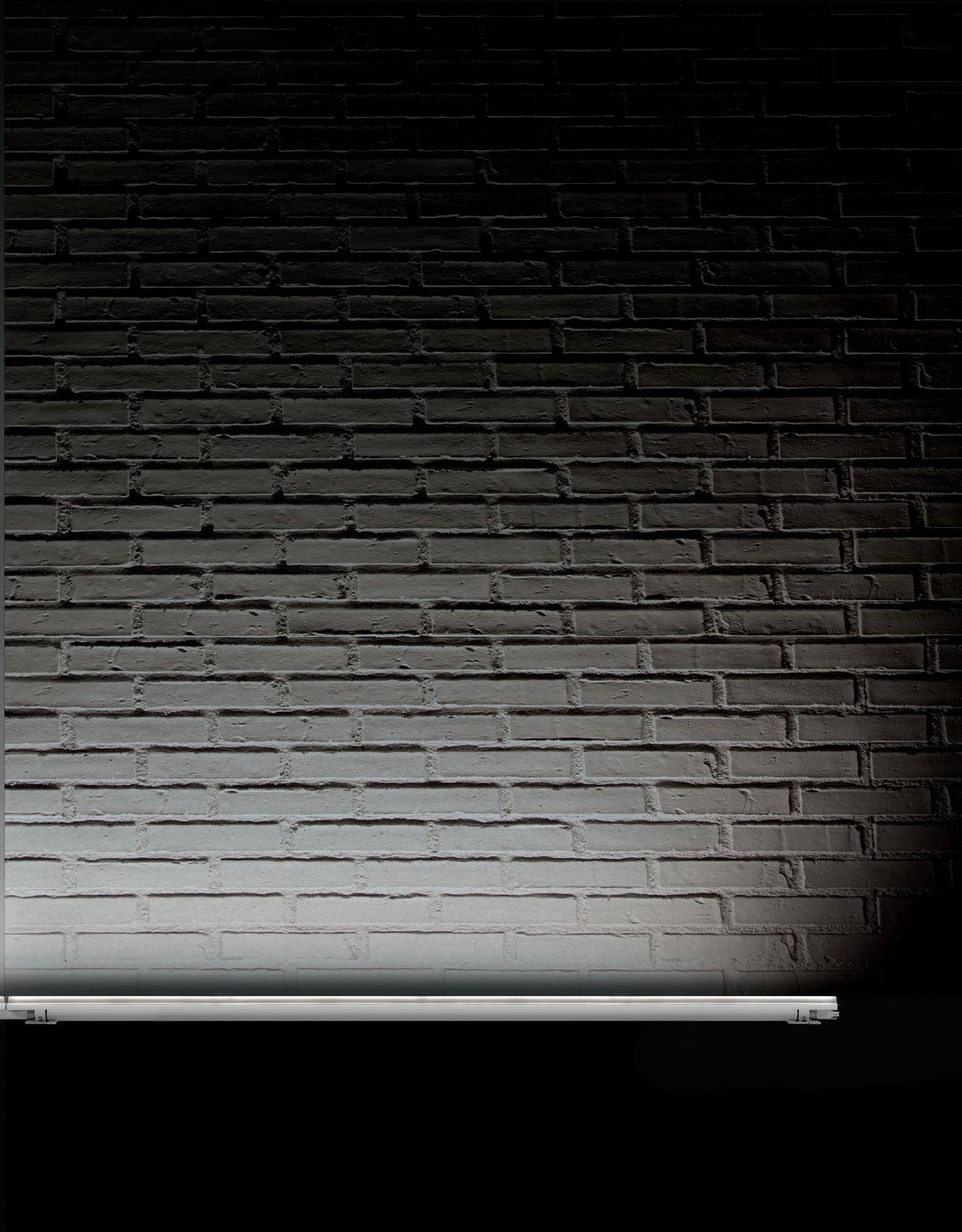

Even light distribution for truly continuous lines
•
Highly efficient at up to 113 lm/W
•
Unmatched dimming compatibility
•
Ease of installation
3

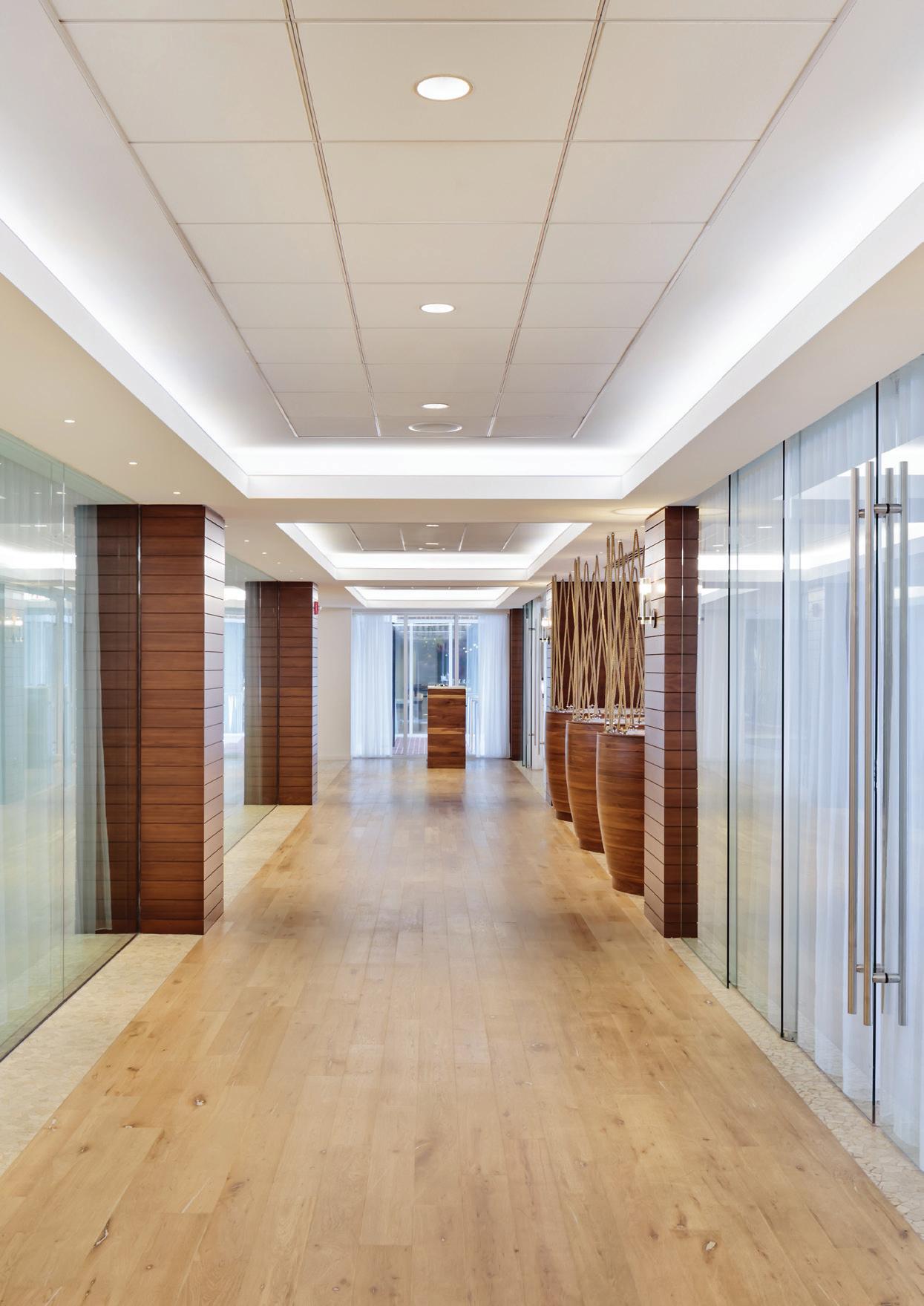

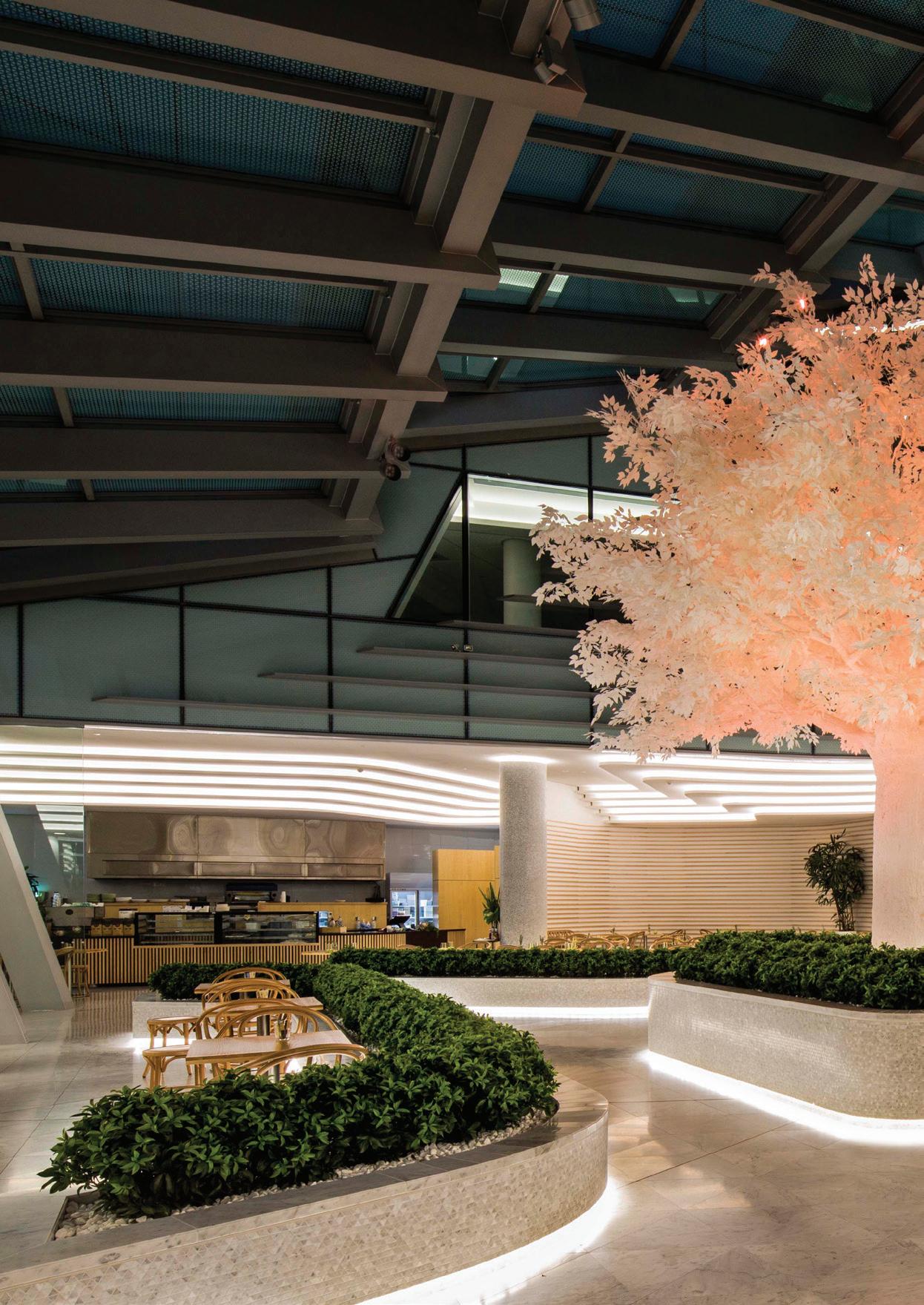

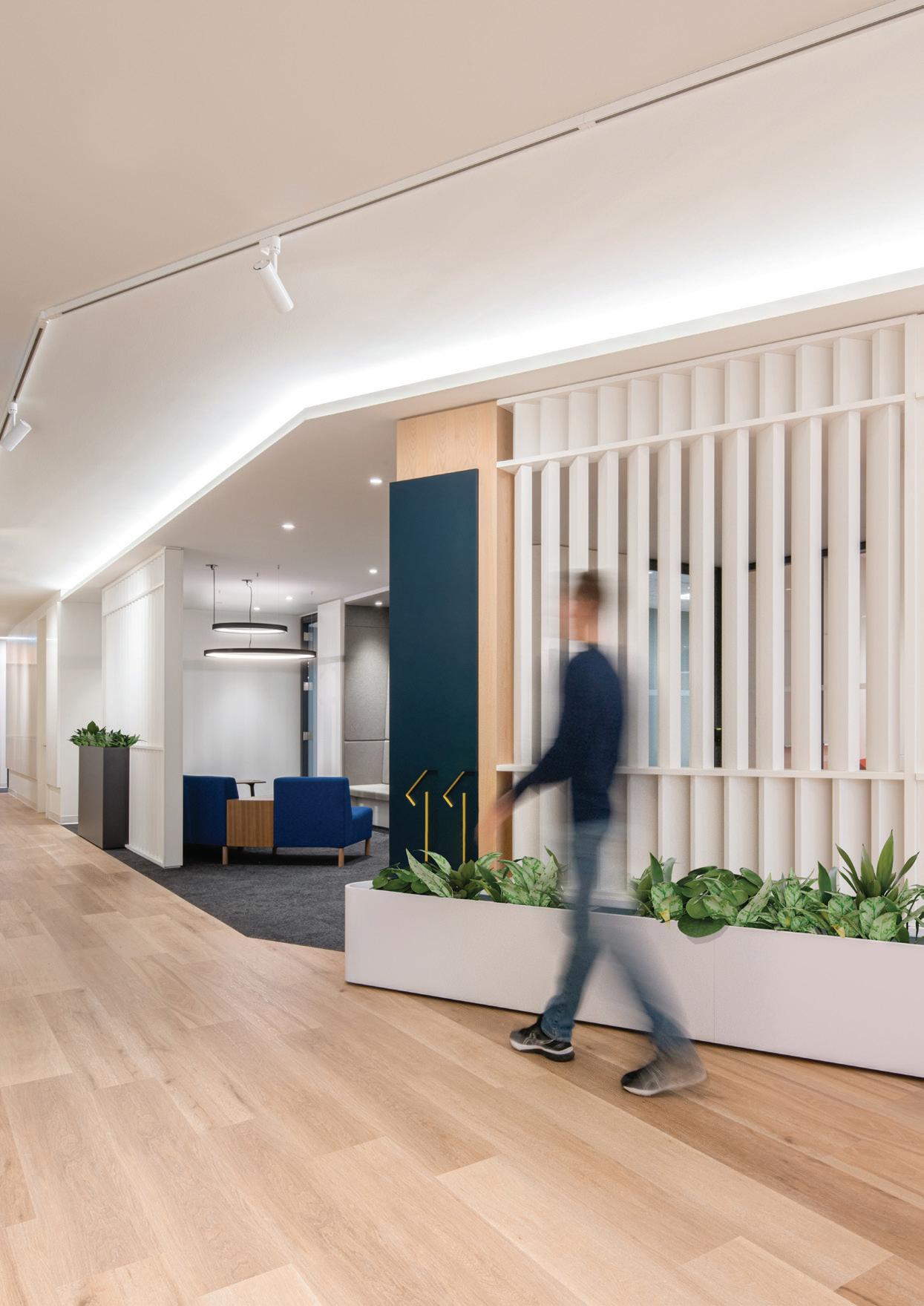

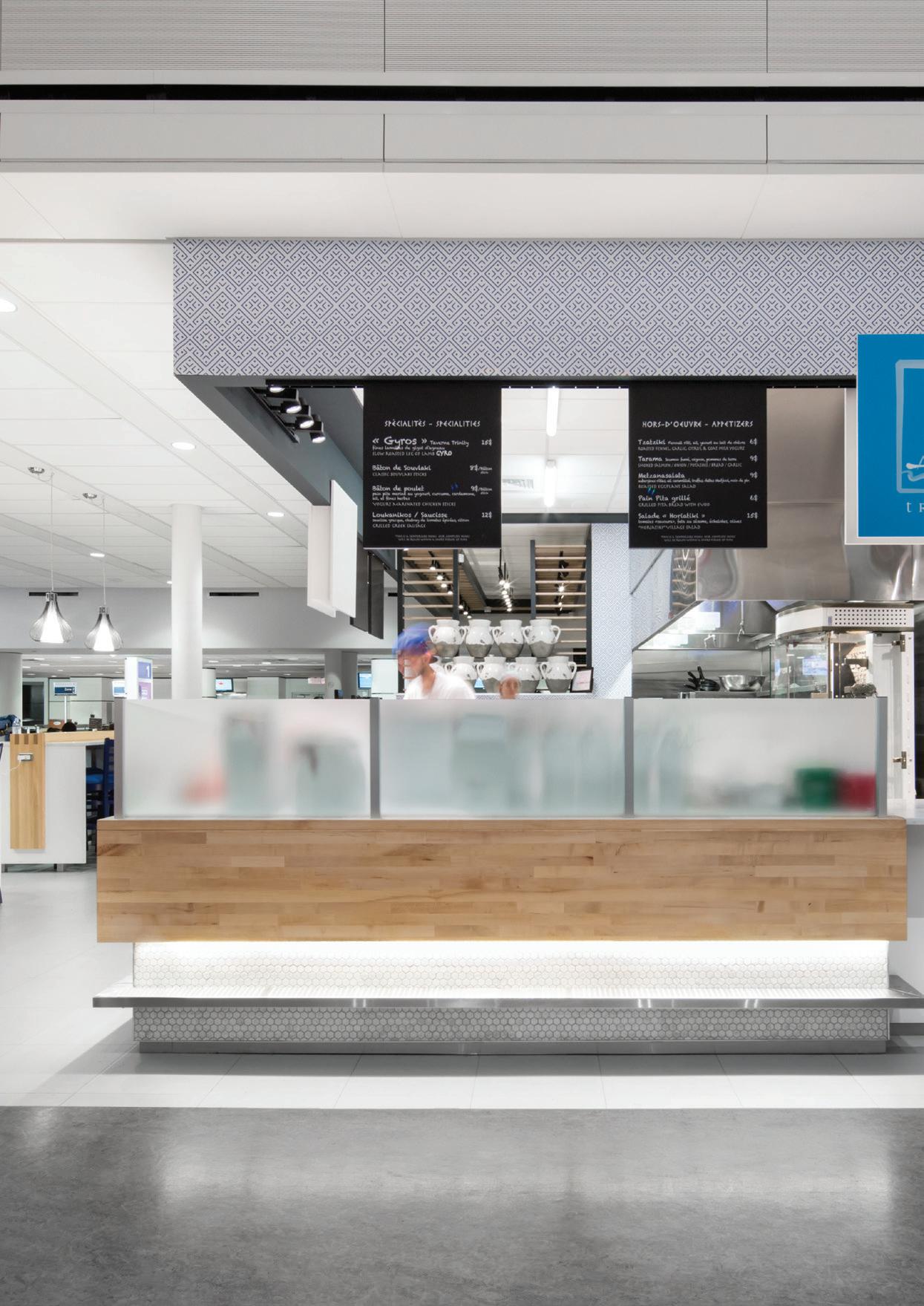

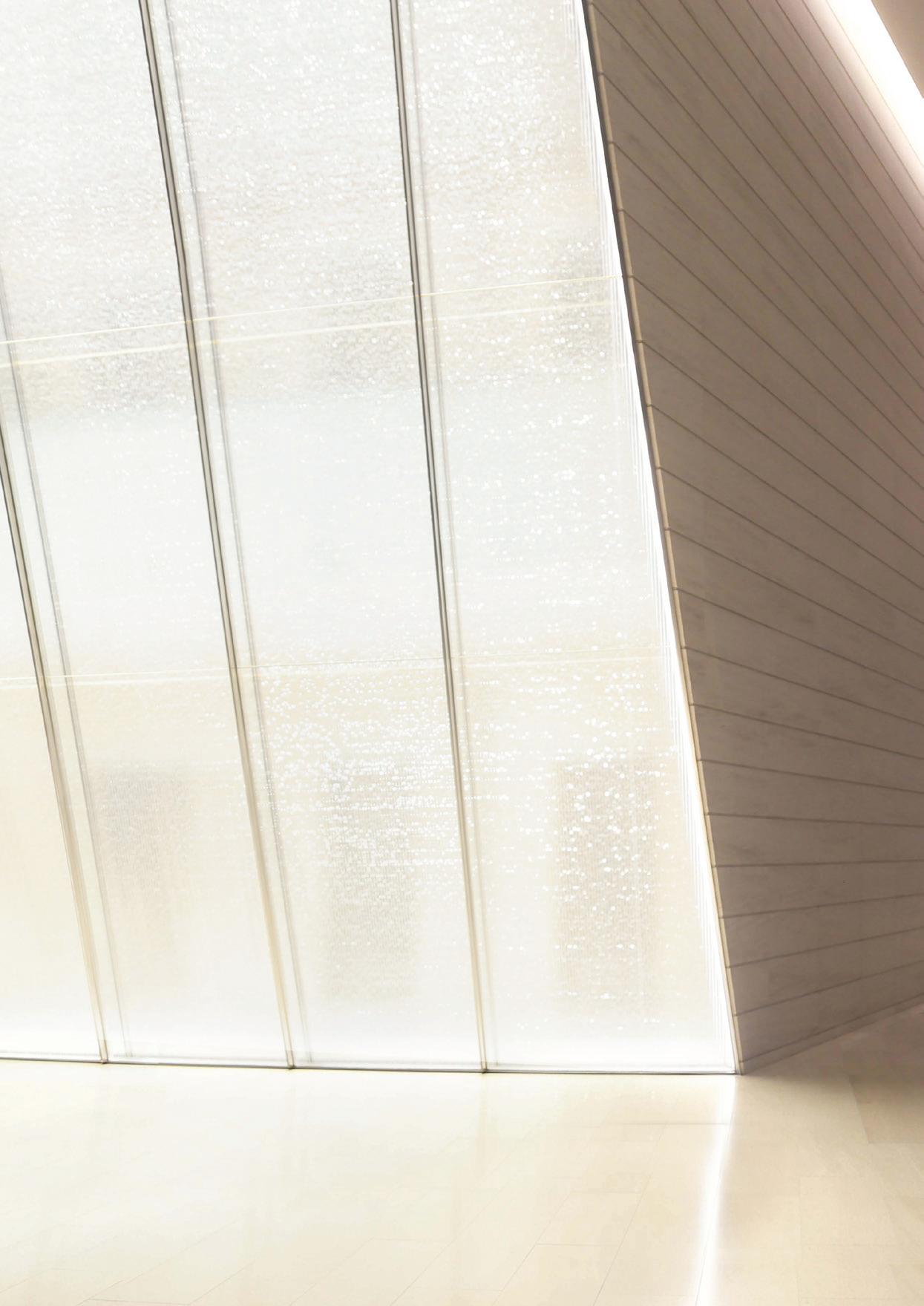

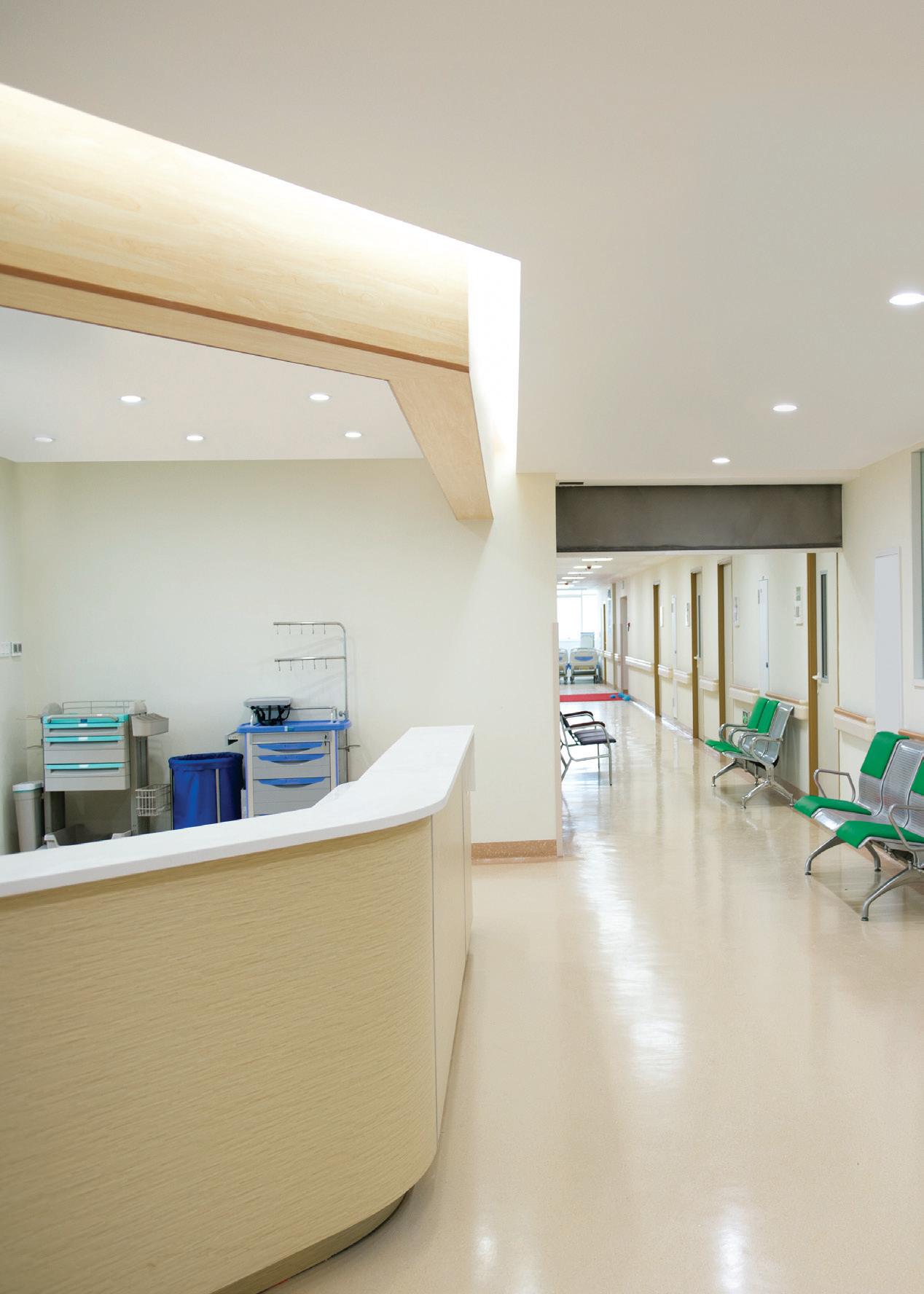

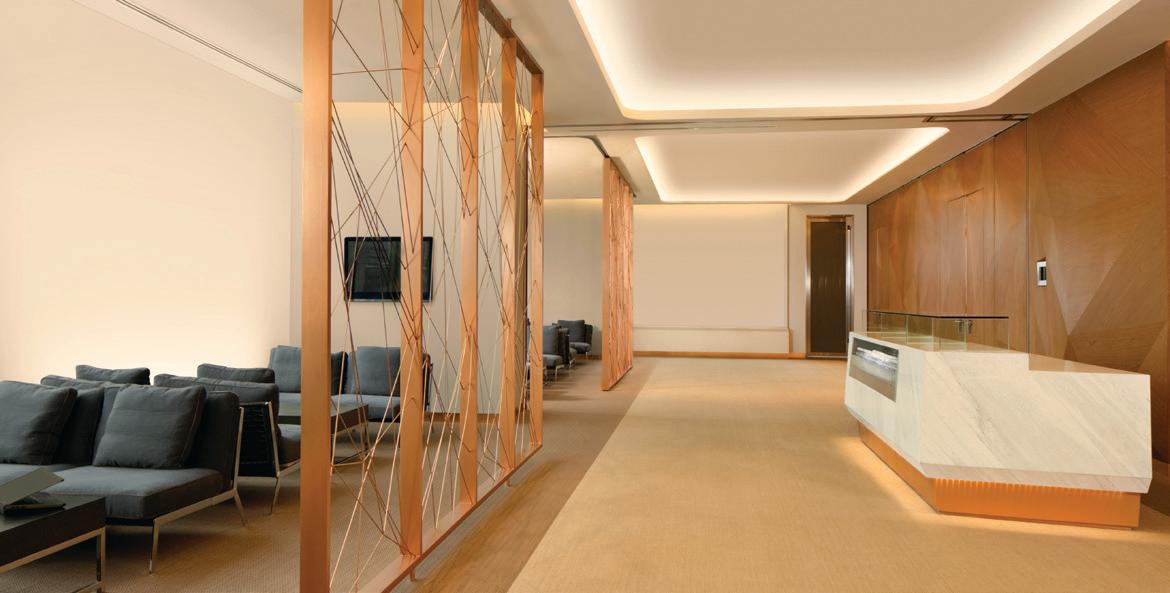

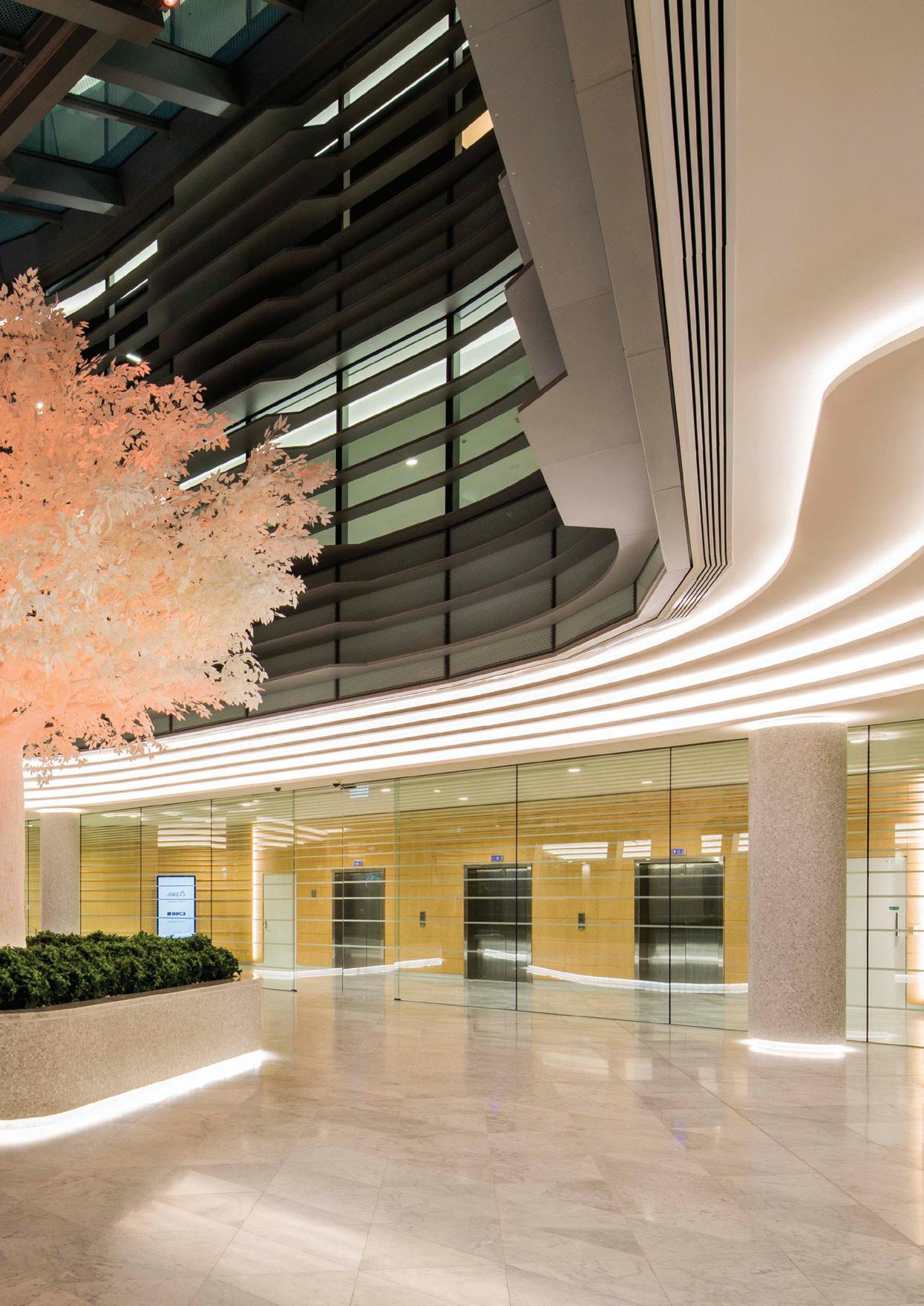

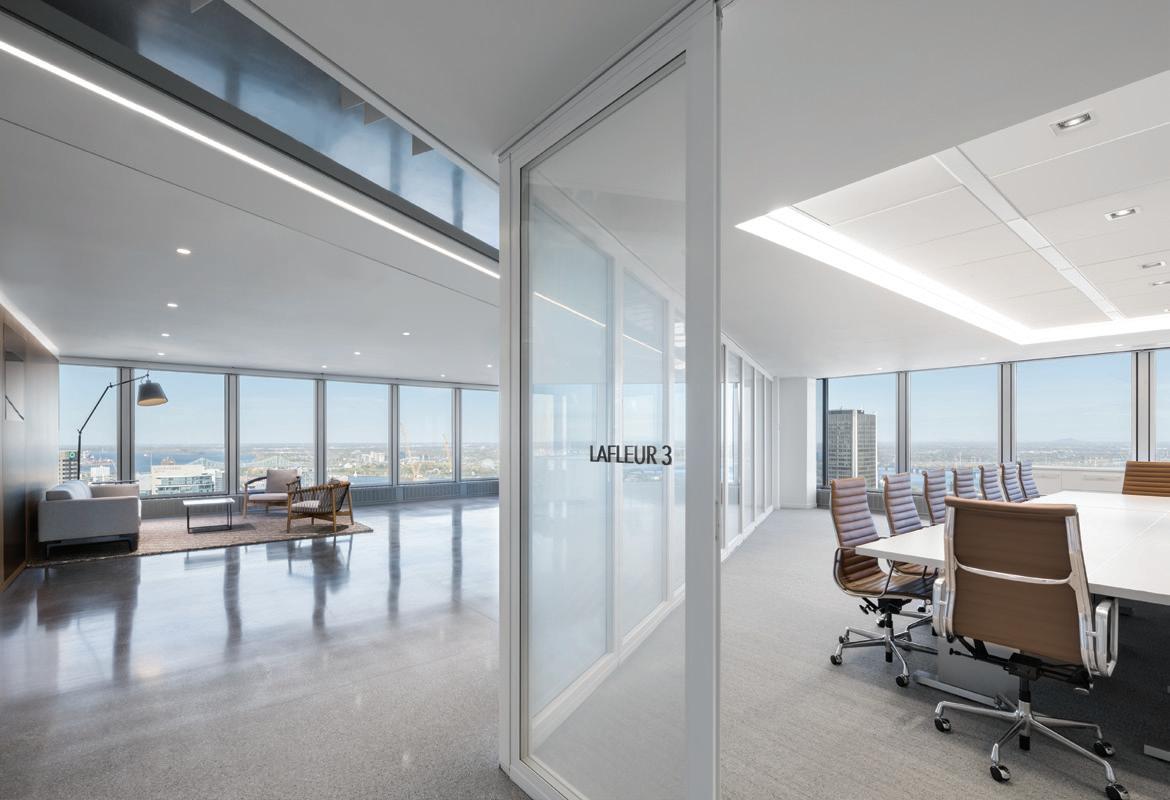

1 Birks, Laval, Quebec, Canada Lighting Design: Ædifica 2 Harlan Crow Library, Dallas, Texas, United States Lighting Design: Steven Byrd, byrdwaters DESIGN 3 Pierre Elliott Trudeau Airport, Montreal, Quebec, Canada Architects: Provencher Roy 4 ME Engineers Corporate Headquarters, Golden, Colorado, United States Lighting Design: Illume / ME Engineers 5 Promenades Cathédrale, Montreal, Quebec, Canada Lighting Design: Lightstudio Design
5
Q. What happens when you remove the need for a power supply?

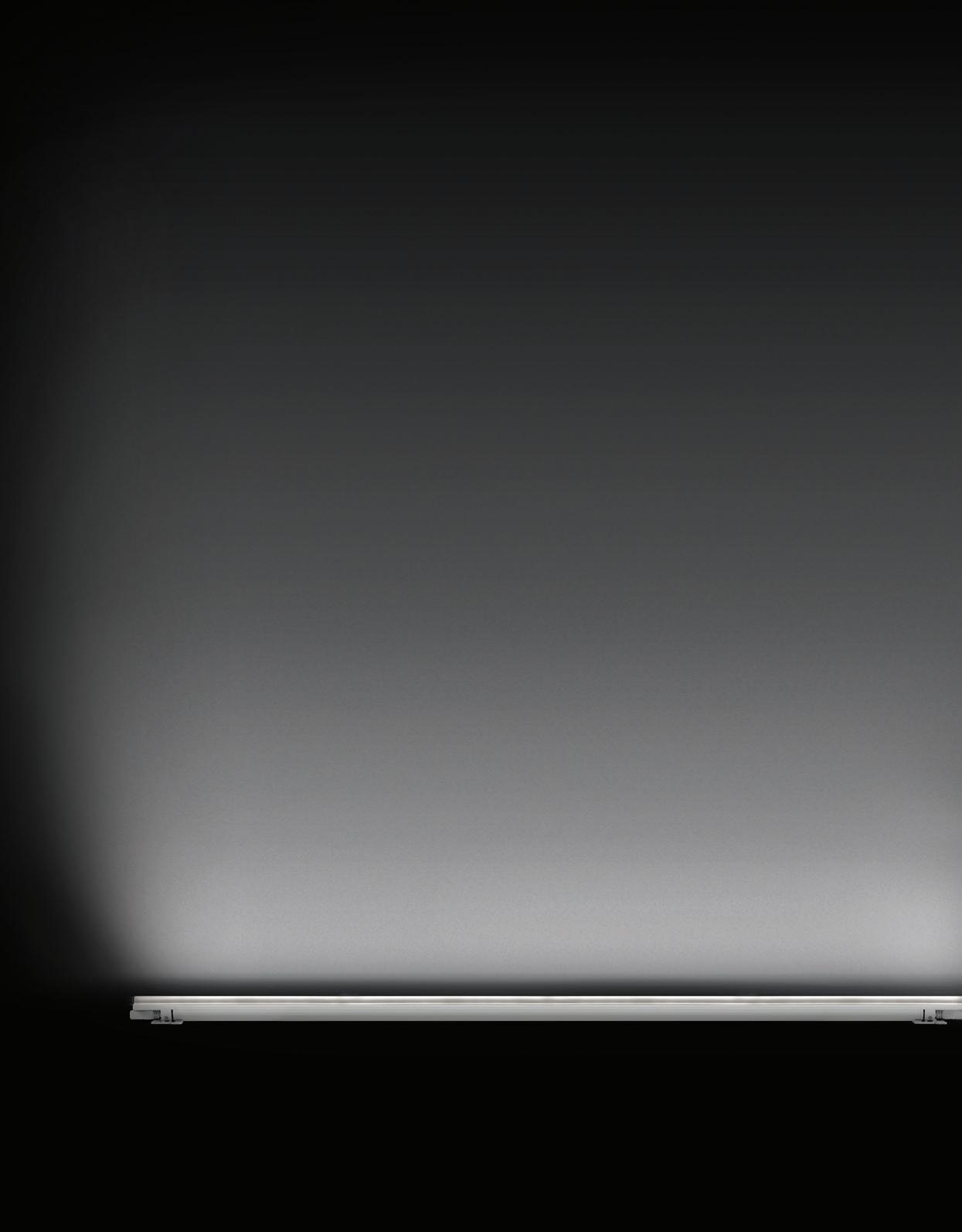

The dimmable cove luminaire with no power supply or driver. 1:1 scale
2
A. You gain greater efficiency, smaller size and a 10-year warranty.
35 mm
No power supply The Lumencove Nano 2.0 features Lumendrive, a patented Lumenpulse technology, which ingeniously drives LEDs from the mains without requiring a power supply or driver. Consequently, the luminaire is able to offer multiple benefits including smaller size, greater efficiency and a unique 10-year warranty.
3

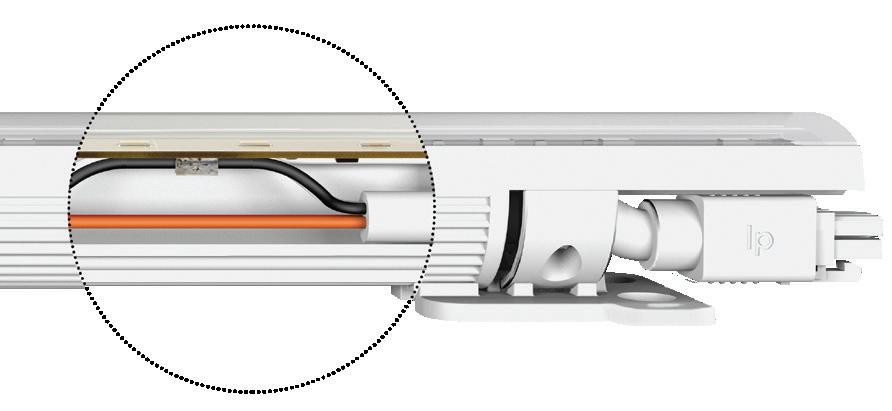

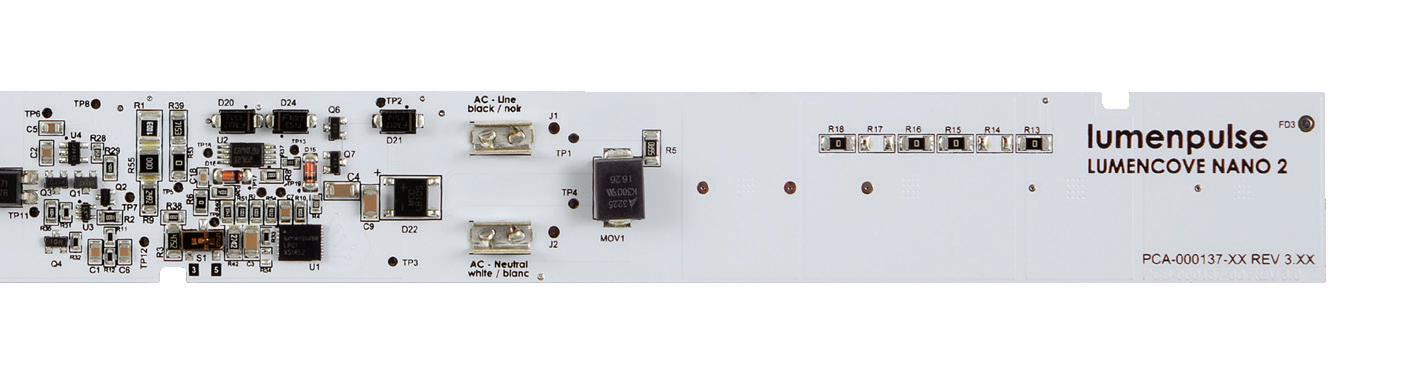

lumendrive™ An embedded ASIC microchip eliminates the need for onboard power supplies.
4
Meet lumendrive™ What is lumendrive™? Lumendrive powers LEDs with AC voltage, while still allowing full digital dimming and control. By dispensing with a power supply, the technology provides multiple benefits, including greater efficiency, smaller size and a lifetime no longer restricted by third-party components. How does it work? Lumendrive monitors the AC waveform, and turns LEDs on and off as the AC voltage increases and decreases. In effect, the voltage is being divided into portions and distributed to the various LEDs as it becomes available along the course of the sine wave. This is what allows the luminaire to be run directly off the AC mains, without having to use a power supply to convert from AC to DC.
Find out more about lumendrive online.
5
10 A ten-year warranty.
With a 100,000-hour lifetime no longer restricted by power supply components, we are able to offer a ten-year limited warranty, comfortably positioning the Lumencove Nano 2.0 as the most durable and reliable luminaire of its type.
6
10 years
A lot can happen in ten years.
7
up to
113 lm/W
Lumencove Nano 2.0 RO (3W), 300 mm, 4000K
8
Performance The Lumencove Nano 2.0 represents a breakthrough in LED technology, avoiding any AC to DC conversion losses in order to maximize performance and efficiency. The luminaire delivers up to 113 lm/W and is capable of producing uninterrupted lines of light up to 90 m in length. Lumencove® Nano 2.0, 4000K Output [lm/m]
Efficacy [lm/W]
RO (3W)
1112
113
HO (5W)
1509
97
9
Thinner. Smaller. Lighter.
10
By removing the power supply, we have been able to shrink the footprint of the luminaire without sacrificing sustainability or reliability. Competing cove solutions attempt to manage size by embedding power supply electronics on the back of the LED board, which causes thermal and durability issues.
40% less packaging We have taken a conscious decision to reduce the amount of wasteful packaging by 40%. This is not only better for the environment, it creates less clutter on site and saves time and labour.
11
Controls made simple The Lumencove Nano 2.0 is control agnostic, working seamlessly with 1-10V, DMX, DALI and Lumentalk, and resolving all the usual compatibility issues. The luminaire also provides smooth digital dimming down to 5%, or 10% when paired with analog control.
Controls ON/OFF
1-10V
DMX
DALI
Smooth, logarithmic dimming Provides more precise control at lower light levels. Ideal for applications such as restaurants, theatres, bars and hotels.
1-10V, DMX and DALI enabled with Digital Data Bridge.
brightness %
100%
0%
100%
94%
78%
59%
42%
28%
dimming %
+ Lumentalk network enabled with Lumentalk Data Bridge and Digital Data Bridge. Consult factory.
12
16%
9%
5%
Dimming by default Dimming can now even be added post-installation – making life easier for all concerned.
100%
50%
20%
5% 13
Your bridge to simple dimming Control via 1-10V, DALI or DMX The Lumencove Nano 2.0 will integrate with any installed control system: 1-10V, DALI or DMX – it does not matter. All we do is supply a small device that acts as a bridge from the controller to each run of luminaires.
Digital Data Bridge
1-10V DALI DMX
Digital Data Bridge The Digital Data Bridge is an agnostic controller that accepts 1-10V, DALI, or DMX input signals, making it appropriate for a variety of lighting installations. The controller supports 46 m of luminaires, up to 30 m away from the fixtures—run length no longer affects dimming curves.
14
Control via Lumentalk? If you’re facing difficulties bringing data to the installation, did you know it is now possible to use Lumentalk to send data over the electrical mains without the need for any new data wiring?
+
Lumentalk Data Bridge This device acts as a bridge to our Lumentalk system, bringing digital control over the mains to each run of Lumencove Nano 2.0.
15
Simpler, faster installation These compact fixtures were specifically designed for easy installation in cove spaces, reducing labour costs.

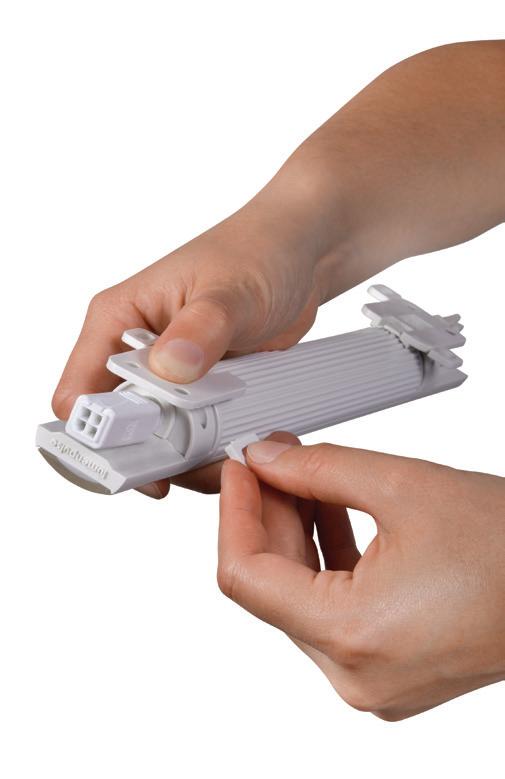

In a tight spot? When space is restricted, simply snap off the tabs from the extended mounting plates to reduce the luminaire’s footprint.
16

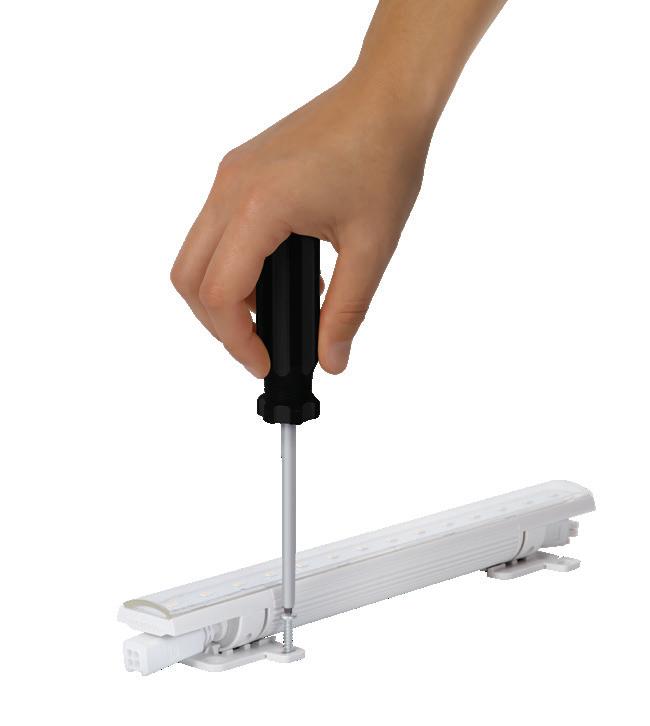

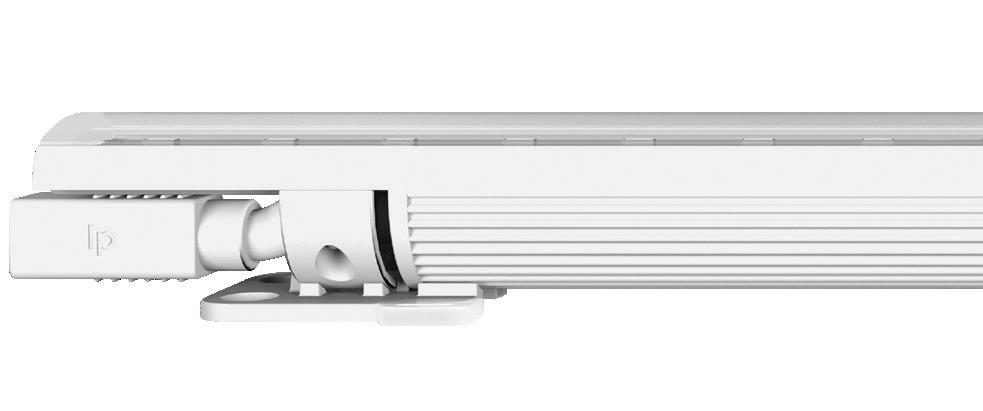

Easily mount fixtures Wider mounting holes make it easier to install the screws that secure the fixtures in place.
Ergonomic, functional design Ergonomic mounting plate design provides access to mounting holes in tight working areas.
17

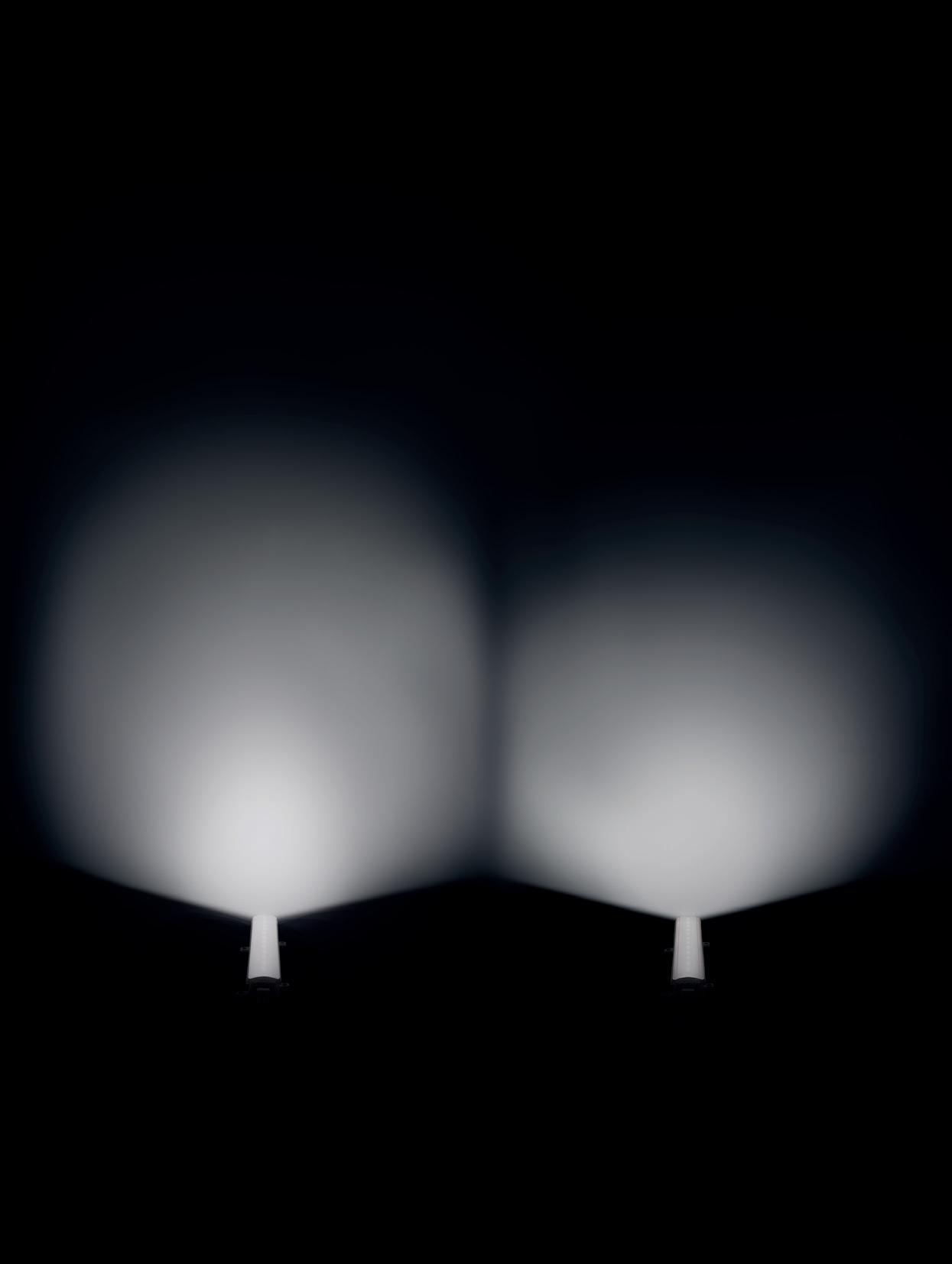

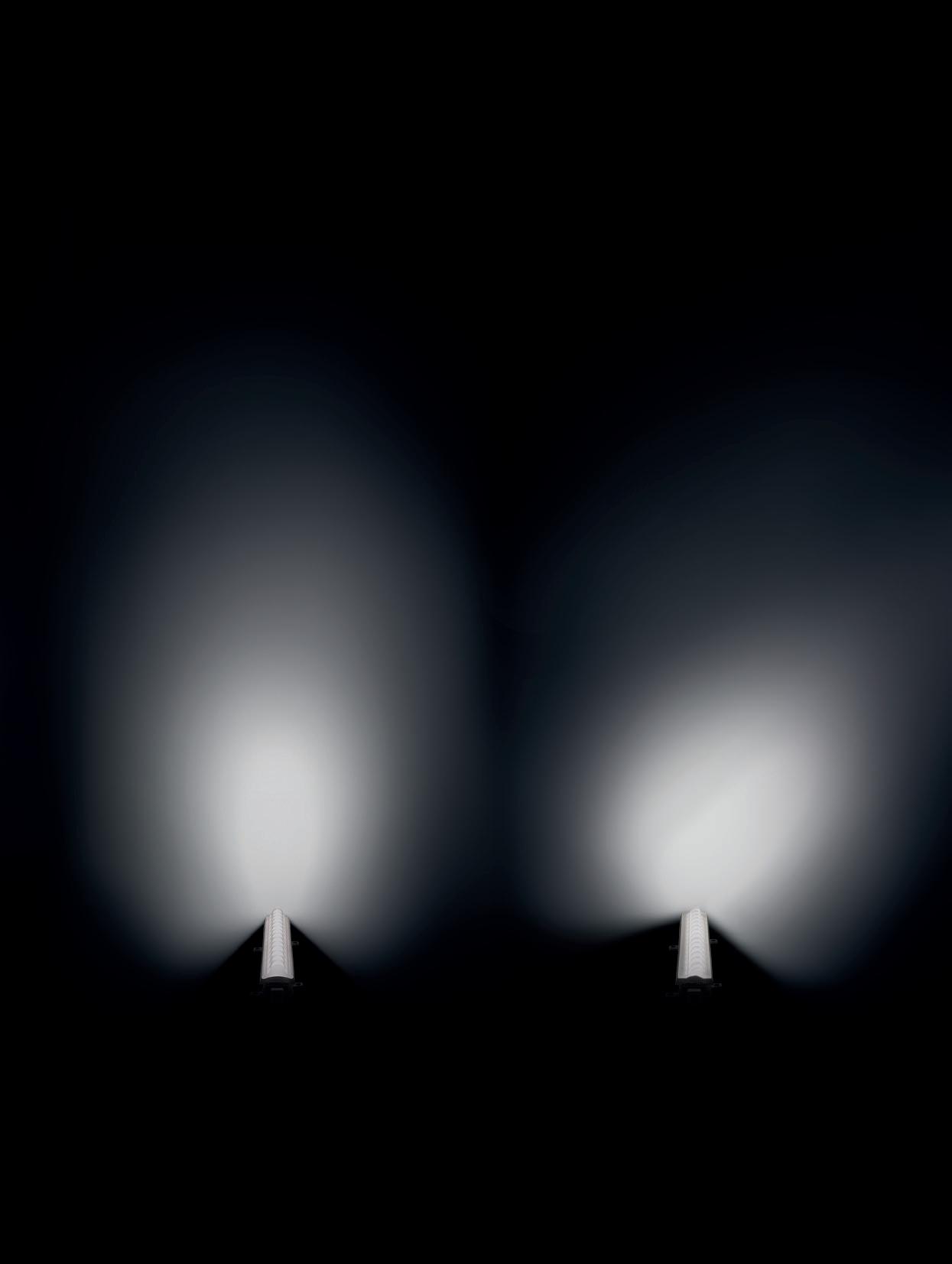

300 mm

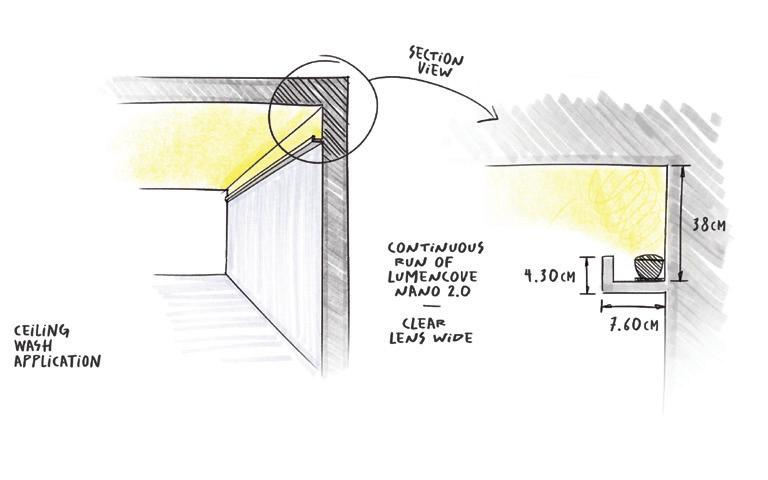

clear lens option
1200 mm
frosted lens option

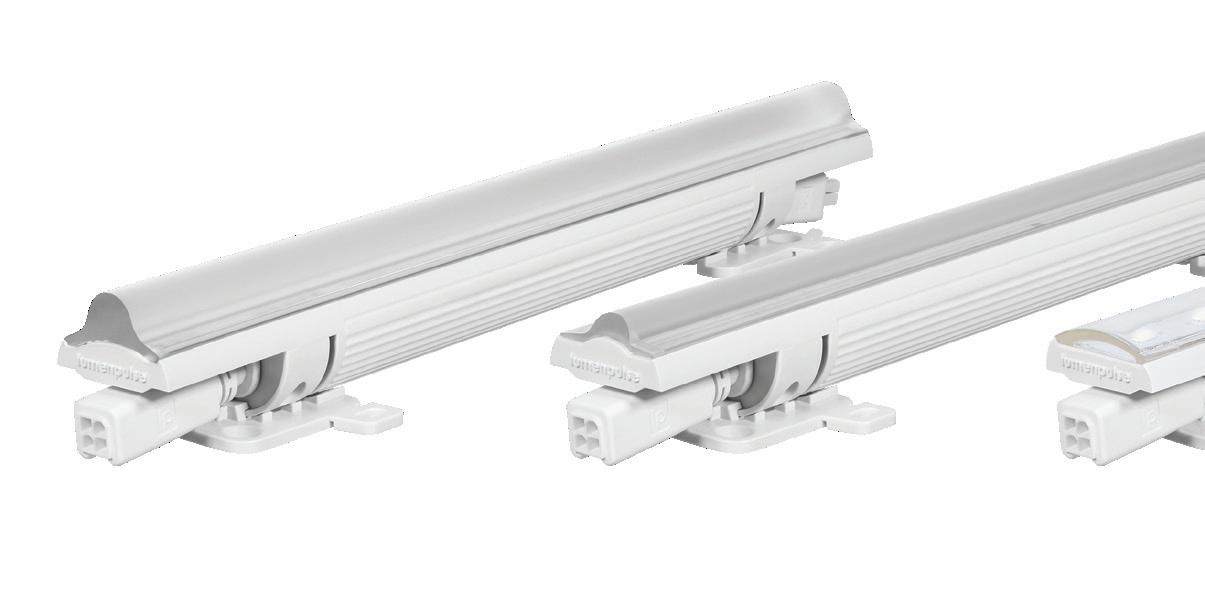

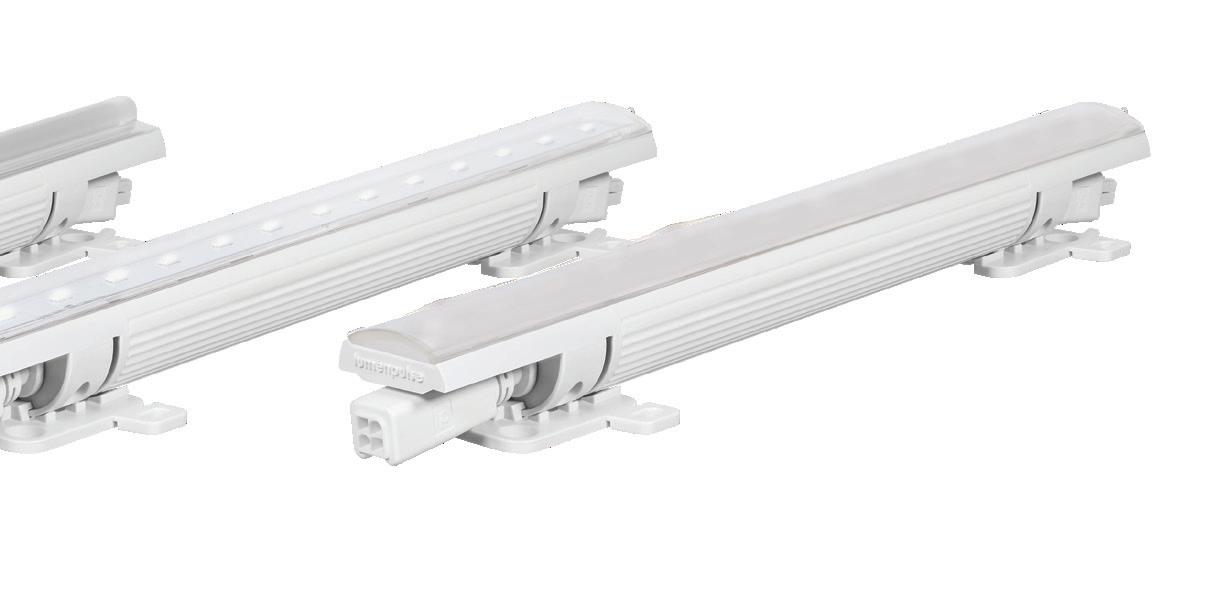

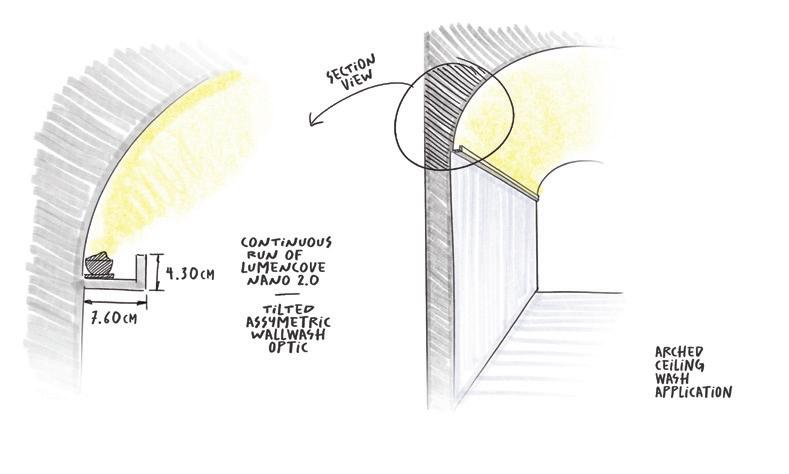

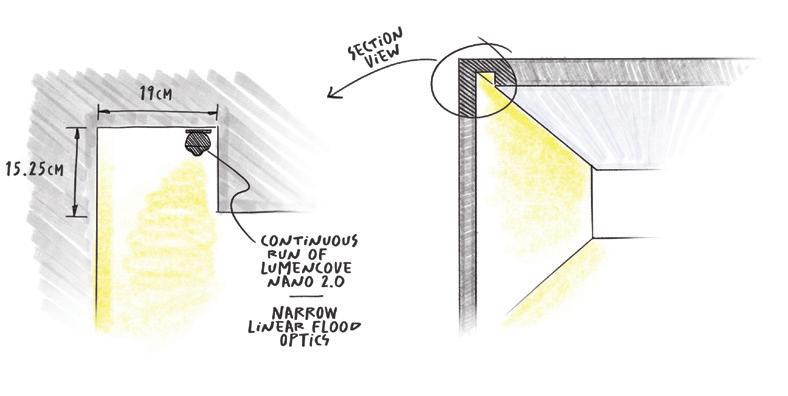

Versatility The Lumencove Nano 2.0 is available in 300 mm to 1200 mm sections, enabling both curved and linear cove lighting layouts. Choice of clear or frosted lenses reduces the risk of viewing reflections in glossy surfaces. Ready for use with 120-277V, UL or CE, for a variety of applications at home or abroad.
18

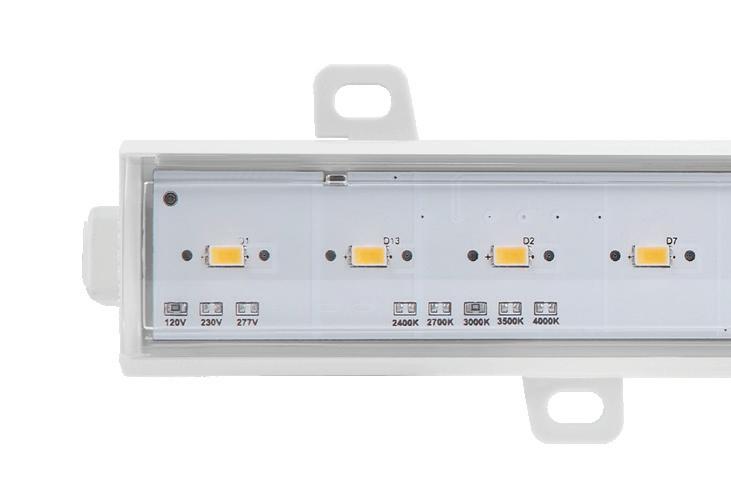

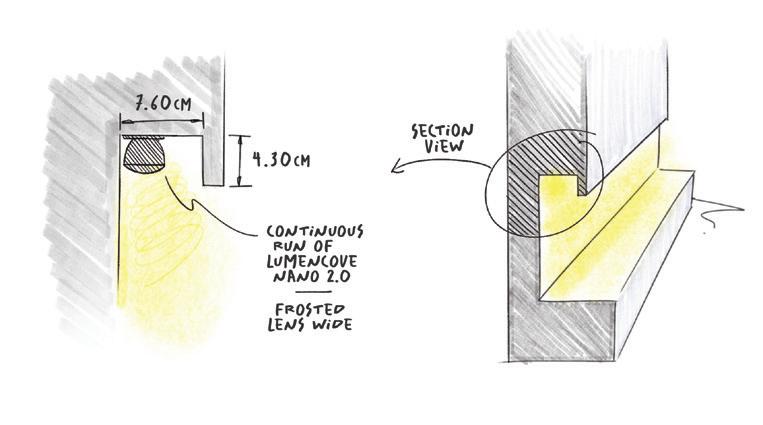

Optional frosted lens reduces the risk of viewing reflections in glossy surfaces.
Optics
Outputs HO 10W/M
Colour temperatures
Certifications
HO 16W/M 2700K 2700K
120º × 120º
3000K 3000K
3500K 3500K
4000K 4000K
Copyright © Lumenpulse 2011 Lumenpulse reserves the right to make changes to this product at any time without prior notice and such modification shall be effective immediately.
Controls
ON/OFF
1-10V
DMX
DALI
19
lumencove nano 2.0 ®
35 mm
lumencove® nano 2.0
60 mm
INTERIOR COVE LIGHTING LUMINAIRE
The Lumencove Nano 2.0 is a dimmable cove lighting system that eliminates the need for a power supply, optimizing size, efficiency and durability. The luminaire features Lumendrive, a breakthrough ASIC technology that powers LEDs directly from the AC mains, while still allowing full digital dimming and control. The Lumencove Nano 2.0 offers a choice of sizes, outputs and colour temperatures, and comes with a 10-year limited warranty.
Powered by lumendrive
ASIC technology removes the need for onboard power supplies
Ten-year limited warranty
100,000 hours of rated lifetime, backed by a 10-year limited warranty
Outstanding efficiency
Lumendrive avoids AC to DC conversion losses, optimizing performance with up to 113 lm/W
Flexible solution
Choice of 300 mm and 1200 mm sections for linear or curved installations
Up to 90 m runs
Connect up to 90 m of cove lighting on a single circuit
Optics
Technical data
Mounting
120º x 120º
Surface Horizontal
Surface Vertical
3 (RO) 5 (HO)
84
120V 230V 277V
1 -10V DALI DMX
Watts/300 mm
CRI
Power Range
Control*
Control**
Colours temperatures YEARS
10 Copyright © Lumenpulse 2011
Lumenpulse reserves the right to make changes to this product at any time without prior notice and such modification shall be effective immediately.
2700K
3000K
3500K
4000K
* 1-10V, DMX and DALI enabled with Digital Data Bridge. ** Lumentalk network enabled with Lumentalk Data Bridge. Consult factory.
21
lumencove® nano 2.0
lumencove nano 2.0 ®
35 mm 309 mm, 1206 mm
60 mm
Specifications Output*
Luminous Flux
Length
(Delivered lumens)
Electrical Physical
2700K
3000K
3500K
4000K
RO
HO
RO
HO
RO
HO
RO
HO
300 mm
278
417
323
424
328
467
339
460
1200 mm
1,188
1,668
1,310
1,696
1,265
1,868
1,358
1,840
CRI
84
Lumen maintenance **
100,000 hrs [L70 @ 25 °C ] / 70,000 hrs [L70 @ 50 °C]
Power consumption / Voltage input
3W RO version, 5W HO version / 120V or 230V or 277V powered by lumendrive™ technology
Control methods***
On/Off, 1-10V, DALI, DMX, Lumentalk
Dimensions (height x depth x length)
300 mm
35 mm x 60 mm x 309 mm
1200 mm
35 mm x 60 mm x 1206 mm
Housing
Polycarbonate extruded housing, white standard finish
Lens
Clear high-transmittance polycarbonate injected lens, frosted lens option available
Connectors
Thumb latch connectors, breakable under load
Mounting
Adjustable mounting brackets, +/− 81° aiming (tool-less)
Operating temperatures
0 °C to 50 °C
Environment
Indoor applications, dry/damp location only
*Independently certified in accordance with LM-79-08 standard. Please consult our website for the latest ies file updates. 1200 mm HO configurations are estimated. **Lumen maintenance data is based on LM80 data from the LED manufacturer. ***1-10V, DMX and DALI enabled with Digital Data Bridge. Lumentalk network enabled with Lumentalk Data Bridge. Consult factory.
UL
cUL
RoHS
23
lumencove nano 2.0 vs lumencove 2.0 ®
®
The Lumencove Nano 2.0 is joined by the Lumencove 2.0 to form a full family of solutions for interior cove lighting. The Lumencove 2.0 brings additional enhancements and features to the family, including Dynamic Warm, Dynamic White, RGB and RGBW colour mixing; high output up to 2756 lumens per metre; longer lengths (2400 mm) and a full offering of control options.
lumencove® 2.0 lumencove® nano 2.0
24
lumencove nano 2.0
lumencove 2.0
•
•
Length (mm) 300 600
•
900
•
1200
•
2400
• •
Output (lumens/m) 984
•
1312 1640
• •
2624
•
Colour & Colour temperature 2700K 3000K
3500K 4000K
2700K
•
•
3000K
•
•
3500K
•
•
4000K
•
•
RGB
•
RGBW
•
Dynamic Warm
•
Dynamic White
•
RGB RGBW Dynamic Warm
Dynamic White
Control ON/OFF
•
•
1-10V
•*
•
DALI
•*
•
DMX
•*
•
•**
•
Lumentalk EcoSystem
•
* 1-10V, DMX and DALI enabled with Digital Data Bridge. ** Lumentalk network enabled with Lumentalk Data Bridge. Consult factory.
