EXENIA Track - North American EN by lumenpulse

Track

The Exenia Story

A RICH HISTORY

Exenia’s formation in 2010 resulted from multiple passionate individuals with a long history of lighting experience joining to celebrate, innovate, and create outstanding lighting. Exenia has been a part of LMPG since 2015, which has allowed for an ongoing exchange of ideas and technology between Lumenpulse and Exenia. The synergy between these passionate minds and spirits has culminated in the development of luminaires that not only exude beauty but also deliver unparalleled technical precision.

ITALIAN DESIGN

Florence’s vibrant history as an epicenter of global artistic, cultural and commercial innovation is inherently personified in Exenia’s product designs. The company is epitomized by dedicated craftsmanship, multi-generational learning, and a passion for style and ingenuity.

Cross-Beam Optics

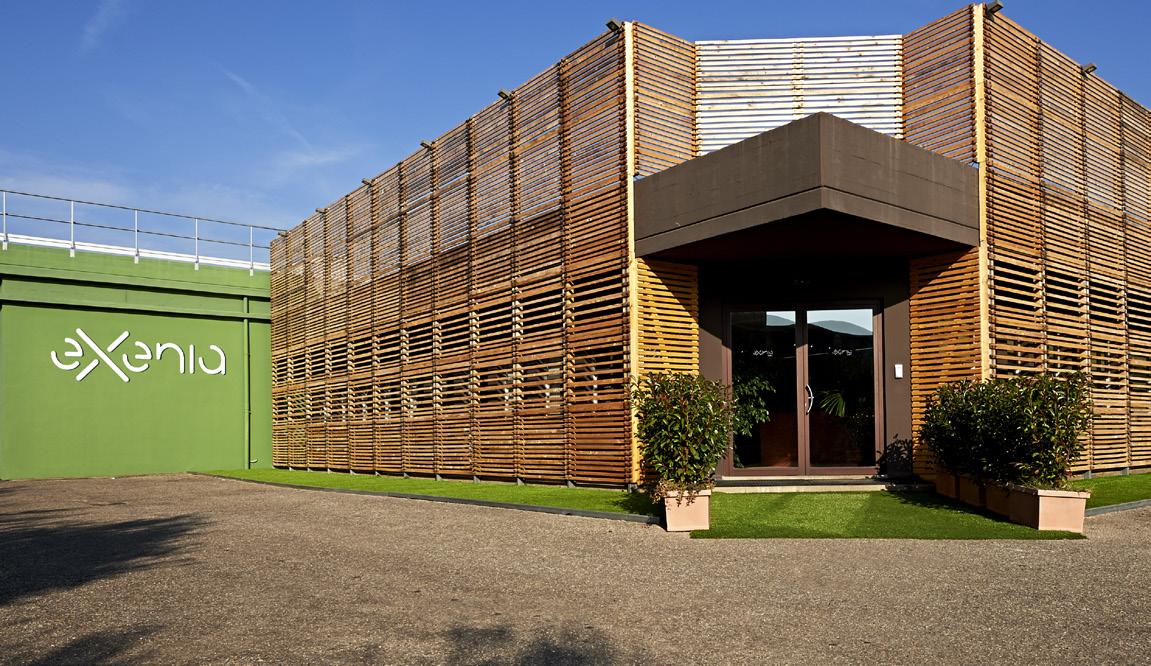

EXENIA’S EUROPEAN FACILITY IS SET AMONGST THE ROLLING

GREEN HILLS OF THE TUSCANY REGION, WHERE NATURE IS A SOURCE OF INSPIRATION AND AN INTEGRAL PART OF THE COMPANY’S DESIGN PHILOSOPHY

TEAM SPIRIT, PASSION, AND PLAYFULNESS ARE ALL HIGHLY PRIZED ASPECTS OF LIFE AT EXENIA

Italian Ingenuity

he Exenia TRACK families came to life through Exenia’s insatiable curiosity, an intellectual and artistic wonder that Exenia explores through constant research, experimentation, and development. The TRACK families combine master craftsmanship with high-grade technological advances to bring light to life that is both comforting and calibrated to create astounding applications.

Do More with Less

Exenia’s optical approach maximizes every last lumen, controlling the beam with utter precision to deliver light only to where it’s needed. This strategic approach allows us to project more footcandles with less glare, using smaller form factors, and consequently less energy and cost – a virtuous circle of benefits.

Exenia’s optical control has several benefits, including more visual comfort, fewer lumens needed, less energy usage, smaller form factors, and cost savings.

Unwanted Spill Light

Consumption Smaller Size Less Glare Fewer Lumens Required More Footcandles Delivered 1 2 3 8

The Right Amount Reduced

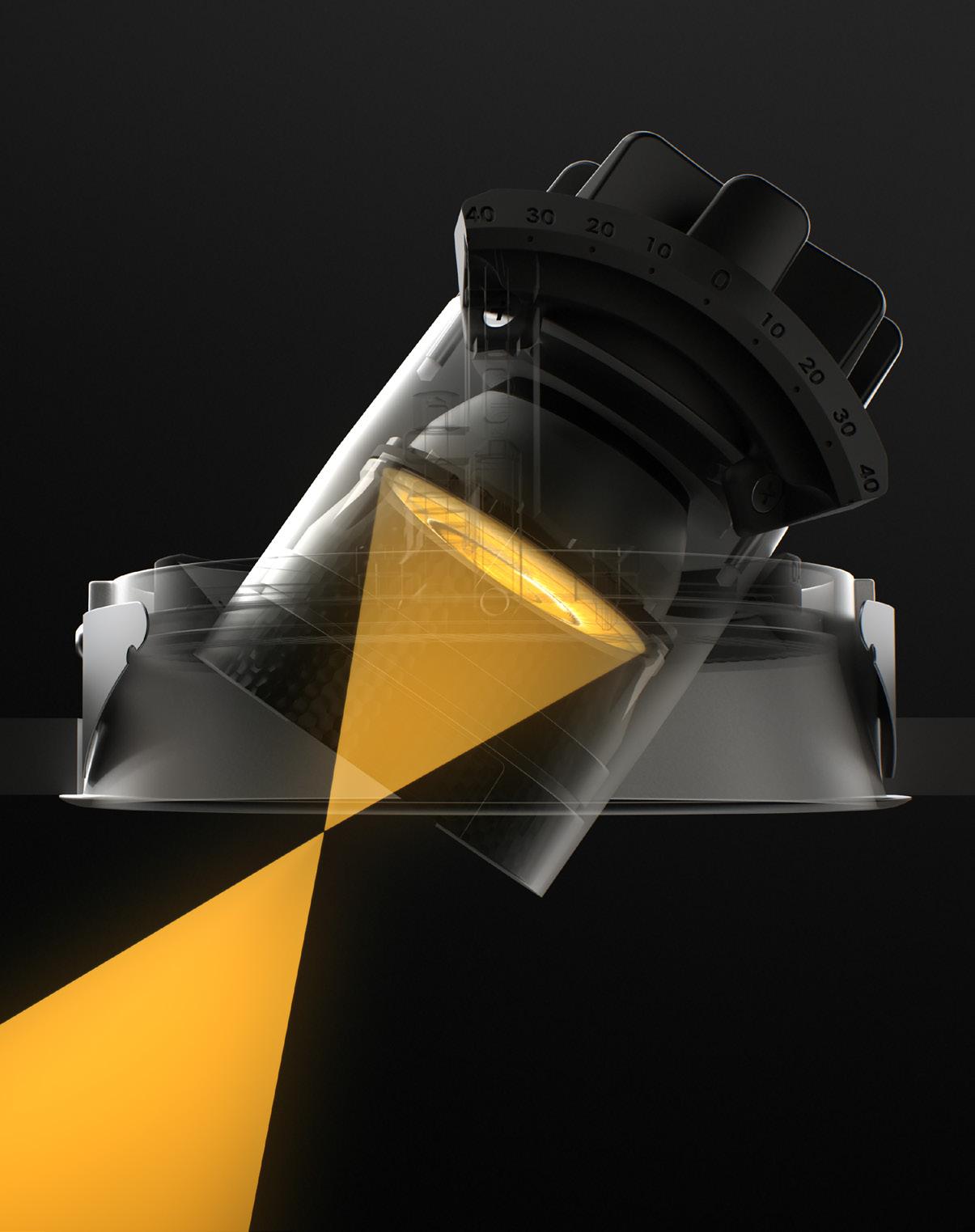

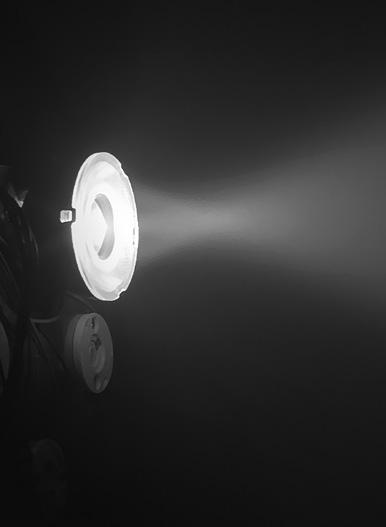

Cross-Beam Comfort

The Exenia cross-beam principle ensures that what is being lit is the subject and not the luminaire. The cross-beam design allows more light to leave the luminaire unobstructed by the sides of the aperture.

QUIET CEILING

The Exenia cross-beam principle has the advantage of leaving the ceiling in perfect darkness with no distracting bright spots, which is great when designing for bars, restaurants, museums, or applications where you want to focus the user’s gaze.

SUPER-LOW GLARE

Having a focal point outside the fixture means we can conceal the light source from view and achieve exceptional visual comfort (with UGR below 10) – a bonus for building occupants and a great advantage when designing to WELL Building Standards.

No Stray Beams of Light

Deep Setback Keeps

Light Source Hidden

Dark Light: Wide Beams Don’t Catch Sides

Very Low Glare, UGR Under 10

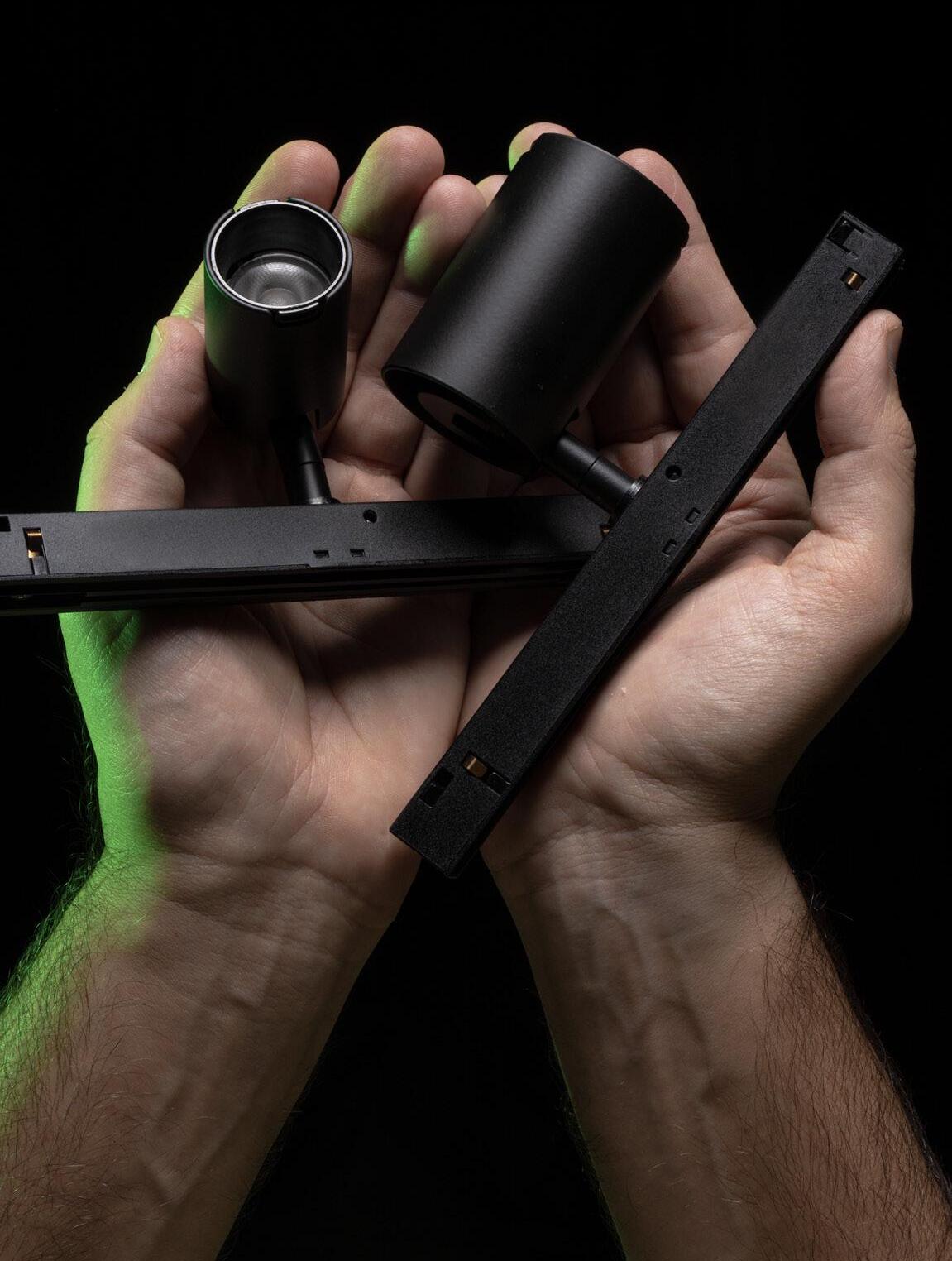

Matters of Size

In a nutshell, Exenia takes miniaturization to the extreme. Our smaller form factors keep fixtures out of sight while evenly lighting the subject, delivering as much light as larger fixtures from an espresso-sized luminaire.

Very Narrow, 7-degree beam, CRI 92, 228 lm, 6,533 candela, 3000K

REVO SPOT 48V Mini

THE REVO SPOT TRACK FAMILY IS AN EXCELLENT TOOL FOR ACCENTING ARTWORKS OR MUSEUM ARTIFACTS WHILE REMAINING DISCREETLY IN THE BACKGROUND

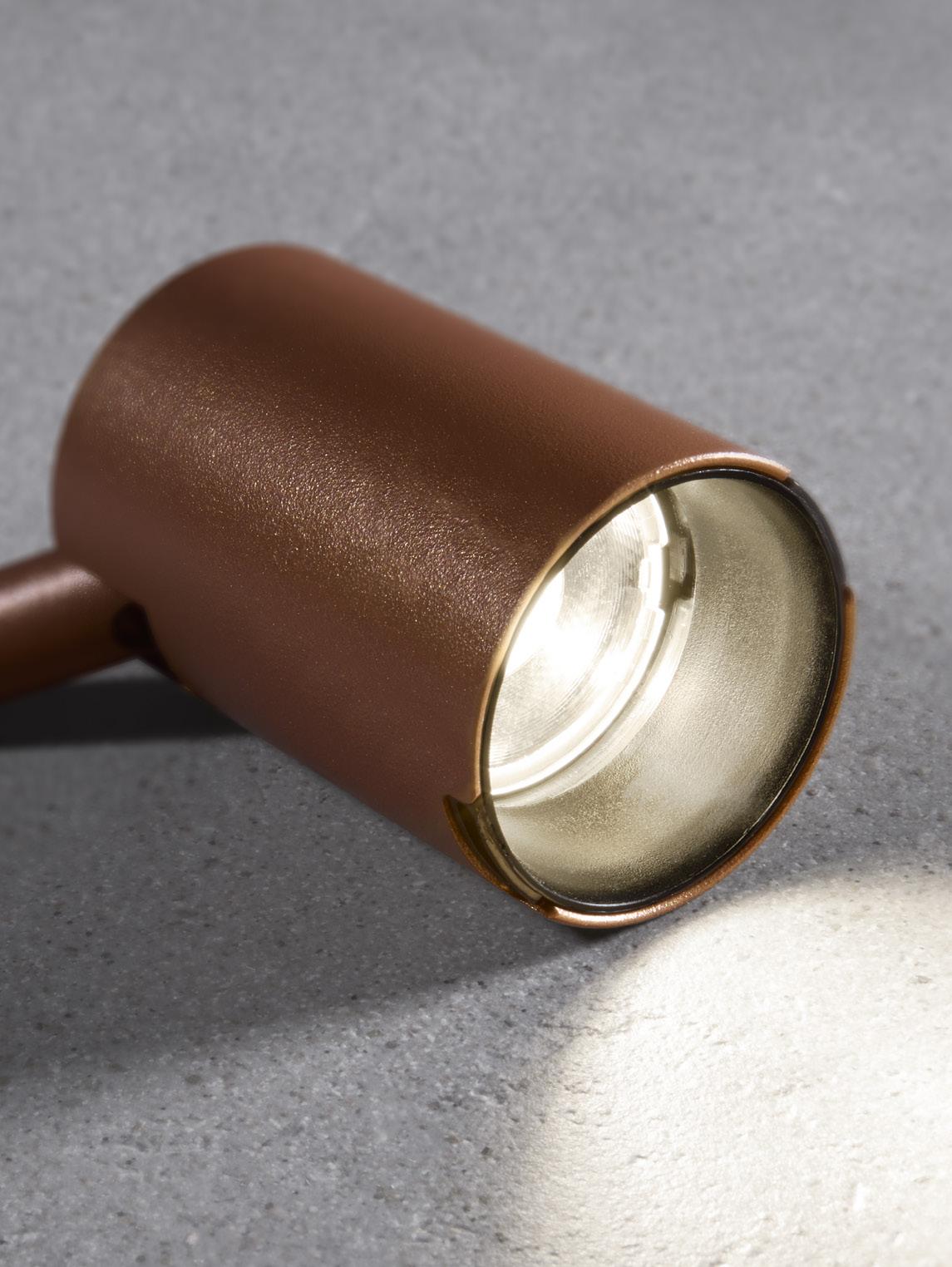

The REVO SPOT

The REVO SPOT is a treasure trove for designers who want to achieve fantastic design concepts. The range of optics, sizes, abundance of finishes, and accessories can all be added on-site, creating an expansive array of configurations and flexibility for all applications.

The REVO SPOT is ideal for wallwashing, general illumination, or accenting objects, artworks, or merchandise. REVO SPOT projectors have been used in many museums, galleries, churches, high-end retail, bars, restaurants, and workplaces — anywhere top-quality, low-glare illumination is required.

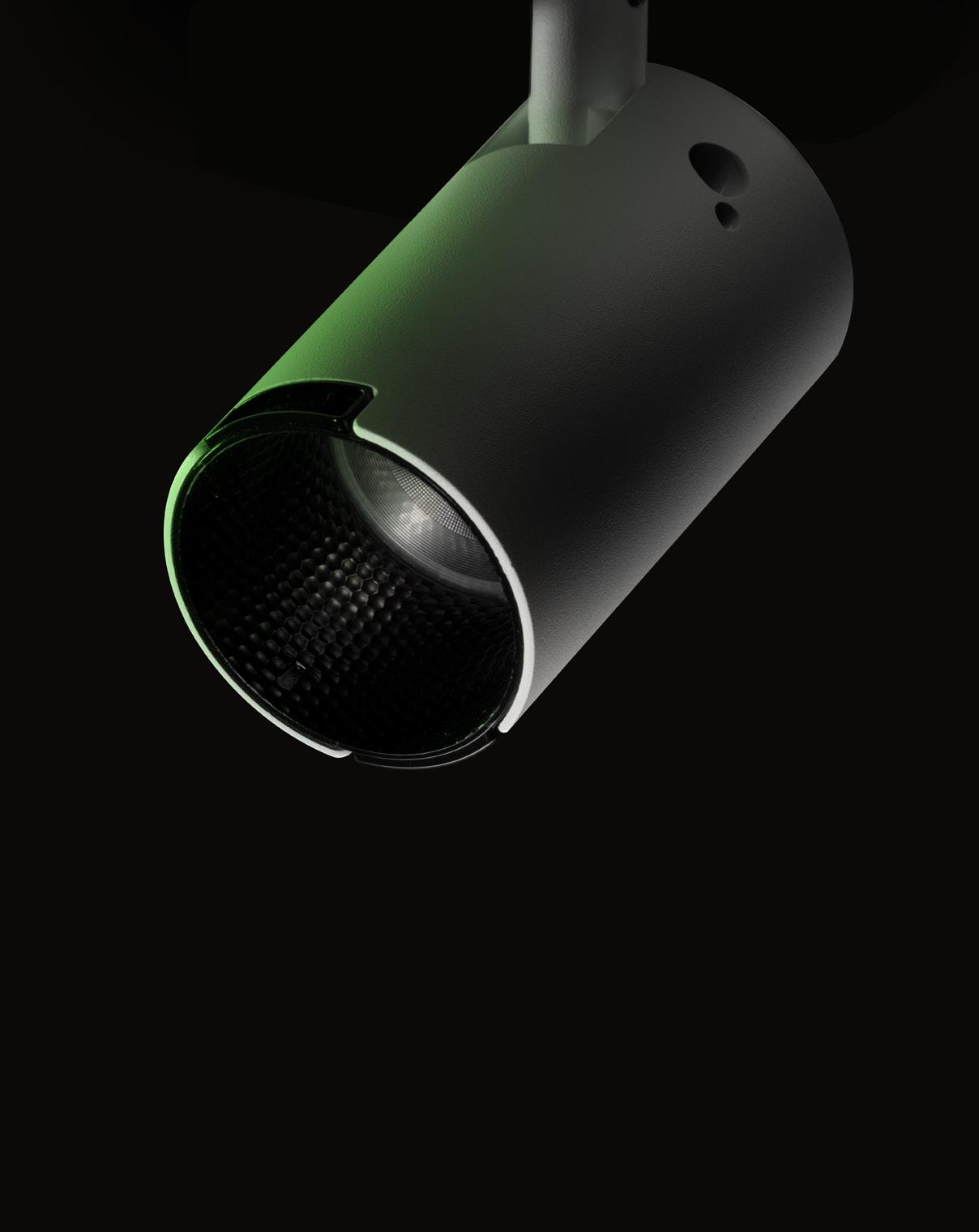

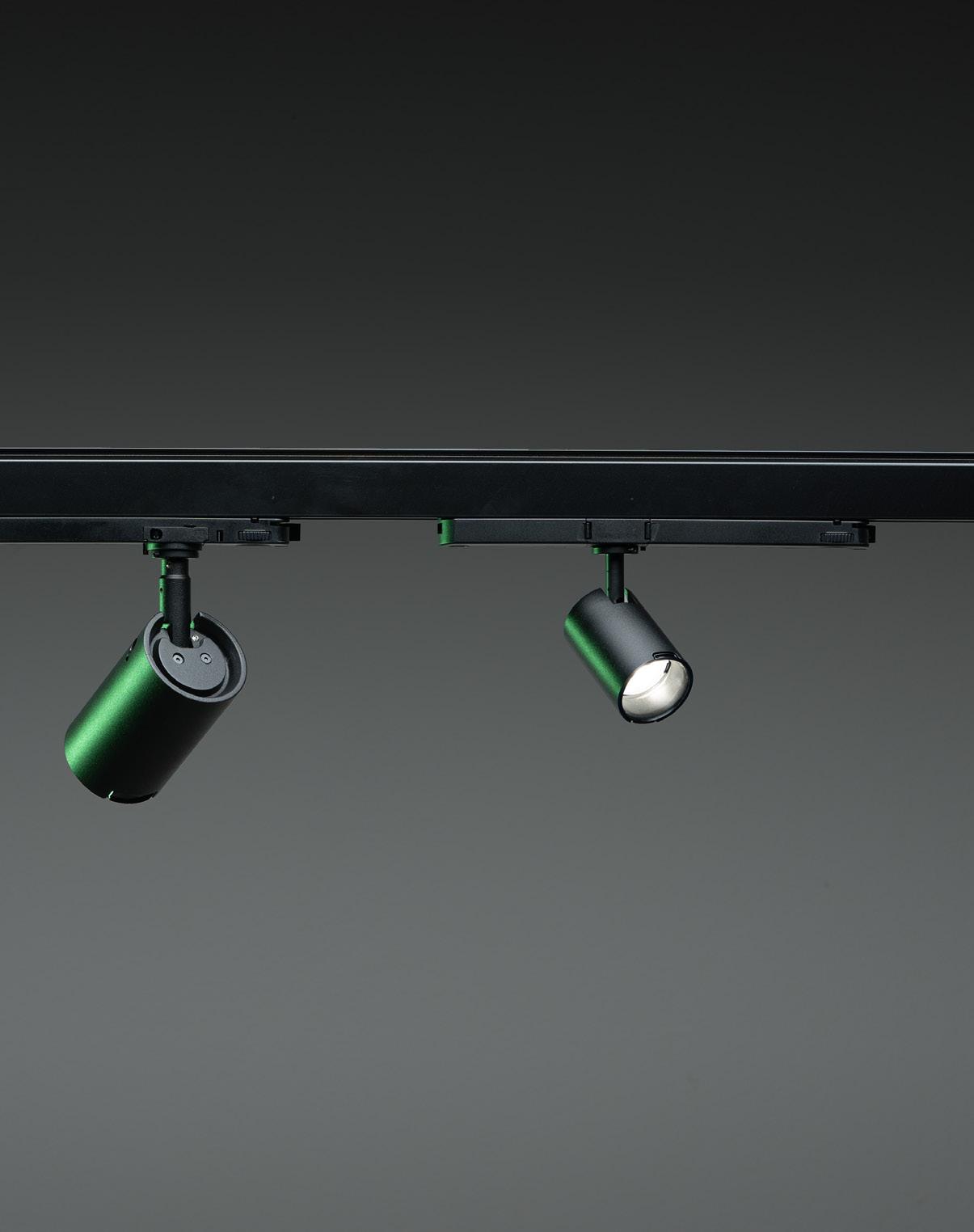

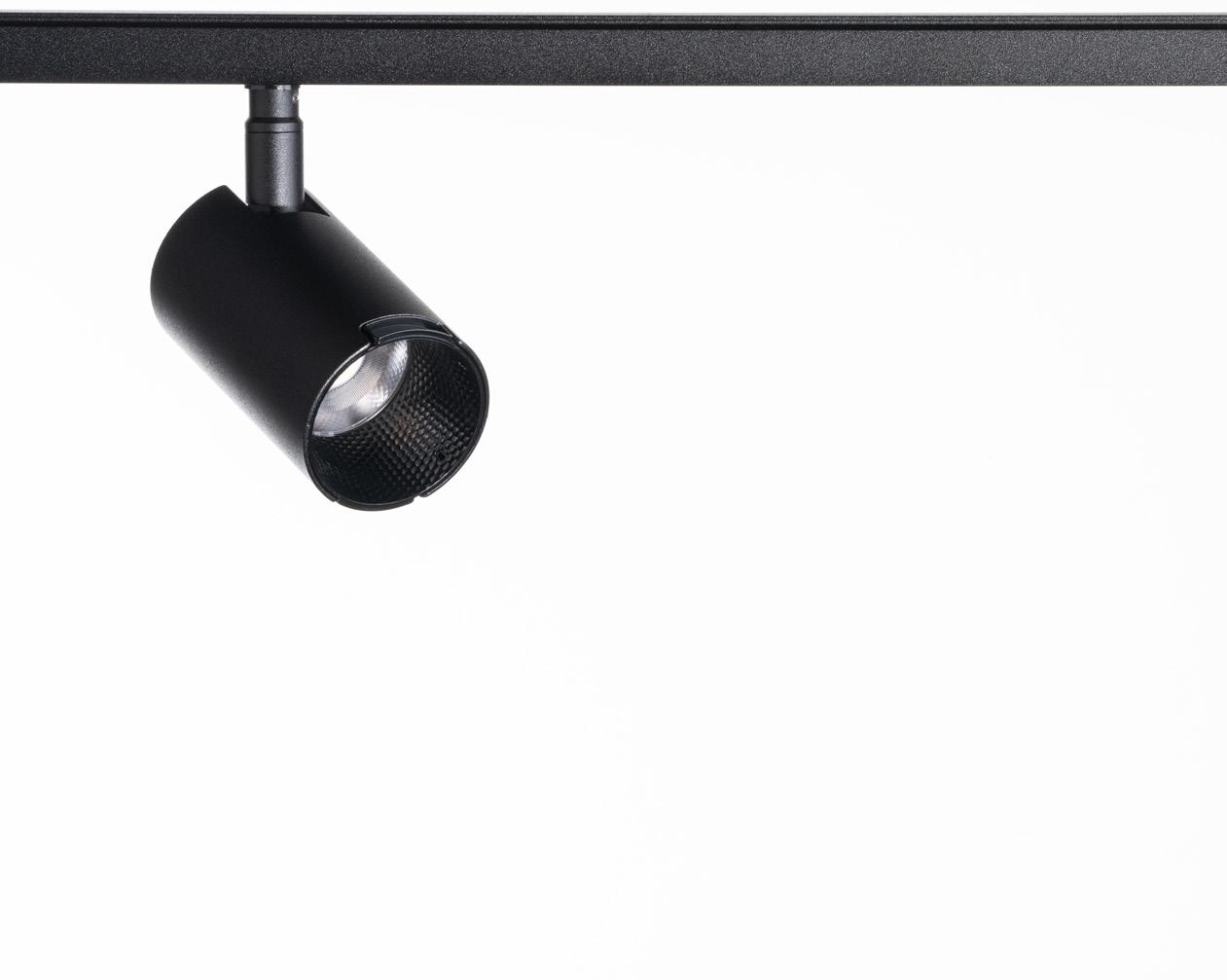

The REVO SPOT LV

The REVO SPOT LV (Line Voltage) track-mounted fixtures utilize drivers integrated into the adapter to provide a clean, simplistic look with no remote power supply to manage. REVO SPOT LV gives you several control options over multiple control circuits.

The REVO SPOT LV

PrimaryRing

Honeycomb

ProtectiveGlass

DiffuserLens

EllipticalLens

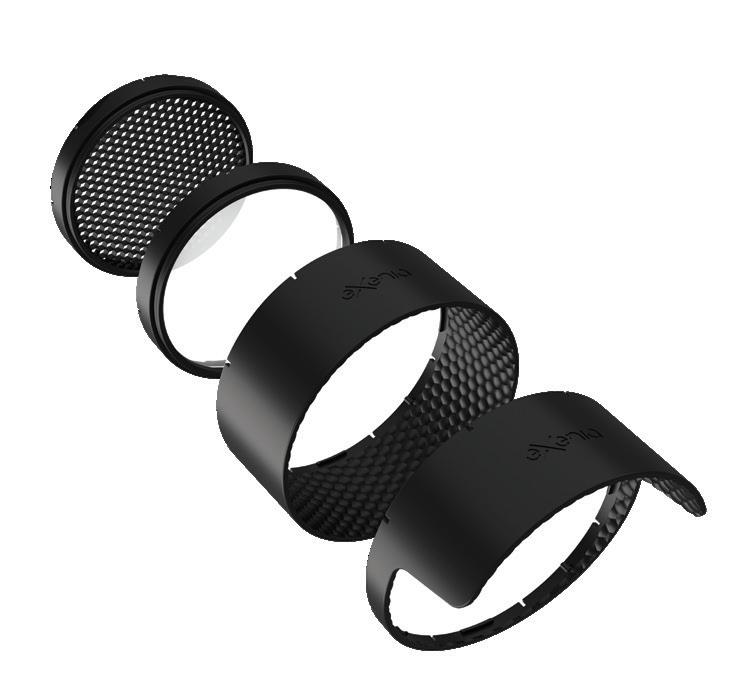

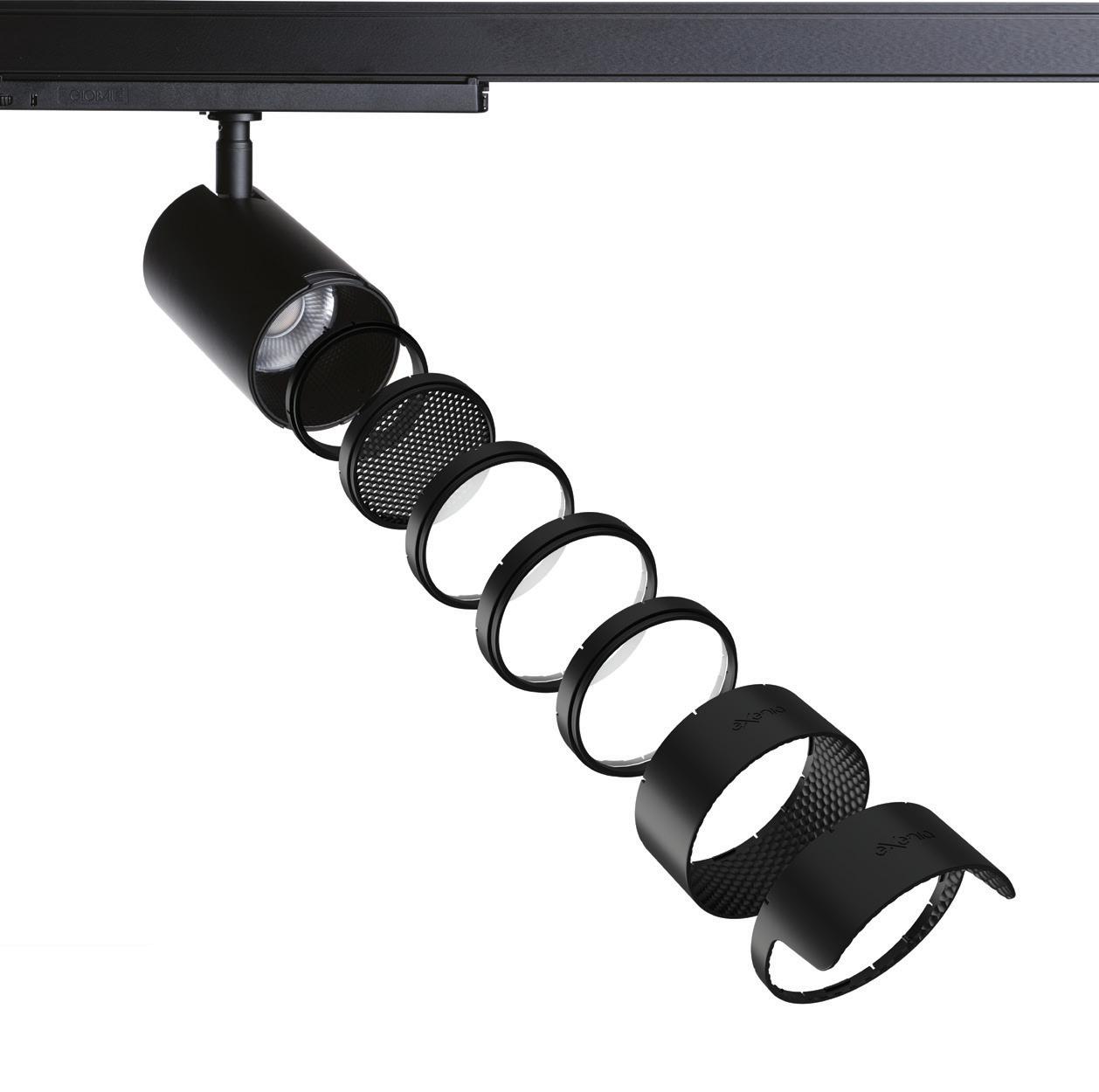

The REVO SPOT LV have an entire gamut of accessories that provide designers with absolute versatility: remove all glare with the Honeycomb, shape light with the Snoot, or create a hard cut-off with the Visor. The lightweight composite accessories are interchangeable in the field, allowing up to four accessories to be used simultaneously.

Snoot Visor

NOTE: Select up to 4 accessories. See Product configurator for availability. 20

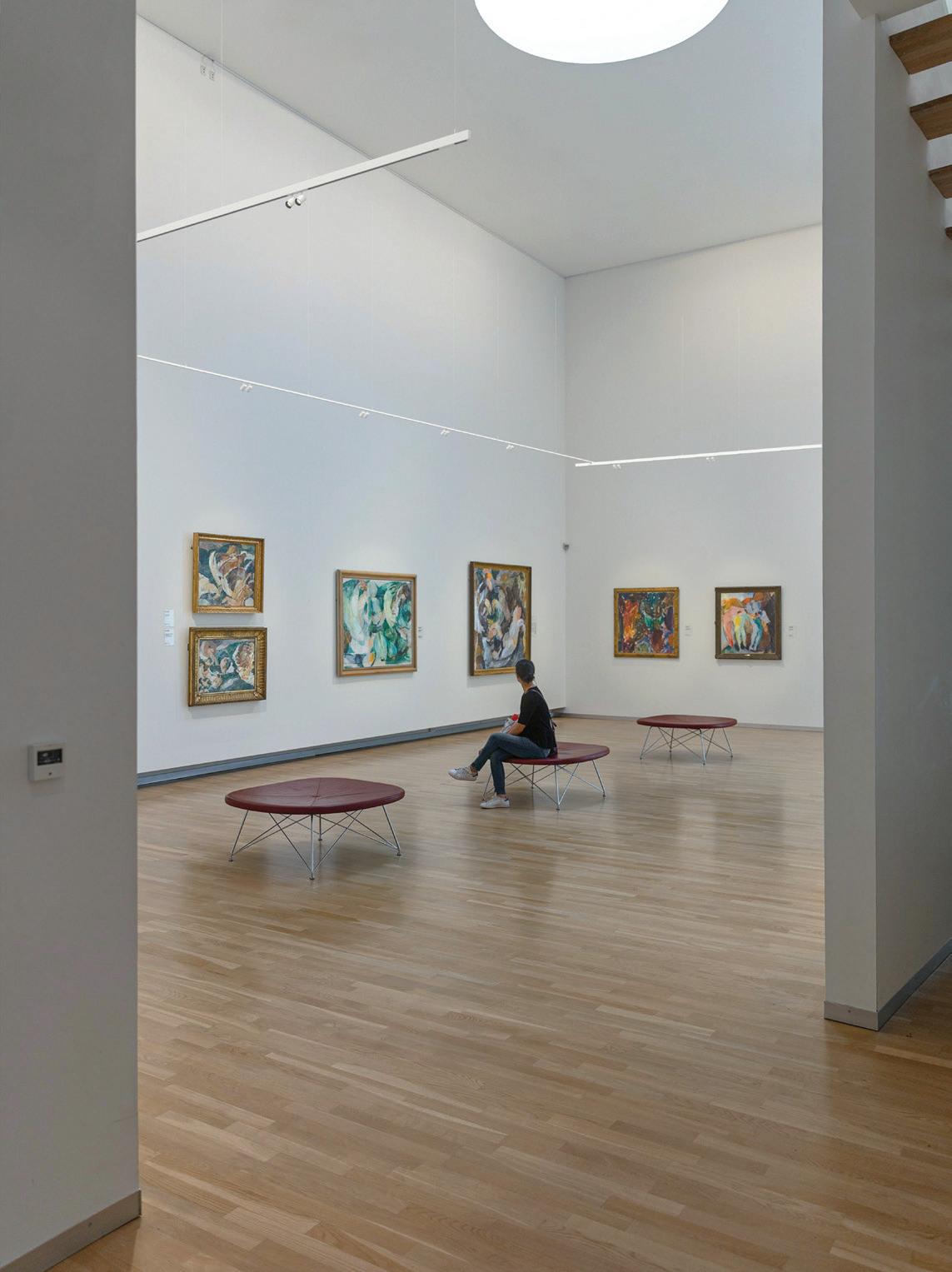

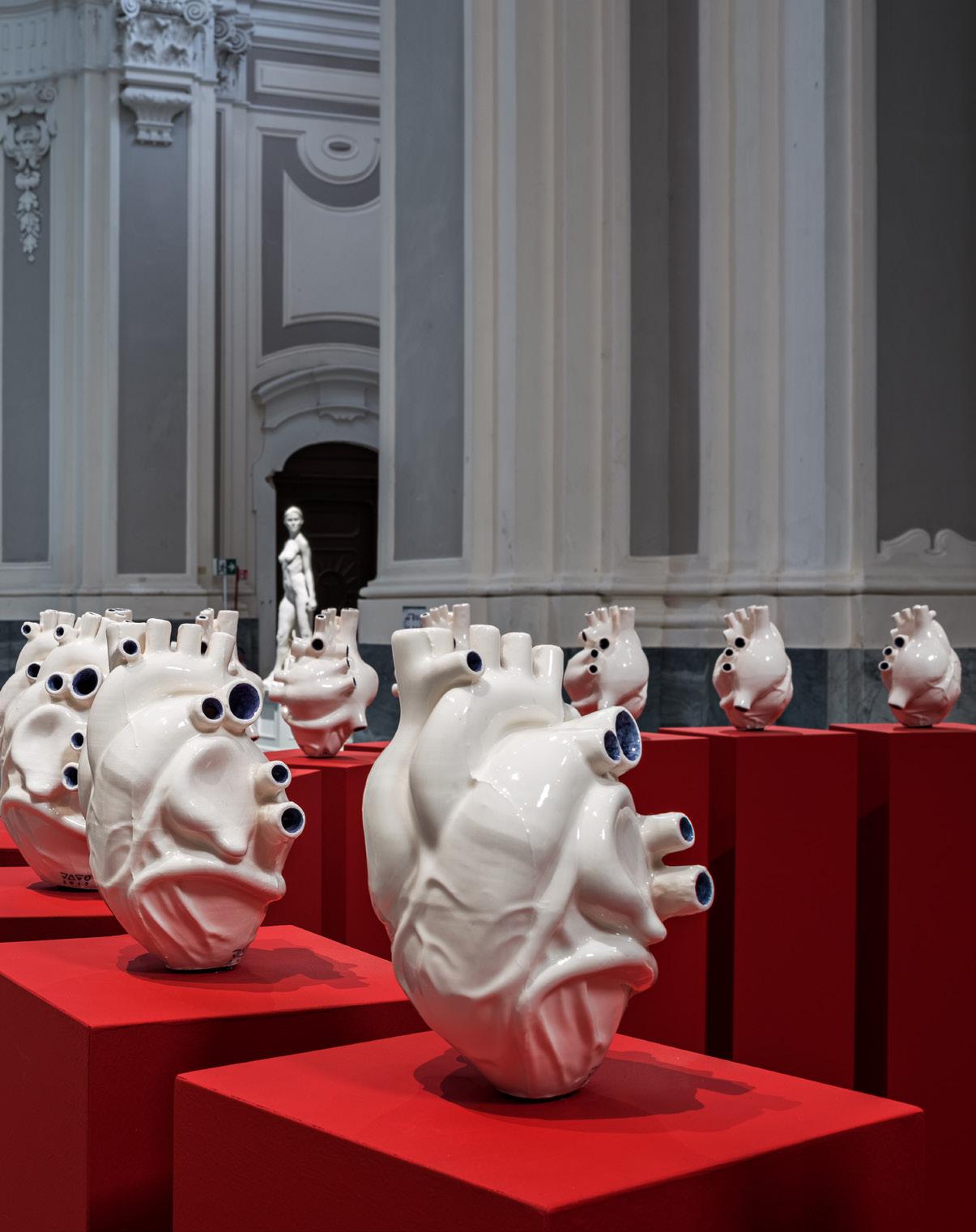

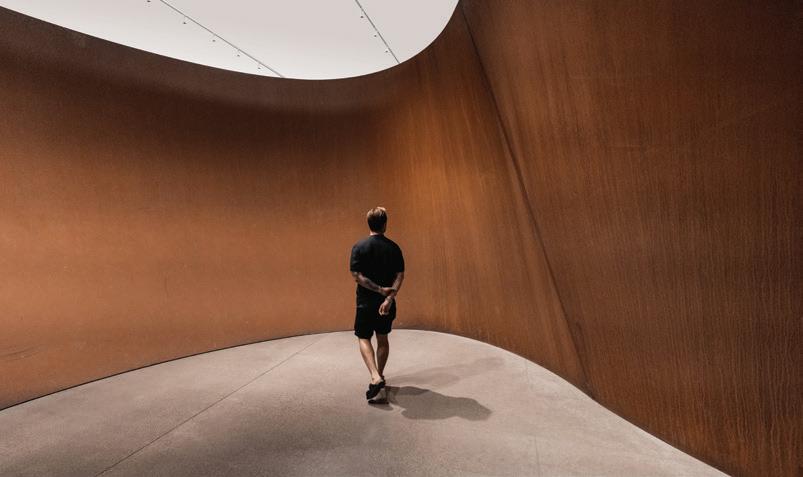

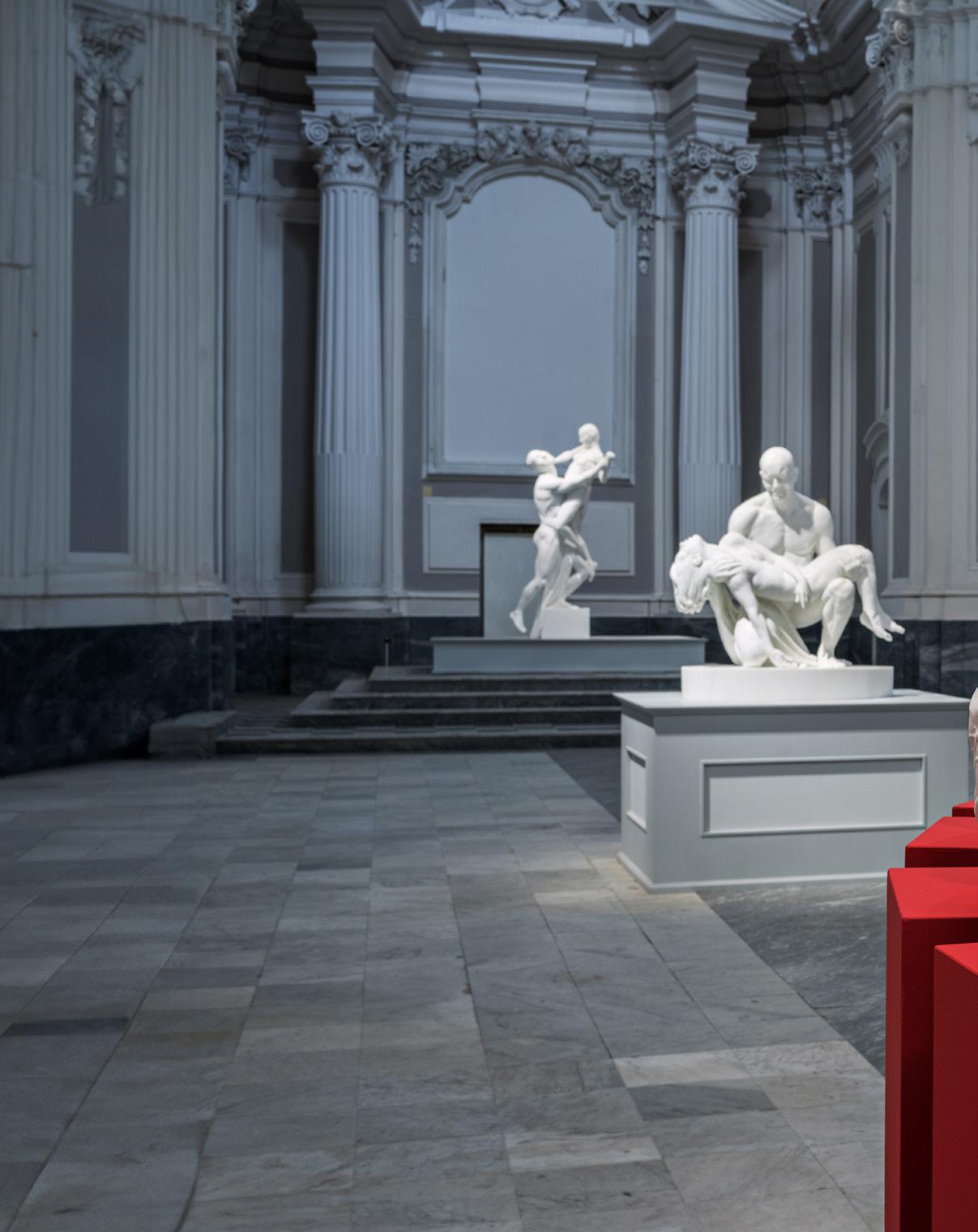

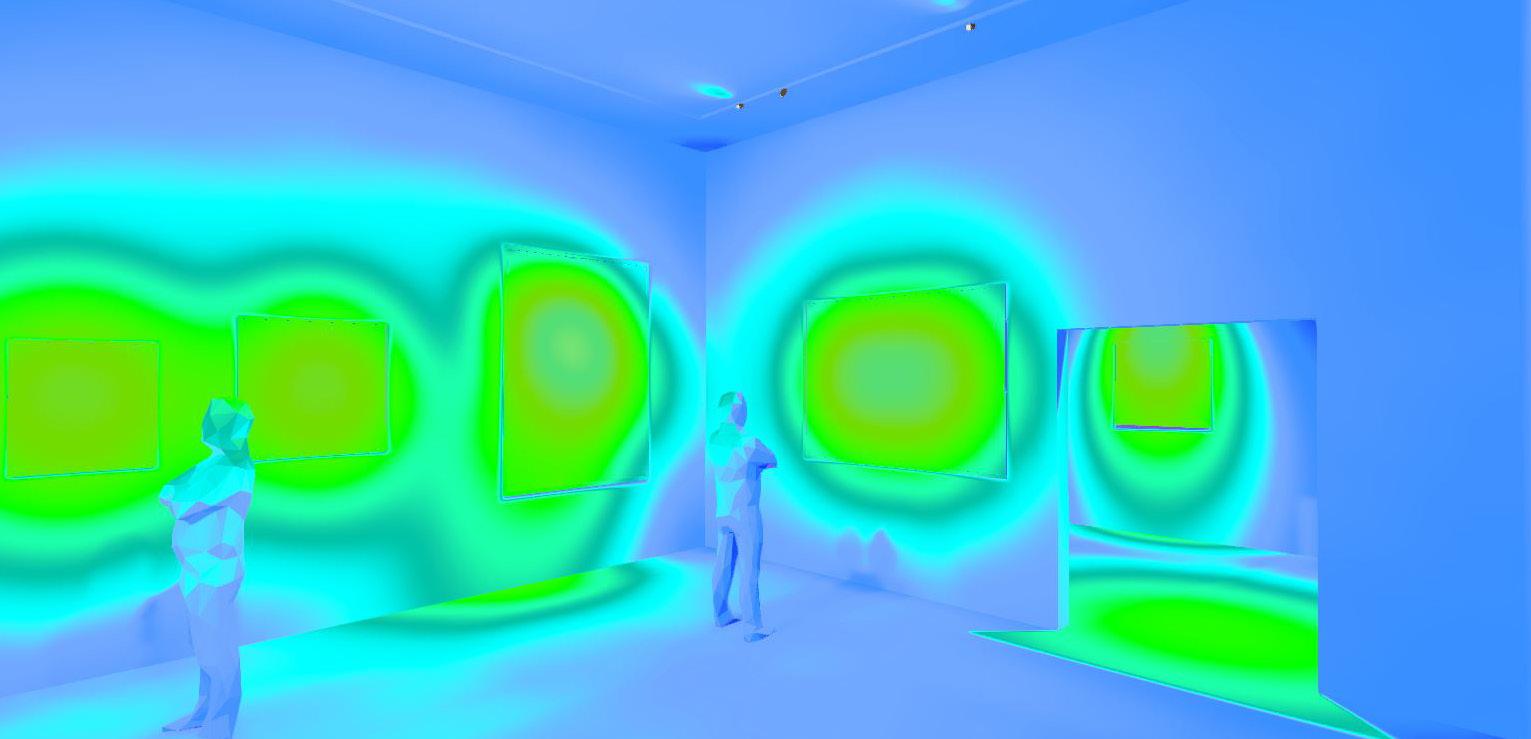

Museum Application

The REVO SPOT LV series boasts a marked performance-size ratio, a rich possibility of accessory integrations, and a wide range of finishes. Still, above all, the REVO SPOT LV series stands out for precision, cleanliness, and uniformity of projection, all of which are integral to illuminating art and other points of interest.

VIEW

H = 14 ft 2.5 ft 20 ft 20 ft 22

Products Used

fc 23

REVO SPOT LV Smalls with Narrow Spot and Narrow Flood optics, mounted on A.A.G. Stucchi ONETRACK™ (120 V). The track is setback 2.5 ft from the wall and is at a height of 14 ft.

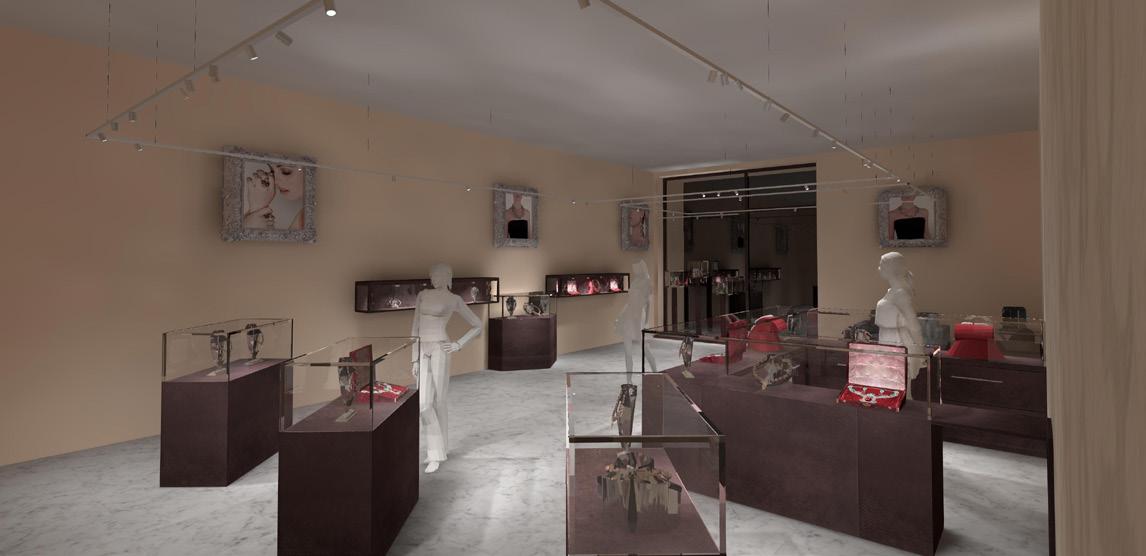

Retail Application

The REVO SPOT LV series provides an exquisite quality of light with high CRIs of 92+ and 98+ that ensure the reality of that which is lit is seen uniformly and without impurities. Accessories and optical options accurately put the right amount of light right where it is needed. At the same time, various finishes are available for the powder-coated aluminum structure of the fixtures. They can do everything from blending the luminaires with their surroundings to making their own statement.

VIEW

= 12.8

27.2

ft H

Products Used for the Exhibition Area

REVO SPOT SEMI-RECESSED Medium with Deep Washer optics positioned at a height of 11 ft.

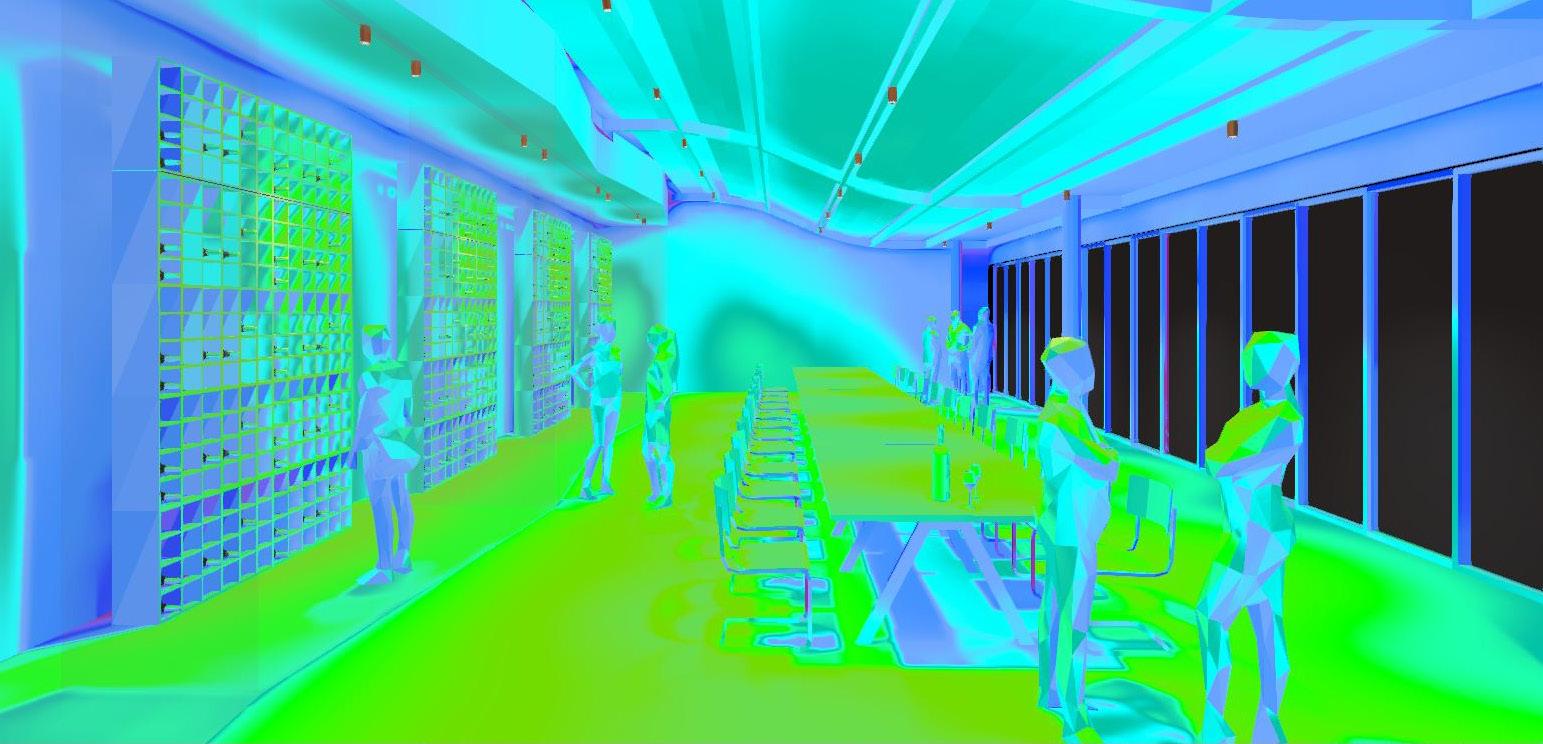

Products Used for General Lighting

REVO SPOT LV Medium with Wide Flood optics positioned at a height of 13 ft between the table and display.

REVO SPOT LV Medium/EW with Spot optics at varying heights, mounted at 10.5 ft above the table and 10 ft near the windows. Mounted on A.A.G. Stucchi ONETRACK™ (120 V) tracks.

fc 25

REVO SPOT LV

•

REVO SPOT LV Medium

REVO SPOT LV Compact

REVO SPOT LV Small

Rendering Options CRI 90+ | CRI 95+ Outputs (Depending on Optic and Size) 300 lm | 400 lm | 500 lm | 700 lm 1000 lm | 1300 lm | 2000 lm

Options

On/Off control

0-10V Dimming 1%

REVO SPOT LV SUMMARY Color

Control

•

Phase dimming 1%

DALI Accessories Color Temperatures 2700K 3000K 3000K 3500K 4000K 4000K Fixture & Trim Finishes Track Adapter Finishes White Snoot Visor Honeycomb Louver Elliptical Lens Diffusing Filter Protective Glass Black Optics Elliptical Narrow Spot 54ox12o Very Narrow 7o Narrow Spot 12o Spot 15o Flood 35o Narrow Flood 25o Wide Flood 40o Elliptical Wide Flood 47ox72o Framing Shaper 30o base Deep Washer 39ox37o Apertures Ø Medium 2.4” Ø Small 1.8” Ø Compact 2.9” Mud Brown Concrete Grey Matte White Textured Matte Black Textured Gold Textured Copper Textured Adjustability 90° Tilt 355° Rotation 5YEARS Certifications NOTE: Some exceptions, consult specification sheets for details. 29

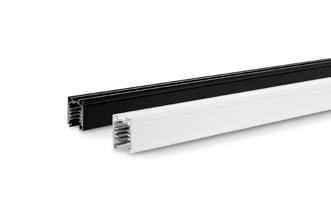

A.A.G STUCCHI ONETRACK™ (120V) SUMMARY

Lengths

• 4 ft

• 8 ft

• 12 ft

Accessories

• Feeders and Joiners

• Reinforcing Brackets

• End Caps

• Suspensions Kits

• Suspensions Hooks

• Covers

• Monopoint Adapters

• Cutting Tools

Track Finishes White Grey Black

9000-UL/B-ST-120 9000-UL/B-R-120

NOTE: Some exceptions, consult specification sheets for details. 31

9000-UL/B-TR1-120

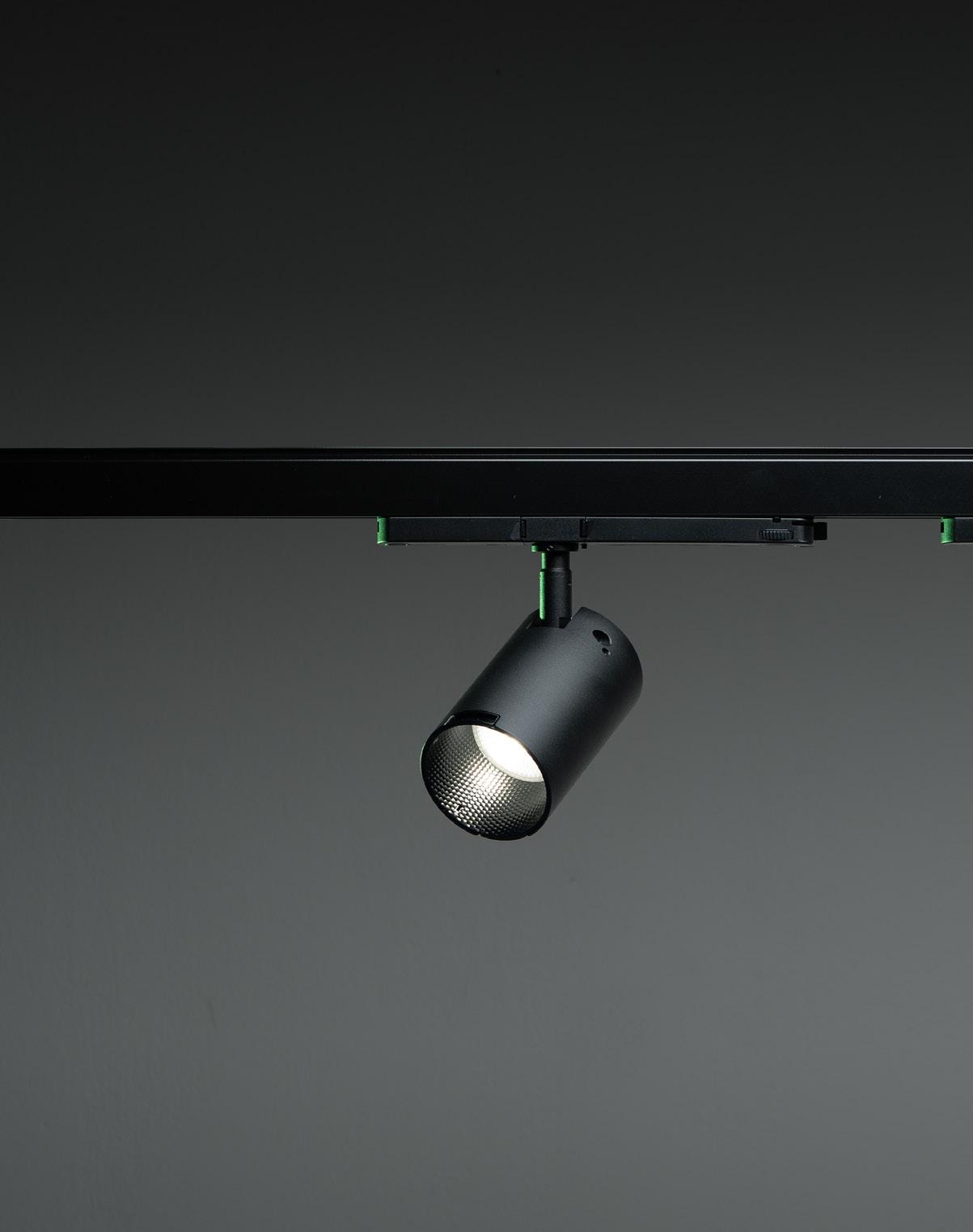

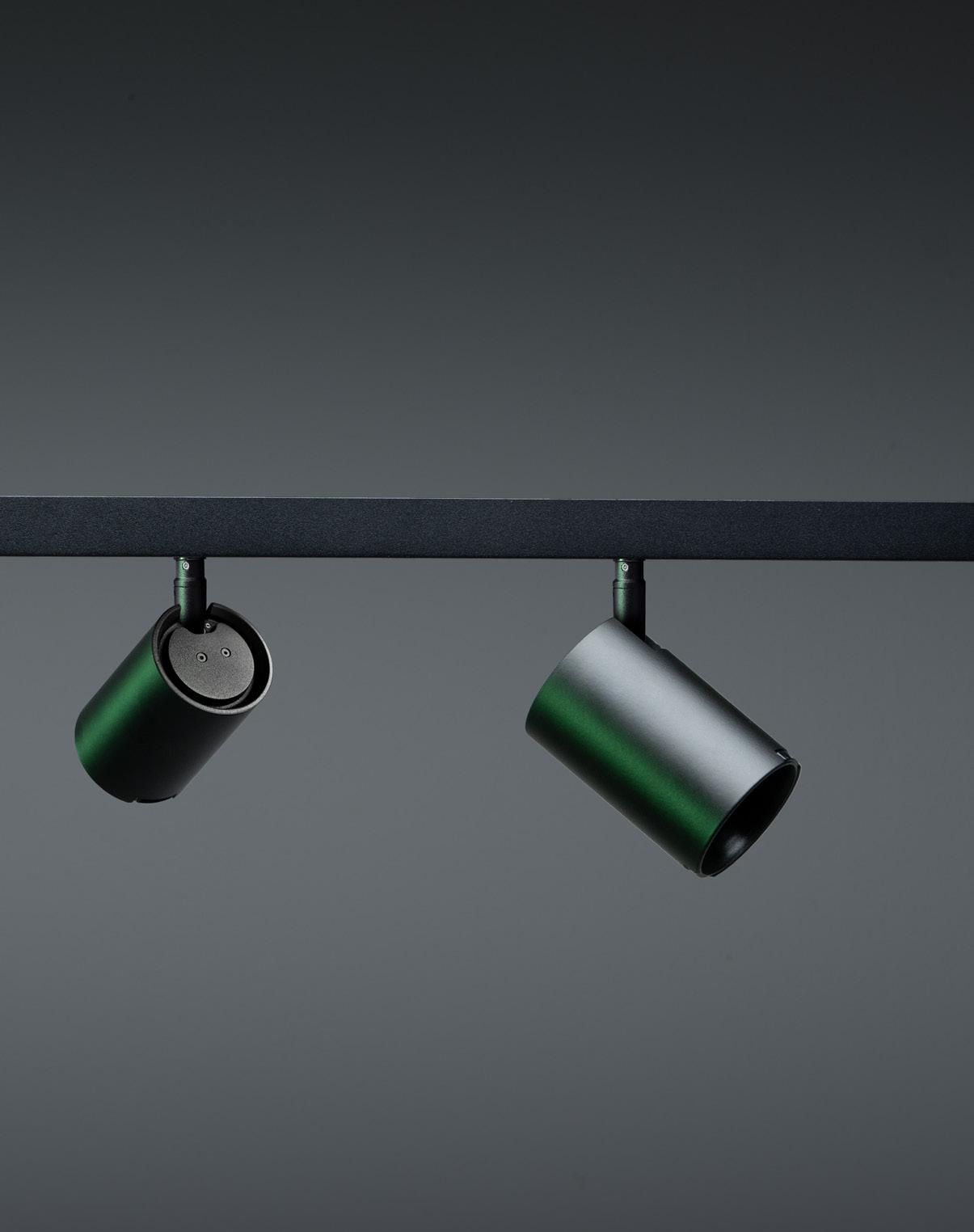

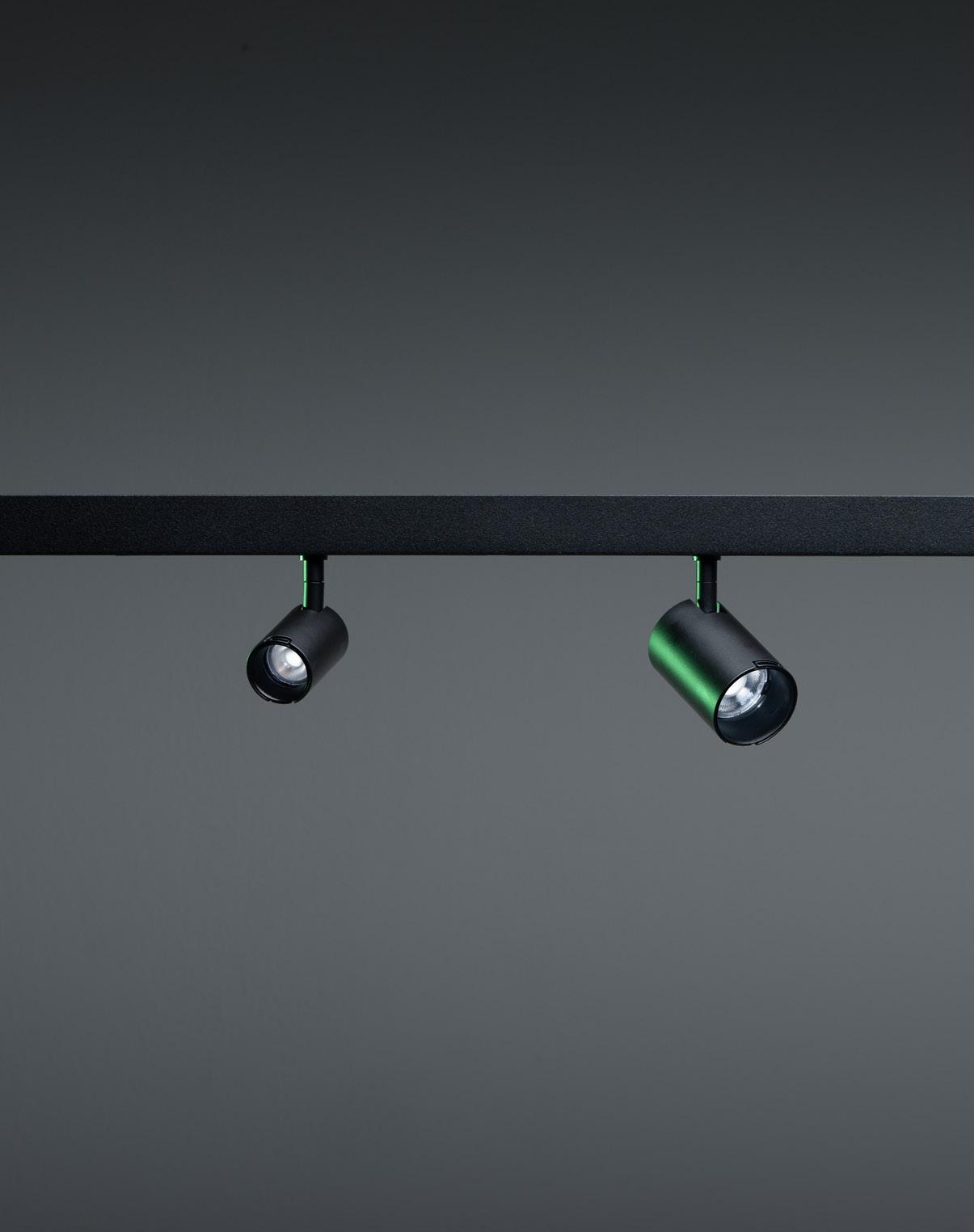

REVO SPOT 48V

The low-voltage REVO SPOT 48V series keeps things neat and tidy, with smaller luminaires delivering the type of performance usually associated with much larger luminaires.

The low-voltage system’s advantages include smaller, inconspicuous tracks, tiny luminaires, concealed adapters, greater efficiency, and a Class II protection rating, which makes it safe to install without protective measures needed.

The REVO SPOT series boasts an entire gamut of accessories that provide designers with absolute versatility: remove all glare with the Honeycomb, shape light with the Snoot, or create a hard cut-off with the Visor. The lightweight composite accessories are interchangeable in the field, allowing up to four accessories to be used simultaneously.

EllipticalLens

Honeycomb

REVO SPOT 48V

NOTE: Select up to 4 accessories. See Product configurator for availability. 34

Snoot Visor

Retail Application

REVO SPOT 48V Optical Opulence

Narrow optics (down to 7 degrees) highlight the merchandising with high-contrast lighting, while projectors with flood optics apply a softer level of background illumination.

20 ft 36

32 ft

Products Used

REVO SPOT 48V Minis with Flood optics positioned on A.A.G. Stucchi MULTISYSTEM® to provide ambient lighting. EVO (48V) tracks suspended 8.2 ft from the ground.

fc 37

Accent lighting over display cases uses REVO SPOT 48V Minis with Spot optics positioned on an A.A.G. Stucchi MULTISYSTEM® EVO (48V) track suspended at 8.2 ft.

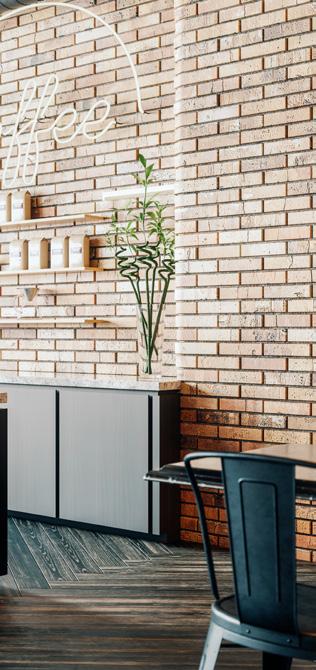

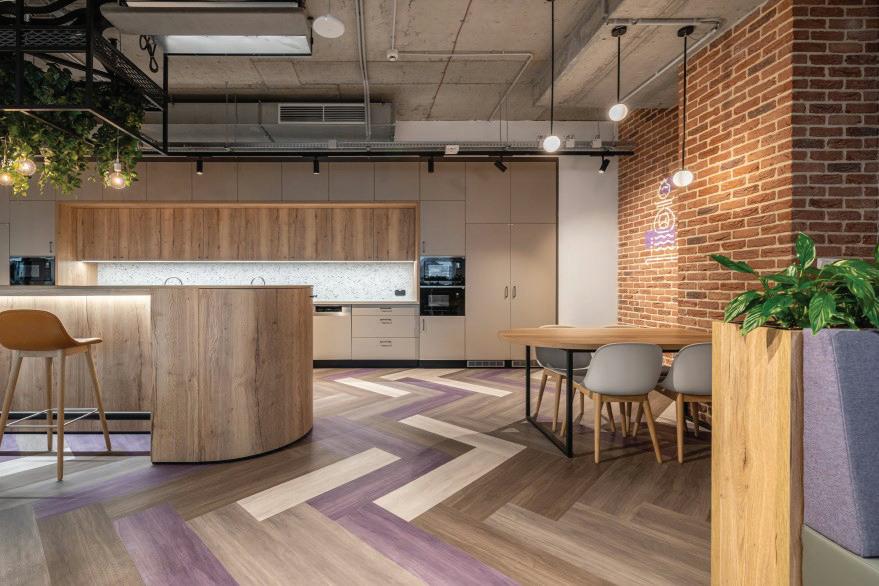

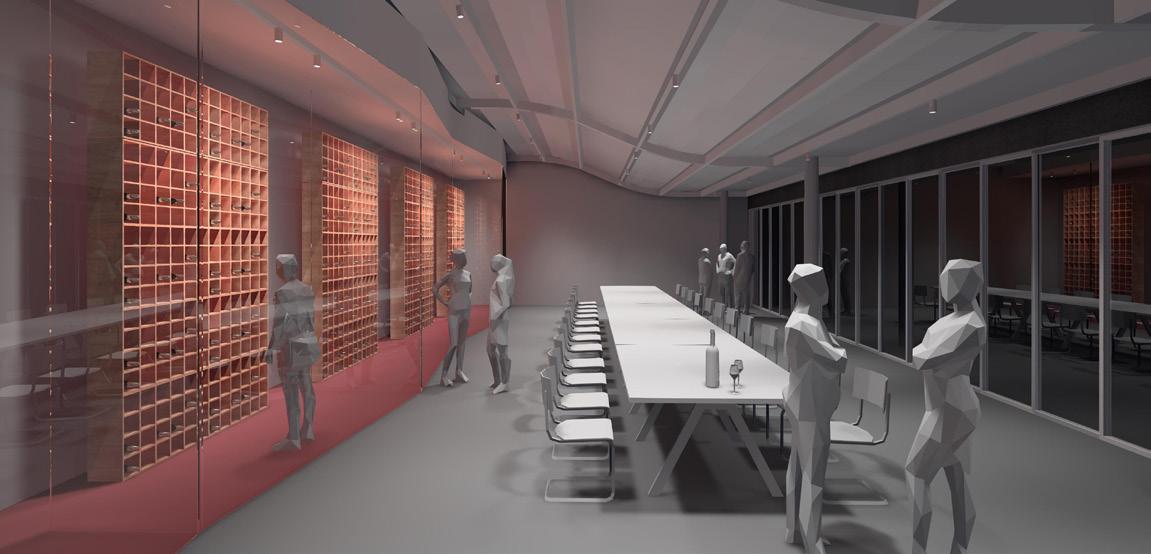

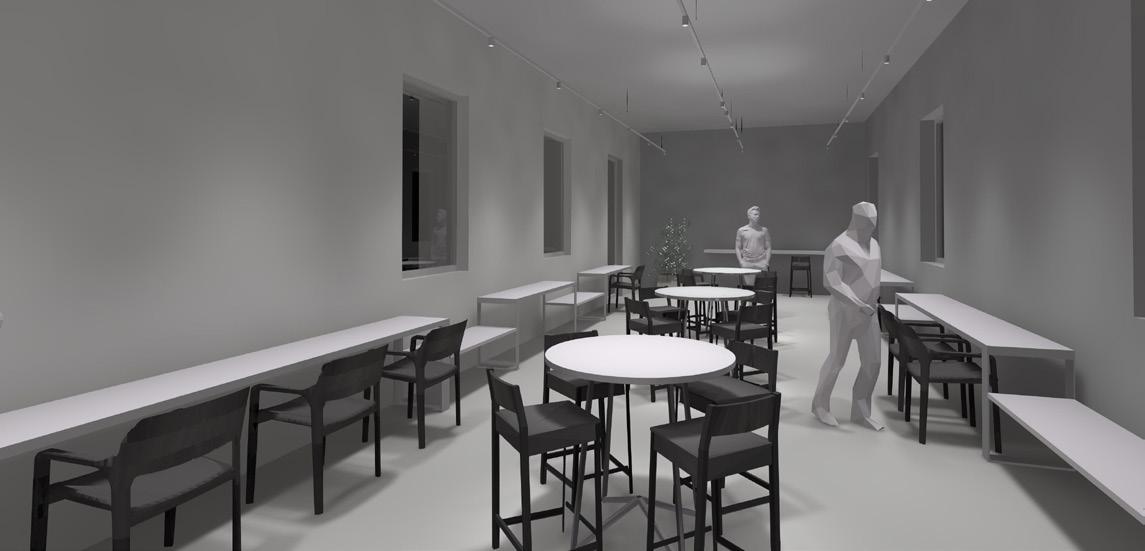

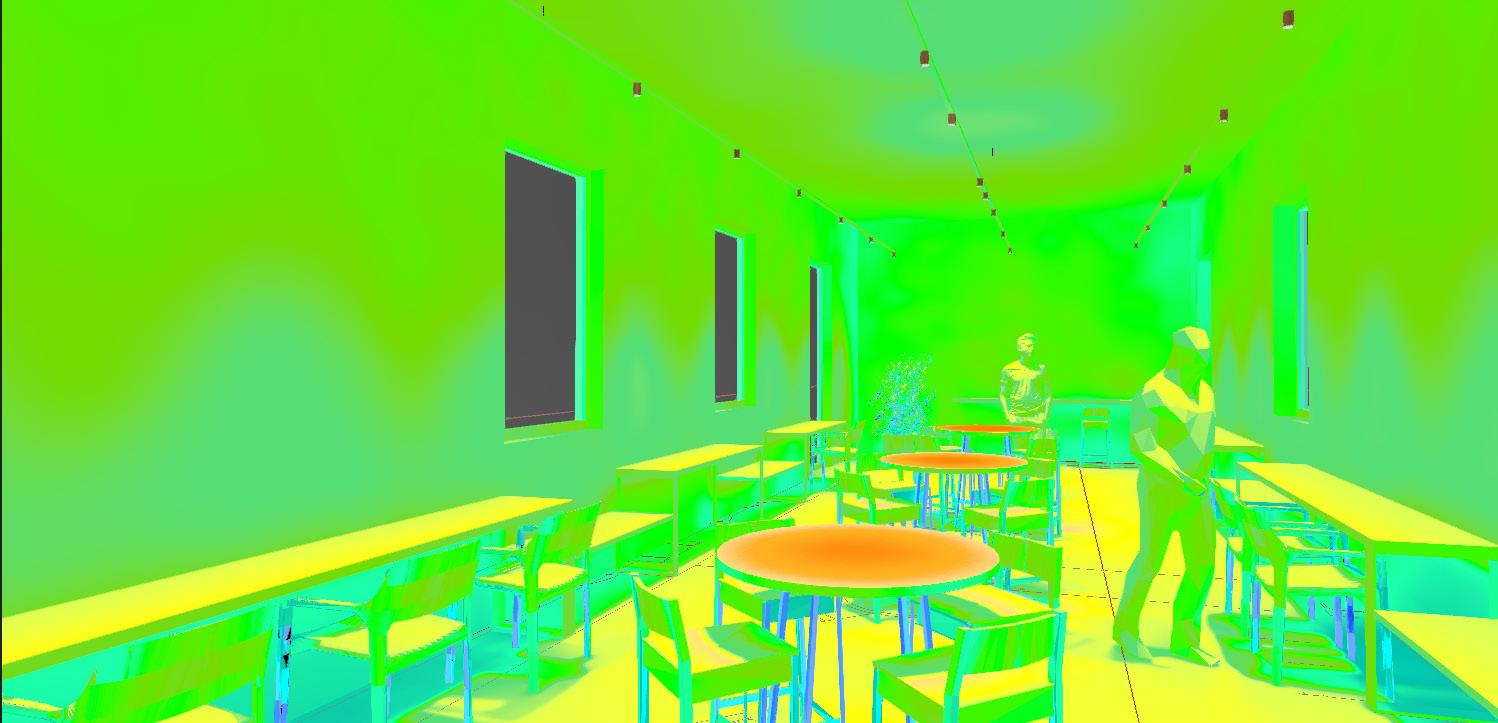

Hospitality Application

REVO SPOT 48V Modulated Light

REVO SPOT 48V products are characterized by very low UGR values allowing for high visual comfort in places dedicated to work and leisure, whether general or accent lighting applications.

15 ft

54 ft

Products Used REVO SPOT 48V Smalls with Wide Flood optics positioned on A.A.G. Stucchi MULTISYSTEM® EVO (48V) tracks suspended 10 ft from the ground.

Accent lighting uses REVO SPOT 48V Smalls with Narrow Flood optics positioned on an A.A.G. Stucchi MULTISYSTEM® EVO (48V) track suspended 10 ft from the ground.

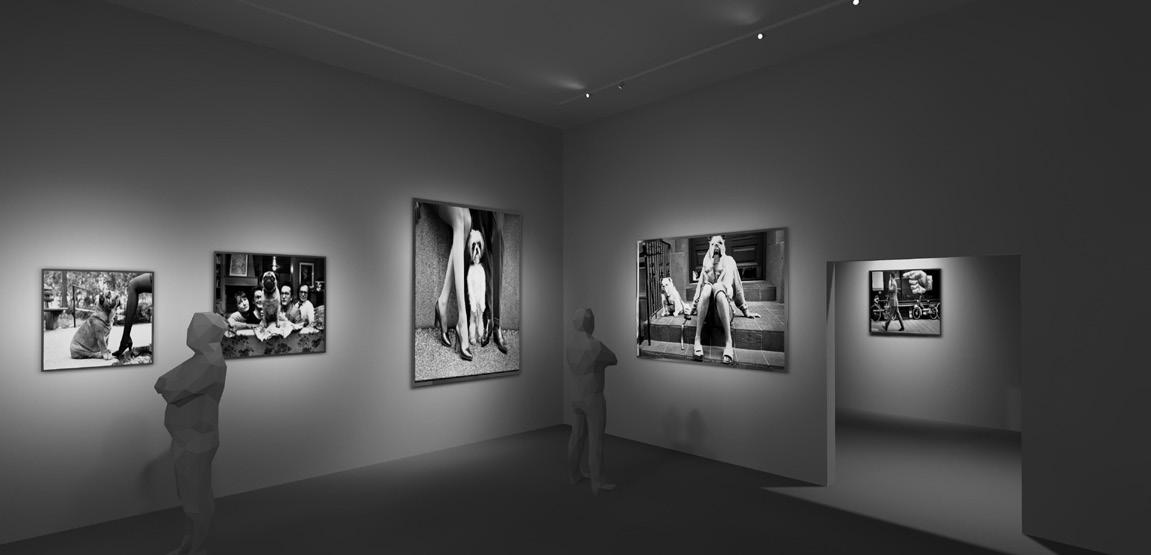

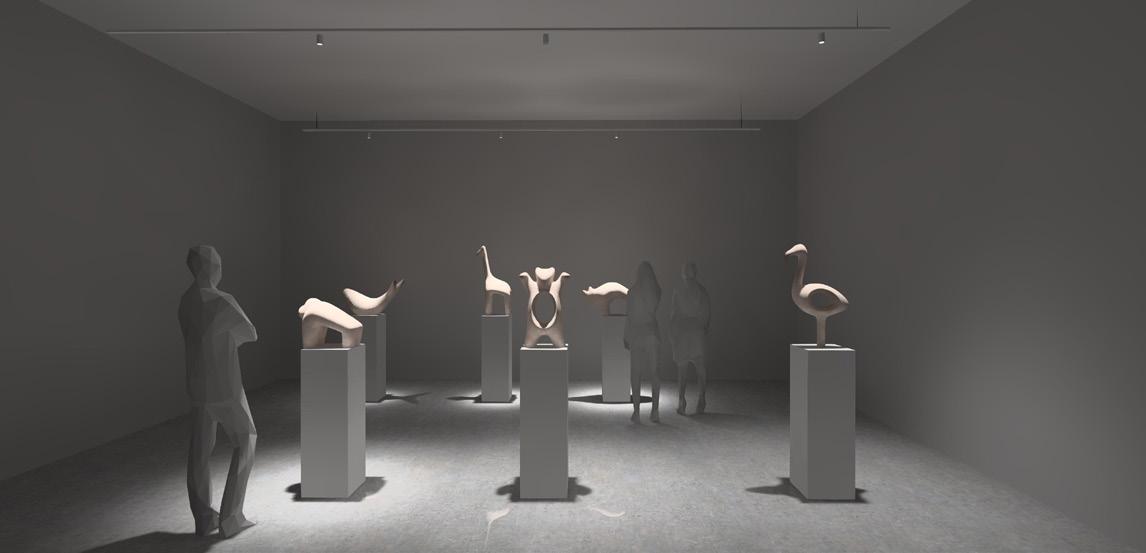

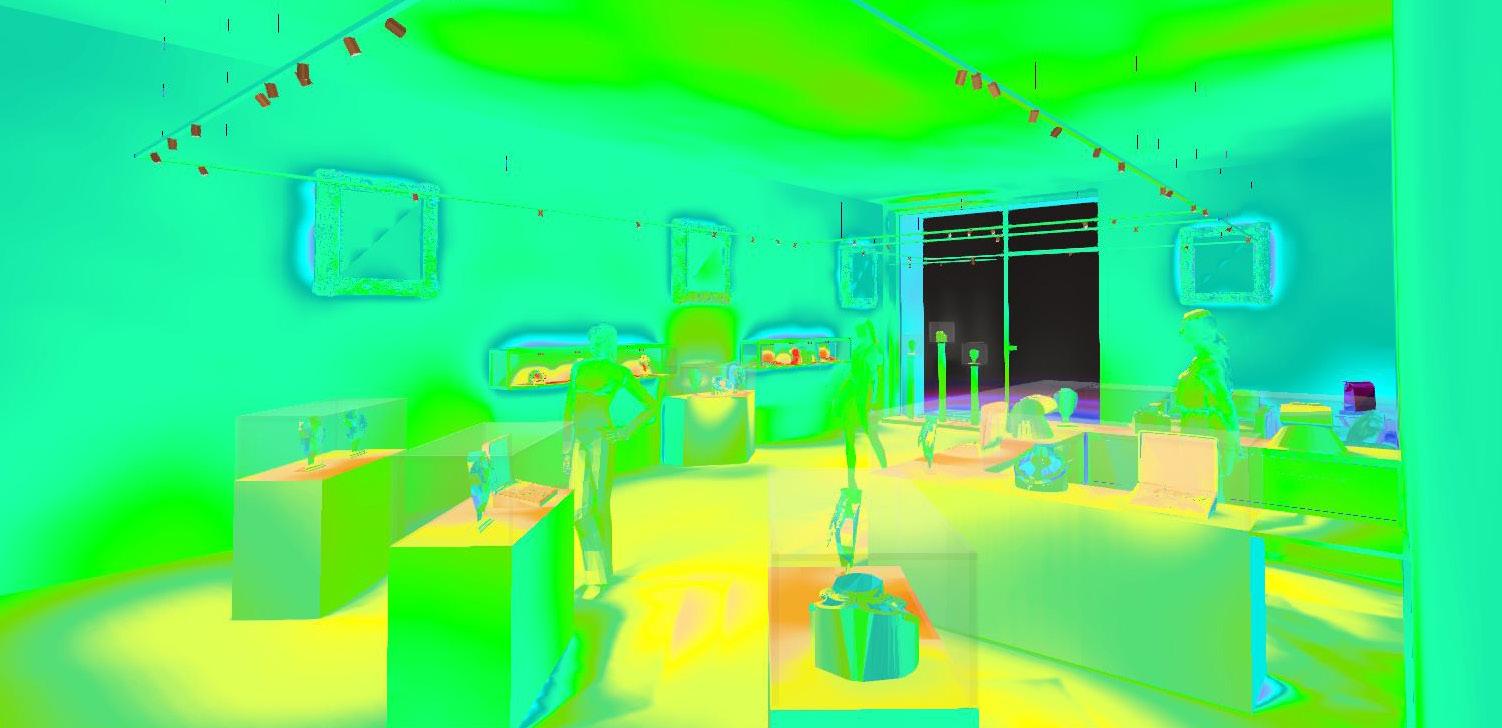

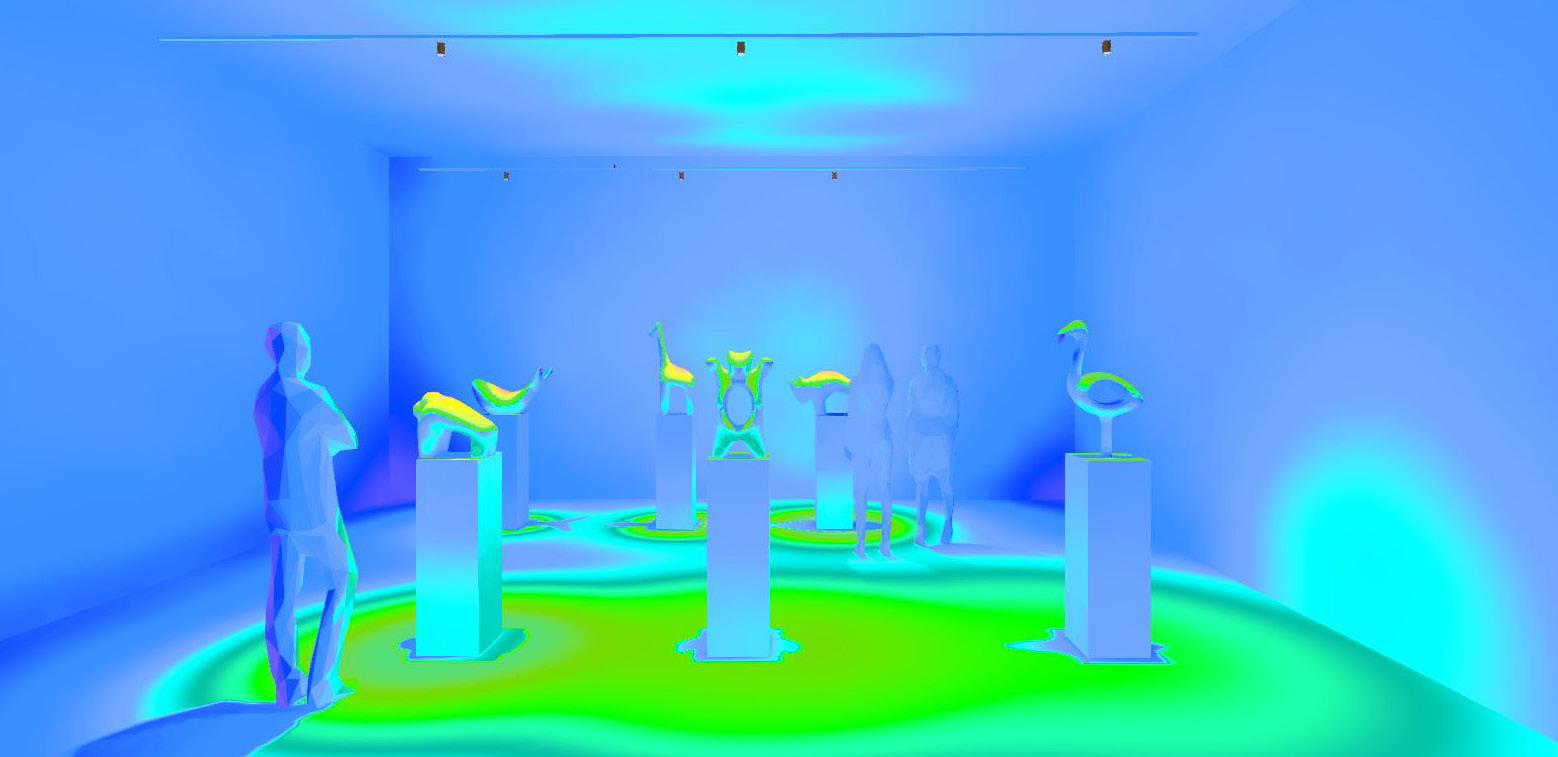

Museum Application

Projectors with narrow optics allow you to light with pinpoint accuracy, while the wider optics are designed to create a softer illumination.

7° 12° 15° 25° 35° 40° VN 96.6 Fc NS 98.5 Fc 19,6 ft H = 14 ft 26,2 ft S 70.9 Fc WFL 13 Fc FL 22 Fc NF 46.3 Fc 40

Products Used

fc 41

REVO SPOT 48V Small luminaires with various optics Very Narrow, Narrow Spot, Spot, Narrow Flood, Flood, and Wide Flood. Luminaires are mounted on A.A.G. Stucchi MULTISYSTEM® EVO (48 V) tracks at a height of 11.5 ft.

SPOT 48V 42

REVO

REVO SPOT 48V SUMMARY Outputs (Depending on Optic and Size) 200 lm | 300 lm | 400 lm | 500 lm 700 lm | 1000 lm | 1300 lm | 2000 lm Control Options • 0-10V Dimming 1% • DALI Accessories Color Temperatures 2700K 3000K 3500K 4000K 4000K NOTE: Some exceptions, consult specification sheets for details. Track Adapter Finishes White Snoot Visor Honeycomb Louver Elliptical Lens Diffusing Filter Protective Glass Black REVO SPOT 48 Mini REVO SPOT 48 Medium REVO SPOT 48 Small REVO SPOT 48 Compact Optics Elliptical Narrow Spot 54ox12o Very Narrow 7o Narrow Spot 12o Spot 15o Flood 35o Narrow Flood 25o Wide Flood 40o Elliptical Wide Flood 47ox72o Framing Shaper 30o base Deep Washer 39ox37o Apertures Ø Mini 1.3” Ø Medium 2.4” Ø Small 1.8” Ø Compact 2.9” Fixture & Trim Finishes Mud Brown Concrete Grey Matte White Textured Matte Black Textured Gold Textured Copper Textured Color Rendering Options CRI 90+ | CRI 95+ Adjustability 90° Tilt 355° Rotation 5YEARS Certifications 45

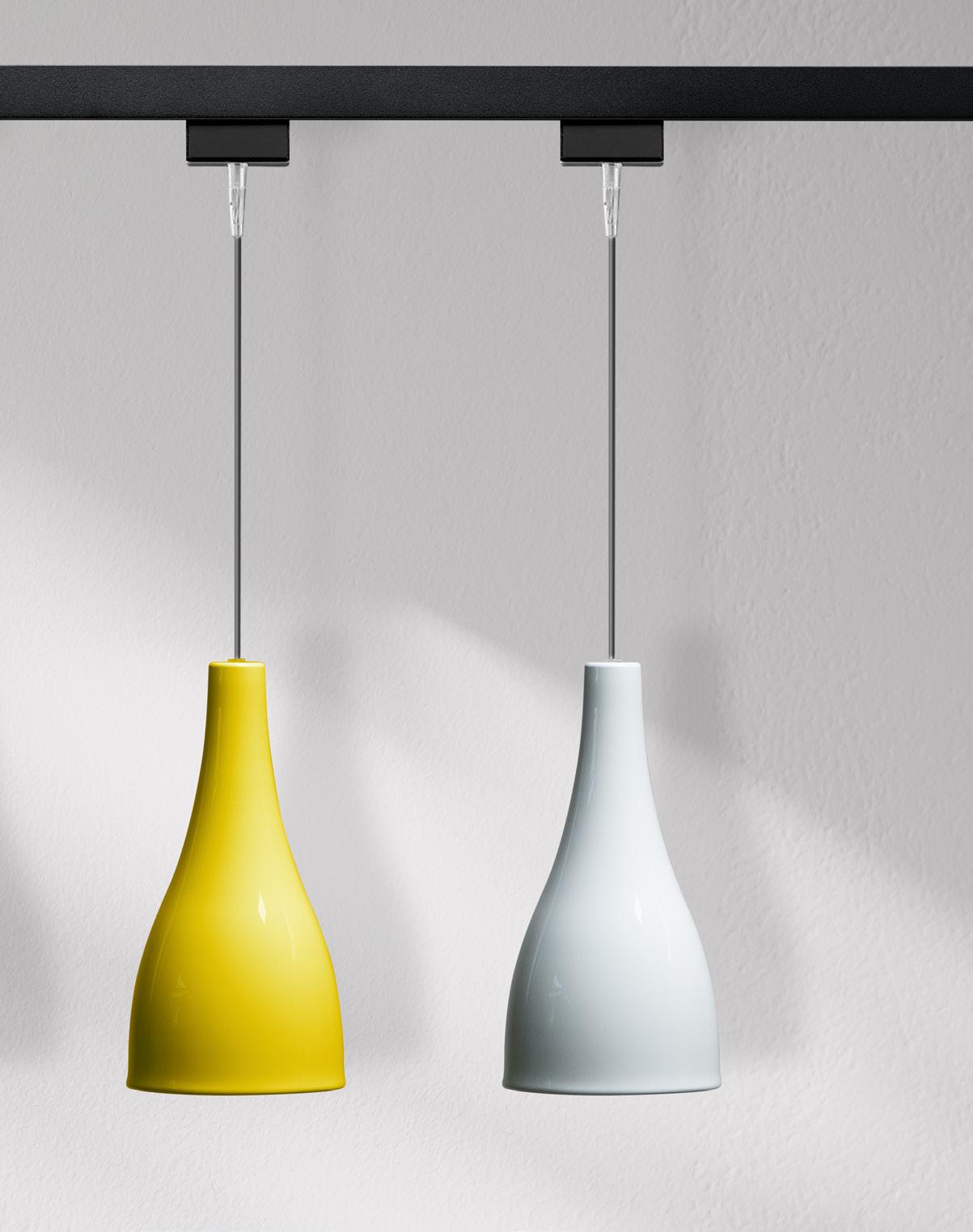

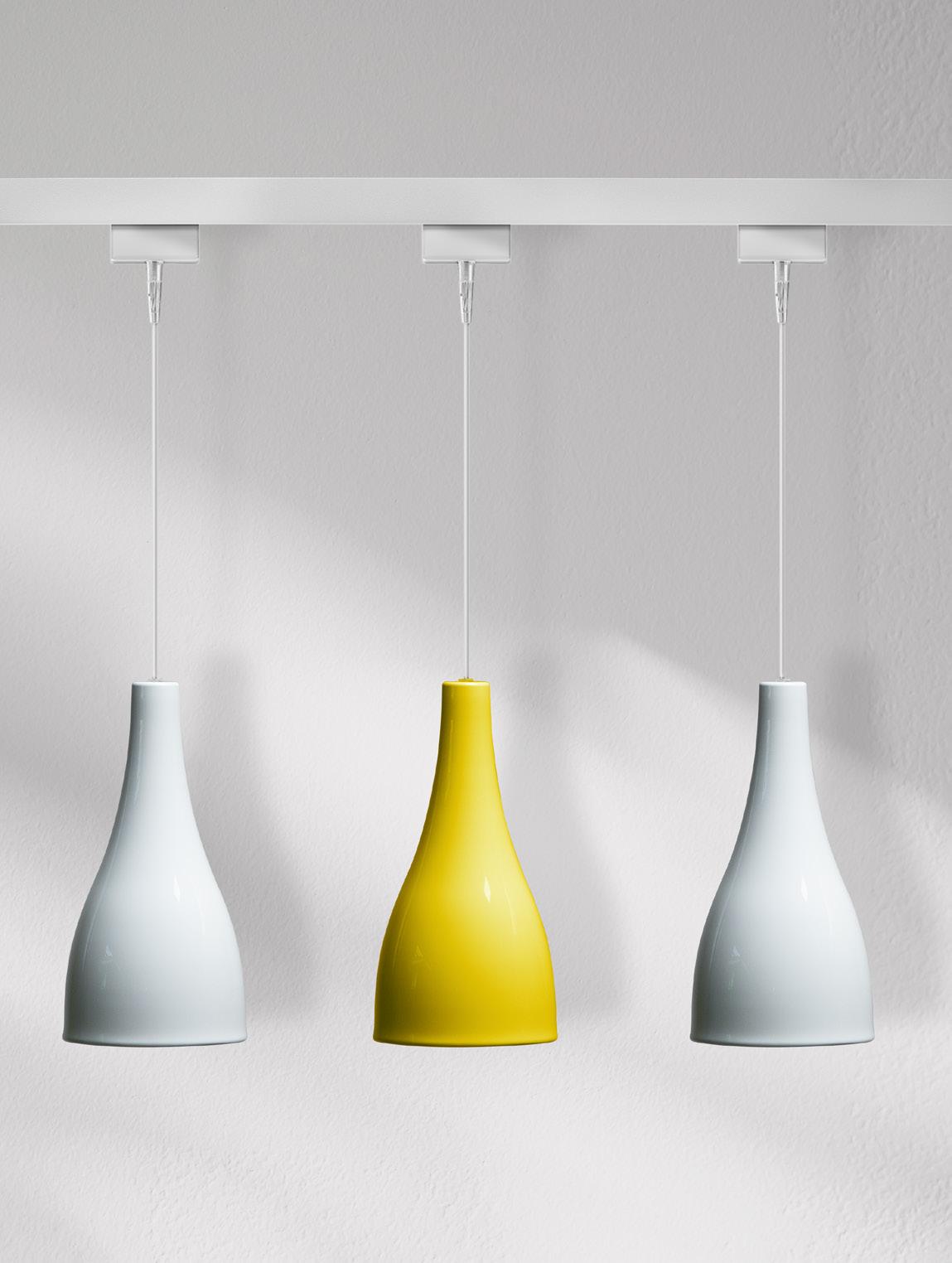

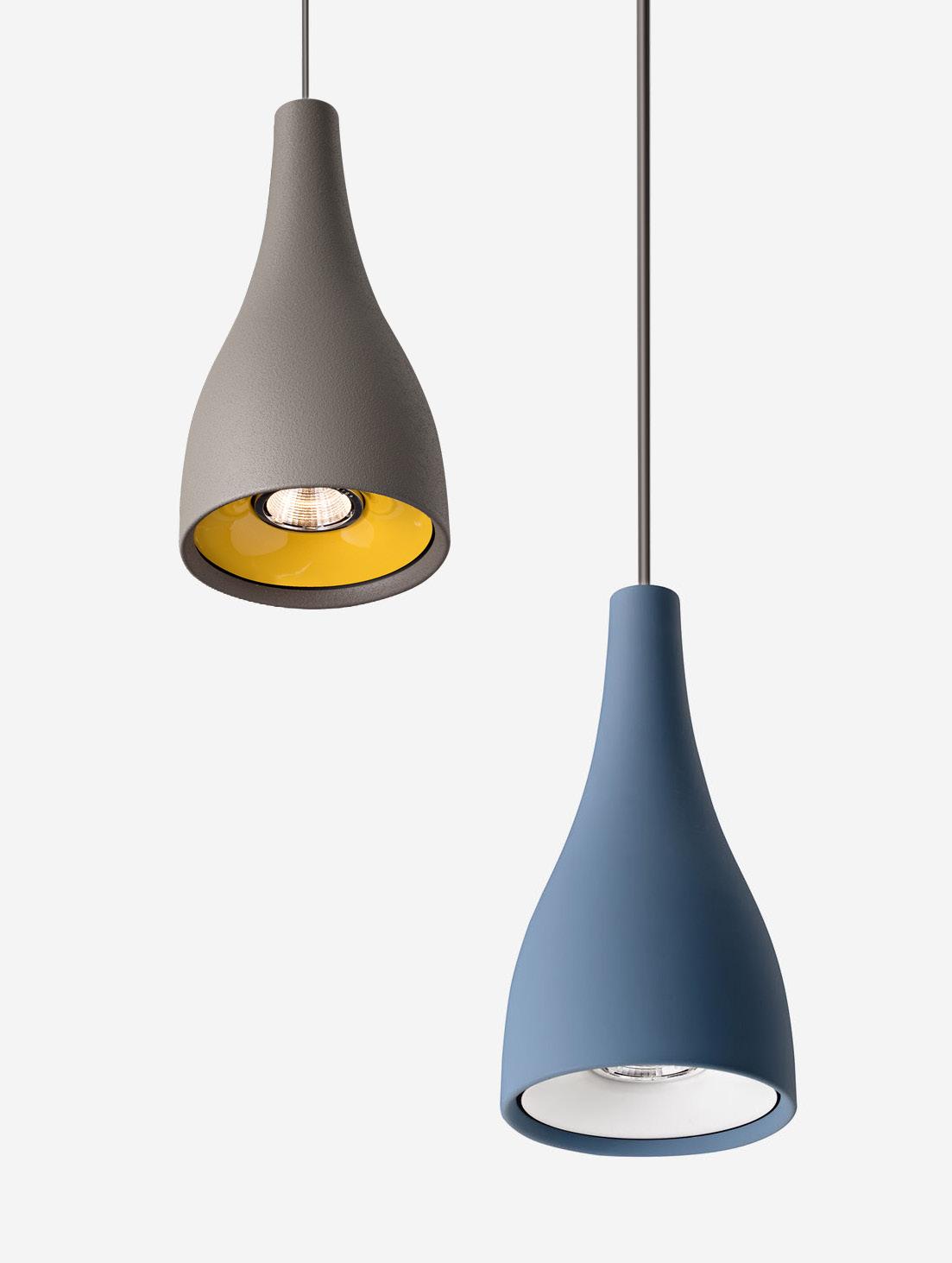

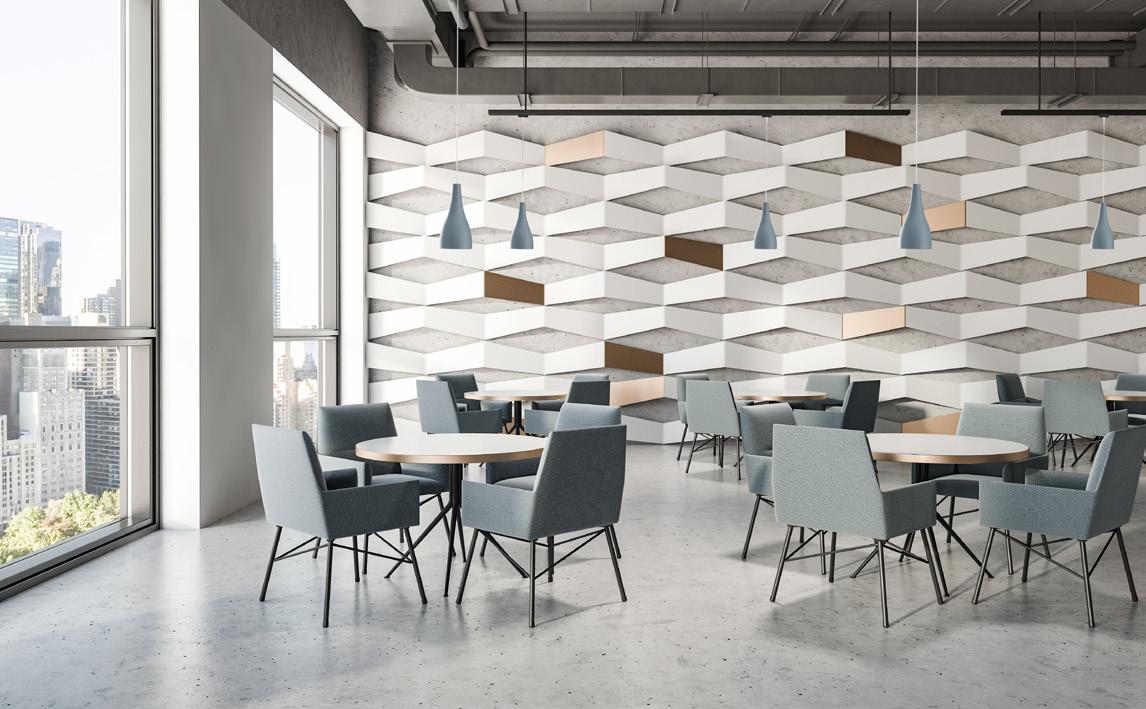

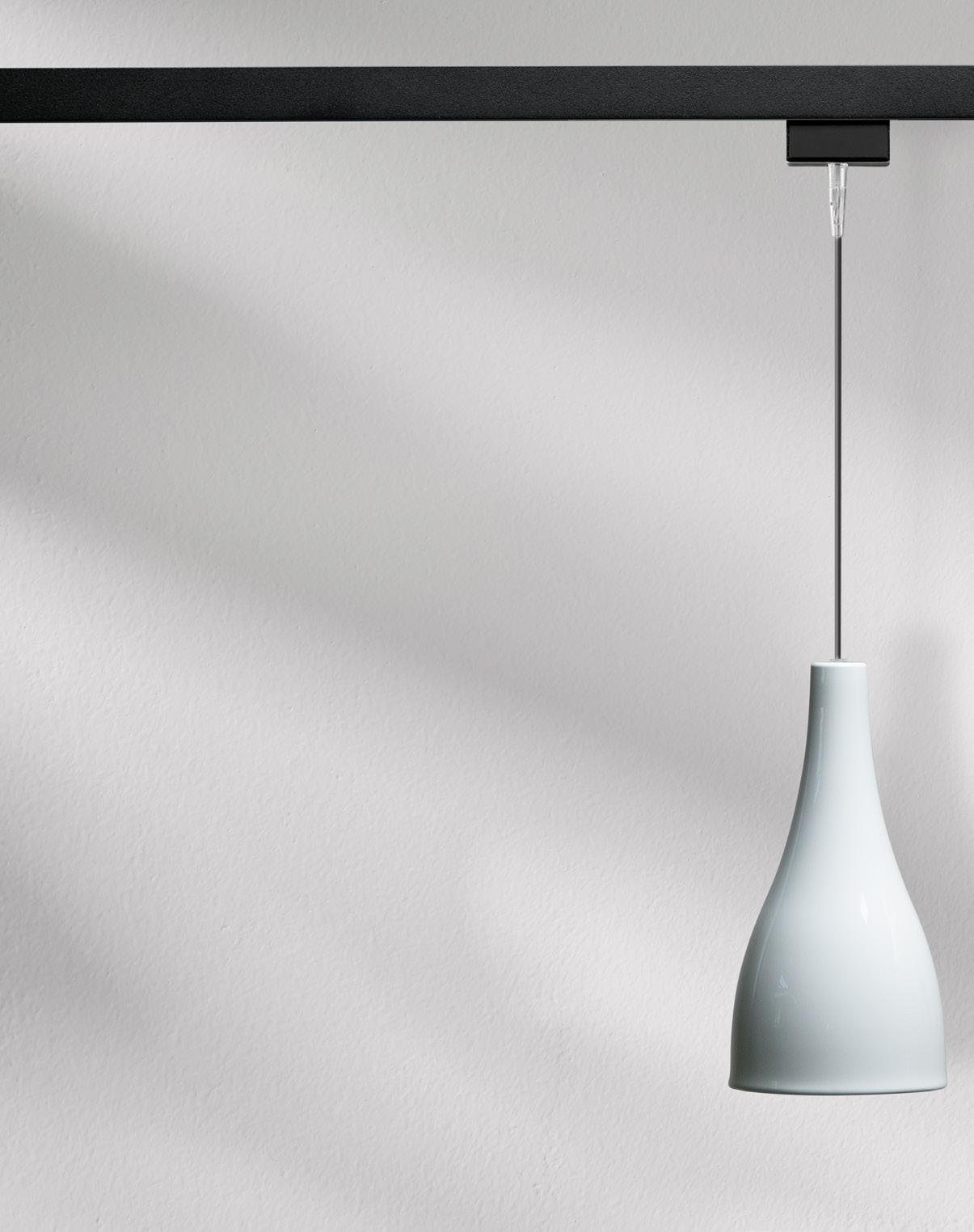

The WILLY 48V

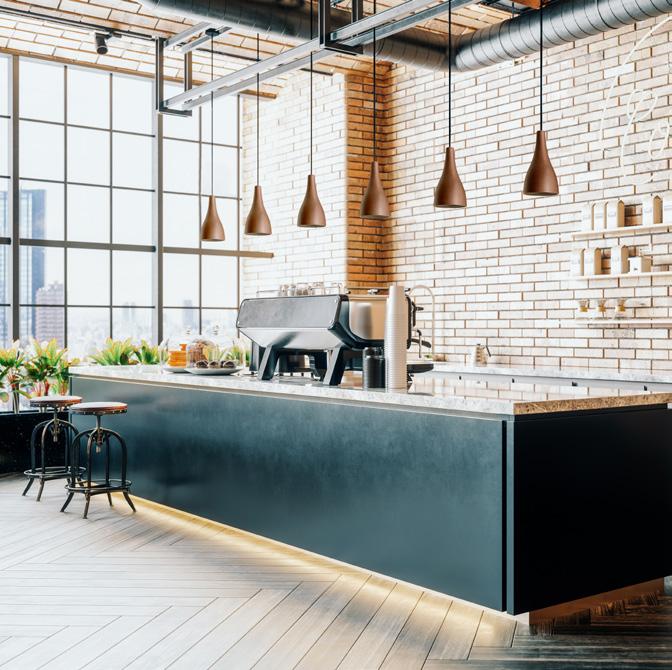

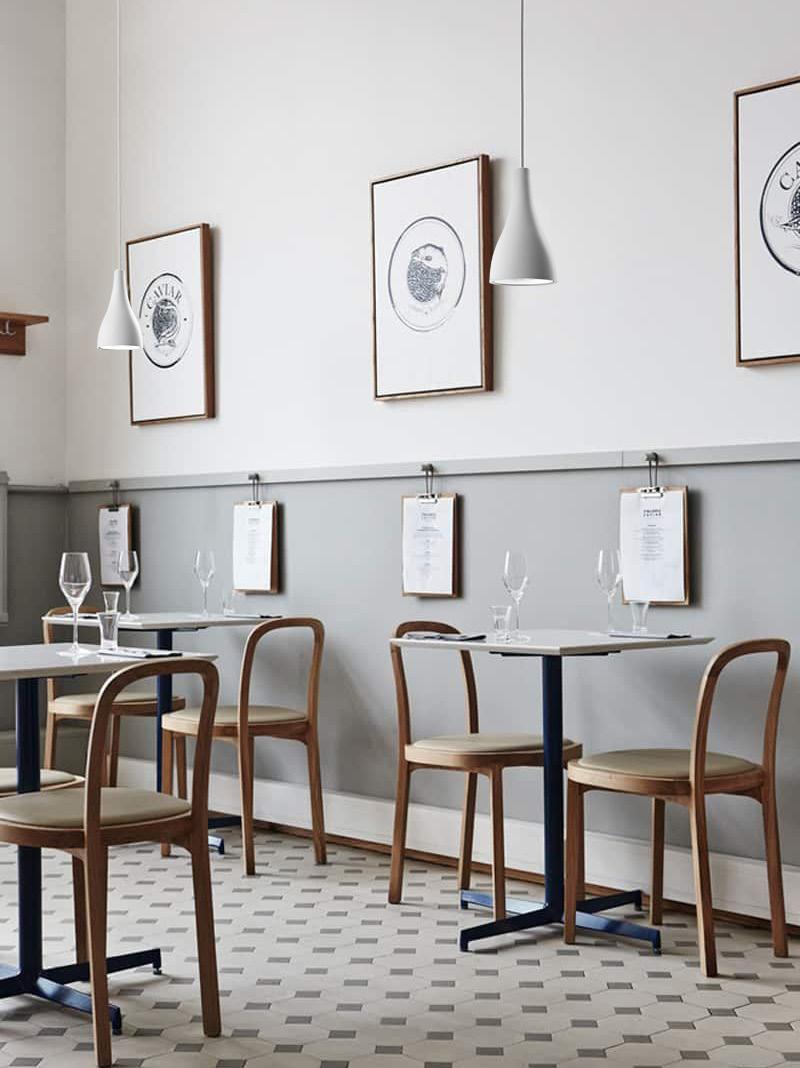

Track-mounted pendants are fantastic for multi-functional spaces such as bars, restaurants, canteens, or function rooms, where table layouts are apt to change and where you want the freedom to change the lighting layout.

WILLY 48V

DECORATIVE

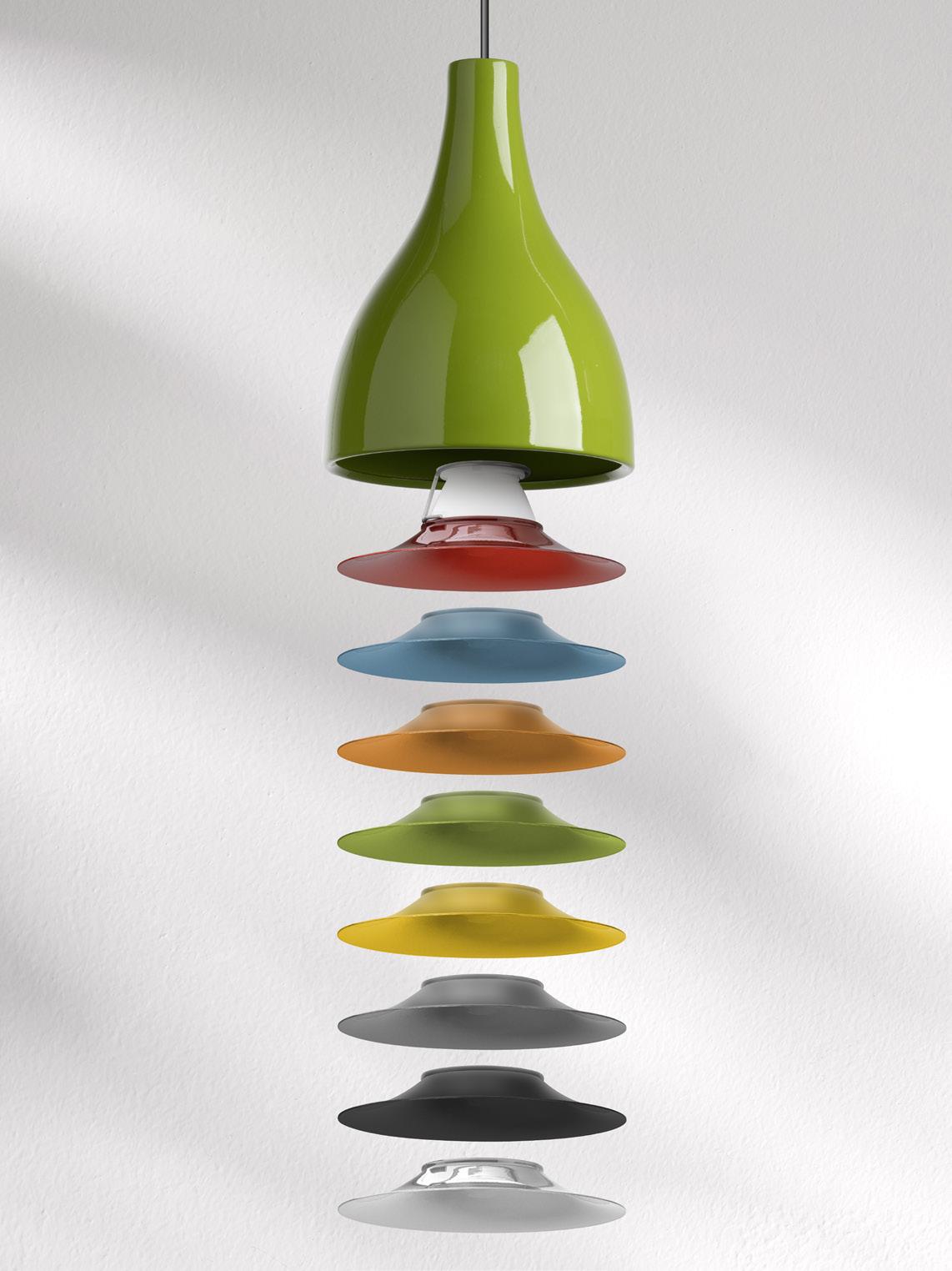

BEZEL FINISHES IN A RAINBOW OF FLAVORS

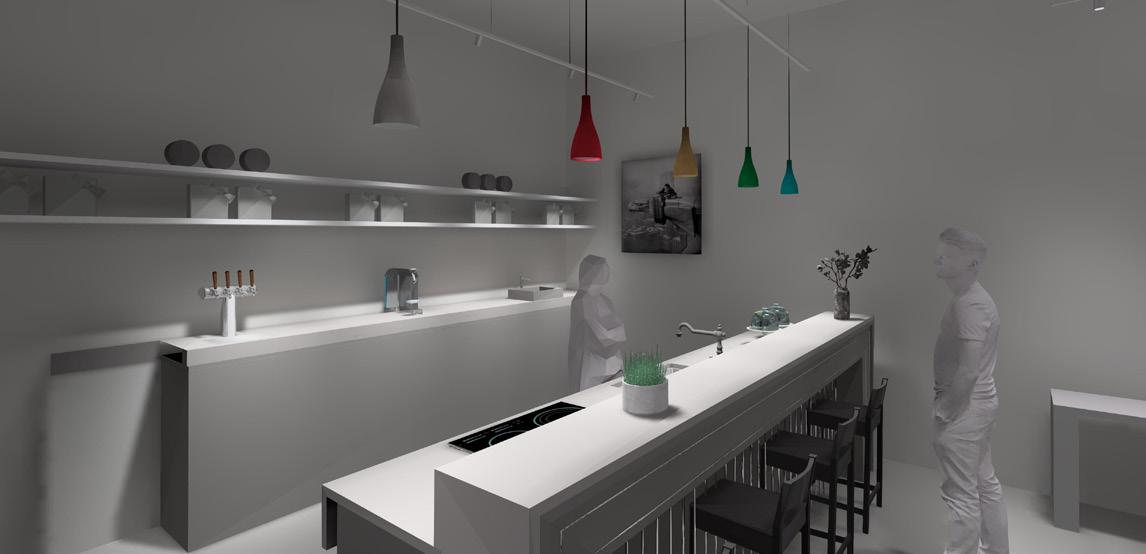

Retail Application

Flexible track pendants with flair

The WILLY 48V Small track suspensions allow you to characterize environments while maintaining high design flexibility.

13 ft

15 ft

Products Used

WILLY 48V Smalls with Flood optics on A.A.G. Stucchi MULTISYSTEM® EVO (48V) track suspended at a height of 10 ft.

fc 51

REVO SPOT 48V Smalls with Narrow Flood optics on A.A.G. Stucchi MULTISYSTEM® EVO (48 V) track suspended at a height of 10 ft.

WILLY 48V 52

WILLY 48V SUMMARY

Optics

Fixture Finishes

Inner Bezel Finishes

Color Rendering Options

CRI 90+ | CRI 95+

WILLY 48V Small

Size

WILLY Small

Control Options

• 0-10V Dimming 1%

• Phase Dimming 1%

Color Temperatures

Certifications

5YEARS

Output 700 lm

2700K 3000K 3000K 3500K 3500K 4000K 4000K

Matte

Italian

Glossy

Flood 35o Extra Wide Flood 75o

Track Adapter Finishes Concrete Grey Corten White White White Matte Black Matte Black Black Glossy Red

Blue

Brick Red

Yellow

Green

Grey Glossy Red Matte Blue Italian Brick Red Glossy Yellow Glossy Green Wide Flood 55o

Concrete

Max 63” Field Adjustable Ø4 ” 13 16 9 ” 3 8

Some exceptions, consult specification sheets for details. 55

NOTE:

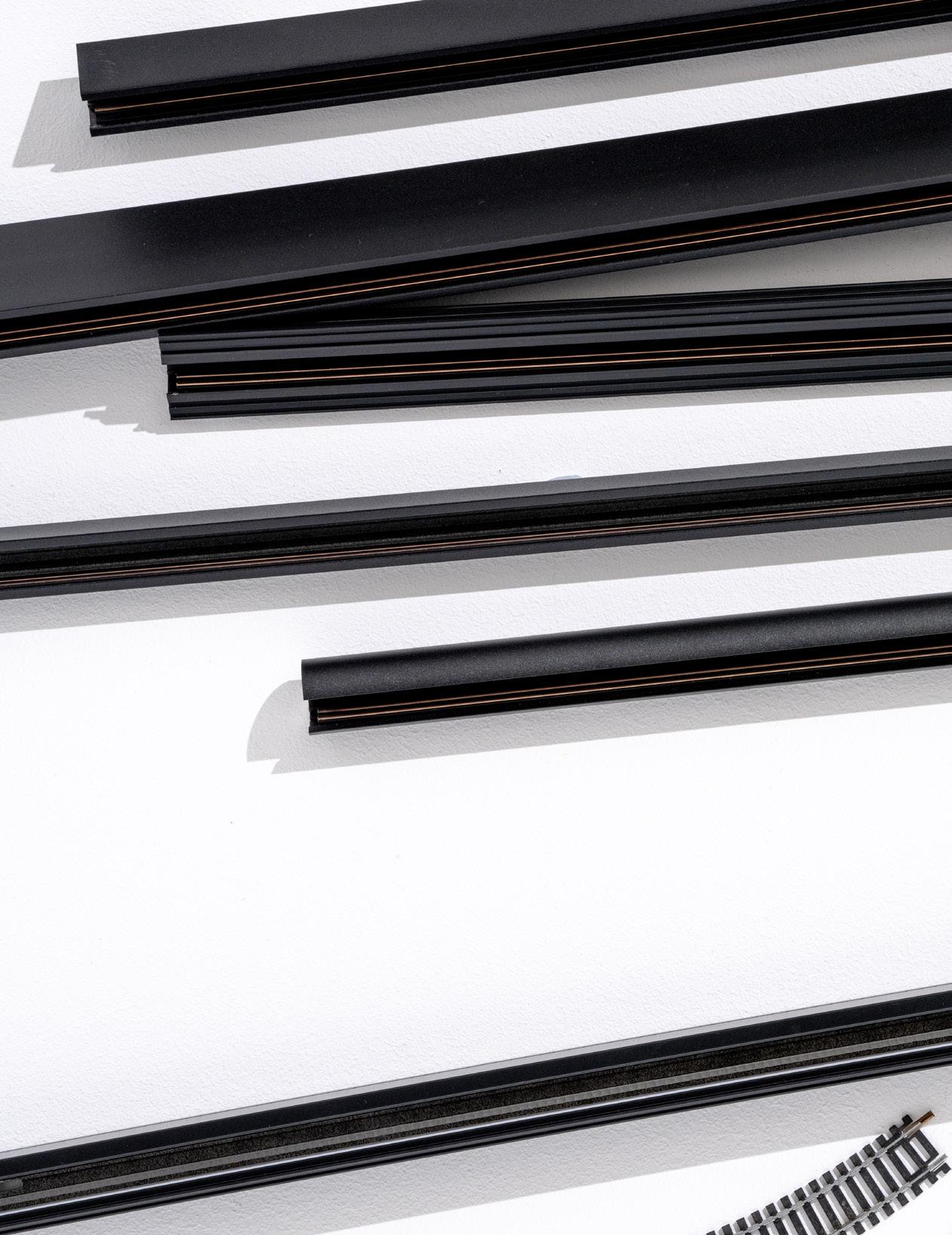

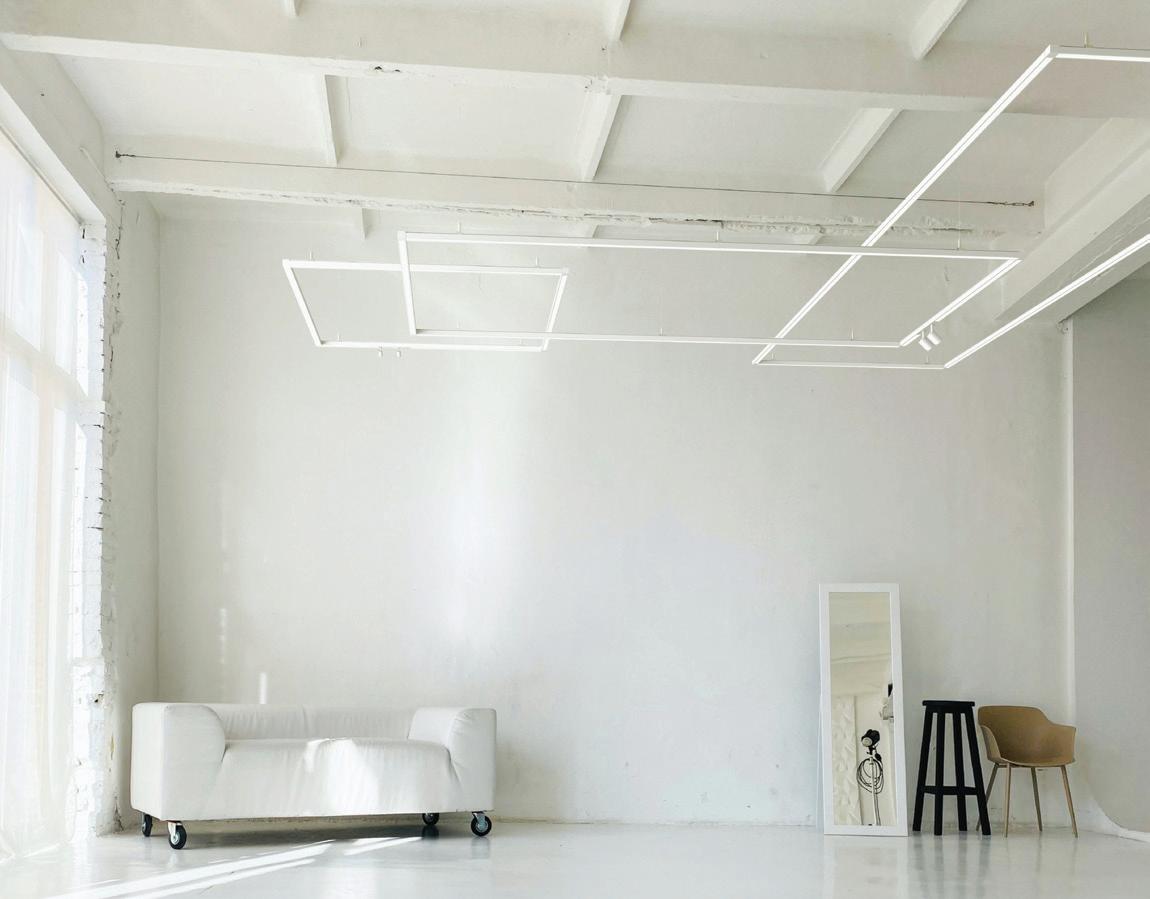

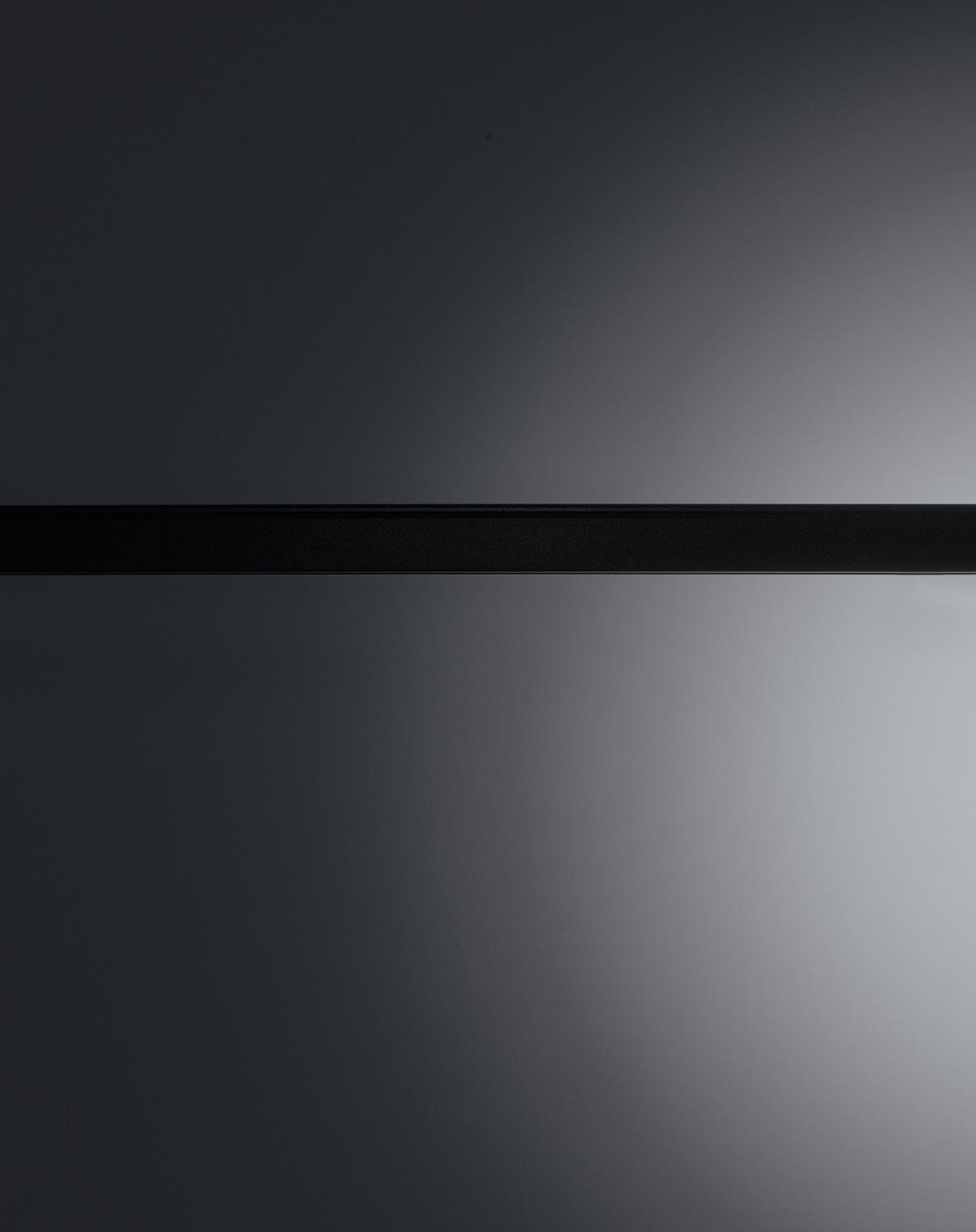

TRACKS

Every project has its unique challenges. The REVO SPOT track-mounted series provides flexible solutions with unique mountings that blend with various architectures while keeping your lighting design “on track.”

The 48V track options allow you to safely mount small form factor, highperformance track lighting for a multitude of applications.”
