CAD Development of the Appliance Plug

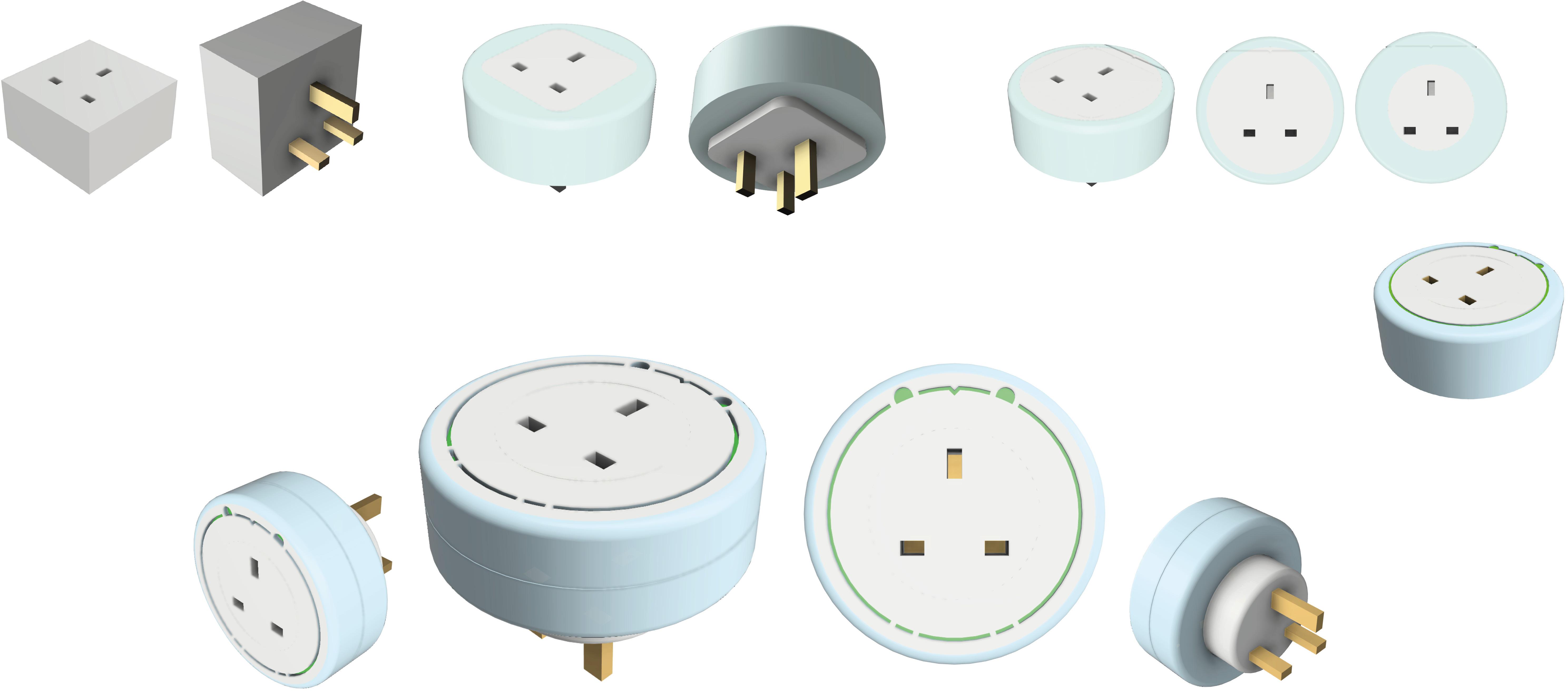

Initial design based around the UK specifications of a plug. Exploration of face details and tranformation into a complete circular form.

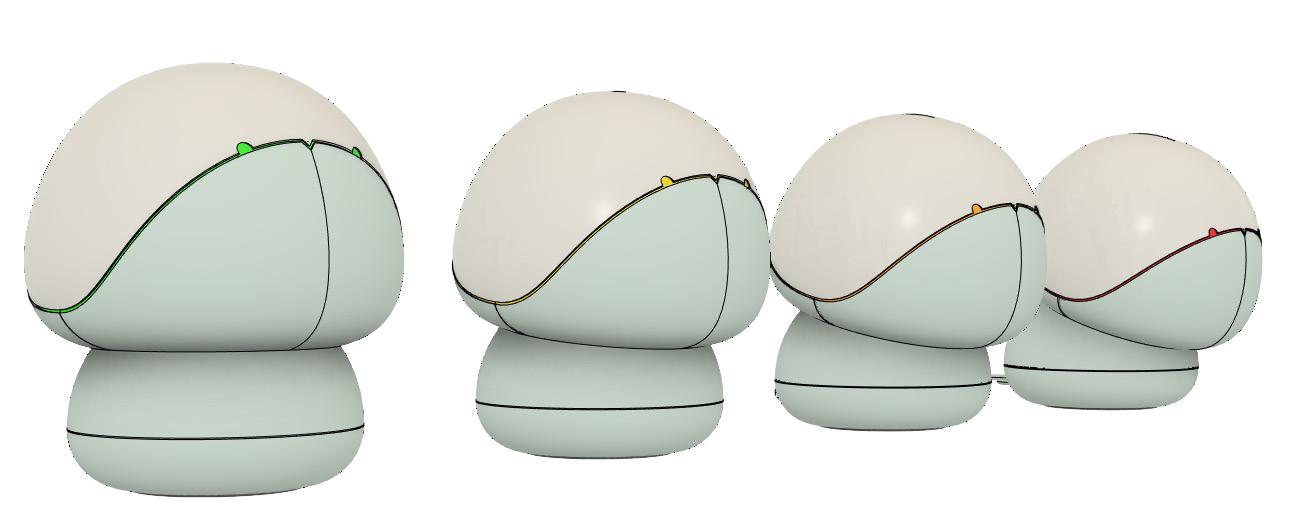

The implimention of a circular form for the main body. Addition of a developed face detail as seen in the final Hub device design. This also includes the lighting aspect to convey CF Rating.

The Final Design

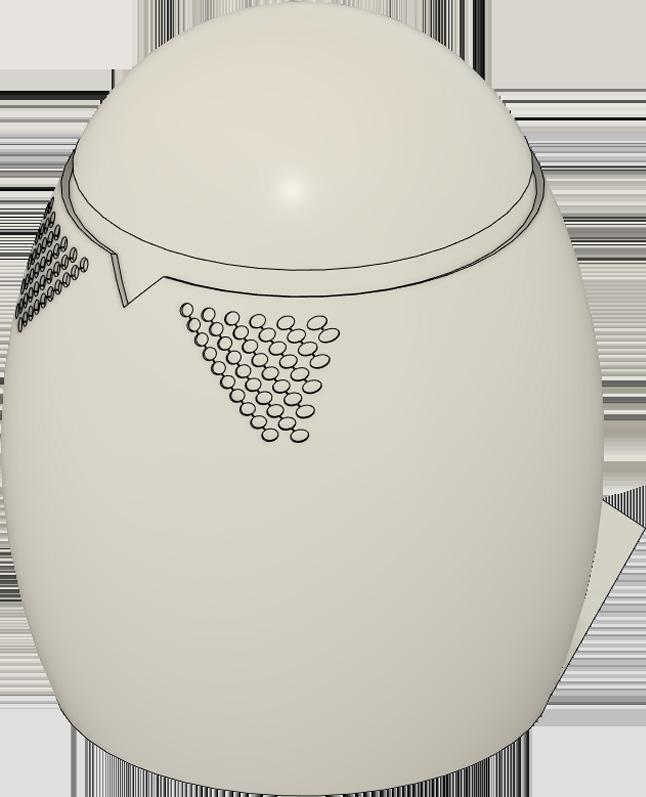

Includes engineering details, such as split lines, development of a more structural correct face detail and the structural support required for injection moulding.
