In a world where everyone has to depend on each other, MAFI wants to make your life easier.
For 31 years our customer relations have been just as important as the quality of our products. Knowing this, we have built the worldwide company we are today. On paper, MAFI is an engineering company that designs, tests, manufactures and delivers steelwork solutions.
Whatever it takes to get you there, we’re always prepared to go the extra mile; making us your preferred strategical partner.
MAFI is a EN 1090 certified organization, which means that our CE-marked kits comply with EN 1090-1, EN 1090-2 standards to Execution Class 2. During the product development process, every component is designed and optimized using Finite Element Analysis techniques. Prototypes are then physically tested and refined in our laboratory. Every design follows these guidelines:
• Make the kit as easy as possible to assemble and provide clear assembly instructions.
• The kit is packed in a small box as possible to ensure efficient storage and transport.
• Make the product as light as possible for easy handling on site.
Every kit comes with a data sheet with load tables. The load tables give the maximum ultimate vertical
and horizontal loads that may be applied to the kit. For bracket kits that can be clamped to tubular parent members — or support a tubular member — there is also a table of torque resistance for different standard tube diameters. MAFI provides CAD blocks for all kits and we can also provide Excel tools for checking brackets and freestanders.
Disclaimer:
Design recommendations given by MAFI concerning the use of a particular product are based on site information provided by the customer. MAFI provides a Declaration of Performance for the product itself, and it is the customer’s responsibility to ensure that imposed loads are within the capacity of the product.
It is always the responsibility of the site designer to verify that the parent structure is adequate to support the loads imposed by the product and that the installation of the product will comply with the installation instructions and with statutory and site owner’s rules and regulations.
Designed to carry a GPS unit attached to a vertical or inclined structural leg member. Back clamp is equipped with slotted holes for easy pre-assembling on the ground. The arm can be tilted 0° — 10°, and is designed with cable routing holes.
Additional information for this product can be found at www.mafigroup.com, the QR- code below, or email us at orderamericas@mafigroup.com.
Measurements in millimeters (inches)
Content of kit
35 × 35—80 × 80 mm
1.4 x 1.4—3.1 x 3.1 "
Ø25—114.3 mm
Ø1—4.5 "
35 × 35—80 × 80 mm
1.4 x 1.4—3.1 x 3.1 "
Performance
Load capacity (Fm): 2 kg (4.4 lb)
Maximum tilt: 10°
Parts list
Package data
Designed to carry a GPS unit attached to a vertical or inclined structural leg member and the arm can be tilted 0° — 35°.
This banded mounting design allows versatility to different shape and size supporting members.
Additional information for this product can be found at www.mafigroup.com, the QR- code below, or email us at orderamericas@mafigroup.com.
All measurements in mm (in).
"
mm
× 51—89 × 89 mm
x 2—3.5 x 3.5 "
*Ranges shown are for direct U-bolting.
Note: Slots accommodate up to 3/4" wide steel banding for parent members of larger diameter and width.
Load capacity (Fm): 2 kg (4.4 lb)
Maximum tilt: 35°
Parts list
Designed to allow an equipment pole to be offset from a parent pole or tower leg.
3273 is the smallest one and offers a maximum offset of 240 mm (9.4 in). 3263 and 3265 are the medium sized ones and with two different U-bolt kits for a larger range of offset members. Maximum offset for the 3263 is 420 mm (16.5 in) and for 3265 with the largest offset member mounted is 397 mm (15.6 in).
3272 has a maxmimum offset of 797 mm (31.4 in) and incorporates a double clamp to cope with the high torque loads imposed by antennas at that large offset. The hole pattern for 3272 is also suitable for option U-bolt kit 2867-1 This enables offset members to range up to 114.3 mm (4.5 in).
For more detailed product data see sections Bracket Properties, Rotational Slip Table and Package Data
Additional information for this product can be found at www.mafigroup.com, or use the QR-codes on next page.
Email us at orderamericas@mafi group.com to order or request additional information.
Contact information can be found at www.mafigroup.com
3272 3273 Content of kit 3272 3263 Content of kit 3263 Content of kit 3265Measurements in mm (in)
40 × 40 mm–120 × 120 mm
1.6 × 1.6 in–4.7 × 4.7 in
3263/-65/-73: Ø25–169 mm
Ø1–6.7 in 3272:
Ø48–193 mm
Ø1.9–15.5 in
40 × 40 mm–120 × 120 mm
1.6 × 1.6 in–4.7 × 4.7 in
3263/-72/-73: Ø60–76 mm
Ø2.4–3 in 3265, optional for 3272: Ø89–114 mm
Ø3.5–4.5 in
Ultimate transient man-load (Ft): 2.4 kN
Maximum side force (FS) 3263/-65: 1660 N
Maximum side force (FS) 3272: 1750 N
Maximum side force (FS) 3273: 2900 N
Load capacity (Fm) 3263/-65/-73: 120 kg (265 lb)
Load capacity (Fm) 3272: 60 kg (132 lb)
Rot. slip resistance (MR): See Rotational Slip Table

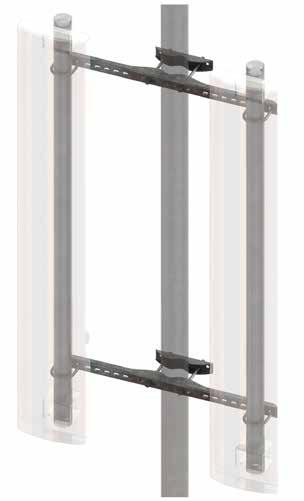

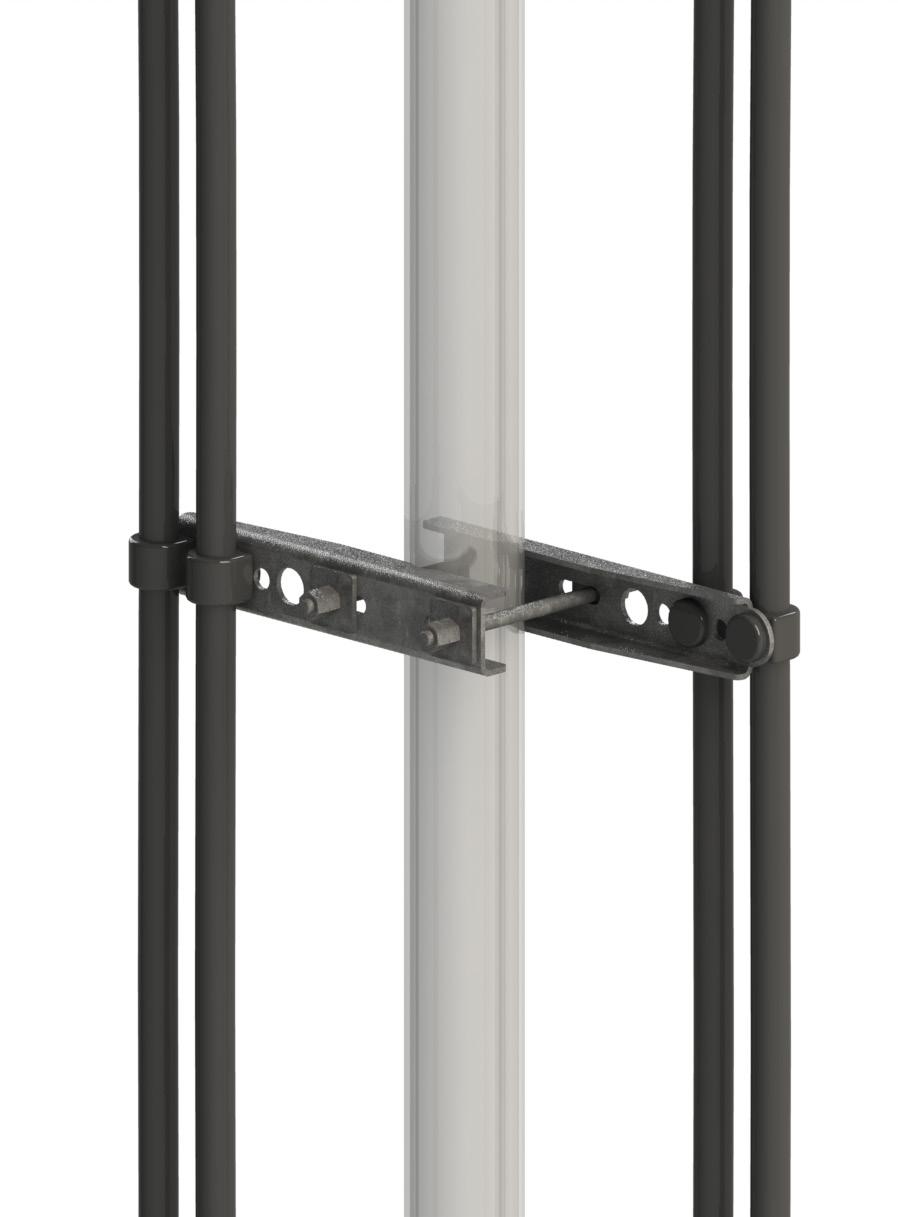

Designed to provide support for two similar antennas offseted symmetrically from a central parent pole. A third antenna may be mounted on the parent pole.
3268 is the smaller one with a maximum offset of 422 mm (16.6 in) between parent and offset pole. The bigger 3270 has a maximum offset of 850 mm (33.5 in). Maximum offset between the two offset members are 844 mm (33.2 in) and 1700 mm (66.9 in) respectively.
The hole pattern for 3268 is also suitable for option U-bolt kit 2867-1 This enables offset members to range up to 114.3 mm (4.5 in).
For more detailed product data see sections Bracket
Properties, Rotational Slip Table and Package Data
Additional information for this product can be found at www.mafi group.com, or use the QR-codes on next page.
Email us at orderamericas@mafi group.com to order or request additional information. Contact information can be found at www.mafigroup.com
Measurements in mm (in) 3268 3270
Ø76–169 mm Ø3–6.7 in
Ø60–76 mm Ø2.4–3 in Optional for 3268 : Ø88.9–114.3 mm Ø3.5–4.5 in
Ultimate transient man-load (Ft): 2.4 kN
Maximum side force/bracket (FS): 2000 N
Load capacity (Fm) 3268: 90 kg (198 lb)
Load capacity (Fm) 3270: 60 kg (132 lb)
Rot. slip resistance (MR): See Rotational Slip Table
3268
Designed for mounting an equipment pole on a parent pole or tower leg. The kit consists of a pair of brackets with all necessary fasteners.
Can be mounted on a circular or angle member. Offset poles for equipment can range from Ø 48.3–114.3 mm (1.9–4.5 in).
Email us at orderamericas@mafi group.com to order or request additional information. Contact information can be found at www.mafigroup.com
Offset member
Product options
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
Ultimate transient man-load (Ft): 2.4 kN
Maximum side force/bracket (FS): 4000 N
Load capacity (Fm): 250 kg (551 lb)
Rot. slip resistance (MR): See Rotational Slip Table
Angle options for 3610
Designed for mounting an equipment pole on a raking parent member in a perpendicular or oblique direction. The kits consist of a pair of brackets with all necessary fasteners.
The raking tower leg offset can carry equipment up to 250 kg (551 lb), offset member included.This can be useful when radio and antenna equipment is to be preassembled off site and then lifted and mounted to a tower.
The hole pattern on the 3610 front clamp is designed to allow oblique installation on angular tower legs.
The bracket arm can be fi xed at angles 45° or 60°, to the left or right, of the parent member. Offset poles for either kit can range from Ø 60.3–76.1 mm (2.4–3 in). When using the option 2867-1 the range increases up to 114.3 mm (4.5 in).
For more detailed product data see sections Bracket
Properties, Rotational Slip Table and Package Data
Additional information for this product can be found at www.mafi group.com, or use the QR-codes on next page.
Email us at orderamericas@mafi group.com to order or request additional information.
Contact information can be found at www.mafigroup.com
Rev 5
3610:
60 × 60–120 × 120 mm
2.4 × 2.4–4.7 × 4.7 in
3613:
120 × 120–200 × 200 mm
4.7 × 4.7–7.9 × 7.9 in
3610:
Ø76.1–139.7 mm
Ø3–5.5 in
3613:
Ø139.7–244.5 mm
Ø5.5–9.6 in
3610:
60 × 60–120 × 120 mm
2.4 × 2.4–4.7 × 4.7 in
3613:
120 × 120–200 × 200 mm
4.7 × 4.7–7.9 × 7.9 in
Optional:
Ø88.9–114.3 mm
Ø3.5–4.5 in
Maximum side force/offset arm (FS): 4000 N
Load capacity (Fm): 250 kg (551 lb)
Measurements in mm (in) 3610 3613 3610 3613 EN 1090 Rev 5 *Article 3610/3613 © 2023-2024 MAFI US. All rights reserved. GlobalProduct
Rot. slip resistance (MR): See Rotational Slip Table
Designed for mounting an equipment pole on a vertical parent member in a perpendicular or oblique direction. The kits consists of a pair of brackets with all necessary fasteners.
The vertical tower leg offset can carry equipment up to 250 kg (551 lb), offset member included.This can be useful when radio and antenna equipment is to be preassembled off site to and then lifted and mounted to a tower.
The hole pattern on the 3611/-12 front clamp is designed to allow oblique installation on angular tower legs. The bracket arms can be fi xed at angles 45° or 60°, to the left or right, of the parent member. Offset poles for either kit can range from Ø 60.3–76.1 mm (2.4–3 in). When using the option 2867-1 the range increases up to 114.3 mm (4.5 in).
For more detailed product data see sections Bracket
Properties, Rotational Slip Table and Package Data
Additional information for this product can be found at www.mafi group.com, or use the QR-codes on next page.
Email us at orderamericas@mafi group.com to order or request additional information.
Contact information can be found at www.mafigroup.com
Content of kit 3611 Angle options for 3611 and 3612 Content of kit 3612 Content of kit 36143611
3611/-12:
3612
Measurements M R
mm 3614
© 2019–2020 MAFI AB. All rights reserved. *Article 3611/3612/3614/3615 Rev 5
© 2023-2024 MAFI AB. All rights reserved.
2.4 × 2.4–4.7 × 4.7 in 3614/-15:
120 × 120–200 × 200 mm
3611/-12: Ø76.1–139.7 mm
in 3614/-15: Ø139.7–244.5 mm Ø5.5–9.6 in 3611/-12:
60 × 60–120 × 120 mm
2.4 × 2.4–4.7 × 4.7
3614/-15:
120 × 120–200 × 200 mm
Offset member
4.7 × 4.7–7.9 × 7.9 in Ø60–76 mm Ø2.4–3 in Optional:
Ø88.9–114.3
Performance
Maximum side force/offset arm (FS): 4000 N
Load capacity (Fm): 250 kg (551 lb)
Ø3.5–4.5 in 3612 3611 3615 3614 EN 1090 Rev 5 *Article 3611/3612/3614/3615
Rot. slip resistance (MR): See Rotational Slip Table
Designed to accommodate three large panel antennas attached to a single spine pole.
The mounts will fit spine poles ranging from Ø76–114.3 mm/3–4.5 in.4415 provides an offset of 126 mm/5 in from the equipment pole center to the face of the spine pole. 4418 provides an offset of 226 mm/8.9 in from the equipment pole center to the face of the spine pole. The equipment poles can be Ø 60.3 or 76.1 mm/2.4 or 3 in.
Detailed design data for this product can be found at www.mafi .se.
Email us at orderamericas@mafi group.com to order or request additional information. Contact information can be found at www.mafigroup.com
Measurements in mm (in)
Parent member
Offset member
Product options
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
Ultimate transient man-load (Ft): 2.4 kN
Maximum side force (FS): 4000 N
Load capacity/offset arm (Fm): 60 kg (132 lb)
Rot. slip resistance (MR): See Rotational Slip Table

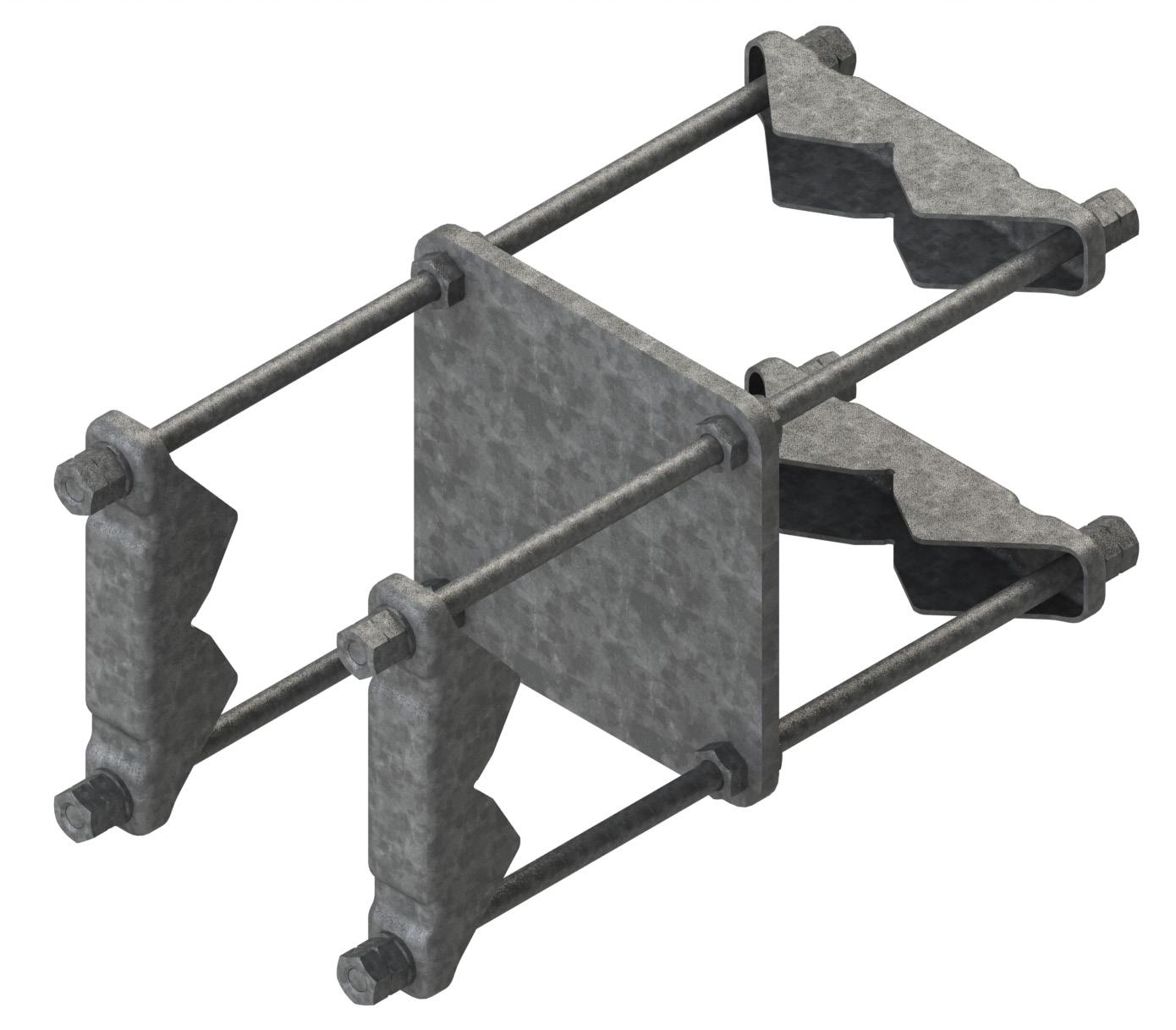

Designed to provide perpendicular joints between solid or thick-walled circular and square members.
Fits circular members ranging from Ø 25–60 mm (1–2.4 in) and square members ranging from 50 × 50–60 × 60 mm (2 × 2–2.4 × 2.4 in).
See 5320/5321 for larger kits.
For more detailed product data see sections Bracket Properties
Additional information for this product can be found at www.mafigroup.com, or use the QR-codes on next page.
Email us at orderamericas@mafi group.com to order or request additional information.
Contact information can be found at www.mafigroup.com
Product options
Designed to provide perpendicular
joints between circular and square members.
5320 fits circular members of Ø 76.1 mm (3 in) and square members ranging from 50 × 50–60 × 60 mm (2 × 2–2.4 × 2.4 in). 5321 fits circular members of Ø 114.3 mm (4.5 in) and square members ranging from 50 × 50–60 × 60 mm (2 × 2–2.4 × 2.4 in).
See 5310/5311/5312 for smaller kits.
For more detailed product data see sections Bracket Properties, and Rotational Slip Table
Additional information for this product can be found at www.mafigroup.com, or use the QR-codes on next page.
Email us at orderamericas@mafi group.com to order or request additional information.
Contact information can be found at www.mafigroup.com
Measurements in mm (in)
5320 5321
Parts list
Parent member
50 × 50–60 × 60 mm
Offset member
2 × 2–2.4 × 2.4 in 5320: Ø76.1 mm
Ø3 in 5321: Ø114.3 mm
Ø4.5 in
Maximum side force (FS): 3875 N
Load capacity/joint (Fm): 100 kg (220 lb)
Rot. slip resistance (MR): See Rotational Slip Table
Product options
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
2.38 x 2.38
Designed to provide perpendicular joints between two circular members.
For more detailed product data see Supports and Brackets section. This product can be found at www.mafigroup.com, the QR- codes on the next page, or email us at orderamericas@mafigroup.com.
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
Maximum side force(FS): 2000 N
Load capacity (Fm): 200 kg (441 lb)
2.38 x 2.88
Designed to connect one circular member of Ø 60.3 mm (2.38 in) to another circular member of Ø 73 mm (2.88 in).
For more detailed product data see Supports and Brackets section.
Email us at orderamericas@mafi group.com to order or request additional information.
All measurements in mm (in).
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
This kit provides versatility to mount standard pipe sizes. Pipe range from 2.4 in.- 4.5 in. OD (60-114.3mm) on either side.
It is strongly recommended to order this part in pairs for optimal function. For more detailed product data see sections Bracket Properties and Rotational Slip Table.
Email us at orderamericas@mafigroup.com to order or request additonal information.
AT&T PN: ANT.55245
Parts list
Product options
Ø60–114.3 mm Ø2.4–4.5 in
Offset member
mm Ø2.4–4.5 in
Performance
Maximum side force/bracket (FS): 1500 N
Load capacity (Fm): 150 kg (330 lb)
F m Americas Product
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI. 8474
This kit provides versatility to mount standard pipe sizes. Its full threaded rods allow for ease of installation. Pipe range from 2.4 in.- 4.5 in. OD (60-114.3mm) on either side.
It is strongly recommended to order this part in pairs for optimal function. For more detailed product data see sections Bracket Properties and Rotational Slip Table
Email us at orderamericas@mafigroup.com to order or request additonal information.
AT&T PN: ANT.55244
All measurements in mm (in).
Parent member
mm
in
Offset member
mm
in
Performance
Maximum side force/bracket (FS): 1500 N
Load capacity (Fm): 150 kg (330 lb)
Parts list
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
Designed to provide mounting opportunity on to existing luminaire or highway infrastructure.
This close contact slender pole mount delivers a 360 degree coverage for 3 or 6 sector configurations. Ideal for high traffic and urban areas where existing infrastructure is limited.
Additional information for this product can be found at www.mafigroup.com, the QR- code on the next page or email us at orderamericas@mafigroup.com.
All measurements in mm (in).
Parts list (per kit)
Fasteners
Product options
Vertical pipe not included. Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI
Ø141.3–219 mm Ø5.56–8.63 in
Performance
No Ice Conditions
Fm = 82 kg (180 lb.)
Ff = 3,560 N (800 lb.)
Fs = 1,560 N (350 lb.)
Ice Conditions
Fm = 320 kg (700 lb.)
Ff = 535 N (120 lb.)
Fs = 270 N (60 lb.)
*All loads shown are factored per antenna pipe. Wind loads are not concurrent.
Set-up shown requires 2 kits.
Parent member © 2023–2024
Universal Remote Radio Bracket
Page 38
Back-to-Back Radio Mount Page 44
Large Radio Mount Page 48
Large Radio Mount Page 48
Designed to carry a variety of radio brands attached to universal C-rail system.
The Universal Remote Radio Bracket is developed to accomodate remote radio units by Ericsson, Huawei and Nokia. See equipment hole patterns on next page for c/c measurements, and also functional layout for attaching to C-rail system. For equipment with a horizontal c/c wider than 80 mm (3.15 in) an extra bracket is needed. The key hole pattern on the bracket makes it easy to mount, and all necessary bolts and channel nuts are included in the kit.
For package data see section Package Data
Additional information for this product can be found at www.mafigroup.com, or use the QR-code on next page.
Email us at orderamericas@mafigroup.com to order or request additonal information.
Measurements in mm (in)
Product options
Performance
Load capacity (Fm): 50 kg (110 lb)
Maximum side force (FS): 540 N
This product is a portrait-style low profile back-to-back radio mount that fits equipment with M10 fixed horizontal C-C 146 mm (5.75") or M8 dynamic horizontal C-C up to 193 mm (7.6"). Since the upper and lower arms are independent, equipment of dissimilar sizes can be mounted together, without adding weight, EPA or complexity.
The arms are also the clamps, for quick and easy installation.
Additional information for this product can be found at www.mafigroup.com, the QR- codes on the next page, or email us at orderamericas@mafigroup.com.
AT&T PN: ANT.55248
All measurements in mm (in).
This kit is designed to mount two large radios and provides flexibility to control radio offset and mounting position. Accommodates wide range of radio hole patterns. Adjusts to round support members from 2.4 in.-4.5 in. OD (60-114.3mm).
For more detailed product data see Radio Brackets section
Email us at orderamericas@mafigroup.com to order or request additonal information.
All measurements in mm (in).
Ø60–90 mm
Ø2.4–3.5 in
Maximum side force/bracket (FS): 2000 N
Load capacity: 60 kg per side (132 lb)
Rot. slip resistance (MR): See Rotational Slip Table
Parts list
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
This bracket offers ±30° azimuth adjustment and can handle units up to 35kg. Indicator for azimuth is integrated and brackets are preassembled at delivery.
Additional information for this product can be found at www.mafigroup.com, the QR- codes on the next page, or email us at orderamericas@mafigroup.com.
All measurements in mm (in).
MAFI
Heavy Duty Wall Mount Page 76
MAFI 2415
Remedial Wall Mount Page 78
MAFI
Medium Duty Wall Mount Page 72
Large Offset Wall Mount Page 74
Corner Wall Mount Page 82
Designed to provide a pole mount on a wall.The product is dimensioned to carry heavy poles and equipment in two different confi gurations.
The product can be mounted either directly to brick or concrete wall, or using through-mounts with reinforcement on the back. Equipment poles can range from Ø 101.6–114.3 mm (4–4.5 in).
Additional information for this product can be found at www.mafigroup.com, the QR- code below, or email us at orderamericas@mafigroup.com
Content of kit
Ultimate transient man-load (Ft): 2.4 kN
Maximum side force (FS): 12000 N
Rot. slip resistance (MR): See Rotational Slip Table
Configuration 1:
Load capacity (Fm): 500 kg (1102 lb)
Configuration 2:
Load capacity (Fm): 240 kg (529 lb)
Designed to strengthen an existing wall mounted circular member that has been deemed unsuitable. Installation can be carried out while both existing member and equipment are left in place. The adjustable offset arm enables this solution t o work with most existing wall mounted assemblies.
Additional information for this product can be found at www.mafigroup.com, the QR- code below, or email us at orderamericas@mafigroup.com.
Measurements in millimeters (inches)
Content of kit
Designed for mounting an equipment pole on a wall. The kit is dimensioned to carry medium-weight tubes and equipment mounted between the wall brackets. The kit consists of a pair of brackets with all necessary U-bolts.
The product can be mounted either directly to brick or concrete walls, or using through-mounts with back plates. Equipment poles can range from Ø 60–114.3 mm (2.4–4.5 in).
For more detailed product data see sections Wall Bracket Properties, Rotational Slip Table and Package Data Additional information for this product can be found at www.mafi group.com, or use the QR-code on next page.
Additional information for this product can be found at www.mafigroup.com, the QR- code on the next page, or email us at orderamericas@mafigroup.com Content of kit
Measurements in mm (in)
Ø60–114.3 mm Ø2.4–4.5 in
Ultimate transient man-load (Ft): 2.4 kN
Load capacity (Fm): 100 kg (220 lb)
Maximum side force/bracket (FS): 1200 N
Rot. slip resistance (MR): See Rotational Slip Table
Designed for mounting an equipment pole on a wall when a large clearance is required. The product is dimensioned to carry medium-weight tubes and equipment mounted between the wall brackets. The kit consists of a pair of brackets with all necessary U-bolts.
The product can be mounted either directly to brick or concrete walls, or using through-mounts with back plates. Equipment poles can range from Ø 60–114.3 mm (2.4–4.5 in).
For more detailed product data see sections Wall Bracket
Properties, Rotational Slip Table and Package Data
Additional information for this product can be found at www.mafi group.com, or use the QR-code on next page.
Additional information for this product can be found at www.mafigroup.com, the QR- code below, or email us at orderamericas@mafigroup.com.
Measurements in mm (in)
Ø60–114.3 mm Ø2.4–4.5 in
Ultimate transient man-load (Ft): 2.4 kN
Load capacity (Fm): 100 kg (220 lb)
Maximum side force/bracket (FS): 2300 N
Rot. slip resistance (MR): See Rotational Slip Table
Designed to provide a pole mount at the corner of a wall with a clearance of 50 mm (2 in). The product is dimensioned to carry medium-weight tubes and equipment mounted between the wall brackets. The kit consists of a pair of brackets with all necessary U-bolts.
The product can be mounted either directly to brick or concrete walls, or using though-mounts with back plates. Equipment poles can range from Ø 60–114.3 mm (2.4–4.5 in).
Additional information for this product can be found at www.mafigroup.com, the QR- code below, or email us at orderamericas@mafigroup.com
Measurements in mm (in)
Ø60–114.3 mm Ø2.4–4.5 in
Performance
Ultimate transient man-load (Ft): 2.4 kN
Load capacity (Fm): 100 kg (220 lb)
Maximum side force/bracket (FS): 2300 N
Rot. slip resistance (MR): See Rotational Slip Table
Roof Butler
Page 98
Page 100
Designed as a free standing equipment pole for low wind-load generating equipment such as RRUs placed in areas of low risk. The 4120 is assembled on site allowing it to be carried by one man alone in components weighing less than 25 kg (55.1 lb).
The Roof Butler is horizontally adjustable up to 6°, so that the pole will always be vertical.
For this free standing structure, the critical dimensioning parameter is the ability to resist overturning moment. Wind forces, dimensions and equipment weight must be taken into consideration when designing.
This free standing structure must be equipped with a minimum ballast weight of 25 kg (55.1 lb).
All equipment must always be placed as evenly distributed as possible.
A stability calculation should be done in every case – If you need help, please contact MAFI.
Additional information for this product can be found at www.mafigroup.com, the QR- code on the next page, or email us at orderamericas@mafigroup.com.
Measurements in mm (in)
Load capacity (Fm)*: 240 kg (529 lb) (Exluding roof butler weight)
Maximum overturning moment (MO): 800 Nm (Including roof butler weight)
Lever arm for overturning moment calculation: 0.32 m (1.05 ft)
Maximum tilt: 6°
*Minimum ballast weight: 25 kg (55.1 lb) All equipment must always be placed as evenly distributed as possible.
Designed as a free standing equipment pole for low wind-load generating equipment such as RRUs placed in areas of low risk. The 4112 is assembled on site allowing it to be carried by one man alone in components weighing less than 25 kg (55.1 lb).
The pole on the free stander light is horizontally adjustable up to 6°, so that the pole will always be vertical.
For this free standing structure, the critical dimensioning parameter is the ability to resist overturning moment. The fi gure stated in "Performance" on the next page must be higher than the moment applied by the ultimate wind loads acting on the pole and the supported equipment. A stability calculation should be done in every case - if you need help, please contact MAFI.
Additional information for this product can be found at www.mafigroup.com, the QR- code on the next page, or email us at orderamericas@mafigroup.com.
Measurements in mm (in)
Product options
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
Maximum overturning moment with 3 concrete blocks* (MO): 265 Nm
*Each concrete block must weigh at least 20 kg (44.1 lb)
MAFI 4260, 4261, 4262
Antenna Cable Holder Family Page 128
MAFI 4263
Antenna Cable Support Dual Page 128
MAFI 4273
Small Cable Holder Double Page 128
MAFI 4276
Tower Leg Cable Holder Page 128
MAFI 32655
Cable Holder Family Page 124
MAFI 4270, 4271
Radio Cable Holder Family Page 130
MAFI 4272
Radio Cable Support Double Page 128
MAFI 8427
Small Antenna Banded Page 128
MAFI 8429
Triple Coax Snap Hanger Page 128
MAFI 912241
Adapter Bracket Page 128
Designed to hold cables with standard snap-ins. Fits 2.375" OD and 2.875" OD pipes. Add extension kit 4261 to the base kit 4260 to make it into the complete product 4262.
Additional information for this product can be found at www.mafigroup.com, the QR- code on the next page, or email us at orderamericas@mafigroup.com.
Measurements in mm (in) Package data
mm Ø2.4–3.0''
Product options
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
Designed to hold cables with standard snap-ins. Fits 1.9"- 3" OD pipes.
For more detailed product data see Accessories section. This product can be found at www.mafigroup.com, the QR- codes on the next page, or email us at orderamericas@mafigroup.com.
All measurements in mm (in).
Ø48.3–76.2 mm Ø1.9–3 in
Load capacity (Fm): 20 kg (45lb)
Rot. slip resistance (MR): See Rotational Slip Table
Parts list
Product options
Dual sided cable holders designed to hold cables with standard snap-in hangers. Can hold up to 6 standard snap-in hangers. Adjusts to round support members from 2.4 in.- 2.9 in. OD (60-74 mm).
For more detailed product data see Accessories section
Email us at orderamericas@mafigroup.com to order or request additonal information.
ATT PN: ANT.55243
All measurements in mm (in).
Tubes of various lengths, diameters and wall thicknesses can be ordered from MAFI.
Designed to hold cables with standard snap-in hangers. Can hold up to 6 standard snap-in hangers. Adjusts to round support members up to 6.625" OD (168.3 mm) and other various shapes up to 8". Refer to Parent Member section for details.
For more detailed product data see Accessories section
How to Order
Email us at orderamericas@mafigroup.com to order or request additonal information.
All measurements in mm (in).
Parent member
51x51mm -- 152x152 mm
2x2" - 6x6"
51x51mm -- 203x203 mm
2x2 - 8x8"
Ø38.1 - 168.3 mm
Ø1.50 - 6.625"
51x51mm -- 152x152mm
2x2"- 6x6"
203mm x 152mm
8"x6"
Parts list
Designed as an easily-fi tted tower-leg clamp to accommodate a number of feeder cables.
The different models in the family can accommodate tubular tower-legs ranging from Ø 20–193 mm (0.8–7.6 in), and angle legs from 60 × 60–130 × 130 mm (2.4 × 2.4–5.1 × 5.1 in).
Additional information for this product can be found at www.mafigroup.com, or use the QR-codes on next page.
Email us at orderamericas@mafigroup.com to order or request additonal information.
Measurements in mm (in)
32664: 60 × 60 mm–130 × 130 mm 2.4 × 2.4 in–5.1 × 5.1 in
Ø20–50 mm
in
in
mm
Ø88.9–114.3 mm
in
Ø35–76.1 mm Ø1.4–3 in
Ø88.9–114.3 mm
3.5–4.5 in
Ø76.1–193 mm
3–7.6 in
Designed to hold cables with standard snap-in hangers and can hold up to 3 standard snap-in hangers.
For more detailed product data see Accessories section
How to Order
Email us at orderamericas@mafigroup.com to order or request additonal information.
All measurements in mm (in)
Accommodates(2) 10mm (3/8") fasteners on a 191mm (4.52") pattern.
*H
Designed to support a small and light weight antenna. This bracket can be mounted on circular or any boxed member.
This banded mounting design allows versatility to different shape and size supporting members.
Additional information for this product can be found at www.mafigroup.com, the QR- code below, or email us at orderamericas@mafigroup.com.
All measurements in mm (in).
Ø42.1 mm (Min) * Ø1.66" (Min.) *
42.1 mm (Min. width) * 1.66" (Min. width) *
Load capacity (Fm): 1.3 kg (3 lb)
*Values shown are recommended minimums. Note: 1/2" wide steel banding support design accommodates larger parent members. Parts list

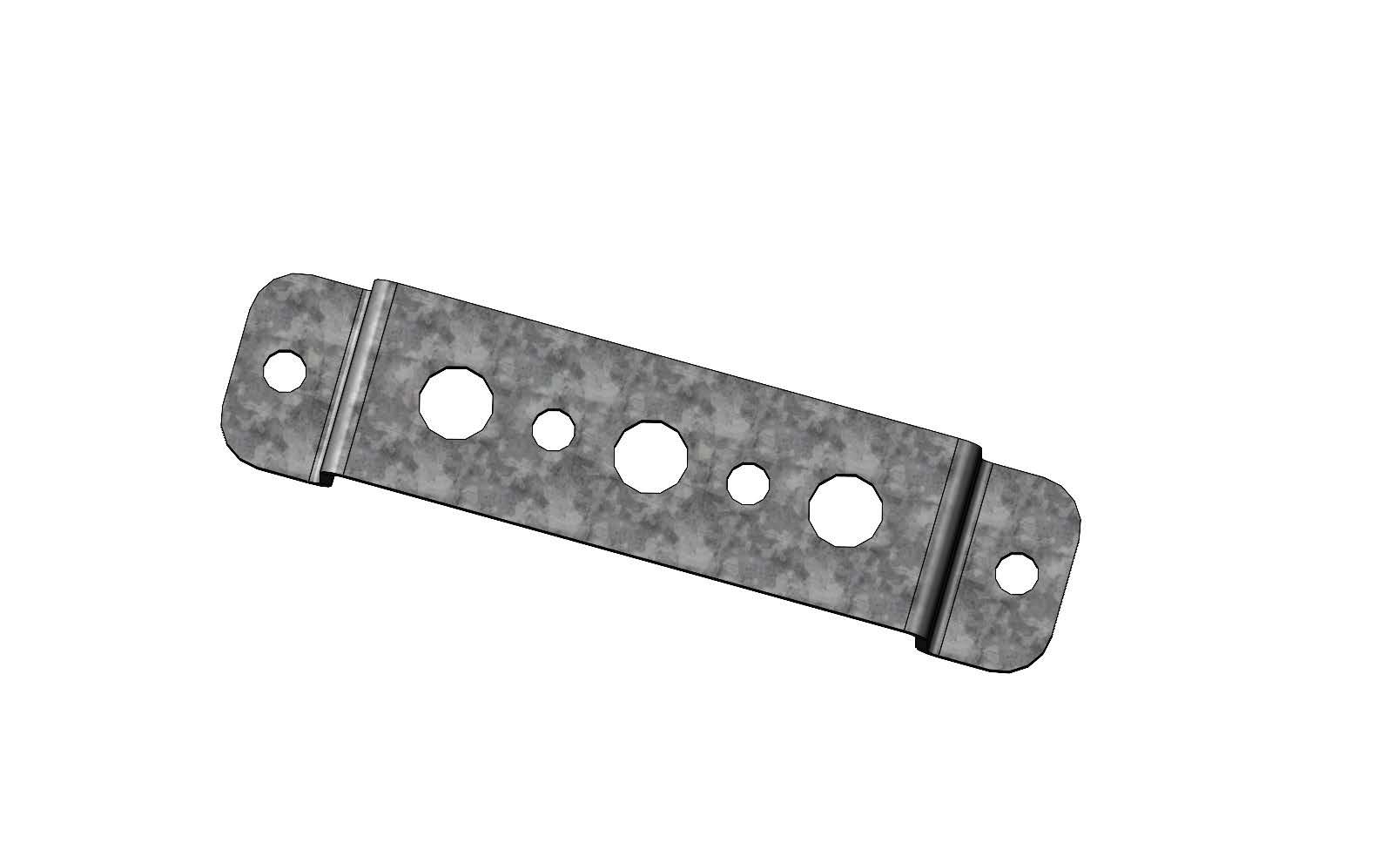

This bracket is designed to adapt X series x mm hole pattern to x mm hole pattern.
Additional information for this product can be found at www.mafigroup.com, theQR-code below, or email us at orderamericas@mafigroup.com.
Parts list
Part
MaterialQuantity
BracketS355MCHDG1
*Mounting nuts available upon request.
MAFI AB - Mora Seljavägen 15 792 95 Mora info@mafigroup.com
MAFI US Inc Ltd - Dallas 2701 E State Highway 121 Suite 630 Lewisville, TX 75056 orderamericas@mafigroup.com
MAFI East Africa Limited - Nairobi Katko complex LR No 14977, Unit 32. Old Mombasa Rd, Opposite Nairobi SGR Terminus. eastafrica@mafigroup.com
MAFI Ltd Co - Shanghai 7F, No.968 West Beijing Road, Jingan china@mafigroup.com
Elektroskandia Sweden AB Norrvikenleden 97 SE-191 83 Sollentuna, Sweden www.elektroskandia.se
Ahlsell Ahlsell Sweden AB Årstaängsvägen 11 Liljeholmen/Stockholm www.ahlsell.se
Regoort Network Infrastructure Griendwerkersstraat 11 3334 KB Zwijndrecht, The Netherlands www.regoort.nl
Graphicshow Cable Accessories (GCA) Ltd Ronell Place 41A Shire Hill Industrial Estate Saffron Walden, Essex CB11 3AQ United Kingdom www.gcaltd.co.uk
Elektroskandia (Shanghai) Co.,Ltd. 355 Qin Qiao Road, Jinqiao Export Processing Zone, 201206, Shanghai, P.R.China www.elektroskandia.com.cn
ESK India Commerse & Trade Pvt Ltd 229/239, Rectangle No. 51 Khasra No. 02, Vill.Kherki Daula Near Haldirams, Gurgaon-122004, India www.eskindia.in
