SITE Solutions

Helt siden ice lanserte mobiltelefoni og startet utbygging av mobilnettet vårt har vi hatt ett mål for øyet; å utfordre og forbedre det norske mobilmarkedet, til det beste for norske bedrifter og forbrukere.

ice ble våren 2022 en del av det norske energi og telekomkonsernet Lyse og fra våren 2024 er Altibox, ice og NiceMobil samlet i én felles organisasjon: Lyse Tele AS.

Lyse er en av de største og ledende infrastruktur- og teletjenesteleverandører i Norge og forvalter de nasjonale merkevarene Altibox, ice og NiceMobil.

Lyse besitter svært moderne og landsdekkende digital infrastruktur, og ice har nå like stor andel av 5G-frekvensene som den største aktøren i markedet.

Vår målsetning er å rulle ut 5G over hele landet for både mobiltelefoni og trådløst bredbånd. For kundene vil dette bety økt valgfrihet og bedre kundeopplevelser.

MAFI is a global leader in design and development of telecom mounting solutions, founded in Mora, Sweden in 1992.

The company has played a vital role during all rollouts since GSM to 5G and is present in the Americas, Europe and Asia.

By using a GIS based software for wind load calculations, the site design time is reduced to only a few minutes. MAFI provides site design through ESICs, which gives ICE full control of the sites built.

A site chosen through ESICs is calculated on the max wind pressure and not on wind zone, this enables MAFI to guarantee the performance of the site built. Naturally built according to MAFI mounting instructions.

The site comes pre packed from ICE WF in Fredriksstad and is designed to carry the defined variable load specified on the drawing provided through ESICs.

This way of working will give both ICE and the installer an insurance of every site built.

MAFI takes full responsibility if an eventual failure.

MAFI strongly believes in local or regional production of our products and solutions. For this reason all products are produced in Sweden.

Furthermore, sustainability and only working with recyclable material are core values for MAFI.

The company has aligned with SBT and Agenda 2030.

MAFI Philosophy

For MAFI; Quality, Environment stewardship, and Safety is DNA

We nurture these values having integrated them into or development methodology.

The quality of these values are assured by third parties according to the following ISO standards; ISO 9001, ISO 14001 and EN 1090.

This means that we have the expertise, procedures and processes to CE-mark our products, a certification that is a guarantee of the performance of a product or solution.

Since July 2014, it is a legal requirement that all kits and parts used in steel and aluminum structures within the EU are to be CE-marked.

During the MAFI product development process, every component is designed and optimized using Finite Element Analysis techniques, prototypes are then physically tested and refined in our R&D department by our skilled engineers.

Last, but not least; MAFI strongly believes in sustainable business. MAFI uses galvanized steel, a material that can be repeatedly recycled. All production is either local or regional. It is a fact that some incoming deliveries are made by fork lift.

We do everything we can to make our environmental footprint as small as possible.

Health and Safety information

In order to safeguard personnel from the risk of falls from height, MAFI freestander should be placed so that a minimum distance of 2.4m from the ("unsecured?") roof edge can be maintained at all times while working. When necessary, closer placement is allowed but require fall prevention measures in the form of fencing, safety lines or similar to ensure workers are protected from falls. A solid roof parapet exceeding 90cm height negates the need for additional fencing in the area that it covers.

Important Drawing Information

NOTES:

It

ESICS

ESICS calulation data and safety factors.

Mounting Specifications

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated.

MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions.

MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet.

3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required.

Variable load

Variable load specification NB; if updated/ upgraded, new wind load calculation to be performed for maintaining MAFI performance guarantees

Mounting specifications for variable load. To be followed for validity of MAFI peformance guarantee.

Important

Please read carefully

BOM

BOM of ingoing components in kit 910XXX.

DISCLAIMER

Any deviation from drawing makes drawing obsolete and installation will require site specific calculation. Installation only recommended for site with parapet. If roof has a frictional coefficient inferior to the conservatively assumed 0,4, site specific calculation is required.

A calculation program for safe installation

All MAFI brackets have defined load capacities, arrived at by both calculation and physical testing and ESICS checks this performance to the specific site location:

1. The weight they can carry on the offset pole

2. Rotational slip resistance at the offset pole(s)

3. Rotational slip resistance at the parent pole

4. Horizontal bending

As the Norwegian code and wind zones are very extreme and even within the same wind zone the peak wind pressure can variate a lot, its impossible to standardize solutions solely based on a wind zone.

For Project Kjerag MAFI and ICE(LYSE?) have developed complete unique version if ESICS that is based on the peak wind pressure that a MAFI solution combined with Project Kjerag’s antennas and radios can handle.

By doing this ESICS can now ad a configuration to a site address and within a couple of clicks find out if the wind load is within the performance of the solutios on the actual site that you want to build.

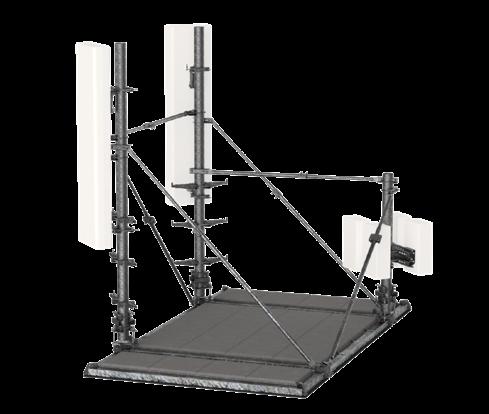

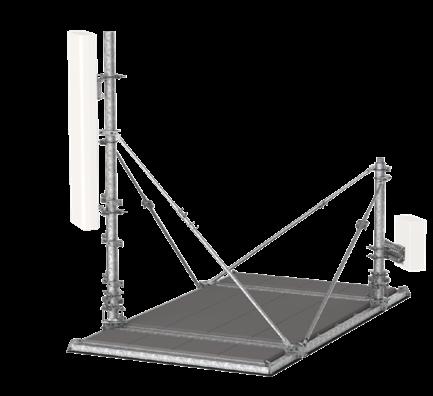

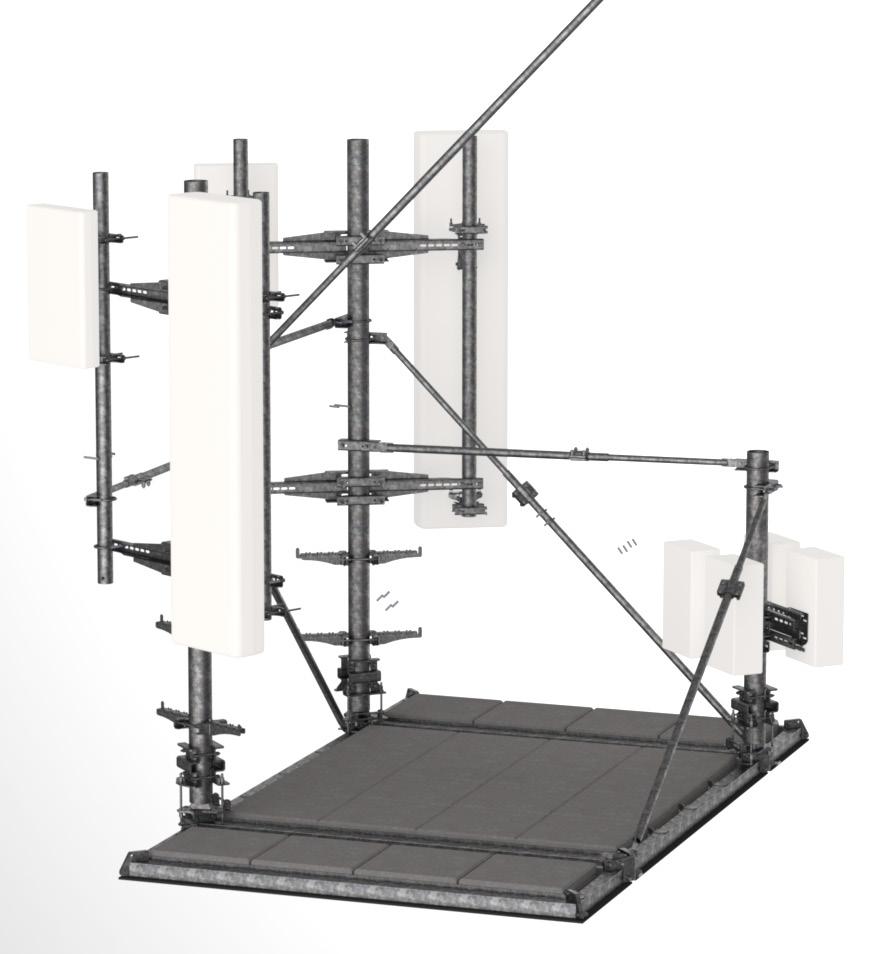

Freestanders

Mast and Towers Wall Brackets

Freestanders

FS 1 Sector Small Page 12

FS 1 Sector Large Page 20

1 Sector Small Addon Page 14

1 Sector Large Addon Page 22

1 Sector Medium Page 28

1 Sector Medium Addon Page 30

1 Sector Medium Page 16

2 Sector Small Page 24

2 Sector Large Page 32

FS 1 Sector Medium Addon Page 18

2 Sector Small Addon Page 26

2 Sector Large Addon Page 34

910100

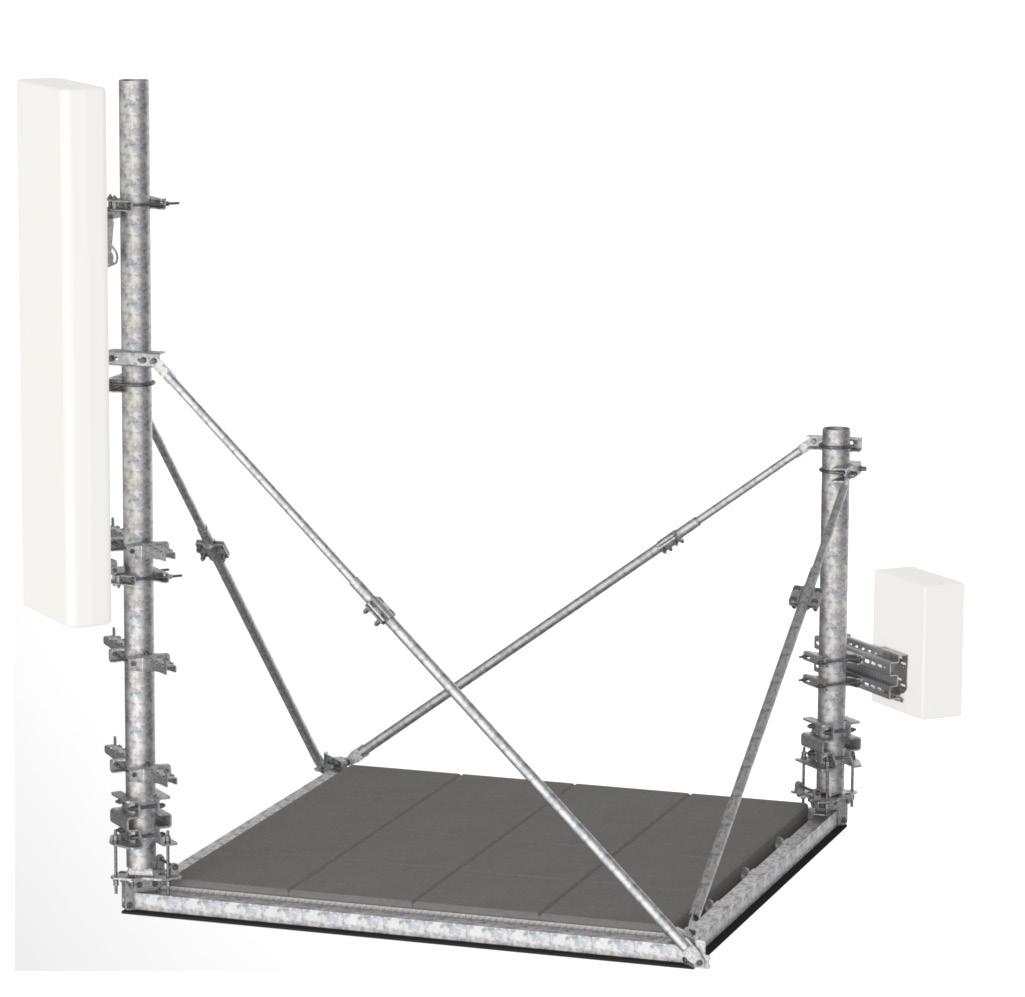

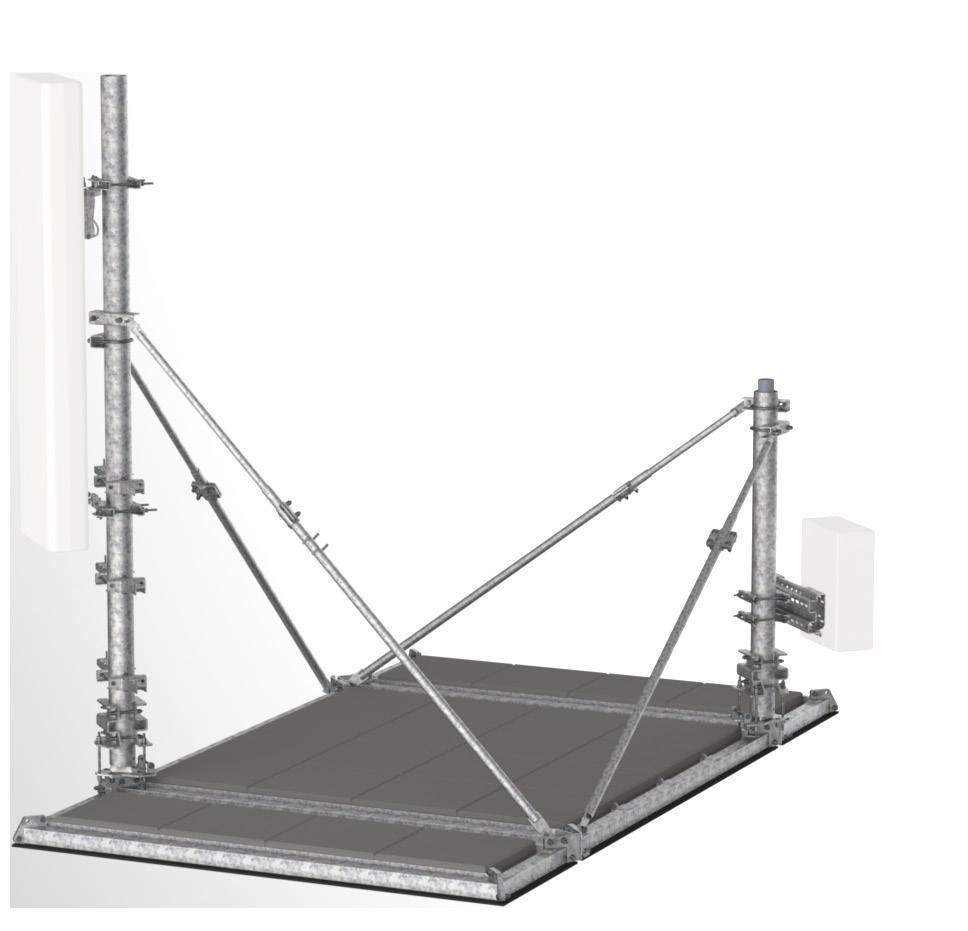

FS 1 Sector Small

Key Performance Data

Max wind pressure 2350 N/m2

Total weight 1737 kg

Pressure on roof 212 kg/m2

Variable load according to drawing

Freestander kit delivered in 1*wooden crate with one pallett of ballast blocks.

To order from Lyse/Bring warehouse

Jumper cable antenna opposite from radio 6m RET-cable antenna 10m

Fiber from ATOA to RRH 1m

474583A.102 - AMRC AirScale one clip rail 600mm

471649A.303 - FPKA Flexi Pole Kit

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet.

3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

It is recommended to use Esics to calculate site-specific wind pressure.

910110

FS 1 Sector Small Addon

Key Performance Data

Max wind pressure 2350 N/m2

Total weight 1737 kg

Pressure on roof 212 kg/m2

Variable load according to drawing

Freestander kit delivered in 1*wooden crate with one pallett of ballast blocks.

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 6m Tilt cable opposite antenna 10m Radio 1m

474583A.102 - AMRC AirScale one clip rail 600mm

471649A.303 - FPKA Flexi Pole Kit

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet.

Total of 48pcs 42071 ballast blocks (32pcs included in 910100) Nokia-rail not supplied by MAFI

3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

910200

FS 1 Sector Medium

Key Performance Data

Max wind pressure 1460 N/m2

Total weight 1196 kg

Pressure on roof 232 kg/m2

Variable load according to drawing

Freestander kit delivered in 1*wooden crate with one pallett of ballast blocks.

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 6m Tilt cable opposite antenna 10m Radio 2*1m

474583A.102 - AMRC AirScale one clip rail 600mm

471649A.303 - FPKA Flexi Pole Kit

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet.

3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required.

not supplied by

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

It is recommended to use Esics to calculate site-specific wind pressure.

910210

FS 1 Sector Medium Addon

Key Performance Data

Max wind pressure 2160 N/m2

Total weight 1737 kg

Pressure on roof 216 kg/m2

Variable load according to drawing

order from Lyse/Bring warehouse

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

Total of 48pcs 42071 ballast blocks (32pcs included in 910200)

2. This installation is only recommended for sites that have a parapet. 3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated.

MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

910300

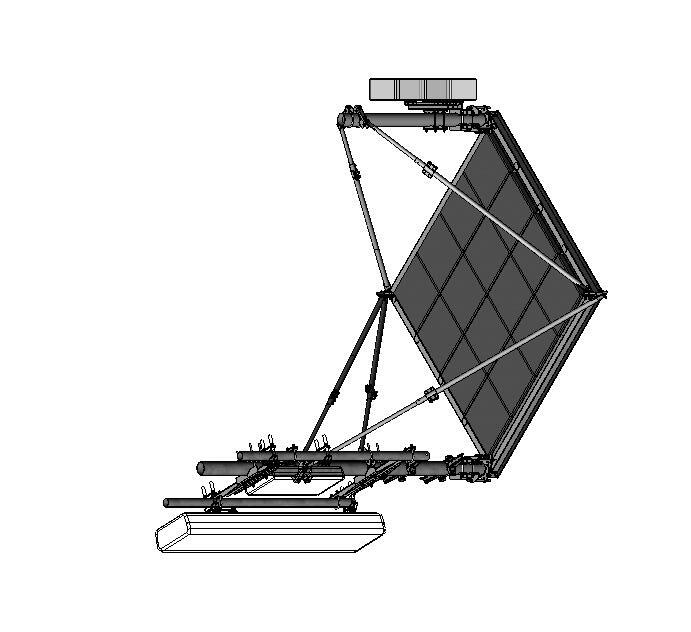

FS 1 Sector Large

Key Performance Data

Max wind pressure 1030 N/m2

Total weight 1275 kg

Pressure on roof 247 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 7m RET-cable antenna 10m Fiber cable AQQV 10m

Fiber from ATOA to RRH 2*1m

474583A.102 - AMRC AirScale one clip rail 600mm

471649A.303 - FPKA Flexi Pole Kit

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet.

Nokia-rail not supplied by MAFI

Angle between offset and strut, shall be as close to perpendicular as possible. Strut can also be attached to the other corner if other equipment angle is required.

3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

910310

FS 1 Sector Large Addon

Key Performance Data

Max wind pressure 1320 N/m2

Total weight 1846 kg

Pressure on roof 226 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 6m RET-cable antenna

Fiber cable AQQV

Fiber from ATOA to RRH 2*1m

474583A.102 - AMRC AirScale one clip rail 600mm

471649A.303 - FPKA Flexi Pole Kit

poles shall align with top of ma in

and

than the

Shall not be placed

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet.

Total of 48pcs 42071 ballast

(32pcs included in 910300)

3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

Scale 1:55 Nokia-rail not supplied by MAFI MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated.

Angle between offset and strut, shall be as close to perpendicular as possible. Strut can also be attached to the other corner if other equipment angle is required.

Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

915100

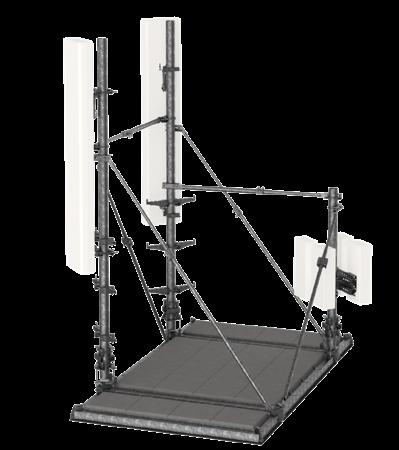

FS 2 Sector Small

Key Performance Data

Max wind pressure 985 N/m2

Total weight 1310 kg

Pressure on roof 254 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse

Jumper cable antenna opposite from radio 6m Jumper cable to closer antenna 4m

RET-cable opposite antenna

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet. 3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated.

MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

915110

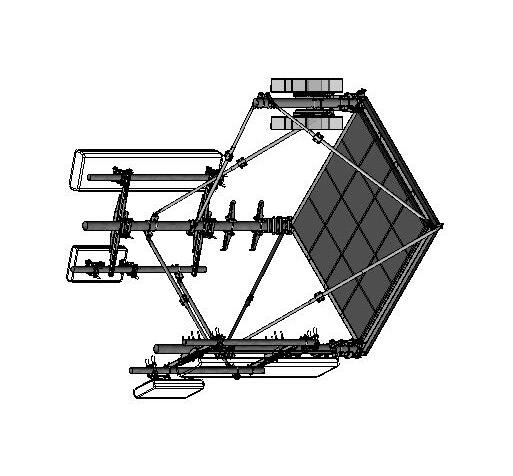

FS 2 Sector Small Addon

Key Performance Data

Max wind pressure 1260 N/m2

Total weight 1881 kg

Pressure on roof 230 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse

Jumper

NOTES:

Total of 48 pcs 42071 ballast blocks (32pcs included in 915100) Nokia-rail not supplied by

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation. 2. This installation is only recommended for sites that have a parapet. 3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

915200

FS 2 Sector Medium

Key Performance Data

Max wind pressure 980 N/m2

Total weight 1370 kg

Pressure on roof 265 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse

Jumper cable antenna opposite from radio 6m

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. This installation is only recommended for sites that have a parapet.

3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

915210

FS 2 Sector Medium Addon

Key Performance Data

Max wind pressure 1250 N/m2

Total weight 1941 kg

Pressure on roof 237 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse

Jumper cable antenna opposite from radio 6m

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

Total of 48 pcs 42071 ballast blocks (32pcs included in 915200) Nokia-rail not supplied by

2. This installation is only recommended for sites that have a parapet. 3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

915300

FS 2 Sector Large

Key Performance Data

Max wind pressure 630 N/m2

Total weight 1511 kg

Pressure on roof 293 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse

Jumper cable antenna opposite from radio 7m

Jumper cable to closer antenna 5m

RET-cable opposite antenna 10m RET-cable to closer antenna

NOTES: 1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation. 2. This installation is only recommended for sites that have a parapet. 3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

915310

FS 2 Sector Large Addon

Key Performance Data

Max wind pressure 630 N/m2

Total weight 1511 kg

Pressure on roof 293 kg/m2

Variable load according to drawing

To order from Lyse/Bring warehouse

Jumper cable antenna opposite from radio 7m

Jumper cable to closer antenna 5m

RET-cable opposite antenna 10m RET-cable to closer antenna

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

Nokia-rail not supplied by MAFI

2. This installation is only recommended for sites that have a parapet. 3. If the roof has a lower frictional coefficient than the conservatively assumed 0.4, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

and

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

Strut angle should be as close to 45 degrees as possible

struts shall be as close to horizontal as possible

and

Mast/Towers

920200 TO 1 Sector

Medium Light Raking Page 12

920210 TO 1 Sector

Medium Heavy Page 14

920220 TO 1 Sector

Medium Light Raking Page 16

920230 TO 1 Sector

Medium Heavy Raking Page 18

920200

TO 1 Sector Medium Light Raking

Key Performance Data

Variable load according to drawing

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. Make sure that the parent pole can handle the applied pretension.

Scale 1:25

Note direction of 91376 for minimum offset.

Note that offset pole shall be mounted with minimum offset from parent pole.

3. If antenna shall be mounted with tilt, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated.

MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

TO 1 Sector Medium Heavy

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. Make sure that the parent pole can handle the applied pretension.

Scale 1:25

Note direction of 91376 for minimum offset.

3. If antenna shall be mounted with tilt, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

Note that offset pole shall be mounted with minimum offset from parent pole.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

920220

TO 1 Sector Medium Light Raking

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

Note direction of 91376 for minimum offset.

Scale 1:25

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation. 2. Make sure that the parent pole can handle the applied pretension. 3. If antenna shall be mounted with tilt, site-specific calculation is required. It is recommended to use Esics to calculate site-specific wind pressure.

offset from parent pole.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

TO 1 Sector Medium Heavy Raking

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

NOTES:

1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

2. Make sure that the parent pole can handle the applied pretension.

Scale 1:25

Note direction of 91376 for minimum offset.

Note that offset pole shall be mounted with minimum offset from parent pole.

3. If antenna shall be mounted with tilt, site-specific calculation is required. It is recommended to use Esics to calculate

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

wind pressure.

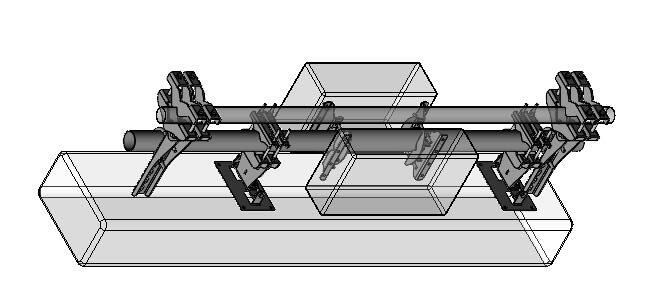

Wall Brackets

930100

WB 1 Sector

Small Option 1 Page 12

930200

WB 1 Sector

Medium Option 1 Page 16

930110

WB 1 Sector

Small Option 2 Page 14

930210

WB 1 Sector

Medium Option 2 Page 18

930300

WB 1 Sector

Large Option 1 Page 16

930310

WB 1 Sector

Large Option 2 Page 18

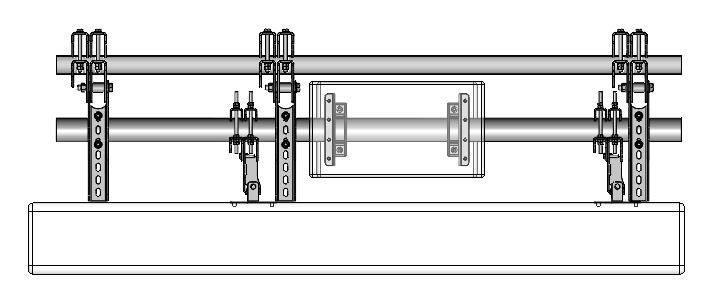

WB 1 Sector Small Option 1

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

NOTES: 1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation. It is recommended to use Esics to calculate site-specific wind pressure.

Warning: High Reaction forces, make sure that the wall can handle the stated loads.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

WB 1 Sector Small Option 2

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added. NOTES: 1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation. It is recommended to use Esics to calculate site-specific wind pressure.

High Reaction forces, make sure that the wall can handle the stated loads.

930200

WB 1 Sector Medium Option 1

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added. NOTES: 1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation. It is recommended to use Esics to calculate site-specific wind pressure.

Warning: High Reaction forces, make sure that the wall can handle the stated loads.

WB 1 Sector Medium Option 2

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added. NOTES: 1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

Warning: High Reaction forces, make sure that the wall can handle the stated loads.

to use Esics to calculate site-specific wind pressure.

930300

WB 1 Sector Large Option 1

To order from Lyse/Bring warehouse Jumper cable antenna opposite from radio 1.5m

474583A.102 - AMRC AirScale one clip rail 600mm

shall be mounted on separate structure.

NOTES: 1. Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation. It is recommended to use Esics to calculate site-specific wind pressure.

Warning: high reaction forces, make sure that the wall can handle the stated loads.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

WB 1 Sector Large Option 2

Any deviation from drawing makes the drawing obsolete and the installation will require site-specific calculation.

High Reaction forces, make sure that the wall can handle the stated loads.

MAFI Group takes no responsibility for the building and existing construction to withstand the forces stated. MAFI Group takes responsibility for the design of its own material if it is mounted according to MAFI Groups mounting instructions. MAFI Group takes no responsibility of the strength and capacity of the existing structure where MAFI Groups material is added.

to use Esics to calculate site-specific wind pressure.

How to order

invoice@mafigroup.com

order@mafigroup.com

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
