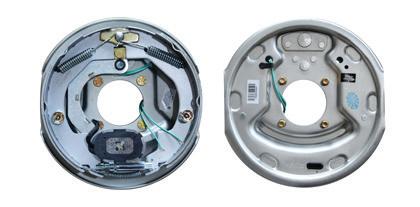

ELECTRIC BRAKE ASSEMBLIES

All AxleTek, Dexter and Curt electric brake assemblies come fully boxed

AxleTek’s galvanized electric brakes are designed to prevent rusting and corrosion for extended lifespan

“Never Adjust” and “Self Adjust” brakes automatically adjust as you tow so you don’t have to crawl around on the ground to do it manually

K23-468-00

Self Adjust 10 x 2.25' LH (3500LB) 296650 Self Adjust 10 x 2.25' RH (3500LB)

K23-454-00 10 x 2.25' LH (4400LB) *Pre 2009

K23-455-00 10 x 2.25' RH (4400LB) *Pre 2009

K23-462-00

K23-463-00 10 x 2.25'

(4400LB) *Post 2009

AXL12-797 12 x 2' LH (7000LB)

AXL12-798 12 x 2' RH (7000LB)

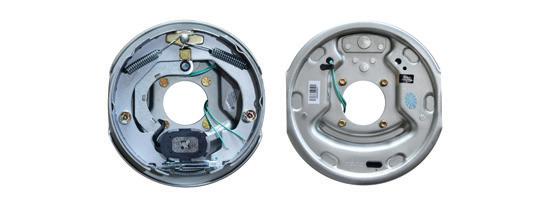

ELECTRIC BRAKE ASSEMBLIES

All AxleTek, Dexter and Curt electric brake assemblies come fully boxed

K23-180-00

AxleTek’s galvanized electric brakes are designed to prevent rusting and corrosion for extended lifespan

AXL12-815 Galvanized 12 x 2' LH (7000LB)

AXL12-816 Galvanized 12 x 2' RH (7000LB)

“Never Adjust” and “Self Adjust” brakes automatically adjust as you tow so you don’t have to crawl around on the ground to do it manually

K23-465-00 Never Adjust 12 x 2' RH (7000LB)

K23-450-00 Never Adjust 12.25’ x 3.38’ LH (10,000LB)

K23-451-00 Never Adjust 12.25 x 3.38’ RH (10,000LB)

K23-428-00 12.25’ x 2.5’ LH (8000LB)

K23-429-00 12.25’ x 2.5’ RH (8000LB)

Self Adjust 12 x 2' RH (7000LB)

Self Adjust 12.25" x 3.38" LH (8000LB) 298279 Self Adjust 12.25" x 3.38" RH (8000LB)

ELECTRIC BRAKE REPLACEMENT PARTS

Magnet Kits

K71-104-00

K71-125-00

K71-378-00

Dexter Magnet Kit (10" 3500LB Brakes)

Dexter Magnet Kit (12" 7000LB Brakes)

Dexter Magnet Kit (12.25" x 5" 15000LB Brakes) PART # DESCRIPTION

136454 Curt Magnet Kit (10" 3500LB Brakes)

136447 Curt Magnet Kit (12" 7000LB Brakes)

293115 Curt Magnet Kit (12 1/4" Brakes)

Adjuster Screw Kit

PART # DESCRIPTION

K71-324-00

Dexter Adjuster Screw Kit

(Fits all Dexter 10" - 12" electric and hydraulic brakes)

Brake Spring Kit

PART # DESCRIPTION

K71-363-00

Brake Spring Kit

(Fits 10 x 2.25" and 12 x 2" electric brakes, without parking feature) PART

Shoe & Lining Kits

K71-047-00

K71-127-00

Dexter Brake Shoe and Lining Kit (Fits 10" 3500LB)

Dexter Brake Shoe and Lining Kit (Fits 12" 7000LB)

PART # DESCRIPTION

136453 Adjuster Screw and Spring Kit

PART # DESCRIPTION

136451 Shoe and Lining Kit (Fits 10" 3500LB)

136444 Shoe and Lining Kit (Fits 12" 7000LB)

HYDRAULIC BRAKE ASSEMBLIES

Axletek and Dexter Marine’s hydraulic brakes are both “Dacromet” finshed which are three times stronger than galvanized brakes giving them the ultimate protection against salt water

PART # DESCRIPTION

12-805 10 X 2.25' Hydraulic Brake Assembly (LH 3500LB)

12-806 10 X 2.25' Hydraulic Brake Assembly (RH 3500LB)

PART # DESCRIPTION

12-807 12 x 2' Hydraulic Brake Assembly (LH 7000LB)

12-808 12 x 2' Hydraulic Brake Assembly (RH 7000LB)

PART # DESCRIPTION

K71-825-00 (4847000) 10 X 2.25' Hydraulic Brake Assembly Kit (LH & RH 3500LB)

PART # DESCRIPTION

K71-829-00 (4847200) 12 x 2' Hydraulic Brake Assembly Kit (LH & RH 7000LB)

HYDRAULIC BRAKE REPLACEMENT PARTS

10” 12” Wheel Cylinders

Dexter Marine wheel cylinders fit their 10” , 12” and 13” hyrdaulic brake assemblies

PART # DESCRIPTION

K71-130-00 Wheel Cylinder (RH) K71-131-00 Wheel Cylinder (LH)

Drum Brake Shoe Kits

071-B09-00 (4744800) 10" Premier Free Backing Shoe Kit

071-A88-00 (4043100) 10" Standard Uni-Servo Shoe Kit

071-B11-00 (4798400) 12" Premier Free Backing Shoe Kit

071-B24-00 (4862500) 12" Premier Uni-Servo Shoe Kit

HYDRAULIC BRAKE REPLACEMENT PARTS

Adjustable Screw Kits

071-A92-00 (4043500) 10" Adjustable Screw Kit

071-A93-00 (4043600) 12" Adjustable Screw Kit

Spring Kits

4809400 10" Premier Spring Kit (Freebacking)

071-B15-00 (4809500) 12" Premier Spring Kit (Freebacking)

3.5K 5 on 4.5 PART # DESCRIPTION

HUB & DRUM KITS

For 3.5K axle, 10” electric or hydraulic brakes, 5 on 4.50 BC, studded 1/2” -20, 1.718 seal, comes boxed and includes all necessary harware

18-100 10" Brake Dum Kit (5 on 4.5) 3500LB

K08-247-90 10" Brake Dum Kit (5 on 4.5) 3500LB

*Dust caps not included in Curt drum kits

10" Brake Dum Kit (5 on 4.5) 3500LB

4 006-080-00 Nut, Cone 60-deg 1 008-247-05 Hub Drum, 3.5K, 545, Cupped & Studded 1 010-019-00 Grease Seal, 1.72 ID, 2.565 OD 1 021-003-00 Grease Cap, 1.99 OD, 3500LB

1 031-031-02 Bearing Cone (L44649) 1 031-033-02 Bearing Cone (L68149)

5 007-122-00 Wheel Stud 1/2' - 20 x 1.84' INCLUDES

HUB & DRUM KITS

4.4K 6 on 5.5

For 4.4K axle, 10” electric or hydraulic brakes, 6 on 5.5 BC, studded 0.5’ -20 1.718 seal, comes boxed and includes all necessary hardware

K08-407-90 10" Brake Drum Kit (6 on 5.5) 4400LB

INCLUDES

QTY

1 006-176-00 Nut, Slotted

1 008-407-05 Hub & Drum 4.4K 655

1 005-023-00 Washer, "D"

6 006-080-00 Nut, Cone 60-deg

1 006-190-00 Nut, Retainer

1 006-191-00 Nut, Hex

1 010-019-00 Seal, Grease 1.72"

1 019-002-00 Cotter Pin

1 021-001-00 Grease Cap, 2.45 OD, 6000LB

1 021-042-01 EZ Lube Grease Cap, 2.45 OD

1 031-032-02 Bearing Cone (LM67048)

1 031-033-02 Bearing Cone (L68149)

1 085-001-00 Rubber Plug

6K 6 on 5.5

For 6K axle, 12” electric or hydraulic brakes, 6 on 5.50 BC, studded 0.5’-20, 2.125 seal, comes boxed and includes all necessary hardware

18-125 12" Brake Drum Kit (6 on 5.5) 6000LB

K08-201-91 12" Brake Drum Kit (6 on 5.5) 6000LB PART

INCLUDES

QTY BULK # DESCRIPTION

1 008-201-09 Hub & Drum, 6K,15245 Outer Cup

6 006-080-00 Nut, Cone 60-deg

1 010-010-00 Seal, Grease 2.125

1 021-001-00 Grease Cap

1 031-029-02 Bearing Cone (15123)

1 031-030-02 Bearing Cone (25580)

10" Brake Drum Kit (6 on 5.5) 4400LB

*Dust caps not included in Curt drum kits

12" Brake Drum Kit (6 on 5.5) 6000LB

HUB & DRUM KITS

7K 8 on 6.5 (1/2”)

For 7K axle, 12” electric or hydraulic brakes, 8 on 6.5 BC, studded 1/2” -20 , 2.125 seal, comes boxed and includes all necessary hardware

18-130 12" Brake Drum Kit (8 on 6.5 / 0.5" Stud) 7000LB

K08-219-96 12" Brake Drum Kit (8 on 6.5 / 0.5" Stud) 7000LB

021-043-01 Grease Cap 8 006-080-00 Nut, Cone 60-deg 1 006-190-00 Nut, Retainer

006-191-00 Nut, Hex 1 008-219-04 Hub & Drum, 7K, 1/2" 1 010-010-00 Seal, Grease 2.125 1 031-017-02 Bearing Cone (14125A) 1 031-030-02 Bearing Cone (25580) 1 085-001-00 Rubber Plug

7k 8 on 6.5 (9/16”)

For 7K axle, 12” electric or hydraulic brakes, 8 on 6.5 BC, studded 9/16” -18 , 2.25 seal, comes boxed and includes all necessary hardware

18-135 12" Brake Drum Kit (8 on 6.5 / 9/16" Stud) 7000LB

K08-219-9C 12" Brake Drum Kit (8 on 6.5 / 9/16" Stud) 7000LB

INCLUDES

BULK

DESCRIPTION 8 006-053-00 Nut, Cone 60-deg 1 006-190-00 Nut, Retainer 1 006-191-00 Nut, Hex 1 008-219-13 Hub & Drum, 7K , 0.56" 1 010-036-00 Seal, Grease 2.25" 1 021-043-01 Grease Cap 1 031-017-02

Bearing Cone (14125A) 1 031-030-02

Bearing Cone (25580) 1 085-001-00 Rubber Plug

*Dust caps not included in Curt drum kits

12" Brake Drum Kit (8 on 6.5 / 1/2" Stud) 7000LB

*Dust caps not included in Curt drum kits

814213 12" Brake Drum Kit (8 on 6.5 / 0.56" Stud) 7000LB

HUB & DRUM KITS

2K 4 on 4

For 2K idler axle, 4-4.00 BC, studded, grease lube

PART # DESCRIPTION

K08-091-91

INCLUDES

Idler Hub Kit (4 on 4") 2000LB PART

QTY BULK # DESCRIPTION

1 008-091-05 Hub, Cupped & Studded

4 006-080-00 Nut, Cone 60-deg

1 010-009-00 Seal, Grease 1.5

1 021-003-00 Grease Cap

2 031-031-02 Bearing Cone (L44649)

2K 5 on 4.5

814206 Idler Hub Kit (4 on 4") 2000LB

PART # DESCRIPTION

134574 Idler Hub Only (4 on 4") 2000LB

*hardware sold seperately

For 2k axle, 5-4.50 BC, studded, seal, standard grease cap. For 8”-12” Wheels only

*Can be used on axles with 1” spindles, but bearing 031-031-03 must be used

PART # DESCRIPTION

K08-259-92 Idler Hub Kit (5 on 4.5") 2000LB

INCLUDES

QTY BULK # DESCRIPTION

1 008-259-10 Hub 2K 5-4.50 Studded

5 006-080-00 Nut, Cone 60-deg

1 010-060-00 Seal, Oil 1.5

1 021-041-01 Grease Cap

2 031-031-02 Bearing Cone (L44649)

1 006-191-00 Nut, Hex

1 006-190-00 Nut, Retainer

1 085-001-00 Rubber Plug

PART # DESCRIPTION

814207 Idler Hub Kit (5 on 4.5") 2000LB

HUB & DRUM KITS

3.5K 5 on 4.5 For 3.5K idler axle, 5-4.50 BC studded, 1.718 seal, standard grease cap

1 008-248-05 Hub, Cupped & Studded 5 006-080-00 Nut, Cone 60-deg 1 010-019-00 Seal, Grease 1.72" 1 021-003-00 Grease Cap 1 031-031-02 Bearing Cone (L44649) 1 031-033-02 Bearing Cone (L68149) INCLUDES

DUST CAPS

021-003-00 1.99" Standard (2K-3.5K)

021-041-01 1.99" EZ Lube (2K-3.5K)

021-001-00 2.45" Standard (5.2K-6K)

021-042-01 2.45" EZ Lube (5.2K-6K)

021-039-00 2.72" Standard (7K-8K)

021-043-01 2.72" EZ Lube (7K-8K)

085-001-00 Rubber Plug for EZ Lube Cap

Idler Hub Only (5 on 4.5") 3500LB

*Hardware kit (333948) sold separately

2.72" Standard (7K-8K)

693748 2.72" Super Lube (7K-8K) 122065 693722 Rubber Plug for Super Lube Cap

OIL AND GREASE CAPS

PART # DESCRIPTION

K71-148-00 Clear Plastic Oil Cap (1016K) Rubber Plug & O-Ring

695814 Clear Plastic Oil Cap (8K) Rubber Plug & O-Ring

693935 Clear Plastic Oil Cap (10-16K) Rubber Plug & O-Ring

85373929 Aluminum Grease Cap (8K) Rubber Plug & O-Ring

85373829 Aluminum Grease Cap (10-16K) Rubber Plug & O-Ring

85373928 Aluminum Oil Cap (8K) Rubber plug, O-Ring, Fill Plug

85373828 Aluminum Oil Cap (8-16K) Rubber plug, O-Ring, Fill Plug

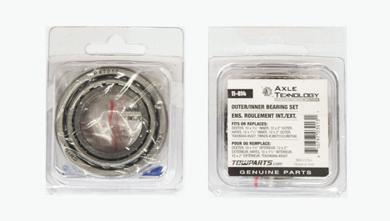

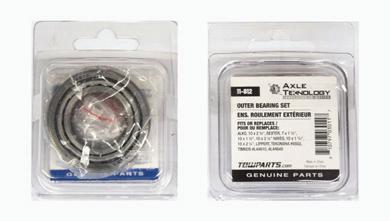

BEARING CUP AND CONE KITS

AxleTek kits come with both inner and outer bearing in retail packaging.

Dexter bearing kits also sold individually using bulk numbers

Curt Bearing Kits include all components needed to repack one axle hub: outer bearing with cotter pin, outer race, inner race, inner bearing and grease seal

333948 Bearing Cup & Cone & Seal Kit (L44610/L44649/L68111/ L68149)

Bearing Cup (L44610) 122089 Bearing Cone (L44649)

K71-307-00 Bearing Cup & Cone Kit (LM67010/LM67048)

Bearing Cup & Cone & Seal Kit (LM67010/ LM67048/25520/25580)

124292 Bearing Cup (LM67010) 122090LRV Bearing Cone (LM67048)

11-815 Bearing Cup & Cone Kit (L68111/L68149) PART

11-813 Bearing Cup & Cone Kit (25520/25580)

BEARING CUP AND CONE KITS

(L68111)

031-033-02

Cone (L68149)

K71-308-00 Bearing Cup & Cone Kit (25520/25580)

11-808 Bearing Cup & Cone Kit (14176/14125A)

K71-310-00 Bearing Cup & Cone Kit (14176/14125A)

Cone Kit (15245/15123)

K71-309-00 Bearing Cup & Cone Kit (15245/15123) BULK

031-031-03 Bearing Cone (L44643)

031-028-01 Bearing Cup (04240)

031-028-02 Bearing Cone (02475) PART

124296 Bearing Cup (L68111)

PART # DESCRIPTION

333950 Bearing Cup & Cone & Seal Kit (15123/15245/25520/25580)

122092LRV Bearing Cone (L68149) PART # DESCRIPTION

PART # DESCRIPTION

333951 Bearing Cup & Cone & Seal Kit (14125A/14276/25520/ 25580)

Bearing Cup (25520) 122066 Bearing Cone (25580) PART # DESCRIPTION 127012 Bearing Cup (14276)

127009 Bearing Cone (14125A)

# DESCRIPTION 126996 Bearing Cup (15245)

122091 Bearing Cone (15123)

PART # DESCRIPTION

168687 Bearing Cup (02420)

129752 Bearing Cone (02475)

GREASE SEALS

K71-304-00

INCLUDES

BULK # DESCRIPTION

010-010-00

Grease Seal, 2.125 ID, 3.376 OD (QTY 2) PART

K71-802-00

INCLUDES

Grease Seal, 2.125 ID, 3.376 OD

Double Lipped Seal, 1.68" ID, 2.56 OD (QTY 2)

BULK # DESCRIPTION

010-168-00

Double Lipped Seal, 1.68" ID, 2.56 OD

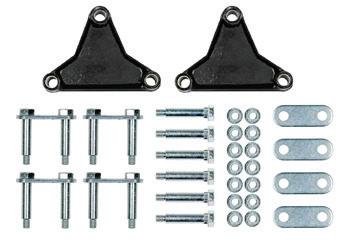

SUSPENSION COMPONENTS

K71-401-00

Suspension Kit (33" Axle Spacing)

006-092-01 Flange Nut (Qty 14)

007-126-01 Shoulder Bolt (2.90" Long) Qty 2

013-104-04 Equalizer (Bronze Bushing with Grease Fitting) Qty 2

018-011-05

018-020-00

Shackle Link (2.25" hole to hole, 3.5" long) Qty 4

Shackle Link Assembly (2.25" Bolt to Bolt, Short) Qty 4

121097L Tandem Axle AP Kit (33" Axle Spacing) *EQ-104

"Equalizer Reference: EQ-104"

Equalizer Bolt Qty: 2

Equalizer Bolt Length: 2.88"

Shackle Assembly Qty: 4

Shackle Assembly Length: 2.25"

Shackle Plate Qty: 4

Shackle Plate Length: 2.25"

Shackle Bolt Qty: 6

Shackle Bolt Length: 2.88"

Equalizer Nut Qty: 2

Equalizer Nut Thread: 0.437"-20

Lock Nut Qty : 14

Lock Nut Thread 0.437" -20

SUSPENSION COMPONENTS

121098L Tandem Axle AP Kit (33" Axle Spacing) *EQ-310 PART

K71-359-00

DESCRIPTION

Suspension Kit 33" Axle Spacing (HD Version of K71-401-00)

INCLUDES

BULK # DESCRIPTION

006-092-01 Flange Nut (Qty 14)

007-126-01 Shoulder Bolt (2.90" Long) Qty 2

007-187-01

013-104-04

Shoulder Bold (Drilled, Greasable, 2.90" Long) Qty 2

Equalizer (Bronze Bushing w/ Grease Fitting) Qty 2

014-077-00 Bronze Bushing (0.69 OD x 1.74 Long) Qty 8

018-024-01

018-026-05

Shackle Link (Shor, Reamed HD) Qty 4

Shackle Link Assembly (2.25" Bolt to Bolt, Zinc, Short) Qty 4

INCLUDES

Equalizer Reference: EQ-310

Equalizer Bolt Qty: 3

Equalizer Bolt Length: 2.88"

Shackle Assembly Qty: 4

Shackle Assembly Length: 2.25"

Shackle Plate Qty: 4

Shackle Plate Length: 2.25"

Shackle Bolt Qty: 6

Shackle Bolt Length: 2.88"

Equalizer Nut Qty: 2

Equalizer Nut Thread: 7/16"-20

Lock Nut Qty: 14

Lock Nut Thread 0.437" -20

SUSPENSION COMPONENTS

PART # DESCRIPTION

K71-403-00

Suspension Kit

For 1-3/4" wide, double eye springs - single axles (A/P 122)

INCLUDES

BULK # DESCRIPTION

006-092-01

007-126-01

018-012-05

018-021-00

Flange Nut (Qty 6)

Shoulder Bolt (2.90" long) Qty 2

Shackle Link (3.12" hole to hole, 4.38" long) Qty 2

Shackle Link Assembly (3.12" Bolt to Bolt, Long) Qty 2

PART # DESCRIPTION

K71-358-00

Suspension Kit

For 1-3/4” wide, double eye springs - single axles (Heavy Duty)

INCLUDES

BULK # DESCRIPTION

006-092-01

007-187-01

014-077-00

018-022-01

018-027-05

Flange Nut (Qty 6)

Shoulder Bolt (Drilled, Greasable 2.90" Long)

Bronze Bushing (0.69 OD x 1.74 Long)

Shackle Link (Long, HD)

Shackle Link Assembly (3.12" Bolt to Bolt, Zinc, Long)

SUSPENSION COMPONENTS

PART # DESCRIPTION

K71-449-00 Suspension Kit (HD / 35" Axle Spacing)

BULK # DESCRIPTION

006-092-01 Flange Nut (Qty 14)

007-126-01 Shoulder Bolt (2.90" Long) Qty 2

007-187-01 Shoulder Bolt (Drilled, Greasable 2.90" Long) Qty 2

013-122-04 Equalizer (Bronze Bushing, 2.88" High) Qty 2

014-077-00 Bronze Bushing (0.69 OD, 1.74" Long) Qty 8

018-024-01 Shackle Link (Short, Reamed HD) Qty 4

018-026-05 Shackle Link Assembly (2.25" Bolt to Bolt, Zinc, Short) Qty 4 INCLUDES

AXLE MOUNTING KITS

PART # DESCRIPTION

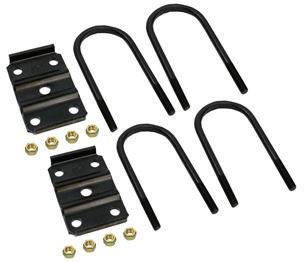

K71-732-00 Axle Mounting Kit (1/2" Thread, 3" Tube, 4,400LBS)

BULK # DESCRIPTION

PART # DESCRIPTION

297429 Axle Mounting Kit (0.5" Thread, 3" Tube, 4,400LBS)

*Includes 4 U-bolts, 2 tieplates and 8 nuts

006-129-01 Nut, Hex (Qty 8)

011-018-01 U-Bolt (Qty 4)

012-001-02 Tie Plate (Qty 2) INCLUDES

PART # DESCRIPTION

297427 Axle Mounting Kit (0.5" Thread, 2.38" Tube, 3,500LBS)

*Includes 4 U-bolts, 2 tieplates and 8 nuts

AXLE HANGERS

PART # DESCRIPTION

029-008-00 Axle Hanger (Front Hanger for Double Eye Springs)

DOUBLE EYE SPRINGS

PART # DESCRIPTION

072-013-00 Replacement Leaf Spring (21" , 1400LB)

072-042-00 Replacement Leaf Spring (26", 1750LB)

072-078-00 Replacement Leaf Spring (26", 2200LB)

072-025-00 Replacement Leaf Spring (26", 2600LB)

072-073-00 Replacement Leaf Spring (26", 3000LB)

072-027-00 Replacement Leaf Spring (26", 3500LB)

072-079-00 Replacement Leaf Spring (26", 4000LB)

SLIPPER SPRINGS

PART # DESCRIPTION

072-051-01 Slipper Spring 26.625 5/8" w/ Hook End 7 Leaves 2" Wide / 4000LB

072-080-01 Slipper Spring 30.5" / 5 Leaves / 2.5" Wide / 5000LB

PART # DESCRIPTION

106185L Axle Hanger (4.948" Long / 2" Wide / 9/16" Hole)

PART # DESCRIPTION

125269 Replacement Leaf Spring (21" , 1400LB)

124903L Replacement Leaf Spring (26", 1750LB)

129745 Replacement Leaf Spring (26", 2200LB)

702095 Replacement Leaf Spring (26", 2600LB)

702096 Replacement Leaf Spring (26", 3000LB)

679372 Replacement Leaf Spring (26", 3500LB)

2021095282 Replacement Leaf Spring (26", 4000LB)

PART # DESCRIPTION

710494 Slipper Spring 26.625" w/ Hook End 7 Leaves 2" Wide / 4000LB

176326 Slipper Spring 30.5" / 5 Leaves / 2.5" Wide / 5000LB

BRONZE LEAF SPRING BUSHING

PART # DESCRIPTION

014-077-00 Bronze Bushing (1.74" long, .58" ID, .70" OD)

AXLE NUTS & BOLTS & HARDWARE

Nuts

*006-080-00

PART # DESCRIPTION

006-058-00 Flange Wheel Nut (0.625" - 18)

006-118-00 Wheel Nut (M22 -1.5)

006-080-00 60 Degree Cone Wheel Nut (0.5" -20)

006-053-00 60 Degree Cone Lug Nut (0.562" -18)

006-007-01 Lock Nut for EZ Flex Equalizer, Slipper Spring or Suspension Kit (0.562" - 18)

006-092-01 Flange Nut (0.437" - 20) PART # DESCRIPTION

Bolts

007-122-00 Wheel Lug Stud (2" 0.5" -20)

007-132-00 Wheel Lug Stud (2.32"0.562" -18)

007-187-00 Wet Bolt (0.562" /2.32")

007-187-01 Wet Bolt (0.562" /2.90")

007-126-01 Shackle Bolt for Double Eye Springs - 0.562" Diameter2-7/8" Long

007-017-00 Slipper Spring Hex Head Eye Bolt (0.562-18 x 3..50)

126171 Bronze Bushing (1.74" long, .58" ID, .70" OD)

PART # DESCRIPTION

007-003-01 Shackle Bolt for 1-0.75" Wide Double Eye Springs - 0.562" Bolt Diameter3" Long PART # DESCRIPTION

176321 Flange Wheel Nut (0.625" - 18)

352303 Wheel Nut (M22 -1.5)

122076 60 Degree Cone Wheel Nut (0.5" -20)

134581 60 Degree Cone Lug Nut (0.562" -18) PART # DESCRIPTION

121803L Wheel Lug Stud (2.5" -20)

132624 Wheel Lug Stud (2.32" 9/16" -18)

126238 Wet Bolt (0.562" /2.32")

126197 Wet Bolt (0.562" /2.90")

AXLE NUTS & BOLTS & HARDWARE

Shackle Link

PART # DESCRIPTION

018-012-05

018-011-05

Shackle Link (3.12" hole to hole, 4.38" long)

Shackle Link (2.25" hole to hole, 3.5" long)

PART # DESCRIPTION

K71-335-00 Spindle Nut & Washer Kit Fits Dexter EZ Lube axles, 1" -14 UNS (prior to 06/02)

INCLUDES

BULK # DESCRIPTION

005-023-00 Washer "D" (Qty 2)

005-101-00 Washer, Tang (Qty 2)

006-001-00 Nut, Slotted (Qty 2)

PART # DESCRIPTION

K71-322-00 Nuts, Washers & Cotter Kit Fits Dexter 10" x 1.5" and 10 x 2.5" hubs, 1"-14 UNS

INCLUDES

BULK # DESCRIPTION

005-023-00 Washer, "D" (Qty 2)

006-176-00 Nut, slotted (Qty 2)

019-002-00 Cotter Pin (Qty 2)

AXLE NUTS & BOLTS & HARDWARE

Spindle Nut & Washer Kits

PART # DESCRIPTION

K71-321-00 Nuts, Washer & Cotter Kit Fits Dexter 12" x 2" and 8K hubs, 1"-14" UNS

AxleTek's disc end kits are boxed and come dacromet finished for salt water use and complete with all necessary hardware and components.

K2HR35D 10" Disc End Kit (5-4.5)

K2HR526D 12" Disc End Kit (6-5.5)

BULK # DESCRIPTION

005-057-01 Washer, "D" (Qty 2)

006-176-00 Nut, slotted (Qty 2)

019-002-00 Cotter Pin (Qty 2) INCLUDES

Spindle Washers

005-027-00 EZ Lube 1" Plain Washer

DISC BRAKES & ACCESSORIES

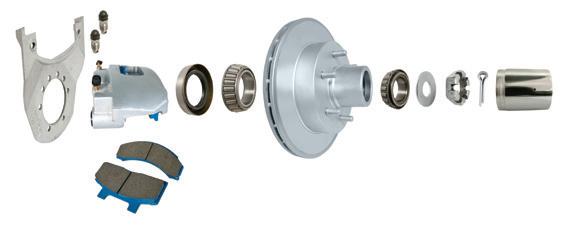

Disc End Kits

Dexter Marine's Premier line of disc end kits are dacromet finished, giving them the industries more durable coating. All components are stanless steel specifically designed for protection from salt water

K71-890-00

DISC BRAKE REPLACEMENT PARTS

*AxleTek disc end kits are compatible with Dexter Marine kits and the replacement parts are interchangeable Calipers and Components

PART # DESCRIPTION

K71-DBC-225-D (225CAL)

K71-DBC-250-D (250CAL)

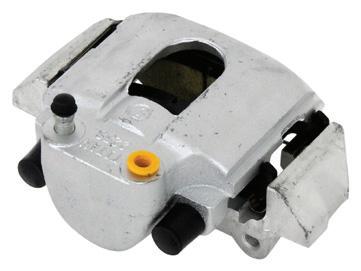

Premier 225 Caliper (Fits 10" & 12" Dexter Disc Brakes)

Premier 250 Caliper (Fit's 13" Dexter Disc Brakes)

Rotors

PART # DESCRIPTION

008-R/H-10-D-S (10HR) 10" Premier Integral Hub/ Rotor

008-R/H-12-D-S (12HR) 12" Premier Integral Hub/ Rotor

Brake Pads

PART # DESCRIPTION

K71-DBC-225-PAD Disc Brake Pads (Automotive #MKD289)

*Fits 10" & 12" Dexter Marine Brakes

K71-DBC-250-PAD Disc Brake Pads (Automotive #MKD215)

*Fits 13" Dexter Marine Brakes

BRAKE ACTUATORS

Drum Brakes

Dexter Marine's BrakeRite actuators are required by law in BC when pulling a trailer weighing over 6,000 pounds

K68-003-00 (*4822500) K71-650-00

PART #

K68-003-00 (4822500)

068-139-01 (43397007K)

068-134-01 (43329007K)

DEXK71-650-00

DESCRIPTION

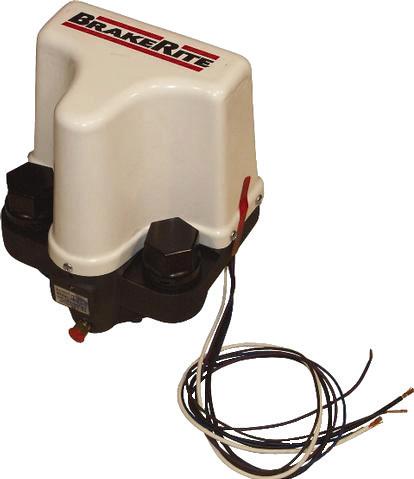

BrakeRite EHB Electric Over Hydraulic Actuator (Drum)

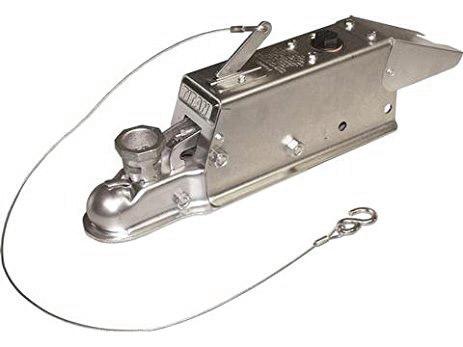

Model 60 Drum Brake Actuator (Multi Fit / 6K)

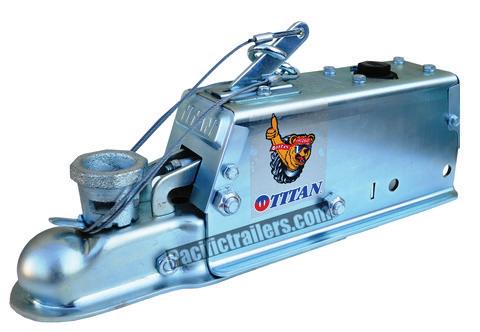

Model 60 Drum Brake Actuator (Leverlock / 6K)

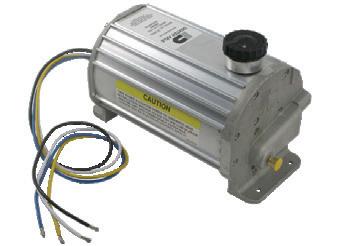

Electric Over Hydraulic Brake Actuator (Drum / 1000 PSI)

Disc Brakes

068-134-01 (*43397007K)

Dexter Marine's BrakeRite actuators are required by law in BC when pulling a trailer weighing over 6,000 pounds

071-A98-00 (*4813100) K71-651-00

*K5803600

071-B16-00 (*4820000)

PART #

K68-001-00 (4813100)

068-202-05 (47457207K)

068-196-05 (47154207K)

K71-651-00

DESCRIPTION

BrakeRite EHB Electric Over Hydraulic Actuator (Disc)

Model 60 Disc Brake Actuator (Multi Fit / 6K) *With electric lock out

Model 60 Disc Brake Actuator (Leverlock / 6K) *With electric lock out

Electric Over Hydraulic Brake Actuator (Disc / 1600 PSI)

Brake Actuator Accessories

PART # DESCRIPTION

K5803600

071-B16-00 (4820000)

071-A98-00 (4395100)

K68-213-00 (4748800)

K71-B19-00 (*4830000)

BrakeRite EHB Adaptor (Ford/ Chev OE Brake Controllers)

Master Cylinder Kit (Disc Brake Actuators)

Master Cylinder Kit (Drum Brake Actuators)

Electric Lockout Solenoid Valve

Tube Kits

PART # DESCRIPTION

K71-B19-00 (4830000)

K71-B27-00 (4864000)

071-A58-00 (0980100)

071-B48-00 (0776500)

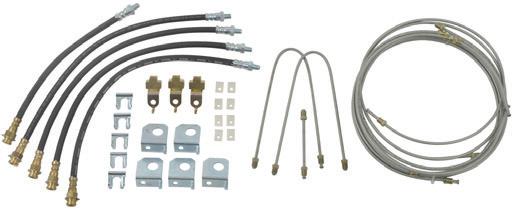

Tandem Axle Brake Tubing Kit

Triple Axle Brake Tubing Kit

Hydraulic Brake Line with Fittings (25" Long)

Hydraulic Brake Line with Fittings (18-25/32" Long)

068-202-05 (*47457207K)
