Duct Access
>>
PRODUCTS DUCT ACCESS
DUCT ACCESS

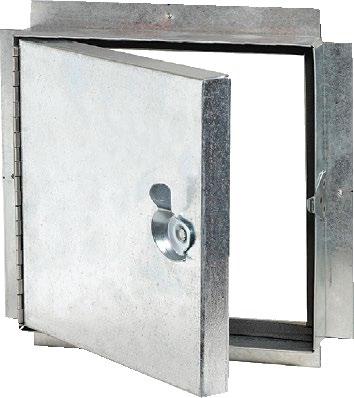

TRU FIT DUCT DOORS
26 GA. GALVANIZED SEEL DOOR & TRIM
CONTINUOUS STEEL HINGE
NUMBER OF STEEL CAM LATCHES VARY PER SIZE
1” INSULATION
PRODUCT DETAILS
PRODUCT SKU: DAR 400 & DAH 450
CONSTRUCTION
Door & Trim: 26 ga. galvanized steel. Finish: Mill finish. Latches: Cam latches: hinged doors over 14” x 14” have 3 cam latches, double cam doors over 14” x 14” have 4 cam latches (one on each of 4 sides). Installation: 1” insulation. Hinge: DAR 400: Continuous steel hinge. DAH: No hinge. Gasket: 1/8” thick x 1/2” wide door to frame gasket.
DURABILITY
The Linhdor DAR 400 and DAH 450 Duct Access Doors are designed to provide efficient and secure service access to critical areas in rectangular metal ducts for a wide range of commercial, industrial, institutional and residential applications. Offering economical, galvanized steel construction, our duct access doors are an excellent choice for locations where HVAC access is required. Perfect for both new and retrofit building projects, our duct doors enable easy access to dampers and other components in heating, air conditioning and other building ductwork.

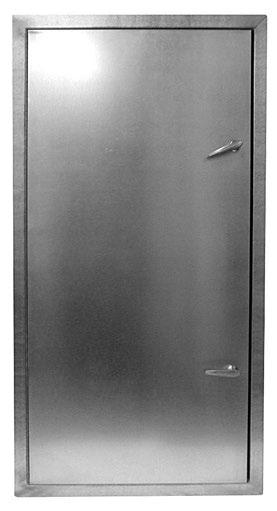

INSULATED DUCT DOOR
FULL LENGTH CONTINUOUS PIANO HINGE
2 EXTERIOR LATCHES
PRODUCT DETAILS
PRODUCT SKU: DAW 470
CONSTRUCTION
Door: 20 ga. galvanized steel, double wall. Trim: 16 ga. galvanized steel. Finish: Mill finish. Latches: 2 exterior latches with interior handles. Installation: 1” thick 3lb. density insulation. Can be installed in walls or ceilings.
DURABILITY
Door is approved for both wall and ceiling use and is also available in stainless steel for use in damp locations. This walk in duct access door and access panel is perfect to allow access to duct work interior and air handling units. This walk in duct access panel features insulation, gasket, and galvanized finish. With easy to reach L handles, the insulated duct access panel is perfect for any situation where an access panel is required for HVAC purposes.
INSULATED DUCT DOOR
FULL LENGTH CONTINUOUS PIANO HINGE
2 EXTERIOR LATCHES
PRODUCT DETAILS
PRODUCT SKU: DAW 470
CONSTRUCTION
Door: 20 ga. galvanized steel, double wall. Trim: 16 ga. galvanized steel. Finish: Mill finish. Latches: 2 exterior latches with interior handles. Installation: 1” thick 3lb. density insulation. Can be installed in walls or ceilings.
DURABILITY
Door is approved for both wall and ceiling use and is also available in stainless steel for use in damp locations. This walk in duct access door and access panel is perfect to allow access to duct work interior and air handling units. This walk in duct access panel features insulation, gasket, and galvanized finish. With easy to reach L handles, the insulated duct access panel is perfect for any situation where an access panel is required for HVAC purposes.
