General Purpose

>>

PRODUCTS GENERAL PURPOSE

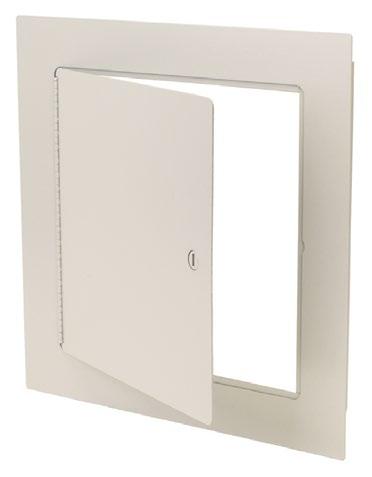

GENERAL PURPOSE

FOR WALLS & CEILINGS

14 GA. 304 STAINLESS STEEL CAM LATCH

LARGE SCREW DRIVER SLOT

18 GA. DOOR & FRAME STAINLESS STEEL PIN HINGE

MACHINE FORM DOOR CATCHES

PRODUCT DETAILS

PRODUCT SKU: ELITE 1000

CONSTRUCTION

Door and Trim: 18 ga. steel (up to and including 16” x 16”). 7/16” door return lip edge. Finish: Primed white baked enamel, paintable surface. Hinge: Pin hinge top and bottom allows opening to 165o . Lock: 14 ga. 304 stainless steel cam latches with large screwdriver slot for easy opening. Can be installed in the ceiling or wall.

DURABILITY

Access door has rust resistant galvanized steel to protect your interior access door from rust and deterioration. Door panel has large accurate cam slots to keep cams sturdy in place and to prevent metal access doors from sagging.

FOR WALLS & CEILINGS

PIANO HINGE

14 GA. 304 STAINLESS STEEL CAM LATCH

LARGE SCREW DRIVER SLOT

16 GA. DOOR & FRAME

PRODUCT DETAILS

PRODUCT SKU: PREMIUM 2000

CONSTRUCTION

Door and Trim: 16 ga. steel. Laser cut from one sheet of cold rolled steel, no corner mitering preferred by architects and building professionals. Finish: Primed white baked enamel, paintable surface. Hinge: Full length semi concealed piano hinge allows 180º for a open work area. Lock: 14 ga. 304 stainless steel cam latches with large screwdriver slot for easy opening. Can be installed in the ceiling or wall.

DURABILITY

Access door has rust resistant galvannealed steel to protect your interior access door from rust and deterioration. Door panel has large accurate cam slots to keep cams sturdy in place and to prevent metal access doors from sagging.

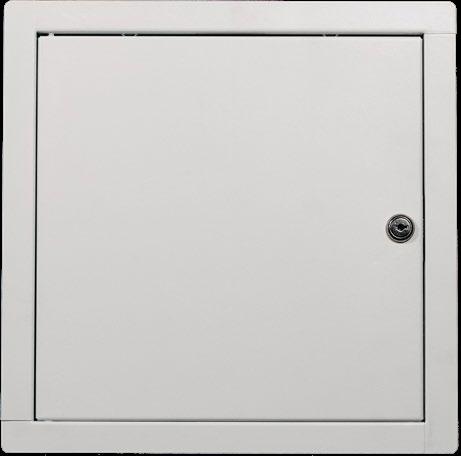

FOR WALLS & CEILINGS

RADIUS CORNERS

LARGE SCREW DRIVER SLOT

14 GA. DOOR & 18 GA. FRAME

14 GA. 304 STAINLESS STEEL CAM LATCH

FULLY CONCEALED OFFSET HINGES UP TO 24 X 24

PRODUCT DETAILS

PRODUCT SKU: SUPREME 3000

CONSTRUCTION

Door and Trim: 14 ga. steel door and 18 ga. steel frame. Laser cut cold rolled steel, no corner mitering, preferred by architects and building professionals. Finish: Primed white baked enamel, paintable surface. Hinge: Fully concealed offset hinges (up to 24” x 24”) allows 165 degrees (over 24” x 24” is semi concealed allowing 180º) for a wider work area. Lock: 14 ga. 304 stainless steel cam latches with large screwdriver slot for easy opening. Can be installed in the ceiling or wall.

DURABILITY

Access door has rust resistant galvannealed steel to protect your interior access door from rust and deterioration. Door panel has large accurate cam slots to keep cams sturdy in place and to prevent metal access doors from sagging.

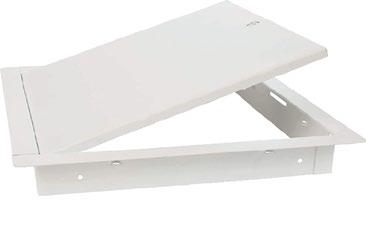

NO HINGE FOR WALLS & CEILINGS

REMOVABLE PANEL

RADIUS CORNERS

14 GA. 304 STAINLESS STEEL CAM LATCH

LARGE SCREW DRIVER SLOT

14 GA. DOOR & 16 GA. FRAME

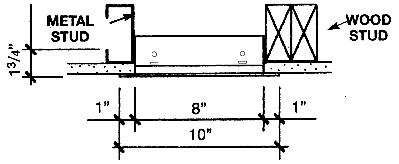

A B

1/4" MOUNTING HOLES

1 1/2" 1" WALL OPENING

1 3/4"

14 GA. DOOR LATCHES ON 4 SIDES

PRODUCT DETAILS

PRODUCT SKU: SUPREME RP 3010

CONSTRUCTION

Door: 14 ga. steel door with radius corners. 16 ga. trim. Laser cut from one sheet of cold rolled steel, no corner mitering, preferred by architects and building professionals. Finish: Primed white baked enamel, paintable surface. Hinge: No hinge, removable panel. Lock: Flush, 14 ga. stainless steel cam latches on all 4 sides. 24 x 24 and above come with safety chains. Can be installed in the ceiling or wall.

DURABILITY

Designed with the same quality features as our Supreme 3000 door, but primarily designed for use in confined areas. Simply unscrew the cam latches and the panel can be easily removed. The frame is laser cut from one sheet of steel for visual aesthetics.

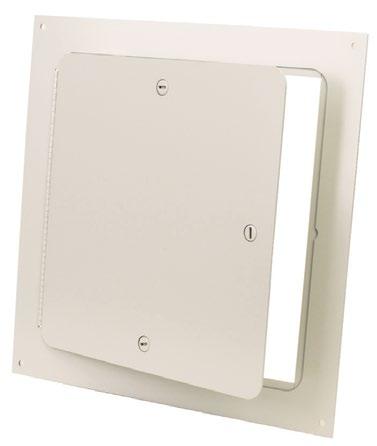

FOR WALLS & CEILINGS

14 GA. 304 STAINLESS STEEL CAM LATCH

RADIUS CORNERS

LARGE SCREW DRIVER SLOT

14 GA. DOOR & 18 GA. FRAME

SURFACE MOUNTED: 1/4” MOUNTING HOLES ARE 1/2” EDGE TO FRAME

A B

PRODUCT DETAILS

PRODUCT SKU: SUPREME SMP 3020

CONSTRUCTION

Door: 14 ga. steel door and 18 ga. steel, 1 1/2″ wide flange. No recess or framing required preferred by architects and building professionals. Finish: Primed white baked enamel, paintable surface. Hinge: Full length piano hinge allows door to open to 180. Lock: 14 ga. 304 stainless steel cam latches with large screwdriver slot for easy opening. Can be installed in the ceiling or wall.

DURABILITY

The best flat access door in the industry. When access is a requirement without a framed opening, our precision fit surface mounted flat access door is the solution for all types of walls and ceilings. This flat access panel is perfect where you need a flat access panel with no recess.
