Titan Security
>>
PRODUCTS TITAN SECURITY
TITAN SECURITY
STEEL SECURITY FOR CELILINGS
CONTINUOUS PIANO HINGE
16 GA. STEEL DOOR & FRAME
TAMPER PROOF SNAKE EYE SCREWS
A special snake eye screw driver is required to open this door
The LW CT T-bar access door simply drops into the 1” steel stud grid and comes complete with mounting screws. Available custom colors. Matte Black seen above
PRODUCT DETAILS
PRODUCT SKU: TITAN CT 190
CONSTRUCTION
Door and Frame: 16 ga. steel. Finish: White baked enamel, paintable surface. Latches: Flush stainless countersunk tamperproof screws. Requires special screwdriver (Linhdor 23) to open. Hinges: Continuous piano hinge. Easy assembly. Solid aluminium. Flush installation. Can be installed in the ceiling or wall.
DURABILITY
This unique access door comes in a white baked enamel finish and features a hassle free installation. It simply drops into the T Bar ceiling with ease. Includes mounting screws for safe and secure installation.
FOR WALLS & CEILINGS
SEMI CONCEALED PIANO HINGE
OPENS 180°
TAMPER PROOF SNAKE EYE SCREWS
A special snake eye screw driver is required to open this door
12 GA. STEEL DOOR 16 GA. STEEL TRIM
PRODUCT DETAILS

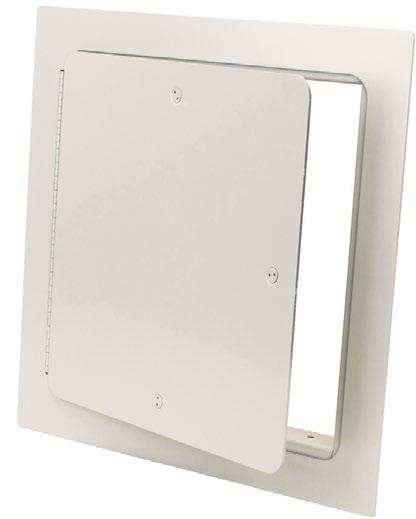

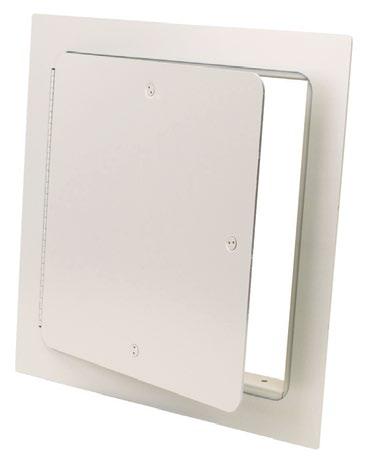

PRODUCT SKU: TITAN MS 100
CONSTRUCTION
Door: 12 ga. steel. Trim: .16 ga. steel. Finish: Primed white baked enamel, paintable surface. Hinge: Semi concealed piano hinge. Allows opening to 180. Lock: Counter sunk tamperproof screws. Anchors: Heavy steel, welded to frame. Can be installed in the ceiling or wall.
DURABILITY
This door assures medium security whenever it is necessary under institutional conditions. Most detention buildings and mental care facilities require access to vital services in or behind walls, shafts, and stairwells.
FOR WALLS & CEILINGS
SEMI CONCEALED PIANO HINGE
OPENS 180°
PREPPED FOR HEAVY DUTY DETENTION LOCK
10 GA. STEEL DOOR 10 GA. STEEL TRIM
LINDHOR -15 Prepped for heavy duty detention lock and paracentric key
LINDHOR -16
A B
PRODUCT DETAILS

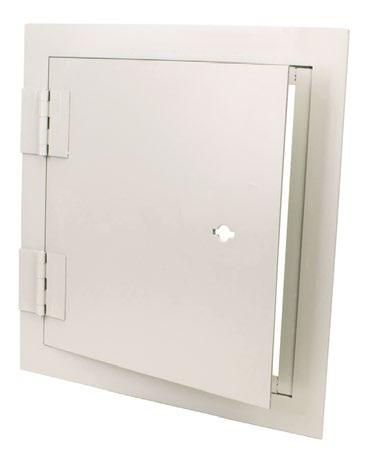

PRODUCT SKU: TITAN HS 150
CONSTRUCTION
Door: 10 ga. steel. Trim: 10 ga. steel with 2” x 2” x 3 1/16” angle. Finish: Primed white baked enamel, paintable surface. Hinge: Heavy duty type butt hinges welded to door and frame. Allows opening to 180. Lock: Prepped for detention lock. Can be installed in the ceiling or wall.
DURABILITY
The TITAN HS 150 High Security Access Door is designed to be placed where maximum security is of great importance. This door comes prepped for a detention lock which is sold separately.
