Aluminum

>>

PRODUCTS ALUMINUM

FOR WALLS & CEILINGS

LARGE SCREW DRIVER SLOT

FLUSH ALUMINIUM CAM LATCH

NON-EXTRUDED 0.63 ALUMINIUM

CONCEALED CONTINUOUS PIANO HINGE

CONCEALED PIANO HINGE

CONCEALED PIANO HINGE

PRODUCT DETAILS

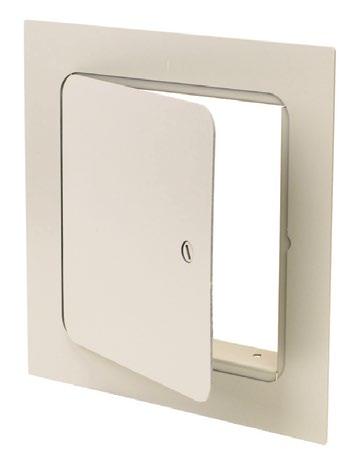

PRODUCT SKU: LW 500

CONSTRUCTION

Door and Trim: Non extruded .063 Aluminum. Finish: Primed white baked enamel, paintable surface. Hinge: Fully concealed continuous piano type. Latch: Flush aluminum cam latch. Insulation: 1” TUFF RTM polyisocyanurate insulation, with 6.5 R Value at 75º F mean temperature. Gasket: Neoprene gasket included on all 4 sides. Can be installed in the ceiling or wall.

DURABILITY

This lightweight, insulated, all aluminum access door is ideal for exterior applications, and also those specific interior applications where corrosion or moisture is a concern. Access to large openings in walls and ceilings is made easy. The non extruded door frame has the same visual aesthetic design as the SUPREME 3000 access door. Comes with gasket on all 4 sides. The aluminum door panel is insulated with 1” TUFF RTM polyisocyanurate.

FOR WALLS & CEILINGS

LARGE SCREW DRIVER SLOT

FLUSH ALUMINIUM CAM LATCH

SEMI-CONCEALED CONTINUOUS PIANO HINGE

NON-EXTRUDED 0.63 ALUMINIUM

WALL OPENING

A

WB GP Premium

B

PRODUCT DETAILS

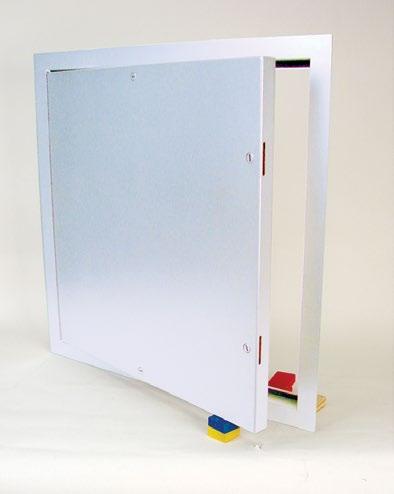

PRODUCT SKU: LW 550

CONSTRUCTION

Door and Trim: Extruded .063 Aluminum. Finish: Primed white baked enamel, paintable surface. Hinge: Full length semi concealed piano hinge allows 180º opening. Latch: Flush aluminum cam latch. Can be installed in the ceiling or wall.

DURABILITY

This lightweight, all aluminum precision flush access door for wall and ceiling installation far surpasses other doors because its surround trim is welded on all four sides to the return frame providing strength and rigidity. Aluminum, no corner mittering asthetically preferred by architects and building professionals.

FOR CEILINGS

LARGE SCREW DRIVER SLOT

CONTINUOUS PIANO HINGE

DOOR & FRAME 0.63 ALUMINIUM

FLUSH ALUMINIUM CAM LATCH

The LW CT T-bar access door simply drops into the 1” steel stud grid and comes complete with mounting screws. Available custom colors. Matte Black seen above

PRODUCT DETAILS

PRODUCT SKU: LW CT WW

CONSTRUCTION

Door and Frame: .063 Aluminum. Finish: White baked enamel, paintable surface. Latches: Flush stainless steel screwdriver cam latch. Hinges: Continuous piano hinge. Easy assembly. Solid aluminium. Flush installation. Can be installed in the ceiling or wall.

DURABILITY

This unique access door comes in a white baked enamel finish and features a hassle free installation. It simply drops into the T Bar ceiling with ease. Includes mounting screws for safe and secure installation.
