FADHLIN SHAMEER

Architectural Portfolio

An optimistic knowledge seeker who always grabs the opportunity to improve onself whenever possible.

WORKING EXPERIENCES

Fabkl Design, Kuala Lumpur

Assistant Architect Part I

Jan 2022- Jul 2022

Freelance

Aug 2021 - Dec 2021

Green Phantom Sdn Bhd, Petaling Jaya

Designer

May 2021- Aug 2021

HXN Architects, Sri Hartamas

Architectural Assistant Part I (Contract)

June 2020 - Dec 2020

MSR Architect, Subang Bestari, Shah Alam Internship for Practical Training 1 for 2 months.

Jan - Feb 2019 / June - July 2019

EDUCATION BACKGROUND

Oxford Brookes University, Oxford, United Kingdom

• Sept 2022-Jul 2024

Master in Architecture in Design (Part II)

LimKokWing University, Cyberjaya, Malaysia

• Feb 2017- Dec 2019

Bachelor of Science Architecture (Part I)

• Apr 2016- Feb 2017

Foundation in Built Environment

SMK Jalan Empat, Bdr Baru Bangi, Selangor, Malaysia

• 2011-2015

SKILL

Sijil Pelajaran Malaysia High

Baisc Proficiency

Procreate Illustrator

LANGUAGES

Content

Third Place (s)

Master of Architecture final year project

Rooftop Walkway

Master of Architecture first year project

Alone but Not Being Lonely

Master of Architecture warm-up project final year

Selected Works

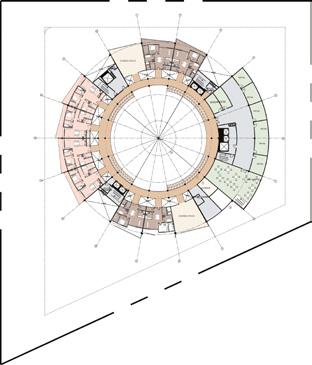

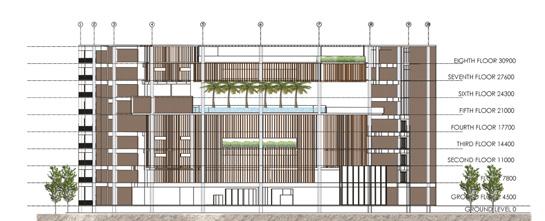

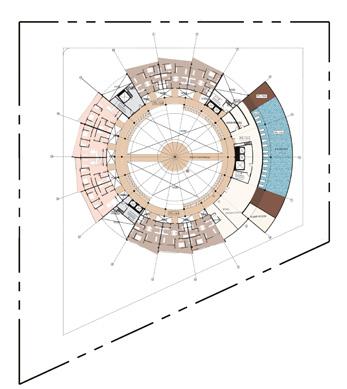

Mid-rise apartment (BSc. Year 3)

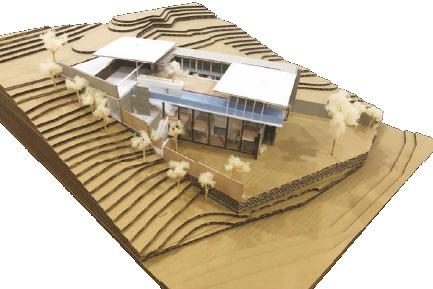

Eco-Lodge (Bsc. Year 2) Practice (2020)

Miscellaneous

Third Place(s)

Design Studio II

Master of Architecture final year project (Year 2)

Location: Dartington, Devon, United Kingdom

Year: 2024

Type: Student accomodation, Swimming pool, Cafe with workspace, Treehouse and Well-being centre. Software: Vectorworks, SketchUp, Photoshop, InDesign, Procreate

The Dartington Estate is recognized for its progressive approach to education, focusing on holistic development, creativity, and social responsibility. Research highlighted how traditional systems often limit access to necessary resources for youth well-being. Drawing on Ray Oldenburg’s “Third Place” theory, this project envisions creating spaces that support mental health for young adults (18-25). It designs a journey from “first place” to “third place,” with four distinct spaces tailored to the site’s context, aiming to reduce inequalities in access to mental health resources through supportive infrastructure. 2nd Place

INDIVIDUAL

Third place is where “people gather easily, inexpensively, regularly & pleasurebly - A place on the corner” - Ray Oldenburg

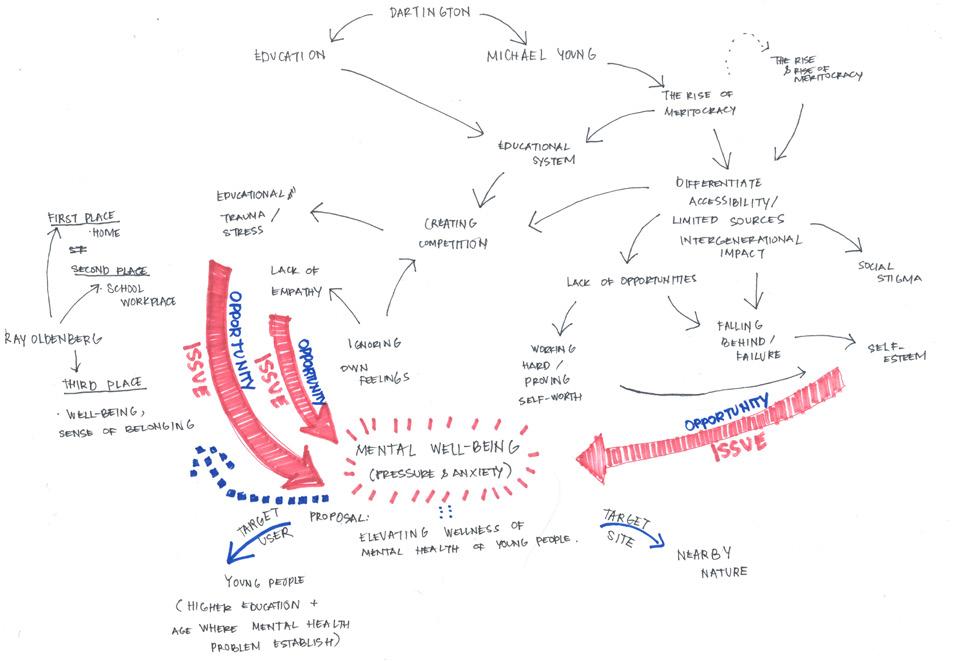

CONCEPT STORYBOARD/ILLUSTRATION

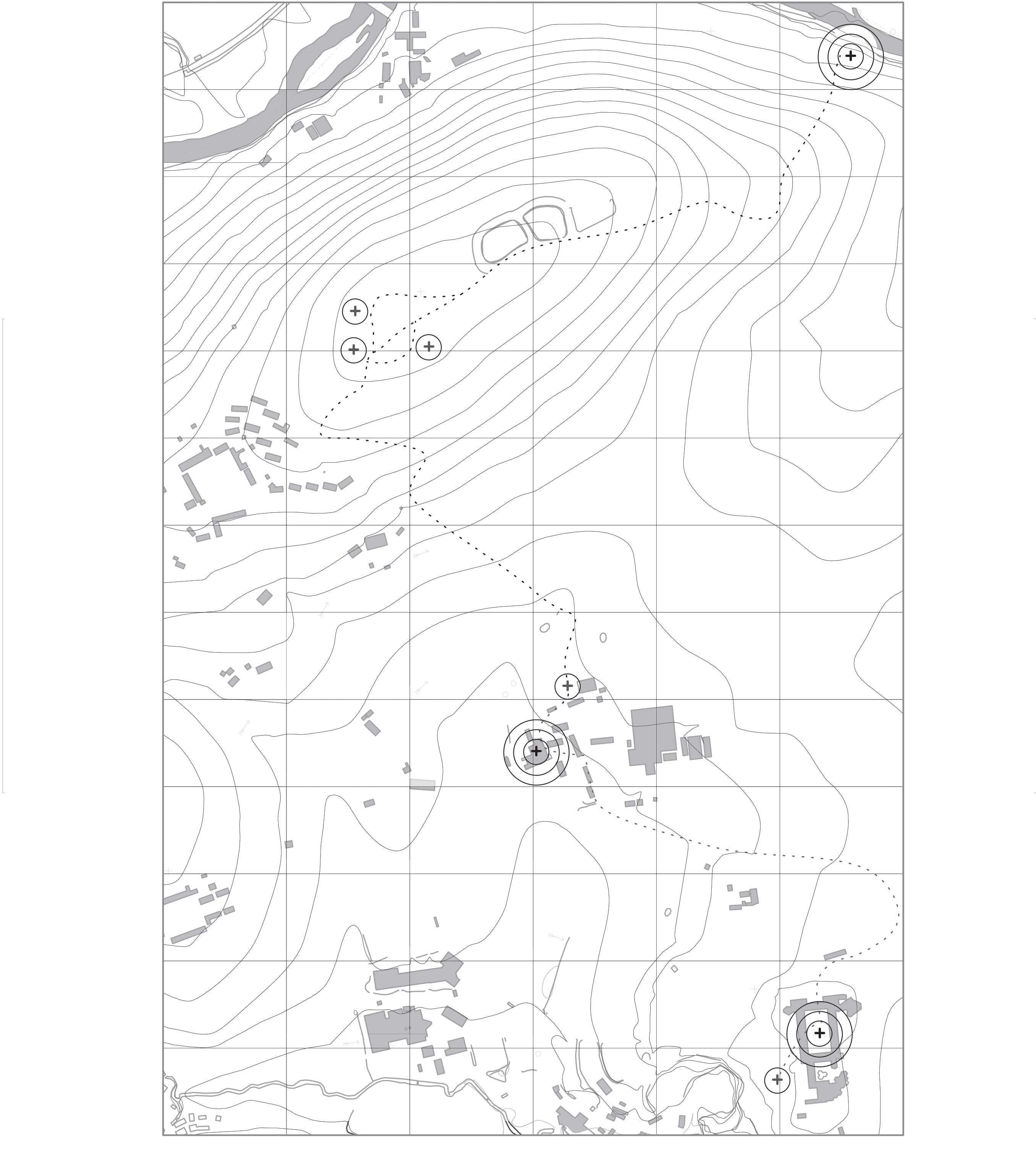

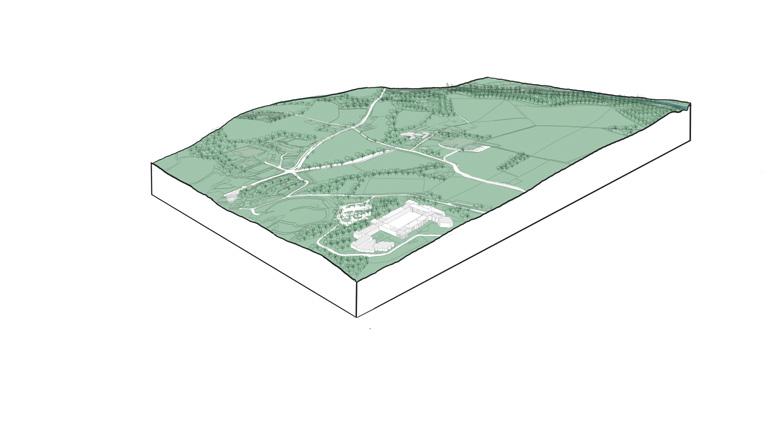

POTENTIAL SITE FOR NARRATIVE

Undegraduate/ Postgraduate courses

Short college courses

Listed II buildings

Boarding School

Education centre

FIRST PLACE

FOXHOLE

SECOND PLACE

SCHUMACHER COLLEGE

WOODLAND

THIRDPLACE

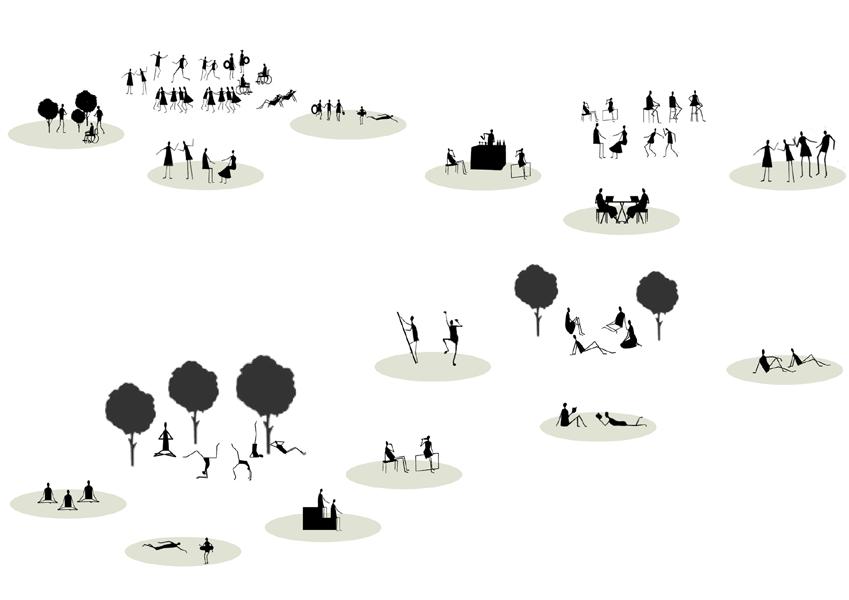

The idea of having scattered of third place(s) is to provide touchpoints of interactions for easily access that can increase the connection between human which leads improvement of wellbeing of a person especially people with anxiety.

SCHOOL (DARTINGTON HALL SCHOOL)

Art school courses

Nearby the river

Geosmin / phyntocide

The transition between 2 forests

The sound of nature (water, trees, birds)

A: Serene Oasis

Place

Ultimate Third Place

Place

RnR Ground

Transitional Place

PROGRAMME

Location: In the woodlands

Type: Treehouse

User: : The students and open to public (transitional place)

Adventurous activity (climbing) Enjoying small crowd settings

#D: Ultimate Third Place

LEGEND

+ Touchpoints of interaction; Third place(s)

User: The students and open to public

Type: Wellbeing Centre

Wellbeing activity together in the nature

Enjoying nature with different settings

Cafe Hot sauna Wild swimming pool

Location: Nearby the Second place

Type: Cafe with workspace

User: : The students and open to public transition after school)

Food and beverage place Hot desk

Location: In the site of First Place

Social interaction activity

Type: Swimming pool

User: The students and member of the accomodation (young adult transition after school)

FIRST PLACE

Repurposed Student Accomodation

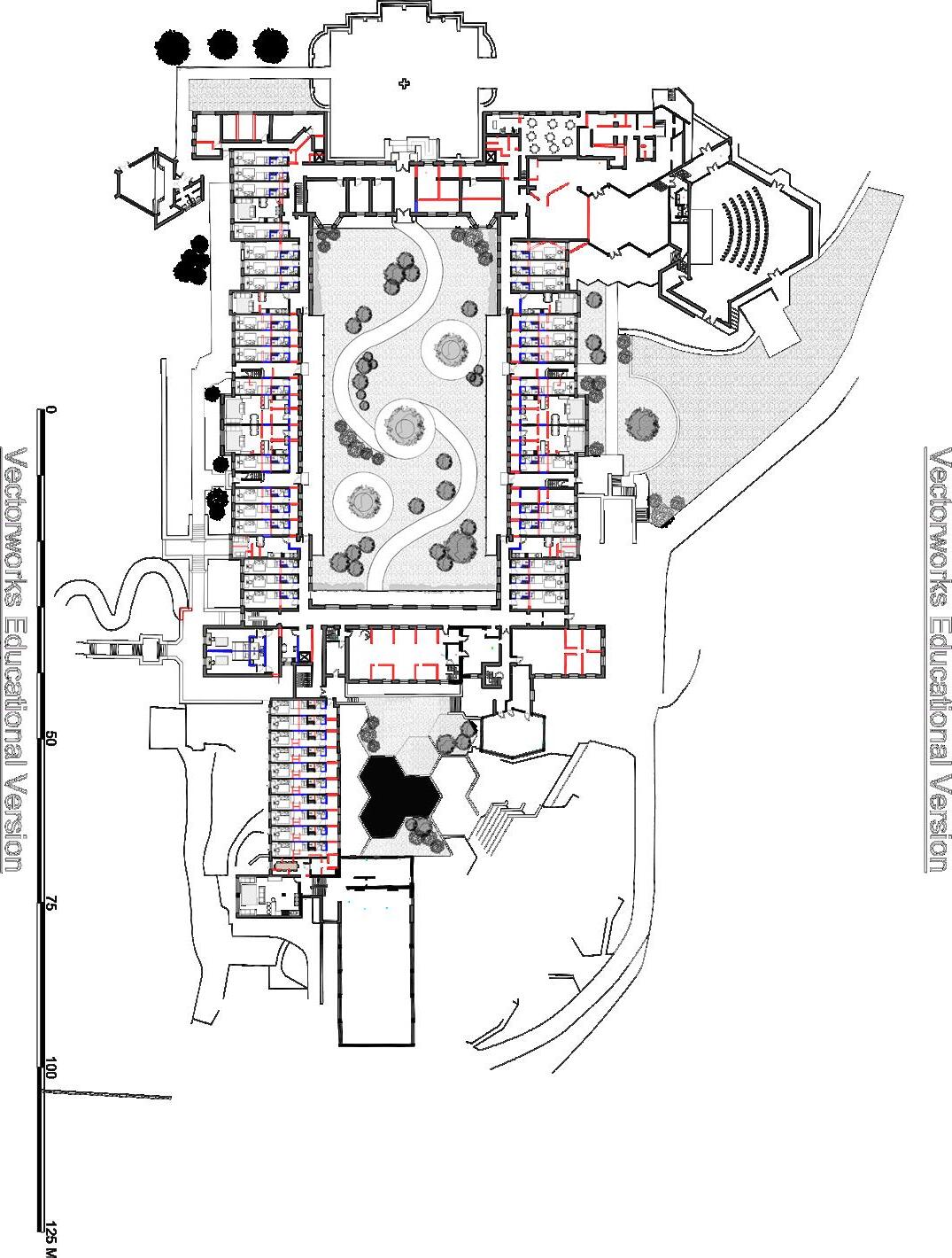

Ground floor plan

LEGEND

Demolish Proposed Existing

The First Place is the repurposed Foxhole School, a Grade II listed building transformed into student accommodation with 90 rooms. The design balances privacy and community, allowing students to choose between solitude in their rooms or socializing in communal areas. Some non-load-bearing walls will be removed to create ensuite rooms. Large windows provide views of the surrounding nature, enhancing a calming environment. A proposed ground-floor verandah facing the courtyard fosters interaction between residents inside and those in the outdoor space.

Common Kitchen / Living Area

Proposed verandah Corridor

Ramp to #A

ZOOM IN LAYOUT

Stairs to #A

#A; Serene Oasis ( Swimming Pool)

Lower floor

Some parts of branches to be trimmed for safety and clearance reason

Framing view of the facing towards sunset area

Vectorworks

Upper floor

ladder part of adventurous activity

Additional timber block

45 ° angle of the truss to tansfer load to main support (tree)

The platform is supported by timber panel that is connected by screw

Rope tie knot to the trees as a ‘railing’

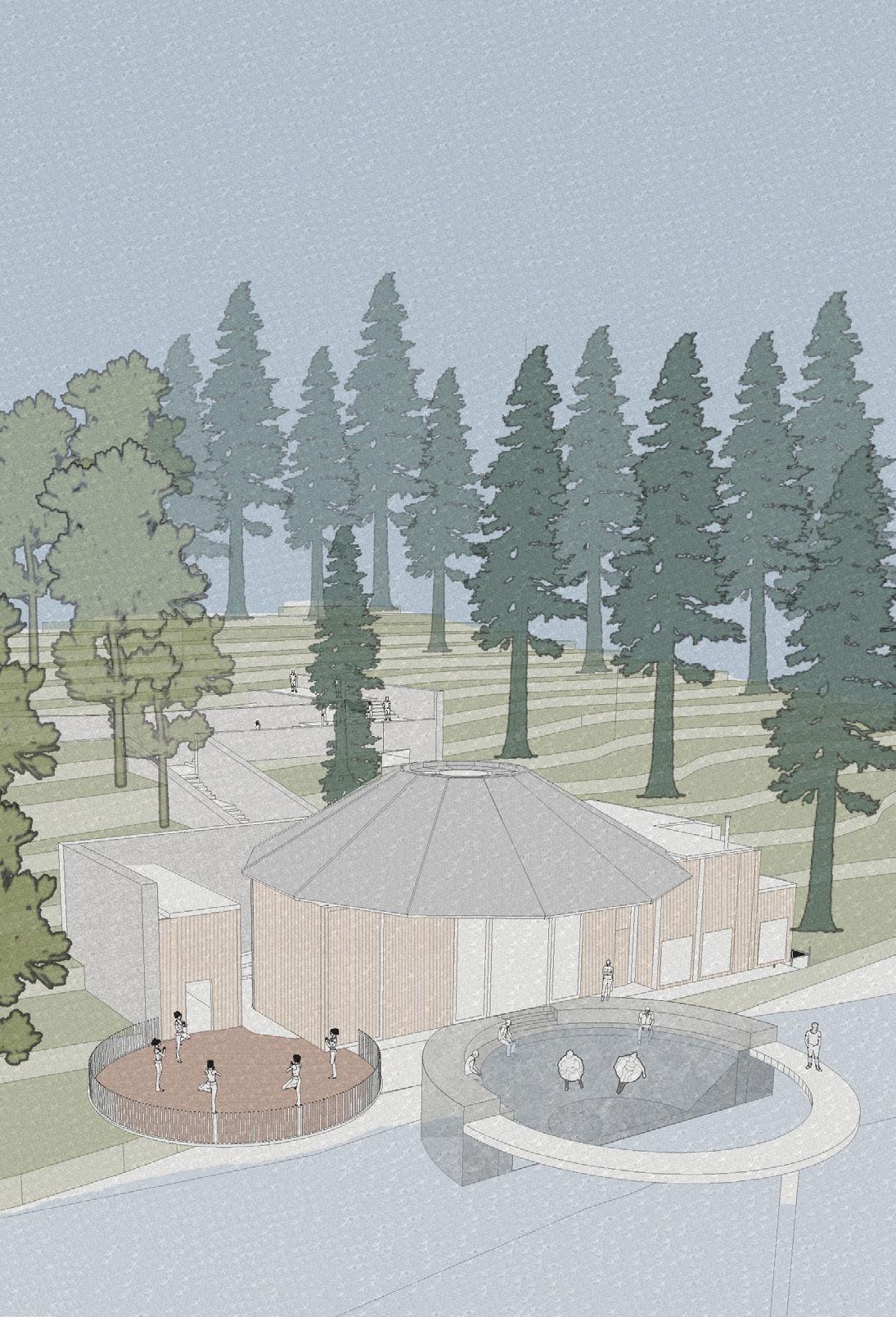

#D; Well-being Centre (Hot Sauna)

Drying Air Pipe

Cross Laminated Timber Wall treated with mineral oil

Sauna bench

Open web floor trusses

ZOOM IN DETAIL

Sauna wall to foundation

5 Layers

Cross Laminated Floor

Metal web joist

R-15 Safe-n-Sound Insulation

DPM

50mm Blinding (3-8mmø) on 100mm min. well compacted hardcore

Pile to piling contractors

specification

Unventilated space proposed as storage room for logs that could be acces with ladder from the other side of the room .

Vertical timber cladding external wall

1800mm Height Double glazing window

Flue ø150mm

1200mmx830mm natural stone tiles wall finishes

591mmx514mm

Wood log burner

Air Vent for fresh air intake

Detail

External timber cladding

Thermal bridging insulation ICCF Block foundation

Land drain around perimeter of building to be provided and installed

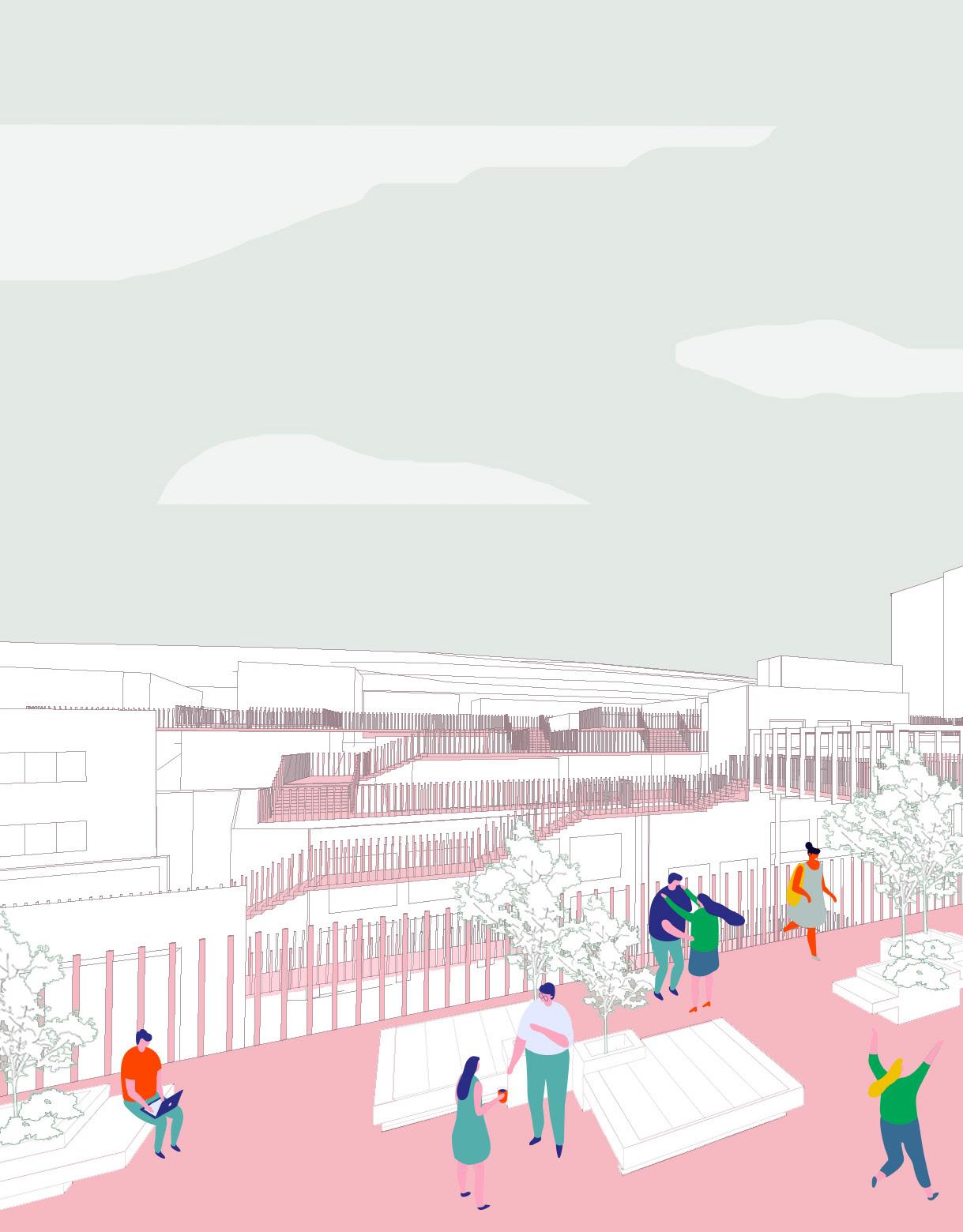

Rooftop Walkway

Design in Development Emergency and Practice

Master of Architecture first year project (Year 1)

Location: Itaewon, Seoul, South Korea

Year 2023

Vectorworks, Blender, Rhino, Illustrator

This module applied forensic architecture methods, including research, site mapping, 3D modeling, and simulation, to analyze the Itaewon crowd crush incident. Itaewon, known for its vibrant nightlife and as a hub for the queer community, experienced the tragedy during its first unrestricted Halloween celebration since the pandemic. The crowd crush, caused by people pushing in a confined space, led to a “domino effect.” One proposed solution is to design walkways connecting rooftops, offering alternative routes to give users more control over their movement.

DIAGRAMMING

Law enforcement; Police station

the statistic of the victim according to gender

the statistic of the victim according to age

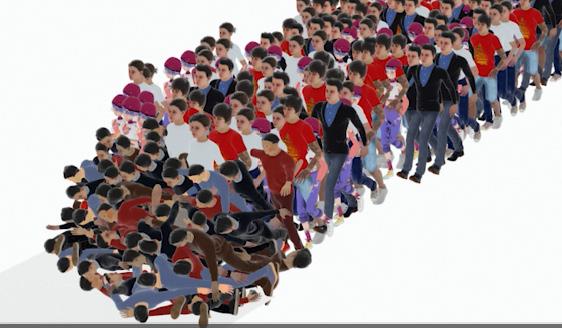

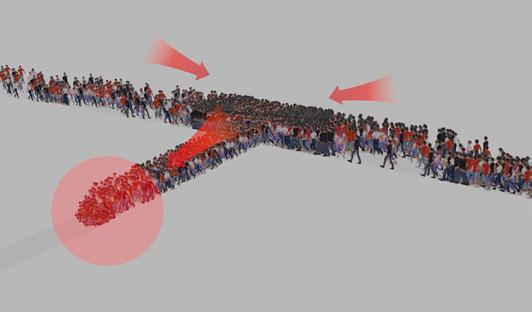

The arrows shows the direction of people from the alley going to the narrow alley that cause the collision of people as they were against each other and created collision

The traffic of pedestrian at the alley as Itaewon is considered as a hotpsot of the area.

Entertainment; Waikiki Bar

Multi-commercial; Hamilton Itaewon Hotel

Public transportation; Itaewon Underground train station

IMPACT OUTCOME OUTPUT ACTIVITY

IMPROVED AWARENESS OF RISKS

OUTPUT NOTIFICATIONS OR SIGNAL OF CROWDSING RISK (APPS/AI/SIGN)

INCREASE THE NUMBER OF SURVIVOR IN CROWD SURGING

IMPROVED SURVIVAL SKILLS

YOUNG ADULTS

TRAINED ON SURVIVAL SKILLS

HAVING SIGNAL TO ALERT THE VISITORS TO WHEN THE CONGESTION OCCUR

PROVIDE TRAINING SKILL TO THE YOUNG ADULT COMMUNITIES OR STARTING FROM GRADE SCHOOL LEVEL

eg: TO SURVIVED CROWD SURGING WHEN STUCK IN THE CROWDS

TO DO CARDIOPULMONARY RESUSCITATION (CPR)

SAFER PUBLIC SPACE FOR HIGH DENSITY AREA

IMPROVED POLICY RATIOS

DECREASING THE ILLEGAL STRUCTURE

INCREASE CROWD CONTROL AT TRAIN STATION EXIT OPTIONS OF ALTERNATING ROUTES

DESIGNING ALTERNATIVE ROUTES THAT HAVE OPTIONS TO GIVE PUBLIC MORE CHOICES AND IN CONTROL OF THEIR MOVEMENT

Multiple access/exit of the pathway to prevent crowded.

Act as a connection towards commercial building’s that has rooftop restaurants or as a fire escape.

Options of route to engage people’s active mind.

Roofscape platform is provided at the rooftop that is available.

For surveillance purpose; to let people observe in unristricted view.

Alone but not being lonely

Design Studio II

Master of Architecture warm-up project final year (Year 2)

Location: Oxford, United Kingdom

Year: 2023

Vectorworks, SketchUp, Photoshop, Procreate

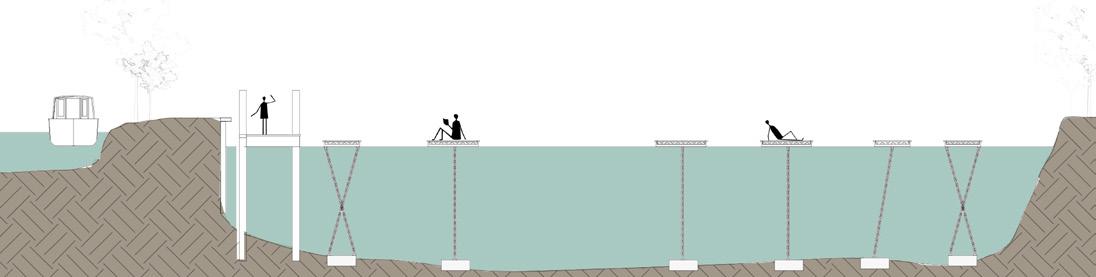

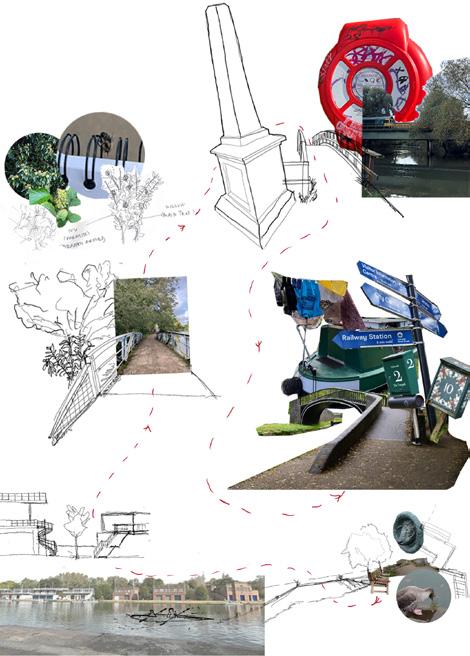

In response to the project “a moment of reflection” and serene nature of the pontoon near Isis Lock, I designed floating lily pads on the river to serve as individual spaces for solitude. These lily pads provide a personal retreat within the natural environment, allowing users to enjoy quiet moments on the water while remaining connected to the surrounding urban and public spaces. The design emphasizes the balance between solitude and subtle urban interaction, creating a tranquil, floating sanctuary for those seeking time alone.
