PERACETIC ACID MONITORING IN WASTEWATER TREATMENT
When utility company Hera required a monitoring solution for a new-build wastewater treatment plant, they turned to Chemitec for a dedicated solution.

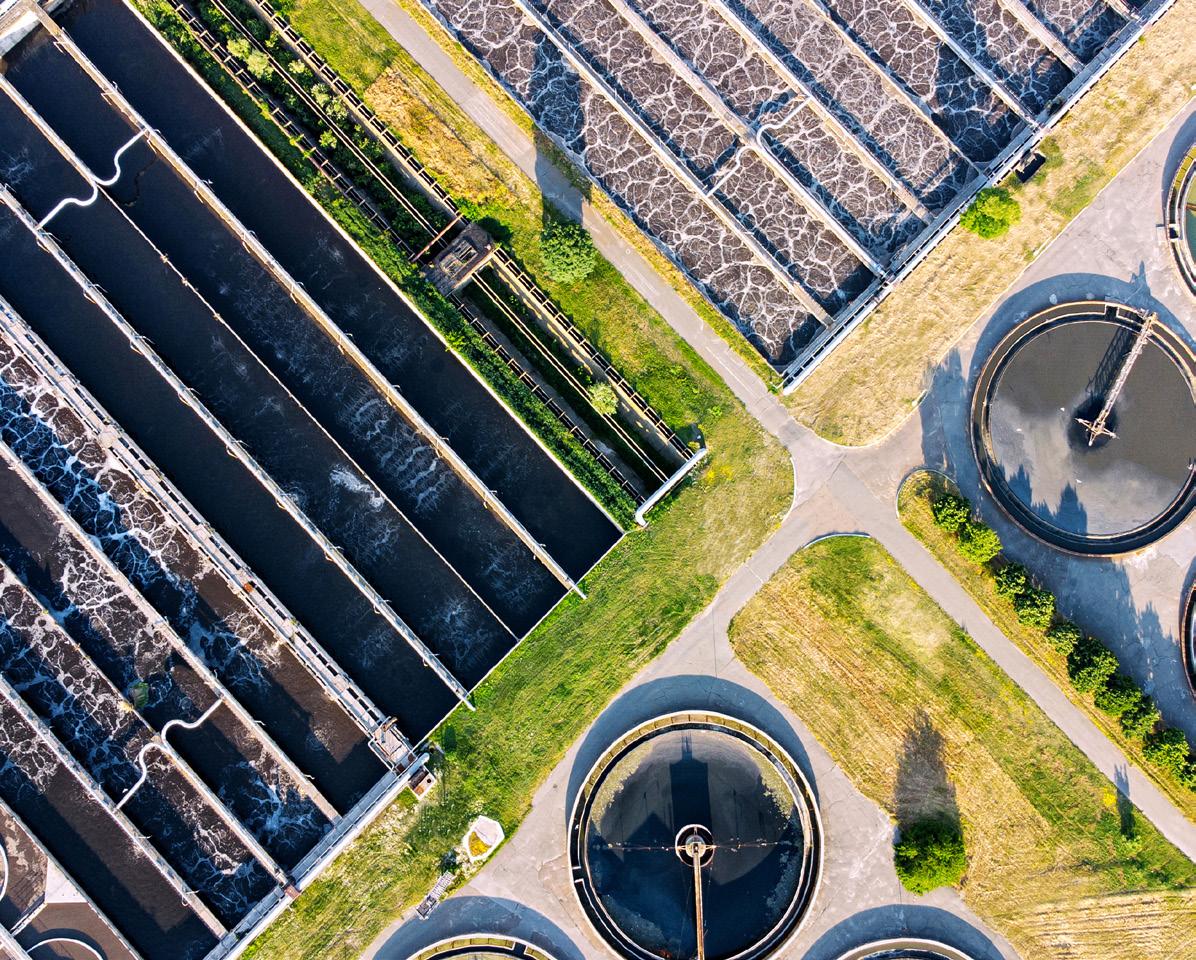

The plant is based in Castel San Pietro Terme, south-east of Bologna in northern Italy, where the client planned to use peracetic acid (PAA) for the final disinfection of water following the biological treatment and sedimentation processes.
PAA is well known as an excellent disinfectant and is widely used in wastewater treatment. However, it must be closely controlled when used in concentration to ensure that levels are safe prior to discharge.
With the customer needing a proven system to monitor the residual concentration value of PAA after the secondary treatment, they approached Chemitec to recommend an analysis instrument from its world-leading range.
WELL SUITED TO DISINFECTANT DOSING

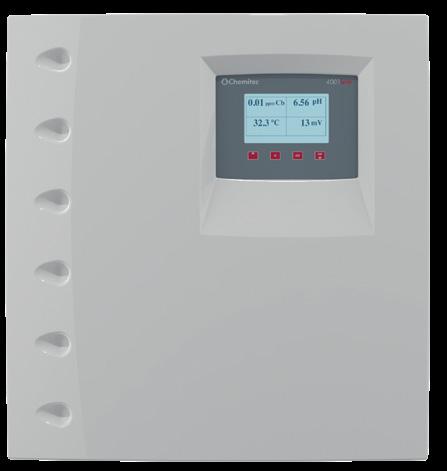

After a comprehensive assessment of the process and in-depth discussion with the customer, Chemitec’s expert team recommended its 4001 multiparameter photometric analyzer and sampling filtering system as the ideal solution for this on-line application.

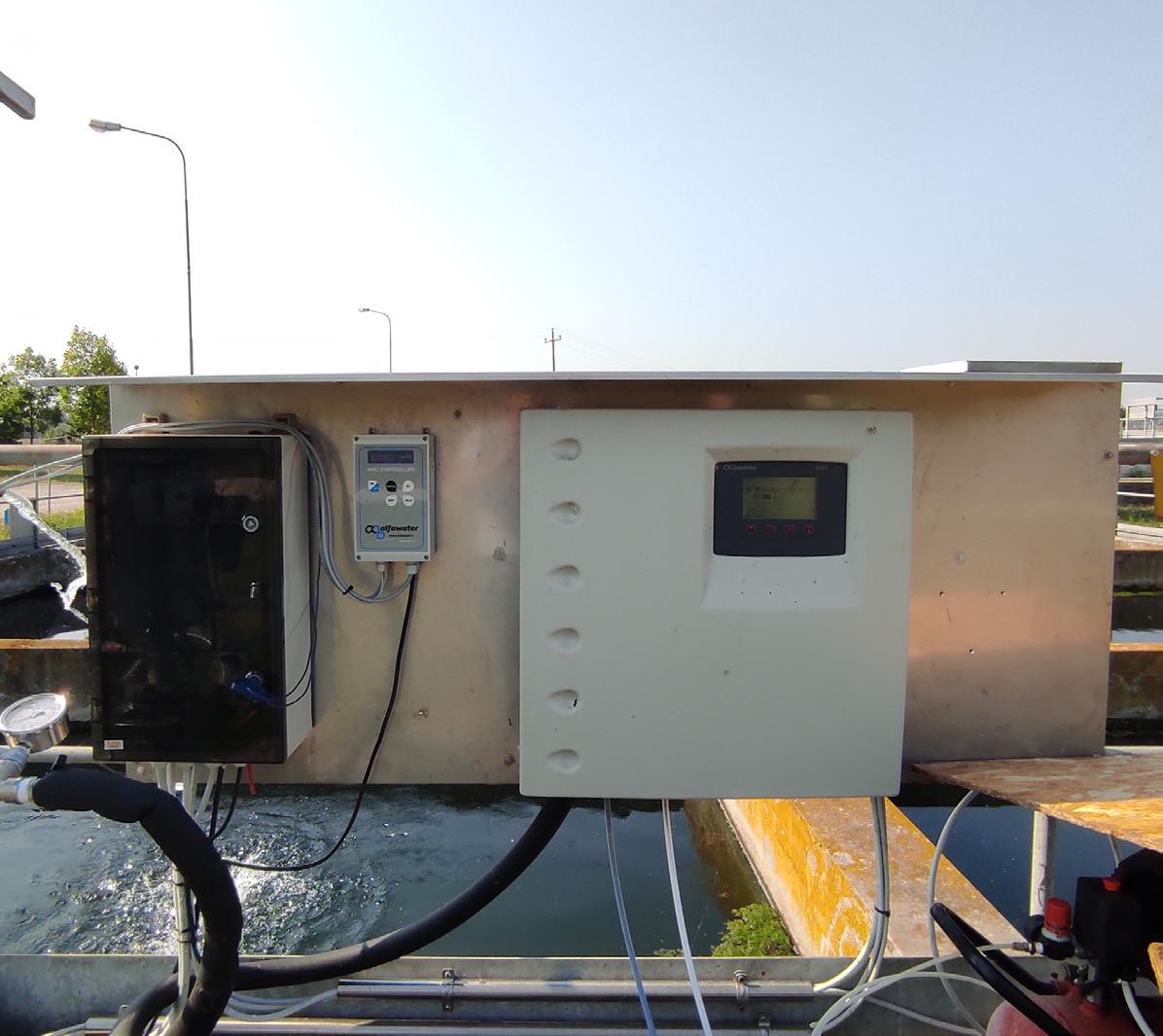

The 4001 is a cabinet-mounted system that includes advanced software within an intuitive interface and automatic calibration at each measuring cycle, making the system one of the most user-friendly solutions of its kind.
The 4001 system was selected for its suitability for dosing disinfectants such as chlorine and PAA along with its capacity to control the full process and prevent excessive dosing, which was essential for the management of PAA levels.
In addition, the unit’s high-grade components offer excellent reliability and longevity, which allowed the operator to keep operating and maintenance spending low at a time when utility and chemical costs were putting strain on budget.
ACCESS TO DATA AND ALARMS FOR SUPERIOR CONTROL
Meanwhile, the 4001 is designed to send data and alarms to plant control rooms, which meant the operator could closely monitor process performance, chemical consumption and system status as part of an ultra-efficient operation.

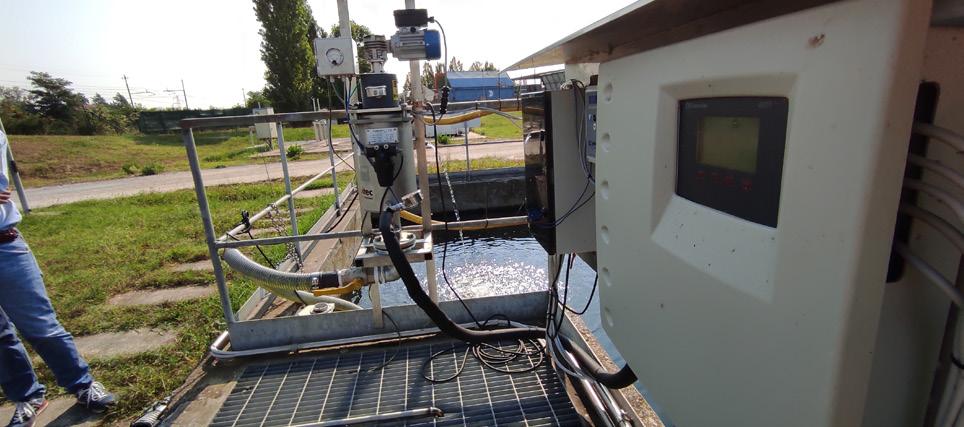

Following completion of the installation, the customer reported full satisfaction with their Chemitec system, being especially impressed with the level of control and the alarm feature which alerted them in the rare event of values exceeding desired safety thresholds.
Once again a state-of-the-art Chemitec solution helps a water-industry professional to solve challenges within their process and enjoy repeatable results over the long term.
4001 FEATURES AND BENEFITS
• Low operating and maintenance costs
• System calibration performed automatically at each measuring cycle
• Intuitive interface provides measurement status
• Create graphs to display measurements
• Internal data logger
• Peristaltic pump for high-precision reagent dosing
• Continuous monitoring of reagents via level sensors
