THE ORIGINALS
Kverneland plough body range
FIRST CHOICE FOR FARMERS EVERYWHERE
HEAT TREATED TO PERFECTION
– To ensure strength and flexibility - Customised parts
Kverneland is renowned for using customised heat treatment processes to obtain specific features for each single part. The result is some of the best steel parts available on the market!
Our steel guarantees long lasting plough parts with unique benefits. Harder steel reduces wear and friction but is more prone to breakage. Softer steel will not break, but creates friction and wears faster.
Manufacturers have to make compromises between soft and hard to achieve a satisfying steel quality. A common solution is to produce thicker parts to compensate for softer steel and avoid breakage.
The unwanted side effect is that you get thicker, heavier.

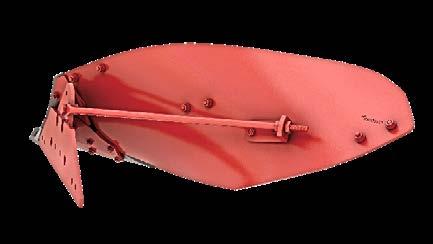

MOULDBOARD
Our unique heat treatment processes give our mouldboards a glass-like hard surface and a soft and flexible core. This unique combination of strength and flexibility allows for the mouldboard to endure challenging conditions and prevent soil from adhering to the surface, whilst letting the soil slide easily over the mouldboard without sticking. The soft core absorbs shocks and tension to avoid breakage.
During ploughing, steel parts can often increase soil resistance, which leads to higher fuel consumption. At Kverneland we don’t believe in compromising.
Instead, we have spent years developing our own heat treatment techniques. Through significant investments and rigorous laboratory and field testing, we are able to mix several heat treatment processes into different zones of a part to provide thinner and stronger parts.
SHARE
When cutting into the soil, the share is exposed to hard contact. The key to success lies in the area around the bolt holes. These tend to break if the steel is too hard. Instead of making thicker parts, we invented a unique zone hardening technique to get the perfect results. We make the steel around the bolt holes soft and flexible to absorb shocks and tension. The area around the cutting edge of the share is heat treated to be extremely hard and smooth like glass, giving you a share that lasts longer, with less drag and
breakage.
area around bolt holes to avoid breakage. Extremely hard wearing zones.
REVERSIBLE POINT
Similar to the processes used in the production of shares, we use zone hardening for the points, improving the quality of the steel, making it last longer. Around the bolt holes we have a soft and flexible zone, minimizing tension and avoiding breakages. The remainder of the point is hardened to be extremely durable, enabling it to withstand the taxing task of being first into the soil. The result is a point that will last longer than comparable products from our competitors.

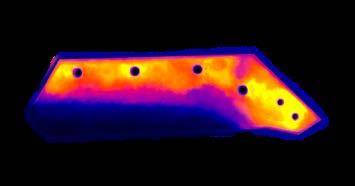

Temperatures meassured with infrared camera during heat treatment
Flexible area around bolt holes to avoid
Flexible
Cross section of a Mouldboard.
Hard surface for less friction and longer lifetime.
Soft and flexible core to avoid breakage.
WHICH PLOUGH POINT IS BEST FOR YOU?
– Customize to fit your needs

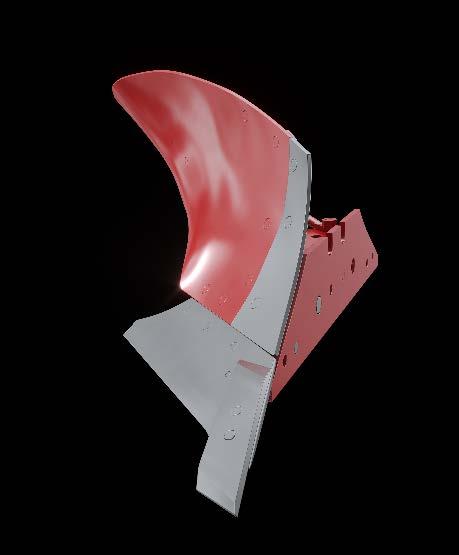

Reversible point system
- The world standard all-round point, reversible for maximum steel utilisation
• The most economical and durable system
• Parts treated for extra strength
• Proven assembly for over 50 Years

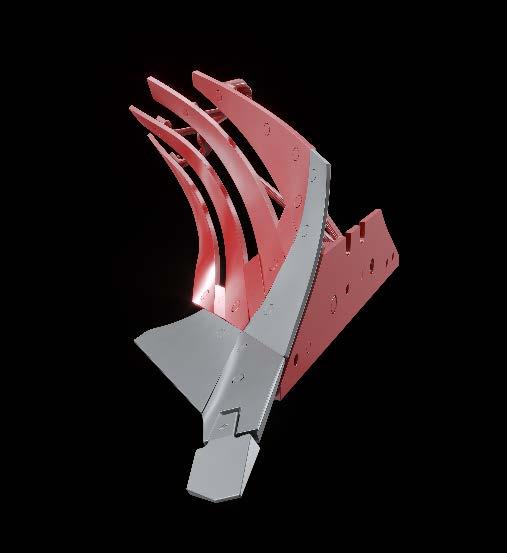

Knock-on point system
- Fast point change with excellent soil penetration
• Very fast point change with no bolts involved
• Excellent soil penetration
• Perfect for dry conditions
• Mounts to any standard share
• Knock-on system also fits cultivators

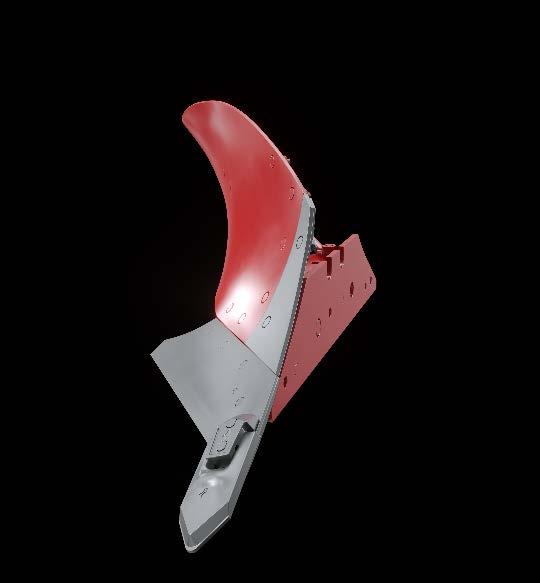

Quick-Fit point system
- Fast point change for sticky soil
• Very fast point change with no bolts involved
• Flushed parts for minimal friction and build up
• Perfect for sticky soil conditions
XHD point system
- Carbide reinforced for extreme wear resistance
• Carbide reinforced on all cutting edges for maximum wear resistance
• Special corner tiles designed to withstand shock
• Mounts to any standard share
• Perfect for all soil conditions
XHD+ point system
- Heavily carbide reinforced for the most extreme wear resistance
• Longest lifetime available for a Kverneland plough
• Carbide reinforced on all cutting edges for the highest wear resistance
• Our special corner tiles are extremely shock resistant
• Flushed parts for minimal friction and build up
• Perfect for all soil conditions
XHD Carbide reinforced parts
Carbide reinforced
Extreme wear resistance
Extended lifetime
Perfect fit
The XHD range
Stronger than ever
Kverneland’s XHD parts are designed with the most extreme conditions in mind. Abrasive soils put significant stresses on soil wearing parts, resulting in fast wear and regular parts replacement. Thus increasing both costs and downtime.
EXTENDED LIFETIME
The Kverneland XHD Carbide range is the ideal solution that makes light of tough and demanding conditions. The new XHD range has a lifetime up to 8 to 10 times the life* of the standard parts, keeping costs and downtime to a minimum. A cost effective alternative to handle the toughest conditions.
*Based on average test conditions. Depending on soil type, moisture content, machine type, working speed, working depth, machine width and mounting position

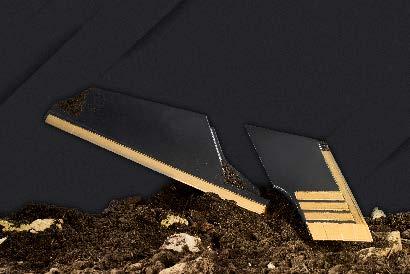

TUNGSTEN CARBIDE
Tungsten Carbide, one of the hardest materials known, is created by combining carburized tungsten powder with soft cobalt. This results in a durable material capable of withstanding extreme impacts. Each XHD part has a unique hardness-flexibility balance to ensure longevity, cost-effectiveness, and high wear resistance while enduring varying stress levels and impacts.
XHD+ CARBIDE POINT
Protected with 14 premium grade tungsten carbide tiles. 4 corner tiles along the leading edge, 3 rows of tiles on the surface and 1 row of tiles on the outer edge.
XHD+ CARBIDE 16” & 18” SHARE
Protected with 19 or 22 premium grade tungsten carbide corner tiles along the leading edge. The shares are designed to be a seamless link between the point and mouldboard to ensure a smooth flow of soil.
XHD CARBIDE LONG & SHORT LANDSIDE
Protected with 8 or 10 premium grade tungsten carbide tiles. Divided into 5 or 7 evenly spaced columns, all tiles are countersunk and specially angled to give the landside maximum protection.
XHD CARBIDE POINT
Protected with 5 premium grade tungsten carbide tiles. 3 corner tiles along the leading edge and 2 tiles placed on the upper side of the point. The point has a special shape to ensure a very good soil penetration.
XHD CARBIDE 16” & 18” SHARE
Protected with 17 or 20 premium grade tungsten carbide corner tiles. Tiles are located along the full leading edge of the share.
XHD CARBIDE SHIN PIECE
Protected with 11 premium grade tungsten carbide corner tiles, located on vertical leading edge to protect the base of the mouldboard.
XHD CARBIDE SKIMMER SHARE
Protected with tungsten carbide tiles and PTA (plasma transferred arc) hard facing. 11 premium grade tungsten carbide corner tiles along the leading edge, and a strip of PTA on the vertical edge.
IDENTIFY YOUR PLOUGH BODY
– Not sure which kind of body your plough has?
Identification
On the top backside of your mouldboard you will find a part number which is the key to identifying your plough body. Use the overview below to find out which one you have.
Body no. 30 and no. 40 are identified by the part number found on the backside of each finger.
Body No. 8
Mouldboard Identification: KK073280 / KK073281 / KK073286 / KK073287
Page 12
Body No. 28
Mouldboard Identification: KK083228 / KK083229
Page 18
Body No. 38
Mouldboard Identification: A1338738 / A1338739
Page 24
Body No. 9
Mouldboard Identification: KK073290 / KK073291
Body No. 19
Mouldboard Identification: KK073290 / KK073291
Page 14
Body No. 30
Upper Finger number: KK083214 / KK083224
Page 20
Body No. 40
Upper finger Identification: A152233332 / A152233432
Page 26
Page 16
Body No. 34
Mouldboard Identification: A133320330 / A133320430
Page 22
Body ECOMAT
Mouldboard Identification: KK084243 / KK084244
Page 28

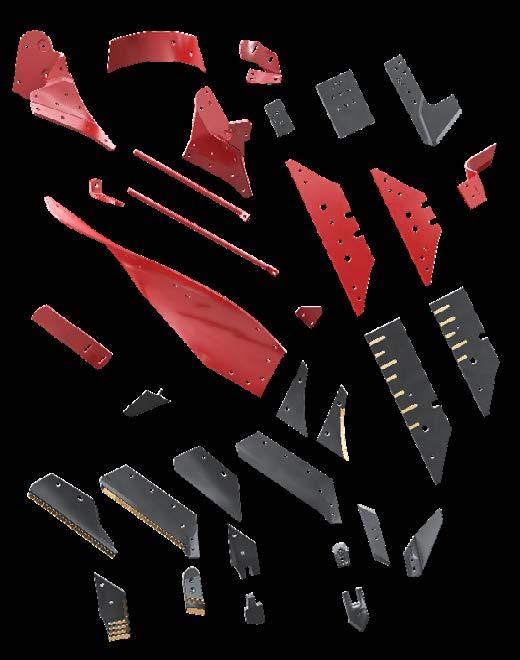

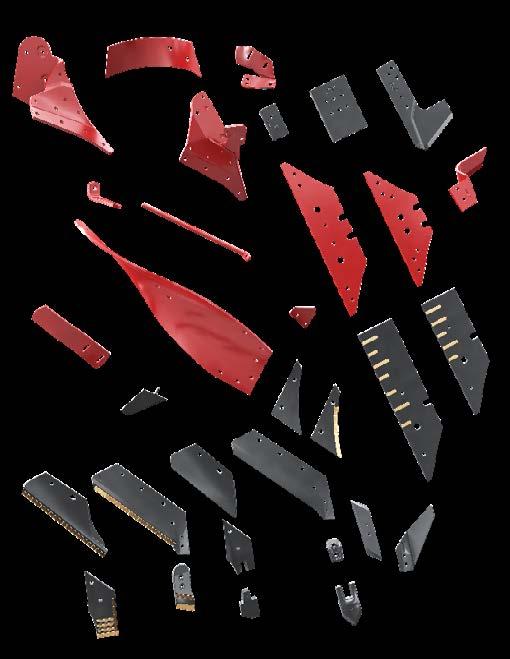

Body No. 8
KVERNELAND PLOUGH BODY
GENERAL PURPOSE BODY FOR LIGHT TO HEAVY SOILS
1 Reversible Point, Right KK053090R
Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
14” Right KK07300286
14” Left KK07300386
16” Right KK07300486
16” Left KK07300586
18” Right KK07300686
18” Left KK07300786
20” Right KK07300886
20” Left KK07300986
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083010R Quick-Fit Holder, Left KK083011R
7 Quick-Fit Share
14” Right KK083016R
14” Left KK083017R
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left
KK083023R
8 XHD Carbide Point, Right A152081030
XHD Carbide Point, Left A152081130
9 XHD Carbide Share
16” Right A152081630
16” Left A152081730
18” Right A152081830
18” Left A152081930
10 XHD+ Carbide Point, Right A152034230
XHD+ Carbide Point, Left A152034330
11 XHD+ Share
16” Right A152031630
16” Left A152031730
18” Right A152031830
18” Left A152031930
12 Share Knife, Right KK073091R
Share Knife, Left KK073092R
13 Shinpiece, Right 8 KK073250R
Shinpiece, Left 8 KK073251R
14 XHD Carbide Shinpiece, Right A133939430
XHD Carbide Shinpiece, Left A133939530
15 Mouldboard
12” Right KK07328094
12” Left KK07328194
14-18” Right KK07328694
14-18” Left KK07328794
16 Mouldboard Knife KK083235R
17 Mouldboard Extension, Right KK053387R Mouldboard Extension, Left KK063388R
18 Landside Long A133397494
19 Landside Short A133397394
20 XHD Carbide Landside Long Right A152001686
XHD Carbide Landside Long Left A152001786
21 XHD Carbide Landside Short Right A152001486
XHD Carbide Landside Short Left A152001586
22 A-Saddle, Right KK073411R
A-Saddle, Left KK073412R
23 E-Saddle, Right KK073406R
E-Saddle, Left KK073407R
24 Stay For A-Saddle KK073803R Stay For E-Saddle KK063801R
25 Bracket, Right KK073800R Bracket, Left KK073801R
26 Connecting Piece, Right A133451994
Connecting Piece, Left A133452094
27 Furrow Opener, Right KK073615R
Furrow Opener, Left KK073616R
28 Wearing Plate KK073614R
29 Extension Plate On-Land A133097232
30 Landside Knife, Right A133229488
Landside Knife, Left A133229588
31 Trashboard, Right KK073300R
Trashboard, Left KK073301R
32 Trashboard Bracket, Right KK073310R
Trashboard Bracket, Left KK073311R

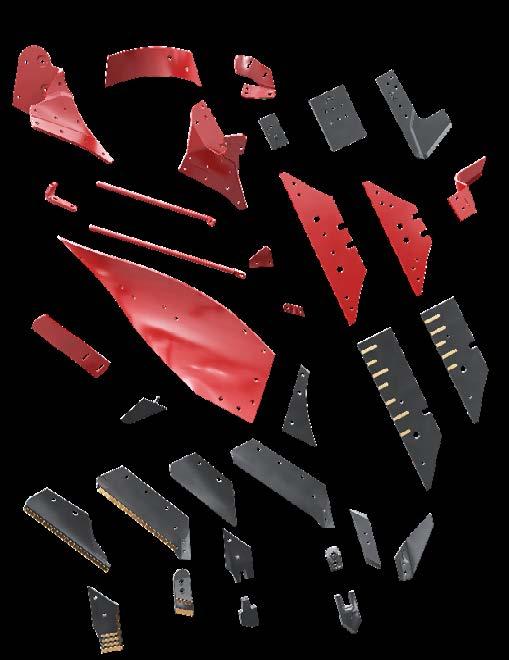

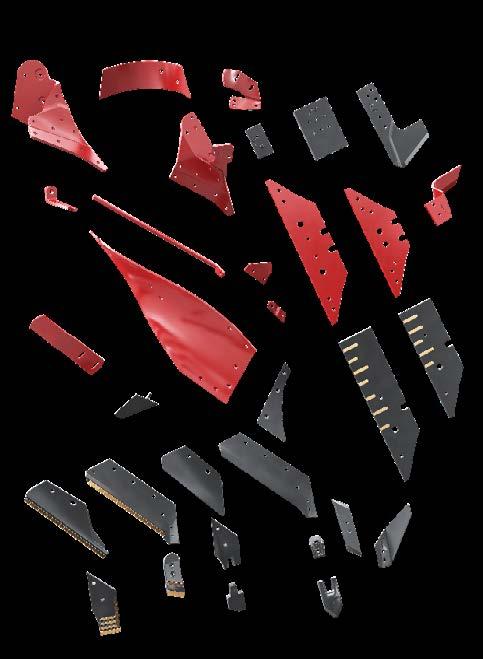

KVERNELAND PLOUGH BODY
UNIVERSAL BODY FOR LIGHT AND MEDIUM SOIL
1 Reversible Point, Right KK053090R
Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
14” Right KK07300286
14” Left KK07300386
16” Right KK07300486
16” Left KK07300586
18” Right KK07300686
18” Left KK07300786
20” Right KK07300886
20” Left KK07300986
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083010R Quick-Fit Holder, Left KK083011R
7 Quick-Fit Share
14” Right KK083016R
14” Left KK083017R
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left KK083023R
8 XHD Carbide Point, Right A152081030
XHD Carbide Point, Left A152081130
9 XHD Carbide Share
16” Right A152081630
16” Left A152081730
18” Right A152081830
18” Left A152081930
10 XHD+ Carbide Point, Right A152034230
XHD+ Carbide Point, Left A152034330
11 XHD+ Share
16” Right A152031630
16” Left A152031730
18” Right A152031830
18” Left A152031930
12 Share Knife, Right KK073091R
Share Knife, Left KK073092R
13 Shinpiece, Right KK073256R
Shinpiece, Left KK073257R
14 Mouldboard
14-18” Right KK07329094
14-18” Left KK07329194
15 Mouldboard Knife KK083235R
16 Mouldboard Extension, Right KK053387R Mouldboard Extension, Left KK063388R
17 Landside Long A133397494
18 Landside Short A133397394
19 XHD Carbide Landside Long Right A152001686
XHD Carbide Landside Long Left A152001786
20 XHD Carbide Landside Short Right A152001486
XHD Carbide Landside Short Left A152001586
21 A-Saddle, Right KK073411R
A-Saddle, Left KK073412R
22 E-Saddle, Right KK073406R
E-Saddle, Left KK073407R
23 Stay For A-Saddle KK073830R
Stay For E-Saddle KK073831R
Extra Stay For A-Saddle KK073803R
Extra Stay For E-Saddle KK063801R
24 Bracket, Right KK073807R
Bracket, Left KK073808R
Extra Bracket, Right KK073800R
Extra Bracket, Left KK073801R
25 Connecting Piece, Right A133451994
Connecting Piece, Left A133452094
26 Bracket, Right A133452194
Bracket, Left A133452294
27 Furrow Opener, Right KK073615R
Furrow Opener, Left KK073616R
28 Wearing Plate KK073614R
29 Extension Plate On-Land A133097232
30 Landside Knife, Right A133229488
Landside Knife, Left A133229588
31 Trashboard, Right KK073300R
Trashboard, Left KK073301R
32 Trashboard Bracket, Right KK073310R
Trashboard Bracket, Left KK073311R

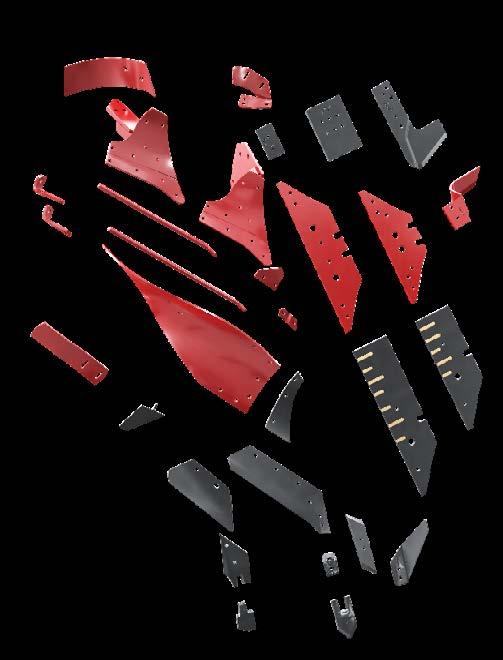

KVERNELAND PLOUGH BODY
UNIVERSAL BODY FOR MEDIUM TO HEAVY SOIL
■
1 Reversible Point, Right KK053090R
Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
14” Right KK07305486
14” Left KK07305586
16” Right KK07305686
16” Left KK07305786
18” Right KK07308086
18” Left KK07308186
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083012R Quick-Fit Holder, Left KK083013R
7 Quick-Fit Share
14” Right KK083016R
14” Left KK083017R
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left KK083023R
8 Share Knife, Right KK073091R Share Knife, Left KK073092R
9 Shinpiece, Right KK073230R Shinpiece, Left KK073231R
10 Mouldboard, Right KK07329094 Mouldboard, Left KK07329194
11 Mouldboard Knife KK083235R 12 Mouldboard Extension, Right KK053387R
Mouldboard Extension, Left KK063388R
XHD Carbide Landside Short Left A152001586 17 A-Saddle, Right KK073440R
A-Saddle, Left KK073441R
18 E-Saddle, Right KK073435R E-Saddle, Left KK073436R
KK073804R
20 Stay For E-Saddle KK073831R Extra Stay For E-Saddle KK073842R
21 Bracket, Right KK073800R Bracket, Left KK073801R
22 Bracket For Extra Stay, Right KK073807R
Bracket For Extra Stay, Left KK073808R
23 Connecting Piece, Right KK073417
Connecting Piece, Left KK073418
24 Bracket, Right A133452194 Bracket, Left A133452294
25 Furrow Opener, Right KK073615R Furrow Opener, Left KK073616R 26 Wearing Plate KK073614R 27 Extension Plate On-Land A133097232
28 Landside Knife, Right A133229488
Landside Knife, Left A133229588
29 Trashboard, Right KK073300R
Trashboard, Left KK073301R
30 Trashboard Bracket, Right KK073310R
Trashboard Bracket, Left KK073311R
KVERNELAND PLOUGH BODY
UNIVERSAL BODY FOR ANY SOIL CONDITION
1 Reversible Point, Right KK053090R Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
14” Right KK07300286
14” Left KK07300386
16” Right KK07300486
16” Left KK07300586
18” Right KK07300686
18” Left KK07300786
20” Right KK07300886
20” Left KK07300986
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083010R Quick-Fit Holder, Left KK083011R
7 Quick-Fit Share
14” Right KK083016R
14” Left KK083017R
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left KK083023R
8 XHD Carbide Point, Right A152081030
XHD Carbide Point, Left A152081130
9 XHD Carbide Share
16” Right A152081630
16” Left A152081730
18” Right A152081830
18” Left A152081930
10 XHD+ Carbide Point, Right A152034230
XHD+ Carbide Point, Left A152034330
11 XHD+ Share
16” Right A152031630
16” Left A152031730
18” Right A152031830
18” Left A152031930
12 Share Knife, Right KK073091R
Share Knife, Left KK073092R
13 Shinpiece, Right KK073250R
Shinpiece, Left KK073251R
14 XHD Carbide Shinpiece, Right A133939430
XHD Carbide Shinpiece, Left A133939530
15 Mouldboard 14-18”, Right KK08322894
Mouldboard 14-18”, Left KK08322994
16 Mouldboard Knife KK083235R
17 Mouldboard Extension, Right KK053387R
Mouldboard Extension, Left KK063388R
18 Landside Long A133397494
19 Landside Short A133397394
20 XHD Carbide Landside Long Right A152001686
XHD Carbide Landside Long Left A152001786
21 XHD Carbide Landside Short Right A152001486
XHD Carbide Landside Short Left A152001586
22 A-Saddle, Right KK073411R
A-Saddle, Left KK073412R
23 E-Saddle, Right KK073406R
E-Saddle, Left KK073407R
24 Stay For A-Saddle KK083809R
Extra Stay For A-Saddle KK063806R
25 Stay For E-Saddle KK083810R
Extra Stay For E-Saddle KK063801R
26 Bracket, Right KK073800R Bracket, Left KK073801R
27 Connecting Piece, Right A133451994
Connecting Piece, Left A133452094
28 Furrow Opener, Right KK073615R
Furrow Opener, Left KK073616R
29 Wearing Plate KK073614R
30 Extension Plate On-Land A133097232
31 Landside Knife, Right A133229488
Landside Knife, Left A133229588
32 Trashboard, Right KK073300R
Trashboard, Left KK073301R
33 Trashboard Bracket, Right KK073310R
Trashboard Bracket, Left KK073311R

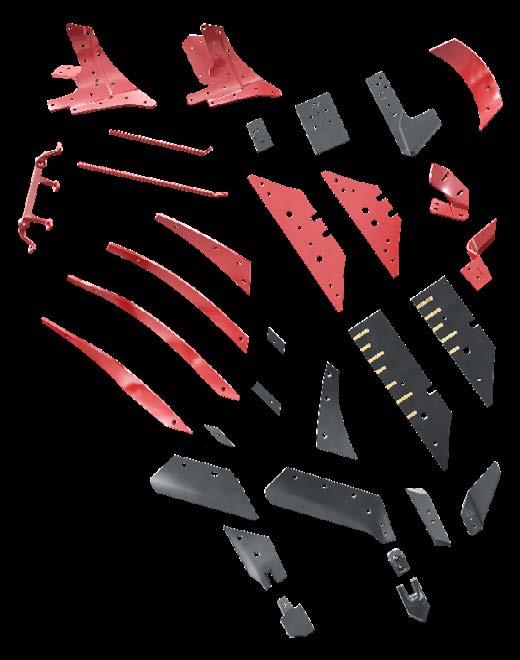

KVERNELAND PLOUGH BODY
FINGER MOULDBOARD FOR STICKY AND ABRASSIVE SOILS
1 Reversible Point, Right KK053090R
Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
14” Right KK07305486
14” Left KK07305586
16” Right KK07305686
16” Left KK07305786
18” Right KK07308086
18” Left KK07308186
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083012R Quick-Fit Holder, Left KK083013R
7 Quick-Fit Share
14” Right KK083016R
14” Left KK083017R
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left KK083023R
8 Share Knife, Right KK073091R
Share Knife, Left
KK073092R
9 Shinpiece, Right KK073230R Shinpiece, Left KK073231R
10 Finger 1, Right KK083211R
Finger 1, Left KK083221R
11 Finger 2, Right KK083212R
Finger 2, Left KK083222R
12 Finger 3, Right KK083213R
Finger 3, Left KK083223R
13 Finger 4, Right KK083214R
Finger 4, Left KK083224R
14 Plastic Spacer, Finger 1-2 KK083215R
Steel Spacer, Right, Finger 1-2 A133796830
Steel Spacer, Left, Finger 1-2 A133796930
15 Plastic Spacer, Finger 2-3 KK083216R
Steel Spacer, Right, Finger 2-3 A133797030
Steel Spacer, Left, Finger 2-3 A133797130
16 Plastic Spacer, Finger 3-4 KK083217R
Steel Spacer, Right, Finger 3-4 A133797230
Steel Spacer, Left, Finger 3-4 A133797330
17 Landside Long A133397494
18 Landside Short A133397394
19 XHD Carbide Landside Long Right A152001686
XHD Carbide Landside Long Left A152001786
20 XHD Carbide Landside Short Right A152001486
XHD Carbide Landside Short Left A152001586
21 A-Saddle, Right KK083406R A-Saddle, Left KK083407R
22 E-Saddle, Right A133453394 E-Saddle, Left A133453494
23 Stay For A-Saddle KK083802R Stay For E-Saddle KK083804R
24 Stay For A- & E-Saddle KK083803R
25 Support, Right A152116694 Support, Left A152116794
26 Furrow Opener, Right KK073615R
Furrow Opener, Left KK073616R
27 Wearing Plate KK073614R
28 Extension Plate On-Land A133097232
29 Landside Knife, Right A133229488
Landside Knife, Left A133229588
30 Trashboard, Right KK073300R
Trashboard, Left KK073301R
31 Trashboard Bracket, Right KK083300R
Trashboard Bracket, Left KK083301R

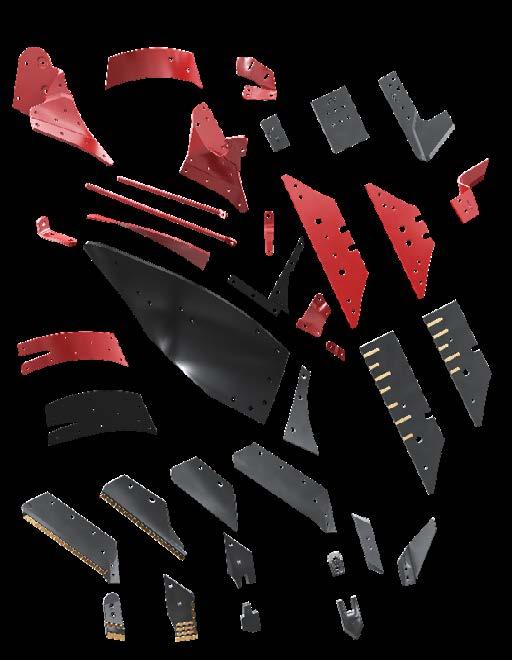

KVERNELAND PLOUGH BODY
FOR HIGH HUMUS CONTENT SOIL WITHOUT STONES
1 Reversible Point, Right KK053090R Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
14” Right
KK07300286
14” Left KK07300386
16” Right KK07300486
16” Left KK07300586
18” Right KK07300686
18” Left KK07300786
20” Right KK07300886
20” Left KK07300986
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083010R Quick-Fit Holder, Left KK083011R
7 Quick-Fit Share
14” Right KK083016R
14” Left KK083017R
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left KK083023R
8 XHD Carbide Point, Right A152081030
XHD Carbide Point, Left A152081130
9 XHD Carbide Share
16” Right A152081630
16” Left A152081730
18” Right A152081830
18” Left A152081930
10 XHD+ Carbide Point, Right A152034230
XHD+ Carbide Point, Left A152034330
11 XHD+ Share
16” Right A152031630
16” Left A152031730
18” Right A152031830
18” Left A152031930
12 Share Knife, Right KK073091R
Share Knife, Left KK073092R
13 Shinpiece, Right KK073256R
Shinpiece, Left KK073257R
A133397394
XHD Carbide Landside Long Right A152001686 XHD Carbide Landside Long Left A152001786
18 XHD Carbide Landside Short Right A152001486
XHD Carbide Landside Short Left A152001586
19 A-Saddle, Right KK073411R
A-Saddle, Left KK073412R
20 E-Saddle, Right KK073406R
E-Saddle, Left KK073407R
21 Stay Long, For A-Saddle KK083809R Stay Long, For E-Saddle KK083810R
22 Stay Short, For A-Saddle KK063806R
Stay Short, For E-Saddle KK063801R
23 Bracket, Right KK073800R Bracket, Left KK073801R
24 Bracket, Right A133452194 Bracket, Left A133452294
25 Bracket A133218178
26 Bracket A133787894
27 Connecting Piece, Right A133256894
Connecting Piece, Left A133256994
28 Furrow Opener, Right KK073615R
Furrow Opener, Left KK073616R
29 Wearing Plate KK073614R
30 Extension Plate On-Land A133097232
31 Landside Knife, Right A133229488
Landside Knife, Left A133229588
32 Trashboard, Right KK073300R
Trashboard, Left KK073301R
33 Plastic Trashboard KK073350R
34 Trashboard, Right A133504288
Trashboard, Left A133504388
35 Mouldboard support, Right A133256694
Mouldboard support, Left A133256794
36 Trashboard Bracket, Right A133257088
Trashboard Bracket, Left A133257188
KVERNELAND PLOUGH BODY
UNIVERSAL BODY FOR ANY SOIL CONDITION
1 Reversible Point, Right KK053090R Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
16” Right KK07300486
16” Left KK07300586
18” Right KK07300686
18” Left KK07300786
20” Right KK07300886
20” Left KK07300986
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083010R Quick-Fit Holder, Left KK083011R
7 Quick-Fit Share
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left KK083023R
8 XHD Carbide Point, Right A152081030
XHD Carbide Point, Left A152081130
9 XHD Carbide Share
16” Right A152081630
16” Left A152081730
18” Right A152081830
18” Left A152081930
10 XHD+ Carbide Point, Right A152034230
XHD+ Carbide Point, Left A152034330
11 XHD+ Share
16” Right A152031630
16” Left A152031730
18” Right A152031830
18” Left A152031930
12 Share Knife, Right KK073091R Share Knife, Left KK073092R
13 Shinpiece, Right A133903430
Shinpiece, Left A133903530
14 Mouldboard, 16-20” Right A133873894
Mouldboard, 16-20” Left A133873994
15 Mouldboard Knife KK083235R
16 Mouldboard Extension, Right KK053387R
Mouldboard Extension, Left KK063388R
17 Landside Long A133397494
18 Landside Short A133397394
19 XHD Carbide Landside Long Right A152001686
XHD Carbide Landside Long Left A152001786
20 XHD Carbide Landside Short Right A152001486
XHD Carbide Landside Short Left A152001586
21 A-Saddle, Right KK073411R A-Saddle, Left KK073412R
22 E-Saddle, Right KK073406R
E-Saddle, Left KK073407R
23 Stay Long, For A-Saddle KK083809R
Stay Long, For E-Saddle KK083810R
24 Stay Short, For A-Saddle KK063806R
Stay Short, For E-Saddle KK063801R
25 Bracket, Right KK073800R
Bracket, Left KK073801R
26 Bracket, Right A133452194
Bracket, Left A133452294
27 Connecting Piece, Right A133451994 Connecting Piece, Left A133452094
28 Furrow Opener, Right KK073615R
Furrow Opener, Left KK073616R
29 Wearing Plate KK073614R
30 Extension Plate On-Land A133097232
31 Landside Knife, Right A133229488
Landside Knife, Left A133229588
32 Trashboard, Right KK073300R
Trashboard, Left KK073301R
33 Trashboard Bracket, Right KK073310R
Trashboard Bracket, Left KK073311R

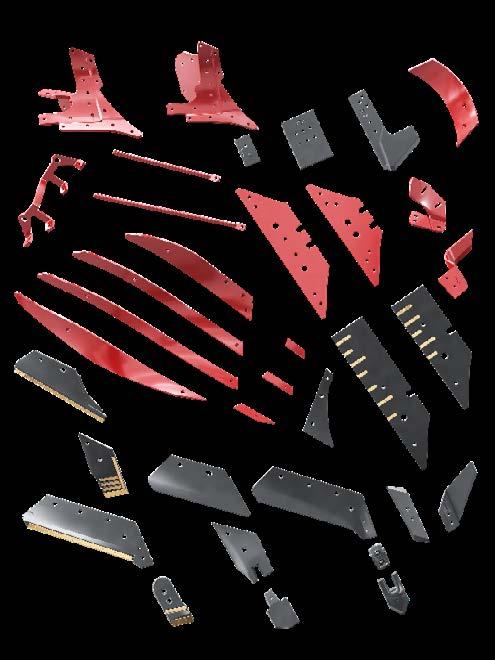

KVERNELAND PLOUGH BODY
FINGER MOULDBOARD FOR STICKY & ABRASIVE SOIL
1 Reversible Point, Right KK053090R Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
16” Right
KK07300486
16” Left KK07300586
18” Right KK07300686
18” Left KK07300786
20” Right KK07300886
20” Left KK07300986
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083010R Quick-Fit Holder, Left KK083011R
7 Quick-Fit Share
16” Right KK083018R
16” Left KK083019R
18” Right KK083020R
18” Left KK083021R
20” Right KK083022R
20” Left KK083023R
8 XHD Carbide Point, Right A152081030
XHD Carbide Point, Left A152081130
9 XHD Carbide Share
16” Right A152081630
16” Left A152081730
18” Right A152081830
18” Left A152081930
10 XHD+ Carbide Point, Right A152034230
XHD+ Carbide Point, Left A152034330
11 XHD+ Share
16” Right A152031630
16” Left A152031730
18” Right A152031830
18” Left A152031930
12 Share Knife, Right KK073091R Share Knife, Left KK073092R
13 Shinpiece, Right KK073256R
Shinpiece, Left KK073257R
14 Finger 1, Right A152232732
Finger 1, Left A152232832
15 Finger 2, Right A152232932
Finger 2, Left A152233032
16 Finger 3, Right A152233132 Finger 3, Left A152233232
17 Finger 4, Right A152233332
Finger 4, Left A152233432
18 Plastic Spacer, Finger 1-2 A152233530
Steel Spacer, Finger 1-2 Right A152234130
Steel Spacer, Finger 1-2 Left A152234230
19 Plastic Spacer, Finger 2-3 A152233630
Steel Spacer, Finger 2-3 Right A152234330
Steel Spacer, Finger 2-3 Left A152234430
20 Plastic Spacer, Finger 3-4 A152233730
Steel Spacer, Finger 3-4 Right A152234530
Steel Spacer, Finger 3-4 Left A152234630
21 Landside Long A133397494
22 Landside Short A133397394
23 XHD Carbide Landside Long Right A152001686
XHD Carbide Landside Long Left A152001786
24 XHD Carbide Landside Short Right A152001486
XHD Carbide Landside Short Left A152001586
25 A-Saddle, Right A133730894 A-Saddle, Left A133730994
26 E-Saddle, Right A133694094
E-Saddle, Left A133694194
27 Stay Long For A-Saddle A152264562
Stay Long For E-Saddle KK073831R
28 Stay Short For A-Saddle A152264662
Stay Short For E-Saddle KK063806R
29 Slat Support, Right A152154194 Slat Support, Left A152154294
30 Furrow Opener, Right KK073615R Furrow Opener, Left KK073616R
31 Wearing Plate KK073614R
32 Extension Plate On-Land A133097232
33 Landside Knife, Right A133229488
Landside Knife, Left A133229588
34 Trashboard, Right KK073300R
Trashboard, Left KK073301R
35 Trashboard Bracket, Right KK083300R
Trashboard Bracket, Left KK083301R

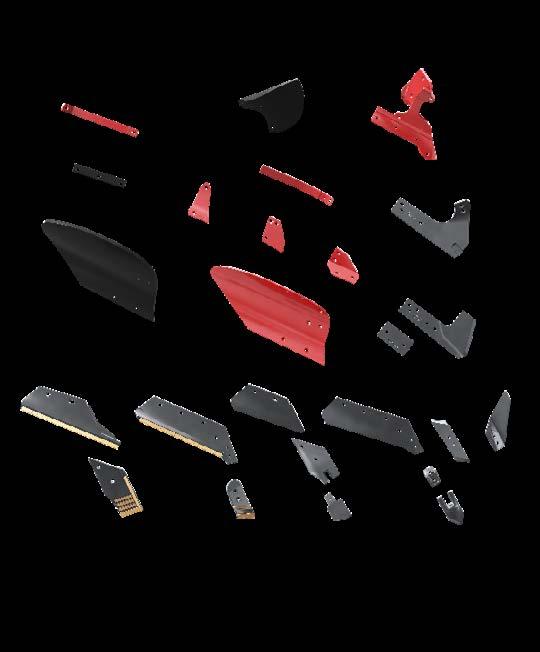

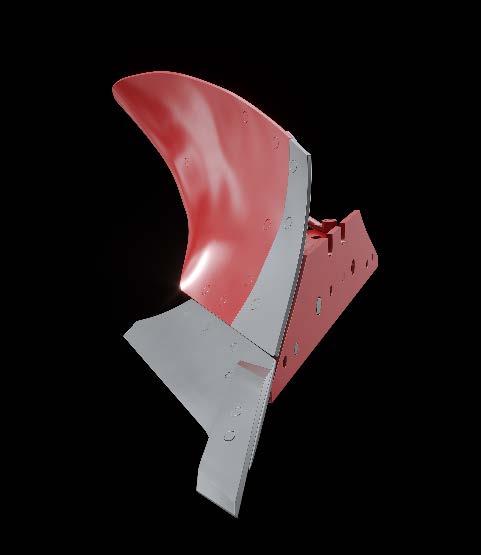

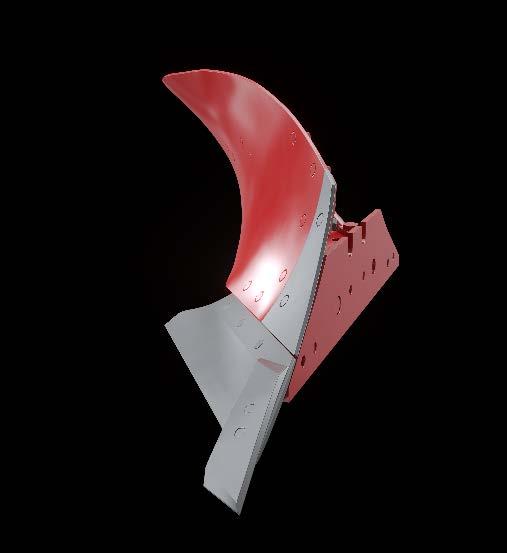

KVERNELAND PLOUGH BODY
SPECIFICALLY DESIGNED FOR THE ECOMAT
■ Plastic and steel mouldboards available ■ For shallow ploughing
1 Reversible Point, Right KK053090R Reversible Point, Left KK063090R
2 Reversible And Knock-On Share
14” Right KK07300286
14” Left KK07300386
16” Right KK07300486
16” Left KK07300586
3 Knock-On Point A133016232
4 Knock-On Holder A133016332
5 Quick-Fit Point KK083090R
6 Quick-Fit Holder, Right KK083010R Quick-Fit Holder, Left KK083011R
7 Quick-Fit Share
14” Right KK083016R
14” Left KK083017R
16” Right KK083018R
16” Left KK083019R
8 XHD Carbide Point, Right A152081030 XHD Carbide Point, Left A152081130
9 XHD Carbide Share
16” Right A152081630
16” Left A152081730
10 XHD+ Carbide Point, Right A152034230 XHD+ Carbide Point, Left A152034330
16” Right A152031630
16” Left A152031730 12 Share Knife, Right KK073091R Share Knife, Left KK073092R
13 Mouldboard, Right KK084243
Mouldboard, Left KK084244
14 Mouldboard Plastic, Right KK084347R
Mouldboard Plastic, Left KK084348R
15 Saddle, Right KK084398R Saddle, Left KK084399R
16 Landside KK084234
17 Landside Knife, Right A133229488
Landside Knife, Left A133229588
18 Skimmer, Right KK084343R
Skimmer, Left KK084344R
19 Support A152376494
20 Support A152015878
21 Shin Piece, Right KK087250R Shin Piece, Left KK087251R
22 Trashboard, Left & Right KK084245
23 Plastic Trashboard, Right KK084340
Plastic Trashboard, Left KK084341
24 Trashboard Bracket KK084395
25 Trashboard Bracket, Right KK084393
Trashboard Bracket, Left KK084394
NUTS AND BOLTS
What’s Included?
Some of our parts are delivered with the appropriate nuts and bolts, but most parts are not. On these 2 pages you can make sure that you have ordered all nuts and bolts needed for assembly. This list might also be useful if you want to keep extra sets - just in case.
Mouldboard no. 8 A133450477 A133450577 1 No
Mouldboard no. 9 and 19 A133450677 A133450777 1 No
Mouldboard no. 28 A133450877 A133450977 1 No
Mouldboard no. 34 Plastic A133320330 A133320430 1 Yes
Finger no. 1 (no. 30) A133499577 A133499677 1 Yes
Finger no. 2 (no. 30) A133499777 A133499877 1 Yes
Finger no. 3 (no. 30) A133499977 A133500077 1 Yes
Finger no. 4 (no. 30) A133500177 A133500277 1 Yes
Mouldboard no. 38 A133873877 A133873977 1 No
Finger no. 1 (no. 40) A152232733 A152232833 1 Yes
Finger no. 2 (no. 40) A152232933 A152233033 1 Yes
Finger no. 3 (no. 40) A152233133 A152233233 1 Yes
Finger no. 4 (no. 40) A152233333 A152233433 1 Yes
KK013332R 2
KK07300586 1 No
Share 18” KK07300686 KK07300786 1 No
Share 20” KK07300886 KK07300986 1 No
Share 14” KK07305486 KK07305586 1 No
Share 16” KK07305686 KK07305786 1 No Share 18” KK07308086 KK07308186 1 No Quick-Fit Share 14” KK083016R KK083017R 3 Yes
Share 16” KK083018R KK083019R 3 Yes
Yes
KK013332R 4
KK013332R 4
KK013332R 4
KK013332R 4
KK013332R 4
KK013332R 1 KK035149 1
KK013332R 1 KK035149 1
KK013332R 1 KK035149 1
KK013332R 1 KK035149 1
KK013332R 4
KK013332R 4
KK013332R 1 KK035149 1
KK013332R 1 KK035149 1
Landside short A133397377 1 No
Landside long A133397477 1 No
Landside Extension plate A133097233 1 Yes
XHD Landside short A152001486 A152001586 1 No
XHD Landside long A152001686 A152001786 1 No
Shin piece No. 8 and 28 KK073250R KK073251R 3 Yes
Shin piece No. 6 and 9 KK073256R KK073257R 3 Yes
Shin piece no. 30 KK073230R KK073231R 3 Yes
Shin piece no. 38 A133903430 A133903530 3 Yes
XHD Shin piece A133939430 A133939530 1 Yes
Share knife KK073091R KK073092R 3 Yes
Landside knife A133229486 A133229586 1 No
Wearing plate KK073614R 6 Yes
Furrow Opener A133569133 A133569233 1
ORIGINAL PARTS & SERVICE
ONLY
ORIGINAL PARTS WILL KEEP YOUR MACHINE A KVERNELAND
Did you know that our parts are manufactured to the same high standards and strict specifications as the Kverneland machines? Original Parts will always work and fit as intended, and are guaranteed to keep your machine running at maximum performance.
Through our worldwide dealer network you will find your local dealer, whom is always prepared to assist you. Your Kverneland dealer knows every inch of your machine and will gladly provide the expertise needed to ensure that you are operating at maximum potential.
Your Kverneland dealer:
