EXPRESSO DEUTSCHLAND GMBH & CO. KG –YOUR
PARTNER FOR TRANSPORT SOLUTIONS
For over 70 years, we have been assisting people all over the world with solutions for handling valuable and heavy goods. In close cooperation with our customers, we develop individual professional products for industry and trade. Our high-quality manual transport equipment, motorised transport systems, and handling solutions close the gap between lifting by hand and moving by forklift truck. They increase the efficiency of work processes as they facilitate, simplify and accelerate. In the process, human health is a central theme in the development of every product.
With our product innovations, we increase the ergonomics and efficiency of work equipment and thus improve the conditions for keeping people healthy at work. In the process, environmental aspects are consistently included all considerations. We continually optimise energy and raw material use according to ecological criteria in order to sustainably protect the environment.n.
EXPRESSO – YOU CAN HANDLE IT
WE ARE AWARD WINNERS.
QUALITY BY UNIQUE DESIGN
MAKING SURE THAT EVERYTHING RUNS SMOOTHLY –
OUR QUALITY WHEELS
We offer you the optimum quality wheel for every floor condition and every purpose. Choose from different wheels with equal diameter – they are generally interchangeable! The last two digits of the hand truck type number usually indicate the wheel number. The carcass structure of pneumatic wheels ensures maximum load capacity with minimum rolling resistance. All wheels are odourless and equipped with two water- and dust-proof grooved ball bearings.
PROVEN FOR DECADES
The pneumatic wheel No. 21 with radial tread has been popular with our customers all over the world since the 1960s. It features an unsurpassed, high-quality carcass structure that ensures maximum load capacity.
The AIRLEX wheel No. 25 commenced its success story in 1998 as the “unflattable wheel”. Especially in the beverage industry, this wheel with radial tread makes a significant contribution to economic efficiency, because it boasts a five time longer service life due to its material properties – it is made of polyurethane and contains thousands of microcellular air bubbles. Both wheel types offer minimum rolling resistance, very good shock absorption on uneven floors and are enormously directionally stable.
NOW YOU GET TO CHOOSE
Which wheel do you prefer on your custom EXPRESSO hand truck. Please see our wheel variants on the right. We are also happy to advise you!
NO. 21 – THE PNEUMATIC WHEEL
The epitome of convenient, professional transport for decades
NO. 25 – THE UNFLATTABLE WHEEL
The AIRLEX wheel: proven since 1998 and preferred in the beverage industry

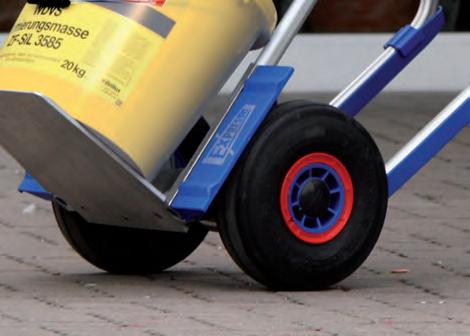

EXLAN WHEEL RIM
One-piece, with two water- and dust-proof grooved ball bearings, tool-free fitting, the tyres are fitted on the rim and secured with the circlip.
NO. 24 – Ø 260 MM
Heavy-duty pneumatic wheel with radial tread, reinforced, minimum rolling resistance, very good shock absorption even on uneven floors
NO. 42 – Ø 200 MM
Airelastic flat tread, two-component wheel with high elasticity, quiet and smooth running, good shock absorption, light grey, non-marking even on the most delicate floors
NO. 71 – Ø 175 MM
Airelastic flat tread, light grey, two-component wheel with high elasticity, quiet and smooth running, good shock absorption, non-marking even on delicate floors

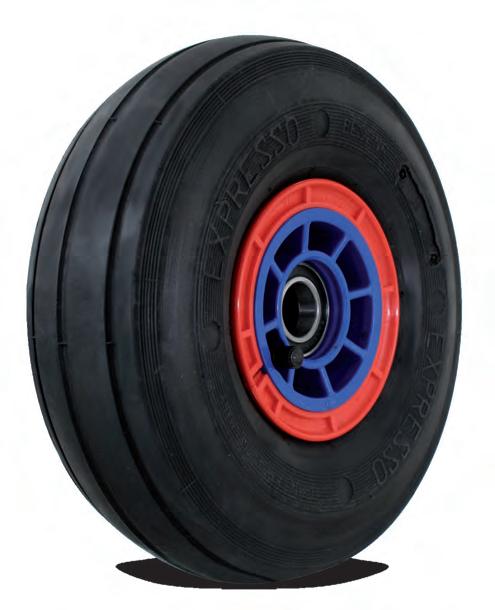

NO. 21 – Ø 260 MM
Pneumatic wheel with radial tread, minimum rolling resistance, even on uneven floors very good shock absorption
NO. 25 – Ø 260 MM
AIRLEX, no flat wheel risk, foamed polyurethane, light grey, non-marking, radial tread, very good shock absorption, low rolling resistance, very long service life
NO. 45 – Ø 200 MM
Airelastic flat tread, non-marking and unflattable, made of high-quality polyurethane, good elasticity and very good shock absorption, wide rolling surface, quiet running, maintenance-free
NO. 05 – Ø 160 MM
Smooth-running flat tread, good elasticity, quiet running, low rolling resistance
NO. 22 – Ø 260 MM
Pneumatic wheel with lug tread, low rolling resistance, even on uneven floors very good shock absorption
NO. 26 – Ø 260 MM
AIRLEX, no flat wheel risk, foamed polyurethane, black, radial tread, very good shock absorption, low rolling resistance, very long service life
NO. 76 – Ø 200 MM
Smooth-running flat tread, high elasticity, quiet running, very low rolling resistance
QUALITY BY UNIQUE DESIGN
HIGH-QUALITY GLASS-FIBRE REINFORCED CROSS MEMBERS
High safety standard due to form-locked connecting element to the frame made of special alloy. The top crossmember serves as a handle, e.g. for transport over stairs.

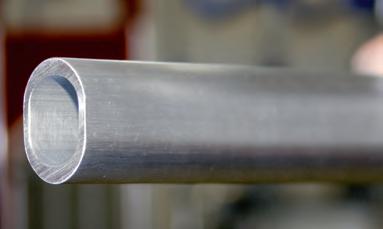

ELLIPTIC ALUMINIUM PIPE FROM HIGH-TENSILE SPECIAL ALLOY
Frame made of elliptic aluminium pipe from high-tensile special alloy for top stability and load capacity in the main load area –50 % lighter than steel.

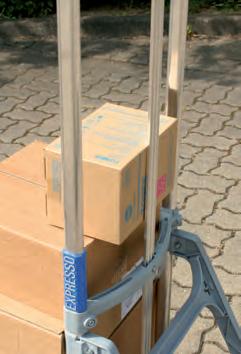

ACCURATELY FITTING, CONSISTENTLY PROTECTED SAFETY CONNECTIONS
Consistently and stably secured structure in the main load area through glass-fibre reinforced angle joints or double stainless steel clamps.
SLIDING SKIDS WITH WEAR INDICATOR MADE OF EXLAN PLASTIC
For the protection of the angled aluminium skids and gentle traversing of stairs. The integrated red core indicates the skid’s degree of wear; quick exchange by clamp system.
CONTINUOUSLY CURVED AXLE
The curved shape facilitates tilting even with heavy loads and prevents the foot from slipping. The curved axle is fitted as standard on all wheels with a diameter of 260 mm.

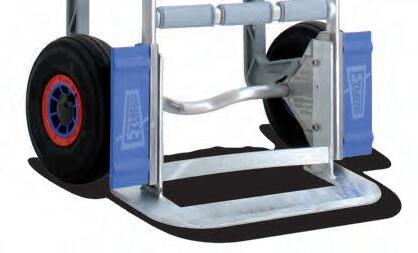

SPADE FOOTPLATES
PROFILED, PRECISION-MILLED FOOTPLATES
The perfect quality footplate for every application – choose your favourite. The tightly profiled, precision-milled spade footplate made of a special alloy prevents the loads from laterally sliding. The slightly bevelled front facilitates sliding under the load. The concave back of the shovel provides safe support for round goods, such as barrels or rolls. On request, we can also deliver all spade footplates foldable at no extra charge!
NO. 7 / NO. 8
No. 7 with support feet No. 8 without support feet
TUBULAR SHOVEL TYPE 1011 174 540 x 280 mm for the transport all-rounder s.S. 12+13
SPECIAL FOOTPLATE
NO. 2 / NO. 3 110 x 400 mm 120 x 510 mm
For the transport of round goods, see p. 14+15
PRECISION-MILLED, TIGHTLY PROFILED SPADE FOOTPLATES

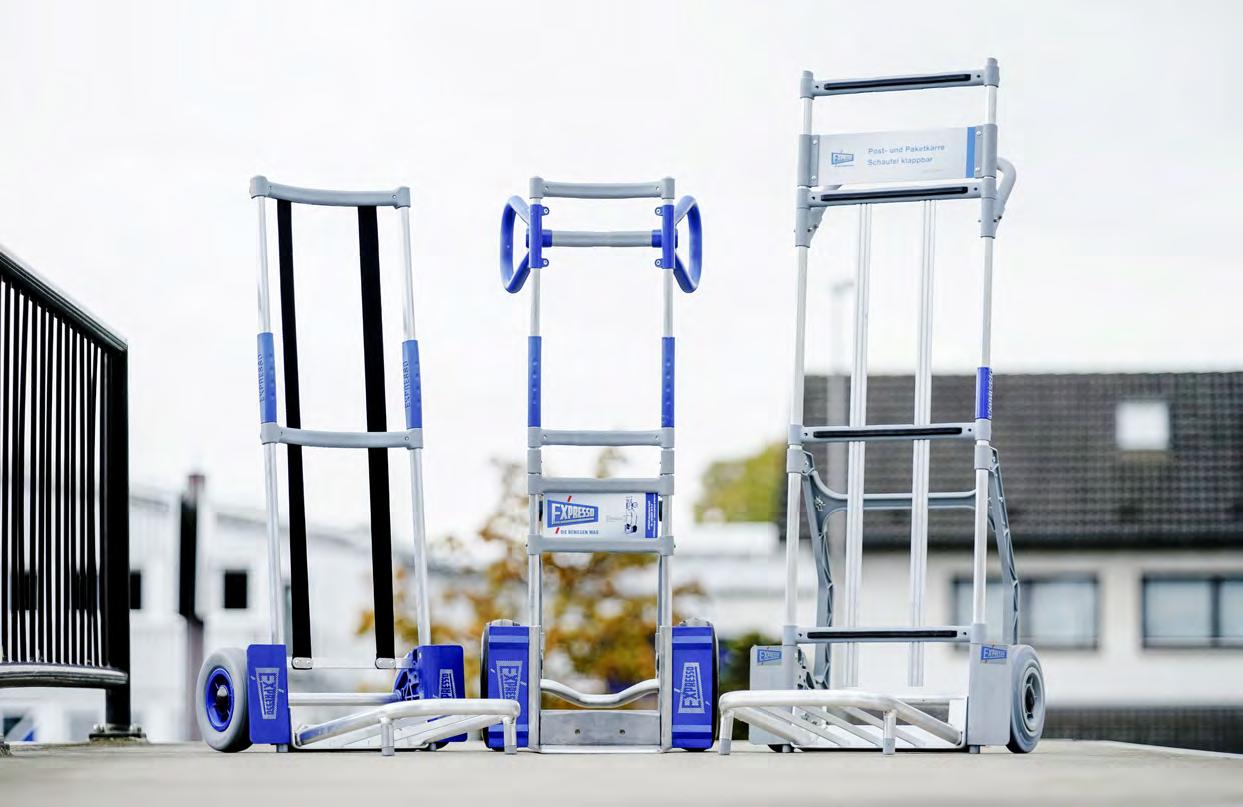

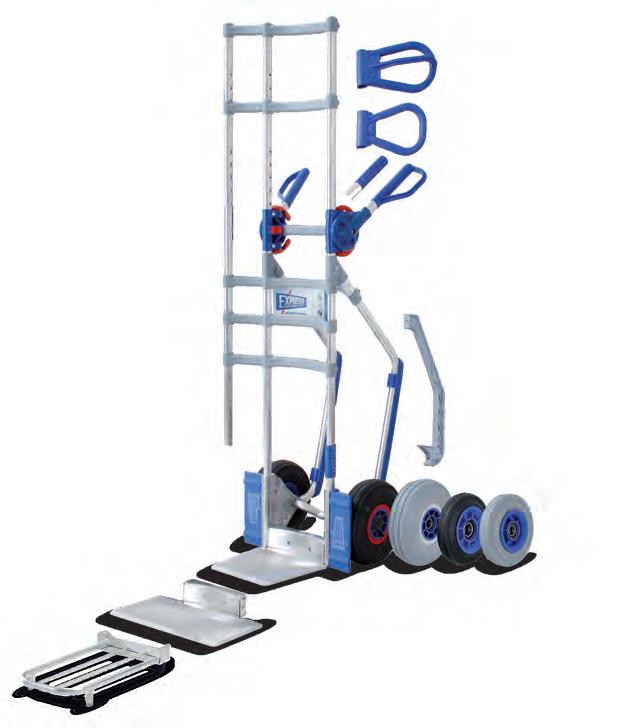

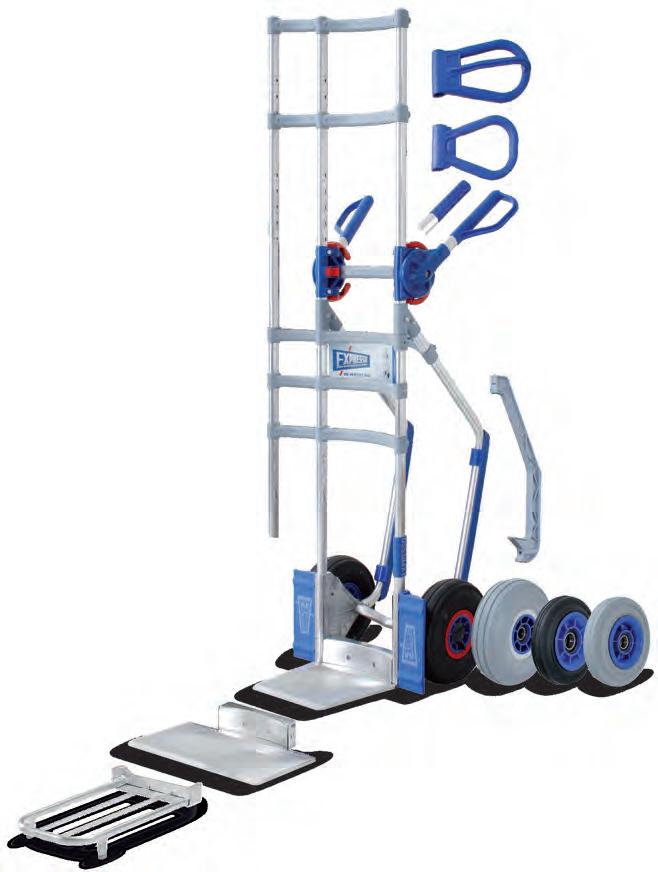

INDIVIDUALITY THANKS TO THE MODULAR SYSTEM
NOT CONVENTIONAL – INDIVIDUAL!
Not one hand truck for all purposes – your logistics requirements determine the appearance and features of your professional piece of equipment. Since 1967 the EXPRESSO modular philosophy has offered unlimited possibilities for configuring application and user-oriented transport solutions.
OVER 2,000 HAND TRUCKS FROM THE MODULAR ALUMINIUM SYSTEM – IN STOCK
The vast selection of high-quality components, such as different heights, footplates, wheels, skids and handles, creates the conditions for individual, application-oriented hand transport equipment. Because rigid equipment designs limit the application possibilities and cause high costs for maintenance and service. And if a wearing part needs to be replaced – not a problem! Each individual component is also available as a spare part.
IN-FOCUS OVERVIEW
LOAD CAPACITY, WIDTH AND HEIGHT OR HEIGHT WHEN FOLDED
The in-focus provides an at-a-glance overview of the most important technical data for the different hand trucks

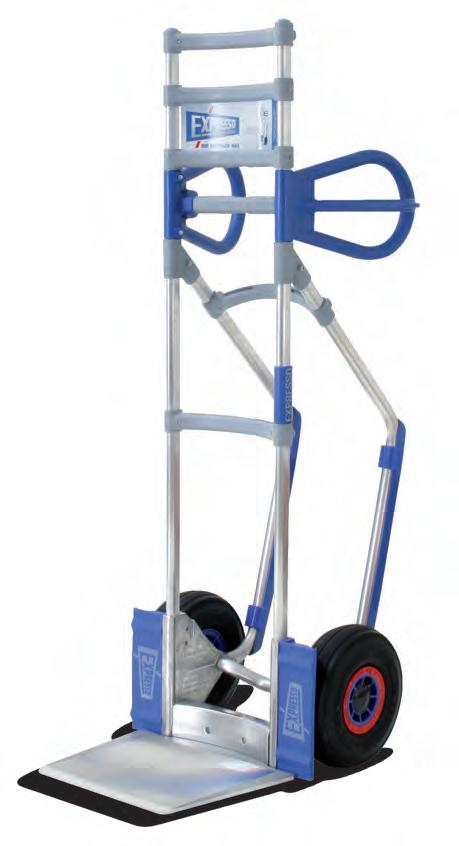

FAVOURITES

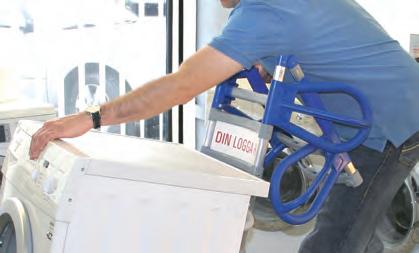

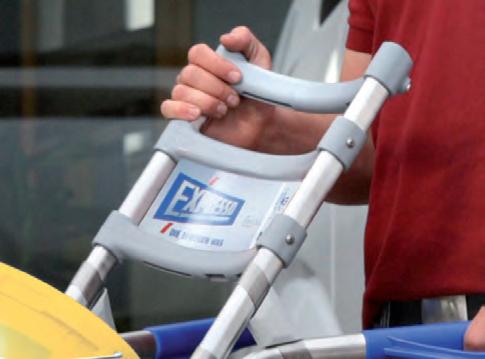

All EXPRESSO hand trucks can be equipped with the proven advertising panel. Protect your property and promote your company by customising one side with your logo/lettering for an additional charge.

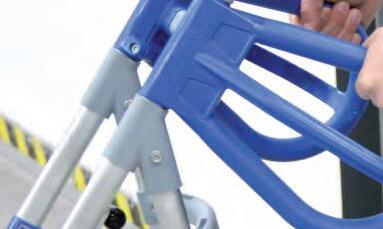

HAND PROTECTION
Proven for over 25 years: the hand guards of the ergonomic dog-ear handles made of EXLAN plastic protect the hands from injury.

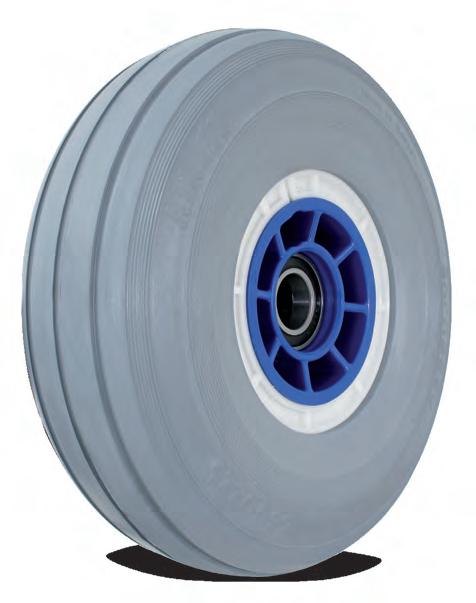

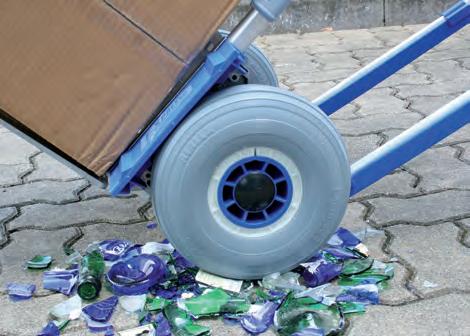

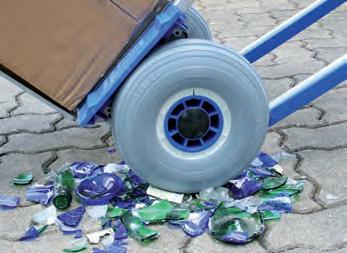

THE UNFLATTABLE
The unflattable AIRLEX wheel No. 25 is made of foamed polyurethane. It offers a long service life and very high operator comfort.

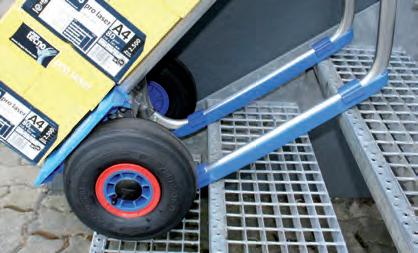

ANGLED SKIDS
The slip profiles feature an integrated red wear indicator for the protection of the structure. They can be exchanged in no time thanks to the clamp system.

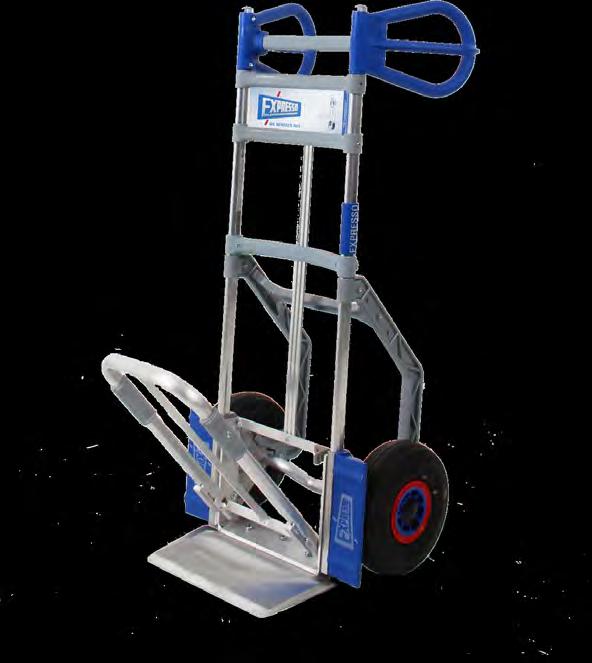

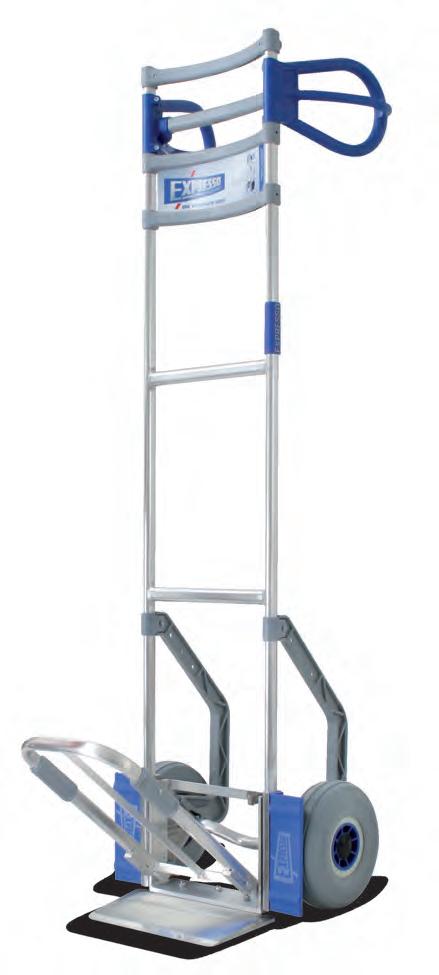

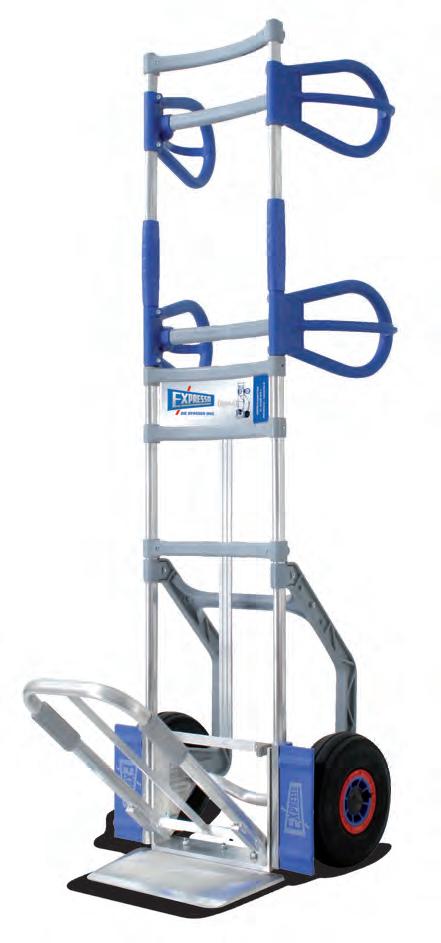

TRANSPORT ALL-ROUNDER
Safe transport of different goods: thanks to their two shovels, not a problem for the transport all-rounders. A short, flat shovel for heavy goods of up to 300 kg and a tubular shovel for crates and packages of up to 150 kg – pretty clever!
TRANSPORT

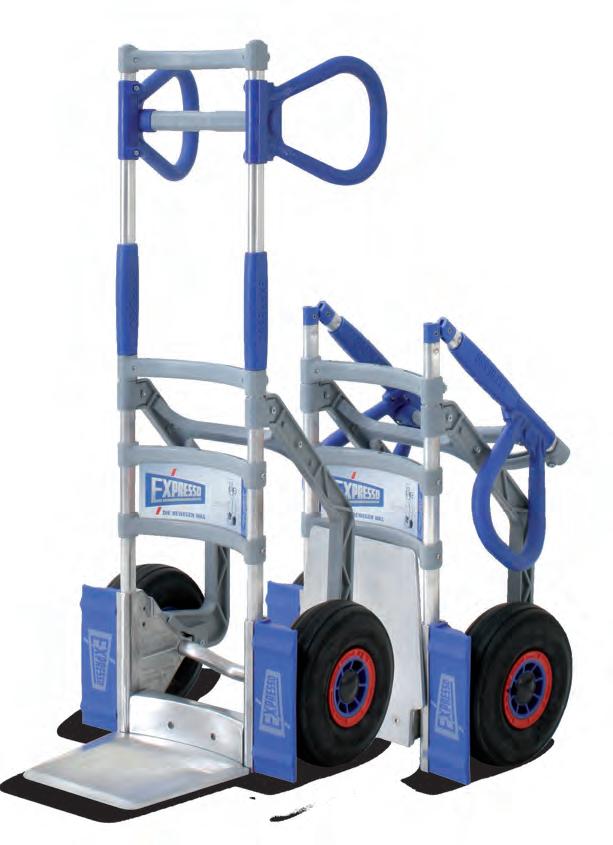

FOLDING UPRIGHT
Type 823 820 21 160KL with upright folding at the top for easy tilting. Only when the rigid shovel and the lower handles are used, is the maximum load capacity 300 kg.
SOFT PROTECTORS
We recommend the soft protectors to protect your delicate and unpacked goods against damage during transport. They are simply attached to the upright with hook-and-loop fasteners.
CARRYING FRAME
Carrying frame, accessory Type 1178: it allows two persons to transport heavy and bulky goods ergonomically and easily up and down stairs.

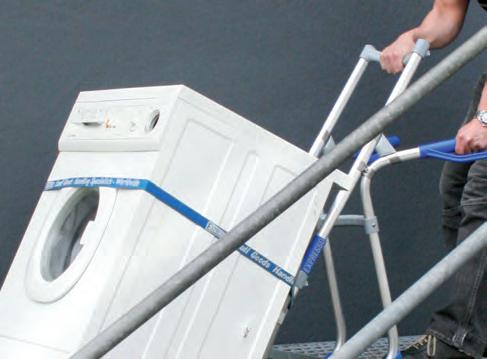

STEEL HAND TRUCK
The two-piece heavy-duty lashing strap with clamping lock fastens and secures your load on all hand trucks.

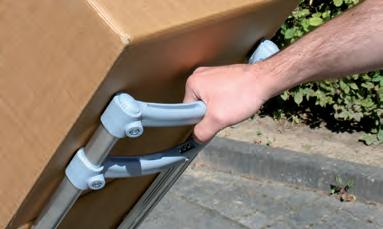

HAND PROTECTION
The ergonomic dog-ear handles with integrated hand guards relieve the hand muscles and prevent injuries when driving through narrow aisles.
PROTECTIVE PROFILES
The numerous protective profiles on the multifunction hand trucks protect valuable and unpackaged goods against damage. Also available as an accessory (from p. 20).

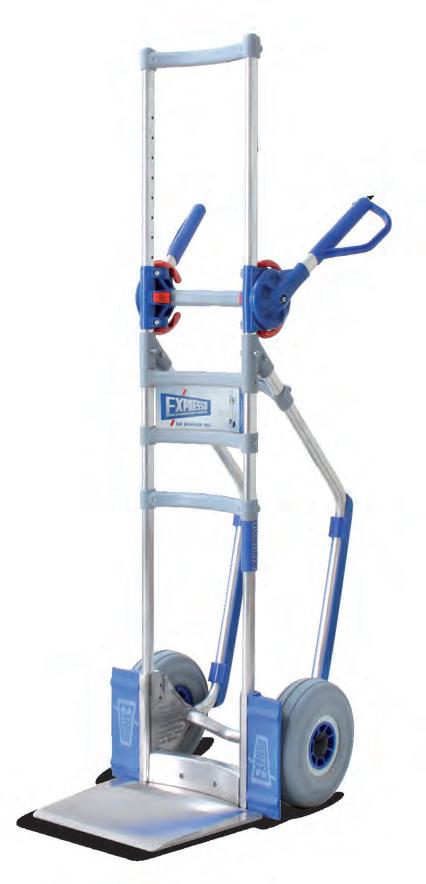

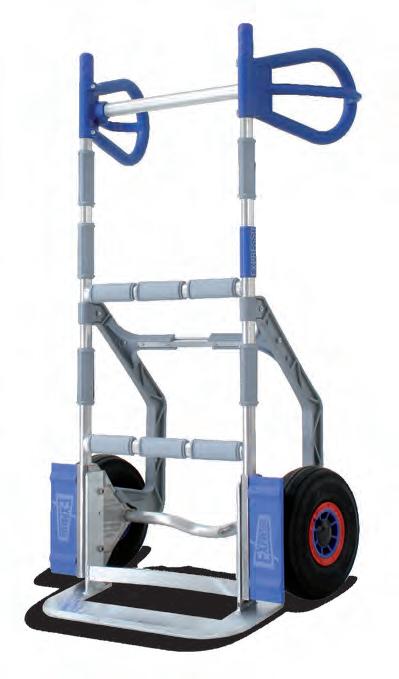

MULTIFUNCTION HAND TRUCKS

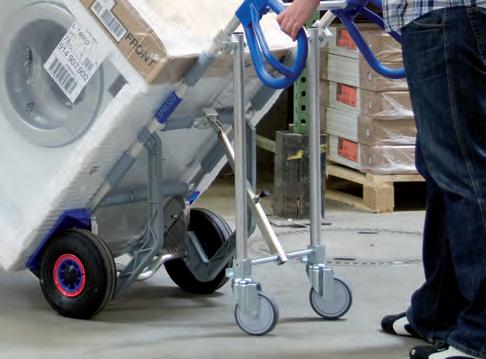

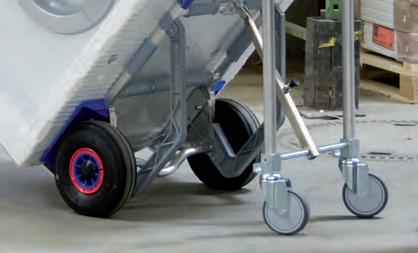

SUPPORTING WHEELS
Fold-out castor wheels for comfortable manoeuvring of large-volume and heavy goods, even over long distances. (from p. 20)
SHORT, FLAT SHOVEL
A short and flat shovel for particularly easy sliding under heavy and bulky goods.
SPECIAL SHOVEL
For the transport of heavy, round goods, we recommend our special shovel. Available in two sizes (110 x 400 mm/120 x 510 mm), depending on the width of the multifunction hand truck.

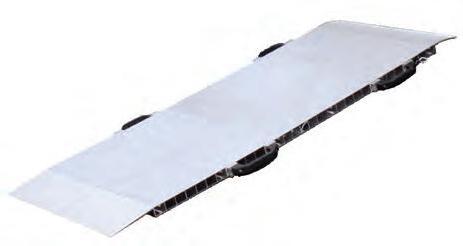

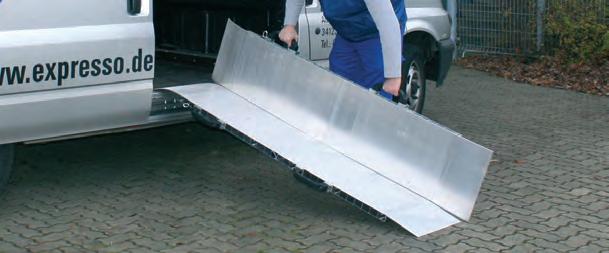

FOLDABLE LOADING RAMPS
N 8 772 44
Since it can be divided and folded up, the loading ramp Type N 8 772 44 can be easily transported in the vehicle. It is thus available for loading procedures at all times.
SMOOTH RUNNING WHEEL
Smooth running wheel Type 1067 as attachement to transport the foldable loading ramp ergonomically to the place of use. Saves time and constributes to the health of the employees.
TYPE
EXPRESSO SPARE PARTS
Our devices are subjected to strict quality controls. However, if a wearing part needs to be replaced, please make use of our spare parts service. Thus the transport equipment is always in perfect condition and its service life increases many times over.
Order forms with all individual parts listed are available for many hand trucks of our product range. Simply place your order by e-mail, fax or telephone.

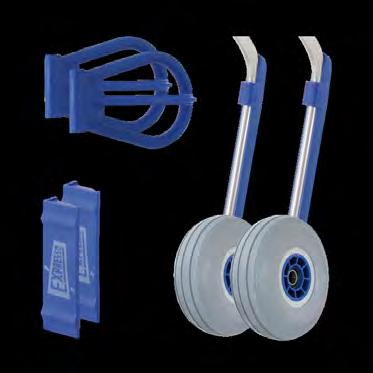

ACCESSORIES

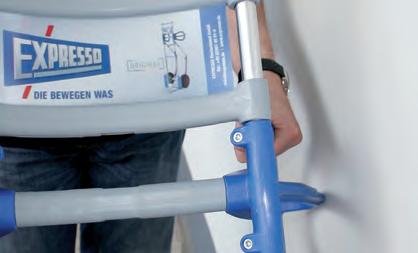

ADVERTISING AND LABELLING PANELCENTRE STRUT
All EXPRESSO hand trucks can be equipped with the proven EXPRESSO advertising panel. One side can be customised with your logo/lettering for an additional charge. Your hand trucks already in use can be retrofitted for a fee.
Type 108001* for hand trucks with 440 mm axle width
Type 108203* for hand trucks with 510 mm axle width
Type 1083* for hand trucks with 530 mm axle width
(*type no. + G for hand trucks with straight crossmembers)
LOADING AREA EXTENSION 2
For increasing the contact area and safe transport of very wide goods (W x H: 480 x 1,000 mm)
Type 119702 for Type 843 820 21 (p.10) and all trucks in the “Favourites” section
Prevents small parcels from sliding through
Type 1190* for hand trucks with safety handles
Type 1191* for folding hand truck Type 2 851 ...
Type 1196* for hand trucks with dog-ear handles and CLICK4 handle design
Type 1194* Webbing strap for folding hand trucks (see fig. right)
(*Type no. + G for hand trucks with straight crossmembers)
FOLDING LIMITING BRACKET
Adjustable in three stages to widths 410 mm, 550 mm and 610 mm (internal dimension) for the safe transport of bulky, voluminous goods (e.g. dual stacks); ideal for service trucks with varying loads
Type 1220 (150 mm length) for all hand trucks
Type 1220400 (400 mm length) for all hand trucks
Type 1455 (440 mm length) for hand trucks with an axle width of 530 mm

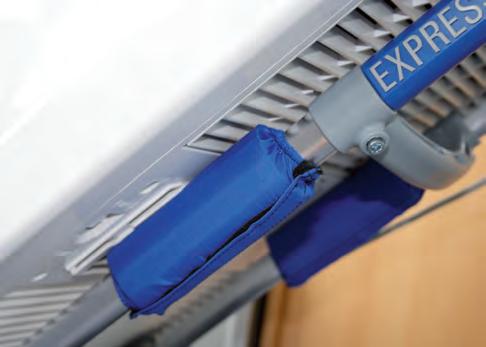

SOFT PROTECTORS
Are attached to the upright with hook-and-loop fasteners and protect highly delicate and unpacked goods against damage.
Type 301 3 037 (70 mm length)
Type 301 3 038 (140 mm length)

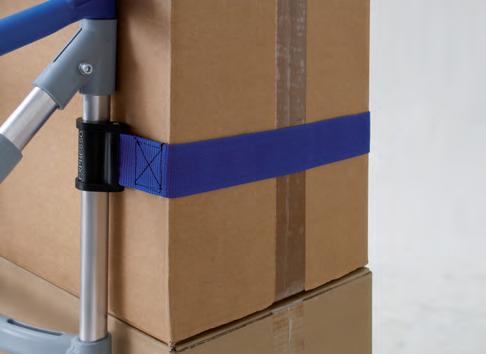

CLIPFIX LASHING STRAP
For the securing of bulky goods on hand trucks, for clipping onto the upright
Type 0 155 1500 (strap length 1,500 mm)
Type 0 155 2500 (strap length 2,500 mm)
Type 0 155 3500 (strap length 3,500 mm)

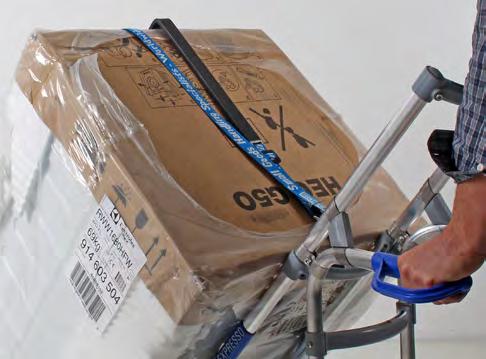

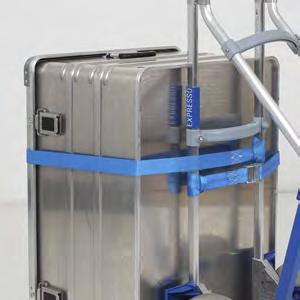

HEAVY-DUTY LASHING STRAP
Two-piece, with clamping lock for fastening and securing loads on hand trucks, load capacity up to 75 kg
Type 0 156 3700 (total strap length 3,700 mm)

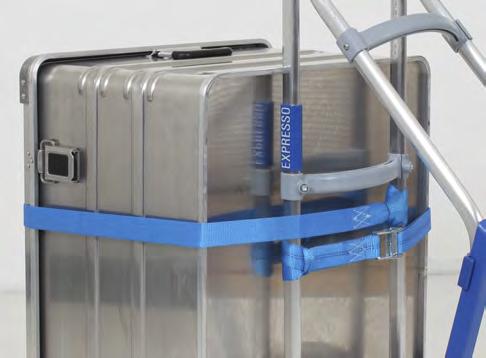

LASHING STRAP
With ratchet lock for fastening and securing loads on hand trucks
Type 0 155 250 (strap length 2,500 mm)
Type 0 155 350 (strap length 3,500 mm)
ACCESSORIES

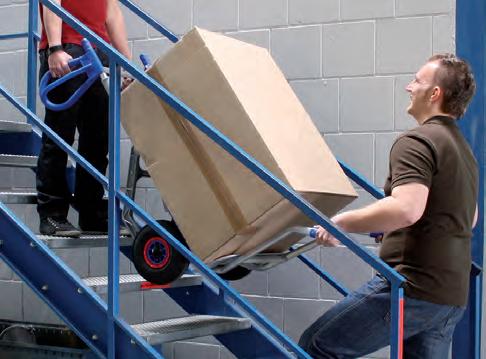

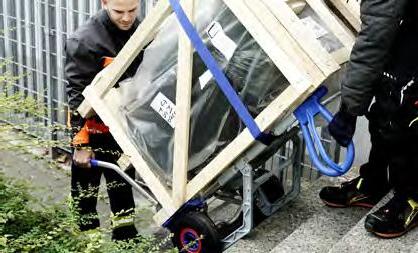

CARRYING FRAME
Carrying frame for easy transport of heavy goods up and down stairs with two persons – the different type numbers refer to the respective axle widths of the hand truck type.
Type 1172 for 440 mm axle width
Type 1176 for 600 mm axle width
Type 1178 for 510 mm axle width

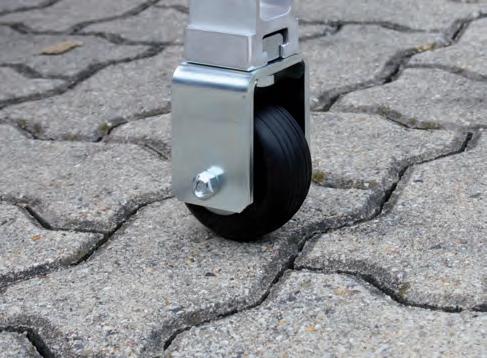

SUPPORTING WHEELS FOR MULTIFUNCTION HAND TRUCKS
Fold-out castor wheels for comfortable manoeuvring of large-volume and heavy goods, even over long distances.
Type 1211 for hand trucks
Type 634 636 21 (p. 14+15)
Type 1213 for hand trucks Type 833 820 25 17001 (p. 13)

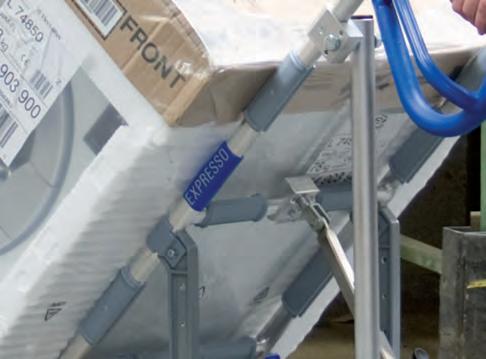

PROTECTIVE PROFILES
Protective profiles serve to protect the load and secure delicate goods, such as white goods, against falling off the side. (see p. 14)
Type 304 3 033 for all hand trucks with uprights made of elliptic tube
TILTING AID AND RETAINER CLIP
Adjustable, hooks into the cross member, prevents the load from moving when tilting the hand truck, keeps the load on the upright, for safe transportation of e.g. appliances
Type 1179 for all multi-purpose hand trucks with dog-ear handles with hand guards
Type 117902 for all hand trucks with 440 mm axle width and a height of 1,300 mm
Type 117903 for all hand trucks with 510 mm axle width and a height of 1,300 mm

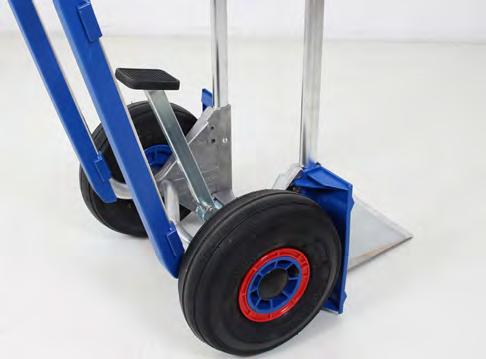

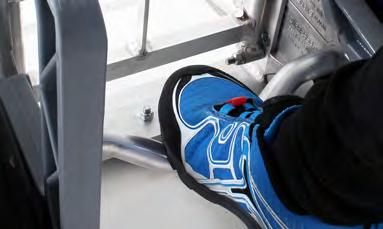

FOLDING TILTING AID (PEDAL)
Facilitates the exhausting tilting processes by 30 %
Type 117305 for all hand trucks with cur ved shovel backs (not possible for folding shovels)
SPARE PARTS SERVICE
All EXPRESSO hand transport equipment is efficiently manufactured in accordance with ecological aspects in order to protect our environment in a sustainable manner. If something needs to be replaced, please make use of our spare parts service. Thus the transport equipment is always in perfect condition and its service life increases many times over.

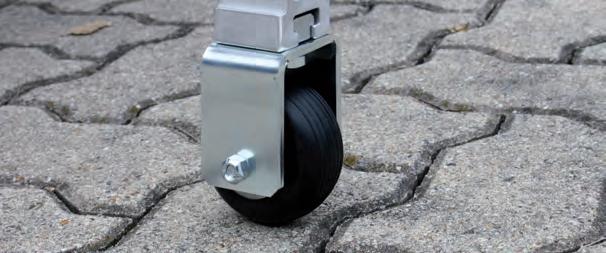

SMOOTH RUNNING WHEEL
made of nylon/polyurethane for ergonomic transport of the foldable loading ramps to the place of use. Saves time and contributes to the health of the employees.
Type 1067 for attachment to foldable loading ramps
Type N 8 772 20 (p. 16)
