2nd Runner up

CONTENTS THE CHARLES CORREA PLAZA Memorial Semester 07 3 CRAFTS INDUSTRY Anegundi Semester 07 CULINARY INSTITUTE Semester 06 Nashik WORKING DRAWINGS Semester 05 Housing Project HOUSING PROJECT Semester 07 Badami WINDOW FRAME SHUTTER FRAME PLASTER LINE 55 DETAIL B 18

Charles Correa Plaza

Competition Sem 07 4th Year

Mentors: Prof. Nelson Pais

Assoc. Prof. R Kiran Kumar

Asst. Prof. Kavana Kumar

Team: Kashish Shubhanshi

Location: Extension to Kala Academy, Goa

Site Area: 1580sqm

Built Up Area: 120 sqm

Duration: 8 weeks

The Drawing Board Competition Memorial for Charles Correa.

The Drawing Board is an international competition hosted by Mindspace Architects with Rohan Builders.

“Like a trail that a snail leaves in its wake as it inches forward, over the years an architect leaves behind a body of work, generated by the attitudes he gradually accumulates towards the agendas he deals with”

This competition aimes at creating a memorial for Ar.Charles Correa. With a deeply rooted context consisting of one of Correa’s most celebrated work, the design can either be a dialogue with it or even be a structure of gratitude. The design must stand testimony to Correa’s philosophy.

The intervention began with questioning the location of the site, this site within the premises of the Kala Academy had been left un-built and unoccupied intentionally by Correa, this channelled us to explore the idea of the Non- building.

The idea progressed further with three key aspects, starting with the most essential - The idea of the nonbuilding, moving to the ritualistic pathway and the empty centre or a combination of enclosed and open spaces juxtaposed together.

2nd RUNNER UP GLOBALY

Non- Building

The building becomes a background or facilitator of a journey or an experience.

Ritualistic Pathway

Allows the space to be experienced as a pathway and not an object.

The Empty Centre

Interpreted as the built and the Unbuilt and how one navigates through these spaces.

Built defined by court

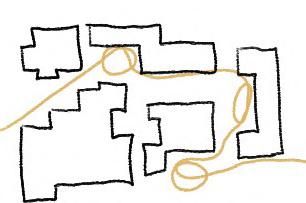

Series of pathway

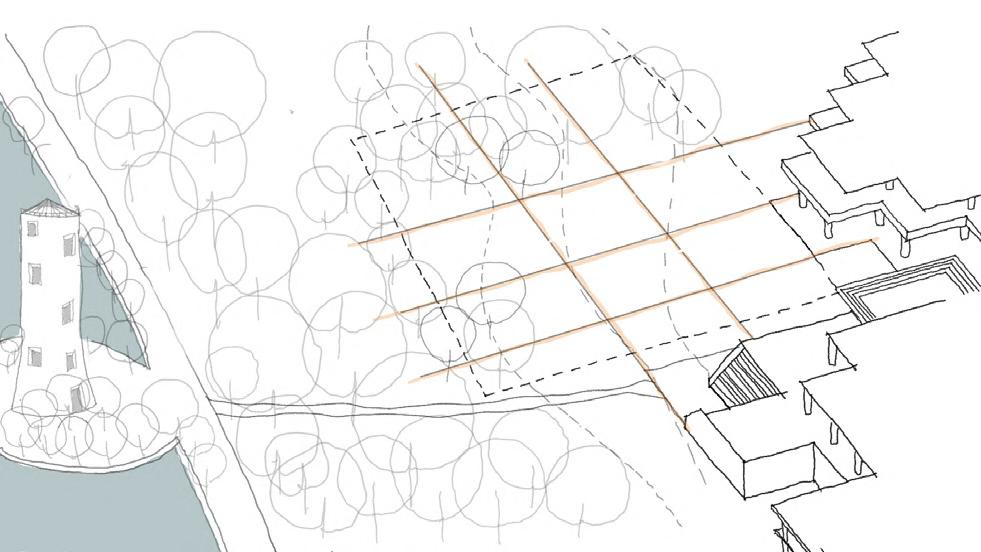

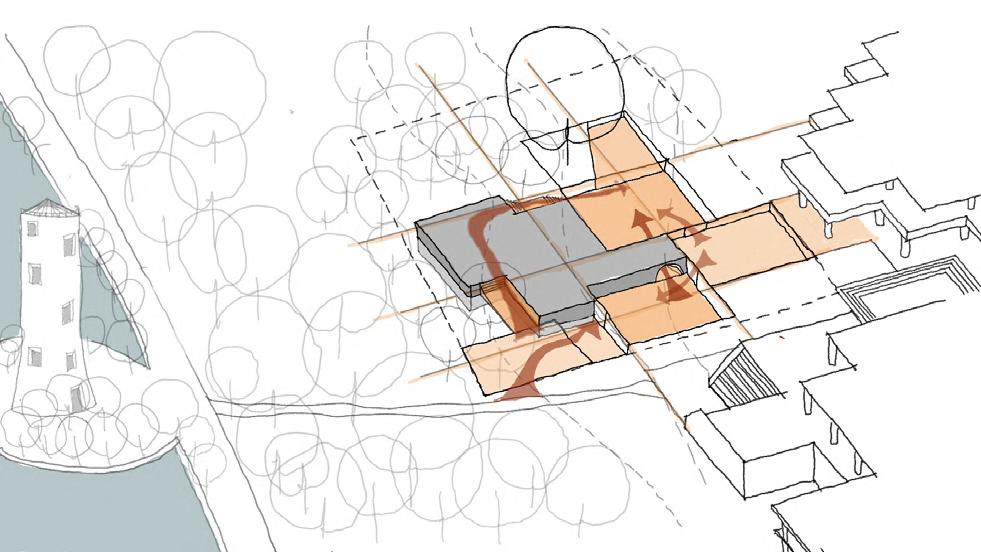

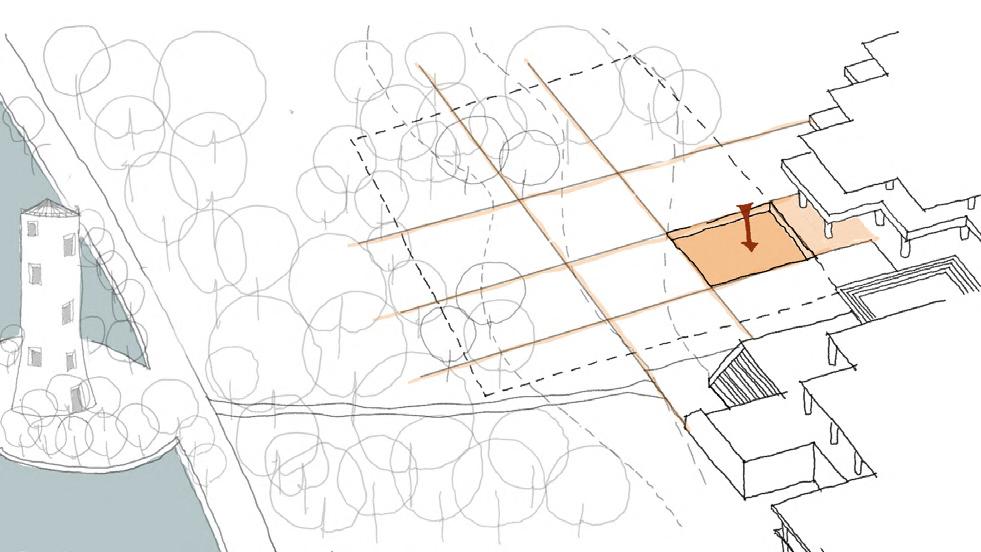

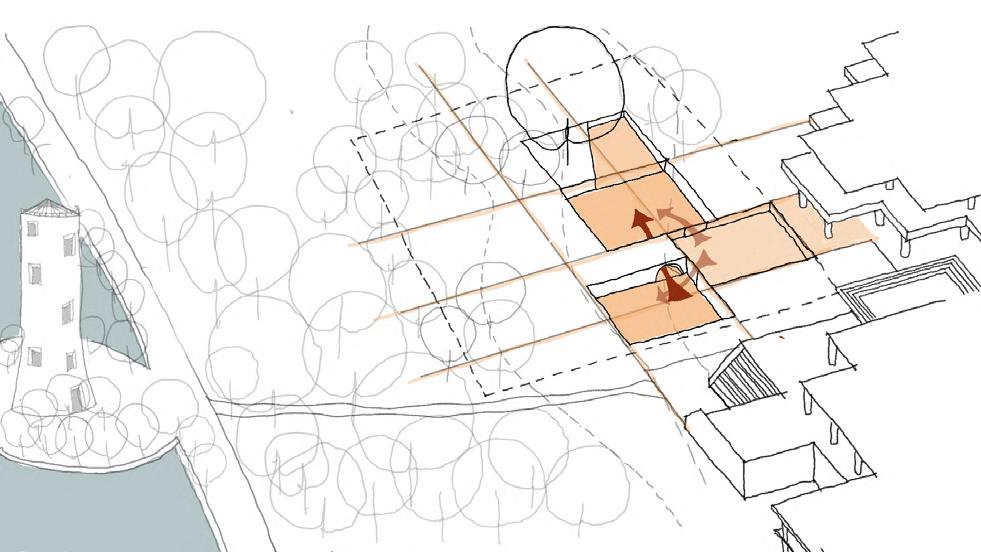

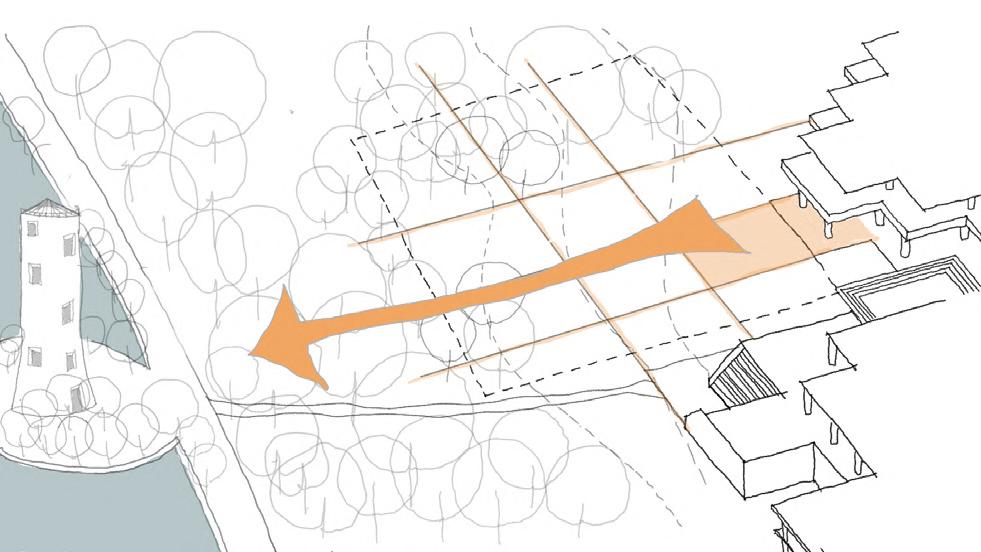

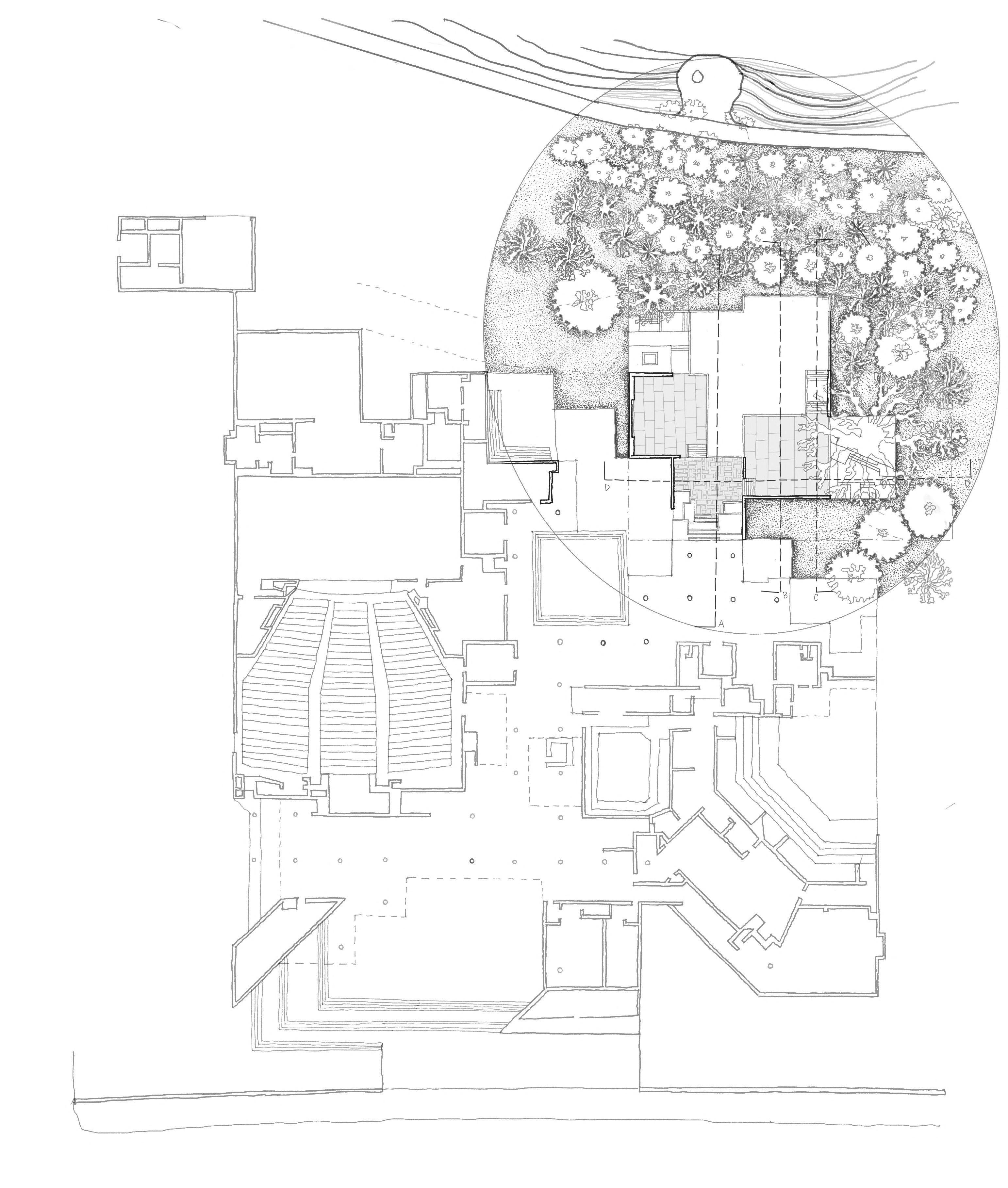

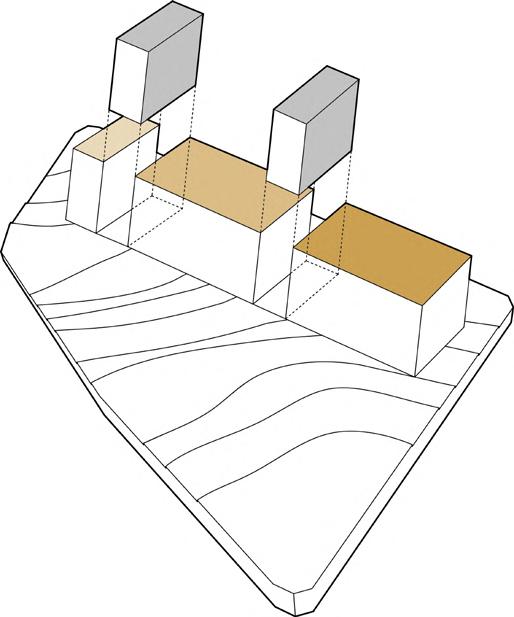

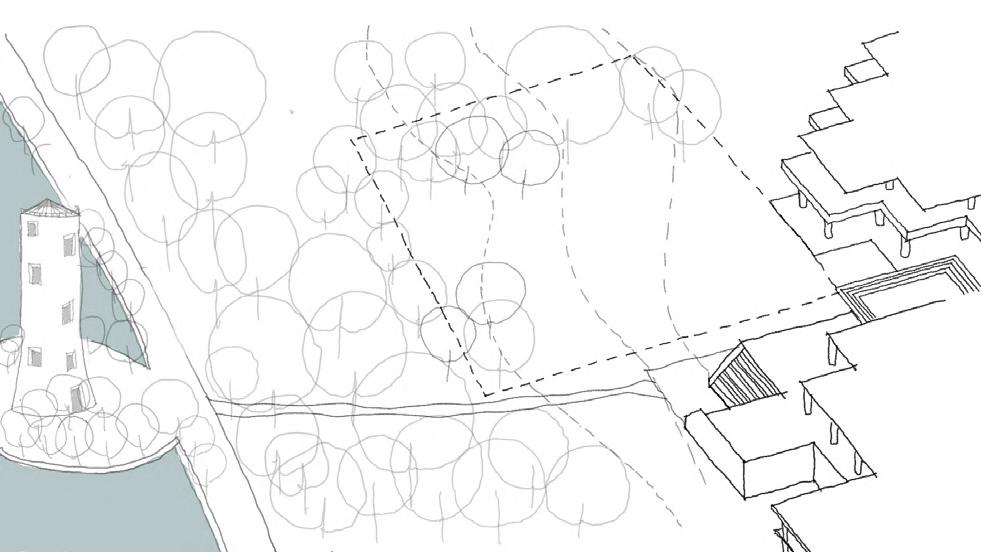

Proposed Site Grid from Existing Building View from Existing Building Sunken plane for uninterrupted views Connection and Movement Alternate axis from kaccha pathway

DESIGN DEVELOPMENT

7 Key Plan

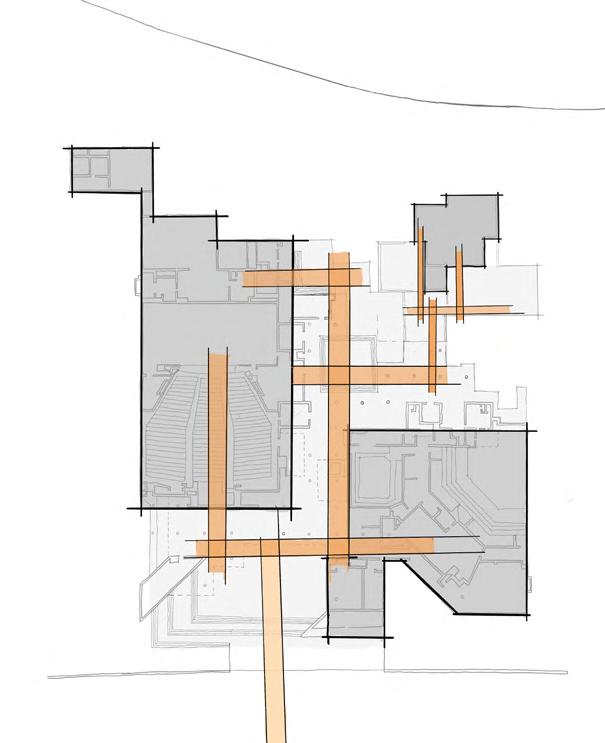

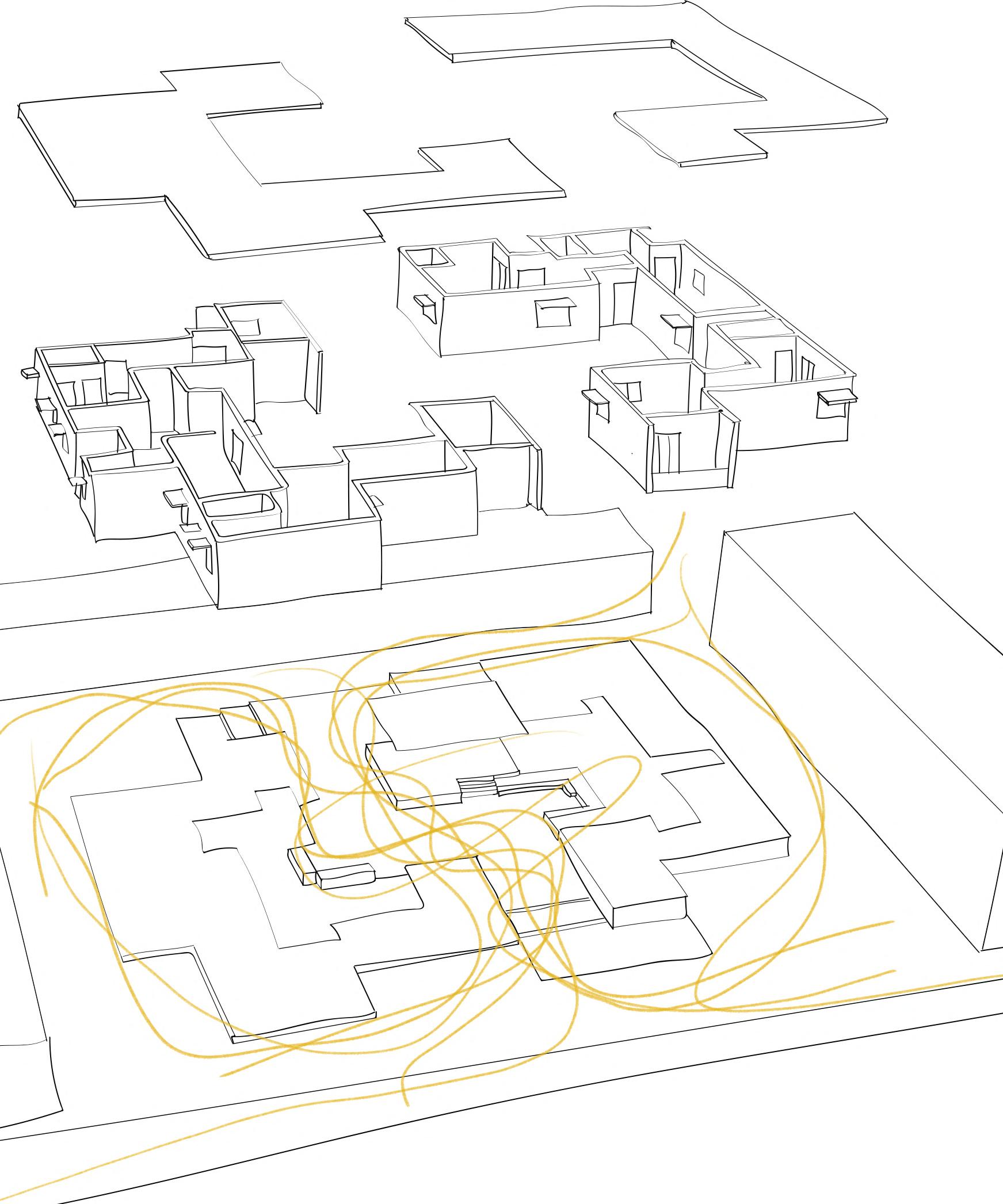

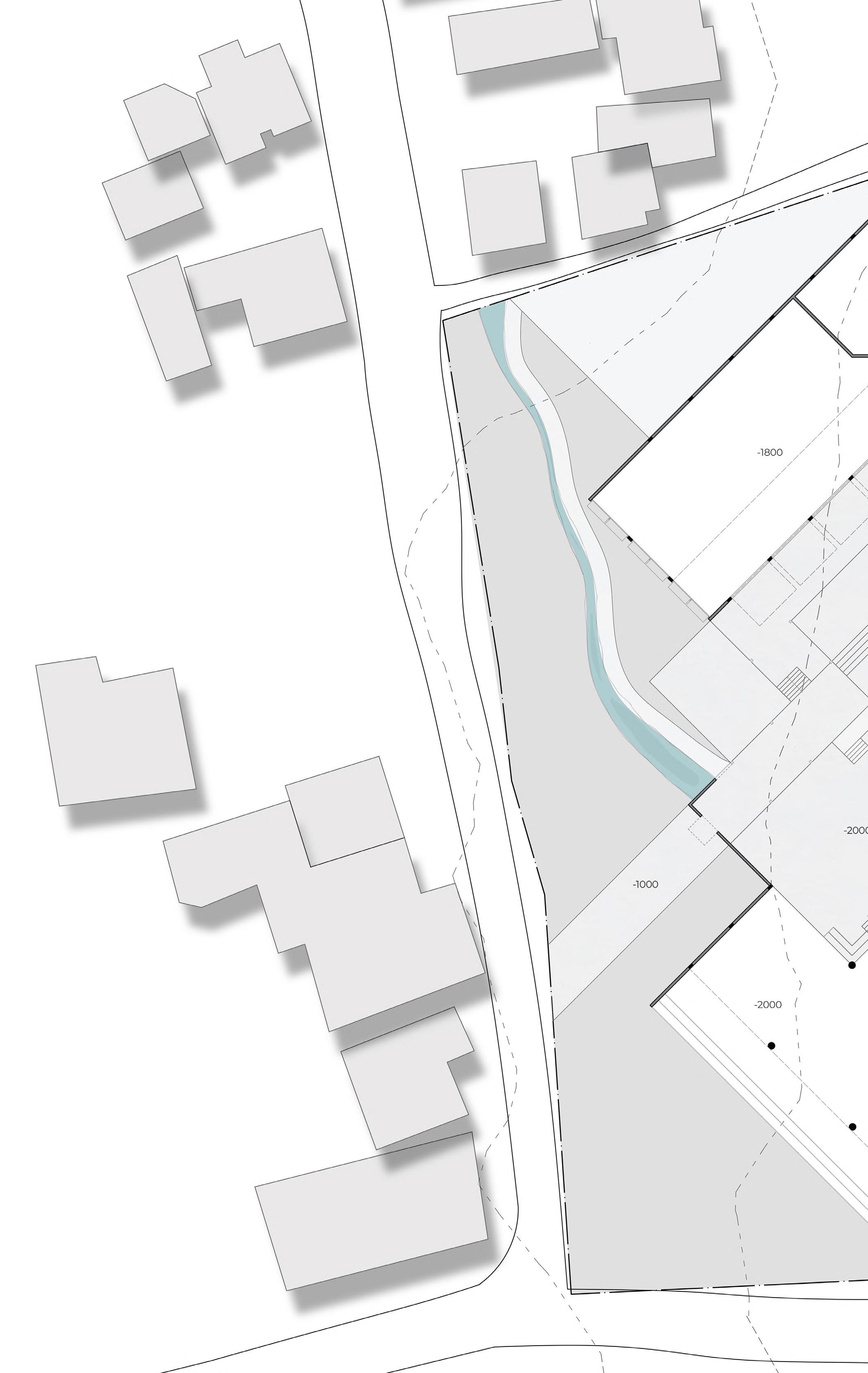

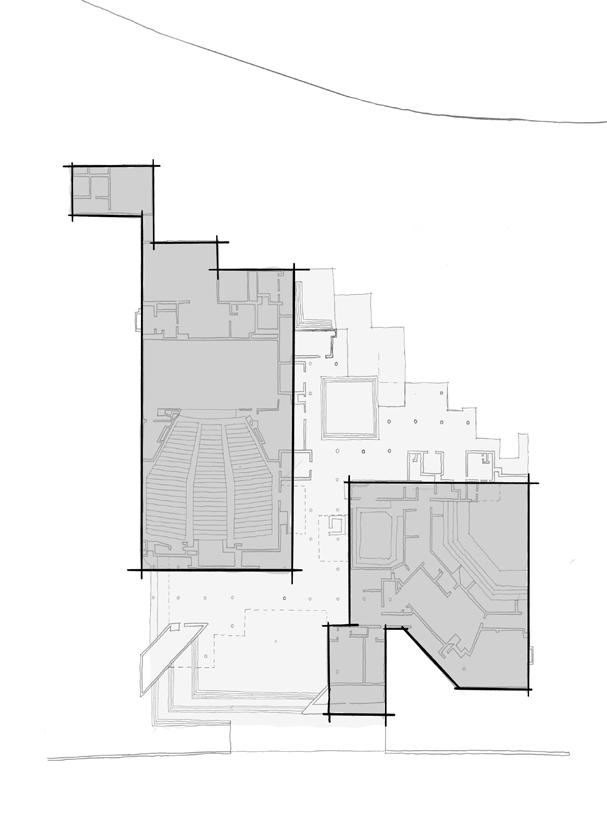

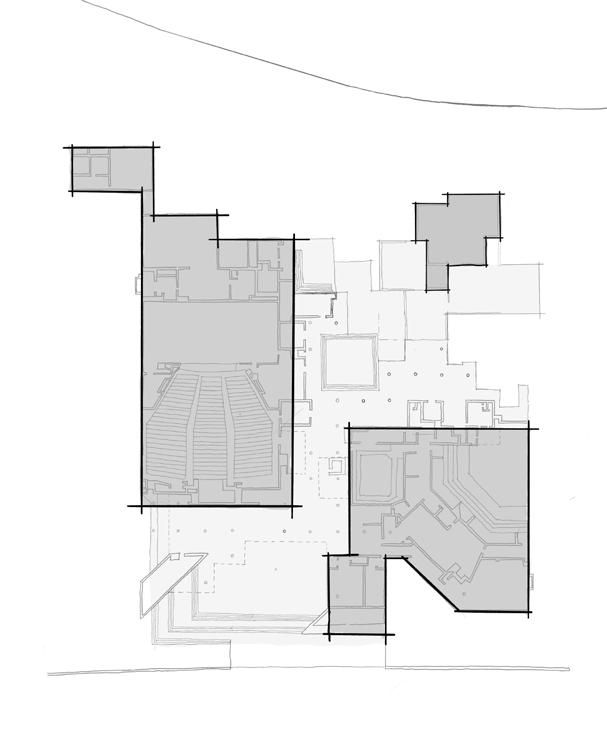

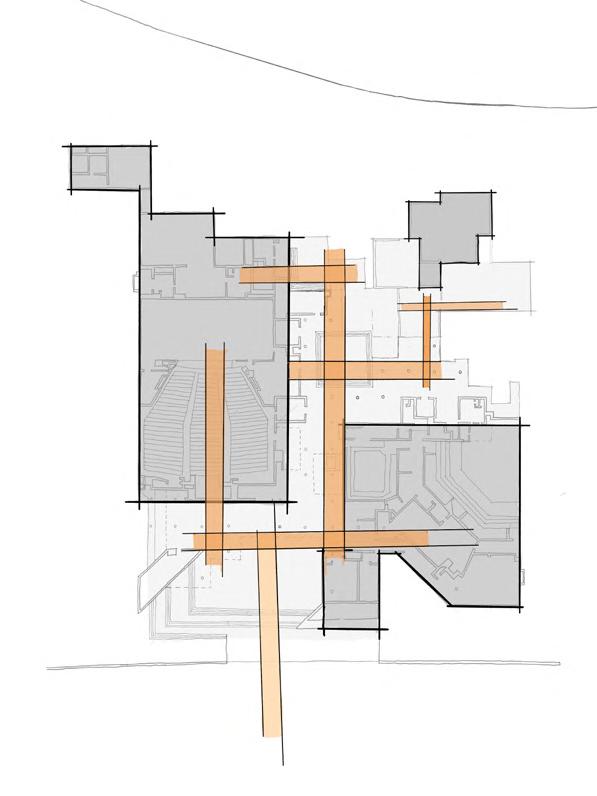

8 POST ANALYSIS DIAGRAMS Kala Academy - Intervention made Plan at + 1500

of Enclosure Shift in Axis

Degree

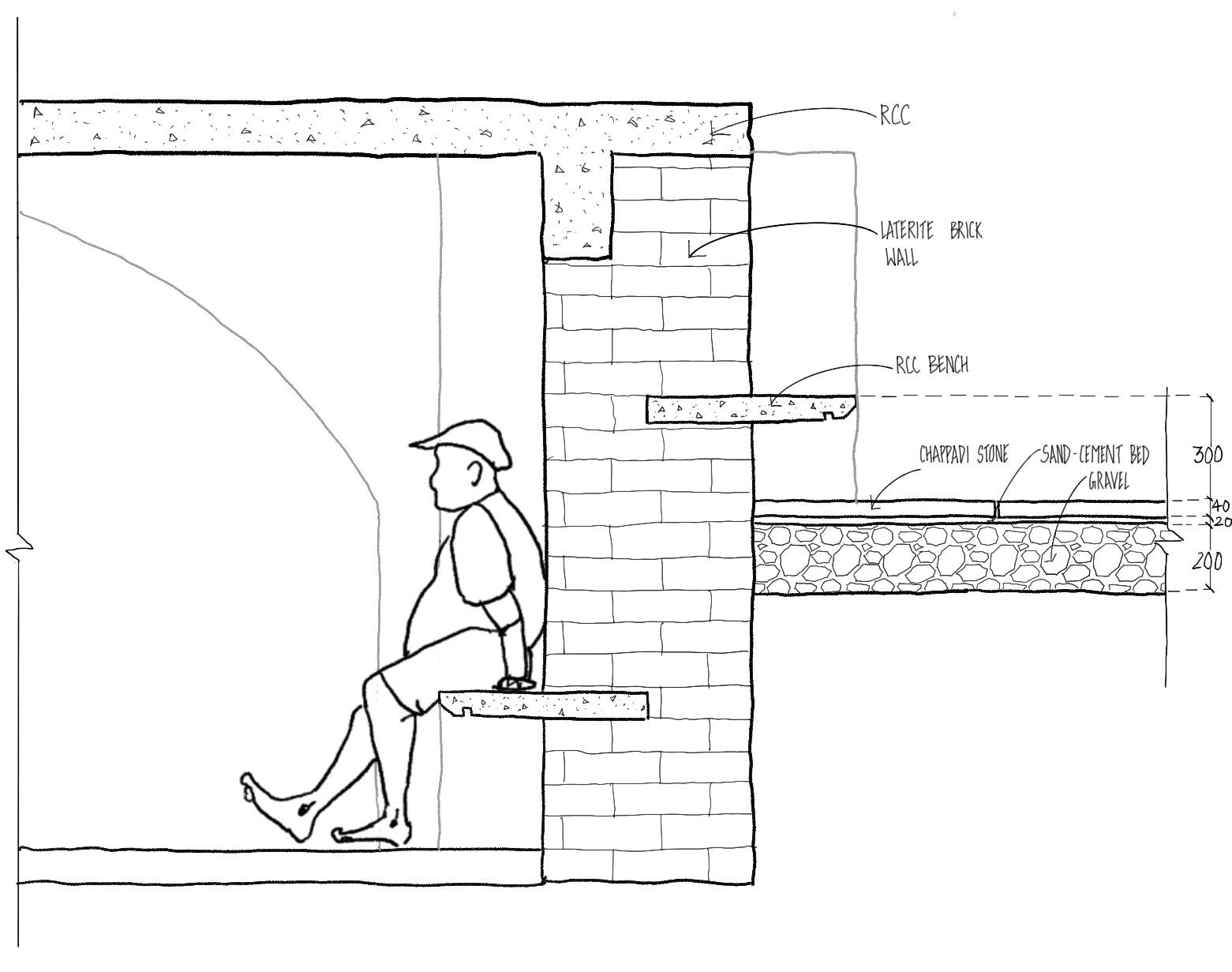

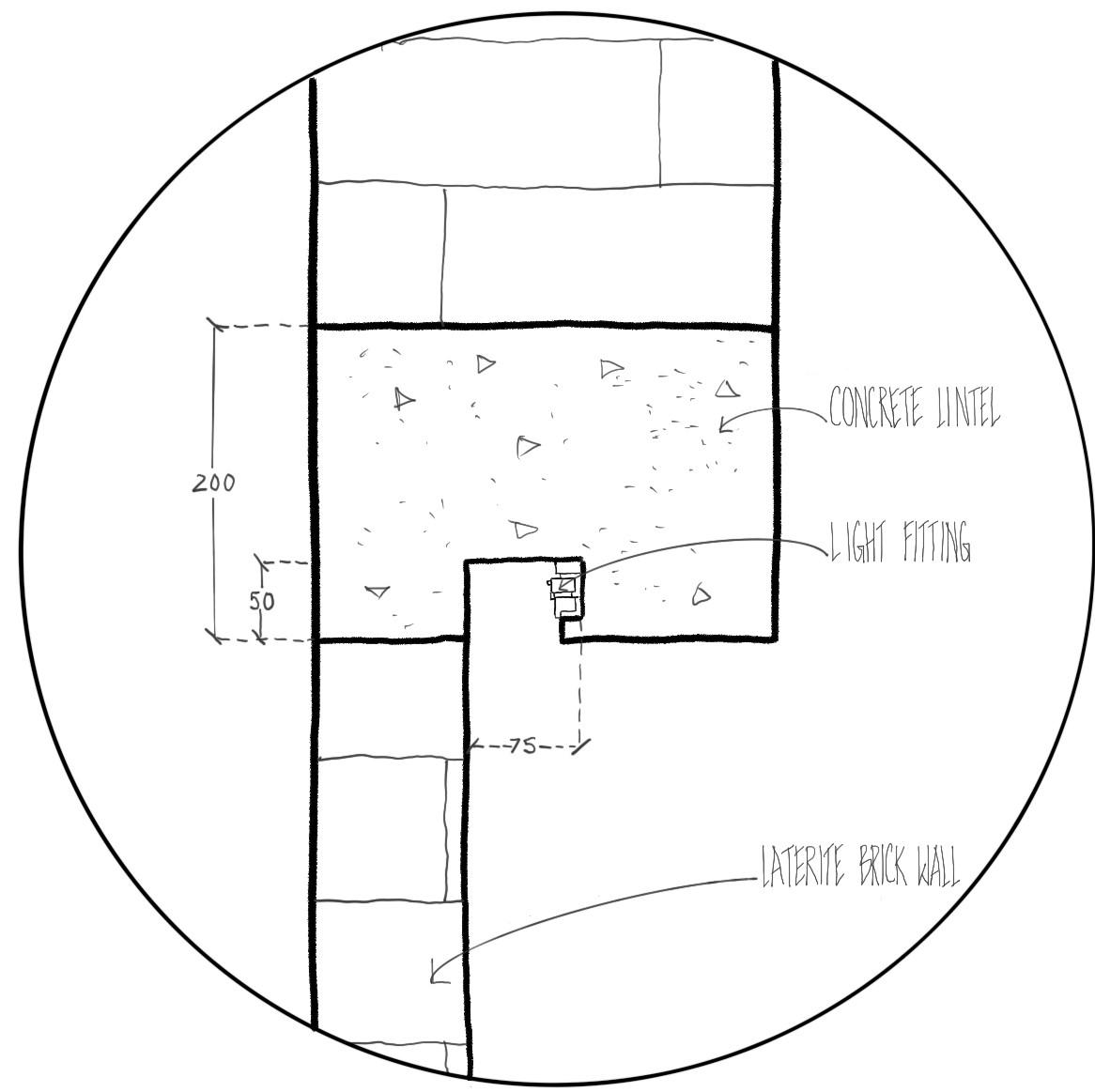

10 DETAILS Wall seating Detail Recessed seating Detail Recessed Light Fixture Detail

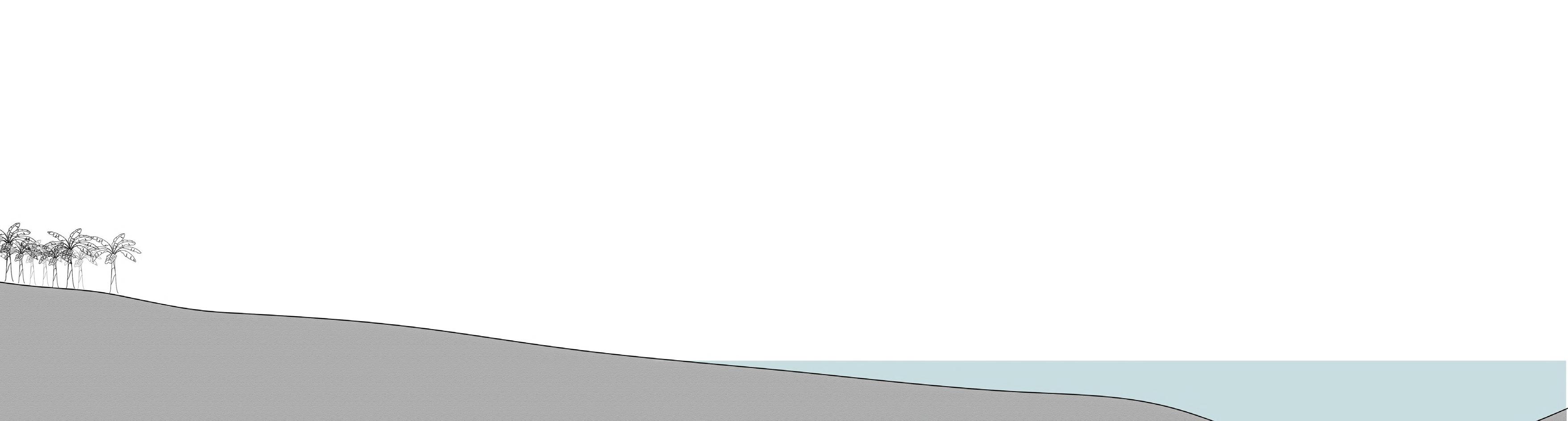

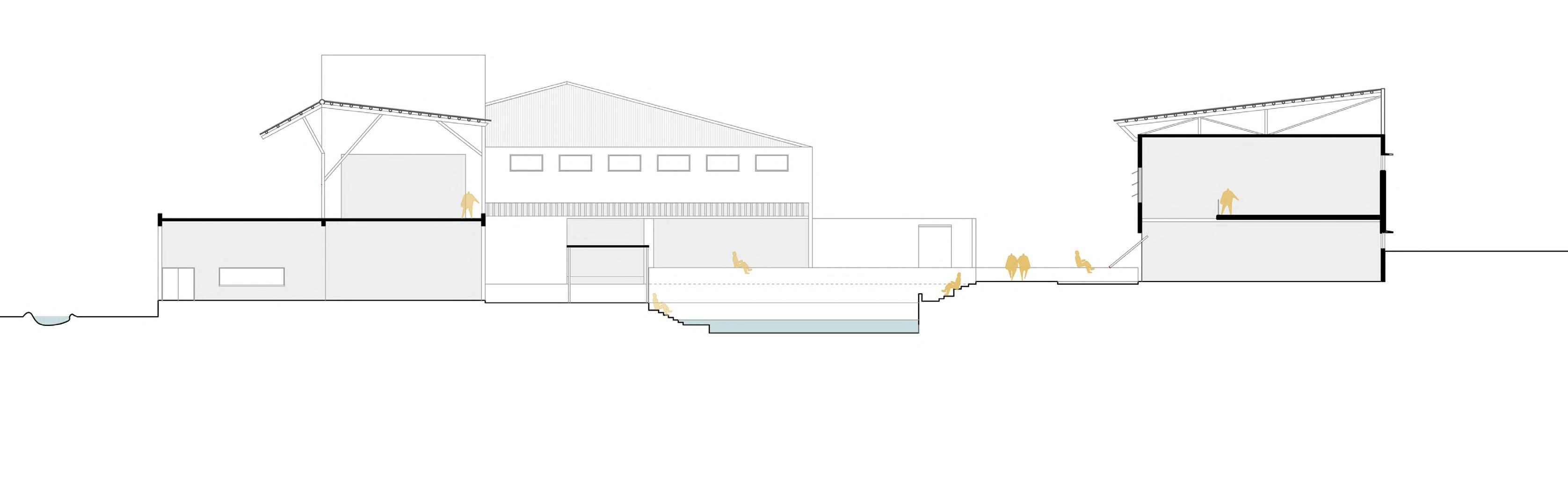

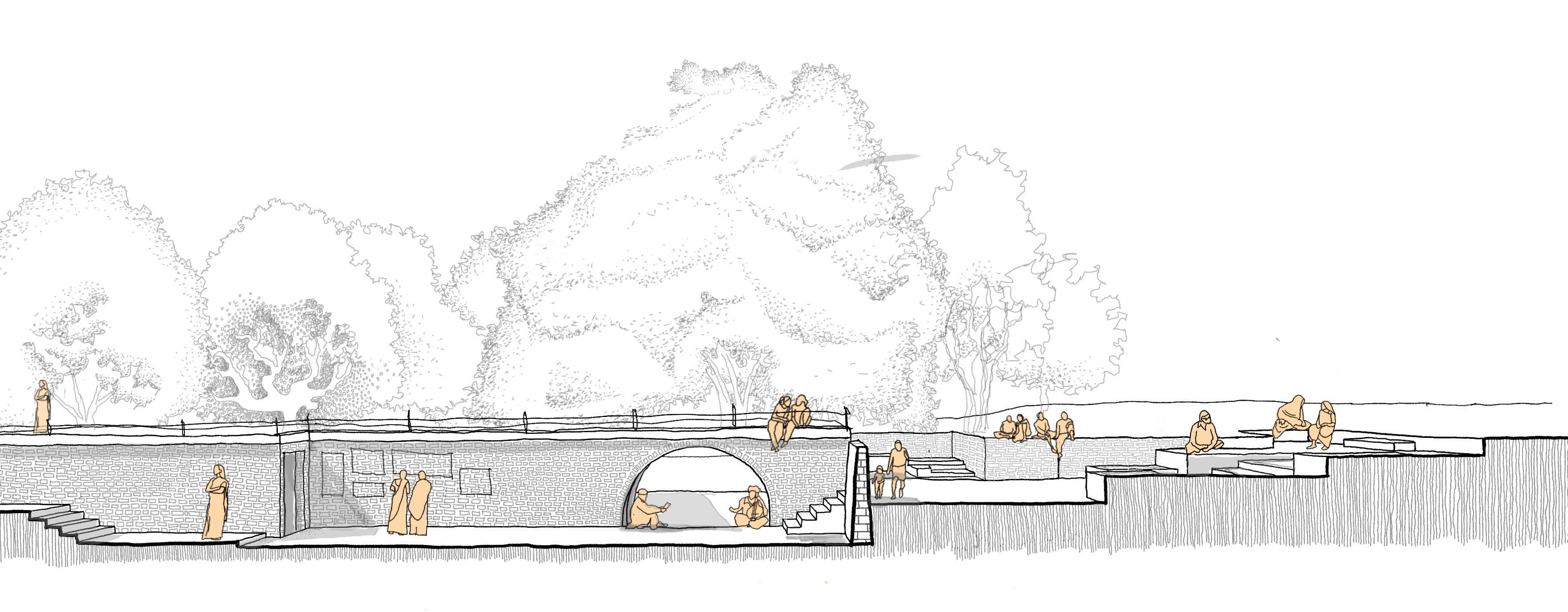

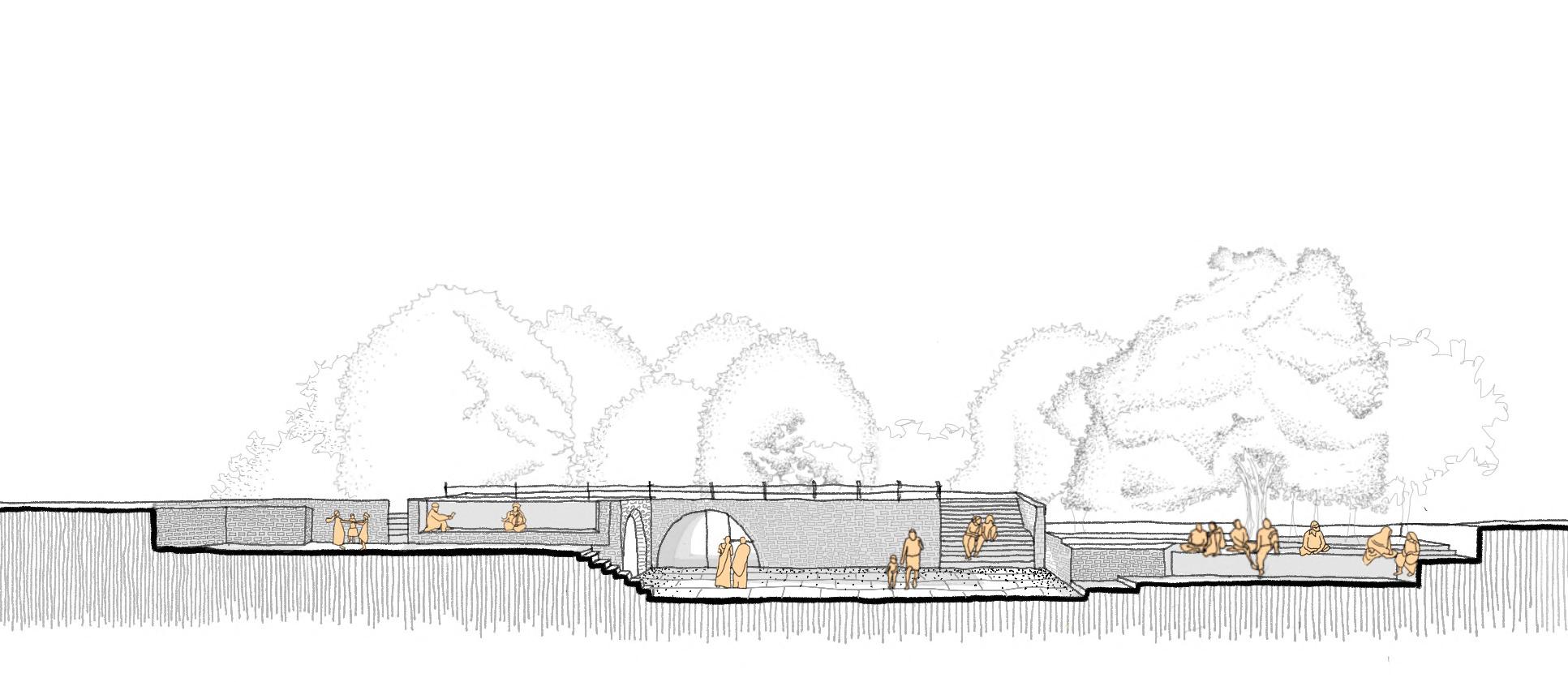

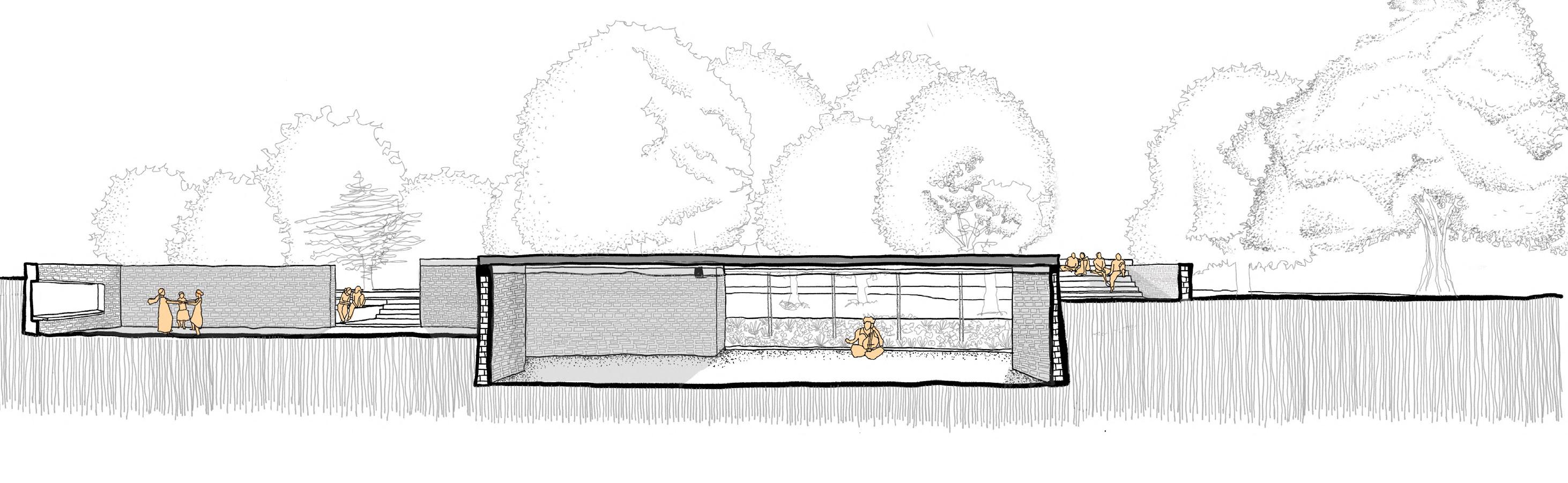

Key Section

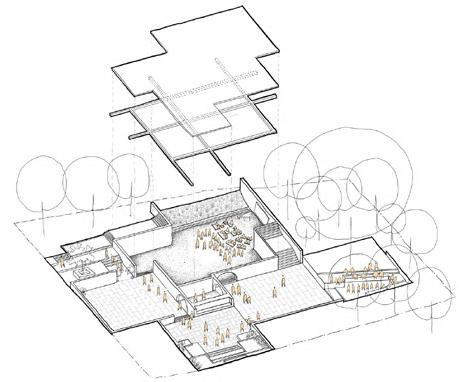

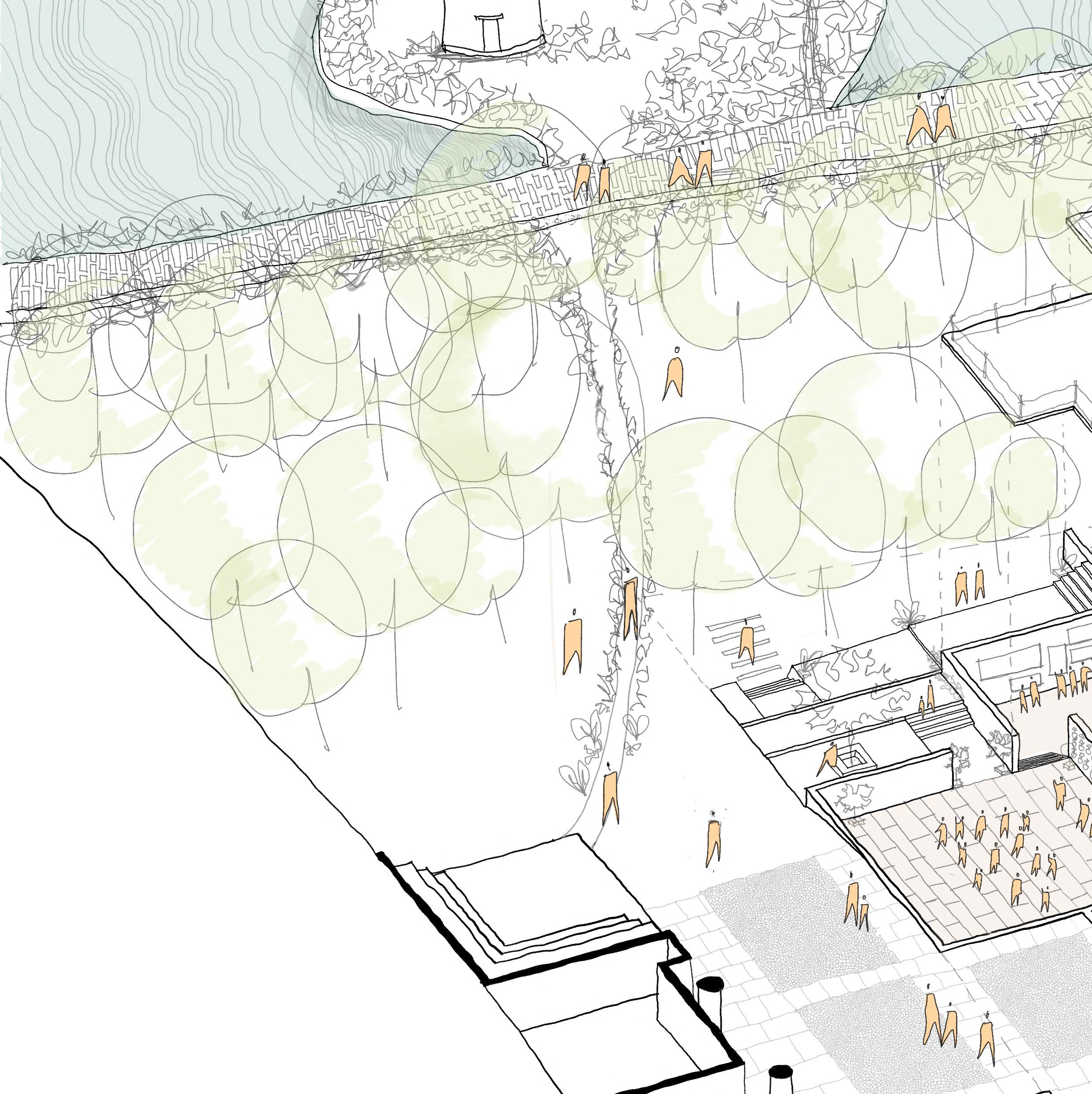

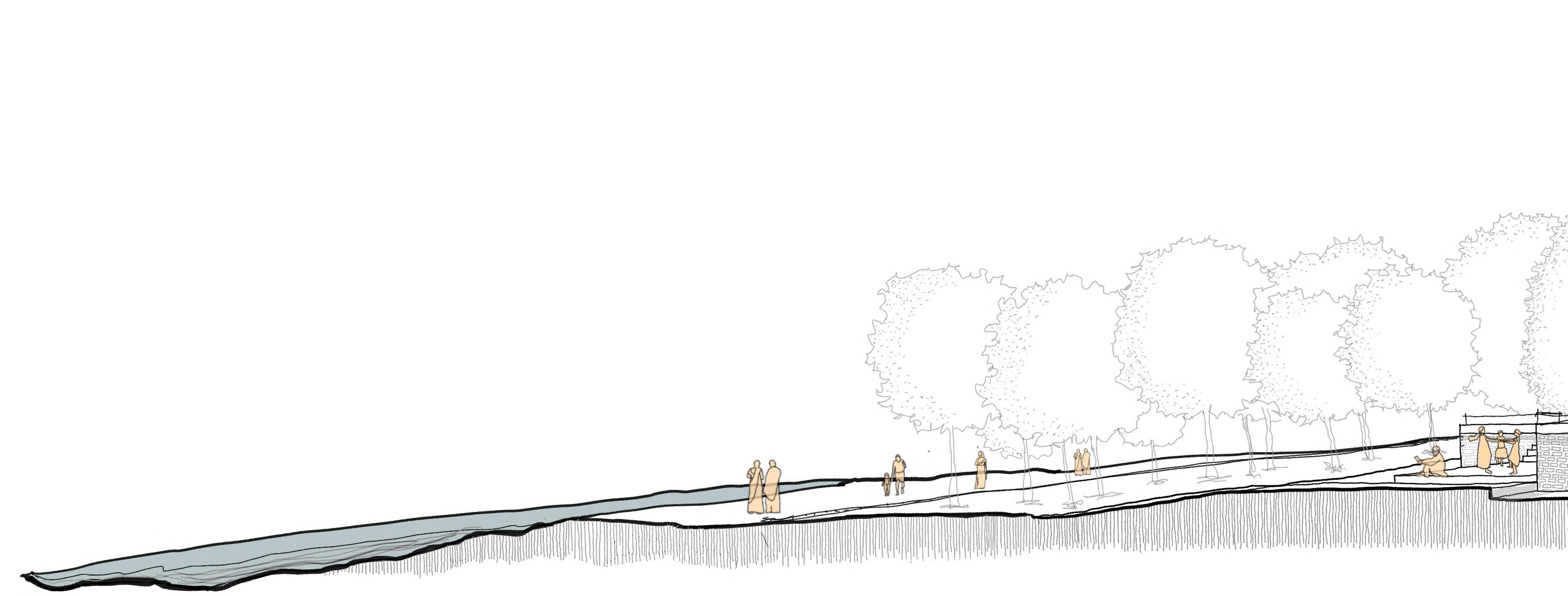

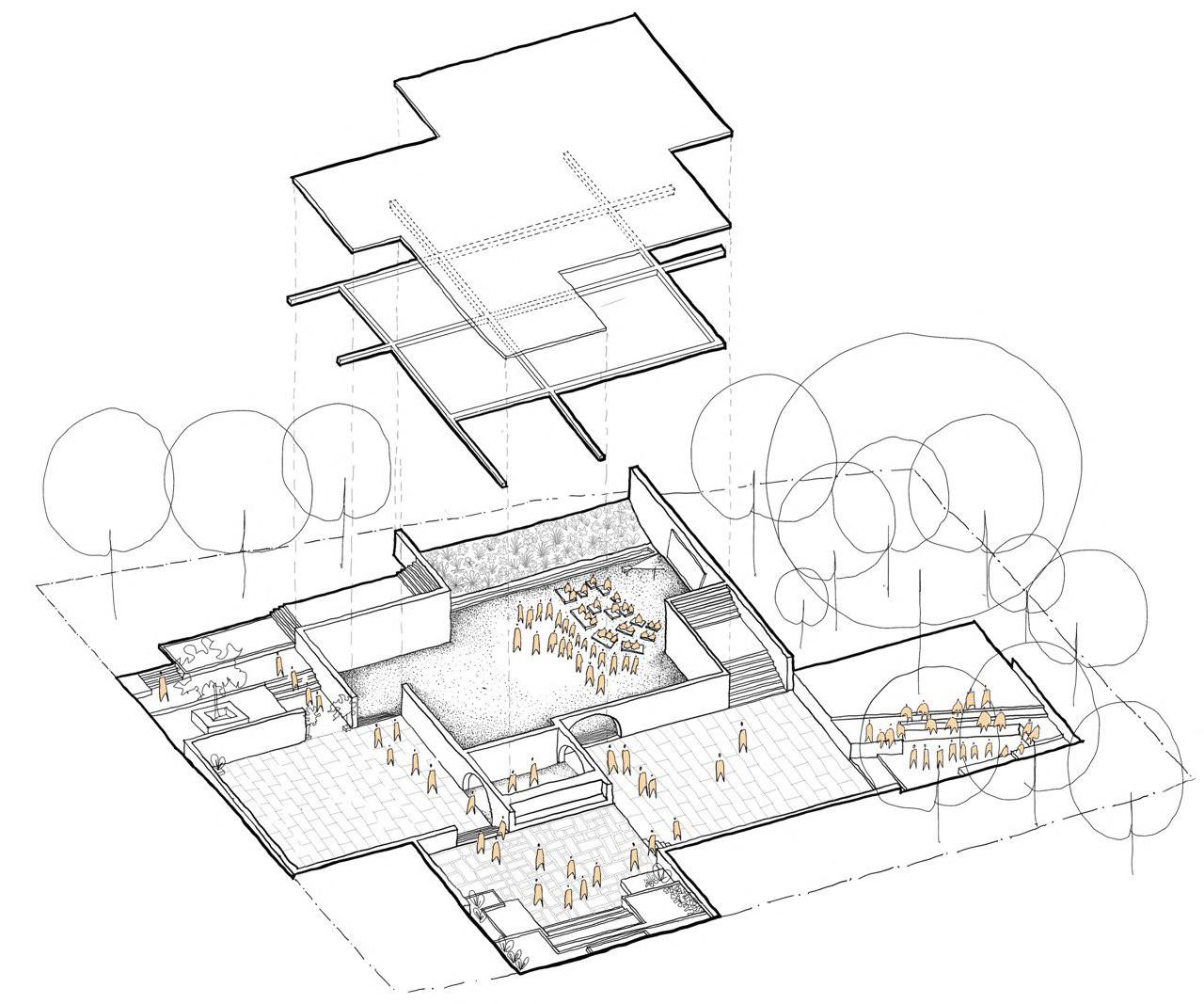

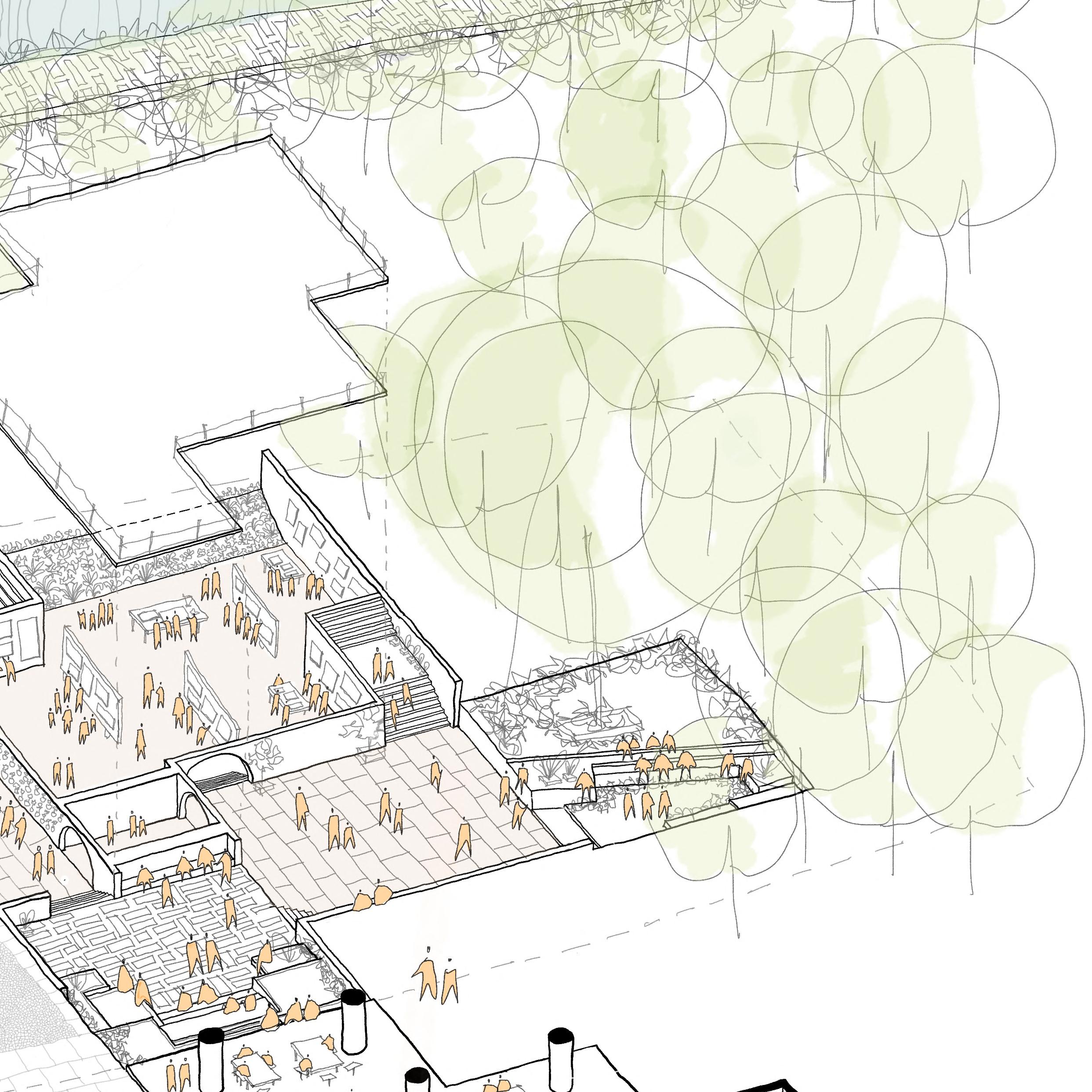

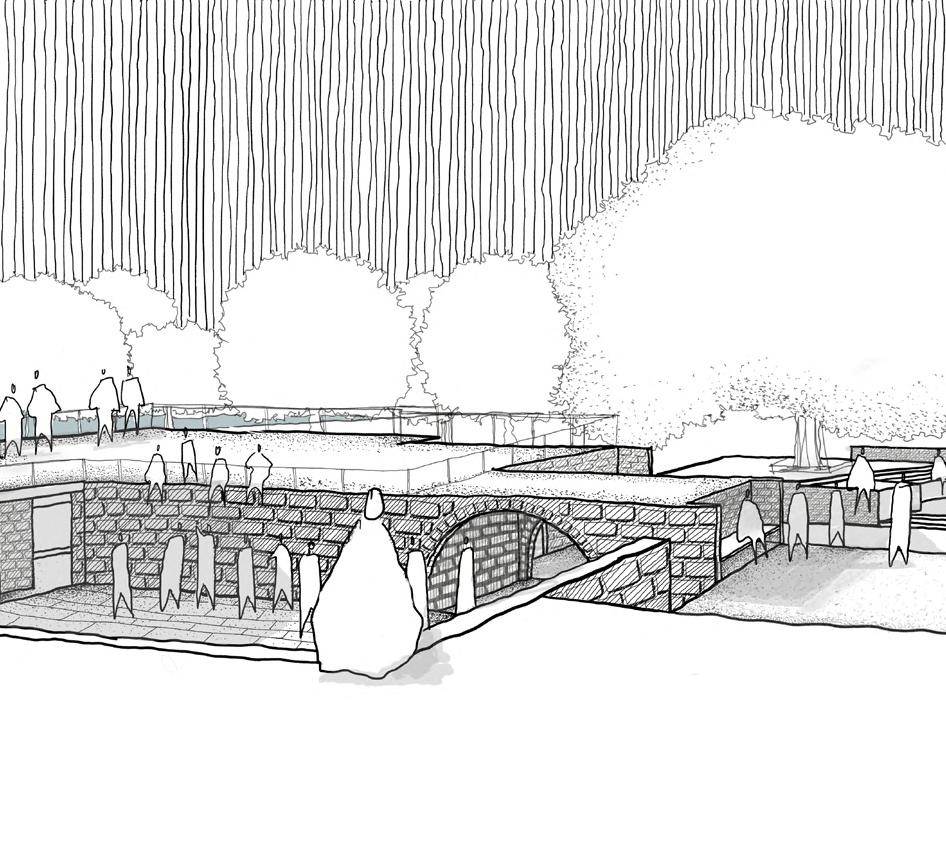

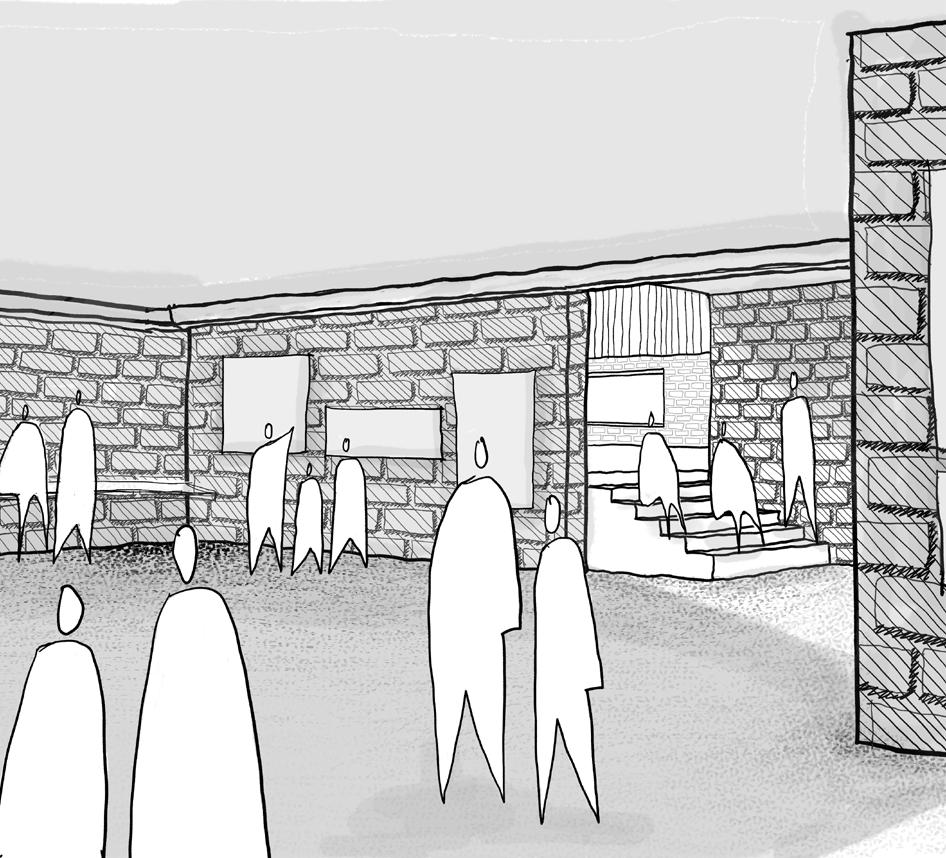

A view showing the various activities and layers of the spaces.

Crafts Industry at Anegundi

Sem 07 4th Year

Mentors: Prof. Anand Krishnamurthy

Prof. Prashant G Pole

Prof. Shrutie Shah Tamboli

Asst. Prof. Asijit khan

Assoc. Prof. Surendran Aalone

Location: Anegundi, Karnataka

Site Area: 10,000sqm

Built Up Area: 3800sqm

Duration: 12 weeks

Focus of the semester was to look at the idea of sustainablity while exploring the typology of a small scale industry. The task was to create an extension of the Kishkinda trust, an existing NGO in Anegundi. The trust manufactures products like ropes and baskets from locally available water Hyacinth and Banana Fibers, in doing so they engage women of the Town.

An expansion to the Kishkinda trust was seen as a way of sustaining this community of women by providing income, Sustaining the craft by making an expansion in both production scale and variety, providing learning cell for people new to the craft. This centre was also seen as an opportunity to invite the visitors and tourists to see the making of these goods as they form a major part of the revenue.

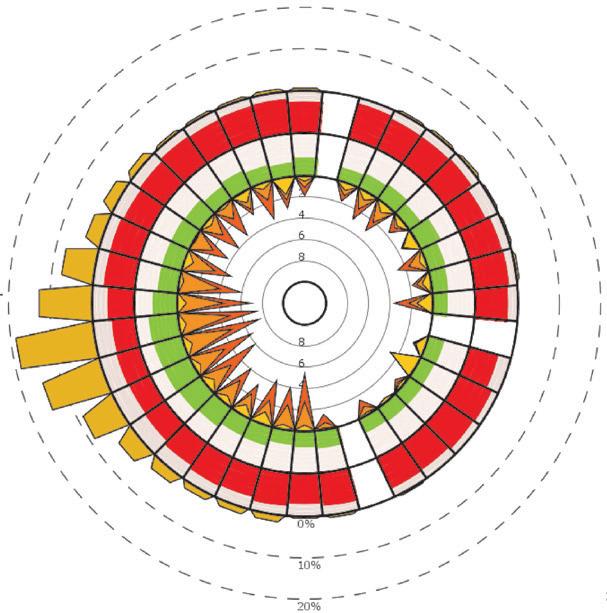

KEY ASPECTS

14 1 2 3 4

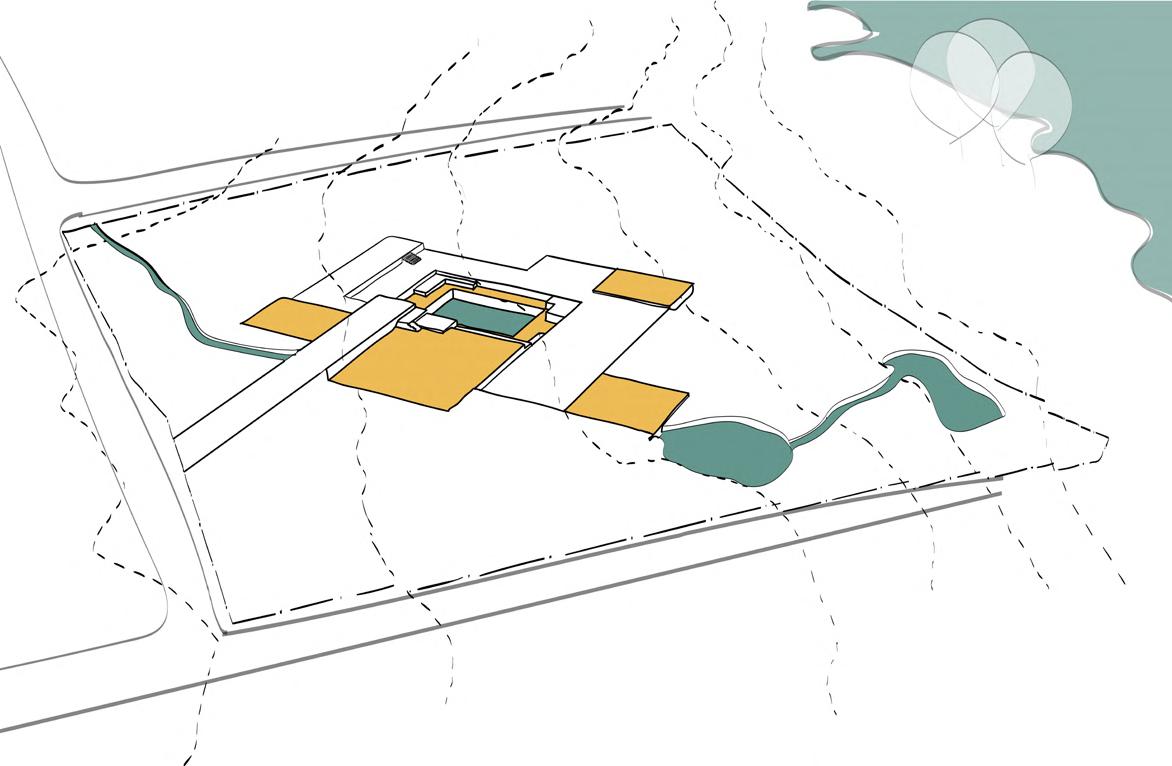

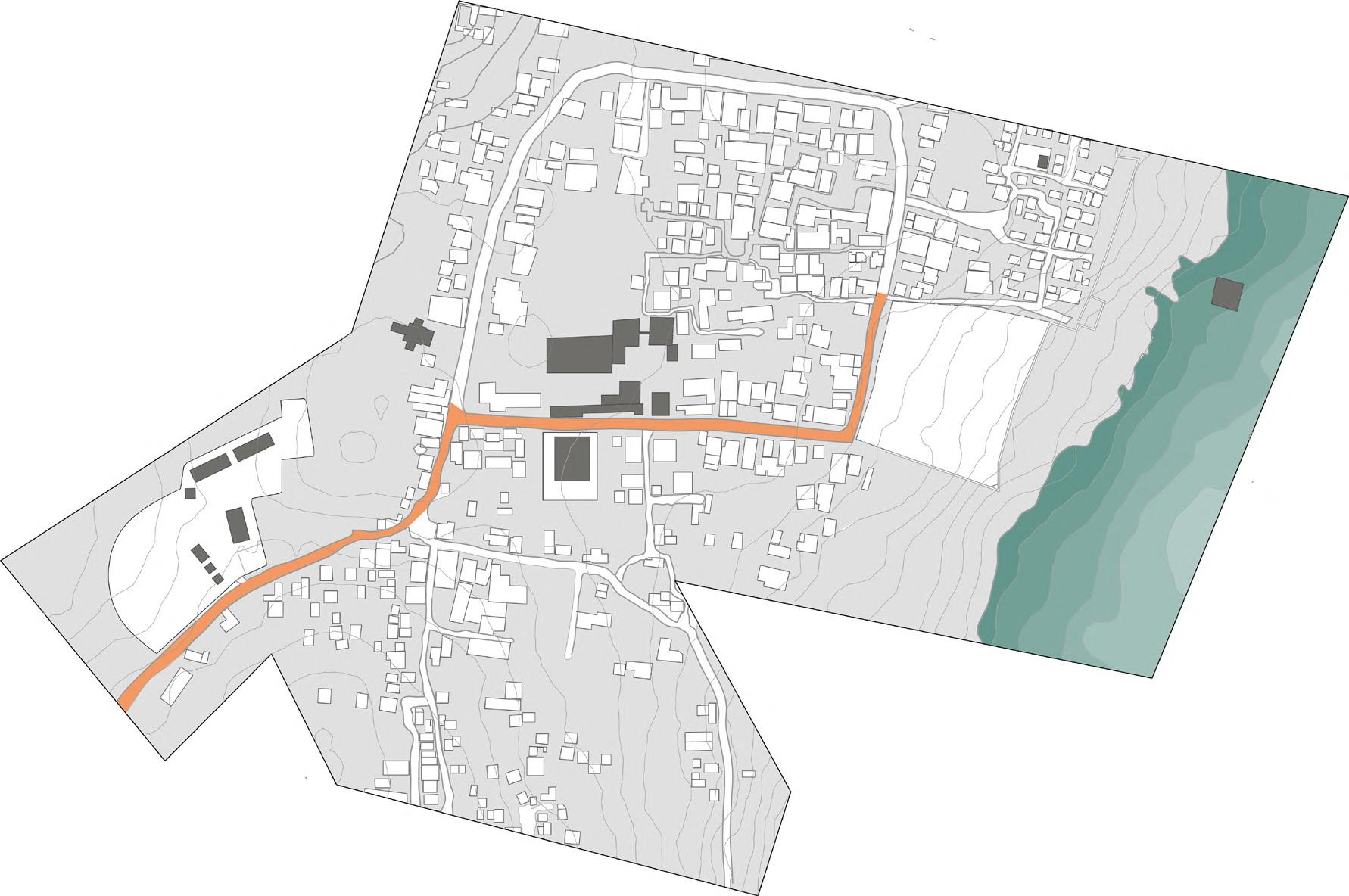

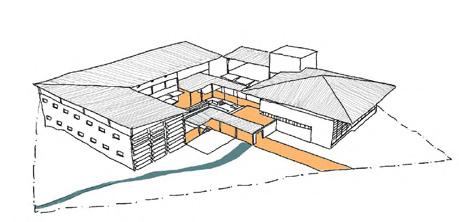

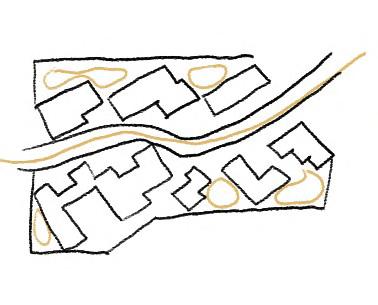

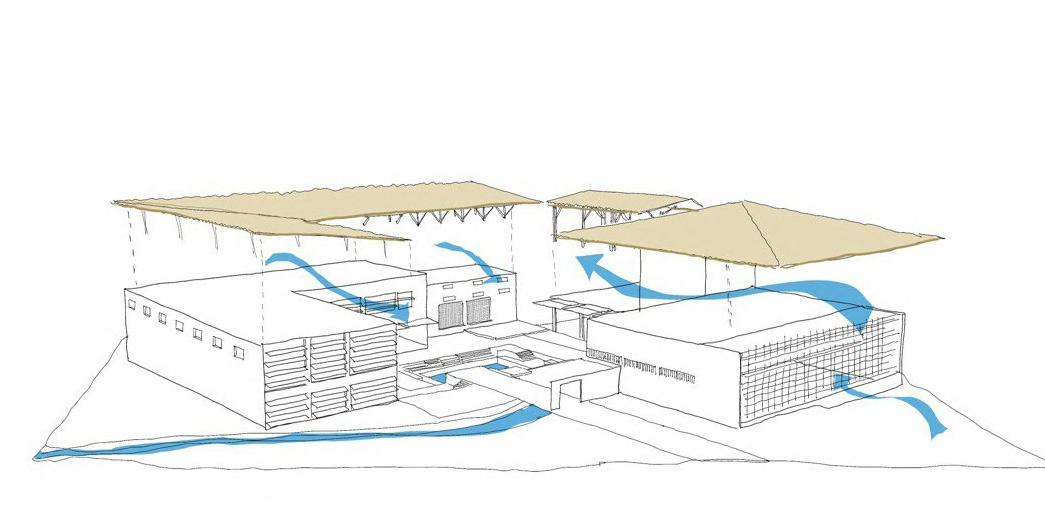

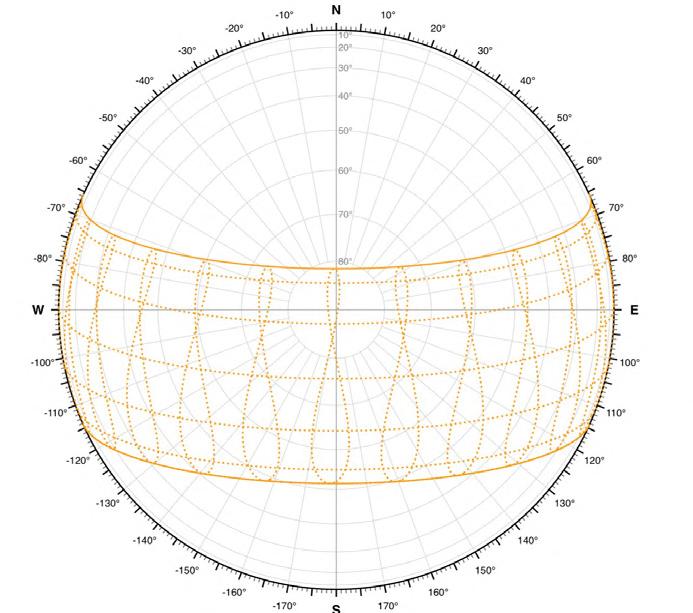

1. The kishkinda Trust 2. The site 3. Tungabadhara River 4. Gagana Palace The site A Public Pathway with adjoining open and shaded spillover spaces. A segregation of the working spaces to ensure smooth functioning of the centre. Idea of a sub roof as a climatic response againt the warm and dry climate. 1. Microclimate and water Harvesting - Collection of surface and roof water run-off. 2.Banana Plantation - Improves microclimate and provies yield for the products manufactured. 3. Sourcing Locally available construction material that simultaneously provide good heat insulation Properties. 4. Using Passive Cooling Methods - Sun shading and Double roof system.

DESIGN DEVELOPMENT KEY MAP

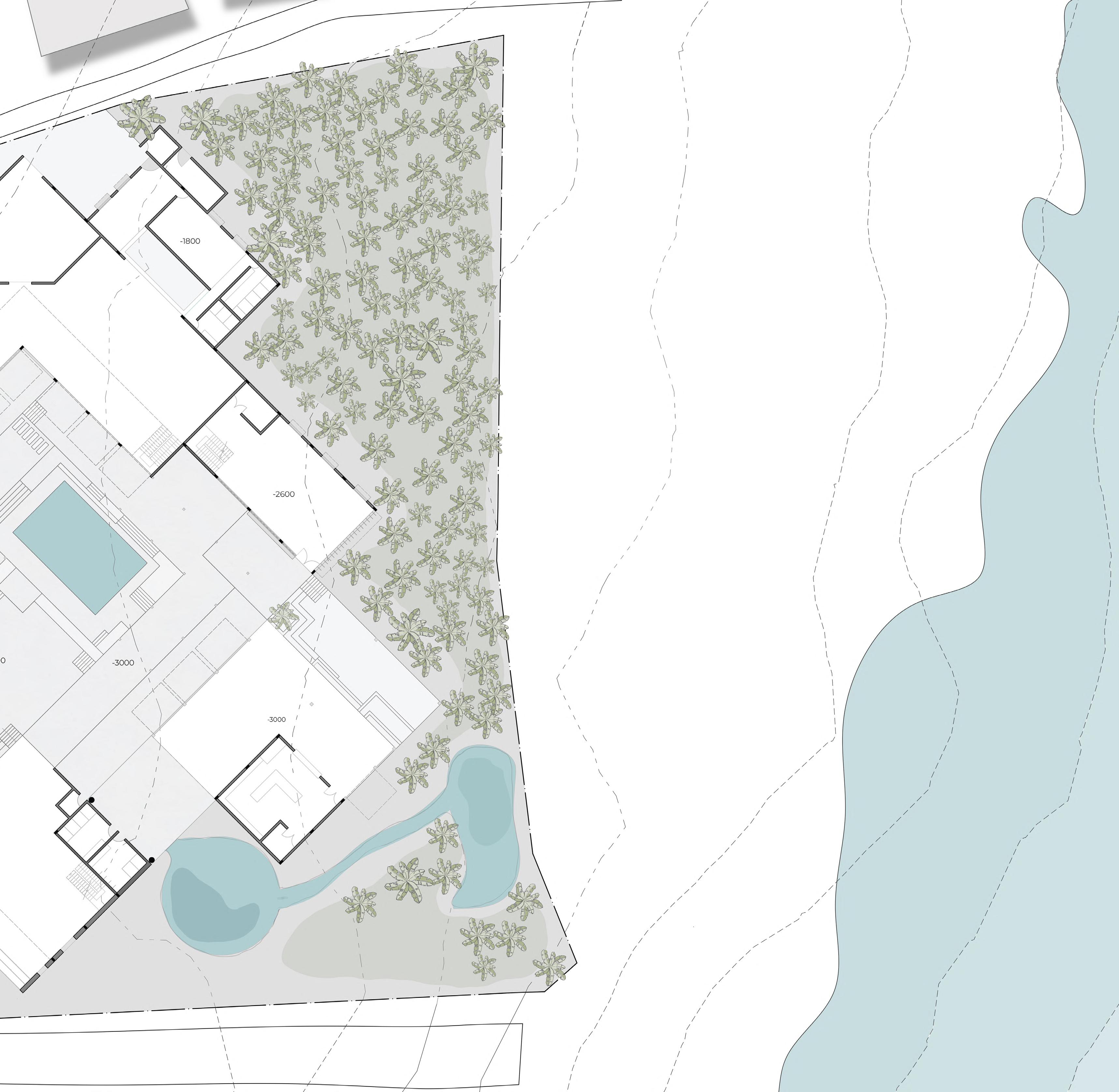

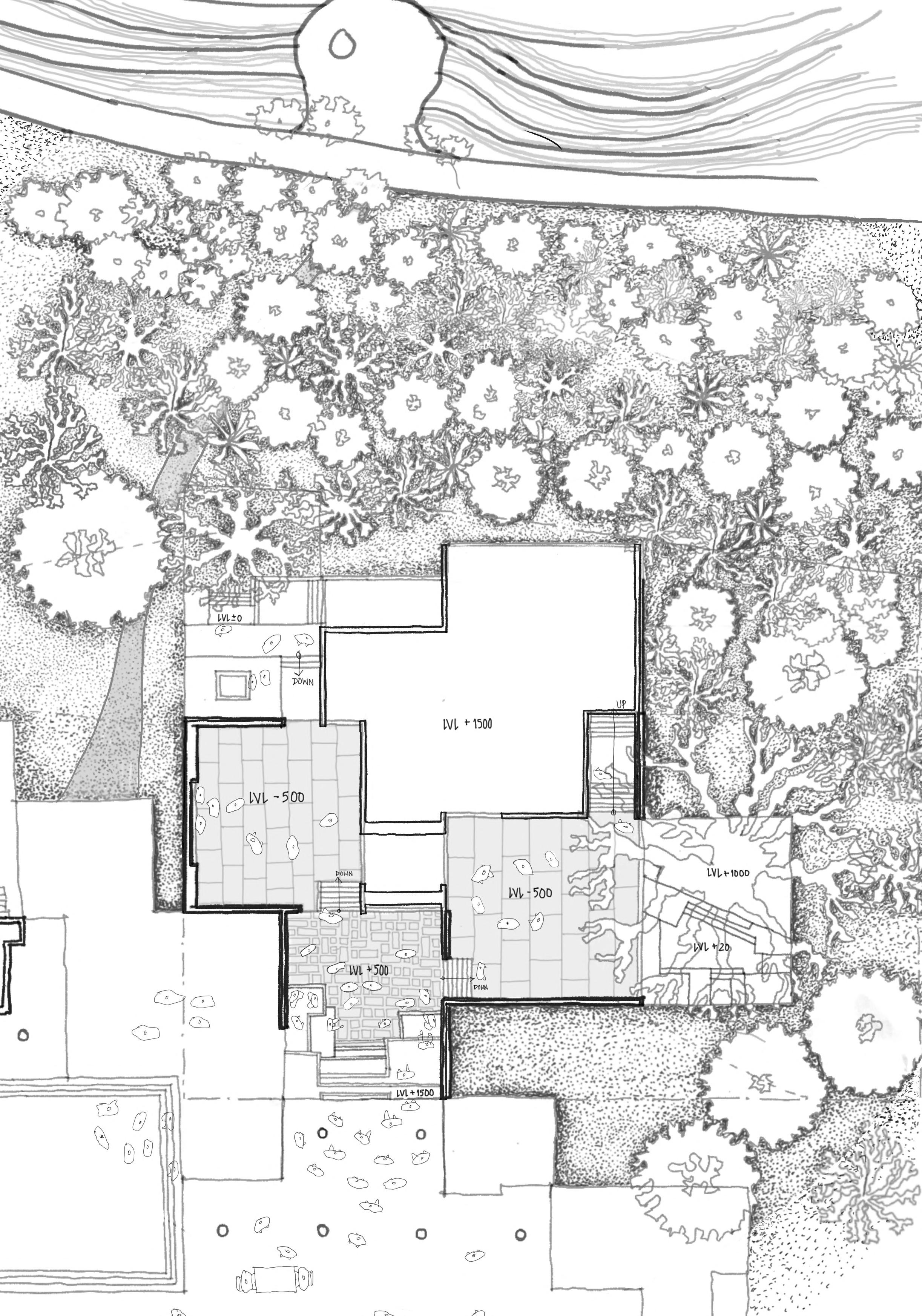

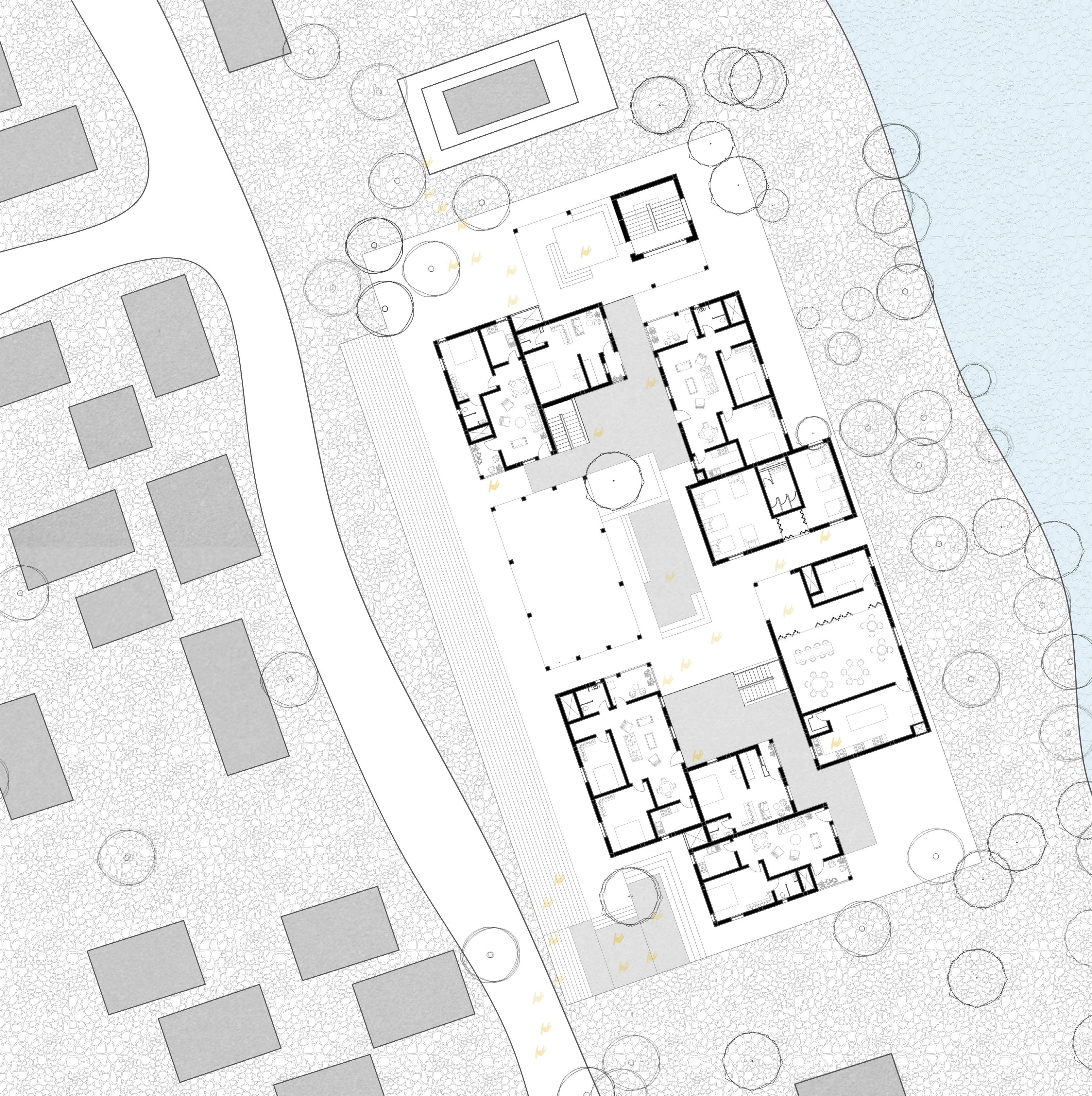

16 Plan at + 500

1. 2. 6.

A B’ C

1.Weaving and Processing space 2.Exhibition Space 3. Canteen 4. Lobby space for Accommodation 5.Admin spaces - Office- Locker room for employees - Staff Toilet

Public Toilet 7. Public Courts

3. 4. 5. 6. 6.

A’ B

C’

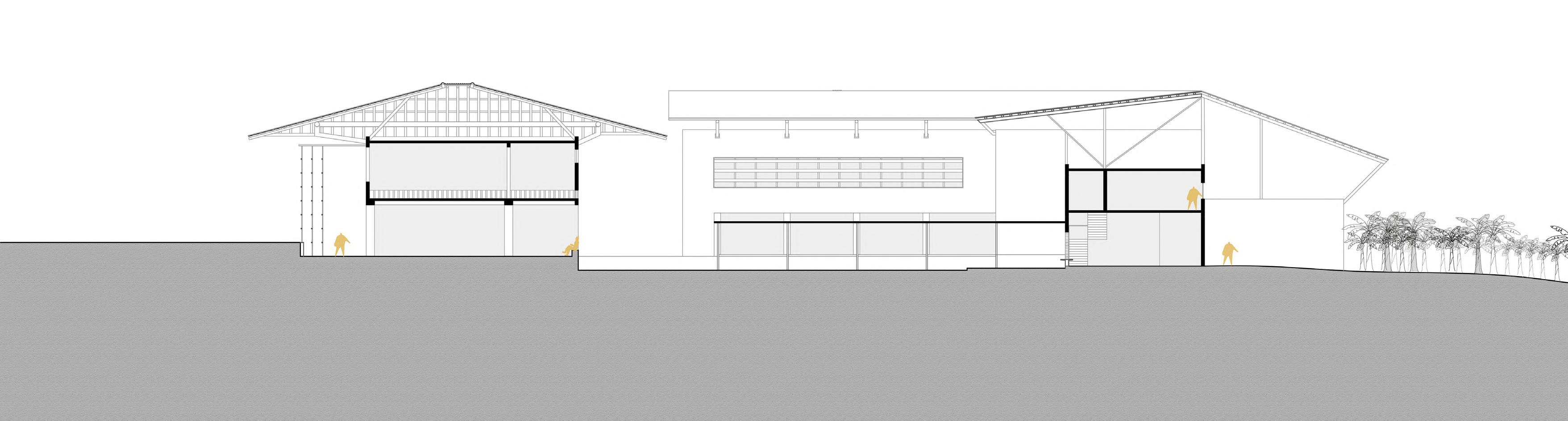

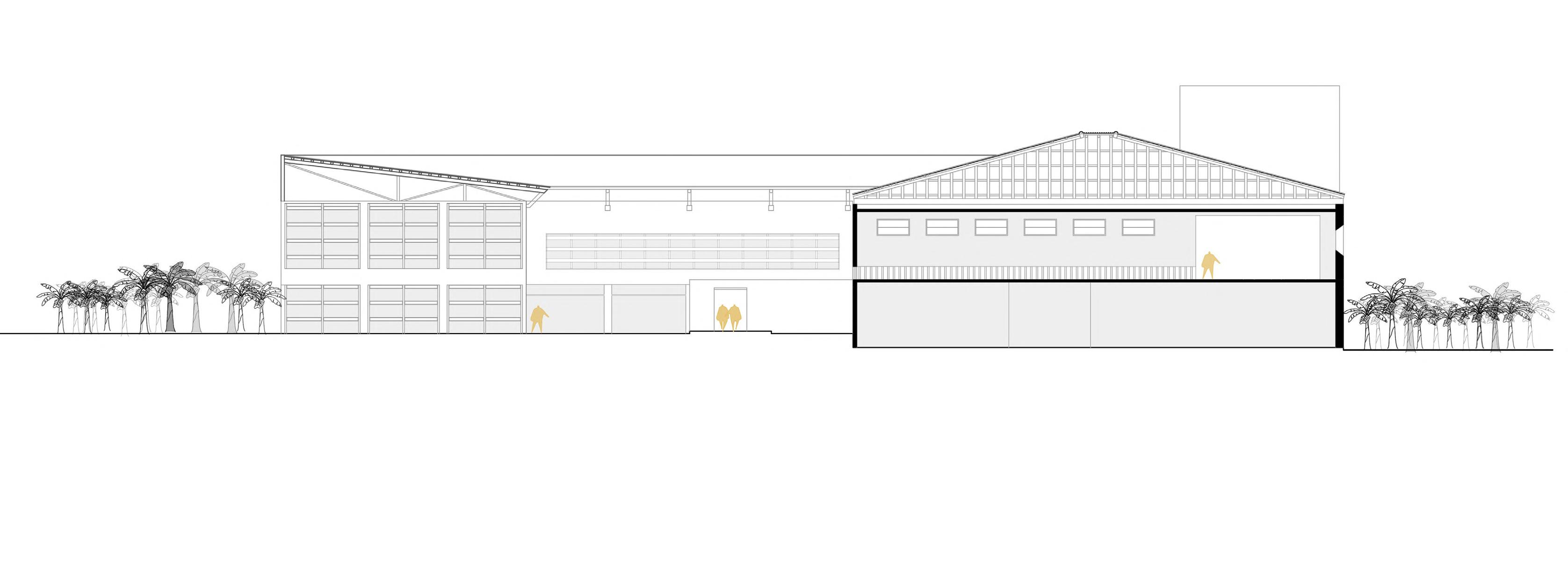

Section AA’

Section CC’

Section BB’

BAMBOO PURLIN (DIA 80mm)

HALVED BAMBOO MEMBERS

6mm RIVETS

CHS 350

HALVED BAMBOO MEMBERS

BAMBOO PURLINS (DIA 800mm)

RIVET (6mm)

WALL PLATE (4mm)

BAMBOO MEMBERS (50 mm)

HALVED BAMBOO - GUTTER

Gutter Detail - Split Bamboo used as Gutter.

HALVED BAMBOO MEMBERS - ROOFING

J- BOLT

THREADED ROD (5mm)

BAMBOO PURLIN (DIA 80mm)

Bamboo purlin to Bamboo splits connectionusing threaded rod.

BAMBOO MEMBERS (30 mm)

GYPSUM PLASTER (12mm) PLASTER BOARD (10mm)

FLY ASH BRICK WALL(230mm)

PCC (1:4:8)

WALL SECTION - DETAILS

Culinary Institute

Sem 06 3rd Year

Mentors: Assoc. Prof. R Kiran Kumar

Assoc. Prof. Surnedran Aalone

Prof. Srinivas S G

Asst. Prof. Ryan Thomas

Asst. Prof. Kavana Kumar

Asst. Prof. Aakash Rai

Location: Nashik, Maharashtra

Site Area: 8000sqm

Built Up Area: 4000sqm

Duration: 12 weeks

The Studio Brief was to design for a client who is a third-generation farming family, and want to build an institution from nature’s point of view. The program is a cooking school and would be based on “field-to-fork concept”. Emphasis was laid on both Built - the school and various processing spaces and the Unbuilt-the farm.

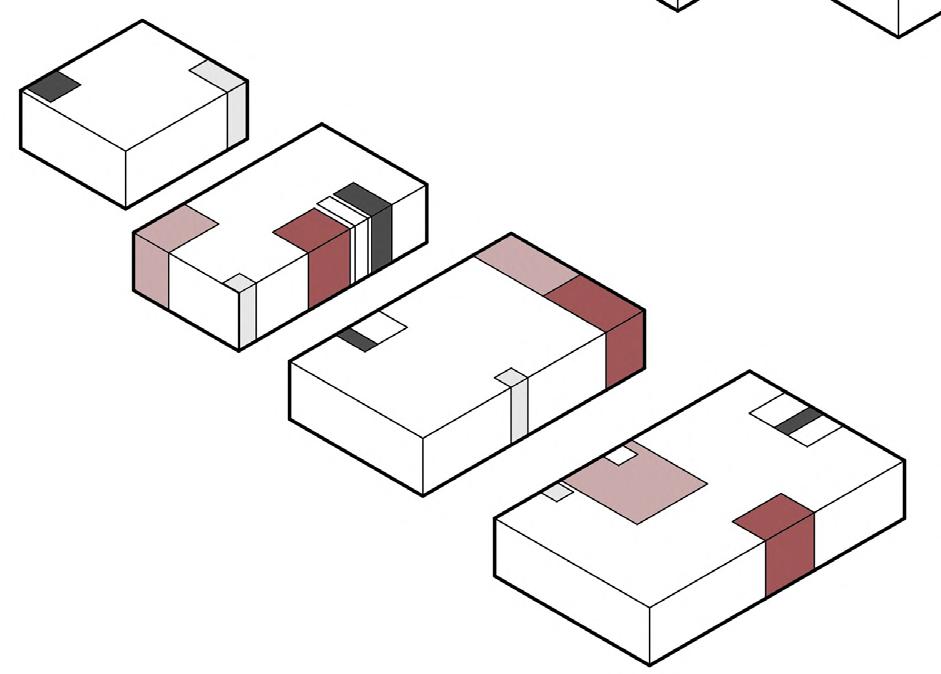

The idea was to balance the enclosed, open and in-between spaces, grid was used to try and experiment with the proportions of these various spaces.

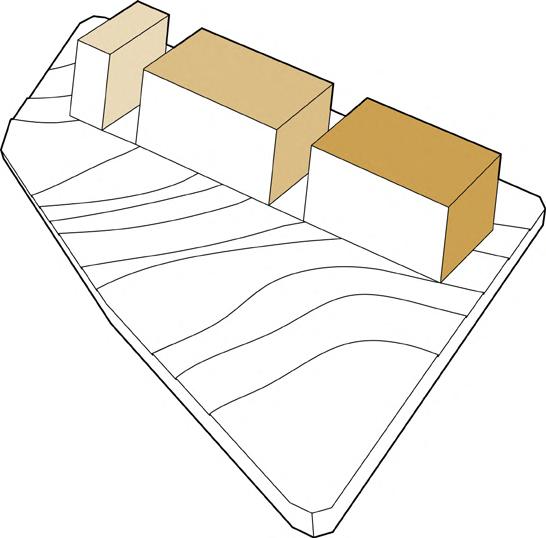

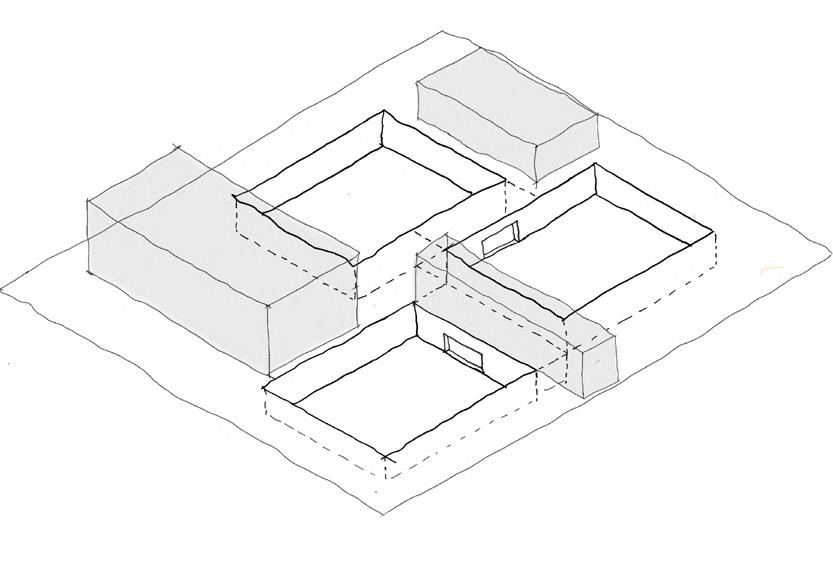

Segregatin the Site into two to provide uninterrupted space for the farm.

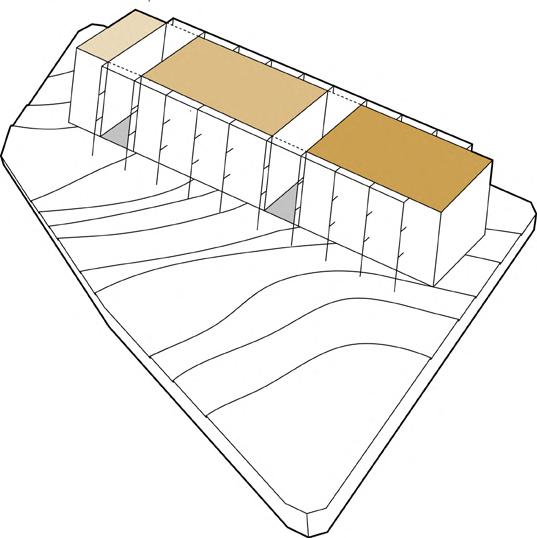

Since the mass was linear, it was segregated for logestic purposes of an institute.

The segregated spaces were interjected with service blocks.

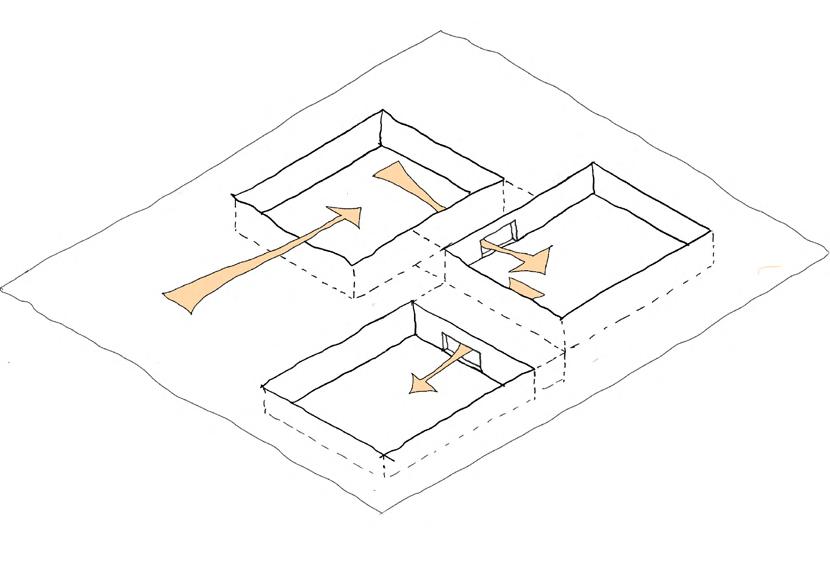

The interlocking of Various spaces was done to improve efficiency and access in a culinary institute - The various kitchend could be combined and made into a singular space, the practical working spaces were combined with the lecture spaces.

Classroom space attached to a common open space for informal activities.

Narrow alley space becomes a viewing decka and connects it to the classroom on the side.

Demonstration space with a small balcony space.

Kitchen segregated by a sliding folding door - can be merged into a single space to accommodate a larger group.

An outer frame created in - between spaces , and grid regularities.

DESIGN DEVELOPMENT

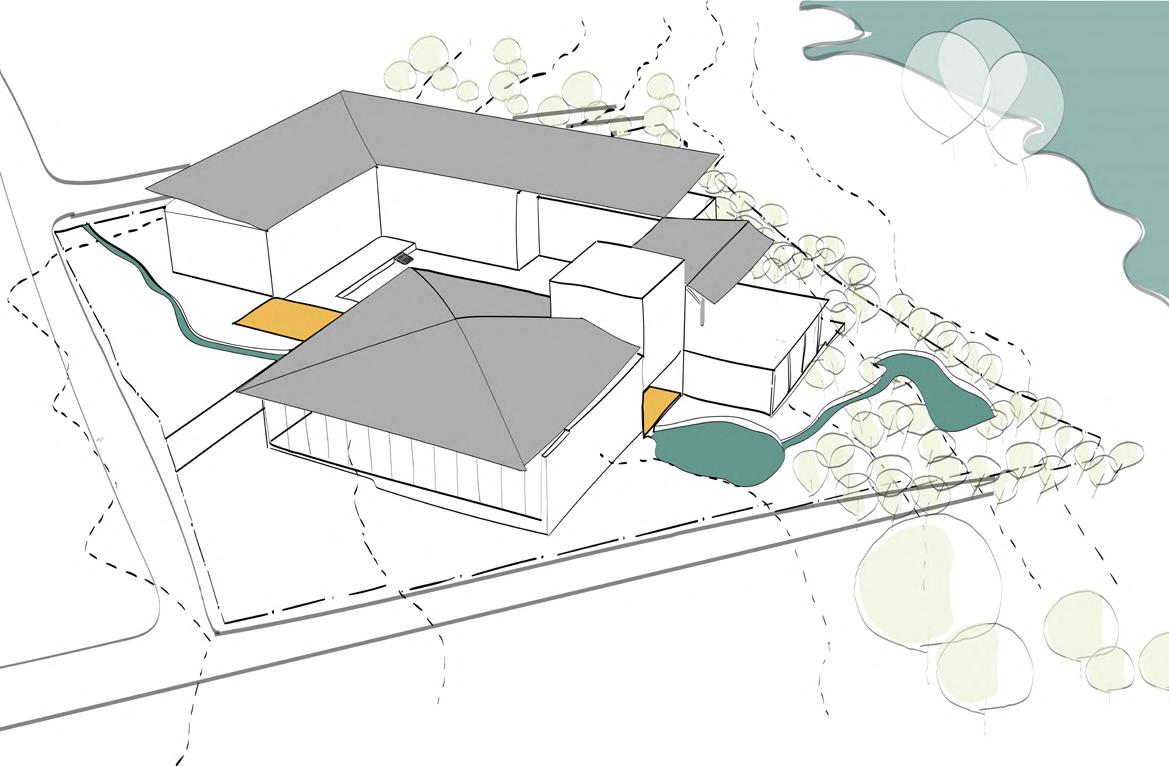

Proposed Site

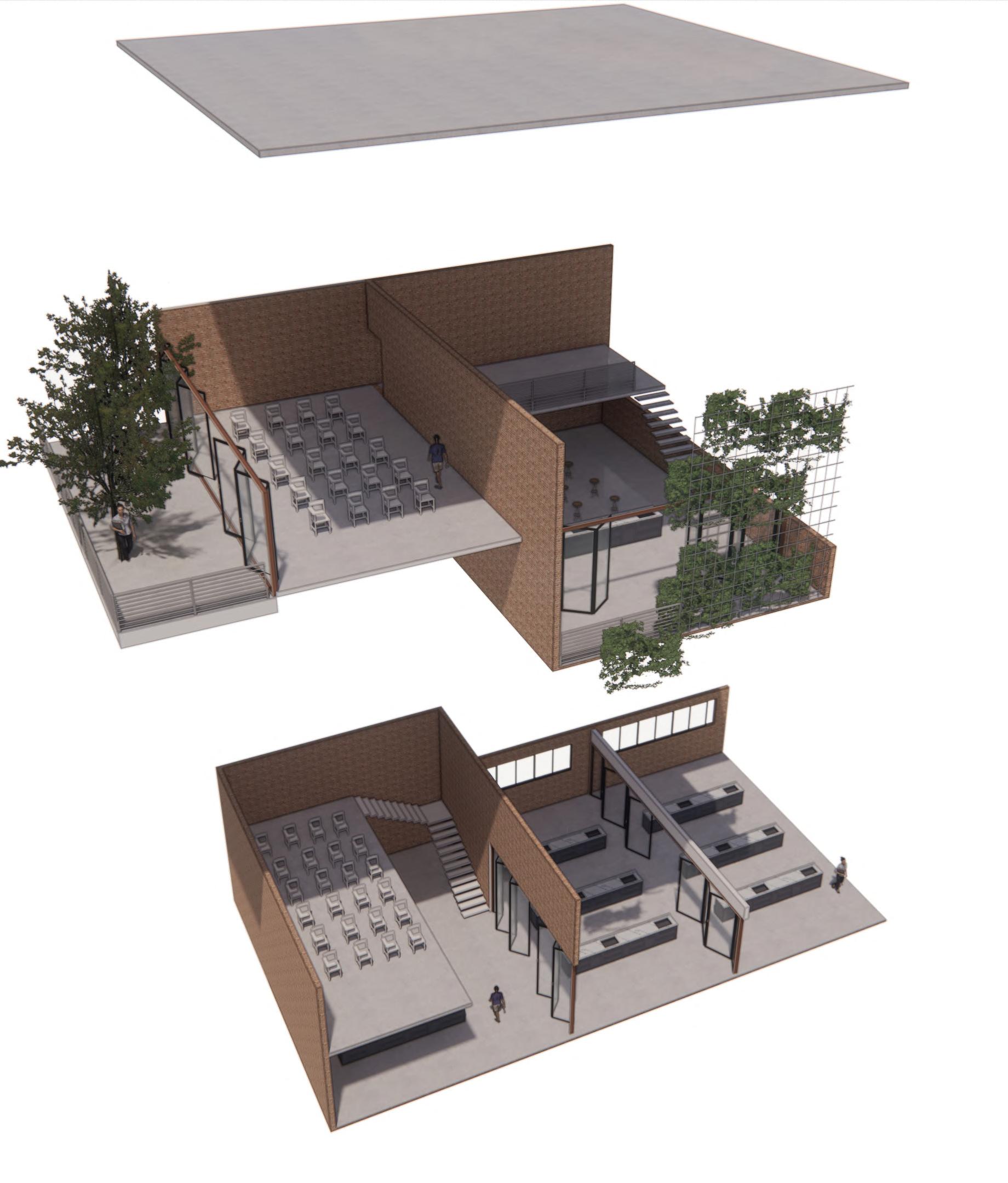

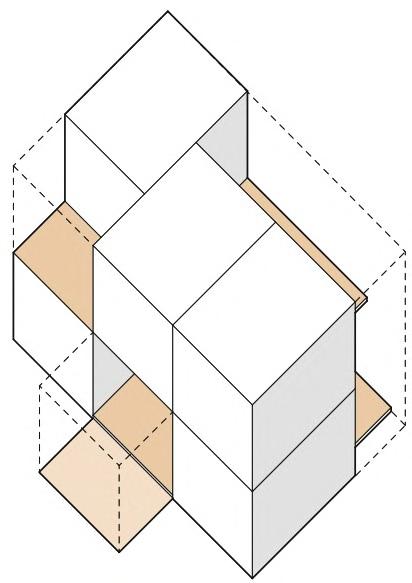

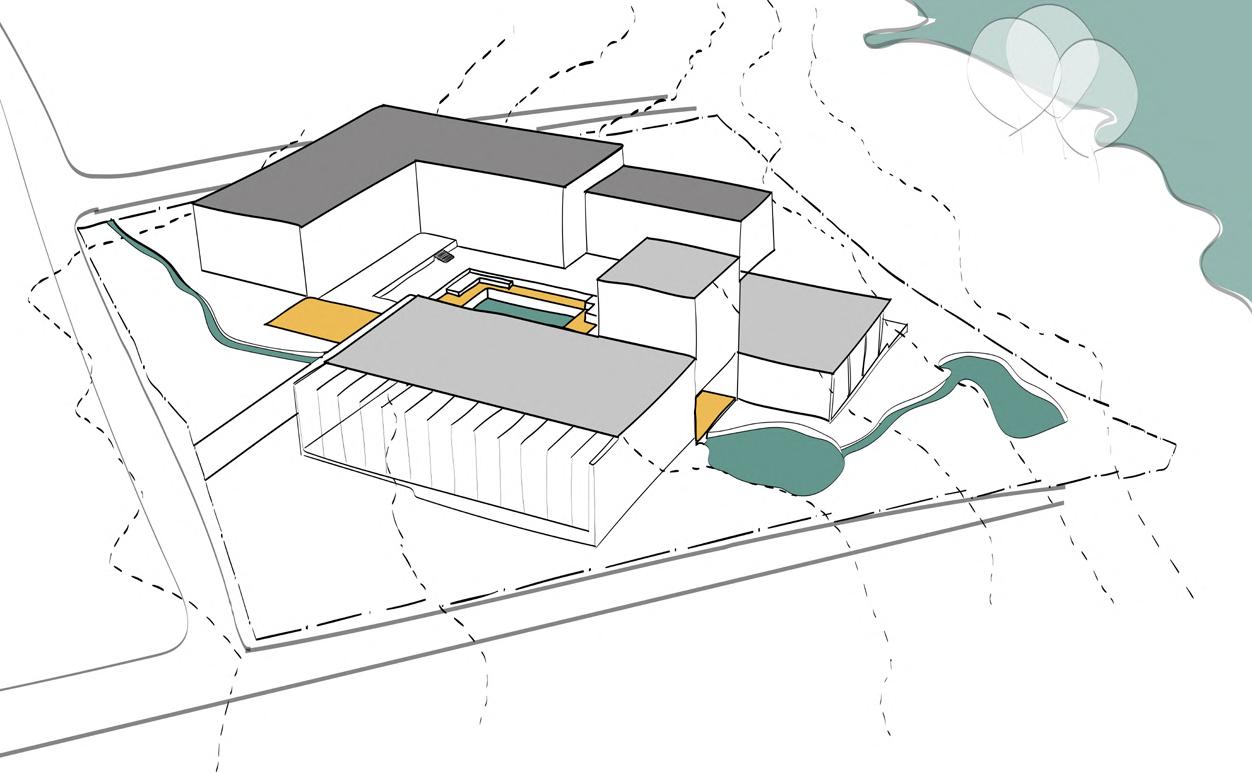

Single block - Derived from the proportions of a classroom/learning space.

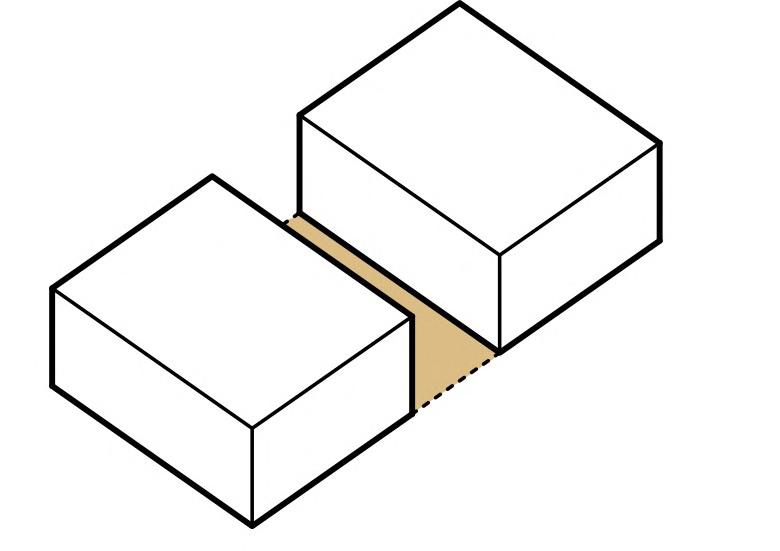

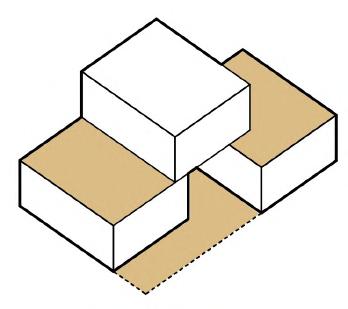

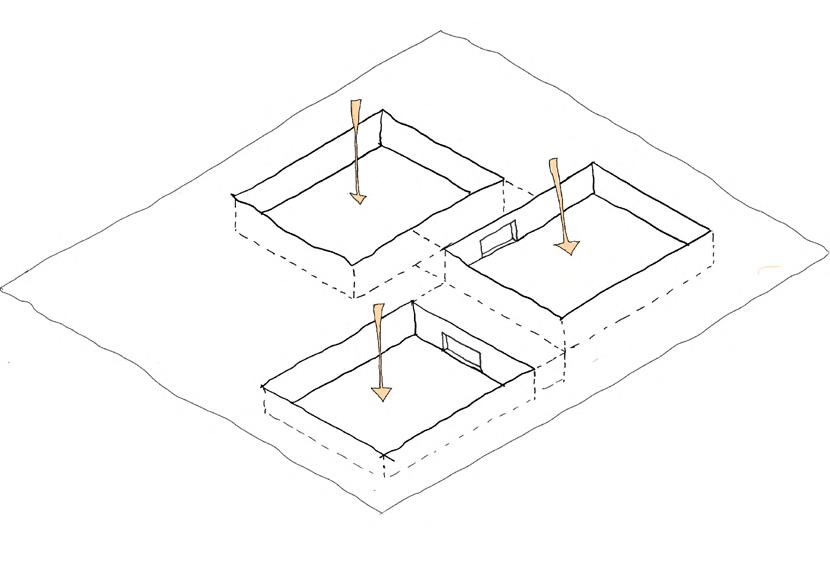

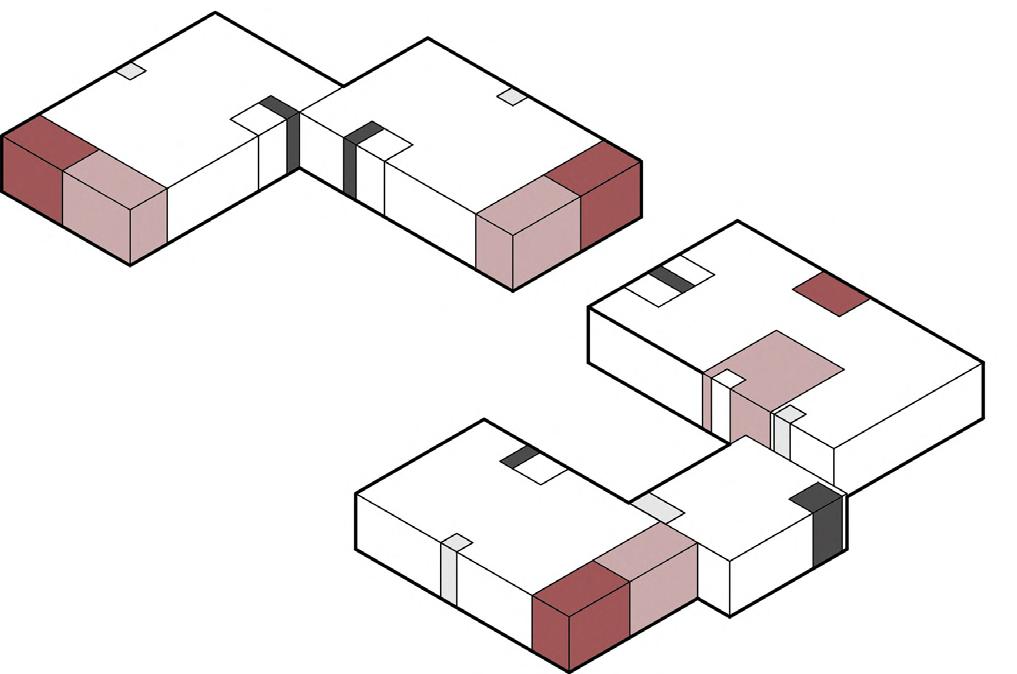

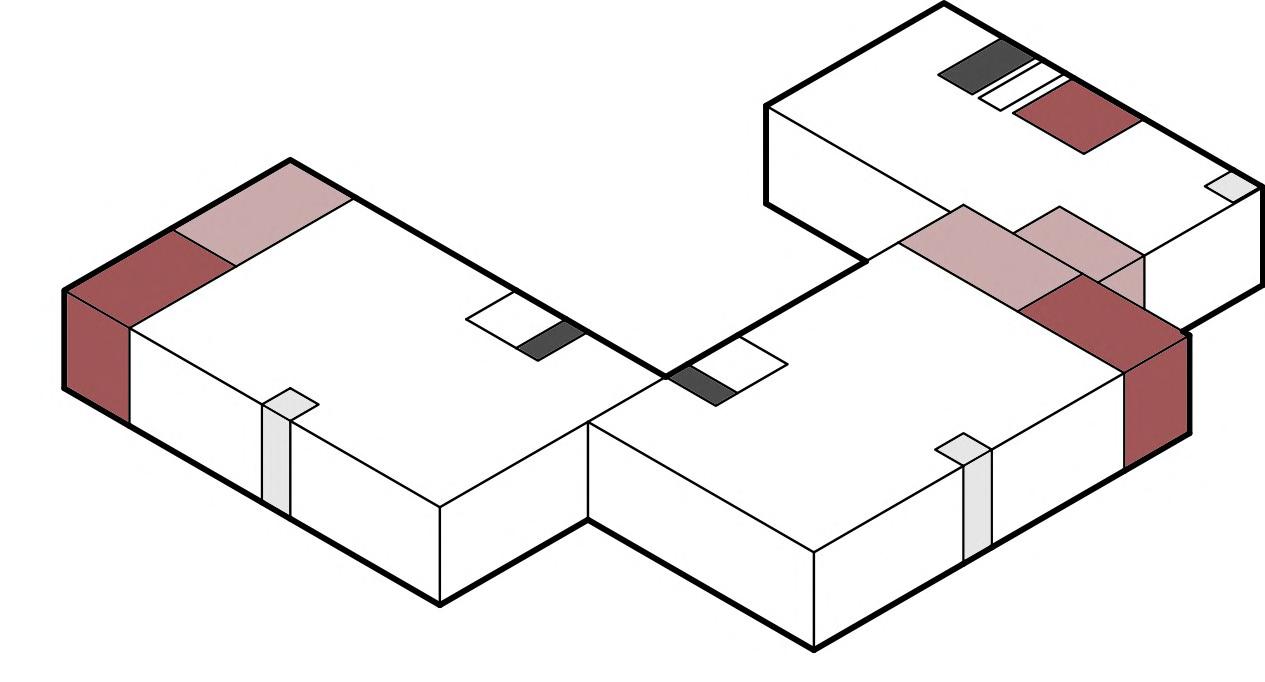

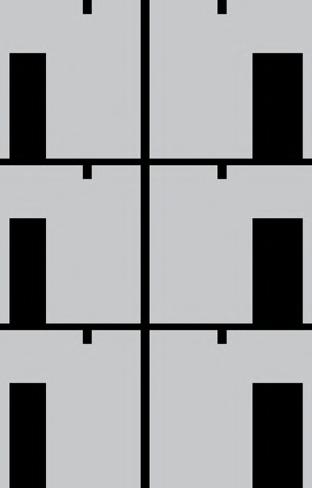

Multiplying the blocks to create various implied spaces, these spaces can be used for various informal activities in an institution.

Applying the concept of implied spaces across levels.

Bringing in aspects of the function.

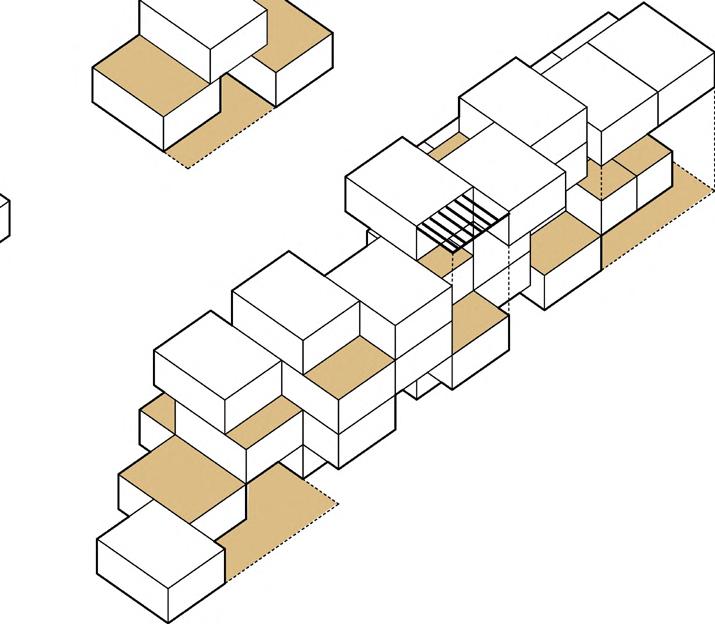

23 FORM DEVELOPMENT

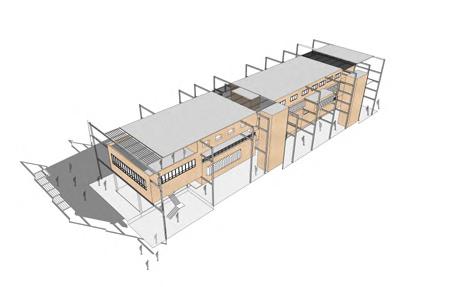

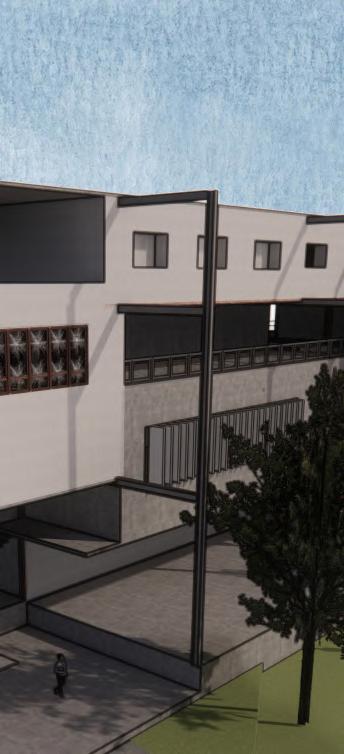

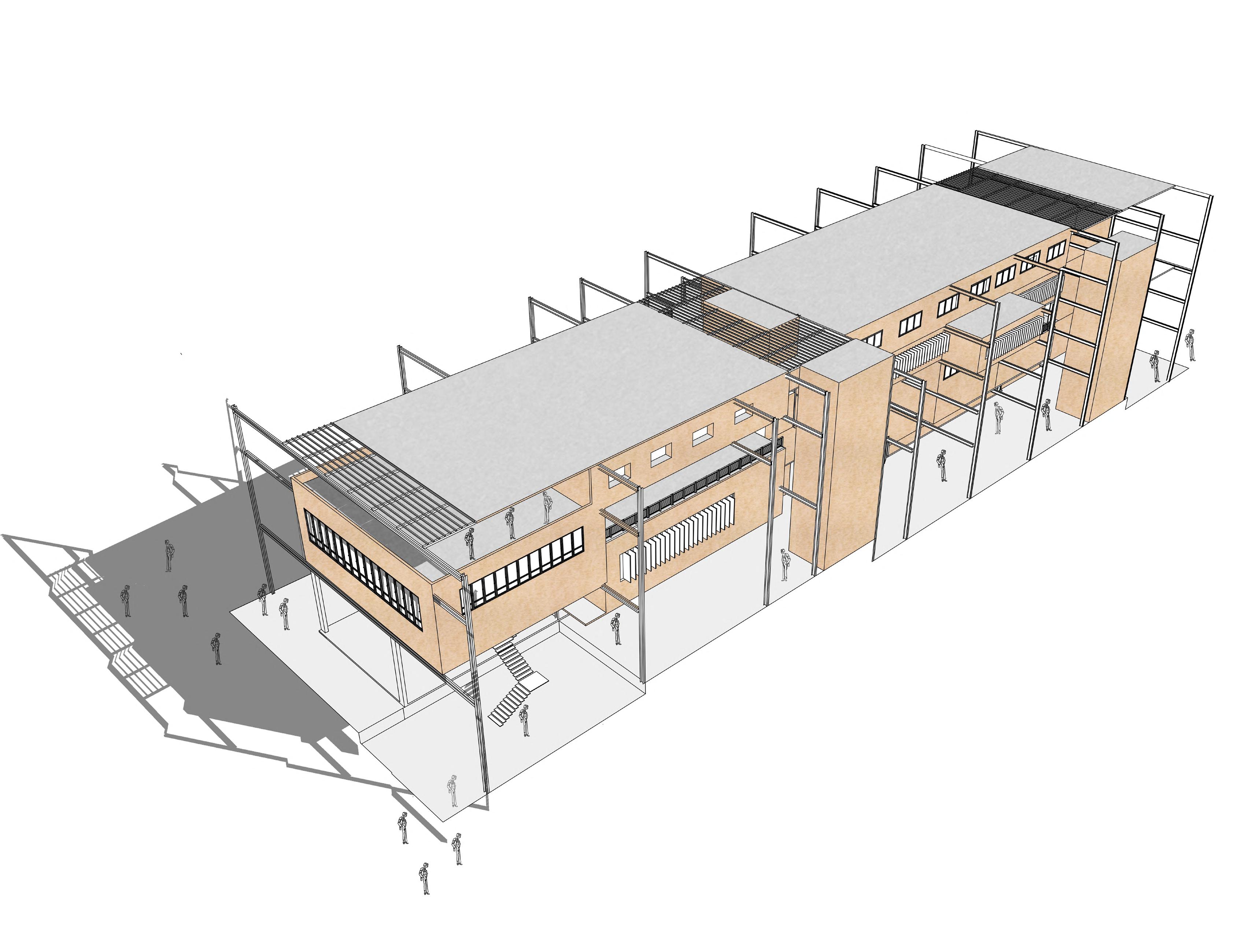

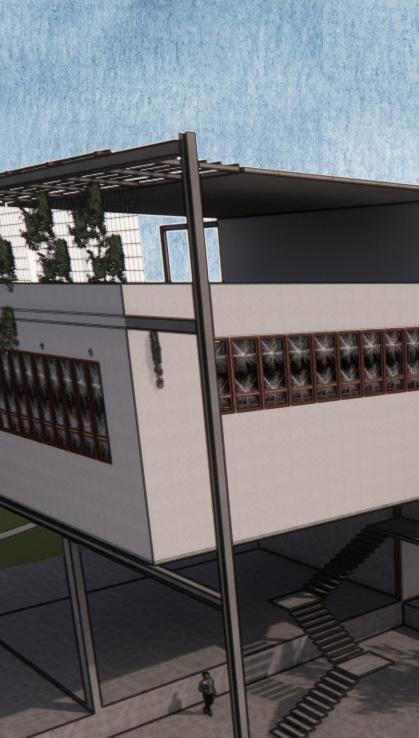

View showing various levels and interlocking spaces.

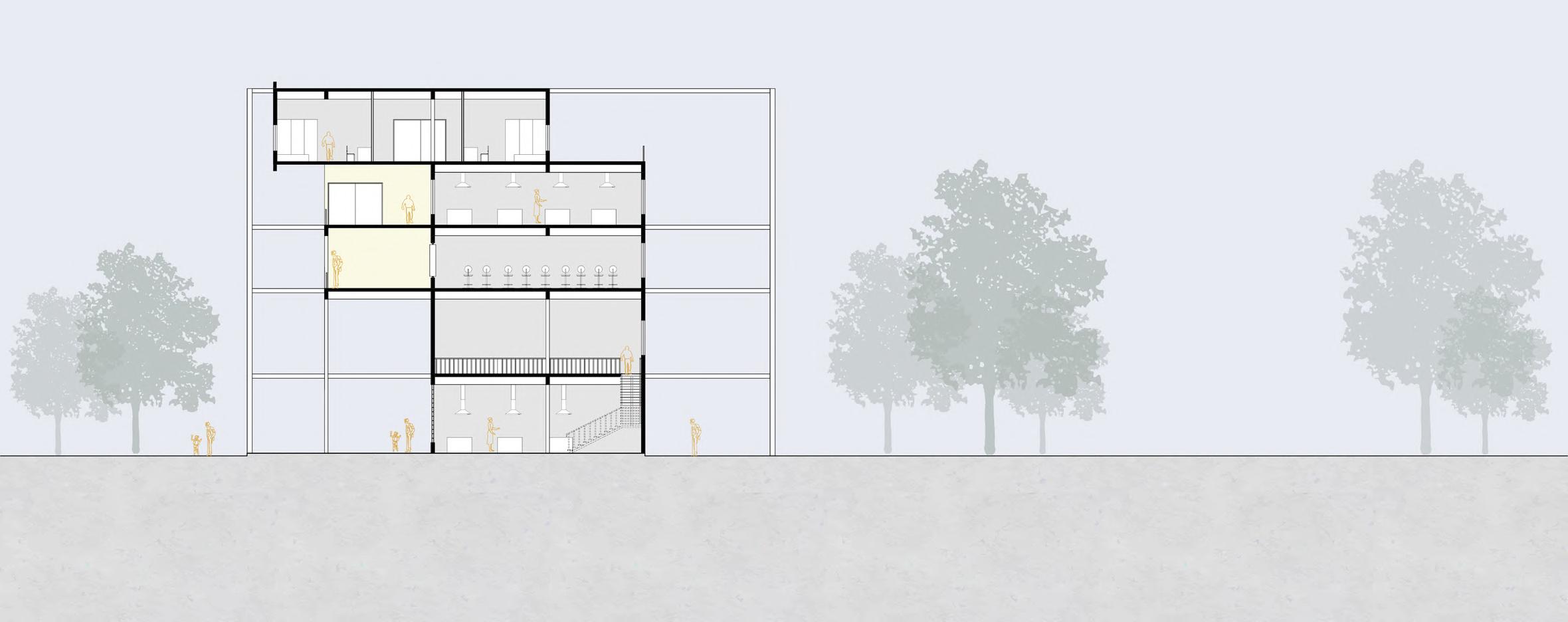

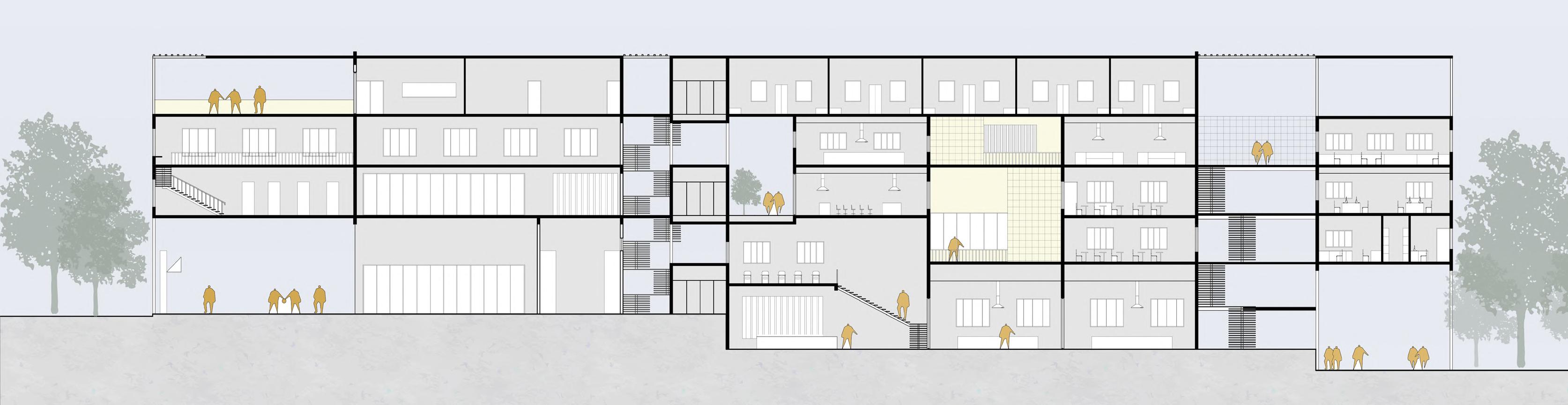

Section AA’

CC’

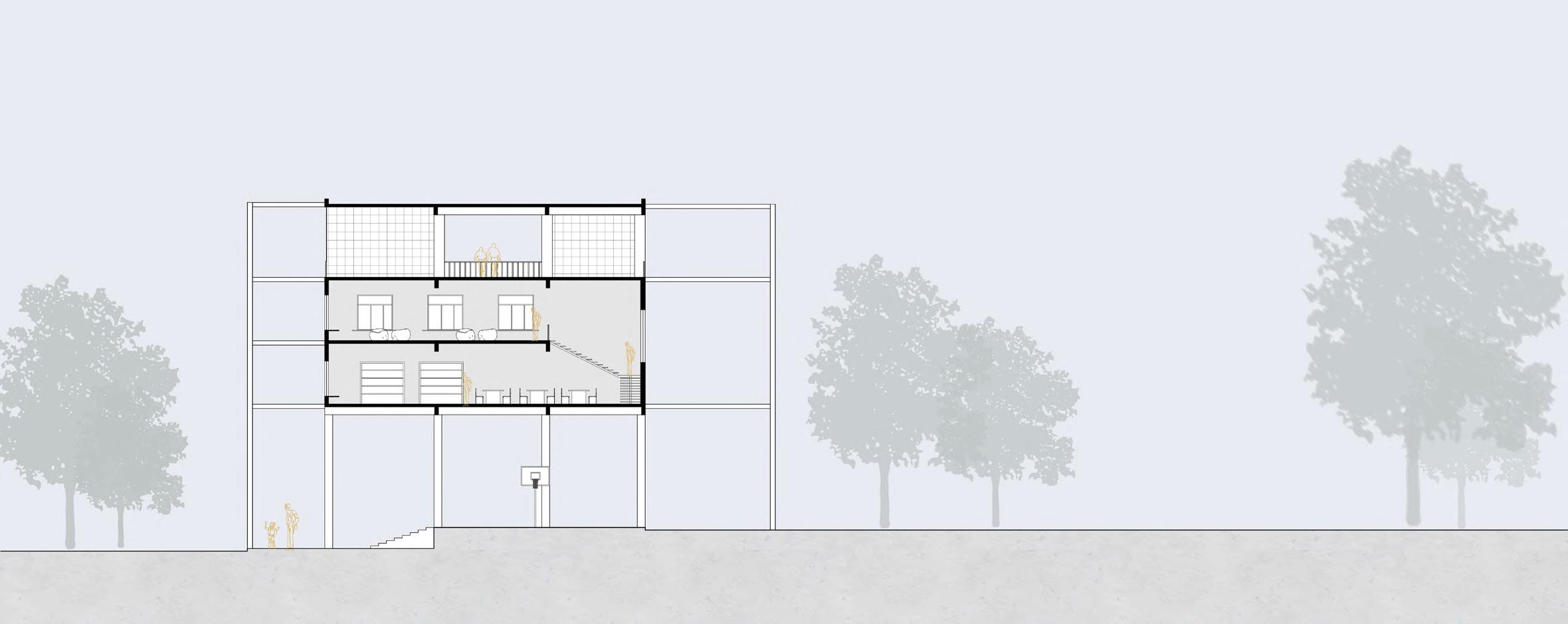

Section BB’

Section

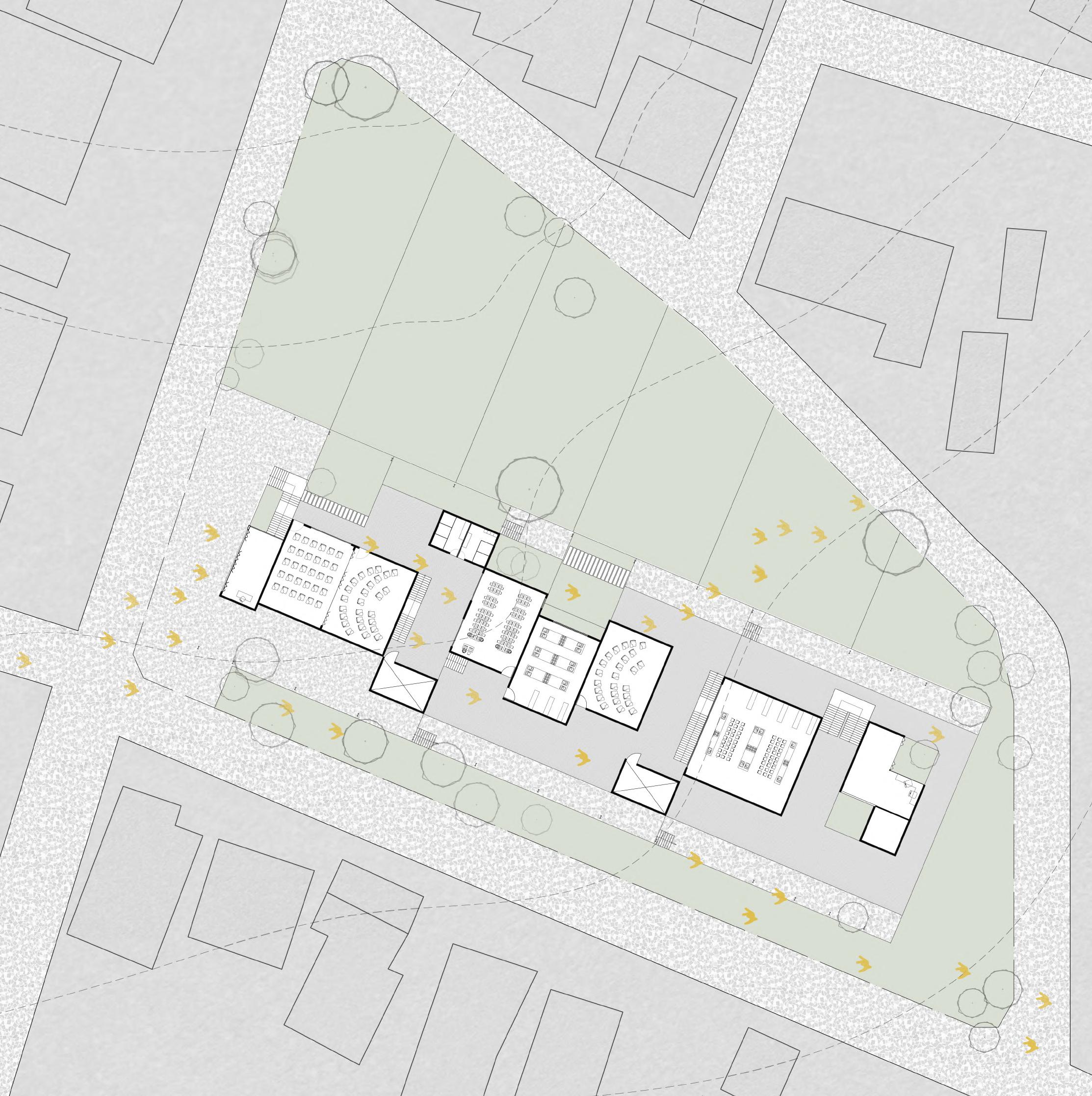

25 Plan at Ground Floor + 4500 C C’ A A’ B B’

Working Drawings 04

Sem 06 3rd Year

Location: Goa

Site Area: 2100 sqm

Duration: 12 weeks

Key Plan

26 D' G' A B C D F L M N O P 3800 5000 3600 3200 4100 3900 4200 3100 2100 5200 3450 LEVEL +1 0 LEVEL +2 3600 LEVEL +3 7000 LEVEL +4 16000 GL 0 LEVEL +1 0 LEVEL +2 3600 LEVEL +3 7000 GL 0 TOILET KITCHEN LIVING ROOM LIVING ROOM BALCONY BEDROOM TOILET KITCHEN LIVING ROOM LIVING ROOM BALCONY BEDROOM TOILET KITCHEN LIVING ROOM LIVING ROOM BALCONY BEDROOM LIVING ROOM LIVING ROOM LIVING ROOM LIVING ROOM LIVING ROOM LIVING ROOM 3450 3450 3200 3450 3450 3450 (3100X2900) (2900X1800) (2900X1800) (3400X 2000) A01 D01 G01 01 02 03 04 05 06 07 08 08A 09 10 01 02 03 04 05 06 07 08 08A 09 A B C D E F G H I J K L M N O P Q R S A B C D E G H J K L M N O P Q R S F

Section 01

GENERAL NOTES:

1.Please do not scale the drawings. Work to written dimensions only.

2.All dimensions are in millimeters unless otherwise stated.

3.These notes are to be followed in conjunction with construction drawings and the specifications for civil and structural works.

4.Drawings shall be read in conjunction with architectural drawings.

5.Number of reinforcement bars shall not be counted from the drawings.

6.Structural design is done based on architectural drawing

ARCHITECTS: Aadithya Vinod, Kashish Singh, Punarva Praveen, Rushil Jain, Shubhanshi Anand

27 BEDROOM (4000X3500) TOILET (2400X1500) LIVING ROOM (4000X2500) KITCHEN (2500X2200) BALCONY (4000X2200) STUDY (2400X2000) BEDROOM (4000X3500) TOILET (2400X1500) LIVING ROOM (4000X2500) KITCHEN (2500X2200) BALCONY (4000X2200) STUDY (2400X2000) BEDROOM (4000X3500) TOILET (2400X1500) LIVING ROOM (4000X2500) BEDROOM (2500X2200) BALCONY (4000X2200) STUDY (2400X2000) BEDROOM (4000X3500) TOILET (2400X1500) LIVING ROOM (4000X2500) KITCHEN (2500X2200) BALCONY (4000X2200) STUDY (2400X2000) 3670 3200 2600 2600 4800 4200 2600 2600 4200 4200 4200 2600 07 08 09 10 D E F G H I J K L M 4200 2600 2600 4200 4800 4200 2600 2600 4200 07 08 09 10 3470 2430 1200 1500 1600 6000 2000 500 500 2000 6000 1600 500 2000 2000 2000 5000 1600 3470 4000 4000 500 1200 1400 1400 3500 1600 600 900 3470 2430 1400 1420 2200 2500 2000 2000 2000 4000 6000 1600 6000 4000 2000 2200 1000 1000 1600 1420 3500 1600 1400 2430 3470 1200 1400 1400 600 900 3600 01 02 04 3450 07 08 09 10 3700 2600 3300 03 2000 3000 2000 1300 1500 800 3600 3600 GL 0 LEVEL +1 3600 LEVEL +1 7000 LEVEL +1 16000 LEVEL -2 LEVEL -1 LEVEL +1 LEVEL +2 700 -500 -3500 LEVEL +1 4320 LEVEL +1 7700 3200 TOILET (3600X1850) (3900X 3600) (3700X 2000) LIVING ROOM (4000X 4000) BALCONY (3700X 18000) LIVING ROOM (3100X 4000) KITCHEN (2800X 2100) BALCONY (3400X 2000) BEDROOM (4800X 3950) TOILET (3600X 1850) UP 2000 2000 2000 2300 1800 1 2 3 4 5 6 A B C D F G 1800 3900 4100 3600 2600 2400 2000 3200 2000 2000 2000 2300 1800 A' D' G' 1 2 3 4 5 6 1800 2000 3900 4100 3600 2600 2400 3200 MD 2200 x 1000 D2 2200 x 900 D3 2000 x 800 D4 2200 x 2000

SCHEDULE OF OPENINGS - DOOR AND WINDOWS Descrip. Size Sill Height Remarks FFL FFL FFL FFL N W1 1200 x 2000 W2 1200 x 800 W3 700 x 1200 W4 1200 x 1400 W5 1500 x 1500 W6 1000 x 600 W7 1000 x 1200 1100 800 1100 1100 1100 1100 1100

DETAILS: HOUSING AT

STRUCTURAL

DIMENSIONS

SCALE 0.1 FLOOR PLAN AT +5400

Section 02

PROJECT

CAMPAL, GOA

ENGINEER: VERIFIED BY: ALL

IN MM

90 sqm Block 60 sqm Block

WINDOW FRAME SHUTTER FRAME GLASS PANE SLIDING RAIL SILL LINTEL B A 680 680 2000 75 1300 150 ELEVATION PLAN SECTION WINDOW FRAME SHUTTER FRAME PLASTER LINE 55 90 DETAIL B 18 WINDOW FRAME SHUTTER FRAME SLIDING SHUTTER PLASTER LINE 90 18 40 15 DETAIL A 28 G01 F 01 1100 3600 1850 A G01 F 01 1050 1100 880 750 3600 1850 SLOPE SLOPE SLOPE SLOPE G01 F 01 1100 3600 1850 Amp G01 F 1050 890 750 WINDOW SECTION DETAIL TOILET PLAN SECTION A PLUMBING LAYOUT ELECTRIC LAYOUT

29 IN OUT GROUND FLOOR LVL +0.5 FIRST FLOOR LVL +3.6 TERRACE LVL +7.2 COPING DRIP MOULD PARAPET WALL WEATHER PROOFING DRIP MOULD BEAM 400X200mm EXTERIOR PLASTER 20mm SILL 3600 3600 650 1600 1200 4000 3600 BASEMENT BEDROOM BEDROOM IN OUT 650 1600 1200 CHAJJA DRIP MOULD WEATHER PROOFING DRIP MOULD CHAJJA SILL DRIP MOULD SKIRTING INTERIOR PLASTER 12mm W4 W4 IN OUT STEEL CHANNEL TIMBER FRAME SHUTTER LINTEL A B 2300 2000 75 100 75 2000 100 75 375 75 100 2000 ELEVATION SECTION PLAN 100 75 75 100 DETAIL A LINTEL STEEL CHANNEL TIMBER FRAME SHUTTER 75 HINGE DETAIL B TIMBER FRAME SHUTTER WALL SECTION DETAIL WALL SECTION DETAIL

Housing at Badami 04

Mentors: Prof. Kukke Subramanyan

Asst. Prof. Julieann Tharakan

Prof. Anand Prakash

Prof. Srinivas S G

Assoc. Prof. BL Manjunath

Prof. Anand Chalawadi

A housing for people interested in learning through travelling and exploring. more often than not one ends up in situations where we stay longer than intended. Sometimes these places lack facilities to comfortably accommodate such changes in the mundane fabric of the place. And in areas where such facilities exist, they either end up being buildings hardly emphasizing on dwelling or they become cultural islands themselves.

Badami, is a small town located in the Northern Karnataka, it has great historic relevance, the Hindu and Jain caves are recognised world-wide and protected.

The demographics of the city suggest that agriculture is a major occupation, the major floating population of the city consists of Historians, photographers, Students, Travel enthusiasts and some percentage of Piligrims, these people also come within our focus group.

To cater to this wide variety of people, the housing had to be flexible to accomadate varying time frames of stay and numver of occupants. To ensure this happens the following types of houses were provided.

60 sqm houses

90 sqm houses

120 sqm houses

Studio Apartment Facilities

Dormitory Faciliy

04 Year

Sem
